A Review of Systems and Technologies for Smart Homes and Smart Grids

Abstract

In the actual era of smart homes and smart grids, advanced technological systems that allow the automation of domestic tasks are developing rapidly. There are numerous technologies and applications that can be installed in smart homes today. They enable communication between home appliances and users, and enhance home appliances’ automation, monitoring and remote control capabilities. This review article, by introducing the concept of the smart home and the advent of the smart grid, investigates technologies for smart homes. The technical descriptions of the systems are presented and point out advantages and disadvantages of each technology and product today available on the market. Barriers, challenges, benefits and future trends regarding the technologies and the role of users have also been discussed.

1. Introduction

The European Standard EN 15232 [1] and the Energy Performance of Building Directive 2010/31/EU [2], which is in line with Directive 2009/72/EC as well as the Energy Road Map 2050 [3], promote the adoption of smart home technologies to reduce energy usage in the residential sector. In the current era of Internet of Things, their development has been recognized as having significant potential to create an interactive energy management system for homes [4]. The new information and communication technologies (ICTs) are, therefore, becoming increasingly embedded in the society by allowing faster and more efficient interaction between users and both public and private environments. They are making people’s lives simpler and better especially in their home environments.

2. State of the Art

In the near future, all homes will have the dedicated artificial intelligence, computational power, communication skills, monitoring and controlling abilities needed to improve everyday activities. A more efficient interaction between people and home appliances will be devoted to improve comfort, healthcare, safety, security and energy savings [5,6]. Homes will hence become smart homes.

2.1. The Advent of Smart Homes

The interaction between humans and their surroundings can take place in different ways. People usually do everyday activities at home and numerous advantages would be gained if the environment could react to humans’ behavior and gestures. The smart home is an intelligent space that is able to respond accordingly to the behavior of residents [7].

The concept of smart homes has been developed since the 1990s. According to one of the most recent definitions provided by Satpathy, “a home which is smart enough to assist the inhabitants to live independently and comfortably with the help of technology is termed as smart home. In a smart home, all the mechanical and digital devices are interconnected to form a network, which can communicate with each other and with the user to create an interactive space” [8]. Alam and Ali [5] define the smart home as an application that is able to automatize or assist the users through different forms such as ambient intelligence, remote home control or home automation systems. These descriptions confirm that, the primary objective of a smart home is to increase occupants’ comfort and make daily life easier [9]. This goal might be achieved, in two ways: (i) by identifying the relevant human activities and increasing their automation in home environments, or (ii) by using remote home control in order to provide high comfort levels, improve security, facilitate energy management, reduce environmental emissions and save energy [10,11]. Smart homes aim to establish a better quality of living by deploying fully-automated control of appliances and providing assistive support [5]. They allow energy efficiency to be enhanced by adapting the operation of devices to occupancy. In a smart home, users and appliances are (inter)connected by an enhanced communication network comprising twisted-pair power lines or fiber optics, which transfer digital signals according to a given communication protocol. Most smart homes have a central communication device, which enables occupants to control home appliances remotely [12]. According to Le et al. [13], smart homes have the following five fundamental characteristics:

• Automation: the ability to accommodate automatic devices or perform automatic functions;
• Multi-functionality: the ability to perform various duties or generate different outcomes;
• Adaptability: the ability to learn, predict and meet the needs of users;
• Interactivity: the ability to allow the interaction among users;
• Efficiency: the ability to perform functions in a convenient manner that saves time and costs.

However, despite their features, smart homes do not automatically become components of the smart grid [14,15,16].

2.2. The Advent of the Smart Grid: A Communication Method for Smart Homes to Overcome Traditional Power Grids

Given the rapidly rising electricity usage in private households and the increasing of environmental and regulatory restraints, the need to improve the overall efficiency of electrical grids has never been greater. Energy efficiency is hence one of the central issues that smart homes and smart grids have to face. Smart technologies monitor household energy usage, and users can control home electricity usage through a direct and bidirectional communication with home appliances. It is also expected a lower fluctuation in the load and a subsequent reduction of network dynamics, higher stability, fewer line losses, and lower operational costs in terms of matching the energy demand with the offer [17]. This is one of the strategies that appears promising to cover the performance gap created by the predicted energy performance of a building and its actual energy usage. Considering that primary energy used in buildings worldwide accounts for approximately 40% of global primary energy usage [18], the improvement of energy efficiency in buildings constitutes a critical issue concerning primary energy saving and a corresponding carbon footprint reduction [19]. This has been the motivation for the development of smart homes, in which almost all the appliances are locally manageable and controlled in real-time [17]. Several studies discuss the effect of providing feedback on energy usage to users employing different technologies [20]. It was found that, displaying real-time information on electricity usage to users, they effectively modify their behavior achieving energy saving of up to 30% [20]. In that regard, smart grids enable communication among buildings, as well as among energy generation systems.

Although the traditional power grid has been serving humanity for about the last 100 years, it is now inadequate to face the increased demand for electricity and the deployment of sensors, active automation tools and bidirectional communication [21]. This last aspect is the most relevant feature that promotes the advent of smart grids. The traditional vision of energy production and consumption is changing because users are starting to generate and use their own energy locally, even if they are not always the only or final consumers of their generated energy. The surpluses are exported to the grid, which means that electricity transfer has to be bidirectional, i.e., energy has to flow in the two directions. In this sense, a smart grid differs from a traditional power grid through its ability to predict, monitor and manage the bidirectional energy flows. It collects information on users’ behavior and actions of the various connected items in order to ensure that energy demand and supply are well balanced as well as energy is efficiently used. Smart homes hence represent the main element of the smart grid where the monitoring of real time energy and environmental data allows energy control and electricity price forecasting at transmission and distribution levels [22].

2.3. The Role of the ICTs in Smart Homes and the Smart Grid

As confirmed by recent studies [23,24], some of the most important advantages provided by the smart grid derive from its capability of improving performance reliability and customers’ responsiveness [22]. The rapid advancements in ICT solutions and smart metering are well suited to tackling the aforementioned limitations of existing power grids. The conversion of traditional electricity grids into smart grids ensures productive interactions among energy providers, users and other stakeholders [25]. The advent of smart grids has fostered the deployment of smart meters, low-cost sensors and smart load devices, and the integration of ICTs in residential energy management programs [19,26]. The integration of advanced ICTs increases the efficiency of the traditional grid by providing more automation, a reliable forecast of electrical loads, and a safer operation of electrical appliances, resulting in a rise in the quality of the energy delivery service and a higher overall user satisfaction [27].

New ICT infrastructures supporting a more efficient smart grid will also include frequent price updates to follow the evolution of the balance between supply and demand in near real-time [22]. They can be set to follow load-shifting programs that offer customers a more effectively way to manage the cost of their electricity bill. They work by storing relatively inexpensive electricity during off-peak demand periods and using this stored energy during peak periods, when electricity energy prices are high. These actions allow users to reduce the cost of their electricity bill and save energy [28].

Another possibility that can consistently contribute to energy saving in buildings is to use more efficient appliances. A study conducted by Berardi’s [29] estimated how much energy can be saved using highly efficient appliances in households: up to 20% in China [30], by 30% in India [31] and by 27% in Brazil [32]. The same strategy is being adopted in the US where, during the last few years, electricity consumed in buildings has slightly increased because the use of appliances, electronics, and electric lighting has risen from 24% in 1993 to more than 34% in 2009 [29].

The new method of energy distribution made possible by the advent of the smart grid has contributed to improving energy savings in the building sector. In recent years, several studies in this field supported by the European Community focused on the analysis and optimal design of modern distribution systems that aim to minimize the operational cost and maximize the profit of the users [33].

To achieve high energy efficiency in the smart grid, distributed energy resources have to be well managed and load can be reduced implementing a demand-response (DR) approach. Residential DR is strictly related to the users’ behavior. It is also often linked to the price of energy during the day [34].

2.4. The New Role of the Users

Changes in the users’ behavior are also another important factor in relation to the improvement of the energy performance of buildings. The data from Intergovernmental Panel on Climate Change (IPPC) showed that behavioral changes could affect energy savings in lighting by up to 70% [35]. Recently, users have become more conscious of energy usage in buildings and are increasingly interested in real-time energy monitoring and controlling devices and tools [36]. Furthermore, the market for residential energy management is poised to grow dramatically due to increased users’ demands and new governmental and industry initiatives [37]. Different energy efficient routing protocols and energy management systems have been proposed [38,39,40] to provide information about energy usage patterns. They offer users actionable information and control features while ensuring ease of use, availability, security, and privacy [41].

3. Aim of the Work

This article aims to present a systematic review of existing software, hardware, and communications control systems for smart homes currently available on the market. It gives an overview of the status of smart home technologies by discussing the main relevant features and pointing out the strengths and weakness of each technology and product. It is a guide for users, who need to choose the technology that best suits their needs.

4. Classification Criteria for the Selection of Smart Home Technologies

The existing communication networks strive to increase the exchange of information among utilities, home appliances, and users. The diverse directionality and complexity of the existing communication devices represent a challenge. The growing trend is the development of bidirectional communication using a Home Automation Network (HAN) to monitor and control home appliances; de facto realizing a demand-response (DR) system. According to a report published by the American Council for an Energy-Efficient Economy [42], some of the systems from among the new feedback initiatives that make energy resources visible to residential users achieve the maximum feedback-related savings. If all systems are to do this, they will require a combination of useful technologies with well-designed programs that successfully inform, engage and motivate the users via the following determining factors [43]:

• Data collection: the technology allows the collection of all relevant data and provides access to them;
• Data processing: the technology allows the processing and analyzing of relevant data and can combine them;
• Data representation: the technology allows the relevant data to be made accessible to the users;
• Control and interaction capabilities: the technology enables users to access the status and monitor the functions of related technologies (bidirectional communication and interaction).

These factors need to be considered when tailoring the data that should be provided to end-users [44,45]. Collected data can be shown to users as: (i) direct feedbacks, which are the representation of the collected data typically provided in real-time; and/or (ii) indirect feedbacks, which are derived from a post-processing task and provided after the energy usage has occurred. Direct feedbacks are: real-time plus feedback (i.e., real-time information about the level of energy used by the appliance), real-time feedback (i.e., real-time premise level information), while indirect feedbacks are daily or weekly feedback, which is that are household-specific information and advice on a daily or weekly basis, estimated feedback (i.e., typically web-based energy audits with information supplied on an on-going basis), and enhanced billing (i.e., household-specific information and advice) [42]. Figure 1 shows the percentages of annual household electricity savings based on 36 studies implemented between 1995 and 2010 [42].

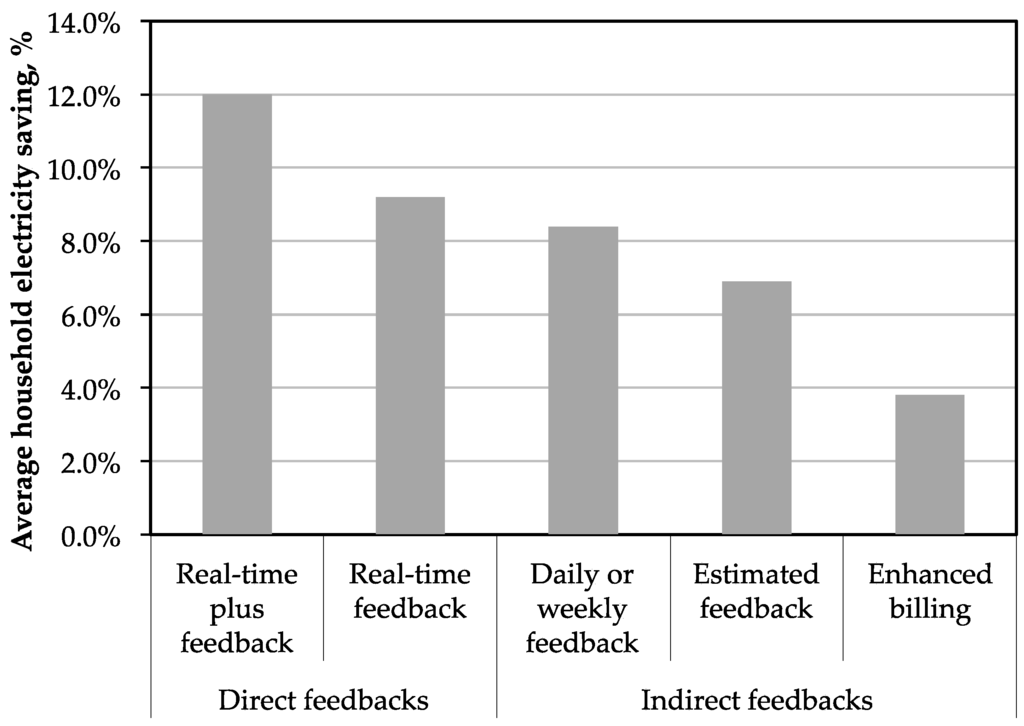

Data can be presented in different ways, for example energy, peak power, cost, ecological footprint etc. and they can be compared with benchmarks and historical trends, but, to be effective, feedbacks to the end-users should be:

• Direct: the more immediate the feedback is, the more effective it is, but it requires a certain degree of knowledge and preparation from users;
• Personalized: the way of presenting data is customized to end-users’ needs;
• Comparable: end-users can compare their actual electricity usage with benchmarks as well as with their historical data;
• Flexible: the feedback technology needs to be continually improved, in response to users’ suggestions and requests.

It is also clear from the literature that the way to communicate the feedbacks to the end-users involves two main approaches:

• Systemic: the house exists in a systemic context, and the data, retrieved by means of a smart grid, are presented at an individual household level and compared with the average system performance [45].
• Gamification: the feedback is presented by using elements and concepts that are typical in computer games and is often integrated in a graphical user interface (GUI).

In the following sections, the most relevant technological devices and integrated software or applications today available on the market for improving the interaction between users and home appliances are presented, compared and discussed.

5. Review of the Technologies for Smart Homes

The most relevant technologies for smart homes discussed in this article, were grouped according to the following four categories:

• Integrated wireless technology (IWT);
• Home energy management system (HEMS);
• Smart home micro-computers (SHMC);
• Home automation (SHS/HA).

Table 1. Summary of the analyzed smart home technologies.

Symstems and Technologies	Company	Country	Automation				Visualization			Wireless Protocol								Commercial Availability		Source Availability Model
			On			Off
			RC	SM	S		DD	PC	App	ZB	ZW	BT	RFID	GSM	IN	Wi-Fi	Other	Web	Prod	Op.	Cl.
IWT	6LoWPAN	International	–	–	–	√	–	–	–	–	–	–	–	–	–	–	√	–	√		√
	Bluetooth	Sweden	–	–	–	√	–	–	–	–	–	√	–	–	–	–	–	√	√	√
	DASH7	Europe	–	–	–	√	–	–	–	–	–	–	–	–	–	–	√	–	√	–	√
	EnOcean Technology	International	√	√	√	–	–	√	√	√	–	–	–	–	–	–	–	√	√	√	–
	GSM	International	–	–	–	√	–	–	–	–	–	–	–	√	–	–	–	–	√	–	√
	MyriaNed	The Netherlands	–	–	√	–	–	–	–	–	–	–	–	–	–	–	√	–	√	–	√
	NeuRFon™ Netform	International	–	–	√	√	–	–	–	–	–	–	–	–	–	–	√	–	√	–	√
	RFID	International	–	–	–	√	–	–	–	–	–	–	√	–	–	–	–	–	√	–	√
	UWB	International	–	–	–	√	–	–	–	–	–	–	–	–	–	–	√	–	√		√
	Wifi	USA	–	–	–	√	–	–	–	–	–	–	–	–	–	√	–	√	√	√
	Z-wave	International	–	–	–	√	–	–	–	–	–	–	–	–	–	–	–	√	√		√
	ZigBee	USA	–	–	–	√	–	–	–	√	–	–	–	–	–	–	–	√	√	√
HEMS	CISCO	USA	–	√	√	√	–	–	√	–	–	–	–	–	–	√	–	√	√		√
	DigitalSTROM	Germany	√	√	√	–	–	–	√	–	–	–	–	–	–	√	–	√	√		√
	Dreamwatts	International	–	√	√	–	√	–	√	√	–	–	–	–	–	√	–	√	√	–	√
	e-GOTHAM	Europe	–	√	√	–	–	–		√	–	√	–	–	–	√	–	√	√	√	–
	EmonCMS	International	–	√	–	√	–	–	√	–	–	–	–	–	–	√	–	√	√	√	–
	Energy Team	Italy	–	√	√		√	–	√	–	–	–	–	√	–	√	–	–	√		√
	Google PowerMeter	USA	–	√	–	√	–	–	√	–	–	–	–	–	–	√	–	√	–	√	–
	Savant	USA	√	√	√	√	√	√	√	–	–	–	–	–	–		–	√	√		√
	SMARTHEMS™	Japan	√	√	√	√	–	√	–	–	–	–	–	–	–	√	–	√	√	–	√
	The Energy Navigator	Germany	√	√	√	–	–	√	–	–	–	–	–	–	–	–	√	–	√	–	√
SHMC	Arduino	Italy	–	–	–	√	–	√	–	√	–	–	–	–	–	√	–	–	√	√	–
	Banana Pi	United Kingdom	–	–	–	√	–	√	–	√	–	–	–	–	–	√	–	–	√	√	–
	BeagleBone	USA	–	–	–	√	–	√	–	√	–	–	–	–	–	√	–	–	√	√	–
	Raspberry Pi	United Kingdom	–	–	–	√	–	√	–	√	–	–	–	–	–	√	–	–	√	√	–
	Libelium Waspmote	Spain	–	–	–	√	–	√	–	√	–	–	–	–	–	√	√	–	√	√	–
SHS/HA	British Gas	United Kingdom	–	√	–	–	–	√	√	–	–	–	–	–	√	–	–	–	√	√	–
	Control4	USA	√	–	√	–	√	√	√	√	–	√	–	–	–	√	–	√	√	–	√
	Creston	USA	√	√	√	–	√	√	√	–	–	–	–	–	–	√	–	√	√	–	√
	GE Brillion Technology	USA	√	–	–	–	–	–	√	–	–	–	–	–	–	√	–	–	√	√	–
	HomeSeer HS3	–	–	–	–	–	√	√	√	–	–	–	–	–	–	–	–	√	–	–	√
	Honda	Japan	–	√	–	√	–	√	–	–	–	–	–	–	–	√	–	√	√	√	–
	iHome	USA		√		–	–	–	√	–	–	–	–	–	–	√	–	–	√		√
	Iris	USA	√			–	–	–	√	–	√	√	–	–	–		–	√	–		√
	KNX	Europe	√	√	√	–	√	√	√	√	–	√	√	–	–	√	–	√	√	√	–
	LGSmart Thinq	South Korea	√	√	–	–	√	–	√	–	–			–	–	√	–	–	√	–	√
	LonWorks	USA	√		√	–	–	√		–	–		√	–	–		√	–	√	–	√
	Nexia	USA	√			–	–	–	√	–	√			–	–		–	–	√	–	√
	OpenHAB	Germany	√	√	√	–	–	√	√	√	–	√		–	–	√	–	√	√	√
	Panasonic	Japan	√	–	–	–	√	–	√	–	–			–	–	√	–		√		√
	Samsung SmartThings	South Korea	√	–	–	–	–	–	√	–	–	–	–	–	–	√	–	√	–	–	√
	Staples Connect	USA	√	–	–	–	–	–	√	√	√	√	–	–	–	√	–	√	√	–	√
	UPnP Technology	International	–	–	–	√	√	–	–		–	–	–	–	–	√	–	√	√	√
	Vera smarter home control	China	–	–	–	–	√	–	–	√	√	–	–	–	√	√	–	–	√	–	√
	WeBee	USA	√	√	√	–	–	–	√	√	–	–	–	–	–	√	–	√	√	√
	Whirlpool	USA	√	–	–	–	√	–	√	–	–	–	–	–	–	√	–	–	√	–	√
	Wink	International	√	–	–	–	–	–	√	–	√	√	–	–	–	√	–	–	√	–	√

Automation. It can be disabled (Off) or enabled (On). In the latter case, it is also reported if the automation is activated by a remote control (RC), by a smart meter (SM) or by a sensor (S); Visualization of feedbacks to users: Dashboard or display device (DD), physical component (PC), App; Adopted wireless protocol: ZigBee (ZB), Bluetooth (BT), Z-Wave (ZW), Radio Frequency Identification (RFID), Global System Mobile (GSM/GPRS), Insteon (IN), Wi-Fi and other; Commercial availability of the product: on a website (WS) or from the producer (Prod.), Source availability model: it is an open (Op.) or a close (Cl.) source. The symbol (√) means that is present in the system/technology, while “–“ means that is not present.

collects and organizes all the analyzed technologies, systems and products.

5.1. Integrated Wireless Technology and Network

Several studies on information and communications technologies for smart grids and smart homes can be found in literature [46]. Parikh et al. [47] presented several wireless communications options. They discuss the main challenges of each wireless technology. IWT is a communication commonly used within an office building, a private home or any other residence in order to allow internal and external short-range communication throughout smart home technology. IWTs are often preferred to wired technologies. The use of wired solutions, would be economically and/or physically prohibitive for many smart grid applications. Instead, wireless technologies give benefits such as a lower cost of equipment and installation, a quick deployment, widespread access and greater flexibility [48,49].

Furthermore, IWT systems could be implemented through a GUI to monitor and control home appliances remotely. It allows integration and communication within home energy management systems, whereas IWT has some disadvantages when integrated into a smart grid. They do not currently include local renewable energy generation systems such as Photovoltaic (PV) panels.

In this section, the most used wireless communication technologies (WCTs) and network protocols suitable for home area networks are discussed and compared (

Table 2. Comparison among the different integrated wireless technologies.

IWT	Description and Main Features	Max Transmission Speed/Operation Range	Transmission Distance	Standard	Internet Protocol (IP) Support	Adoption Rate	Strengths	Reference
6LoWPAN	(1) Its full name is IPv6 over Low-Power Wireless Personal Area Networks; (2) It is a networking technology that allows IPv6 packets to be carried efficiently within small link layer frames, such as those defined by IEEE 802.15.4; (3) It enables IEEE 802.15.4 (IEEE * subcommittee for low rate WPAN) and IPv6 to work together in order to achieve IP enabled low-power networks of small devices including sensors, controllers etc.; (4) The standard IETF RFC 4944 describes the mechanism of combining IP and WPAN technologies	250 kbps, 2.4 GHz; 40 kbps, 915 MHz; 20 kbps, 868 MHz;	Up to 200 m	IETF RFC 4944; IEEE 802.15.4	IPv6	Medium	(1) Benefits of both IP and Bluetooth; (2) Low energy usage	[51,52]
Bluetooth	(1) It is wireless communications system used to exchange data over short distances; (2) It employs short-wave length radio transmission in the Industrial, scientific and medical (ISM) band (2400–2480 MHz); (3) Its main features are low energy usage and fast data exchange as well as widespread availability	721 kbps for v1; 2.1 Mbps for v2.0 + EDR **; 24 Mbps for v3 + HS ***; 25 Mbps for v4	10 m typical	IEEE 802.15.1	–	Extremely high	(1) Ease of access; (2) No configuration requirement;Secure connection	[53,54]
DASH7	(1) It is an open source wireless network protocol for sensors and actuators, which operates in the 433 MHz, 868 MHz and 915 MHz unlicensed ISM band/SRD band;It provides multi-year battery life; (2) It ranges of up to 2 km; (3)It has low latency for connecting with moving things; (4) It has a very small open source protocol stack	200 kbps	0–500 m and 0.3–1 km	ISO/IEC 18000-7	Yes	Medium	(1) It penetrates concrete and water; (2) It transmits and receives over very long ranges without requiring a large power draw on a battery	[55]
	(5) It has AES 128-bit shared key encryption support; (6) It has a data transfer of up to 167 kbit/s; (7) DASH7 Alliance Protocol is the name of the technology promoted by the non-profit consortium called the DASH7 Alliance
EnOcean Technology	(1) It is an innovative energy harvesting wireless technology with the smallest amount of energy from their environment; (2) It consists of wireless technology components for self-powered wireless control, signalling and monitoring of systems	It is on the 868.3 or 315 MHz frequency	30 m (in-doors)	ISO/IEC 14543-3-1; IEEE 802.15.4	Yes	Medium	(1) Energy management and highly efficient energy storage; (2) It uses wireless standards optimized for solutions with ultra-low power consumption.	[56]
GSM	(1) Global system mobile (GSM/GPRS) is a mobile phone communication that operates in geographical cells. The sizes of these cells depends on the required need for traffic distribution and demand; (2) It is better known as a mobile wireless system and it operates at either 900 MHz or 1800 MHz frequency band	270 kbps	Several kilometers	Gaussian Minimum Shift Keying (GMSK)	Yes, static and dynamic IP	Widely adopted	(1) Low cost; (2) High-quality signal; (3) High compatibility	[57]
MyriaNed	(1) It is a self-organizing, gossiping wireless sensor network (WSN) platform; (2) It uses an epidemic communication style based on standard radio broadcasting; (3) It is inspired by biological processes where many nodes (e.g., birds, ants, cells) operate in large distributed systems (flocks, organized colonies, organisms); (4) Its technology is a decentralized system based on bottom up approach, where the behavior of a single element (node) will result in emerging behavior of the system (application)	2.4 GHz radio frequency; 868 MHz radio frequency; Other frequencies are under development	Several meters	MyriaNed GOSSIP protocol; MAC **** protocol	Yes	Medium/low: the system is developing	(1) Low energy usage; (2) Low cost; (3) Scalable; (4) Self-configuring	[58]
NeuRFon™ Netform	(1) It is a self-organizing wireless network for low data rate, low-power fixed sensor nodes; (2) The protocol utilizes a logical backbone architecture through which data communication between all the network nodes are supported by hierarchical routing	250 kbps	20 m	IEEE 802.15.4; MAC **** protocol	–	Medium	(1) Low data rate; (2) Low energy usage	[59]
RFID	(1) Radio frequency identification (RFID) is a system that transmits the objects identity wirelessly by radio waves; (2) It can be categorized based on its used frequency range: low (124–135 KHz), high (13.56 MHz) and ultra-high frequency (860–960 MHz)	Low 124-135 KHz; High 13.56 MHz; Ultra-high 860–960 MHz	Low 30 cm; High 1.5 m; Ultra-high 1–15 m	Various standards	Yes	Widely adopted	(1) Stable technology; (2) Continue evolution; (3) Open architectures becoming increasingly available	[60]
UWB	(1) It has recently attracted much attention as an indoor short-range high-speed wireless communication [36]; (2) One of the most interesting characteristics is that its bandwidth is over 110 Mbps (up to 480 Mbps), which can satisfy most of the multimedia applications such as audio and video delivery in home networking; (3) It can also act as a wireless cable replacement of high speed serial bus such as USB 2.0 and IEEE 1394	100 Mbps	10 m	802.15.3a	Yes	Medium	(1) Indoor short-range high-speed; (2) Its bandwidth satisfies most of the multimedia applications	[61]
Wi-Fi	(1) It is a very popular technology used in HANs, mobile phones, personal computers and many other electronic devices; (2) Its main feature is the existing wide support: almost every new electronic device, be it a personal computer, laptop, game console or a peripheral device, comes with installed Wi-Fi technology;	300 Mbps	100 m	IEEE 802.11	IPv6	Extremely high	High speed mature standard	[62]
	(3) It is generally upper layer protocol with IP being the most predominant protocol, allowing communications over the internet without needing a protocol translator
WLAN	(1) Wireless local area network (WLAN) employs the spread spectrum technology, so that users can occupy the same frequency bands while causing minimal interference to each other; (2) Also known as Wireless Ethernet, it is able to provide robust communications with low latency and capable of point-to-point as well as point-to-multi-point transmissions	150 Mbps	250 m	IEEE 802.11	IPv6	Extremely high	Low interference from users	[63]
Z-Wave	(1) It is a proprietary standard intended exclusively for remote control applications in residential and business areas; (2) This protocol works at 868 MHz in Europe and 908 MHz ISM band in USA; (3) It has typically 30 min door range, which extends up to 100 m outdoors; (4) Mesh networking is employed in Z-Wave, essentially meaning an unlimited range; (5) The main advantages of this technology comes from simple command structure, freedom from household interference, low-band width control medium and IP support	100 kbps	30 m indoor; 100 m outdoor	Proprietary	Yes	Medium	No interference from household devices	[64]
ZigBee	(1) It is a wireless mesh network that proved to be very efficient and cost effective; (2) It offers low data rate for Personal area networks (PANs); (3) It can be used broadly in device control, reliable messaging, home and building automation, consumer electronics, remote monitoring, health care, and many other areas	250 kbps (2.4 GHz); 40 kbps (915 MHz)	10–75 m	IEEE 802.15.4	IPv6 only in SEP2	Widely adopted	Low cost, low power usage, high number of nodes	[62,65,66]

IEEE *: Institute of Electrical and Electronics Engineers; EDR **: Enhanced Data Rate; HS ***: High Speed; MAC ****: Medium Access Control.

).

Figure 2 shows the top-level architecture of a smart home. It includes a server/gateway/router as a connection within the house and to the smart grid. These can be installed using one or a combination of the available external networks such as phone lines, digital subscriber lines (xDSL), cable, and power line networks.

5.2. Home Energy Management

Development of the home energy management system (HEMS) started due to the energy shortage and the effects of global warming. Since its first application in 1976 [67], it has become one of the most popular research topics. The HEMS allows the energy usage of a building to be managed and controlled automatically and helps reduce peak demand for electricity and users’ electricity bills [41].

The number of HEMS installations is rising in areas of North America and Europe that have a high latitude, because of the number of hours of darkness each year. In those areas, the HEMS reduce quite significantly the total electricity demand: up to 30% of the electricity load takes place during peak hours. The peak load can be reduced by, on average, 30% and the operational cost of electricity by 23% [26,68,69].

In smart grids, the use of energy management systems has become a priority to distribute locally the energy generated by users according to the prices of the energy, which is regulated by daily rates. A future trend might be operating using specific hourly rates, i.e., real time pricing (RTP), time of use (ToU), inclining block rates (IBR), critical peak pricing (CPP) etc.

If this method is used, the HEMS will improve the number of products that customers could use to perform daily tasks such as viewing data on energy usage, controlling thermostats, and individual home appliances, looking at tips on ways to save energy, manage a profile for participation in demand-response programs, and viewing their account and billing information. According to LaMarche et al. [69] and Green Tech Media [70], all types of products available on the residential market can be divided into three categories (control devices, graphical user interfaces, and enabling technologies) that include the fundamental aspects summarized in

Table 3. Descriptions and examples of HEMSs. Source: [69].

Category	Technology	Description	Examples
Control devices	Centralized	It allows communicating with multiple appliances in the home environment. The users can manage them from a single location and often using multiple inputs	Home automation (HA) systems; Whole-home lighting control systems; Security systems
	Device/Appliance-Level	User controls a single device or function and standalone control	Lighting control with motion sensors, dimmers, remotes, scheduling; Thermostats; Smart plugs; Smart power strips
	On-Board (automated on appliance level)	Control functionality integrated in the device	Smart appliances, e.g., that respond to grid; Office equipment power management; Smart light bulb
Graphical User Interfaces	Home Energy Display	Stand-alone in home display; often portable	Many HEDs on the market have compatible web dashboards or are able to connect to third party freeware; Utilities implementing smart meters often provide their customers with web dashboards
	Web Dashboard/Portal	Online interface accessible from any Internet-enabled device
	Smartphone Application	Device-specific interfaces for iPhones, Android phones, and others	Current products typically pull information from a home energy display and generates processed data;
	Others (e.g., TV)		Multimedia approaches include combinations of display/web/phone feedback
Enabling Technologies	Sensing	Acquisition of dynamic variables within the home environment	Smart meters; Temperature sensors; Occupancy sensors
	Communications	Physical devices necessary to support the network	Gateways; Range extenders; Home area networks
	Communication Protocols	Standards that allow individual nodes within a network to communicate	Insteon; Z-wave; ZigBee; Others

.

The advantages of the HEMS are:

(i)

The increased savings for both users and utilities providers;

(ii)

A reduced peak-to-average ratio and peak loads;

(iii)

They can include local energy production from renewable sources;

(iv)

They allows the household to be inserted in a systemic context, as a separate local grid, and allow it to be connected to the outside world, i.e., creates a smart grid;

(v)

They allow for historical comparisons of home energy usage.

The use of a centralized control function for the user interface, which includes a control for the use of appliances, is recommend and it would be useful to educate the end-users on how to use the integrated automated controls systems to avoid having automation that the end-users do not know to operate properly. Although, it would be necessary to develop a tailor-made user interface for a HEMS to work in smart homes, HEMS would enable the use of locally generated energy, the integration of energy storage, and an efficient connection with a smart grid. A comparison of the analyzed HEMS available on the market is presented in

Table 4. Comparison of the analyzed HEMS.

Product Name	Main Features	Strengths	Weaknesses	Reference
CISCO	It provides energy management to industry of all sizes and homes. The service, called Cisco Energy Optimization Services, uses advanced technology to maximize energy and cost savings across the network and datacenters;	(1) Demand-response programs: utilities can significantly improve grid capacity and asset usage at peak times by reducing the load on generation and distribution; (2) The pricing programs, such as critical-peak and time-of-day, for reducing and shifting the power demand have been embedded	The system has not been integrated in the CISCO Connected Grid Energy Management system	[71]
DigitalSTROM	It is a system that connects all home electronic devices through the existing power lines. It includes a control system and smart metering	(1) The system works using the existing electric power lines of the house; (2) The components of the system are largely invisible and they could be applied on any equipment of the house that works with electricity; (3) There are many apps compatible with the system	(1) The system works well only with dedicated apps; (2) The system cannot be used for managing the energy of an entire district	[72]
Dreamwatts®	It is a web-enabled, user-friendly HEMS for monitoring and controlling the energy usages of buildings	(1) The system is open source and accessible from everywhere; (2) The system helps to demonstrate the importance of access to energy information; (3) The system has user-friendly interface, low cost monitoring and control system; (4) It provides the lowest cost of ownership of any product on the market	The system is an energy monitoring tool that doesn’t allow any changes by the users	[73]
e-GOTHAM	It is an open smart-grid system that allows users to manage components within a micro-grid, and to operate in collaboration with the overall smart grid	(1) The system has multiple local controllers; (2) It offers communication among producers, users, a common information model, databases and algorithms in order to coordinate the appliances via the user applications	(1) The system has only been tested in a large scale living lab for Smart Grid activities in the community of Steinkjer (Norway); (2) The system needs to become more flexible and scalable in order to be used in industrial or tertiary sector	[74]
EmonCMS	It is a free app for processing, logging and visualizing energy usage, temperature and environmental data	(1) The users can have full control of the energy data; (2) The app can be install on a private server or on the hosted service; (3) Input processing allows for conversion and processing before storage. There are over 23 different input processes from simple calibration to power data, and can be represented with an histogram; (4) Zoom through large data-set, compare multiple datasets by using the multi-graph visualization builder; (5) The system could be installed directly by the users	The system doesn’t allow any remote control for managing and controlling the energy of the house as well as to create a users’ schedule in order to setting the turn on/off time of the home equipment	[75]
Energy Team’s Energy Data Collector Tool	(1) The tool is constituted of (i) an integrated web server for the configuration of the system and data analysis; and (ii) a gateway to collect, store and send data to a the server; (2) It visualizes energy usage trough a web application	(1) It can manage hundreds of sensors and up to 1600 measures; (2) Direct Wi-Fi connection to the device even with no web platforms available; (3) HTML 5 web application, optimized for mobile devices that automatically adapts to the equipment used; (4) 8 GB of local storage memory	(1) The system is an energy monitoring tool that doesn’t allow any direct changes by the users; (2) Design of components optimized for industrial applications and not for home installation; (3) A touchscreen is not available to enhance the user’s experience	[76]
Google PowerMeter	It is an energy monitoring utility including the visualization of energy usage, the possibility to share information and energy saving tips	(1) The system is open source and accessible from everywhere; (2) The system helps to demonstrate the importance of access to energy information; (3) The system allows to personalize recommendations in order to save energy	(1) The system is an energy monitoring tool that doesn’t allow any changes by the users; (2) The system need more development	[77]
Savant	The Savant HEMS allows setting and controlling the energy usages of the home from a GUI on electronic devices	(1) The system permits the users to monitor energy usage and production in real time, including historical data of multiple energy management devices; (2) Users can reduce energy usage and costs by controlling how and when specific devices use power-particularly during peak pricing or load periods	(1) This system requires professional installation; (2) The company does not offer technical support of any kind	[78]
SMARTHEMS™	Panasonic has developed its own HEMS. It uses Artificial Intelligence and Smart Energy Gateway (AiSEG) to manage energy generation, storage and savings equipment	(1) The system allows to promote energy savings by visualizing energy usages. It makes the flow of energy throughout the entire home visible by exchanging information with home appliances; (2) By using smartphone, TV, and other equipment, residents can check the energy used by each home appliance and in each room	The system has not been integrated in a smart grid yet	[79]
The Energy Navigator platform	(1) It is a web-based platform of a building management system; (2) It automatically creates reports to inform other users about the current system status, and potential performance issues of the building	(1) It allows monitoring and specify the behavior of a building management system; (2) The user will be able to create custom analyses for the monitored building; (3) The platform was designed for multiuser access (data import, preprocessing, analysis reporting and specification); (4) It establishes the concept of templates for every artifact: an user can specify his/her knowledge once at the beginning and use the templates easily for every building that he/she operates or manages	Some function are more suitable for energy expert: for example they can use the platform to visualize the imported data with multiple plot types, e.g. line plots, scatter plots or carpet plots	[80]

.

5.3. Smart Home Micro-Computers

Smart Home Micro-Computers (SHMC) are small-sized computers that are connected to other devices in order to automatize and control the whole smart home system. They consist in a microcontroller with complementary components that facilitate programming and incorporation into other circuits. An important aspect is their standard connectors, which lets users be connected to a central processing unit (CPU) board to a variety of interchangeable add-on modules known as shields. They allow the users make interactive projects and applications with the environment by using multiple extensible connectors and by receiving inputs from many sensors and affect its surrounding by controlling lights or other actuators.

In literature, there are some examples of applications where SHMCs have been combined with wireless sensors to create home automation systems to monitor and control home appliances [81].

The strengths and weaknesses of each SHMC have been summarized in

Table 5. Strengths and weaknesses of the analyzed SHMCs.

Product Name	Main Features	Strengths	Weaknesses	Reference
Arduino	(1) It is an open-source electronics platform equipped with hardware and software; (2) It senses the environment by receiving inputs from many sensors, and affects its surroundings by controlling lights, motors, and other actuators	(1) High flexibility and compatibility with the different kind of sensors; (2) It is intended for anyone making interactive projects	(1) All these systems require the user to have some technical background and electronics basics; (2) It also requires time to be learned and become expert in assembling and using it. However, many tutorials and detailed information about their assembly and use are free available on line; (3) Another barrier is constituted by their commercial price that can also reach thousands of euros	[85]
Banana Pi	(1) It is a single-board computer; (2) It can serve as a platform to make many applications for different purposes	(1) It targets to be a cheap, small and flexible enough computer for daily life; (2) It is built with ARM Cortex-A7 Dual-core CPU and Mali400MP2 GPU and open source software; (3) Most of common extension accessories Including LCD panel, touch screen, camera module, UART console and GPIO control pins are accessible from Banana Pi on-board connectors and headers		[86]
BeagleBone Black	(1) It is an open hardware micro-computer similar to both Raspberry Pi and Banana Pi; (2) It has a MR Cortex-A8 processor. It is equipped with Ubuntu and Android; (3) It is an open hardware, community-supported embedded computer for developers and hobbyists	(1) High flexibility and compatibility with the different kind of sensors; (2) It is intended for anyone making interactive projects		[87]
Raspberry Pi	It is a capable credit-card sized computer that allows developing electronics projects	(1) Ability to interact with the outside world, and has been used in a wide array of digital maker projects, from music machines and parent detectors to weather stations and tweeting birdhouses with infra-red cameras; (2) Could be used by people of all ages; (3) Its challenge is to be used by people of all ages to explore computing and to learn how to program in languages like Scratch and Python and how to manipulate the electronic world around them		[88]
Libelium Waspmote	(1) It is an advanced mote for Wireless sensor networks (WSN); (2) It allows a total control over the hardware devices. It could be connected with any kind of sensor	(1) It is robust and waterproof; (2) It supports the following protocols: ZigBee, Wi-Fi, LoRaWAN, LoRa, Sigfox; (3) It has a graphical and intuitive programming interface		[89]

.

5.4. Home Automation Systems

Home Automation (HA) provides an intelligent interface that monitors and learns the users’ habits and might anticipate and facilitate their movements. HA can make life easier and more comfortable or provide some energy efficiency savings by interacting with users remotely [82].

HA provides part of the system for managing the smart home. However, the HA system would need to be combined with non-automated devices for user interaction. For example, using only HA systems would not provide users with the ability to adjust their energy usage. But provided that, feedback is given to end-users based on the control activities performed as part of the smart home automation system. Such technology could well be included into an intelligent system that saves energy and improves thermal and visual comfort in the home by implementing both short-term and long-term thermal and visual discomfort indices [83,84]. Some of the most adopted HA systems available on the market are described in

Table 6. Features, strengths, and weakness of the analyzed HA systems.

Product Name	Main Features	Strengths	Weaknesses	Reference
British Gas Smarter living & Energy saving—Smart meters	It is a smart home energy monitoring and controlling system developed by British Gas for their customers in order to keep a better control of the energy bills	(1) It allows users to interact with home appliances and works with a smart energy monitor that can be placed anywhere in the home; (2) It shows the used energy, gas and electricity, as well as its cost	It is a system developed by the British Gas company and therefore it is linked to a contract	[90]
Control4Home Automation	It is a HA system that allows the products and devices that the users already have and use every day, work together	(1) Compatible with any other smart technology; (2) User-friendly control by a dedicated app	(1) The system allows the users to control lights, audio and security in the house, but not monitoring the energy usage and production; (2) The system must be installed professionally by an authorized dealer; (3) It works only with internet connection and only with families of peripherals that are compatible with the controllers in this system are Bluetooth, Wi-Fi, KNX, Z-Wave and ZigBee; (4) It offers limited mobile access functionality with its base system setup; (5) The Help & Support section of the system is poorly performed	[91]
Creston Home Automation & Entertainment	Complete control of home appliances: turn on TVs, lights, adjust thermostats, fish tank or sauna, etc.	(1) The simplicity of the system and the user-friendly GUI; (2) It is fully compatible with media players and with home automation peripherals; (3) Customers’ service can support the users all the time. Moreover, the user manual, FAQs, email support, phone support and tutorials are available	(1) The system allows the users to control lights, audio and security in the house, but not monitoring the energy usages and production; (2) Many of the peripherals are specifically designed to work with Crestron hardware controllers; (3) The home automation system installation must be set by professionals. Only after the installation, the users can add compatible devices; (4) It does not have a live chat support option or a user forum	[92]
General Electric Brillion Technology	It allows the user to interact with their smart home appliances using smartphones	It allows the user to monitor and control appliances anytime, anywhere with a smartphone app	(1) It only works with General Electric appliances; (2) It is closed sourced	[93]
HomeSeer HS3	It is a home HA system relatively easy to use, but it takes time to master. It’s highly compatible with a variety of home-control technologies and gives a wide range of software compatibility as well	(1) Compatible with a variety of others systems and programs; (2) Online store available; (3) It is compatible with the most popular operating systems; (4) The software gives you the option to create simple or complex programs to help you get the level of customization you desire for your smart home. These programs can activate automatically, manually and even using voice control; (5) It is offers a strong customer support such as video tutorials, telephone support and live chat, as well as user manual and an online knowledgebase and active community forum; (6) The system works also without internet connection	(1) It does not offer a home security monitoring subscription; (2) The Pro version requires an extra payment; (3) It doesn’t support Bluetooth, KNX and ZigBee control technologies	[94]
Honda Smart Home US	It is a hardware and software system that monitors, controls and optimizes electrical generation and usage throughout the home micro-grid	(1) The HA system stores solar energy generated during the day for use at night, when household demand typically peaks and electric vehicles are usually charged; (2) Capability of ‘listening’ to the grid to ensure only draws power at the most carbon-efficient times; (3) Solar energy and plug-in electric vehicles can join forces to provide zero carbon living and mobility	It is not compatible with other smart technologies systems	[95]
iHome or Apple HomeKit	It has not been presented yet, but Apple has announced that the system will be released along with IOS8. However, several iHome products are already available in the market	(1) It would use the location and the movements’ data from devices using GPS technology to anticipate occupants’ upcoming actions by providing an intelligent reaction; (2) A central hub device will allow connecting all the home appliances	(1) It has not been available on the market yet; (2) It only works with Whirlpool appliances; (3) It is closed sourced	[96]
Iris	It is a simple, customizable smart home management system by connecting with compatible smart devices through a single app	The system is easy to control and has great software compatibility	(1) It does not interact with media players; (2) It does not natively support Wi-Fi; (3) The basic plan does not allow advanced control to create rules and programs across devices	[97]
KNX	It is an intelligent home and building control that enables the combination of different technologies and systems	(1) It is a worldwide open standard; (2) It is a flexible system able to combine different technologies, appliances and systems from different manufacturers within one system	The system is expensive	[98]
LG Smart Thinq™	It is a HA system constituted by all the home appliances that can communicate each other	(1) It allows user to monitor and control appliances anytime, anywhere with a smartphone app; (2) It provides personal suggestions customized to the users habits, lifestyle and schedule to save energy and improve efficiency (3) The system communicates with the customers center or transmits data over Wi-Fi to the smartphone app for quick and easy diagnosis and solutions in case of malfunctioning	(1) It only works with LG appliances; (2) It is closed sourced	[99]
LonWorks	LonWorks is a standard network in buildings market with a number of Building Automation Systems suppliers standardizing on LON including Siemens Building Systems and Honeywell	(1) LonWorks is a standard technology for many of the global standards organizations including ASHRAE, IEEE, ANSI, SEMI and others; (2) It is used for the automation of various functions within buildings such as lighting and HVAC	It was mostly applied in commercial buildings because its slow development during the last few years	[100]
Nexia	The system works to monitor and improve home energy usage patterns and by integrating security components such as security cameras, entry sensors and door locks	(1) It is easy to use given its relatively few features; (2) It does not require professional help to install, unless the users use one of the thermostats system controller coupled with the system	(1) The system does not support peripherals other than Z-Wave; (2) The system does not work with window shading, such as blind and curtain motors, or home theater systems; (3) The system does not offer any compatibility with other smart home control technologies	[101]
OpenHAB	Easy integration with different HA systems	(1) The system is fully open source; (2) No remote access is possible, if it is not desired; (3) Everything works nicely within the intranet and does not even require an Internet connection; (4) The system is easily extensible to integrate new devices; (5) It can be run on any device that is capable of running a Java virtual machine	The system allows the users to control lights, audio and security in the house, but not monitoring the energy usage and production	[102]
Panasonic smart appliance	It is a HA system constituted by all the home appliances that can communicate each other	It allows the user to control and manage their smart appliances and power usage. They can be remotely controlled and set on pause when energy costs are high	(1) It only works with Panasonic appliances; (2) It is closed sourced	[103]
Samsung SmartThings	(1) It is a complete home monitoring and security solution; (2) It has to be coupled with a Hub system	The system gives you several ways to take control of your smart home	(1) The use of the app helps the system to stay simple, but also make remote access using a PC or Mac impossible; (2) It does not support home audio functionality, as well as voice control or home security monitoring features	[104]
Staples Connect	It allows to connect appliances and systems like lighting, heating and air-conditioning, and even window shading may be all controlled using one of the dedicated app	(1) The system is compatible with many peripherals; (2) It also has a security control; (3) It has a strong technical support services such as email, live chat and telephone, user forum and FAQs; (4) The system is principally available online	(1) It does not support legacy HA protocols; (2) It does not have a user manual; (3) It is not compatible with home theater systems; (4) It does not support control technologies like Insteon, KNX, UPB or X10	[105]
UPnP	It is defined as universal architecture for pervasive peer-to-peer network connectivity of intelligent appliances, devices and computers	(1) Universal means that no device drivers are required, but only common protocols are used; (2) It allows true plug-and-play compatibility with all UPnP enabled devices	It could cause heavy network traffic. Every device will communicate with any other device on the network, and in such ways slow the network down (depends on the bandwidth)	[106]
Vera smarter home control	It offers smart home controllers with good device and software compatibility	(1) The best feature is its support of remote access: the MiOS software. It allows connecting the system with any devices, which have a friendly GUI helping the users to achieve maximum control and energy efficiency; (2) The support service works by email, telephone and live chat	(1) It is not compatible with home theater systems; (2) It also does not support voice control technology	[107]
WeBee	It is an app that allows to be connected to all the appliances in the smart home	(1) It provides personal suggestions customized to the users habits, lifestyle and schedule in order to save energy and improve efficiency; (2) Compatible with any other smart technology	–	[108]
Whirlpool Smart appliances	It is a HA system constituted by all the home appliances that can communicate each other	It enables the user of having full control over the smart appliances and can be set on pause when the energy costs are high	(1) It only works with Whirlpool appliances; (2) It is closed sourced	[109]
Wink	(1) The system works with the most common home control technologies; (2) It has to be coupled with a Hub system	(1) The system is compatible with many devices of different brands; (2) It is easy to use for connecting different devices	The Hub Wi-Fi sometimes does not work properly	[110]

.

6. Discussion

In this section, the actual and future benefits and challenges related to the presented technologies will be discussed from different perspectives.

6.1. Challenges Related to Smart Home Technologies

The need for energy management systems is thus motivated by (i) the possibility of efficiently managing energy flows by using intelligent commands and a supervision system that is capable of interacting with both loads and generations to balance demand and supply, and (ii) the possibility of interacting with the external network to plan the production levels that are necessary to benefit economically from exchanging energy with the grid [111].

Integration of the forecasting models, which are able to predict hourly power generation according to the weather forecasting inputs could make an optimal operation schedule in such a way that economically optimized power dispatch can be maintained to fulfill certain load demand. Some studies show that this would reduce daily costs by 28%. Further research could be performed to improve this method by including more relevant factors, such as the industrial and commercial profiles of a city or region [112].

Peak demand charge is one of the major components of a customer’s power bill and is the calculation of the amount of energy required during the peak demand periods. To cover the peak demand, utility companies are compelled to purchase reserves that remain untapped most of the time and are, only to be used for short periods of high demand or during failure of other reserves.

Furthermore, smart homes are basically equipped with renewable energy generation technologies. Unfortunately, local energy generation from renewable energy sources (RES) and energy requirements are misaligned. Therefore, a smart technology might be able to modify indoor environmental conditions to time shift energy requirements from peak to off-peak hours. Moreover, if the building is equipped with an electric storage, energy from RES can be used to charge the storage when the electricity cost is low, and discharge the storage during high-cost periods. Thus, the use of storage in conjunction with RES might help optimize the cost effectiveness of a smart home. A renewable energy time shift is particularly valuable for intermittent sources [113].

6.2. Challenges, Benefits, and Motivations Related to the Users

Due to the direct involvement of end-users in the energy management of the power grid, the issue of load level has gained increasing interest in the last few years also considering that the unpredictable human factors can have significant influences on DR system’s performance and the energy management of homes. A study conducted in Denmark investigated the heat usage in 290 identical homes. It was found that the highest heat consumption was up to twenty times higher than the lowest due to the occupant’s behavior [114]. Users’ habits play a key role related to energy use [115,116]. Other studies [34,111,117] pointed out that users can efficiently operate in a real-time frame to optimally control all major residential energy loads, storage and production components while properly considering the customers’ preferences and comfort level. The main objective functions for the operation of each household appliance are electricity payment minimization [22]. Therefore, users are becoming aware that they can manage energy resources and have an active role in the operation of the energy system by using the following strategies related to smart grids via their smart home technologies:

(i)

Rationalizing the amount of energy required from controllable loads: smart grids enable providers to better control and plan production and to adjust the price levels of electricity. Previous studies have systematized approaches to home energy management, which may belong to one or any mix of the following three categories: (i) a technology-oriented approach; (ii) an economically-oriented approach or (iii) an environmentally-oriented approach.

(ii)

Wisely scheduling running times for smart appliances that are likely to be shifted in time. Households’ involvement in cutting their overall energy demand and the evening peaks in energy usage is still being explored. Currently, a lot of interest is being directed to making homes more flexible energy users. This flexibility aims to modify households’ load shape thanks to feedback on real-time energy usage and an indication from them of which tariff information they found useful in relation to optimizing their energy costs.

(iii)

Turning themselves into potential carbon-free generators of energy, through the use of renewable resources: so far, the focus of smart grid technologies has been on integrating RES into the grid to reduce the cost of power generation. Integrating these resources requires storage systems. Load/generation shifting can be used by customers, utility providers, or renewable power producers to take advantage of the different electricity rates available at various times of the day [113].

Although the potential benefits of an active management of homes’ energy use are significant, households as energy users are still subject to several concerns that could inhibit a rapid adoption of smart home technologies. The most significant concern is that, in order to maximize the benefits of smart grids, utility providers’ and suppliers’ of energy management solutions must adapt existing technological infrastructures to new bidirectional and dynamic loads. Therefore, the capabilities and the advantages of these systems are currently not fully deployed. This is one reason why widespread adoption of smart technologies in homes has been hindered [118]. Several experiments conducted on users’ behavior have demonstrated that energy management systems for residential applications allow energy costs to be reduced by about 18%, while preserving the user comfort [22].

6.3. Barriers and Futures Trends

Future research should be continued to develop algorithms and to study human habits to improve the efficiency and flexibility of the energy management strategy [119]. The potential benefit of communicating households energy usage in a systemic context, i.e., considering the dwelling as a part of a smart grid, has also been explored and has been recognized as a significant potential driver for the deployment of energy management solutions in households [45].

The effect of feedback on end-users has been proven to be more effective the more direct it is. Furthermore, the representation of data should ideally be personalized to fit end-users’ needs, habits, and education. Supplying users with the possibility of comparing their home energy usage with benchmarks as well as with their own historical data has also been shown to be an advantage. However, what is a relevant comparison will also vary among the users. For instance, a few user may be interested in comparing their own usage with that of others, hence adding a reference element, while others may not be interested at all in competing in this context. Moreover, users may by grouped according to different rules, e.g., per homes of comparable size, buildings with analogous occupation time, or buildings with similar average energy usages [45]. The most challenging aspect of users’ motivation is that whichever type of feedback is used, the technology needs to be continually developed to meet the challenge of domestication. The process implies that end-users adapt the technology according to their own needs and expectations. However, this process has, from a visualization point of view, an adverse side effect [120]: any positive effect of any visualization methods used for end-users’ benefit eventually stop as part of the domestication process. Consequently, any management system, independent of how effective it might prove to be, will only remain effective if the presentation of data is flexible and can be adjusted to vary over time [118]. The challenge lies in offering the end-users not only relevant data but also continual involvement in this adaptation and customization process.

Recently, the potential of offering gamification, i.e., the use of videogame elements and concepts from non-gaming contexts to improve user experience and engagement with an interface has started to be explored [121]. Having the option to compare own energy usage with that of others may include a potential gamification element.

Finally, another significant barrier, represented by users’ knowledge about smart technologies has to be taken into consideration to realize a proper home automation system able to interact with users. Not only do smart appliances have to be correctly installed and properly configured, but the users’ knowledge of smart devices needs to be consistently increased as well as their awareness of energy management.

7. Conclusions

In this article, the concept of the smart home and the advent of the smart grid have been presented. Smart technologies and products available on the market that allow an intelligent energy management of homes have been reviewed. The technologies summarized in Table 1, which include both optimization-based and communication-based ones, have been evaluated. It was also discussed a general system’s architecture and the barriers, challenges, benefits and future trends that future smart homes and grids will face. Efficient usage of electricity results in lowering peak load, reducing energy bills, and minimizing greenhouse gas emissions. In order to realize an effective integration of smart homes into a smart grid, the migration towards bi-directional communication networks has to be fostered, and well-tuned home automation system has to be designed.

It is expected that the work described in this article might channel efforts towards the choice of a more efficient, user-friendly system for smart home [21].

The current trend indicates that in the near future, more and more smart homes will be built and the technology inside them will grow very fast in order to create a more responsive and active environment able to respond to the users’ needs. In this regard, companies that produce software and home appliances are creating new applications and technologies specifically targeted at smart homes. The effect will be threefold: (i) in the future, homes will not be the same as today; (ii) existing infrastructures, such as smart grids, will be continually improved, and (iii) people’s everyday lives will inevitably be affected by changes in available technologies and systems.

Concerning the role and motivation of the potential users of the energy management technologies that are being developed, much still remains to be explored before these systems will satisfy users’ needs and help them fulfill their full potential as active and aware users. However, providing end-users with systems that are tailored to fit end-user profiles is a good start for providing real-time feedback. The option to measure performance against relevant benchmarks and make comparisons with other households’ performances should preferably be included in such systems. The challenge to build in a well-functioning flexibility into the systems’ presentation of data is likely to remain a continuous challenge for these systems as the users will gradually get used to any means of visualization of data and want it to be changed regularly. The need to provide homes with a systemic context calls for more cooperation with the smart grid’ managers at a systemic level and more end-user studies. Finally, the potential use of gamification elements should be further explored to keep up with the latest computer game industry into smart technologies.
