Mechanical Properties of Longmaxi Black Organic-Rich Shale Samples from South China under Uniaxial and Triaxial Compression States

1
Key Laboratory of Shale Gas and Geoengineering, Institute of Geology and Geophysics, Chinese Academy of Sciences, Beijing 100029, China
2
College of Earth Science, University of Chinese Academy of Sciences, Beijing 100049, China
*
Author to whom correspondence should be addressed.
Academic Editor: Vijay Kumar Thakur
Received: 27 July 2016 / Revised: 5 December 2016 / Accepted: 12 December 2016 / Published: 20 December 2016
View Full-Text   |   Download PDF [19784 KB, uploaded 20 December 2016]   |

Abstract

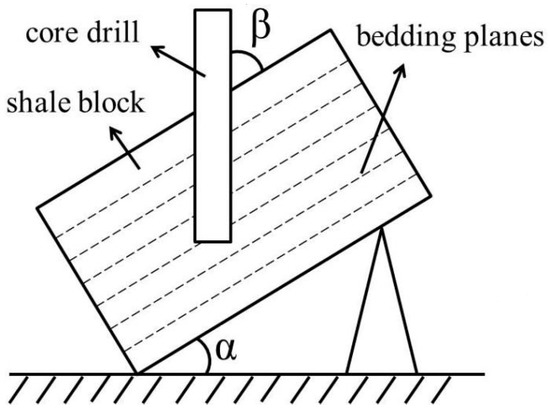

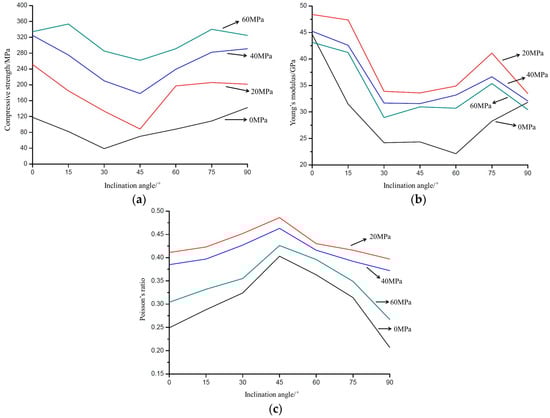

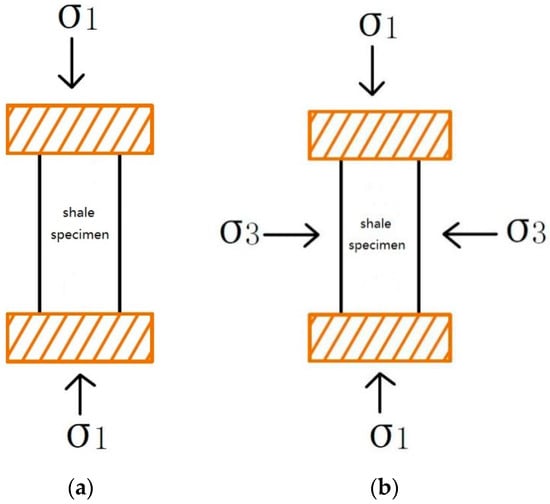

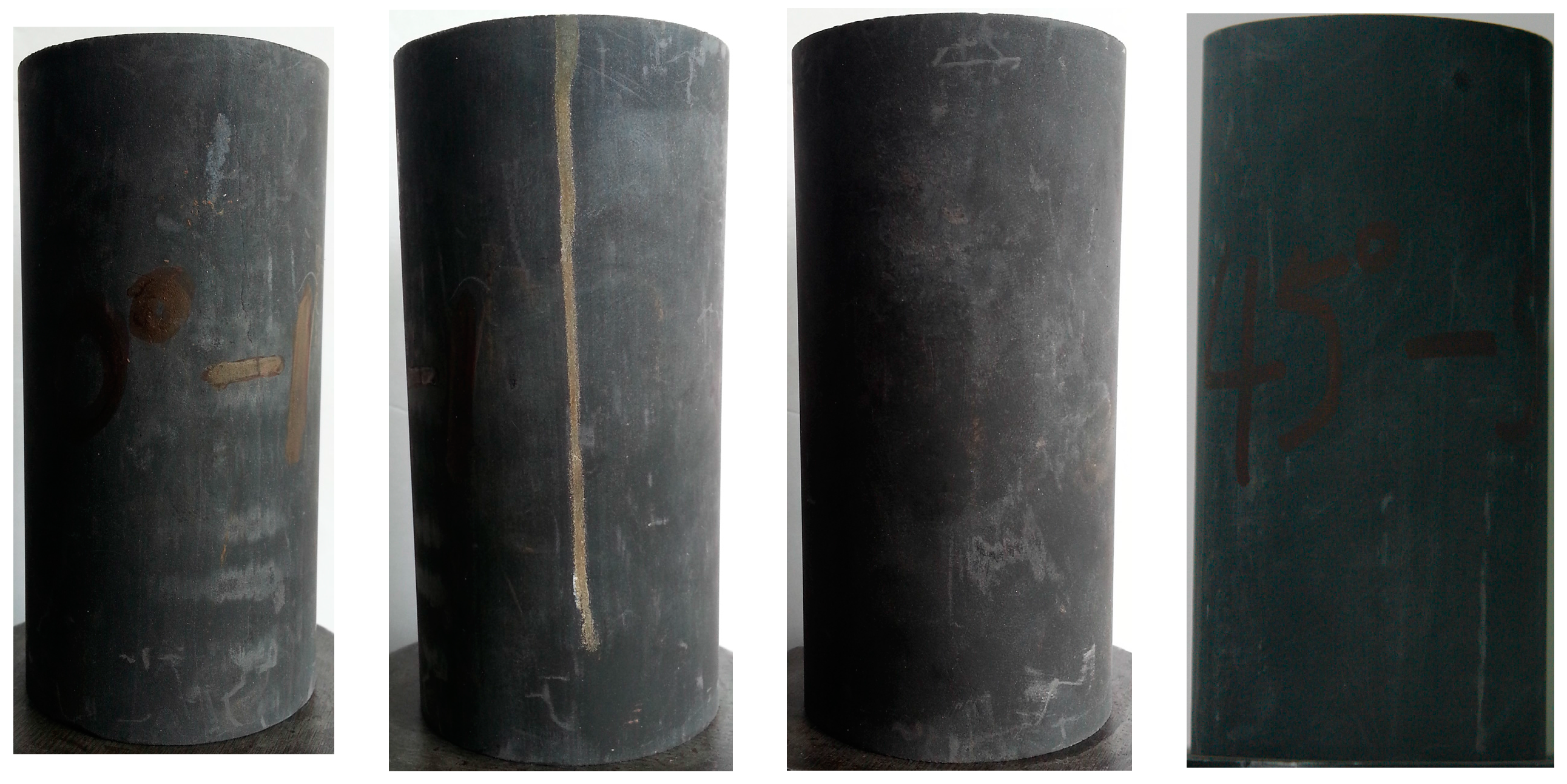

With the exploitation of shale gas booming all over the world, more and more studies are focused on the core technology, hydraulic fracturing, to improve commercial exploitation. Shale gas resources in China are enormous. In this research, a series of tests were carried out with samples of black organic-rich shale from the Lower Silurian Longmaxi formation, south China. Samples were drilled from different directions and were subjected to uniaxial and triaxial condition with various confining pressures, aiming at studying its rock mechanics properties, so as to provide basis for research and breakthrough of hydraulic fracturing technology. According to the results of the study, the development and distribution of shale’s bedding planes significantly impact its mechanical properties. Shale samples show obvious brittle characteristics under low confining pressure, and its mechanical behavior begins to transform from brittle to plastic characteristics with increasing confining pressure. Shale samples with different inclinations (β) have different sensitivities to the confining pressure. As a result, samples with 45° inclinations (β) are least sensitive. The strength of bedding planes is significantly lower than that of shale matrix, and tensile failure and shear failure generally tend to occur along the bedding planes. When hydraulic fracturing was conducted in shale formation with depth less than 2.25 km, corresponding to original in-situ of 60 MPa, cracks will preferably occur at first along the inclination (β) angle of 45° from the maximum principal stress, and the failure mode is most likely to be shear failure without volumetric strain. And, different modes of failure will occur at different locations in the reservoir, depending on the orientation of bedding inclined from the principle stress, which can probably explain the phenomenon why there are fractures along and cross the bedding planes during hydraulic fracturing treatment. When hydraulic fracturing was conducted in shale formation with depth greater than 2.25 km, hydraulic fractures may not crack along the bedding surfaces to some extent. View Full-Text
Keywords: rock mechanics; shale; bedding; confining pressure; anisotropy; hydraulic fracturing rock mechanics; shale; bedding; confining pressure; anisotropy; hydraulic fracturing
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).

Scifeed alert for new publications

Never miss any articles matching your research from any publisher
  • Get alerts for new papers matching your research
  • Find out the new papers from selected authors
  • Updated daily for 49'000+ journals and 6000+ publishers
  • Define your Scifeed now

SciFeed Share & Cite This Article

MDPI and ACS Style

Wu, Y.; Li, X.; He, J.; Zheng, B. Mechanical Properties of Longmaxi Black Organic-Rich Shale Samples from South China under Uniaxial and Triaxial Compression States. Energies 2016, 9, 1088.
