Open AccessArticle
Energies 2015, 8(8), 8835-8856; doi:10.3390/en8088835

Exergetic Analysis of an Integrated Tri-Generation Organic Rankine Cycle

1
School of Mechanical and Systems Engineering, Newcastle University, Newcastle Upon Tyne NE1 8ST, UK
2
Shinas College of Technology, Alqr, P.O. Box 77, Shinas 324, Oman
*
Author to whom correspondence should be addressed.
Academic Editor: Roberto Capata
Received: 30 May 2015 / Revised: 9 July 2015 / Accepted: 30 July 2015 / Published: 20 August 2015
(This article belongs to the Special Issue Tri-Generation Cycles, Combined Heat, Power and Cooling (CHPC))
View Full-Text   |   Download PDF [827 KB, uploaded 20 August 2015]   |

Abstract

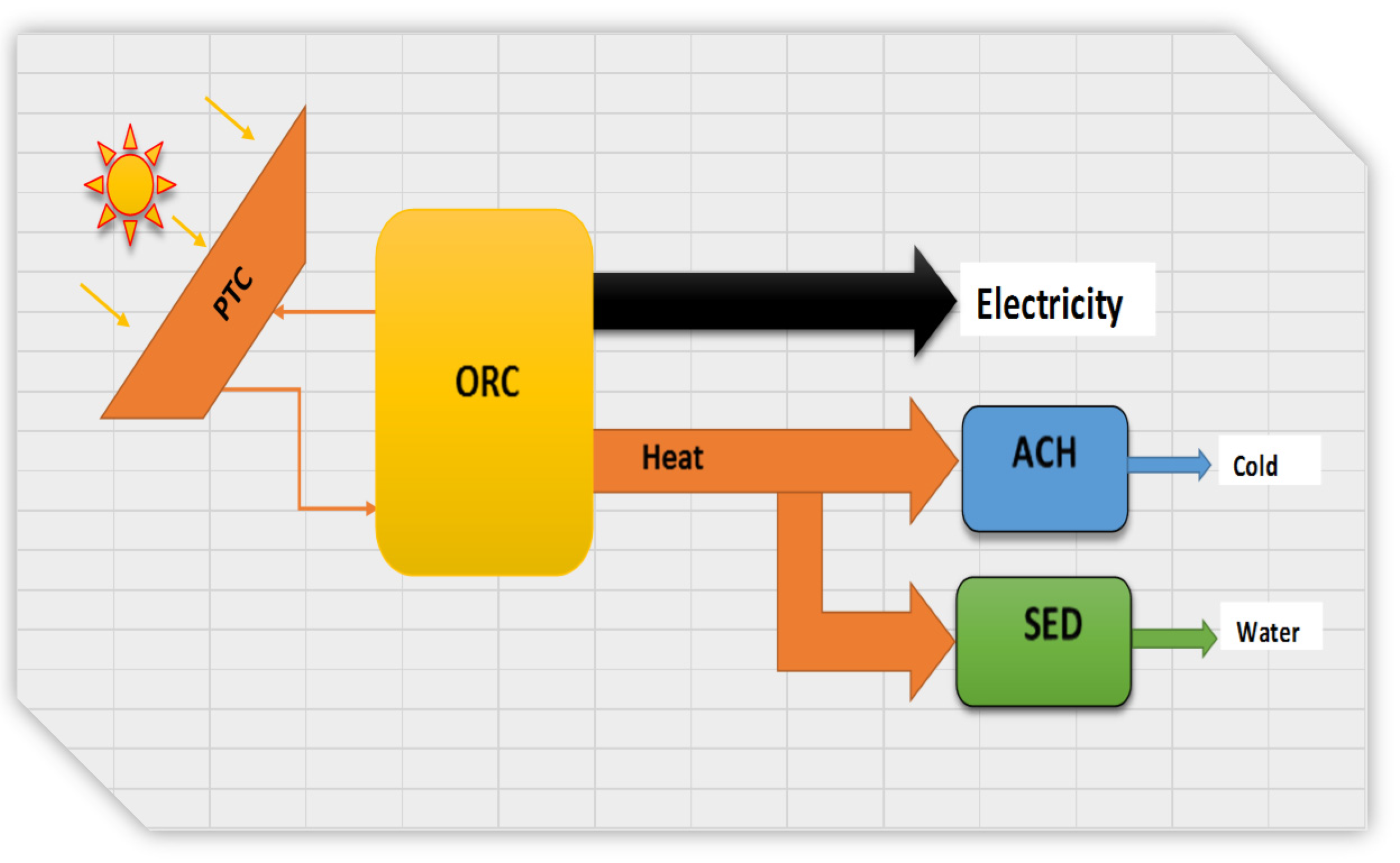

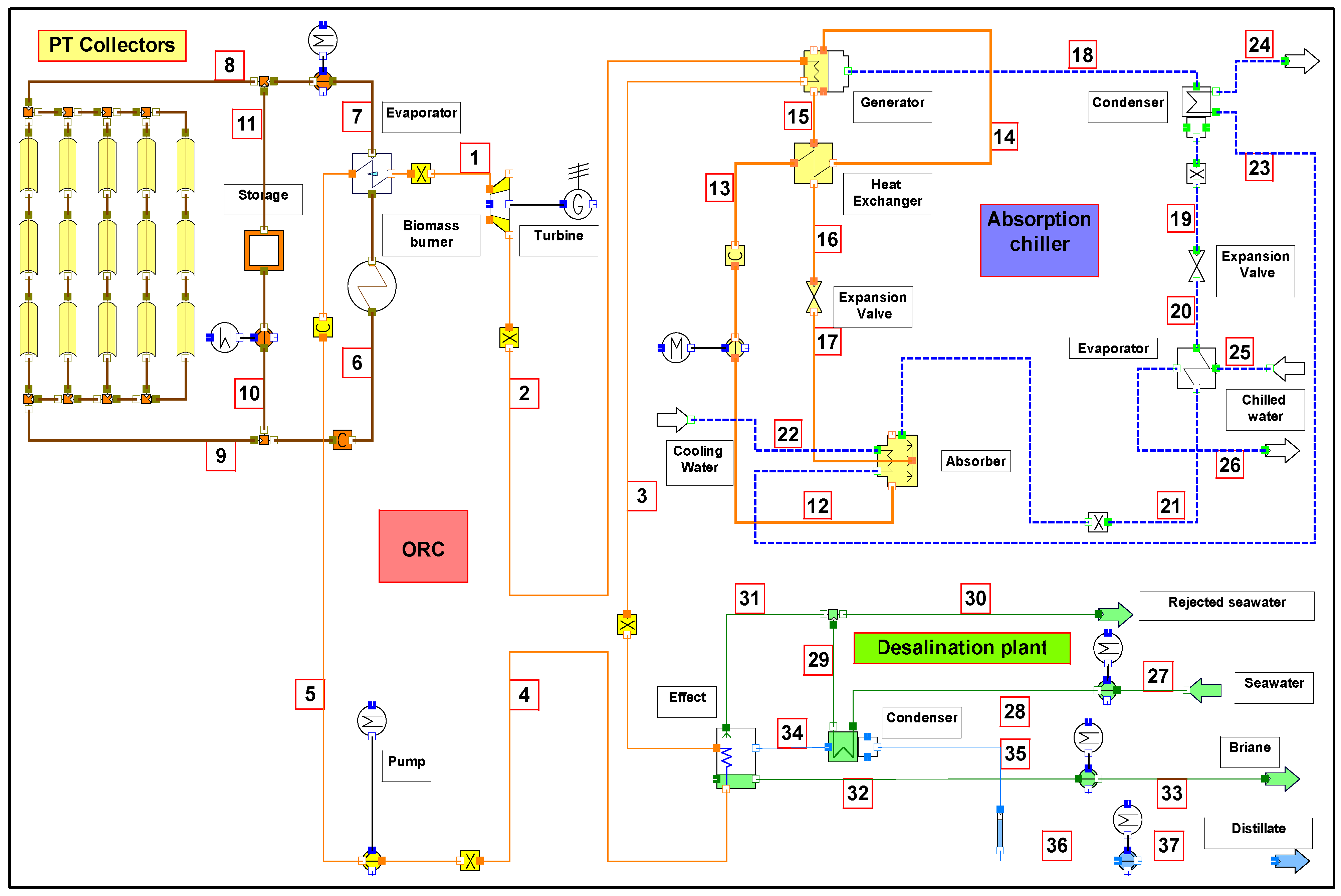

This paper reports on a study of the modelling, validation and analysis of an integrated 1 MW (electrical output) tri-generation system energized by solar energy. The impact of local climatic conditions in the Mediterranean region on the system performance was considered. The output of the system that comprised a parabolic trough collector (PTC), an organic Rankine cycle (ORC), single-effect desalination (SED), and single effect LiBr-H2O absorption chiller (ACH) was electrical power, distilled water, and refrigerant load. The electrical power was produced by the ORC which used cyclopentane as working fluid and Therminol VP-1 was specified as the heat transfer oil (HTO) in the collectors with thermal storage. The absorption chiller and the desalination unit were utilize the waste heat exiting from the steam turbine in the ORC to provide the necessary cooling energy and drinking water respectively. The modelling, which includes an exergetic analysis, focuses on the performance of the solar tri-generation system. The simulation results of the tri-generation system and its subsystems were produced using IPSEpro software and were validated against experimental data which showed good agreement. The tri-generation system was able to produce about 194 Ton of refrigeration, and 234 t/day distilled water. View Full-Text
Keywords: solar; absorption chiller; desalination; organic Rankine cycle (ORC); parabolic trough collector (PTC); exergy; Tri-generation solar; absorption chiller; desalination; organic Rankine cycle (ORC); parabolic trough collector (PTC); exergy; Tri-generation
This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).

Scifeed alert for new publications

Never miss any articles matching your research from any publisher
  • Get alerts for new papers matching your research
  • Find out the new papers from selected authors
  • Updated daily for 49'000+ journals and 6000+ publishers
  • Define your Scifeed now

SciFeed Share & Cite This Article

MDPI and ACS Style

Mathkor, R.Z.; Agnew, B.; Al-Weshahi, M.A.; Latrsh, F. Exergetic Analysis of an Integrated Tri-Generation Organic Rankine Cycle. Energies 2015, 8, 8835-8856.
