Next Article in Journal
Characteristic Analysis and Control of a Hybrid Excitation Linear Eddy Current Brake
Next Article in Special Issue
Fluidized-Bed Gasification of Plastic Waste, Wood, and Their Blends with Coal
Previous Article in Journal
Data Mining Techniques for Detecting Household Characteristics Based on Smart Meter Data
Previous Article in Special Issue
Modeling on the Effect of Coal Loads on Kinetic Energy of Balls for Ball Mills
Article Menu

Export Article

Open AccessArticle
Energies 2015, 8(7), 7428-7440; doi:10.3390/en8077428

Facile and Economical Preparation of SiAlON-Based Composites Using Coal Gangue: From Fundamental to Industrial Application

Department of Materials Science and Engineering, Northwestern Polytechnical University, Xi'an 710072, China
School of Metallurgical and Ecological Engineering, University of Science and Technology Beijing, Beijing 100083, China
Beijing Key Laboratory for Solid Waste Utilization and Management, College of Engineering, Peking University, Beijing 100871, China
Author to whom correspondence should be addressed.
Academic Editor: Mehrdad Massoudi
Received: 21 May 2015 / Revised: 11 July 2015 / Accepted: 13 July 2015 / Published: 22 July 2015
(This article belongs to the Special Issue Recent Advances in Coal Combustion and Gasification)
View Full-Text   |   Download PDF [2790 KB, uploaded 22 July 2015]   |


The present study aims to synthesize SiAlON-based composites utilizing coal gangue. Different types of SiAlON-based composites were synthesized using coal gangue by carbothermal reduction nitridation method through control of different reaction atmospheres. The experimental results indicate that the oxygen partial pressure was an essential factor in the manufacture of SiAlON-based composites and under proper control of the atmospheres, SiAlON-based composites with different crystal structures could be synthesized. The optimum conditions of synthesis of different SiAlON-based composites were respectively determined. Based on the laboratory results, a prototype plant was proposed and constructed, and β-SiAlON composite was successfully produced using coal gangue. The synthesized β-SiAlON composite was applied in preparation of iron ladle brick instead of SiC, which showed that the compression strength, refractoriness under load and high temperature bending strength were increased from 44.5 ± 6.7 MPa, 1618 ± 21 °C and 5.4 ± 1.2 MPa to 64.1 ± 2.5 MPa, 1700 ± 28 °C and 7.1 ± 1.6 MPa, respectively. Compared with the traditional synthesis method, the present technique is expected to save energy both in raw materials and technical process. View Full-Text
Keywords: coal gangue; carbothermal reduction nitridation; SiAlON-based composite; prototype plant coal gangue; carbothermal reduction nitridation; SiAlON-based composite; prototype plant

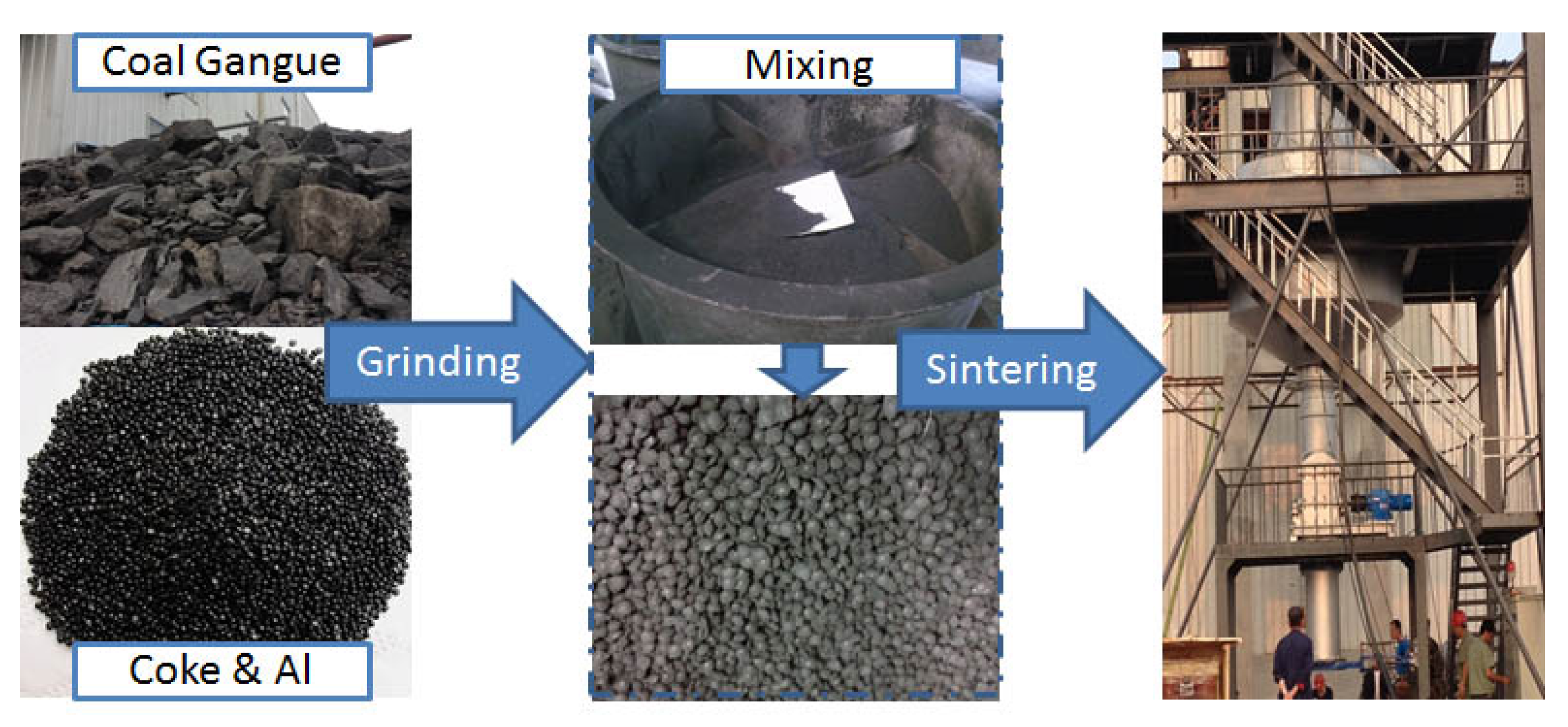

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).

Scifeed alert for new publications

Never miss any articles matching your research from any publisher
  • Get alerts for new papers matching your research
  • Find out the new papers from selected authors
  • Updated daily for 49'000+ journals and 6000+ publishers
  • Define your Scifeed now

SciFeed Share & Cite This Article

MDPI and ACS Style

Li, J.; Yue, C.; Zhang, M.; Wang, X.; Zhang, Z. Facile and Economical Preparation of SiAlON-Based Composites Using Coal Gangue: From Fundamental to Industrial Application. Energies 2015, 8, 7428-7440.

Show more citation formats Show less citations formats

Related Articles

Article Metrics

Article Access Statistics



[Return to top]
Energies EISSN 1996-1073 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
