Energies 2014, 7(7), 4519-4531; doi:10.3390/en7074519

Experimental and Numerical Study of Jet Controlled Compression Ignition on Combustion Phasing Control in Diesel Premixed Compression Ignition Systems

Institute of Internal Combustion Engine, Dalian University of Technology, Dalian 116024, China
*
Author to whom correspondence should be addressed.
Received: 8 April 2014 / Revised: 27 May 2014 / Accepted: 8 July 2014 / Published: 15 July 2014
View Full-Text   |   Download PDF [583 KB, uploaded 17 March 2015]   |

Abstract

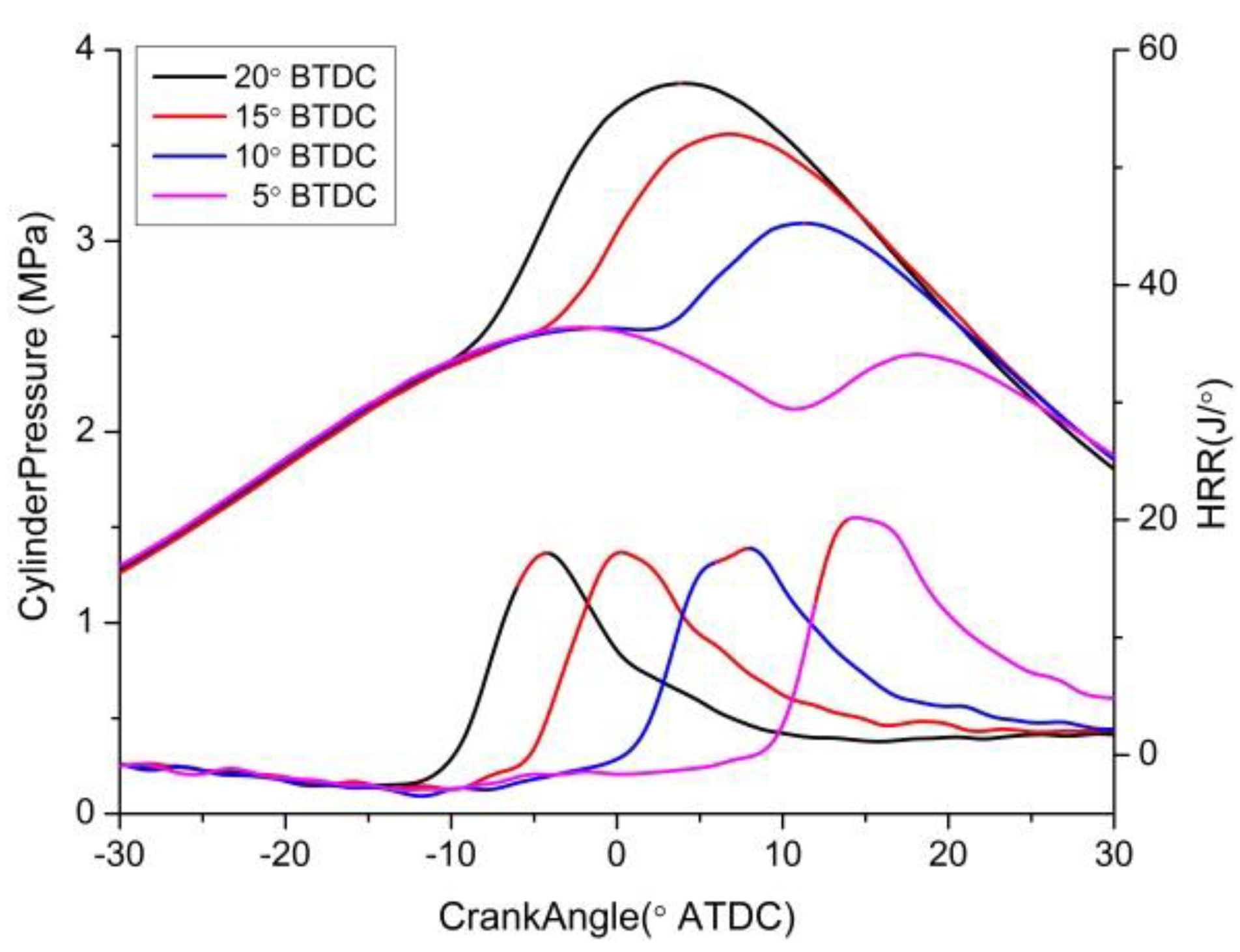

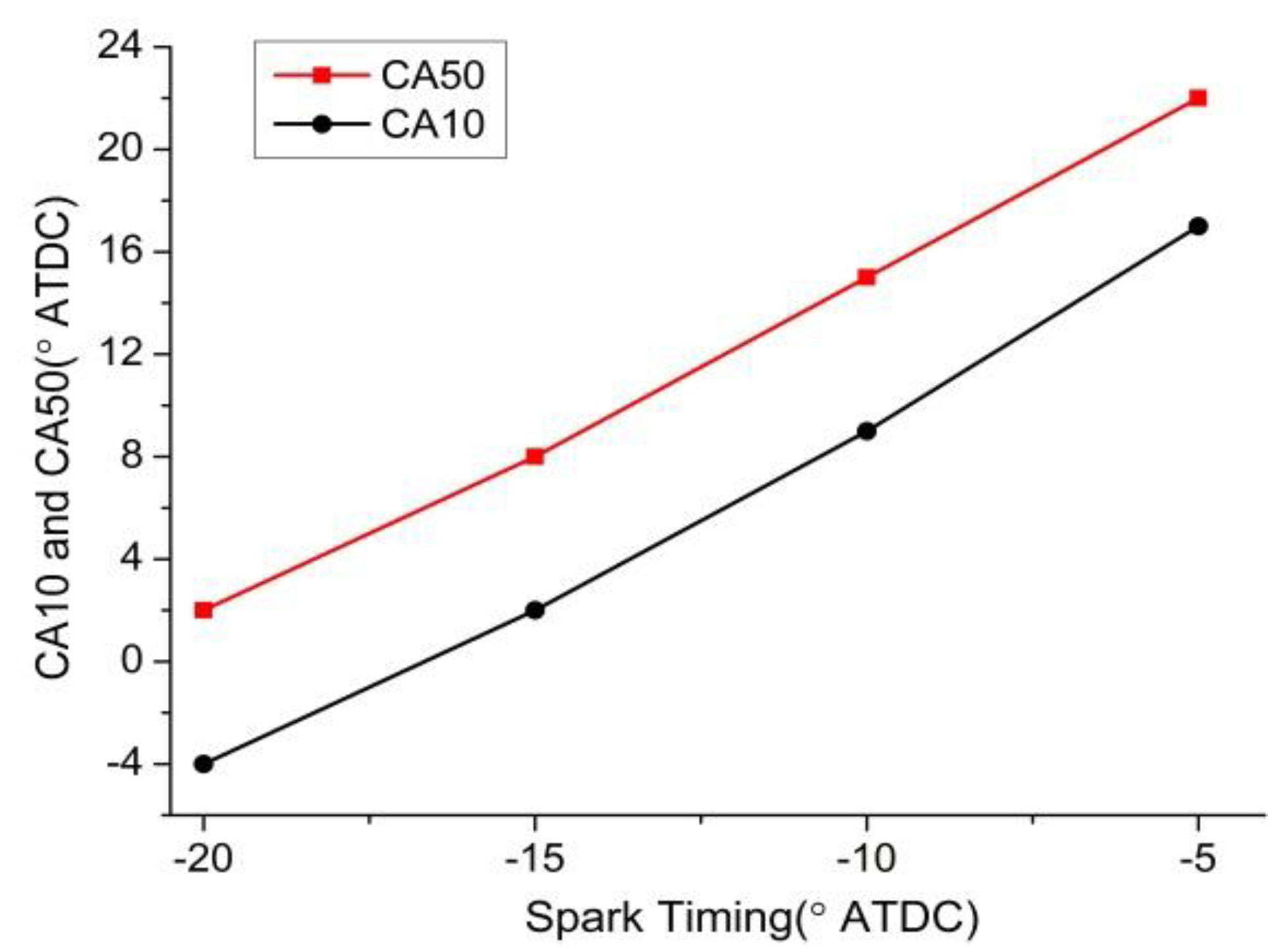

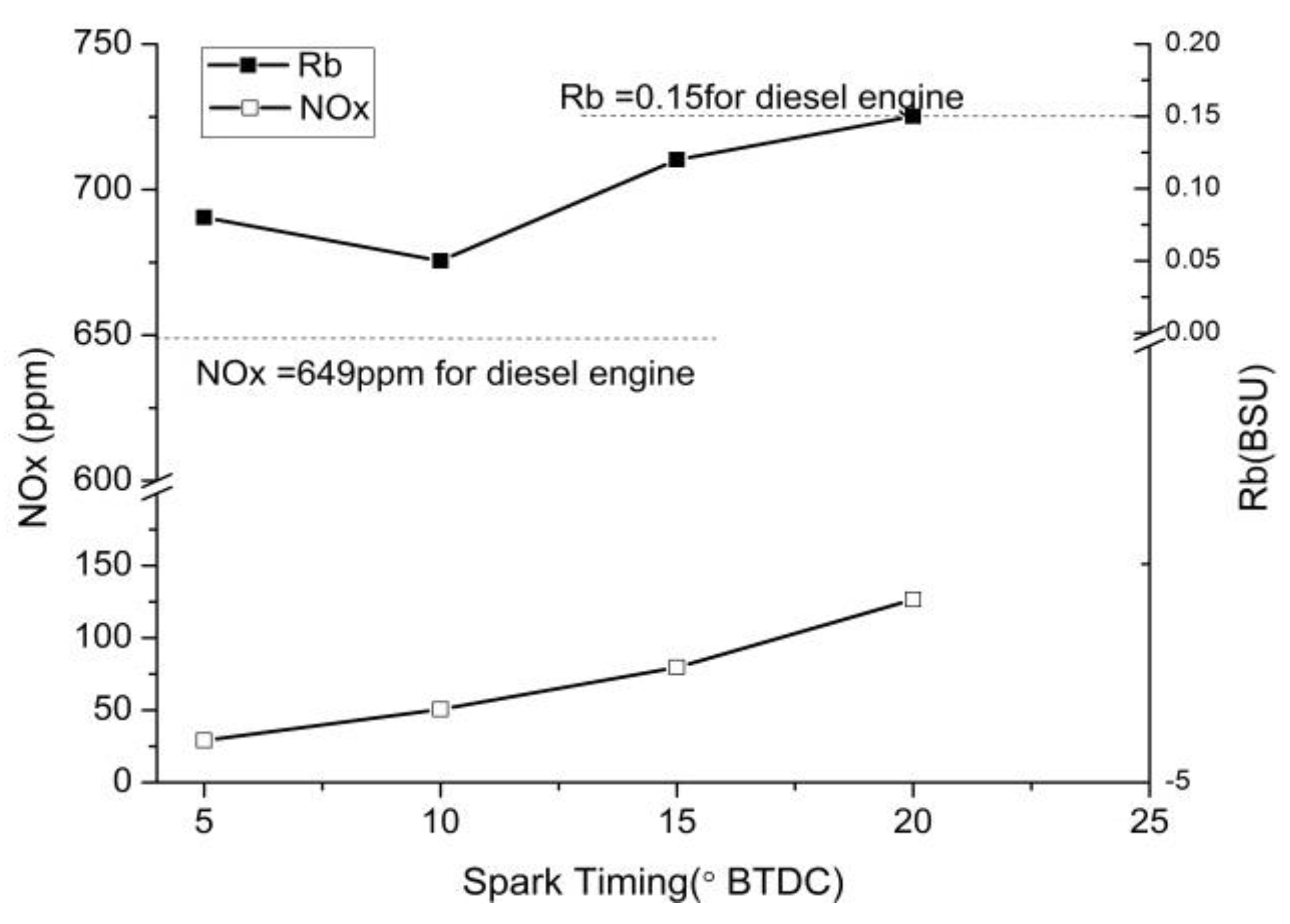

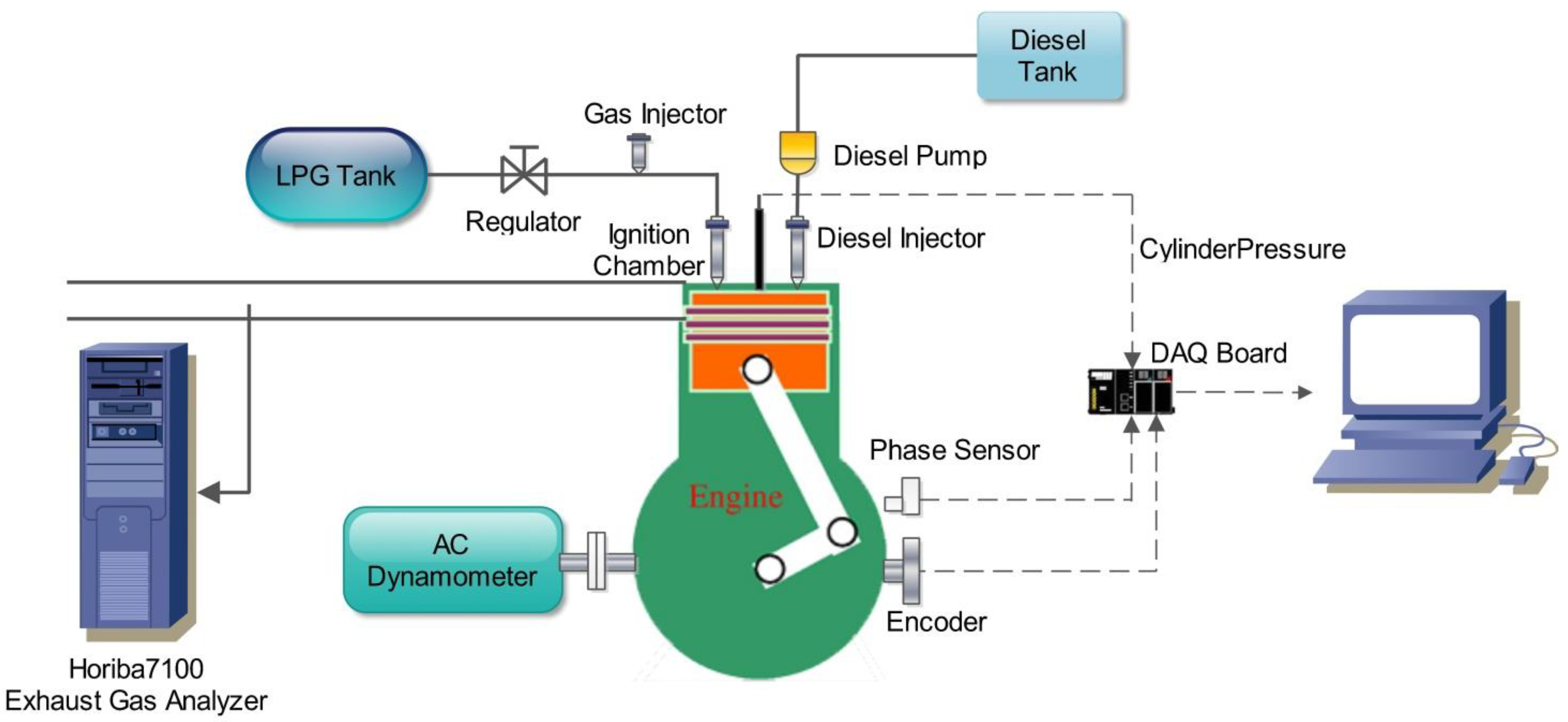

In order to directly control the premixed combustion phasing, a Jet Controlled Compression Ignition (JCCI) for diesel premixed compression ignition systems is investigated. Experiments were conducted on a single cylinder natural aspirated diesel engine without EGR at 3000 rpm. Numerical models were validated by load sweep experiments at fixed spark timing. Detailed combustion characteristics were analyzed based on the BMEP of 2.18 bar. The simulation results showed that the high temperature jets of reacting active radical species issued from the ignition chamber played an important role on the onset of combustion in the JCCI system. The combustion of diesel pre-mixtures was initiated rapidly by the combustion products issued from the ignition chamber. Moreover, the flame propagation was not obvious, similar to that in Pre-mixed Charge Compression Ignition (PCCI). Consequently, spark timing sweep experiments were conducted. The results showed a good linear relationship between spark timing in the ignition chamber and CA10 and CA50, which indicated the ability for direct combustion phasing control in diesel PCCI. The NOx and soot emissions gradually changed with the decrease of spark advance angle. The maximum reduction of NOx and soot were both over 90%, and HC and CO emissions were increased. View Full-Text
Keywords: diesel combustion; jet controlled compression ignition; premixed combustion diesel combustion; jet controlled compression ignition; premixed combustion
This is an open access article distributed under the Creative Commons Attribution License (CC BY 3.0).
