Energies 2014, 7(2), 824-833; doi:10.3390/en7020824

Fractionation for Biodiesel Purification Using Supercritical Carbon Dioxide

1 Department of Food Science, National Pingtung University of Science and Technology, Pingtung County 91201, Taiwan 2 Superwell Biotechnology Corporation, 465 Wenxin S. 2nd Road, Taichung City 40876, Taiwan 3 Department of Food Science, National Chiayi University, Chiayi City 60004, Taiwan
* Author to whom correspondence should be addressed.
Received: 30 October 2013 / Revised: 16 February 2014 / Accepted: 17 February 2014 / Published: 19 February 2014
(This article belongs to the Special Issue Biomass and Biofuels 2013)
View Full-Text   |   Download PDF [341 KB, uploaded 17 March 2015]   |   Browse Figures

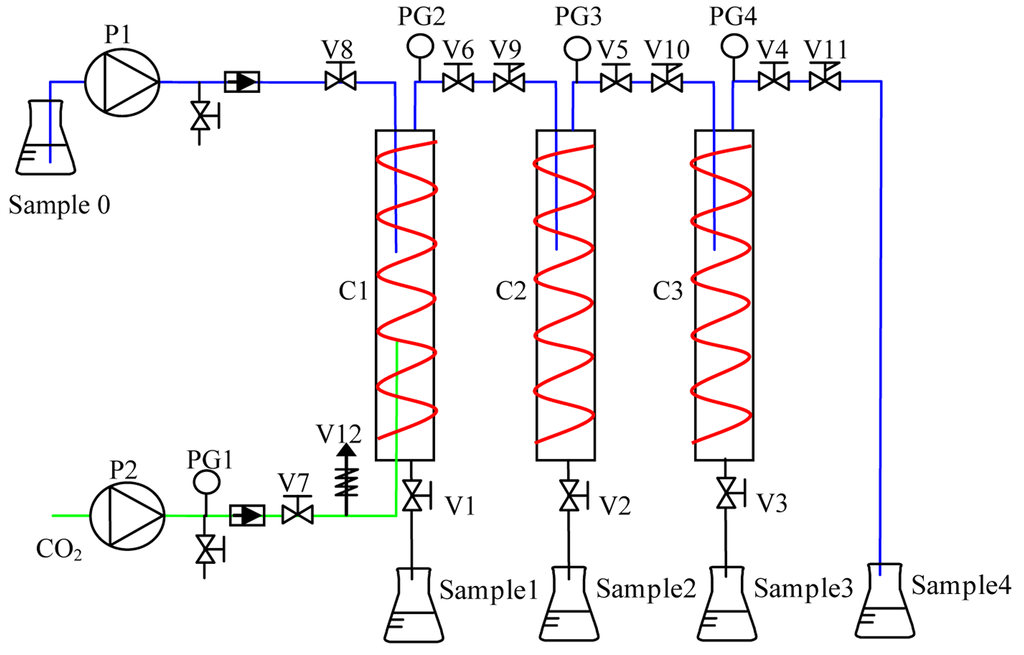

In recent years, biodegradable and alternative biodiesel has attracted increased attention worldwide. Producing biodiesel from biomass involves critical separation and purification technology. Conventional technologies such as gravitational settling, decantation, filtration, water washing, acid washing, organic solvent washing and absorbent applications are inefficient, less cost effective and environmentally less friendly. In this study supercritical carbon dioxide (SC-CO2) with few steps and a low environmental impact, was used for biodiesel fractionation from impure fatty acid methyl ester (FAME) solution mixes. The method is suitable for application in a variety of biodiesel production processes requiring subsequent stages of purification. The fractionation and purification was carried out using continuous SC-CO2 fractionation equipment, consisting of three columns filled with stainless steel fragments. A 41.85% FAME content solution mix was used as the raw material in this study. Variables were a temperature range of 40–70 °C, pressure range of 10–30 MPa, SC-CO2 flow rate range of 7–21 mL/min and a retention time range of 30–90 min. The Taguchi method was used to identify optimal operating conditions. The results show that a separated FAME content of 99.94% was verified by GC-FID under optimal fractionation conditions, which are a temperature of 40 °C of, a pressure level of 30MPa and a flow rate of 7 mL/min of SC-CO2 for a retention time of 90 min.
Keywords: biodiesel; fractionation; purification; SC-CO2; FAME biodiesel; fractionation; purification; SC-CO2; FAME
This is an open access article distributed under the Creative Commons Attribution License (CC BY) which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited.
