Energies 2014, 7(11), 7094-7104; doi:10.3390/en7117094

Experimental Investigation of Heat Transfer and Pressure Drop Characteristics of H-type Finned Tube Banks

Key Laboratory of Thermo-Fluid Science and Engineering (Ministry of Education), Xi'an Jiaotong University, Xi'an 710049, Shaanxi, China
*
Author to whom correspondence should be addressed.
Received: 12 August 2014 / Revised: 23 September 2014 / Accepted: 24 October 2014 / Published: 4 November 2014
View Full-Text   |   Download PDF [711 KB, uploaded 17 March 2015]   |

Abstract

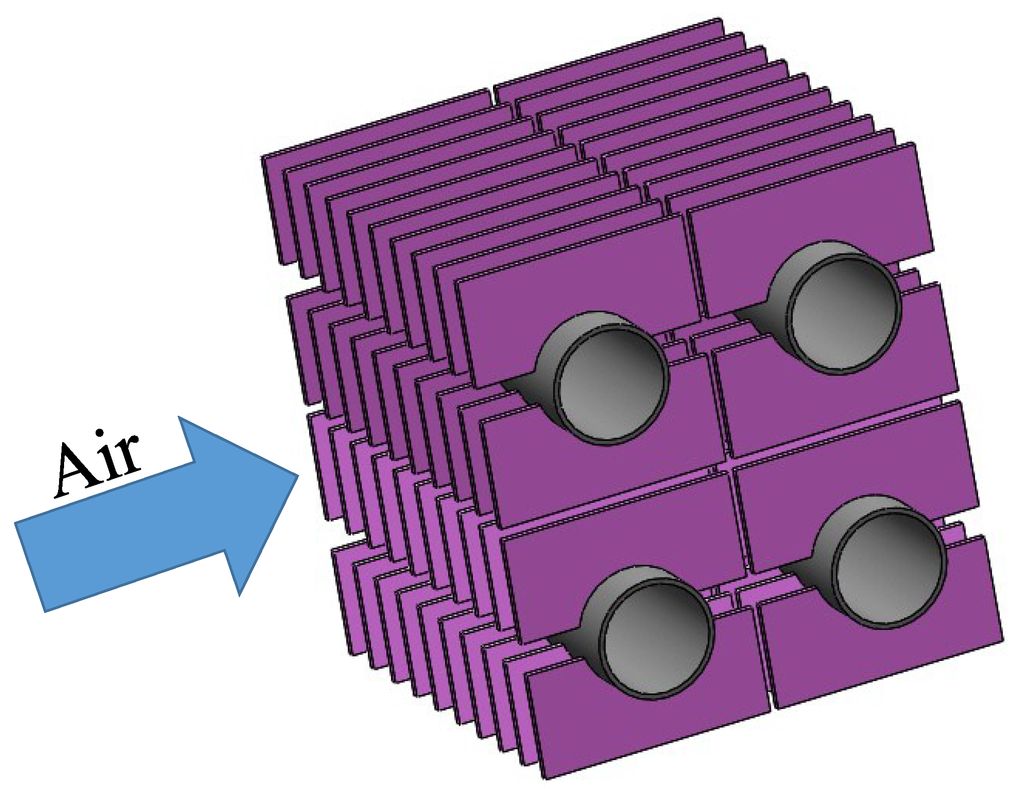

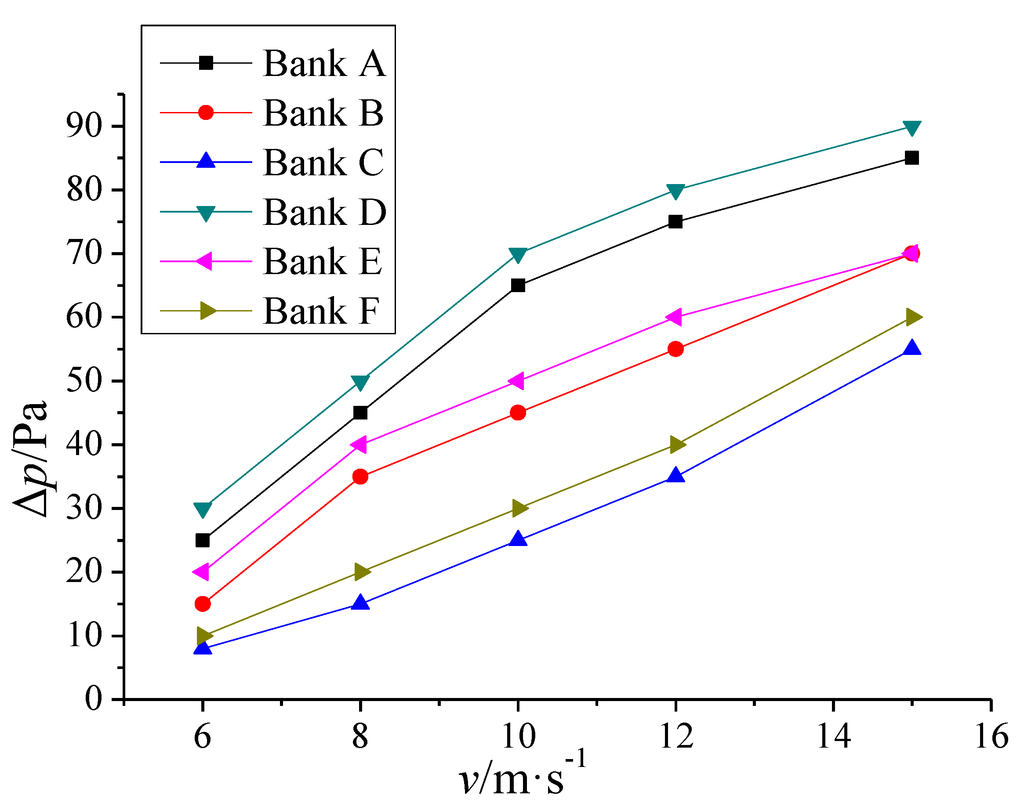

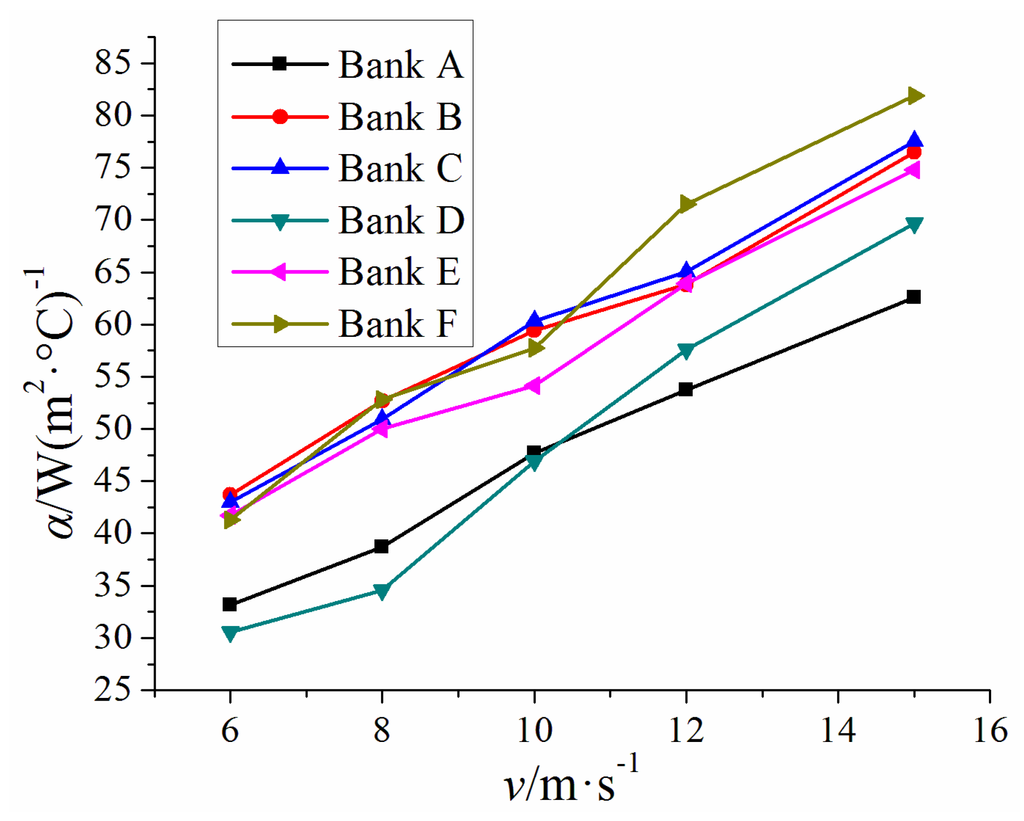

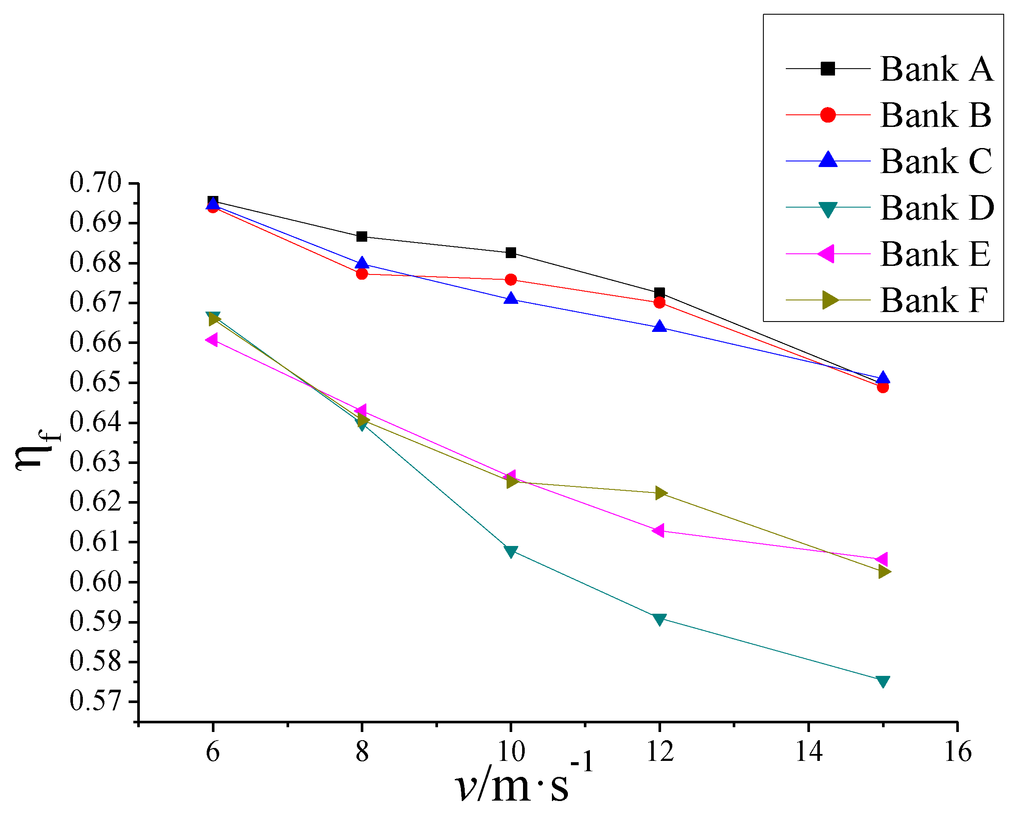

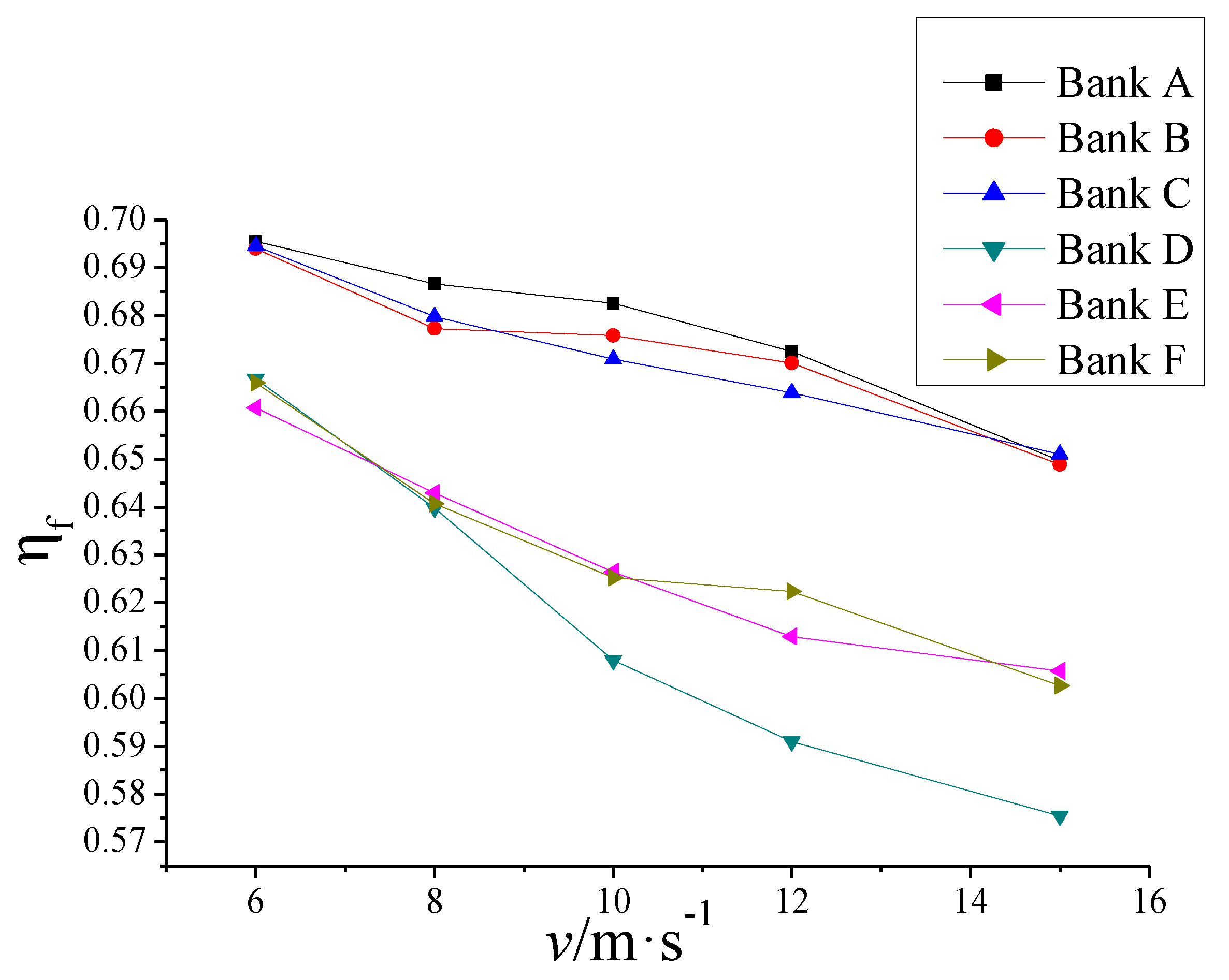

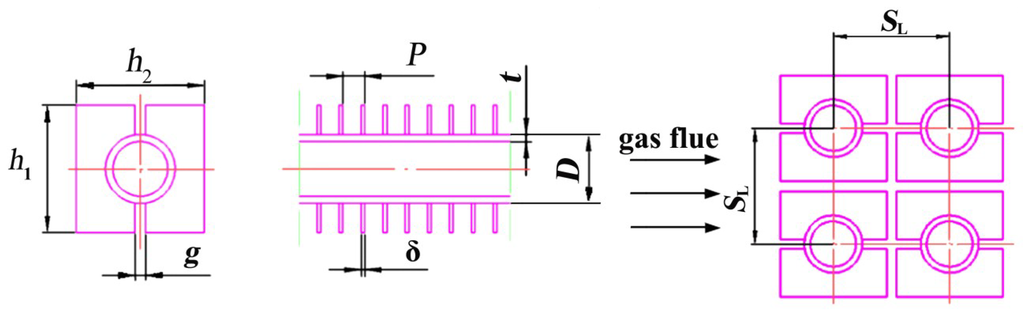

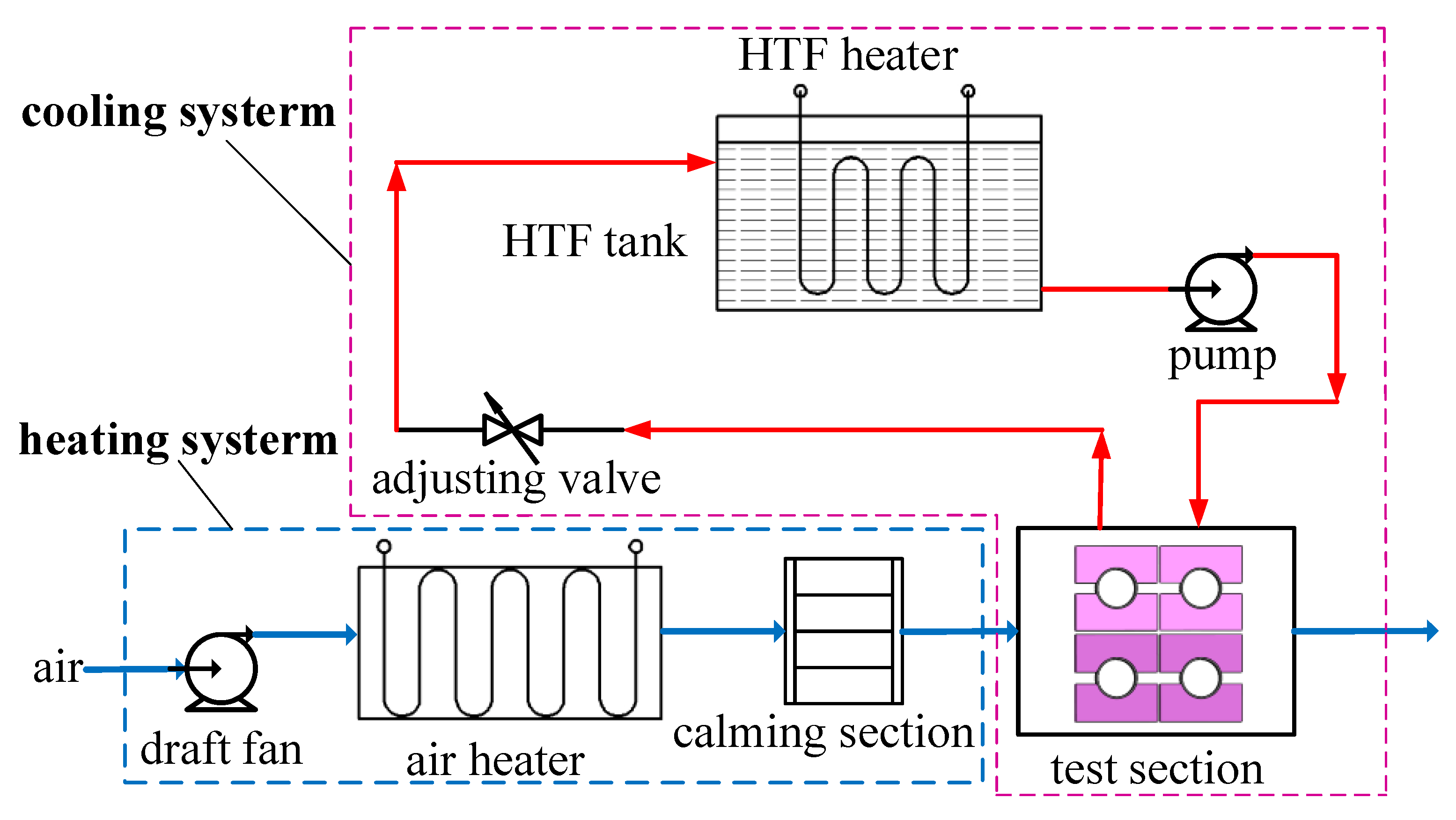

H-type finned tube heat exchanger elements maintain a high capacity for heat transfer, possess superior self-cleaning properties and retain the ability to effect flue gas waste heat recovery in boiler renovations. In this paper, the heat transfer and pressure drop characteristics of H-type finned tube banks are studied via an experimental open high-temperature wind tunnel system. The effects of fin width, fin height, fin pitch and air velocity on fin efficiency, convective heat transfer coefficient, integrated heat transfer capacity and pressure drop are examined. The results indicate that as air velocity, fin height and fin width increase, fin efficiency decreases. Convective heat transfer coefficient is proportional to fin pitch, but inversely proportional to fin height and fin width. Integrated heat transfer capacity is related to fin efficiency, convective heat transfer coefficient and finned ratio. Pressure drop increases with the increase of fin height and fin width. Finally, predictive correlations of fin efficiency, Nusselt number and Euler Number are developed based on the experimental data. View Full-Text
Keywords: waste heat recovery; H-type finned tube; fin efficiency; heat transfer; pressure drop waste heat recovery; H-type finned tube; fin efficiency; heat transfer; pressure drop
This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).
