Energies 2013, 6(7), 3466-3480; doi:10.3390/en6073466
Article

Acetylene Black/Sulfur Composites Synthesized by a Solution Evaporation Concentration Crystallization Method and Their Electrochemical Properties for Li/S Batteries

Faculty of Material Science and Chemistry, China University of Geosciences, Wuhan 430074, China
* Author to whom correspondence should be addressed.
Received: 8 May 2013; in revised form: 20 June 2013 / Accepted: 9 July 2013 / Published: 15 July 2013
(This article belongs to the Special Issue Li-ion Batteries and Energy Storage Devices)
PDF Full-text Download PDF Full-Text [44841 KB, uploaded 15 July 2013 17:06 CEST]

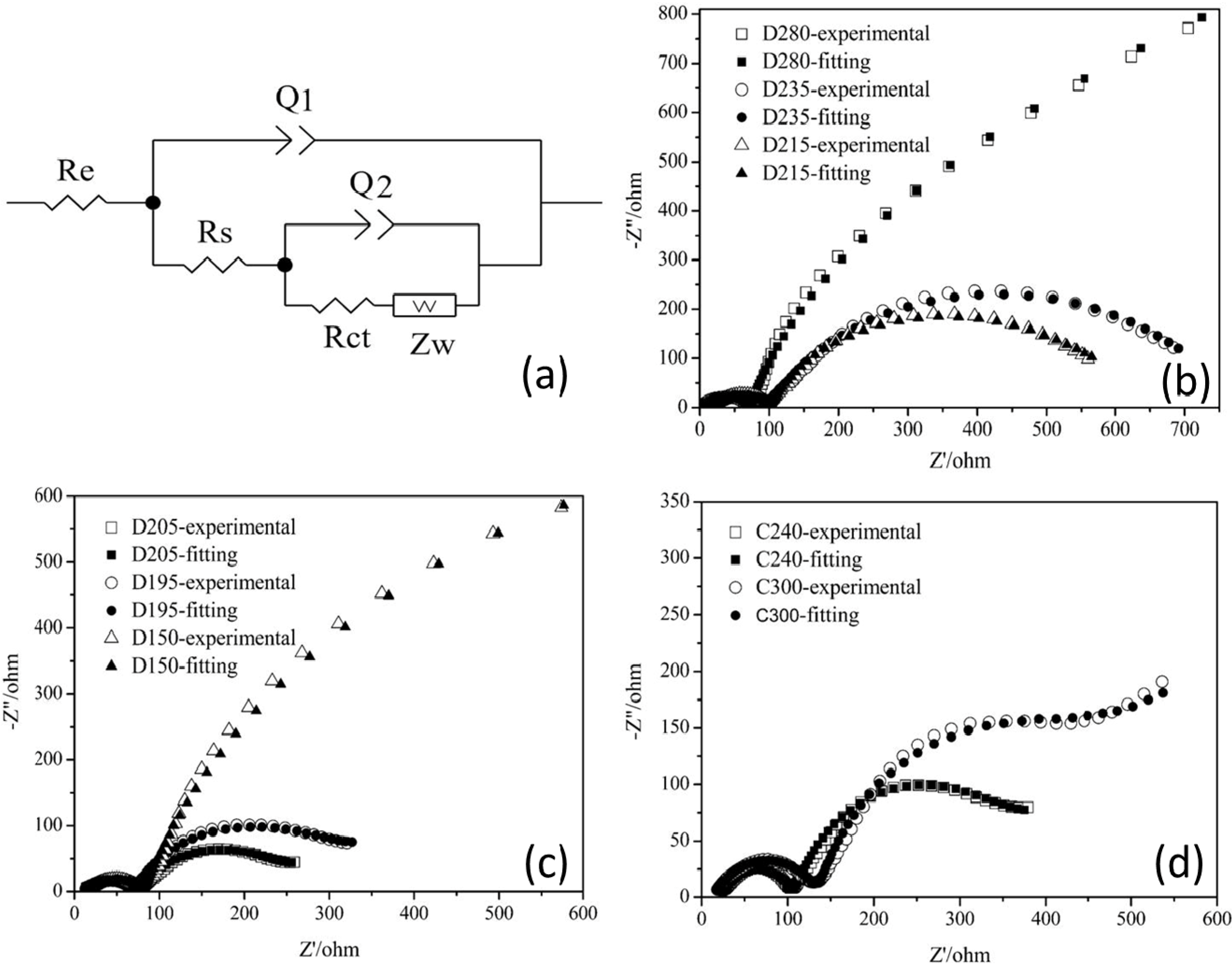

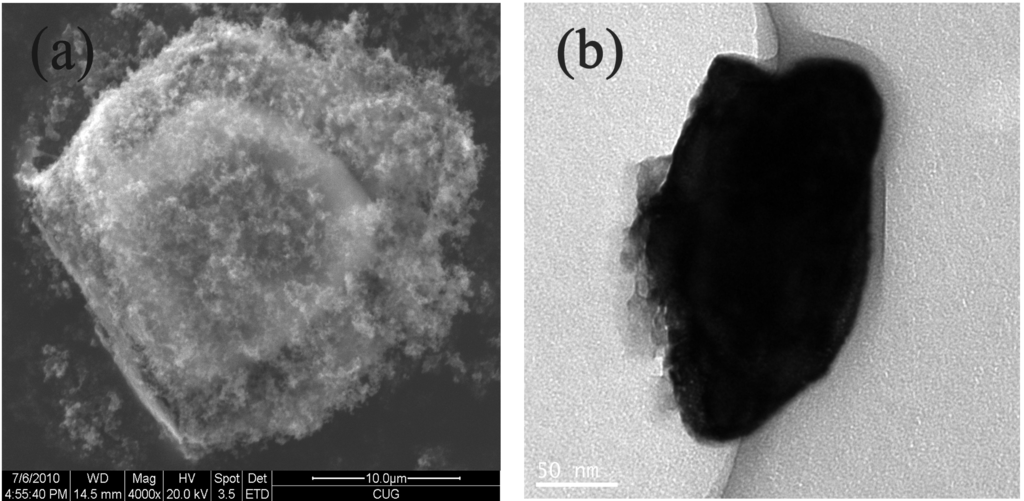

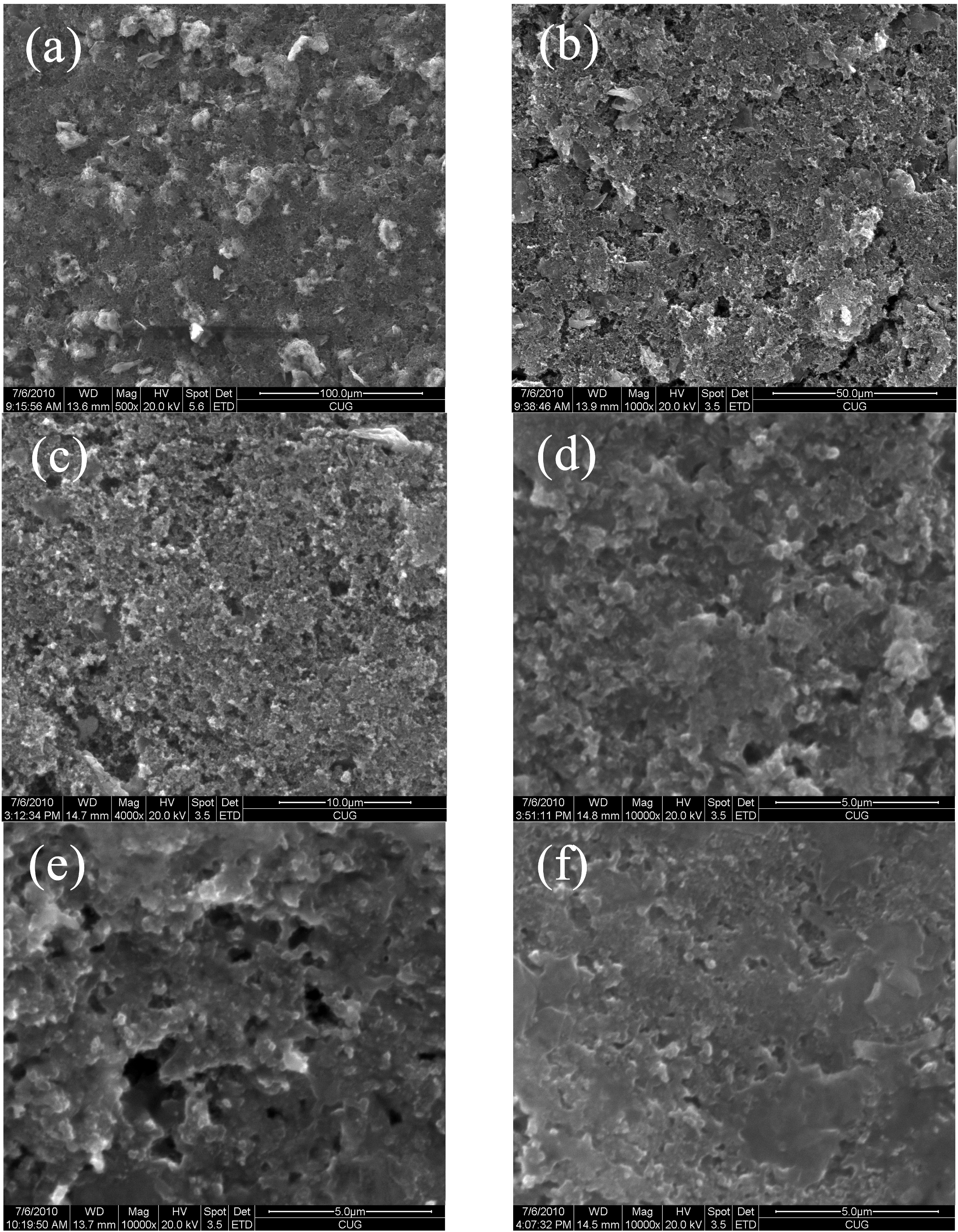

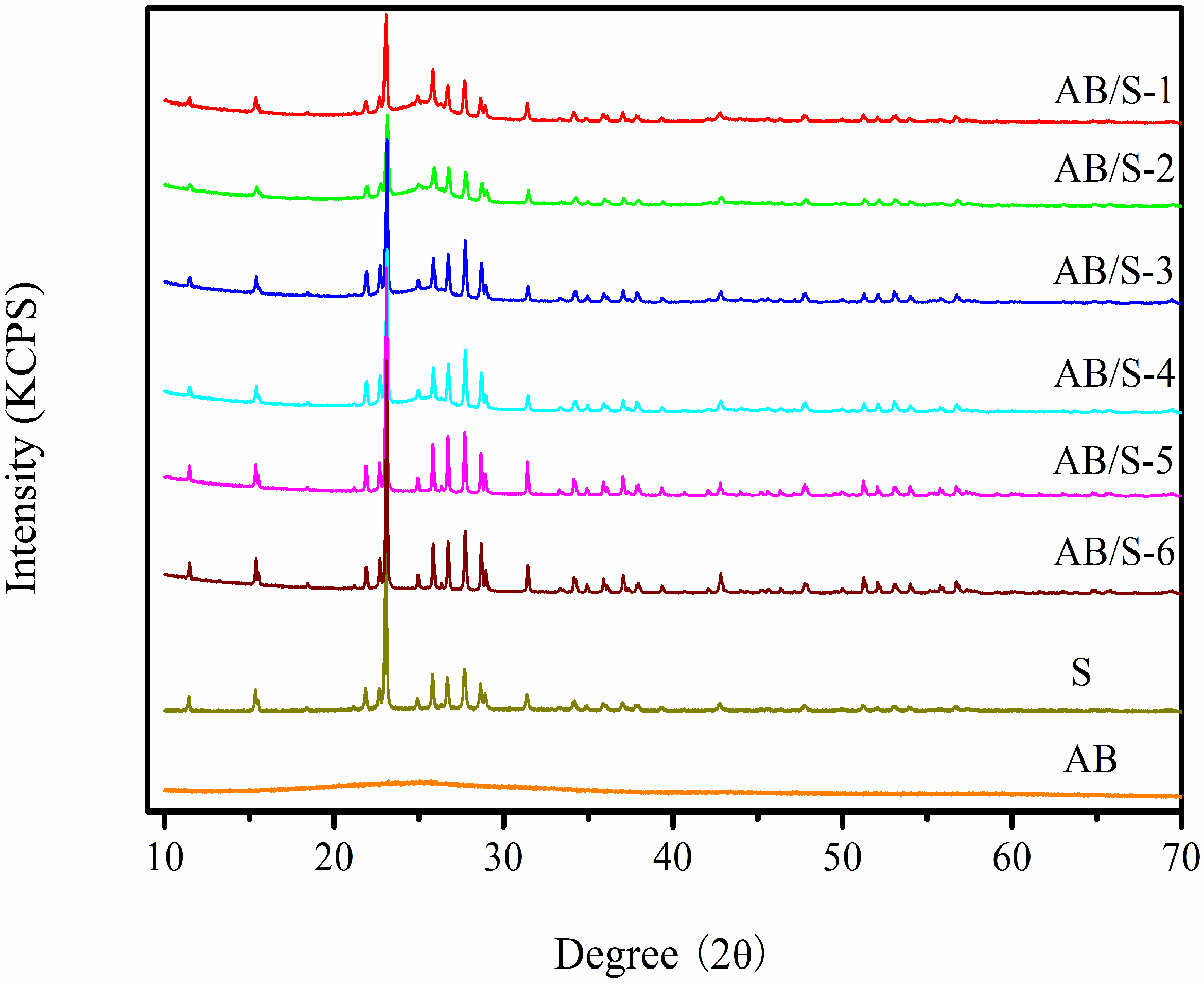

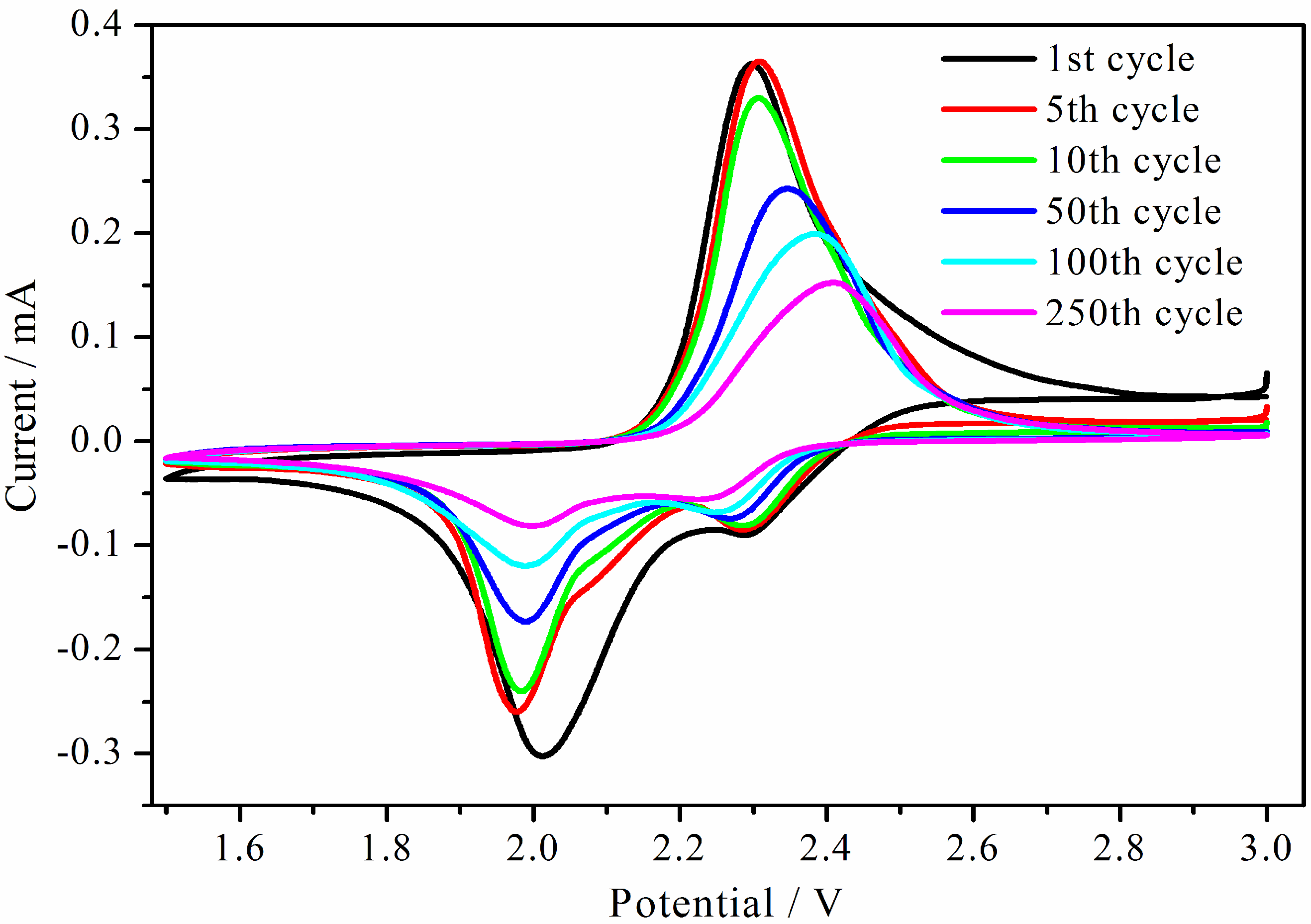

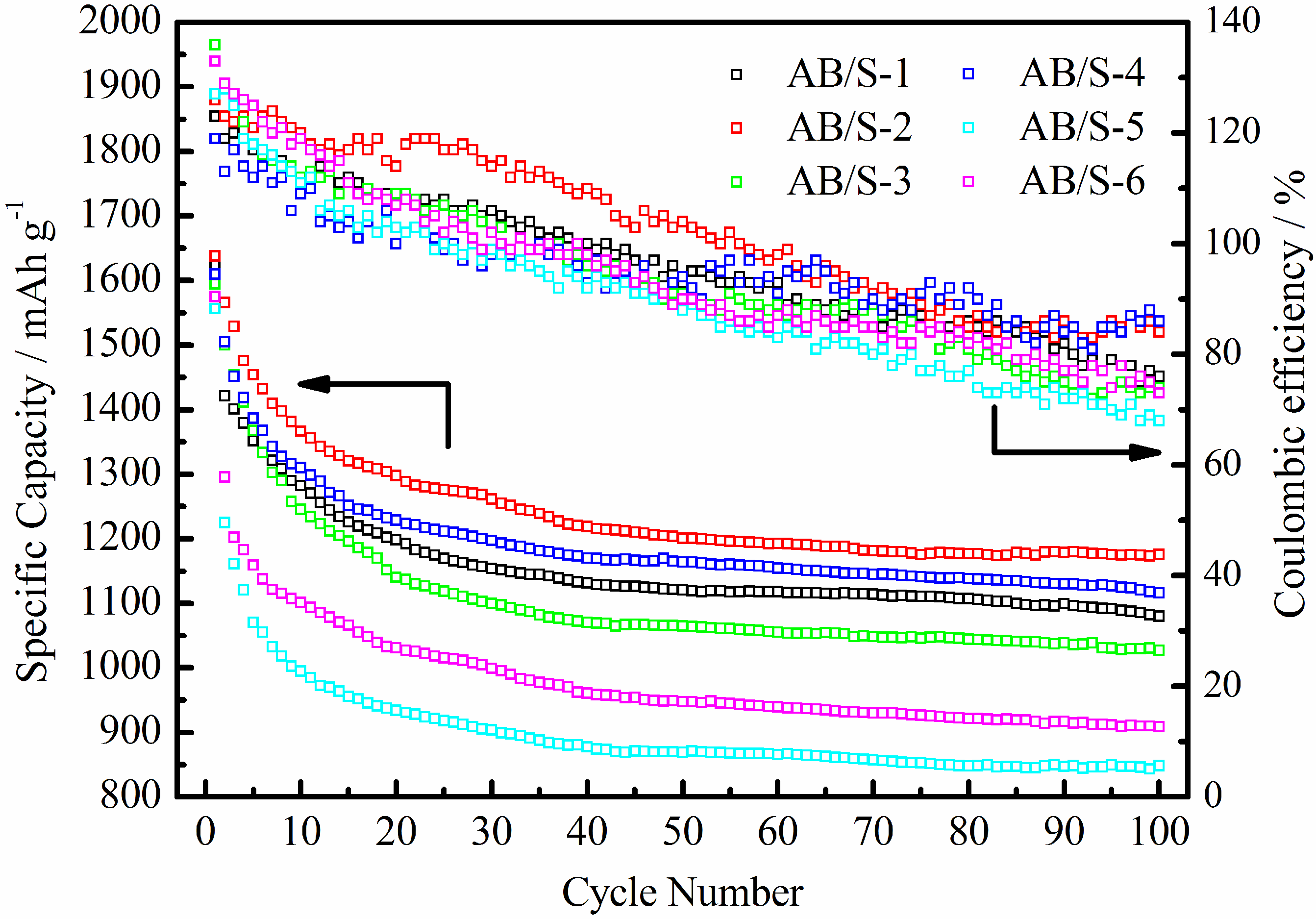

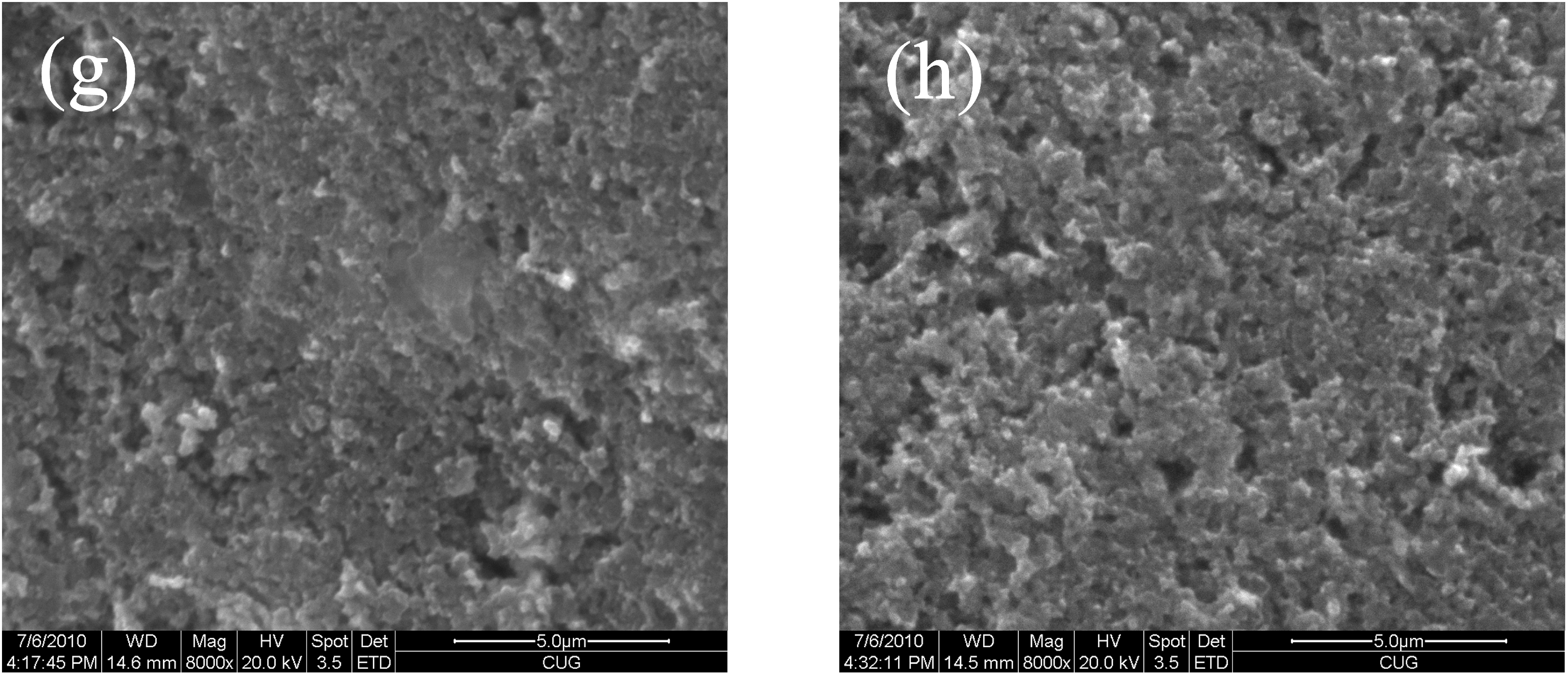

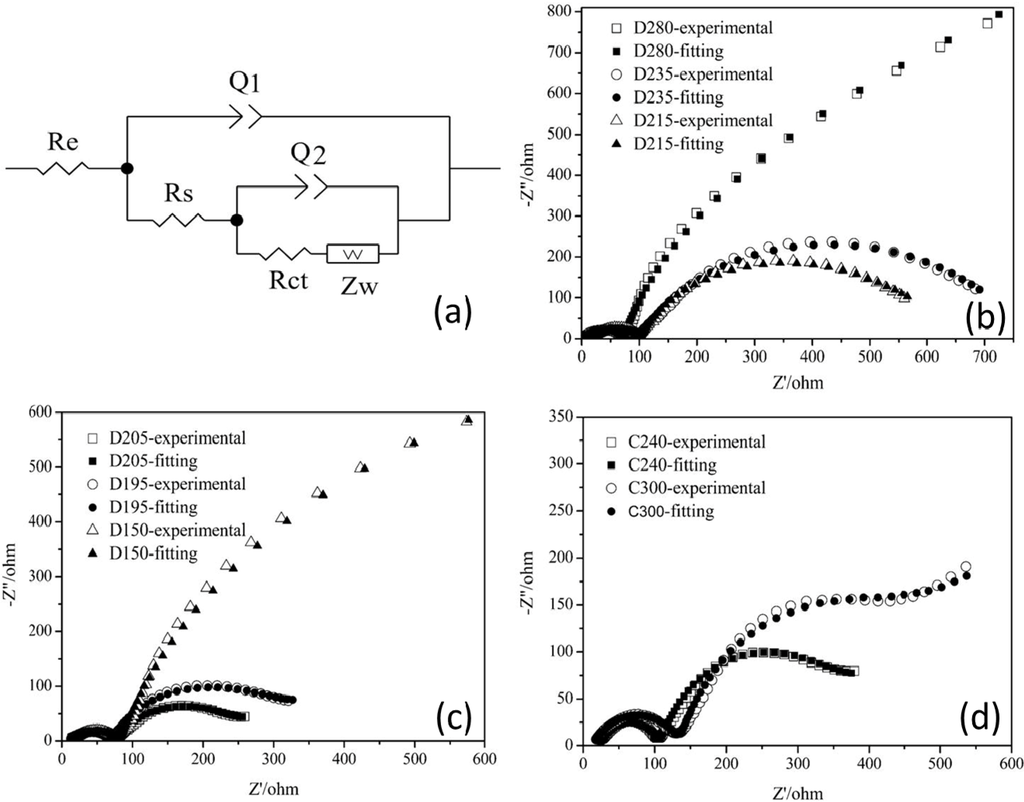

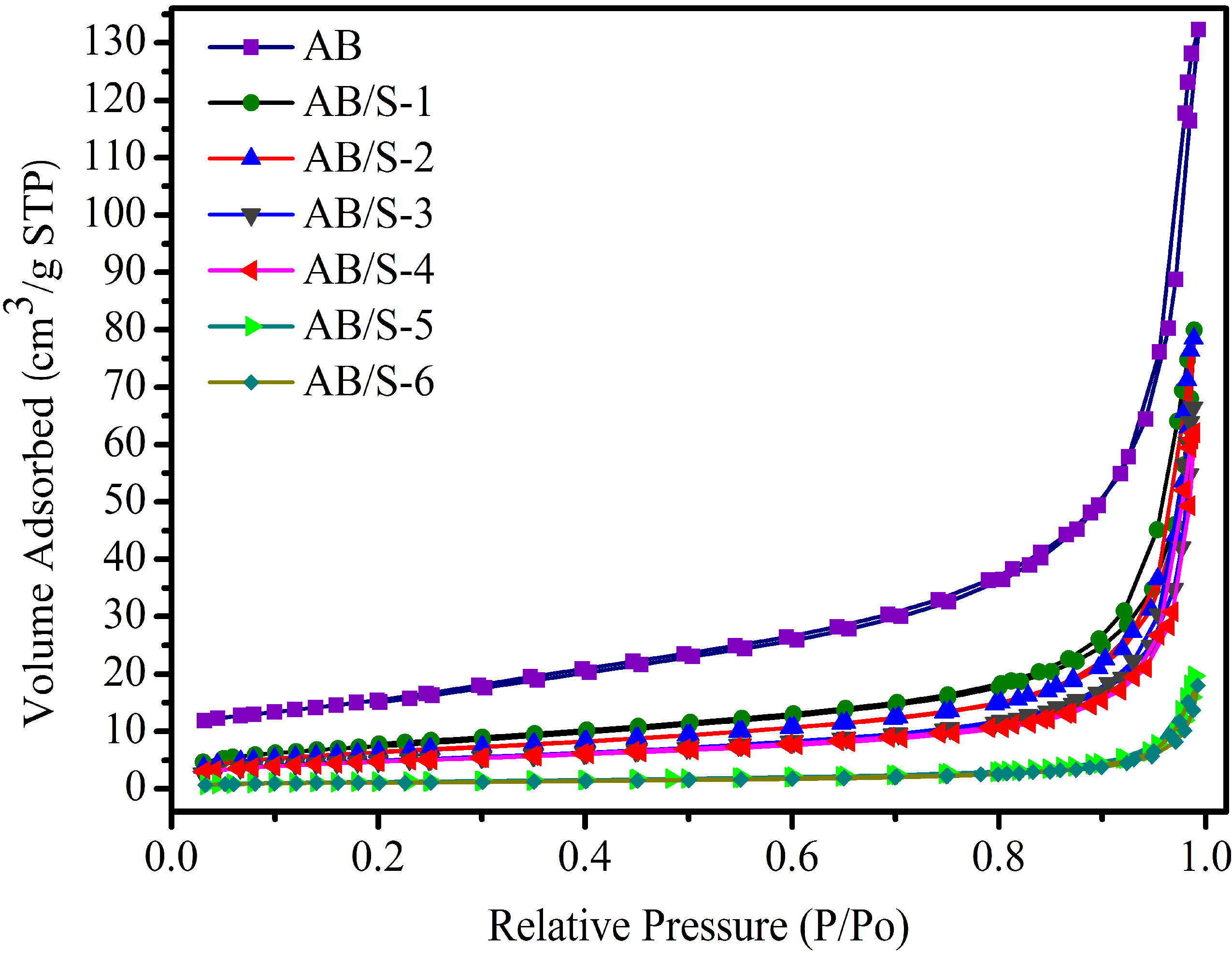

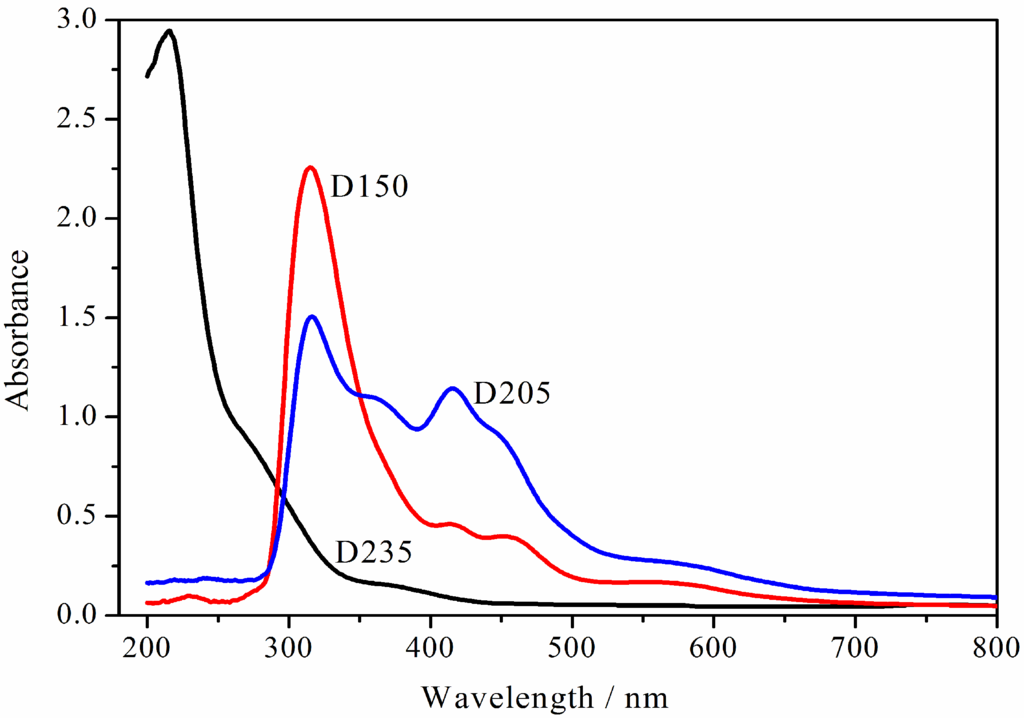

Abstract: A novel technique to prepare carbon/sulfur composites as cathode materials for Li/S batteries is proposed, which we call the ‘solution evaporation concentration crystallization’ method. Three composites with different S loadings were prepared, subject to two different solvent evaporation rates from acetylene black (AB)/sulfur in carbon disulfide solutions. X-ray diffraction, environmental scanning electron microscopy, transmission electron microscopy, and Brunauer-Emmett-Teller measurements all show that the porous AB structure is well-filled with S. Composites prepared at a lower solvent evaporation rate with 50 wt % S content, had good electrochemical properties, with 1609.67 mAh g−1 after 100 cycles. Composites with better dispersibility at a low solvent evaporation rate can effectively prevent polysulfide from dissolving in the electrolyte, and serve to stabilize the structure of the S cathode during the charge-discharge process.
Keywords: sulfur/carbon composites; solution evaporation concentration crystallization method; lithium sulfur batteries

Article Statistics

Load and display the download statistics.

Citations to this Article

Cite This Article

MDPI and ACS Style

Tan, H.; Wang, S.; Tao, D.; Yang, Z. Acetylene Black/Sulfur Composites Synthesized by a Solution Evaporation Concentration Crystallization Method and Their Electrochemical Properties for Li/S Batteries. Energies 2013, 6, 3466-3480.

AMA Style

Tan H, Wang S, Tao D, Yang Z. Acetylene Black/Sulfur Composites Synthesized by a Solution Evaporation Concentration Crystallization Method and Their Electrochemical Properties for Li/S Batteries. Energies. 2013; 6(7):3466-3480.

Chicago/Turabian Style

Tan, Haibo; Wang, Shengping; Tao, Du; Yang, Zhigao. 2013. "Acetylene Black/Sulfur Composites Synthesized by a Solution Evaporation Concentration Crystallization Method and Their Electrochemical Properties for Li/S Batteries." Energies 6, no. 7: 3466-3480.

Energies EISSN 1996-1073 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
