Energies 2013, 6(4), 1843-1862; doi:10.3390/en6041843
Article

System Design and Analysis of a Directly Air-Assisted Turbocharged SI Engine with Camshaft Driven Valves

* ,
 and
Received: 5 February 2013; in revised form: 20 March 2013 / Accepted: 21 March 2013 / Published: 28 March 2013
Download PDF [270 KB, uploaded 28 March 2013]

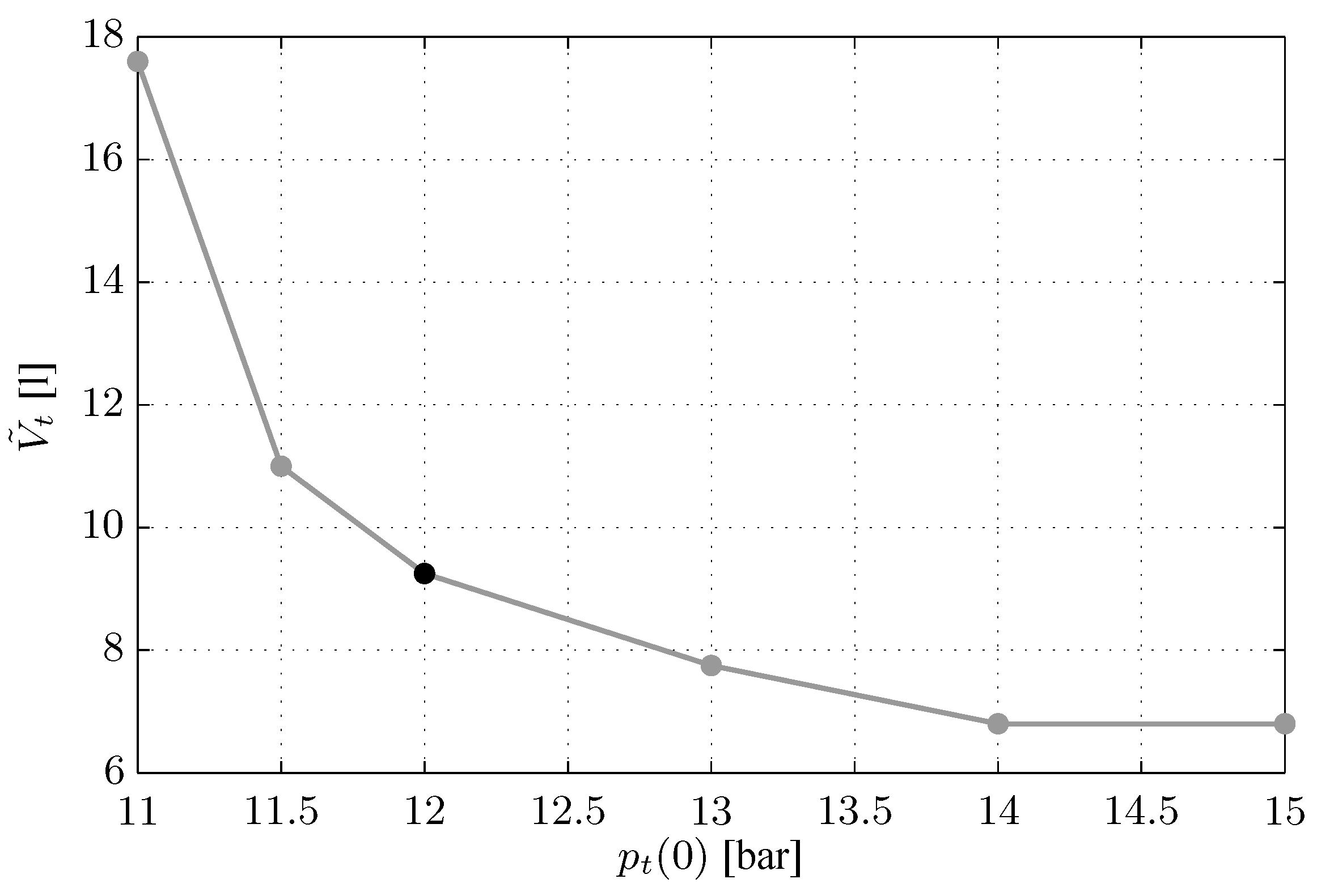

Abstract: The availability of compressed air in combination with downsizing and turbocharging is a promising approach to improve the fuel economy and the driveability of internal combustion engines. The compressed air is used to boost and start the engine. It is generated during deceleration phases by running the engine as a piston compressor. In this paper, a camshaft-driven valve is considered for the control of the air exchange between the tank and the combustion chamber. Such a valve system is cost-effective and robust. Each pneumatic engine mode is realized by a separate cam. The air mass transfer in each mode is analyzed. Special attention is paid to the tank pressure dependence. The air demand in the boost mode is found to increase with the tank pressure. However, the dependence on the tank pressure is small in the most relevant operating region. The air demand of the pneumatic start shows a piecewise continuous dependence on the tank pressure. Finally, a tank sizing method is proposed which uses a quasi-static simulation. It is applied to a compact class vehicle, for which a tank volume of less than 10 L is sufficient. A further reduction of the tank volume is limited by the specifications imposed on the pneumatic start.
Keywords: directly air-assisted turbocharged spark-ignited engines; camshaft-driven charge valve; turbo lag compensation; system design directly air-assisted turbocharged spark-ignited engines; camshaft-driven charge valve; turbo lag compensation; system design
This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited.

Export to BibTeX |
EndNote


MDPI and ACS Style

Voser, C.; Onder, C.; Guzzella, L. System Design and Analysis of a Directly Air-Assisted Turbocharged SI Engine with Camshaft Driven Valves. Energies 2013, 6, 1843-1862.

AMA Style

Voser C, Onder C, Guzzella L. System Design and Analysis of a Directly Air-Assisted Turbocharged SI Engine with Camshaft Driven Valves. Energies. 2013; 6(4):1843-1862.

Chicago/Turabian Style

Voser, Christoph; Onder, Christopher; Guzzella, Lino. 2013. "System Design and Analysis of a Directly Air-Assisted Turbocharged SI Engine with Camshaft Driven Valves." Energies 6, no. 4: 1843-1862.
