Second-Order Harmonic Reduction Technique for Photovoltaic Power Conditioning Systems Using a Proportional-Resonant Controller

doi:10.3390/en6010079

This article is

freely available
re-usable

Energies 2013, 6(1), 79-96; doi:10.3390/en6010079

Article

Second-Order Harmonic Reduction Technique for Photovoltaic Power Conditioning Systems Using a Proportional-Resonant Controller

Hae-Gwang Jeong, Gwang-Seob Kim and Kyo-Beum Lee*

Department of Electrical and Computer Engineering, Ajou University, San 5, Woncheon-dong, Yeongtong-gu, Suwon 443-749, Kyunggi-do, Korea

* Author to whom correspondence should be addressed.

Received: 17 November 2012; in revised form: 6 December 2012 / Accepted: 17 December 2012 / Published: 2 January 2013

(This article belongs to the Special Issue Solar Energy Systems and Materials)

Download PDF Full-Text [4694 KB, uploaded 2 January 2013 09:46 CET]

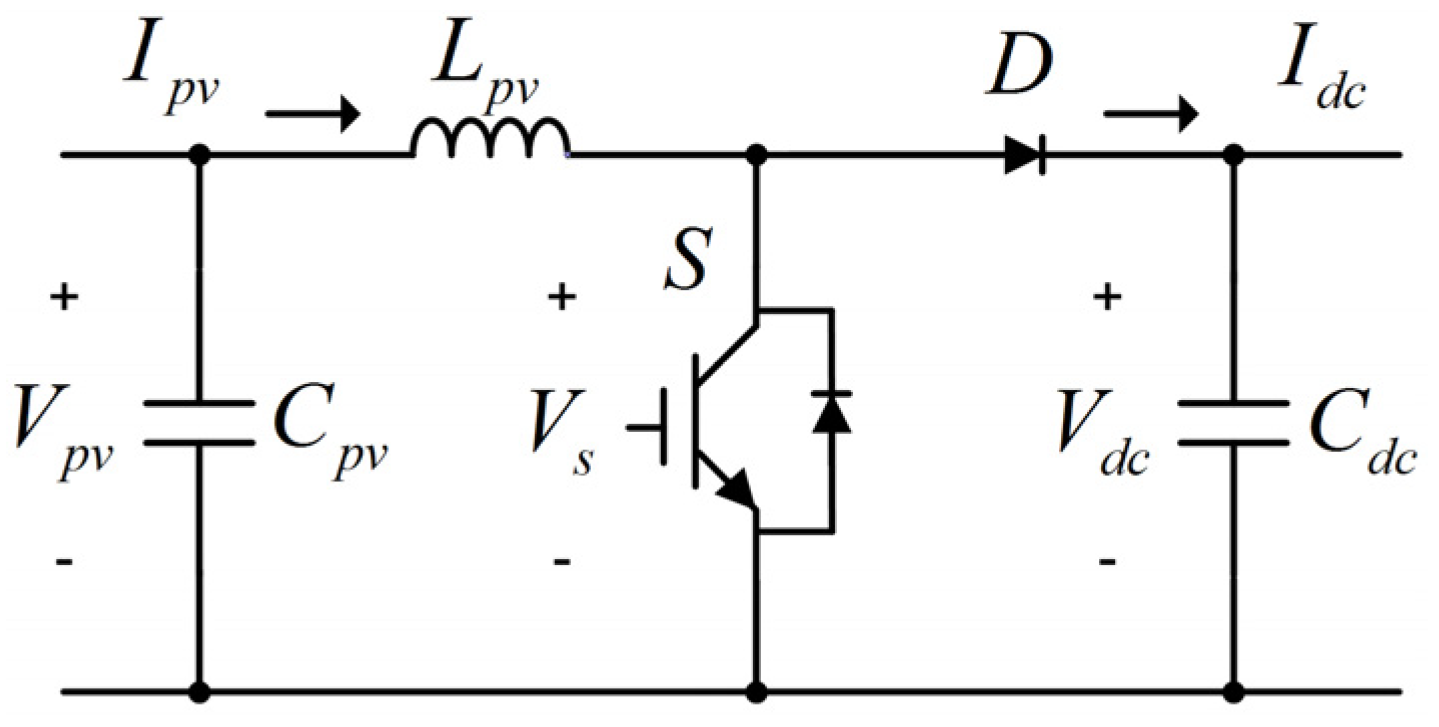

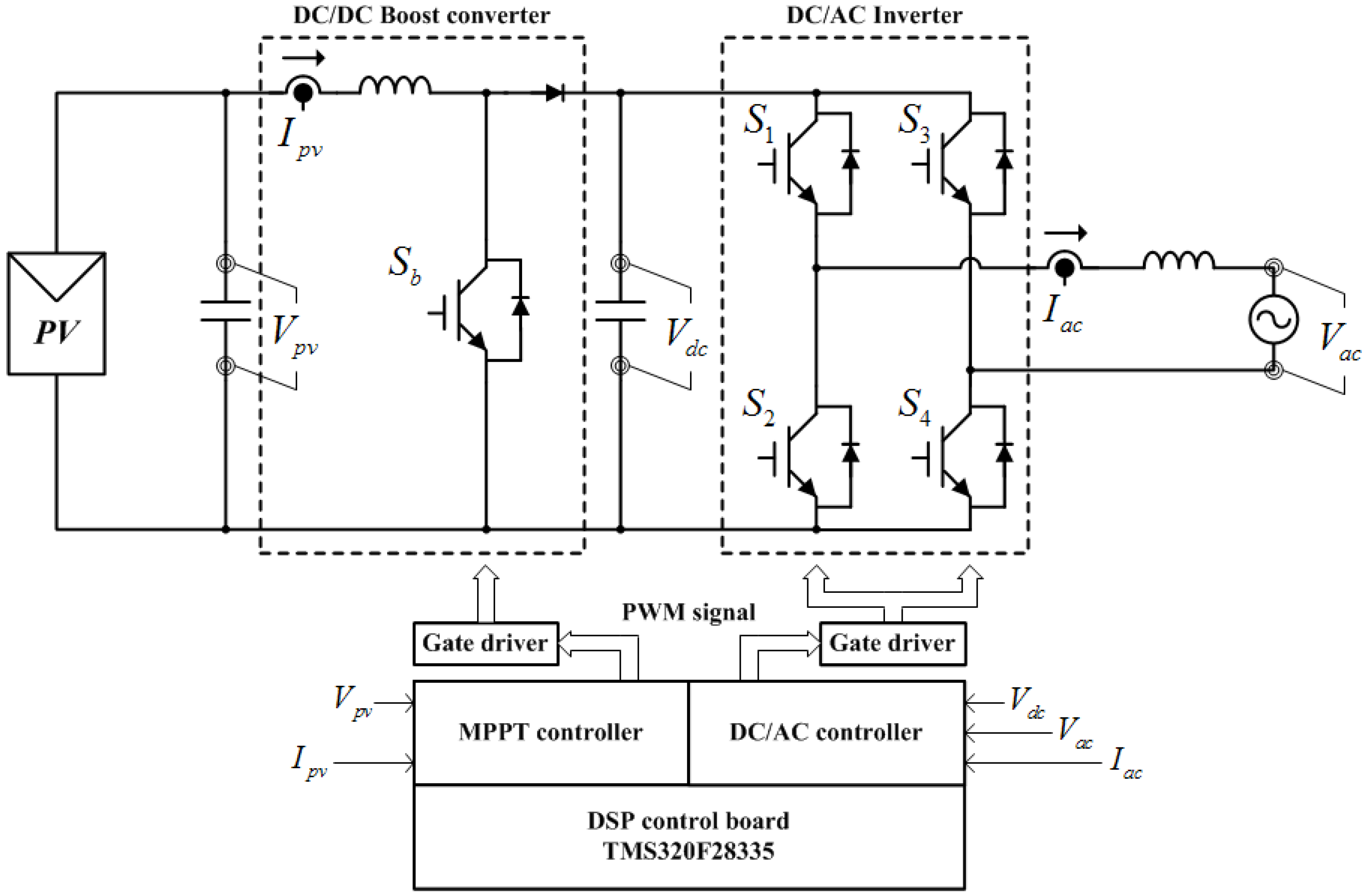

Abstract: This paper proposes a second-order harmonic reduction technique using a proportional-resonant (PR) controller for a photovoltaic (PV) power conditioning system (PCS). In a grid-connected single-phase system, inverters create a second-order harmonic at twice the fundamental frequency. A ripple component unsettles the operating points of the PV array and deteriorates the operation of the maximum power point tracking (MPPT) technique. The second-order harmonic component in PV PCS is analyzed using an equivalent circuit of the DC/DC converter and the DC/AC inverter. A new feed-forward compensation technique using a PR controller for ripple reduction is proposed. The proposed algorithm is advantageous in that additional devices are not required and complex calculations are unnecessary. Therefore, this method is cost-effective and simple to implement. The proposed feed-forward compensation technique is verified by simulation and experimental results.

Keywords: second-order harmonic; photovoltaic power conditioning system (PCS); single-phase inverter; proportional-resonant (PR) controller; ripple reduction
