Energies 2018, 11(6), 1525; https://doi.org/10.3390/en11061525

Application of Synchrosqueezed Wavelet Transforms for Extraction of the Oscillatory Parameters of Subsynchronous Oscillation in Power Systems

1
School of Power Transmission and Distribution Technology, Northeast Electric Power University, Jilin 132012, China
2
School of Electrical Engineering, Northeast Electric Power University, Jilin 132012, China
3
Academic Administration Office, Northeast Electric Power University, Jilin 132012, China
*
Author to whom correspondence should be addressed.
Received: 6 May 2018 / Revised: 31 May 2018 / Accepted: 7 June 2018 / Published: 12 June 2018

Abstract

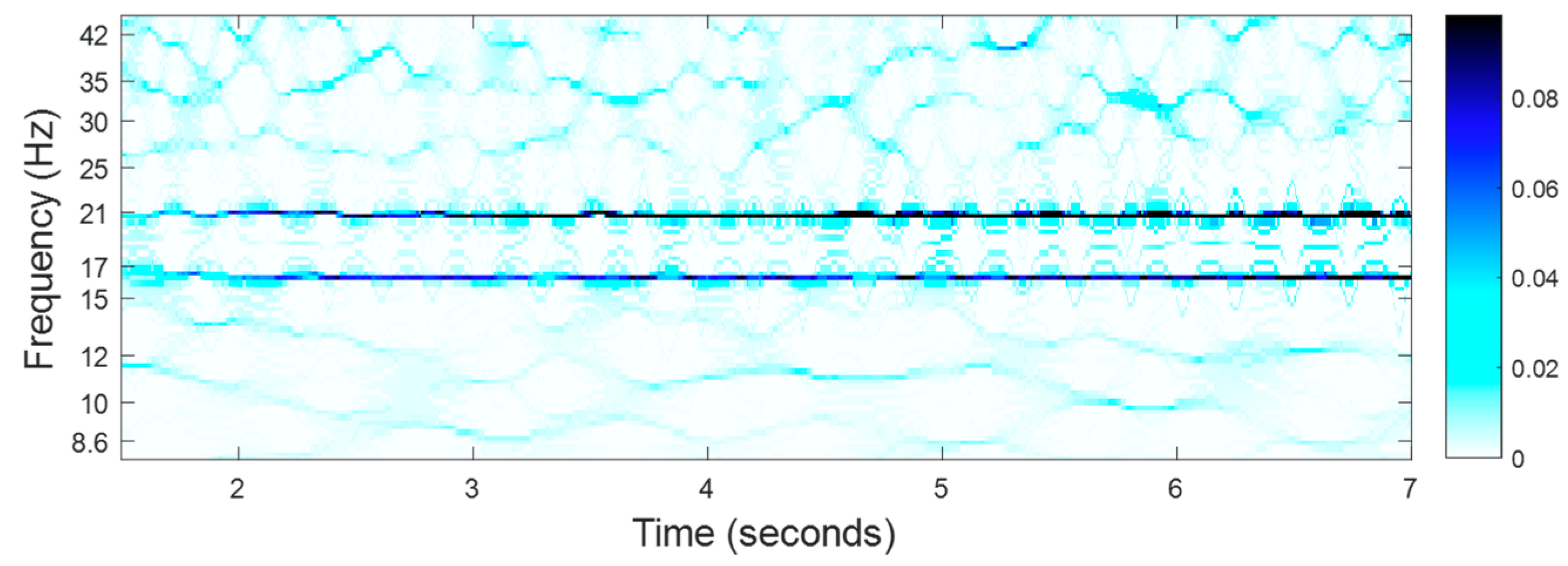

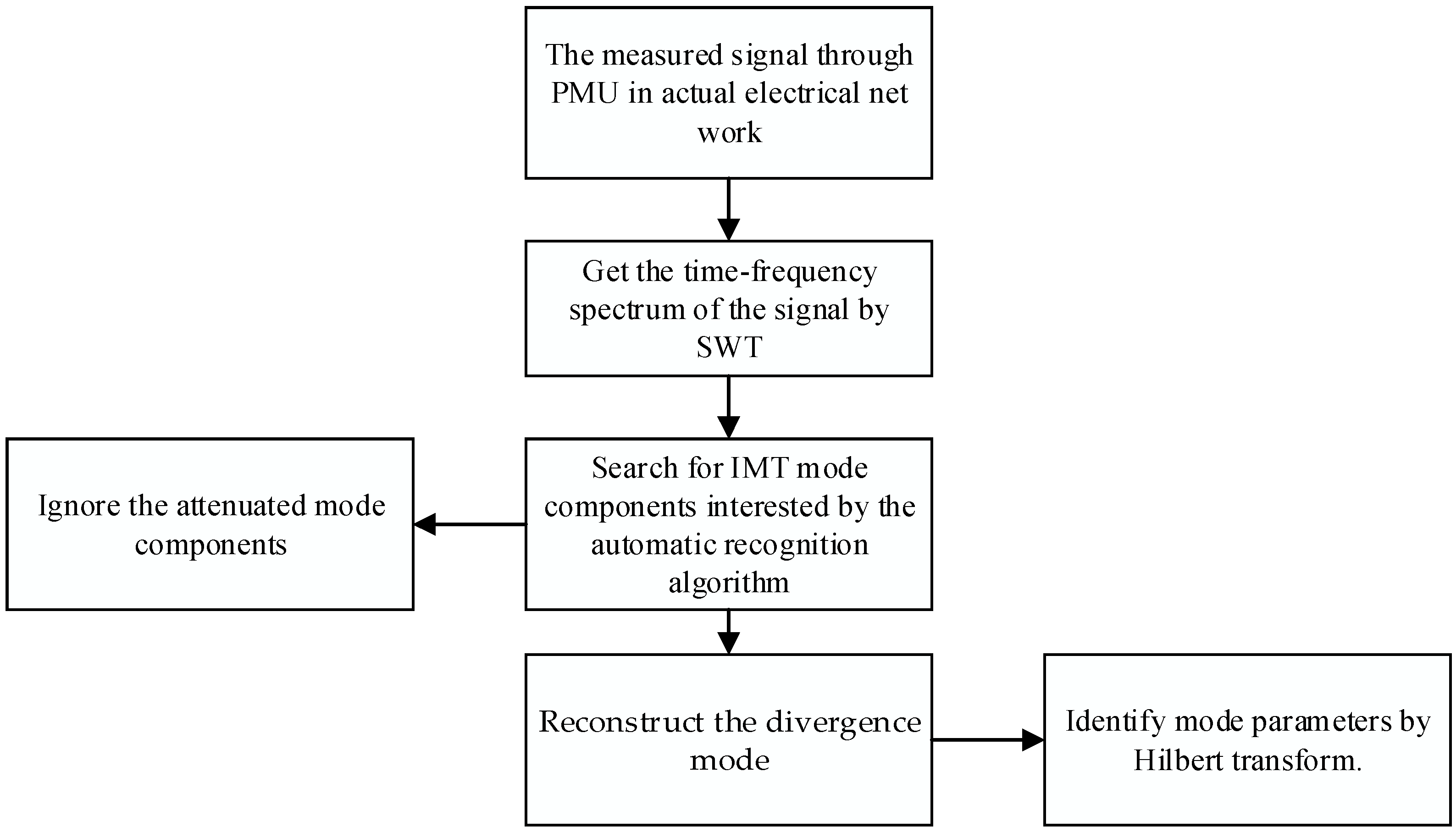

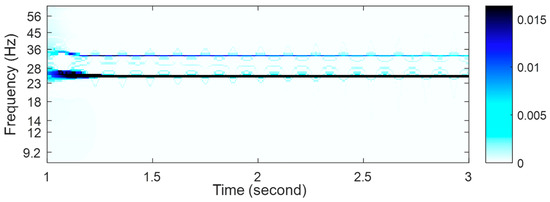

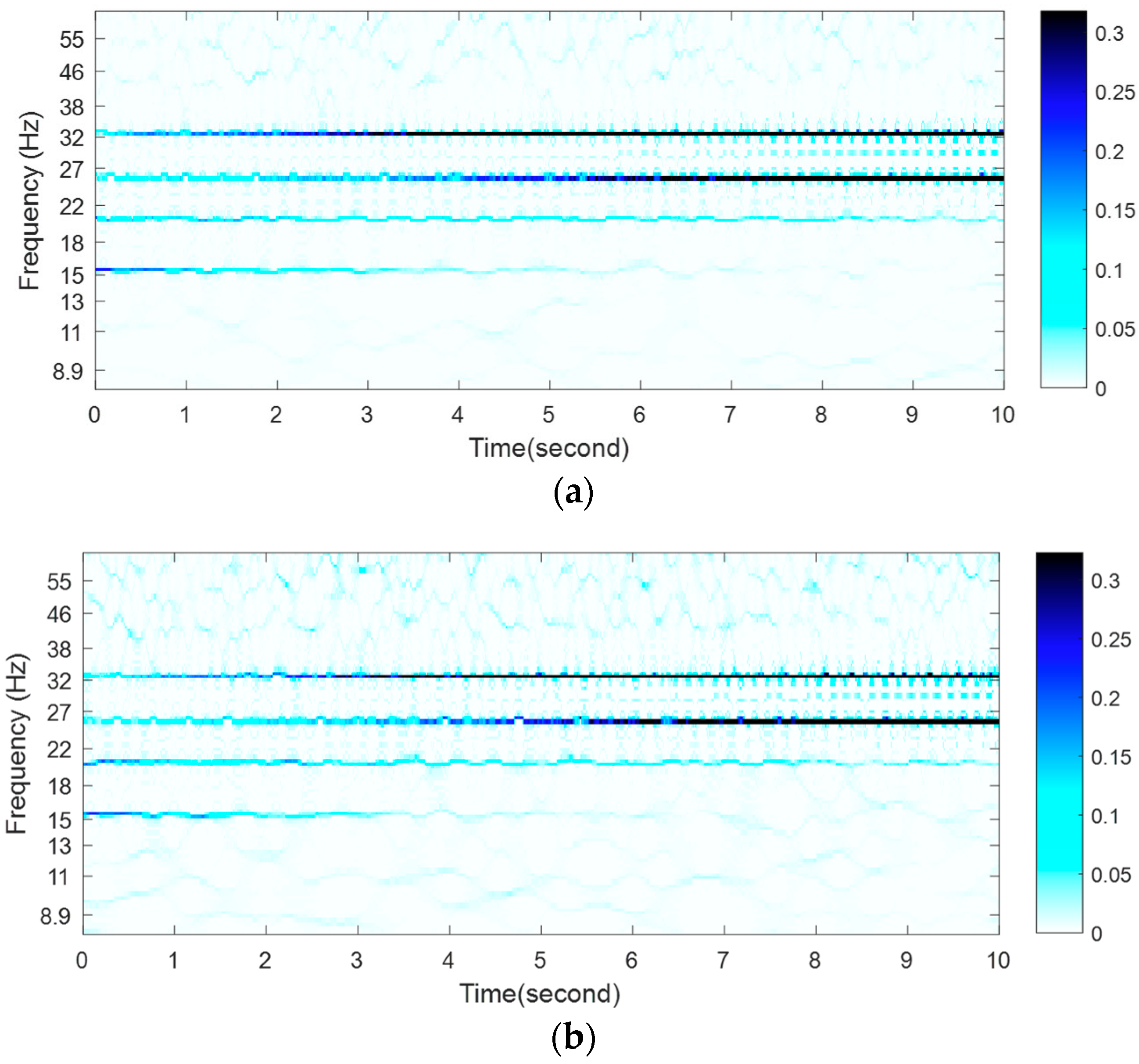

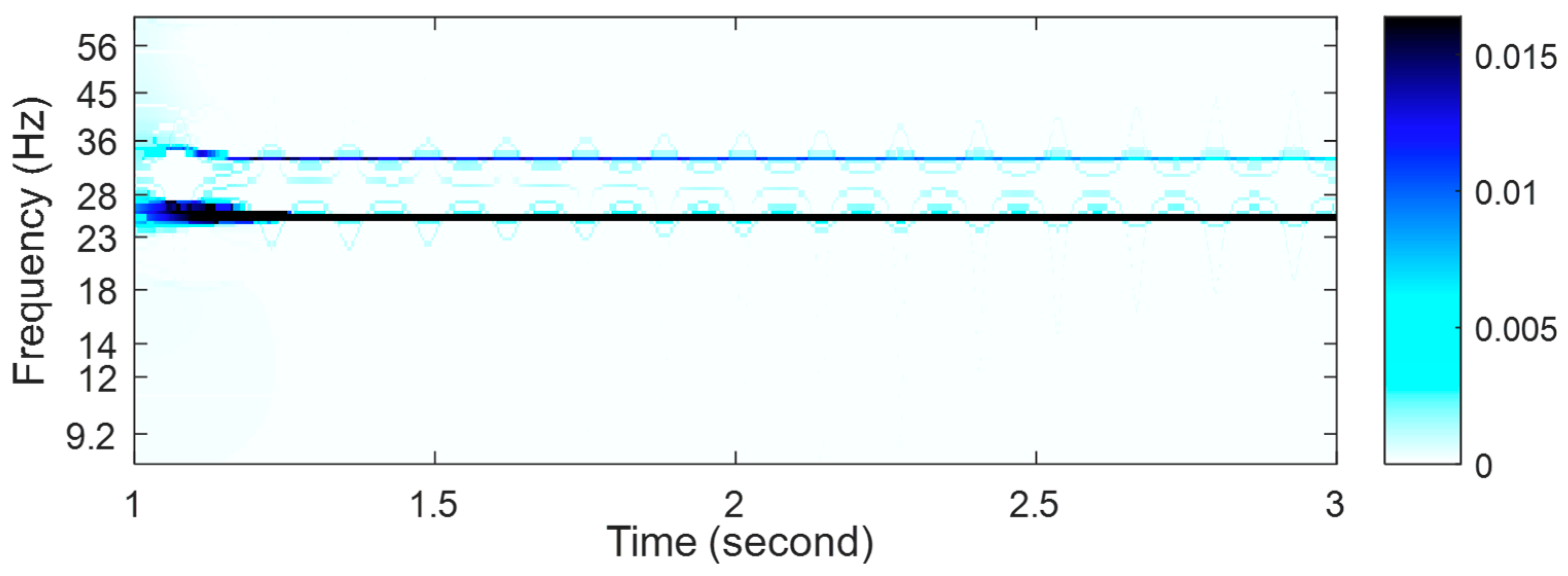

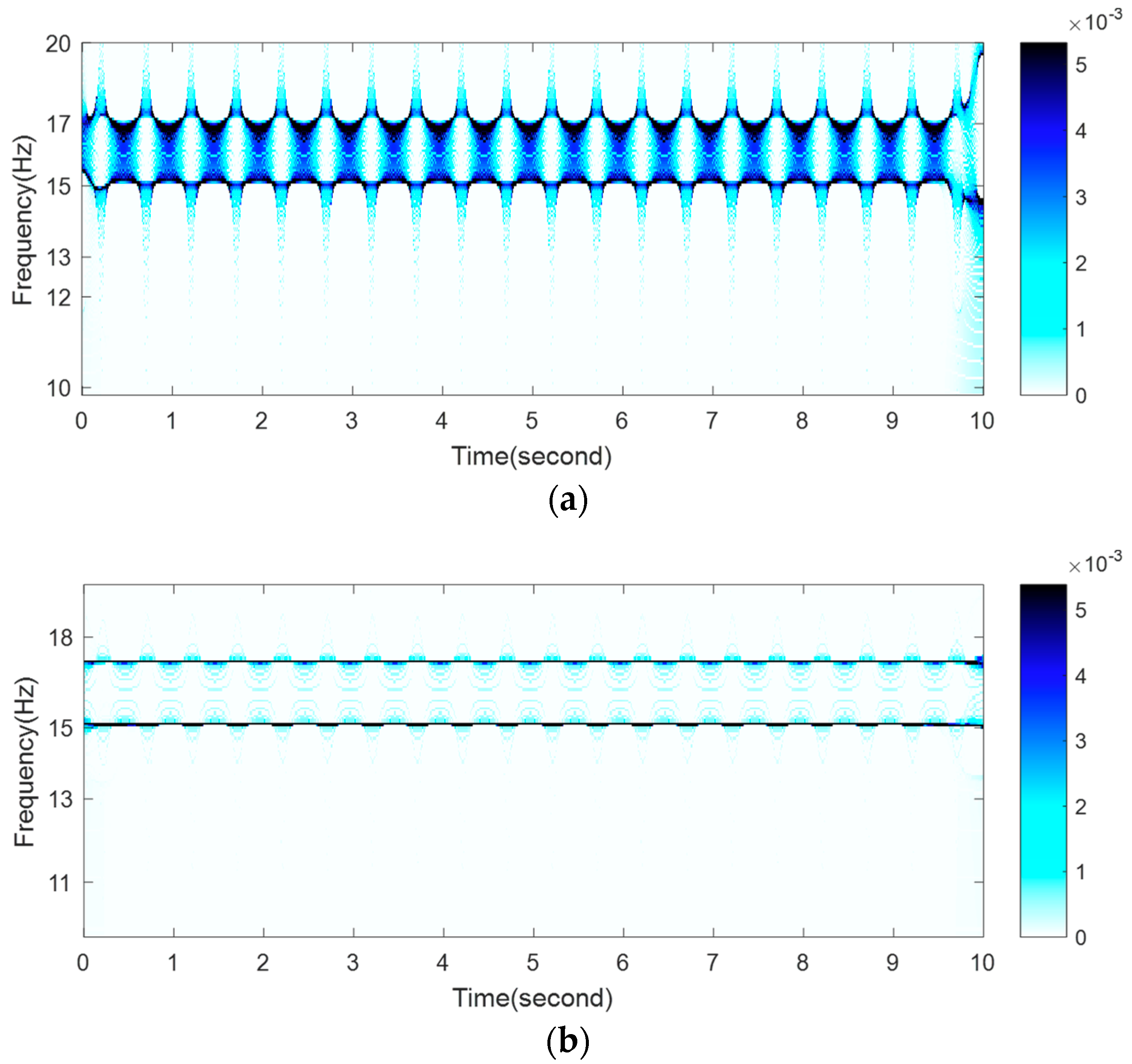

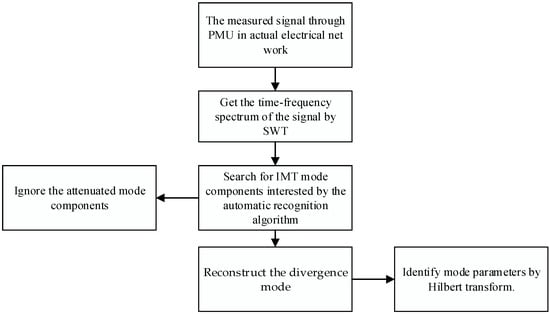

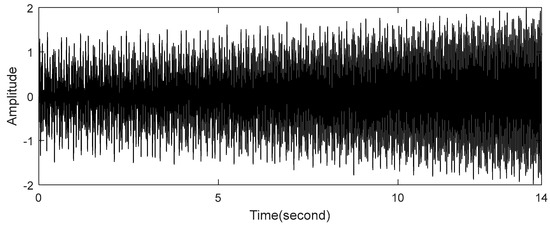

The most classical subsynchronous oscillation (SSO) mode extraction methods have some shortcomings, such as lower mode identification and poor anti-noise properties. Thus, this paper proposes a new time-frequency analysis method, namely, synchrosqueezed wavelet transforms (SWT). SWT combines the advantages of empirical mode decomposition (EMD) and wavelet, which has the adaptability of EMD, and improve the ability of anti-mode mixing on EMD and wavelet. Thus, better anti-noise property and higher mode identification can be achieved. Firstly, the SSO signal is transformed by SWT and its time-frequency spectrum is obtained. Secondly, the attenuation characteristic of each intrinsic mode type (IMT) component in its time-frequency spectrum is analyzed by an automatic identification algorithm, and determine which IMT component needs reconstruction. After that, the selected IMT components with divergent characteristic are reconstructed. Thirdly, high-accuracy detection for mode parameter identification is achieved by the Hilbert transform (HT). Simulation and application examples prove the effectiveness of the proposed method. View Full-Text
Keywords: subsynchronous oscillation (SSO); time-frequency analysis; synchrosqueezed wavelet transforms (SWT); Hilbert transform (HT) subsynchronous oscillation (SSO); time-frequency analysis; synchrosqueezed wavelet transforms (SWT); Hilbert transform (HT)
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).
