Thermal Behavior of Coal Used in Rotary Kiln and Its Combustion Intensification

Abstract

Pyrolysis and combustion behaviors of three coals (A, B, and C coals) were investigated and their combustion kinetics were calculated by the Freeman–Carroll method to obtain quantitative insight into their combustion behaviors. Moreover, the effects of coal size, air flow, oxygen content, and heating rate on coal combustion behaviors were analyzed. Results showed that the three coals have a similar trend of pyrolysis that occurs at about 670 K and this process continuously proceeds along with their combustion. Combustion characteristics and kinetic parameters can be applied to analyze coal combustion behaviors. Three coals having combustion characteristics of suitable ignition temperature (745–761 K), DTG_max (14.20–15.72%/min), and burnout time (7.45–8.10 min) were analyzed in a rotary kiln. Combustion kinetic parameters provide quantitative insights into coal combustion behavior. The suitable particle size for coal combustion in a kiln is that the content of less than 74 μm is 60% to 80%. Low activation energy and reaction order make coal, especially C coal, have a simple combustion mechanism, great reactivity, be easily ignited, and a low peak temperature in the combustion state. Oxygen-enrichment and high heating rates enhance coal combustion, increasing combustion intensity and peak value, thus shortening burnout time.

1. Introduction

Coal as a traditional fossil fuel is widely used in metallurgical production, such as iron and steel production. Iron ore oxide pellets, as an important raw material of iron, are produced by grate-rotary kilns and supplied to blast furnaces for iron making in China. Rotary kilns mainly use coal as an energy source to complete the preheating and roasting of green pellets. Coal consumption in rotary kilns is enormous and emits massive amounts of pollution gas into the atmosphere because 700 million tons of steel is produced every year in China, leading to serious energy consumption and environmental pollution [1,2,3,4]. Therefore, it is urgent for people to optimize coal combustion and improve coal-use efficiency.

At present, mathematical models have been designed to forecast heat transfer and sintering temperatures in rotary kilns [5,6,7]. However, the results predicted by mathematical models are not accurate enough because coal combustion in a kiln is very complex. The research of mathematical models should be further development. Thermal behavior of fuel has been widely studied by thermogravimetric analysis (TGA), which is an extensive and effective research method for studying thermal behavior [8,9,10,11,12]. Thermal characteristics of ignition temperature, burnout temperature, maximum combustion rate, and combustion kinetic parameters can be acquired to quantitatively analyze the thermal process of fuel [13,14,15]. However, the thermal reaction process of coal in a rotary kiln has not been clearly understood. Since the thermal behavior of coal in kiln is unclear, there is a lack of proper regulation for its combustion, resulting high coal consumption and great environmental pollution.

In our previous studies, TGA was used to reveal coal thermal behavior in forming coal briquettes. Coals employed in a rotary kiln were studied to analyze their pyrolysis and combustion processes, and their interaction on co-combustion was also studied. Moreover, the intensification of air flow and oxygen on coal combustion behavior has been researched by isothermal TGA [16,17,18,19]. Based on these works, three coals (A, B, and C coals) used in a rotary kiln were adopted to study their thermal behaviors, and their combustion characteristic parameters were obtained. Kinetic parameters were calculated to give an assessment of the three coals. Moreover, the effects of coal size, air flow, oxygen content, and heating rate on their combustion behaviors were investigated. With these research results, the coals’ thermal behaviors in a rotary kiln were understood clearly. Combustion characteristic parameters and kinetic parameters were used to quantitatively assess coal in production, and the intensified methods such as coal size, the oxygen-enrichment and heat rates were acquired.

2. Experimental

2.1. Materials and Equipment

The three coals (A, B, and C coals) used in the experiment were supplied by a Chinese pellet plant. In order to represent the characteristics of the raw coal as much as possible, careful sampling was performed. Coal samples were broken and screened to a size below 74 μm.

Proximate and ultimate analysis results and the heating value of the three coals are show in

Table 1. Proximate analysis, ultimate analysis, and heating values of coal samples.

Samples	Proximate Analyses (wt. %, d)			Ultimate Analyses (wt. %, d)					Qnet.d (Kcal/kg)
	Volatile Matter	Fixed Carbon	Ash	C	H	N	O	S
A coal	12.90	76.47	10.63	79.79	3.53	1.17	1.90	1.07	7794
B coal	13.15	75.41	11.44	78.54	3.47	1.12	2.34	1.06	7536
C coal	12.66	79.05	8.29	80.78	3.67	1.28	3.57	0.34	7832

. The three coals have the similar basic properties, especially A coal and B coal. Among these three coals, C coal has the highest heating value (7832 Kcal/kg) because of its high fixed carbon content. The sulfur content of C coal is only 0.34%, while that of A coal and B coal are 1.07% and 1.06%, respectively. In general, the coals used for rotary kiln pellet production has properties of low sulfur content (lower than 1.07%), high fixed carbon content (higher than 75.41%), appropriate volatile matter (about 13%), and high heating value (higher than 7536 Kcal/kg).

2.2. Methods

Proximate analyses of the coal samples were performed according to standard practices (GB/T212-2008). For the ultimate analyses of the coal samples, the LECO Truspec CHN-Sultimate analysis instrument (Leco Corporation, St. Joseph, MI, USA) was applied to analyze the C, H, N, O, and S content of the three coals. The heating value was measured with an adiabatic oxygen bomb calorimeter.

A differential thermogravimetric analyzer STA449C (precision of temperature measurement ± 1 K, microbalance sensitivity 0.1 μg) (NETZSCH, Selb, Bavaria, Germany) was employed to study thermal behavior. Coal samples of about 8 mg were used in each test. For common combustion tests, the heating rate and flow rate were respectively fixed at 20 K/min and 100 mL/min, and the temperature range was from 293 K to 1273 K. The flow rate was changed in air flow tests (100 mL/min, 200 mL/min, and 300 mL/min), and different heating rates of 10 K/min, 20 K/min, and 30 K/min were used in the heating rate tests. The thermal degradation kinetics of the three coals was calculated by the Freeman–Carroll method. Combustion kinetics of coal can be revealed by Equation (1) [20,21].

$$\frac{\mathrm{d}\mathsf{\alpha }}{\mathrm{dt}}=\mathrm{kf}\left(\mathsf{\alpha }\right)$$

(1)

In Equation (2), α is the conversion degree of combustible material. In Equation (3), the absolute temperature and rate constant are described by T and k. Moreover, f(α) is the reaction model function, usually revealed as f(α) = (1 − α) n, where n is the order of reaction. The initial weight, the weight at any time (t), and the final weight are respectively described by W_o, W_f, and W_t. R and A are the universal gas constant (8.314 J/mol) and the Arrhenius parameter, respectively. The apparent activation energy is represented by E_α.

$$\mathsf{\alpha }=\frac{{\mathrm{W}}_0-{\mathrm{W}}_{\mathrm{t}}}{{\mathrm{W}}_0-{\mathrm{W}}_{\mathrm{f}}}$$

(2)

$$\mathrm{k}={\mathrm{Aexp}}^{-{\mathrm{E}}_{\mathsf{\alpha }}/\mathrm{RT}}$$

(3)

Furthermore, Equation (1) can be described as follows:

$$\frac{\mathrm{d}\mathsf{\alpha }}{\mathrm{dt}}={\mathrm{Aexp}}^{-{\mathrm{E}}_{\mathsf{\alpha }}/\mathrm{RT}}{\left(1-\mathsf{\alpha }\right)}^{\mathrm{n}}=\mathrm{A}{\left(1-\mathsf{\alpha }\right)}^{\mathrm{n}}{\exp }^{-{\mathrm{E}}_{\mathsf{\alpha }}/\mathrm{RT}}$$

(4)

Equation (4) can be expressed as the different formation by taking logarithm

$$\ln \left(\frac{\mathrm{d}\mathsf{\alpha }}{\mathrm{dt}}\right)=\mathrm{lnA}+\mathrm{nln}\left(1-\mathsf{\alpha }\right)-\frac{{\mathrm{E}}_{\mathsf{\alpha }}}{\mathrm{RT}}$$

(5)

If the apparent activation energy is hardly affected by the small change in temperature, Equation (5) can be expressed as follows:

$$\frac{△\ln \left(\frac{\mathrm{d}\mathsf{\alpha }}{\mathrm{dt}}\right)}{△\ln \left(1-\mathsf{\alpha }\right)}=\mathrm{n}-\frac{{\mathrm{E}}_{\mathsf{\alpha }}}{\mathrm{R}}\times \frac{△{\mathrm{T}}^{-1}}{△\ln \left(1-\mathsf{\alpha }\right)}$$

(6)

By plotting Δln(dα/dt)/Δln(1 − α) against ΔT⁻¹/Δln(1 − α), the intercept and straight slope of the regression line can be calculated to describe the parameters E_α and n, respectively. Then, the Arrhenius parameter (A) can also been calculated from Equation (5).

3. Results and Discussion

3.1. Thermal Behavior

3.1.1. Pyrolysis Behavior

Pyrolysis tests of the three coals are shown in Figure 1 and their characteristic parameters of pyrolysis are acquired in

Table 2. Characteristic parameters of pyrolysis behaviors.

Sample	1st Peak		2nd Peak
	Temperature (K)	DTGmax (%/min)	Temperature (K)	DTGmax (%/min)
A coal	307	0.54	831	0.84
B coal	311	0.40	798	1.27
C coal	306	0.45	806	1.02

. The temperature value rate is described as the peak temperature when the rate of weight loss reaches the maximum, and the rate at peak temperature is expressed as the maximum rate (DTG_max).

As seen in Figure 1 and Table 2, the three coals have similar weight-loss trends and two separate phases in the coal-pyrolysis process. The first pyrolysis stage is the evaporation stage of water, and the weight loss of coal has little effect on its thermal behavior. Next, is the devolatilization stage. For the A coal, this ranges from 650 K to 1150 K, with a peak of 831 K and its DTG_max being 0.84%/min. The B coal ranges from 680 K to 1160 K, with a peak of 798 K and its DTG_max being 1.27%/min. C coal ranges from 670 K to 1150 K, with a peak of 806 K and its DTG_max being 1.02%/min [22,23,24]. Simply put, the pyrolysis of the three coals occurs at about 670 K and this process continuously proceeds along with their combustion. Moreover, weight loss in the pyrolysis process comes close to the volatile matter content of coal, indicating that the pyrolysis process is mainly about the volatilization of volatile matter.

3.1.2. Combustion Behavior

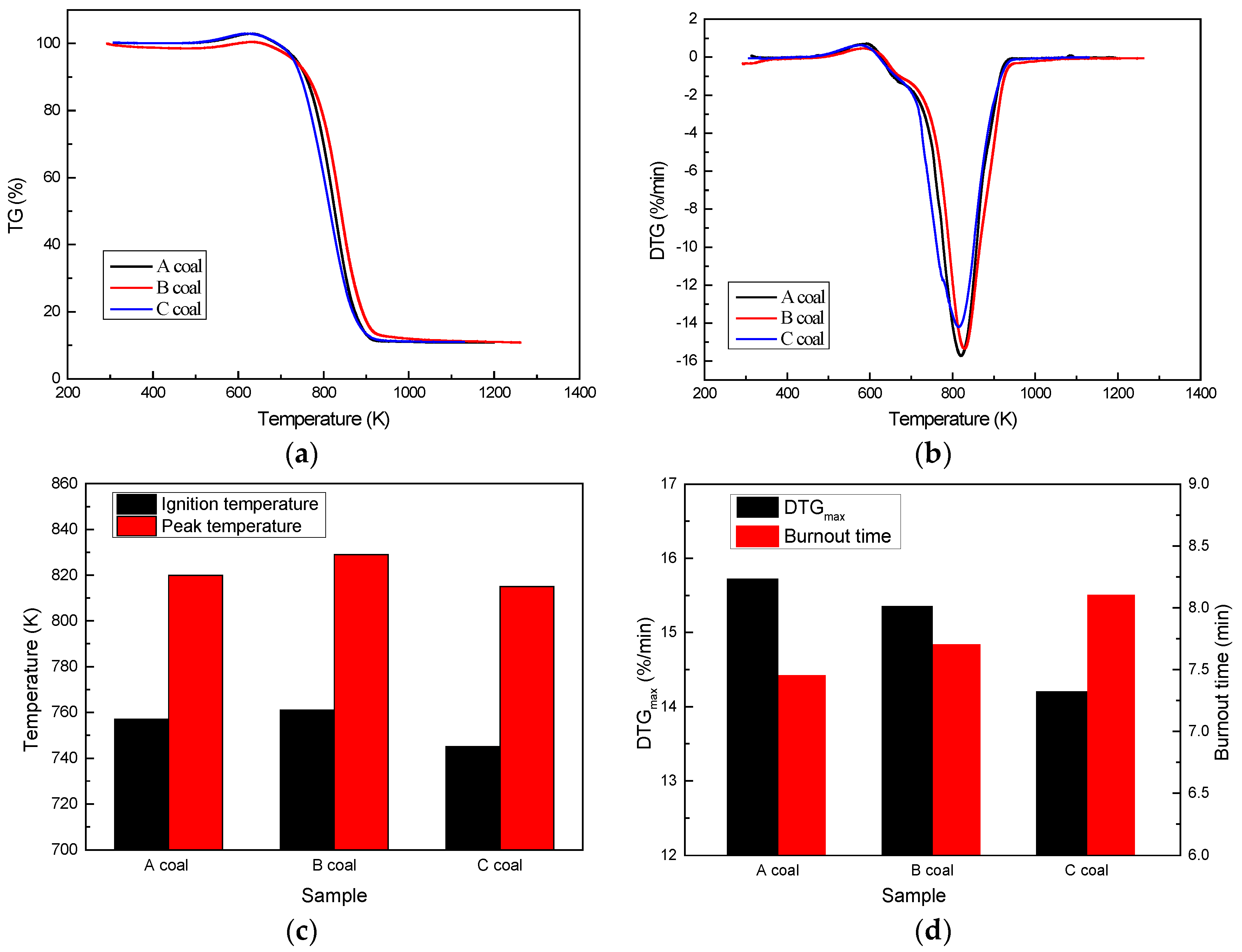

Combustion characteristics obtained from the TGA can be used to estimate the combustion efficiency of different coals in a rotary kiln. Combustion behaviors of A, B, and C coals are shown in Figure 2. All three coals show only one peak from their DTG profiles. Combined with the results of the approximate analysis, the main reaction of the three coals’ combustion is the combustion of their fixed carbon that greatly contributes to quality loss. The basic trends of the three coals are similar, while they also show many differences in the details. Combustion parameters typically include the ignition temperature, peak temperature, maximum burn rate, and burnout time obtained from thermographs. The ignition temperature is a sudden drop in the DTG profile. Burnout time is the time required for coal to burn from ignition to burnout. The combustion parameters clearly display the combustion characteristic of the three coals, as shown in Figure 2. C coal, with a 745 K ignition temperature, is the most easily ignited coal, while B coal has the highest ignition temperature (761 K). Meanwhile, C coal has the lowest peak temperature (815 K) and the longest burnout time (8.10 min), indicating that C coal will ignite at low temperatures and keep combusting for a long time [25]. A coal-burning iron oxidation rotary kiln provides heat to ensure that the temperatures in the kiln head and kiln are not lower than 1523 K. The kiln heat provided by coal combustion should preheat the pellets to ensure that the temperature of the chain grate does not fall below 1223 K [26]. On this basis, coal with a lower ignition temperature and a longer burn-up time is required during the rotary kiln process. Therefore, C coal is a kind of high quality coal for a rotary kiln. It not only ensures the high temperature of the rotary kiln and chain grate, but it also saves energy and reduces environmental pollution.

In addition, while A and B coals are worse than C coal in combustion characteristic, they can also be applied in pellet production. Therefore, the type of coal used in rotary kilns has the combustion characteristics of 745–761 K for ignition temperature, 815–829 K for peak temperature, 14.20–15.72%/min for DTG_max, and 7.45–8.10 min for burnout time.

3.1.3. Combustion Kinetics

Three kinds of coal kinetic parameters were obtained using Freeman–Carroll method. Activation energy (E_α) is a quantitative measurement of the energy threshold formed by the combustion product, the reaction sequence (n) is a sign of the combustion reaction mechanism, and the frequency factor (A) produces a frequency measurement of the molecular collision energy response. Higher activation energy (E_α) and reaction sequence (n) indicate greater thermal stability during combustion and more complex combustion conditions [27].

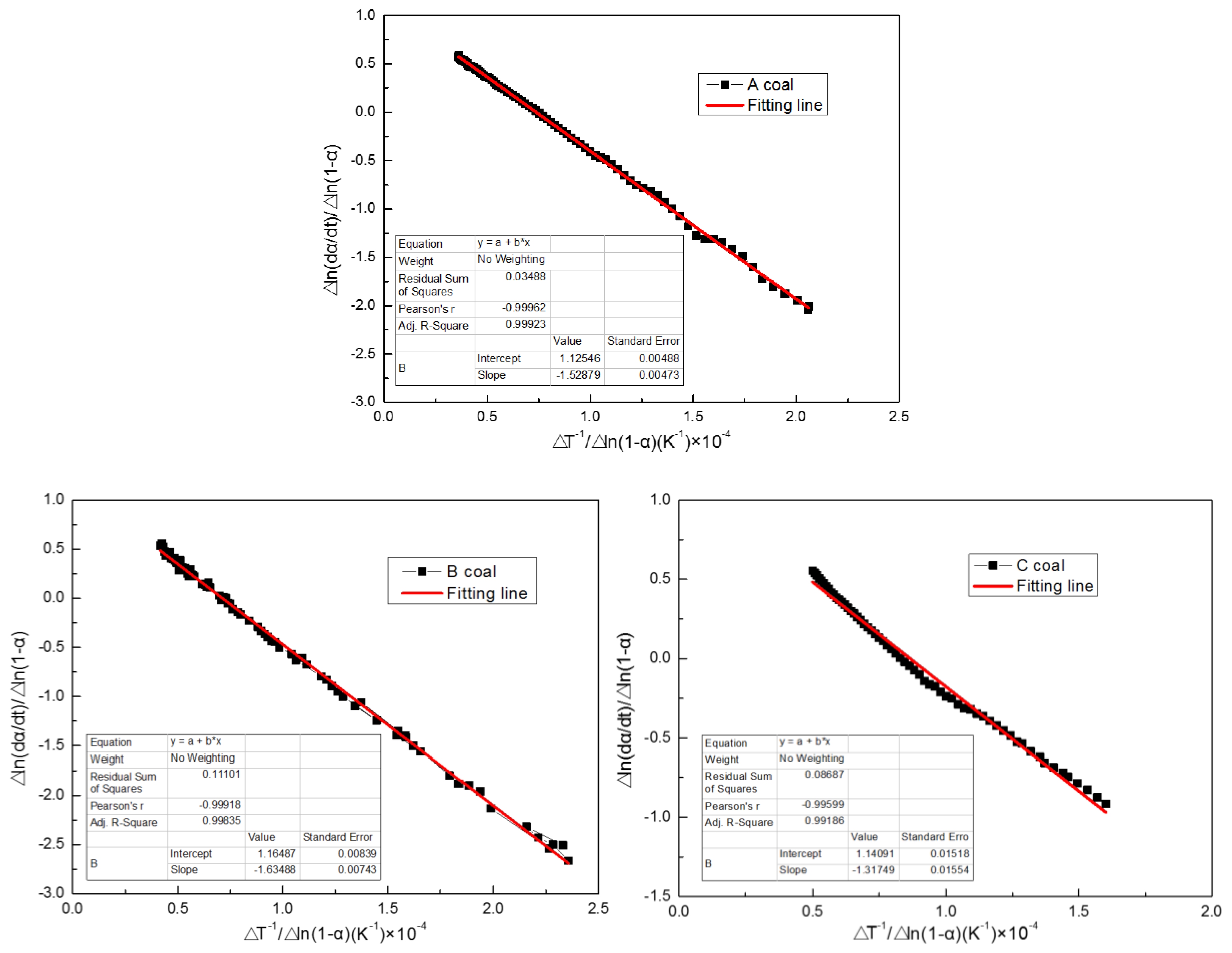

Using the Freeman–Carroll method, the TG and DTG data of the three coals were analyzed. The combustion kinetics characteristics are shown in Figure 3. It shows the reaction of the kinetic parameters E_α (slope) and n (y-axis intercept) generated by the installed straight-line figure. These kinetic parameters and the corresponding correlation factor R² are listed in

Table 3. Kinetic parameters calculated by Freeman–Carroll method.

Sample	Eα, KJ/mol	n	A, min−1	R2
A coal	127.10	1.12	4.72 × 107	0.99923
B coal	135.92	1.16	1.06 × 108	0.99835
C coal	109.54	1.14	4.24 × 106	0.99186

. The results reveal that the value of R is very high, meaning linear regression is reasonable and the calculation result is reliable. C coal has the lowest E_α (109.54 KJ/mol) and A (4.24 × 10⁶), which implies bad thermal stability and simple combustion mechanisms occurring in the combustion state. Bad thermal stability and simple combustion mechanisms of C coal show that it has a great reactivity, is easily ignited, and has a low peak temperature, which is consistent with its combustion behavior (Table 3). B coal has the highest E_α, reaction order (n) and A (135.92 KJ/mol, 1.16 and 1.06 × 10⁸), indicating great thermal stability and complex combustion mechanisms occurring in the combustion state. This result is also consistent with its combustion behavior. Thus, the coal used in rotary kilns has a low activation energy and reaction order.

3.2. Combustion Intensification

3.2.1. Effect of Coal Size

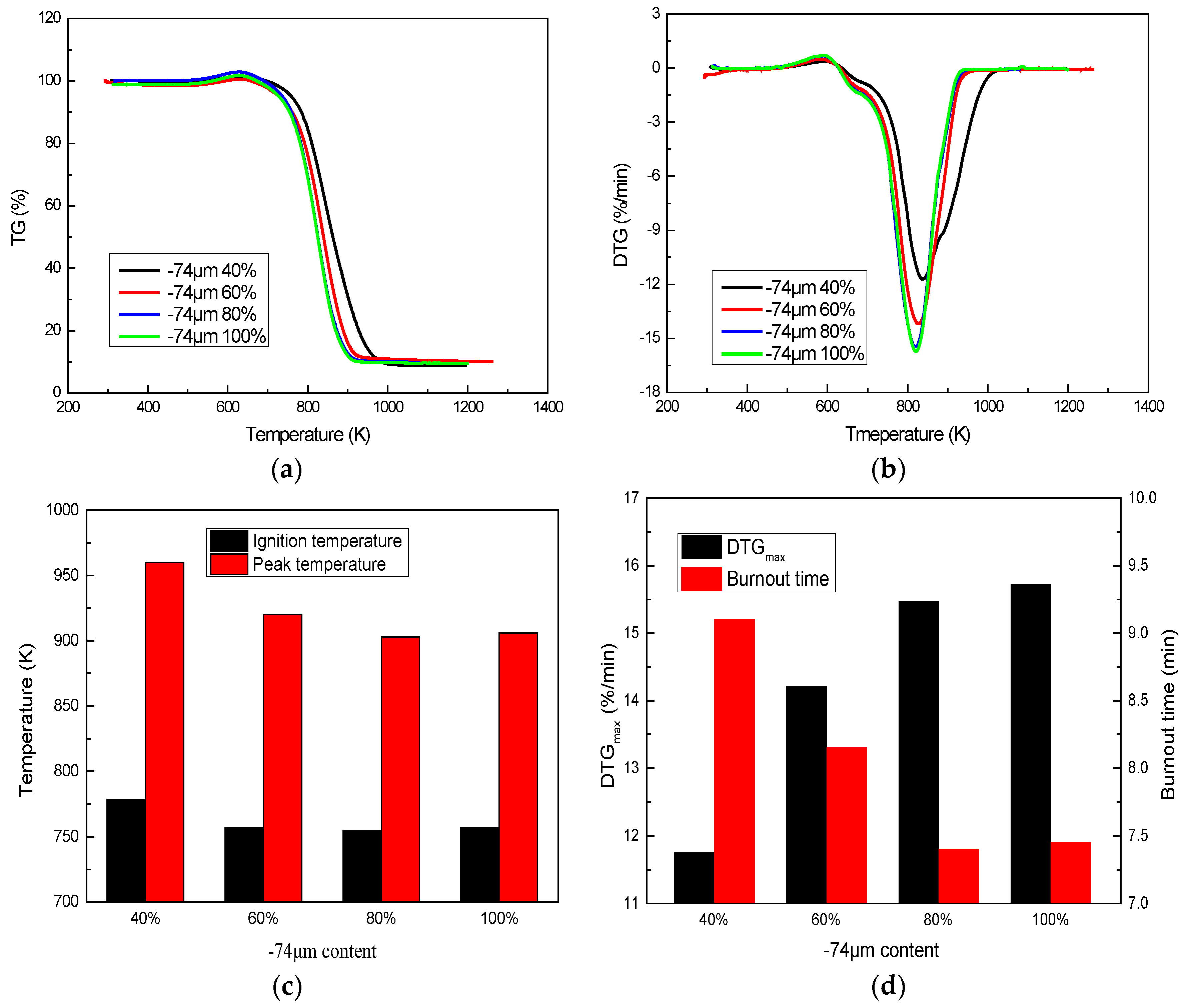

Combustion behaviors of A coal with different sizes are shown in Figure 4. Coal size has a great effect on coal combustion. Coal is difficult to ignite and its combustion intensity is weak when its size is too thick (40% −74 μm). Coal can be ignited at normal ignition temperatures when its −74 μm content is increased to 60%. Further, combustion intensity is enhanced with an increase of −74 μm content. DTG_max is increased from 14.20%/min to 15.46%/min and burnout time is shortened from 8.15 min to 7.40 min when −74 μm content increases from 60% to 80%. When continuously increasing the −74 μm content to 100%, combustion has no obvious change, meaning the coal can burn sufficiently when its −74 μm content is 80%. Coal does not need to be ground to 100% −74 μm content, which would increase energy consumption and costs. Therefore, the suitable size for coal combustion is about 80% −74 μm content that makes coal combust sufficiently.

3.2.2. Effect of Air Flow

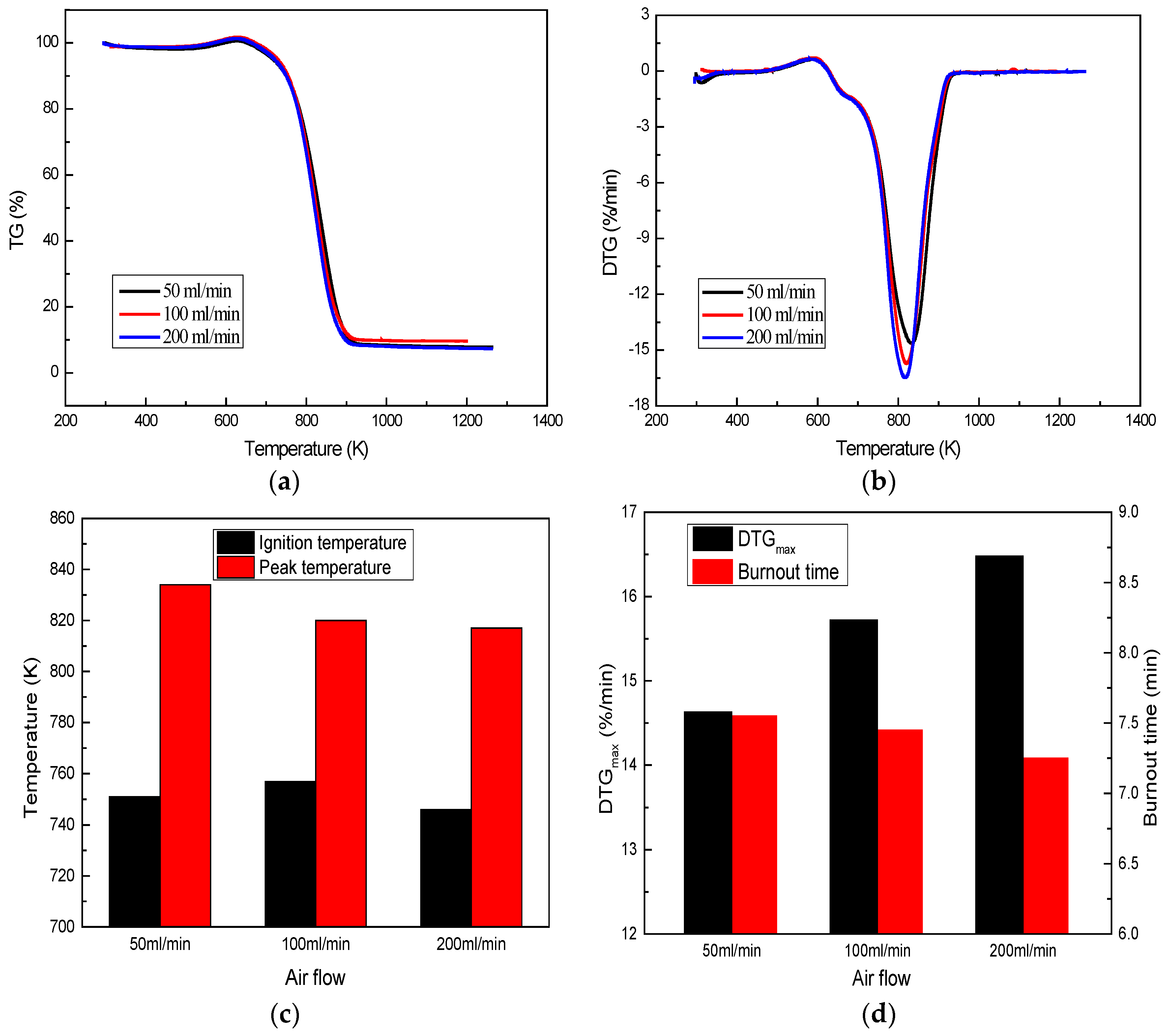

The effect of air flow on combustion behavior of A coal is shown in Figure 5. Air flow has some effects on coal combustion. Namely, the combustion peak is transferred to a lower temperature, the combustion intensity is enhanced, and the combustion peak value is also raised when air flow increased. With air flow increased from 50 to 200 mL/min, the peak temperature is depressed from 834 K to 817 K, the DTG_max is increased from 14.63%/min to 16.48%/min, and the burnout time is shortened from 7.55 min to 7.25 min. Studies have shown that the presence of oxygen will reduce the force of the diffusion layer, and the increasing of air flow is done essentially to raise the oxygen quality [28]. As a result, an increase in air flow will result in a rapid reaction of oxygen with volatiles and fixed carbon, thereby facilitating the combustion of coal. In addition, the ignition temperature does not change with increased air flow, meaning that air flow has no effect on coal ignition characteristics.

3.2.3. Effect of Oxygen Content

The combustion behavior of A coal under different oxygen contents are shown in Figure 6. The 10%, 20%, and 30% oxygen contents reveal that the coal burns in a low oxygen atmosphere, an air atmosphere, and an oxygen-enriched atmosphere, respectively. Oxygen content greatly influences the combustion of coal. Coal combustion is weak under a low oxygen atmosphere, while it is significantly intensified under an oxygen-enriched atmosphere (30% O₂). The peak temperature is reduced from 906 K to 838 K, DTG_max is increased from 15.72%/min to 18.86%/min, and burnout time is shortened from 7.45 min to 6.75 min when the oxygen content increased from 20% to 30%. Moreover, ignition temperature is also affected by oxygen-enrichment, decreasing from 757 K to 703 K. The presence of oxygen will reduce the force of the diffusion layer and oxygen-enrichment leads to faster reaction of fixed carbon and volatile material with oxygen to favorably enhance the combustion of coal [29]. The coal combustion process is easily regulated by oxygen content and can be obviously intensified by oxygen-enrichment.

3.2.4. Effect of Heating Rate

Combustion behaviors of A coal under different heating rates are shown in Figure 7. Heating rate has a great influence on the combustion of the coal. The mass loss process is shorter when the heating rate is increased, revealing that a fast heating rate enhances coal combustion. Combustion intensity is also enhanced with the increase of air flow, which can be seen from the significant rising of the peak value and the reduction of the burnout time. The peak time (the time from ignition to maximum combustion) is shortened from 3.42 min to 3.03 min, the DTG_max is increased from 11.36%/min to 16.16%/min, and the burnout time is shortened from 12.10 min to 5.13 min, when the heating rate is increased from 10 K/min to 30 K/min. Meanwhile, coal combustion is obviously enhanced when the heating rate is increased from 10 K/min to 20 K/min. Coal combustion is further enhanced when the heating rate continuously increases to 30 K/min, but the enhanced degree is not a patch on the increase from 10 K/min to 20 K/min. This means that coal combustion should take place with a suitable heating rate. In addition, the ignition temperature does not change with increased heating rates, indicating that the heating rate has no effect on coal ignition characteristics.

4. Conclusions

The thermal behaviors of three coals and the effect of combustion parameters on their combustion behaviors were investigated with TGA. A summary of the results follows:

(1)

Three coals have a similar trend of pyrolysis that occurs at about 670 K and this process continuously proceeds along with their combustion. The three coals also have comparable combustion behaviors of 745–761 K ignition temperature, 815–829 K peak temperature, 14.20–15.72%/min DTG_max, and 7.45–8.10 min burnout time.

(2)

Combustion kinetic parameters provide quantitative observation into coal combustion behavior. Low activation energy (E_α) and reaction order (n) make coal, especially C coal, have a simple combustion mechanism, great reactivity, easy ignition, and a low peak temperature in the combustion state.

(3)

The suitable size for coal combustion in a kiln is that the content of less than 74 μm is 60% to 80%. Oxygen content and heating rate have a clear effect on coal combustion. Oxygen-enrichment and high heating rates can significantly enhance coal combustion, increase combustion intensity and peak value, and shorten burnout time.
