Energies 2018, 11(2), 470; https://doi.org/10.3390/en11020470

Analysis of Switching Transients during Energization in Large Offshore Wind Farms

1
School of Electric Power Engineering, South China University of Technology, Guangzhou 510640, China
2
Guangdong Electric Power Design Institute Co. Ltd. of China Energy Engineering Group, Guangzhou 510663, China
*
Author to whom correspondence should be addressed.
Received: 24 January 2018 / Revised: 13 February 2018 / Accepted: 19 February 2018 / Published: 23 February 2018
View Full-Text   |   Download PDF [4323 KB, uploaded 23 February 2018]   |

Abstract

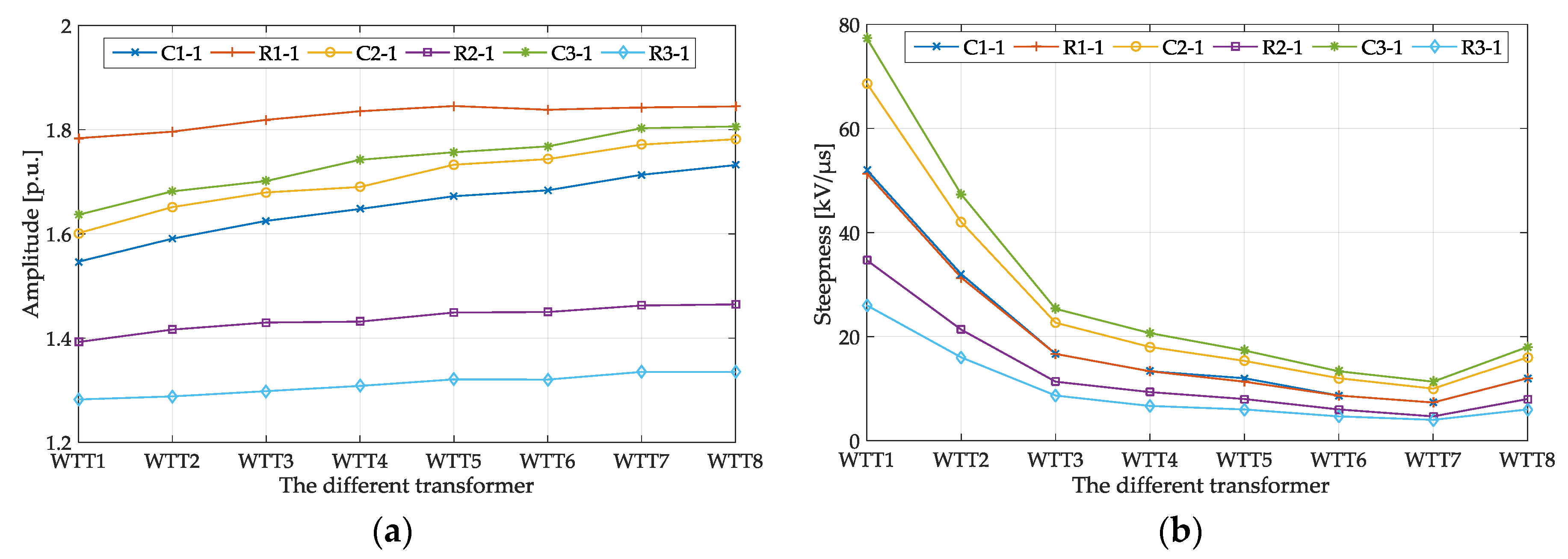

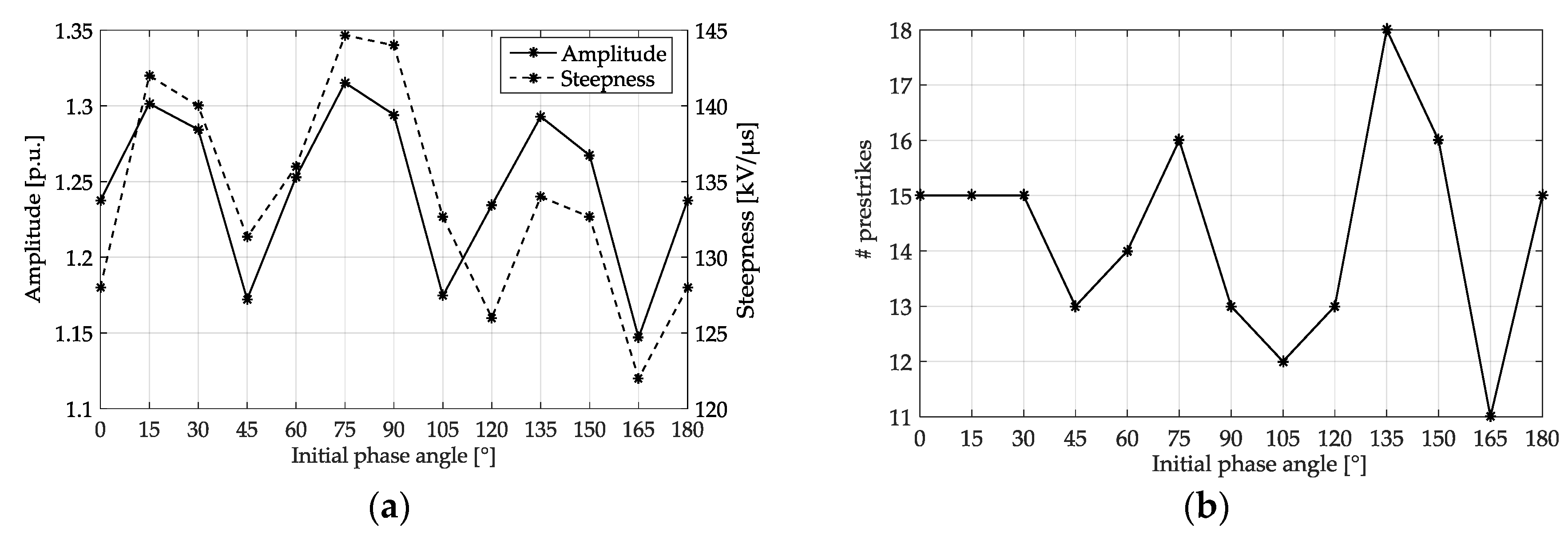

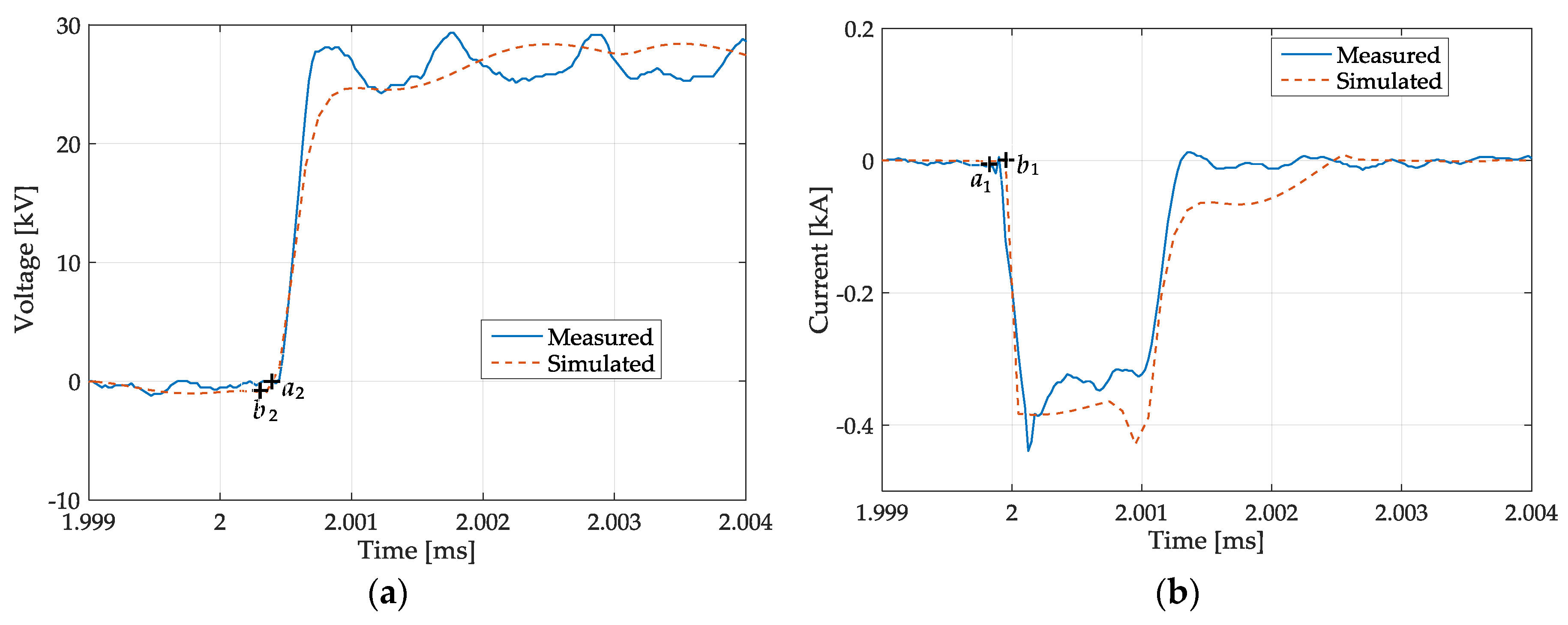

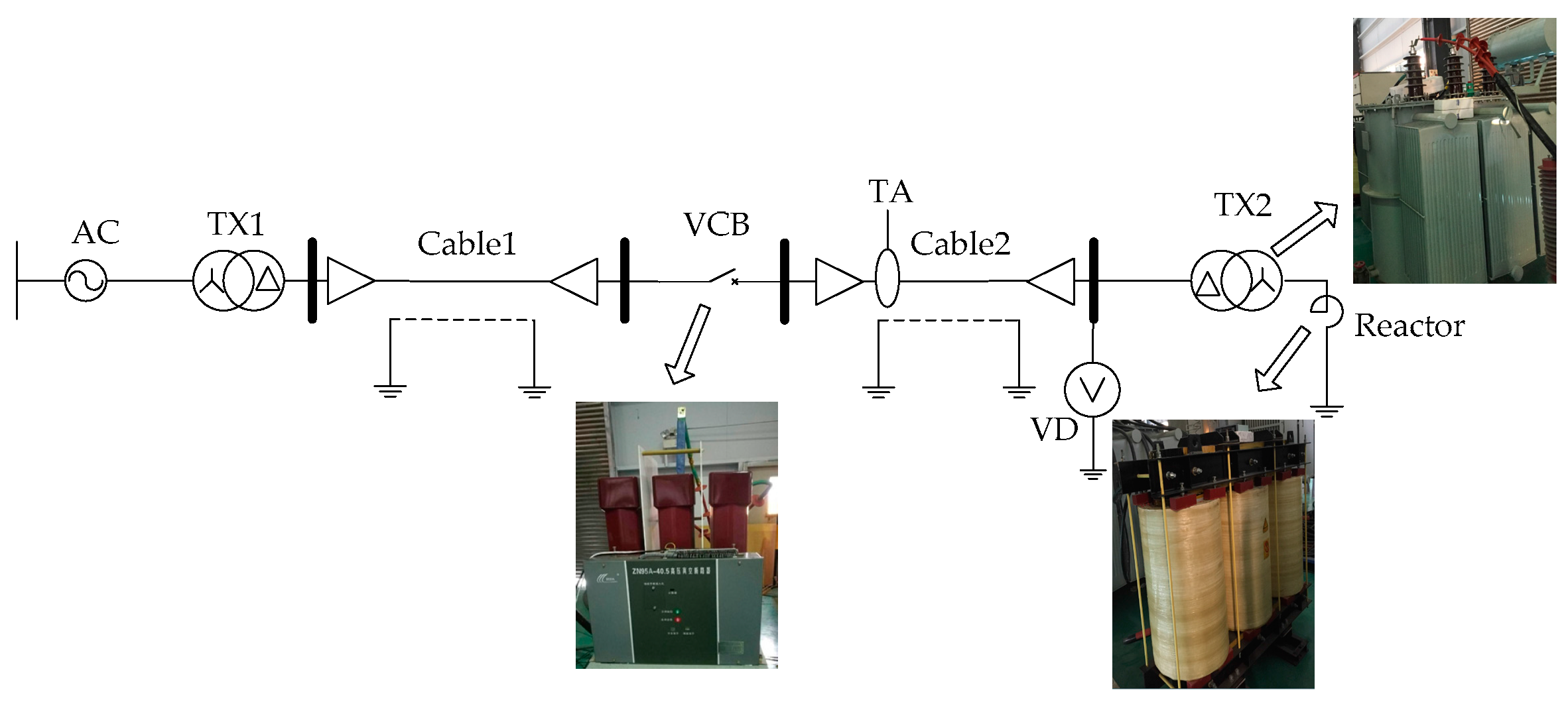

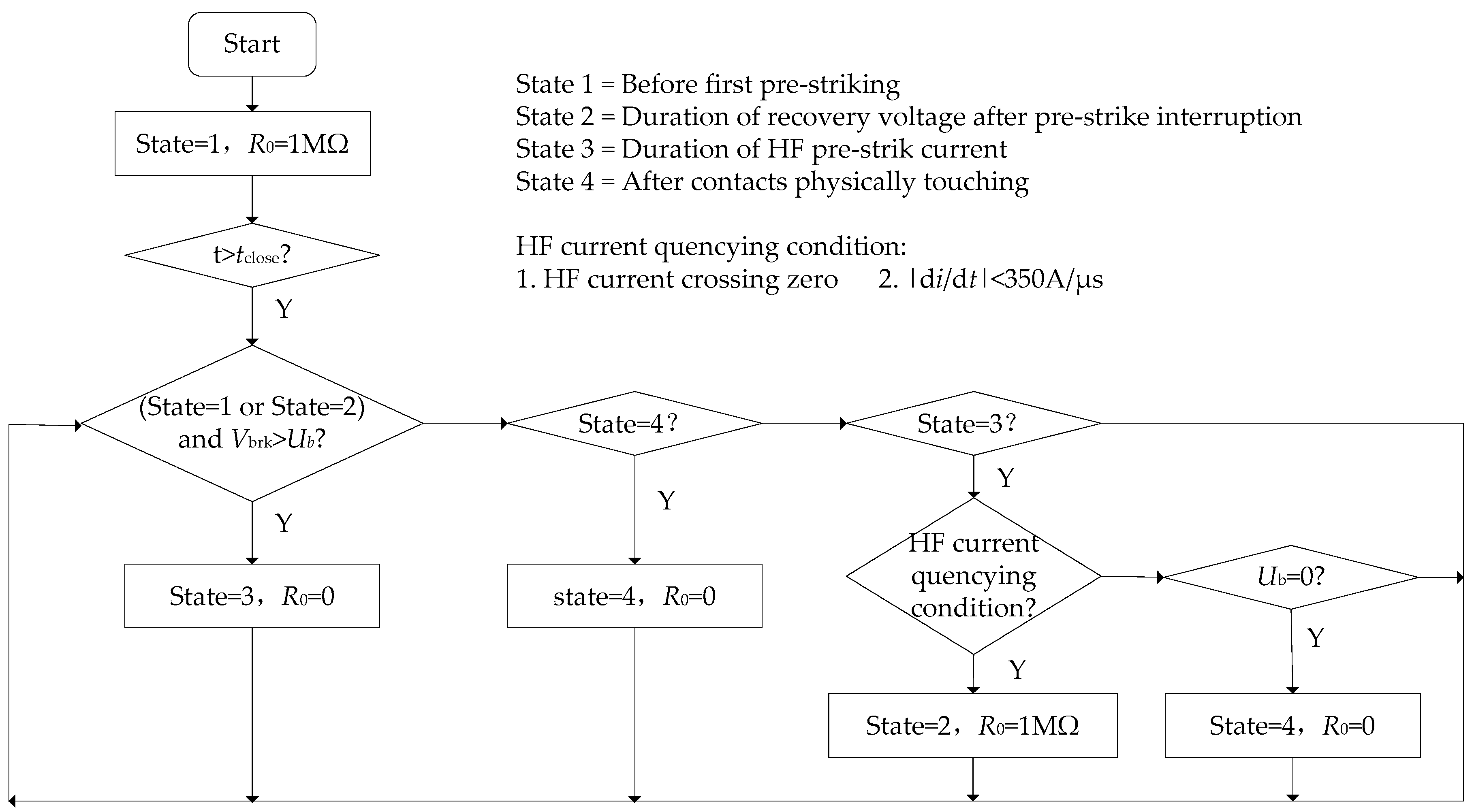

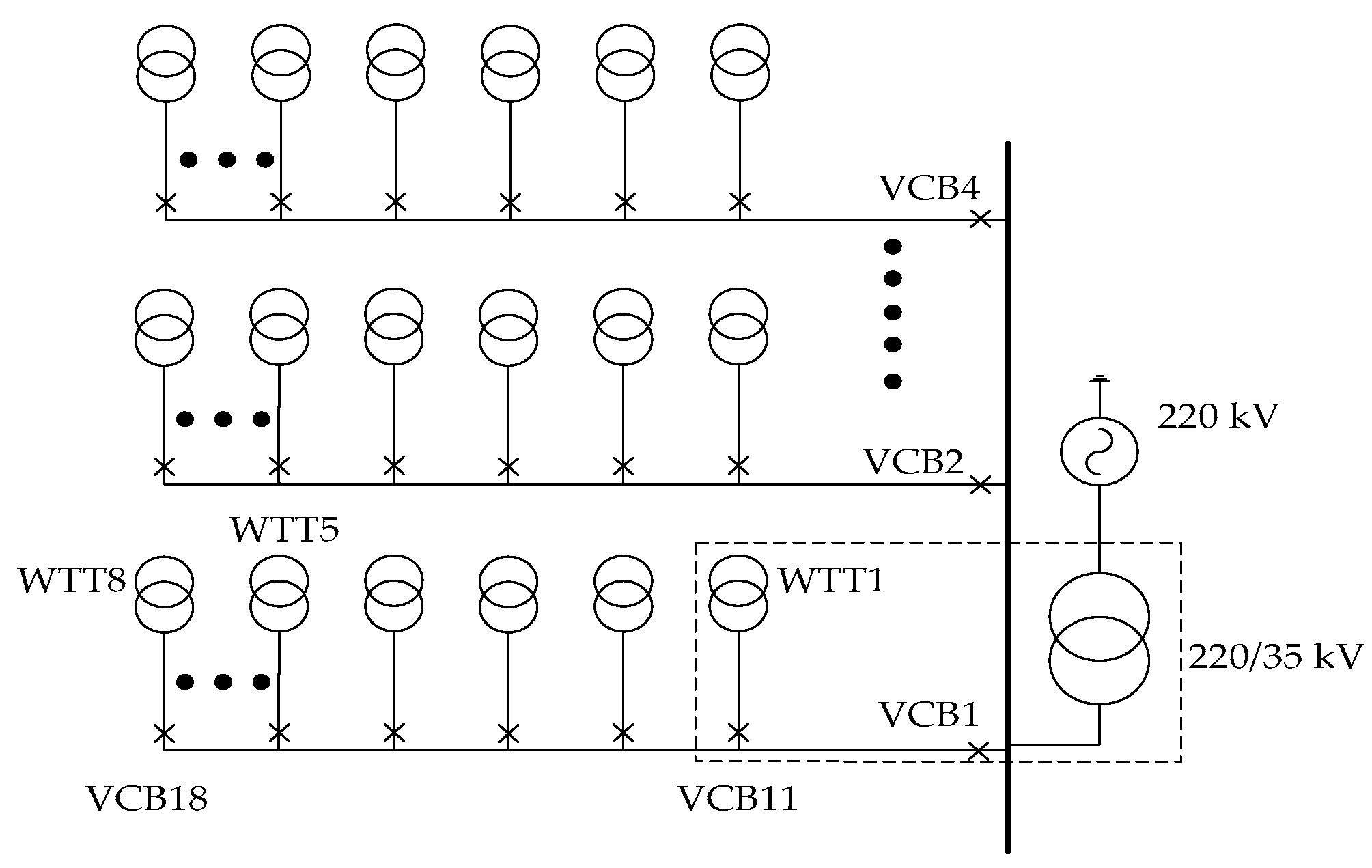

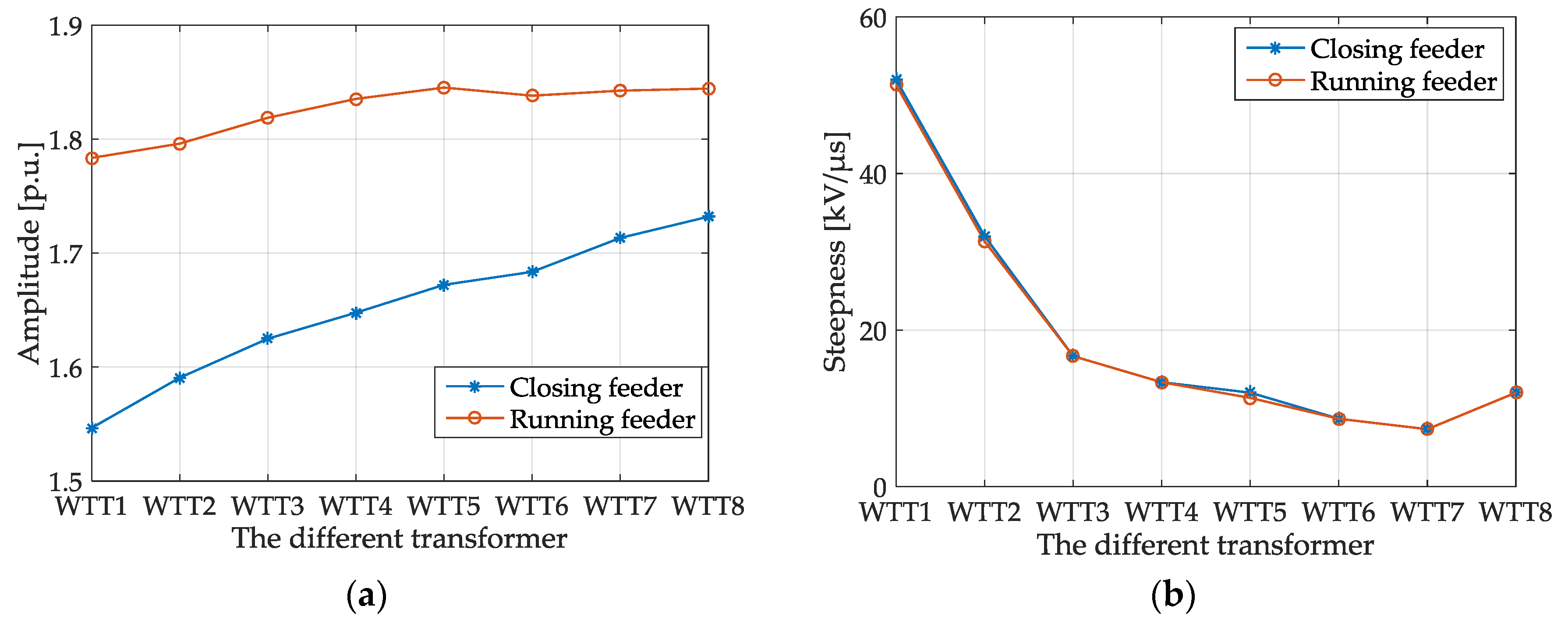

In order to study switching transients in an offshore wind farm (OWF) collector system, we employ modeling methods of the main components in OWFs, including vacuum circuit breakers (VCBs), submarine cables, and wind turbine transformers (WTTs). In particular, a high frequency (HF) VCB model that reflects the prestrike characteristics of VCBs was developed. Moreover, a simplified experimental system of an OWF electric collection system was set up to verify the developed models, and a typical OWF medium voltage (MV) cable collection system was built in PSCAD/EMTDC based on the developed models. Finally, we investigated the influences of both the initial closing phase angle of VCBs and typical system operation scenarios on the amplitude and steepness of transient overvoltages (TOVs) at the high-voltage side of WTTs. View Full-Text
Keywords: vacuum circuit breaker (VCB); switching transient; prestrikes; high frequency; PSCAD/EMTDC; offshore wind farm (OWF) vacuum circuit breaker (VCB); switching transient; prestrikes; high frequency; PSCAD/EMTDC; offshore wind farm (OWF)
Figures

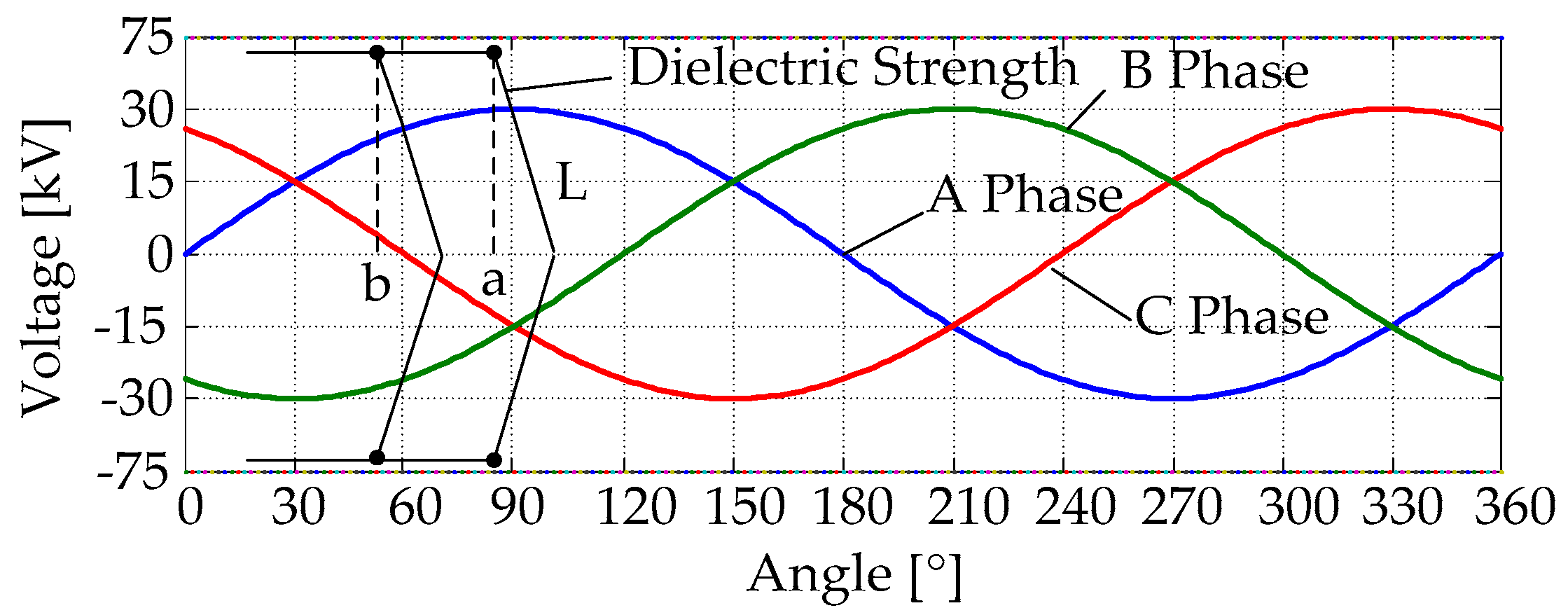

Figure 1
