Energies 2018, 11(2), 436; https://doi.org/10.3390/en11020436

A Fully Three Dimensional Semianalytical Model for Shale Gas Reservoirs with Hydraulic Fractures

1,†,* , 2,†,* , 2,* and 3
1
Department of Petroleum Engineering, Northeast Petroleum University, Daqing 163318, China
2
Harold Vance Department of Petroleum Engineering, Texas A&M University, 3116 TAMU, College Station, TX 77843, USA
3
Department of Petroleum and Geosystems Engineering, University of Texas at Austin, Austin, TX 78705, USA
These authors contribute equally to this manuscript.
*
Authors to whom correspondence should be addressed.
Received: 26 January 2018 / Revised: 6 February 2018 / Accepted: 11 February 2018 / Published: 15 February 2018
View Full-Text   |   Download PDF [2380 KB, uploaded 15 February 2018]   |

Abstract

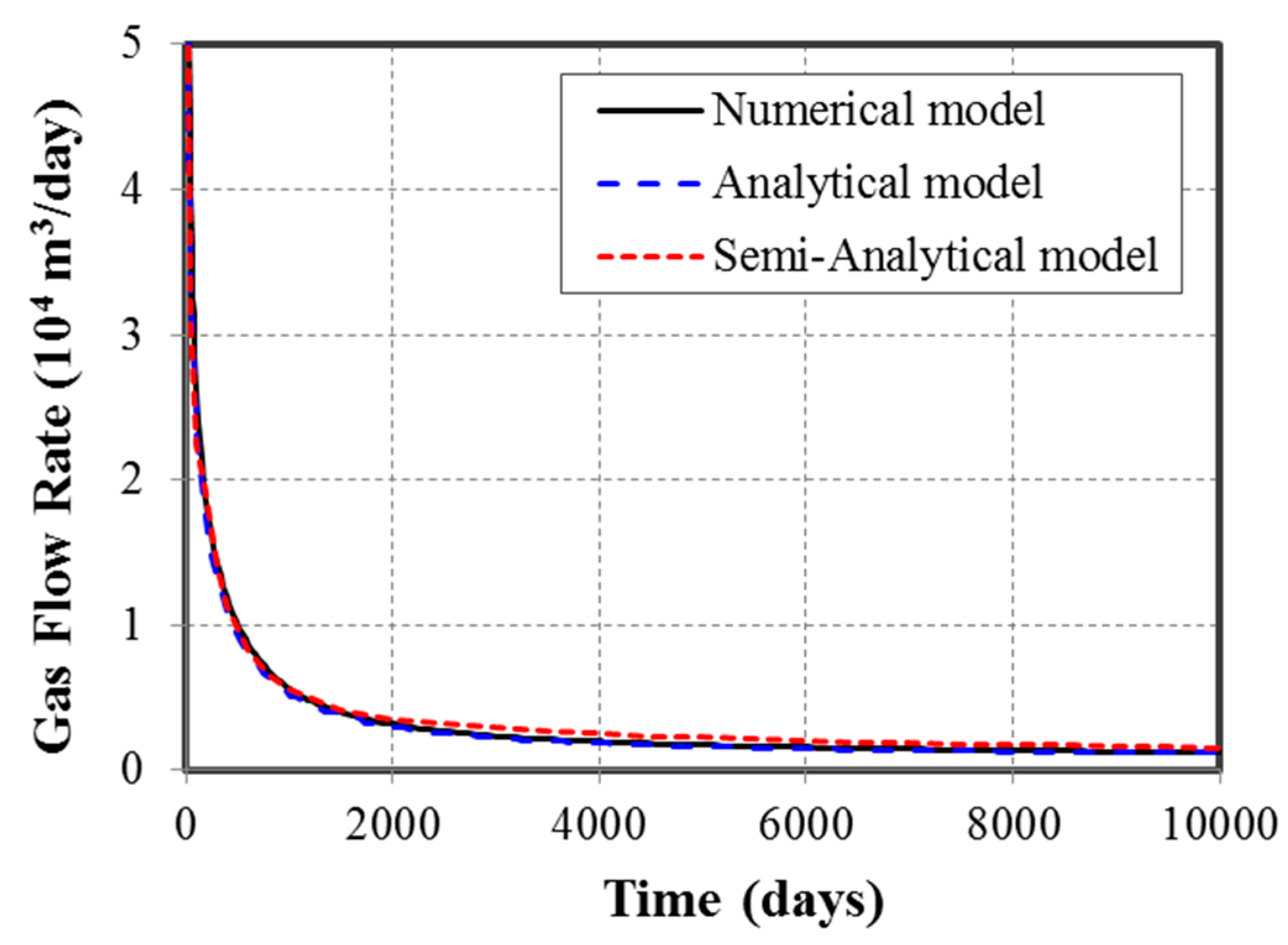

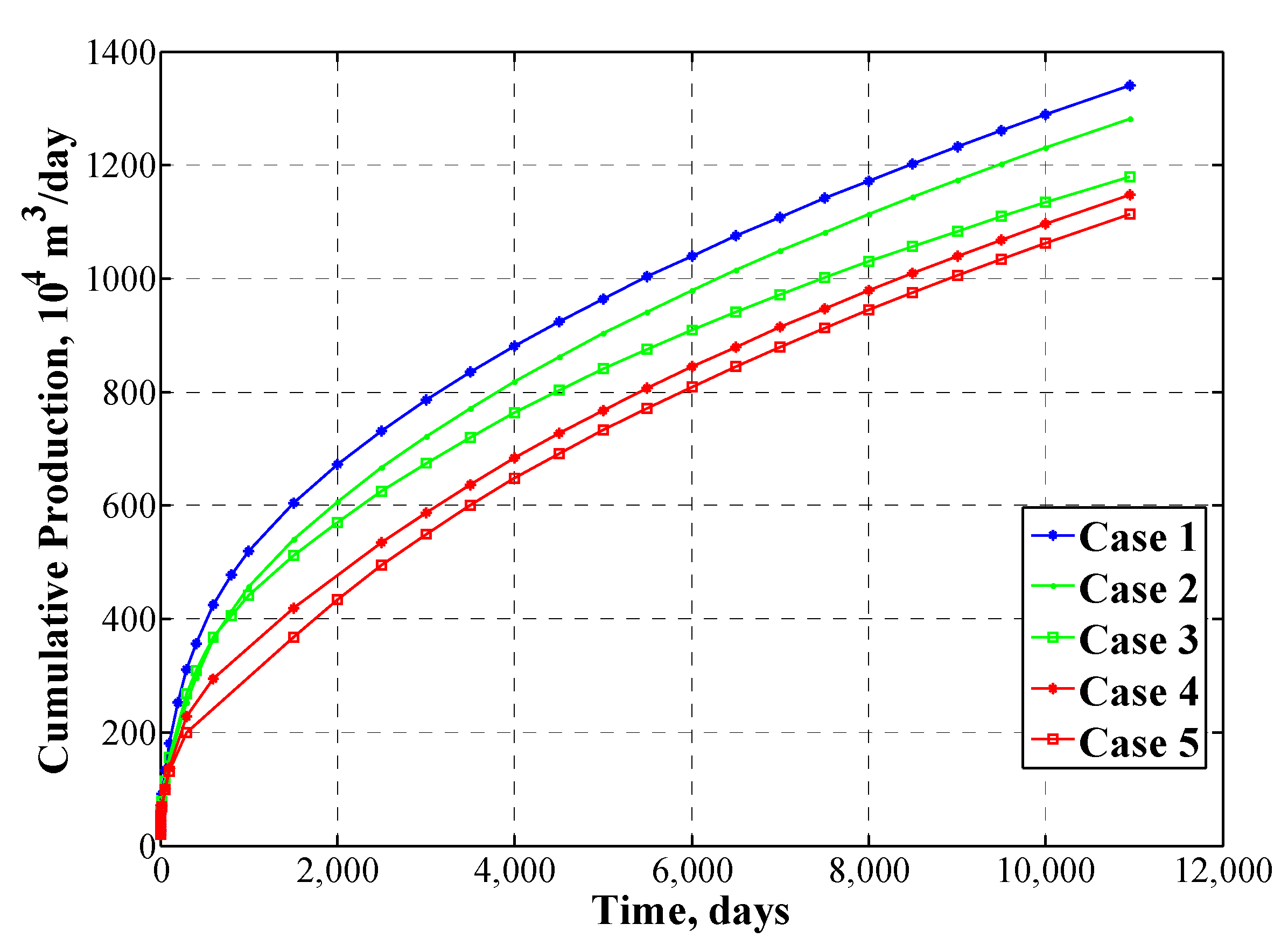

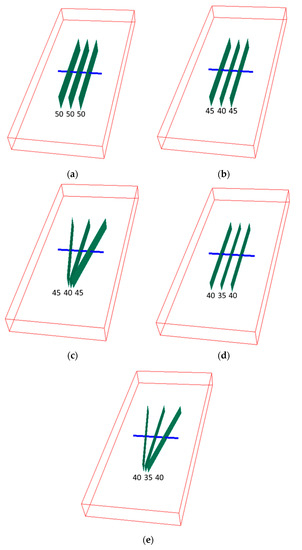

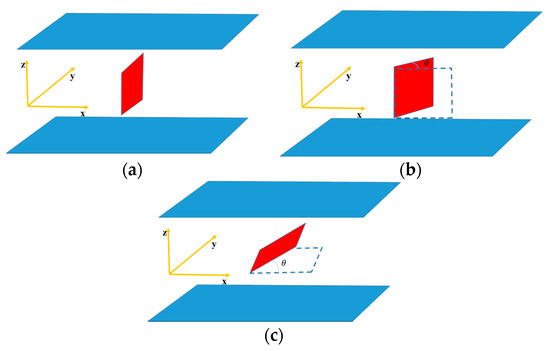

Two challenges exist for modeling gas transport in shale. One is the existence of complex gas transport mechanisms, and the other is the impact of hydraulic fracture networks. In this study, a truly three dimensional semianalytical model was developed for shale gas reservoirs with hydraulic fractures of various shapes. Using the instantaneous point source solution, the pressure are solved for a bounded reservoir with fully 3D, partially penetrated hydraulic fractures of different strike angles and dip angles. The fractures could have various shapes such as rectangles, disks and ellipses. The shale gas diffusion equations considers complex transport mechanism such as gas slippage and gas diffusion. This semianalytical model is verified with a commercial software and an analytical method for single fully penetrated rectangle fracture, and the production results of shale gas are consistent. The impacts of fracture height and strike angles are investigated by five systematically constructed models. The comparison shows that the production increases proportionally with the fracture height, and decreases with the increase of strike angles. The method proposed in this study could also be applied in well testing to analyze the reservoir properties and used to forecast the production for tight oil and conventional resources. View Full-Text
Keywords: shale gas; semianalytical model; three dimension; gas transport; hydraulic fractures shale gas; semianalytical model; three dimension; gas transport; hydraulic fractures
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).
SciFeed

Share & Cite This Article

MDPI and ACS Style

Li, Y.; Zuo, L.; Yu, W.; Chen, Y. A Fully Three Dimensional Semianalytical Model for Shale Gas Reservoirs with Hydraulic Fractures. Energies 2018, 11, 436.
