Energies 2018, 11(2), 416; https://doi.org/10.3390/en11020416

Study on the Hazard Limitation of Hybrid Circuit Breaker Actuator Operation

Department of Marine Electrical Power Engineering, Gdynia Maritime University Poland, 81-225 Gdynia, Poland
*
Author to whom correspondence should be addressed.
Received: 21 December 2017 / Revised: 7 February 2018 / Accepted: 8 February 2018 / Published: 11 February 2018
(This article belongs to the Section Electrical Power and Energy System)
Full-Text   |   PDF [3049 KB, uploaded 14 February 2018]   |

Abstract

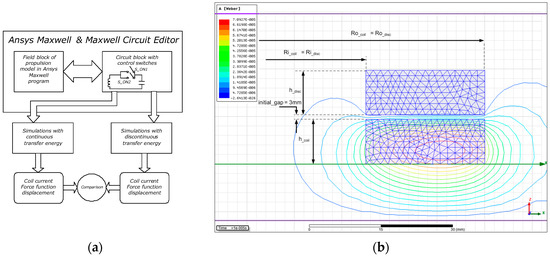

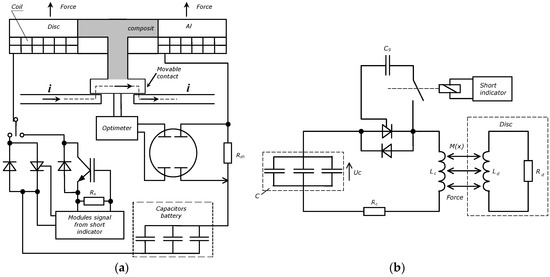

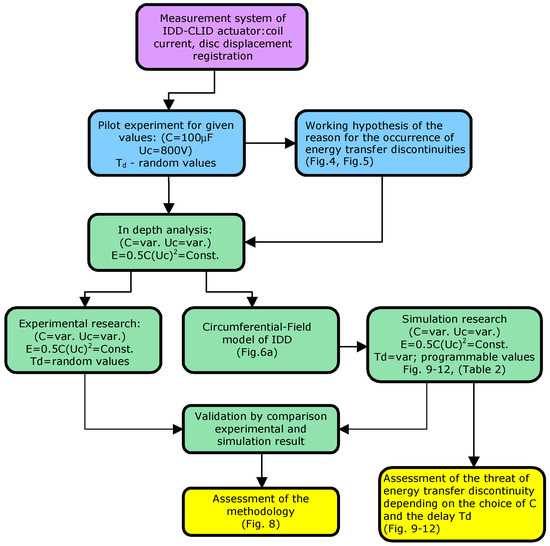

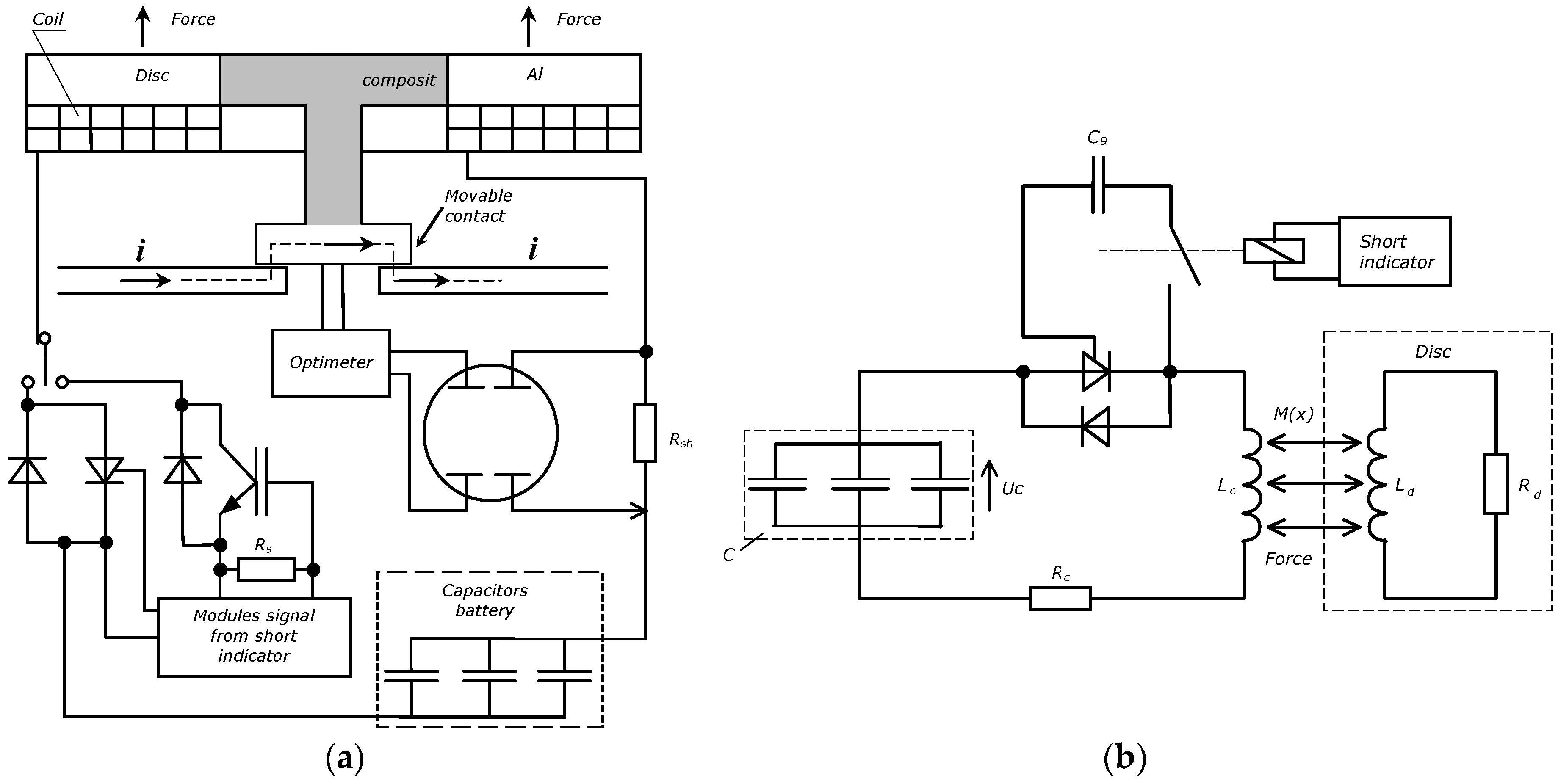

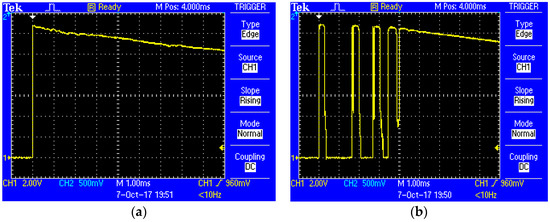

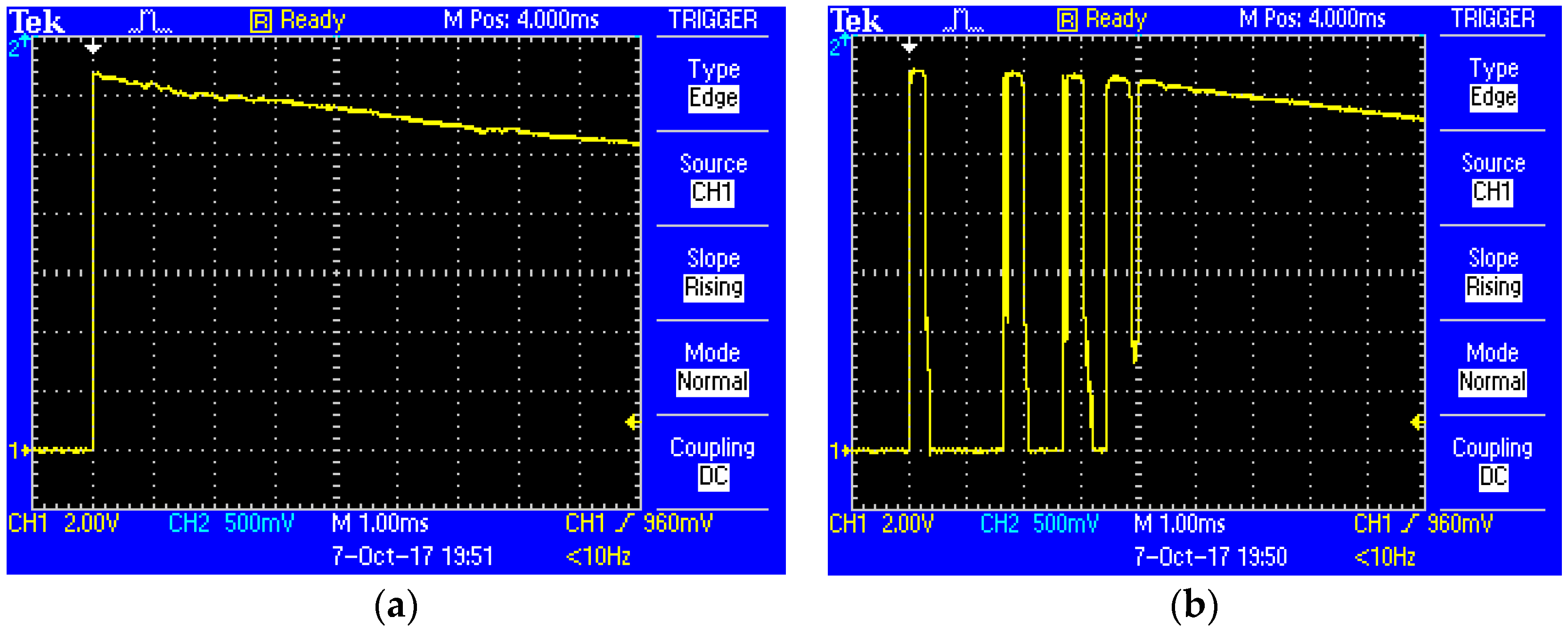

The paper deals with a key issue, how to limit the hazard and assure reliability, safety and repeatability of operation of selected critical devices protecting electrical power systems. The main research is focused on the incorrect operation of hybrid switches caused by random disturbances of the thyristor gate signals in the electrodynamic drive coil power supply circuit. Firstly, a pilot experiment on the operation of hybrid circuit breaker actuators under random disturbance conditions was carried out and the results are presented. Next, an in-depth operation analysis, based on experimental and simulation research, according to setting conditions of the circuit breaker actuator parameters such as capacitance, voltage and switching time was performed. A simulation study with the use of a field–circumferential model in the Ansys Maxwell program of electrodynamic propulsion of rectilinear motion, which enables energy transfer from the capacitor bank to the actuator coil power supply at selected time intervals, was executed. The study analysed the impact of the discontinuity of energy transfer on the dynamic properties of the actuator and some recommendations for designers and users on how to limit this hazard are formulated. View Full-Text
Keywords: hybrid circuit breaker; electrodynamic actuator; hazard limitation; discontinuous energy transfer; ultra-rapid displacement; model in Maxwell environment; experimental research hybrid circuit breaker; electrodynamic actuator; hazard limitation; discontinuous energy transfer; ultra-rapid displacement; model in Maxwell environment; experimental research
