Energies 2018, 11(1), 17; doi:10.3390/en11010017

Characteristics of the Sliding Electric Contact of Pantograph/Contact Wire Systems in Electric Railways

School of Electrical Engineering, Southwest Jiaotong University, Chengdu 610031, China
*
Authors to whom correspondence should be addressed.
Received: 6 November 2017 / Revised: 9 December 2017 / Accepted: 18 December 2017 / Published: 22 December 2017
(This article belongs to the Section Electrical Power and Energy System)
View Full-Text   |   Download PDF [5696 KB, uploaded 22 December 2017]   |

Abstract

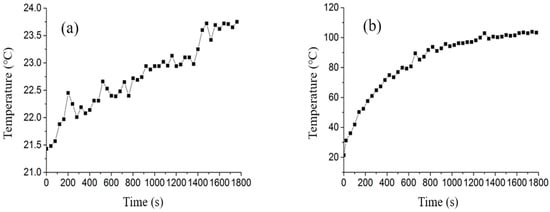

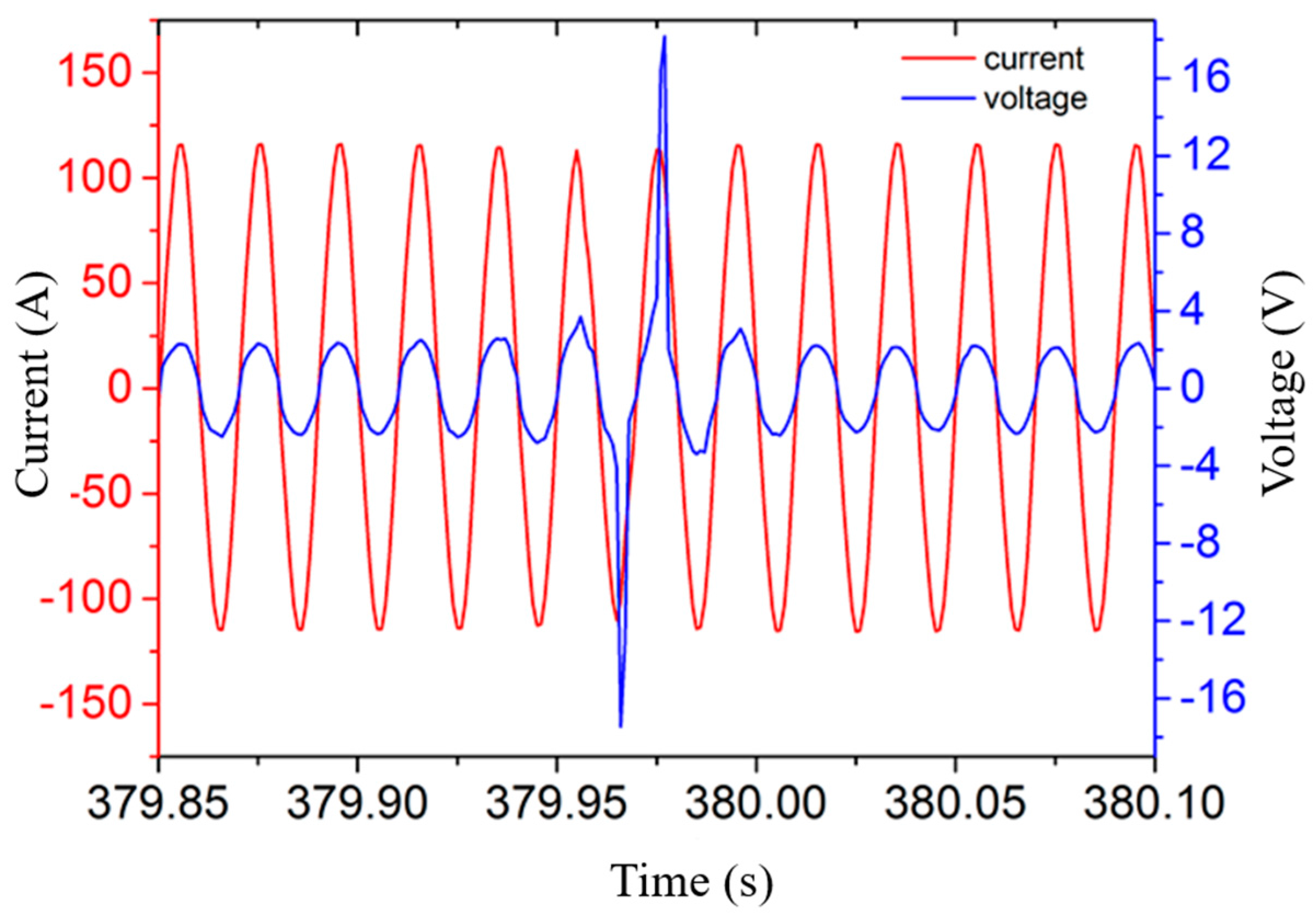

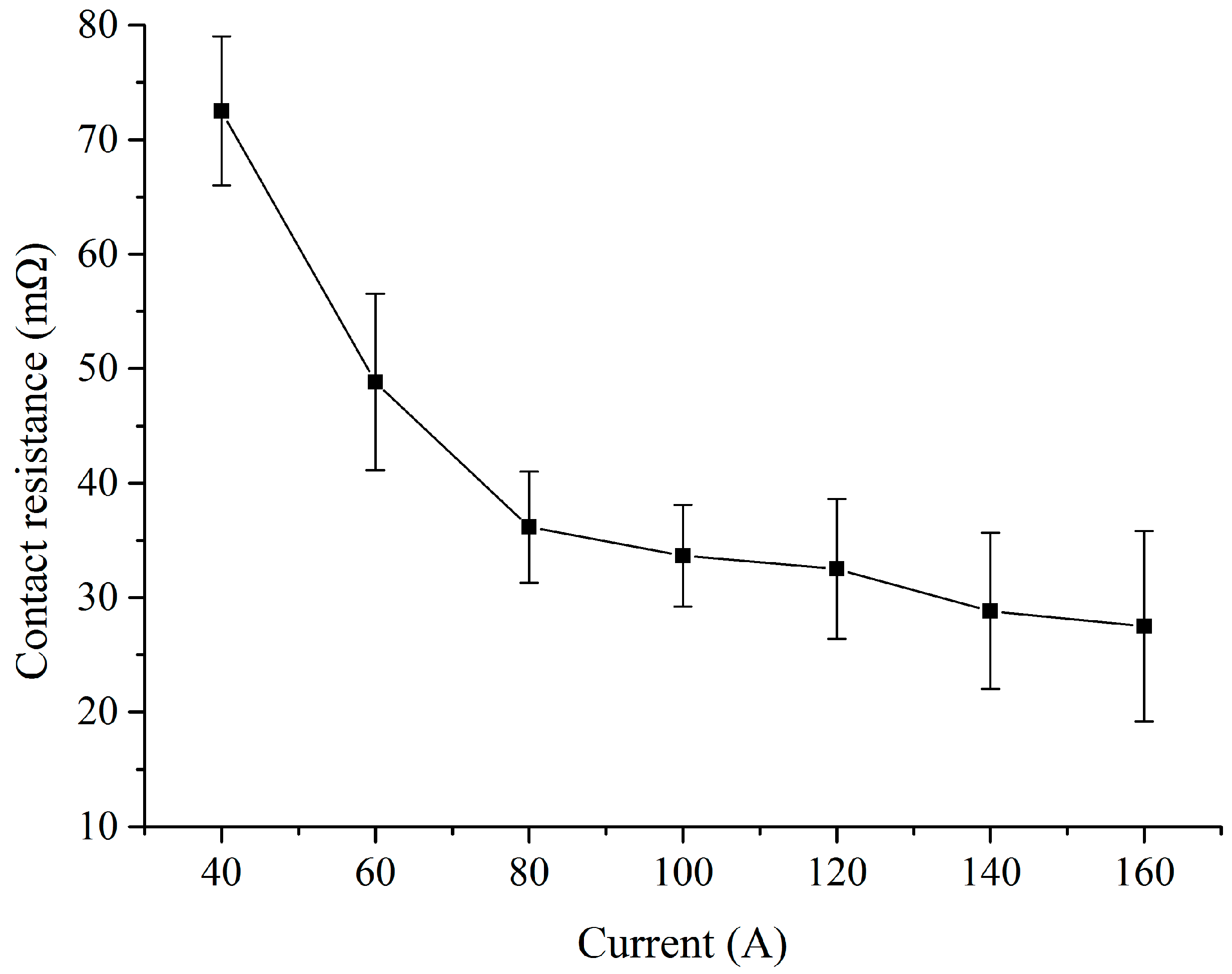

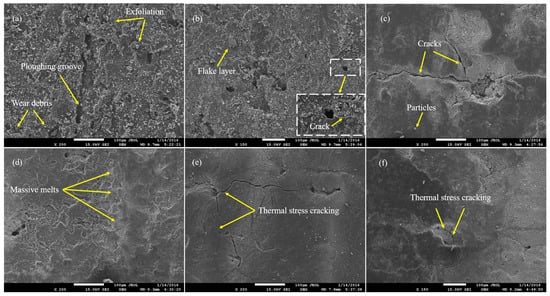

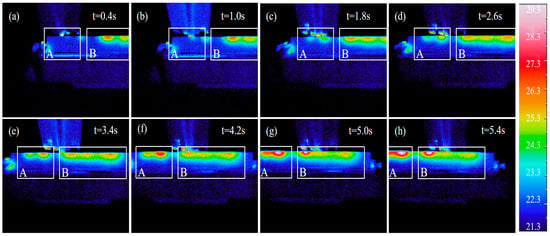

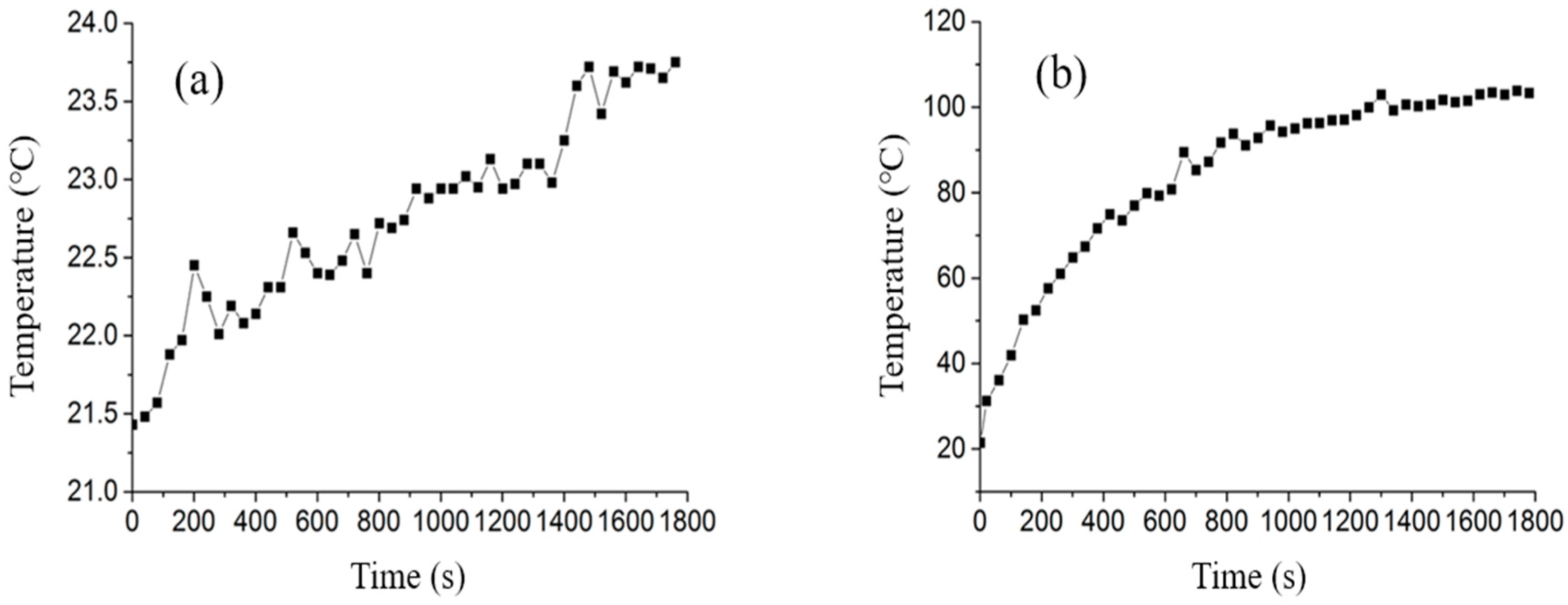

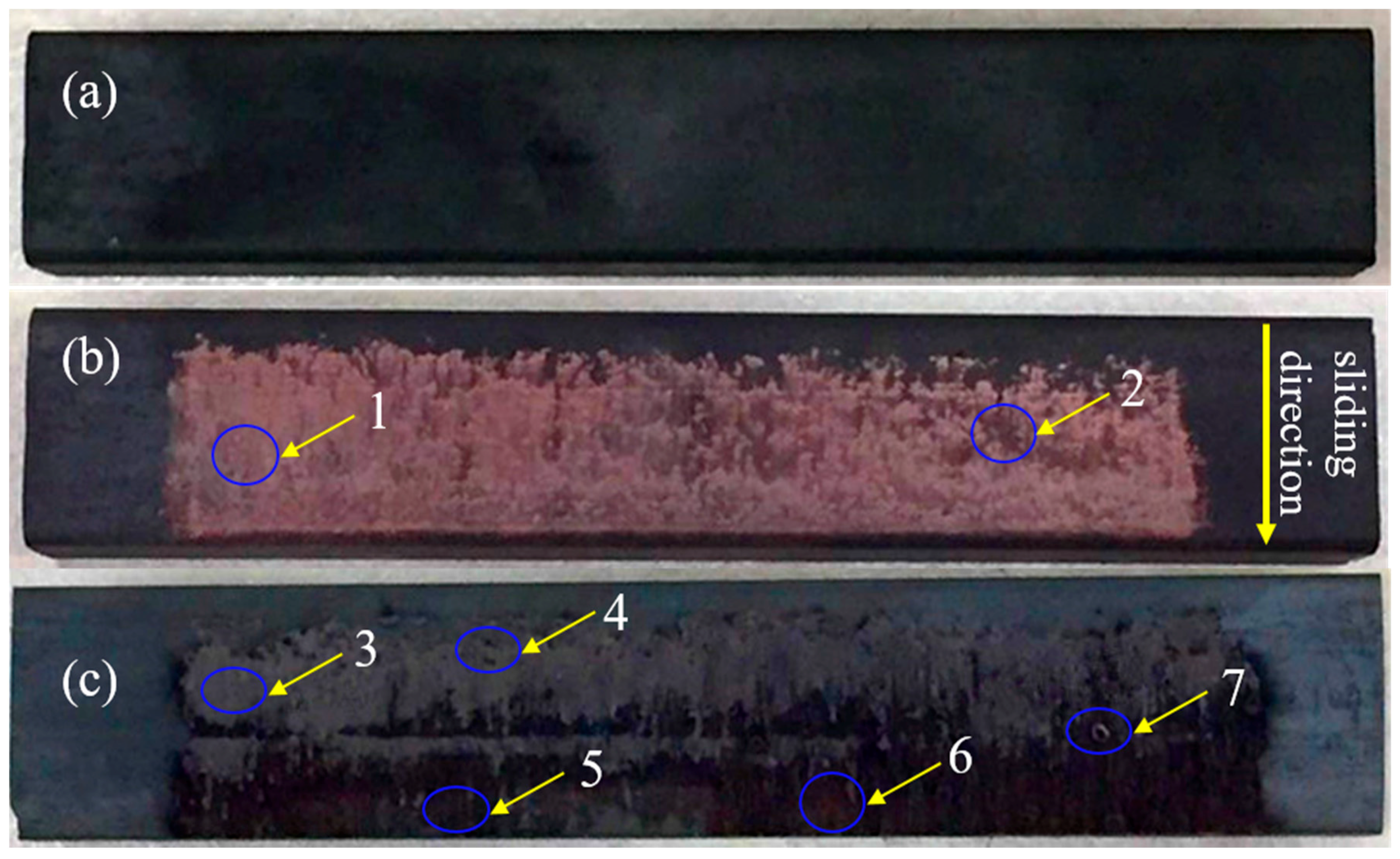

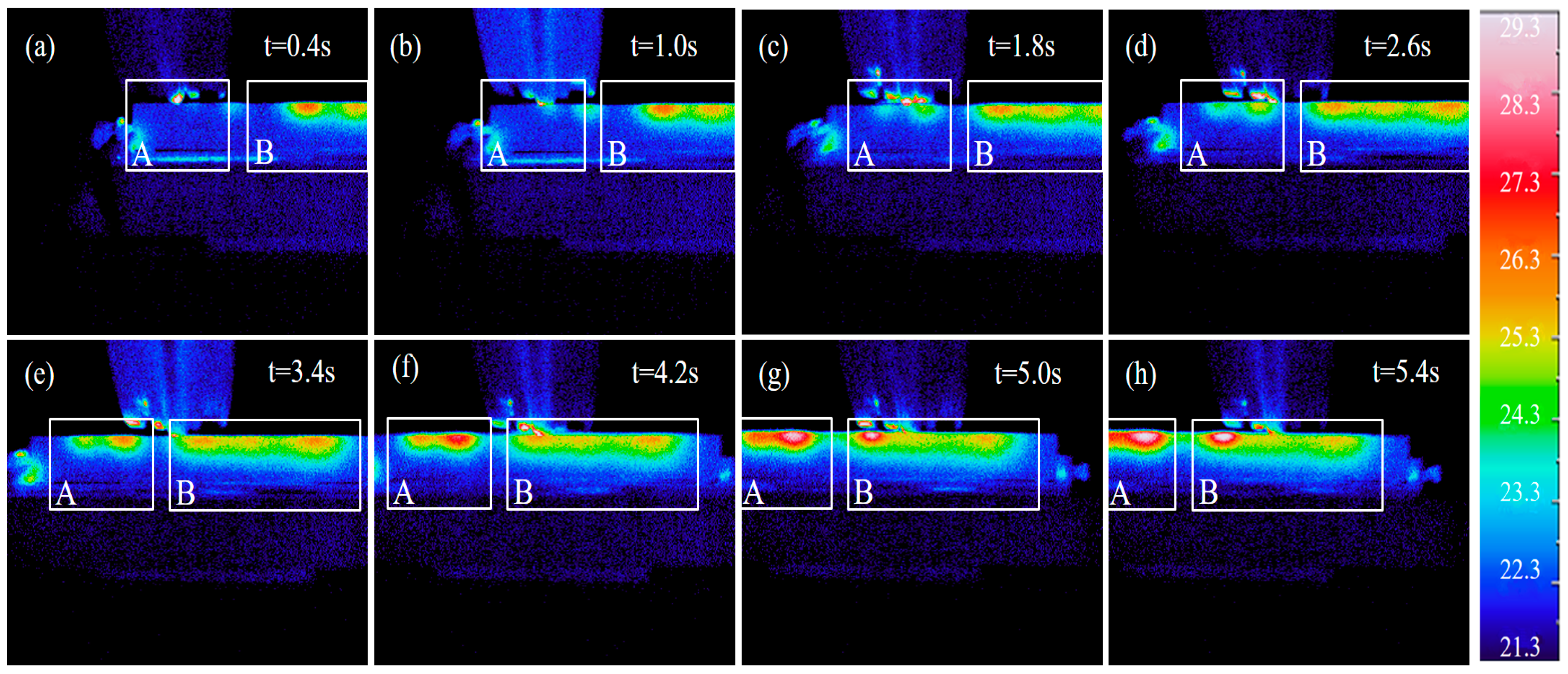

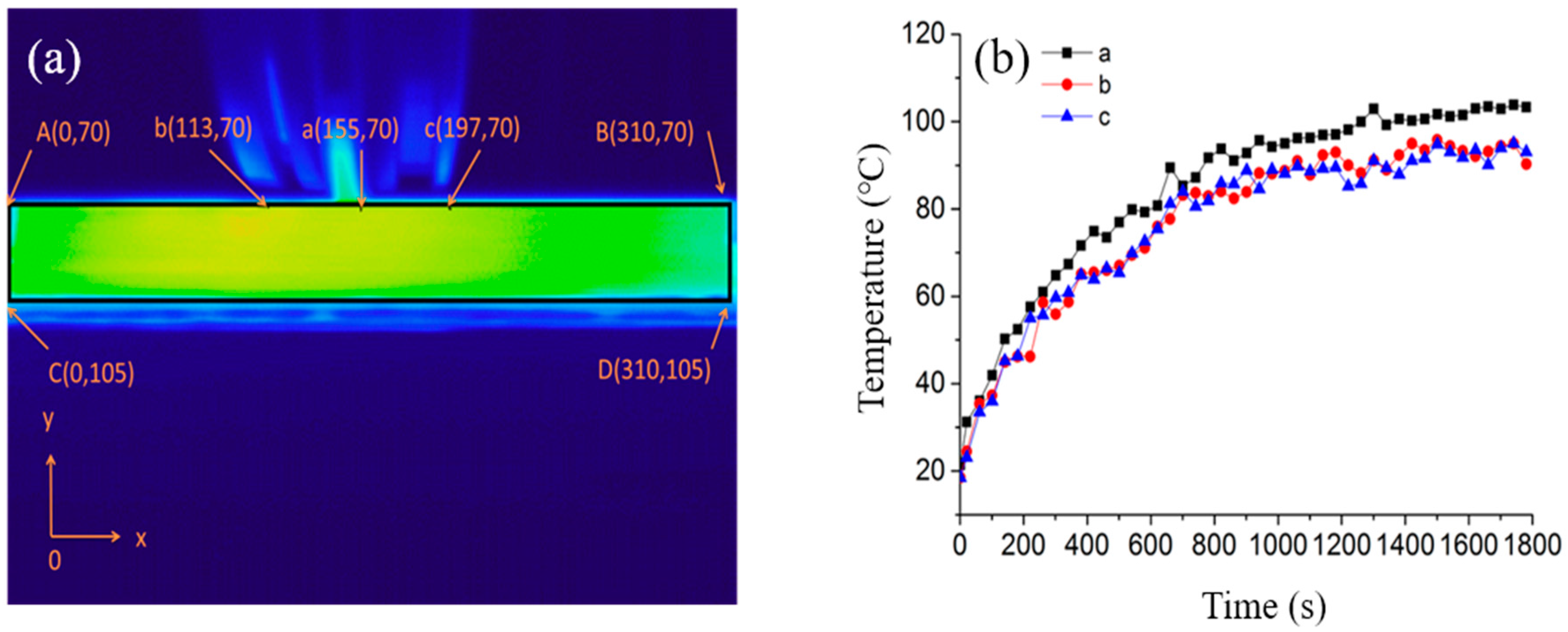

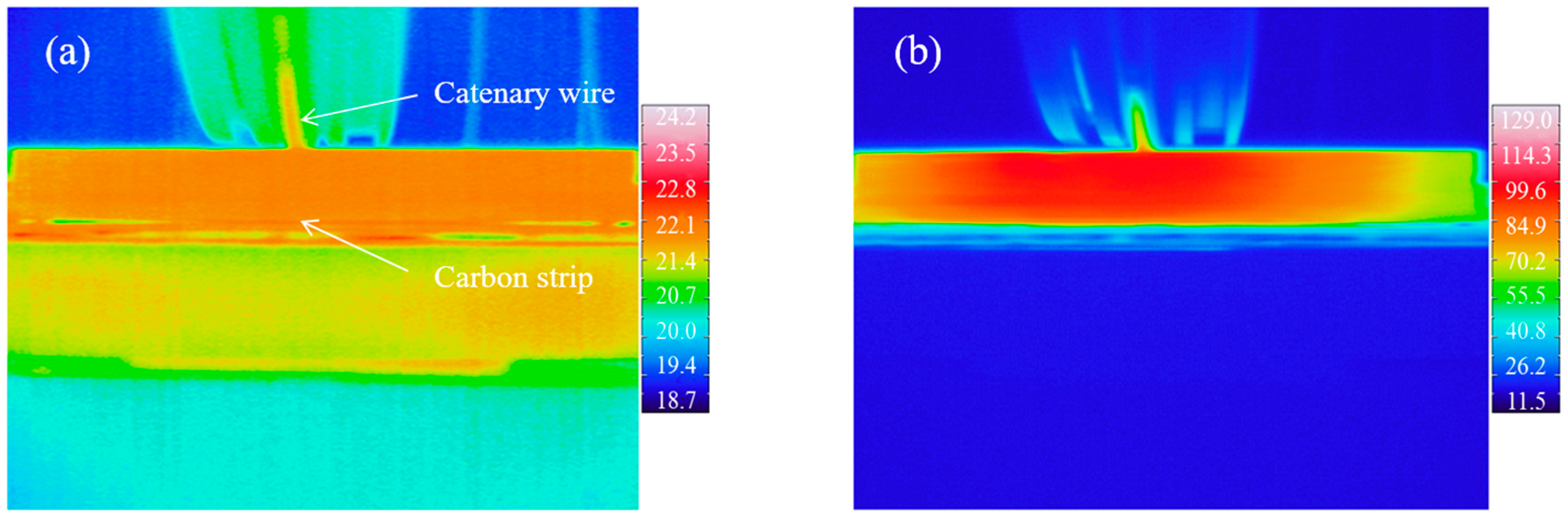

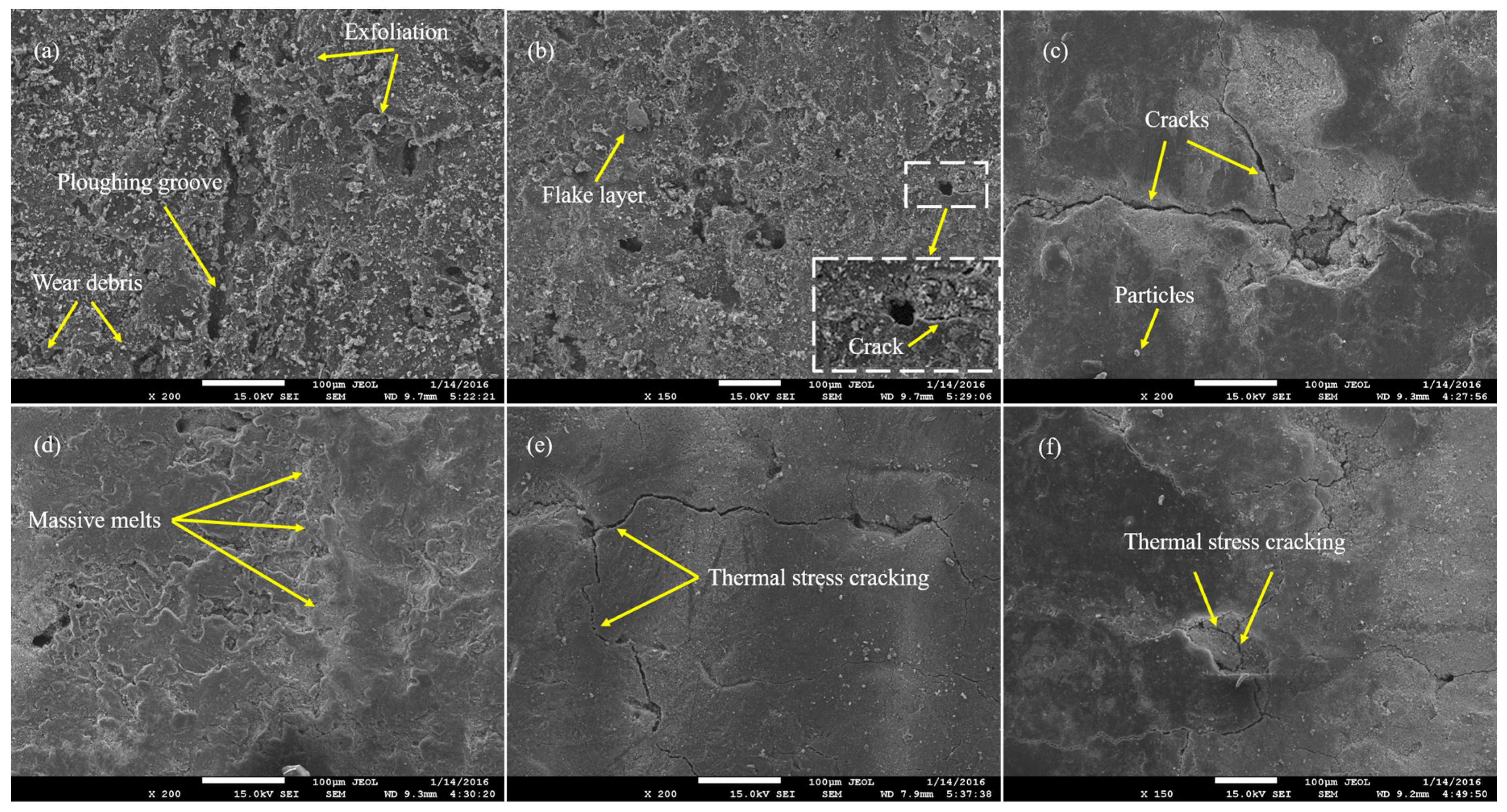

The sliding electric contact of pantograph/contact wire systems plays a significant part in the current collection stability and operation life of pantograph/contact wire systems. This paper addresses the evolutionary process of sliding electric contact of pantograph/contact wire systems by analyzing three key characteristics including contact resistance, temperature distribution and microstructure. The influence of electric current on contact resistance was interpreted. Furthermore, the evolution of the spatial temperature distribution of the carbon strip was obtained in the zigzag movement, while the dominant role of electric effect in temperature rise was demonstrated. In the end, the wear morphology differences under pure friction and current-carrying conditions were analyzed. The formation of radial cracks was illustrated and its influenced on the wear process was discussed. View Full-Text
Keywords: sliding electric contact; contact resistance; temperature distribution; microstructure sliding electric contact; contact resistance; temperature distribution; microstructure
Figures

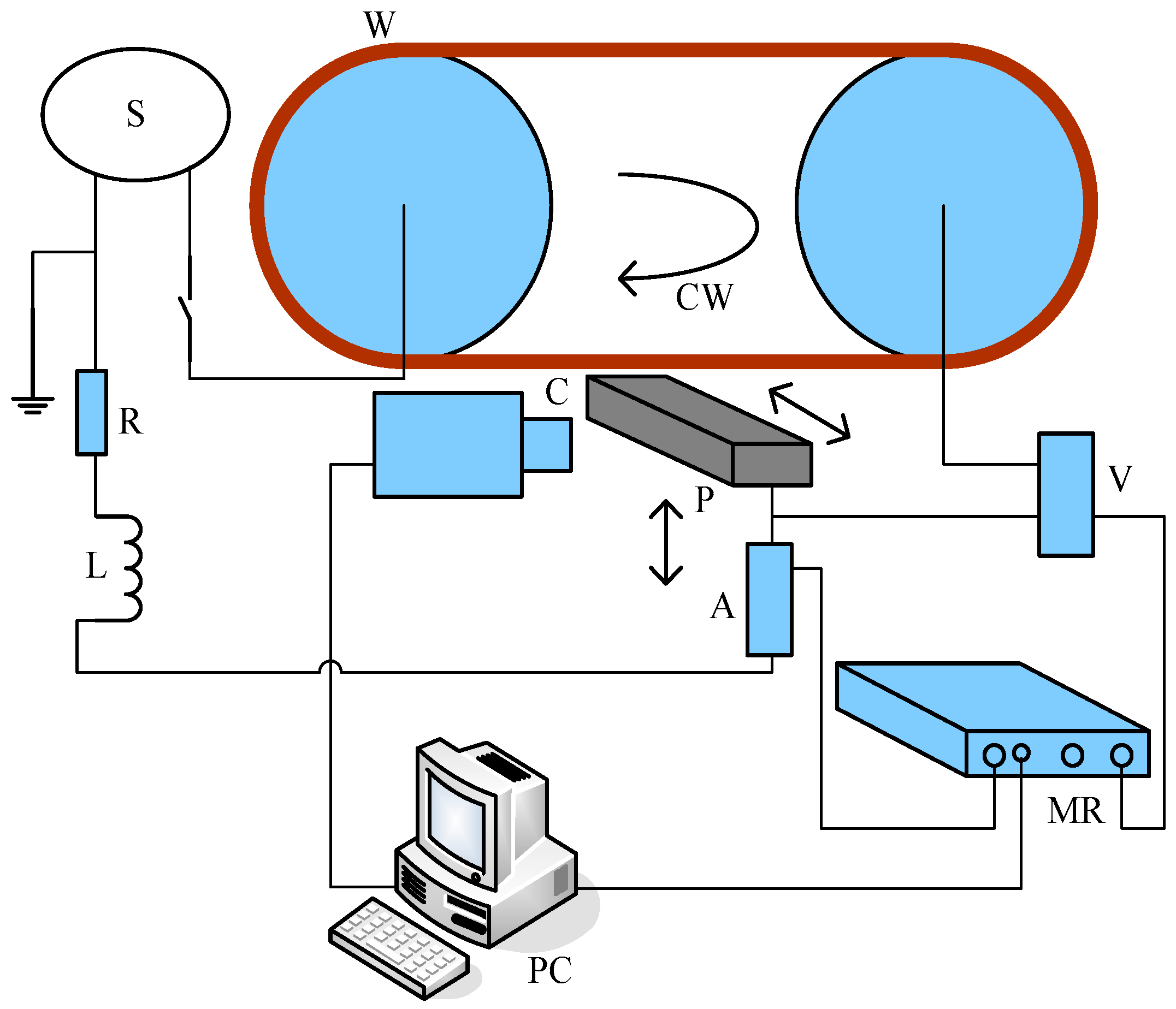

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).

Share & Cite This Article

MDPI and ACS Style

Wu, G.; Wu, J.; Wei, W.; Zhou, Y.; Yang, Z.; Gao, G. Characteristics of the Sliding Electric Contact of Pantograph/Contact Wire Systems in Electric Railways. Energies 2018, 11, 17.
