Energies 2017, 10(9), 1403; doi:10.3390/en10091403

Backflow Power Optimization Control for Dual Active Bridge DC-DC Converters

School of Electrical Engineering, Beijing Jiaotong University, Haidian District, Beijing 100044, China
*
Author to whom correspondence should be addressed.
Received: 10 August 2017 / Revised: 2 September 2017 / Accepted: 6 September 2017 / Published: 14 September 2017
(This article belongs to the Section Electrical Power and Energy System)

Abstract

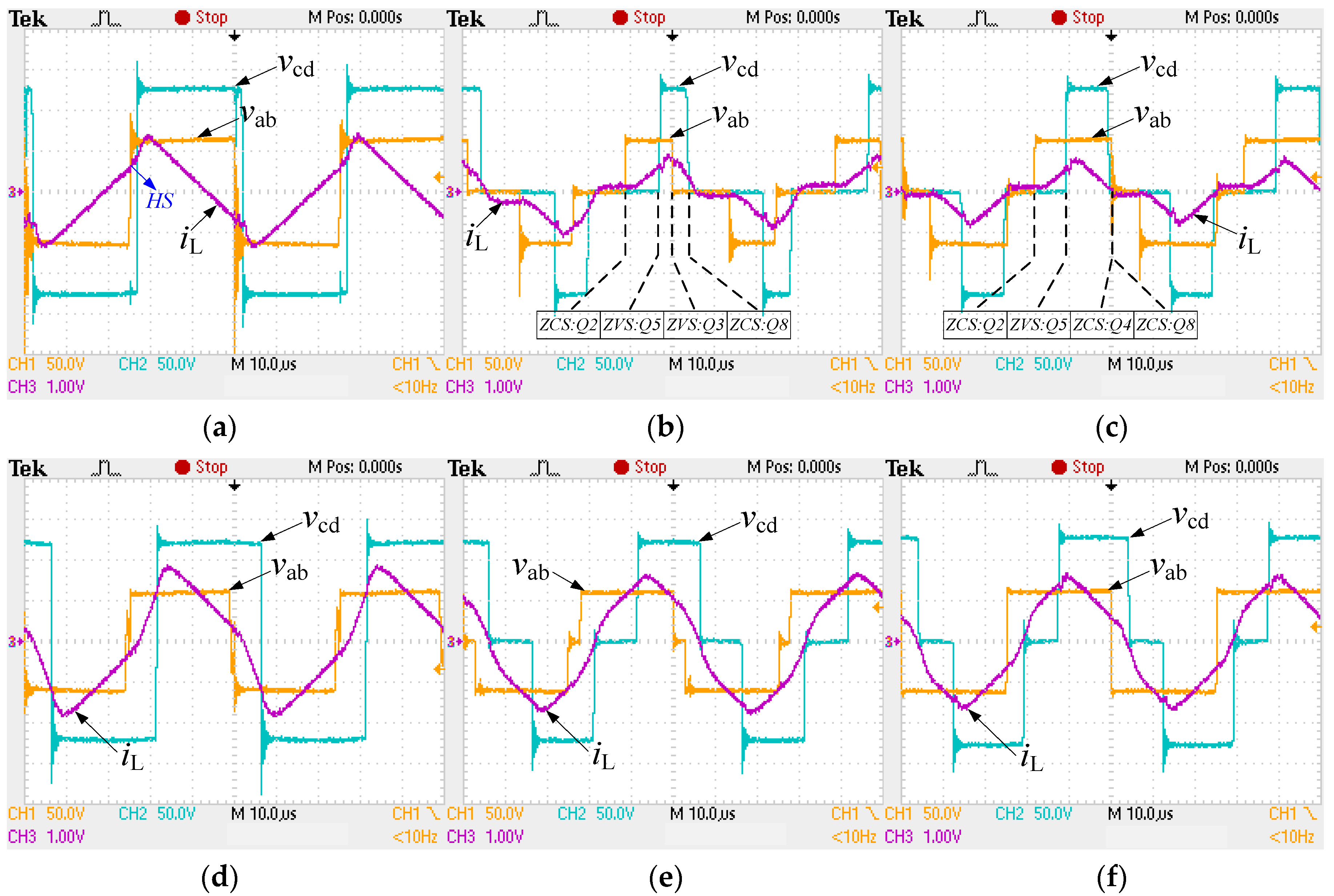

This paper proposes optimized control methods for global minimum backflow power based on a triple-phase-shift (TPS) control strategy. Three global optimized methods are derived to minimize the backflow power on the primary side, on the secondary side and on both sides, respectively. Backflow power transmission is just a portion of non-active power transmission in a dual active bridge (DAB) converter. Non-active power transmission time is proposed in this paper, which unifies zero power transmission and backflow power transmission. Based on the proposed index, an optimized control method is derived to achieve both the maximum effective power transmission time and minimum current stress of DAB at the same time. A comparative analysis is performed to show the limitations of the minimum backflow power optimization method. Finally, a prototype is built to verify the effectiveness of our theoretical analysis and the proposed control methods by experimental results. View Full-Text
Keywords: dual active bridge (DAB); optimization control; backflow power; non-active power dual active bridge (DAB); optimization control; backflow power; non-active power
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).
