Open AccessArticle
Energies 2017, 10(9), 1385; doi:10.3390/en10091385

Thermal Impact Assessment of Groundwater Heat Pumps (GWHPs): Rigorous vs. Simplified Models

Department of Environment, Land and Infrastructure Engineering (DIATI), Politecnico di Torino, corso Duca degli Abruzzi 24, 10129 Torino, Italy
*
Author to whom correspondence should be addressed.
Received: 27 July 2017 / Revised: 30 August 2017 / Accepted: 7 September 2017 / Published: 12 September 2017
(This article belongs to the Special Issue Low Enthalpy Geothermal Energy)
View Full-Text   |   Download PDF [14744 KB, uploaded 12 September 2017]   |

Abstract

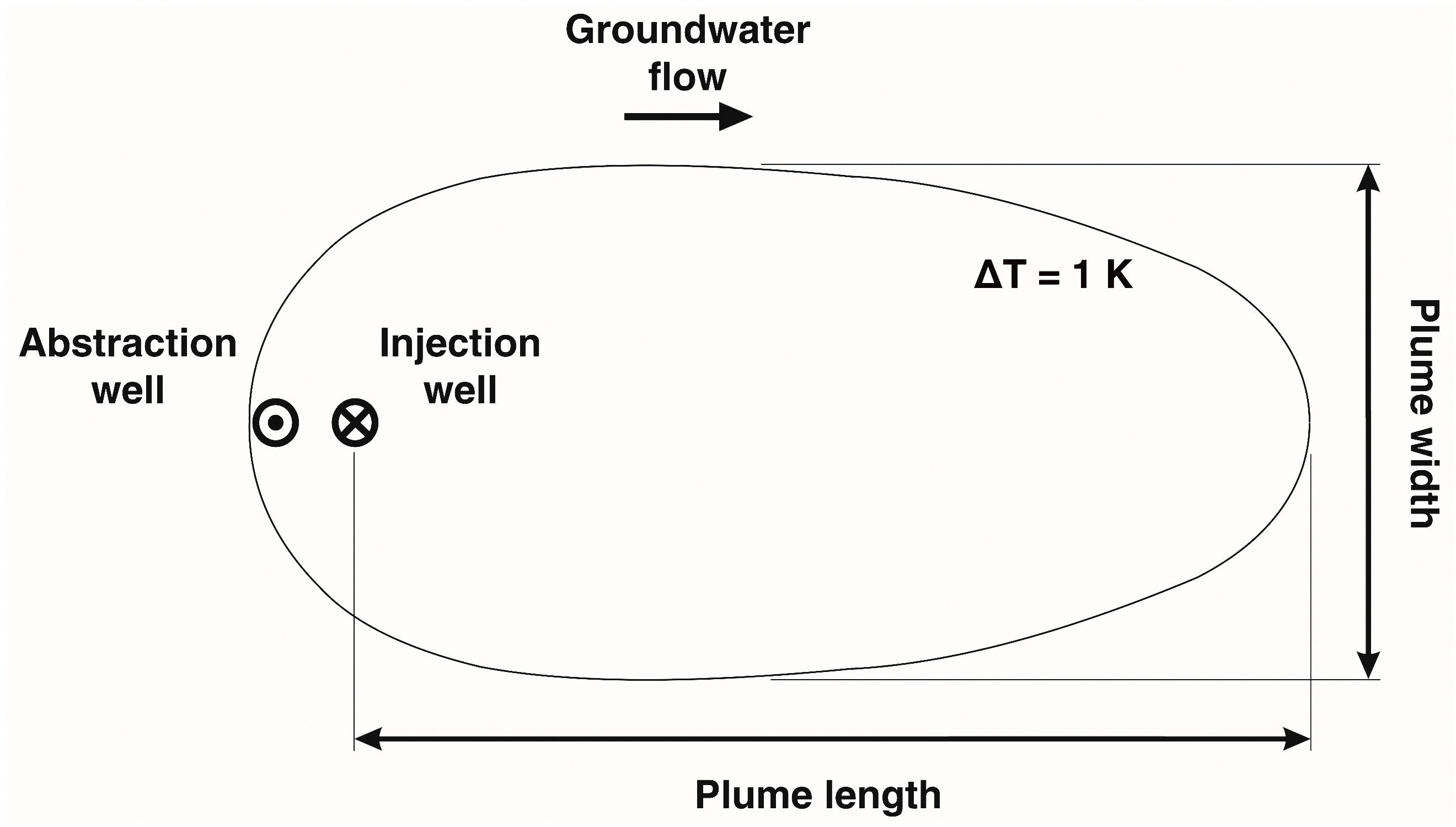

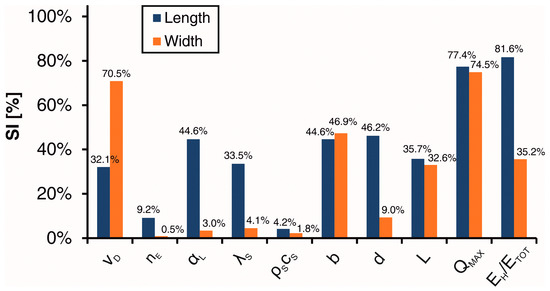

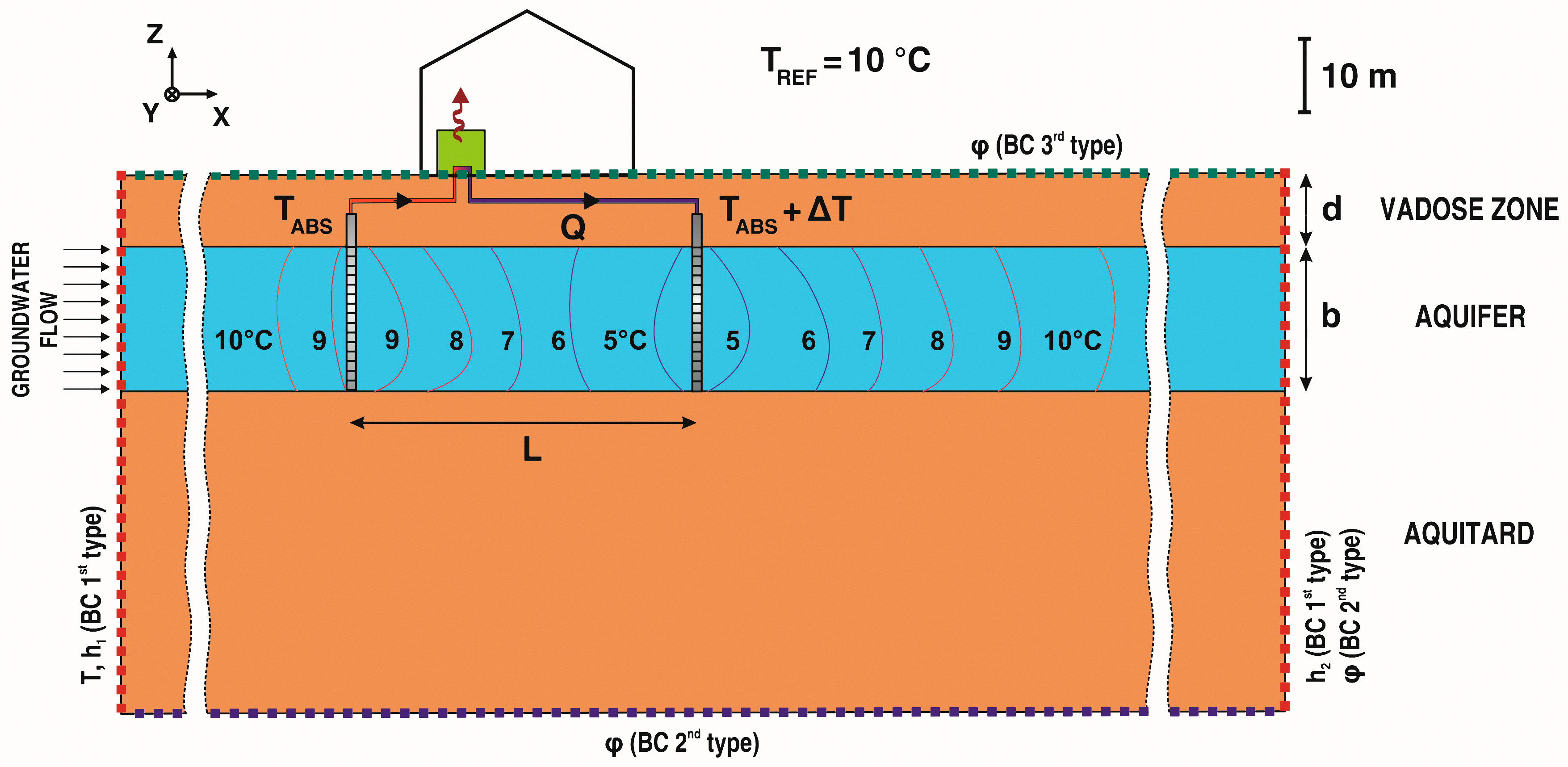

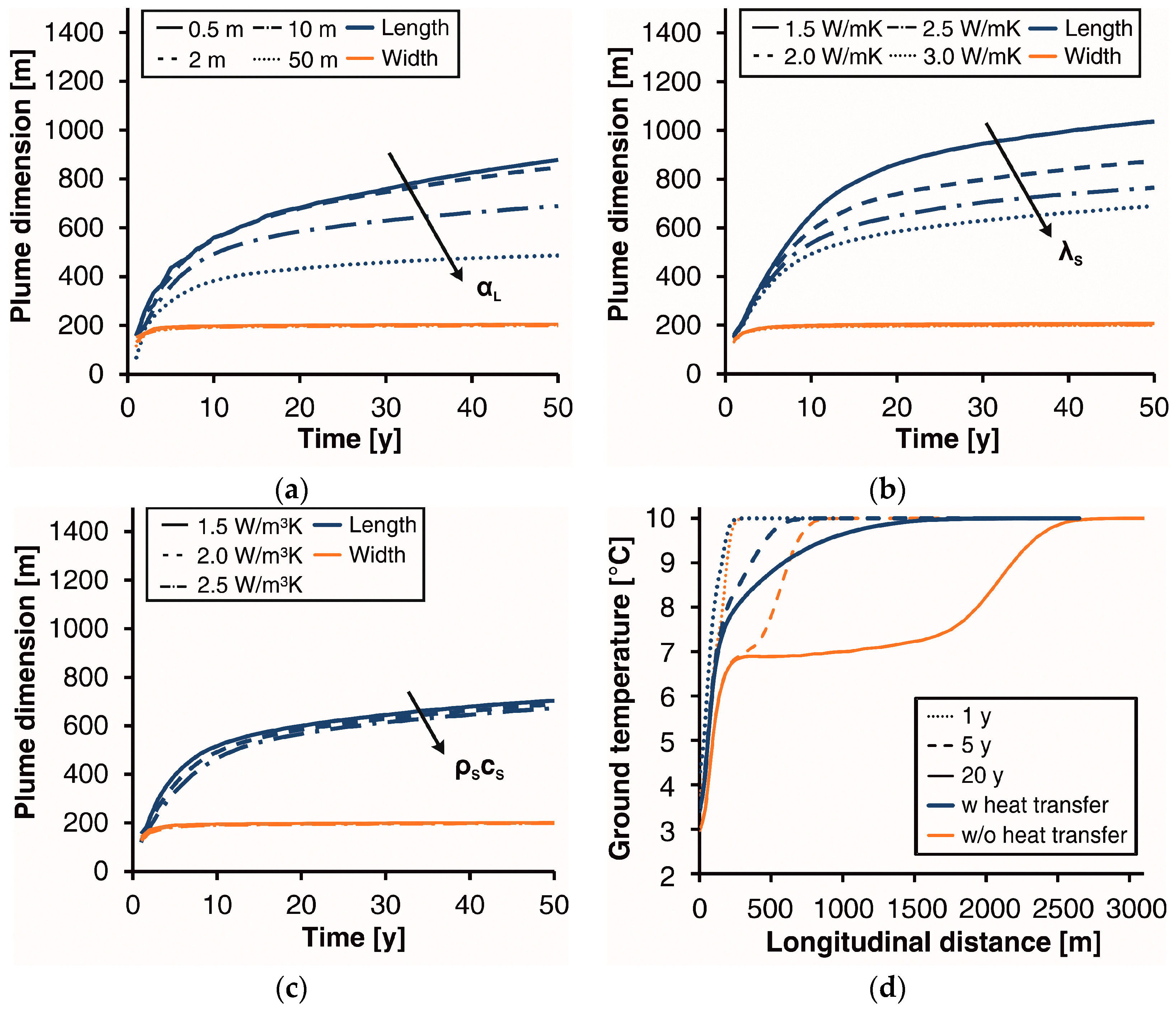

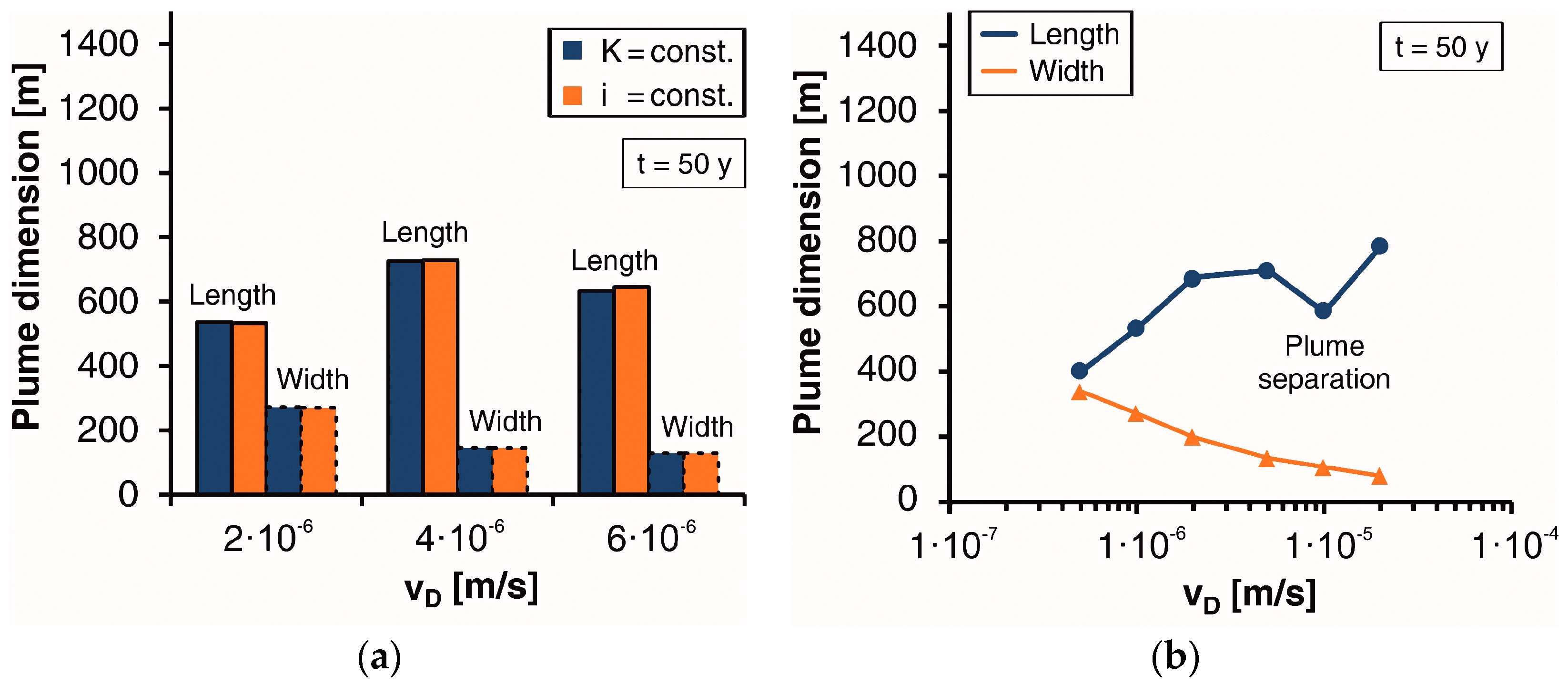

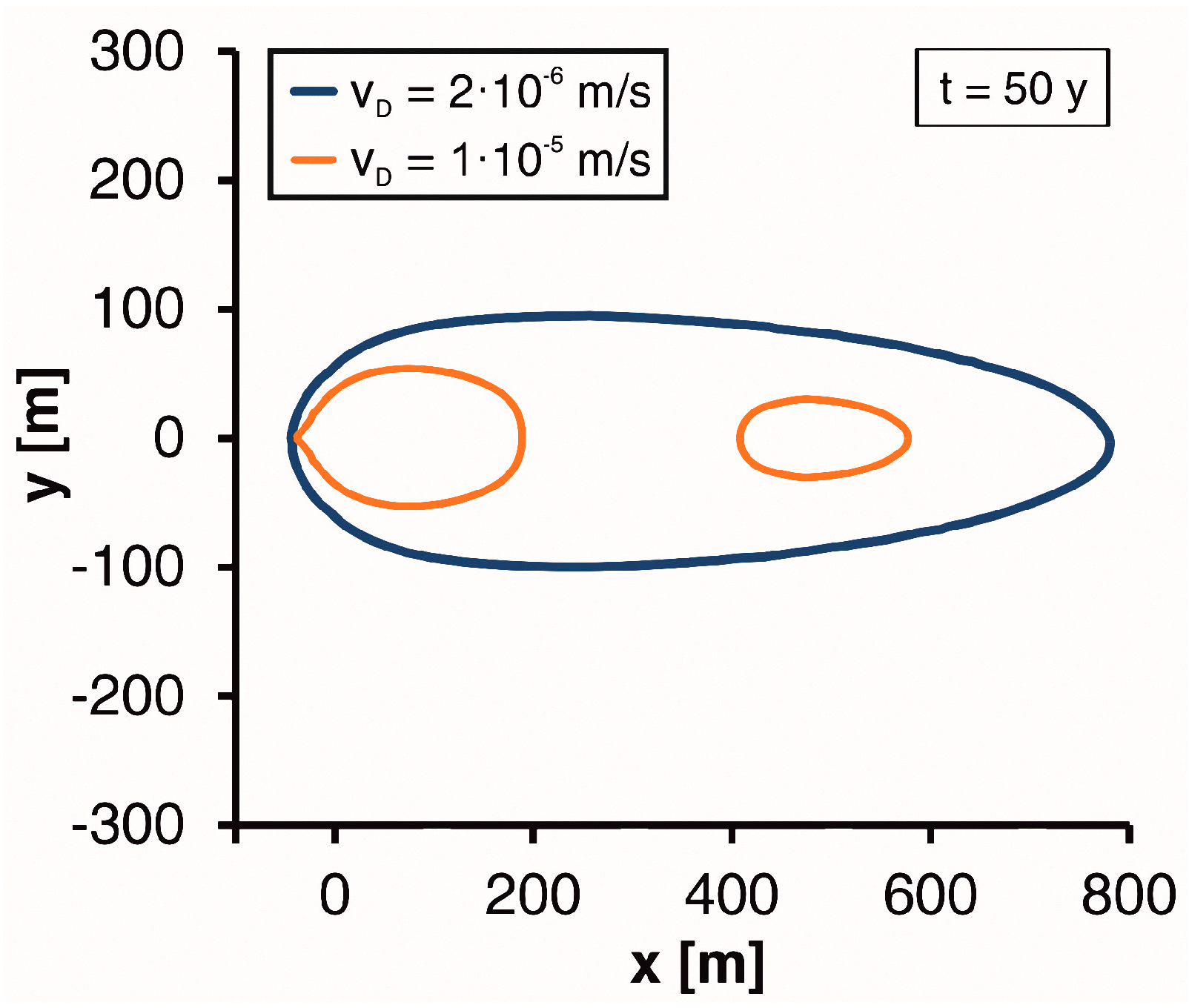

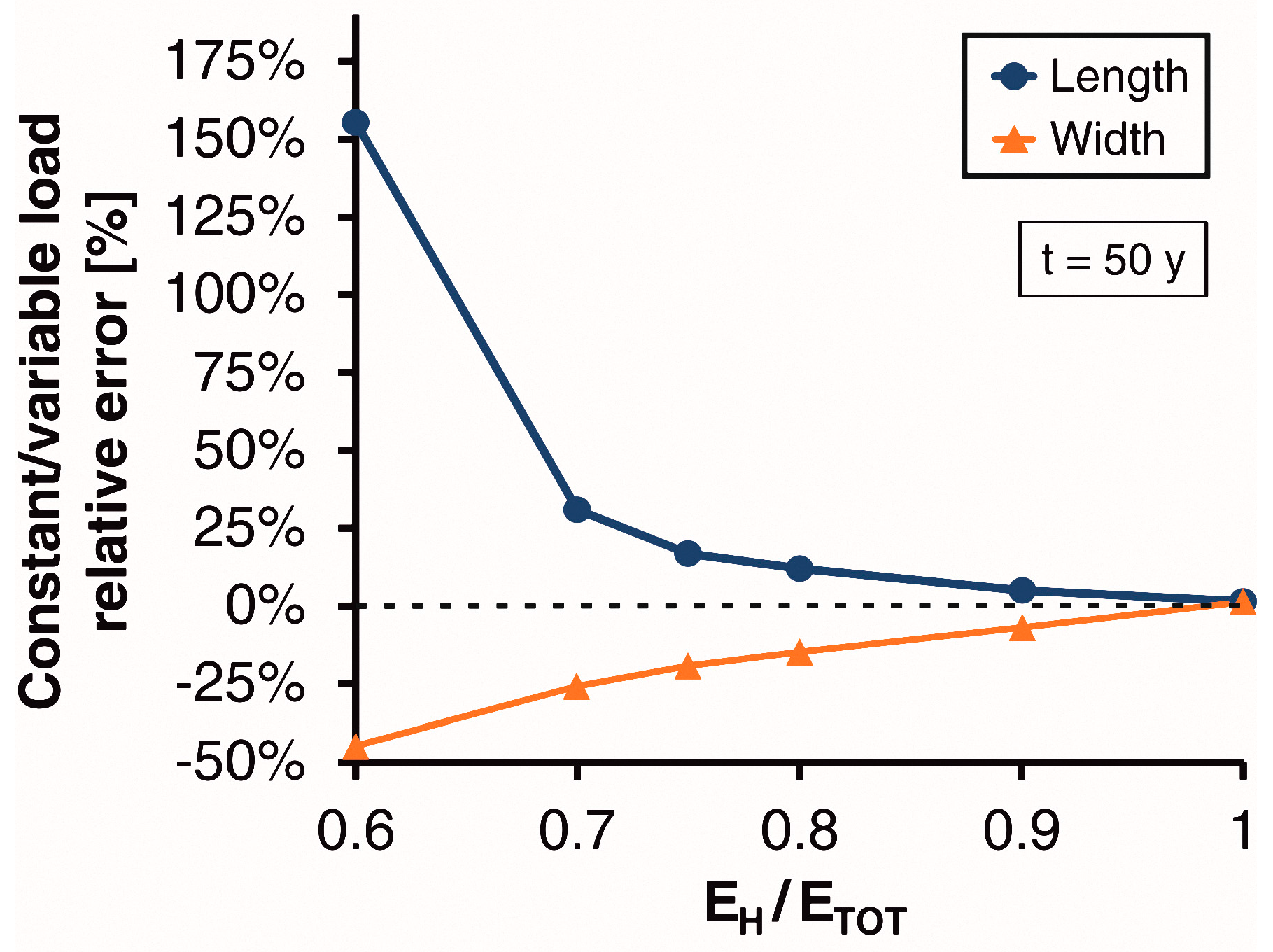

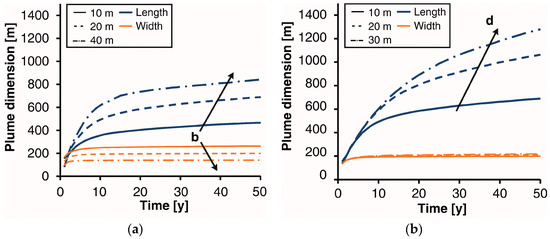

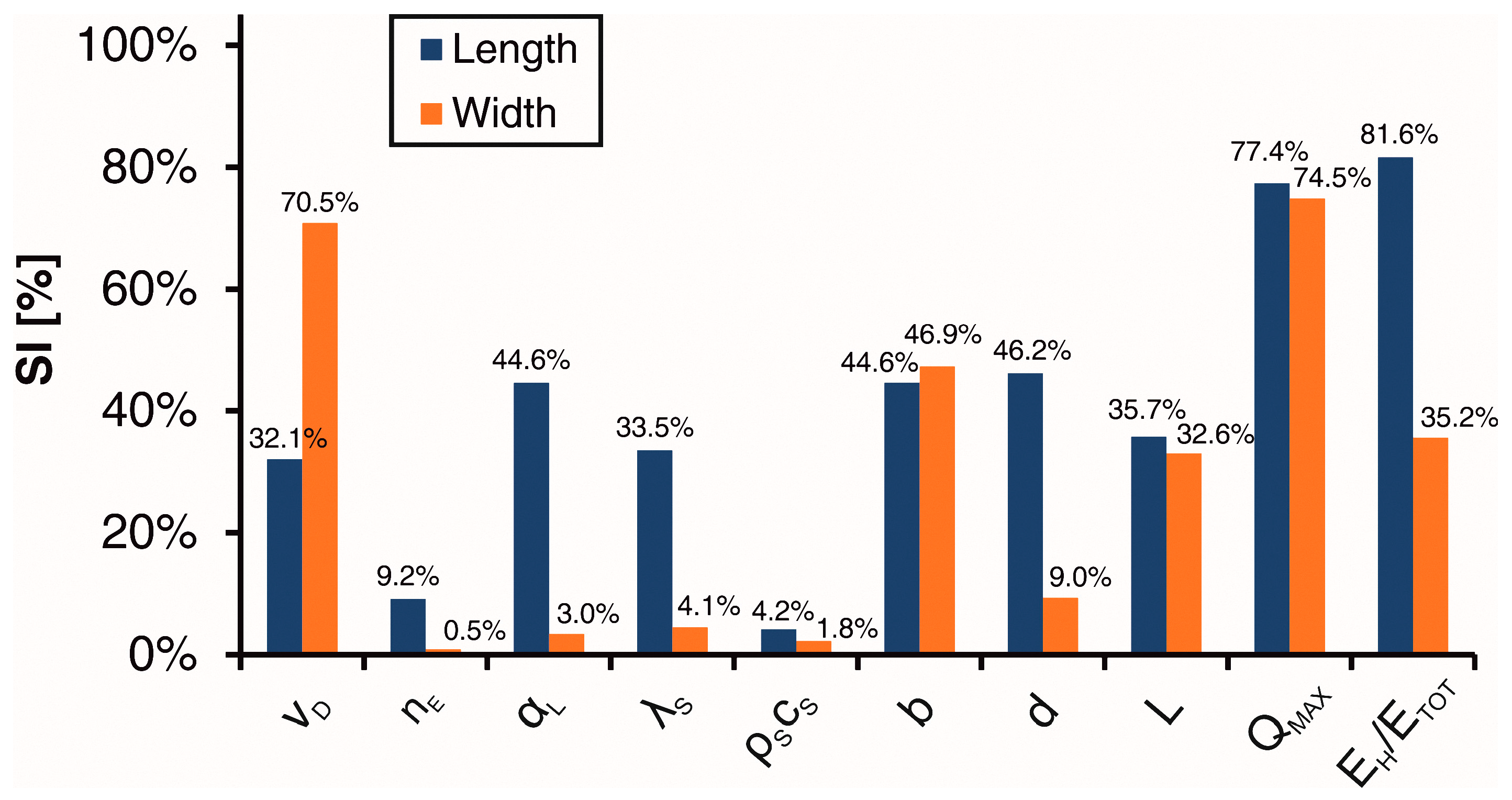

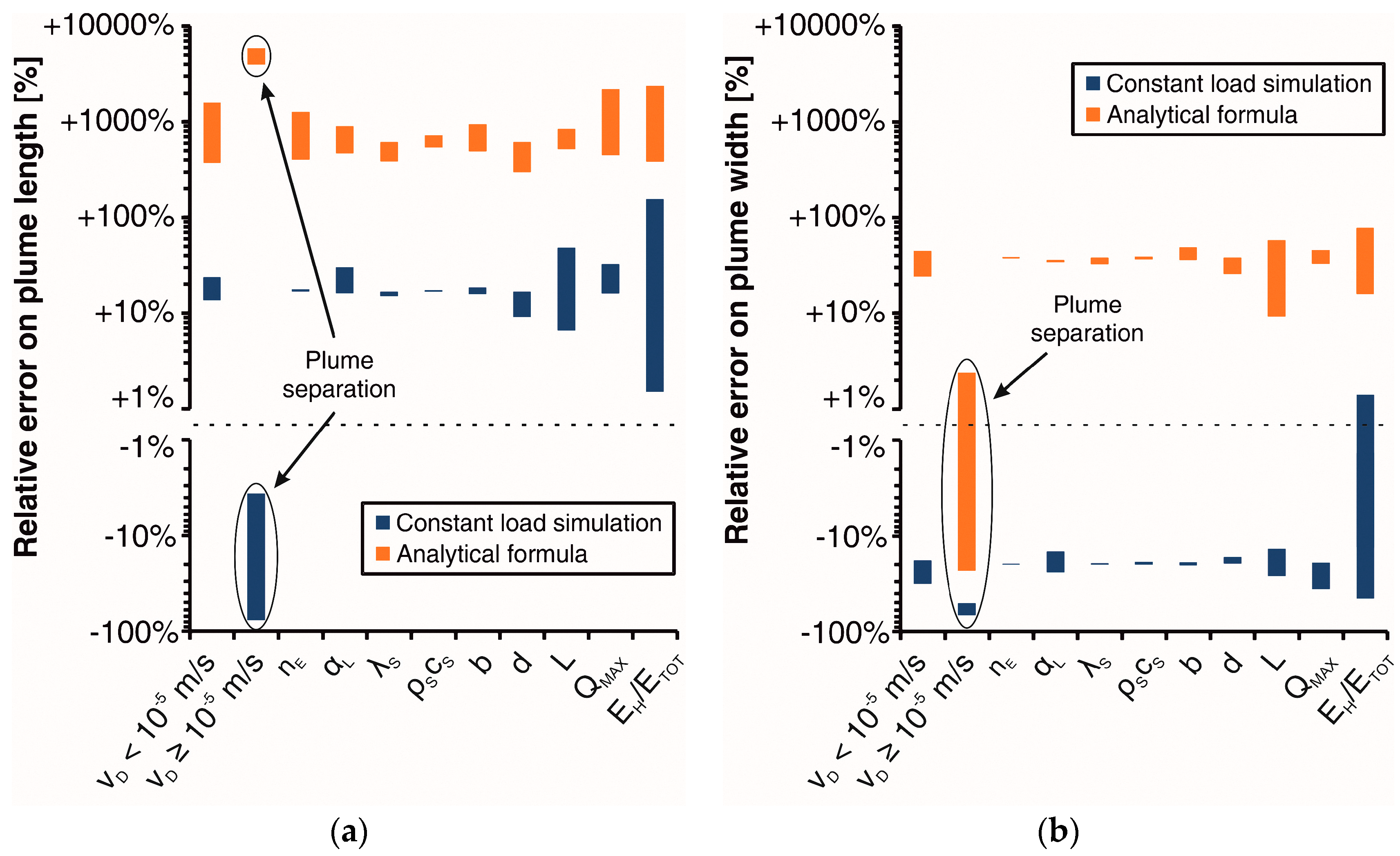

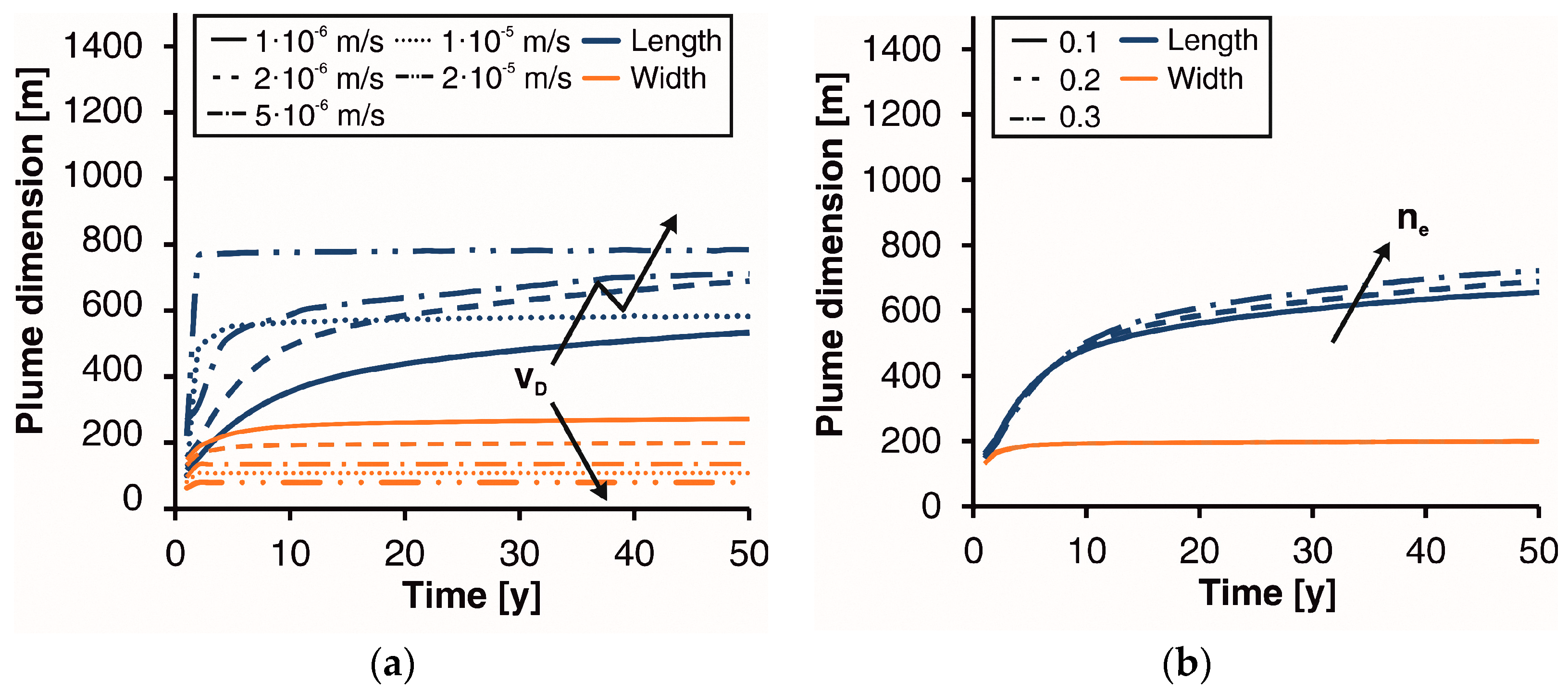

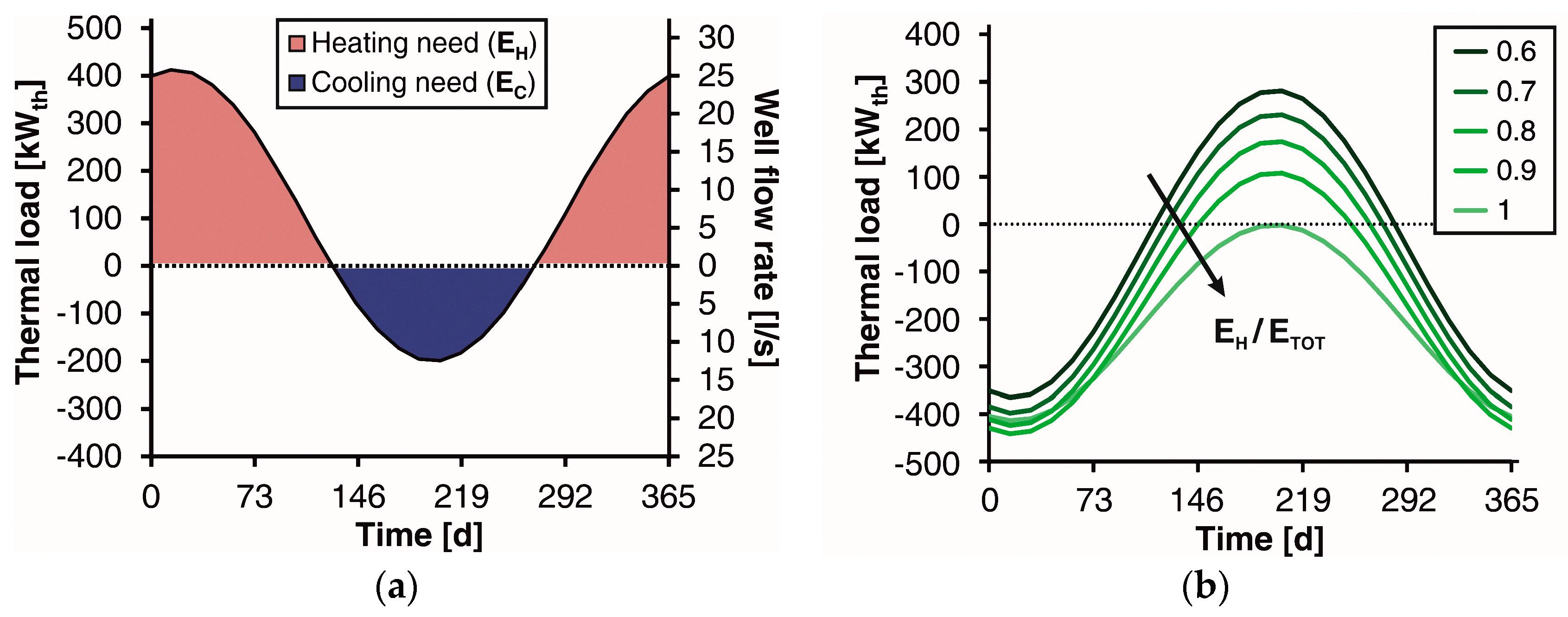

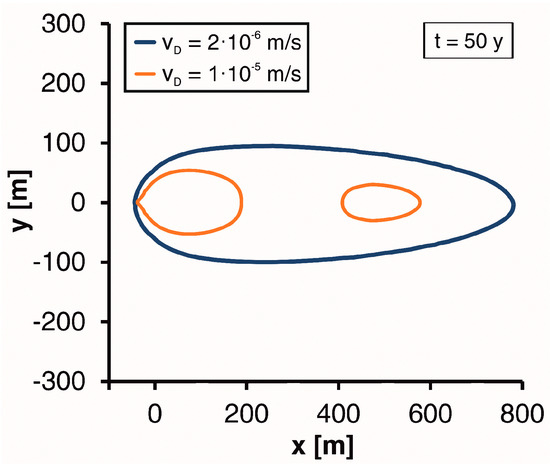

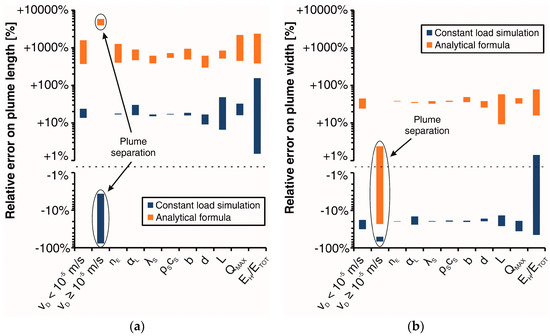

Groundwater Heat Pumps (GWHPs) are increasingly adopted for air conditioning in urban areas, thus reducing CO2 emissions, and this growth needs to be managed to ensure the sustainability of the thermal alteration of aquifers. However, few studies have addressed the propagation of thermal plumes from open-loop geothermal systems from a long-term perspective. We provide a comprehensive sensitivity analysis, performed with numerical finite-element simulations, to assess how the size of the thermally affected zone is driven by hydrodynamic and thermal subsurface properties, the vadose zone and aquifer thickness, and plant setup. In particular, we focus the analysis on the length and width of thermal plumes, and on their time evolution. Numerical simulations are compared with two simplified methods, namely (i) replacing the time-varying thermal load with its yearly average and (ii) analytical formulae for advective heat transport in the aquifer. The former proves acceptable for the assessment of plume length, while the latter can be used to estimate the width of the thermally affected zone. The results highlight the strong influence of groundwater velocity on the plume size and, especially for its long-term evolution, of ground thermal properties and of subsurface geometrical parameters. View Full-Text
Keywords: shallow geothermal energy; groundwater heat pump; geothermal heat pump; thermal plume; FEFLOW; sensitivity analysis; advection; conduction; dispersion; aquifer shallow geothermal energy; groundwater heat pump; geothermal heat pump; thermal plume; FEFLOW; sensitivity analysis; advection; conduction; dispersion; aquifer
Figures

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).

Supplementary material

Share & Cite This Article

MDPI and ACS Style

Piga, B.; Casasso, A.; Pace, F.; Godio, A.; Sethi, R. Thermal Impact Assessment of Groundwater Heat Pumps (GWHPs): Rigorous vs. Simplified Models. Energies 2017, 10, 1385.
