Article

Five Megawatt Wind Turbine Power Output Improvements by Passive Flow Control Devices

1
Department of Nuclear and Fluid Mechanics, University of the Basque Country (UPV/EHU), Nieves Cano, 12, 01006 Vitoria-Gasteiz, Spain
2
System Engineering and Automation Control Department, University of the Basque Country (UPV/EHU), Nieves Cano, 12, 01006 Vitoria-Gasteiz, Spain
3
Department of Mechanical Engineering, University of the Basque Country (UPV/EHU), Nieves Cano, 12, 01006 Vitoria-Gasteiz, Spain
*
Author to whom correspondence should be addressed.
Energies 2017, 10(6), 742; https://doi.org/10.3390/en10060742
Submission received: 24 February 2017 / Revised: 1 May 2017 / Accepted: 17 May 2017 / Published: 24 May 2017
(This article belongs to the Special Issue Wind Turbine 2017)

Abstract

:
The effects of two types of flow control devices, vortex generators (VGs) and Gurney flaps (GFs), on the power output performance of a multi-megawatt horizontal axis wind turbine is presented. To that end, an improved blade element momentum (BEM)-based solver has been developed and BEM-based computations have been carried out on the National Renewable Energy Laboratory (NREL) 5 MW baseline wind turbine. The results obtained from the clean wind turbine are compared with the ones obtained from the wind turbine equipped with the flow control devices. A significant increase in the average wind turbine power output has been found for all of the flow control device configurations and for the wind speed realizations studied in the present work. Furthermore, a best configuration case is proposed which has the largest increase of the average power output. In that case, increments on the average power output of 10.4% and 3.5% have been found at two different wind speed realizations. The thrust force and bending moment in the root of the blade have also been determined and compared with the values of the clean wind turbine. A residual increase in the bending moment of less than 1% has been found.

1. Introduction

The rise of installed wind power in Europe for the last fifteen years, along with the increasing significance of offshore wind energy, shows the relevance of research in the field of flow control for large wind turbines. The considerable increase of wind turbine rotor size and weight in recent years has made it impossible to control as they were controlled 20 years ago. Rotors of 120 meters, or even more, are now a reality. Johnson et al. [1] compiled some of the most important flow control techniques that could be used in wind turbines to assure a safe and most favourable operation under different atmospheric conditions. To maximize the lifetime energy captured by the wind turbine is a key factor in the wind energy field.
Many different flow control devices have been developed in the last decades. Most of them were created for aeronautical issues and this was its first research field and application [2]. They are also frequently used in turbo machinery [3]. Nowadays researchers are working to optimize and introduce these types of devices in multi-megawatt wind turbines. Wood [4] developed a four layer scheme which allows classifying the different concepts that are part of all flow control devices. In the study of Shires and Kourkoulis [5] a tangential air jet was used on a vertical axis wind turbine (VAWT) blade to control the separation of the flow and, therefore, to increase the aerodynamic performance. Additionally, the dynamic stall control was investigated by Xu et al. [6] on a S809 airfoil (NREL’s S-Series airfoils, Golden, CO, USA) by the implementation of a co-flow jet.
Depending on their operating principle control techniques can be classified as active or passive [7]. Passive control techniques represent an improvement in the turbine’s efficiency and in load reduction without external energy consumption. Active control techniques need an additional energy source to obtain the desired effect on the flow and, unlike vortex generators (VGs) and other passive devices, active flow control needs complex algorithms to obtain the maximum benefit (see Becker et al. [8]). Johnson et al. [1] conducted an analysis and discussed 15 different devices for wind turbine control. Some of them are still being tested on full-scale turbines.
A VG is defined as a passive flow control system which modifies the boundary layer (BL) fluid motion bringing momentum from the outer flow part into the inner flow part of the wall-bounded flows. Its main goal is to delay the separation of the flow and increase the maximum lift coefficient CL,max. VGs are intended in order to re-energize the BL by transferring momentum between the free stream velocity and the near wall region. VGs have been investigated for more than fifty years for a wide range of applications in aerodynamics and airplane wings [9]. They are small vanes, usually triangular or rectangular (Figure 1), inclined at an angle to the oncoming flow and placed as close as possible of the leading edge (LE). They are generally assembled spanwise on the suction side of the blade and present the advantage that they can be added as a post-production fix to blades that do not perform as expected. Its height is usually similar to the boundary layer thickness at the VG position.
Fernandez-Gamiz et al. [10] and Urkiola et al. [11] studied the behaviour of a rectangular VG on a flat plate and the streamwise vortices produced to investigate how the physics of the wake behind VGs in a negligible streamwise pressure gradient flow can be reproduced in CFD simulations. In the work carried by Gao et al. [12] on a 30% thick DU97-W-300 airfoil (Delft University family airfoils, Delft, The Netherlands), the maximum lift coefficient was increased from 1.5 to approximately 2 due to the implementation of passive VGs. When the angle of attack increases, both the lift and drag coefficients rise to values higher than the ones reached in the steady state conditions. A vortex structure grows and the airfoil goes into a stall situation, then the loss of lift is larger than in steady operation [13]. The non-linear and unsteady aerodynamic behaviour of a multi-megawatt horizontal axis wind turbine (HAWT) is a problem from structural and electric generation points of view. The use of VGs can led to a reduction of periodic loads, thus improving power output and cyclic fatigue life, as described in Gebhardt et al. [14]. Øye [15] compared the measured power curves with VGs and without them on a 1 MW wind turbine. Although quite rough methods were used for the VG design optimization, the experiment showed that, for a stall-regulated wind turbine, power increased nearly 24% by using VGs through field tests. Furthermore, Sullivan [16] conducted an experiment on a 2.5 MW wind turbine to test the effects of adding VGs on the power conversion performance. An increase of 11% in the annual energy production was found.
VGrs are usually mounted in a spanwise array on the suction side of the blade and have the advantage that they can be added as a post-production fix to blades that do not perform as expected. On the other hand, their main disadvantage is that drag increases (CD) due to the implantation of this device, an undesirable feature for this kind of application. Great care is also needed to be taken in their integration with the blade so as not to deteriorate the performance of the wind turbine or the aeroelastic conditions. An in-depth review of the use of VGs for of boundary-layer flow-separation control is presented in [17].
The Gurney flap (GF) is a simple vane with a height between 1% and 2% of the airfoil chord length c, located perpendicular to the lower or upper side of the airfoil near the trailing edge. According to Liebeck [18], GFs increase the total lift of the airfoil while reducing the drag once appropriately sized. Storms [19] found a lift increase of around 13% for a GF size of 0.5% c with minimal or no drag penalties for low and moderate lift coefficient values. The studies of van Dam et al. [20,21], based on the research of Meyer et al. [22], studied the effects of serrated and split GFs to avoid the vortex shedding.
In order to study the impact of VGs and GFs on wind turbines, to optimize their position and distribution, CFD tools can be used such as in the work by Troldborg et al. [23] where computational simulations of a wind turbine rotor with and without a row of VGs on the blades were carried out. In those simulations, a 10 MW wind turbine rotor and airfoils were fully resolved by a grid, while the VGs were modeled using a modified version of the BAY model developed by Bender et al. [24]. According to Troldborg et al. [23], it is not computationally feasible to directly simulate a full wind turbine blade equipped with many VGs due to the large range of scales present in a rotor equipped with VGs. Therefore, modelling a fully-meshed rotor with VGs and GFs becomes prohibitively expensive because of its small size compared with the rotor dimensions.

2. Blade Element Momentum Method

The blade element momentum (BEM) method is the most frequently-used tool to calculate the wind turbine rotor’s aerodynamic performance since it is computationally economical and, consequently, very fast [25]. In addition, the BEM method gives reasonable results provided that usually high-quality airfoil data are accessible for the lift, drag, and moment coefficients, and also at different Reynolds numbers. The method assumes that all sections of the rotor are independent of each other and, consequently, can be treated individually. The momentum loss is produced by the axial loads of the flow passing the blades, causing a pressure drop over the blade section. Since the induced velocity generated by the action of the loads is known, the local angle of attack at a given radial sector on a blade can be calculated. As described in Hansen [26], two corrections to the BEM method are required to obtain good-quality results. The Prandtl’s tip loss factor correction is the first one, which solves the hypothesis of an infinite number of blades. The second correction is applicable when the axial induction factor achieves values greater than about 0.2–0.4, where the simple momentum theory fails. This is known as Glauert [27] correction and consists of an empirical relation between the thrust coefficient Ct and the axial induction factor a.
The BEM-based algorithm was developed and programmed by the authors of the current study based on the numerical iterative approach of Hansen [26]. All of the necessary equations were derived and computed based on the steps proposed by the classical BEM method. The usual basic steps for BEM calculations were as follows:
(1)
Initialization by guessing the values of a and a′, and the axial and tangential induction factors, respectively.
(2)
Calculate the flow angle Φi.
(3)
Calculate the local angle of attack α.
(4)
Read off CL (α) and CD (α).
(5)
Compute the normal Cn and tangential Ct load coefficients.
(6)
Re-calculate a and a′.
(7)
State a tolerance for a and a′ and if it has changed more than that tolerance, go to (b), or else finish.
(8)
Compute the local loads.
The power coefficient Cp calculation has been implemented as follows:
For each ri station in the blade the working point is evaluated in order to calculate the torque and the power captured by this station. The input conditions are given by the wind velocity and the rotor speed. Once the working point defined by a i and a i is well known for each ri station, the torque contribution of this station can be calculated with the following equation:
d T o r q u e i = B · ρ · V 0 ( 1 a i ) ( 1 + a i ) 2 · sin ( Φ i ) · cos ( Φ i ) · w · c i · r i · C t · d r i
When the algorithm must calculate the working point ( a i , a i ), usually an iterative equation system is applied. The stop condition is usually given by a maximum number of steps or enough low values of change in the working point ( a i , a i ). The presented algorithm is a Gauss Seidel-like equation solver and consists of the following equations:
Φ i = arc   tan ( 1 a i ) · V 0 ( 1 + a i ) · ω · r i
= Φ i ( β + β t w i s t , i )
C L = f ( )
C D = f ( )
C n = C L · cos ( Φ i ) + C D · sin ( Φ i )
C t = C L · sin ( Φ i ) + C D · cos ( Φ i )
σ = B · c i 2 · π · r i
a i = 1 4 · sin 2 Φ i σ · C t + 1
a i = 1 4 · sin 2 Φ i σ · C t + 1
The variables used are described in Table 1. In the present implementation, the solver has followed the flow charge described in Figure 2 for each iteration.
Following the proposed scheme of Figure 2, for each Φ i value at iteration k, the previous equation system from Equations (2) to (10) gives a new Φ i value for iteration k + 1. It is simple to propose a grid of values of Φ from 0 to 2π, and calculate the function Φ ( k + 1 ) defined by Equation (11). When this function crosses the line Φ ( k + 1 ) = Φ ( k ) , it is possible to say that the solver has obtained the value of Φ that solves the equation system from Equations (2) to (10):
Φ ( k + 1 ) = f ( Φ ( k ) )
In this way, for a given value of Φ, it is possible to obtain the values of a i and a i . Once these two parameters have been estimated with Equations (2) to (10), the torque contribution of this station is calculated. These calculations can be repeated for all of the stations in the blade and, finally, the total torque can be calculated by the numerical integration of these torque contributions for a given rotor speed, wind speed, and given pitch values. Once the total torque has been estimated for a given state, (wind speed, rotor speed, and pitch angle), the power captured by the wind turbine can be directly estimated by multiplying the rotor speed by the total torque. This algorithm allows the calculation of the working point of each station without any numerical oscillations or instabilities because all possible values of Φ ( k ) are calculated. Hence, there is no possibility of numerical convergence problems.

3. NREL 5 MW Reference Wind Turbine

The NREL 5 MW reference wind turbine is being widely used in research studies of the wind energy field since it represents a baseline of the modern and future offshore HAWT [28]. Many investigations have been carried out based on this wind turbine concept, including studies about rotor aerodynamics, controls, offshore dynamics, and design code development. This conception of a 5 MW wind turbine is based on the data from the DOWEC study [29,30]; with a concept from the UpWind project [31]. The airfoils and chord schedule used in the present work are the same as [28], also adopted from the DOWEC project. More exhaustive information about the DU Delft University family of airfoils used can be found in Timmer et al. [32]. The reported NREL 5 MW airfoil distribution is shown in Table 2.

3.1. Flow Control Devices and Experimental Data Description

All of the experimental data have been taken from the AVATAR (Advance Aerodynamic Tools for Large Rotors) European project. The results from wind tunnel tests at the Low-Speed Tunnel of TU Delft at a Reynolds number of Re = 2 × 106 are used in the current work. For a detailed description of the experimental techniques and analysis, refer to Timmer et al. [32]. The data used in the present study refers to the following airfoils: DU97W300, DU91W(2)250, and DU93W210. The configuration of the flow control devices is described in Table 3 with the inclusion of a triangular, vane-type VG array on the upper airfoil surfaces data combining with GFs. The suffixes VG20 and VG30 represent that VGs are mounted on the airfoil suction side at a distance from the LE of 20% and 30% of c, respectively. The GF2 suffix corresponds to a GF with height of 2% of c implemented on the airfoil. The notation for each case is denoted in the third column of the Table 3.

4. Wind Speed Model

The wind speed realizations utilized in the BEM computations, as shown in Figure 3, have been calculated with the TurbSim tool (v1.06.00, NREL, Golden, CO, USA) [33]. The wind speed series have been generated with the following parameters, and the turbulence model is the normal turbulence model (NTM) following the IEC 61400 norm [34]:
  • Mean wind speeds in the hub u ¯ : 5 and 10 m/s;
  • Spectral model: IECKAI (B); and
  • Hub height: 90 m.
TurbSim uses an adapted version of Veers [35] to generate the time series based on the spectral representation. The IECKAI (IEC Kaimal) model is defined in IEC 61400-1 2nd ed. [34] and 3rd ed. [36] and assumes neutral atmospheric stability. The spectra for the wind field are given by Equation (12):
S K ( f ) = 4 L K σ K 2 / u ¯ ( 1 + 6 f L K / u ¯ ) 5 / 3
where f and LK are the cyclic frequency of turbulent wind field and the integral scale parameter, respectively, corresponding to a value of f = 50.000 Hz and LK = 340.2 m. The mean wind velocity at the hub height is indicated by u ¯ .
The velocity spectra of the IECKAI model are assumed to be invariant across the grid. In practice, a small amount of variation in the u-component standard deviation occurs due to the spatial coherence model. Figure 3a,b represent the wind speed series used in the present study according to the NTM with a 5 m/s of average velocity and with a 10 m/s average velocity, respectively. These two different wind speed realizations were chosen to investigate the effects of the VGs and GFs, since it is a good way to evaluate the wind turbine power output at low and medium wind speeds.
The wind speed dataset is sorted using the “method of bins”. This method divides the wind speed range into 0.5 m/s contiguous bins centered on integer multiples of 0.5 m/s. Figure 4 shows the corresponding histograms of the percentage of occurrences per bin for both cases at 5 and 10 m/s averaged wind speed.

5. Methodology

The primary tools used in the current work to investigate the effects of the passive flow control devices on the NREL 5 MW baseline wind turbine are engineering models. The present procedure is described in the following steps:
(1)
First of all, BEM-based computations were carried out in order to characterize the dynamic behavior of the NREL 5 MW wind turbine, including BEM calculation improvements described in Section 2.
(2)
Following the specifications of the utility scale multi megawatt wind turbine NREL offshore 5 MW baseline described in [28], all of the wind turbine rotor properties were introduced as input characteristics. The polar curves of airfoils with no flow control device were taken from [32] and [29]. The data of the airfoil with the flow control devices are described in Section 3.1.
(3)
The surfaces of the power coefficient Cp were calculated for all cases of the present study according to the matrix distribution described in Table 4.
(4)
Once the Cp surfaces have been generated, BEM-based computations are run for all of the cases and the power curve vs. wind speed is calculated to compare the power curve of the clean turbine with the curve of the cases with the flow control devices implemented.
(5)
Afterwards, the wind speed realizations explained in Section 4 are introduced to calculate the average wind turbine power output for all cases.
(6)
The results of the average wind turbine power output for all cases and at two different wind speed realizations are compared with the mean power output of the clean wind turbine, the one without any flow control devices implemented.
Table 4 illustrates a matrix with the distribution of the cases. The clean wind turbine was taken as the baseline case, without any devices implemented. The cases are different depending on the blade span position where the passive devices were implemented, the airfoil type, and the device location from the LE of the airfoil. The suffix st means the blade station where the passive devices were introduced. According to the airfoil distribution described in Table 2, the stations 7–11 were selected with their corresponding airfoil types. For simplicity, a test ID number will be used in the legends of the plots and tables. As an example, the case ID1 represents the NREL 5 MW wind turbine with VGs implemented in the upper surface of the airfoil DU97W300 at 20% of c from the LE and corresponding to blade station 7.

6. Results and Discussion

In order to investigate the influence of the flow control devices on the power of the NREL 5 MW reference wind turbine, BEM-based computations have been carried out following the steps explained in the previous section. The BEM computations have been derived and the power has been computed. Table 5 shows the results of the average wind turbine power calculations for the clean wind turbine and for the cases with flow control devices. Equation (13) shows how this average power is calculated:
P a v e r a g e = j = 1 j = N b i n s P ( V 0 ,   j ) · N   ( V 0 ,   j ) j = 1 j = N b i n s N   ( V 0 ,   j )
V0,j: is the instantaneous wind speed according to the realizations shown in Figure 3.
Nbins: number of bins per data.
P(V0,j): power at the wind speed V0,j.
N(V0,j): number of data at the wind speed V0,j.
where the P(V0,j) has been determined by Equation (14):
P ( V 0 , j ) = 1 2 ρ · π · R 2 · V 0 ,   j 3 · C p ( β , λ )
Firstly, the average power was calculated for the clean wind turbine at the two wind speed realizations presented in Figure 3, without any flow control device mounted on the blade. The results are presented in Table 5. At NTM5 wind speed realization the average power output was 4.85570 × 105 W and at NTM10 3.417917 × 106 W. The same procedure was carried out for the wind turbine cases with the flow control devices following the test cases described in Table 4. In all wind turbine cases an increment in the wind turbine power output is achieved, but it is more notable at low wind speed. The greatest mean power value (before defining the best combination case ID25) at the NTM5 wind speed realization was achieved by case ID6, with a value of 5.34667 × 105 W, which supposes an increase of 10.111% in comparison with the value obtained by the clean wind turbine. At NTM10 wind speed realization the largest average power value (before defining the best combination case ID25) is again reached by case ID6 with an increase with respect to the clean case of 3.388%. The other cases with the flow control devices mounted at different stations experience a similar increase. The symbol Δ in Table 5 represents the increments in the average power output of all cases, from ID1 to ID25, in comparison with the clean wind turbine at NTM5 and NTM10 wind speed realizations.
The case indicated in the last line of Table 5 has been determined as a combination of the best cases from ID1 to ID24 for each airfoil type and blade station. The largest value in the average power for the cases with the flow control devices implemented into the airfoil DU97 is achieved by the case ID2; DU97W300VG30st7, consequently, was selected to be included into the best case ID25. Following the same criterion of the maximum mean power output, ID6 and ID24 cases have been chosen for the best combination case. Therefore, the wind turbine of ID25 was defined by the cases ID2, ID6, and ID24, and the average power was calculated and compared with the average power values of the clean wind turbine. At the wind speed realization of NTM5, the ID25 case achieves an increase of 10.401% and, at NMT10, the increase is 3.541% in comparison with the clean wind turbine. Both increments are the largest ones in comparison with the other cases from ID1–ID24. Those results are in concordance with the previous study by Sullivan [16], where an increase of approximately 11% in the power production was achieved.

Best Combination Case Comparison vs. Clean Case

Figure 5a illustrates the power curves vs. the wind speed for the case with no passive devices implemented into the blade in comparison with case ID25. The curve of the wind turbine with the best combination case ID25 follows the trend of the curve of the clean wind turbine. However, at the wind speeds before the rated power is achieved, the power output increases slightly in the ID25 case, as shown in the enlargement view embedded in Figure 5a. The power coefficient Cp has also been computed for both the clean wind turbine and the ID25 case and is represented in Figure 5b against the wind speed. The improvement of the Cp for the ID25 case is observable in comparison with the clean case. In Figure 5a,b, the calculations of the wind turbine power output and the power coefficients provided by [28] have also been added. Those parameters have been determined by FAST which is an NREL computer-aided engineering (CAE) tool for horizontal axis wind turbines widely used in wind turbine aero-elasticity calculations. The BEM-based computations of the current study follow the trends of the calculations made by [28] for both power output and Cp variables.
The wind turbine power output production has also been investigated along with the duration of the wind speed realizations described in Section 4. The upper part of Figure 6a,b illustrates the comparison between the clean case and the previously-denoted best case ID25 of the power distribution with time for both wind profiles NTM5 and NTM10. In the bottom of Figure 6a,b an enlargement view of the power profiles has been inserted to show the increments of the ID25 case power with respect to the clean case. At the NTM5 wind realization, the power produced by the ID25 case follows the profile formed by the clean case with time but with a positive gap. However, at the NTM10 wind profile the power of the ID25 case is constant and equal to the wind turbine rated power of 5 MW in contrast to the power profile achieved by the clean case, which is irregular and lower than the rated power. The gain in the power output production due to the passive flow control devices implementated in the ID25 case is clearly visible for both wind speed realizations.
After applying the BEM algorithm to all control volumes, the tangential and normal load distributions are known and global parameters, such as thrust and bending moment at the root of the blade, can be computed. The mean values of both the thrust and bending moment have been calculated for each wind speed realization. The thrust T has been calculated by Equation (15) taking into account the thrust distribution along the blade and the bending moment M is determined by Equation (16):
T = 0 R 4 · π · r i · ρ · ( V 0 ) 2 · ω · a i · ( 1 a i ) · F · d r i
M = 0 R 4 · π · r i 3 · ρ · V 0 · ω · ( 1 a i ) · a i · F · d r i
The Prandtl’s tip loss correction factor F has been determined by Equation (17), for both thrust and bending moment calculations:
F = 2 π cos 1 ( e f ) where f = B 2 R r i r i sin Φ
The variables used for thrust and bending moment estimations, and the corresponding dimensions, are shown in Table 1. All of the calculations are based on the 5 MW reference wind turbine described in [28], where R is the rotor radius. Figure 7 and Figure 8 illustrate the comparison between the clean case and the ID25 case for the thrust and bending moment results at the wind speed realizations of NTM5 and NTM10, respectively. The thrust force is represented by the green color line and the bending moment by the magenta line. An enlargement view has been included in the bottom of each plot in order to show a detailed view of the variation between the clean case and the ID25 case. At both wind speed realizations the increase in the thrust force is notable due to the flow control devices implemented in the ID25 case. As expected, the bending moment in the root of the blade is also increased, but at a lower scale.
Table 6 represents the mean values of thrust and blade root bending moment calculations for the clean case and for the ID25 case. The thrust was calculated by integrating the thrust distribution along the blade by Equation (15) for each wind speed realization. Afterwards, the average thrust force was determined according to the wind speed realization duration in Figure 3. The increments in the thrust force of case ID25 with respect to the clean case were estimated to be 1.639% and 1.473% at the average wind speeds of NTM5 and NTM10, respectively. As expected, those increments of the average thrust in the ID25 case led to an augmentation of the bending moment in the root of the blade. The augmentations in the average bending moment for both wind speed realizations are represented in the last column of Table 6 and were estimated to be less than 1% in comparison against the clean case.

7. Conclusions

BEM-based computations have been carried out to investigate the effects of GFs and VGs on the power performance of a 5 MW wind turbine. A new BEM-based algorithm has been developed and all of the necessary equations have been computed based on the classical BEM method. This improved method has been designed to avoid numerical oscillations or instabilities.
An overall increase on the average wind turbine power output has been found in the current study due to the implementation of GFs and VGs at different blade stations. At lower average wind speeds of NTM5 the increment in the power output wanders around 10% for all the cases illustrated in Table 5. That increase decays to 3% at NTM10 of average wind, which is still significant. The best results, in terms of average power, are reached by the case denoted by ID25, which is a combination of the best cases found from ID1 to ID24 cases. The rise in the average wind turbine power production is 10.4%, in comparison with the clean wind turbine at a wind speed of NTM5 and 3.5% at NTM10.
The wind turbine rotor thrust has also been computed at two wind speed realizations for the ID25 case in comparison against the clean wind turbine. An increase of 1.6% at NTM5 and an increase of 1.5% at NTM10 in the ID25 case average thrust have been achieved in comparison with the thrust force of the clean wind turbine. The enhancement is more prominent at low average wind speeds than at the speeds close to the rated power.
As expected, the increase in the wind turbine power output due to the passive flow control device implementation leads to an augmentation of the average bending moment in the root of the blade of the ID25 case in comparison against the clean wind turbine. At the wind speed realization of NTM5 the increase was estimated as 0.9% and as 0.8% for NTM10. However, that enhancement in the bending moment is acceptable, taking into account the rise in the average power output production of 10.4% and 3.5% for both wind speed realizations, NMT5 and NTM10, respectively.
The results of the current study show that careful analysis of the flow control device type and location on the airfoil, combined with a selection of an appropriate spanwise location on the blade, can yield an effective device flow control system to increase the wind turbine power output with a low penalty in the root bending moment.

Acknowledgments

The funding from the Government of the Basque Country and the University of the Basque Country UPV/EHU through the SAIOTEK (S-PE11UN112) and EHU12/26 research programs, respectively, is gratefully acknowledged.

Author Contributions

Unai Fernandez-Gamiz and Ekaitz Zulueta developed and programmed the BEM-based solver. They also wrote the manuscript. Ana Boyano, Igor Ansoategui, and Irantzu Uriarte made the thrust and bending calculations and provided constructive instructions in the process of preparing the paper.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Johnson, S.J.; van Dam, C.P. Active Load Control Techniques for Wind Turbines; Tech. Rep. SAND2008-4809; Sandia National Laboratories: Livermore, NM, USA, 2008. [Google Scholar]
  2. Taylor, H.D. The Elimination of Diffuser Separation by Vortex Generators; Research Department Concluding Report No. R-15064-5; United Aircraft Corporation: East Hartford, CT, USA, 1947. [Google Scholar]
  3. Liu, Y.; Sun, J.; Tang, Y.; Lu, L. Effect of slot at blade root on compressor cascade performance under different aerodynamic parameters. Appl. Sci. Basel 2016, 6, 421. [Google Scholar] [CrossRef]
  4. Wood, R.M. Discussion of aerodynamic control effectors concepts (ACEs) for future unmanned air vehicles (UAVs). In Proceedings of the AIAA 1st Technical Conference and Workshop on Unmanned Aerospace Vehicle, Systems, Technologies, and Operations, Portsmouth, VA, USA, 20–23 May 2002. [Google Scholar]
  5. Shires, A.; Kourkoulis, V. Application of circulation controlled blades for vertical axis wind turbines. Energies 2013, 6, 3744–3763. [Google Scholar] [CrossRef]
  6. Xu, H.; Qiao, C.; Ye, Z. Dynamic stall control on the wind turbine airfoil via a co-flow jet. Energies 2016, 9, 429. [Google Scholar] [CrossRef]
  7. Aramendia-Iradi, I.; Fernandez-Gamiz, U.; Sancho-Saiz, J.; Zulueta-Guerrero, E. State of the art of active and passive flow control devices for wind turbines. DYNA 2016, 91, 512–516. [Google Scholar] [CrossRef]
  8. Becker, R.; Garwon, M.; Gutknecht, C.; Bärwolff, G.; King, R. Robust control of separated shear flows in simulation and experiment. J. Process Control 2005, 15, 691–700. [Google Scholar] [CrossRef]
  9. Taylor, H.D. Summary Report on Vortex Generators; Research Department Report No. R-05280-9; United Aircraft Corporation: East Hartford, CT, USA, 1950. [Google Scholar]
  10. Fernandez-Gamiz, U.; Marika Velte, C.; Réthoré, P.E.; Sørensen, N.N.; Egusquiza, E. Testing of self-similarity and helical symmetry in vortex generator flow simulations. Wind Energy 2016. [Google Scholar] [CrossRef]
  11. Urkiola, A.; Fernandez-Gamiz, U.; Errasti, I.; Zulueta, E. Computational characterization of the vortex generated by a vortex generator on a flat plate for different vane angles. Aerosp. Sci. Technol. 2017, 65, 18–25. [Google Scholar] [CrossRef]
  12. Gao, L.; Zhang, H.; Liu, Y.; Han, S. Effects of vortex generators on a blunt trailing-edge airfoil for wind turbines. Renew. Energy 2015, 76, 303–311. [Google Scholar] [CrossRef]
  13. Choudhry, A.; Arjomandi, M.; Kelso, R. Methods to control dynamic stall for wind turbine applications. Renew. Energy 2016, 86, 26–37. [Google Scholar] [CrossRef]
  14. Gebhardt, C.G.; Preidikman, S.; Massa, J.C. Numerical simulations of the aerodynamic behavior of large horizontal-axis wind turbines. Int. J. Hydrog. Energy 2010, 35, 6005–6011. [Google Scholar] [CrossRef]
  15. Øye, S. The ELKRAFT 1 MW wind turbine: Results from the test program. In Proceedings of the European Union Wind Energy Conference, Göteborg, Sweden, 20–24 May 1996; pp. 251–255. [Google Scholar]
  16. Sullivan, T.L. Effect of Vortex Generators on the Power Conversion Performance and Structural Dynamic Loads of the Mod-2 Wind Turbine; Report No. NASA-TM-83680, E-2131, DOE/NASA/20320-59, NAS 1.15:83680; Lewis Research Center: Cleveland, OH, USA, 1984. [Google Scholar]
  17. Lin, J. Review of research on low-profile vortex generators to control boundary-layer separation. Prog. Aerosp. Sci. 2002, 38, 389–420. [Google Scholar] [CrossRef]
  18. Liebeck, R.H. Design of subsonic airfoils for high lift. J. Aircr. 1978, 15, 547–561. [Google Scholar] [CrossRef]
  19. Storms, B.L.; Jang, C.S. Lift enhancement of an airfoil using a gurney flap and vortex generators. J. Aircr. 1994, 31, 542–547. [Google Scholar] [CrossRef]
  20. Van Dam, C.P.; Chow, R.; Zayas, J.R.; Berg, D.E. Computational investigations of small deploying tabs and flaps for aerodynamic load control. Sci. Mak. Torque Wind 2007, 75, 012027. [Google Scholar] [CrossRef]
  21. Chow, R.; van Dam, C.P. On the temporal response of active load control devices. Wind Energy 2010, 13, 135–149. [Google Scholar] [CrossRef]
  22. Meyer, R.; Hage, W.; Bechert, D.W.; Schatz, M.; Thiele, F. Drag reduction on gurney flaps by three-dimensional modifications. J. Aircr. 2006, 43, 132–140. [Google Scholar] [CrossRef]
  23. Troldborg, N.; Zahle, F.; Sørensen, N. Simulation of a MW rotor equipped with vortex generators using CFD and an actuator shape model. In Proceedings of the 53rd AIAA Aerospace Sciences Meeting, Kissimmee, FL, USA, 5–9 January 2015. [Google Scholar]
  24. Bender, E.E.; Anderson, B.H.; Yagle, P.J. Vortex generator modeling for navier-stokes codes. In Proceedings of the 1999 3rd ASME/JSME Joint Fluids Engineering Conference (FEDSM), San Francisco, CA, USA, 18–23 July 1999. [Google Scholar]
  25. Hansen, M.O.L.; Sørensen, J.N.; Voutsinas, S.; Sørensen, N.; Madsen, H.A. State of the art in wind turbine aerodynamics and aeroelasticity. Prog. Aerosp. Sci. 2006, 42, 285–330. [Google Scholar] [CrossRef]
  26. Hansen, M.O.L. Aerodynamics of Wind Turbines; Earthscan Publications Ltd.: London, UK, 2008. [Google Scholar]
  27. Glauert, H. Airplane Propellers. In Aerodynamic Theory: A General Review of Progress Under a Grant of the Guggenheim Fund for the Promotion of Aeronautics; Durand, W.F., Ed.; Springer: Berlin/Heidelberg, Germany, 1935. [Google Scholar] [CrossRef]
  28. Jonkman, J.; Butterfield, S.; Musial, W.; Scott, G. Definition of a 5 MW Reference Wind Turbine for Offshore System Development; Tech. Rep. NREL/TP-500-38060; National Renewable Energy Laboratory: Golden, CO, USA, 2009.
  29. Kooijman, H.J.T.; Lindenburg, C.; Winkelaar, D.; van der Hooft, E.L. DOWEC 6 MW Pre-Design: Aero-Elastic Modeling of the DOWEC 6 MW Pre-Design in PHATAS; Tech. Rep. ECN-CX-01-135, DOWEC 10046_009; Energy Research Center of the Netherlands: Petten, The Netherlands, 2003. [Google Scholar]
  30. Lindenburg, C. Aeroelastic Modeling of the LMH64-5 Blade; Tech. Rep. DOWEC-02-KL-083/0, DOWEC 10083_001; Energy Research Center of the Netherlands: Petten, The Netherlands, 2002. [Google Scholar]
  31. Nijssen, R. WMC5MW Laminate Lay-Out of Reference Blade for WP 3: UPWIND WMC5MW 374 Laminate Data, Rev. 1; Knowledge Centre Wind Turbine Materials and Constructions: Wieringerwerf, The Netherlands, 2007. [Google Scholar]
  32. Timmer, W.A.; Van Rooij, R.P.J.O.M. Summary of the Delft University wind turbine dedicated airfoils. ASME J. Sol. Energy Eng. Trans. 2003, 125, 488–496. [Google Scholar] [CrossRef]
  33. Kelley, N.; Jonkman, B. NWTC Computer-Aided Engineering Tools (TurbSim). 2012. Available online: http://wind.nrel.gov/designcodes/preprocessors/turbsim (accessed on 17 January 2016).
  34. IEC 61400-1. Wind Turbine Generator Systems-Part 1: Safety Requirements, 2nd ed.; Tech. Rep.; International Electrotechnical Commission: Geneva, Switzerland, 1999.
  35. Veers, P.S. Three-Dimensional Wind Simulation; Tech. Rep. SAND88–0152; Sandia National Laboratories: Albuquerque, NM, USA, 1988.
  36. IEC 61400-1: Wind Turbines—Part 1: Design Requirements, 3rd ed.; Tech. Rep.; International Electrotechnical Commission: Geneva, Switzerland, 2005.

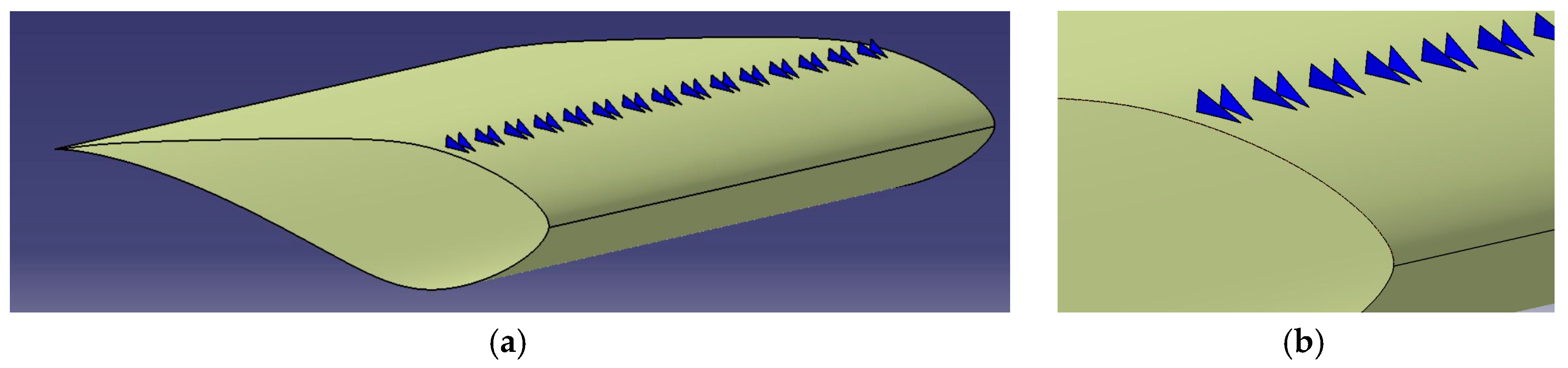

Figure 1. A prismatic airfoil equipped with vortex generators (VGs). (a) Row of triangular VGs; (b) A detailed view of the VG pairs.
Figure 1. A prismatic airfoil equipped with vortex generators (VGs). (a) Row of triangular VGs; (b) A detailed view of the VG pairs.
Energies 10 00742 g001

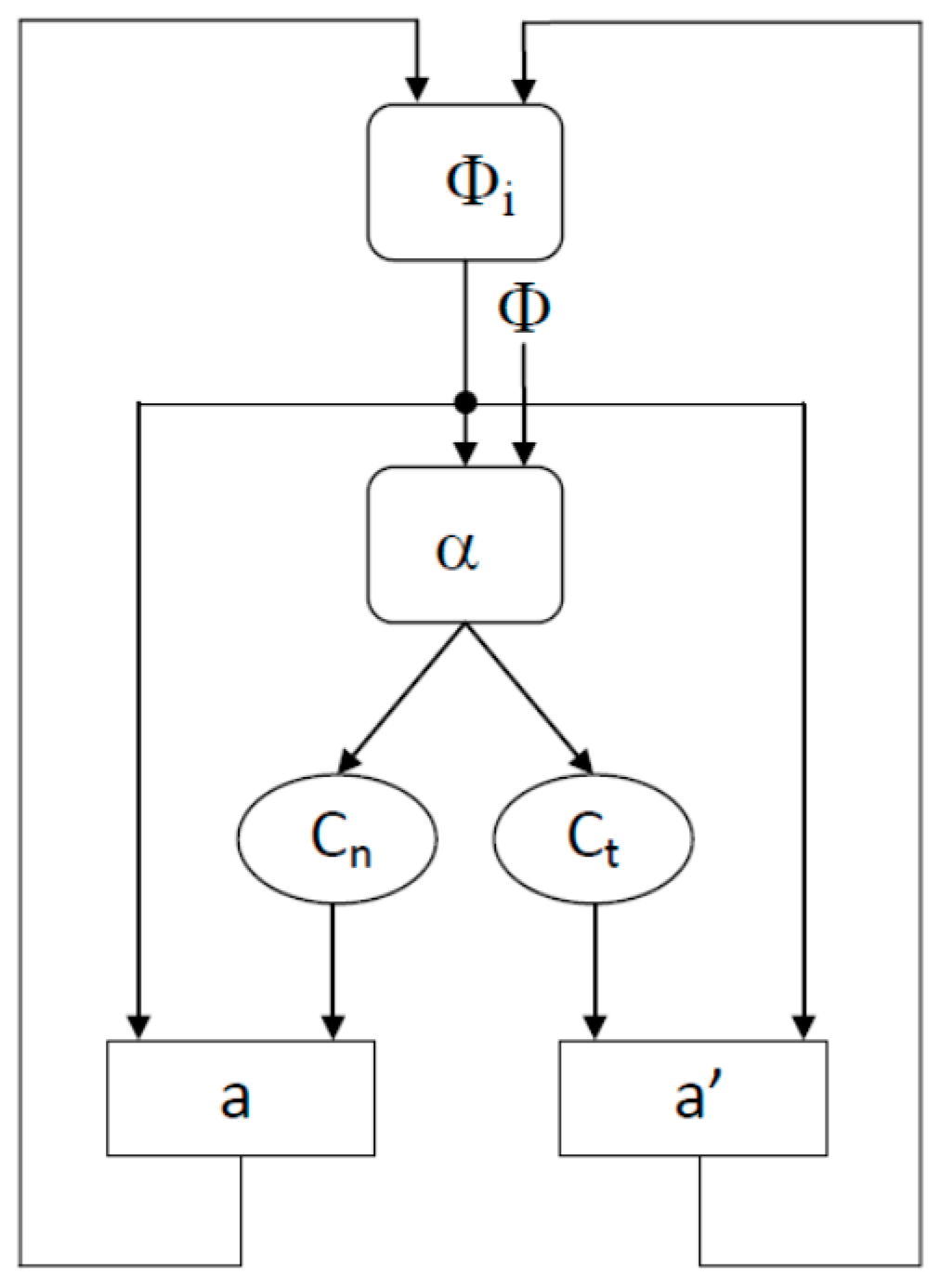

Figure 2. Schematic flowchart of the improved BEM algorithm with the recursive function of Equation (11) for the flow angle variable Φ instead of a and a′.
Figure 2. Schematic flowchart of the improved BEM algorithm with the recursive function of Equation (11) for the flow angle variable Φ instead of a and a′.
Energies 10 00742 g002

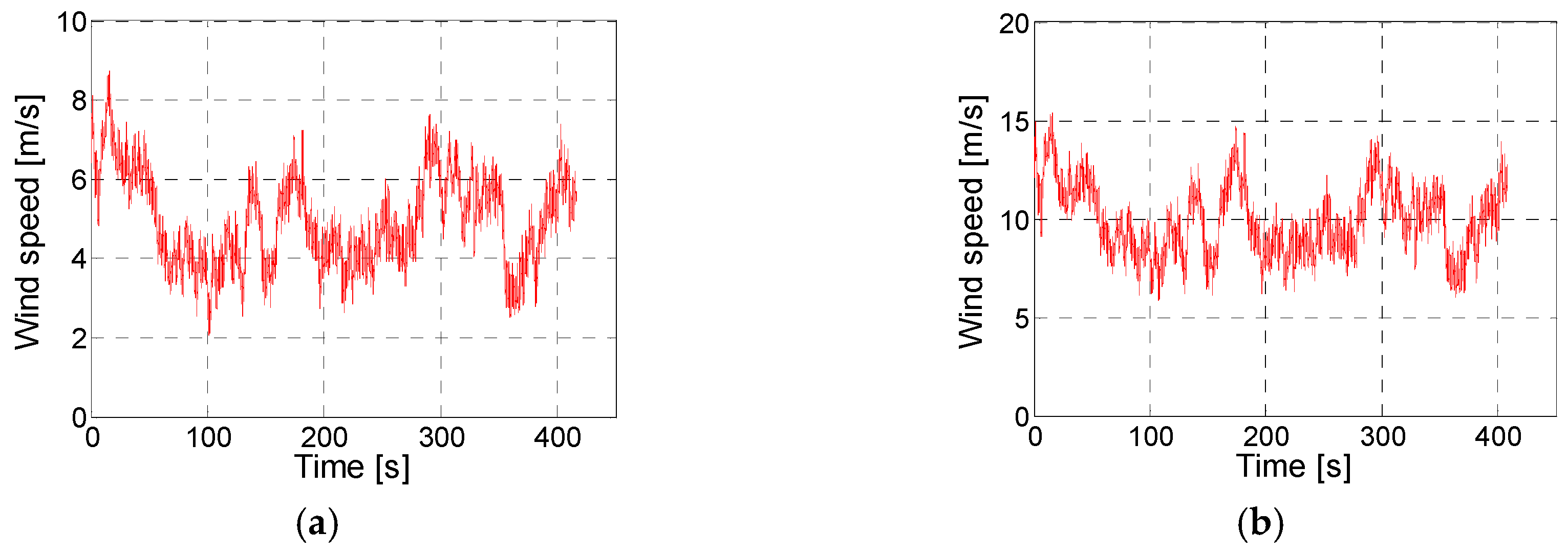

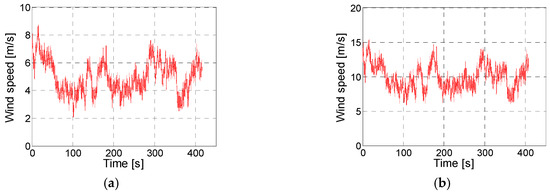

Figure 3. Wind speed realization calculated with Turbsim. (a) NTM at 5 m/s of average wind speed; (b) NTM at 10 m/s of average wind speed.
Figure 3. Wind speed realization calculated with Turbsim. (a) NTM at 5 m/s of average wind speed; (b) NTM at 10 m/s of average wind speed.
Energies 10 00742 g003

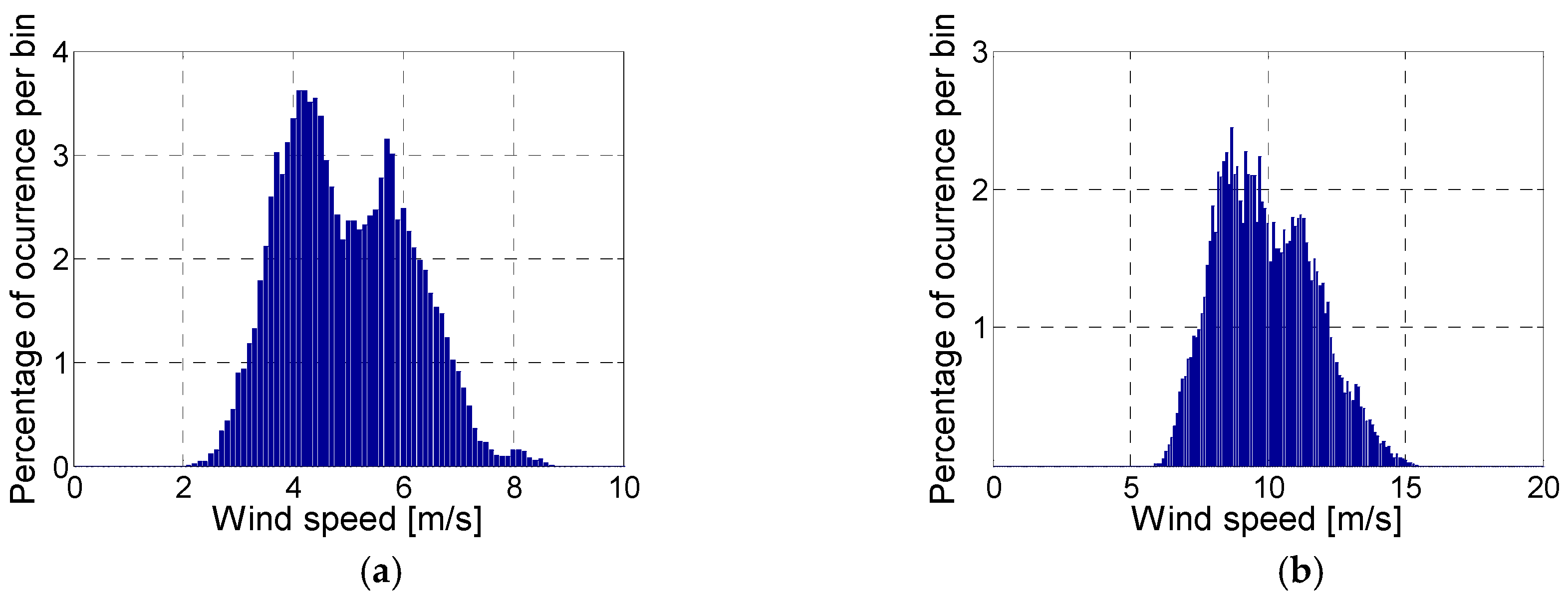

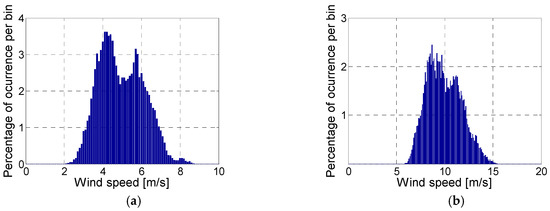

Figure 4. Percentage of occurrences per bin. (a) 5 m/s averaged wind speed; (b) 10 m/s averaged wind speed.
Figure 4. Percentage of occurrences per bin. (a) 5 m/s averaged wind speed; (b) 10 m/s averaged wind speed.
Energies 10 00742 g004

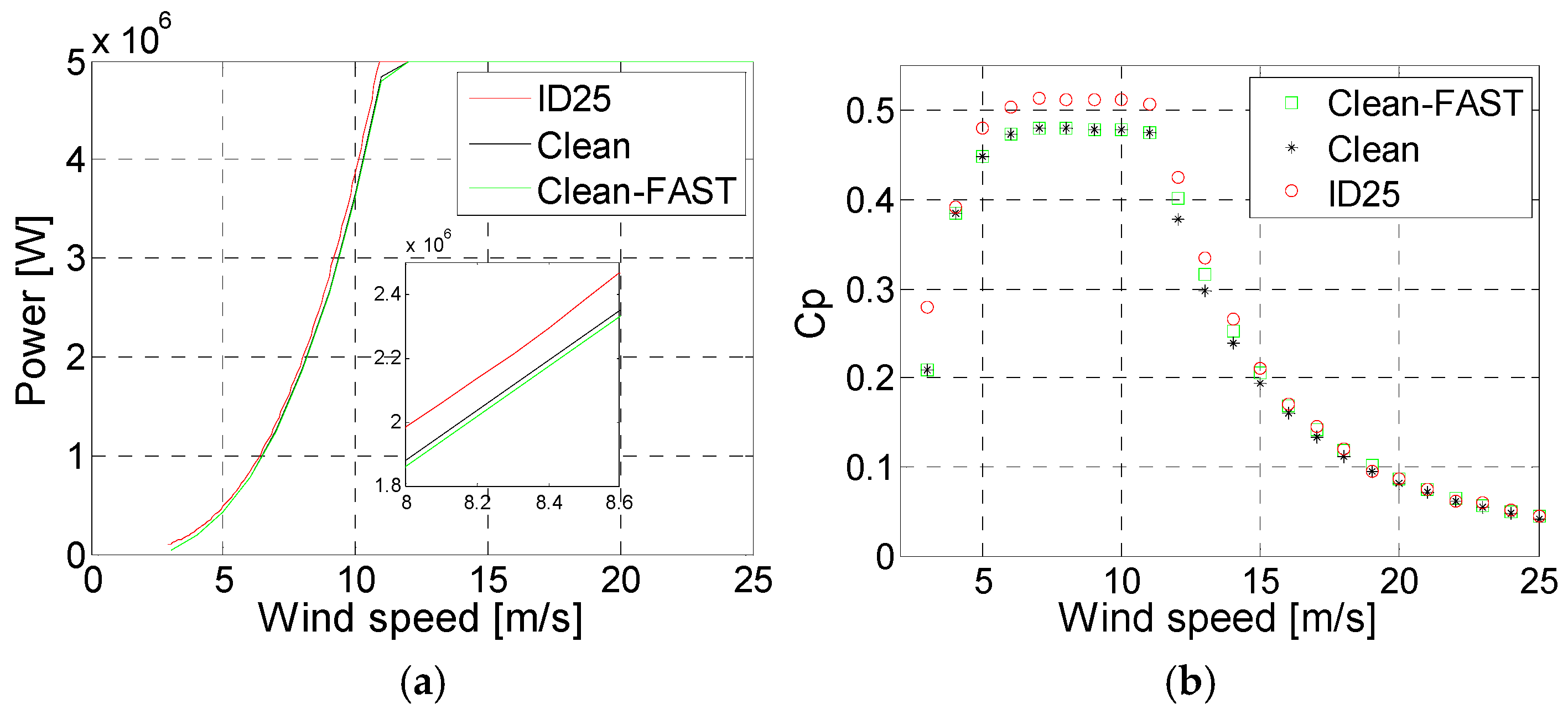

Figure 5. Comparison of the (a) power curves and (b) Cp calculations of the clean turbine with the best case ID25 and the calculations made by Jonkman [28].
Figure 5. Comparison of the (a) power curves and (b) Cp calculations of the clean turbine with the best case ID25 and the calculations made by Jonkman [28].
Energies 10 00742 g005

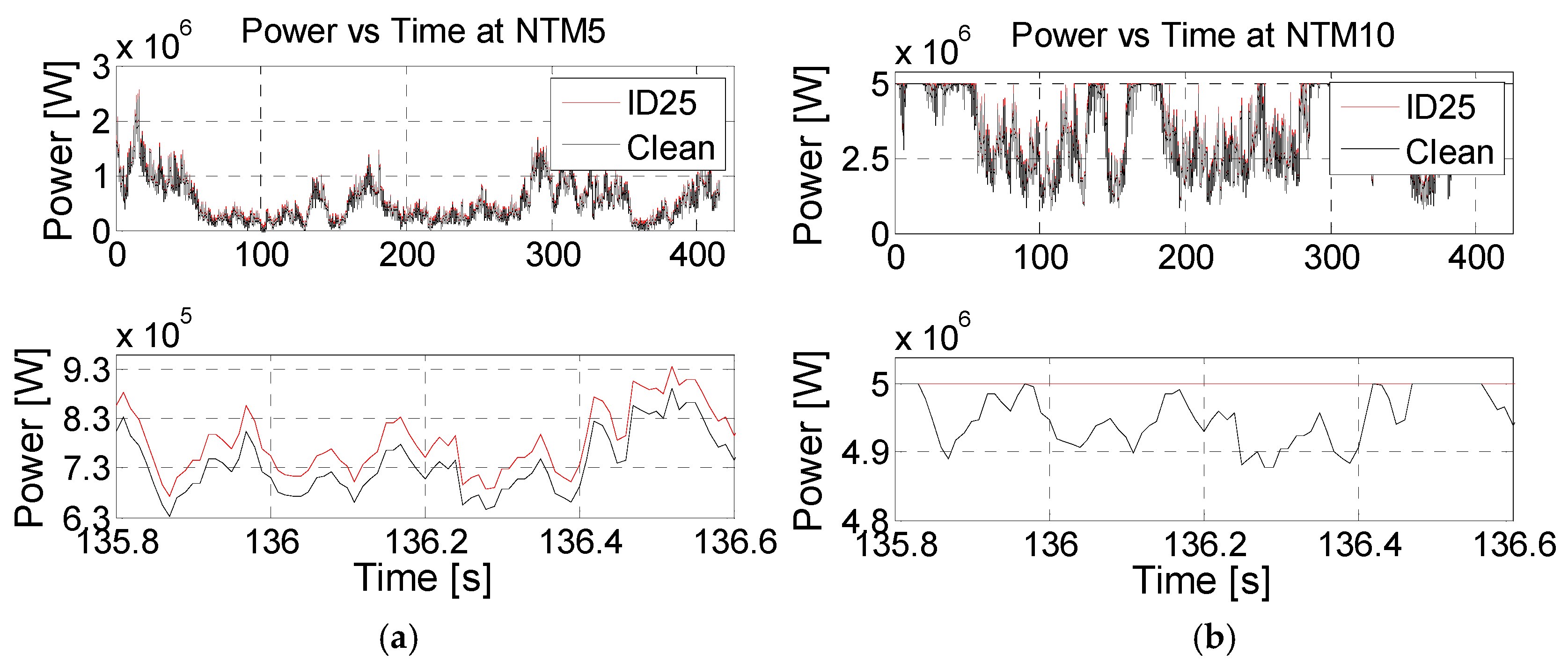

Figure 6. Wind turbine power distribution with time. (a) The wind speed realization of NTM5; (b) The wind speed realization of NTM10.
Figure 6. Wind turbine power distribution with time. (a) The wind speed realization of NTM5; (b) The wind speed realization of NTM10.
Energies 10 00742 g006

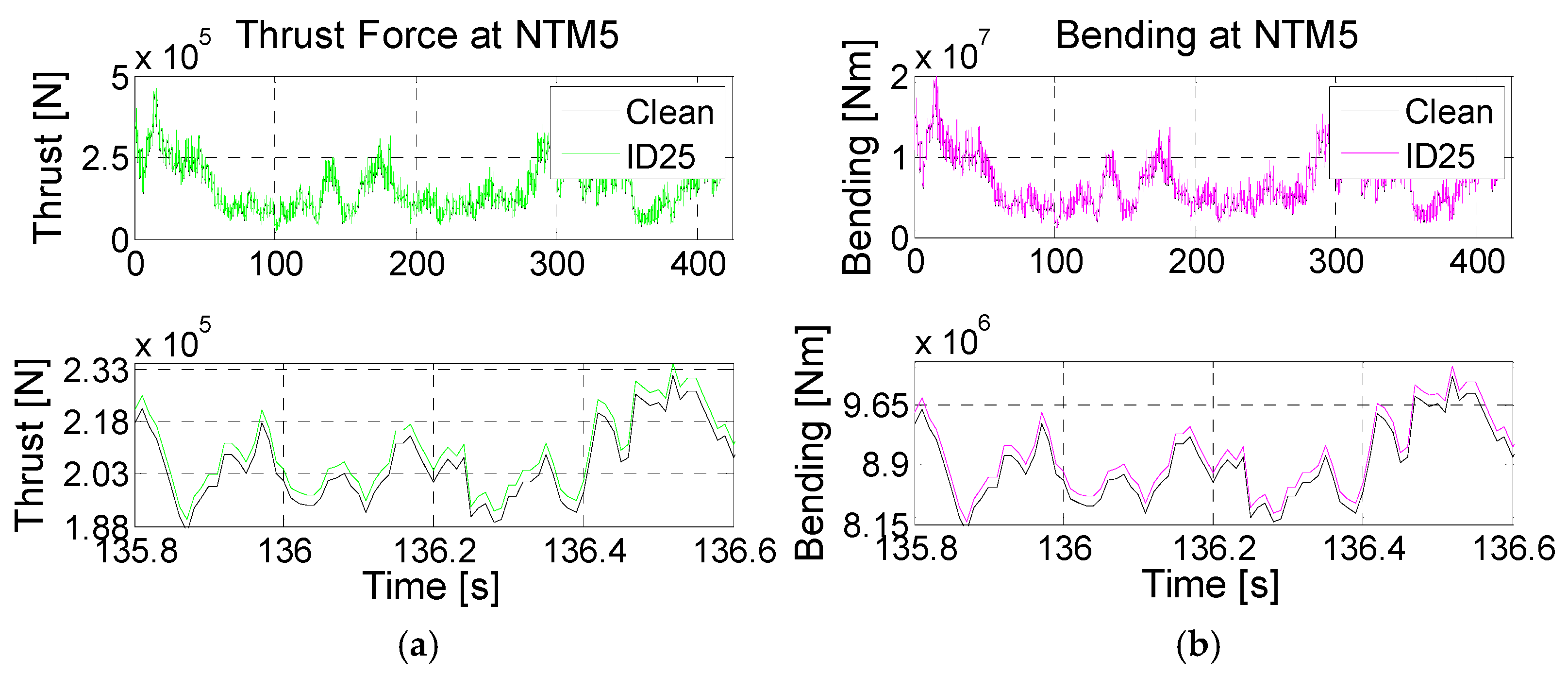

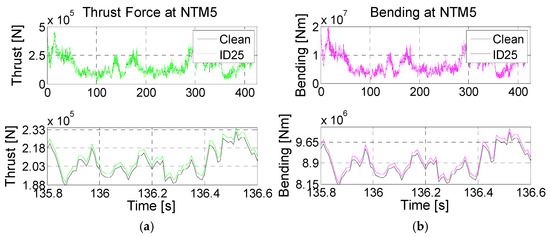

Figure 7. Wind turbine performance at NTM5 wind speed realization. (a) Thrust force, and (b) bending moment at the root of the blade.
Figure 7. Wind turbine performance at NTM5 wind speed realization. (a) Thrust force, and (b) bending moment at the root of the blade.
Energies 10 00742 g007

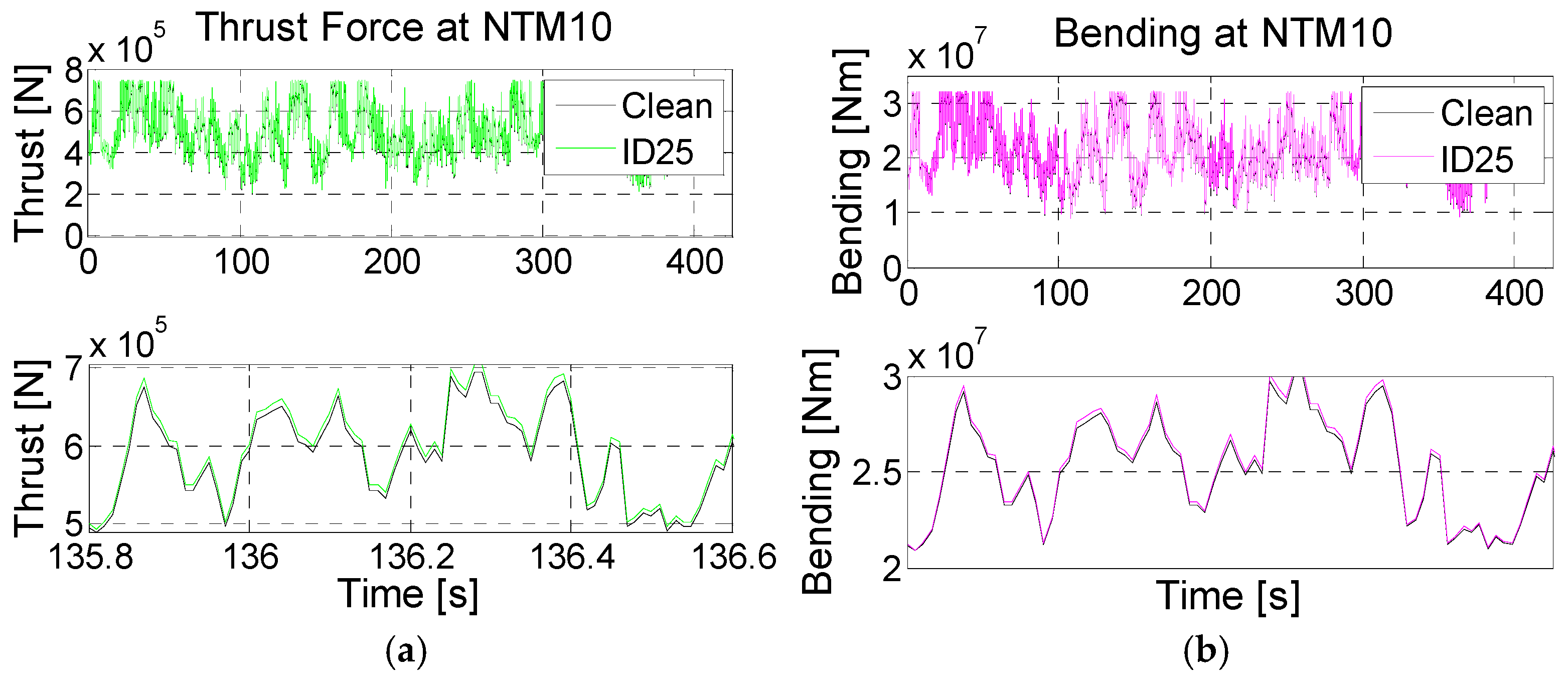

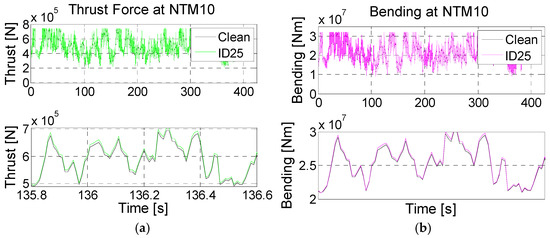

Figure 8. Wind turbine performance at NTM10 wind speed realization. (a) Thrust force; (b) Bending moment at the root of the blade.
Figure 8. Wind turbine performance at NTM10 wind speed realization. (a) Thrust force; (b) Bending moment at the root of the blade.
Energies 10 00742 g008
Table 1. Description of current variables.
Table 1. Description of current variables.
VariableNameUnits
VoWind speedm/s
aiAxial induction factor-
a i Tangential induction factor-
βPitch angle in the blade rootrad
βtwist,iTwist angle for each position of rirad
riAirfoil spanwise position (radius)m
wRotor rotational speedrad/s
ρAir densityKg/m3
BNumber of blades-
ciAirfoil chord lengthm
dTorqueTorque on the annular elementNm
CnNormal load coefficient-
CtTangential load coefficient-
ΦFlow anglerad
αAngle of attackrad
Table 2. Airfoil distribution along the blade of the NREL 5 MW wind turbine described in [28].
Table 2. Airfoil distribution along the blade of the NREL 5 MW wind turbine described in [28].
StationrAirfoil Type
12.8667Cylinder1
25.6000Cylinder1
38.3333Cylinder2
411.7500DU40
515.8500DU35
619.9500DU35
724.0500DU97W300
828.1500DU91W(2)250
932.2500DU91W(2)250
1036.3500DU93W210
1140.4500DU93W210
1244.5500NACA64XX
1348.6500NACA64XX
1452.7500NACA64XX
1556.1667NACA64XX
1658.9000NACA64XX
1761.6333NACA64XX
Table 3. Types of flow control devices and locations on the airfoils.
Table 3. Types of flow control devices and locations on the airfoils.
Airfoil TypeFlow Control DeviceCase Name
DU97W300VG’s leading edge at 20% chord upper surfaceDU97W300VG20
VG’s leading edge at 30% chord upper surfaceDU97W300VG30
VG’s leading edge at 20% chord upper surface and zigzag tape t = 0.35 mm at x = 5% chord upper surfaceDU97W300VG20zigzag
DU91W(2)250VG’s leading edge at 20% chord upper surface.
Gurney flap with height of 2% chord at lower surface trailing edge.
DU91W(2)250VG20GF2
VG’s leading edge at 30% chord upper surface.
Gurney flap with height of 2% chord at the lower surface trailing edge.
DU91W(2)250VG30GF2
DU93W210VGs (height 5 mm) at 20% chord upper surfaceDU93W210VG20
VGs (height 5 mm) at 40% chord upper surfaceDU93W210VG40
VGs (height 7 mm) at 60% chord upper surfaceDU93W210VG60
Table 4. Cases studied according to flow control device span distribution. St.: station.
Table 4. Cases studied according to flow control device span distribution. St.: station.
Test IDTest CasesSt. 7St. 8St. 9St. 10St. 11
0Clean
1DU97W300VG20st7x
2DU97W300VG30st7x
3DU97W300VG20zigzagx
4DU91W(2)250VG20GF2st8 x
5DU91W(2)250VG20GF2st9 x
6DU91W(2)250VG20GF2st8st9 xx
7DU91W(2)250VG30GF2st8 x
8DU91W(2)250VG30GF2st9 x
9DU91W(2)250VG30GF2st8st9 xx
10DU91W(2)250VG20st8 x
11DU91W(2)250VG20st9 x
12DU91W(2)250VG20st8st9 xx
13DU91W(2)250VG30st8 x
14DU91W(2)250VG30st9 x
15DU91W(2)250VG30st8st9 xx
16DU93W210VG20st10 x
17DU93W210VG20st11 x
18DU93W210VG40st10st11 xx
19DU93W210VG40st10 x
20DU93W210VG40st11 x
21DU93W210VG40st10st11 xx
22DU93W210VG60st10 x
23DU93W210VG60st11 x
24DU93W210VG60st10st11 xx
Table 5. Average wind turbine power output for the clean wind turbine in comparison with the cases with flow control devices. Calculations have been made at two different wind speed realizations, NTM5 and NTM10. Δ indicates the average power variation of each ID case with respect to the clean case.
Table 5. Average wind turbine power output for the clean wind turbine in comparison with the cases with flow control devices. Calculations have been made at two different wind speed realizations, NTM5 and NTM10. Δ indicates the average power variation of each ID case with respect to the clean case.
TEST IDTEST CASESNTM5 (W)Δ (%)NTM10 (W)Δ (%)
0Clean485,570-3,417,917-
1DU97W300VG20st7531,5869.4773,521,7193.037
2DU97W300VG30st7531,6809.4963,522,0833.048
3DU97W300VG20zigzag531,5949.4783,521,7493.038
4DU91W(2)250VG20GF2st8534,66610.1103,533,6993.387
5DU91W(2)250VG20GF2st9531,7849.5173,522,4883.060
6DU91W(2)250VG20GF2st8st9534,66710.1113,533,6993.388
7DU91W(2)250VG30GF2st8534,57110.0913,533,3423.377
8DU91W(2)250VG30GF2st9531,7849.5173,522,4883.060
9DU91W(2)250VG30GF2st8st9531,8139.5233,533,3423.377
10DU91W(2)250VG20st8531,7849.5173,522,4883.060
11DU91W(2)250VG20st9531,7849.5173,522,4883.060
12DU91W(2)250VG20st8st9531,8119.5233,522,5973.063
13DU91W(2)250VG30st8531,8139.5233,522,6013.063
14DU91W(2)250VG30st9531,7849.5173,522,4883.060
15DU91W(2)250VG30st8st9531,8139.5233,522,6013.063
16DU93W210VG20st10531,7869.5183,522,4993.060
17DU93W210VG20st11531,7849.5173,522,4883.060
18DU93W210VG40st10st11531,7869.5183,522,4993.060
19DU93W210VG40st10531,7859.5183,522,4923.060
20DU93W210VG40st11531,7849.5173,522,4883.060
21DU93W210VG40st10st11531,7859.5183,522,4923.060
22DU93W210VG60st10531,9329.5483,523,0673.076
23DU93W210VG60st11531,7849.5173,522,4883.060
24DU93W210VG60st10st11531,9329.5483,523,0673.077
25Best combination case536,07410.4013,538,9343.541
Table 6. Thrust force and bending moment average values for the clean and the ID25 cases at two different wind speed realizations. ΔT and ΔM indicate the variation of thrust and bending moment, respectively, with respect to the clean case, in %.
Table 6. Thrust force and bending moment average values for the clean and the ID25 cases at two different wind speed realizations. ΔT and ΔM indicate the variation of thrust and bending moment, respectively, with respect to the clean case, in %.
Wind TypeThrust (N)Bending Moment (Nm)
CleanID25ΔT (%)CleanID25ΔT (%)
NTM51551551576981.639670552967661440.904
NTM105119605195001.43722072422222513180.810

Share and Cite

MDPI and ACS Style

Fernandez-Gamiz, U.; Zulueta, E.; Boyano, A.; Ansoategui, I.; Uriarte, I. Five Megawatt Wind Turbine Power Output Improvements by Passive Flow Control Devices. Energies 2017, 10, 742. https://doi.org/10.3390/en10060742

AMA Style

Fernandez-Gamiz U, Zulueta E, Boyano A, Ansoategui I, Uriarte I. Five Megawatt Wind Turbine Power Output Improvements by Passive Flow Control Devices. Energies. 2017; 10(6):742. https://doi.org/10.3390/en10060742

Chicago/Turabian Style

Fernandez-Gamiz, Unai, Ekaitz Zulueta, Ana Boyano, Igor Ansoategui, and Irantzu Uriarte. 2017. "Five Megawatt Wind Turbine Power Output Improvements by Passive Flow Control Devices" Energies 10, no. 6: 742. https://doi.org/10.3390/en10060742

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
