A New Backward Euler Stabilized Optimum Controller for NPC Back-to-Back Five Level Converters

1
Instituto Superior de Engenharia de Lisboa (ISEL), Instituto Politécnico de Lisboa, Rua Conselheiro Emídio Navarro 1, Lisboa 1959-007, Portugal
2
Departamento de Engenharia Eletrotécnica e de Computadores, Instituto Superior Técnico, TU Lisbon, Av. Rovisco Pais 1, Lisboa 1049-001, Portugal
3
Instituto de Engenharia de Sistemas e Computadores, Investigação e Desenvolvimento em Lisboa (INESC-ID), R. Alves Redol 9, Lisboa 1000-029, Portugal
4
Centro de Eletrotecnia e Eletrónica Industrial (CEEI), Rua Conselheiro Emídio Navarro 1, Lisboa 1959-007, Portugal
*
Author to whom correspondence should be addressed.
Academic Editor: Gabriele Grandi
Received: 20 March 2017 / Revised: 5 May 2017 / Accepted: 9 May 2017 / Published: 23 May 2017
(This article belongs to the Special Issue Power Electronics in Power Quality)
View Full-Text   |   Download PDF [6579 KB, uploaded 23 May 2017]   |

Abstract

This paper presents a backward Euler stabilized-based control strategy applied to a neutral point clamped (NPC) back-to-back connected five level converters. A generalized method is used to obtain the back-to-back NPC converter system model. The backward Euler stabilized-based control strategy uses one set of calculations to compute the optimum voltage vector needed to reach the references and to balance the voltage of the DC-bus capacitors. The output voltage vector is selected using a modified cost functional that includes variable tracking errors in the functional weights, whereas in classic approaches, the weights are considered constant. The proposed modified cost functional enables AC current tracking and DC-bus voltage balancing in a wide range of operating conditions. The paper main contributions are: (i) a backward Euler stabilized-based control strategy applied to a double, back-to-back connected, five level NPC converter; (ii) the use of cost functional weight varying as a function of the controlled variable tracking errors to enforce the controlled variables and to balance the DC capacitor voltages; and (iii) the demonstration of system feasibility for this type of converter topology and control strategy, ensuring a high enough computational efficiency and extending the modulation index from 0.6 to 0.93. Experimental results are presented using a prototype of a five level NPC back-to-back converter. View Full-Text
Keywords: multilevel converters; back-to-back converters; backward Euler based control; capacitors voltage balancing multilevel converters; back-to-back converters; backward Euler based control; capacitors voltage balancing

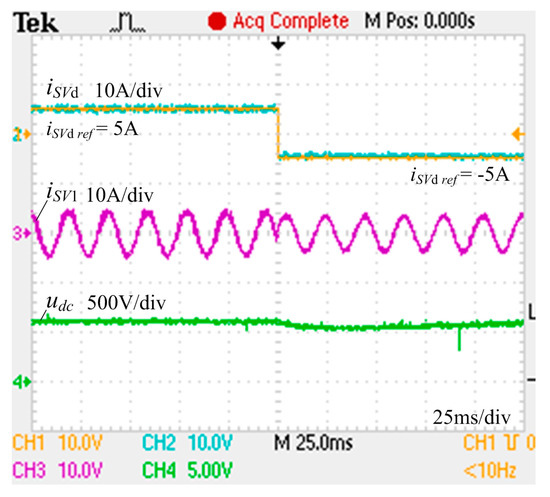

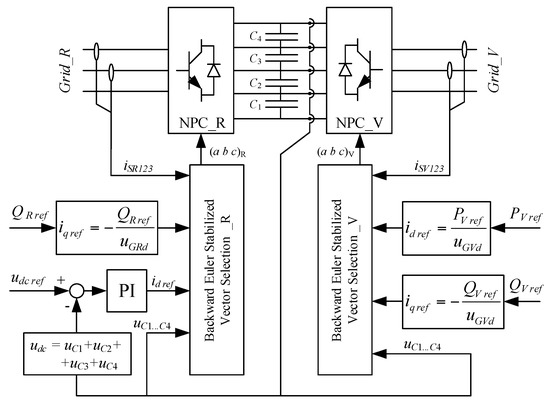

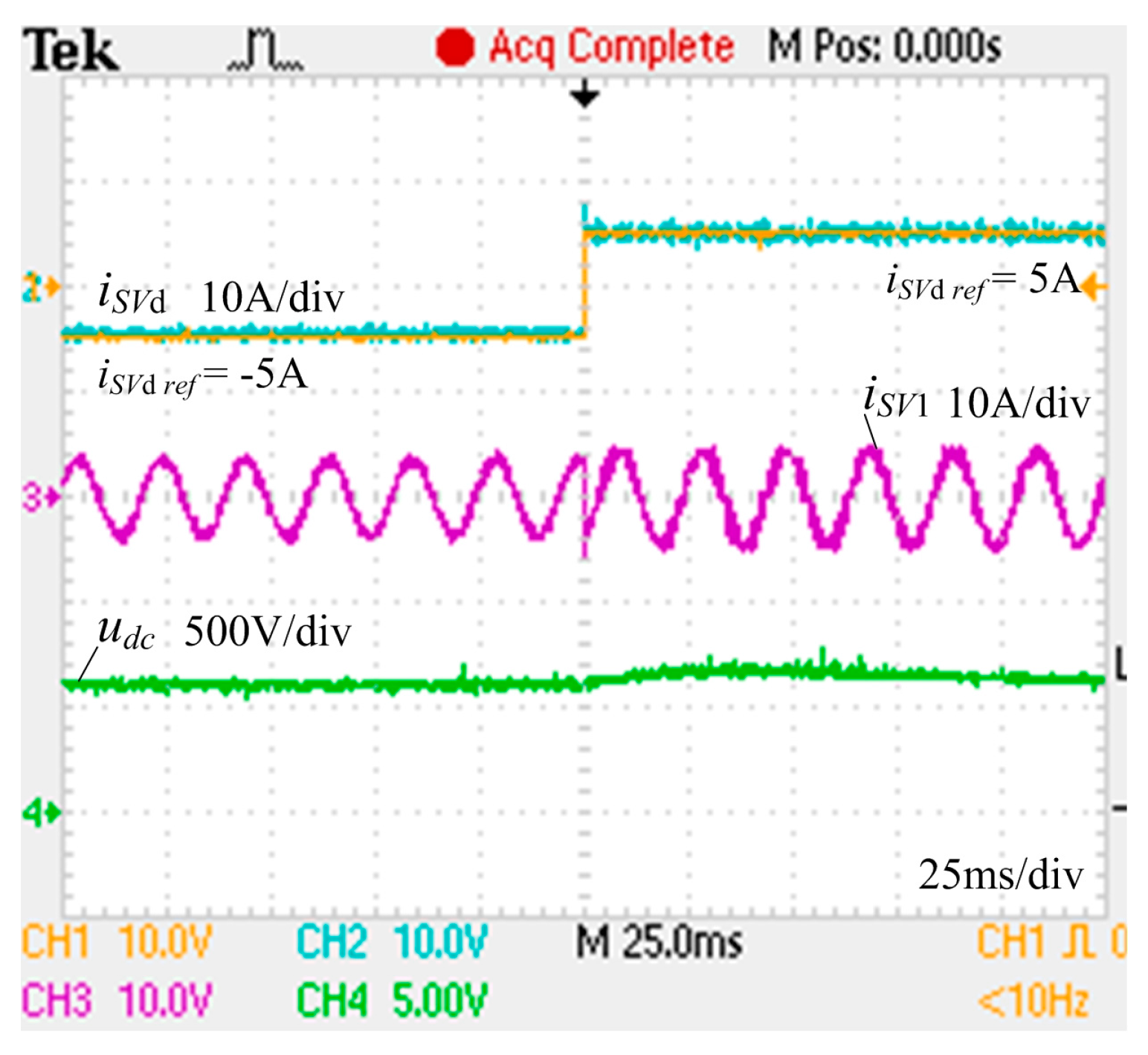

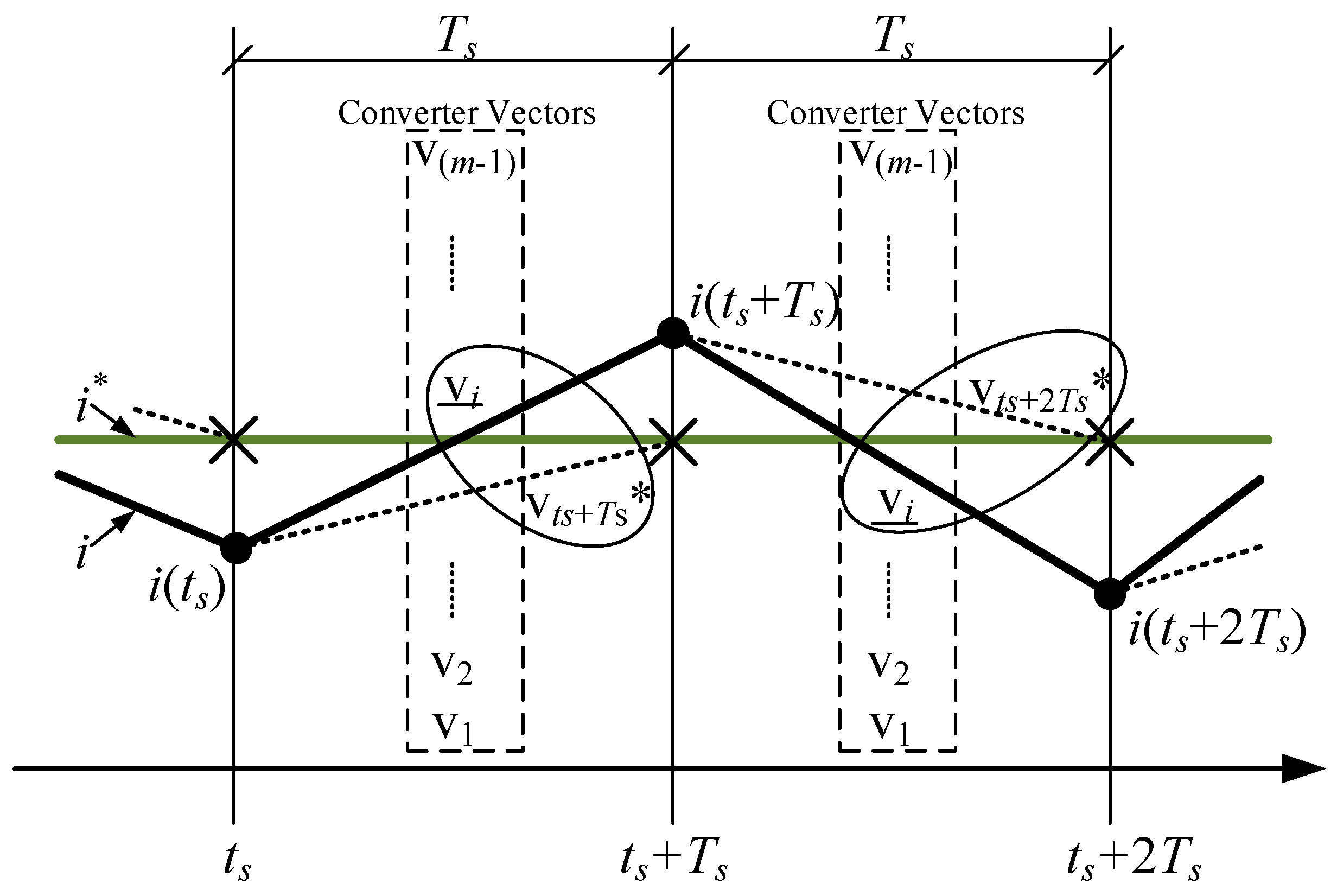

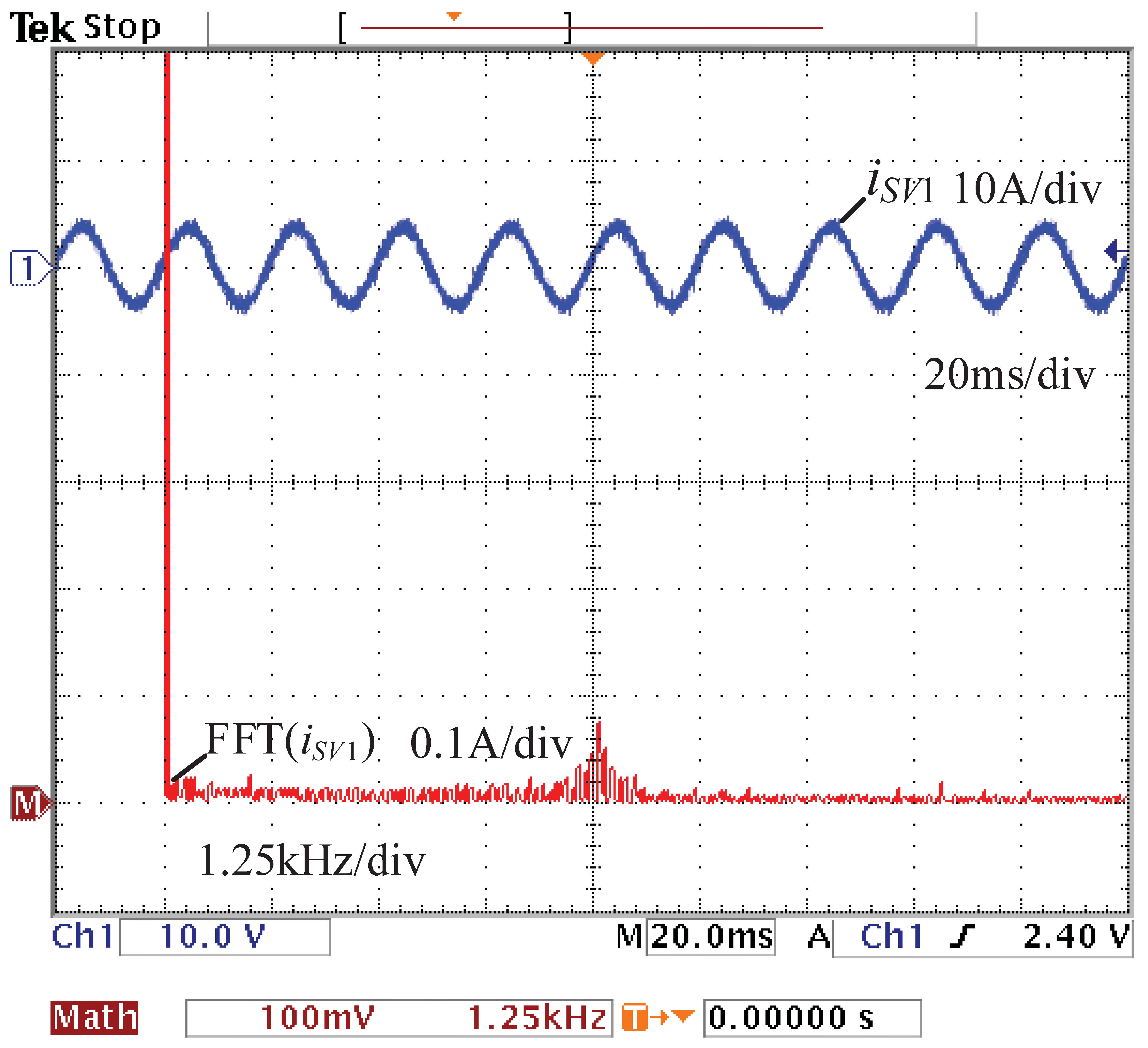

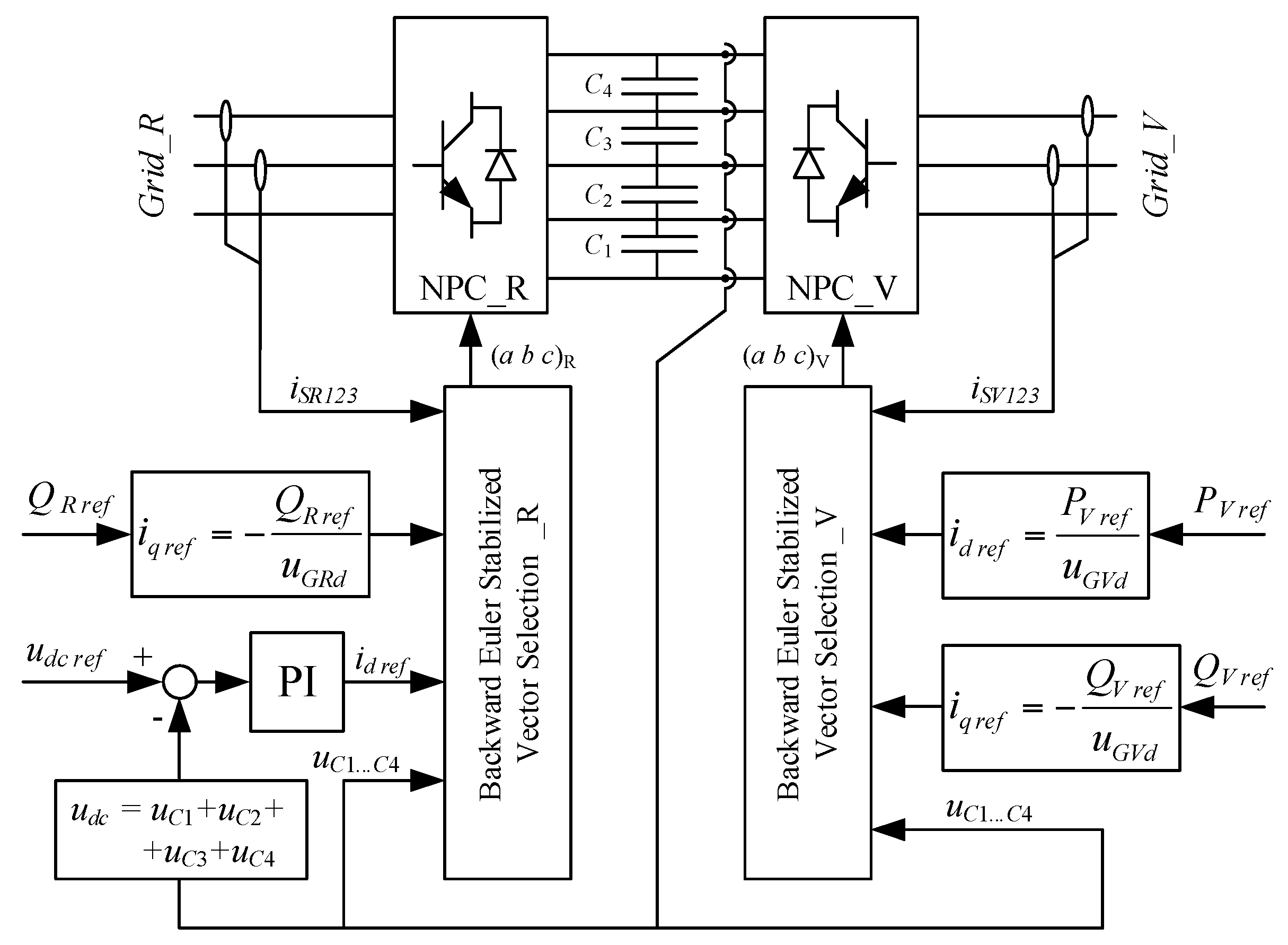

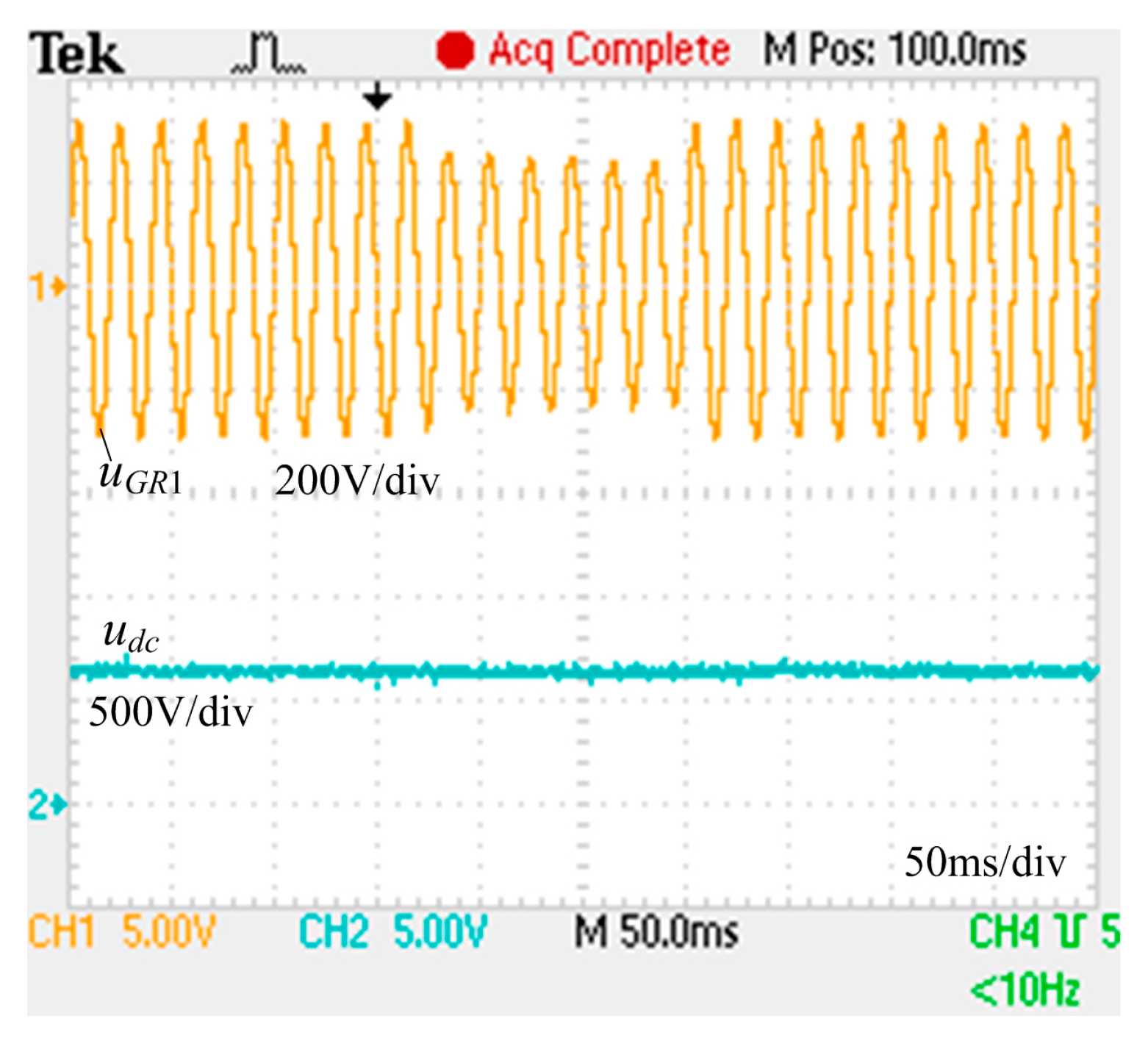

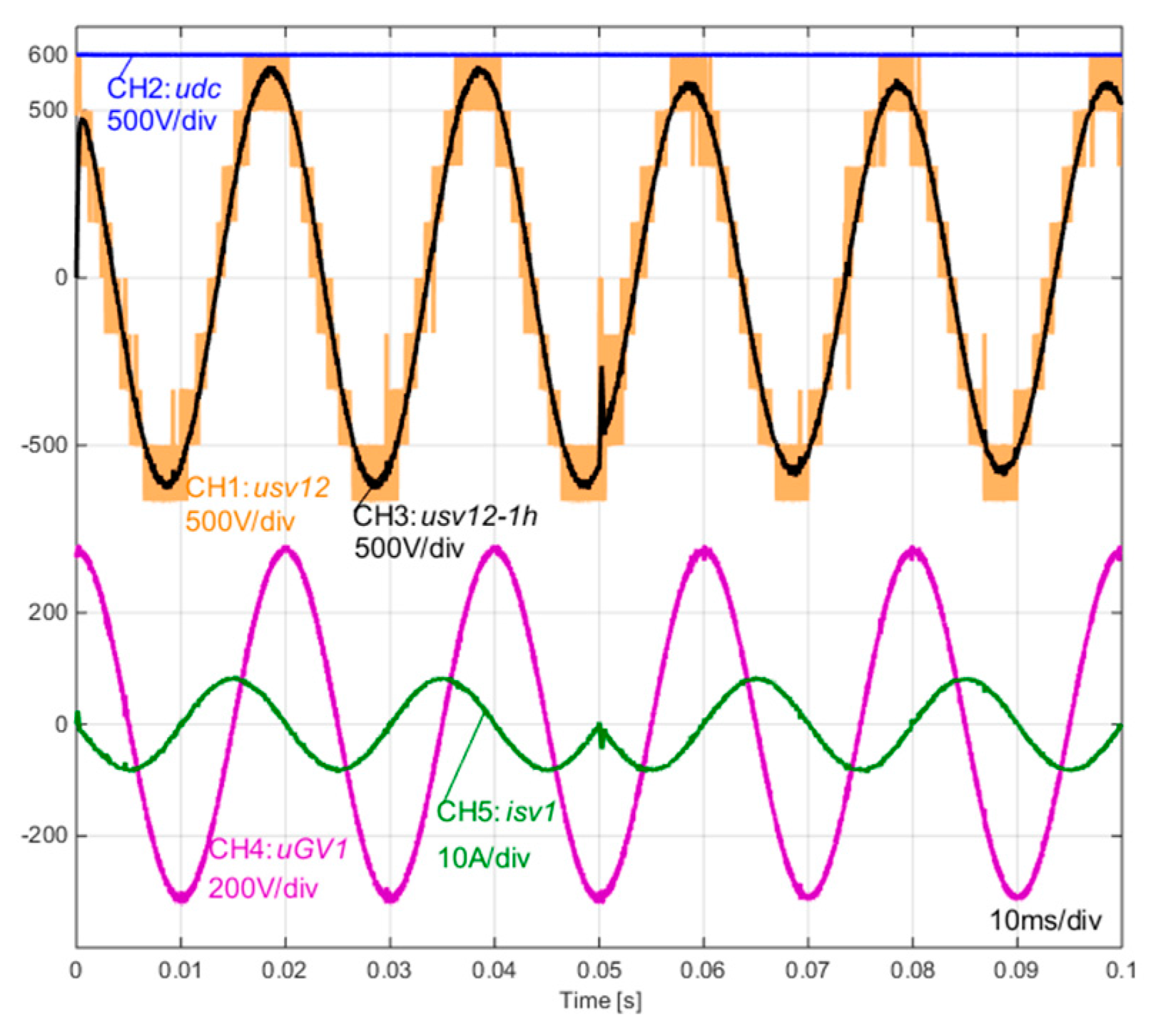

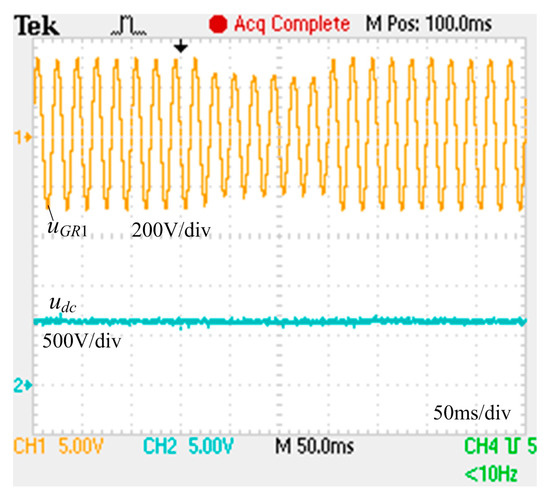

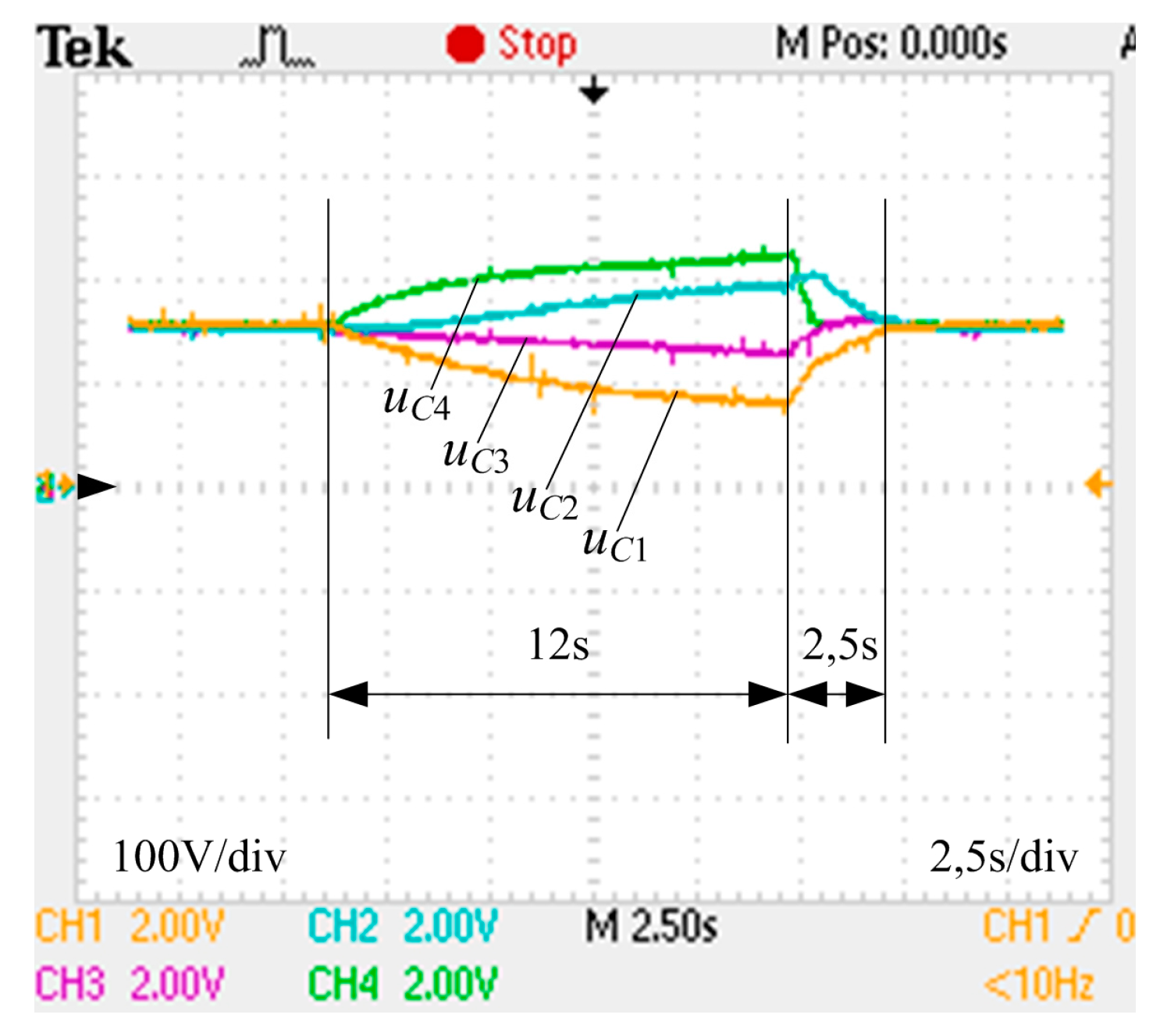

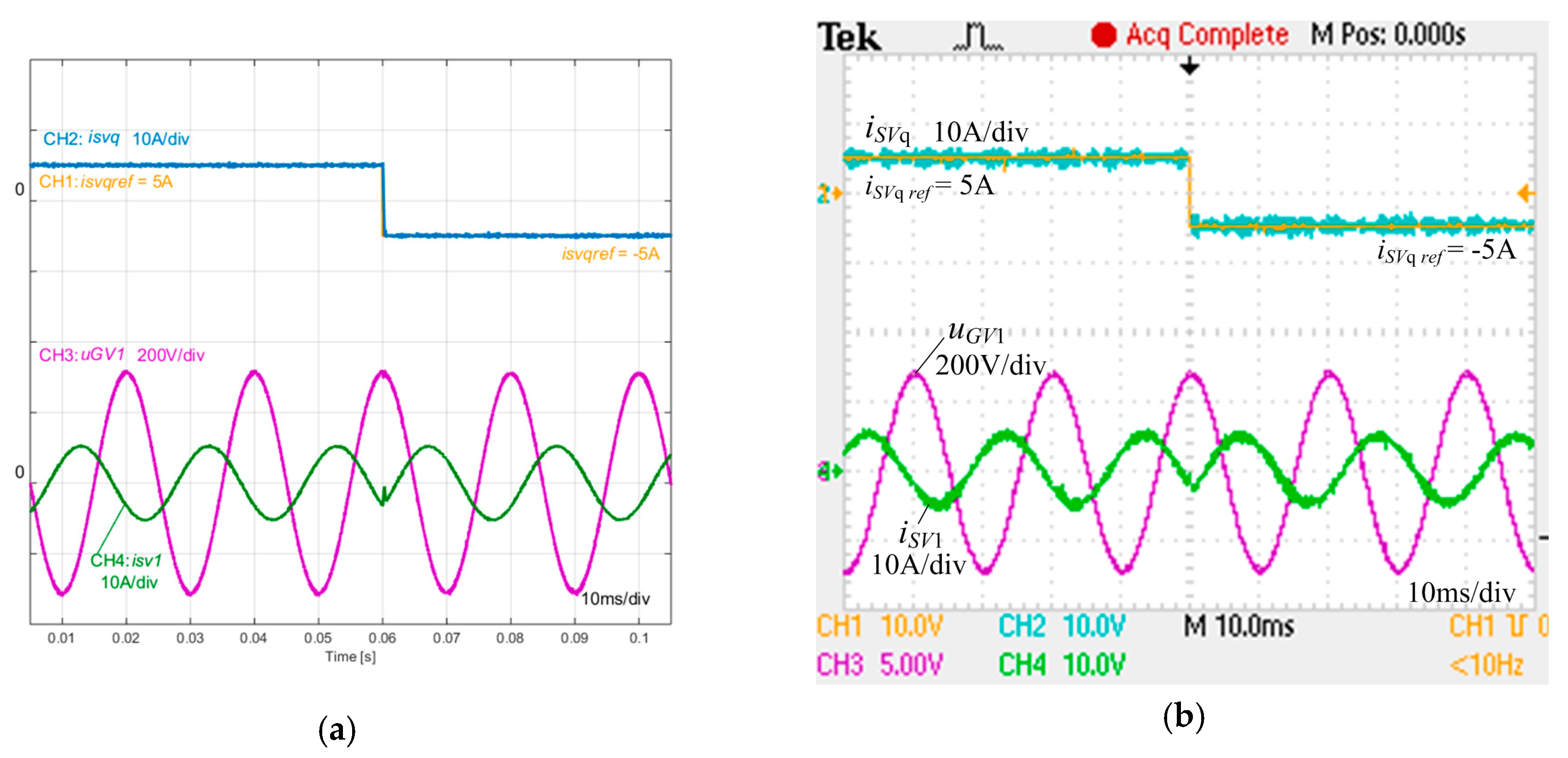

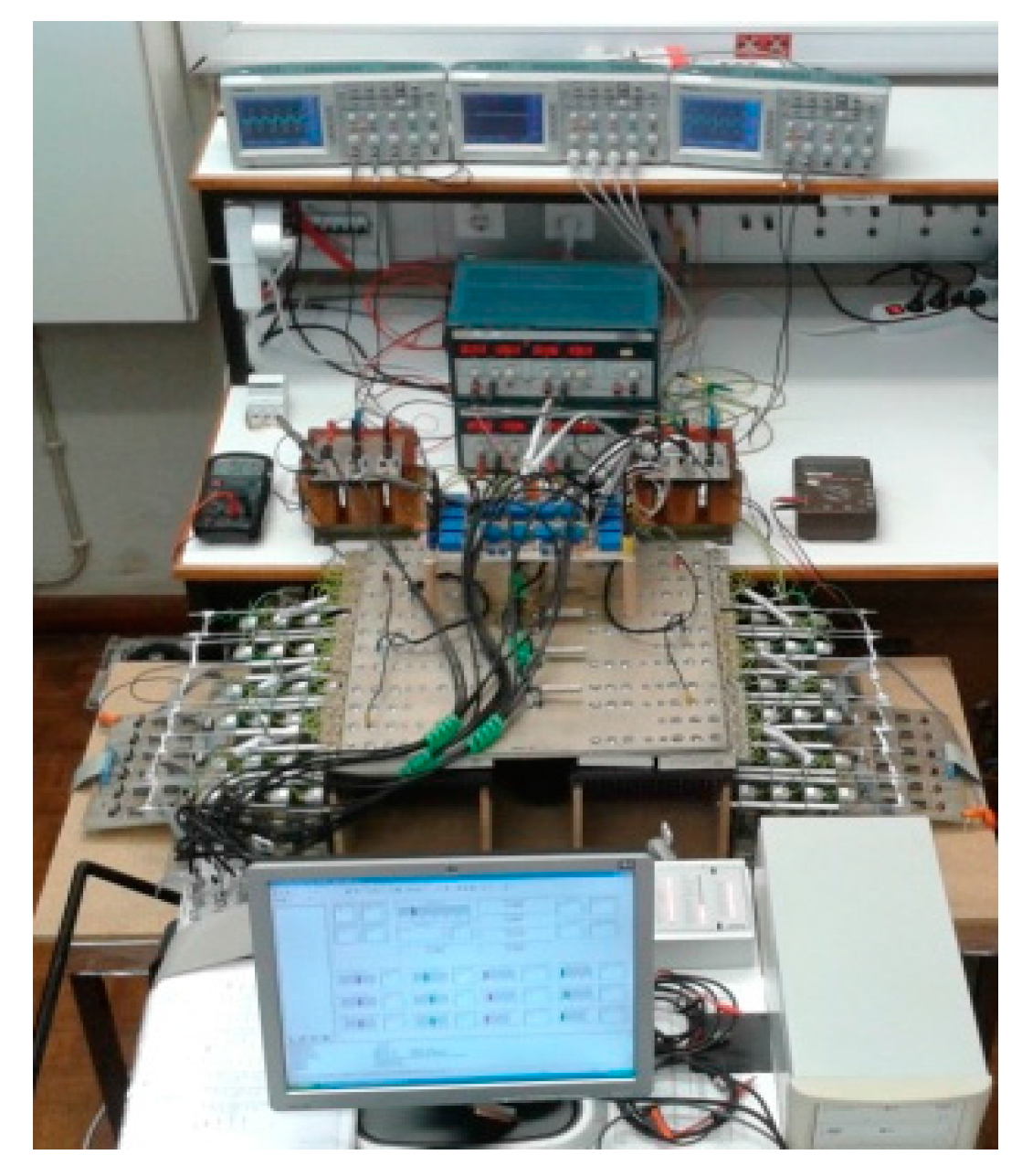

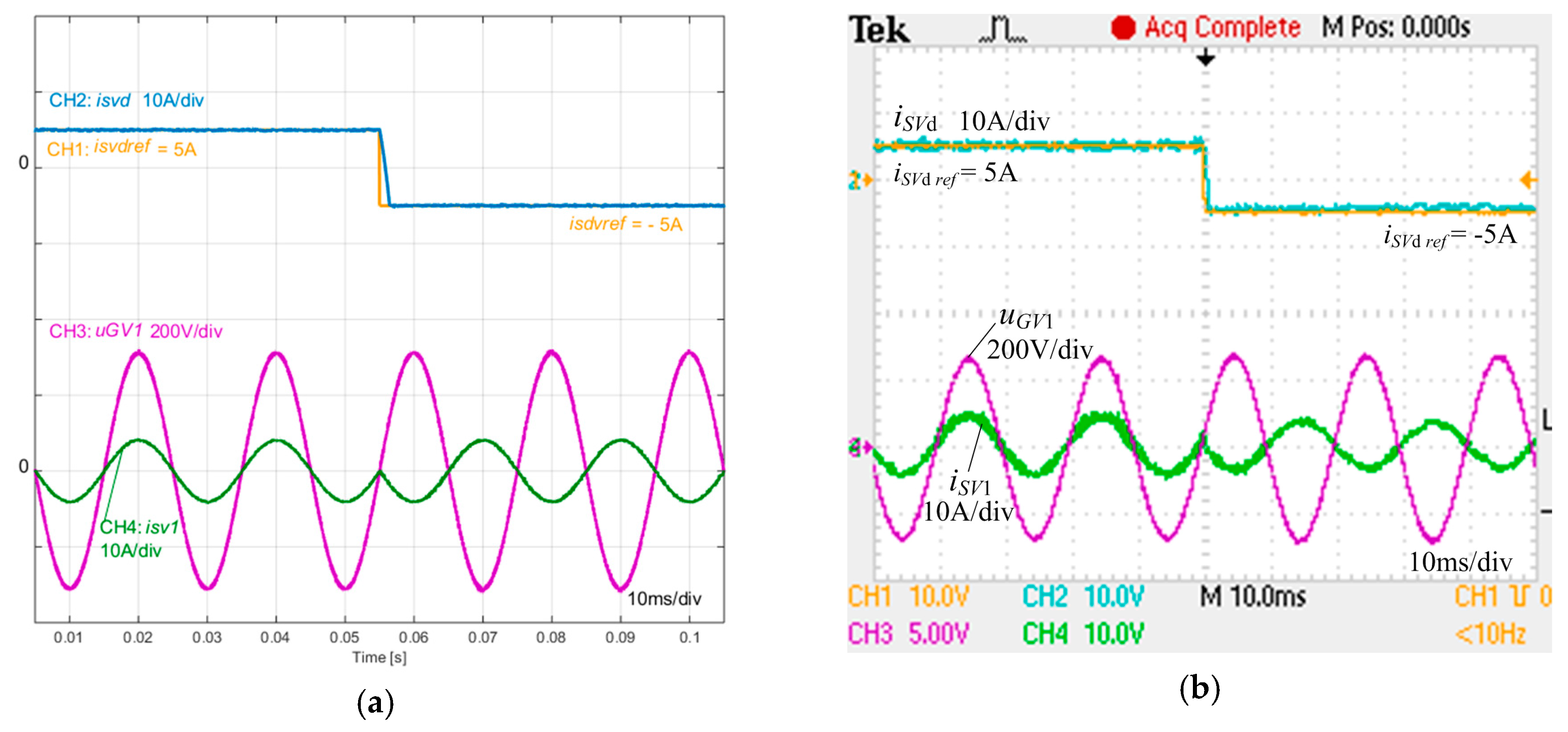

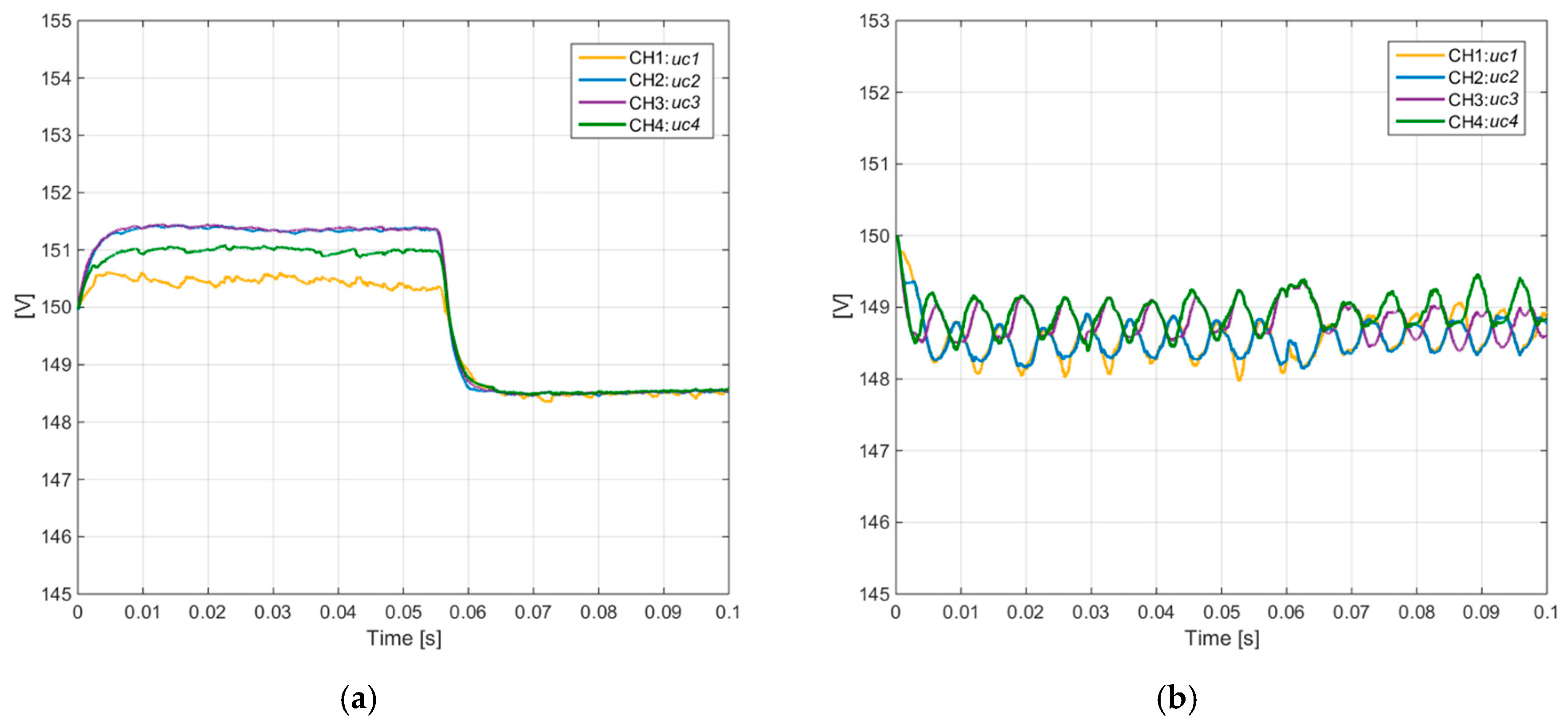

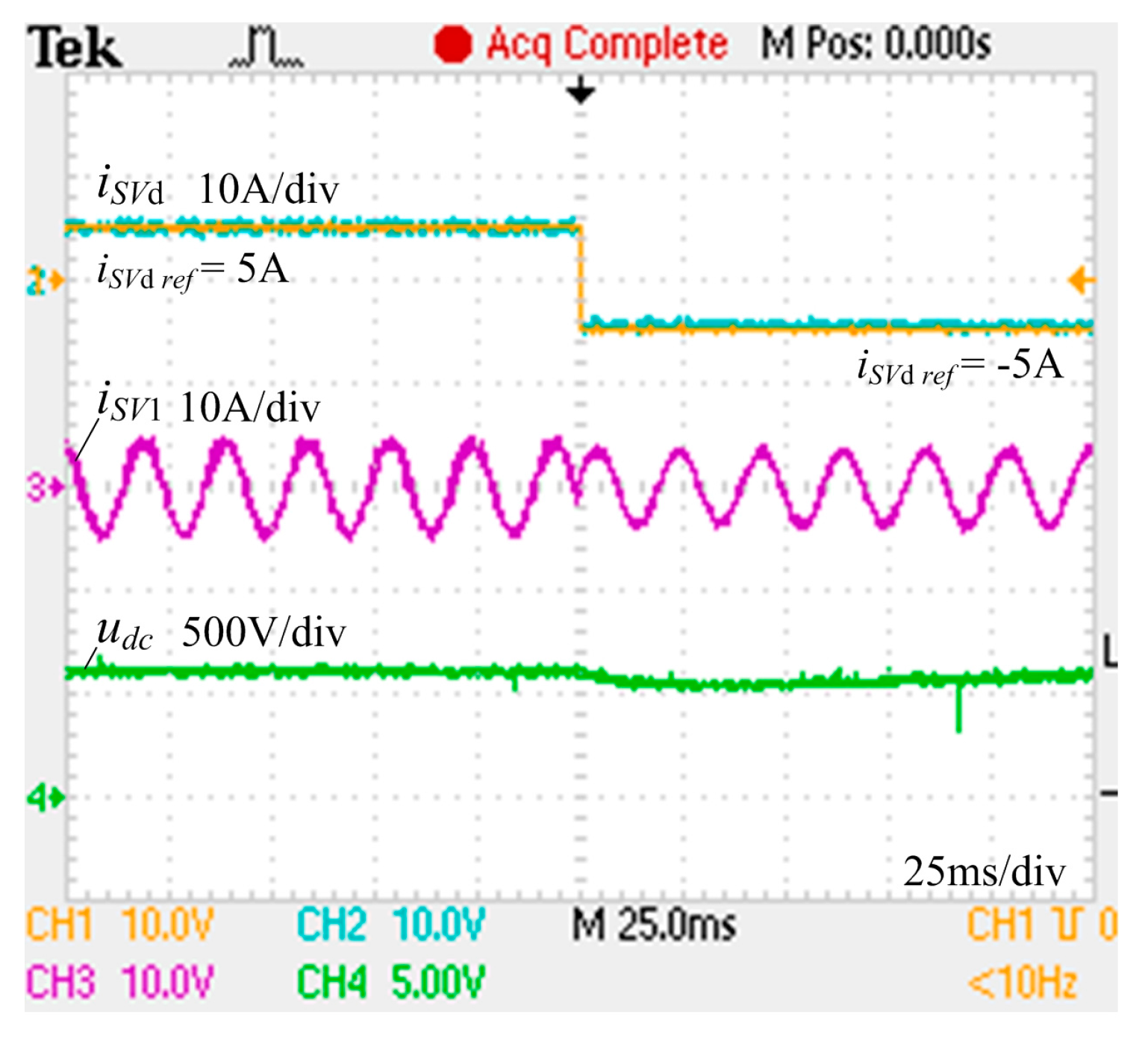

Figures

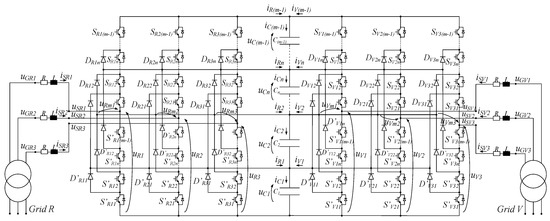

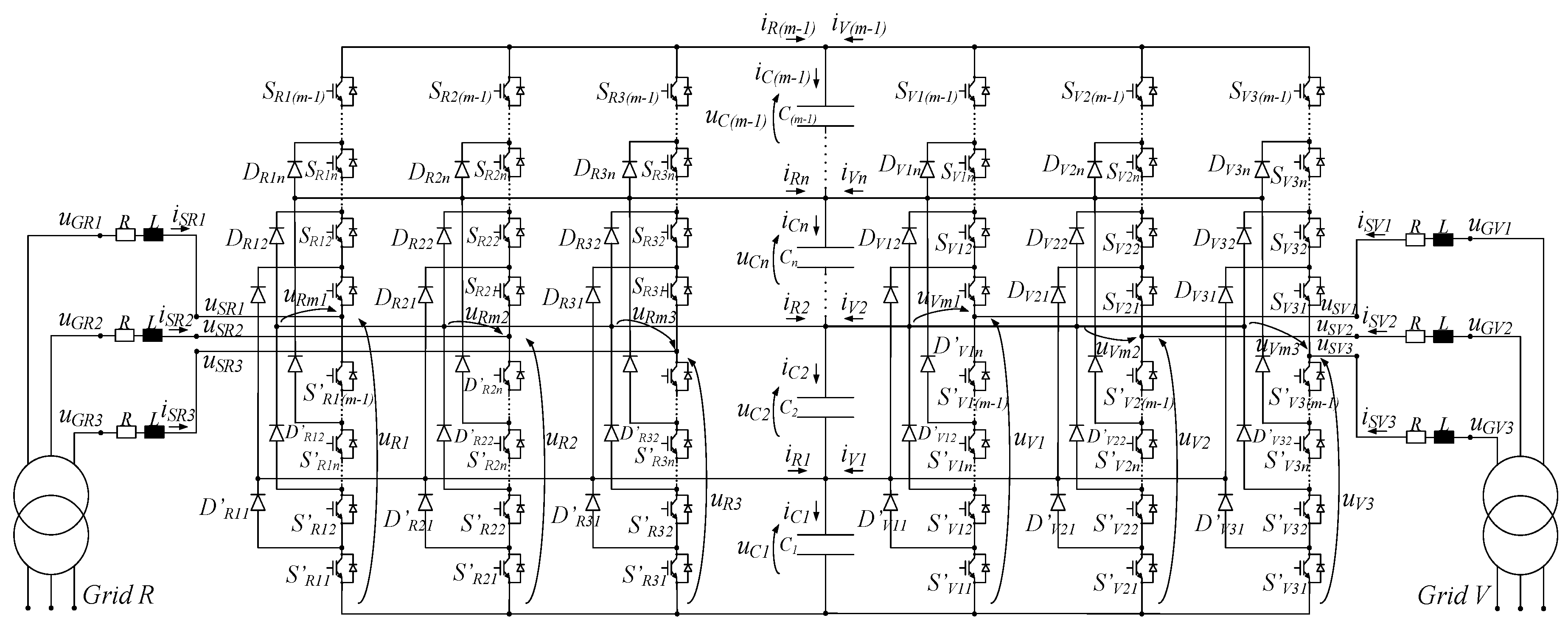

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).

Scifeed alert for new publications

Never miss any articles matching your research from any publisher
  • Get alerts for new papers matching your research
  • Find out the new papers from selected authors
  • Updated daily for 49'000+ journals and 6000+ publishers
  • Define your Scifeed now

SciFeed Share & Cite This Article

MDPI and ACS Style

Chaves, M.; Silva, J.F.; Pinto, S.F.; Margato, E.; Santana, J. A New Backward Euler Stabilized Optimum Controller for NPC Back-to-Back Five Level Converters. Energies 2017, 10, 735.
