Open AccessArticle
Energies 2017, 10(5), 727; doi:10.3390/en10050727

Simulation Modeling Method and Experimental Investigation on the Uniflow Scavenging System of an Opposed-Piston Folded-Cranktrain Diesel Engine

1
School of Mechanical and Power Engineering, North University of China, Taiyuan 030051, China
2
School of Mechanical and Vehicle Engineering, Beijing Institute of Technology, Beijing 100081, China
*
Author to whom correspondence should be addressed.
Academic Editor: Chang Sik Lee
Received: 20 December 2016 / Revised: 3 May 2017 / Accepted: 18 May 2017 / Published: 20 May 2017
View Full-Text   |   Download PDF [6656 KB, uploaded 23 May 2017]   |

Abstract

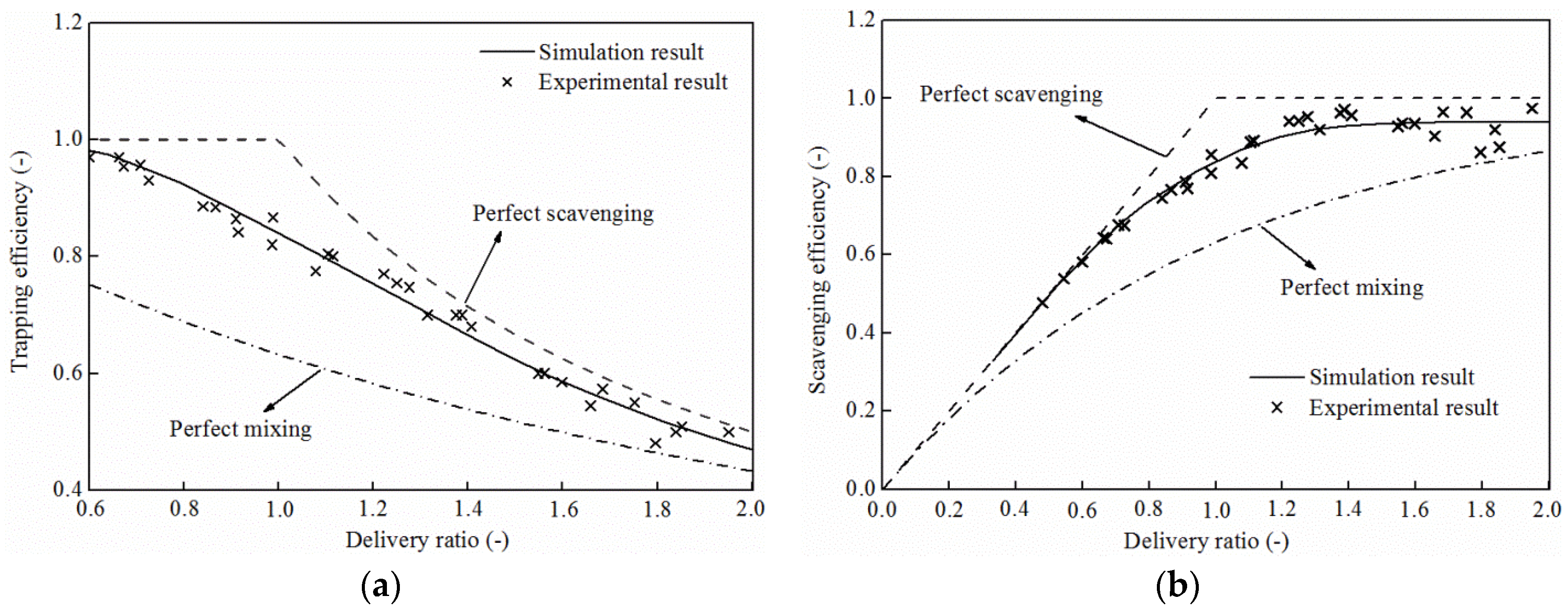

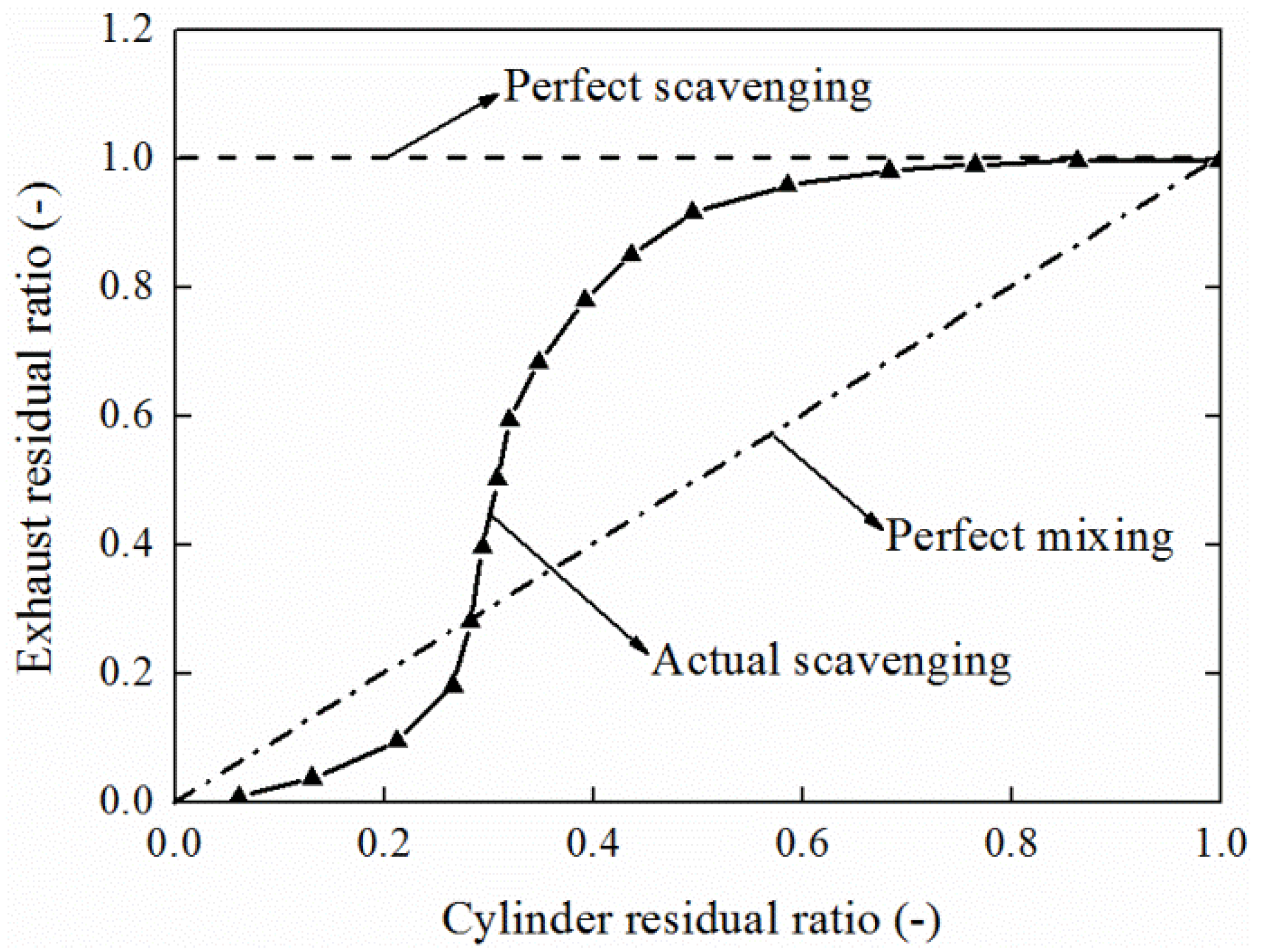

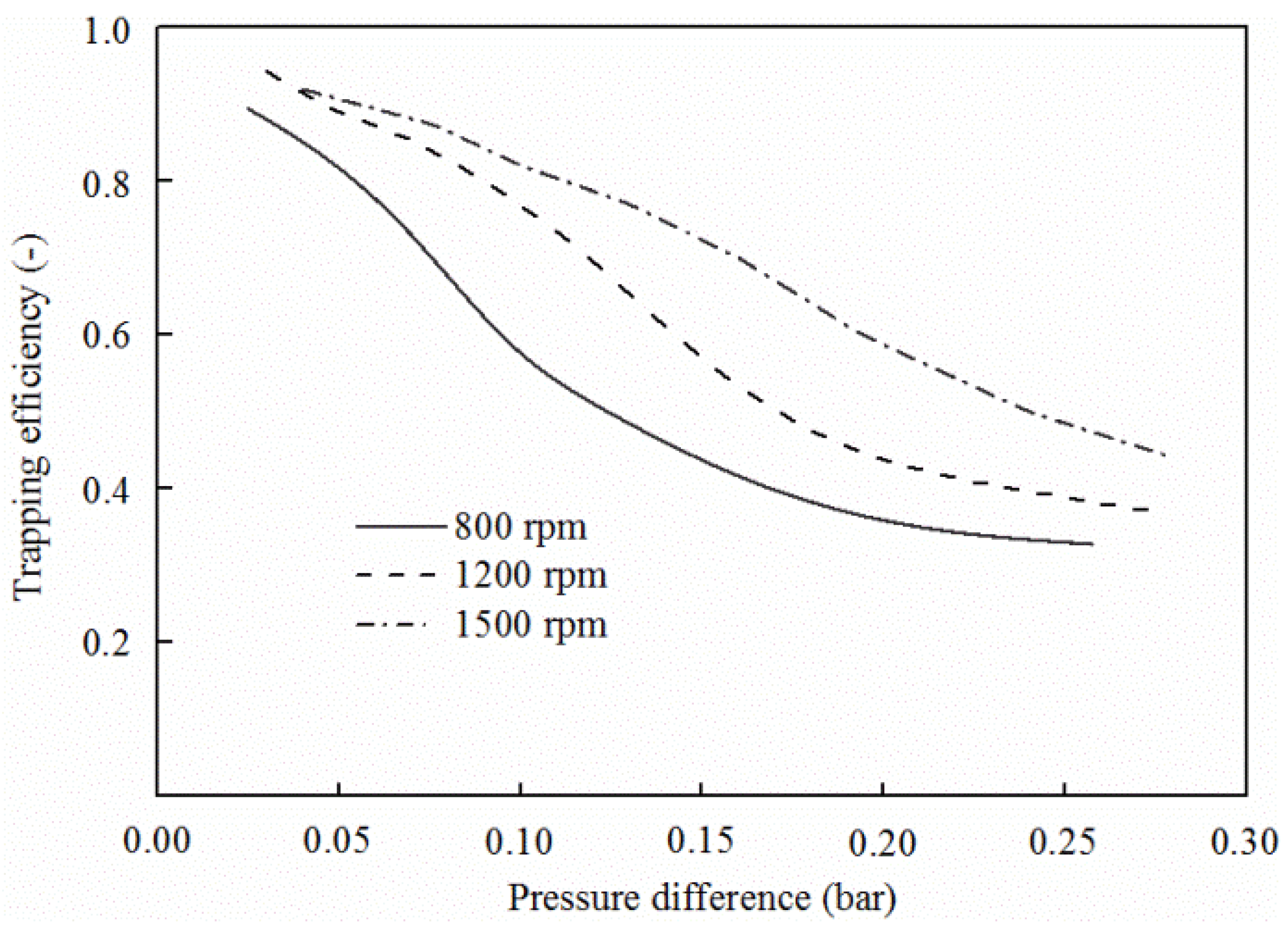

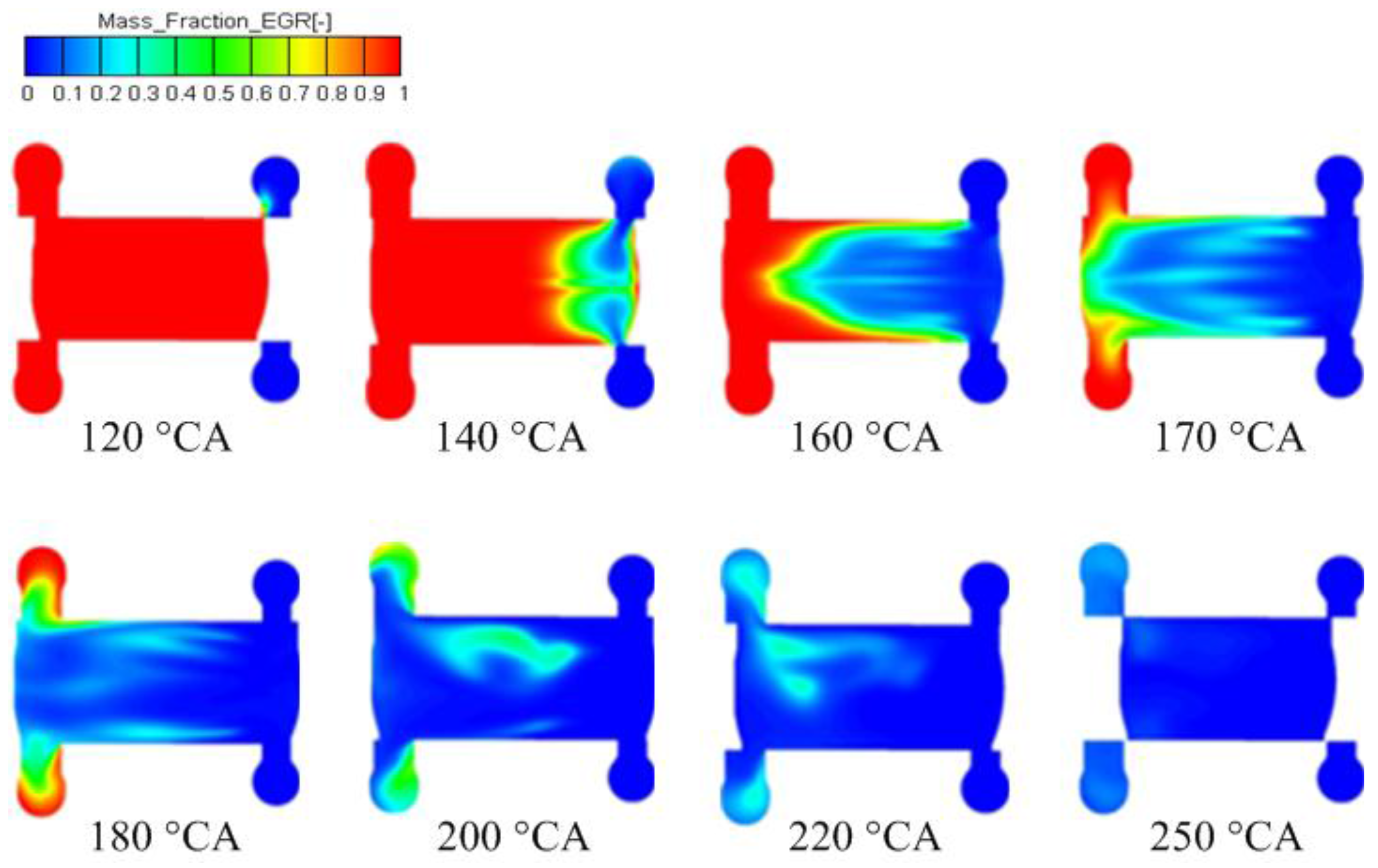

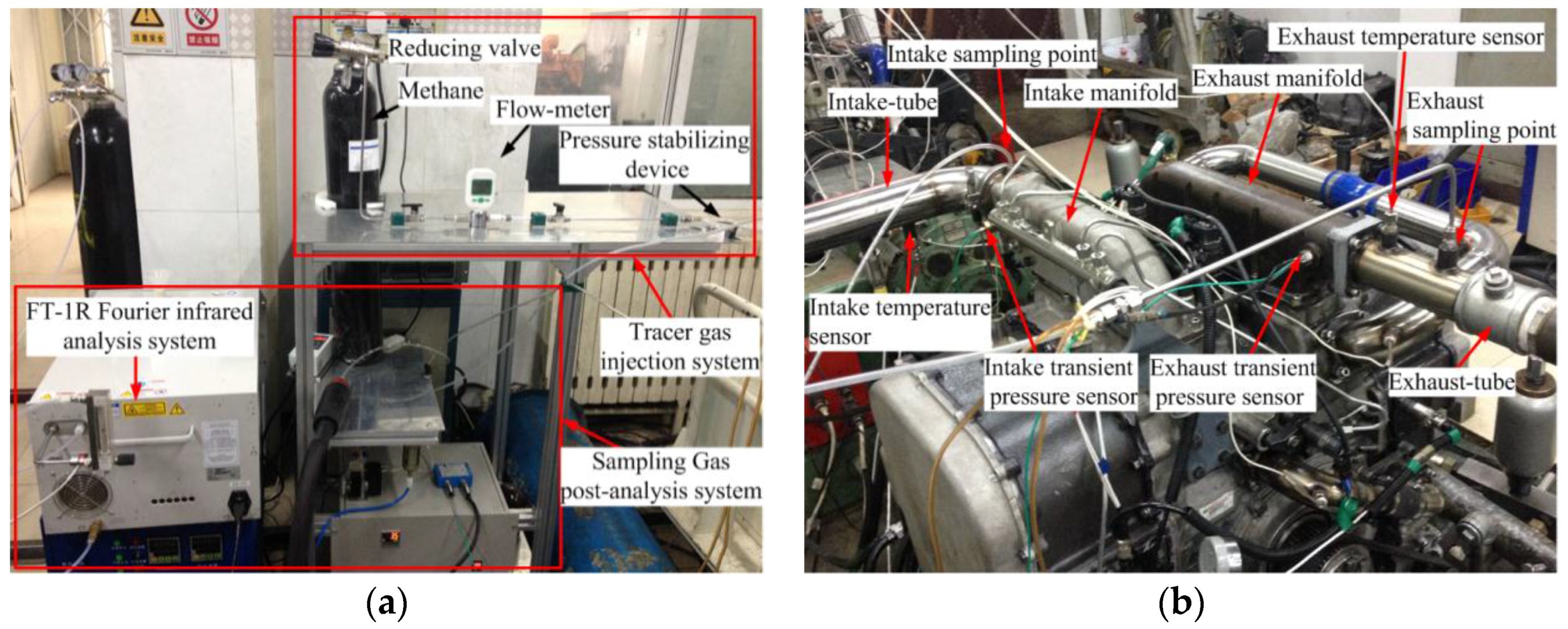

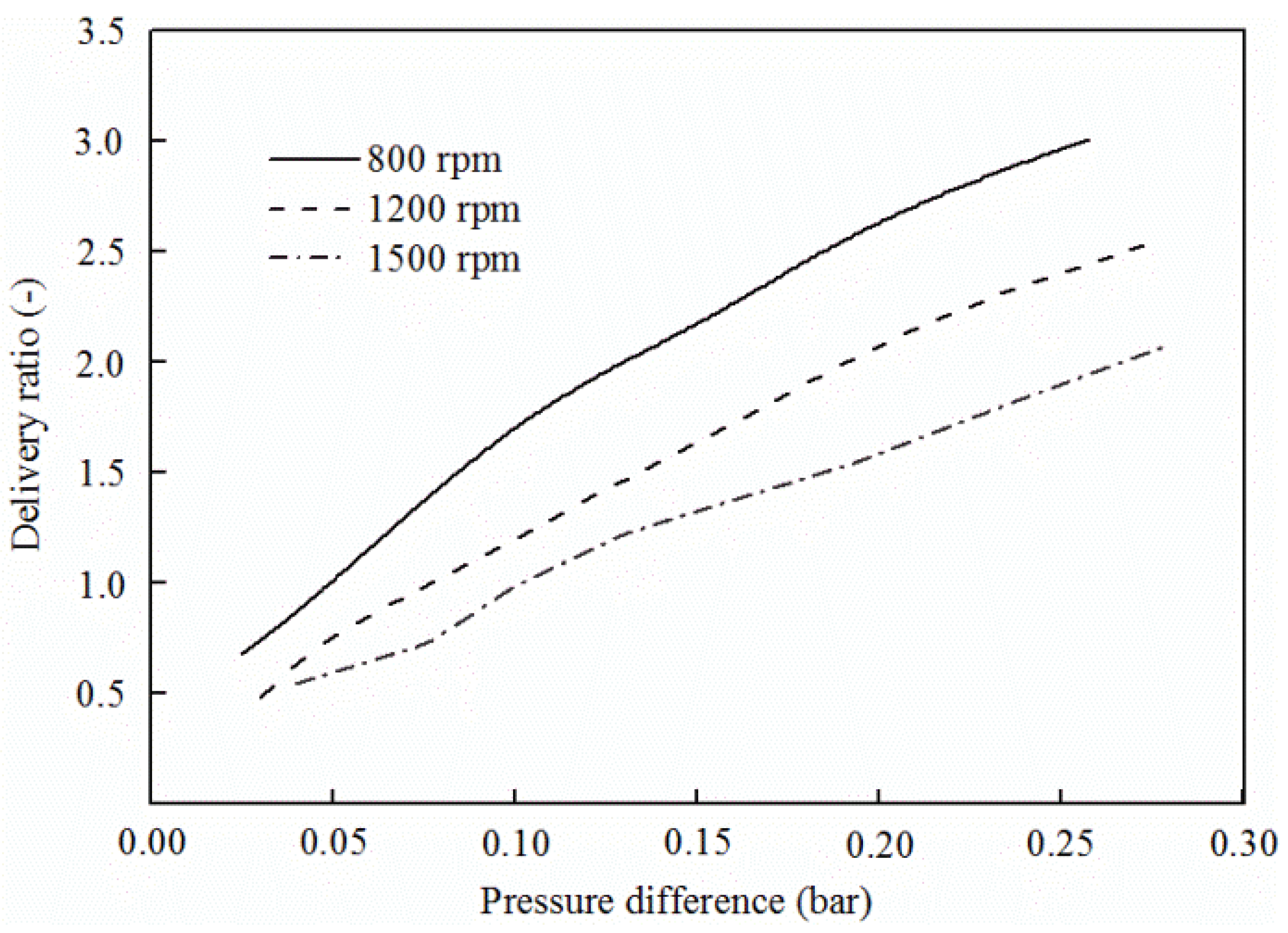

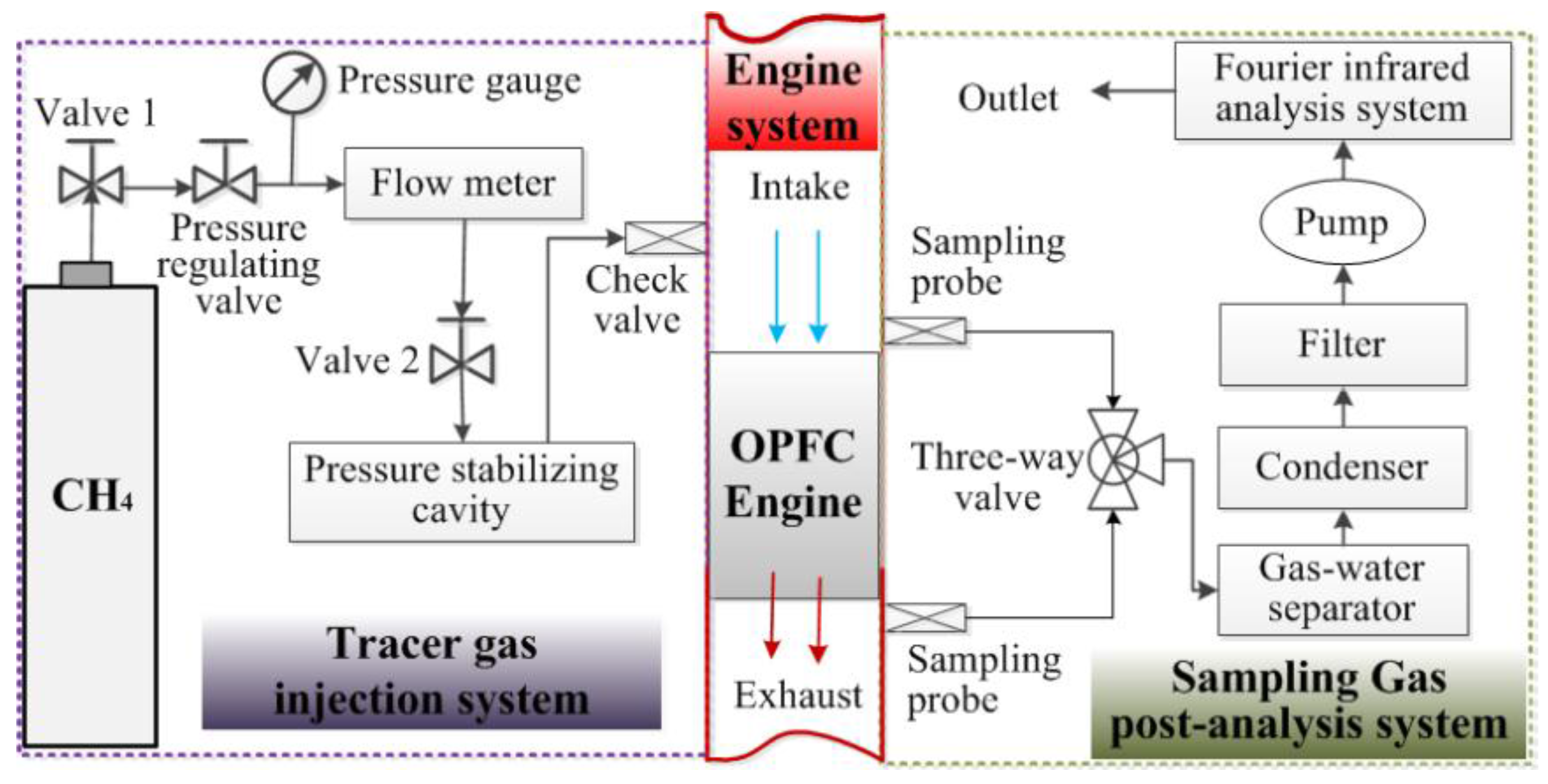

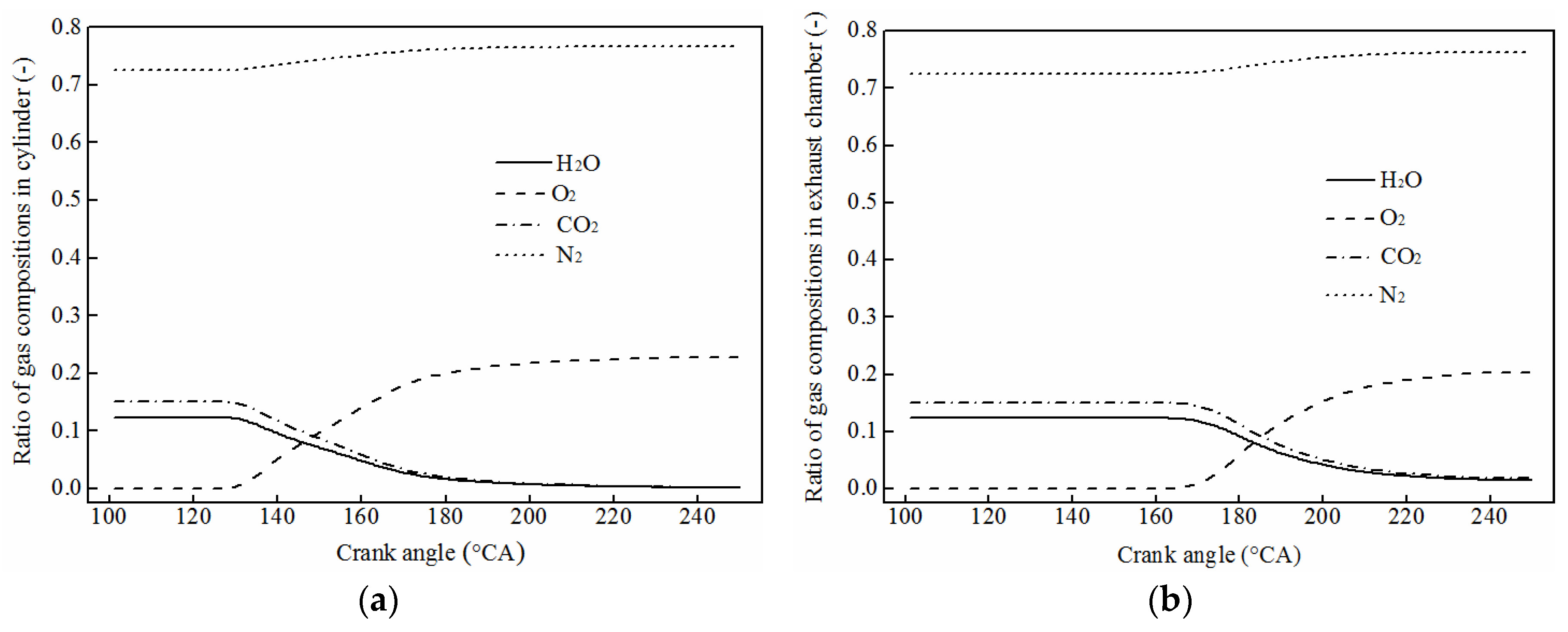

The scavenging process for opposed-piston folded-cranktrain (OPFC) diesel engines can be described by the time evolution of the in-cylinder and exhaust chamber residual gas rates. The relation curve of in-cylinder and exhaust chamber residual gas rate is called scavenging profile, which is calculated through the changes of in-cylinder and exhaust chamber gas compositions determined by computational fluid dynamics (CFD) simulation. The scavenging profile is used to calculate the scavenging process by mono-dimensional (1D) simulation. The tracer gas method (TGM) is employed to validate the accuracy of the scavenging profile. At the same time, the gas exchange performance under different intake and exhaust state parameters was examined based on the TGM. The results show that the scavenging process from 1D simulation and experiment match well, which means the scavenging model obtained by CFD simulation performs well and validation of its effectiveness by TGM is possible. The difference between intake and exhaust pressure has a significant positive effect on the gas exchange performance and trapped gas mass, but the pressure difference has little effect on the scavenging efficiency and the trapped air mass if the delivery ratio exceeds 1.4. View Full-Text
Keywords: opposed-piston folded-cranktrain (OPFC) diesel engine; uniflow scavenging system; validation method; tracer gas method; computational fluid dynamics (CFD) opposed-piston folded-cranktrain (OPFC) diesel engine; uniflow scavenging system; validation method; tracer gas method; computational fluid dynamics (CFD)
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).
