Open AccessArticle
Energies 2017, 10(4), 496; doi:10.3390/en10040496

Rapid Reserve Generation from a Francis Turbine for System Frequency Control

1
Australian Maritime College, University of Tasmania, Launceston 7250, Tasmania, Australia
2
School of Engineering & ICT, University of Tasmania, Hobart 7005, Tasmania, Australia
*
Author to whom correspondence should be addressed.
Received: 24 February 2017 / Revised: 27 March 2017 / Accepted: 31 March 2017 / Published: 7 April 2017
(This article belongs to the Special Issue Electric Machines and Drives for Renewable Energy Harvesting)
View Full-Text   |   Download PDF [8853 KB, uploaded 10 April 2017]   |

Abstract

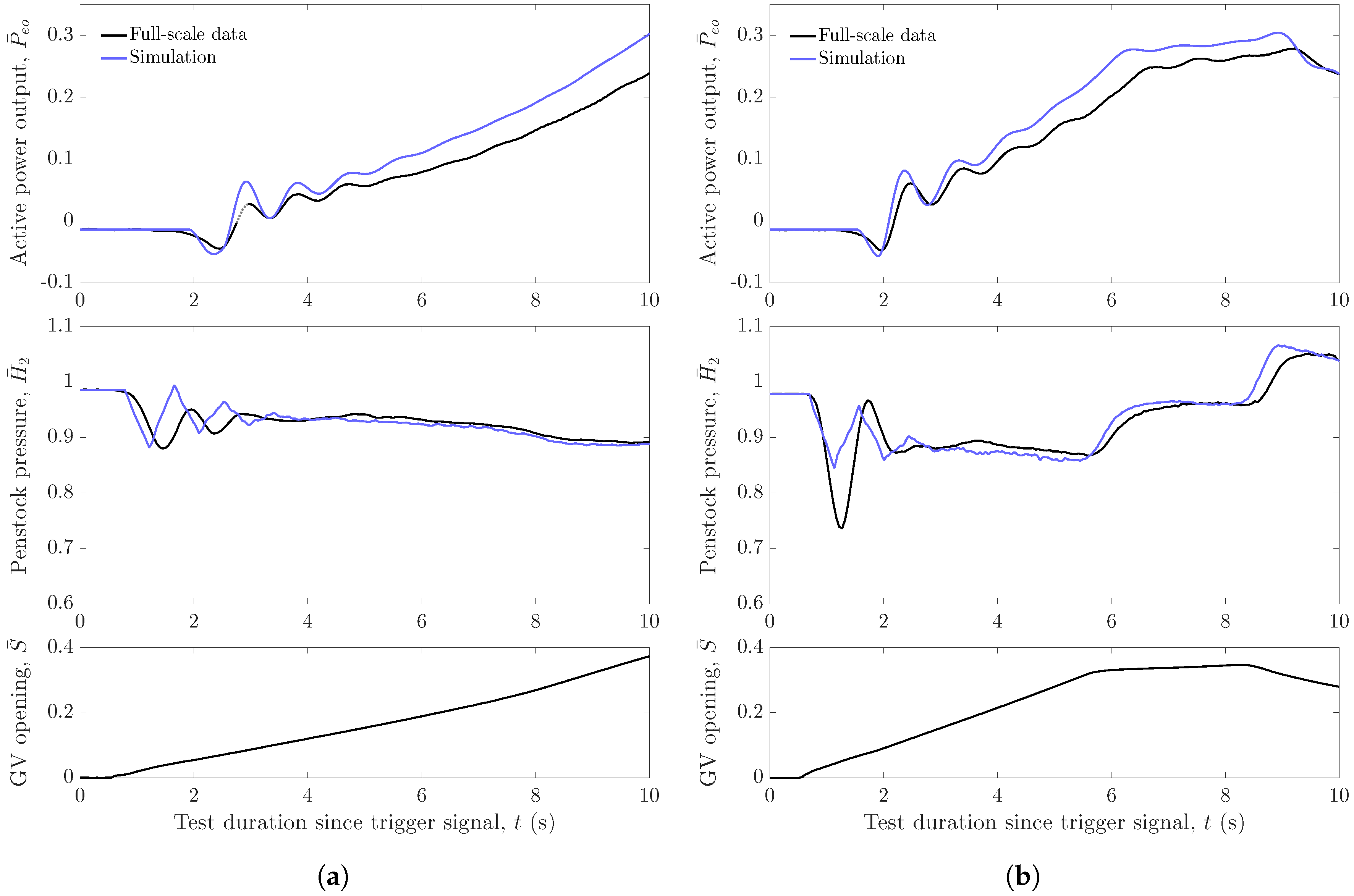

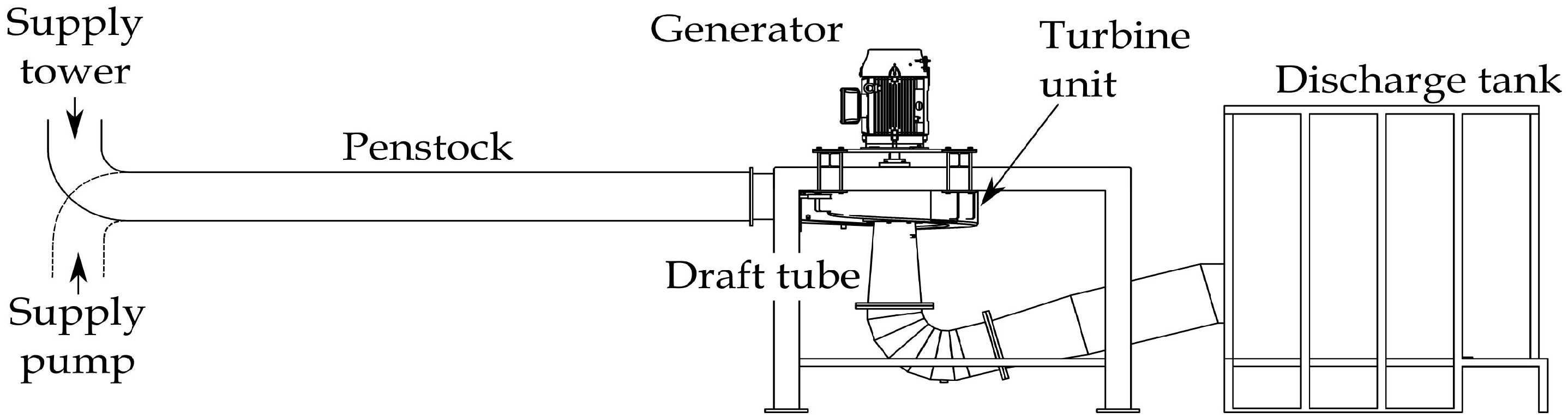

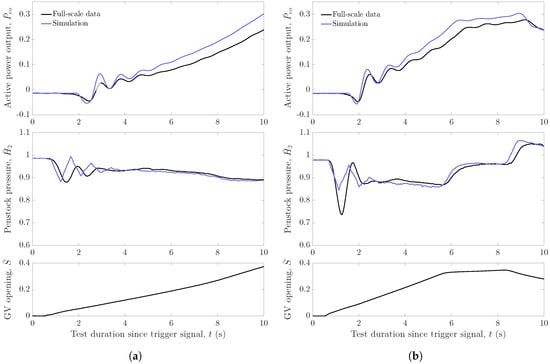

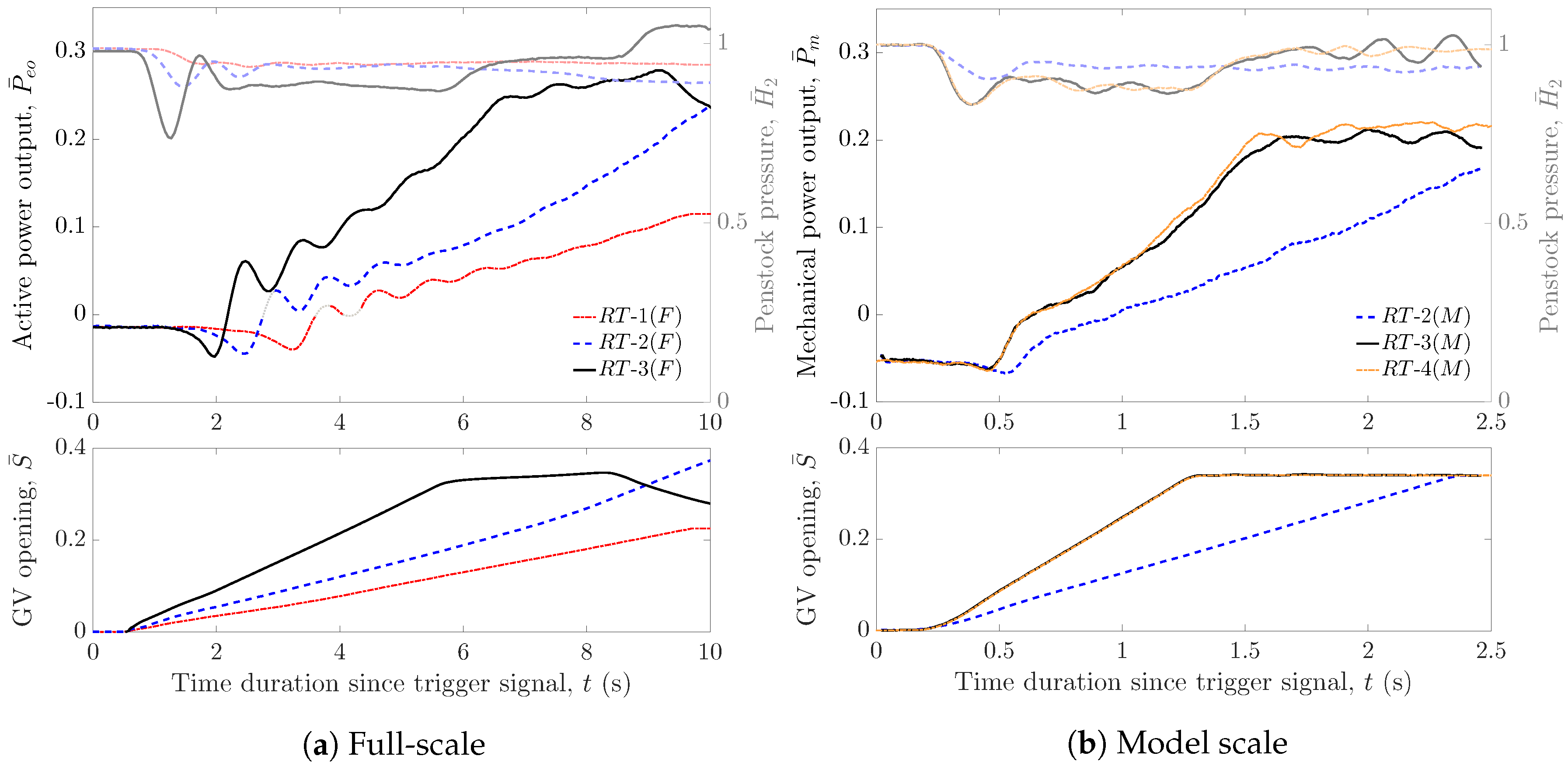

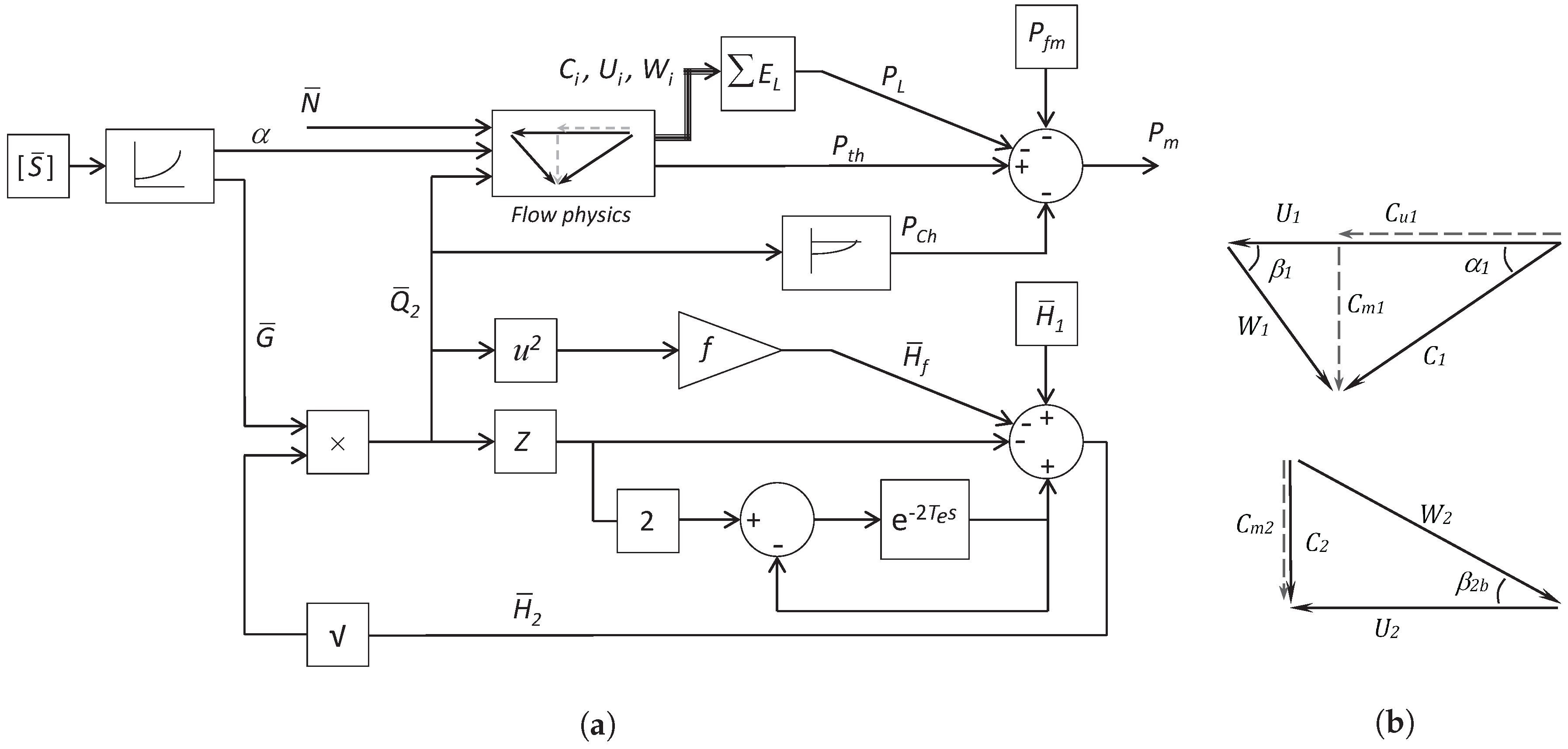

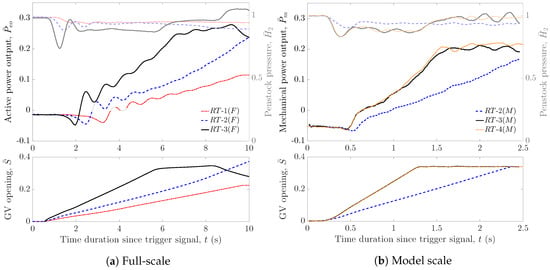

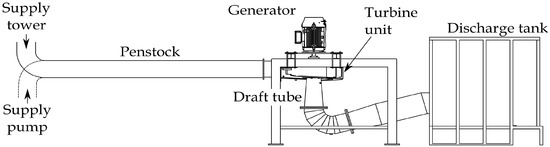

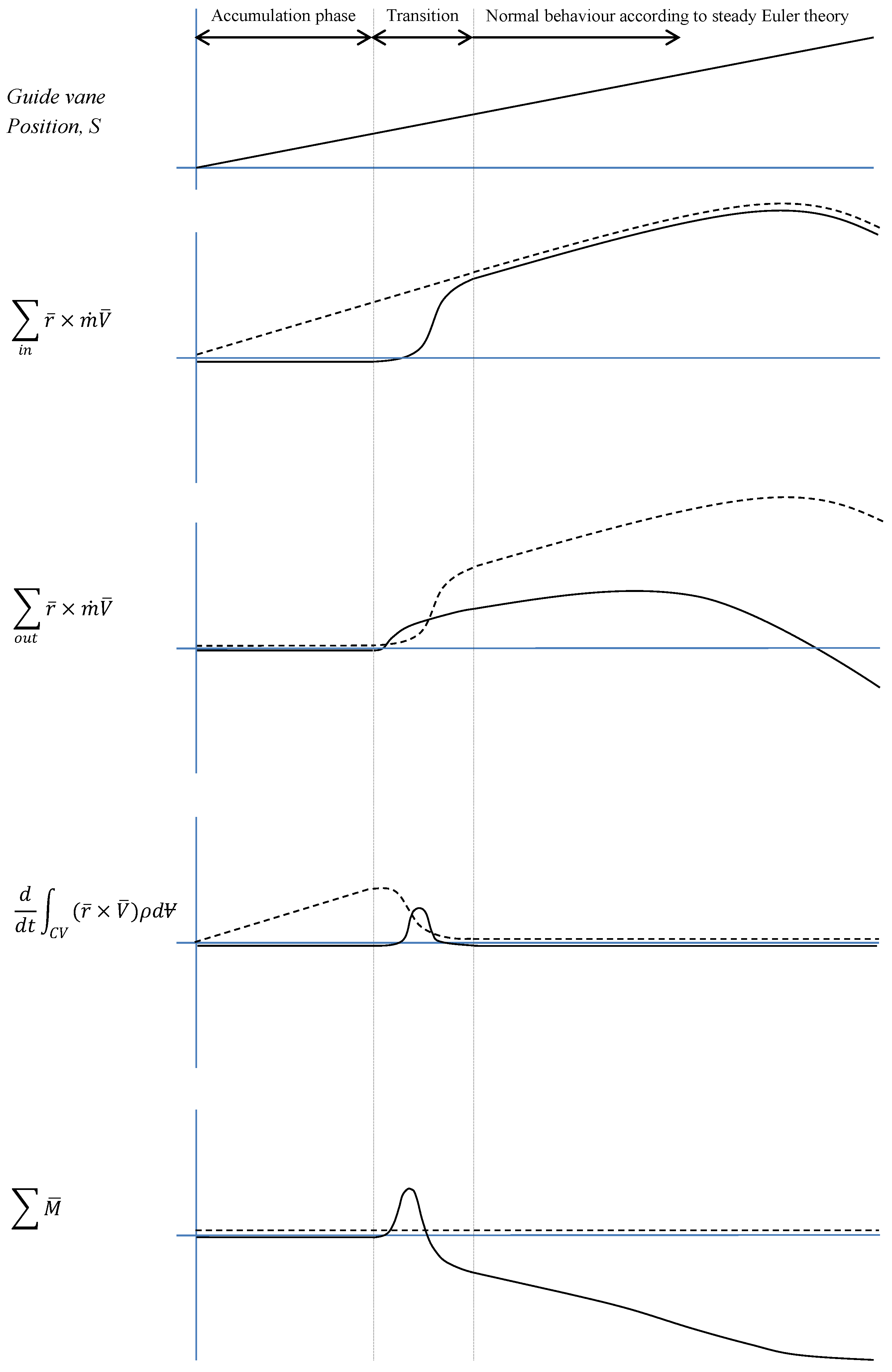

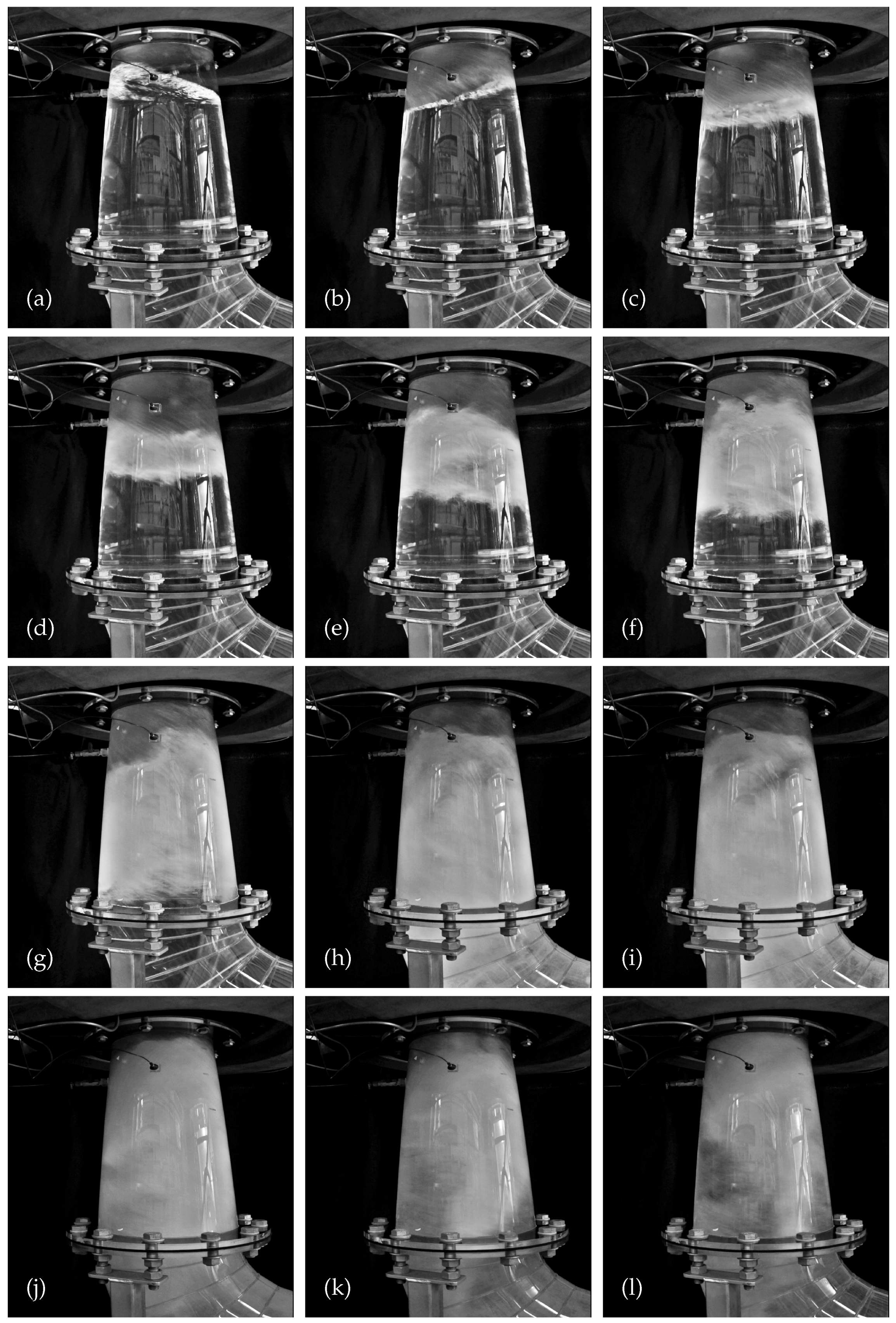

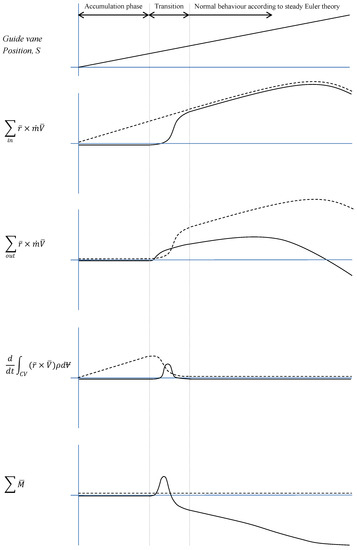

The increase in contributions from non base load renewables, such as wind and solar, can have adverse effects on the stability of an electrical grid. In this study, the possibility of rapidly loading a Francis turbine from a tail water depression (TWD) mode for providing additional system frequency control is investigated. Based on the analysis of full-scale TWD test results and key findings from the transient testing of a micro-hydro scale turbine unit, a detailed description of the TWD transition process is given. The formulation of an improved turbine model for use in one-dimensional hydro-electric plant models is presented with simulation results compared to full-scale data. The analytical model, which calculates output power according to the conservation of angular momentum and identified sources of loss, is used in parallel with full-scale and model scale test observations to elucidate the events and mechanisms occurring during this proposed transition. The output response, in terms of active power, was found to be highly dependent on guide vane opening rate in both full-scale and model tests. For an approximate doubling in opening rate, the duration of the reverse power flow was reduced by 38% and 21%, for full-scale and model units, while the low pressure transient increased by 16% and 8%, respectively. The analytical model was shown to capture the general response characteristic in all cases tested; however, output power response was over predicted due to two identified model assumptions made, while, for the more rapid opening, the penstock pressure was under predicted by approximately 15%. View Full-Text
Keywords: hydro-electric power generation; power system dynamics; hydraulic turbine; Francis turbine; rapid start-up; transient operation; dynamic simulation model hydro-electric power generation; power system dynamics; hydraulic turbine; Francis turbine; rapid start-up; transient operation; dynamic simulation model
Figures
