Energies 2017, 10(2), 193; doi:10.3390/en10020193

Integration of Electric Springs and Multi-Port Transformers—A New Solution for AC Microgrids with Renewable Energy Sources

1
School of Electrical Engineering, Southeast University, 2 SiPaiLou, Nanjing 210096, Jiangsu, China
2
Department of Industrial Engineering, University of Padova, 35131 Padova, Italy
*
Author to whom correspondence should be addressed.
Academic Editor: Wenxin Liu
Received: 1 January 2017 / Revised: 24 January 2017 / Accepted: 4 February 2017 / Published: 9 February 2017
(This article belongs to the Special Issue Advanced Operation and Control of Smart Microgrids)
View Full-Text   |   Download PDF [5810 KB, uploaded 9 February 2017]   |

Abstract

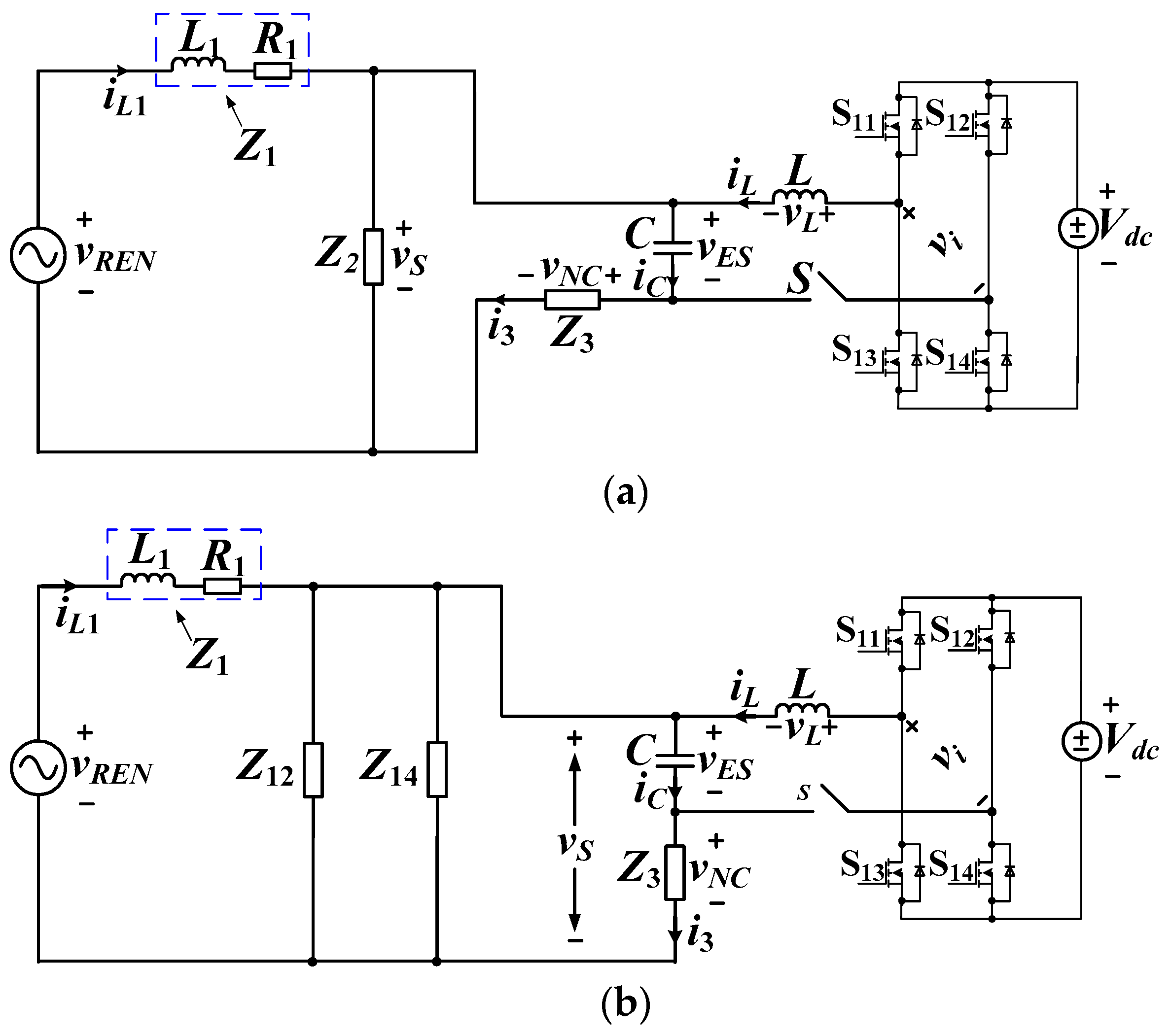

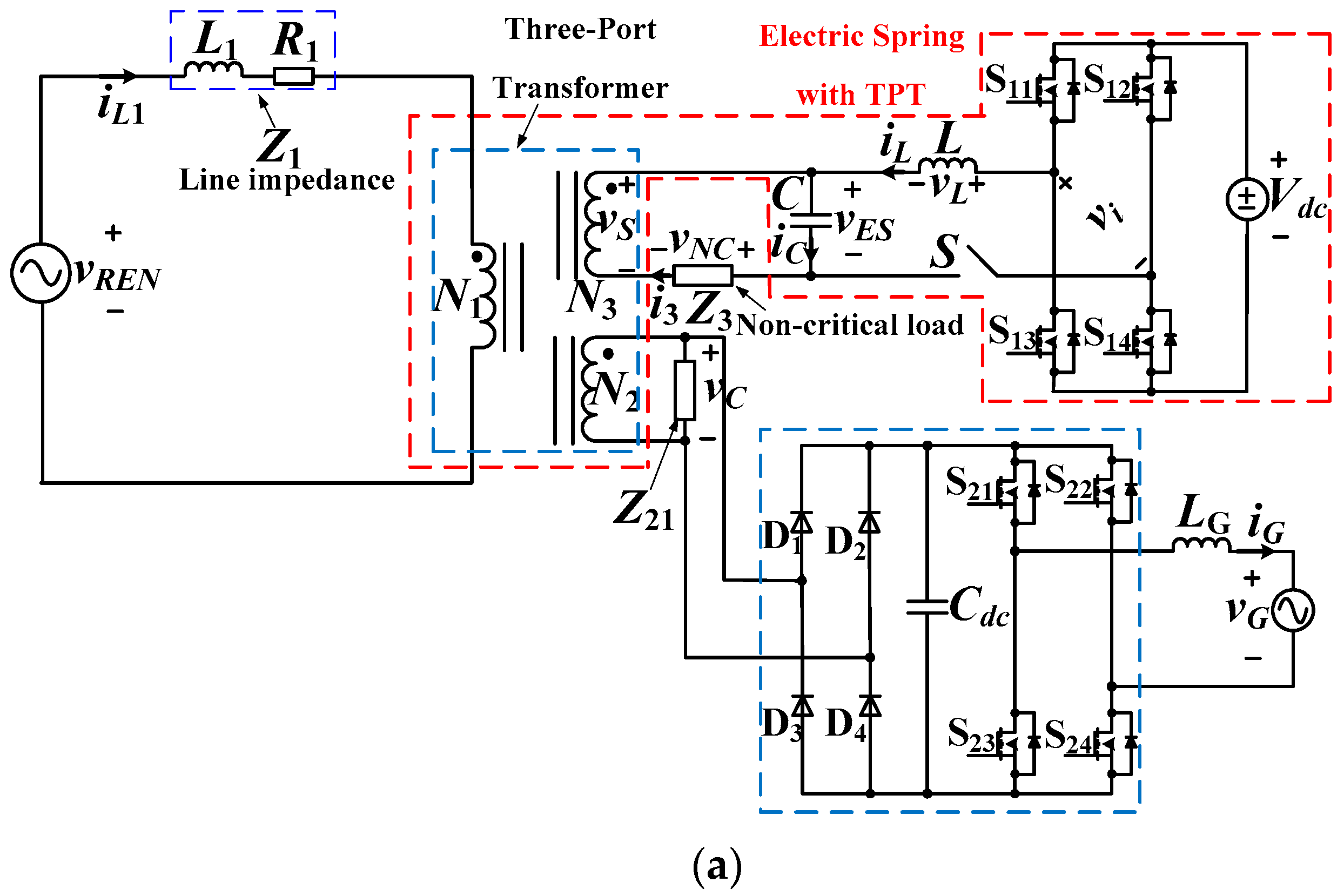

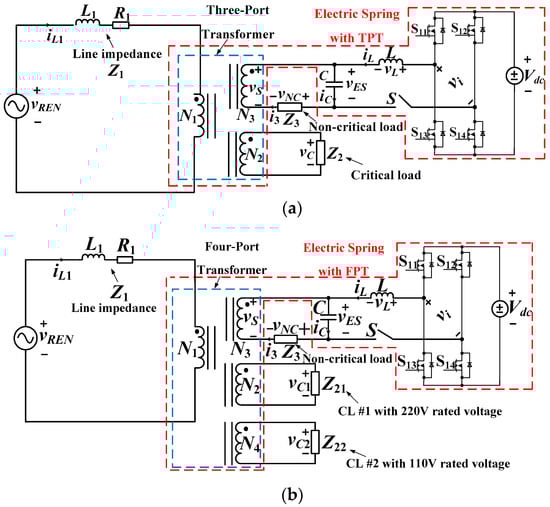

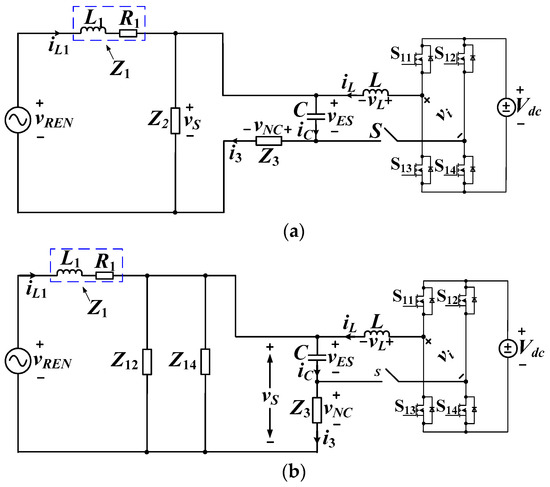

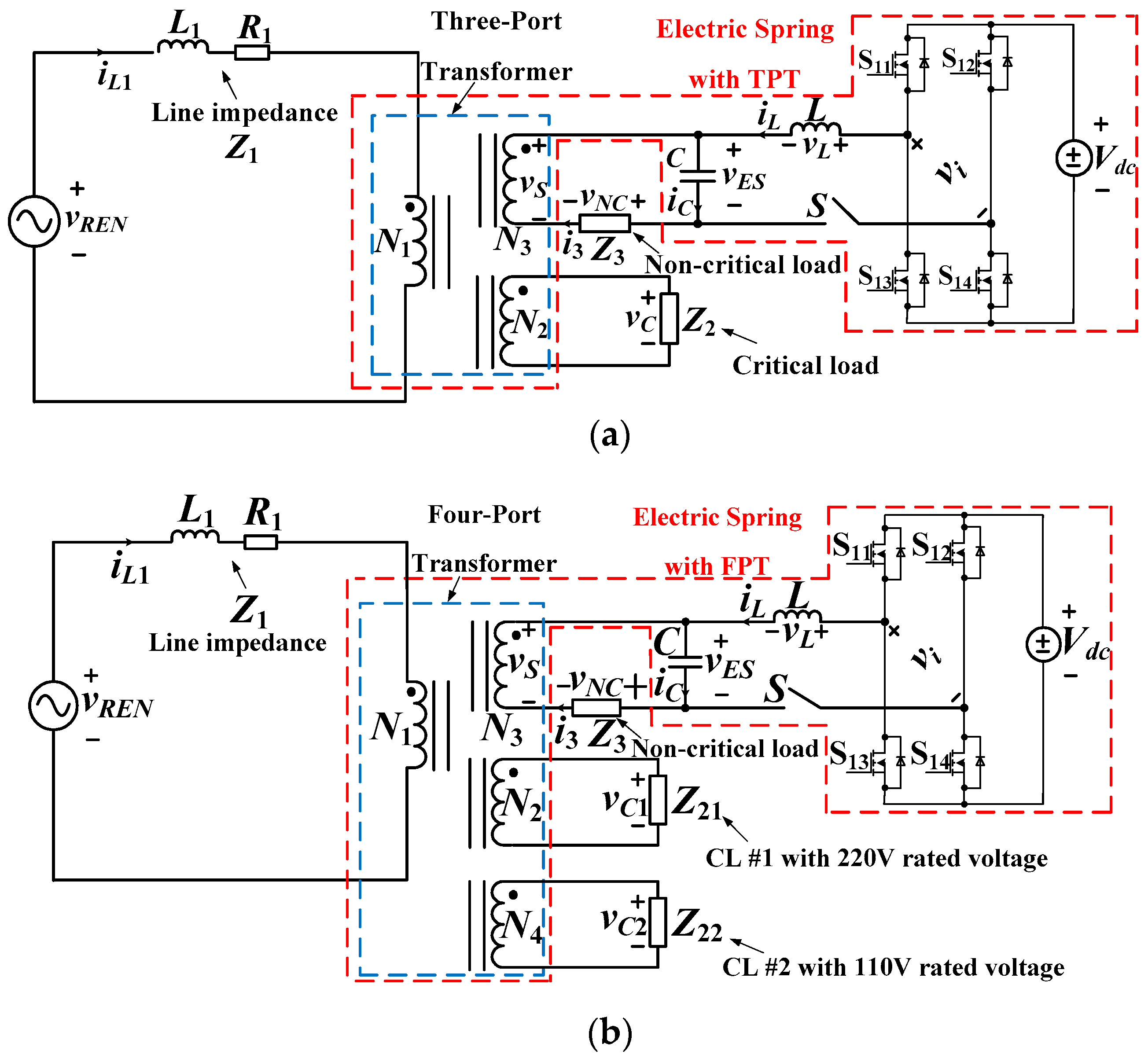

The new concept of integrating electric springs (ESs) and multi-port transformers (MTPs) as an active solution for energy management in alternating current (AC) microgrids is proposed. With an ES located at the port where storage devices previously were, the so-called critical flux is regulated to a constant value within the core of the transformer. The voltage on each winding is then clamped so that critical load (CL) voltage is regulated to a predefined value. The integration of ESs and MPTs can ensure a safer environment for ES utilization. Thus, the power generated by renewable energy sources can be safely used at residential locations with no need to worry about voltage fluctuations across CLs. Moreover, users can sell electricity to the power companies considered as CLs when the electricity generation of the AC microgrids or the home-installed renewable energy resources exceeds the personal consumption. In the paper, isolated topologies for ESs with three- and four-port transformers are examined, and a theoretical analysis of the ES operation is carried out. Then, equivalent circuits of the isolated ES topologies have been derived. Analysis of the ES operation and effectiveness of the isolated ES topologies are validated by both simulations and experiments. View Full-Text
Keywords: electric spring; multi-port transformer; alternating current (AC) microgrid; distributed generation; renewable energy source electric spring; multi-port transformer; alternating current (AC) microgrid; distributed generation; renewable energy source
Figures

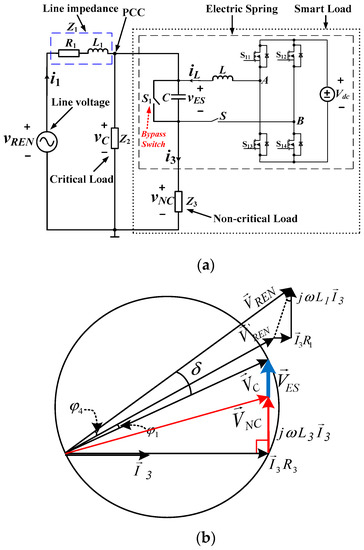

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).
