Energies 2017, 10(12), 2142; doi:10.3390/en10122142

Electrical-Loss Analysis of Power-Split Hybrid Electric Vehicles

1
Department of Electrical, Electronic, Tlc Engineering and Naval Architecture (DITEN), University of Genoa, via all’Opera Pia 11a, 16145 Genova, Italy
2
Department of Mechanical, Energy, Management and Transportation Engineering (DIME), University of Genova, via all’Opera Pia 15, 16145 Genova, Italy
*
Author to whom correspondence should be addressed.
Received: 28 September 2017 / Revised: 15 November 2017 / Accepted: 12 December 2017 / Published: 15 December 2017
View Full-Text   |   Download PDF [5523 KB, uploaded 19 December 2017]   |

Abstract

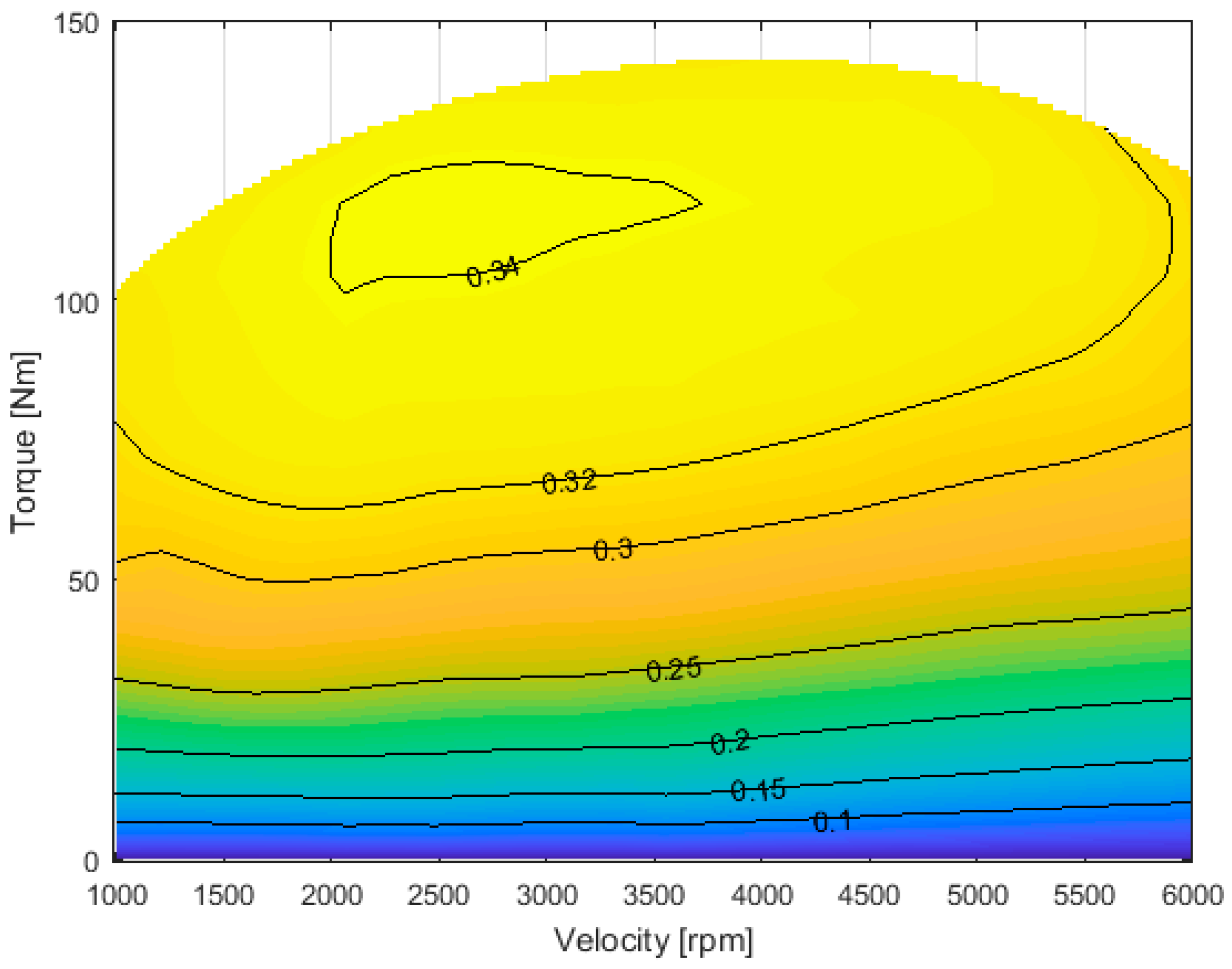

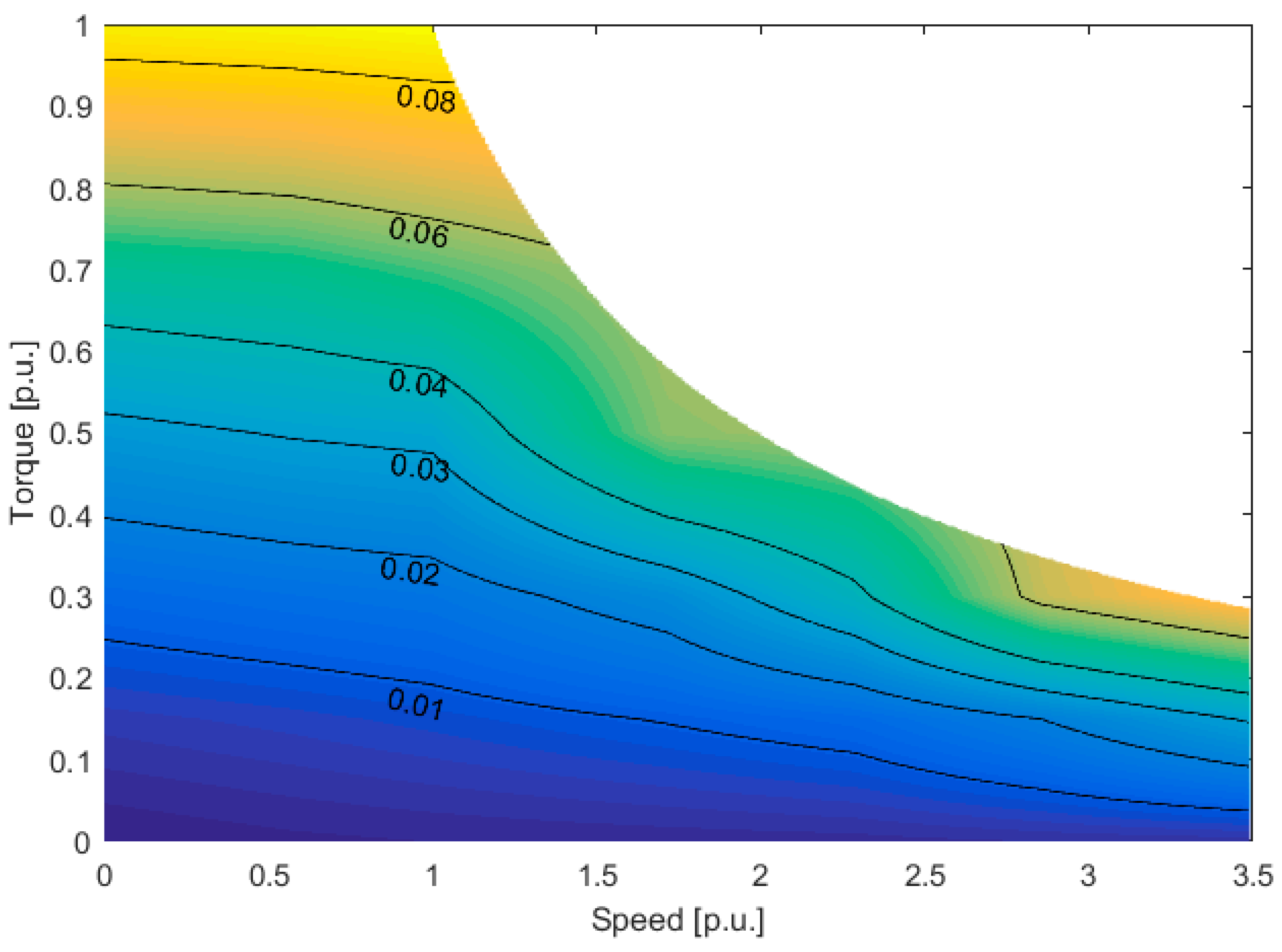

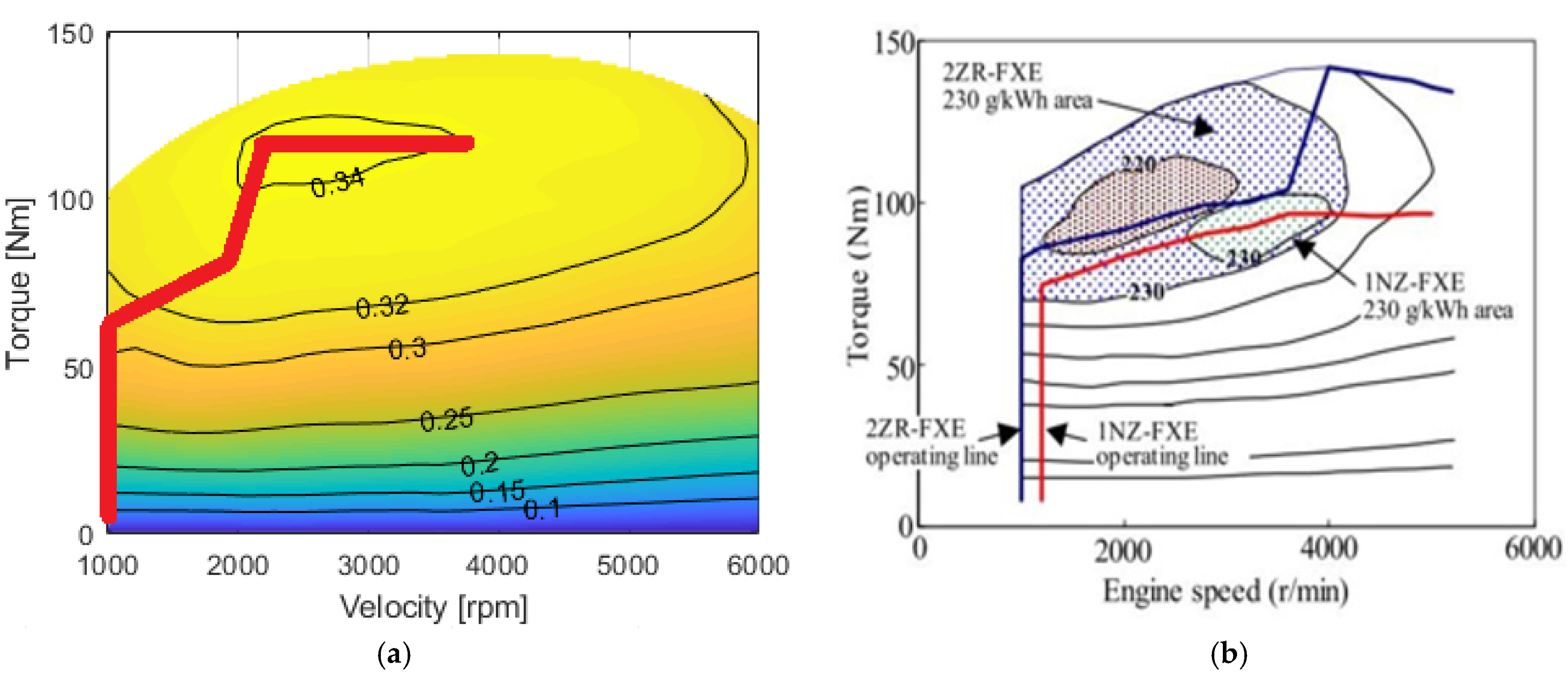

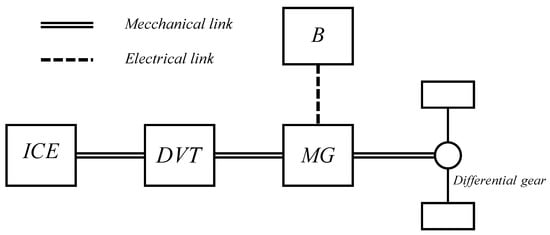

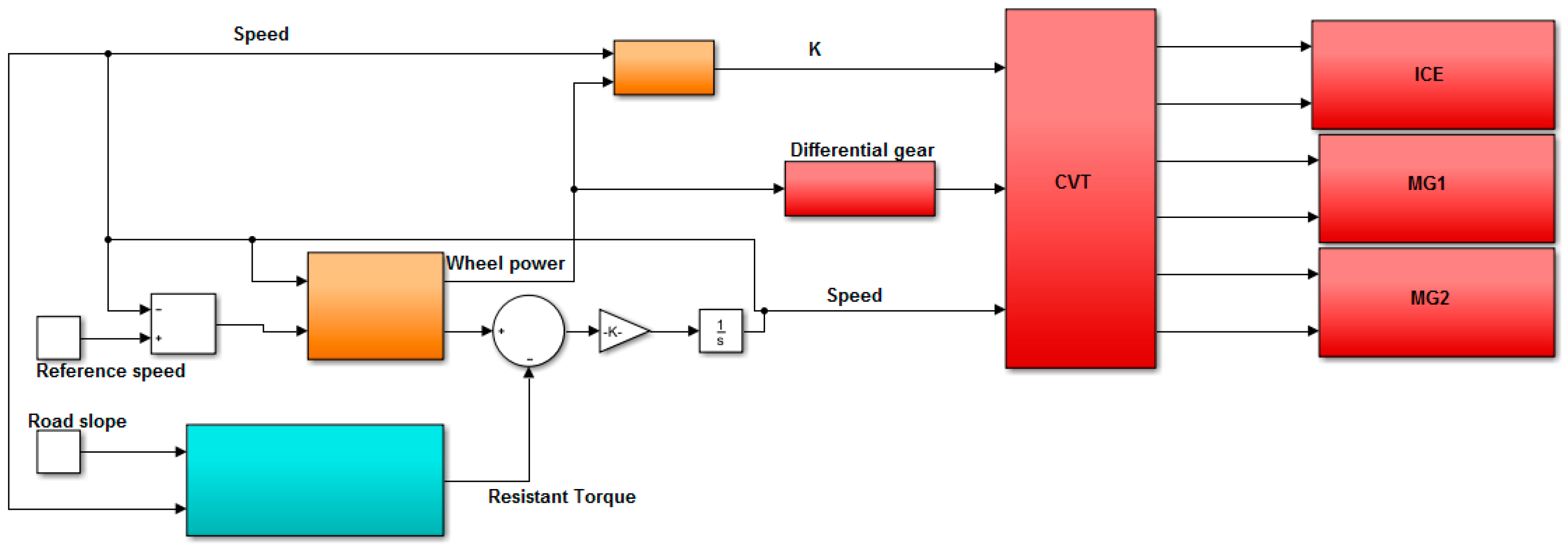

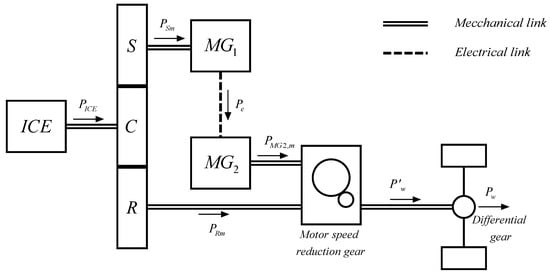

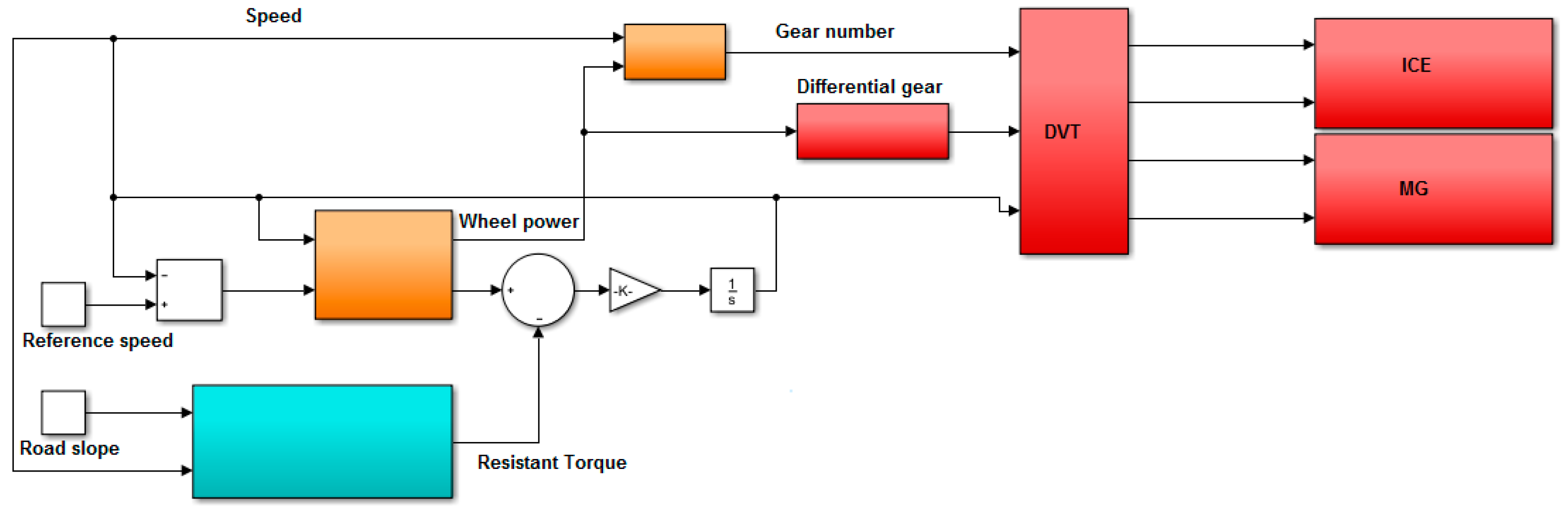

The growing development of hybrid electric vehicles (HEVs) has seen the spread of architectures with transmission based on planetary gear train, realized thanks to two electric machines. This architecture, by continuously regulating the transmission ratio, allows the internal combustion engine (ICE) to work in optimal conditions. On the one hand, the average ICE efficiency is increased thanks to better loading situations, while, on the other hand, electrical losses are introduced due to the power circulation between the two electrical machines mentioned above. The aim of this study is then to accurately evaluate electrical losses and the average ICE efficiency in various operating conditions and over different road missions. The models used in this study are presented for both the Continuously Variable Transmission (CVT) architecture and the Discontinuously Variable Transmission (DVT) architecture. In addition, efficiency maps of the main components are shown. Finally, the simulation results are presented to point out strengths and weaknesses of the CVT architecture. View Full-Text
Keywords: hybrid electric vehicle; power-split device; electric machine; energy efficiency; continuously variable transmission; hybrid synergy drive hybrid electric vehicle; power-split device; electric machine; energy efficiency; continuously variable transmission; hybrid synergy drive
Figures

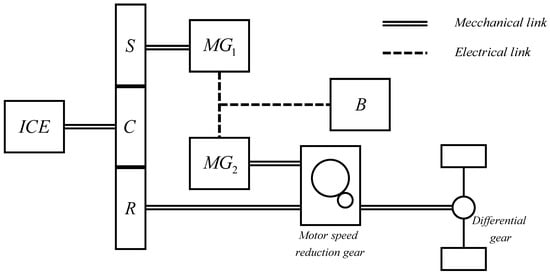

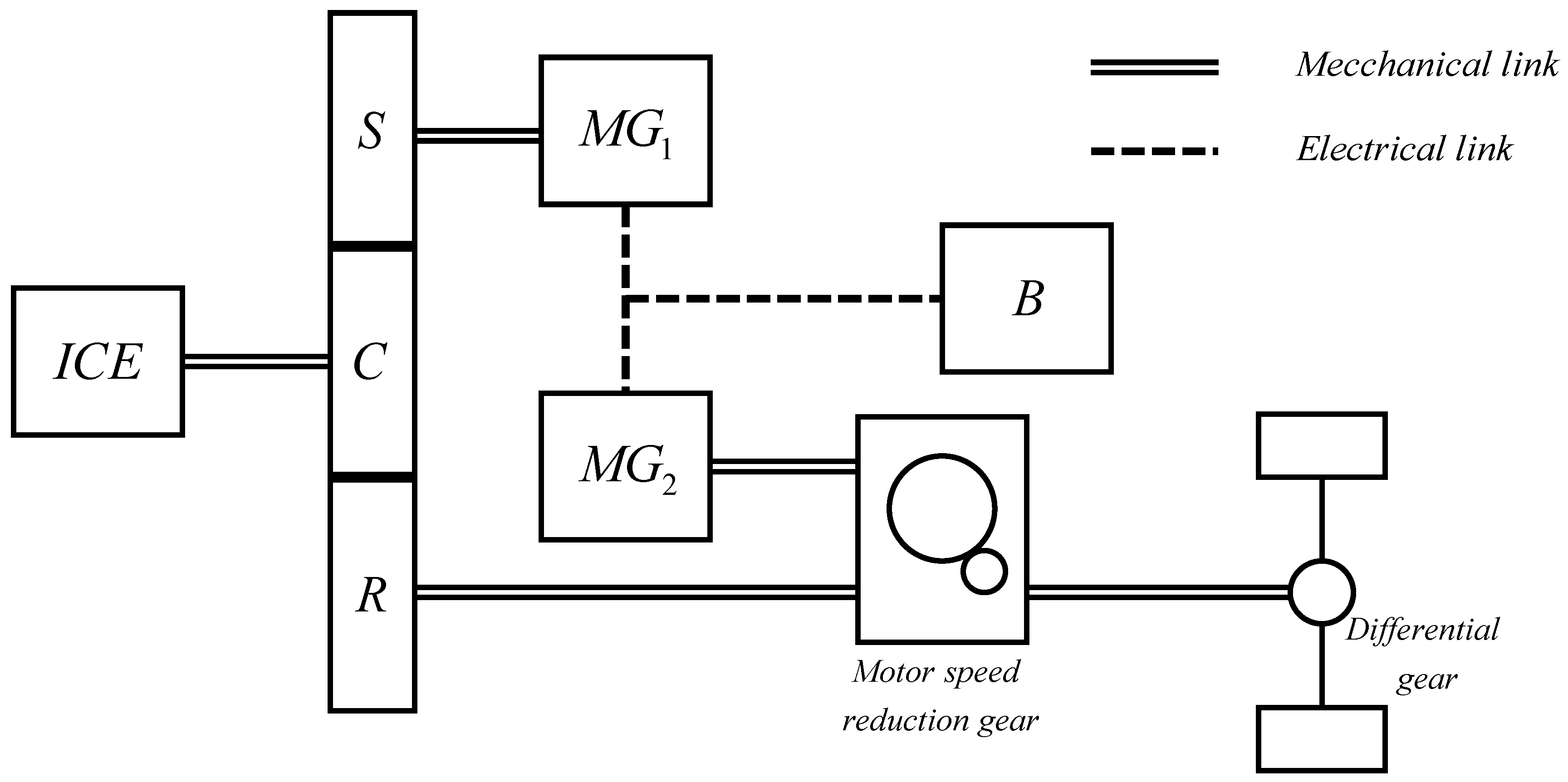

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).

Share & Cite This Article

MDPI and ACS Style

Bonfiglio, A.; Lanzarotto, D.; Marchesoni, M.; Passalacqua, M.; Procopio, R.; Repetto, M. Electrical-Loss Analysis of Power-Split Hybrid Electric Vehicles. Energies 2017, 10, 2142.
