Energies 2017, 10(12), 2024; doi:10.3390/en10122024

Hybrid Electromagnetic and Triboelectric Nanogenerators with Multi-Impact for Wideband Frequency Energy Harvesting

1
Beijing Institute of Nanoenergy & Nanosystems, Chinese Academy of Sciences, National Center for Nanoscience and Technology (NCNST), Beijing 100083, China
2
Department of Mechanical Engineering, Korea Advanced Institute of Science and Technology (KAIST), 291 Daehak-ro, Yuseong-gu, Daejeon 34141, Korea
3
Academy of Photoelectric Technology, Hefei University of Technology, Hefei 230009, China
4
Department of Mechanical and Aerospace Engineering, University of Missouri, Columbia, MO 65211, USA
*
Author to whom correspondence should be addressed.
Received: 3 November 2017 / Revised: 22 November 2017 / Accepted: 28 November 2017 / Published: 1 December 2017
(This article belongs to the Section Energy Sources)
View Full-Text   |   Download PDF [10881 KB, uploaded 1 December 2017]   |

Abstract

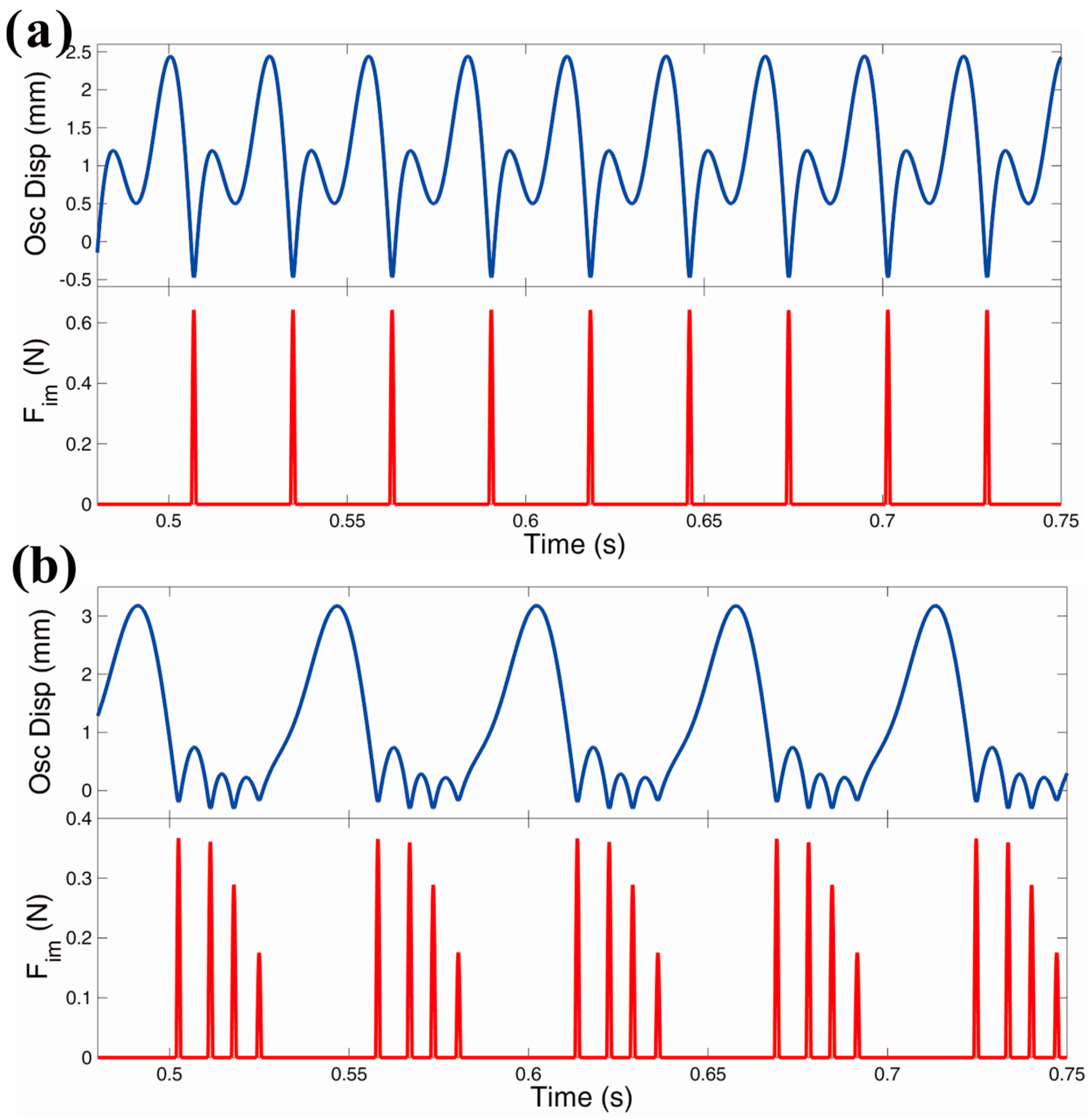

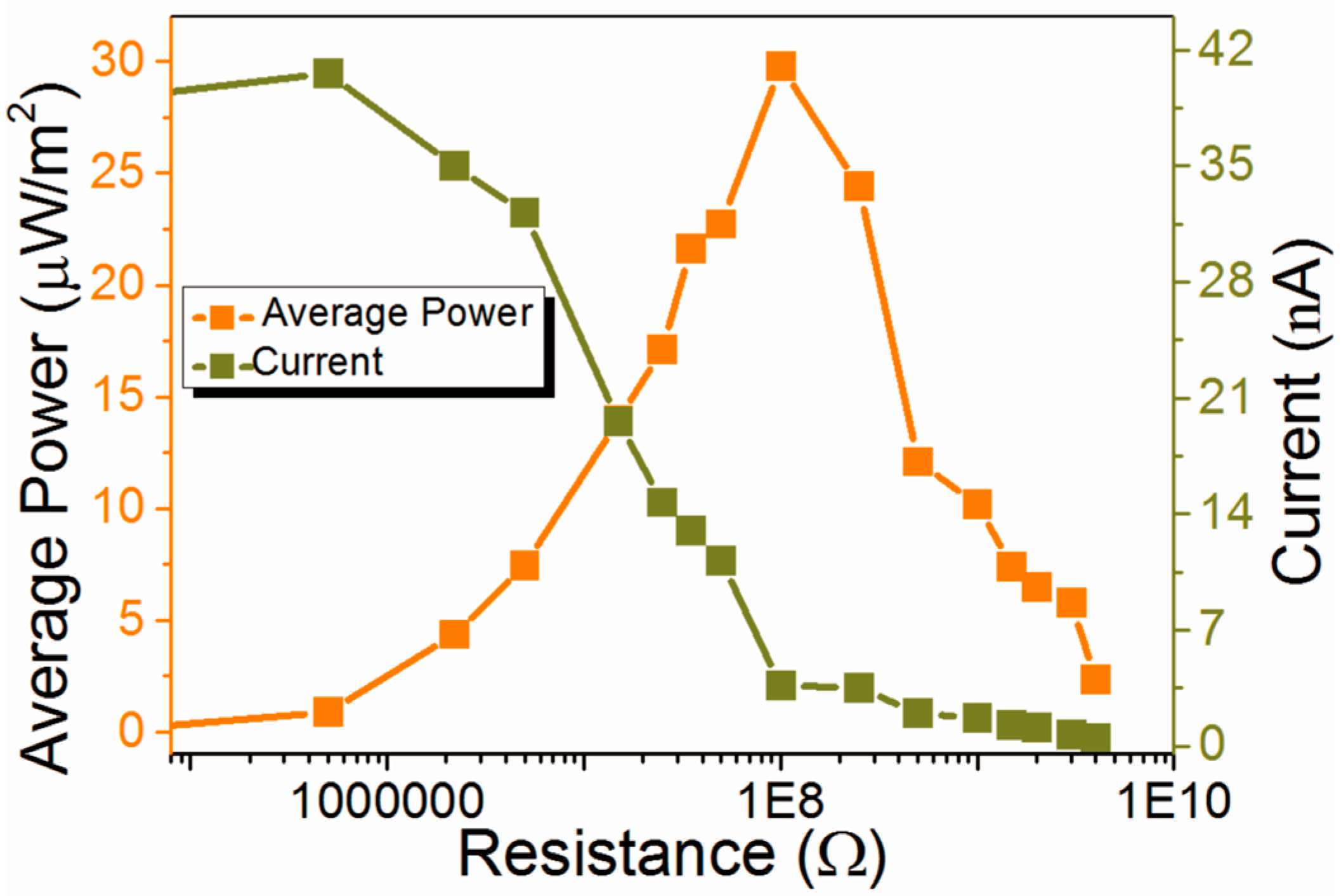

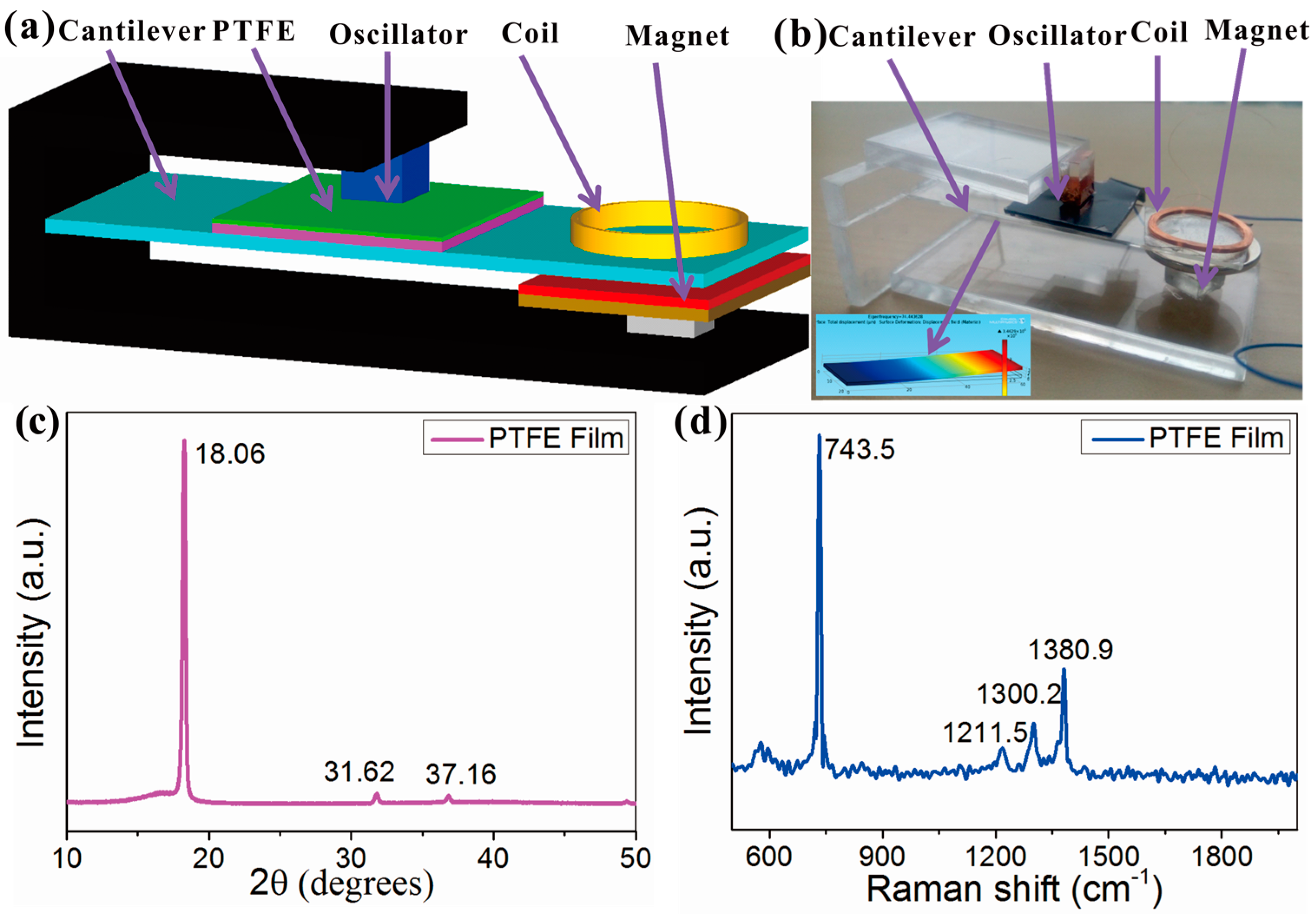

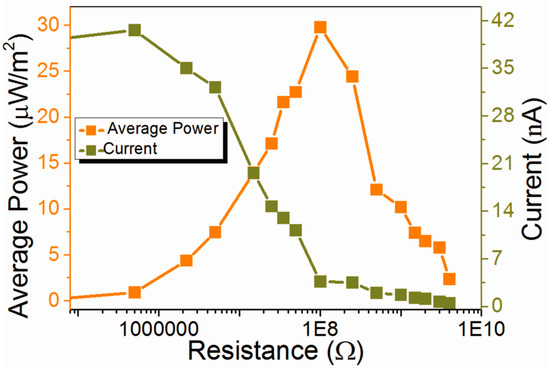

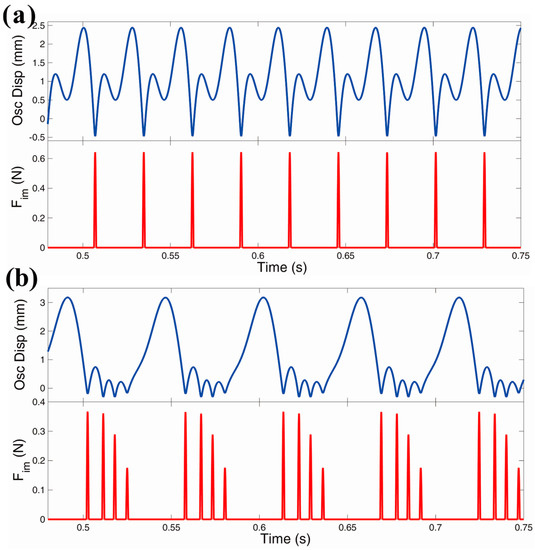

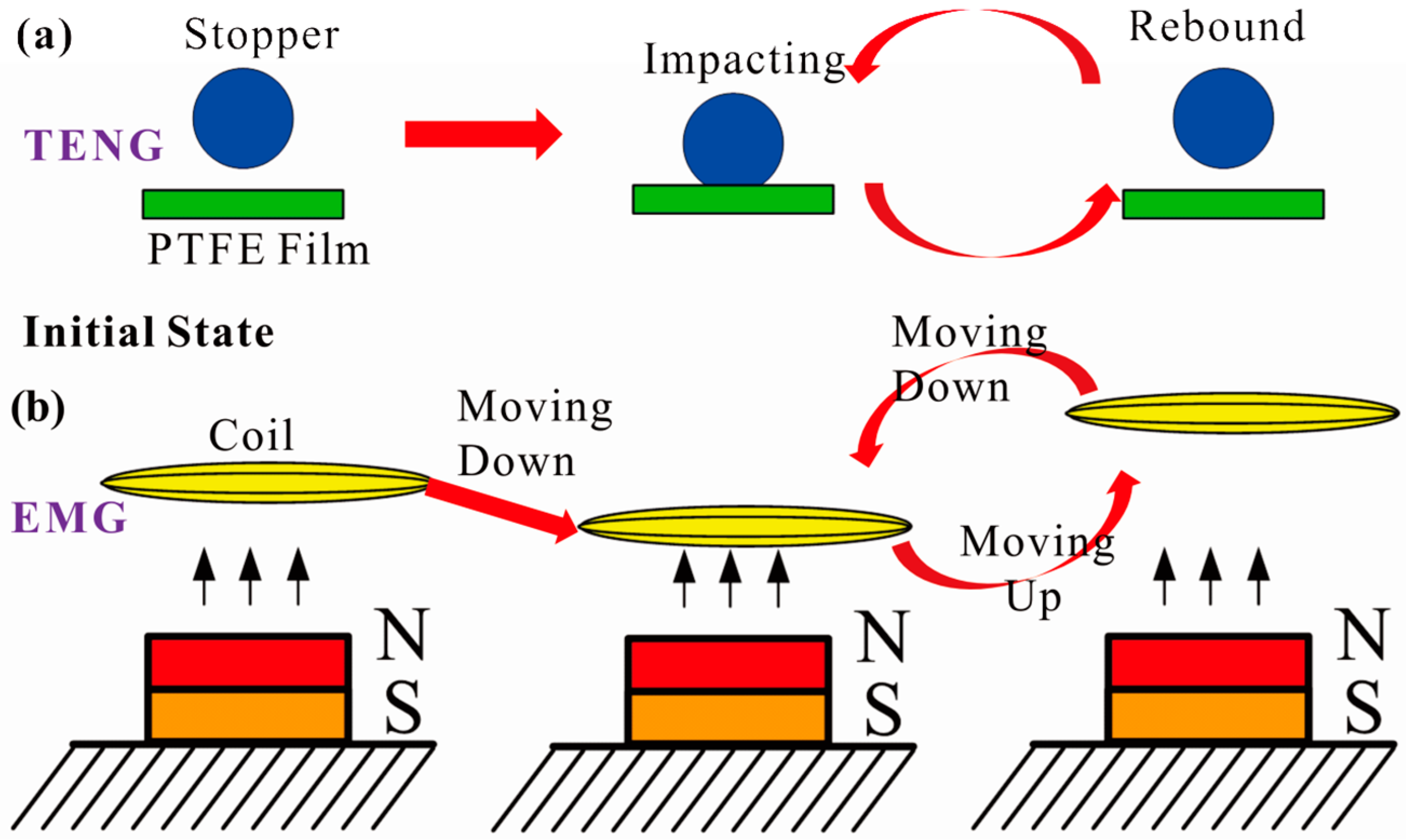

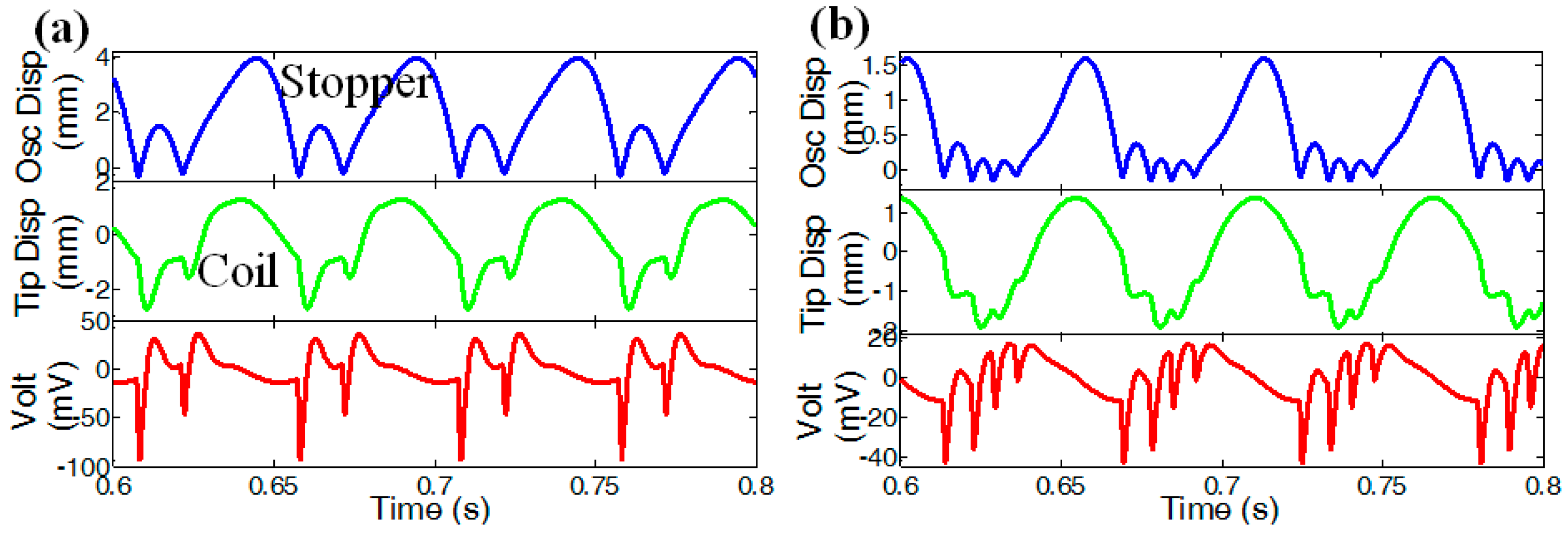

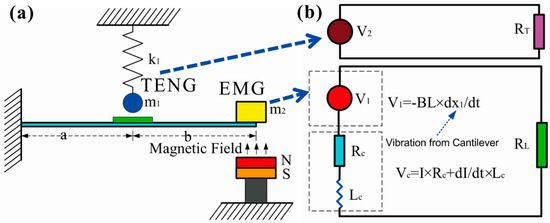

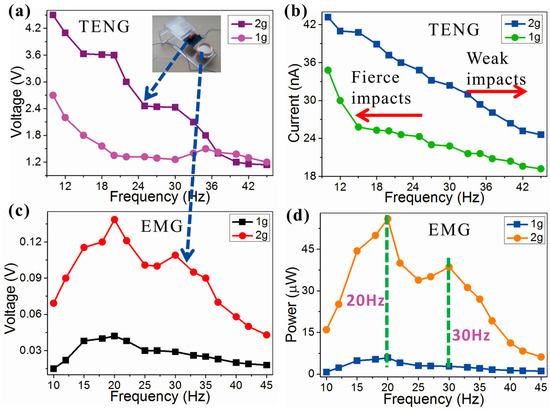

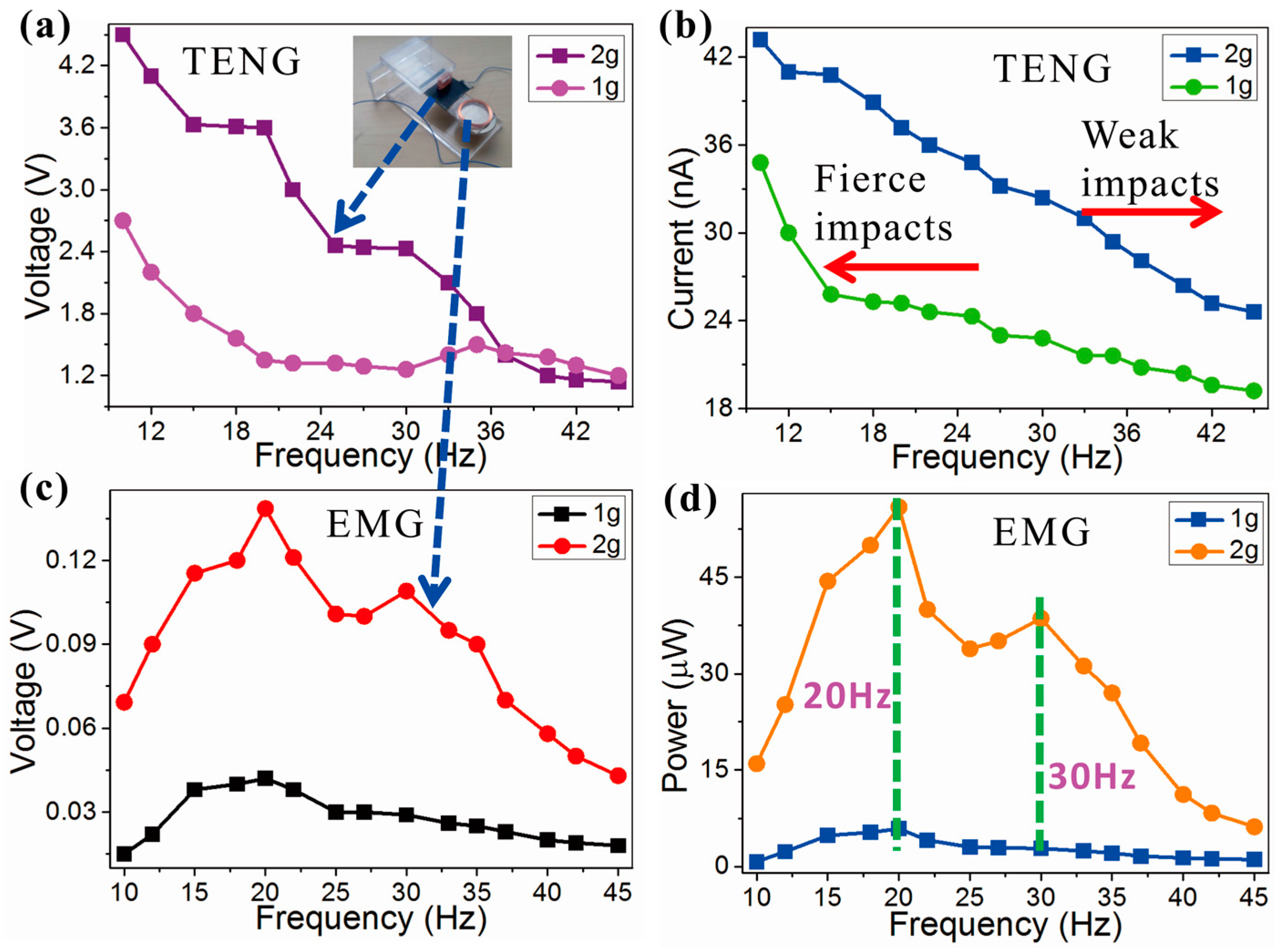

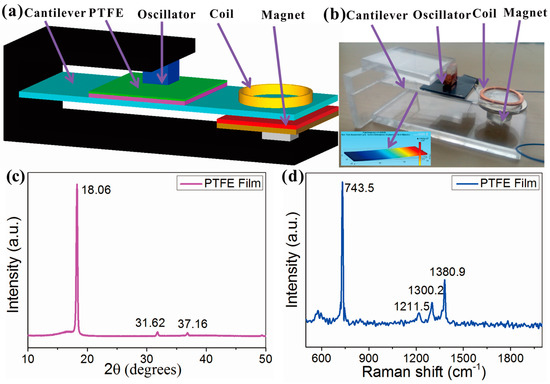

We present a hybrid electromagnetic generator (EMG) and triboelectric nanogenerator (TENG) using a multi-impact approach for broad-bandwidth-frequency (10–45 Hz) energy harvesting. The TENG and the EMG were located at the middle and the free end of the cantilever beam, respectively. When the system was subjected to an external vibration, the cantilever beam would be in a nonlinear response with multiple impacts from a low frequency oscillator. The mathematical model included a TENG oscillator which can have multiple impacts on the cantilever, and the nonlinear Lorenz force which comes from the motion of the coil in the electromagnetic field. Due to the strong nonlinearity of the impacts from the TENG oscillator and the limited space for the free tip of the cantilever, the dynamic response of the cantilever presented a much broader bandwidth, with a frequency range from 10–45 Hz. We also found that the average generated power from TENG and EMG can reach up to 30 μW/m2 and 53 μW, respectively. Moreover, the dynamic responses of the hybrid EMG and TENG were carefully analyzed, and we found that the measured experimental results and the numerical simulations results were in good agreement. View Full-Text
Keywords: electromagnetic and triboelectric harvester; multi-impact; PTFE film; frequency up-conversion; nonlinear dynamic response electromagnetic and triboelectric harvester; multi-impact; PTFE film; frequency up-conversion; nonlinear dynamic response
