Energies 2017, 10(11), 1812; https://doi.org/10.3390/en10111812

Performance Analysis of an Updraft Tower System for Dry Cooling in Large-Scale Power Plants

Ray W. Herrick Laboratories, School of Mechanical Engineering , Purdue University, West Lafayette, IN 47906, USA
*
Author to whom correspondence should be addressed.
Academic Editor: George Tsatsaronis
Received: 13 October 2017 / Revised: 2 November 2017 / Accepted: 7 November 2017 / Published: 9 November 2017
(This article belongs to the Section Electrical Power and Energy System)
View Full-Text   |   Download PDF [5100 KB, uploaded 10 November 2017]   |

Abstract

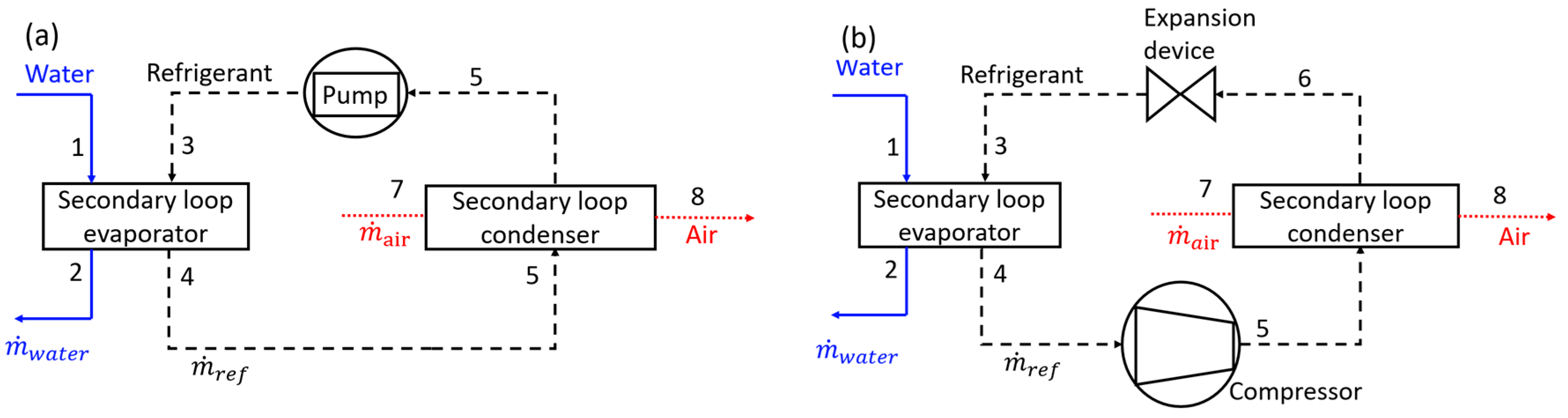

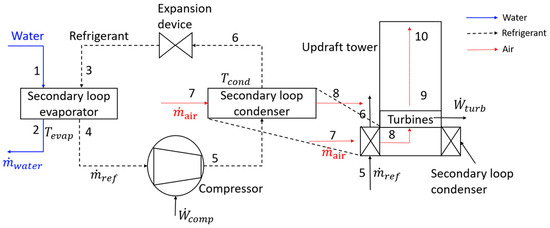

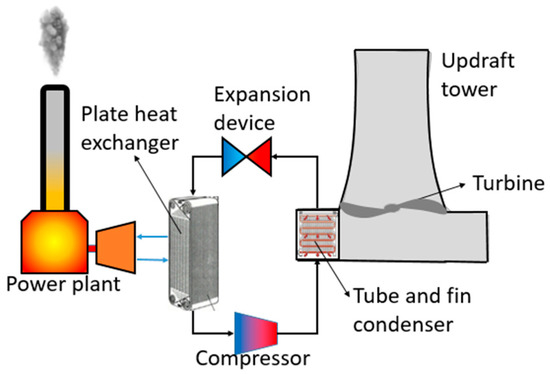

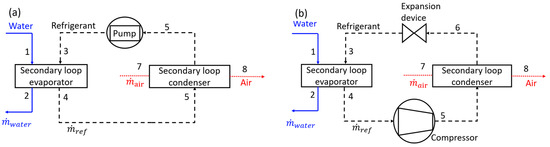

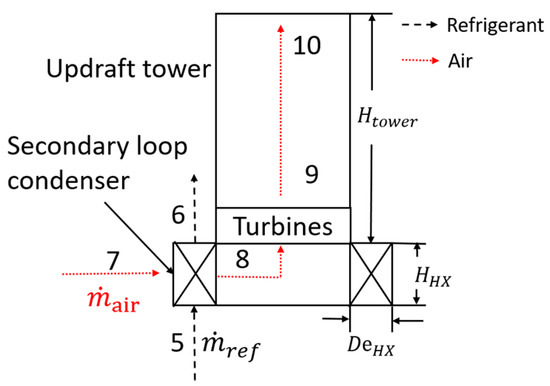

An updraft tower cooling system is assessed for elimination of water use associated with power plant heat rejection. Heat rejected from the power plant condenser is used to warm the air at the base of an updraft tower; buoyancy-driven air flows through a recuperative turbine inside the tower. The secondary loop, which couples the power plant condenser to a heat exchanger at the tower base, can be configured either as a constant-pressure pump cycle or a vapor compression cycle. The novel use of a compressor can elevate the air temperature in the tower base to increases the turbine power recovery and decrease the power plant condensing temperature. The system feasibility is evaluated by comparing the net power needed to operate the system versus alternative dry cooling schemes. A thermodynamic model coupling all system components is developed for parametric studies and system performance evaluation. The model predicts that constant-pressure pump cycle consumes less power than using a compressor; the extra compression power required for temperature lift is much larger than the gain in turbine power output. The updraft tower system with a pumped secondary loop can allow dry cooling with less power plant efficiency penalty compared to air-cooled condensers. View Full-Text
Keywords: power plant dry cooling; updraft tower; air-cooled condenser; vapor compression; thermodynamic feasibility analysis power plant dry cooling; updraft tower; air-cooled condenser; vapor compression; thermodynamic feasibility analysis
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).
SciFeed

Share & Cite This Article

MDPI and ACS Style

Liu, H.; Weibel, J.; Groll, E. Performance Analysis of an Updraft Tower System for Dry Cooling in Large-Scale Power Plants. Energies 2017, 10, 1812.
