Open AccessArticle
Energies 2017, 10(11), 1807; https://doi.org/10.3390/en10111807

Dynamic Thermal Features of Insulated Blocks: Actual Behavior and Myths

1
Dipartimento di Ingegneria Meccanica e Industriale, Università degli Studi Roma Tre, Via della Vasca Navale 79, 00146 Rome, Italy
2
Dipartimento di Ingegneria Astronautica, Elettrica ed Energetica, Sapienza Università di Roma, Via Eudossiana 18, 00184 Rome, Italy
*
Author to whom correspondence should be addressed.
Received: 19 October 2017 / Revised: 6 November 2017 / Accepted: 7 November 2017 / Published: 9 November 2017
View Full-Text   |   Download PDF [3193 KB, uploaded 9 November 2017]   |

Abstract

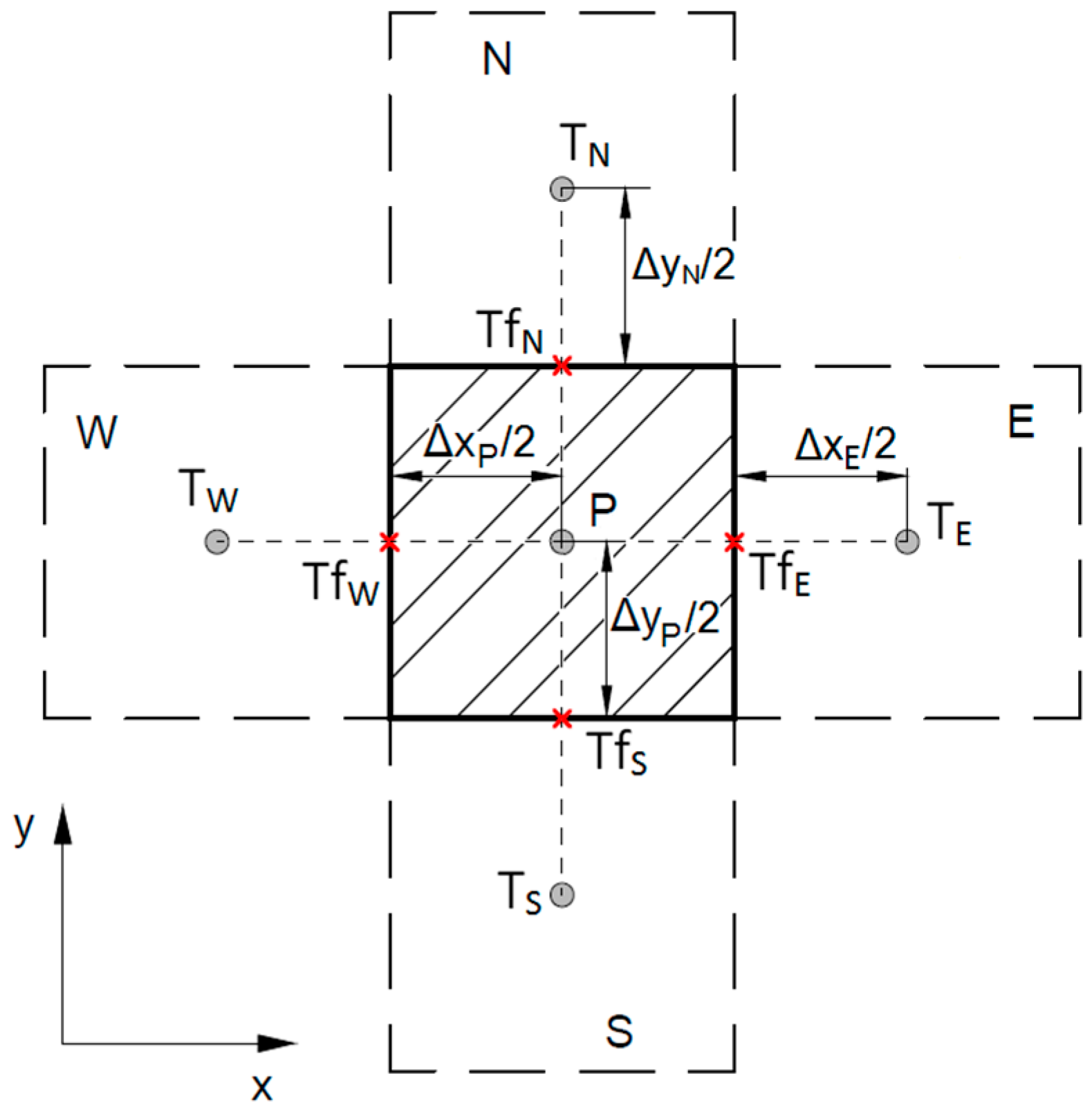

The latest updates in the European directive on energy performance of buildings have introduced the fundamental “nearly zero-energy building (NZEB)” concept. Thus, a special focus needs to be addressed to the thermal performance of building envelopes, especially concerning the role played by thermal inertia in the energy requirements for cooling applications. In fact, a high thermal inertia of the outer walls results in a mitigation of the daily heat wave, which reduces the cooling peak load and the related energy demand. The common assumption that high mass means high thermal inertia typically leads to the use of high-mass blocks. Numerical and experimental studies on thermal inertia of hollow envelope components have not confirmed this general assumption, even though no systematic analysis is readily available in the open literature. Yet, the usually employed methods for the calculation of unsteady heat transfer through walls are based on the hypothesis that such walls are composed of homogeneous layers. In this framework, a study of the dynamic thermal performance of insulated blocks is brought forth in the present paper. A finite-volume method is used to solve the two-dimensional equation of conduction heat transfer, using a triangular-pulse temperature excitation to analyze the heat flux response. The effects of both the type of clay and the insulating filler are investigated and discussed at length. The results obtained show that the wall front mass is not the basic independent variable, since clay and insulating filler thermal diffusivities are more important controlling parameters. View Full-Text
Keywords: building envelope; thermal inertia; hollow block; thermal pulse response building envelope; thermal inertia; hollow block; thermal pulse response
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).
SciFeed

Share & Cite This Article

MDPI and ACS Style

Cianfrini, M.; de Lieto Vollaro, R.; Habib, E. Dynamic Thermal Features of Insulated Blocks: Actual Behavior and Myths. Energies 2017, 10, 1807.
