Energies 2017, 10(10), 1448; doi:10.3390/en10101448

Stability Analysis and Trigger Control of LLC Resonant Converter for a Wide Operational Range

School of Electrical Engineering, Wuhan University, Wuhan 430072, China
State Key Laboratory of Advanced Electromagnetic Engineering and Technology, School of Electrical and Electronic Engineering, Huazhong University of Science and Technology, Wuhan 430074, China
School of Electrical and Electronic Engineering, Hubei Polytechnic University, Huangshi 435003, China
Author to whom correspondence should be addressed.
Academic Editor: Chunhua Liu
Received: 28 August 2017 / Revised: 11 September 2017 / Accepted: 12 September 2017 / Published: 21 September 2017
View Full-Text   |   Download PDF [5161 KB, uploaded 21 September 2017]   |

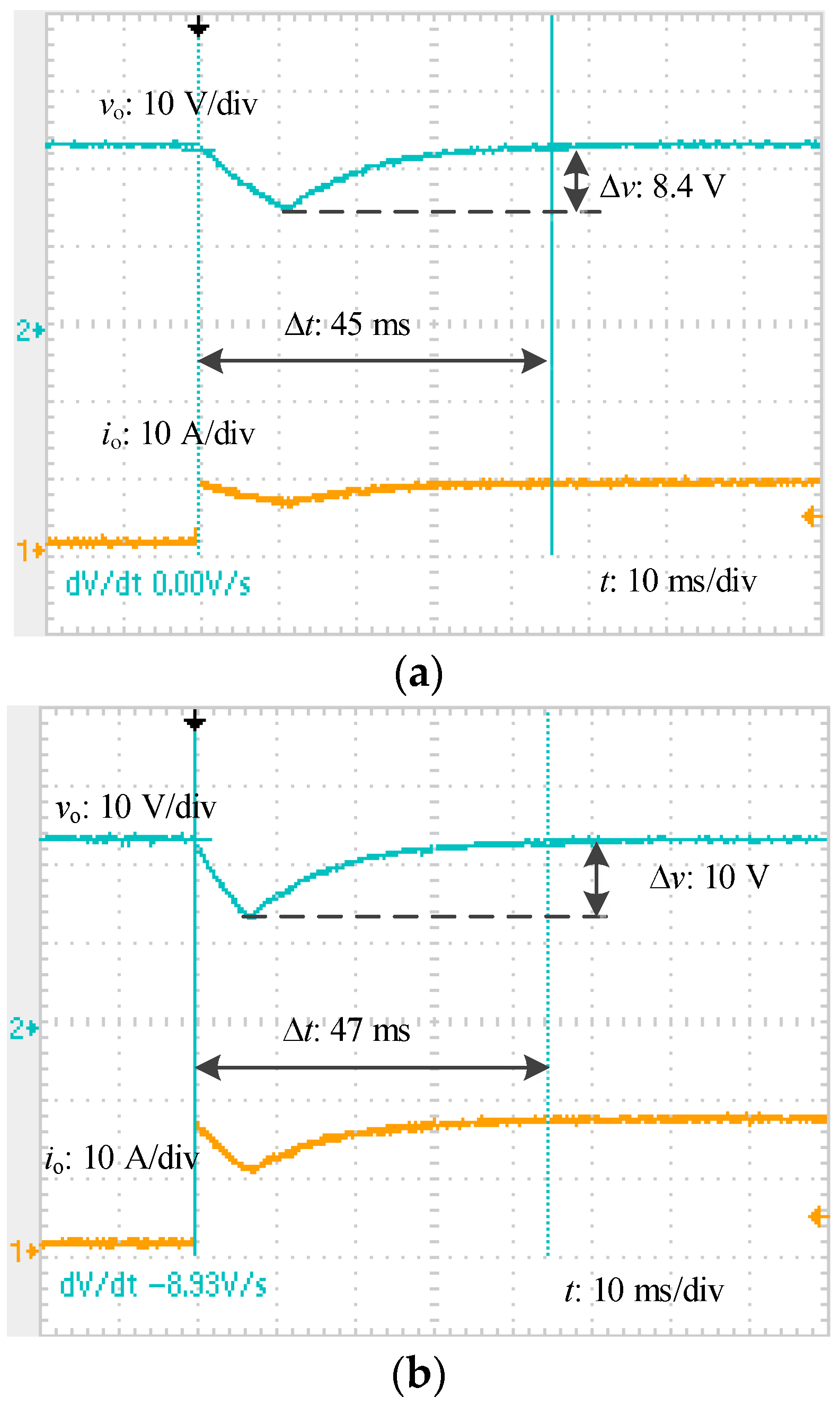

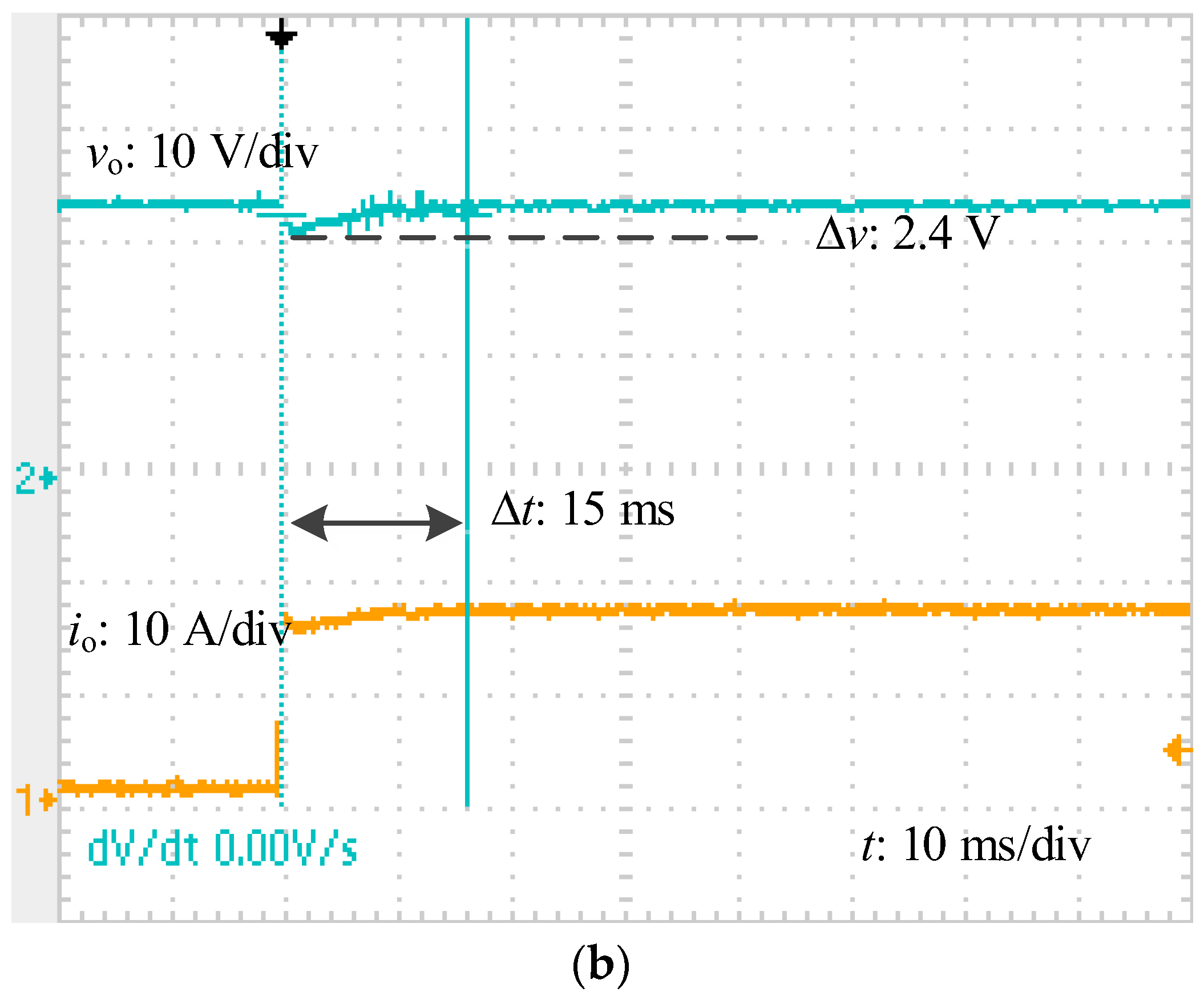

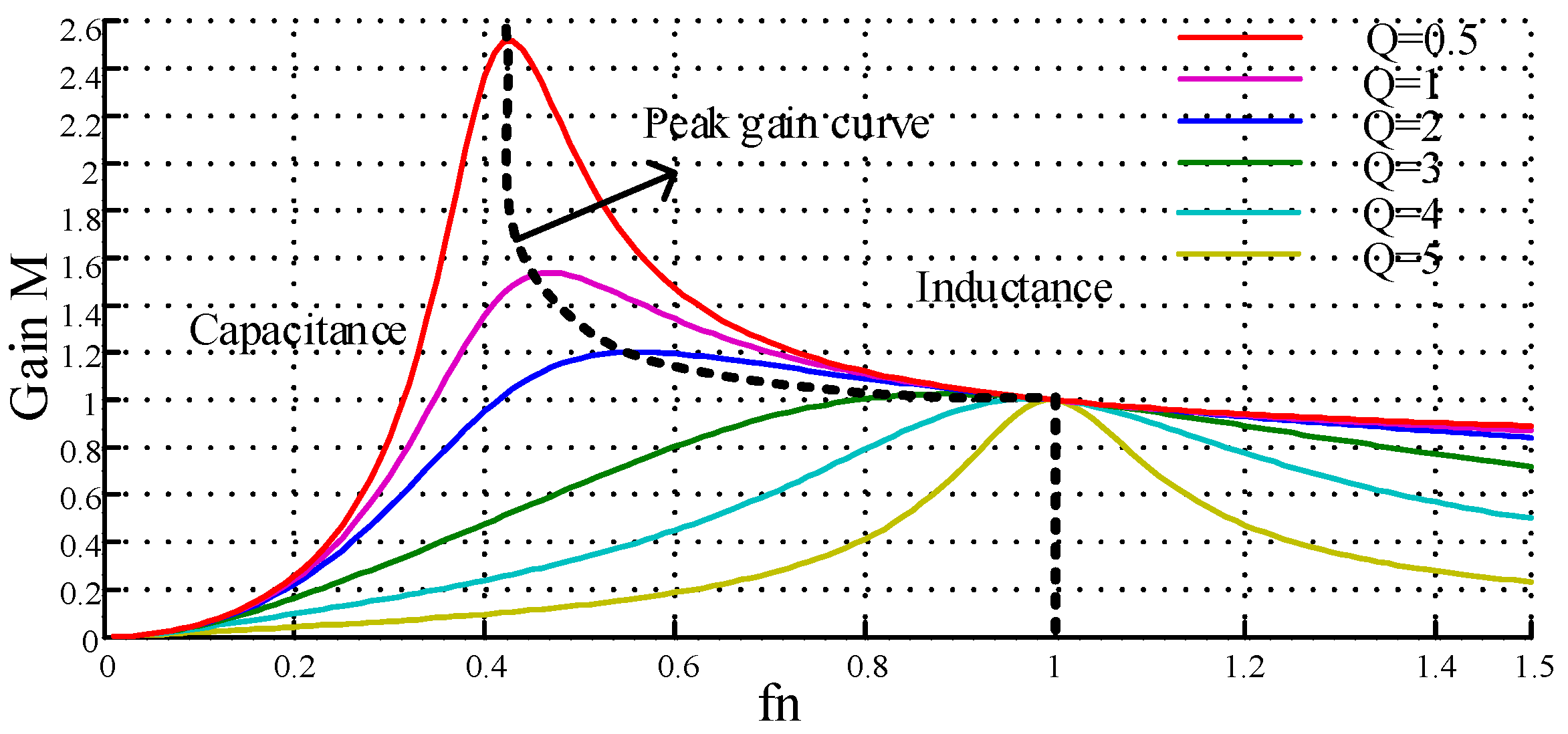

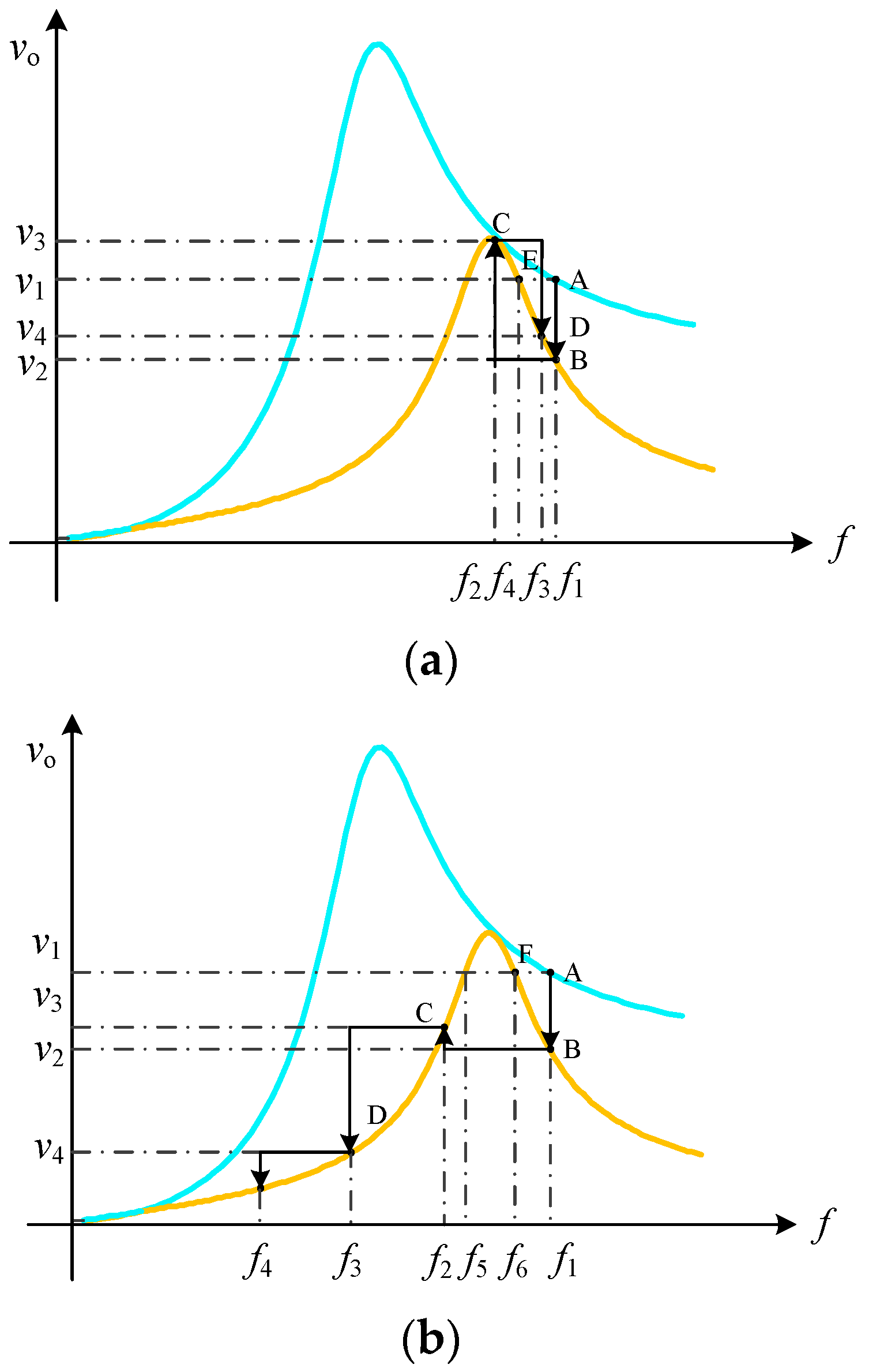

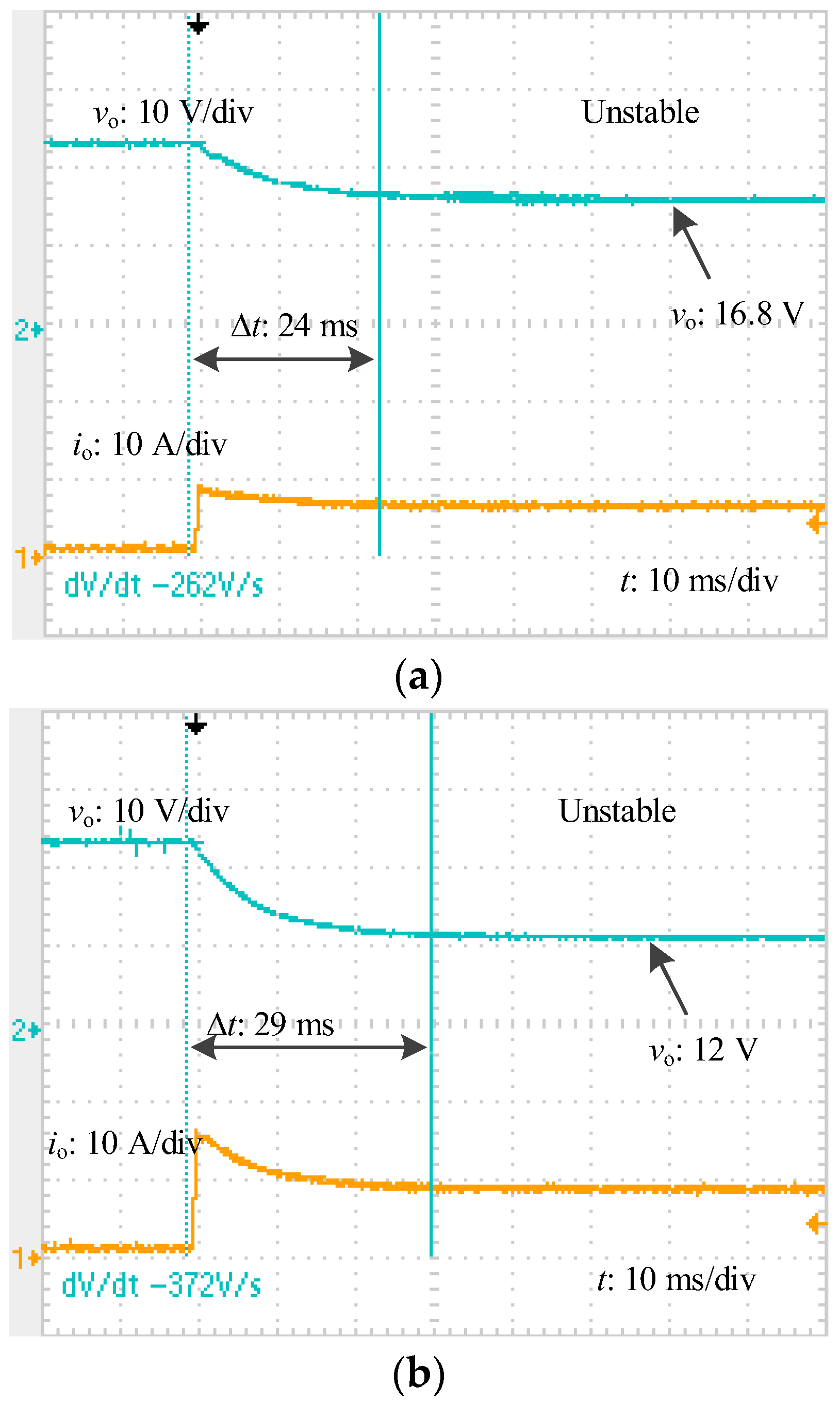

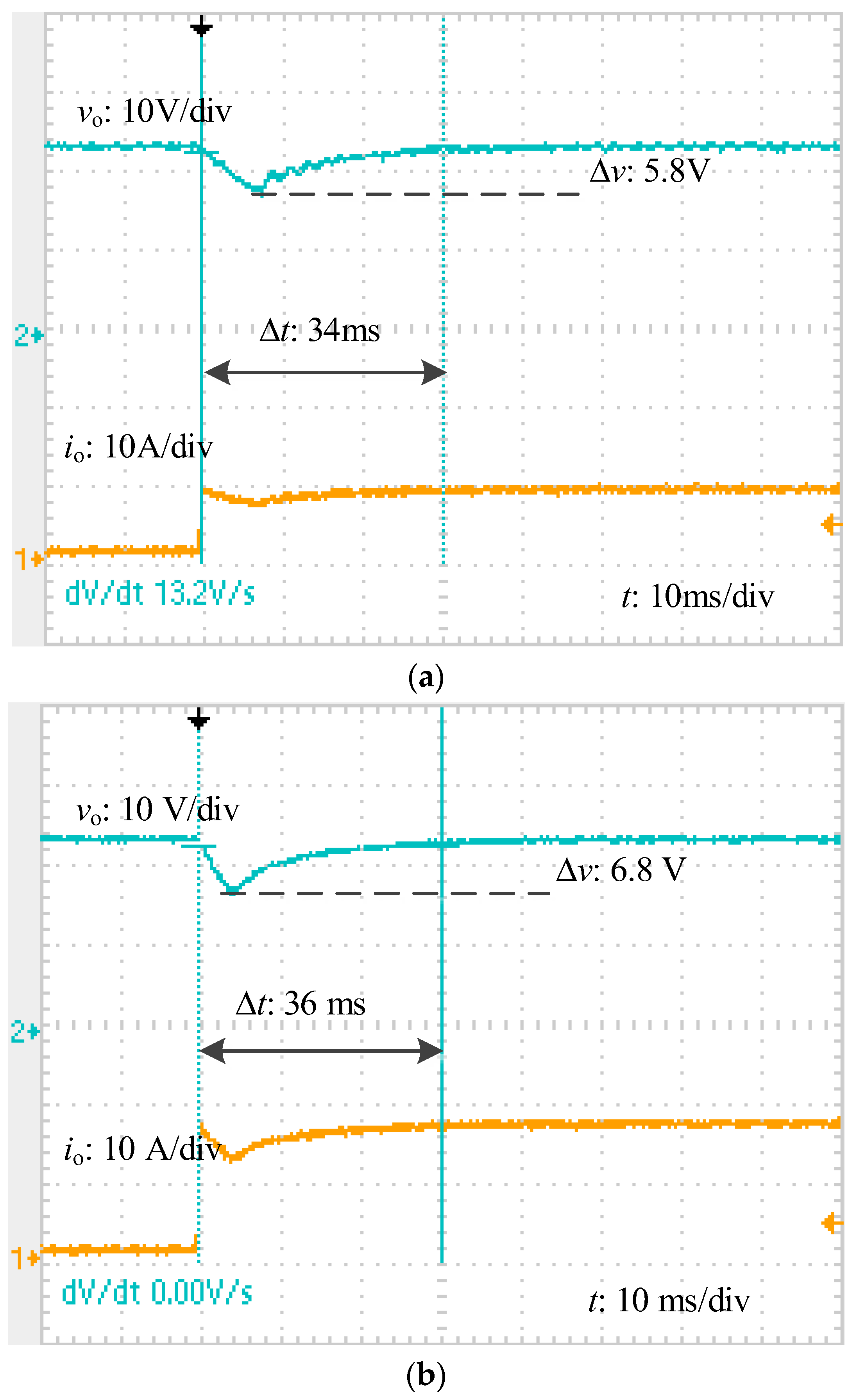

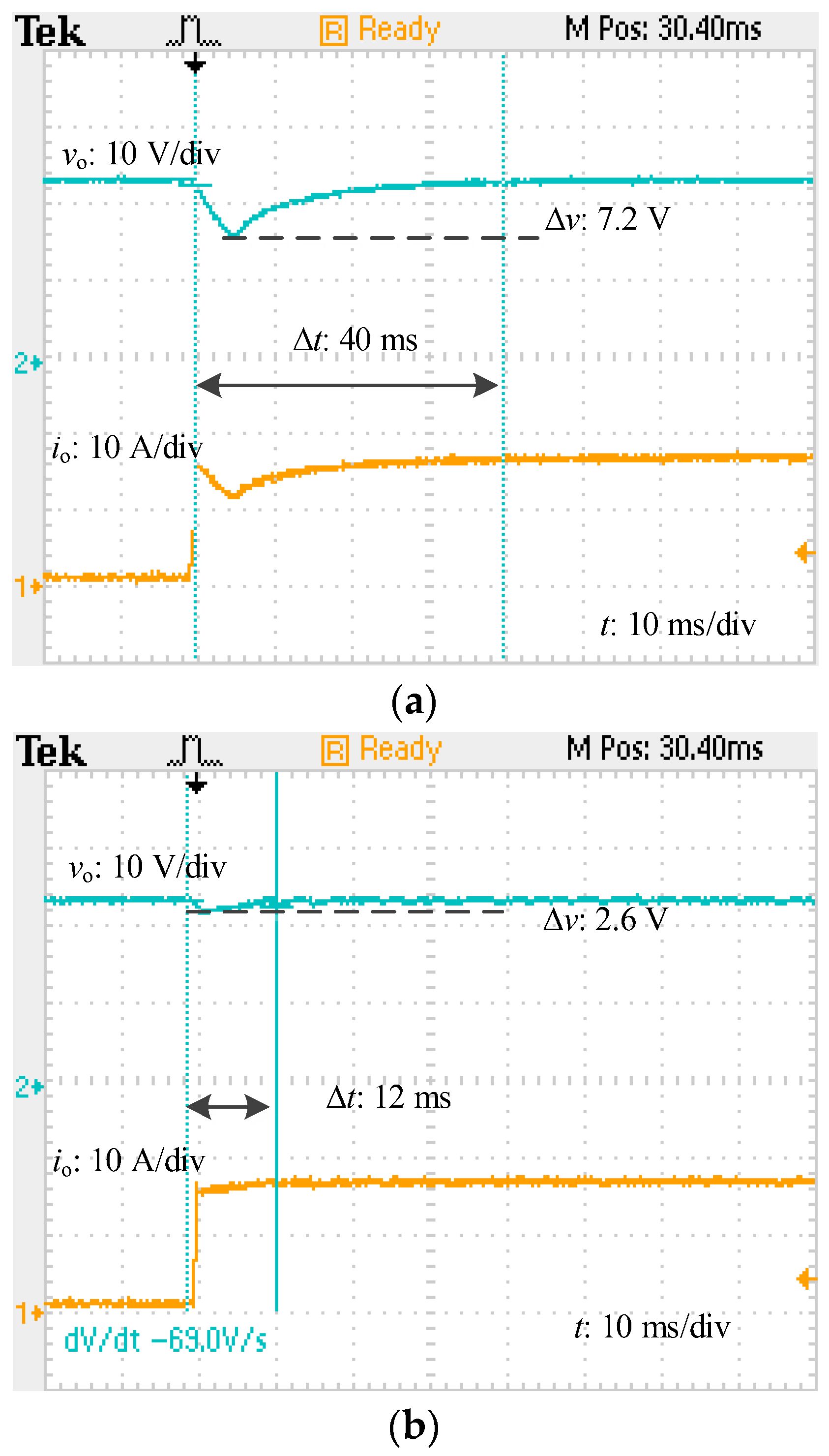

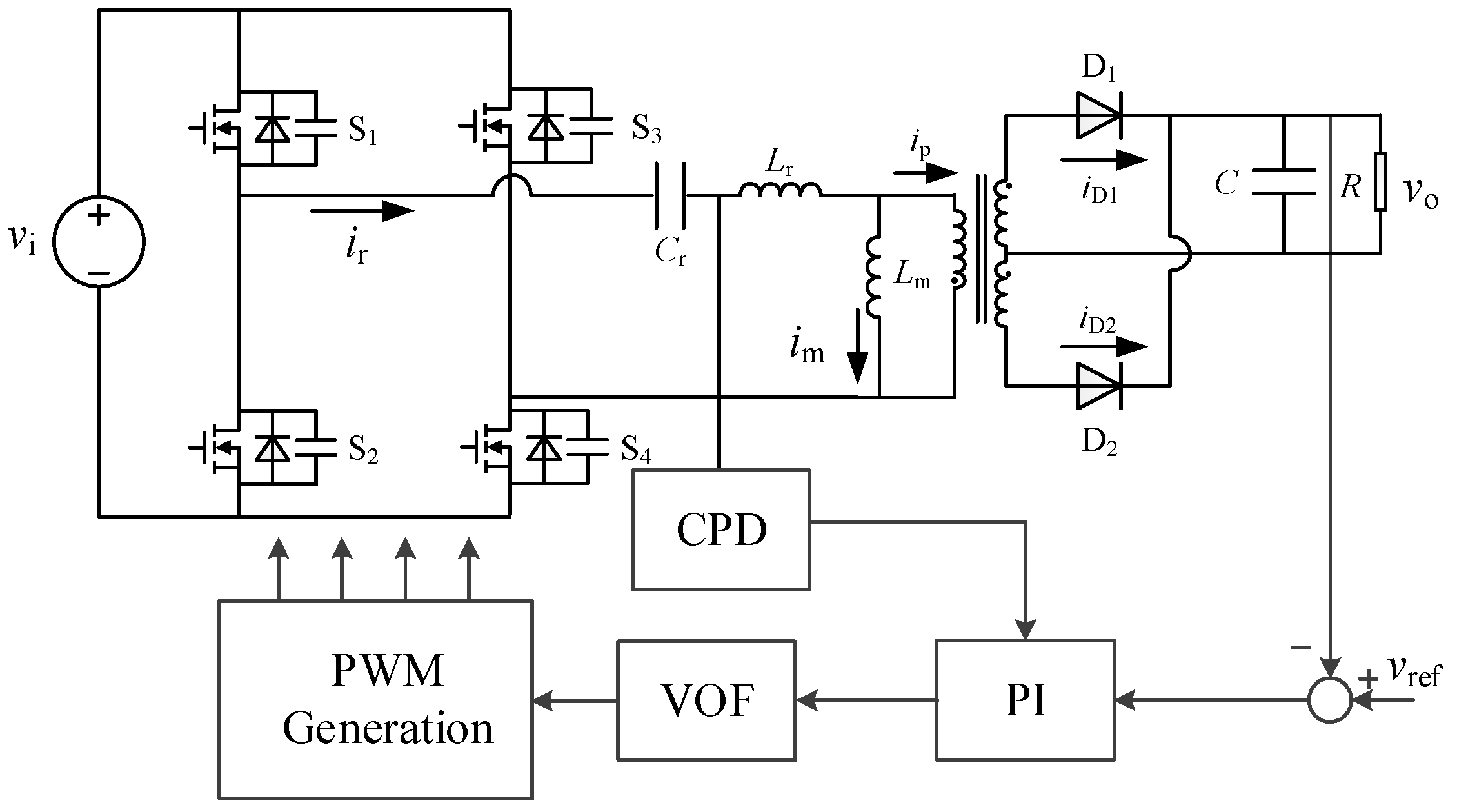

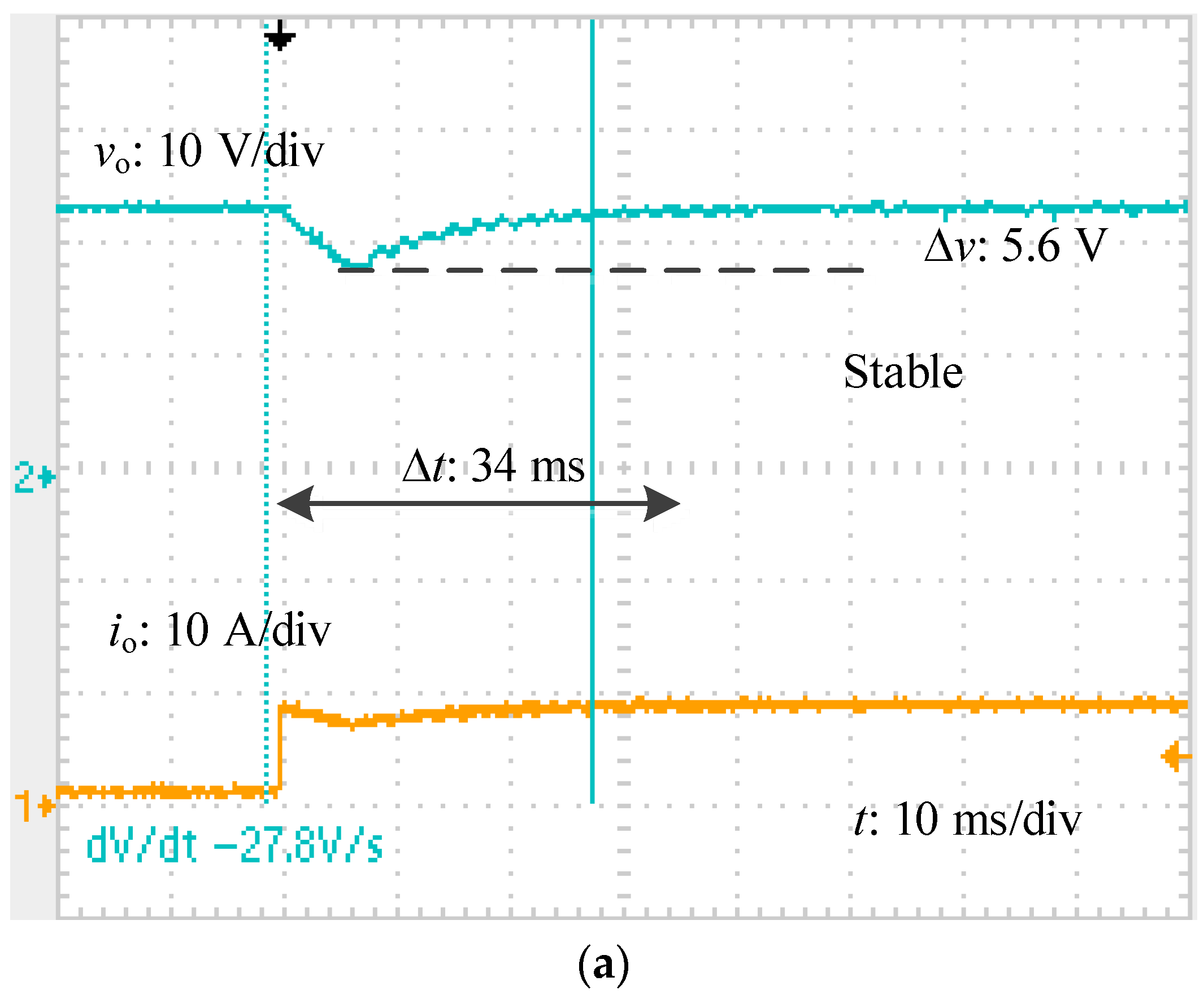

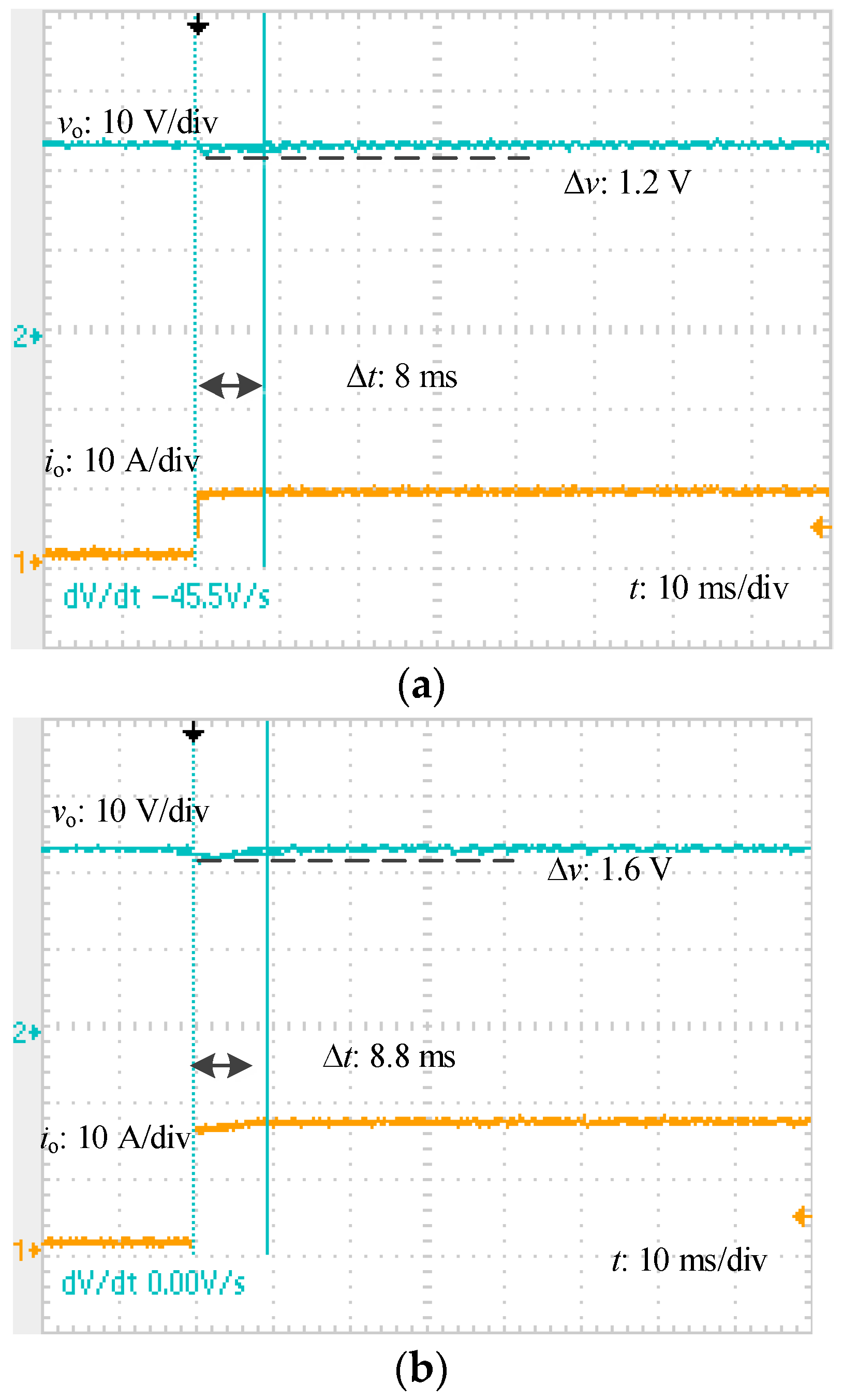

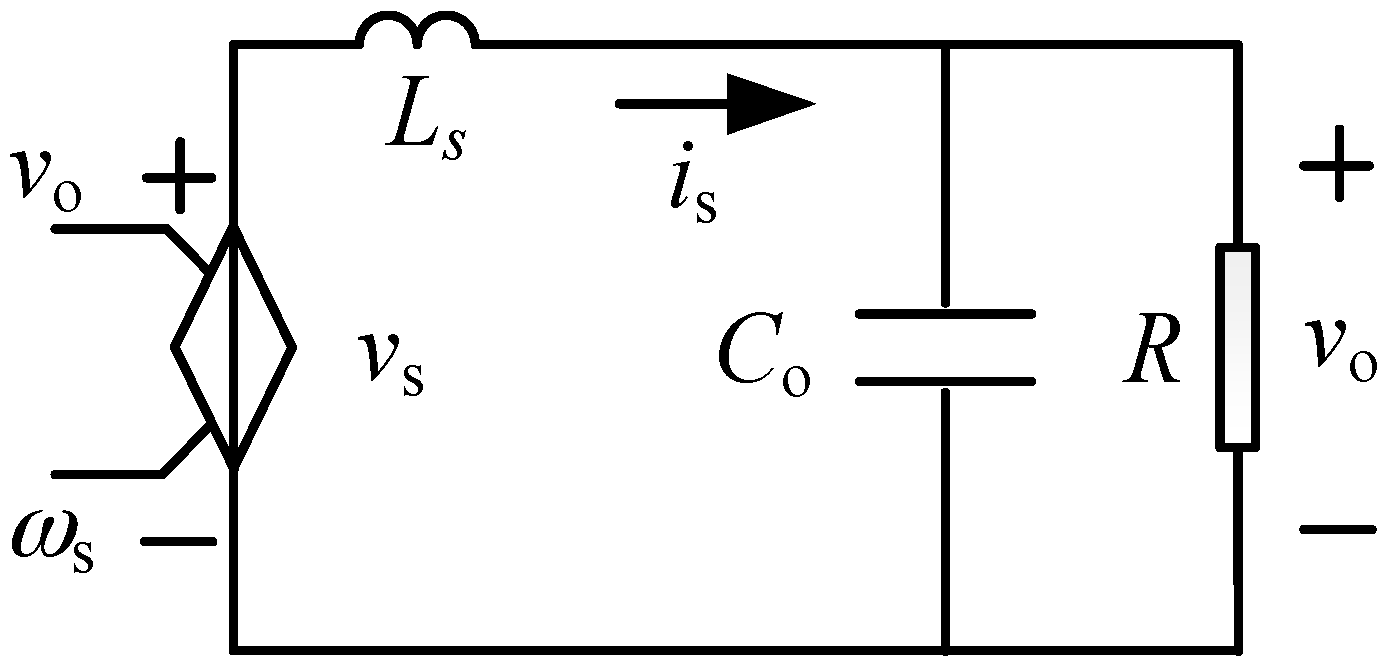

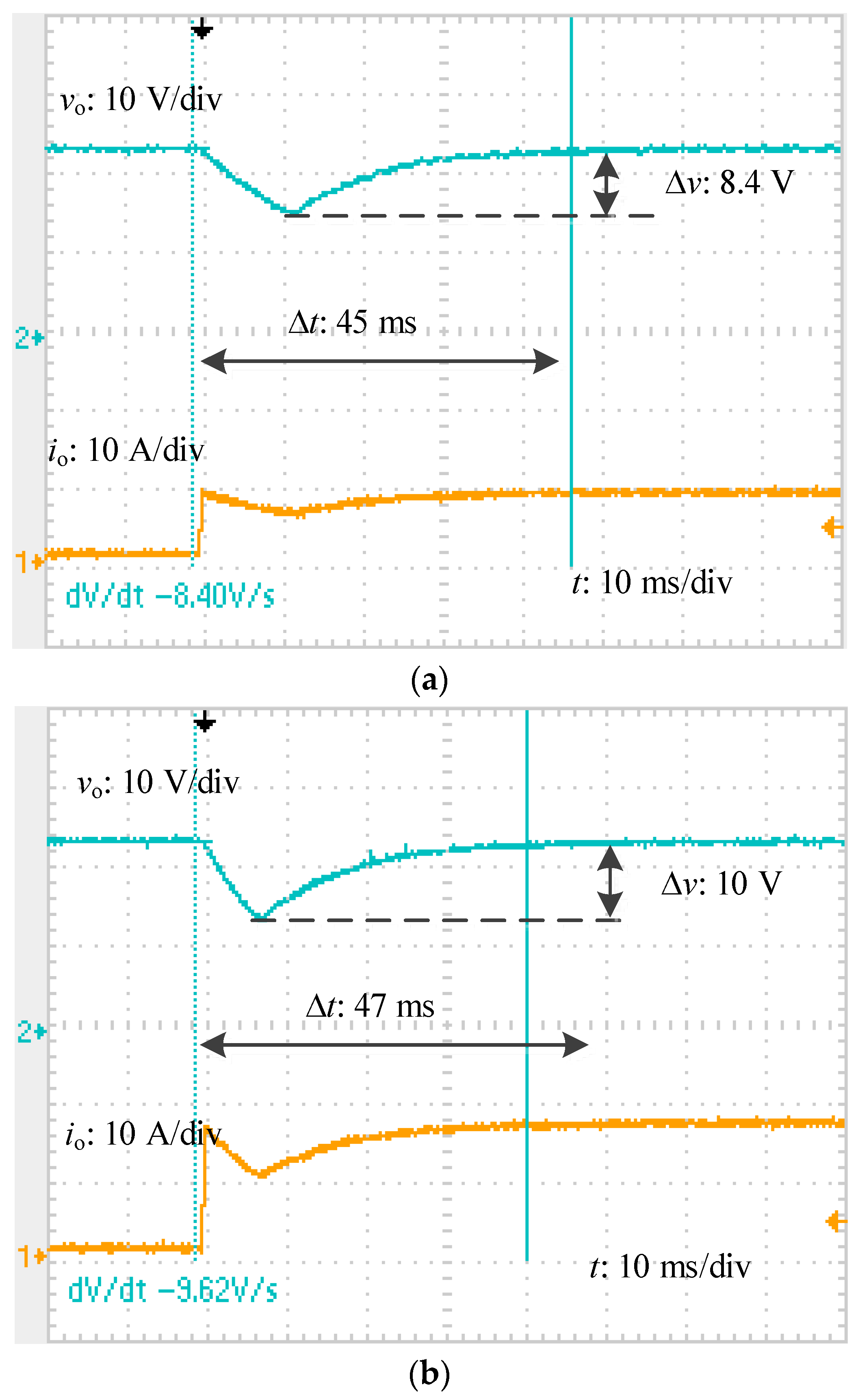

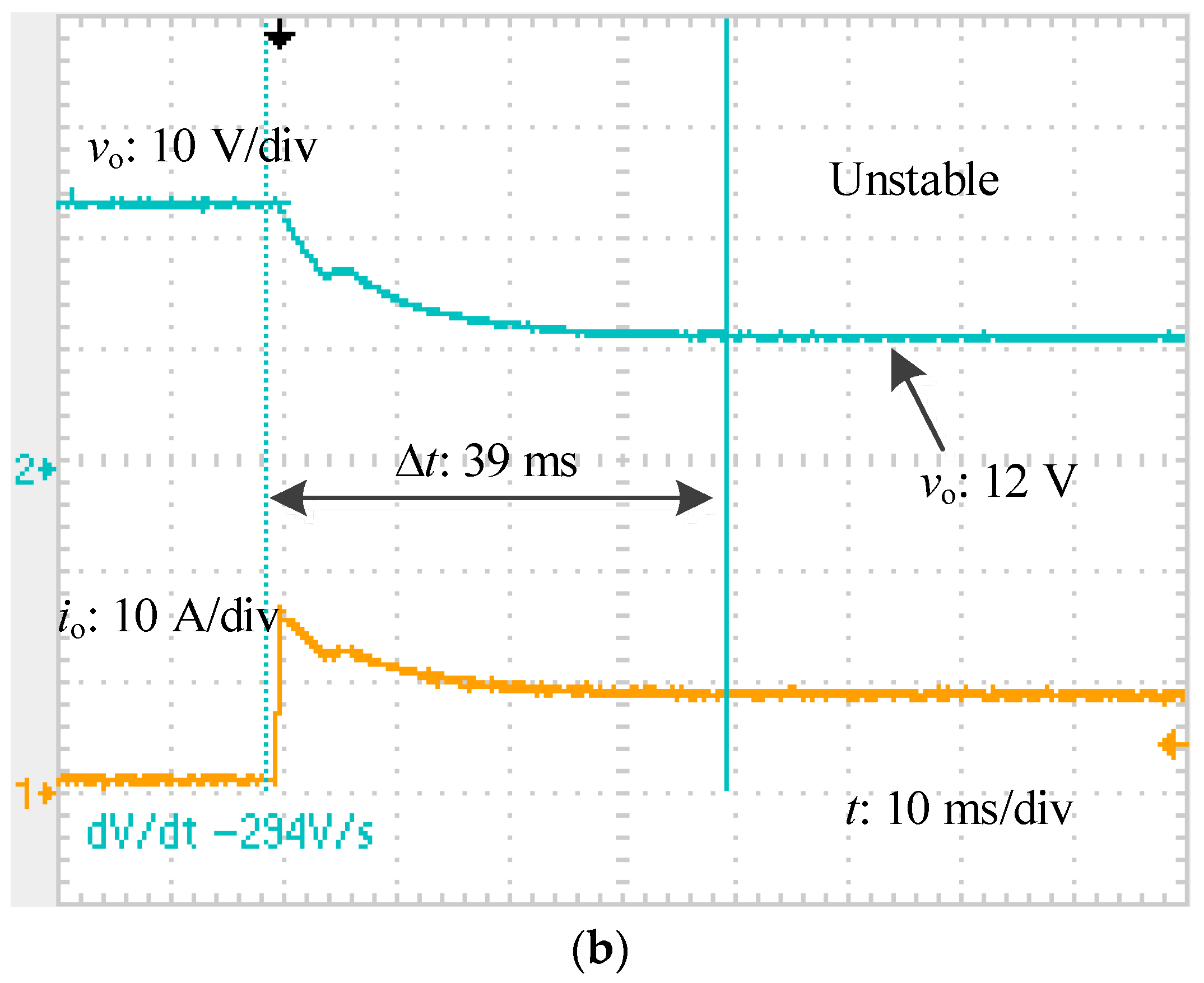

The gain of a LLC resonant converter can vary with the loads that can be used to improve the efficiency and power density for some special applications, where the maximum gain does not apply at the heaviest loads. However, nonlinear gain characteristics can make the converters unstable during a major disturbance. In this paper, the stability of an LLC resonant converter during a major disturbance is studied and a trigger control scheme is proposed to improve the converter’s stability by extending the converter’s operational range. Through in-depth analysis of the gain curve of the LLC resonant converter, we find that the switching frequency range is one of the key factors determining the system’s stability performance. The same result is also obtained from a mathematical point of view by utilizing the mixed potential function method. Then a trigger control method is proposed to make the LLC resonant converter stable even during a major disturbance, which can be used to extend the converter’s operational range. Finally, experimental results are given to verify the analysis and proposed control scheme. View Full-Text
Keywords: LLC resonant converter; stability; trajectory; mixed potential function; trigger control LLC resonant converter; stability; trajectory; mixed potential function; trigger control

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).

Scifeed alert for new publications

Never miss any articles matching your research from any publisher
  • Get alerts for new papers matching your research
  • Find out the new papers from selected authors
  • Updated daily for 49'000+ journals and 6000+ publishers
  • Define your Scifeed now

SciFeed Share & Cite This Article

MDPI and ACS Style

Fang, Z.; Wang, J.; Duan, S.; Shao, J.; Hu, G. Stability Analysis and Trigger Control of LLC Resonant Converter for a Wide Operational Range. Energies 2017, 10, 1448.
