Open AccessArticle
Energies 2017, 10(1), 34; doi:10.3390/en10010034

Power Control of Low Frequency AC Transmission Systems Using Cycloconverters with Virtual Synchronous Generator Control

Graduate School of Engineering, Osaka University, 2-1 Yamada-oka, Suita, Osaka 565-0871, Japan
*
Author to whom correspondence should be addressed.
Academic Editor: Paolo Mercorelli
Received: 6 September 2016 / Revised: 28 November 2016 / Accepted: 19 December 2016 / Published: 28 December 2016
View Full-Text   |   Download PDF [4560 KB, uploaded 28 December 2016]   |

Abstract

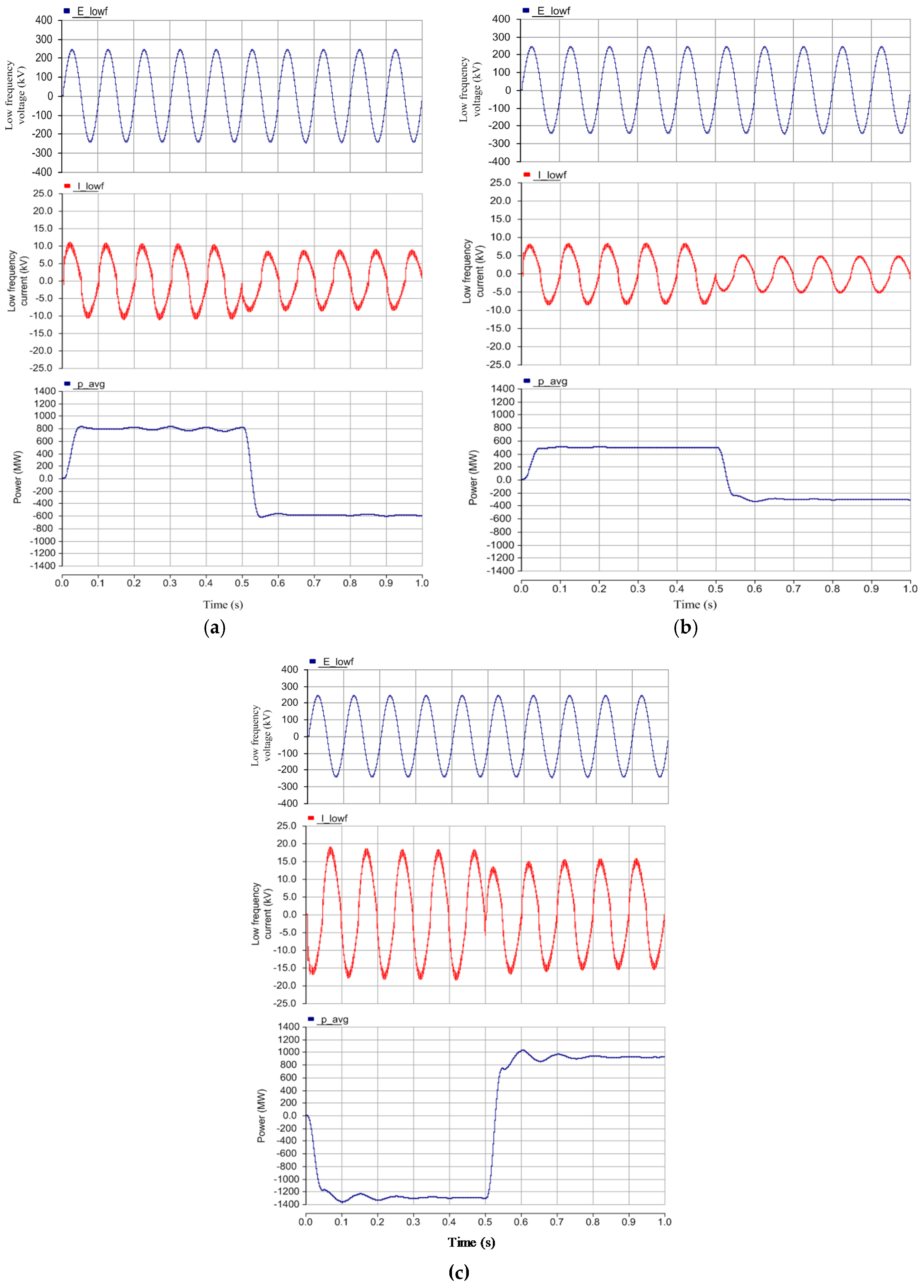

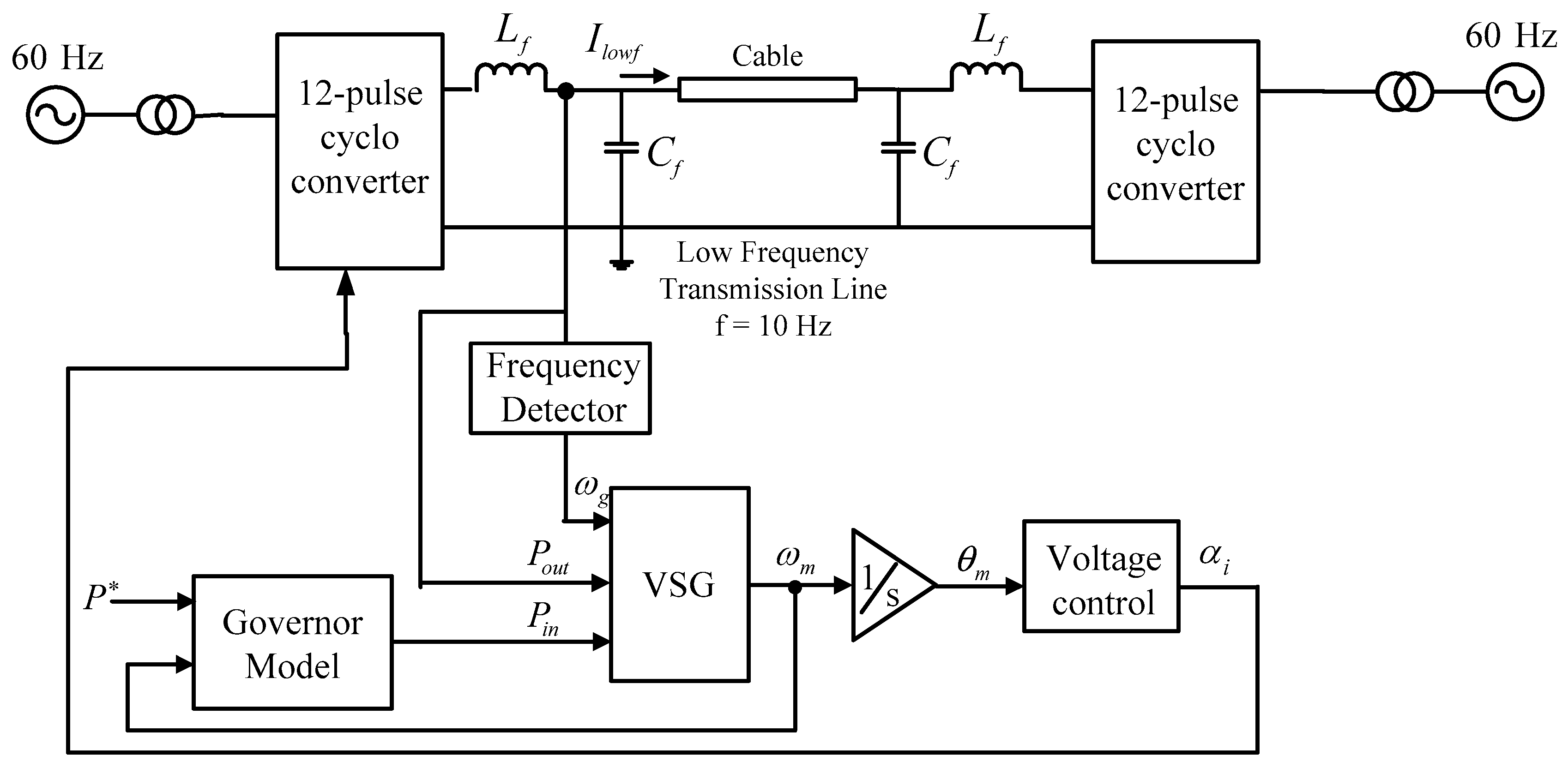

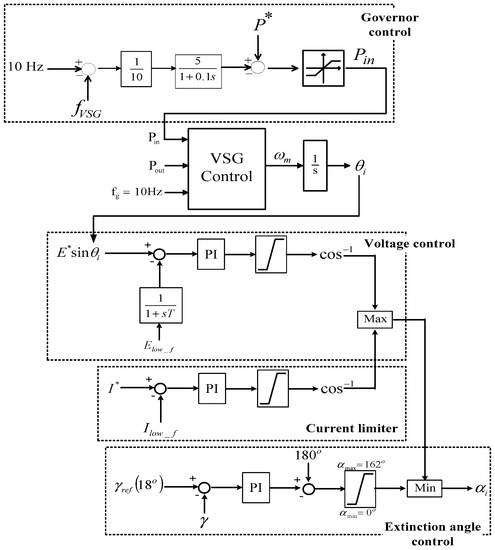

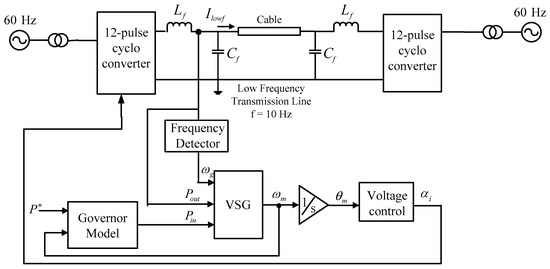

This paper is focused on the application of a multi-terminal line-commutated converter-type low frequency AC transmission system (MTLF) using a cycloconverter by applying a new power control scheme for multi-terminal operation. With the virtual synchronous generator (VSG) control scheme, the transmitting power among the multi-terminal system can be accomplished without a communication link for frequency synchronization in each terminal. The details of the proposed control scheme are explained in order to understand the advantages of this method. The configuration of a two-phase low frequency AC transmission system (LFAC) is adopted to examine with the proposed control scheme. Simulation results are provided to illustrate the proposed control scheme with respect to the LFAC system’s performance. View Full-Text
Keywords: multi-terminal; low frequency AC transmission system (LFAC); power control; cycloconverters; virtual synchronous generator (VSG) multi-terminal; low frequency AC transmission system (LFAC); power control; cycloconverters; virtual synchronous generator (VSG)
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).
