Int. J. Environ. Res. Public Health 2011, 8(6), 2142-2152; doi:10.3390/ijerph8062142

Article
Bystander Exposure to Ultra-Low-Volume Insecticide Applications Used for Adult Mosquito Management
Collin J. Preftakes , Jerome J. Schleier III * and Robert K. D. Peterson
Department of Land Resources and Environmental Sciences, Montana State University, 334 Leon Johnson Hall, Bozeman, Montana 59717, USA; E-Mails: cjpreftakes@gmail.com (C.J.P.); bpeterson@montana.edu (R.K.D.P.)
*
Author to whom correspondence should be addressed; E-Mail: jerome.schleier@msu.montana.edu; Tel.: +1-406-994-7927; Fax: +1-406-994-3933.
Received: 26 April 2011; in revised form: 4 June 2011 / Accepted: 9 June 2011 /
Published: 14 June 2011

Abstract

: A popular and effective management option for adult mosquitoes is the use of insecticides applied by ultra-low-volume (ULV) equipment. However, there is a paucity of data on human dermal exposure to insecticides applied by this method. The objective of the current study was to estimate dermal exposures to the insecticide active ingredient permethrin using water- (Aqua-Reslin®) and oil-based (Permanone® 30-30) formulations with passive dosimetry. No significant differences in deposition of permethrin were observed between years, distance from the spray source, front or back of the body, or the placement of the patches on the body. However, exposure to Aqua-Reslin was significantly greater than Permanone 30-30 and average concentrations deposited on the body were 4.2 and 2.1 ng/cm2, respectively. The greater deposition of Aqua-Reslin is most likely due to the higher density of the water-based formulation which causes it to settle out faster than the lighter oil-based formulation of Permanone 30-30. The estimated average absorbed dermal exposure for permethrin from Aqua-Reslin and Permanone 30-30 was 0.00009 and 0.00005 mg/kg body weight, respectively. We also found that ground deposition of ULV insecticides can be used as a surrogate for estimating dermal exposure. The estimated exposures support the findings of previous risk assessments that exposure to ULV applications used for mosquito management are below regulatory levels of concern.
Keywords:
dermal exposure; pyrethroid; risk analysis; exposure assessment; passive dosimetry

1. Introduction

A popular management option for adult mosquitoes is the application of ultra-low-volume (ULV) insecticides which have been shown to reduce mosquito density, reduce disease infection rates, and enhance economic benefit by preventing medical and lost work costs [17]. Due to rising concerns about global climate change leading to the range expansion of mosquito species that vector human and animal pathogens [8], there has been greater public attention to the human-health and environmental risks associated with ULV insecticide applications [911]. Reasonable worst-case risk assessments have been performed in response to concerns about the safety of ULV insecticides. Peterson et al. [10] performed a deterministic human-health risk assessment for acute and subchronic exposures to six mosquito insecticide active ingredients, and the synergist piperonyl butoxide (PBO), after ground-based ULV applications. They found that acute and subchronic risks to humans from the insecticides were well below regulatory levels of concern. Schleier III et al. [12] performed an acute probabilistic risk assessment of the same insecticides and population groups as Peterson et al. [10] further supporting previous findings that the risks to humans from insecticides used for adult mosquito management would most likely not exceed regulatory levels of concern. Both Peterson et al. [10] and Schleier III et al. [12] used the Industrial Source Complex Short Term version 3 (ISCST3) model to estimate environmental deposition, and therefore also to estimate dermal exposures [13,14]. Schleier III and Peterson [15] demonstrated that ISCST3 overestimated environmental concentrations by as much as 16-fold when compared to actual environmental concentrations. Additionally, Schleier III and Peterson [15] demonstrated that the AGDISP and AgDrift® models were underestimating environmental concentrations, which adds to the uncertainty of past risk assessments [1618].

Sensitivity analysis, which is the determination of how variation in the output of a model can be attributed to variations in the input assumptions, revealed that the estimated dermal exposure contributed about 41% to the estimated total exposure for adult males and females, youth and children, and about 17% to the total exposure of toddlers and infants [12]. Sensitivity analysis performed by Schleier III et al. [12] and Schleier III [19] showed that the estimated inhalation and dermal exposure contributed the most to the model output variance. Schleier III [19] demonstrated that estimated dermal exposure to adult females and males, youth, toddlers, children, and infants using actual environmental concentrations accounted for 85% to 14% of the overall exposure to permethrin after truck-mounted ULV applications.

Currently there has only been one study that examined dermal exposures after ULV applications. Moore et al. [20] measured concentrations of malathion using human subjects and found no significant differences between sampling location on the body (torso, arms, legs, and head) at 7.6 and 15.2 m from the spray source [20]. The average concentration of malathion on the chest, arms, legs, and head was 190 ng/cm2. Although the majority of deterministic and probabilistic risk assessments using estimated environmental concentrations have not suggested unacceptable exposures, they have relied on models that are designed for industrial plumes and agricultural applications, which greatly differ from ULV applications, to estimate environmental concentrations and thus dermal exposure after truck-mounted ULV applications [15]. Because of the lack of studies examining bystander exposure and the importance of dermal exposure to total exposure, the objective of our study was to estimate dermal exposures after ULV applications of insecticides using passive dosimetry.

2. Materials and Methods

Two permethrin formulations (most commonly applied by ULV) were sprayed [21]: an oil-based Permanone® 30-30 (Bayer Environmental Science, Research Triangle Park, NC, USA), and water-based Aqua-Reslin® (Bayer Environmental Science, Research Triangle Park, NC, USA). The water and oil based formulations were chosen for their different densities which can affect movement and deposition [22,23]. Fluorescent tracers were used to quantify the amount of permethrin exposure after ULV applications. Fluorescent tracers have been used to estimate the concentrations of pesticides in spray drift and efficacy studies, and for determining the amount of pesticide that settles onto the target area [2435]. The oil-soluble tracer Tinopal OB (BASF Corp., Florham Park, NJ, USA) was mixed with Permanone® 30-30, at a rate of 12 g/L and the water-soluble tracer Fluorescein (Aqua Solutions, Deer Park, TX, USA) was mixed with Aqua-Reslin® at a rate of 14 g/L. The addition of fluorescent tracers to pesticide formulations does not alter the density, viscosity, or droplet spectrum of ULV insecticides [22]. Permanone 30-30 was mixed 1:2:1 with Crystal Plus 70T light mineral oil (STE Oil Company, Inc., San Marcos, TX, USA) and American Chemical Society (ACS) grade toluene (99.5% purity, Mallinckrodt Baker, Inc., Phillipsburg, NJ, USA) and applied at a maximum flow rate of 192 mL/min. Aqua-Reslin was mixed 1:1 with deionized (D.I.) H2O and applied at a maximum flow rate of 192 mL/min. Both Aqua-Reslin and Permanone 30-30 (20 and 30% permethrin by weight respectively) were applied at the maximum application rate of 7.85 g/ha of permethrin. Between each spray replication the nozzle, pump, and hoses were rinsed with 300 mL of D.I. H2O followed by 300 mL of a 1:1 mixture of high pressure liquid chromatography acetone (99.7% purity; EMD Chemicals, Gibbstown, NJ, USA) and ACS grade toluene to reduce cross contamination.

The field site was located in Southwest Montana (45°38′45.76″N, 111°23′45.16″W) and applications occurred between 7 July 2009 to 5 August 2009 and 2 August 2010 to 12 August 2010. No more than three applications were performed for any given formulation per night, and applications began no earlier than 18:00 h Mountain Standard Time. A truck-mounted Guardian 95 ES ultra-low-volume sprayer (ADAPCO, Sanford, FL, USA) cold fogger with a spray pressure of 10 Kpa was used. The sprayer nozzle was oriented at 135˚ with respect to the ground and the truck was driven at 16.1 km/h perpendicularly to the wind direction. Wind direction and speed were recorded by a HOBO® micro weather station (Onset Computer Corporation, Bourne, MA, USA) consisting of a temperature gauge, relative humidity (RH) sensor, and anemometer sensor, and was located upwind of the spray zone. The average wind speed, temperature, and relative humidity for all applications were 213 cm/s, 19 °C, and 48%, respectively. A DC-III portable droplet measurement system (KLD Labs, Inc., Huntington Station, NY, USA) was used to measure the volume median diameter (VMD). The average VMD for Permanone 30-30 and Aqua-Reslin was 21 and 19 μm, respectively.

Two mannequins were used as surrogates for human bystanders to measure deposition at two different distances from the spray source. One mannequin each was placed 25 and 50 m from the spray source at each application site. Mannequins were constructed from 50.8 mm PVC pipe and measured 160-cm tall (no head due to small surface area relative to rest of body [36]) and 45.72 cm from shoulder to shoulder (Figure 1). Tyvek® disposable coverall suits (large size; Figure 1) were used to dress the mannequins and provide a backing for the collection patches. Insecticide deposition was collected on 121 cm2 square aluminum foil patches (Figure 1) [37]. Two binder clips were used to attach the aluminum patches to the mannequins. Patches were placed on the outer suit only and located where the greatest probability of penetration would be likely to occur (i.e., seams and zippers) [38]. One patch was placed on each arm and leg, upper chest, and groin, of each mannequin. One patch was placed in the center of the back opposite the direction of the spray source. A second piece of aluminum foil was placed behind each sample to prevent contact between the sample patch and the Tyvek® suit.

Sample patches were removed from each location with tweezers and placed in 60 mL I-Chem jars with Teflon lids (Thermo Fisher Scientific, Rockwood, TN, USA). Tweezers were rinsed with a 1:1 acetone/toluene solution between each sample to prevent cross contamination. Control samples (two per mannequin) consisted of equivalent sized aluminum squares and were fastened to pieces of cardboard with binder clips at the control site up-wind of the application. Procedures for collecting the control samples followed the same protocol as stated for the bystander mannequins.

Extraction of the tinopal and fluorescein was performed using 15 mL of toluene and deionized water, respectively. Each jar was shaken for 10 s and the liquid was decanted from each jar into a 20 mL analysis vial. Vials were wiped with KimWipes (Kimberly-Clark® Global Sales, LLC, Roswell, GA, USA) to dry the outside of the vials and remove fingerprints before analysis. A GFL-1A fluorometer (Opti-Sciences, Inc., Hudson, NH, USA) was used to detect the amount of light absorbed at a specific wavelength which represented the amount of tracer present in the sample. For the detection of fluorescein the emission filter was 465 nm and the detection filter was 530 nm. For the detection of tinopal OB the emission filter was 370 nm and the detection filter was 430 nm. Absorbance values were recorded for each sample representing deposition of permethrin at each location on the bystander. The detection limit for tinopal and fluorescein is 0.12 and 0.015 ng/cm2, respectively. Therefore, based on the amount of insecticide in each formulation the resulting detection limit for permethrin was 0.76 and 0.2 ng/cm2, respectively.

Formulations and the order in which the formulations were sprayed were randomly selected each night. A total of 10 applications (replications) of Permanone 30-30 and 10 applications of Aqua-Reslin were performed over the two years. We used R Statistical Package version 2.12.2 (The R Foundation for Statistical Computing, Vienna, Austria) to run analysis of variance (α = 0.05) on log-transformed concentrations to determine differences between location on the body, distances, formulations, and year. Non-detectable concentrations represented less than 10% of the data, so we substituted half of the detection limit for non-detectable concentrations in the data set [39].

3. Results and Discussion

There were no significant differences in dermal deposition of permethrin between the years 2009 and 2010 (F = 0.12, p = 0.73), distance from the spray source (F = 1.64, p = 0.21), front or back of the mannequins (F = 3.08, p = 0.081), or the placement of the patches on the body (F = 0.28, p = 0.59; Figure 2). However, dermal deposition of permethrin from Permanone 30-30 was significantly less than Aqua-Reslin (F = 6.2, p = 0.013; Figure 2). Average permethrin concentrations deposited on the body from Aqua-Reslin and Permanone 30-30 were 4.2 and 2.1 ng/cm2, respectively.

The greater permethrin deposition of Aqua-Reslin is most likely due to the higher density of the water-based formulation which causes it to settle out faster than the lighter oil-based formulation of Permanone 30-30 [4042]. Therefore, because of their greater densities, water-based formulations may result in higher exposures to humans than lighter formulations.

Using the assumptions of Schleier III et al. [12], the estimated average absorbed dermal exposure to permethrin for an adult male weighing 78.65 kg with head, arms, hands, legs, and feet exposed (surface area = 1.25 m2) and a dermal absorption rate of 15% is 0.00005 mg/kg body weight (BW) for Permanone 30-30 and 0.00009 mg/kg BW for Aqua-Reslin (Table 1) [21,36,43]. Schleier III and Peterson [15] measured the average permethrin concentration of 3.3 ng/cm2 on deposition pads located on the ground 25 and 50 m from the ground-based ULV applications, which is similar to concentrations measured in the current study. The estimated average absorbed dermal exposure to permethrin estimated by Schleier III [15] was 0.00008 mg/kg BW. Ground-based ULV dermal exposure to permethrin would be 0.0004% of the reference dose, showing that exposures are most likely negligible [21]. The absorption rate of permethrin is based on the technical grade chemical, however the formulation inert ingredients may increase the absorption of permethrin [44].

Our results demonstrate that ground deposition data can be used to estimate potential dermal exposures from ULV applications. However, at distances farther than 50 m deposition concentrations of ground-based ULV applied permethrin have been shown to decrease, which will most likely result in reduced dermal exposure [15]. The absorbed dermal exposures are most likely an overestimation because the U.S. Environmental Protection Agency’s (USEPA) conservative high-end estimate for dermal absorption was used. Recent studies have shown the estimated 24-h dermal absorption rate of permethrin is between 1.2 to 3.3% [21,45,46]. In addition, pyrethroids have a low toxicity to mammals which is attributed to the rapid metabolism in the blood and liver with greater than 90% of pyrethroids being excreted as metabolites in urine within 24 h after exposure [4750].

Here, we have used passive dosimetry to quantify the dermal exposure of bystanders to ground-based ULV applications. Passive dosimetry has been shown to provide accurate estimates of dermal exposure and to correlate with biomonitoring estimates [51]. The dermal deposition observed in the present study was lower than the concentrations measured by Moore et al. [20], which is most likely due to the higher application rate of malathion compared to permethrin. Previous studies of ULV applications have found that 1 to 30% of the insecticide sprayed during application settled onto the ground, with concentrations decreasing substantially over 36 h [15,20,5255].

Currier et al. [56] found no statistical differences in naled, permethrin, and d-phenothrin urinary metabolites in humans from areas that were treated with truck-mounted ULV applications and non-treated areas at application rates of 0.045, 0.002, and 0.004 kg/ha, respectively. Kutz and Strassman [57] and Duprey et al. [58] demonstrated that aerial spraying of naled did not result in increased levels of organophosphate urinary metabolites in humans. Other studies have shown that there were no significant increases in asthma related visits to hospitals after ULV applications of pyrethroid insecticides [5660]. These results, when considered with the risk assessment studies, support that ULV exposures most likely do not result in exposures that exceed a regulatory threshold.

Our results show that dermal exposures to permethrin from ground-based ULV applications are lower than modeled concentrations. In addition, we found that ground deposition of ULV insecticides can be used as a surrogate for estimating dermal exposure. Our results support the findings of previous risk assessments that acute exposures and risks to humans from ULV insecticides are well below regulatory levels of concern.

We thank the Montana Department of Agriculture for providing the DC-III droplet analyzer. This study was funded by a grant from the USDA Western Regional IPM grant program, and by the Montana Agricultural Experiment Station, Montana State University, Bozeman, Montana, USA.

  • Conflict of InterestThe authors declare no conflict of interest.

References

  1. Barber, LM; Schleier, JJ, III; Peterson, RKD. Economic cost analysis of West Nile virus outbreak, Sacramento County, California, USA, 2005. Emerg. Infect. Dis 2010, 16, 480–486.
  2. Carney, RM; Husted, S; Jean, C; Glaser, C; Kramer, V. Efficacy of aerial spraying of mosquito adulticide in reducing incidence of West Nile virus, California, 2005. Emerg. Infect. Dis 2008, 14, 747–754.
  3. Elnaiem, DEA; Kelley, K; Wright, S; Laffey, R; Yoshimura, G; Reed, M; Goodman, G; Thiemann, T; Reimer, L; Reisen, WK; Brown, D. Impact of aerial spraying of pyrethrin insecticide on Culex pipiens and Culex tarsalis (Diptera: Culicidae) abundance and West Nile virus infection rates in an urban/suburban area of Sacramento County, California. J. Med. Entomol 2008, 45, 751–757.
  4. Macedo, PA; Schleier, JJ, III; Reed, M; Kelley, K; Goodman, GW; Brown, DA; Peterson, RKD. Evaluation of efficacy and human health risk of aerial ultra-low volume applications of pyrethrins and piperonyl butoxide for adult mosquito management in response to West Nile virus activity in Sacramento County, California. J. Am. Mosq. Control Assoc 2010, 26, 57–66.
  5. Mount, GA. A critical review of ultra low-volume aerosols of insecticide applied with vehicle mounted generators for adult mosquito control. J. Am. Mosq. Control Assoc 1998, 14, 305–334.
  6. Mount, GA; Biery, TL; Haile, DG. A review of ultralow-volume aerial sprays of insecticide for mosquito control. J. Am. Mosq. Control Assoc 1996, 12, 601–618.
  7. Focks, DA; Kloter, KO; Carmichael, GT. The impact of sequential ultra-low volume ground aerosol applications of malathion on the population dynamics of Aedes aegypti (L.). Am. J. Trop. Med. Hyg 1987, 36, 639–647.
  8. Reiter, P. Climate change and mosquito-borne disease. Environ. Health Perspect 2001, 109, 141–161.
  9. Roche, JP. Print media coverage of risk-risk tradeoffs associated with West Nile encephalitis and pesticide spraying. J. Urban. Health 2002, 79, 482–490.
  10. Peterson, RKD; Macedo, PA; Davis, RS. A human-health risk assessment for West Nile virus and insecticides used in mosquito management. Environ. Health Perspect 2006, 114, 366–372.
  11. Thier, A. Balancing the risks: vector control and pesticide use in response to emerging illness. J. Urban. Health 2001, 78, 372–381.
  12. Schleier, JJ, III; Macedo, PA; Davis, RS; Shama, LM; Peterson, RKD. A two-dimensional probabilistic acute human-health risk assessment of insecticide exposure after adult mosquito management. Stoch. Environ. Res. Risk Assess 2009, 23, 555–563.
  13. USEPA (U.S. Environmental Protection Agency). AERMOD: Latest Features and Evaluation Results. EPA-454/R-03-003;; U.S. Environmental Protection Agency: Washington, DC, USA, 2003.
  14. USEPA (U.S. Environmental Protection Agency). User’s Guide for the Industrial Source Complex (ISC3) Dispersion Models. EPA-454/B-95-003a;; U.S. Environmental Protection Agency: Research Triangle Park, NC, USA, 1995.
  15. Schleier, JJ, III; Peterson, RKD. Deposition and air concentrations of permethrin and naled used for adult mosquito management. Arch. Environ. Contam. Toxicol 2010, 58, 105–111.
  16. Bilanin, AJ; Teske, ME; Barry, JW; Ekblad, RB. AgDisp: the aircraft spray dispersion model, code development and experimental validation. Trans. ASAE 1989, 32, 327–334.
  17. Bird, SL; Perry, SG; Ray, SL; Teske, ME. Evaluation of the AgDISP aerial spray algorithms in the AgDRIFT model. Environ. Toxicol. Chem 2002, 21, 672–681.
  18. Teske, ME; Bird, SL; Esterly, DM; Curbishley, TB; Ray, SL; Perry, SG. AgDRIFT®: A model for estimating near-field spray drift from aerial applications. Environ. Toxicol. Chem 2002, 21, 659–671.
  19. Schleier, JJ, III. Environmental Concentrations, Fate, and Risk Assessment of Insecticides Used for Adult Mosquito Management; Montana State University: Bozeman, MT, USA, 2008.
  20. Moore, JC; Dukes, JC; Clark, JR; Malone, J; Hallmon, CF; Hester, PG. Downwind drift and deposition of malathion on human targets from ground ultra-low volume mosquito sprays. J. Am. Mosq. Control Assoc 1993, 9, 138–142.
  21. USEPA (U.S. Environmental Protection Agency). Reregistration Eligibility Decision (RED) for Permethrin. EPA 738-R-09-306;; U.S. Environmental Protection Agency: Washington, DC, USA, 2009.
  22. Schleier, JJ, III; Preftakes, C; Peterson, RKD. The effect of fluorescent tracers on droplet spectrum, viscosity, and density of pesticide formulations. J. Environ. Sci. Health B 2010, 45, 621–625.
  23. De Schampheleire, M; Nuyttens, D; Baetens, K; Cornelis, W; Gabriels, D; Spanoghe, P. Effects on pesticide spray drift of the physicochemical properties of the spray liquid. Precision Agric 2009, 10, 409–420.
  24. Cai, SS; Stark, JD. Evaluation of five fluorescent dyes and triethyl phosphate as atmospheric tracers of agricultural sprays. J. Environ. Sci. Health B 1997, 32, 969–983.
  25. Longley, M; Cilgi, T; Jepson, PC; Sotherton, NW. Measurements of pesticide spray drift deposition into field boundaries and hedgerows: 1. summer applications. Environ. Toxicol. Chem 1997, 16, 165–172.
  26. Barber, JAS; Parkin, CS. Fluorescent tracer technique for measuring the quantity of pesticide deposited to soil following spray applications. Crop Prot 2003, 22, 15–21.
  27. Yates, WE; Akesson, NB. Fluorescent tracers for quantitative microresidue analysis. Trans ASAE 1963, 6.
  28. Sharp, RB. Spray deposit measurement by fluorescence. Pestic. Sci 1974, 5, 197–209.
  29. Pergher, G. Recovery rate of tracer dyes used for spray deposit assessment. Trans. ASAE 2001, 44, 787–794.
  30. Sundaram, A; Sundaram, KMS. Use of a fluorescent pigment dye and a chemical tracer to quantify aerial spray deposits on collection surfaces. J. Environ. Sci. Health B 1992, 27, 165–184.
  31. Sharp, RB. Measurement of herbicide spray deposits on foliage by fluorescence I. Paraquat deposits on Vicia faba. Pestic. Sci 1976, 7, 315–319.
  32. Cooke, BK; Hislop, EC. Spray tracing techniques. In Application Technology for Crop Protection; Matthews, GA, Hislop, EC, Eds.; CAB International: Wallingford, UK, 1993; pp. 85–100.
  33. Parkin, CS; Merritt, CR. The measurement and prediction of spray drift. Asp. Appl. Biol 1988, 17, 351–361.
  34. Cadogan, BL; Scharbach, RD; Knowles, KR; Krause, RE. Efficacy evaluation of a reduced dosage of tebufenozide applied aerially to control spruce budworm (Choristoneura fumiferana). Crop Prot 2005, 24, 557–563.
  35. Peng, G; Wolf, TM; Byer, KN; Caldwell, B. Spray retention on green foxtail (Setaria viridis) and its effect on weed control efficacy by Pyricularia setariae. Weed Technol 2005, 19, 86–93.
  36. USEPA (U.S. Environmental Protection Agency). Exposure Factors Handbook. Vol I. General Factors. EPA/600/P-95/002Fa;; U.S. Environmental Protection Agency: Washington, DC, USA, 1997.
  37. Soutar, A; Semple, S; Aitken, RJ; Robertson, A. Use of patches and whole body sampling for the assessment of dermal exposure. Ann. Occup. Hyg 2000, 44, 511–518.
  38. OECD (Organization for Economic Co-operation and Development). Guidance Document for the Conduct of Studies of Occupational Exposure to Pesticides during Agricultural Application. OCDE/GD(97)148;; Organization for Economic Co-operation and Development: Paris, France, 1997.
  39. Lubin, JH; Colt, JS; Camann, D; Davis, S; Cerhan, JR; Severson, RK; Bernstein, L; Hartge, P. Epidemiologic evaluation of measurement data in the presence of detection limits. Environ. Health Perspect 2004, 112, 1691–1696.
  40. Baron, PA; Willeke, K. Aerosol fundamentals. In Aerosol Measurement: Principles, Techniques, and Applications; Baron, PA, Willeke, K, Eds.; John Wiley and Sons, Inc: New York, NY, USA, 2001; pp. 45–60.
  41. Hinds, WC. Aerosol Technology: Properties, Behavior, and Measurement of Airborne Particles; John Wiley and Sons, Inc: New York, NY, USA, 1982.
  42. Hesketh, HE. Fine Particles in Gaseous Media; Ann Arbor Science Publishers Inc.: Ann Arbor, MI, USA, 1977.
  43. Portier, K; Tolson, JK; Roberts, SM. Body weight distributions for risk assessment. Risk Anal 2007, 27, 11–26.
  44. Cox, C; Surgan, M. Unidentified inert ingredients in pesticides: implications for human and environmental health. Environ. Health Perspect 2006, 114, 1803–1806.
  45. Ross, JH; Reifenrath, WG; Driver, JH. Estimation of the percutaneous absorption of permethrin in humans using the parallelogram method. J. Tox. Environ. Health A 2011, 74, 351–363.
  46. Reifenrath, WG; Ross, JH; Driver, JH. Experimental methods for determining permethrin dermal absorption. J. Tox. Environ. Health A 2011, 74, 325–335.
  47. Eadsforth, CV; Baldwin, MK. Human dose-excretion studies with the pyrethroid insecticide, cypermethrin. Xenobiotica 1983, 13, 67–72.
  48. Leng, G; Leng, A; Kuhn, KH; Lewalter, J. Human dose-excretion studies with the pyrethroid insecticide cyfluthrin: Urinary metabolite profile following inhalation. Xenobiotica 1997, 27, 1273–1283.
  49. Eadsforth, CV; Bragt, PC; Van Sittert, NJ. Human dose-excretion studies with pyrethroid insecticides cypermethrin and alphacypermethrin: relevance for biological monitoring. Xenobiotica 1988, 18, 603–614.
  50. Schleier, JJ, III; Peterson, RKD. Pyrethrins and pyrethroid insecticides. In Green Trends in Insect Control; Lopez, O, Fernández-Bolanos, JG, Eds.; Royal Society of Chemistry: London, UK. in press..
  51. Ross, J; Chester, G; Driver, J; Lunchick, C; Holden, L; Rosenheck, L; Barnekow, D. Comparative evaluation of absorbed dose estimates derived from passive dosimetry measurements to those derived from biological monitoring: Validation of exposure monitoring methodologies. J. Expo. Sci. Environ. Epidemiol 2008, 18, 211–230.
  52. Tietze, NS; Hester, PG; Shaffer, KR. Mass recovery of malathion in simulated open field mosquito adulticide tests. Arch. Environ. Contam. Toxicol 1994, 26, 473–477.
  53. Knepper, RG; Walker, ED; Wagner, SA; Kamrin, MA; Zabik, MJ. Deposition of malathion and permethrin on sod grass after single, ultra-low volume applications in a suburban neighborhood in Michigan. J. Am. Mosq. Control Assoc 1996, 12, 45–51.
  54. Tucker, JW; Thompson, CQ; Wang, TC; Lenahan, RA. Toxicity of organophosphorous insecticides to estuarine copepods and young fish after field applications. J. Fla. Anti-Mosquito Assoc 1987, 58, 1–6.
  55. Schleier, JJ, III; Peterson, RKD; Macedo, PA; Brown, DA. Environmental concentrations, fate, and risk assessment of pyrethrins and piperonyl butoxide after aerial ultralow-volume applications for adult mosquito management. Environ. Toxicol. Chem 2008, 27, 1063–1068.
  56. Currier, M; McNeill, M; Campbell, D; Newton, N; Marr, JS; Perry, E; Berg, SW; Barr, DB; Luber, GE; Kieszak, SM; Rogers, HS; Backer, SC; Belson, MG; Rubin, C; Azziz-Baumgartner, E; Duprey, ZH. Human exposure to mosquito-control pesticides—Mississippi, North Carolina, and Virginia, 2002 and 2003. MMWR 2005, 54, 529–532.
  57. Kutz, FW; Strassman, SC. Human urinary metabolites of organophosphate insecticides following mosquito adulticiding. Mosq. News 1977, 37, 211–218.
  58. Duprey, Z; Rivers, S; Luber, G; Becker, A; Blackmore, C; Barr, D; Weerasekera, G; Kieszak, S; Flanders, WD; Rubin, C. Community aerial mosquito control and naled exposure. J. Am. Mosq. Control Assoc 2008, 24, 42–46.
  59. Karpati, AM; Perrin, MC; Matte, T; Leighton, J; Schwartz, J; Barr, RG. Pesticide spraying for West Nile virus control and emergency department asthma visits in New York City, 2000. Environ. Health Perspect 2004, 112, 1183–1187.
  60. O’Sullivan, BCY; Lafleur, J; Fridal, K; Hormozdi, S; Schwartz, S; Belt, M; Finkel, M. The effect of pesticide spraying on the rate and severity of ED asthma. Am. J. Emerg. Med 2005, 23, 463–467.
Ijerph 08 02142f1 200

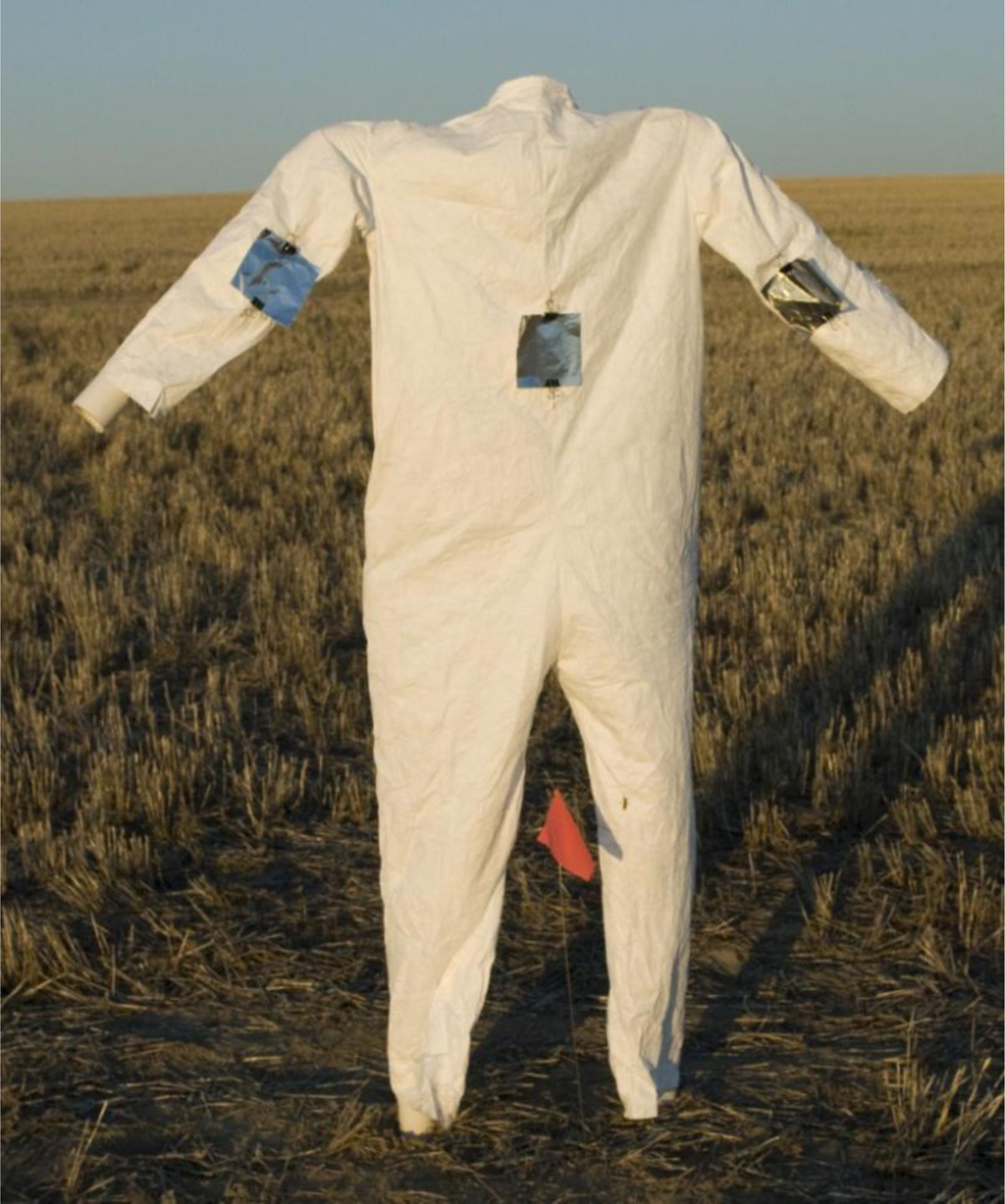

Figure 1. Mannequin bystander dressed Tyvek® disposable coverall suit with one aluminum sampling patch on each arm and leg, upper chest, groin, and center of the back of each mannequin (only shown are the patches on the arms and chest) (photo: © 2009 R.K.D. Peterson).

Click here to enlarge figure

Figure 1. Mannequin bystander dressed Tyvek® disposable coverall suit with one aluminum sampling patch on each arm and leg, upper chest, groin, and center of the back of each mannequin (only shown are the patches on the arms and chest) (photo: © 2009 R.K.D. Peterson).
Ijerph 08 02142f1 1024
Ijerph 08 02142f2 200

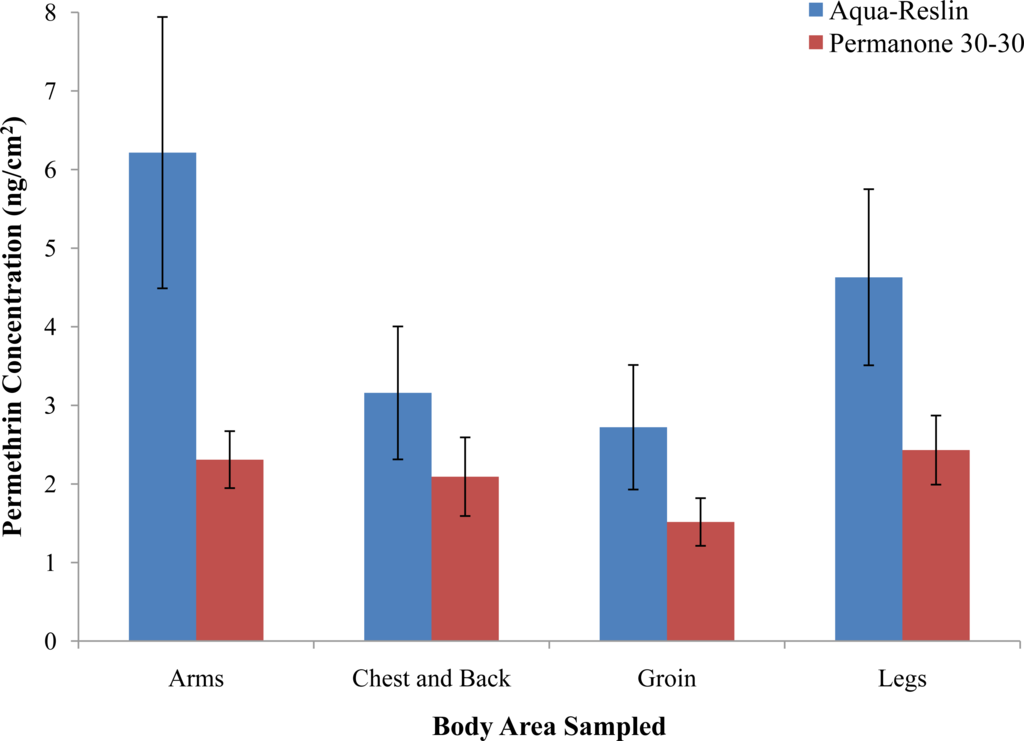

Figure 2. Combined average deposition (±SE) of permethrin for Aqua-Reslin® and Permanone® 30-30 on the arms, chest and back, groin, and legs of bystander mannequins 25 and 50 m from the spray source. No significant differences in dermal deposition of permethrin between the front or back of the mannequins or the placement of the patches on the body. Dermal deposition of permethrin from Permanone 30-30 was significantly less than Aqua-Reslin (p = 0.013).

Click here to enlarge figure

Figure 2. Combined average deposition (±SE) of permethrin for Aqua-Reslin® and Permanone® 30-30 on the arms, chest and back, groin, and legs of bystander mannequins 25 and 50 m from the spray source. No significant differences in dermal deposition of permethrin between the front or back of the mannequins or the placement of the patches on the body. Dermal deposition of permethrin from Permanone 30-30 was significantly less than Aqua-Reslin (p = 0.013).
Ijerph 08 02142f2 1024
Table 1. Mean permethrin deposition on mannequins in ng/cm2 ± standard error, estimated average absorbed dermal exposure mg/kg body weight (BW), and the 95% confidence interval (C.I.) (mg/kg BW) estimated average absorbed dermal exposure for Permanone®

Click here to display table

Table 1. Mean permethrin deposition on mannequins in ng/cm2 ± standard error, estimated average absorbed dermal exposure mg/kg body weight (BW), and the 95% confidence interval (C.I.) (mg/kg BW) estimated average absorbed dermal exposure for Permanone®
FormulationConcentration (ng/cm2)average absorbed dermal exposure (mg/kg BW)95% C.I. average absorbed dermal exposure
Permanone 30-302.1 ± 0.780.000050.00003–0.00007
Aqua-Reslin4.2 ± 1.90.000090.00005–0.00013
