Article

Combining a Fuzzy Matter-Element Model with a Geographic Information System in Eco-Environmental Sensitivity and Distribution of Land Use Planning

1
Institute of Remote Sensing & Information System Application, Zhejiang University, Hangzhou, 310029, China
2
Land Consolidation Center in Zhejiang Province, Hangzhou, 310007, China
3
School of Geography, University of Leeds, Leeds, LS2 9JT, UK
*
Author to whom correspondence should be addressed.
Int. J. Environ. Res. Public Health 2011, 8(4), 1206-1221; https://doi.org/10.3390/ijerph8041206
Submission received: 20 February 2011 / Revised: 14 March 2011 / Accepted: 1 April 2011 / Published: 18 April 2011
(This article belongs to the Special Issue Geostatistics in Environmental Pollution and Risk Assessment)

Abstract

:
Sustainable ecological and environmental development is the basis of regional development. The sensitivity classification of the ecological environment is the premise of its spatial distribution for land use planning. In this paper, a fuzzy matter-element model and factor-overlay method were employed to analyze the ecological sensitivity in Yicheng City. Four ecological indicators, including soil condition,, water condition,, atmospheric conditions and biodiversity were used to classify the ecological sensitivity. The results were categorized into five ranks: insensitive, slightly sensitive, moderately sensitive, highly sensitive and extremely sensitive zones. The spatial distribution map of environmental sensitivity for land use planning was obtained using GIS (Geographical Information System) techniques. The results illustrated that the extremely sensitive and highly sensitive areas accounted for 14.40% and 30.12% of the total area, respectively, while the moderately sensitive and slightly sensitive areas are 25.99% and 29.49%, respectively. The results provide the theoretical foundation for land use planning by categorizing all kinds of land types in Yicheng City.

1. Introduction

Eco-environmental sensitivity refers to the degree of sensitivity of an ecosystem to human activity, which reflects the potential for antropogenic ecological imbalances and eco-environmental problems [1]. Eco-environmental sensitivity of land use planning is a comprehensive index which serves as a basis for land use planning and eco-environmental management. It includes eco-environmental quality, population load, reasonable degree of land use and the level of economic development. The eco-environment directly affects the land use pattern and the opposite is true where unreasonable land use planning is responsible for the deterioration of the eco-environment.
At present, research on eco-environmental sensitivity has developed rapidly and has been put into practice. Cameron et al. carried out classification and evaluation research for animal-environment sensitivity [2]. Satti et al. investigated agriculture-water management in swamps by assessing the ecological sensitivity of climate, soil and crops [3]. An eco-environmental sensitivity method was applied to Gansu Province (China) and eco-environmental sensitivity was defined as the possibility of ocurrence of eco-environmental problems in the region, influenced by natural factors. A high sensitivity region was found where eco-environmental problems might occur easily due to human activities [4]. Using GIS, some scholars have conducted evaluations on the sensitivity of water and soil erosion, land degeneration, desertification and then classified the regional land use types; these results provided the scientific basis for ecological construction and sustainable development in Jilin Province (China) [5]. Li et al. evaluated the sensitivity of soil erosion, stony desertification and the eco-environment and divided the results into five grades: slighter, slight, middle, bad and worse [6]. In line with the existing issues of the land ecological environment in Shanxi Province (China) and the theory of eco-environmental sensitivity, some scholars selected soil erosion, geological disasters, biodiversity and the ecological environment as ecologically sensitive factors, and carried out a superimposition analysis using the ArcGIS software to create special charts of five single essential factors according to the first rank of ecologic sensitivity for an ecologically sensitive area in this province [7]. However, to date sensitivity analyses have only emphasized certain fields such as drainage basins and natural disaster factors at a large scale [8,9]. Correlative studies of eco-environmental sensitivity and land planning are rarely carried out for small scale regions [10,11]. Besides, the published studies mostly adopted qualitative methods and used a GIS module as a tool to display the results, but these studies did not integrate quantitative methods and GIS with the eco-environmental sensitivity.
GIS based integrated quantitative methods provide an excellent framework for data capture, storage, synthesis, measurement, and analysis, all of which are essential for analyzing eco-environmental sensitivity. To provide an objective result for eco-environmental sensitivity evaluation, in this study a new environmental numerical evaluation model was developed and applied using a fuzzy matter-element (FME) model and GIS. With the support of the FME model and GIS, the study examines the overall land use planning of Yicheng City (2006–2020) as an integrated system. The objectives of this study were: (1) to develop an environmental numerical evaluation model supported by FME, (2) to establish a synthetic eco-environmental sensitivity index, (3) to establish the distribution of eco-environment sensitivity via GIS.

2. Study Area

The study site is Yicheng City (Figure 1), which is located at 111°57’–112°45’ E, 31°27’–31°54’ N in the north of Hubei Province. It is located to the east of Zaoyang and Suizhou, south of Zhongxiang and Jingmen, west of Nanzhang and north of Xiangyang. The distance from the east to the west is 76 kilometers, the width is 53 kilometers and the total area is 2,045 square kilometers (Figure 1). It is characterized by a humid subtropical climate, with abundant heat and light. Annual average temperature is 16 °C, annual rainfall is 850–1,000 mm, annual sunlight is 1,932 hours and annual average relative humidity is 76% [12].

3. Methodology

3.1. Establishment of the Evaluation Index System

Based on the idea of sustainable development and the question driven model of the Organization for Economic Co-operation and Development (OECD), this paper puts forward a synthetic evaluation index of “driving forces—pressure—appearance—influences—respond to”.
Choosing a proper evaluation index system was the basis of our eco-environmental analysis. Through analysis of the current conditions of the regional eco-environment, several ecological elements closely related to the ecological sensitivity were determined and employed. These were soil erosion, water conditions, atmospheric conditions and biodiversity. Via multi-factor synthetic appraisement and clustering methods integrated with Data Processing System (DPS) and GIS techniques, the paper established the distribution and division of eco-environmental sensitivity for land use planning.

3.2. The Evaluation Index and Gradation

There are many physical and human factors that affect eco-environmental sensitivity. Choosing the appropriate indexes plays a vital role in environmental sensitivity assessment. Based on the eco-environmental characteristics of the region, an evaluation index system with four major groups A-D was established for Yicheng City. When carrying out calculation of indexes, the order is from the bottom index layer (D layer) to highest layer (A layer) of eco-environmental sensitivity. The layers include four categories (soil conditions, water conditions, atmospheric conditions and biodiversity), 19 subcategories and a total of 40 factors. The evaluation indexes and grades of eco-environmental sensitivity for land use planning are presented in Table 1.

3.3. Evaluation Methods and Model of Synthetic Eco-Environmental Sensitivity

3.3.1. Fuzzy Matter-Element Model

(1) Compound fuzzy matter-element model

Fuzzy matter-element analysis was adopted to evaluate the environmental quality of land use planning. If the name of the design object is regarded as a matter-element character and the value of the objective function is regarded as a mathematical measurement value, the matter-element form of the multi-objective will become in turn a three-factor group. If the design variable x has fuzzy character, the variable is named fuzzy matter-element. If the evaluated example M has n characters C1, C2,…, Cn and the corresponding variable x1, x2, x3,…, xn, the model R is named a fuzzy matter-element of dimension n. M objects and fuzzy matter-elements of n dimensions make up the matter-element form of the multi-objective Rmn as follows [13]:
R m n = [ M 1 M 2 M m C 1 x 11 x 21 x m 1 C 2 x 12 x 22 x m 2 C n x 1 n x 2 n x m n ]
where Rmn is the matter-element form of the multi-objective, Mi is the its object (i = 1, 2,……, m); c is its character (j = 1, 2,……, n); xij is the corresponding design value.

(2) The principle on the excellent dependent degree

If x is an ordinary mathematical function expression, according to the optimization principle, an excellent dependent degree function is as follows [13]:
The ideal maximum u ij = x ij / max x ij
The ideal maximum u ij = min x ij / x ij
where xij is the excellent dependent degree, min xij is the ideal minimum of the evaluated index while max xij is the ideal maximum of the evaluated index.
Therefore, a fuzzy matter-element of excellent dependent degree R m n ¯ is as follows [13]:
R m n = [ M 1 M 2 M m C 1 u 11 u 21 u m 1 C 2 u 12 u 22 u m 2 C n u 1 n u 2 n u m n ]

(3) Standard fuzzy matter-element and fuzzy matter element of different squares

The standard fuzzy matter-element is confirmed by the minimum and the maximum on the relative membership grade of every evaluated index. If the squares of every item are different from the standard fuzzy matter-element R0n and fuzzy matter element Rmn should be Δij = (uojuij)2, (i = 1,2,⋯, n; j = 1,2,⋯, m), the fuzzy matter-element model can be written as:
R m n = [ M 1 M 2 M m C 1 Δ 11 Δ 21 Δ m 1 C 2 Δ 12 Δ 22 Δ m 2 C n Δ 1 n Δ 2 n Δ m n ]

(4) Weight of evaluation factors

This paper introduces the entropy method to confirm the weight of evaluation factors. The entropy method is a systematic analysis evaluation method to treat complex and multi-index systems quantitatively, which can overcome the irrationality of evaluation results resulting from subjective factors. The method can reduce subjective distributions and make the results more practical [13]. The detailed analytical process is as follows [14]:
  • Assuming the amount of the evaluated objects is m, the amount of the evaluated index is n, to establish the estimation matrix R:
    R = ( r ij ) mn , ( i = 1 , 2 , , n ; j = 1 , 2 , , m )
  • The corresponding estimation matrix R is ranked and obtained the total ranking matrix B. The factor of matrix as:
    b ij = r ij r min / r max r min
    where rmax and rmin respectively represent the best and the worst of different things in the same evaluation index, which means the bigger, the more satisfied or the smaller, the more satisfied.
  • According to the concept of entropy, it defines the entropy including m evaluation indexes and n evaluation indexes:
    H I = j = 1 m f ij ln f ij / ln m , ( i = 1 , 2 , , m ; j = 1 , 2 , m )
    The concept of fij is as follows:
    f ij = b ij / j = 1 n b ij
    When fij = 0, Lnfij is inanition, so the calculation must be corrected. The concept is as follows:
    f ij = 1 + b ij / j 1 m ( 1 + b ij )
  • Calculate weigh of index w and entropy weight wi:
    W = ( w i ) 1 × m ; w i = ( 1 H i ) / ( n i 1 n H i )
    and i = 1 n w i = 1

(5) Euclid approach degree and synthetic evaluation

In fuzzy theory, the Euclid approach degree is commonly used to describe the degree of proximity of two scenarios or two samples. According to the degree of dependence, the scheme can be judged as to whether it is good or not. The larger the degree of dependence is, the better the scheme. Therefore, this paper applied the Euclid approach degree of the evaluated fuzzy matter-element to determine the compositor of excellent and inferior and to attain the grade classification of eco-environmental quality of the evaluated samples. The advantage of Euclidean proximity is that not only is it convenient, but it also overcomes the disadvantage of the former weight evaluation model [14]. The equation for calculating the degree of dependence PHj is as follows:
PH j = 1 i = 1 m w i Δ ij , j = 1 , 2 , , m
where PHj is the dependent coefficient.
Let RPH be the compound matter-element of the scheme fuzzy matter-element sub-object, then:
R P H = [ M 2 M 2 M m PH j PH 1 PH 2 PH m ]

3.3.2. The GIS Technique Route and Factor-Overlay Method

In order to quickly obtain the calculated results from analysis function in ArcGIS 9.3, descriptive level of information needs to be converted into quantitative indexes and build index system (Table 1). The calculation process of the paper was based on vector data. Using ArcGIS 9.3 and the fuzzy matter-element model, every evaluated unit of soil, water, atmosphere and biodiversity were given a corresponding grade index and converted into the basic evaluation unit to form the regional eco-environmental information system database, and then four special sensitive charts were obtained. These were the soil conditions, water conditions, atmospheric conditions and biodiversity charts types, which were reprojected onto the standard projection system. Taking advantage of the space overlay function in advanced GIS technology and selecting the administration village as the basic unit, this paper carried out the superimposition analysis to produce special charts of four single essential factors according to the first rank of ecological sensitivity, to calculate the comprehensive index of eco-environmental sensitivity in every space unit and to confirm scientific and reliable evaluation grades. Then the results were carried through spatial clustering to merge and regulate the basic spatial units and obtained the ecological environment sensitivity of the research area [15,16]. The technique of synthetic eco-environmental sensitivity for land use planning using GIS and the factor-overlay method is shown in Figure 2.

3.3.3. Operation Model of Multi-Factor Vector Data

  • Due to its ability to assign proper weights to various factors in complex systems, the eco-environment system was suitable for use in the entropy method, which was introduced in Section 3.3.1.
  • The operation model of multi-factor vector data was constructed. Synthetic evaluation of ecological sensitivity on land use planning should synthetically consider every kind of evaluation index, including soil conditions, water conditions, atmospheric conditions and biodiversity. The formulation below was adopted to calculate the index grade of ecological sensitivity and to comprehensively evaluate the whole environmental sensitivity on the basis of the index grades. The formulation was as follows [15]:
    G i = i = 1 n W j × g i
    where Gi was the synthetic index value of every factor on B layer, gi was the value of each index, wj was the weight of each index, and n was the total number of indices, i = 1, 2, 3,…, n.
By means of GIS techniques and the factor-overlay method, we obtained the synthetic distribution map of environmental sensitivity for land use planning, which was helpful to lay out all kinds of land types in general land use planning to produce a smaller influence or non-negative influence. It presented a sufficient and authoritative map for the organizers of general land use planning, and supplied the scientific basis for the space distribution on every kind of land type.

4. Results and Discussion

4.1. Sensitivity of Soil Conditions

Soil conditions are controlled by factors including soil and water loss, soil quality, land use/land cover, influence of the intensity of land use, etc. Soil quality is crucial for soil conditions and it varies with landforms and the environment. From the spatial distribution of soil-erosion sensitivity (Figure 3), it was deduced that the extremely sensitive area covered 20,452.99 hm2 and accounted for 9.97% of the total area in Yicheng City, corresponding mainly in the high mountainous region where the landform was very complicated. The highly sensitive area was 28,535.72 hm2 and accounted for 13.91%, which was distributed in low mountains and high hills region. The moderately sensitive area was 38,218.58 hm2 and accounted for 18.63%, which was distributed in low valley regions. The slightly sensitive area was 61,215.37 hm2, accounted for 13.91%, and was distributed in low valleys and flat regions. The insensitive area was 56,722.69 hm2, it accounted for 27.65%, which was mainly distributed in the flat region where hypsography was very mild (Figure 3 and Table 2).

4.2. Sensitivity of Water Conditions

Water conditions were determined by various factors such as water quality, distance to water sources, quality of protection layer, and water exchange intensity. Water quality and distance to water sources were the key factors. The extremely sensitive water condition area mainly involved the towns of Yancheng, Wangji and Nanying which were the nearest to the Hanjiang River, Man River, lakes, reservoirs, wetland areas and so on. The water resources of these regions were extremely rich and were the main origin of the centralized subsistence water. The highly sensitive area was located between the common sensitive section of the river and the highly sensitive section of the river, which was rich in high quality water resources used for human consumption, industry and agriculture; the corresponding river system included the buffer region up to 500 meters away from the water source. The moderately sensitive area was the buffer region one kilometer away from the water source, involving in part the the Leihe development region and the town of Kongwan. The insensitive region referred to the region without a big lake or reservoir area, mainly distributed in the region of the towns of Liuhou and Liushui, where water resources were relatively scarce and water quality was relatively inferior.

4.3. Sensitivity of Atmospheric Conditions

Atmospheric conditions were affected by several indicators, including air quality, content of SO2 (daily mean), content of NO2 (daily mean), pollution burden and so on. Air quality had a major effect. The evaluation results for the surrounding environment (Table 3) indicated that the extremely sensitive area was 31,265.67 hm2 and accounted for 15.24% of the total area in Yicheng City, and laid mainly in Yancheng Town, the Leihe development zone and Kongwan Town. This region is the central construction and industry zone. The highly sensitive area was 97,184.32 hm2, accounted for 47.37%, and included Xiaohe, Nanying, Banqiaodian and Zhengji towns, which are distributed on the periphery of the extremely sensitive area. The moderately sensitive area was 76,695.35 hm2 and accounted for 37.39%. It include Liuhou Town, Wangji Town and Liushui Town, which constitute the main food supplying region and are separated from the extremely sensitive area.

4.4. Biodiversity Sensitivity

Biodiversity was influenced by factors such as abundance of biological resources, degree of social and economic development and so on. The evaluation of results for the biodiversity environment (Figure 3) showed that the extremely sensitive area was 43,445.33 hm2 and accounted for 21.18% of the total area in Yicheng City, mainly including key points of the landscape, ecological protection areas, conservation areas, protective forests along the river and the water maintenance forest. The highly sensitive area was 17,770.25 hm2 and accounted for 8.66%, which was distributed in Xiaohe Town, Liushui Town, Liuhou Town, Banqiaodian Town and Zhengji Town. The region should be regarded as a lasting and effectively protected area according to the demands of society, economy and sustainable development. It was abundant in arable land and prime farmland, and the scale was central and the quality was superior. The moderately sensitive area was 143,929.76 hm2 and accounted for 70.18%, mainly included important urban-rural construction land and industrial land.

4.5. Synthetic Evaluation and Space Distribution of Eco-Environmental Sensitivity

According to the practical situation in Yicheng City, based on the results of a series of single evaluated indexes, the weights of all elements in a level of the hierarchy relative to a whole level directly above could be obtained, was totally ranked, and was carried from the upper layer to the lower. After the above analytical process, the weight of each evaluation factor was determined for an integrated evaluation of the eco-environmental sensitivity of Yicheng City (Table 5). In order to calculate the synthetical index of ecological sensitivity, the factor-overlay method with GIS technique was adopted to confirm scientific and reliable grades, ultimately the distribution map of synthetic eco-environmental sensitivity on land use planning was obtained, which could comprehensively reflect the ecological environment for Yicheng City (Figure 4 and Table 6).
The spatial distribution of synthetic sensitivity showed that the extremely sensitive area was 29,540.93 hm2 and accounted for 14.4% of the total area in Yicheng City, and that it laid mainly in the eastern low mountain area and the southwest region, including parts of Liushui Town, Banqiao Town, Liuhou Town and Leihe Town. The ecological sensitivity of the region was extremely high, and the external factor disturbance not only had a quite intense influence on the region, but also affected the peripheral region and subsequently resulted in the destruction of the entire ecological environment system. Therefore, this area should be considered as the key protected region.
The highly sensitive area was 61,789.78 hm2, accounted for 30.12% of the total and was located around the Han River and Man River. The areas covered the major part of Xiaohe Town, Wangji Town, Yancheng Town, and Nanying Town, where there was high soil and biodiversity sensitivity. The ecological sensitivity of the region was relatively high, and it would be important to maintain the extremely sensitive area function and protect the total ecological environment of Yicheng City. As a result, close attention should be paid to the highly sensitive area in land use planning.
The moderately sensitive area was 38218.58 hm2 and accounted for 25.99%. It mainly included the towns of Wangji, Banqiaodian, Kongwan, Xiaohe and Liuhou, which were affected by atmospheric and biodiversity sensitivity. Environmental conditions in the area was relatively good and it was rational to carry on appropriate land exploitation, which could help to develop the forestry and fruit industry aiming at building up the basic forestry and fruit industry of Yicheng City.
The slightly sensitive area was 60,497.36 hm2, it accounted for 29.49% and included parts of the region of Nanying Town, Yancheng Town and Zhengji Town, which were influenced by water and atmospheric sensitivity. The area was the crucial land use region, and it was also a major base of grain planting in Yicheng City. Hence, in the process of land development and utilization, it is necessary to improve land productivity and usage efficiency. The slightly sensitive area was suitable for high-intensity exploitation and construction of large enterprises which exert a slight influence on the ecological environment, but the exploitation style and the possible environmental pollution should be considered.

5. Conclusions

This article applies a fuzzy matter-element model and a GIS vector overlay technique to carry out an ecological sensitivity evaluation and distribution for a small region. It overcomes some of the disadvantages of conventional techniques, such as the long period, complex manipulation, and fragmented landscape elements [17]. The results showed that:
  • It was proven that the spatial-overlay analysis for ecological sensitivity research was efficient and accurate. GIS was able to quickly and accurately extract a variety of basic information of ecological and environmental aspects, generate and update thematic maps of different ecological factors in different phases. Dynamic changes of the ecological environment obtained from the study area were very important to improve the eco-environmental management efficiency of the Land-Use Planning Department and Environmental Protection Department [18].
  • On the basis of the fuzzy set theory and the concept of Euclid approach degree, a fuzzy matter-element model for environmental impact assessment in general land use planning was established. A case study was carried out which the fuzzy matter-element model was used to assess the eco-environmental quality in a small scale region. The study results showed that the fuzzy matter-element method was practical and reliable. It applied a new method to environment impact assessment for general land use planning.

References

  1. Ouyang, ZY; Wang, XK; Miao, H. China’s eco-environmental sensitivity and its spatial hetergeneity. Acta Ecologica Sinica 2000, 20, 9–12. [Google Scholar]
  2. Cameron, A; Johnston, RJ; McAdam, J. Classification and evaluation of spider (Araneae) assemblages on environmentally sensitive areas in Northern Ireland. Agr. Ecosyst. Environ 2004, 102, 29–40. [Google Scholar]
  3. Satti, SR; Jacobs, JM; Irmak, S. Agricultural water management in a humid region: Sensitivity to climate, soil and crop parameters. Agr. Water Manag 2004, 70, 51–65. [Google Scholar]
  4. Liu, K; Ouyang, ZY; Wang, XK. Eco-environmental sensitivity and its spatial distribution in Gansu privince. Acta Ecologica 2003, 23, 2711–2718. [Google Scholar]
  5. Jin, YH; Zhao, DS; Yan, QS. A study on distribution and division of sensitivity to ecological environment in Jinlin province. J. Northeast Norm. Univ 2004, 36, 68–74. [Google Scholar]
  6. Li, DM; Wu, XQ; Yu, DY. Evaluation on eco-environmental sensitivity of Yunnan province. Acta Ecologica 2008, 28, 5270–5278. [Google Scholar]
  7. Li, JY; Wu, JF. GIS-based assessment of sensitivity of land eco-environment in Shanxi province. Agr. Res. Arid Area 2007, 25, 19–25. [Google Scholar]
  8. Cao, HY. An initial study on DPSIR Model. Environ. Sci. Tech 2005, 6, 110–111. [Google Scholar]
  9. Yu, BH; Lu, CH. Application of DPSIR framework for analysis of sustainable agricultural development. China Popul. Res. Environ 2004, 14, 68–72. [Google Scholar]
  10. Wang, CJ; Tang, XH; Zheng, DX; Chen, WH. A GIS-based study on sensitivity of soil erosion. Bull. Soil Water Conserv 2005, 25, 68–71. [Google Scholar]
  11. Gobin, A; Jones, R; Kirkby, M; Campling, P; Govers, G; Kosmas, C; Gentile, AR. Indicators for pan-european assessment and monitoring of soil erosion by water. Environ. Sci. Policy 2004, 7, 25–38. [Google Scholar]
  12. Statistical Yearbook of Yicheng in 2008; Statistics Bureau of Yicheng City: Yicheng City, China, 2008; pp. 13–16.
  13. Cui, J. Fuzzy matter-element model based on coefficients of entropy and application in comprehensive evaluation of air quality. J. Taizhou Polytechnical Institute 2006, 6, 60–63. [Google Scholar]
  14. Liu, N; Ai, NS; Zhou, B. Entropy-based fuzzy matter-element model for evaluation urban human settlement and its application. Build. Sci 2007, 23, 45–52. [Google Scholar]
  15. Pan, JH; Dong, XF. GIS-based assessment and division on eco-environmental sensitivity in Heihe river basin. J. Nat. Resour 2006, 21, 267–274. [Google Scholar]
  16. Xiong, Y; Zeng, GM. Combining AHP with GIS in synthetic evaluation of eco-environment quality—A case study of Hunan province, China. Ecol. Model 2007, 209, 97–109. [Google Scholar]
  17. Xu, FL; Cao, J; Tao, S; Fu, MX. Analysis of sensitivity factors and regions for sustainable development of regional ecosystem. China Environ. Sci 2000, 20, 361–365. [Google Scholar]
  18. Liu, K; Xu, WH; Ouyang, ZY; Wang, XK. GIS-based assessment on sensitivity to land desertification in Gansu province. Bull. Soil Water Conserv 2002, 9, 29–31. [Google Scholar]

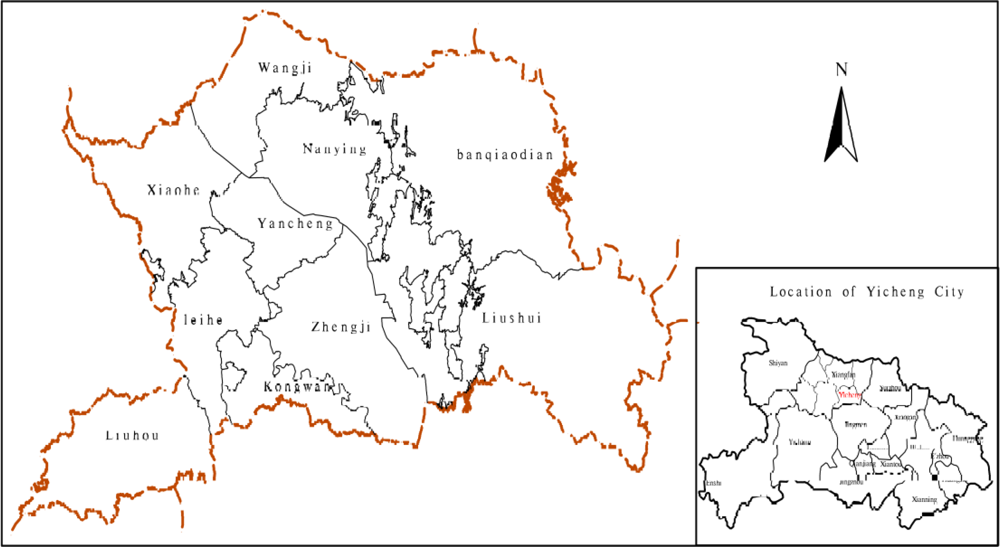

Figure 1. Location of the study area.
Figure 1. Location of the study area.
Ijerph 08 01206f1

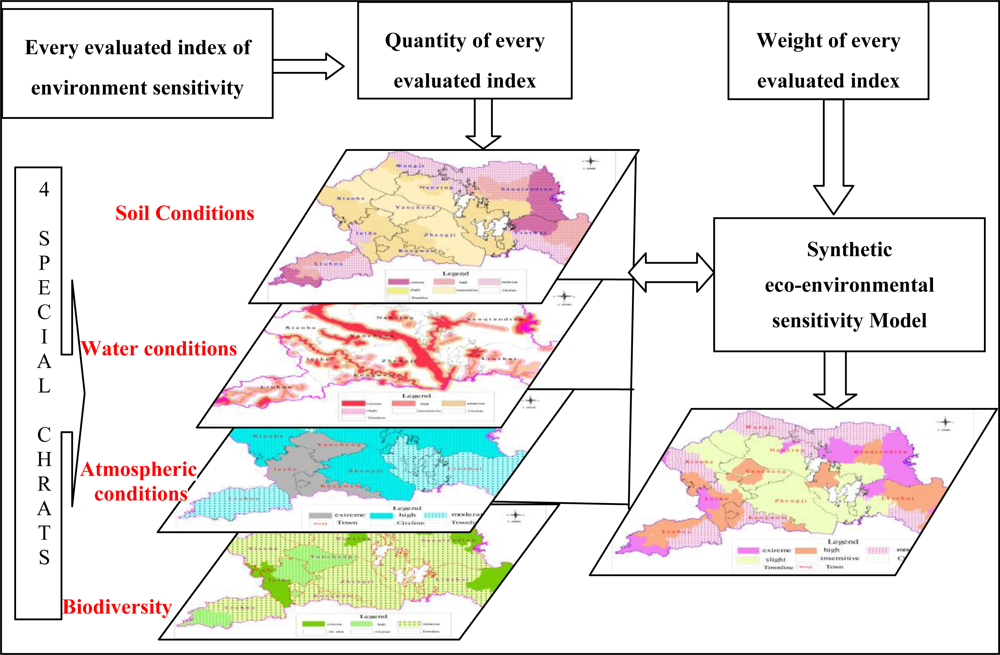

Figure 2. Technique of synthetic eco-environmental sensitivity for land use planning.
Figure 2. Technique of synthetic eco-environmental sensitivity for land use planning.
Ijerph 08 01206f2

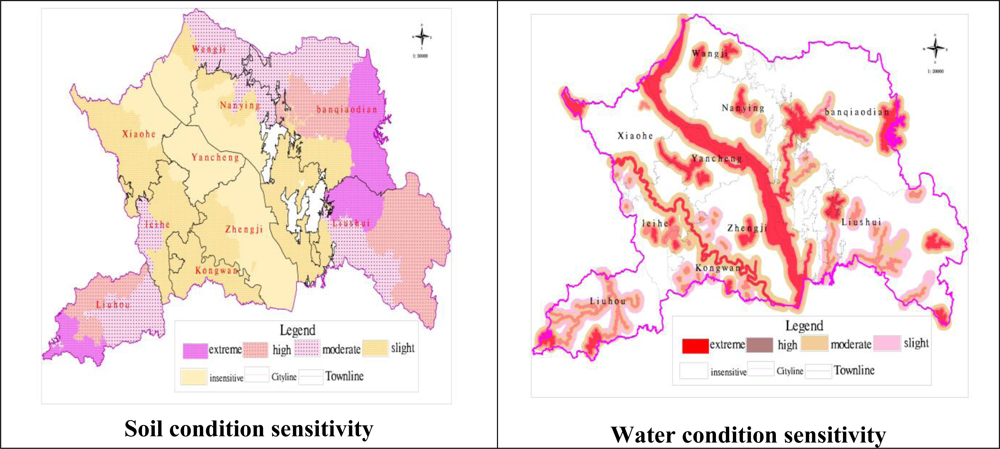

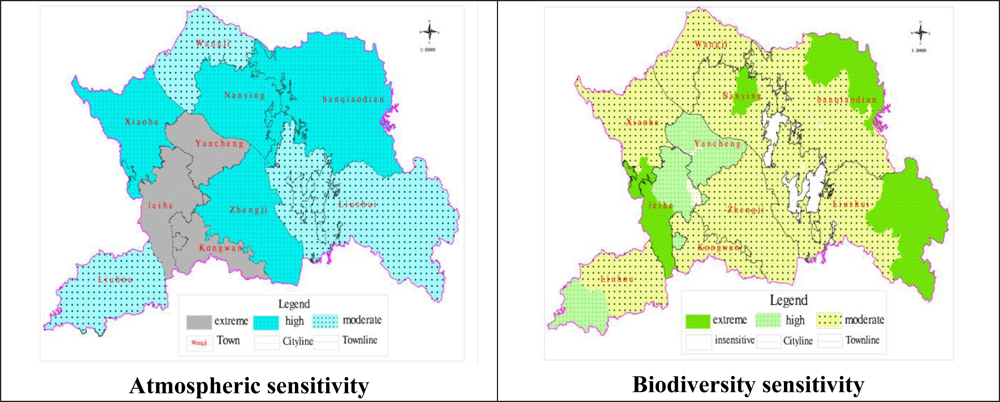

Figure 3. Sensitivity evaluation grade maps.
Figure 3. Sensitivity evaluation grade maps.
Ijerph 08 01206f3aIjerph 08 01206f3b

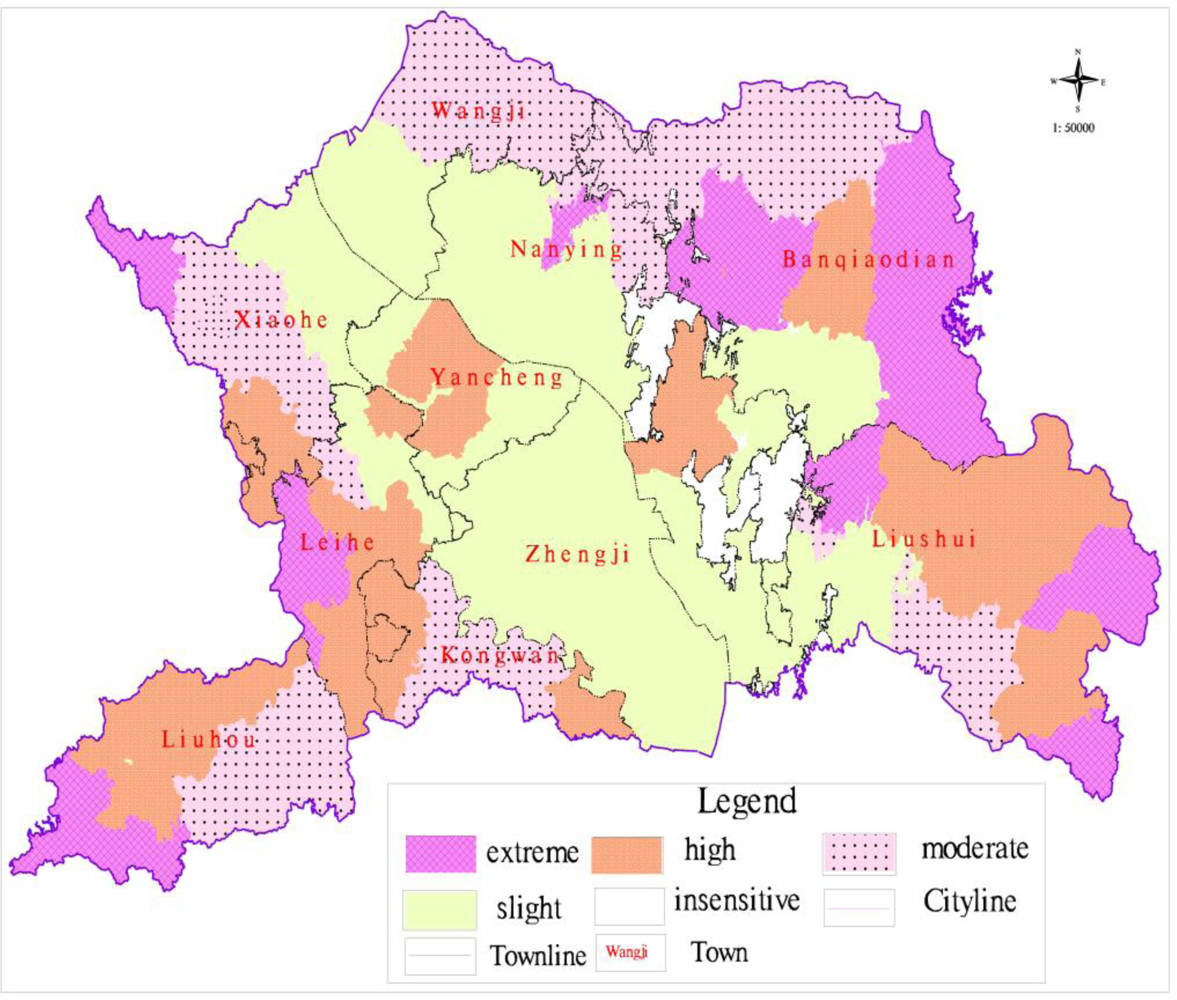

Figure 4. Grade map of synthetic eco-environment sensitivity in Yicheng City.
Figure 4. Grade map of synthetic eco-environment sensitivity in Yicheng City.
Ijerph 08 01206f4
Table 1. The evaluation index and grade system of eco-environmental sensitivity on land use planning.
Table 1. The evaluation index and grade system of eco-environmental sensitivity on land use planning.
A layerB layerC layerD layer (unit)InsensitiveSlightly sensitiveModerately sensitiveHigh sensitiveExtremely sensitive
Eco-environmental sensitivity indexSoil conditionsSoil and water lossRainfall erosion (MJ·mm/hm2·h)≤2525∼100100∼400400∼600≥600
Vegetation typeWater, swamp, paddy-fieldForest, meadow, pour-clusterSparse shrub plainHungrinessNon-vegetation
Grade and Slope (°)0∼56∼1011∼1515∼25≥25
Soil texture classSilty soil, siltSandy loam, silty clay, loam claySandy soil, loam soilSandy soil, clayStone soil, sandy soil
Soil qualitySoil typePaddy soilDamp soilYellow-Brown SoilPurple soilCalcareous soil
Landform and physiognomyPlainPlain, hillHillHill, mountainsMountains
pH≤5.55.5∼6.56.5∼7.57.5∼8.5≥8.5
Hg (ppm)≤0.150.15∼0.300.30∼0.500.50∼1.01.0∼1.5
Zn (ppm)≤100100∼200200∼250250∼300300∼500
Ni (ppm)≤4040∼5050∼6060∼7070∼200
HCHs (1) (ppm)≤0.050.05∼0.150.15∼0.30.3∼0.50.5∼1.0
Groundwater Depth(m)≥200100∼20060∼10040∼60≤40
Land use /land coverWater, beach, swamp, paddy-fieldWoodland, shrubberylandScanty-woodland, garden, meadowDry land, rural residential landNon-vegetation land
Influence intensity of land use≤5050∼6060∼7070∼80≥80
Water conditionsWater qualityWater sortIIIIIIIVV
BOD (2) (mg/L)2351080
CODMn (2) (mg/L)2461080
Ammonia and nitrogen(mg/L)0.10.21.02.08.0
Cr∼(6+)(mg/L)0.010.030.050.080.1
Supply function of resourceOther used-water zoneUsed-water zone of ecological forest and grassIndustrial used-water zoneUsed-water zone of forest, fruit, animals, fisheryDrinking water zone, Water source zone
Index of eco-environmental sensitivityWater conditionExchange intensity of waterIIIIIIIVV
Distance to water source (m)≤200200∼400400∼600600∼800≥800
Quality of protection layerIIIIIIIVV
Atmosphere conditionContent of SO2(Daily Mean)(3) (mg/L)≤0.050.05∼0.150.15∼0.200.20∼0.25≥0.25
Content of NO2(Daily Mean)(3) (mg/L)≤0.080.08∼0.090.09∼0.100.10∼0.12≥0.12
TSP (3) (mg/L)≤0.120.12∼0.20.20∼0.300.30∼0.50≥0. 50
PM10 (3) (mg/L)≤0.050.05∼0.100.11∼0.150.16∼0.25≥0. 25
Disposal ratio of industrial gas (%)≥9080∼9070∼8060∼70≥60
Pollution burdenLowRelatively lowMiddleRelatively highQuite high
Population intensity(person/km2)≤2,000[2,000, 4,000][4,000, 6,000][6,000, 10,000]≥10,000
BiodiversityHigh degree of non-living environmentTemperature of annual average(°C)1615141312
Quantity of rainfall(mm)1,000–1,0501,050–1,100950–1,000900–950850–900
Abundance of biological resourceProtection Wildlife of national and province rank /marsh speciesUnprotected speciesOther protected species at province and regional levelOther protected species of nationality levelMarsh (without first and second level)First and second level of nationality
Cover ratio of vegetation (%)25–3020–2515–2010–155–10
Biological diversity≥1.81.6∼1.81.4∼1.61.2∼1.41.0∼1.2
Degree of social and economic developmentAverage fixed assets investment10.80.60.40.2
Average net income (dollar)1,5001,2001,000850780
Engle coefficient; (%)3040506080
Urbanization level; (%)20–3020–2515–2010–15<10
Evaluation1∼33∼55∼77∼99∼10
Note:
(1)Heavy metals are counted by element, which is applicable for cation exchange capacities greater than 5 cmol (+)/kg, and the unit of element content is ppm (10−6). If the content is less than or equal to 5 cmol (+)/kg, its standard value is half of value in the table; HCHs is hexachlorocyclohexane.
(2)BOD is Biochemical Oxygen Demand and CODMn is chemical oxygen demand. The units of BOD, CODMn, ammonium and Cr∼(6+) are mg/L.
(3)TSP is Total Suspended Particular and PM10 is Particular matter less than 10 μm. The units of SO2, NO2, TSP, PM10 are mg/L (standard status) and time is to adopt daily average.
Table 2. Soil-erosion sensitivity evaluation results for Yicheng City.
Table 2. Soil-erosion sensitivity evaluation results for Yicheng City.
Type of sensitivitySensitivity indexArea (hm2)Proportion (%)
Insensitive156,722.6927.65
Slightly361,215.3729.84
Moderately538,218.5818.63
Highly728,535.7213.91
Extremely920,452.999.97
Table 3. Atmosphere sensitivity evaluation results for Yicheng City.
Table 3. Atmosphere sensitivity evaluation results for Yicheng City.
Type of sensitivitySensitivity indexArea (hm2)Proportion (%)
Moderately576,695.3537.39%
Highly797,184.3247.37%
Extremely931,265.6715.24%
Table 4. Biodiversity sensitivity evaluation results for Yicheng City.
Table 4. Biodiversity sensitivity evaluation results for Yicheng City.
Type of sensitivitySensitivity indexArea (hm2)Proportion (%)
Moderately5143,929.7670.16%
Highly717,770.258.66%
Extremely943,445.3321.18%
Table 5. Weight of each eco-environmental evaluation index.
Table 5. Weight of each eco-environmental evaluation index.
A layerWeight (w)B layerWeight (w)C layerWeight (w)D layer
Index of eco-environmental sensitivity0.26Soil conditions0.2Soil and water loss0.2Rainfall erosion (MJ·mm/hm2·h)
0.2Vegetation type
0.25Grade and Slope (°)
0.35Soil texture class
0.32Soil quality0.24Soil type
0.18Landform and physiognomy
0.18pH
0.09Hg (ppm)
0.09Zn (ppm)
0.08Ni (ppm)
0.08HCHs (ppm)
0.08Groundwater Depth (m)
0.28Land use /land cover
0.2Influence intensity of land use
0.24Water conditions0.25Water quality0.55Water sort
0.12BOD (mg/L)
0.11CODMn (mg/L)
0.11Ammonia and nitrogen (mg/L)
0.11Cr∼(6+) (mg/L)
0.12Supply function of resource
0.18Exchange intensity of water
0.23Distance to water source (m)
0.22Quality of protection layer
0.28Quality grade of air
0.23Atmospheric conditions0.14Content of SO2(Daily Mean) (mg/L)
0.13Content of NO2(Daily Mean) (mg/L)
0.12TSP (mg/L)
0.11PM10 (mg/L)
0.10Disposal ratio of industrial gas (%)
0.12Pollution burden (person/km2)
0.27Biodiversity0.28High degree of non-living environment0.48Temperature of annual average (°C)
0.52Quantity of rainfall (mm)
0.38Abundance of biological resource0.31Protection Wildlife of national and province rank /marsh species
0.42Cover ratio of vegetation (%)
0.27Biological diversity
0.34Degree of social and economic development0.18Average fixed assets investment
0.18Average net income (dollar)
0.47Engle coefficient (%)
0.17Urbanization level (%)
Table 6. Synthetic eco-environment sensitivity evaluation results for Yicheng City.
Table 6. Synthetic eco-environment sensitivity evaluation results for Yicheng City.
Type of sensitivitySensitivity indexArea (hm2)Proportion (%)Feasible land type
Slight360,497.3629.49Feasible zone
Moderate553,317.2725.99Feasible zone
High761,789.7830.12Dominated zone
Extreme929,540.9314.4Protected zone

Share and Cite

MDPI and ACS Style

Zhang, J.; Wang, K.; Chen, X.; Zhu, W. Combining a Fuzzy Matter-Element Model with a Geographic Information System in Eco-Environmental Sensitivity and Distribution of Land Use Planning. Int. J. Environ. Res. Public Health 2011, 8, 1206-1221. https://doi.org/10.3390/ijerph8041206

AMA Style

Zhang J, Wang K, Chen X, Zhu W. Combining a Fuzzy Matter-Element Model with a Geographic Information System in Eco-Environmental Sensitivity and Distribution of Land Use Planning. International Journal of Environmental Research and Public Health. 2011; 8(4):1206-1221. https://doi.org/10.3390/ijerph8041206

Chicago/Turabian Style

Zhang, Jing, Ke Wang, Xinming Chen, and Wenjuan Zhu. 2011. "Combining a Fuzzy Matter-Element Model with a Geographic Information System in Eco-Environmental Sensitivity and Distribution of Land Use Planning" International Journal of Environmental Research and Public Health 8, no. 4: 1206-1221. https://doi.org/10.3390/ijerph8041206

Article Metrics

Back to TopTop
