Article

Occurrence and Risk Assessment of PAHs in Surface Sediments from Western Arctic and Subarctic Oceans

1
Guangdong Province Key Laboratory for Coastal Ocean Variation and Disaster Prediction, Guangdong Ocean University, Zhanjiang 524088, China
2
Fujian Provincial Key Laboratory for Coastal Ecology and Environmental Studies, Xiamen University, Xiamen 361102, China
3
College of Ocean and Earth Sciences, Xiamen University, Xiamen 361002, China
4
State Key Laboratory of Marine Environmental Science, Xiamen University, Xiamen 361002, China
5
Third Institute of Oceanography, State Oceanic Administration, Xiamen 361005, China
*
Author to whom correspondence should be addressed.
Int. J. Environ. Res. Public Health 2018, 15(4), 734; https://doi.org/10.3390/ijerph15040734
Submission received: 28 February 2018 / Revised: 27 March 2018 / Accepted: 9 April 2018 / Published: 12 April 2018

Abstract

:
In the fourth Chinese National Arctic Research Expedition (from July to September, 2010), 14 surface sediment samples were collected from the Bering Sea, Chukchi Sea, and Canadian Basin to examine the spatial distributions, potential sources, as well as ecological and health risk assessment of polycyclic aromatic hydrocarbons (PAHs). The ∑PAH (refers to the sum of 16 priority PAHs) concentration range from 27.66 ng/g to 167.48 ng/g (dry weight, d.w.). Additionally, the concentrations of ∑PAH were highest in the margin edges of the Canadian Basin, which may originate from coal combustion with an accumulation of Canadian point sources and river runoff due to the surface ocean currents. The lowest levels occurred in the northern of Canadian Basin, and the levels of ∑PAH in the Chukchi Sea were slightly higher than those in the Being Sea. Three isomer ratios of PAHs (Phenanthrene/Anthracene, BaA/(BaA+Chy), and LMW/HMW) were used to investigate the potential sources of PAHs, which showed the main source of combustion combined with weaker petroleum contribution. Compared with four sediment quality guidelines, the concentrations of PAH are much lower, indicating a low potential ecological risk. All TEQPAH also showed a low risk to human health. Our study revealed the important role of the ocean current on the redistribution of PAHs in the Arctic.

Graphical Abstract

1. Introduction

Polycyclic aromatic hydrocarbons (PAHs) are a class of widely distributed organic compounds originating from incomplete combustion and pyrolysis of carbonaceous materials [1]. The concentrations of PAHs should be seriously controlled due to the fact that PAHs can propel the formation of carcinogenic and malformed molecules in the living organisms, and some high molecular weight PAHs have bio-accumulation characteristics in the food chain [2,3,4]. Simultaneously, scientists justified that during the formation, transportation, transformation, and degradation processes [5], PAHs can enter into human bodies through skin, breath, and alimentary canal, which contribute to an extreme threat to our health [6]. In addition, PAHs tend to remain in the environment for a long time due to their chemical stability, and they can migrate globally from areas of human activity through distillation and condensation [7]. That is why PAHs are the principal monitored contaminates and have been an increasing environmental concern in the last three decades.
PAHs could be derived from natural and mainly anthropogenic sources [8,9]. Natural sources include volcanic activity and spontaneous formation by plants and microbes, while anthropogenic PAHs may be generated from fossil fuel combustion, municipal and industrial effluents, creosote, oil spills, urban and agricultural runoff, asphalt production, waste incineration, deposition, and transportation of aerosols [5,10]. Unlike other POPs that has been legally banned from use in many countries, PAHs are inevitably emitted into the environment through these ways. PAHs have the characteristic of strong hydrophobicity and lipophilicity, which provide them with a strong affinity for particulate matters and sediments, thus their concentrations in sediment are higher than those in the overlying water column [11,12]. For remote pelagic environments like the North Pacific and Arctic Oceans, particle settling could be a significant removal process for hydrophobic chemicals [13]. Marine sediments play an important role in acting as long-term sinks for many anthropogenic contaminants involving PAHs and organic compounds, which have caused worldwide concern as toxic conservative contaminants [14,15,16,17,18,19,20]. Homogenously, contaminants in sediments can release to the seawater through suspension of sediments. That means that sediments are not merely significant receivers, but could also act as secondary sources of these persistent anthropogenic pollutants and greatly affect their fate in the environment [21,22]. Moreover, the levels and occurrence of pollutants in surface sediments can provide information on recent depositions .
The Arctic Ocean is no longer a pristine environment free of anthropogenic contaminants. PAHs in the Arctic region may originate from low or mid-latitude areas through atmospheric transportation, which is called the “grasshopper effect” [23]. Continental sources of PAHs via long-range transport from mid-latitudes have been demonstrated by several modeling studies [24,25]. Surface ocean currents are also considered to provide significant transfer routes to the Arctic due to ongoing deposition and gaseous exchange between the atmosphere and seawater [26]. On the other hand, climate change perturbations are also driving increased coastal erosion and permafrost thawing in the Arctic. Therefore, petrogenic PAHs are increasing due to transport over long distances via turbidity currents, as well as the offshore transport of sediment-laden ice from the coastal shelf areas and subsequent export between the shelves and the central Arctic Ocean [27]. Therefore, the Arctic acts as a final sink for semi-volatile pollutants. However, it has been suggested that, as primary sources of POPs are reduced, then remote areas like the Arctic Ocean may play a role as a secondary source, resulting in the re-emission of POPs [28].
The continental margins of the Chukchi and Bering Seas are some of the largest margins in the world and they have several unique characteristics that distinguished them from the other margins in the Arctic. Firstly, the region is bounded in the east and west by continents, as opposed to the rest of the arctic margins, which have land to the south and open ocean to the north. In addition, there are several sharp parameters such as nutrients across and along the shelf and they also have lower sea ice cover. Most importantly, their primary productivity is among the highest regions of the world margins, with Bering Sea supporting large bodies of commercial production. From this perspective, the Arctic shelf sediments are potentially important when considering human and ecological exposure via marine (pelagic) food webs (e.g., phytoplankton → zooplankton → Arctic cod → ringed seal).
Over the past three decades, PAHs have been monitored mainly in heavily contaminated coastal regions and polluted industrialized zones [2,17,29,30,31,32,33], while investigations in the remote pelagic environments like the North Pacific and Arctic Oceans are sparse as the harsh climate and environment create difficulties for sampling. Despite this, scientists have done a relatively great job concerning POP research in the air and surface water of the Arctic and Subarctic Oceans [28,31,34,35,36,37,38,39,40]. However, there are relatively few studies that have measured concentrations in deep ocean waters or bottom sediments, with some marine sediment studies being limited to coastal area such as the mid- and western Russian Arctic [41,42]; Norwegian Arctic [43,44,45]; Mackenzie shelf area [46]; Saglek Bay, Labrador, Canada [47]; and the Gulf of Alaska [48]. Therefore, for PAHs, the role of sediments in the western Arctic, subarctic oceans, and surrounding deep sea as an exchanging compartment with water and/or permanent sink is not fully understood and requires investigation. The aim of this study was to evaluate the levels, spatial distribution patterns, potential sources, and potential ecological and health risk of PAHs in surface sediments from the Bering Sea, Chukchi Sea, and Canadian Basin.

2. Sampling Strategy and Methods

2.1. Study Area and Sample Collection

Samples were collected from Bering Sea, Chukchi Sea, and Canadian Basin based on the fourth Chinese National Arctic Research Expedition from July to September 2010, onboard the R/V Xuelong (Snow Dragon). A total of 14 surface sediment samples (0–2 cm) were collected by a grab sampler (Figure 1). Detailed information about the location and depth were given in Table S1 in the supporting information. The surface sediment samples were transferred into 450 °C pre-combustion aluminum foil containers, and packaged them with aluminum foil again and marked with the station information. Then all samples were stored at −20 °C until further analysis.

2.2. Analysis of PAHs

2.2.1. Pre-Treatment of Sediments, PAHs Extraction, and Cleanup

After transported to the laboratory, the sediment samples were freeze-dried and homogenized with a mortar and pestle, then sieved through an 80 mesh stainless steel sieve prior to analysis. Determination of surface sediment granulometry was measured using a laser particle size analyzer (Mastersizer 2000, Malverm, UK).
The sediment extraction was performed with accelerated solvent extractor (ASE, Thermo Co., Sunnyvale, CA, USA). 10 g of each sample were weighed, and then transferred into cells, spiked with 100 μL internal surrogate standard mixtures (Naphthalene-d8, Acenaphthene-d10, Chrysene-d12, Perylene-d12, Phenanthrene-d10). All samples were extracted with 100 mL dichloromethane (DCM) and 40 mL anhydrous sodium sulfate (Na2SO4), and ASE conditions were set up as follows: oven temperature: 100°C; pressure: 1500–2000 psi; static time: 5 min after 5 min pre-heat equilibration; flush volume: 60% of the cell volume; nitrogen purge: 60 s; static cycles: 2. The ASE extracts were collected in round bottomed flasks with funnels, which had been rinsed by DCM and filled with Na2SO4. The collected fluent was evaporated to approximately 1 mL after solvent exchange with hexane.
The purifying system was prepared by 500 mg/6 mL neutral Al2O3 SPE column (Sinopharm Chemical Reagent Co., Ltd., Shanghai, China) and 1000 mg/6 mL silica gel column (Ji Deyuan Reagent Factory, Qingdao, China). After cleaning the system with 5 mL mixture of pentane and DCM (1:1, v/v) and 5 mL hexane, targets were eluted with 15 mL mixture of pentane and DCM (1:1, v/v). A new concentration step was performed to a final volume of 1 mL with a gentle nitrogen stream. Finally, internal standard solution, 50 μL of pyrene-d10, was added to the extract before instrumental analysis.

2.2.2. Instrumental Analysis of PAHs

All samples were analyzed for the following 16 PAHs in this study: naphthalene (Nap), acenaphthylene (Acep), acenaphthene (Acp), fluorine (Flu), phenanthrene (Phe), anthracene (Ant), fluoranthene (FLR), pyrlene (PYR), benzo[a]anthracene (B(a)A), chrysene (Chr), benzo[b]fluoranthene (B(b)F), benzo[k]fluoranthene (B(k)F), benzo(a)pyrene (B(a)P), dibenzo[a,h]anthracene (DaA), benzo[ghi]perylene (B(g)P), and indeno[1,2,3-cd]pyrene (InP).
PAH quantification was achieved by gas chromatography-mass spectrometry (GC-MS) using an HP5-MS capillary column (30 m length, 0.25 mm inner diameter, 0.25 μm film thickness; J & W Scientific Inc., Folsom, USA), with helium as carrier gas. The column oven was programmed from 60 °C to 150 °C at a rate of 15 °C/min, then from 150 °C to 220 °C at a rate of 5 °C/min, and finally from 220 °C to 300 °C at a rate of 10 °C/min with a holding time of 10 min.

2.2.3. Quality Assurance and Quality Control

Blanks procedure was performed as mentioned above. The blank concentration was very low for PAHs. The concentration levels were obtained by subtracting the blanks from the values measured by chromatograms. Detection limits were quantified as the mean concentration in the field blank plus three times the standard deviation (0.012 ng g−1 for PAHs). Recoveries were determined for all samples by spiking with the surrogate standards prior to extraction. The mean recovery (%) of five surrogates range was 73.9%. The mean recoveries obtained for Naphthalene-d8 was 77.05%, Acenaphthene-d10 was 79.42%, Phenanthrene-d10 was 76.95%, Chrysene-d12 was 85.10%, whereas for Perylene-d12 the mean recovery (%) was 82.44%. Furthermore, the spike recoveries (%) were from 71.7% to 104.5%.

3. Results and Discussion

3.1. Sediment Properties (Grain Size)

All the grain sizes of the sediment were displayed in Table S2. According to the level of φ, the grain sizes of samples were classified into four parts, clay (φ > 8), silt (4 < φ < 8), gravel (2 < φ < 4), and sand (0 < φ < 2). Sediments in all study areas were mainly contributed by silt which ranged from 50.93% to 77.14%. Furthermore, the sediments contained relatively low sand which just were consisted of 1.465 ± 1.465%. Apparently, the highest percent of silt was discovered in station R09, while station BN09 had the lowest percent, indicating that the larger the sediment grain size, the lower the TOC content and the smaller the amount of adsorbed PAHs. In Bering Sea sediments, gravel contributed more than clay, while the exact opposite condition was found in the Canadian Basin, and that in Chukchi Sea sediments gravel was slightly more than clay. In general, the grain size properties of the study sediments showed no obvious geographic differences. Moreover, there were no strong correlations between grain size values and PAHs concentrations (Table S3), indicating the distribution pattern of PAHs concentration was mainly depended on their original sources.

3.2. Concentration and Composition

3.2.1. PAHs Levels and Compositions

Concentrations of the 16 US EPA prior PAHs in surface sediment samples in this study were presented in Figure 2 and Table S4. The concentrations of ∑PAHs ranged from 27.66 ng/g to 167.48 ng/g d.w. and the mean ∑PAHs was 77.27 ng/g. The levels of individual PAHs were in the range of undetectable to 49.34 ng/g. On average, B(a)P, Phe, and B(g)P were the most dominated compounds in this study. However, PAH compositions varied greatly with stations. For example, B(a)P were the highest component in shallow sites from the continental shelf of Bering and Chukchi Seas (station B14, BB01, BB05, CC01, and SR05). B(a)P is of great concern due to its high potentially carcinogenic toxicities. The reason why the level of B(a)P increased sharply in those five sites still needs further investigation since this area supports large bodies of commercial fish production. Phe was almost dominated in the other stations, with higher proportions of B(a)A, B(b)F, B(k)F, and B(a)P in the continental shelf breaks of the Chukchi Sea, where the highest ∑PAHs were located. These are dominated compounds in coal combustion emission [49]. It has been pointed out that the majority of the high molecular weight PAHs on the Beaufort Sea Shelf have a principal source in the Mackenzie River [50], which may also partly explain the highest value of PAHs in this region. There were also many individual PAHs undetectable in some stations. For example, Flu was only detected in station C07 with the level of 2.67 ng/g, while InP were merely detected in station S26 and Mor2 with the concentrations of 2.83 and 2.96. The different PAH patterns in the study area may be induced by a combination of PAH sources, geographic position, sediment properties (total organic carbon and granulometry), water depth, and sedimentation rates.
Figure 3 illuminated the proportions of different ring PAHs at the study area. The results reflected that three-ring (4.94 ng/g to 42.24 ng/g) and five-ring (4.2 ng/g to 56.77 ng/g) PAHs were the most abundant compounds in all the stations. It should be noted that the proportion of five- and six-ring components were obviously lower in the Pacific and Canadian Basin (B07, Bn09, and Bn13), which may be due to the fact that PAHs with high log KOW tended to absorbed strongly with particles and deposited nearby from their sources. This hindered their potential to conduct long-range transport to the remote oceans.

3.2.2. Comparison with Other Places in Arctic Ocean

The investigations of PAHs in Arctic areas were scarce, because they are far away from human beings, and the harsh Arctic climate and environment create difficulties for sampling. As concern for environment has increased, the studies focused on Arctic areas have also increased gradually. However, previous studies mainly focused on coastal sites in Canada, Russia, and Norway which have relatively higher contamination levels. In order to evaluate the quality of sediment, the PAHs levels were compared with other remote areas (Table 1). However, our results are much lower than the data reported in other Arctic Ocean sediments like Beaufort Sea [51,52], Chukchi Sea [53], Chukchi shelf [54], Northern Ireland lake [55], Cork Harbor [11], two harbor in Norway [56], and the Ardal Fjords [57]. On the one hand, some of the high level regions were either closed to the continent or contributed by point sources. On the other hand, the difference may also be due to some of these studies taking alkyl-PAHs into consideration when calculating ∑PAHs, and the dominance of alkyl-PAHs has been reported in sediments from the Chukchi shelves [54]. In general, the PAHs levels in the study were comparative or slightly lower than those in Ob (24–115 ng/g), Yenisei (40–131 ng/g), Kara Sea (16–94 ng/g), White Sea (27–95 ng/g), and higher than those in Ny-Alesund (27–34 ng/g) [44,58,59] and the northern South China Sea (11.3–95.5 ng/g) [49] (Table 1). With the comparison of other regions around the world (Table 1), the concentration of sediment PAHs according to this study were at a relatively lower concentration range (<200 ng/g) which indicated that these areas were relatively non-polluted.

3.3. PAHs Spatial Distribution

The study area was divided into three regions: Bering Sea, Chukchi Sea, and Canadian Basin. The investigation (Figure 2) showed that the concentrations of ∑PAHs had a trend which decreased in the order: southern Canadian Basin > Chukchi Sea > Bering Sea, whereas the northern part of the Canadian Basin (stations BN09 and BN13) contained the lowest concentrations of PAHs. Pollutants are more difficult to get to the deep ocean in the higher Arctic compared with the continental shelf. In addition, the deposition rates vary in different areas of the sea, and surface sediment samples collected at a depth of 2 cm represent different ages. Therefore, the top 2 cm of surficial sediments collected in this study represent an accumulation period of 25 years in the Bering Strait and Chukchi shelf regions, 50 years in the Bering Sea, but a much longer period (>1000 year) in the Canada Basin and the central Arctic Ocean [13]. As such, in the deeper ocean sediments, a grab sample of 2 cm in depth will effectively ‘dilute’ the POPs associated with the upper sediment.
However, the extremely high levels of ∑PAHs were discovered at station S21 (167.48 ng/g) and S26 (140.4 ng/g), which were located in the edge of the continental shelf of the Chukchi Sea and dominated by Phe and B(b)F. In general, the reason why the contamination levels of the Canadian Basin margin region were the highest during this research may be attributed to an input of Canada point sources, atmospheric sedimentation, river runoff etc. For example, high-value stations (ΣPAHs > 100 ng/g) were distributed through Barrow Point and the Prudhoe Bay offshore area, close to the mouth of the Colleyville Rivers and Mackenzie River (account for 330 km−3 a−1 river outflow in the Arctic) [64]. Moreover, the clockwise flow of the Beaufort Gyre is conducive to the transportation of river-borne materials westward from the Beaufort Sea and along the Northwind Ridge to the northern Chukchi Sea [65]. Furthermore, the Siberian Coastal Water, which also brings pollutants from Yukon River, flow into the Eastern Chukchi Sea and finally turn into the Canadian Basin through the Chukchi Sea shelf, which also contributed to the accumulation of coastal pollutants in this area.

3.4. Potential Source of PAHs

Source apportionment analysis is becoming a routine in investigating the occurrences and accumulations of PAHs in natural environments. There are many methods that can be used to indicate the sources of PAHs, such as isomer ratios method, principle component analysis, chemical mass balance method, and stable carbon isotope method [66,67]. Relatively, isomer ratios were the most frequently used method to infer the sources of PAHs. They determine the possible PAH source by comparing the ratios of selected PAH compounds to the known ratios presented in specific sources. In this investigation, the isomer ratios of PAHs components, Phe/Ant, BaA/(BaA+Chy), and LMW/HMW were chosen to act as chemical tracers to examine possible sources of PAHs in this study. Based on the isomer parameters, the fuel oil/combustion transition point for Phenanthrene/Anthracene is 10, and LMW/HMW > 1 implies petroleum source and LMW/HMW < 1 indicates combustion origin. While BaA/(BaA+Chy) < 0.2 indicates a contribution of petroleum, BaA/(BaA+Chy) > 0.35 indicates the combustion contribution, and if it is between 0.2 and 0.35, it suggests petroleum combustion.
The three isomer ratios were displayed in Table S5. In the Bering Sea, BaA/(BaA+Chy) and LMW/HMW ratios were in the range of 0.46–0.91 and 0.20–0.63 while Phe/Ant ranged from 0.93–11.89, indicating combustion inputs combined with possible weaker petroleum. For the Chukchi Sea, ratios of Phenanthrene/Anthracene ranged from 9.27 to 13.11 indicating that PAHs were mainly originated from petroleum source. The ratios of LMW/HMW and BaA/(BaA+Chy) ranged from 0.31 to 0.52 and 0.84 to 0.95 respectively, indicating that PAHs were mainly derived from combustion source. For the Canadian Basin, Phenanthrene/Anthracene, BaA/(BaA+Chy) and LMW/HMW ratios varied from 11.49 to 34.70, 0.51 to 0.83, and 0.35 to 0.44. In all study stations, the BaA/(BaA+Chy) ratios were larger than 0.35, which indicated a contribution of combustion sources of PAHs. Analogously, as shown in Figure 3—6 ring PAHs were more abundant than 2–3 ring PAHs also figure out the combustion sources. Complementary, except station B14, BB01, BB05, R09, BN09, and BN13, the Phe/Ant > 10 in the rest stations implied an input of combustion contribution.
On the whole, the major source of the study areas was combustion inputs combined with possible weaker petroleum contribution (Figure 4). However, due to the lack of alkylated PAHs, it was hard to well assess the influence from petrogenic input, since the parent PAHs are largely derived from combustion processes. The conclusion for the source of PAHs in the Arctic is literature specific. The results here were similar with the research which pointed out that one of the important sources of PAHs depositions was coal combustion in east Canada [61]. Ding et al. (2007) [1] also proposed that coal combustion contributed largely to the PAHs over arctic atmosphere. Natural sources, such as summertime forest fires in subarctic parts of Alaska, Canada, Russia, and Siberia can result in the episodic input of PAHs and other pollutants to the Arctic atmosphere. It is reported that a series of wildfires broke out in Russia starting in late July 2010 [68]. Thus, these regional combustion sources may have affected PAH in Arctic Ocean sediment.
It should be noted that microbial degredation and photodegradation have effects on molecular ratios even though they were regularly used for identifying possible sources [69]. Furthermore, LMW PAHs can be biodegraded more quickly than HMW PAHs [70]; Compared with Chy, the half-life of BaA was shorter when exposed to atmosphere and sunlight [71]. PAHs may undergo photo-degradation reaction with OH radicals during atmospheric LRT. Therefore, the diagnostic ratios would have a deviation because of direct or indirect photolysis and should be used with caution [7].

3.5. Ecological Risk and Health Risk Assessment

Ecological risk assessment has been used as a practical tool to evaluate PAHs risks to ecosystems and living organisms. The procedures used for deriving the sediment quality guidelines (SQGs) are approach specific. In order to assess the impact that the PAHs have on aquatic ecosystems, Long et al. (1995) [72] and Macdonald et al. (1996) [73] put forward four sets of sediment quality guidelines (SQGs) into use, which is an acknowledged effective way to assess the ecological risk of ocean sediments.
We compared PAH concentrations from the sediment in these three areas with effects range-low value (ERL, the lower 10th percentile value of the effects data) and effects range-median value (ERM, 50th percentile of the effects data) [72], as well as probable effects level (PEL) and threshold effects level (TEL) [73]. These values are listed in Table S6. The results of comparison showed that all PAH concentrations from these sediment samples were lower than SQGs, which means that PAHs may have a low potential ecological risk to the surrounding life in northern Bering Sea, Chukchi Sea, and Canadian Basin.
To further assess whether the levels in the Arctic will pose harmful effect to the heath of organism and humans, health risk assessment is also necessary. In order to estimate an overall and individual carcinogenicity of PAHs, the total B(a)P toxic equivalent quotient (TEQcarc) for carcinogenic compounds was calculated to assess the health risk with the following equation
TEQPAH = ∑TEQi = ∑(Ci × TEFi)
The toxic equivalency factors (TEFs) were used to quantify the carcinogenicity of other PAHs relative to B(a)P. The calculated TEF is 0.001 for NaP, Acep, Acp, Flu, Phe, FLR, and PYR; 0.01 for Ant, Chr, and B(g)P; 0.1 for BaA, BbF, BkF, and IP; 1 for BaP and DahA. The calculated TEQ ranged from 1.6–51.34 ng TEQ g−1 (Table S7). Specifically, the values of TEQPAH range from 7.59 ng TEQ g−1 to 35.72 ng TEQ g−1, 9.12 ng TEQ g−1 to 51.34 ng TEQ g−1 and 1.60 ng TEQ g−1 to 27.92 ng TEQ g−1 from Bering Sea, Chukchi Sea, and Canadian Basin. In these areas, Bering Sea has the highest TEQPAH mean value (26.79 ng TEQ g−1), although the highest concentrations actually occurred in the Canadian Basin. Canadian Council of Ministers of the Environment (CCME) has applied risk-based criterion for protection of environmental and human health (CCME 2010), indicating a safe level of 600 ng TEQ g−1 [54]. All the values of sediment samples are below this guideline.

4. Conclusions

The record of human impact on Bering Sea, Chukchi Sea, and Canadian Basin was assessed by the indicators polycyclic aromatic hydrocarbons (PAHs) in sediments, providing available information on their levels, distributions, potential sources, and risk assessment in the Western Arctic and subarctic Ocean. The concentrations of PAHs were relatively low, which might be due to the remote locations. Additionally, the concentrations of ∑PAH were highest in the margin edges of the Canadian Basin, which may result from an accumulation of Canada point sources and river runoff while. Three isomer ratios of PAHs (Phenanthrene/Anthracene, BaA/(BaA+Chy), and LMW/HMW) showed the main source of combustion combined with weaker petroleum combustion contribution. Compared with four sediment quality guidelines, the concentrations of PAH are much lower, indicating a low potential ecological risk. All TEQPAH also shows a low risk to human health and they were highest in Bering Sea, which indicated a necessity for health risk assessment for PAHs in sediment, as high levels did not reveal high TEQPAH. Further studies should be carried out taking consideration of other factors, such as atmospheric effects, terrestrial input, deposition and mixing activity, as well as water/sediment interface flux, aiming at a better understanding of the controlling factors involved.

Supplementary Materials

The following are available online at https://www.mdpi.com/1660-4601/15/4/734/s1, Table S1: Information about the sampling stations, Table S2: The grain size of surface sediments from study areas, Table S3: The Pearson correlation of grain size of surface sediments and PAHs from study areas, Table S4: Summary of PAHs concentrations (ng/g d.w.) in the different study stations, Table S5: Ratios of LMW/HMW, Phe/Ant, and BaA/(BaA+Chy) in study areas; Table S6: Standard pollution criteria of PAHs for sediment matrixes, Table S7: Estimated human health risk caused by PAH contaminated sediment.

Acknowledgments

Financial support for this study were granted by the Ocean Public Welfare Scientific Research Projects, the State Oceanic Administration of China (200805095); the National Natural Science Foundation of China (41776088, 40776040, 40306012, 40776003, 41076133, and 41576180); the Natural Science Foundation of Fujian Province (2014J06014), and the Basal Research Fund of Xiamen University (2072010507), Senior Project of Big Science Instrument Office, Institute of Oceanology, Chinese Academy of Sciences (no. KEXUE2016G01, KEXUE2017G09); the Natural Science Foundation Fujian Province (2014J06014); Xiamen University Training Program of Innovation and Entrepreneurship for Undergraduates (2016X0619, 2016X0624); the International Science and technology cooperation project (GASI-IPOVAI-04); and the Project of Enhancing School with Innovation of Guangdong Ocean University (GDOU2014050201, GDOU2013010203). We thank Weiwei Chen and Nie Senyan for sampling and providing useful information on the data analysis. The authors are thankful for the Chinese Arctic and Antarctic Administration offering the crew of Xuelong, thus the present study is possible conducted. We are also grateful for assistance and supply of equipment from the State Key Laboratory of Organic Geochemistry, Guangzhou Institute of Geochemistry.

Author Contributions

All authors contributed to the data assessment and analysis strategy. Fajin Chen coordinated and wrote the main text with contributions from the other co-authors. Peng Huang and Hongwei Ke contributed to the experiment and measurement. Yan Lin, Minggang Cai, Jingjing Zhang, and Lin Liu contributed to the writing of the text.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Ding, X.; Wang, X.-M.; Xie, Z.-Q.; Xiang, C.-H.; Mai, B.-X.; Sun, L.-G.; Zheng, M.; Sheng, G.-Y.; Fu, J.-M.; Pöschl, U. Atmospheric polycyclic aromatic hydrocarbons observed over the North Pacific Ocean and the Arctic area: Spatial distribution and source identification. Atmos. Environ. 2007, 41, 2061–2072. [Google Scholar] [CrossRef]
  2. Grung, M.; Petersen, K.; Fjeld, E.; Allan, I.; Christensen, J.H.; Malmqvist, L.M.V.; Meland, S.; Ranneklev, S. PAH related effects on fish in sedimentation ponds for road runoff and potential transfer of PAHs from sediment to biota. Sci. Total Environ. 2016, 566, 1309–1317. [Google Scholar] [CrossRef] [PubMed]
  3. Ke, C.L.; Gu, Y.G.; Liu, Q.; Li, L.D.; Huang, H.H.; Cai, N.; Sun, Z.W. Polycyclic aromatic hydrocarbons (PAHs) in wild marine organisms from South China Sea: Occurrence, sources, and human health implications. Mar. Pollut. Bull. 2017, 117, 507–511. [Google Scholar] [CrossRef] [PubMed]
  4. Bamforth, S.M.; Singleton, I. Bioremediation of polycyclic aromatic hydrocarbons: Current knowledge and future directions. J. Chem. Technol. Biotechnol. 2005, 80, 723–736. [Google Scholar] [CrossRef]
  5. Duran, R.; Cravolaureau, C. Role of environmental factors and microorganisms in determining the fate of polycyclic aromatic hydrocarbons in the marine environment. FEMS Microbiol. Rev. 2016, 40, 814–830. [Google Scholar] [CrossRef] [PubMed]
  6. Kim, K.H.; Jahan, S.A.; Kabir, E.; Brown, R.J.C. A review of airborne polycyclic aromatic hydrocarbons (PAHs) and their human health effects. Environ. Int. 2013, 60, 71–80. [Google Scholar] [CrossRef] [PubMed]
  7. Cai, M.; Liu, M.; Hong, Q.; Lin, J.; Huang, P.; Hong, J.; Wang, J.; Zhao, W.; Chen, M.; Cai, M. Fate of PAHs in Seawater from the Western Pacific to the Southern Ocean (17.5°N–69.2°S) and their Inventories on the Antarctic Shelf. Environ. Sci. Technol. 2016, 24, 9161–9168. [Google Scholar] [CrossRef] [PubMed]
  8. Niimi, A.J.; Palazzo, V. Biological half-lives of eight polycyclic aromatic hydrocarbons (PAHs) in rainbow trout (Salmo gairdneri). Water Res. 1986, 20, 503–507. [Google Scholar] [CrossRef]
  9. Yim, U.H.; Hong, S.H.; Shim, W.J. Distribution and characteristics of PAHs in sediments from the marine environment of korea. Chemosphere 2007, 68, 85–92. [Google Scholar] [CrossRef] [PubMed]
  10. Neff, J.M.; Stout, S.A.; Gunster, D.G. Ecological risk assessment of polycyclic aromatic hydrocarbons in sediments: Identifying sources and ecological hazard. Integr. Environ. Assess. Manag. 2005, 1, 22–33. [Google Scholar] [CrossRef] [PubMed]
  11. Kilemade, M.; Hartl, M.G.; Sheehan, D.; Mothersill, C.; van Pelt, F.N.; O’Brien, N.M.; O’Halloran, J. An assessment of the pollutant status of surficial sediment in Cork Harbour in the South East of Ireland with particular reference to polycyclic aromatic hydrocarbons. Mar. Pollut. Bull. 2004, 49, 1084–1096. [Google Scholar] [CrossRef] [PubMed]
  12. Notar, M.; Leskovsek, H.; Faganeli, J. Composition, distribution and sources of polycyclic aromatic hydrocarbons in sediments of the Gulf of Trieste, Northern Adriatic Sea. Mar. Pollut. Bull. 2001, 42, 36–44. [Google Scholar] [CrossRef]
  13. Ma, Y.X.; Halsall, C.J.; Crosse, J.D.; Graf, C.; Cai, M.H.; He, J.F.; Gao, G.P.; Jones, K. Persistent organic pollutants in ocean sediments from the North Pacific to the Arctic Ocean. J. Geophys. Res. Oceans 2015, 120, 2723–2735. [Google Scholar] [CrossRef] [Green Version]
  14. Araghi, P.E.; Bastami, K.D.; Rahmanpoor, S. Distribution and sources of polycyclic aromatic hydrocarbons in the surface sediments of Gorgan Bay, Caspian Sea. Mar. Pollut. Bull. 2014, 89, 494–498. [Google Scholar] [CrossRef] [PubMed]
  15. Garrido, A.; Jimenez-Guerrero, P.; Ratola, N. Levels, trends and health concerns of atmospheric PAHs in Europe. Atmos. Environ. 2014, 99, 474–484. [Google Scholar] [CrossRef]
  16. Li, Y.; Duan, X. Polycyclic aromatic hydrocarbons in sediments of China Sea. Environ. Sci. Pollut. Res. 2015, 22, 15432–15442. [Google Scholar] [CrossRef] [PubMed]
  17. Ma, Y.; Halsall, C.J.; Xie, Z.; Koetke, D.; Mi, W.; Ebinghaus, R.; Gao, G. Polycyclic aromatic hydrocarbons in ocean sediments from the North Pacific to the Arctic Ocean. Environ. Pollut. 2017, 227, 498–504. [Google Scholar] [CrossRef] [PubMed]
  18. Mirza, R.; Abedi, E.; Mohammady, M.; Faghiri, I.; Fakhri, R.; Azimi, A. Distribution and Sources of Polycyclic Aromatic Hydrocarbons (PAHs) in Surface Sediments from the Northern Part of the Persian Gulf (Hormuzgan Province). Polycycl. Aromat. Compd. 2014, 34, 343–355. [Google Scholar] [CrossRef]
  19. Nouira, T.; Tagorti, M.A.; Budzinski, H.; Etchebert, H.; Boussetta, H. Polycyclic aromatic hydrocarbons (PAHs) in surface sediments of Monastir Bay (Tunisia, Central Mediterranean): Distribution, origin and seasonal variations. Int. J. Environ. Anal. Chem. 2013, 93, 1470–1483. [Google Scholar] [CrossRef]
  20. Wang, Z.; Liu, Z.; Xu, K.; Mayer, L.M.; Zhang, Z.; Kolker, A.S.; Wu, W. Concentrations and sources of polycyclic aromatic hydrocarbons in surface coastal sediments of the northern Gulf of Mexico. Geochem. Trans. 2014, 15, 2. [Google Scholar] [CrossRef] [PubMed]
  21. Jones, K.C.; De, V.P. Persistent organic pollutants (POPs): State of the science. Environ. Pollut. 1999, 100, 209–221. [Google Scholar] [CrossRef]
  22. Palm, A.; Cousins, I.; Gustafsson, O.; Axelman, J.; Grunder, K.; Broman, D.; Brorström-Lundén, E. Evaluation of sequentially-coupled POP fluxes estimated from simultaneous measurements in multiple compartments of an air-water-sediment system. Environ. Pollut. 2004, 128, 85–97. [Google Scholar] [CrossRef] [PubMed]
  23. Gouin, T.; Mackay, D.; Jones, K.C.; Harner, T.; Meijer, S.N. Evidence for the “grasshopper” effect and fractionation during long-range atmospheric transport of organic contaminants. Environ. Pollut. 2004, 128, 139–148. [Google Scholar] [CrossRef] [PubMed]
  24. Rong, W.; Shu, T.; Wang, B.; Yu, Y.; Chang, L.; Zhang, Y.X.; Jing, H.; Ma, J.M.; Hung, H. Sources and pathways of polycyclic aromatic hydrocarbons transported to alert, the Canadian High Arctic. Environ. Sci. Technol. 2010, 44, 1017–1022. [Google Scholar]
  25. Sofowote, U.M.; Hung, H.; Rastogi, A.K.; Westgate, J.N.; Deluca, P.F.; Su, Y.; Mccarry, B.E. Assessing the long-range transport of pah to a sub-arctic site using positive matrix factorization and potential source contribution function. Atmos. Environ. 2011, 45, 967–976. [Google Scholar] [CrossRef]
  26. Weber, J.; Halsall, C.J.; Muir, D.C.; Teixeira, C.; Burniston, D.A.; Strachan, W.M.; Hung, H.; Mackay, N.; Arnold, D.; Kylin, H. Endosulfan and gamma-HCH in the arctic: An assessment of surface seawater concentrations and air-sea exchange. Environ. Sci. Technol. 2006, 40, 7570–7576. [Google Scholar] [CrossRef] [PubMed]
  27. Belicka, L.L.; Harvey, H.R. The sequestration of terrestrial organic carbon in Arctic Ocean sediments: A comparison of methods and implications for regional carbon budgets. Geochim. Cosmochim. Acta 2009, 73, 6231–6248. [Google Scholar] [CrossRef]
  28. Lohmann, R.; Gioia, R.; Jones, K.C.; Nizzetto, L.; Temme, C.; Xie, Z.; Schulz-Bull, D.; Hand, I.; Morgan, E.; Jantunen, L. Organochlorine Pesticides and PAHs in the Surface Water and Atmosphere of the North Atlantic and Arctic Ocean. Environ. Sci. Technol. 2009, 43, 5633–5639. [Google Scholar] [CrossRef] [PubMed]
  29. Bergamasco, A.; Culotta, L.; De Stefano, C.; Orecchio, S.; Sammartano, S.; Barreca, S. Composition, Distribution, and Sources of Polycyclic Aromatic Hydrocarbons in Sediments of the Gulf of Milazzo (Mediterranean Sea, Italy). Polycycl. Aromat. Compd. 2014, 34, 397–424. [Google Scholar] [CrossRef]
  30. Harris, K.A.; Yunker, M.B.; Dangerfield, N.; Ross, P.S. Sediment-associated aliphatic and aromatic hydrocarbons in coastal British Columbia, Canada: Concentrations, composition, and associated risks to protected sea otters. Environ. Pollut. 2011, 159, 2665–2674. [Google Scholar] [CrossRef] [PubMed]
  31. Ma, Y.; Xie, Z.; Yang, H.; Moeller, A.; Halsall, C.; Cai, M.; Sturm, R.; Ebinghaus, R. Deposition of polycyclic aromatic hydrocarbons in the North Pacific and the arctic. J. Geophys. Res.-Atmos. 2013, 118, 5822–5829. [Google Scholar] [CrossRef]
  32. Yim, U.H.; Hong, S.H.; Shim, W.J.; Oh, J.R.; Chang, M. Spatio-temporal distribution and characteristics of PAHs in sediments from Masan Bay, Korea. Mar. Pollut. Bull. 2005, 50, 319–326. [Google Scholar] [CrossRef] [PubMed]
  33. Ruiz-Fernandez, A.C.; Sprovieri, M.; Frignani, M.; Sanchez-Cabeza, J.A.; Feo, M.L.; Bellucci, L.G.; Perez-Bernal, L.H.; Preda, M.; Machain-Castillo, M.L. Reconstruction of hydrocarbons accumulation in sediments affected by the oil refinery industry: The case of Tehuantepec Gulf (Mexico). Environ. Earth Sci. 2012, 67, 727–742. [Google Scholar] [CrossRef]
  34. Ke, H.W.; Chen, M.; Liu, M.Y.; Chen, M.; Duan, M.S.; Huang, P.; Hong, J.J.; Lin, Y.; Cheng, S.Y.; Wang, X.R.; et al. Fate of polycyclic aromatic hydrocarbons from the north pacific to the arctic: Field measurements and fugacity model simulation. Chemosphere 2017, 184, 916–923. [Google Scholar] [CrossRef] [PubMed]
  35. Li, Y.F.; Macdonald, R.W.; Jantunen, L.M.M.; Harner, T.; Bidleman, T.F.; Strachan, W.M.J. The transport of beta-hexachlorocyclohexane to the western Arctic Ocean: A contrast to alpha-HCH. Sci. Total Environ. 2002, 291, 229–246. [Google Scholar] [CrossRef]
  36. Qiu, C.; Cai, M. Ultra trace analysis of 17 organochlorine pesticides in water samples from the Arctic based on the combination of solid-phase extraction and headspace solid-phase microextraction–gas chromatography-electron-capture detector. J. Chromatogr. A 2010, 1217, 1191–1202. [Google Scholar] [CrossRef] [PubMed]
  37. Wang, Z.; Na, G.; Ma, X.; Fang, X.; Ge, L.; Gao, H.; Yao, Z. Occurrence and gas/particle partitioning of PAHs in the atmosphere from the North Pacific to the Arctic Ocean. Atmos. Environ. 2013, 77, 640–646. [Google Scholar] [CrossRef]
  38. Wu, X.G.; Lam, J.C.W.; Xia, C.H.; Kang, H.; Sun, L.G.; Xie, Z.Q.; Lam, P.K.S. Atmospheric HCH Concentrations over the Marine Boundary Layer from Shanghai, China to the Arctic Ocean: Role of Human Activity and Climate Change. Environ. Sci. Technol. 2010, 44, 8422–8428. [Google Scholar] [CrossRef] [PubMed]
  39. Zhong, G.C.; Xie, Z.Y.; Cai, M.H.; Moller, A.; Sturm, R.; Tang, J.H.; Zhang, G.; He, J.F.; Ebinghaus, R. Distribution and Air-Sea Exchange of Current-Use Pesticides (CUPs) from East Asia to the High Arctic Ocean. Environ. Sci. Technol. 2012, 46, 259–267. [Google Scholar] [CrossRef] [PubMed]
  40. Hung, H.; Blanchard, P.; Halsall, C.J.; Bidleman, T.F.; Stern, G.A.; Fellin, P.; Muir, D.C.G.; Barrie, L.A.; Jantunen, L.M.; Helm, P.A. Temporal and spatial variabilities of atmospheric polychlorinated biphenyls (PCBs), organochlorine (OC) pesticides and polycyclic aromatic hydrocarbons (PAHs) in the Canadian Arctic: Results from a decade of monitoring. Sci. Total Environ. 2005, 342, 119–144. [Google Scholar] [CrossRef] [PubMed]
  41. Savinov, V.M.; Savinova, T.N.; Matishov, G.G.; Dahle, S.; Naes, K. Polycyclic aromatic hydrocarbons (PAHs) and organochlorines (OCs) in bottom sediments of the Guba Pechenga, Barents Sea, Russia. Sci. Total Environ. 2003, 306, 39–56. [Google Scholar] [CrossRef]
  42. Sericano, J.L.; Brooks, J.M.; Champ, M.A.; Ii, M.C.K.; Makeyev, V.V. Trace Contaminant Concentrations in the Kara Sea and its Adjacent Rivers, Russia. Mar. Pollut. Bull. 1998, 42, 1017–1030. [Google Scholar] [CrossRef]
  43. Evenset, A.; Christensen, G.N.; Carroll, J.; Zaborska, A.; Berger, U.; Herzke, D.; Gregor, D. Historical trends in persistent organic pollutants and metals recorded in sediment from Lake Ellasjøen, Bjørnøya, Norwegian Arctic. Environ. Pollut. 2007, 146, 196–205. [Google Scholar] [CrossRef] [PubMed]
  44. Jiao, L.P.; Zheng, G.J.; Tu, B.M.; Richardson, B.; Chen, L.; Zhang, Y.H.; Yeung, L.W.; Lam, J.C.W.; Yang, X.L.; Lam, P.K.S. Persistent toxic substances in remote lake and coastal sediments from Svalbard, Norwegian Arctic: Levels, sources and fluxes. Environ. Pollut. 2009, 157, 1342–1351. [Google Scholar] [CrossRef] [PubMed]
  45. Sapota, G.; Wojtasik, B.; Burska, D.; Nowin´Ski, K. Persistent organic pollutants (POPs) and polycyclic aromatic hydrocarbons (PAHs) in surface sediments from selected fjords, tidal plains and lakes of the North Spitsbergen. Pol. Polar Res. 2009, 30, 59–76. [Google Scholar]
  46. Yunker, M.B.; Macdonald, R.W.; Cretney, W.J.; Fowler, B.R.; McLaughlin, F.A. Alkane, terpene, and polycyclic aromatic hydrocarbon geochemistry of the mackenzie river and mackenzie shelf-riverine contributions to beaufort sea coastal sediment. Geochim. Cosmochim. Acta 1993, 57, 3041–3061. [Google Scholar] [CrossRef]
  47. Kuzyk, Z.A.; Stow, J.P.; Burgess, N.M.; Solomon, S.M.; Reimer, K.J. PCBs in sediments and the coastal food web near a local contaminant source in Saglek Bay, Labrador. Sci. Total Environ. 2005, 351, 264–284. [Google Scholar] [CrossRef] [PubMed]
  48. Iwata, H.; Tanabe, S.; Aramoto, M.; Sakai, N.; Tatsukawa, R. Persistent organochlorine residues in sediments from the Chukchi Sea, Bering Sea And Gulf of Alaska. Mar. Pollut. Bull. 1994, 28, 746–753. [Google Scholar] [CrossRef]
  49. Cai, M.; Lin, Y.; Chen, M.; Yang, W.; Du, H.; Xu, Y.; Cheng, S.; Xu, F.; Hong, J.; Chen, M. Improved source apportionment of PAHs and Pb by integrating Pb stable isotopes and positive matrix factorization application (PAHs): A historical record case study from the northern South China Sea. Sci. Total Environ. 2017, 609, 577–586. [Google Scholar] [CrossRef] [PubMed]
  50. Yunker, M.B.; Macdonald, R.W. Composition and origins of polycyclic aromatic-hydrocarbons in the Mackenzie River and on the Beaufort Sea shelf. Arctic 1995, 48, 118–129. [Google Scholar] [CrossRef]
  51. Valette-Silver, N.; Jawed Hameedi, M.; Efurd, D.W.; Robertson, A. Status of the Contamination in Sediments and Biota from the Western Beaufort Sea (Alaska). Mar. Pollut. Bull. 1999, 38, 702–722. [Google Scholar] [CrossRef]
  52. Venkatesan, M.I.; Naidu, A.S.; Blanchard, A.L.; Misra, D.; Kelley, J.J. Historical changes in trace metals and hydrocarbons in nearshore sediments, Alaskan Beaufort Sea, prior and subsequent to petroleum-related industrial development: Part II. Hydrocarbons. Mar. Pollut. Bull. 2013, 77, 147–164. [Google Scholar] [CrossRef] [PubMed]
  53. Harvey, H.R.; Taylor, K.A.; Pie, H.V.; Mitchelmore, C.L. Polycyclic aromatic and aliphatic hydrocarbons in Chukchi Sea biota and sediments and their toxicological response in the Arctic cod, Boreogadus saida. Deep-Sea Res. Part II-Top. Stud. Oceanogr. 2014, 102, 32–55. [Google Scholar] [CrossRef]
  54. Yunker, M.B.; Macdonald, R.W.; Snowdon, L.R.; Fowler, B.R. Alkane and PAH biomarkers as tracers of terrigenous organic carbon in Arctic Ocean sediments. Org. Geochem. 2011, 42, 1109–1146. [Google Scholar] [CrossRef]
  55. Guinan, J.; Charlesworth, M.; Service, M.; Oliver, T. Sources and Geochemical Constraints of Polycyclic Aromatic Hydrocarbons (PAHs) in Sediments and Mussels of two Northern Irish Sea-loughs. Mar. Pollut. Bull. 2001, 42, 1073–1081. [Google Scholar] [CrossRef]
  56. Cornelissen, G.; Pettersen, A.; Nesse, E.; Eek, E.; Helland, A.; Breedveld, G. The contribution of urban runoff to organic contaminant levels in harbour sediments near two Norwegian cities. Mar. Pollut. Bull. 2008, 56, 565–573. [Google Scholar] [CrossRef] [PubMed]
  57. NæS, K.; Oug, E. The distribution and environmental relationships of polycyclic aromatic hydrocarbons (PAHs) in sediments from Norwegian smelter-affected fjords. Chemosphere 1998, 36, 561–576. [Google Scholar] [CrossRef]
  58. Savinov, V.M.; Savinova, T.N.; Carroll, J.L.; Matishov, G.G.; Dahle, S.; Næs, K. Polycyclic aromatic hydrocarbons (PAHs) in sediments of the White Sea, Russia. Mar. Pollut. Bull. 2000, 40, 807–818. [Google Scholar] [CrossRef]
  59. Fernandes, M.; Sicre, M.A. Polycyclic aromatic hydrocarbons in the Arctic: Ob and Yenisei estuaries and Kara Sea shelf. Estuar. Coast. Shelf Sci. 1999, 48, 725–737. [Google Scholar] [CrossRef]
  60. Boitsov, S.; Jensen, H.K.B.; Klungsøyr, J. Natural background and anthropogenic inputs of polycyclic aromatic hydrocarbons (PAH) in sediments of South-Western Barents Sea. Mar. Environ. Res. 2009, 68, 236–245. [Google Scholar] [CrossRef] [PubMed]
  61. Dreyer, A.; Blodau, C.; Turunen, J.; Radke, M. The spatial distribution of pah depositions to peatlands of Eastern Canada. Atmos. Environ. 2005, 39, 3725–3733. [Google Scholar] [CrossRef]
  62. Charlesworth, M. Pah contamination of western Irish Sea sediments. Mar. Pollut. Bull. 2002, 44, 1421–1426. [Google Scholar] [CrossRef]
  63. Wayland, M.; Headley, J.V.; Peru, K.M.; Crosley, R.; Brownlee, B.G. Levels of polycyclic aromatic hydrocarbons and dibenzothiophenes in wetland sediments and aquatic insects in the oil sands area of Northeastern Alberta, Canada. Environ. Monit. Assess. 2007, 136, 167–182. [Google Scholar] [CrossRef] [PubMed]
  64. MacDonald, R.W.; Barrie, L.A.; Bidleman, T.F.; Diamond, M.L.; Gregor, D.J.; Semkin, R.G.; Strachan, W.M.J.; Li, Y.F.; Wania, F.; Alaee, M.; et al. Contaminants in the Canadian arctic: 5 Years of progress in understanding sources, occurrence and pathways. Sci. Total Environ. 2000, 254, 93–234. [Google Scholar] [CrossRef]
  65. Macdonald, R.W.; Solomon, S.M.; Cranston, R.E.; Welch, H.E.; Yunker, M.B.; Gobeil, C. A sediment and organic carbon budget for the Canadian Beaufort shelf. Mar. Geol. 1998, 144, 255–273. [Google Scholar] [CrossRef]
  66. McRae, C.; Snape, C.E.; Sun, C.G.; Fabbri, D.; Tartari, D.; Trombini, C.; Fallick, A.E. Use of compound-specific stable isotope analysis to source anthropogenic natural gas-derived polycyclic aromatic hydrocarbons in a lagoon sediment. Environ. Sci. Technol. 2000, 34, 4684–4686. [Google Scholar] [CrossRef]
  67. Zou, Y.H.; Wang, L.X.; Christensen, E.R. Problems in the fingerprints based polycyclic aromatic hydrocarbons source apportionment analysis and a practical solution. Environ. Pollut. 2015, 205, 394–402. [Google Scholar] [CrossRef] [PubMed]
  68. Mei, L.; Xue, Y.; Leeuw, G.D.; Guang, J.; Wang, Y.; Li, Y.; Xu, H.; Yang, L.; Hou, T.; He, X. Corrigendum to “Integration of remote sensing data and surface observations to estimate the impact of the Russian wildfires over Europe and Asia during August 2010”. Biogeosciences 2011, 9, 3771–3791. [Google Scholar] [CrossRef] [Green Version]
  69. Hinga, K.R. Degradation rates of low molecular weight PAH correlate with sediment TOC in marine subtidal sediments. Mar. Pollut. Bull. 2003, 46, 466–474. [Google Scholar] [CrossRef]
  70. Rothermich, M.M.; Hayes, L.A.; Lovley, D.R. Anaerobic, sulfate-Dependent Degradation of Polycyclic Aromatic Hydrocarbons in Petroleum-Contaminated Harbor Sediment. Environ. Sci. Technol. 2002, 36, 4811–4817. [Google Scholar] [CrossRef] [PubMed]
  71. Masclet, P.; Mouvier, G.; Nikolaou, K. Relative decay index and sources of polycyclic aromatic hydrocarbons. Atmos. Environ. (1967) 1986, 20, 439–446. [Google Scholar] [CrossRef]
  72. Long, E.R.; Macdonald, D.D.; Smith, S.L.; Calder, F.D. Incidence of adverse biological effects within ranges of chemical concentrations in marine and estuary sediments. Environ. Manag. 1995, 19, 81–97. [Google Scholar] [CrossRef]
  73. Macdonald, D.D.; Carr, R.S.; Calder, F.D.; Long, E.R.; Ingersoll, C.G. Development and evaluation of sediment quality guidelines for florida coastal waters. Ecotoxicology 1996, 5, 253–278. [Google Scholar] [CrossRef] [PubMed]

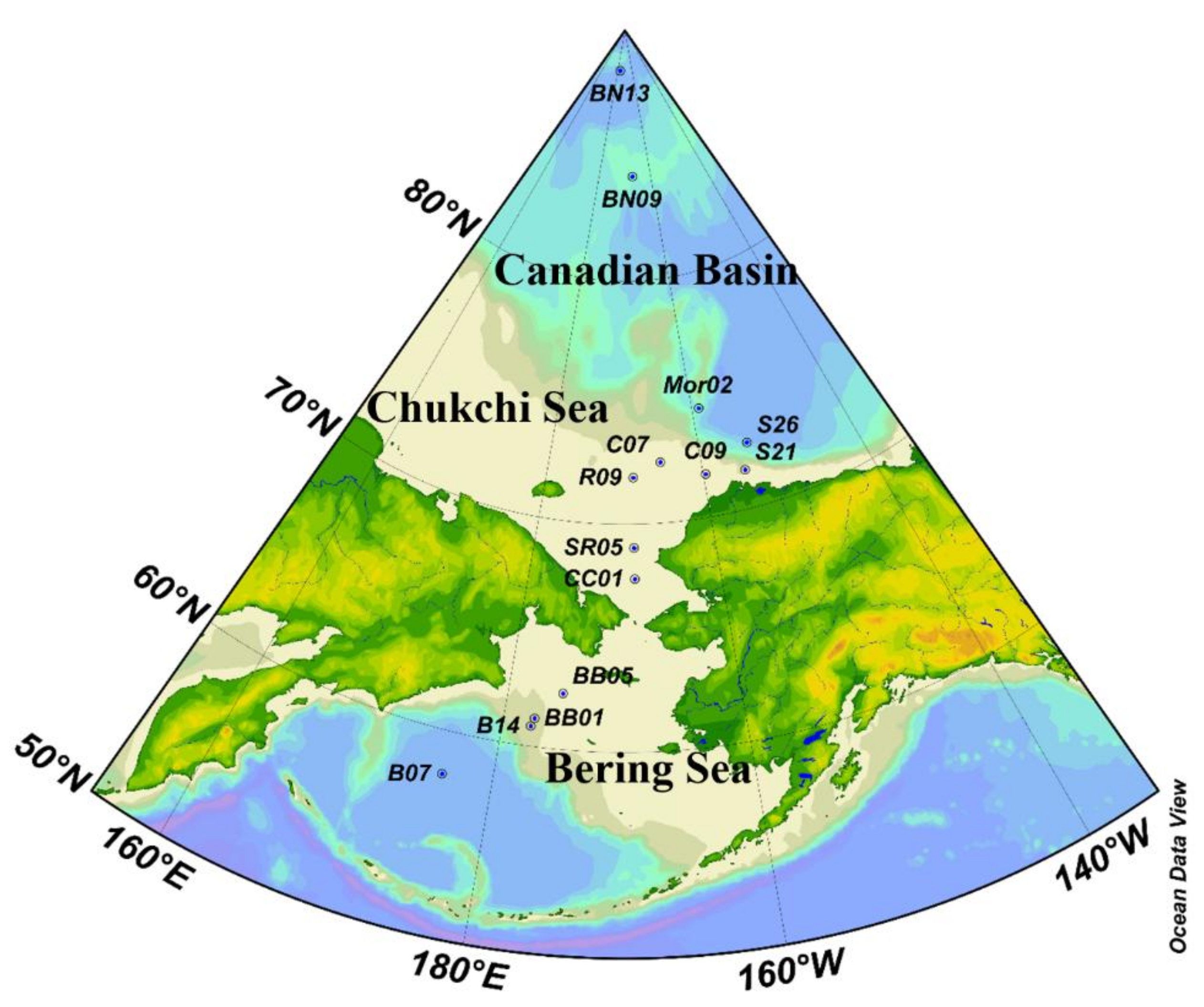

Figure 1. The sample stations in the study area.
Figure 1. The sample stations in the study area.
Ijerph 15 00734 g001

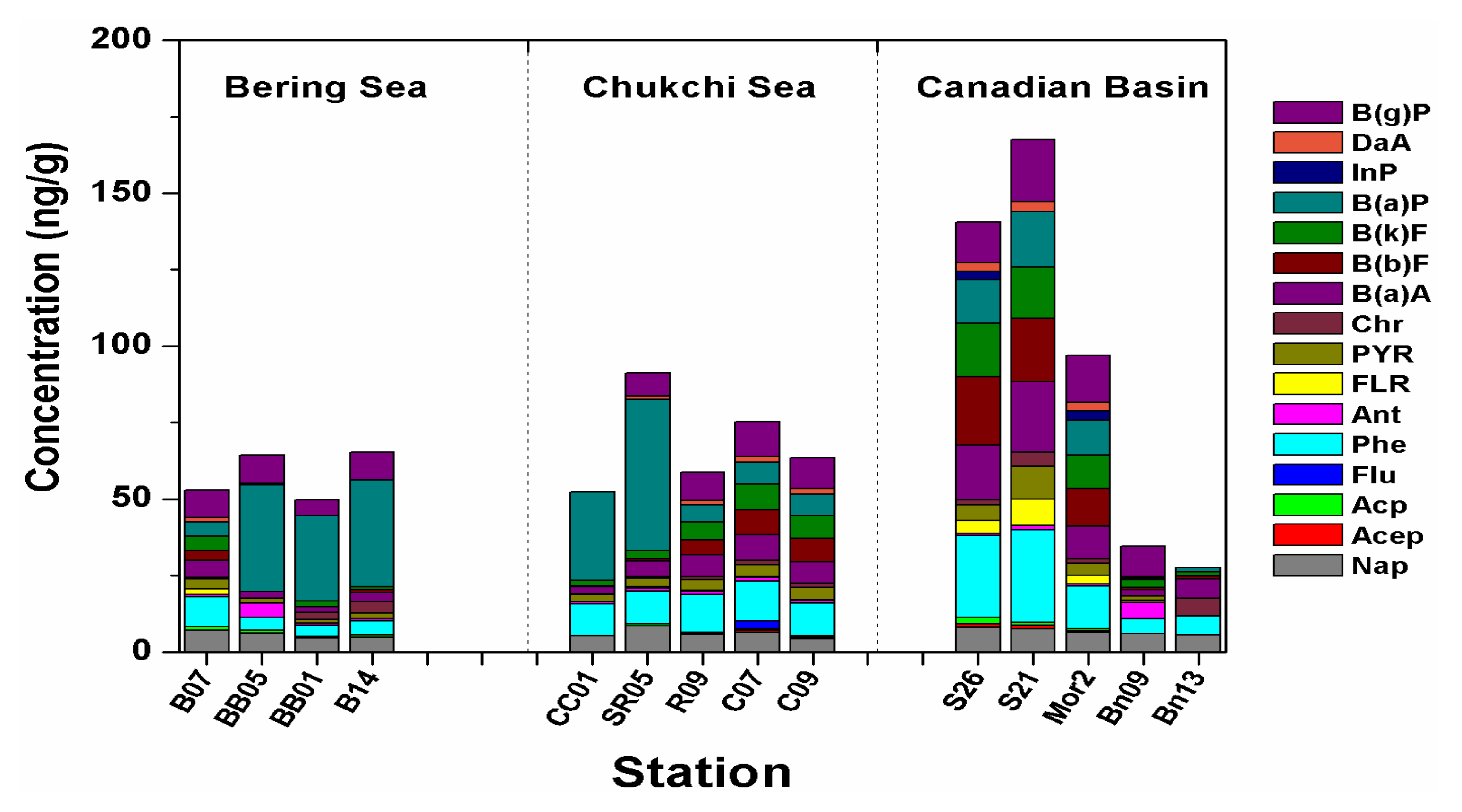

Figure 2. Concentrations (ng/g) of 16 PAHs compounds in sediments of Bering Sea, Chukchi Sea, and Canadian Basin.
Figure 2. Concentrations (ng/g) of 16 PAHs compounds in sediments of Bering Sea, Chukchi Sea, and Canadian Basin.
Ijerph 15 00734 g002

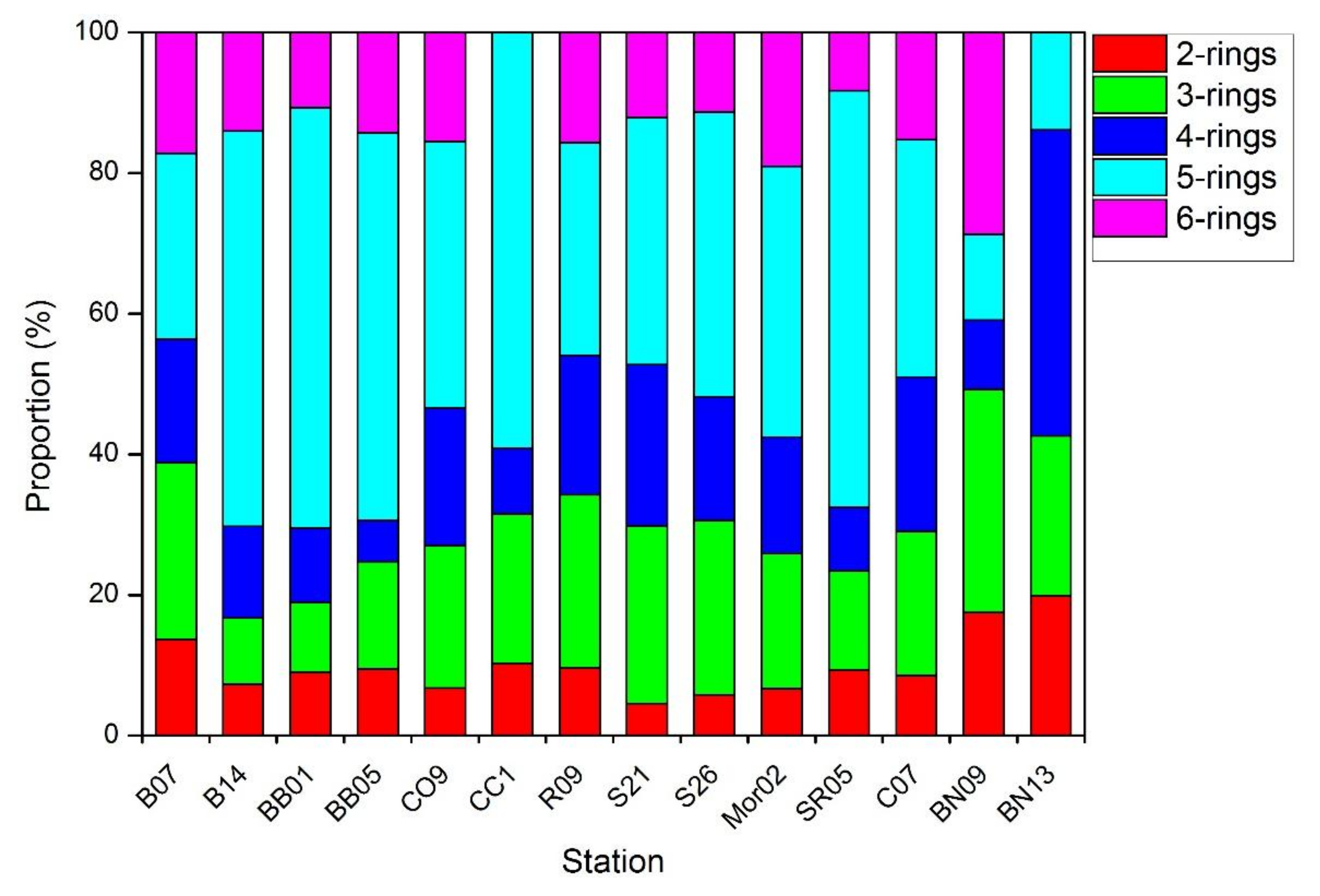

Figure 3. Contribution (%) of two-, three-, four-, five- and six-ring PAHs to total sum at studied sites.
Figure 3. Contribution (%) of two-, three-, four-, five- and six-ring PAHs to total sum at studied sites.
Ijerph 15 00734 g003

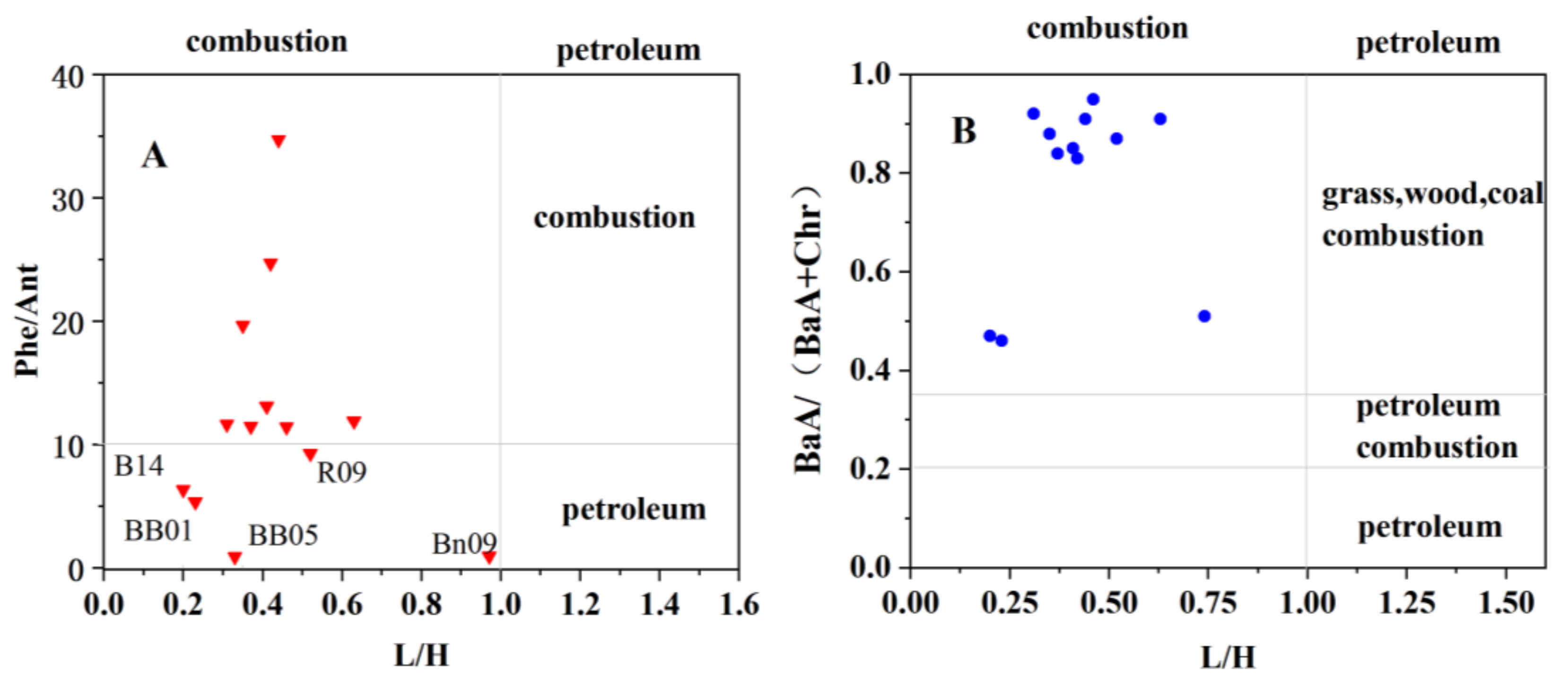

Figure 4. The use three PAH isomer pair ratios to identify the possible sources of PAHs in surface sediments of Bering Sea, Chukchi Sea, and Canadian Basin areas (red inverted triangles represent the value of Phe/Ant and L/H, while blue circles represent the ratios of BaA/(BaA+Chr) and L/H.
Figure 4. The use three PAH isomer pair ratios to identify the possible sources of PAHs in surface sediments of Bering Sea, Chukchi Sea, and Canadian Basin areas (red inverted triangles represent the value of Phe/Ant and L/H, while blue circles represent the ratios of BaA/(BaA+Chr) and L/H.
Ijerph 15 00734 g004
Table 1. Comparison of PAHs levels in surface sediments from remote regions.
Table 1. Comparison of PAHs levels in surface sediments from remote regions.
RegionNumber∑PAHs (ng/g d.w.)Reference
Bering Sea1649.84–65.38This Study
Chukchi Sea1652.40–91.25
Canadian Basin1627.66–167.48
Western Beaufort Sea (Alaska)6159–1092[51]
NS&T Alaska62.17–733
Barent Sea-1500[41]
Cork Harbour in south east in Ireland21924–2877[11]
Northern Ireland lake-83~2300[55]
Harbor (Oslo and Drammen), Norway163000–4800[56]
Ardal Fjords, Norway1345,565–784,296[57]
Ny-Ålesund, Svalbard, Norway S11534[44]
Ny-Ålesund, Svalbard, Norway S21527
White Sea, Russia2727–95[58]
White Sea, Russia2713–208[58]
Ob1224–115[59]
Yenisei1240–131
Kara Sea1216–94
Northern South China Sea1511.3–95.5[49]
Fjord areas, Barents28209–326[60]
Tromsoflaket, Barents2858.8–224
Ingoydjupet, Barents28157–217
Eastern Canada1348–2790[61]
Western areas in Ireland15100–1422[62]
Northeastern Alberta, Canada35ND-3900[63]
