Int. J. Environ. Res. Public Health 2013, 10(5), 1698-1719; doi:10.3390/ijerph10051698
Published: 26 April 2013
Abstract: The mosquito Aedes (Stegomyia) albopictus (Skuse) (Diptera: Culicidae) is an invasive species which has colonized Southern Europe in the last two decades. As it is a competent vector for several arboviruses, its spread is of increasing public health concern, and there is a need for appropriate monitoring tools. In this paper, we have developed a modelling approach to predict mosquito abundance over time, and identify the main determinants of mosquito population dynamics. The model is temperature- and rainfall-driven, takes into account egg diapause during unfavourable periods, and was used to model the population dynamics of Ae. albopictus in the French Riviera since 2008. Entomological collections of egg stage from six locations in Nice conurbation were used for model validation. We performed a sensitivity analysis to identify the key parameters of the mosquito population dynamics. Results showed that the model correctly predicted entomological field data (Pearson r correlation coefficient values range from 0.73 to 0.93). The model’s main control points were related to adult’s mortality rates, the carrying capacity in pupae of the environment, and the beginning of the unfavourable period. The proposed model can be efficiently used as a tool to predict Ae. albopictus population dynamics, and to assess the efficiency of different control strategies.
The Asian tiger mosquito Aedes (Stegomyia) albopictus (Skuse) (Diptera: Culicidae) is a competent vector for several arboviruses, such as dengue and chikungunya viruses . Originally indigenous to South-East Asia, the species has spread during the last decades to Africa, the Middle East, Europe and the Americas . Since 1990, the Asian tiger mosquito has rapidly colonized Southern Europe . It is the only invasive mosquito species currently installed in continental France, present since 2004 on the Côte d’Azur region [4,5,6]. Its continuing spread is of increasing public health concern, strengthened by a recent chikungunya outbreak in Italy in 2007 , and the first occurrence of autochthonous dengue and chikungunya cases in southern France in 2010 [8,9].
Due to the urgent need for intensive monitoring and risk-based surveillance of Ae. albopictus populations, modelling approaches have been used to map the areas of its potential distribution [10,11]. Moreover, mechanistic modelling approaches have been successfully used to predict the temporal dynamics of Ae. aegypti using either stochastic  or deterministic models , or discuss the impact of mosquito population dynamics on chikungunya virus transmission to the human population on La Réunion island, France [14,15]. Such models are useful to identify the control points of the population dynamics, and test some control strategies . In Europe, Poletti et al. recently modelled the temporal dynamics of Ae. albopictus in Italy and discussed the transmission potential of chikungunya virus .
In this paper, we present a weather-driven abundance model depicting the annual and inter-annual variations of Ae. albopictus populations taking into account diapause processes. We used the generic framework proposed recently by Cailly et al.  for modelling mosquito populations, and we defined parameters and functions to adapt this generic model to the Asian tiger mosquito. The model was used to simulate Ae. albopictus populations in the Côte d’Azur region, using daily rainfall and temperature data. Entomological collections of egg stage from different municipalities were used for model validation, and a sensitivity analysis was performed to identify the key parameters driving the mosquito population dynamics.
2. Material and Methods
2.1. Study Area
The study area includes the municipality of Nice and neighbouring municipalities from the French Riviera region where entomological longitudinal surveys on Ae. albopictus populations are performed since 2008 (Figure 1). In this region located in South Eastern France, the climate is typically Mediterranean, with warm, very dry summers and mild, wet winters. Total annual rainfall is around 750 mm, and temperatures usually vary between 0 °C in winter, and 34 °C in summer. Aedes albopictus populations are mainly installed in urban areas, as in Nice, a densely populated city with a population over 340,000 inhabitants, and in the residential areas of neighboring municipalities.
2.2. Entomological Data
Mosquito sampling was performed in different locations of Nice conurbation, using ovitraps’ networks placed mostly in sites shaded by vegetation. The surveillance of eggs was chosen for detecting invasive mosquito species such as Ae. albopictus in South-eastern France. It allows targeted and rapid sampling efforts and an optimal cost-benefit ratio [5,18]. Ovitraps are artificial egg-laying containers made up with 3 L black plastic buckets (Dillewijn Zwapak©, Aalsmeer, The Netherlands) filled with 2 L of tap water and the biolarvicide Bacillus thuringiensis israelensis (Bti) to prevent the production of mosquitoes in the trap , in which a floating polystyrene square (5 × 5 cm) was added to provide a support for oviposition. The sampling was conducted in six different locations of Nice conurbation, mainly in discontinuous urban fabric including individual houses with gardens: Nice (1: Nice downtown, 2: residential area on the outskirts of Nice), Cagnes-sur-Mer, La Gaude, Biot, and Villeneuve-Loubet. Networks of between 15 and 50 ovitraps were collected biweekly, and weekly in Cagnes-sur-Mer (Table 1). We considered the fortnightly frequency as an acceptable compromise between representative data (average period of time separating two generations during summer, considering around three days for embryogenesis, seven days of larval development and five days for mating, blood engorgement and oviposition) and reasonable trapping effort in the five areas [20,21]. Surveys were stopped at the end of each year after two consecutive negative samples. Trapping areas were considered free of insecticide treatments realized during the plan of anti-dissemination of chikungunya virus from 2008 to 2011, except three ovitraps located in Nice-1 within a distance of 200 m from the insecticide spraying. Thus, results from these three ovitraps after the treatments were removed from the analysis. Hatched and unhatched eggs of Ae. albopictus were counted in laboratory under stereomicroscope. Eggs of Ae. (Finlaya) geniculatus, the only other mosquito species to lay eggs into ovitraps in south-eastern France, were morphologically discriminated from Ae. albopictus eggs using a stereomicroscope [22,23].
|Table 1. Entomological collections for the surveillance of Aedes albopictus, Côte d’Azur area, France, 2008–2011.|
|Campaign||Trapping season||Ovitrap network||Result|
|Location||Year||Beginning||End||Nb traps||Surface of the trapping area (ha) *||Sampling frequency||Annual max. of the mean number of collected eggs per ovitrap per capture session|
|Nice 1||2008||25 Mar||8 Dec||30||328.7||biweekly||170|
|Nice 1||2009||16 Apr||9 Dec||50||517.7||biweekly||233|
|Nice 1||2010||15 Apr||2 Dec||50||517.7||biweekly||462|
|Nice 1||2011||21 Apr||14 Dec||50||517.7||biweekly||311|
|Cagnes-sur-Mer||2010||21 Jun||15 Nov||15||30.5||weekly||177|
|Cagnes-sur-Mer||2011||28 Mar||28 Nov||18||41.6||weekly||169|
|La Gaude||2010||16 Jul||8 Oct||22||17.9||biweekly||566|
|Biot||2010||16 Jul||8 Oct||25||40.3||biweekly||830|
|Villeneuve-Loubet||2011||6 May||30 Nov||15||3.8||biweekly||1,108|
|Nice 2||2011||11 May||18 Nov||15||2.7||biweekly||654|
* computed as the surface of the smallest polygon including all ovitraps with a buffer distance of 50 m.
2.3. Environmental Data
Daily rainfall and temperature data from 2008 to 2011 recorded in Nice Airport were obtained from the national meteorological service “Météo France”. Indeed, we assumed that the population dynamics of Ae. albopictus is mainly driven by these two factors: (i) temperatures have a strong impact on the survival of Ae. albopictus populations, and on the development of aquatic stages [20,24,25]; (ii) precipitations favor the availability of breeding sites, i.e., any small recipient filled with water where Ae. albopictus females lay their eggs. Moreover, we considered that the egg hatching is triggered by rainfall events but also by human water supply (e.g., garden watering in summer) . Indeed, larval surveys carried out since 2008 showed the importance of small and medium containers sampled in gardens in the productivity Ae. albopictus’ populations .
2.4. Model Description
2.4.1. Aedes albopictus Life Cycle
As for all mosquito species, the life cycle of Ae. albopictus includes three water-dependent stages (egg, larva, and pupa), and one aerial stage (adult). The lifespan in each stage depends on several factors, such as temperature, or water availability. After emergence and insemination, female adults successively: (i) seek a human host to take a blood meal; (ii) rest in a sheltered place during the few days needed for the eggs to mature; and (iii) search for sites to lay their eggs. The Asian tiger mosquito breeds in artificial containers of any type (metal, glass, stone, plastic, rubber, etc.), or in small natural water bodies such as tree holes or rock pools . Eggs hatch after a desiccation period (few days to several months) when they are submerged in water by rainfall or artificial flooding. The larvae then mature through four stages before entering pupation. Adult mosquito emerges from the pupa at the surface of water. In temperate climates, Ae. albopictus survive the unfavorable period (winter) as eggs in dormancy (diapause) that will hatch during the next favorable season (spring).
2.4.2. Modelling Aedes albopictus Population Dynamics
The generic model of mosquito population dynamics developed by Cailly et al.  represents all of the steps of the mosquito life cycle (Figure 2). It considers ten different stages: three aquatic stages (E, eggs; L, larvae; P, pupae), one emerging adult stage (Aem), three nulliparous stages (A1h, A1g, A1o), and three parous stages (A2h, A2g, A2o). In the adult stage, females only are represented. Parous females are females that have oviposited at least once, whereas nulliparous females have never laid eggs. Adults are subdivided regarding their behaviour during the gonotrophic cycle (h, host-seeking; g, transition from engorged to gravid; o, oviposition site seeking). Once parous, females repeat their gonotrophic cycle until death. The events driving the transitions between stages are: egg mortality or hatching, larva mortality, pupation (moult of larvae to pupae), pupa mortality, adult emergence, mortality, engorgement, egg maturing, and oviposition. The model takes into account density-dependent mortality of the larval stage , and pupa density-dependent success of adult emergence. Density-dependent mortality was assumed at the larval stage as it is has been often observed [28,29]. Pupa density-dependent success of adult emergence was assumed as emergence success was found negatively correlated to pupa density .
The model is based on a system of ordinary differential equations (ODE). For Aedes populations in temperate climate, the eggs stop hatching at the beginning of the unfavorable period, during which diapause occurs. All other stages will continue their development or transition to the next stage. Thus, the ODE system is:
Model parameters are in Greek letters. They are constant. For stage X, γX is the transition rate to the next stage, μX the mortality rate, and βX the egg laying rate. σ is the sex-ratio at the emergence. μr is an additional adult mortality rate related to the seeking behavior, applied only on adult stages involving risky movements (host or oviposition site seeking).
Model functions are in Latin letters. They depend on parameters and weather-driven functions (i.e., functions of temperature, humidity or precipitation varying over time). For stage X, fX is the transition function to the next stage, mX the mortality function, and kX the environment’s carrying capacity which limits the population growth due to density-dependent processes.
2.4.3. Parameters and Functions of the Model
We defined specific parameter values, forcing functions, transition functions between stages of the life cycle, and mortality functions to adapt the model to Ae. albopictus in the region of Nice. As our model neglects mosquito dispersal (arrival or departure of individuals), the dimensions of the surface used for simulation have to be larger than the active flight distance of mosquitoes: Ae. albopictus having a distance of dispersal of about 100 m , our model is used for simulating the mosquito population dynamics over a squared surface greater than 4 ha.
Because of the large phenotypic variability of the Asian tiger mosquito , parameter values were based on expert knowledge of local Ae. albopictus population biology [25,26,32], supported and completed by scientific literature (Table 2).
|Table 2. Parameter values of the model of mosquito population dynamics adapted to Aedes albopictus in Mediterranean temperate climate.|
|β1||Number of eggs laid by ovipositing nulliparous females (per female)||95|||
|β2||Number of eggs laid by ovipositing parous females (per female)||75|||
|κL||Standard environment carrying capacity for larvae (larvae ha−1)||250,000||To our best knowledge|
|κP||Standard environment carrying capacity for pupae (pupae ha−1)||250,000||To our best knowledge|
|σ||Sex-ratio at the emergence||0.5|||
|μE||Egg mortality rate (day−1)||0.05||(Lacour, unpublished)|
|μL||Minimum larva mortality rate (day−1)||0.08||(Lacour, unpublished)|
|μP||Minimum pupa mortality rate (day−1)||0.03||(Lacour, unpublished)|
|μem||Mortality rate during adult emergence (day−1)||0.1||(Lacour, unpublished)|
|μA||Minimum adult mortality rate (day−1)||0.02|||
|μr||Adult mortality rate related to seeking behavior (day−1)||0.08||To our best knowledge|
|TE||Minimal temperature needed for egg development (°C)||10.4|||
|TDDE||Total number of degree-day necessary for egg development (°C)||110||(Lacour, unpublished)|
|γAem||Development rate of emerging adults (day−1)||0.4||To our best knowledge|
|γAh||Transition rate from host-seeking to engorged adults (day−1)||0.2||To our best knowledge|
|γAo||Transition rate from oviposition site-seeking to host-seeking adults (day−1)||0.2||To our best knowledge|
|TAg||Minimal temperature needed for egg maturation (°C)||10|||
|TDDAg||Total number of degree-days necessary for egg maturation (°C)||77|||
|tstart||Start of the favorable season||10 Mar|||
|tend||End of the favorable season||30 Sept|||
The end of the favorable period is defined as the moment when 90% of eggs laid enter into diapause. Diapause is genetically programmed in Ae. albopictus populations. It is induced by a short photoperiod . In Nice area, egg diapause initiation occurs gradually during September, so diapause processes occur in the model from 30 September to 10 March the following year . During this period, only eggs survive until the start of the next favorable season when they hatch if they are immerged in water. The standard environment carrying capacities for larvae (κL) and pupae (κP) were estimated as follows: the maximal larval and pupal densities observed in laboratory (10 individuals per cm² of water surface ) was multiplied by the surface of a typical Ae. albopictus breeding site (~50 cm²), the number of breeding sites per household (~20), and the number of households per hectare (~25), all of these values being estimated from field observations .
The two forcing function variables are temperature (T) and precipitation (P), both varying over time. Daily mean temperature and precipitation were used. Precipitation is known to trigger egg hatching of Aedes species breeding in out-door oviposition sites . However, in human-made environments artificial flooding (e.g., watering of gardens) is likely to be the main driver of Ae. albopictus egg hatching in summer, when rainfall events are scarce. Thus, we considered that the development of Ae. albopictus eggs is driven by: (i) the occurrence of rainfall events in spring; and (ii) temperature, using the concept of degree-day, the quantity of accumulated heat necessary for development from one stage to another. In spring, hatching occurs only with rainfall events: the transition function from egg to larva fE(t) will be null if no rainfall event occurs at time t (P(t) = 0). Otherwise, it is driven by temperature, using the degree-day relation, also used to express the development rate of engorged adults becoming gravid at time t:
Values of TX and TDDX are given in Table 2.
The development of other aquatic stages (larvae and pupae) is positively correlated to temperature within an optimum range . Non-linear relations were used to express the relationships between temperature (in °C) and development rate of larvae and pupae according to observations under laboratory controlled conditions . These functions are given in Table 3. It should be noted that atmospheric temperature was used as a proxy of water temperature. This approximation is justified by the small size of the urban breeding sites of Ae. albopictus in Nice region.
|Table 3. Functions of the model of mosquito population dynamics adapted to Aedes albopictus in Mediterranean temperate climate.|
|fE||Transition function from egg to larva||Equation (2)|
|fL||Transition function from larva to pupa||fL(t) = −0.0007. T²(t) + 0.0392. T(t) − 0.3911|
|fP||Transition function from pupa to emerging adult||fP(t) = 0.0008. T²(t) − 0.0051. T(t) + 0.0319|
|fAg||Transition function from engorged adult to oviposition site—seeking adult||Equation (2)|
|mL||Larva mortality (day−1)||mL(t) = exp(−T(t)/2) + μL|
|mP||Pupa mortality rate (day−1)||mP(t) = exp(−T(t)/2) + μP|
|mA||Adult mortality rate (day−1)||mA(t) = max(μA; 0.04417 + 0.00217. T(t))|
|kL||Environment carrying capacity of larvae (ha−1)||Equation (3)|
|kP||Environment carrying capacity of pupae (ha−1)||Equation (3)|
Temperature also impacts the mortality rates of larvae, pupae and adults. Expressions were derived from Shaman et al. , considering one different function for each stage, and adapted to the observations of Ae. albopictus  (Table 3).
Finally, we considered that the precipitations impact the environment’s carrying capacity (kX) of aquatic stages (larvae and pupae), increasing the number of breeding sites available for Ae. albopictus which is essentially an outdoor breeder [36,37,38]:
Values of κX, the standard environment’s carrying capacity of aquatic stages, are given in Table 2. Pnorm(t) is defined as the rainfall amount summed over a two weeks period, and normalized in order to vary between 0 and 1.
2.4.4. Model Outputs
The model predicts the abundance of mosquitoes per stage (E, L, P, Aem, A1h, A1g, A1o, A2h, A2g, A2o) over time. In addition, the dynamic information computed by the model was aggregated using average output values following Cailly et al. : the adult peak (maximum number of adults observed in a year), the attack rate (average of the daily number of host-seeking adults (Ah = A1h + A2h) during the 21 days around the peak dates), and the parity rate (ratio of the total number of parous females to the total number of females). These aggregated outputs were chosen because of their epidemiological importance. They will be used to perform the sensitivity analysis of the model (Section 2.6). Finally, to allow the comparison between the entomological collections from the ovitraps (as described in Section 2.2) and the predictions of the model, the abundance of eggs laid at time t by Ae. albopictus females, El(t), was computed as:
2.4.5. Initial Conditions and Simulations
The differential equations were discretized using the explicit Euler method that we implemented in Scilab 5.1 . Simulations were run over five years (2008–2011, and one first year with average values of precipitation and temperature, not retained for output computation). Initially, the population consisted of 106 eggs (stage E), t0 corresponding to 1 January.
Because the collected eggs in ovitraps are removed after sampling, we compared the observed average number of eggs per trap (relative to the maximum value of the observed average number of eggs per trap) in each site (Nice-1 and -2, Cagnes-sur-Mer, La Gaude, Biot, and Villeneuve-Loubet) with the simulated abundances of eggs newly laid (El) (relative to the maximum value of simulated eggs abundance over the 2008–2011 period). The degree of association between observed and simulated number of eggs at the time of ovitrap collection was assessed for each collection site by calculating the Bravais–Pearson correlation coefficient.

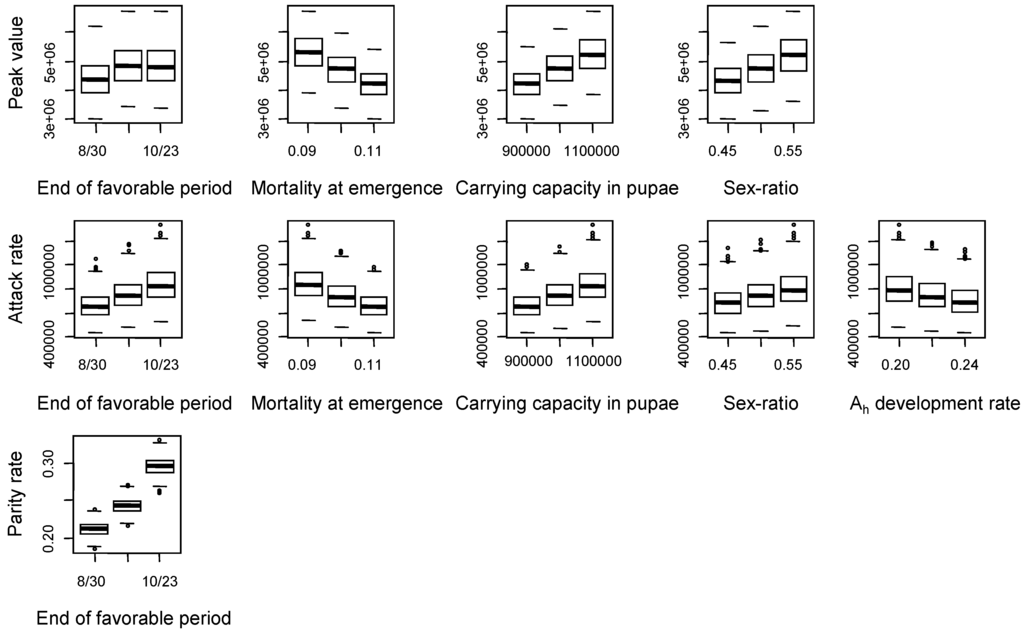

2.6. Sensitivity Analysis
We carried out a global sensitivity analysis, varying simultaneously all of the model’s parameters described in Table 2 (20 parameters) using a fractional factorial design . Such a design enabled us to estimate the sensitivity indices for the principal effects and the first-order interactions between parameters (3 levels per factor: the nominal value ±10%, generating 2,186 scenarios). Based on the model realizations implemented in this design, the contributions of the variation factors to the output variability were evaluated using a linear regression approach . For each aggregated output (as described in Section 2.4.4), a linear regression model was fitted with all the principal effects of the factors and their first-order interactions. A minimum variance criterion was defined: factors or interactions accounting for more than 1% of the output variance were retained in the model. The contribution of factor or interaction i to the variation in output y was the ratio of the sum of squares related to i on the total sum of squares of the model for output y. The sum of the contributions for output y equaled the coefficient of determination of the regression model r².
3. Results and Discussion

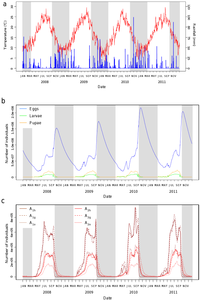

3.1. Aedes albopictus Population Dynamics in Urban Areas of South Eastern France
The dynamics of Ae. albopictus populations in the Côte d’Azur area present a strong seasonal variability with a 6-month period of adult activity and a 6-month period of egg diapause. The first eggs of the year are laid at the beginning of May. Mosquito density is maximal early July, late August and early September, depending on years and cities. Oviposition activity decreases between mid-September and mid-October, with a residual egg laying activity remaining until November or December. Sampling results did not show evidence of continuous oviposition activity during winter, unlike the situation reported in Rome, Italy .
Based on observed temperatures and precipitations from 2008 to 2011, the model showed Ae. albopictus adult mosquitoes to be present in Nice from May to November with a maximum population in late August–early September (Figure 3). The number of eggs reaches a maximum at the beginning of the unfavorable period, when eggs stop hatching while adult females continue oviposition activity. The egg reserve decreases during winter time, allowing the survival of the population. Differences between years were due to differences in weather variables, the model being otherwise deterministic.

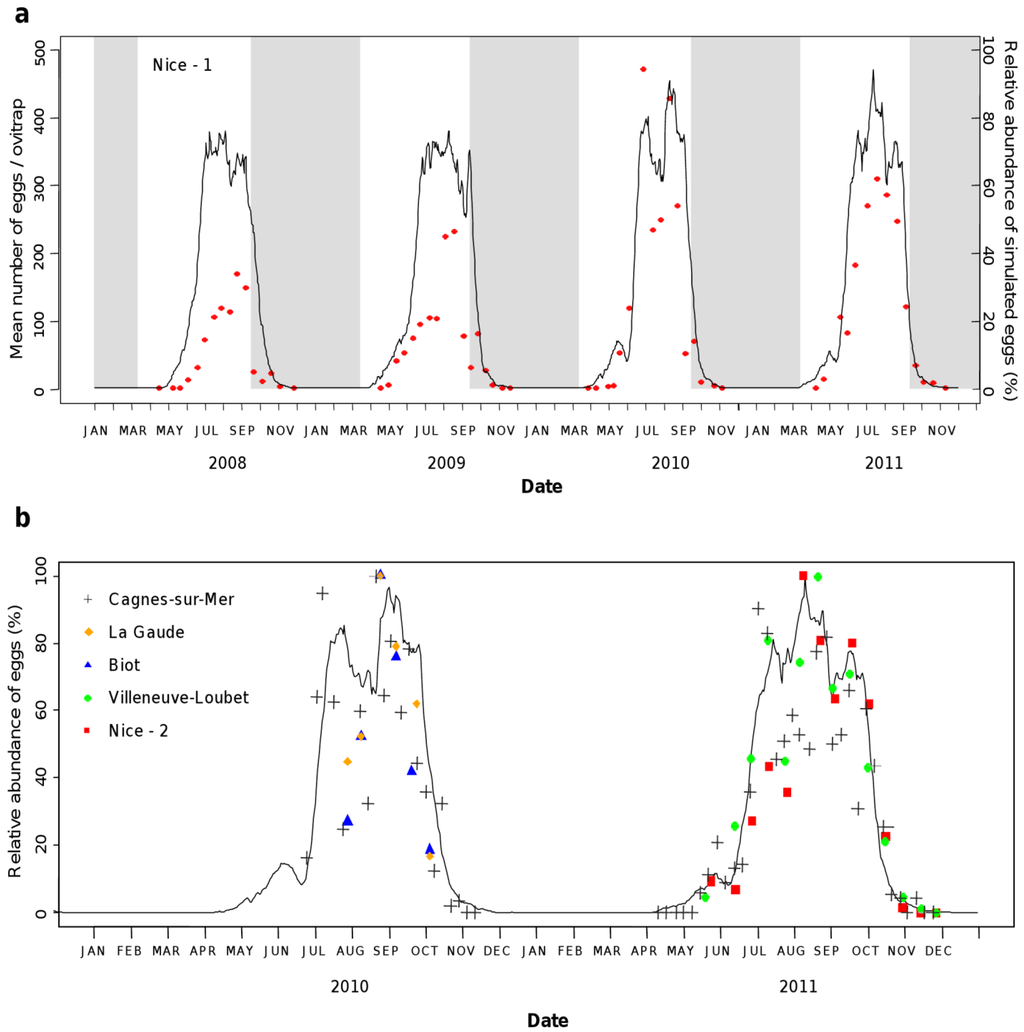

3.2. Model Validation
Simulated mosquito abundances were highly consistent with field data collected in Nice-1, 2008–2011 (Figure 4(a)), with a cross-correlation value r = 0.79. For the four years under consideration the model reproduces well the abundance peak of catches occurring in late August. When considering 2010 and 2011, for both years the model simulates well the population growth in May and its decline in autumn. Yet, the model overestimates the abundances of eggs at the start of the favorable period (April–July) in 2008 and 2009, and all over the year in 2008. In 2010 and 2011, egg abundances were also slightly overestimated in April and May. The model also correctly simulated the abundance of Ae. albopictus in the five other sites (Figure 4(b)), with correlation coefficients of 0.73 for Biot (2010), 0.77 for Cagnes-sur-Mer (2010–2011), 0.87 for La Gaude (2010), 0.92 for Nice-2 (2011), and 0.93 for Villeneuve-Loubet (2011). Altogether, these results demonstrate that our model nicely predicts the dynamics of Ae. albopictus in various environments of the urban areas of Nice area and for different years.
3.3. Key Model Parameters
The variations in the peak in adult abundance, in the attack rate and in the parity rate were mainly explained by six of the 20 parameters: the mortality rate at emergence (μem), the carrying capacity in pupae of the environment (κP), the end of the favourable period (tend), the sex-ratio (σ), the transition rate from host-seeking to engorged adults (γAh), and to a much lesser extent the transition rate from oviposition site-seeking to host-seeking adults (γAo) (Figure 5).
Therefore, the better these parameters are known, the more precise the model will be in predicting these outputs. Further knowledge thus is needed concerning especially the mortality rate at emergence and the carrying capacity in pupae, which are quite uncertain parameters. A lower mortality at emergence, a higher carrying capacity in pupae, a longer favorable period, and a higher sex-ratio increased the peak abundance in adults and the attack rate (Figure 6). A shorter development of host-seeking adults decreased the attack rate. As expected, a longer favorable period also favored a higher parity rate.
As far as we know, our model is the first mechanistic model of the dynamics of populations of Ae. albopictus in a temperate climate country taking into account diapause processes. Driven by two weather variables—temperature and rainfall—it describes the whole mosquito life cycle and takes into account egg diapause. Altogether, the simulations of the model were highly consistent with the number of eggs collected in ovitraps from six different sites of the Nice area over the 2008–2011 period. The model probably overestimates the populations of Ae. albopictus in 2008 and 2009 because at that time this invasive species was not yet fully established in Nice area .
These results clearly show that the underlying assumptions on the main drivers of Asian tiger mosquito dynamics in this region (i.e., the impacts of temperature, rainfall, and artificial flooding) are correct, and that the model could be used to predict the dynamics of Ae. albopictus populations of following years. Yet, additional entomological data on adult populations and data originating from different cities of Southern France where the Asian tiger mosquito is now installed would strengthen confidence in the model predictions. The model could be applied on other Mediterranean areas where the Asian tiger mosquito is already installed and surveyed, such as Rome , Athens , Barcelona , and Tirana . Moreover, it would be instructive to test the model in other temperate climates (United States of America or Japan) where European invasive populations of Ae. albopictus come from .
It should be noted that our model was easily adapted from a generic, mechanistic climate-driven model of mosquito populations developed by Cailly et al. . Our results confirm the ability of Cailly’s model—applied on Anopheles species in —to predict the dynamics of different species of mosquito populations, in different geographical areas and over several years. This model could be efficient and useful if used on other exotic mosquito invasive species established in European temperate areas: the Asian bush mosquito Ae. (Finlaya) japonicus (present since 2007 in northern Switzerland, 2008 in southern Germany and 2002 in Belgium), Ae. (Finlaya) koreicus (identified in 2008 in Belgium and 2011 in Italy), the yellow fever mosquito Ae. (Stegomyia) aegypti (established in Georgia, Abkhazia and Russia), and to a lesser extent Ae. (Ochlerotatus) atropalpus . Indeed, these species have a similar biology with the Asian tiger mosquito: generally introduced by used tire trade, they breed in artificial containers and survive to cold winter temperature; they are human-biters in urban environments, increasing sanitary risk in regard as their proven or potential vector status .
Using a mechanistic approach, we can study the impact of temperatures and rainfall on the dynamics of Ae. albopictus, and our results are consistent with effects demonstrated in correlation studies . Temperature is recognized to have a stronger influence on Ae. albopictus abundance than precipitation , and it is also the main driver of our model. Indeed, most of the mortality and transition rates are temperature-dependent functions. Temperature drives the mortality and transition rates functions in two different ways: higher temperatures favour higher transition rates between stages, although mortality rates decrease with temperature. Yet, according to our simulations in the Nice area, the impact of temperatures is rather favourable to Ae. albopictus populations: the peak of abundance occurs with the highest temperatures observed in summer (Figure 3).
On the other hand, previous observational studies stress the lack of clear relationship between precipitations and Ae. albopictus abundances, these studies showing either a positive effect of rainfall , a negative effect  or no effect at all . Because Ae. albopictus females breed mainly in small artificial containers, Roiz et al.  suggest that the seasonal pattern of Ae. albopictus population dynamics might be more influenced by variations in human water supply than changes in precipitations. In this study, we followed this assumption to define egg hatching. In our model, this function is driven by rainfall in spring, and temperature-driven later on (Equation (2)), assuming that regular artificial flooding events trigger the egg hatching during the dry months of summer time. Our results stress the relevance and importance of this assumption in the urban environment of the Nice region. Indeed, simulations with an egg hatching function driven by rainfall the whole year (hatching occurring only with rainfall events) show that Ae. albopictus populations would be quasi absent during the summer months of dry years such as 2009, and that low rainfalls may lead to an extinction of the Ae. albopictus population (Figure 7).

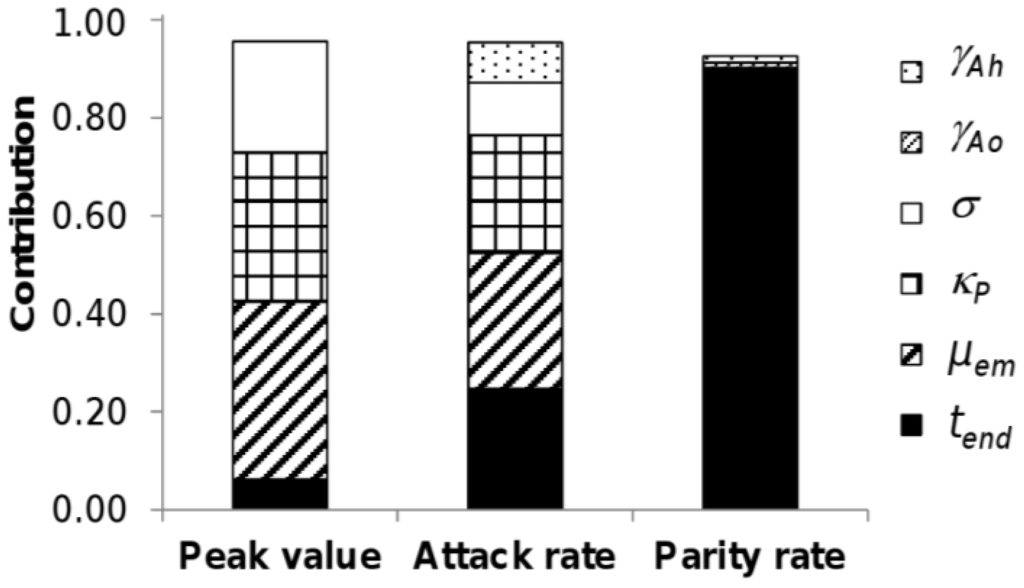

The sensitivity analysis identified six key parameters for the population dynamics model of Ae. albopictus. An improved knowledge of those parameters through laboratory or field studies will increase the precision of the model predictions. The sex-ratio of Ae. albopictus populations has been well studied . The mortality rate at emergence measured in the field will have to be compared with laboratory data. The transition rates could be better estimated from laboratory studies under controlled temperature conditions.
The sensitivity analysis demonstrates the importance for an invasive mosquito population in a temperate climate of the duration of the favorable period. To survive mosquito phenology must be adapted to their local environment, including a timely, appropriate initiation of the diapause process. Aedes albopictus diapause is a crucial adaptation, strengthening the survival capacity of the eggs to winter . The diapause process is induced by a critical day length which is species- and location-dependent. This photoperiodism response is the main factor of adaptation of species to seasonal change. As compared to other studies on life history traits evolution in other animal species, the evolution in photoperiodism by Ae. albopictus is the fastest recorded . Field studies on Ae. albopictus populations in Southern France showed that eggs enter diapause progressively between late August and mid-October . The importance of the end of the favorable period, as emphasized by our results, suggests that the model could be modified to take into account this gradual entry in dormancy of Ae. albopictus populations. In the same way, the progressive hatching of diapausing eggs in spring  could be modeled. Furthermore, a different egg survival rate during both the favorable and unfavorable periods could be integrated in the model, to better simulate the incidences of diapause and weather harshness. Indeed, the modeled winter’s egg survivorship is lower than estimations in semi-controlled field studies [51,52].
The environment’s carrying capacity in larvae and pupae could be better estimated from field studies. These values depend on the number of available breeding sites in the field and on larval and pupal densities, which can reach up to 10 individuals per cm² in laboratory . Ae. albopictus immature stages are mainly found in anthropogenic breeding sites, however there is an extreme spatial heterogeneity of breeding sites composition and abundance in the field. Field studies measuring different entomological indices (House, Breteau and Container indices [53,54]) suggest that the most suitable environment for the development of Ae. albopictus is a dense residential area combining individual houses and shaded gardens . Therefore, information on the relationship between the type of urban land cover (residential areas with gardens, high density development areas, etc.) and the number of available breeding sites, complete with field measures of larva and pupa abundances, would help adapt the model according to land cover, with environment carrying capacities varying in time (with the rainfall) and in space. This would allow the development of a space-time population model, taking into account urban environment heterogeneity.
The model’s parameters identified as the most influential could be the potential control points of the biological system. Hence, vector-control strategies achieving the modification of these parameters can be expected to influence notably the biting rate and therefore the associated risk of pathogen transmission to humans and animals.
Chemical or biological treatments of larval instars, as well as the physical destruction of breeding containers will increase the mortality rate at emergence and decrease the environment’s carrying capacity in pupae. Obviously, adult mosquito control treatments will increase the mortality rate of adults. The use of repellents may raise the length of the host-seeking phase and, consequently, the related lethality.
Modifying the end date of the favorable period of activity for mosquito is a priori inconceivable. However, it is possible to mislead photosensitive stages by using night-interrupted light, thus avoiding diapause initiation and artificially decreasing winter survival of the populations. Previous experiments on mosquitoes and other insects like butterflies brought to light the photoinhibition of diapause as a way of control [56,57], but data on the efficiency and the applicability of such a method in a context of urban vector control is lacking.
To the best of our knowledge, there is no method to change the sex-ratio at the emergence. Yet, the impact of sterile insect technique (SIT), consisting in releasing sterile males which will compete with wild males for mating with females, could be modeled as a first approximation by diminishing the sex-ratio at the emergence. Indeed, females which have mated with a sterile male will have no offspring, and could be removed from the modeled adult population.
The primary application of our model is its use to elaborate and test effective control strategies against the Asian tiger mosquito. Indeed, there is currently no clearly-defined and efficient vector control strategy. All existing tools present problems for routine large scale applications . Breeding sites can be physically removed to prevent the proliferation of Ae. albopictus populations. Yet, to be efficient such actions require repeated interventions and thus (i) the involvement of an important part of the vector control agencies’ workforce and (ii) a strong mobilisation of the population through an appropriate communication plan. SIT remains very expensive and better adapted to isolated areas like islands. The use of chemicals (i) has adverse effects on the environment and health and (ii) can led to the development of resistance in mosquito populations [58,59]. In this context, only an integrated management combining these methods can carry out to an efficient and durable vector control strategy . However, parameters of these optimal strategies (time of application, duration, number and frequency of the treatments, etc.) are complex to determine. Thus, modeling approaches can be helpful to test and compare mosquito population reduction methods, before long and expensive operational field trials. These studies should address the compared efficiency of control tools according to different conditions of use. Special attention should be paid to the optimal time of application: indeed, if insecticides treatments are usually started and repeated during the second semester of the year, when mosquito abundance is high in the field , modeling studies suggest that applying treatments earlier—in spring—may be more efficient . Modeling approaches should also address other conditions of use such as the number of traps, treatments frequencies, the minimal percentage of the targeted mosquito population affected by the treatment, or the level of maintenance of community implication required to reduce mosquito population.
Another perspective of the use of our model concerns the assimilation of the predicted abundance of host-seeking mosquitoes into a predictive model of host-vector contacts taking into account the human population density and exposure . Such an approach will provide maps of the entomological risk induced by Ae. albopictus, taking into account the seasonal variations of host and vector distributions. The Ae. albopictus dynamics model could also be linked to an epidemiological model of transmission, such as compartmental models [14,61] or agent-based models , to study in more details the possible spread of dengue or chikungunya viruses.
The population dynamics of Ae. albopictus in a temperate climate environment have been modelled for the first time, using a mechanistic approach. The model, driven by temperature and rainfall, correctly predicted entomological field data of egg stage over a four year period. It can be used efficiently as a tool to predict Ae. albopictus population dynamics, and to assess the efficiency of different control strategies.
This study was conducted within the framework of the European Life+ project (“Integrated Mosquito Control Management”, LIFE08/ENV/F/000488). The authors thank Didier Fontenille (Institut de Recherche pour le Développement—IRD), Benjamin Roche (IRD), Lucas Léger (IRD), Yvon Perrin (Centre national d’Expertise sur les Vecteurs—CNEV), and Jean-Michel Roques (AMENYS), for fruitful discussions on the modelling of Ae. albopictus populations, and Nathalie Barras (EID) for manuscript revision. Thanks are due to the four anonymous reviewers for valuable comments and advices for improving the text.
