Int. J. Environ. Res. Public Health 2013, 10(11), 5750-5780; doi:10.3390/ijerph10115750

Article
Simulation Models for Socioeconomic Inequalities in Health: A Systematic Review
Niko Speybroeck 1,,*, Carine Van Malderen 1,, Sam Harper 2, Birgit Müller 3 and Brecht Devleesschauwer 1,4
1
Institute of Health and Society (IRSS), Université Catholique de Louvain, Brussels 1200, Belgium; E-Mails: carine.vanmalderen@uclouvain.be (C.M.); Brecht.Devleesschauwer@UGent.be (B.D.)
2
Department of Epidemiology, Biostatistics & Occupational Health, McGill University, Montreal, QC H3A0G4, Canada; E-Mail: sam.harper@mcgill.ca
3
Department Ecological Modelling, Helmholtz Centre for Environmental Research—UFZ, Leipzig 04318, Germany; E-Mail: birgit.mueller@ufz.de
4
Department of Virology, Parasitology and Immunology, Faculty of Veterinary Medicine, Ghent University, Ghent 9000, Belgium
authors contributed equally to this work.
*
Author to whom correspondence should be addressed; E-Mail: Niko.Speybroeck@uclouvain.be; Tel.: +32-2-764-3375; Fax: +32-2-764-3378.
Received: 5 September 2013; in revised form: 14 October 2013 / Accepted: 16 October 2013 /
Published: 4 November 2013

Abstract

: Background: The emergence and evolution of socioeconomic inequalities in health involves multiple factors interacting with each other at different levels. Simulation models are suitable for studying such complex and dynamic systems and have the ability to test the impact of policy interventions in silico. Objective: To explore how simulation models were used in the field of socioeconomic inequalities in health. Methods: An electronic search of studies assessing socioeconomic inequalities in health using a simulation model was conducted. Characteristics of the simulation models were extracted and distinct simulation approaches were identified. As an illustration, a simple agent-based model of the emergence of socioeconomic differences in alcohol abuse was developed. Results: We found 61 studies published between 1989 and 2013. Ten different simulation approaches were identified. The agent-based model illustration showed that multilevel, reciprocal and indirect effects of social determinants on health can be modeled flexibly. Discussion and Conclusions: Based on the review, we discuss the utility of using simulation models for studying health inequalities, and refer to good modeling practices for developing such models. The review and the simulation model example suggest that the use of simulation models may enhance the understanding and debate about existing and new socioeconomic inequalities of health frameworks.
Keywords:
models; simulations; socioeconomic; health

1. Introduction

Socioeconomic status (SES) has traditionally been defined by relevant PROGRESS factors, i.e., Place of Residence, Race/ethnicity, Occupation, Gender, Religion/culture, Education, Socioeconomic status, Social capital/networks [1]. An association between SES and health has been demonstrated in numerous studies [2], resulting in the so-called socioeconomic gradient in health.

Moreover, when these health inequalities are quantified by the concentration index [3] as an indicator, they can be “unpacked” through a decomposition analysis [4]. Such an analysis provides interesting insights on the contribution of different determinants to socioeconomic health inequality (e.g., quantifying the importance of illiteracy among women on child health inequalities) [5,6,7,8,9]. However, a decomposition analysis is based on a generalized linear model [4] and may therefore suffer from limitations inherent to such a model.

Generalized linear models are appropriate for identifying isolated relationships between covariates and health while taking into account potential confounders. However, interrelations among individuals can lead to violations of the stable unit treatment value assumption, since e.g., an education intervention affecting the health condition of one individual could also affect the health condition of his/her friend. A further limitation is that in these models all variables are dealt with at the same level (i.e., additively, as explanatory variables at the right side of the linear equation), whether endogenous (such as genes), individual-level (such as age, education, or an individual behavior), neighborhood-level (such as the suitability of the environment), school-level (such as availability of health education), policy-level, and so forth. An analysis of socioeconomic health inequalities should embrace the multi-level aspect of the different determinants.

Multilevel, or hierarchical, regression models can consider the contribution of factors at multiple levels, but do little to deal with a fundamental limitation of all generalized linear models, namely that these models hardly take into account the dynamic, reciprocal, discontinuous or changing relations between exposures and outcomes [10]. In alcohol consumption, for example, individual socioeconomic position contributes to the type of neighborhood a person can afford to live in and to the level of alcohol consumed. But individual socioeconomic position is also a product of the types of income-generating opportunities afforded by the neighborhood socioeconomic environment [11].

In studies on socioeconomic inequalities in health it may also be important to incorporate complex and indirect health effects for a better understanding of causal pathways. Nandi et al. show an example of how early exposure to a poor socioeconomic environment may impact health in later life is [12]. In their example, the methodological challenge is twofold: first, early life SES is associated with later life SES, and second, and more challenging methodologically, early life SES may lead to behaviors adopted (e.g., smoking, poor diet) that impact SES in later life. Although structural equation models can assist in understanding causal pathways, more complex models may be needed for estimating relations between variables in a dynamic process that produces health inequality over time. Simulation models, offering simplified representations of a certain real-life system [10,13,14], have the potential to fulfill this need. Simulation models can be specified in many different ways, and the various existing simulation approaches may deal with different aspects of a complex system.

By identifying the mechanisms responsible for the generation and maintenance of health inequalities, simulation models can be used as a tool for identifying new options for policy interventions. Furthermore, once a simulation model is established, it can be used as a virtual lab to assess the effects of specific interventions. Indeed, complex systems modeling approaches have the potential to integrate the growing knowledge about multilevel causes of health and their patterns of feedback and interaction, and to inform how specific policy interventions could influence the health of populations [10]. This paper provides a systematic review on the use of simulation models developed to better understand or modify socioeconomic inequalities in health. Using a simple agent-based model (ABM), we show how simulation models can be developed and used to study socioeconomic inequalities in health.

2. Experimental Section

2.1. Systematic Review

The systematic review followed the reporting guidelines of PRISMA [15] and PRISMA-Equity 2012 [16]. However, as the review focused on a qualitative synthesis of the simulation models (and not their results), several items in the PRISMA statement (e.g., “summary measures”) were not applicable in our review.

2.1.1. Eligibility Criteria

Studies with the following characteristics were eligible: the target population is human individuals or groups; the intervention or exposure involves a socioeconomic factor; the outcome variable is a health status, behavior or access to health care; and the study design is a simulation model. No restrictions were applied on the year, language, type or status of the publication.

2.1.2. Information Sources and Search

Electronic searches were conducted using PubMed, Scopus and the Web of Knowledge on 22 January 2013. The following terms and operators were used and applied on title/abstract/keywords ((tw) in PubMed): (“simulat*” OR “equation based-model*” OR “process-based model*” OR “dynamic model*” OR “multi-agent*” OR “differential equation*” OR “compartmental model*” OR “difference equation*” OR “projection model*” OR “systems analysis” OR “systems model*” OR “computer model*” OR “agent based” OR “individual based” OR “rule based” OR “mathematical model*” OR “microsimulation”) AND (polarization OR polarisation OR imparit* OR parit* OR unjustness OR discrimination OR inequalit* OR disparit* OR equit* OR inequit* OR equalit*) AND (sickness OR sanity OR medical OR health OR healthy* OR healthi* OR illness* OR disabilit* OR morbidit* OR mortalit* OR disease OR diseases). The search terms were discussed and approved by four of the authors based on their expertise in simulation models or in health inequalities research. The search strategy was tested and fine-tuned in Scopus. Records were imported into Reference Manager (Thomson Reuters Professional Edition version 12) and duplicates, defined as records with similarity in titles >87% (default parameters in Reference Manager) and the same publication date, were removed. The remaining duplicates identified by progressively decreasing the degree of similarity between titles and not using the publication date criterion were manually removed.

2.1.3. Study Selection

Titles (and abstracts if necessary) were screened for eligibility. As the number of eligible studies was greater than expected, selection criteria were refined to better meet the aim of the review. Studies assessing socioeconomic inequalities in health using a simulation model were selected if the following criteria were met: (1) the study aims to better understand or modify a difference in health (health status, health behavior, access to health care or exposition to a health-threatening exposure) between socioeconomic (PROGRESS) sub-groups of the population; and (2) the method used is a simulation model, defined as an experiment performed on a representation of a system. Finally, only full research articles published in English were selected.

2.1.4. Data Collection Process and Data Items

The aim of the study, the type and features of the simulation model, the structural determinant(s), the health outcome(s), the country, the target population, the main findings, authors and publication dates were extracted into a pre-designed form. The number of studies by characteristic was counted and plotted using R version 3.0.1 [17].

Simulation models were first classified in two classes according to the level of experimentation. “Individual-based simulation models” perform simulation experiments at individual level (e.g., individuals’ attributes, behaviors or relationships). “Population-based simulation models” perform simulation experiments at population level (e.g., state processes and transition probabilities, components or dynamics). In the individual-based simulation models group, three different approaches were identified: microsimulation, agent-based and network. In the population-based simulation models group, seven different approaches were identified: state-transition, optimization, risk assessment, projection, game, behavioral/stress and diffusion. The description of the different simulation approaches is presented in Table 1.

Socioeconomic determinants were categorized into: place of residence, race/ethnicity, occupation, gender, socio-cultural factors, education, economic status, social capital, insurance coverage, marital status and housing. Health outcomes were categorized into health status, life expectancy, mortality, child health, mental health, obesity, infectious disease, cancer, health behavior, access to health care/treatment/prevention and environmental exposition. These categorizations helped in identifying the main situations of inequality studied and the related simulation approach used.

Table 1. Description of simulation model approaches.

Click here to display table

Table 1. Description of simulation model approaches.
Individual-based
MicrosimulationIn these models, individuals are represented as passive micro-level entities. The experiment consists in modifying individuals’ attributes. Analyses are made using regression-based or econometric methods.
Agent-basedIn agent-based models, individuals are represented as active (i.e., are able to adapt to the environment, interact with others and make autonomous decisions) micro-level entities. The experiment consists in modifying agents’ rules or the system structure.
NetworkIn network models, individuals are represented as micro-level entities interacting with each other. The experiment consists in modifying individuals’ relationships.
Population-based
State-transitionState-transition models are developed with differential equations. The population is divided in subgroups through which individuals pass. These subgroups may be defined according to health states or by SES. This category includes system dynamics models with stocks, flows and feed-back loops, epidemic models (e.g., Susceptible/Infected/Recovered models), and Markov models.
OptimizationIn this category, the basic components modeled are facilities or services. The optimal allocation of health care resources is estimated by maximizing or minimizing a function.
Risk assessmentIn these models, the unequal distribution of a health risk of a simulated exposure is estimated.
ProjectionBased on actual population data and rates, these models project future population demographics under several assumptions.
GameThese models study strategies in which the decision of an individual or group depends on the decision of the others.
Behavioral/stressBehavioral: the model consists in a recursive system of equations. In this model, individuals maximize a lifetime utility function. Stress: individual’s health is determined by endowments, permanent shocks, and transitory shocks.
DiffusionTemporal and spatial diffusion of an innovation are modeled as subsystems transitions from dynamic to steady states.

The description of simulation model approaches was based on the studies included in the review.

Several characteristics of the systems modeled in the studies were extracted as described by the following keywords: (1) multilevel—the system components may be aggregated at distinct levels (e.g., endogenous, individual, network, neighborhood), (2) dynamic—the system evolves over time; the relations between some elements of the system depend on time, (3) stochastic—the system includes an element of random nature or an element that can be specified only probabilistically, (4) heterogeneous individuals—differentiated (with at least two attributes) individuals are represented as micro-level entities and, if active, are able to interact with each other or to adapt to their environment, (5) feedback loop—the system includes a chain of causes and effects that forms a loop, and (6) spatial—the system has a spatial dimension; the relations between some elements of the system depend on space.

Finally, information about the model validation and utilization was extracted. The method section of the studies was screened for validation methods. Whether or not the model aimed to develop a framework or to test an intervention or scenario was extracted.

2.2. Agent-Based Model (ABM)

To illustrate the use of simulation models for studying socioeconomic inequalities of health, a simple ABM aiming to study how socioeconomic differences in alcohol abuse may emerge was developed. Figure 1 shows a schematic representation of this model.

Ijerph 10 05750 g001 200

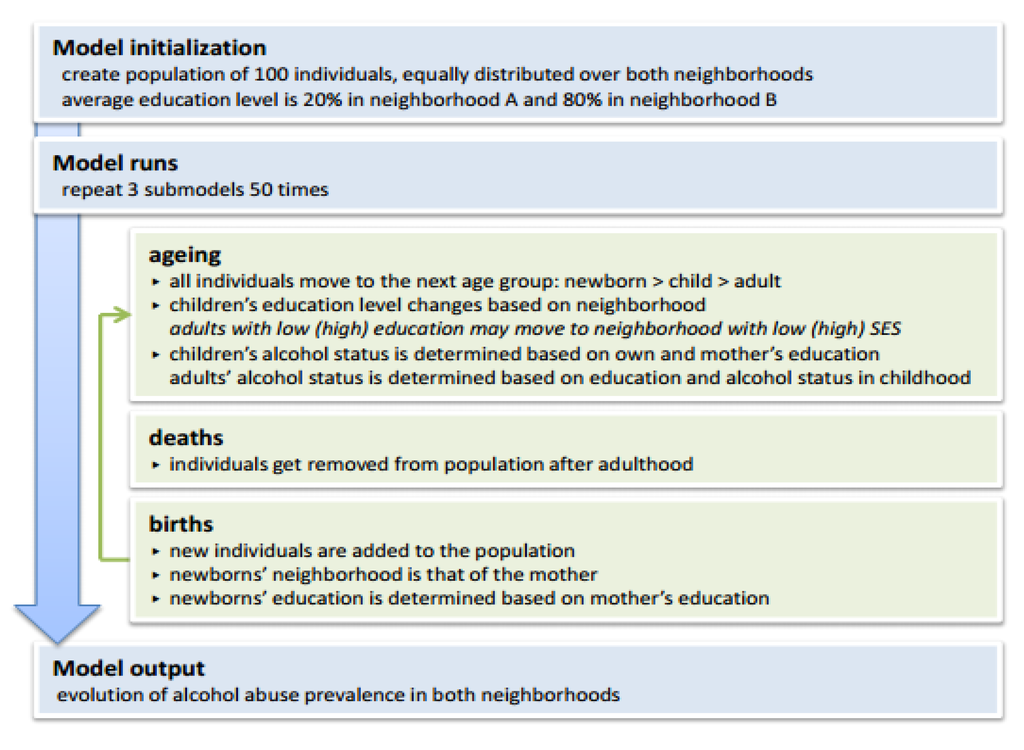

Figure 1. Schematic representation of the agent-based simulation model of alcohol abuse in two neighborhoods with distinct socioeconomic levels.

Click here to enlarge figure

Figure 1. Schematic representation of the agent-based simulation model of alcohol abuse in two neighborhoods with distinct socioeconomic levels.
Ijerph 10 05750 g001 1024

The model simulates the life course of individual women, who are born, age, give birth, and die (the system represented is dynamic). Two neighborhoods are defined, reflecting low and high SES (the system is multilevel); however, the model is not spatially explicit, as the distance between neighborhoods is not explicitly modeled. The model consists of heterogeneous individuals, who interact with each other and their environment. The attributes of the individuals may change over time, based on probabilistic processes. Each individual has an education level that depends on the mother’s education level, but can change based on the neighborhood. Indeed, the model assumes that children may increase or decrease their education level based on the average education level in their neighborhood. Individuals are further allowed to develop alcohol abuse depending on prior alcohol abuse and on the education level of the individual and its mother. Alcohol abuse in childhood is assumed to depend on the individual’s education level and that of its mother, while alcohol abuse in adulthood is assumed to depend on the individual’s education level and alcohol abuse during childhood. This situation represents the baseline model. In a next scenario, we allow individuals to change neighborhood based on their education level. Individuals with a high education will move with a certain probability to a high SES neighborhood, and vice versa. As a result, we thus create a feedback loop between education level and neighborhood. Indeed, the education level in childhood is assumed to depend on the neighborhood, while the neighborhood in adulthood is assumed to depend on education level.

Validation of the model only occurred through expert judgments of the input parameters and simulated outputs. If the model were to be used for more in-depth research, rather than as an example of the use of ABMs, model validation through comparison with observed alcohol abuse patterns would be essential. Table A1 provides a more detailed description of the ABM, following the Overview, Design concepts and Details (ODD) protocol proposed by Grimm et al. [18]. The model was developed and run in R version 3.0.1 [17], and the model’s source code is provided in Table A1 and Algorithm A1.

3. Results

3.1. Review

3.1.1. Description of Selected Studies

The 61 studies selected [19,20,21,22,23,24,25,26,27,28,29,30,31,32,33,34,35,36,37,38,39,40,41,42,43,44,45,46,47,48,49,50,51,52,53,54,55,56,57,58,59,60,61,62,63,64,65,66,67,68,69,70,71,72,73,74,75,76,77,78,79] were published between 1989 and 2013 (Figure 2). They were conducted in all continents: America (n = 28), Europe (n = 16), Asia (n = 10), Africa (n = 5) and Australia (n = 3) (Table A2). The review of the simulation models identified 16 individual-based models and 45 population-based models. The different approaches are summarized in Table 2.

Ijerph 10 05750 g002 200
Figure 2. Flow of information through the different phases of the review.

Click here to enlarge figure

Figure 2. Flow of information through the different phases of the review.
Ijerph 10 05750 g002 1024
Table 2. Number of studies reporting several features of simulation models in total and by model type.

Click here to display table

Table 2. Number of studies reporting several features of simulation models in total and by model type.
Individual-basedPopulation-based
TotalMicrosimulationAgent-basedNetworkState.transitionOptimizationRisk assessmentProjectionGameBehavioralDiffusion
Total number of studies611141211342221
Characteristics of the system modeled
1. Multilevel591041201342221
2. Dynamic4064120221121
3. Stochastic3464113430120
4. Heterogeneous micro-level entities40114113322121
interacting with each other60212000100
adapting to their environment101303100110
5. Feed-back loop70205000000
6. Spatial3764061341111
Validation and utilization of the model
Validation on observational data142106410000
Development of a framework171103821010
Test of an intervention/scenario48541181332200

The most common simulation approaches were state-transition models, optimization models and microsimulations. In several studies [39,40,43,45,47,49,50], state-transition models were used with a microsimulation. In one study [38], state-transition and network approaches were combined. To facilitate the description, these studies were classified as state-transition models as this was considered as the main approach of the study. All PROGRESS factors were represented in the selected set of publications. The determinants reported were mostly place of residence, race/ethnicity and economic status (Figure 3). The health outcomes modeled are shown in Figure 4. Inequalities in health status (self-reported, nutritional status, disease, mortality, life expectancy, preterm birth) were modeled in 31 studies. Unequal access to health care (health facilities, treatment or prevention) was modeled in 27 studies. The remaining studies modeled inequalities in an environmental exposure (n = 3) [70,71,72] and inequalities in health behavior (n = 2) [30,31].

Ijerph 10 05750 g003 200

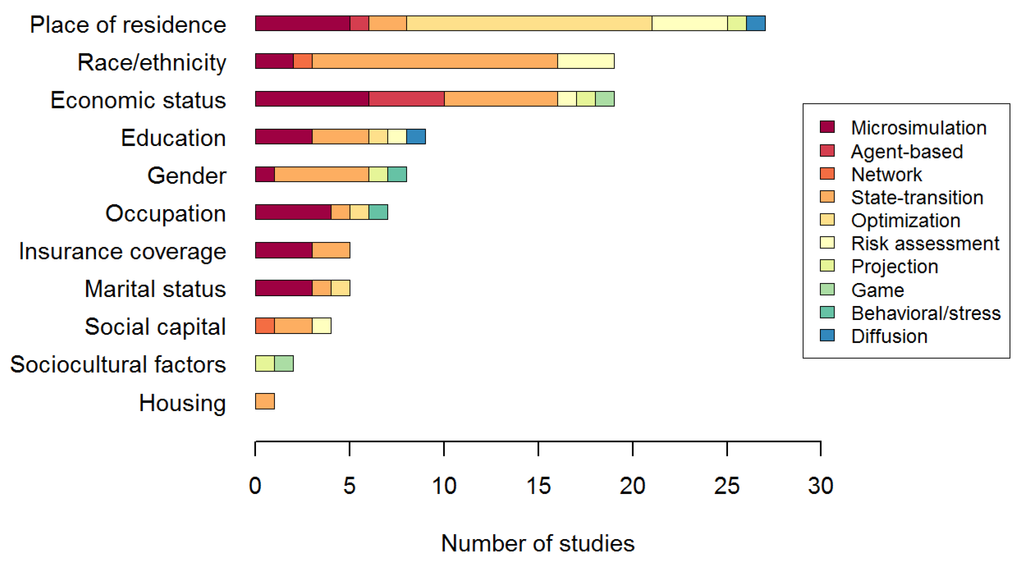

Figure 3. Structural determinants included in the selected studies.

Click here to enlarge figure

Figure 3. Structural determinants included in the selected studies.
Ijerph 10 05750 g003 1024
Ijerph 10 05750 g004 200
Figure 4. Health outcomes included in the selected studies.

Click here to enlarge figure

Figure 4. Health outcomes included in the selected studies.
Ijerph 10 05750 g004 1024

3.1.2. Characteristics of the System Modeled

In the selected studies the use of simulation models allowed for a better understanding the complex dynamics giving rise to health inequalities. The system encompassing a health inequality may be multilevel, dynamic, spatial stochastic, and includes active heterogeneous micro-level entities or feed-back loops. These complex features were appropriately taken into account through the various simulation modeling approaches (Table 2), as illustrated hereafter.

The complexity of the relationships between the components of the system was present in all studies to varying degrees. Complexity was high in a study assessing the causal pathways of the multiple social and biological determinants of health in the city of Toronto [48]. In this simulation model, many determinants interact with direct or indirect impacts on health, strong or weak causal effects and time delays.

Nearly all reported models included more than one level of factors, e.g., cold-ischemia time of an organ transplant (endogenous), waiting time of the patient (individual), location of the health center (neighborhood) and allocation rules (policy) [57].

Two-thirds of the models were dynamic. The time dimension was especially essential when outcomes such as inequalities in future disease incidence (e.g., state-transition models) or life trajectories (e.g., behavioral/stress model) were studied.

Stochasticity was introduced in the models in several ways and for various reasons. In a spatial stochastic multimedia exposure model [69], probability density distributions of random model input variables were used to compute exposure and risk indicators. In a spatial interaction study [60], random fluctuations were introduced in the data to test the robustness of the model. In the network simulation of HIV transmission [34], every contact (relationship) was made with a randomly chosen member of the population.

Individuals were represented as micro-level entities in two-third of studies. In 16 studies, individuals were active, either able to interact with others or to adapt to their environment. Modeling individual interactions was essential in a study on influenza vaccination and transmission [32]. Indeed, this study emphasized that poorer counties tend to have high-density populations and more children and other higher-risk people per household, resulting in more interactions and both increased transmission of influenza and greater risk for worse influenza outcomes. In this simulation, virtual people moved throughout a region in patterns similar to those actually observed in real life, interacting with each other at places such as offices and schools, based on the day of the week and each person’s characteristics. Ten papers modeled an adaptive behavior between people and their environment over time. For example, Auchincloss et al. [30] assessed income inequalities in diet in the context of residential segregation. In this study, the selection of a food store by the household was determined by the price of food, the distance to the store, its habitual behavior and the preference for healthy food.

A feed-back loop was modeled in seven papers, mainly agent-based or state-transition models. As an example, a study found that feedbacks between disease ecology and economics can create clusters of low income and high disease that can stably persist in populations that become otherwise predominantly rich and free of disease [38].

The spatial dimension was introduced in the model as observable geographical units (region, county, census output area…) in most studies and in all optimization and risk assessment models.An artificial space was simulated in the four agent-based models (grid space) and in two other studies (Banach space) [44,75].

3.1.3. Validation and Utilization of the Model

Among the 16 studies having reported a validation process in their methods, most (n = 14) compared predicted results with observational data (i.e., pattern-oriented modeling; discussed in more detail below) and two compared model results to experts’ opinions [37,48].

In 17 studies, mainly for optimization models, an explicit aim was to provide a conceptual framework of the studied phenomenon.

If validated, the simulation model may then be used as a tool to test the effect of a virtual intervention. Most studies tested the impact of several scenarios/interventions on inequalities: allocation policies, health reform strategies, treatment or prevention programs, relocation of facilities etc. Some studies used existing simulation models. The MISCAN model projects US cancer population trends and was used to test the impact of cancer screening [39,40,45,50]. The Prevent model estimates the health benefits in a population due to changes in risk factor prevalence and was used to test the impact of interventions to prevent smoking [52,54]. The Life Saved Tool projects the reduction in the mortality rates and stunting that could be achieved if the coverage levels of specific interventions were increased on the basis of baseline characteristics, demographic characteristics, and coverage targets. The tool was used to estimate the effects of different intervention packages and coverage levels on under-5 mortality and malnutrition [74].

3.2. Agent-Based Illustrative Model

Figure 5 and Figure 6 show the simulated level of alcohol abuse in both neighborhoods, for the baseline and the extended model.

Ijerph 10 05750 g005 200

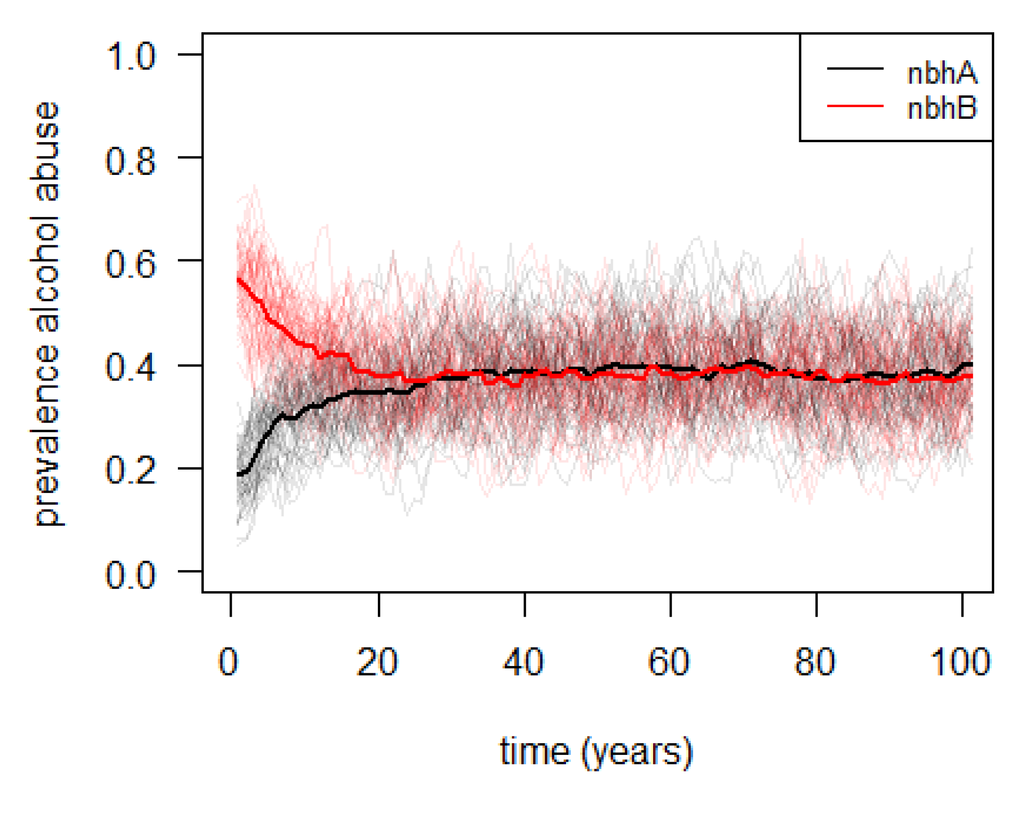

Figure 5. Simulated prevalence of alcohol abuse in two neighborhoods (“nbhA” and “nbhB”, with high, respectively, low, socioeconomic status), assuming no education-dependent mobility between neighborhoods; the thin lines (highly variable) represent the output of 100 individual model runs, while the thick lines represent the averages of all individual model runs.

Click here to enlarge figure

Figure 5. Simulated prevalence of alcohol abuse in two neighborhoods (“nbhA” and “nbhB”, with high, respectively, low, socioeconomic status), assuming no education-dependent mobility between neighborhoods; the thin lines (highly variable) represent the output of 100 individual model runs, while the thick lines represent the averages of all individual model runs.
Ijerph 10 05750 g005 1024
Ijerph 10 05750 g006 200

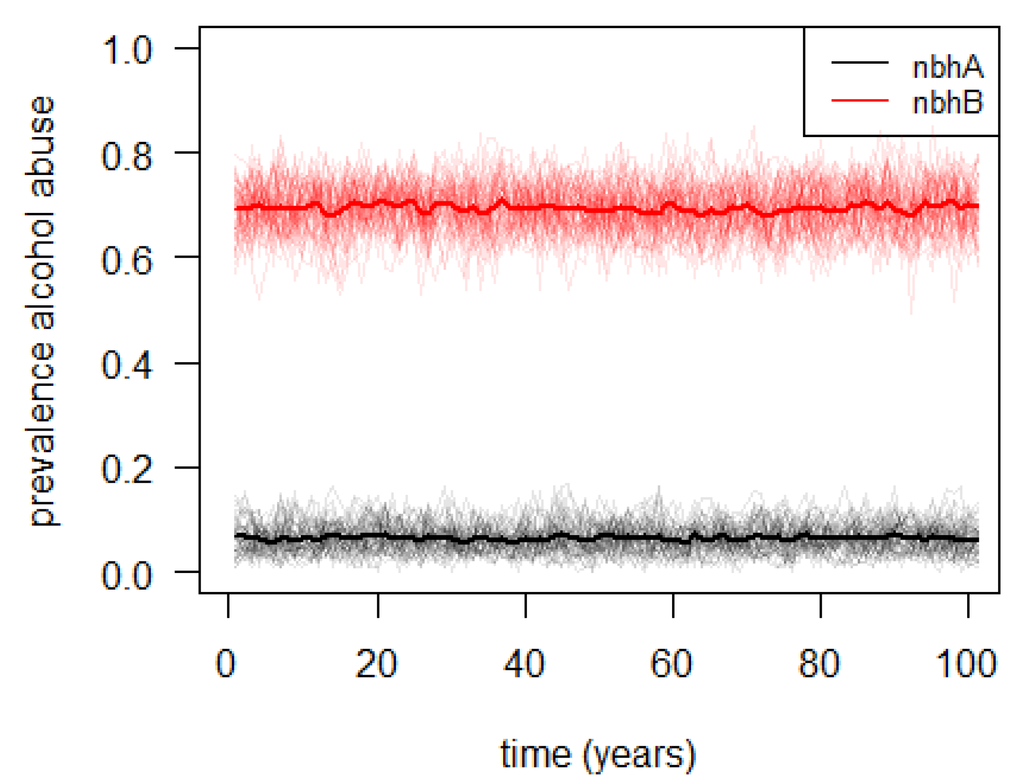

Figure 6. Simulated prevalence of alcohol abuse in two neighborhoods (“nbhA” and “nbhB”, with low, respectively, high, socioeconomic status), assuming education-dependent moving between neighborhoods; the thin lines represent the output of 100 individual model runs, while the thick lines represent the averages of all individual model runs.

Click here to enlarge figure

Figure 6. Simulated prevalence of alcohol abuse in two neighborhoods (“nbhA” and “nbhB”, with low, respectively, high, socioeconomic status), assuming education-dependent moving between neighborhoods; the thin lines represent the output of 100 individual model runs, while the thick lines represent the averages of all individual model runs.
Ijerph 10 05750 g006 1024

In the baseline model, where no education-dependent moving between neighborhoods was assumed, the alcohol abuse prevalence in both neighborhoods evolves from the original state to a similar state. In other words, in this situation no inequalities are observed between the two neighborhoods. In the extended model, however, a clear qualitative difference between both neighborhoods emerges, reflecting clear inequalities between the two neighborhoods. This observation suggests that, subject to the model assumptions, mobility may be a driving force behind socioeconomic health inequalities. Note that the quantitative differences are the result of arbitrary parameter settings, and should thus not be interpreted directly.

4. Discussion and Conclusions

Determinants of health shape health inequalities in complex ways, requiring innovative approaches such as the use of simulations. Data, mostly collected survey data, allow the identification of gaps in health between socio-economic groups, and can in addition be analyzed with traditional statistical techniques such as generalized linear models, revealing relationships between observed health inequalities and their determinants. Such analyses can be indicative of health gaps and important determinants, but may not reveal the mechanisms driving socio-economic inequalities of health. The detection of such mechanisms requires tools that can account for feedbacks, interrelations among agents (e.g., humans and the environment) and discontinuous non-linear relations.

Through a systematic literature review, we explored how simulation models have been used so far to study health inequalities. The review shows that simulation models of health inequalities were used in several areas such as health systems research, epidemiology, environmental health or demography. The 61 studies selected used many different types of simulation models. This review sought to identify the main simulation approaches used. The choice of the most appropriate simulation approach should depend on the aim of the study and on the characteristics of the system being modeled. Table 3 summarizes the main situations of inequality modeled in the studies, linking them with the characteristics of the systems modeled and the simulation approach used. Depending on the situation, a characteristic of the system may be more or less important to model (e.g., modeling a dynamic system with active individuals may be particularly interesting when studying the impact of a policy on health behavior, because this impact depends on individuals’ adaptation and may vary over time). Some studies reported in their limitations that their model lacked dynamic [56,62], stochastic [57,75] or individual heterogeneity [25]. These concerns reflect the different considerations that must be balanced when developing any simulation model: the accuracy of the model, its validity and its applicability.

Table 3. Overview of the main situations of inequality modeled, main related characteristics of the system, and approach used.

Click here to display table

Table 3. Overview of the main situations of inequality modeled, main related characteristics of the system, and approach used.
Situation of inequalityMost frequently reported characteristics of the systemApproach used
Unequal access to health care resources Static, deterministic, spatial
Interdependency of components’ decisions
Passive heterogeneous individuals
Optimization
Game
Microsimulation
Unequal health behaviorDynamic, stochastic, heterogeneous individuals adapting to their environmentAgent-based
Unequal transmission of a disease or unequal disease stages transitionsDynamic, stochastic, passive (heterogeneous) individuals
Heterogeneous individuals interacting with each other
State-transition
(+ microsimulation)
Network, agent-based
Unequal environmental exposition/riskStatic, passive (heterogeneous) individuals, spatial
Dynamic, spatial diffusion
Risk assessment
(+ microsimulation)
Diffusion
Unequal health status or mortalityStatic, deterministic, passive heterogeneous individuals
Dynamic, stochastic
Microsimulation, projection
Behavioral

Among all approaches explored in the review, ABM is likely the most suitable tool for studying a complex health inequality situation as it integrates most of the characteristics of a complex system. We illustrated the simulation process through the example of a simple hypothetical agent-based simulation model of alcohol abuse. We showed how such simulation models can incorporate feedback loops and provide insights that may not be obtained through classical statistical data models. Indeed, ABMs translate our understanding of a process into simple computer rules, making it possible to simulate complex interactions and non-linear relations. As extending existing ABMs comes down to adding more rules to the model, generating more detailed models can easily be accomplished. ABMs may therefore serve as “virtual labs”, in which our understanding of the process or the impact of possible intervention measures may be tested in silico. In our example, this could mean the evaluation of other factors contributing to alcohol abuse, or the evaluation of intervention strategies aimed at e.g., improving the mothers’ education level. As such, ABMs have the potential to become important tools for guiding policy. However, as all models come with inherent assumptions and uncertainties, the usefulness and limitations of the model results need to be clearly communicated with the policy makers. Indeed, as models merely present a simplified representation of reality, they can never replace reality, nor can they exactly predict future events. Therefore, if simulation models were to be used as policy tools, policy makers and other stakeholders should be involved throughout the modeling process [80].

When developing models, good modeling practices should be followed to enhance confidence in the model’s findings. One prominent good modeling practice is model validation, i.e., the process of testing the realism of the model and its outcomes. We note that models can be validated in several ways, depending on the purpose of the model [81]. Structural validation, i.e., an evaluation of the coherence of the simulation model with theory, is not often done. This seems a logical step since, unlike methods for describing epidemics, no mathematical theory exists for health inequalities. Predictive validation, tested by comparing results produced by the models with observations, may help to assess whether or not the mechanism modeled reflects reality. Comparing the simulated results to an observed pattern appears to provide the best validity check. This so-called pattern-oriented approach [82] therefore requires that the model generates patterns that can be observed in real life. In our ABM example, the generated pattern was alcohol abuse prevalence, which is an observable pattern. Furthermore, pattern-oriented modeling makes it possible to calibrate the model, by fine-tuning the parameters to better reproduce the observed pattern. However, our review showed that simulation models of health inequalities are not always validated. The assessment of the model validation used in the selected studies was not straightforward given the diversity of the types of models included, each having their own validity standards. Nevertheless, it appears that validity was not systematically reported, and a test for predictive validity was found in only 22% of studies. Sometimes data are not available, but this does not have to stop the modeler from checking that the results produced are logical e.g., by comparing model results to experts’ opinions [83], as reported in two studies.

Apart from proper validity checks of the models, good modeling practices also include structured documentation of the models and communication with stakeholders. Grimm et al. proposed the Overview, Design concepts and Details (ODD) protocol as a standard protocol for reporting ABMs [18]. This idea is extended as a framework for transparent and comprehensive ecological modeling documentation (TRACE), in which all aspects of the modeling cycle are represented, including model development, model testing and analysis, and model application [80]. Although developed for simulation models in ecology, these good modeling practices also apply to simulation models for health inequalities. A transparent and systematic reporting of models will increase confidence in the usefulness of the results.

Frameworks used for conceptualizing health inequalities and their determinants have been described in various forms in the past [2,84,85]. These frameworks actually already represent models, namely visual models, or, when described in text form, verbal models. However, none of these frameworks was experimented through a simulation model in the selected studies. Testing frameworks quantitatively may be an opportunity for further research in the field of socioeconomic determinants of health inequalities. Indeed, the further development of such frameworks could be guided by simulation models. The review showed that some (17%) models were already used for developing a new framework. We therefore promote the further use of simulation models in line with developing new frameworks.

The review has several limitations. Firstly, the search was limited to three electronic databases. Moreover, the search strategy contains keywords related to inequality but a simulation study of socioeconomic inequalities not containing the chosen terms in its title/abstract/keywords might have been missed. Secondly, the selection of the studies and data extraction was conducted by a single reviewer, increasing the probability of selection/extraction errors. Finally, there is no standard classification of simulation models to apply to our selection of studies. For the majority of studies, the simulation approach was explicitly reported in the studies, but for several studies (e.g., “risk assessment”) an approach was assigned according to the characteristics found in the model.

With the complexity surrounding the way determinants shape inequalities in health, simulation models will provide a useful added value to the set of more traditional analytical techniques. Studies with a complex design are needed to explore these mechanisms. Simulation models can guide optimal data collection by testing different designs virtually before conducting the study. Although complex issues such as feedback loops can be accounted for by models such as ABMs, the wider use of such models in teaching and research will convince researchers and policy makers to use the available flexibility even more, by e.g., including adaptive behavior of individuals. Furthermore it will guide the data collection in a more efficient way towards policy making and not merely reporting the existence of inequalities. The list of examples published and referred to in this paper together with the illustrative ABM example may assist researchers to develop their own simulation models in the future.

Acknowledgments

We would like to express our thanks to the reviewers for their constructive and meaningful comments.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Evans, T.; Brown, H. Road traffic crashes: Operationalizing equity in the context of health sector reform. Inj. Control Saf. Promot. 2003, 10, 11–12, doi:10.1076/icsp.10.1.11.14117.
  2. Commission on Social Determinants of Health W.H.O. Closing the Gap in a Generation. Health Equity through Action on the Social Determinants of Health; Commission on Social Determinants of Health: Geneva, Switzerland, 2008.
  3. Konings, P.; Harper, S.; Lynch, J.; Hosseinpoor, A.R.; Berkvens, D.; Lorant, V.; Geckova, A.; Speybroeck, N. Analysis of socioeconomic health inequalities using the concentration index. Int. J. Public Health 2010, 55, 71–74, doi:10.1007/s00038-009-0078-y.
  4. Speybroeck, N.; Konings, P.; Lynch, J.; Harper, S.; Berkvens, D.; Lorant, V.; Geckova, A.; Hosseinpoor, A.R. Decomposing socioeconomic health inequalities. Int. J. Public Health 2010, 55, 347–351, doi:10.1007/s00038-009-0105-z.
  5. Hosseinpoor, A.R.; van Doorslaer, E.; Speybroeck, N.; Naghavi, M.; Mohammad, K.; Majdzadeh, R.; Delavar, B.; Jamshidi, H.; Vega, J. Decomposing socioeconomic inequality in infant mortality in Iran. Int. J. Epidemiol. 2006, 35, 1211–1219, doi:10.1093/ije/dyl164.
  6. Van de Poel, E.; Hosseinpoor, A.R.; Jehu-Appiah, C.; Vega, J.; Speybroeck, N. Malnutrition and the disproportional burden on the poor: The case of Ghana. Int. J. Equity Health 2007, 6, 21, doi:10.1186/1475-9276-6-21.
  7. Van Malderen, C.; Ogali, I.; Khasakhala, A.; Muchiri, S.N.; Sparks, C.; van Oyen, H.; Speybroeck, N. Decomposing Kenyan socio-economic inequalities in skilled birth attendance and measles immunization. Int. J. Equity Health 2013, 12, 3, doi:10.1186/1475-9276-12-3.
  8. Goli, S.; Doshi, R.; Perianayagam, A. Pathways of economic inequalities in maternal and child health in urban India: A decomposition analysis. PLoS One 2013, 8, e58573, doi:10.1371/journal.pone.0058573.
  9. Van Malderen, C.; van Oyen, H.; Speybroeck, N. Contributing determinants of overall and wealth-related inequality in under-5 mortality in 13 African countries. J. Epidemiol. Community Health 2013, 67, 667–676, doi:10.1136/jech-2012-202195.
  10. Galea, S.; Riddle, M.; Kaplan, G.A. Causal thinking and complex system approaches in epidemiology. Int. J. Epidemiol. 2010, 39, 97–106, doi:10.1093/ije/dyp296.
  11. Cerda, M.; Diez-Roux, A.V.; Tchetgen, E.T.; Gordon-Larsen, P.; Kiefe, C. The relationship between neighborhood poverty and alcohol use: Estimation by marginal structural models. Epidemiology 2010, 21, 482–489, doi:10.1097/EDE.0b013e3181e13539.
  12. Nandi, A.; Glymour, M.M.; Kawachi, I.; VanderWeele, T.J. Using marginal structural models to estimate the direct effect of adverse childhood social conditions on onset of heart disease, diabetes, and stroke. Epidemiology 2012, 23, 223–232, doi:10.1097/EDE.0b013e31824570bd.
  13. Troch, I.; Breitenecker, F. Control systems, robotics and automation. Vol. IV—Modeling and simulation of dynamic systems. Encycl. Life Support Syst. 2011, 4, 1–13.
  14. Dormann, C.F.; Schymanski, S.J.; Cabral, J.; Chuine, I.; Graham, C.; Hartig, F.; Kearney, M.; Morin, X.; Römermann, C.; Schröder, B.; Singer, A. Correlation and process in species distribution models: Bridging a dichotomy. J. Biogeogr. 2012, 39, 2119–2131, doi:10.1111/j.1365-2699.2011.02659.x.
  15. Moher, D.; Liberati, A.; Tetzlaff, J.; Altman, D.G.; the PRISMA Group. Preferred reporting items for systematic reviews and meta-analyses: The PRISMA statement. Ann. Intern. Med. 2009, 151, 264–269, doi:10.7326/0003-4819-151-4-200908180-00135.
  16. Welch, V.; Petticrew, M.; Tugwell, P.; Moher, D.; O’Neill, J.; Waters, E.; White, H.; PRISMA-Equity Bellagio Group. PRISMA-Equity 2012 extension: Reporting guidelines for systematic reviews with a focus on health equity. PLoS Med. 2012, 9, doi:10.1371/journal.pmed.1001333.
  17. R Core Team. R: A Language and Environment for Statistical Computing. R Foundation for Statistical Computing, Vienna, Austria. Available online: http://www.R-project.org (accessed on 24 June 2013).
  18. Grimm, V.; Berger, U.; DeAngelis, D.L.; Polhilld, J.G.; Giskee, J.; Railsbackf, S.F. The ODD protocol: A review and first update. Ecol. Model. 2010, 221, 2760–2768, doi:10.1016/j.ecolmodel.2010.08.019.
  19. Schofield, D.J.; Shrestha, R.N.; Callander, E.J. Access to general practitioner services amongst underserved Australians: A microsimulation study. Hum. Resour. Health 2012, 10, 1, doi:10.1186/1478-4491-10-1.
  20. Huber, H. Decomposing the causes of inequalities in health care use: A micro-simulations approach. J. Health Econ. 2008, 27, 1605–1613, doi:10.1016/j.jhealeco.2008.07.013.
  21. Propper, C. Equity and the UK National-Health-Service—A review of the evidence. Econ. Soc. Rev. 1994, 25, 343–365.
  22. Truong, K.D.; Reifsnider, O.S.; Mayorga, M.E.; Spitler, H. Estimated number of preterm births and low birth weight children born in the United States due to maternal binge drinking. Matern. Child Health J. 2013, 17, 677–688, doi:10.1007/s10995-012-1048-1.
  23. Riva, M.; Smith, D.M. Generating small-area prevalence of psychological distress and alcohol consumption: Validation of a spatial microsimulation method. Soc. Psychiatry Psychiatr. Epidemiol. 2012, 47, 745–755, doi:10.1007/s00127-011-0376-6.
  24. Abu-Zaineh, M.; Mataria, A.; Moatti, J.P.; Ventelou, B. Measuring and decomposing socioeconomic inequality in healthcare delivery: A microsimulation approach with application to the Palestinian conflict-affected fragile setting. Soc. Sci. Med. 2011, 72, 133–141, doi:10.1016/j.socscimed.2010.10.018.
  25. Zayas-Cabán, T. Modeling access to health care within a community. Int. J. Health Care Qual. Assur. 2003, 16, 273–278, doi:10.1108/09526860310495651.
  26. Tomintz, M.N.; Clarke, G.P.; Rigby, J.E.; Green, J.M. Optimising the location of antenatal classes. Midwifery 2013, 29, 33–43, doi:10.1016/j.midw.2011.10.010.
  27. Deb, P.; Munkin, M.K.; Trivedi, P.K. Private insurance, selection, and health care use: A Bayesian analysis of a Roy-type model. J. Bus. Econ. Stat. 2006, 24, 403–415, doi:10.1198/073500106000000323.
  28. Zajacova, A.; Goldman, N.; Rodriguez, G. Unobserved heterogeneity can confound the effect of education on mortality. Math. Popul. Stud. 2009, 16, 153–173, doi:10.1080/08898480902790528.
  29. Ballas, D.; Clarke, G.; Dorling, D.; Rigby, J.; Wheeler, B. Using geographical information systems and spatial microsimulation for the analysis of health inequalities. Health Inform. J. 2006, 12, 65–79, doi:10.1177/1460458206061217.
  30. Auchincloss, A.H.; Riolo, R.L.; Brown, D.G.; Cook, J.; Diez Roux, A.V. An agent-based model of income inequalities in diet in the context of residential segregation. Am. J. Prev. Med. 2011, 40, 303–311, doi:10.1016/j.amepre.2010.10.033.
  31. Yang, Y.; Roux, A.V.; Auchincloss, A.H.; Rodriguez, D.A.; Brown, D.G. Exploring walking differences by socioeconomic status using a spatial agent-based model. Health Place 2012, 18, 96–99, doi:10.1016/j.healthplace.2011.08.010.
  32. Lee, B.Y.; Brown, S.T.; Bailey, R.R.; Zimmerman, R.K.; Potter, M.A.; McGlone, S.M.; Cooley, P.C.; Grefenstette, J.J.; Zimmer, S.M.; Wheaton, W.D.; et al. The benefits to all of ensuring equal and timely access to influenza vaccines in poor communities. Health Aff. 2011, 30, 1141–1150, doi:10.1377/hlthaff.2010.0778.
  33. Rahman, A.; Setayeshi, S.; Shamsaei Zafargandi, M. Wealth adjustment in an artificial society, based on a sugarscape model using one fifth of the wealth variable. Iran. J. Electr. Comput. Eng. 2009, 8, 35–40.
  34. Morris, M.; Kurth, A.E.; Hamilton, D.T.; Moody, J.; Wakefield, S. Concurrent partnerships and HIV prevalence disparities by race: Linking science and public health practice. Am. J. Public Health 2009, 99, 1023–1031, doi:10.2105/AJPH.2008.147835.
  35. Friedberg, M.W.; Safran, D.G.; Coltin, K.; Dresser, M.; Schneider, E.C. Paying for performance in primary care: Potential impact on practices and disparities. Health Aff. 2010, 29, 926–932, doi:10.1377/hlthaff.2009.0985.
  36. Diaz, R.; Behr, J.G.; Tulpule, M. A system dynamics model for simulating ambulatory health care demands. Simul. Healthc. 2012, 7, 243–250, doi:10.1097/SIH.0b013e318259d134.
  37. Milstein, B.; Homer, J.; Hirsch, G. Analyzing national health reform strategies with a dynamic simulation model. Am. J. Public Health 2010, 100, 811–819.
  38. Plucinski, M.M.; Ngonghala, C.N.; Getz, W.M.; Bonds, M.H. Clusters of poverty and disease emerge from feedbacks on an epidemiological network. J. R. Soc. Interface 2013, 10, doi:10.1098/rsif.2012.0656.
  39. Chang, Y.; Schechter, C.B.; van Ravesteyn, N.T.; Near, A.M.; Heijnsdijk, E.A.; Adams-Campbell, L.; Levy, D.; de Koning, H.J.; Mandelblatt, J.S. Collaborative modeling of the impact of obesity on race-specific breast cancer incidence and mortality. Breast Cancer Res. Treat. 2012, 136, 823–835, doi:10.1007/s10549-012-2274-3.
  40. Lansdorp-Vogelaar, I.; Kuntz, K.M.; Knudsen, A.B.; van Ballegooijen, M.; Zauber, A.G.; Jemal, A. Contribution of screening and survival differences to racial disparities in colorectal cancer rates. Cancer Epidemiol. Biomark. Prev. 2012, 21, 728–736, doi:10.1158/1055-9965.EPI-12-0023.
  41. Tasosa, J.; Schuster, R.; McAlearney, J.S. Cost-effectiveness of treating hypertension, hyperglycemia, and hyperlipidemia in African Americans and the general population with type 2 diabetes. J. Health Care Poor Underserved 2010, 21, 161–176, doi:10.1353/hpu.0.0258.
  42. Rudge, J.W.; Hanvoravongchai, P.; Krumkamp, R.; Chavez, I.; Adisasmito, W.; Chau, P.N.; Phommasak, B.; Putthasri, W.; Shih, C.S.; Stein, M.; et al. Health system resource gaps and associated mortality from pandemic influenza across six asian territories. PLoS One 2012, 7, e31800, doi:10.1371/journal.pone.0031800.
  43. Rendall, M.S.; Weden, M.M.; Fernandes, M.; Vaynman, I. Hispanic and black US children’s paths to high adolescent obesity prevalence. Pediatr. Obes. 2012, 7, 423–435, doi:10.1111/j.2047-6310.2012.00080.x.
  44. Mukandavire, Z.; Malunguza, N.J.; Chiyaka, C.; Musuka, C.; Tchuenche, J.M. HIV/AIDS model assessing the effects of gender-inequality affecting women in african heterosexual settings. Int. J. Biomath. 2010, 3, 43–67, doi:10.1142/S1793524510000878.
  45. Lansdorp-Vogelaar, I.; van Ballegooijen, M.; Zauber, A.G.; Boer, R.; Wilschut, J.; Winawer, S.J.; Habbema, J.D. Individualizing colonoscopy screening by sex and race. Gastrointest. Endosc. 2009, 70, 96–108, doi:10.1016/j.gie.2008.08.040.
  46. Turner, K.M.E.; Garnett, G.P.; Ghani, A.C.; Sterne, J.A.; Low, N. Investigating ethnic inequalities in the incidence of sexually transmitted infections: Mathematical modelling study. Sex. Transm. Infect. 2004, 80, 379–385, doi:10.1136/sti.2003.007575.
  47. Goldie, S.J.; Daniels, N. Model-based analyses to compare health and economic outcomes of cancer control: Inclusion of disparities. J. Natil. Cancer Inst. 2011, 103, 1373–1386, doi:10.1093/jnci/djr303.
  48. Mahamoud, A.; Roche, B.; Homer, J. Modelling the social determinants of health and simulating short-term and long-term intervention impacts for the city of Toronto, Canada. Soc. Sci. Med. 2013, 93, 247–255, doi:10.1016/j.socscimed.2012.06.036.
  49. Wolf, D.A.; Laditka, S.B.; Laditka, J.N. Patterns of active life among older women: Differences within and between groups. J. Women Aging 2002, 14, 9–26, doi:10.1300/J074v14n01_02.
  50. Van Ravesteyn, N.T.; Schechter, C.B.; Near, A.M.; Heijnsdijk, E.A.; Stoto, M.A.; Draisma, G.; de Koning, H.J.; Mandelblatt, J.S. Race-specific impact of natural history, mammography screening, and adjuvant treatment on breast cancer mortality rates in the United States. Cancer Epidemiol. Biomark. Prev. 2011, 20, 112–122, doi:10.1158/1055-9965.EPI-10-0944.
  51. Losina, E.; Schackman, B.R.; Sadownik, S.N.; Gebo, K.A.; Walensky, R.P.; Chiosi, J.J.; Weinstein, M.C.; Hicks, P.L.; Aaronson, W.H.; Moore, R.D.; et al. Racial and sex disparities in life expectancy losses among hiv-infected persons in the united states: Impact of risk behavior, late initiation, and early discontinuation of antiretroviral therapy. Clin. Infect. Dis. 2009, 49, 1570–1578, doi:10.1086/644772.
  52. Soerjomataram, I.; Barendregt, J.J.; Gartner, C.; Kunst, A.; Møller, H.; Avendano, M. Reducing inequalities in lung cancer incidence through smoking policies. Lung Cancer 2011, 73, 268–273, doi:10.1016/j.lungcan.2011.01.009.
  53. Mbah, M.L.N.; Gilligan, C.A. Resource allocation for epidemic control in metapopulations. PLoS One 2011, 6, e24577, doi:10.1371/journal.pone.002457.
  54. Menvielle, G.; Soerjomataram, I.; de Vries, E.; Engholm, G.; Barendregt, J.J.; Coebergh, J.W.; Kunst, A.E. Scenarios of future lung cancer incidence by educational level: Modelling study in Denmark. Eur. J. Cancer 2010, 46, 2625–2632, doi:10.1016/j.ejca.2010.07.027.
  55. Ocana-Riola, R.; Fernandez-Ajuria, A.; Mayoral-Cortes, J.M.; Toro-Cárdenas, S.; Sánchez-Cantalejo, C. Uncontrolled migrations as a cause of inequality in health and mortality in small-area studies. Epidemiology 2009, 20, 411–418, doi:10.1097/EDE.0b013e318196aaf4.
  56. Earnshaw, S.R.; Hicks, K.; Richter, A.; Honeycutt, A. A linear programming model for allocating HIV prevention funds with state agencies: A pilot study. Health Care Manag. Sci. 2007, 10, 239–252, doi:10.1007/s10729-007-9017-8.
  57. Bruni, M.E.; Conforti, D.; Sicilia, N.; Trotta, S. A new organ transplantation location-allocation policy: A case study of Italy. Health Care Manag. Sci. 2006, 9, 125–142, doi:10.1007/s10729-006-7661-z.
  58. Wilson, R.M.; Gibberd, R.W. Allocating resources between health care regions: Catchment populations and allocating for equity. Eur. J. Oper. Res. 1990, 49, 333–347, doi:10.1016/0377-2217(90)90404-Y.
  59. Kumar, N. Changing geographic access to and locational efficiency of health services in two Indian districts between 1981 and 1996. Soc. Sci. Med. 2004, 58, 2045–2067, doi:10.1016/j.socscimed.2003.08.019.
  60. Wilson, R.M.; Gibberd, R.W. Combining multiple criteria for regional resource allocation in health care systems. Math. Comput. Model. 1990, 13, 15–27, doi:10.1016/0895-7177(90)90068-X.
  61. Wilson, D.P.; Blower, S.M. Designing equitable antiretroviral allocation strategies in resource-constrained countries. PLoS Med. 2005, 2, 132–141, doi:10.1371/journal.pmed.0020132.
  62. Verguet, S. Efficient and equitable HIV prevention: A case study of male circumcision in South Africa. Cost Eff. Resour. Alloc. 2013, 11, 1, doi:10.1186/1478-7547-11-1.
  63. Stinnett, A.A.; Paltiel, A.D. Mathematical programming for the efficient allocation of health care resources. J. Health Econ. 1996, 15, 641–653, doi:10.1016/S0167-6296(96)00493-6.
  64. Chu, S.C.K.; Ho, M.P.P.; Lee, K.K.Y.; Lo, H.P. Nurses allocation models for maternal and child health services. J. Oper. Res. Soc. 2000, 51, 1193–1204.
  65. Sutton, M.; Lock, P. Regional differences in health care delivery: Implications for a national resource allocation formula. Health Econ. 2000, 9, 547–559, doi:10.1002/1099-1050(200009)9:6<547::AID-HEC543>3.0.CO;2-E.
  66. Diderichsen, F.; Varde, E.; Whitehead, M. Resource allocation to health authorities: The quest for an equitable formula in Britain and Sweden. Br. Med. J. 1997, 315, 875–878, doi:10.1136/bmj.315.7112.875.
  67. Segall, R.S. Some deterministic and stochastic nonlinear optimization modelling for the spatial allocation of multicategorical resources: With an application to real health data. Appl. Math. Model. 1989, 13, 641–650, doi:10.1016/0307-904X(89)90173-X.
  68. Matsumoto, M.; Ogawa, T.; Kashima, S.; Takeuchi, K. The impact of rural hospital closures on equity of commuting time for haemodialysis patients: Simulation analysis using the capacity-distance model. Int. J. Health Geogr. 2012, 11, 28, doi:10.1186/1476-072X-11-28.
  69. Caudeville, J.; Bonnard, R.; Boudet, C.; Denys, S.; Govaert, G.; Cicolella, A. Development of a spatial stochastic multimedia exposure model to assess population exposure at a regional scale. Sci. Total Environ. 2012, 432, 297–308, doi:10.1016/j.scitotenv.2012.06.001.
  70. Harlan, S.L.; Brazel, A.J.; Prashad, L.; Stefanovb, W.L.; Larsenc, L. Neighborhood microclimates and vulnerability to heat stress. Soc. Sci. Med. 2006, 63, 2847–2863, doi:10.1016/j.socscimed.2006.07.030.
  71. Atlas, M. PER pressure: New Jersey’s “Population Emissions Ratio” environmental equity screening model. Risk Anal. 2003, 23, 69–79, doi:10.1111/1539-6924.00290.
  72. Levy, J.I.; Wilson, A.M.; Zwack, L.M. Quantifying the efficiency and equity implications of power plant air pollution control strategies in the United States. Environ. Health Perspect. 2007, 115, 743–750, doi:10.1289/ehp.9712.
  73. Jiang, Q.; Li, S.; Feldman, M.W. Demographic consequences of gender discrimination in China: Simulation analysis of policy options. Popul. Res. Policy Rev. 2011, 30, 619–638, doi:10.1007/s11113-011-9203-8.
  74. Carrera, C.; Azrack, A.; Begkoyian, G.; Pfaffmann, J.; Ribaira, E.; O’Connell, T.; Doughty, P.; Aung, K.M.; Prieto, L.; Rasanathan, K. The comparative cost-effectiveness of an equity-focused approach to child survival, health, and nutrition: A modelling approach. Lancet 2012, 380, 1341–1351, doi:10.1016/S0140-6736(12)61378-6.
  75. Cojocaru, M.G. Dynamic equilibria of group vaccination strategies in a heterogeneous population. J. Glob. Optim. 2008, 40, 51–63, doi:10.1007/s10898-007-9204-7.
  76. McPake, B.; Hanson, K.; Adam, C. Two-tier charging strategies in public hospitals: Implications for intra-hospital resource allocation and equity of access to hospital services. J. Health Econo. 2007, 26, 447–462, doi:10.1016/j.jhealeco.2006.10.011.
  77. Balia, S.; Jones, A.M. Mortality, lifestyle and socio-economic status. J. Health Econ. 2008, 27, 1–26, doi:10.1016/j.jhealeco.2007.03.001.
  78. Health Inequality over the Life-Cycle. Available online: http://www.economics.hawaii.edu/research/workingpapers/WP_11-8.pdf (accessed on 17 October 2013).
  79. Meir, A. A disparity-based diffusion approach to analysis of mortality decline. Espace Popul. Soc. 1990, 1990, 403–406, doi:10.3406/espos.1990.1417.
  80. Schmolke, A.; Thorbek, P.; DeAngelis, D.L.; Grimm, V. Ecological models supporting environmental decision making: A strategy for the future. Trends Ecol. Evol. 2010, 25, 479–486, doi:10.1016/j.tree.2010.05.001.
  81. Starfield, A.M.; Bleloch, A.L. Building Models for Conservation and Wildlife Management, 2nd ed. ed.; The Burgess Press: Edina, MN, USA, 1991.
  82. Grimm, V.; Railsback, S.F. Pattern-oriented modelling: A ‘multi-scope’ for predictive systems ecology. Philos. Trans. R. Soc. Lond. B Biol. Sci. 2012, 367, 298–310, doi:10.1098/rstb.2011.0180.
  83. Carrasco, L.R.; Jit, M.; Chen, M.I.; Lee, V.J.; Milne, G.J.; Cook, A.R. Trends in parameterization, economics and host behaviour in influenza pandemic modelling: A review and reporting protocol. Emerg. Themes Epidemiol 2013, 10, 3, doi:10.1186/1742-7622-10-3.
  84. Health Inequalities: Concepts, Frameworkds and Policy-Briefing Paper. Available online: http://www.nice.org.uk/niceMedia/pdf/health_inequalities_policy_graham.pdf (accessed on 17 October 2013).
  85. Braveman, P. Social conditions, health equity, and human rights. Health Hum. Rights 2010, 12, 31–48.

Appendix

Table A1. The following description of the agent-based model for studying socio-economic inequalities in health follows the “ODD” (Overview, Design concepts, and Details) protocol proposed by Grimm et al. [18].

Click here to display table

Table A1. The following description of the agent-based model for studying socio-economic inequalities in health follows the “ODD” (Overview, Design concepts, and Details) protocol proposed by Grimm et al. [18].
Overview
PurposeTo understand the emergence of socioeconomic health inequalities.
Entities, state variables, and scalesThe main model entities are the individual females, each having six state variables:
  • id: unique identification number

  • age: age category (1 = newborn; 2 = child; 3 = adult)

  • edu: own education level (0 = low; 1 = high)

  • edm: mother's education level (0 = low; 1 = high)

  • hlt: own alcohol consumption (0 = no; 1 = yes)

  • nbh: own neighborhood (0 = A; 1 = B)

The neighborhood acts as a secondary entity. Its state variables are defined by the inhabitants:
  • average education

  • average alcohol consumption

Process overview and schedulingThe model is updated in discrete time steps:

ageing

each individual moves to next age grou

children improve or decrease their education level based on the average education level in their neighborhood

adults change neighborhood based on own education level (high edu → nbhA; low edu → nbhB)

alcohol consumption in childhood gets determined based on own and mothers’ education level

alcohol consumption in adulthood gets determined based on own education and alcohol use in childhood

deaths

individuals who have passed adulthood get removed from the population

births

new individuals get added to the population

newborns get neighborhood from mother

newborns get education from mother with certain probability

prevalence assessment

determination of neighborhood-specific average education and alcohol consumption

Design concepts
Basic principlesThe model is based on the ideas that education level depends on the neighborhood and on the mothers’ education level; and that alcohol consumption depends on the own and the mothers’ education level.
Optionally, the model can be allowed to assume that adults change neighborhood based on own their education level.
EmergenceThe main model results are the neighborhood-specific average education and alcohol consumption levels.
AdaptationThe model contains two adaptive traits:
  • change in education level based on average education level in neighborhood

  • change in neighborhood based on education level

ObjectivesThe adaptive traits are not linked to any objective.
LearningThere is no change in adaptive traits over time.
PredictionThere are no predictions assumed.
SensingThe individuals sense the average education level in their neighborhood.
InteractionThere is interaction between mothers and offspring:
  • the newborn gets the neighborhood of the mother

  • the newborn gets the education of the mother with a certain probability

StochasticityMother’s education → newborn’s education:
  • edu ~ Bernoulli(0.70), if edm = 1

  • edu ~ Bernoulli(0.30), if edm = 0

∆ Child’s education
  • eduA ~ Bernoulli(edunbhA)

  • eduB ~ Bernoulli(edunbhB)

∆ Adult’s neighborhood
  • nbh ~ Bernoulli(0.20), if edu = 0 and nbh = 1

  • nbh ~ Bernoulli(0.80), if edu = 1 and nbh = 0

CollectiveIndividuals belong to two different neighborhoods; these neighborhoods are entities with own state variables.
ObservationNo external data are observed.
Details
InitializationThe model gets initialized with 100 individuals, equally distributed over both neighborhoods. The initial education level is randomly assigned based on neighborhood:
  • eduA ~ Bernoulli(0.20)

  • eduB ~ Bernoulli(0.80)

Input dataNo external input data is used.
SubmodelsSee R script.
Ijerph 10 05750 g007 200

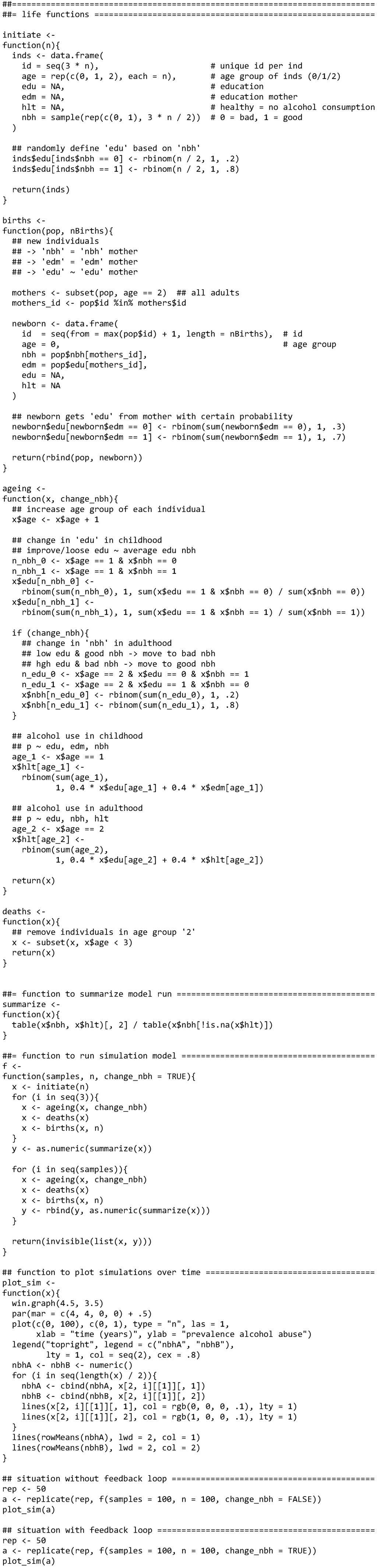

Algorithm A1. R code for the agent-based model example.

Click here to enlarge figure

Algorithm A1. R code for the agent-based model example.
Ijerph 10 05750 g007 1024
Table A2. Description of selected studies.

Click here to display table

Table A2. Description of selected studies.
Name of the modelSocioeconomic determinant(s)Health outcome(s)CountryMultilevelDynamicStochasticHeterogeneous entities… interacting… adaptingFeed-back loopSpatialValidated (predictive)Framework createdIntervention/scenario testRef.
Microsimulation
Microsimulation modelRural/urban, income, employmentAccess to GPAustraliaXXXX[19]
Microsimulation+ decompositionHousehold size, incomeNumber of GP/specialist visitsFrance XXX[20]
Microsimulation modelIncome, expenditures, taxesDelivery of health careUKXXXX[21]
Simulation modelRace, education, employment, marital statusPreterm birth, low birth weight, maternal binge drinkingUSAXXXX[22]
Spatial microsimulation modelGender, marital status, economic activity, occupational social classMental health surveillanceEnglandXXX[23]
Microsimulation+ decompositionHousehold expenditures, education, occupational activity, marital status, insurance coverage, place of residenceUtilization of health servicesPalestinXXX[24]
Discrete simulation modelEthnicity, insuranceAccess to health careUSAXXXX[25]
Microsimulation
Spatial microsimulation+ location-allocation modelCensus output areaAccess to antenatal careUKXXXXXX[26]
Roy's model of selectivityInsuranceMedical utilizationUSAXXXXXX[27]
MicrosimulationEducationMortalityUSAXXXXX[28]
Spatial microsimulationSES, geographicHealth status UKXXXXXX[29]
Agent-based
Agent-based modelResidential segregationDietUSA XXXXXXXXX[30]
Agent-based modelSESWalkingUSAXXXXXXXXX[31]
Microsimulation modelSalary, incomeInfluenza vaccination and transmissionUSAXXXXXXX[32]
Sugarscape modelWealthMortality(Iran)XXXXXXX[33]
Network
Network simulation modelEthnicity, social networkHIV transmissionUSAXXXXXX[34]
State-transition
Medicare demonstrationEthnicity, education, public assistance, poverty, unemploymentPrimary health care paymentUSAXXXXX[35]
Ethnicity, insuranceAmbulatory health care utilizationUSXXXX[36]
State-transition
System dynamics modelInsuranceDisease or injuryUSAXXXXXX[37]
Individual-based network modelPovertyInfectious disease transmission(USA)XXXXXXXX[38]
State-transition modelRaceBreast cancer outcomes incidence and mortalityUSAXXXXXX[39]
Microsimulation modelRaceColorectal cancer rateUSAXXXXXX[40]
Markov state-transition modelRaceTreatment of hypertension, hyperglycemia, hyperlipidemia (cost-effectiveness)adultXXXX[41]
Mathematical transmission modelHealth system resourcesMortality from pandemic influenzaCambodia, Indonesia, Lao PDR, Taiwan, Thailand and VietnamXXXXX[42]
Markov model + decompositionRaceObesity prevalenceUSAXXXXX[43]
Transmission modelGenderHIV/AIDS transmissionAfrican countriesXXXX[44]
Microsimulation modelRace, genderColonoscopic screeningUSAXXXXXX[45]
Simple deterministic mathematical modelRace, genderSexually transmitted infections incidenceUKXXXXXX[46]
Disease simulation modelRaceCancer controlUSAXXXXXX[47]
System dynamics modelEthnicity, immigration status, gender, income, housing, social cohesionChronic disease, disability, and mortality rateCanadaXXXXX[48]
Discrete-time Markov-chains + microsimulationRace, education, marital historyRemaining years of life and proportion of remaining years with disabilityUSAXXX[49]
Microsimulation modelRaceBreast cancer mortality rateUSAXXXXXX[50]
State-transition modelRace, genderLife-expectancyUSAXXXXX[51]
State-transition simulation modelSESLung cancer incidenceUKXXXXX[52]
SIRS modelRegionInfectious disease transmission(UK)XXXXX[53]
State-transition modelEducationLung cancer incidenceDenmarkXXXXX[54]
Dynamics systemsRegionHealth, mortality(Spain)XXXX[55]
Optimization
Optimal allocation modelRegionHIV preventionUSAXXXXX[56]
Location-allocation modelRegionAccess to organ transplantationItalyXXXXX[57]
Catchment population formulaeRegionAccess to the health care systemAustraliaXXXXX[58]
Location-allocation modelGeographic locationAccess to health servicesIndiaXXXXX[59]
Optimization
Spatial interaction modelRegionAcute-care hospital utilization, accessibilityAustraliaXXXXX[60]
Spatial mathematical modelRegionAccess to antiretroviralsSouth AfricaXXXX[61]
Deterministic epidemic modelProvinceAccess to male circumcisionSouth AfricaXXXX[62]
Mathematical programming model Program resourcesAccess to health care resources(USA)XXX[63]
Goal programming modelRegionNurses for maternal and child health servicesChinaXXXX[64]
Resource allocation formulaeRegionPatterns of health care deliveryUKXXXX[65]
Formula for resource allocationLocal districtsUse of hospital servicesSwedenXXXXX[66]
Resource allocation modelZone of residenceAccess to public service facilitiesUSAXXXXX[67]
Capacity-distance modelCommuting timeAccess to dialysisJapanXXXXXX[68]
Risk assessment
Stochastic multimedia exposure modelRegionExposure to metalsFranceXXXXXXX[69]
Energy balance modelIncome, poverty, education, ethnicity, geographic locationExposition to heat stressUSAXXXXXX[70]
Risk assessment
Environmental equity ruleEthnicityEnvironmental risk on human healthUSAXXX[71]
Source-receptor matrixGeographic locationPremature deathUSAXXXXX[72]
Projection
Population projection modelGenderMortality, birthChinaXXXX[73]
Mathematical modellingGeographic, economic sociocultural factorsChild mortality, stunting14XXXX[74]
Game
Evolutionary variational inequality modelPerception of vaccineVaccination(Canada)XXXXXXXX[75]
Stackelberg gamePayment mechanismUtilization of hospital servicesZambiaXX[76]
Behavioral/stress
Behavioral model + decompositionSocial class based on occupationMortality, lifestyleGreat BritainXXXXXX[77]
Stress modelGender, educationSelf-rated health statusanyXXXXX[78]
Diffusion
Mortality decline diffusion modelGeographic locationMortality(Israel)XXXX[79]
Int. J. Environ. Res. Public Health EISSN 1660-4601 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
