Next Article in Journal
Relevant Spatial Scales of Chemical Variation in Aplysina aerophoba
Next Article in Special Issue
Inhibitory Effects of Ecklonia cava Extract on High Glucose-Induced Hepatic Stellate Cell Activation
Previous Article in Journal
Alkaloids and Sesquiterpenes from the South China Sea Gorgonian Echinogorgia pseudossapo
Previous Article in Special Issue
Antioxidant Effect of a Marine Oligopeptide Preparation from Chum Salmon (Oncorhynchus keta) by Enzymatic Hydrolysis in Radiation Injured Mice


Font Type:
Arial Georgia Verdana
Font Size:
Aa Aa Aa
Line Spacing:
Column Width:
Background:
Article

Chitosan, the Marine Functional Food, Is a Potent Adsorbent of Humic Acid

1
Environment and Biotechnology Department, Refining and Manufacturing Research Institute, CPC Corporation, Chia-Yi 60051, Taiwan
2
Department of Chemical Engineering, Ming Chi University of Technology, 84 Gung-Juan Road, Taishan, New Taipei 24301, Taiwan
3
Department of Parasitology, College of Medicine, Chang Gung University, 259 Wen-Hwa 1st Road, Kweishan, Tao-Yuan 24301, Taiwan
4
Department of Medical Biotechnology and Laboratory Science, Chang Gung University, 259 Wen-Hwa 1st Road, Kweishan, Tao-Yuan 33302, Taiwan
5
Graduate School of Biochemical Engineering, Ming Chi University of Technology, 84 Gung-Juan Road, Taishan, New Taipei 24301, Taiwan
*
Author to whom correspondence should be addressed.
These authors contributed equally to this work.
Mar. Drugs 2011, 9(12), 2488-2498; https://doi.org/10.3390/md9122488
Submission received: 18 October 2011 / Revised: 3 November 2011 / Accepted: 3 November 2011 / Published: 28 November 2011
(This article belongs to the Special Issue Marine Functional Food)

Abstract

:
Chitosan is prepared by the deacetylation of chitin, the second-most abundant biopolymer in nature, and has applicability in the removal of dyes, heavy metals and radioactive waste for pollution control. In weight-reduction remedies, chitosan is used to form hydrogels with lipids and to depress the intestinal absorption of lipids. In this study, an experimental method was implemented to simulate the effect of chitosan on the adsorption of humic acid in the gastrointestinal tract. The adsorption capacity of chitosan was measured by its adsorption isotherm and analyzed using the Langmuir equation. The results showed that 3.3 grams of humic acid was absorbed by 1 gram of chitosan. The adsorption capacity of chitosan was much greater than that of chitin, diethylaminoethyl-cellulose or activated charcoal. Cellulose and carboxymethyl-cellulose, a cellulose derivative with a negative charge, could not adsorb humic acid in the gastrointestinal tract. This result suggests that chitosan entraps humic acid because of its positive charge.

1. Introduction

Blackfoot disease (BFD) is an endemic chronic peripheral vascular disease that occurs along the southwest coast of Taiwan [1,2,3]. Patients with similar symptoms were also found in China, The Philippines, India, Romania, Mexico, Chile and Argentina [4,5,6]. The disease results in black discoloration and ulceration of the extremities. After gangrene develops, entire limbs are eventually affected [1,2]. A causal association between BFD and drinking well water has been revealed by an epidemiological study [7]. A fluorescent compound purified from well water and identified as humic acid (HA) was reported to induce BFD-like symptoms in mice [8,9,10,11]. It also shows the HA causes damage to the cell [11,12]. Crystallized HA is stable to heat and acid-base action, and it has been characterized as a polyphenolic-carboxylic polymer containing both carboxyl and hydroxyl groups as the main functional groups [13]. Humic acid is abundant in soil, plants, well water and other water sources and is able to enter the human body in a variety of ways [14].
Chitosan is the fully or partially deacetylated form of chitin, the second most abundant organic polymer on earth next to cellulose [15,16]. Typically, chitosan is produced in shrimp or crab exoskeletons, but it is also obtained from fungal cell walls [17,18]. The structure of chitosan is similar to that of chitin and cellulose, except for the amine group at carbon-2, which is replaced by the N-acetyl group in chitin and the hydroxyl group in cellulose. Most commercial and laboratory-created chitosan contain N-acetlyglucosamine (NAG) and glucosamine repeating units linked by β-glycosidic bonds [19,20,21]. The degree of deacetylation (DD value) depends on the source or manner of preparation of chitosan; glucosamine units predominate in chitosan, while NAG units are predominant in chitin [22].
A series of experiments have been performed to demonstrate the biomedical function of chitin, chitosan and their derivatives [16,18,21,23,24,25,26,27]. It was shown the hypocholesterolemic properties of chitosan [28,29,30]. The activity was due to the presence of positively charged amine groups on chitosan that could bond with the negative charges on fatty acids or bile acids by ionic interaction, while the triglycerides, cholesterol and sterols were bound due to hydrophobic interactions [31]. In environment and pollution control, chitosan was reported to remove acid dyes from textile wastewater [32,33]. In addition to organic dyes, chitosan has been shown to adsorb cadmium, lead, cooper and hexavalent chromium ions [33,34,35,36]. The amine groups of chitosan serve as a chelating site for transition metal ions, and the adsorption capacity increases with the increase in surface area of chitosan beads [37]. Hence, chitosan is a versatile substance for the removal of harmful compounds from the environment.
For human and mammalian animals, chitosan is a nontoxic dietary polysaccharide. Although chitosan is known to inhibit the uptake of fat and helps the removal of many chemicals in food via adsorption, chitosan itself is resistant for absorption in gastrointestinal tract [38,39]. In the stomach, the chitosan can be dissolved and remains stable in the acid condition [38,39]. Therefore, the molecules can be adsorbed by chitosan before entering the absorption stage in the intestine. Therefore, chitosan is considered as one of the functional foods to deplete the chemical molecules for promoting the health. We assumed that HA in the food would be removed via the adsorption by chitosan in the stomach. To prove the hypothesis, the current study aims to assess the capacity of chitosan to adsorb HA in the mimic gastrointestinal environment. The mechanism of adsorption is also discussed.

2. Experiments

2.1. Concentration Analysis of Humic Acid

Raw HA solution isolated from the soil was purchased from Honlih Ltd. Company (Taiwan). HA was precipitated by adding HCl and the supernatant discarded. The sediment was then dissolved in H2O and neutralized with NaOH. After removing suspended particle, the filtrate was lyophilized as standard HA sample. HA standard solution used in this study was prepared by dissolving HA in H2O. The UV-visible absorption spectrum of HA solutions showed a maximum over the range 190–240 nm. A wavelength of 230 nm was selected to ensure sufficient precision for relatively concentrated HA solutions (30 µg/mL). Measurements for doubling dilutions from stock HA solution at 32 µg/mL were performed in a quartz cell of 1 cm path length at a wavelength of 230 nm by a Hitachi Model U-2000 spectrophotometer. The calibration curve (r2 = 0.9989) was applied.

2.2. Adsorption Analysis to Mimic Conditions in the Gastrointestinal Tract

The adsorption analysis conducted in this study was similar to that in previous publications [40,41] and is described below. One half gram of cellulose, diethylaminoethyl cellulose (DEAE-cellulose), carboxymethyl cellulose (CM-cellulose), chitin, chitosan or activated charcoal was added to 50 mL of a 0.1 M HCl solution containing HA at a concentration of 40 µg/mL. These solutions of pH 1.0 were shaken at 37 °C for 1 h or the desired period as experimental design in a thermostatically controlled shaker bath and then 70 mL of 0.2 M Na2HPO4 solution was added by titration within 5 min to maintain a final pH value of 7.1 to 7.4. When sampling, 1 mL of solution was applied and the insoluble matter was removed by a bench-top centrifuge at 10,000 × g for 10 min. The supernatant was collected and the concentration of HA was measured by a spectrophotometer of U-2000 from Hitachi.

2.3. Preparation of Chitosans with Different Degree of Deacetylation Values

Chitosans with different DD values were prepared from chitin with DD value of 25.0% by alkaline deacetylation as described before. And that is, the deacetylation reaction was performed in 10-fold volume of concentrated NaOH under nitrogen to avoid oxidation. The reaction time was 2 h for chitosans with similar molecular weights [42].
The DD value of chitosan was measured by the first derivative UV-spectrophotometry method (1DUVS) with NAG as the calibration curve [43]. Briefly, the absorption spectra of chitosan in various acetic acid solutions were scanned within 190–250 nm. The zero crossing point (ZCP) was obtained by superimposing 1DUVS of 10, 20, and 30 mM of acetic acid solutions at 203 nm. The DD values of the chitosan samples were determined by the formula:
                                DD= 100 − [A/(W − 204A)/161 + A] × 100                                         (1)
where A is the amount of NAG determined and W is the mass of chitosan sample used [43].

2.4. Batch Experiment for Adsorption Isotherms

The procedure for the adsorption experiments was the same as that described previously in this study except that a fixed amount (0.1 g) of DEAE-cellulose, chitin, chitosan or activated charcoal was used. The aqueous solutions with different HA concentrations were placed in a 0.5 L flask and shaken at 37 °C in a thermostatically controlled shaker bath. After the pH of the solution had been achieved neutrality over a 1-hour period, the residual concentration of HA was measured with standard curve by spectrophotometry.

3. Results and Discussion

3.1. Adsorption of Humic Acid by Different Adsorbents

Chitosan is a linear polymer of predominantly glucosamine units and behaves as a polyelectrolyte at acidic pH values. Because of its ability to form ionic bonds at low pH values, chitosan can bind to different types of anions, such as bile acids or free fatty acids [44]. In the present study, 0.1 M HCl solution was used to imitate gastric acid in the stomach based on a previous study [40]; the pH value of the solution was then raised to 7.1–7.4 to simulate the environment of the upper intestinal tract. Activated charcoal, a well-known adsorbent of organic substances by van der Waal’s forces, was used as a positive control. In their chemical structure, chitosan and cellulose are very similar. In acid condition, only the chitosan is protonized. Therefore, cellulose, cellulose derivatives with charged molecules, DEAE-cellulose of positive charge and CM-cellulose of negative charge, were also investigated. As shown in (Figure 1A), DEAE-cellulose, activated charcoal, chitin and chitosan adsorbed HA effectively. DEAE-cellulose, a cellulose derivative with positive charges, adsorbed HA dramatically, while cellulose and CM-cellulose, both bearing negative charges, did not adsorb HA. This finding suggests that chitosan adsorbs HA by ionic interaction or van der Waal’s forces.
The adsorption rate was monitored (Figure 1B). The result showed that the adsorption capacity of chitosan was similar at different incubation times (1, 60 and 300 min) at neutral pH values, which were not obviously exchanged during the incubation time. These results support the finding of Popa et al. [45]. In their study, chitosan and the polyphenols formed a complex, and only 5% of polyphenol was released from the complex after 2 h in a weakly alkaline environment (pH 7.8). Further, the release rate of polyphenols from chitosan-polyphenol complexes was low at neutral pH values, and nearly zero after 90 min.

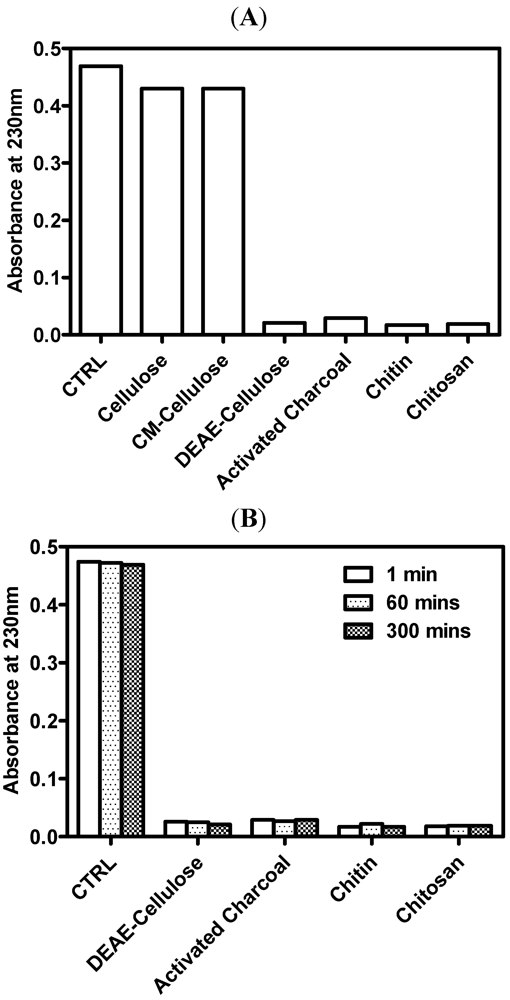

Figure 1. Adsorption of humic acid by different adsorbents. One half gram of cellulose, CM-cellulose, DEAE-cellulose, activated charcoal, chitin, and chitosan was added to 50 mL of HA (40 µg/mL) in 0.1 M HCl. After the incubation at 37 °C for 1 h or the designed period as indicated, the reaction was stopped by the addition of 0.2 M Na2HPO4. After the centrifugation, the mixture supernatants were measured the concentration of remaining humic acid by spectrophotometer at 230 nm. The representative results were shown (N ≥2). CTRL means the control group, in which the humic acid alone without adsorbents was added in the test solution. (A) Adsorption capacity of the adsorbents; (B) Adsorption rate of the adsorbents.
Figure 1. Adsorption of humic acid by different adsorbents. One half gram of cellulose, CM-cellulose, DEAE-cellulose, activated charcoal, chitin, and chitosan was added to 50 mL of HA (40 µg/mL) in 0.1 M HCl. After the incubation at 37 °C for 1 h or the designed period as indicated, the reaction was stopped by the addition of 0.2 M Na2HPO4. After the centrifugation, the mixture supernatants were measured the concentration of remaining humic acid by spectrophotometer at 230 nm. The representative results were shown (N ≥2). CTRL means the control group, in which the humic acid alone without adsorbents was added in the test solution. (A) Adsorption capacity of the adsorbents; (B) Adsorption rate of the adsorbents.
Marinedrugs 09 02488 g001

3.2. Adsorption Isotherms

Adsorption isotherms are important to describe how adsorbates will interact with adsorbent. Therefore, these isotherms are critical for optimizing the use of chitosan as an adsorbent [42]. The adsorption isotherms for DEAE-cellulose, chitin, chitosan and activated charcoal were shown in Figure 2. Where qe is the amount of HA adsorbed per gram of adsorbent and Ce is the concentration of HA remaining in the solution. The data show that chitosan possesses a much higher adsorption capacity than the other three adsorbents.

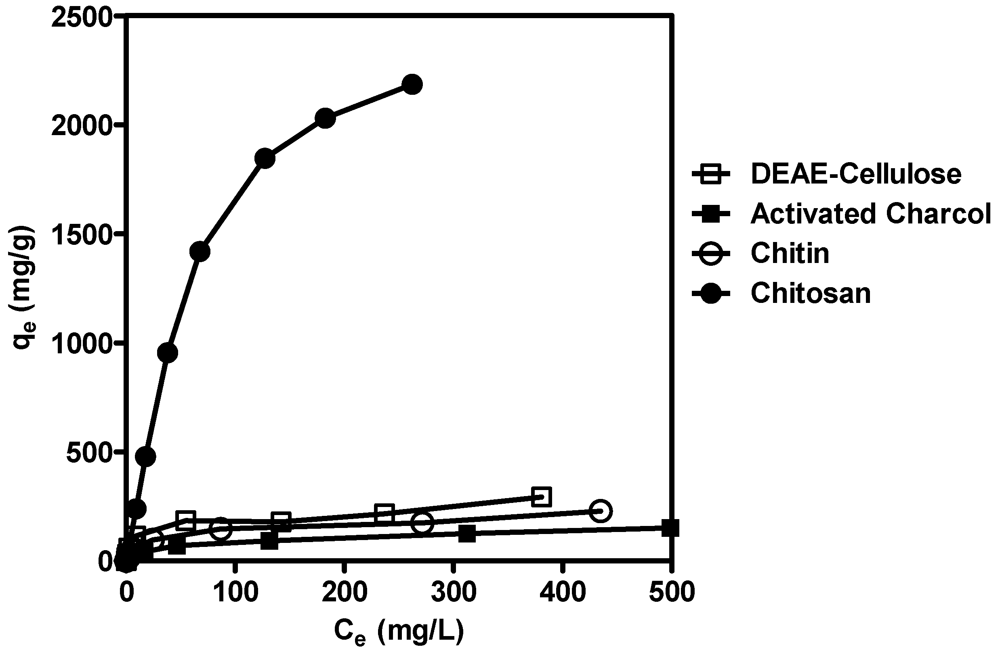

Figure 2. Adsorption isotherms for HA on chitosan, DEAE-cellulose, chitin and activated charcoal at 37 °C. A fixed amount (0.1 g) of DEAE-cellulose, activated charcoal, chitin, and chitosan was added to 50 mL of HA (40 µg/mL) in 0.1 M HCl. After the incubation at 37 °C for 2 h, the reaction was stopped by 0.2 M Na2HPO4. After the centrifugation, the mixture supernatants were measured the concentration of remaining humic acid by spectrophotometer at 230 nm. The adsorption isotherms, qe as the amount of HA adsorbed per gram of adsorbent and Ce as the concentration of HA remaining in the solution, were calculated and the representative results were shown (N = 3).
Figure 2. Adsorption isotherms for HA on chitosan, DEAE-cellulose, chitin and activated charcoal at 37 °C. A fixed amount (0.1 g) of DEAE-cellulose, activated charcoal, chitin, and chitosan was added to 50 mL of HA (40 µg/mL) in 0.1 M HCl. After the incubation at 37 °C for 2 h, the reaction was stopped by 0.2 M Na2HPO4. After the centrifugation, the mixture supernatants were measured the concentration of remaining humic acid by spectrophotometer at 230 nm. The adsorption isotherms, qe as the amount of HA adsorbed per gram of adsorbent and Ce as the concentration of HA remaining in the solution, were calculated and the representative results were shown (N = 3).
Marinedrugs 09 02488 g002
It is necessary to analyze the adsorption process by theoretical or empirical equation. The most widely used equation is the Langmuir equation [42], which is represented as:
                                                θ = qe/q = K Ce (1 + K Ce)                                                 (2)
where θ is the fractional coverage, q is the amount of HA adsorbed. Per gram of adsorbent with 100 percent coverage and K is the Langmuir constant.
The essential characteristics of the Langmuir equation can be expressed in terms of the separation factor, RL, which is defined as:
                                                RL = 1/(1 + K C0)                                                               (3)
where C0 is the highest initial HA concentration (mg/L).
The value of RL indicates that the shape of the isotherm is either unfavorable (RL > 1), linear (RL = 1), favorable (0 < RL < 1) or irreversible (RL = 0). The parameters in the Langmuir equation and separation factors calculated for chitosan, DEAE-cellulose, chitin and activated charcoal are listed in Table 1. Our results indicate that approximately 3.3 grams of HA was adsorbed by 1 gram of chitosan. The adsorption capacity of chitosan was much greater than those of chitin, DEAE-cellulose and activated charcoal. This suggests that the interaction between chitosan and HA is predominantly due to ionic bonding, much like that between chitosan and polyphenolic compounds, as has been reported previously [45].
Table 1. Parameters of the Langmuir equation and separation factors for the adsorption of humic acid on different adsorbents obtained at 37 °C.
Table 1. Parameters of the Langmuir equation and separation factors for the adsorption of humic acid on different adsorbents obtained at 37 °C.
SampleK (L/mg)q(mg/g)RL
Chitosan1.01 × 1023.33 × 1034.74 × 10−3
DEAE-cellulose1.21 × 1012.13 × 1021.92 × 10−2
Chitin4.54 × 1021.89 × 1025.17 × 10−2
Active charcoal2.49 × 1021.54 × 1026.26 × 10−2

3.3. Adsorption Isotherms for Chitosans with Different DD Values

To confirm the ionic interaction between chitosan and HA, chitosans with different DD values were prepared. The reaction time was controlled for chitosans with similar molecular weights [42]. The DD values for chitosan prepared in 40% NaOH at 110 °C, 50% NaOH at 110 °C and 50% NaOH at 135 °C were calculated to be 72.8%, 82.0% and 84.7%, respectively, by the 1DUVS method. Figure 3 shows the adsorption isotherms for chitosans with different DD values. The adsorption capacity of chitosan on HA increased with increasing DD values.

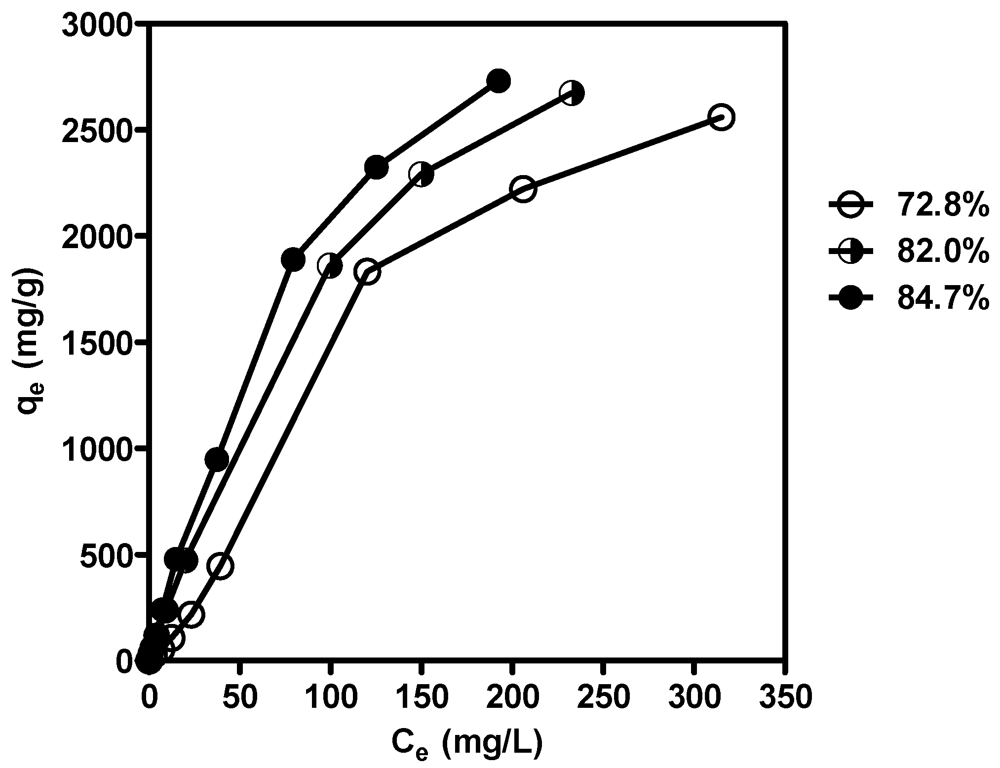

Figure 3. Comparison of adsorption isotherms for humic acid on chitosans with DD values of 72.8%, 82.0% and 84.7% at 37 °C. Chitosans of 0.1 g with different DD values (72.8%, 82.0% and 84.7%, respectively) was added to 50 mL of HA (40 µg/mL) in 0.1 M HCl. After the incubation at 37 °C for 2 h, the reaction was stopped by 0.2 M Na2HPO4. After the centrifugation, the mixture supernatants were measured the concentration of remaining humic acid by spectrophotometer at 230 nm. The adsorption isotherms, qe as the amount of HA adsorbed per gram of adsorbent and Ce as the concentration of HA remaining in the solution, were calculated and the representative results were shown (N ≥2).
Figure 3. Comparison of adsorption isotherms for humic acid on chitosans with DD values of 72.8%, 82.0% and 84.7% at 37 °C. Chitosans of 0.1 g with different DD values (72.8%, 82.0% and 84.7%, respectively) was added to 50 mL of HA (40 µg/mL) in 0.1 M HCl. After the incubation at 37 °C for 2 h, the reaction was stopped by 0.2 M Na2HPO4. After the centrifugation, the mixture supernatants were measured the concentration of remaining humic acid by spectrophotometer at 230 nm. The adsorption isotherms, qe as the amount of HA adsorbed per gram of adsorbent and Ce as the concentration of HA remaining in the solution, were calculated and the representative results were shown (N ≥2).
Marinedrugs 09 02488 g003
According to the results obtained in this study, we suggest that chitosans with a high DD value readily dissolve in the stomach because of the presence of gastric acid. Therefore, their surface area is maximal under these conditions. The dissolved chitosan mixes with HA to form chitosan-HA complexes and subsequently an insoluble gel form in the small intestine. Chitosan’s binding to HA is supported by the positive charges on glucosamine units. This is why chitin and DEAE-cellulose, both with a less positive charge and less surface area, adsorbed less HA than chitosan. These results also interpret the low adsorption capacity of complex beads prepared from activated clay and chitosan, which were prepared by Chang et al. [46]. The maximum amount of HA adsorbed was 149 mg per gram of complex bead, which was insoluble in acid condition and possessed less surface area.
Chitosan is a versatile functional food for obesity prevention, hypercholesterolemia inhibition and immune stimulation [38,39,47]. The adsorption of hazardous materials is also conducted in this study. Adsorption of humic acid in the presence of sun-flower seed oil has been performed in another experiment (data not shown). It suggested that adsorption effect and fat entrapping of chitosan could occur synergistically due to the different mechanism. It was reported that chitosan formed a thin layer on the surface of fat droplets to prevent digestion by enzymes [38,40]. As a result, there is enough surface area of chitosan to expose for adsorption of humic acid effectively in the presence of a lipid source. In vitro simulation of gastrointestinal condition was conducted using HCl and Na2HPO4 in this study. However, we have conducted adsorption analysis on HA in this study. This study may not completely imitate the real in vivo conditions owing to the complicated dietary composition in the gastrointestinal tract. It is worth conducting further investigation to evaluate the BFD prevention effect of chitosan.

4. Conclusions

Several clinical trials have concluded that chitosan is an effective and safe dietary fiber for weight reduction and control of hyperlipidemia. The results of the present study show that chitosan is an effective adsorbent of humic acid in the gastrointestinal tract, and that its adsorption capacity is dependent on the DD value. Chitosan could be used as a novel dietary fiber supplement for the prevention of Blackfoot disease.

Acknowledgments

C.-R. Shen here serves as a co-corresponding author. This work was financially supported in part by the Chang Gung Memorial Hospital Grant CMRPD150382 and BMRP440, National Science Council grant 98-2320-B-182-014-MY3 to C.-R. Shen. It also did by National Science Council grant 100-2221-E-131-007 and 100-2914-I-131-001-A1 as well as Ministry of Education Industry-Academy Cooperation grant 98B-38-006 as well as 99B-38-050 to C.-L. Liu. In addition, the contributions of J.-K. Chen, C.-H. Yeh, L.-C. Wang, and T.-H. Liou were equal. We also appreciated American Journal Experts for the careful reading of the manuscript.

References

  1. Tseng, W.P.; Chen, W.Y.; Sung, J.L.; Chen, J.S. A Clinical Study of Blackfoot Disease in Taiwan, an Endemic Peripheral Vascular Disease. In Guoli Taiwan Daxue Yixueyuan Yanjiu Baogao; National Taiwan University: Taipei, Taiwan, 1961; Volume 7, pp. 1–18. [Google Scholar]
  2. Hseu, Y.C.; Lu, F.J.; Engelking, L.R.; Chen, C.L.; Chen, Y.H.; Yang, H.L. Humic acid-induced echinocyte transformation in human erythrocytes: Characterization of morphological changes and determination of the mechanism underlying damage. J. Toxicol. Environ. Health A 2000, 60, 215–230. [Google Scholar]
  3. Hseu, Y.C.; Yang, H.L. The effects of humic acid-arsenate complexes on human red blood cells. Environ. Res. 2002, 89, 131–137. [Google Scholar]
  4. Alaniz, S.; Armengol, J.; Leon, M.; Garcia-Jimenez, J.; Abad-Campos, P. Analysis of genetic and virulence diversity of cylindrocarpon liriodendri and C. macrodidymum associated with black foot disease of grapevine. Mycol. Res. 2009, 113, 16–23. [Google Scholar]
  5. Petit, E.; Gubler, W.D. First report of cylindrocarpon liriodendri causing black foot disease of grapevine in California. Plant Dis. 2007, 91, 1060. [Google Scholar]
  6. Agustí-Brisach, C.; Gramaje, D.; León, M.; García-Jiménez, J.; Armengol, J. Evaluation of vineyard weeds as potential hosts of black-foot and petri disease pathogens. Plant Dis. 2011, 95, 803–810. [Google Scholar]
  7. Yu, H.S. Blackfoot disease and chronic arsenism in southern Taiwan. Int. J. Dermatol. 1984, 23, 258–260. [Google Scholar]
  8. Lu, F.J. Blackfoot disease: Arsenic or humic acid? Lancet 1990, 336, 115–116. [Google Scholar] [PubMed]
  9. Lu, F.J.; Liu, T.M. Fluorescent compounds in drinking water of blackfoot disease endemic areas: Animal experimental model. Taiwan Yi Xue Hui Za Zhi 1986, 85, 352–358. [Google Scholar]
  10. Lu, F.J. Fluorescent humic substances and blackfoot disease in Taiwan. Appl. Organomet. Chem. 1990, 4, 191–195. [Google Scholar]
  11. Hseu, Y.C.; Wang, S.Y.; Chen, H.Y.; Lu, F.J.; Gau, R.J.; Chang, W.C.; Liu, T.Z.; Yang, H.L. Humic acid induces the generation of nitric oxide in human umbilical vein endothelial cells: Stimulation of nitric oxide synthase during cell injury. Free Radic. Biol. Med. 2002, 32, 619–629. [Google Scholar]
  12. Ting, H.C.; Yen, C.C.; Chen, W.K.; Chang, W.H.; Chou, M.C.; Lu, F.J. Humic acid enhances the cytotoxic effects of arsenic trioxide on human cervical cancer cells. Environ. Toxicol. Pharmacol. 2010, 29, 117–125. [Google Scholar]
  13. Hartenstein, R. Sludge decomposition and stabilization. Science 1981, 212, 743–749. [Google Scholar]
  14. Lu, F.J.; Yamamura, Y.; Yamauchi, H. Studies on fluorescent compounds in water of a well in blackfoot disease endemic areas in Taiwan: Humic substances. Taiwan Yi Xue Hui Za Zhi 1988, 87, 66–75. [Google Scholar]
  15. Gooday, G.W. Physiology of microbial degradation of chitin and chitosan. Biodegradation 1990, 1, 177–190. [Google Scholar]
  16. Chen, J.K.; Shen, C.R.; Liu, C.L. N-Acetylglucosamine: Production and applications. Mar. Drugs 2010, 8, 2493–2516. [Google Scholar]
  17. Mathur, N.K.; Narang, C.K. Chitin and chitosan, versatile polysaccharides from marine animals. J. Chem. Educ. 1990, 67, 938–942. [Google Scholar]
  18. Liu, C.L.; Shen, C.R.; Hsu, F.F.; Chen, J.K.; Wu, P.T.; Guo, S.H.; Lee, W.C.; Yu, F.W.; Mackey, Z.B.; Turk, J.; et al. Isolation and identification of two novel sds-resistant secreted chitinases from Aeromonas schubertii. Biotechnol. Prog. 2009, 25, 124–131. [Google Scholar] [PubMed]
  19. Shen, C.R.; Chen, Y.S.; Yang, C.J.; Chen, J.K.; Liu, C.L. Colloid chitin azure is a dispersible, low-cost substrate for chitinase measurements in a sensitive, fast, reproducible assay. J. Biomol. Screen. 2010, 15, 213–217. [Google Scholar]
  20. Chen, J.K.; Shen, C.R.; Yeh, C.H.; Fang, B.S.; Huang, T.L.; Liu, C.-L. N-Acetyl glucosamine obtained from chitin by chitin degrading factors in Chitinbacter tainanesis. Int. J. Mol. Sci. 2011, 12, 1187–1195. [Google Scholar]
  21. Aam, B.B.; Heggset, E.B.; Norberg, A.L.; Sorlie, M.; Varum, K.M.; Eijsink, V.G. Production of chitooligosaccharides and their potential applications in medicine. Mar. Drugs 2010, 8, 1482–1517. [Google Scholar]
  22. Singh, D.K.; Ray, A.R. Biomedical applications of chitin, chitosan, and their derivatives. J. Macromol. Sci. Polym. Rev. 2000, 40, 69–83. [Google Scholar]
  23. Yang, C.J.; Liu, Y.K.; Liu, C.L.; Shen, C.N.; Kuo, M.L.; Su, C.C.; Tseng, C.P.; Yen, T.C.; Shen, C.R. Inhibition of acidic mammalian chitinase by rna interference suppresses ovalbumin-sensitized allergic asthma. Hum. Gene Ther. 2009, 20, 1597–1606. [Google Scholar]
  24. Liu, Y.K.; Yang, C.J.; Liu, C.L.; Shen, C.R.; Shiau, L.D. Using a fed-batch culture strategy to enhance raav production in the baculovirus/insect cell system. J. Biosci. Bioeng. 2010, 110, 187–193. [Google Scholar]
  25. Shen, C.R.; Juang, J.H.; Tsai, Z.T.; Wu, S.T.; Tsai, F.Y.; Wang, J.J.; Liu, C.L.; Yen, T.C. Preparation, characterization and application of superparamagnetic iron oxide encapsulated with N-[(2-hydroxy-3-trimethylammonium)Propyl] chitosan chloride. Carbohydr. Polym. 2011, 84, 781–787. [Google Scholar]
  26. Shen, C.R.; Wu, S.T.; Tsai, Z.T.; Wang, J.J.; Yen, T.C.; Tsai, J.S.; Shih, M.F.; Liu, C.L. Characterization of quaternized chitosan-stabilized iron oxide nanoparticles as a novel potential magnetic resonance imaging contrast agent for cell tracking. Polym. Int. 2011, 60, 945–950. [Google Scholar]
  27. Hossain, S.; Rahman, A.; Kabir, Y.; Shams, A.A.; Afros, F.; Hashimoto, M. Effects of shrimp (Macrobracium rosenbergii)-derived chitosan on plasma lipid profile and liver lipid peroxide levels in normo- and hypercholesterolaemic rats. Clin. Exp. Pharmacol. Physiol. 2007, 34, 170–176. [Google Scholar]
  28. Ebihara, K.; Schneeman, B.O. Interaction of bile acids, phospholipids, cholesterol and triglyceride with dietary fibers in the small intestine of rats. J. Nutr. 1989, 119, 1100–1106. [Google Scholar]
  29. Sugano, M.; Fujikawa, T.; Hiratsuji, Y.; Nakashima, K.; Fukuda, N.; Hasegawa, Y. A novel use of chitosan as a hypocholesterolemic agent in rats. Am. J. Clin. Nutr. 1980, 33, 787–793. [Google Scholar]
  30. Bokura, H.; Kobayashi, S. Chitosan decreases total cholesterol in women: A randomized, double-blind, placebo-controlled trial. Eur. J. Clin. Nutr. 2003, 57, 721–725. [Google Scholar]
  31. Colombo, P.; Sciatto, A.M. Nutritional aspects of chitosan employment in hypocaloric diet. Acta Toxicol. Ther. 1996, 16, 287–302. [Google Scholar]
  32. Kim, C.Y.; Choi, H.M.; Cho, H.T. Effect of deacetylation on sorption of dyes and chromium on chitin. J. Appl. Polym. Sci. 1997, 63, 725–736. [Google Scholar]
  33. Da Sacco, L.; Masotti, A. Chitin and chitosan as multipurpose natural polymers for groundwater arsenic removal and As2o3 delivery in tumor therapy. Mar. Drugs 2010, 8, 1518–1525. [Google Scholar]
  34. Muraleedharan, T.R.; Venkobachar, C. Mechanism of biosorption of Copper(Ii) by ganoderma iucidum. Biotechnol. Bioeng. 1990, 35, 320–325. [Google Scholar]
  35. Udaybhaskar, P.; Iyengar, L.; Rao, A.V.S.P. Hexavalent chromium interaction with chitosan. J. Appl. Polym. Sci. 1990, 39, 739–747. [Google Scholar]
  36. Coughlin, R.W.; Deshaies, M.R.; Davis, E.M. Chitosan in crab shell wastes purifies electroplating wastewater. Environ. Prog. 1990, 9, 35–39. [Google Scholar]
  37. Rorrer, G.L.; Hsien, T.Y.; Way, J.D. Synthesis of porous-magnetic chitosan beads for removal of cadmium ions from wastewater. Ind. Eng. Chem. Res. 1993, 32, 2170–2178. [Google Scholar]
  38. Rodriguez, M.S.; Albertengo, L.E. Interaction between chitosan and oil under stomach and duodenal digestive chemical conditions. Biosci. Biotechnol. Biochem. 2005, 69, 2057–2062. [Google Scholar]
  39. Staffolo, M.D.; Martino, M.; Bevilacqua, A.; Montero, M.; Rodríguez, M.S.; Albertengo, L. Chitosan interaction with iron from yoghurt using an in vitro digestive model: Comparative study with plant dietary fibers. Int. J. Mol. Sci. 2011, 12, 4647–4660. [Google Scholar]
  40. Kanauchi, O.; Deuchi, K.; Imasato, Y.; Shizukuishi, M.; Kobayashi, E. Mechanism for the inhibition of fat digestion by chitosan and for the synergistic effect of ascorbate. Biosci. Biotechnol. Biochem. 1995, 59, 786–790. [Google Scholar]
  41. Narayani, R.; Rao, K.P. Ph-Responsive gelatin microspheres for oral delivery of anticancer drug methotrexate. J. Appl. Polym. Sci. 1995, 58, 1761–1769. [Google Scholar]
  42. Juang, R.S.; Tseng, R.L.; Wu, F.C.; Lin, S.J. Use of chitosan in lobster shell wastes for colour removal from aqueous solutions. J. Environ. Sci. Health 1996, A31, 325–338. [Google Scholar]
  43. Tan, S.C.; Khor, E.; Tan, T.K.; Wong, S.M. The degree of deacetylation of chitosan: Advocating the first derivative Uv-Spectrophotometry method of determination. Talanta 1998, 45, 713–719. [Google Scholar]
  44. Muzzarelli, R.A.A. Chitosan-based dietary foods. Carbohydr. Polym. 1996, 29, 309–316. [Google Scholar]
  45. Popa, M.I.; Aelenei, N.; Popa, V.I.; Andrei, D. Study of the interactions between polyphenolic compounds and chitosan. React. Funct. Polym. 2000, 45, 35–43. [Google Scholar]
  46. Chang, M.Y.; Juang, R.S. Adsorption of tannic acid, humic acid, and dyes from water using the composite of chitosan and activated clay. J. Colloid Interface Sci. 2004, 278, 18–25. [Google Scholar]
  47. Muzzarelli, R.A.A. Chitins and chitosans as immunoadjuvants and non-allergenic drug carriers. Mar. Drugs 2010, 8, 292–312. [Google Scholar]

Share and Cite

MDPI and ACS Style

Chen, J.-K.; Yeh, C.-H.; Wang, L.-C.; Liou, T.-H.; Shen, C.-R.; Liu, C.-L. Chitosan, the Marine Functional Food, Is a Potent Adsorbent of Humic Acid. Mar. Drugs 2011, 9, 2488-2498. https://doi.org/10.3390/md9122488

AMA Style

Chen J-K, Yeh C-H, Wang L-C, Liou T-H, Shen C-R, Liu C-L. Chitosan, the Marine Functional Food, Is a Potent Adsorbent of Humic Acid. Marine Drugs. 2011; 9(12):2488-2498. https://doi.org/10.3390/md9122488

Chicago/Turabian Style

Chen, Jeen-Kuan, Chao-Hsien Yeh, Lian-Chen Wang, Tzong-Horng Liou, Chia-Rui Shen, and Chao-Lin Liu. 2011. "Chitosan, the Marine Functional Food, Is a Potent Adsorbent of Humic Acid" Marine Drugs 9, no. 12: 2488-2498. https://doi.org/10.3390/md9122488

Article Metrics

Back to TopTop
