Review

Microtubule-Stabilizing Drugs from Marine Sponges: Focus on Peloruside A and Zampanolide

1
School of Biological Sciences and Centre for Biodiscovery, Victoria University of Wellington, PO Box 600, Wellington, New Zealand
2
School of Chemical and Physical Sciences and Centre for Biodiscovery, Victoria University of Wellington, PO Box 600, Wellington, New Zealand
*
Author to whom correspondence should be addressed.
Mar. Drugs 2010, 8(4), 1059-1079; https://doi.org/10.3390/md8041059
Submission received: 1 March 2010 / Revised: 13 March 2010 / Accepted: 29 March 2010 / Published: 31 March 2010
(This article belongs to the Special Issue Bioactive Compound from Marine Sponges)

Abstract

:
Marine sponges are an excellent source of bioactive secondary metabolites with potential therapeutic value in the treatment of diseases. One group of compounds of particular interest is the microtubule-stabilizing agents, the most well-known compound of this group being paclitaxel (Taxol®), an anti-cancer compound isolated from the bark and leaves of the Pacific yew tree. This review focuses on two of the more recent additions to this important class of drugs, peloruside A and zampanolide, both isolated from marine sponges. Peloruside A was isolated from Mycale hentscheli collected in New Zealand coastal waters, and it already shows promising anti-cancer activity. Two other potent bioactive compounds with different modes of action but isolated from the same sponge, mycalamide A and pateamine, will also be discussed. The fourth compound, zampanolide, most recently isolated from the Tongan sponge Cacospongia mycofijiensis, has only recently been added to the microtubule-stabilizing group of compounds, and further work is in progress to determine its activity profile relative to peloruside A and other drugs of this class.

1. Introduction

1.1. Drugs from marine sources

Despite significant medical advances, cancer continues to be a major cause of disease-related death in most countries. New therapeutic options to treat this disease are a high priority for many pharmaceutical companies and independent research organisations. Current drug discovery involves screening for potential lead compounds with known targets, few side effects, and activity against one or more diseases. There is then potential to remodel the lead compound to improve activity and expand its therapeutic window. De novo design and synthesis of bioactive molecules, even with sophisticated computer modelling, is unlikely to replace the millions of years of evolution and natural selection available to living organisms, and thus, natural products, particularly those from marine sources, are still the most promising approach to new drug discovery [17]. The diversity of marine life can be attributed to the fact that oceans cover most of the earth’s surface, and marine organisms pre-date terrestrial organisms by hundreds of millions of years, allowing for greater evolutionary variation [8,9]. The success of marine-derived drugs in the clinical treatment of cancer has been particularly encouraging [1012]. Of the many different types of marine organisms used as a source for drug discovery, sponges have proven to be one of the most successful groups [13], followed by others such as marine bacteria, coelenterates, tunicates, and bryozoans. Marine-derived drugs are generally more potent than plant-derived compounds because of the dilution effect of the ocean environment. Determining the actual source of the bioactive secondary metabolites is an interesting problem; however, the chemical structures of the metabolites provide clues to the metabolic pathways involved in their biosynthesis. Marine sponges harbour microorganisms on their surfaces, in their canal systems, and in their intercellular spaces, and these may contribute up to 40% of the total cellular content of a sponge. Most of these microorganisms are endosymbionts and are probably the major source of the compounds isolated from marine sponges [1418]. Some indirect evidence for this is the fact that a species of sponge that produces a compound often shows considerable variability between individuals and locations, ranging from some that produce no compound to others that produce large amounts of the compound [19,20].

1.2. Cytoskeletal targets

The actual targets of a number of the compounds isolated from marine organisms, including some of those in clinical use, are unidentified, and further work on these compounds is required to understand their mode of action. A common target of bioactive compounds in eukaryotes, however, is the cytoskeleton, largely because it has a major role in many essential cell processes including cell division, cell movement, and cell secretion. The cytoskeleton consists primarily of microtubules, microfilaments, and intermediate filaments. Microtubules and microfilaments are the most vulnerable, and many bioactive compounds target these two structures [2126]. Microfilaments consist of G-actin monomer proteins polymerized into long, thin F-actin filaments. Examples of marine-derived drugs that target the actin cytoskeleton and cause depolymerization of the filaments are latrunculin A, halichondramide, mycalolide, and the swinholides. Marine drugs that induce or support actin polymerization include phalloidin, jasplakinolide, and dolastatin. The other main cytoskeletal target, the microtubule, consists of polymers of α- and β-tubulin dimers, and there are drugs that either promote tubulin polymerization (microtubule-stabilizing agents) (MSAs) or promote depolymerization (microtubule-destabilizing agents) (MDAs). Paclitaxel was the first MSA discovered and translated into the clinic as an anti-cancer drug, being approved by the U.S. FDA for treatment of ovarian cancer in 1992 [27]. More recent work with paclitaxel involves alterations in its formulation and delivery in attempts to maximise its effectiveness and decrease its toxicity [28]. There are a number of excellent reviews on drugs that target the microtubules and microfilaments in eukaryote cells [2126,29].

1.3. Microtubule-targeting drugs

The number of marine drugs that have been identified as microtubule targeting agents (MTAs) has increased considerably over the years. The first drugs identified as MTAs such as colchicine and the Vinca alkaloids, both derived from plants, were found to depolymerize microtubules [23]. Other MTAs have been isolated from non-marine organisms, such as paclitaxel, isolated from the Pacific yew tree Taxus brevifolia [30,31], and its semi-synthetic derivative docetaxel, the steroid MDA taccalonolide isolated from the plant Tacca chantrieri [32], and the MSAs epothilone A and B, isolated from myxobacteria [33]. Other MSAs are derived from marine sources but not from sponges, including eleutherobin [34,35] and sarcodictyin [36,37], both from soft corals. Marine sponges, however, remain the most prolific source of MTAs [2426] and include the MDAs jaspolide, dolastatin, halichondrin, spongistatin, and milnamide and the MSAs hemiasterlin, dictyostatin, discodermolide, laulimalide, peloruside A, and zampanolide. The present review will focus on the last two of the MDAs listed above, peloruside A (1) and zampanolide (2) (Figure 1). The history of their isolation, purification, and the determination of their mode of action will be discussed. In addition, two other bioactive compounds collected from the same sponge that produces peloruside A but that does not target the cytoskeleton, the mycalamides 35 and pateamine (6), will also be discussed in conjunction with peloruside A.

2. Discussion

2.1. Peloruside A and its cell-mates, mycalamide A and pateamine

The history of lead compound development from marine natural sources is a fascinating aspect of drug discovery. Dr Peter Northcote, working with Dr John Blunt and Dr Murray Munro at the University of Canterbury in Christchurch, and then later in his own laboratory at Victoria University of Wellington, was instrumental in the identification of two of three bioactive secondary metabolites isolated from a single species of marine sponge Mycale hentscheli from New Zealand coastal waters (Figure 2). The sponge produces three structurally dissimilar classes of secondary metabolites with potent bioactivity in the low nanomolar range, the mycalamides 35, pateamine (6), and the pelorusides A (1) and B (7) [3840] (Figure 1).

2.2. Mycalamides

Mycalamide A (3) was originally isolated from Mycale sp. marine sponges collected in Otago Harbour in New Zealand by Perry et al. in 1988 using a bioactivity-directed isolation protocol [41]. Mycalamide analogues B (4) and D (5) have also been identified in Mycale marine sponges [42,43]. A related compound, mycalamide C, was reported from a Stylinos sp. sponge [44]. The mycalamides have a high degree of structural similarity to pederin, a toxin isolated from the terrestrial blister beetle Paederus fiscipes [4547], as well as the onnamides and theopederins, isolated from Theonella and Discodermia marine sponges [4854]. The structures of mycalamides A, B, and D, 35, are shown in Figure 1. Mycalamide A was found to be a potent inhibitor of cell proliferation (IC50 1–5 nM) [38,42,55] and, like onnamide A, inhibits in vitro protein translation at concentrations close to those required to inhibit cell proliferation [55]. Mycalamide B (4), with three oxymethyl groups instead of two, is a more potent inhibitor of both cell proliferation and in vitro translation than mycalamide A, suggesting that an additional oxymethyl group increases the affinity of binding to the cellular target, rather than promotes uptake by the cell. Another mycalamide congener isolated from the same sponge species, mycalamide D (5), with one oxymethyl group, is less potent than mycalamides A or B [43], and this decrease in activity may result from the increased polarity of the analog and therefore decreased entry into the cell. The ability of pederin, with structural similarities to the mycalamides, to inhibit protein synthesis by binding irreversibly to ribosomes was originally described by Carrasco et al. in 1976 [56]. Closer examination of the structure of pederin revealed a region in the molecule similar to a peptide bond, and this may explain the protein synthesis inhibitor properties of pederin [57]. Both pederin and mycalamide bind to the large ribosomal subunit of eukaryotic cells [58].
The total synthesis of mycalamide A has been described [5963], as well as syntheses of a number of biologically active analogs and semi-synthetic derivatives [57,6468]. The synthetic analogue 18-O-methyl mycalamide B is slightly more potent than mycalamide A and inhibits [125I]-uridine and [3H]-leucine incorporation into RNA and protein in cultured cells [57]. In animal studies, mycalamides A and B increased the life span of mice bearing ascitic P388 lymphoma and other solid tumours, although significant side effects were observed [55]. Since this initial study, further in vivo studies with the mycalamides have not been reported in the literature.

2.3. Pateamine

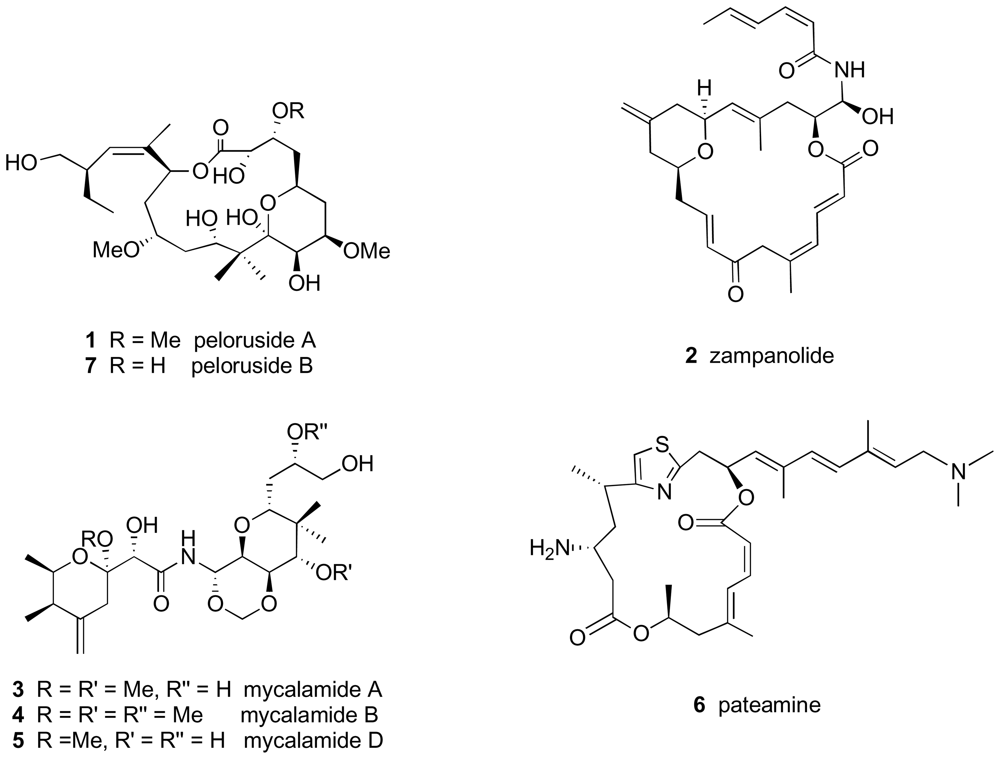

Pateamine (6) (Figure 1) was reported from sponges collected in Fiordland, New Zealand by Northcote et al. in 1991 and found to be highly toxic against P388 leukemic cells (IC50 = 0.15 ng/mL), as well as exhibiting anti-fungal properties [69]. Romo et al. described the first synthesis of pateamine in 1998 and also noted its immunosuppressive properties [70]. Pateamine was proposed to be a protein synthesis inhibitor, based on the early work with the compound. In one study, pateamine was chemically modified by the addition of dexamethasone to the primary C-3 amino group to allow yeast-three hybrid screens to be performed to identify the cellular receptor of the drug [70,71]. To our knowledge, however, no further work using this approach has been published. The cellular target of pateamine was subsequently identified by affinity chromatography to be the protein initiation factor eIF4A [7274]. By stimulating eIF4A, pateamine inhibits protein synthesis. Interestingly, it was also shown to inhibit nonsense-mediated mRNA decay [75]. This second effect was also via eIF4A, but the mRNA decay was independent of the translation inhibition effects of the drug. Thus, pateamine is a novel small molecule inhibitor of protein synthesis that works by binding to and stimulating a eukaryote translation initiation factor. As such, it is an important molecular tool for studying the biochemical events of protein synthesis initiation and mRNA turnover.

2.4. Peloruside A

2.4.1. Discovery and mode of action

The third secondary metabolite from Mycale hentscheli that showed potent bioactivity was isolated in 1999 from sponges collected from Pelorus Sound on the north coast of the South Island of New Zealand [76]. This novel compound was named peloruside A (1) after the location where the sponges were found (Figure 1). Dr Northcote and his PhD student at the time, Lyndon West, identified peloruside A using a unique fractionation procedure that enriched for bioactive compounds on the basis of their intermediate solubility in aqueous methanol, being neither too lipophilic nor too hydrophilic. Peloruside A was initially found to be ten-fold less potent an inhibitor of proliferation of P388 murine leukemic cells (IC50 = 18 nM) [76] than the two other natural products isolated from the same sponge, mycalamide A and pateamine. Although all three metabolites are cytotoxic at nanomolar concentrations, the mechanism of action of peloruside A differed considerably from the other two which were known protein synthesis inhibitors. Shortly after the structure of peloruside A was determined and published [76], Dr Northcote and Dr John Miller, a cell biologist at the same university, began collaborating together to identify new natural products and determine their modes of action. Although initial studies on the mechanism of action of peloruside A followed up on a false lead that was based on structural similarity of the active sites on peloruside A to those of bryostatin-1 [39], Kylie Hood, then a PhD student of Dr Miller’s, discovered that peloruside A had potent anti-mitotic activity, blocking cells in G2/M of the cell cycle [39,40]. Further investigations determined that peloruside A stabilized the polymerized form of tubulin (Figure 3) and induced microtubule bundling in interphase cells and multiple asters in mitotic cells [77] in a similar manner to paclitaxel [31], an important anti-cancer drug used for the treatment of solid tumours of the breast, ovary, lung, head and neck [27,78]. The history of the discovery and development of paclitaxel as an anti-cancer agent has been summarised by Prof. Susan Band Horwitz in a special article to commemorate her impact in the field, published in the Journal of Natural Products [79].
In quantifying the activity of different MSA’s, the critical concentration (Ccrit) is a useful comparative parameter. Ccrit is the minimum concentration of tubulin that is required for polymerization to occur. GDP-tubulin in the absence of an MSA does not polymerize at all in vitro (Ccrit > 200 μM) [80]. The Ccrit for tubulin in the presence of peloruside A in a MAP-free in vitro system is higher than for tubulin in the presence of paclitaxel (11 μM versus 4 μM, respectively), indicating that it is a less potent MSA than paclitaxel [81]. Nevertheless peloruside A is capable of polymerizing microtubules in the absence of MAPs. Both the presence of GTP and MAPs can influence the Ccrit for tubulin. For example, in the presence of paclitaxel, the Ccrit for tubulin with MAPs and GTP present, MAPs only, GTP only, and in the absence of both MAPs and GTP is 0.2, 2, 4, and 22 μM, respectively [82]. The Ccrit for tubulin after addition of peloruside A was only tested in the absence of MAPs and in the presence of GTP [81].

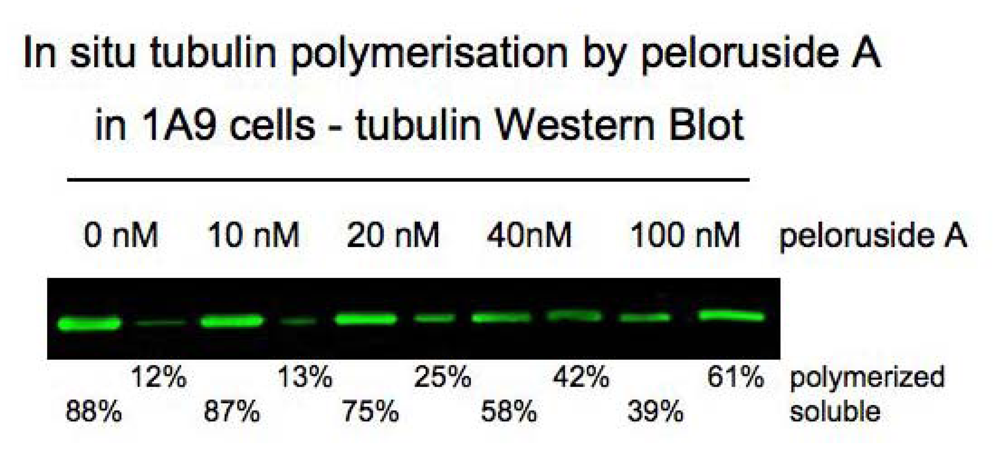

Recent studies in Dr Miller’s laboratory have also demonstrated that, like other MSA’s [8386], peloruside A inhibits microtubule dynamics at concentrations near those needed to block progression through the cell cycle, but much lower than those needed to cause tubulin assembly in vitro [87]. Although not tested in mitotic cells, peloruside A significantly reduced the growth and shortening of microtubules in interphase cells, reducing the overall dynamicity of the microtubules.

2.4.2. Peloruside A effects on cell proteins

A proteomics study on human HL-60 promyelocytic leukemic cells used two-dimensional electrophoresis and differential in-gel electrophoresis (DIGE) to examine the protein changes in the cell following treatment with peloruside A [88]. An analysis of the affected proteins showed 17 proteins changed by 2-fold or more, and the changes were consistent with the known action of peloruside A on microtubules, as well as effects on proteins involved in apoptosis and stress. Others have also shown that blocking cells in mitotsis with anti-mitotic drugs of different types leads to activation of apoptosis, often through interactions with the transcription factor c-Myc and the tumor suppressor protein p53 [89]. A connection with c-Myc protein action was indicated in the proteomic study by Wilmes et al. [88], with c-Myc being decreased in abundance by peloruside A. Many of the off-target proteome changes either result from downstream effects on the primary target or effects on secondary targets, both of which could contribute to side effects of the drug in vivo.

2.4.3. Peloruside A binding site on tubulin

An interesting study by Pryor et al. in 2002, working with laulimalide, a relatively new MSA, showed that more than one binding site existed for the stabilizing compounds [90]. Laulimalide bound to a different site to that of the classic MSA’s, paclitaxel, epothilone, and discodermolide, which all bind to the well-described taxoid site on β-tubulin and can compete for each other’s binding [91,92]. Peloruside A was also shown to have a different binding site on the tubulin dimer to paclitaxel but was seen to bind to the same or an overlapping site with laulimalide [81]. This information on the peloruside A binding site was obtained through a collaboration beginning in 2004 beween Drs Miller and Northcote with two specialists in microtubule protein structure and function, Dr Fernando Díaz and Dr José Andreu of the Centro de Investigaciones Biológicas in Madrid. In a Flutax-2 (fluorescently-labeled paclitaxel derivative) displacement test using MALDI-TOF mass spectrometry, concentrations of up to 2,000-fold excess of peloruside A over Flutax-2 failed to displace Flutax-2 from the taxoid binding site; whereas, a 100-fold excess of paclitaxel could compete for the Flutax-2 binding completely. Laulimalide was also tested, and a 10-fold excess was found to compete for binding with peloruside A but not for Flutax-2 binding. Thus, peloruside A and laulimalide were proposed to have the same or an overlapping binding site [81]. Indirect evidence from this same study of a distinct binding site for peloruside A was its lack of sensitivity to resistance conferred by mutations to the taxoid binding site. Further work in collaboration with Dr Ernest Hamel at the National Cancer Institute (NCI/NIH) in Frederick, MD demonstrated that peloruside A could synergize with the taxoid site drugs in causing tubulin polymerization in vitro [93] and in cells [94], but peloruside A was unable to synergize with laulimalide, at least in vitro, thus, supporting the novel peloruside/laulimalide binding site on tubulin. The exact binding site on the tubulin dimer has still not been unequivocably identified at this stage, although a recent study using hydrogen-deuterium exchange mass spectrometry by Dr David Schriemer’s group in Calgary, Canada has proposed a peloruside A binding site on β-tubulin that is distinct from the taxane site [95]. Two previous studies that used computer docking also modeled the peloruside/laulimalide binding site, proposing it to be on α-tubulin rather than β-tubulin [96,97]. The question of an α- or β-tubulin binding site still needs to be resolved. It is possible of course that both binding sites exist, and further work is necessary in this area to settle this question. Dr Miller and Northcote are currently working with Dr Paraskevi Giannakakou at Weill Medical College of Cornell in New York City and Prof Jim Snyder at Emory University in Atlanta, using computer modeling and peloruside/laulimalide resistant cells to address this question.
At Victoria University of Wellington, experiments are also in progress with Dr David Bellows, a yeast geneticist, on the peloruside A binding site on yeast tubulin, taking advantage of the accessibility of the yeast genome and the ability to generate resistant mutants by site-directed mutagenesis [98]. The aim of this research is to map the peloruside A binding site by altering specific amino acids in yeast tubulin. Similar types of experiments on the taxoid binding site have been carried out by Prof Richard Himes’ group at the University of Kansas [99,100]. It was found that paclitaxel was unable to bind to yeast tubulin without humanization of the taxoid site sequence by converting five amino acids to those found in the human tubulin gene. Chemical genetics offers a new, exciting opportunity for identification of the targets of novel marine drugs, since chemical genetic screens are relatively easy to carry out in yeast, using genome-wide synthetic lethal arrays [101,102]. There is significant homology between yeast and mammalian cells, and a target identified in yeast has a good chance of having a homolog in mammalian systems. Similar types of screens in mammalian cells are possible using siRNA gene silencing techniques [103,104]. Whitehurst et al. looked at the effects of paclitaxel on growth of a human non-small-cell lung cancer cell line and interestingly identified α-tubulin as one of its hits, although its binding site is on β-tubulin, and also a number of proteasome genes. Network analysis from genome-wide screens has introduced the interesting possibility that drugs may target networks rather than single proteins [105,106], and this concept to some extent may help explain the multiple effects seen when a single drug is added to cells.
Paclitaxel is known to bind to the β-subunit of the microtubule at the taxoid binding site situated in a pocket lined by several hydrophobic residues [91,92,107]. The pocket is at the boundary between the nucleotide-binding domain and the middle domain of β-tubulin, and is in contact with the M-loop of tubulin. Paclitaxel greatly inhibits the peeling apart of protofilaments, suggesting that it stabilizes the microtubule through strengthening lateral interactions between the strands. Another possibility is that paclitaxel reduces the ability of protofilaments to curl, a process that occurs normally. A third possibility is that paclitaxel stabilizes the conformation of tubulin, stopping the movement of the nucleotide-binding domain against the central tubulin domain. Recent hydrogen-deuterium exchange mass spectrometry studies with discodermolide and chicken tubulin by Prof. Susan Horwitz’s group at Albert Einstein College of Medicine in New York have predicted a different conformation and stabilization mechanism to paclitaxel, although both bind in the same region [107]. Unlike paclitaxel, discodermolde does not bind to the M-loop but is turned toward the N-terminal H1-S2 loop on the opposite side of the taxane binding pocket which is proposed to be involved in the lateral contact between protofilaments. Although both drugs stabilize the interdimer and interprotofilament interactions, the mechansim of the interaction thus differs, with discodermolide having a greater effect on the interdimer interactions [107]. The conformational changes resulting from the different interdimer stabilizations share the potential to counteract the curvature of protofilaments, thus stabilizing the polymer. Since chicken tubulin has some amino acid differences from human or bovine tubulin in or close to the region of the taxoid binding site [108], there may be differences in the detailed interactions of paclitaxel and discodermolide with amino acids to those occurring in binding to mammalian tubulin.
In 2008, Huzil et al. [95] suggested that the mechanism of microtubule stabilization by peloruside A differs from stabilization by these taxoid-site drugs. This is not surprising, given its distinct binding site. Taxoid-site drugs interact with the βH7 region (bottom of the taxoid-binding cleft) that lies next to the T5 loop at the exchangeable nucleotide binding region; whereas, peloruside A interacts with the H9-S8 loop at the proposed binding site of peloruside A [95]. This binding site also lies next to the T5 loop. A conformational change in the T5 loop is believed to promote improved interactions across the interdimer interface, causing stabilization.

2.4.4. Peloruside congeners and analogues

In addition to work with natural congeners, including peloruside B (7) (Figure 1) [109], which has similar bioactivity to peloruside A, studies are in progress on semi-synthetic modifications to the structure of peloruside A. Opening of the pyranose ring of peloruside A by sodium borohydride reduction increased the IC50 for cell growth inhibition by 26-fold in a murine leukocyte cell line (32D) [39]. Attempts to modify peloruside A and attach a fluorescent or radioactive label have not been overly successful due to the complexity of the molecule. Recently, however, a tritiated derivative of peloruside A has been prepared. Dr Ernest Hamel at NCI/NIH has used this 3H-peloruside A to examine competitive binding to microtubules (personal communication, 2010). Some modifications to the C-24 side chain have been carried out, and the activity of the side chain analog is currently under investigation in the laboratories of Drs Miller and Northcote, Dr Díaz, and Prof Ian Paterson in the Chemistry Department at the University of Cambridge.

2.4.5. Anti-disease potential of peloruside A

Peloruside A is currently under development as an anti-cancer drug through an agreement between Victoria University of Wellington and REATA Pharmaceuticals Inc., Dallas, Texas. Victoria University holds the patent on peloruside A [110]. Peloruside A has some promising advantages over paclitaxel, being more soluble and therefore not requiring the use of Cremophore EL, a polyoxyethylated castor oil, to deliver the drug to the body. This should correlate with fewer vehicle-associated side effects than paclitaxel [78]. Peloruside A is also more likely to be effective against cells that acquire the multiple-drug resistance (MDR) phenotype, since peloruside A remains active in cells with high P-glycoprotein drug efflux pump expression [81]. The resistance ratio of peloruside A in cells with an MDR phenotype to wild type cells was 21 in this study, compared with 1417 for paclitaxel [81]. Tests of peloruside A in animals have been very promising, with peloruside A showing no overt toxicity in mice and being more efficacious in inhibiting tumor growth than paclitaxel and docetaxel [111].
Recent work with a mouse model of multiple sclerosis (experimental autoimmune encephalomyelitis) by Dr Anne La Flamme at Victoria University of Wellington has demonstrated that peloruside A is as effective as paclitaxel at delaying the onset of the disease but, unlike paclitaxel, shows no toxicity [112]. Work has also begun at Victoria University of Wellington on the effect of peloruside A on microtubule-associated proteins and the potential value of the compound for the treatment of neurodegeneratory diseases like Alzheimer’s disease. Studies with MSA’s have already shown promise in this area since paclitaxel treatment can rescue motor function in animals with loss of tau protein activity [113].
At the present time, preclinical studies and the advancement of peloruside A into Phase I clinical trials for cancer therapy are being held back due to the short supply of natural and synthetic peloruside A. Attempts to aquaculture Mycale hentscheli in New Zealand coastal waters were initially very successful [19,20], but later were discontinued as a result of devastation of the sponge cultures by invading nudibranchs. An interesting finding from the aquaculture studies was that individual sponge samples that have good levels of peloruside A maintained those high levels in culture; whereas, samples that originally lacked peloruside A never acquired the ability to produce peloruside A, even when cultured in close proximity to peloruside A-producing sponges.
The De Brabander group at the University of Texas Southwestern was the first to carry out a total synthesis of peloruside A [114]. This first synthesis produced the inactive enantiomer of peloruside A, but the group subsequently re-synthesized the correct, bioactive enantiomer. Since then, three other laboratories have synthesized the compound in milligram amounts [115117]. The synthetic strategies for peloruside A have been reviewed by Williams et al. [118]. A congener of peloruside A, peloruside B (7), has recently been synthesized by the Ghosh laboratory at Purdue University [109].

2.5. Zampanolide

2.5.1. Discovery and synthesis

After having worked on peloruside A for over 10 years, in 2009 Dr Northcote along with his PhD student Jonathan Singh found another sponge natural product, zampanolide (2) (Figure 1) in a collection of sponges taken from an underwater cave off the Tongan coast. The sponge, Cacospongia mycofijiensis (Figure 4), generated a number of different bioactive compounds, all of which had been described previously, including laulimalide and isolaulimalide (MSA’s), latrunculin A (an actin-destabilizing agent), dendrolasin (also isolated from insects and having pheromone activity), mycothiazole (function unknown), and zampanolide (function unknown at the time). Three Japanese chemists from Okinawa and Kyoto had just published a paper describing the synthesis and isolation of zampanolide from the sponge Fasciospongia rimosa [119]. Tanaka and Higa, however, were the first to describe the structure of zampanolide thirteen years earlier [120]. This 20-membered macrolide has potent, low nanomolar inhibitory activity on cell growth. Amos Smith, III at the University of Pennsylvania also published a total synthesis of the enantiomer of zampanolide [121].

2.5.2. Mode of action

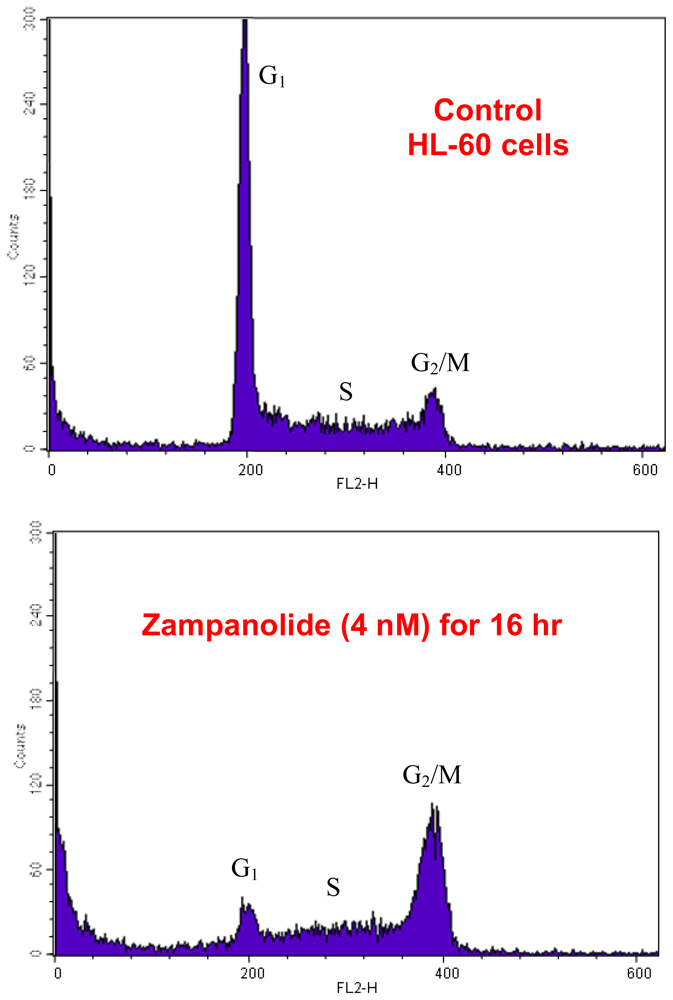

Since zampanolide was a very potent bioactive compound with an IC50 for growth inhibition in the low nanomolar range, Drs Miller and Northcote decided to have a look at its mechanism of action. As luck would have it, a simple flow cytometry experiment carried out at Victoria University of Wellington by Dr Miller’s graduate student Jessica Field (Figure 5) showed a clear block in the G2/M phase of the cell cycle, suggesting an anti-mitotic action and a possible cytoskeletal target, either microtubules or microfilaments. It was also possible, of course, that the new compound interacted with a regulator of cell division, such as a cdc kinase or other mitotic regulatory protein; thus, there was no guarantee that its mode of action would be easily solved.
After the earlier groundwork with the MSA peloruside A in the Miller and Northcote laboratories, further experiments were carried out to check cytoskeletal activity of zampanolide, and the target was fairly quickly singled out as the microtubule. Confirmation that zampanolide was a new MSA was subsequently demonstrated by testing for intracellular polymerization of tubulin in cultured cells, the induction of microtubule bundling in interphase cells, and the generation of multiple asters and micronuclei during mitotic division. Finally, zampanolide was shown to promote extracellular tubulin assembly with purified bovine tubulin in the absence of added microtubule-associated proteins. The confirmed microtubule-stabilizing mode of action of zampanolide and the isolation and purification details were then published in the Journal of Medicinal Chemistry [122] less than six months after the Uenishi et al. paper describing the isolation and synthesis of zampanolide appeared on-line in 2009 [119]. It was also reported in the Field et al. [122] paper that overexpression of the P-glycoprotein (P-gp) drug efflux pump had no effect on the potency of zampanolide; hence, zampanolide remained effective in cells with an MDR phenotype, an important property for new generation MSA’s destined for clinical development. The other immediate promising characteristic of zampanolide, seen in its structure (Figure 1), was its reduced number of stereogenic centers compared to other MSA’s. Its simplified chemical structure suggested that a scale-up of the reported synthetic protocols [119121,123127] would be easier and less costly than for other MSA macrolides, and would improve its chances for entry into clinical trials. Further characterization of zampanolide is now underway at Victoria University of Wellington, the Díaz laboratory in Madrid, the Hamel laboratory at NCI/NIH in Maryland, and the Horwitz laboratory at Albert Einstein in New York to determine whether it binds to the taxoid site on tubulin, the laulimalide/peloruside site, or to a third site not previously described.

3. Conclusions

The newest members of the microtubule-stabilizing class of drugs, the pelorusides and zampanolide, show good potential for future development as anti-cancer drugs, and further characterization of their unique activity profiles is underway. The sponges from which these drugs were extracted also produce many other bioactive compounds with differing modes of action, including the mycalamides and pateamine, and thus, marine sponges remain an excellent source of bioactive compounds for potential development as pharmaceuticals for the treatment of cancer and other diseases.

Acknowledgements

We acknowledge all our invaluable collaborators and all the hard work and insights put in over the years by our graduate students who are too many to include as co-authors on this paper but deserve to be included (in chronological order): Lyndon West, Kylie Hood, Mike Page, Berber Rouwé, Thomas Gaitanos, Kevin Crume, Anja Wilmes, Ariane Chan, Arun Kanakkanthara, David O’Sullivan, Reem Hanna, Jessica Field, and Viswanath Das. Jonathan Singh is a current PhD student of Peter T. Northcote’s and has been instrumental in the isolation and purification of both pelorusides A and B and zampanolide.

References

  1. Paterson, I; Anderson, EA. The renaissance of natural products as drug candidates. Science 2005, 310, 451–453. [Google Scholar]
  2. Newman, D; Cragg, GM. Natural products as sources of new drugs over the last 25 years. J Nat Prod 2007, 70, 461–477. [Google Scholar]
  3. Molinski, TF; Dalisay, DS; Lievens, SL; Saludes, JP. Drug development from marine natural products. Nat Rev Drug Discov 2009, 8, 69–85. [Google Scholar]
  4. Cragg, GM; Grothaus, PG; Newman, DJ. Impact of natural products on developing new anti-cancer agents. Chem Rev 2009, 109, 3012–3043. [Google Scholar]
  5. Sashidara, KV; White, KN; Crews, P. A selective account of the effective paradigms and significant outcomes in the discovery of inspirational marine natural products. J Nat Prod 2009, 72, 588–603. [Google Scholar]
  6. Napolitano, JG; Daranas, AH; Norte, M; Fernández, JJ. Marine macrolides, a promising source of antitumor compounds. Anti-Cancer Agents Med Chem 2009, 9, 122–137. [Google Scholar]
  7. Blunt, JW; Copp, BR; Hu, W-P; Munro, MHG; Northcote, PT; Prinsep, MR. Marine natural products. Nat Prod Rep 2009, 26, 170–244, and previous reviews in this series. [Google Scholar]
  8. Belarbi, EH; Contreras, Gomez A; Chisti, Y; García Camacho, F; Molina Grima, E. Producing drugs from marine sponges. Biotechnol Adv 2003, 21, 585–598. [Google Scholar]
  9. Haefner, B. Drugs from the deep: Marine natural products as drug candidates. Drug Discov Today 2009, 8, 536–544. [Google Scholar]
  10. Mestel, R. Drugs from the sea. Discover 1999, 71–74. [Google Scholar]
  11. Simmons, TL; Andrianasolo, E; McPhail, K; Flatt, P; Gerwick, WH. Marine natural products as anticancer drugs. Mol Cancer Ther 2005, 4, 333–342. [Google Scholar]
  12. Singh, R; Sharma, M; Joshi, P; Rawat, DS. Clinical status of anti-cancer agents derived from marine sources. Anticancer Agents Med Chem 2008, 8, 603–617. [Google Scholar]
  13. Sipkema, D; Franssen, MCR; Osinga, R; Tramper, J; Wijffels, RH. Marine sponges as pharmacy. Mar Biotech 2005, 7, 142–162. [Google Scholar]
  14. Flam, F. Chemical prospectors scour the seas for promising drugs. Science 1994, 266, 1324–1325. [Google Scholar]
  15. Davidson, BS. New dimensions in natural products research: cultured marine microorgansims. Curr Opin Biotech 1995, 6, 284–291. [Google Scholar]
  16. Bentley, R. Microbial secondary metabolites play important roles in medicine: Prospects for discovery of new drugs. Perspect Biol Med 1997, 40, 364–395. [Google Scholar]
  17. Bewley, CA; Faulkner, DJ. Lithistid sponges: Star performers or hosts to the stars. Angew Chem Int Ed 1998, 37, 2162–2178. [Google Scholar]
  18. Fusetani, N; Kem, W. Marine toxins: an overview. Prog Mol Subcell Biol 2009, 46, 1–44. [Google Scholar]
  19. Page, M; West, L; Northcote, P; Battershill, C; Kelly, M. Spatial and temporal variability of cytotoxic metabolites in populations of the New Zealand sponge Mycale hentscheli. J Chem Ecol 2005, 31, 1161–1174. [Google Scholar]
  20. Page, MJ; Northcote, PT; Webb, VL; Mackey, S; Handley, SJ. Aquaculture trials for the production of biologically active metabolites in the New Zealand sponge Mycale hentscheli (Demospongiae: Poecilosclerida). Aquaculture 2005, 250, 256–269. [Google Scholar]
  21. Jordan, MA; Wilson, L. Microtubules and actin filaments: dynamic targets for cancer chemotherapy. Curr Opin Cell Biol 1998, 10, 123–130. [Google Scholar]
  22. Jordan, MA; Wilson, L. Microtubules as a target for anticancer drugs. Nat Rev Cancer 2004, 4, 253–265. [Google Scholar]
  23. Zhou, J; Giannakakou, P. Targeting microtubules for cancer chemotherapy. Curr Med Chem–Anti-Cancer Agents 2005, 5, 65–71. [Google Scholar]
  24. Altmann, KH; Gertsch, J. Anticancer drugs from nature—natural products as a unique source of new microtubule-stabilizing agents. Nat Prod Rep 2007, 24, 327–357. [Google Scholar]
  25. Kingston, DGI. Tubulin-interactive natural products as anticancer agents. J Nat Prod 2009, 72, 507–515. [Google Scholar]
  26. Saito, S. Toxins affecting actin filaments and microtubules. Prog Mol Subcell Biol 2009, 46, 187–219. [Google Scholar]
  27. Rowinsky, EK; Donehower, RC. Paclitaxel (Taxol). New Engl J Med 1995, 332, 1004–1014. [Google Scholar]
  28. Rowinsky, EK; Calvo, E. Novel agents that target tublin and related elements. Semin Oncol 2006, 33, 421–435. [Google Scholar]
  29. Morris, PG; Fornier, MN. Microtubule active agents: Beyond the taxane frontier. Clin Cancer Res 2008, 14, 7167–7172. [Google Scholar]
  30. Wani, MC; Taylor, HL; Wall, ME; Coggon, P; McPhail, AT. Plant antitumor agents. VI. The isolation and structure of Taxol, a novel antileukemic and antitumor agent from Taxus brevifolia. J Am Chem Soc 1971, 93, 2325–2327. [Google Scholar]
  31. Schiff, PB; Fant, J; Horwitz, SB. Promotion of microtubule assembly in vitro by Taxol. Nature 1979, 277, 665–667. [Google Scholar]
  32. Tinley, TL; Randall-Hlubek, DA; Leal, RM; Jackson, EM; Cessac, JW; Quada, JC, Jr; Hemscheidt, TK; Mooberry, SL. Taccalonolides E and A: Plant-derived steroids with microtubule-stabilizing activity. Cancer Res 2003, 63, 3211–3220. [Google Scholar]
  33. Bollag, DM; McQueney, PA; Zhu, J; Hensens, O; Koupal, L; Leisch, J; Goetz, M; Lazarides, E; Woods, CM. Epothilones, a new class of microtubule-stabilizing agents with a Taxol-like mechanism of action. Cancer Res 1995, 55, 2325–2333. [Google Scholar]
  34. Lindel, T; Jensen, PR; Fenical, W; Long, BH; Casazza, AM; Carboni, J; Fairchild, CR. Eleutherobin, a new cytotoxin that mimics paclitaxel (Taxol) by stabilizing microtubules. J Am Chem Soc 1997, 119, 8744–8745. [Google Scholar]
  35. Long, BH; Carboni, JM; Wasserman, AJ; Cornell, LA; Casazza, AM; Jensen, PR; Lindel, T; Fenical, W; Fairchild, CR. Eleutherobin, a novel cytotoxic agent that induces tubulin polymerisation, is similar to paclitaxel (Taxol). Cancer Res 1998, 58, 1111–1115. [Google Scholar]
  36. D’Ambrosio, M; Guerriero, A; Pietra, F. Sarcodictyin A and sarcodictyin B, novel diterpenoidic alcohols esterified by (E)-N(1)-methylurocanic acid. Isolation from the Mediterranean stolonifer Sarcodictyon roseum. Helv Chim Acta 1987, 70, 2019–2027. [Google Scholar]
  37. Hamel, E; Sackett, DL; Vourloumis, D; Nicolaou, KC. The coral-derived natural products eleutherobin and sarcodictyins A and B: Effects on the assembly of purified tubulin with and without microtubule-associated proteins and binding at the polymer taxoid site. Biochemistry 1999, 38, 5490–5498. [Google Scholar]
  38. Hood, KA; West, LM; Northcote, PT; Berridge, MV; Miller, JH. Induction of apoptosis by the marine sponge (Mycale) metabolites, mycalamide A and pateamine. Apoptosis 2001, 6, 207–219. [Google Scholar]
  39. Hood, KA; Bäckström, BT; West, LM; Northcote, PT; Berridge, MV; Miller, JH. The novel cytotoxic sponge metabolite peloruside A, structurally similar to bryostatin-1, has unique bioactivity independent of protein kinase C. Anti-Cancer Drug Des 2001, 16, 155–166. [Google Scholar]
  40. Miller, JH; Rouwé, B; Gaitanos, TN; Hood, KA; Crume, KP; Bäckström, BT; La Flamme, AC; Berridge, MV; Northcote, PT. Peloruside A enhances apoptosis in H-ras-transformed cells and is cytotoxic to proliferating T cells. Apoptosis 2004, 9, 785–796. [Google Scholar]
  41. Perry, NB; Blunt, JW; Munro, MHG. Mycalamide A, an antiviral compound from a New Zealand sponge of the genus. Mycale J Am Chem Soc 1988, 110, 4850–4851. [Google Scholar]
  42. Perry, NB; Blunt, JW; Munro, MHG; Thompson, AM. Antiviral and antitumor agents from a New Zealand sponge, Mycale sp. 2. Structures and solution conformations of mycalamides A and B. J Org Chem 1990, 55, 223–227. [Google Scholar]
  43. West, LM; Northcote, PT; Hood, KA; Miller, JH; Page, MJ. Mycalamide D, a new cytotoxic amide from the New Zealand marine sponge Mycale species. J Nat Prod 2000, 63, 707–709. [Google Scholar]
  44. Simpson, JS; Garson, MJ; Blunt, JW; Munro, MHG; Hooper, JNA. Mycalamides C and D, cytotoxic compounds from the marine sponge Stylinos n. species. J Nat Prod 2000, 63, 704–706. [Google Scholar]
  45. Cardani, C; Ghiringhelli, D; Mondelli, R; Quilico, A. The structure of pederin. Tetrahedron Lett 1965, 6, 2537–2545. [Google Scholar]
  46. Soldati, M; Fioretti, A; Ghione, M. Cytotoxicity of pederin and some of its derivatives on cultured mammalian cells. Experientia 1966, 22, 176–178. [Google Scholar]
  47. Kellner, RLL; Dettner, K. Differential efficacy of toxic pederin in deterring potential arthropod predators of Paederus (Coleoptera: Staphylinidae) offspring. Oecologia 1996, 107, 293–300. [Google Scholar]
  48. Sakemi, S; Ichiba, T; Kohmoto, S; Saucy, G. Isolation and structure elucidation of onnamide A, a new bioactive metabolite of a marine sponge, Theonella sp. J Am Chem Soc 1988, 110, 4851–4853. [Google Scholar]
  49. Matsunaga, S; Fusetani, N; Nakao, Y. Eight new cytotoxic metabolites closely related to onnamide A from two marine sponges of the genus Theonella. Tetrahedron 1992, 48, 8369–8376. [Google Scholar]
  50. Kobayashi, J; Itagaki, F; Shigemori, H; Sasaki, T. Three new onnamide congeners from the Okinawan marine sponge Theonella sp. J Nat Prod 1993, 56, 976–981. [Google Scholar]
  51. Vuong, D; Capon, RJ; Lacey, E; Gill, JH; Heiland, K; Friedel, T. Onnamide F: A new nematocide from a Southern Australian marine sponge Trachycladus laevispirulifer. J Nat Prod 2001, 64, 640–642. [Google Scholar]
  52. Fusetani, N; Sugawara, T; Matsunaga, S. Theopederins A–E, potent antitumor metabolites from a marine sponge, Theonella sp. J Org Chem 1992, 57, 3828–3832. [Google Scholar]
  53. Tsukamoto, S; Matsunaga, S; Fusetani, N; Toh-e, A. Theopederins F-J: Five new antifungal and cytotoxic metabolites from the marine sponge Theonella swinhoei. Tetrahedron 1999, 55, 13697–13702. [Google Scholar]
  54. Paul, GK; Gunasekera, SP; Longley, RE; Pomponi, SA. Theopederins K and L. Highly potent cytotoxic metabolites from a marine sponge Discodermia species. J Nat Prod 2002, 65, 59–61. [Google Scholar]
  55. Burres, NS; Clement, JJ. Antitumor activity and mechanism of action of the novel marine natural products mycalamide-A and -B and onnamide. Cancer Res 1989, 49, 2935–2940. [Google Scholar]
  56. Carrasco, L; Fernandez-Puentes, C; Vazques, D. Antibiotics and compounds affecting translation by eukaryotic ribosomes. Specific enhancement of aminoacyl-tRNA binding by methylxanthines. Mol Cell Biochem 1976, 10, 97–122. [Google Scholar]
  57. Abell, AD; Blunt, JW; Foulds, GJ; Munro, MHG. Chemistry of the mycalamides: antiviral and antitumor compounds from a New Zealand marine sponge. Part 6. The synthesis and testing of analogues of the C(7)–C(10) fragment. J Chem Soc Perkin Trans 1 1997, 1647–1654. [Google Scholar]
  58. Gürel, G; Blaha, G; Steitz, TA; Moore, PB. Structures of triacetyloleandomycin and mycalamide A bind to the large ribosomal subunit of Haloarcula marismortui. Antimicrob Agents Chemother 2009, 53, 5010–5014. [Google Scholar]
  59. Hong, CY; Kishi, Y. Total synthesis of mycalamides A and B. J Org Chem 1990, 55, 4242–4245. [Google Scholar]
  60. Roush, WR; Pfeifer, LA. Total synthesis of mycalamide A and 7-epi-mycalamide A. Org Lett 2000, 2, 859–862. [Google Scholar]
  61. Sohn, J-H; Waizumi, N; Zhong, M; Rawal, VH. Total synthesis of mycalamide A. J Am Chem Soc 2005, 127, 7290–7291. [Google Scholar]
  62. Kagawa, N; Ihara, M; Toyota, M. Convergent total synthesis of (+)-mycalamide A. J Org Chem 2006, 71, 6796–6805. [Google Scholar]
  63. Kagawa, N; Ihara, M; Toyota, M. Total synthesis of (+)-mycalamide A. Org Lett 2006, 8, 875–878. [Google Scholar]
  64. Thompson, AM; Blunt, JW; Munro, MHG; Perry, NB; Pannell, LK. Chemistry of the mycalamides, antiviral and antitumour compounds from a marine sponge. Part 3. Acyl, alkyl and silyl derivatives. J Chem Soc, Perkin Trans 1 1992, 1335–1342. [Google Scholar]
  65. Thompson, AM; Blunt, JW; Munro, MHG; Clark, BM. Chemistry of the mycalamides, antiviral and antitumour compounds from a marine sponge. Part 4. Reactions of mycalamide A and alkyl derivatives with basic nucleophiles. J Chem Soc, Perkin Trans 1 1994, 1025–1031. [Google Scholar]
  66. Thompson, AM; Blunt, JW; Munro, MHG; Perry, NB. Chemistry of the mycalamides, antiviral and antitumor compounds from a marine sponge. Part 5. Acid-catalysed hydrolysis and acetal exchange, double bond additions and oxidation reactions. J Chem Soc, Perkin Trans 1 1995, 1233–1242. [Google Scholar]
  67. Fukui, H; Tsuchiya, Y; Fujita, K; Nakagawa, T; Koshino, K; Nakata, T. Synthesis and biological activity of artificial analogs of mycalamide A. Bioorg Med Chem Lett 1997, 7, 2081–2086. [Google Scholar]
  68. Richter, A; Kocienski, P; Raubo, P; Davies, D. The in vitro biological activities of synthetic 18-O-methyl mycalamide B, 10-epi-18-O-methyl mycalamide B and pederin. Anticancer Drug Des 1997, 12, 217–227. [Google Scholar]
  69. Northcote, PT; Blunt, JW; Munro, MHG. Pateamine: a potent cytotoxin from the New Zealand marine sponge, Mycale sp. Tetrahedron Lett 1991, 32, 6411–6414. [Google Scholar]
  70. Romo, D; Rzasa, RM; Shea, HA; Park, K; Langenhan, JM; Sun, L; Akhiezer, A; Liu, JO. Total synthesis and immunosuppressive activity of (−)-pateamine A and related compounds: Implementation of a β-lactam-based macrocyclization. J Am Chem Soc 1998, 120, 12237–12254. [Google Scholar]
  71. Licitra, EJ; Liu, JO. A three-hybrid system for detecting small ligand-protein receptor interactions. Proc Nat Acad Sci USA 1996, 93, 12817–12821. [Google Scholar]
  72. Bordeleau, ME; Matthews, J; Wojnar, J; Lindqvist, L; Novac, O; Jankowsky, E; Sonenberg, N; Northcote, P; Teesdale-Spittle, P; Pelletier, J. Stimulation of mammalian translation initiation factor eIF4A activity by a small molecule inhibitor of eukaryotic translation. Proc Nat Acad Sciences USA 2005, 102, 10460–10465. [Google Scholar]
  73. Low, WK; Dang, Y; Schneider-Poetsch, T; Shi, Z; Choi, NS; Merrick, WC; Romo, D; Liu, JO. Inhibition of eukaryotic translation initiation by the marine natural product pateamine A. Mol Cell 2005, 20, 709–722. [Google Scholar]
  74. Low, WK; Dang, Y; Schneider-Poetsch, T; Shi, Z; Choi, NS; Rzasa, RM; Shea, HA; Li, S; Park, K; Ma, G; Romo, D; Liu, JO. Isolation and identification of eukaryotic initiation factor 4A as a molecular target for the marine natural product Pateamine A. Meth Enzymol 2007, 431, 303–324. [Google Scholar]
  75. Dang, Y; Low, WK; Xu, J; Gehring, NH; Dietz, HC; Romo, D; Liu, JO. Inhibition of nonsense-mediated mRNA decay by the natural product pateamine A through eukaryotic initiation factor 4AIII. J Biol Chem 2009, 284, 23613–23621. [Google Scholar]
  76. West, LM; Northcote, PT; Battershill, CN. Peloruside A: A potent cytotoxic macrolide isolated from the New Zealand marine sponge Mycale sp. J Org Chem 2000, 65, 445–449. [Google Scholar]
  77. Hood, KA; West, LM; Rouwé, B; Northcote, PT; Berridge, MV; Wakefield, StJ; Miller, JH. Peloruside A, a novel anti-mitotic agent with paclitaxel-like microtubule-stabilizing activity. Cancer Res 2002, 62, 3356–3360. [Google Scholar]
  78. Rowinsky, EK; Eisenhauer, EA; Chaudhry, V; Arbuck, SG; Donehower, RC. Clinical toxicities encountered with paclitaxel (Taxol). Semin Oncol 1993, 20, 1–15. [Google Scholar]
  79. Horwitz, SB. Personal recollections on the early development of Taxol. J Nat Prod 2004, 67, 136–138. [Google Scholar]
  80. Díaz, JF; Andreu, JM. Assembly of purified GDP-tubulin into microtubules induced by Taxol and Taxotere: Reversibility, ligand stoichiometry, and competition. Biochemistry 1993, 32, 2747–2755. [Google Scholar]
  81. Gaitanos, TN; Buey, RM; Díaz, JF; Northcote, PT; Teesdale-Spittle, P; Andreu, JM; Miller, JH. Peloruside A does not bind to the taxoid site on β-tubulin and retains its activity in multidrug resistant cell lines. Cancer Res 2004, 64, 5063–5067. [Google Scholar]
  82. Kowalski, RJ; Giannakakou, P; Gunasekera, SP; Longley, RE; Day, BW; Hamel, E. The microtubule-stabilizing agent discodermolide competitively inhibits the binding of paclitaxel (Taxol) to tubulin polymers, enhances tubulin nucleation reactions more potently than paclitaxel, and inhibits the growth of paclitaxel-resistant cells. Mol Pharmacol 1997, 52, 613–622. [Google Scholar]
  83. Yvon, AMC; Wadsworth, P; Jordan, MA. Taxol suppresses dynamics of individual microtubules in living human tumor cells. Mol Biol Cell 1999, 10, 947–959. [Google Scholar]
  84. Kamath, K; Jordan, MA. Suppression of microtubule dynamics by epothilone B is associated with mitotic arrest. Cancer Res 2003, 63, 6026–6031. [Google Scholar]
  85. Honore, S; Kamath, K; Braguer, D; Wilson, L; Briand, C; Jordan, MA. Suppression of microtubule dynamics by discodermolide by a novel mechanism is associated with mitotic arrest and inhibition of tumor cell proliferation. Mol Cancer Ther 2003, 2, 1303–1311. [Google Scholar]
  86. Honore, S; Kamath, K; Braguer, D; Horwitz, SB; Wilson, L; Briand, C; Jordan, MA. Synergistic suppression of microtubule dynamics by discodermolide and paclitaxel in non-small cell lung carcinoma cells. Cancer Res 2004, 64, 4957–4964. [Google Scholar]
  87. Chan, A; Andreae, P; Northcote, PT; Miller, JH. Peloruside A inhibits microtubule dynamics in a breast cancer cell line MCF7. Invest New Drugs 2010. [Google Scholar] [CrossRef]
  88. Wilmes, A; Rawson, P; Peng, L; McLauchlan, D; Northcote, PT; Jordan, TW; Miller, JH. Effects of the microtubule stabilizing agent peloruside A on the proteome of HL-60 cells. Invest New Drugs 2010. [Google Scholar] [CrossRef]
  89. Hermeking, H; Eick, D. Mediation of c-Myc-induced apoptosis by p53. Science 1994, 265, 2091–2093. [Google Scholar]
  90. Pryor, DE; O’Brate, A; Bilcer, G; Díaz, JF; Wang, Y; Wang, Y; Kabaki, M; Jung, MK; Andreu, JM; Ghosh, AK; Giannakakou, P; Hamel, E. The microtubule stabilizing agent laulimalide does not bind in the taxoid site, kills cells resistant to paclitaxel and epothilones, and may not require its epoxide moiety for activity. Biochemistry 2002, 41, 9109–9115. [Google Scholar]
  91. Nogales, E; Wolf, SG; Khan, IA; Ludueña, RF; Downing, KH. Structure of tubulin at 6.5 Å and location of the taxol-binding site. Nature 1995, 375, 424–427. [Google Scholar]
  92. Downing, KH. Structural basis for the interaction of tubulin with proteins and drugs that affect microtubule dynamics. Annu Rev Cell Dev Biol 2000, 16, 89–111. [Google Scholar]
  93. Hamel, E; Day, BW; Miller, JH; Jung, MK; Northcote, PT; Ghosh, AK; Curran, DP; Cushman, M; Nicolaou, KC; Paterson, I; Sorensen, EJ. Synergistic effects of peloruside A and laulimalide with taxoid site drugs, but not with each other, on tubulin assembly. Mol Pharmacol 2006, 70, 1555–1564. [Google Scholar]
  94. Wilmes, A; Bargh, K; Kelly, C; Northcote, PT; Miller, JH. Peloruside A synergizes with other microtubule stabilizing agents in cultured cancer cell lines. Mol Pharm 2007, 4, 269–280. [Google Scholar]
  95. Huzil, JT; Chik, JK; Slysz, GW; Freedman, H; Tuszynski, J; Taylor, RE; Sackett, DL; Schriemer, DC. A unique mode of microtubule stabilization induced by peloruside A. J Mol Biol 2008, 378, 1016–1030. [Google Scholar]
  96. Pineda, O; Farràs, J; Maccari, L; Manetti, F; Botta, M; Vilarrasa, J. Computational comparison of microtubule-stabilizing agents laulimalide and peloruside with taxol and colchicine. Bioorg Med Chem Lett 2004, 14, 4825–4829. [Google Scholar]
  97. Jiménez-Barbero, J; Canales, A; Northcote, PT; Buey, RM; Andreu, JM; Díaz, JF. NMR determination of the bioactive conformation of peloruside A bound to microtubules. J Am Chem Soc 2006, 128, 8757–8765. [Google Scholar]
  98. Barberis, A; Gunde, T; Berset, C; Audetat, S; Lüthi, U. Yeast as a screening tool. Drug Discov Today: Technol 2005, 2, 187–192. [Google Scholar]
  99. Bode, CJ; Gupta, ML, Jr; Reiff, EA; Suprenant, KA; Georg, GI; Himes, RH. Epothilone and paclitaxel: unexpected differences in promoting the assembly and stabilization of yeast microtubules. Biochemistry 2002, 41, 3870–3874. [Google Scholar]
  100. Gupta, ML, Jr; Bode, CL; Georg, GL; Himes, RH. Understanding tubulin-Taxol interactions: Mutations that impart Taxol binding to yeast tubulin. Proc Nat Acad Sci USA 2003, 100, 6394–6397. [Google Scholar]
  101. Tong, AHY; Evangelista, M; Parsons, AB; Xu, H; Bader, GD; Pagé, N; Robinson, M; Raghibizadeh, S; Hogue, CWV; Bussey, H; Andrews, B; Tyers, M; Boone, C. Systematic genetic analysis with ordered arrays of yeast deletion mutants. Science 2001, 294, 2364–2368. [Google Scholar]
  102. Giaever, G; Flaherty, P; Kumm, J; Proctor, M; Nislow, C; Jaramillo, DF; Chu, AM; Jordan, MI; Arkin, AP; Davis, RW. Chemogenomic profiling: Identifying the functional interactions of small molecules in yeast. Proc Nat Acad Sci USA 2004, 101, 793–798. [Google Scholar]
  103. Vanhecke, D; Janitz, M. High-throughput gene silencing using cell arrays. Oncogene 2004, 23, 8353–8358. [Google Scholar]
  104. Whitehurst, AW; Bodemann, BO; Cardenas, J; Ferguson, D; Girard, L; Peyton, M; Minna, JD; Michnoff, C; Hao, W; Roth, MG; Xie, XJ; White, MA. Synthetic lethal screen identification of chemosensitizer loci in cancer cells. Nature 2007, 446, 815–819. [Google Scholar]
  105. Schadt, EE; Friend, SH; Shaywitz, DA. A network view of disease and compound screening. Nat Rev Drug Discov 2009, 8, 286–295. [Google Scholar]
  106. Costanzo, M; Baryshnikova, A; Bellay, J; Kim, Y; Spear, ED; Sevier, CS; Ding, H; Koh, JLY; Toufighi, K; Mostafavi, S; et al. The genetic landscape of a cell. Science 2010, 327, 425–431. [Google Scholar]
  107. Khrapunovich-Baine, M; Menon, V; Verdier-Pinard, P; Smith, AB, III; Angeletti, RH; Fiser, A; Horwitz, SB; Xiao, H. Distinct pose of discodermolide in taxol binding pocket drives a complementary mode of microtubule stabilization. Biochemistry 2009, 48, 11664–11677. [Google Scholar]
  108. Xiao, H; Verdier-Pinard, P; Fernandez-Fuentes, N; Burd, B; Angeletti, R; Fiser, A; Horwitz, SB; Orr, GA. Insights into the mechanism of microtubule stabilization by Taxol. Proc Nat Acad Sci USA 2006, 103, 10166–10173. [Google Scholar]
  109. Singh, AJ; Xu, CX; Xu, X; West, LM; Wilmes, A; Chan, A; Hamel, E; Miller, JH; Northcote, PT; Ghosh, AK. Peloruside B, a potent antitumor macrolide from the New Zealand marine sponge Mycale hentscheli: Isolation, structure, total synthesis and bioactivity. J Org Chem 2010, 75, 2–10. [Google Scholar]
  110. Northcote, PT; Miller, JH; West, LM; Hood, KA. Bioactive compound (Peloruside A). US Patent Number US 6,790,862 B2, 14 September 2004. [Google Scholar]
  111. Meyer, C; Ferguson, D; Krauth, M; Wick, M; Northcote, P. RTA 301 (peloruside): a novel microtubule stabilizer with potent in vivo activity against lung cancer and resistant breast cancer. 18th EORTC-NCI-AACR Symposium on Molecular Targets and Cancer Therapeutics, Prague, Czech Republic, November 7–10, 2006; Abstr No. 639. Available online: http://www.sciencedirect.com/science/article/B75GT-4MMF4DM-ST/2/901656de391d50b1ced2b7ad843d922a. [CrossRef]
  112. Crume, KP; O’Sullivan, D; Miller, JH; Northcote, PT; La Flamme, AC. Delaying the onset of experimental autoimmune encephalomyelitis with the microtubule-stabilizing compounds, paclitaxel and peloruside A. J Leukocyte Biol 2009, 86, 949–958. [Google Scholar]
  113. Brunden, KR; Trojanowski, JQ; Lee, VM-Y. Advances in tau-focused drug discovery for Alzheimer’s disease and related tauopathies. Nat Rev Drug Discov 2009, 8, 783–793. [Google Scholar]
  114. Liao, X; Wu, Y; De Brabander, JK. Total synthesis of peloruside A. Angew Chem Int Ed 2003, 42, 1648–1652. [Google Scholar]
  115. Jin, M; Taylor, RE. Total synthesis of (+)-peloruside A. Org Lett 2005, 7, 1303–1305. [Google Scholar]
  116. Ghosh, AK; Xu, X; Kim, JH; Xu, CX. Enantioselective total synthesis of peloruside A: a potent microtubule stabilizer. Org Lett 2008, 10, 1001–1004. [Google Scholar]
  117. Evans, DA; Welch, DS; Speed, AW; Moniz, GA; Reichelt, A; Ho, S. An aldol-based synthesis of (+)-peloruside a, a potent microtubule stabilizing agent. J Am Chem Soc 2009, 131, 3840–3841. [Google Scholar]
  118. Williams, DR; Nag, PP; Zorn, N. Strategies for the synthesis of the novel antitumor agent peloruside A. Curr Opin Drug Discov Devel 2008, 11, 251–271. [Google Scholar]
  119. Uenishi, J; Iwamoto, T; Tanaka, J. Total synthesis of (−)-zampanolide and questionable existence of (−)-dactylolide as the elusive biosynthetic precursor of (−)-zampanolide in an Okinawan sponge. Org Lett 2009, 11, 3262–3265. [Google Scholar]
  120. Tanaka, J; Higa, T. Zampanolide, a new cytotoxic macrolide from a marine sponge. Tetrahedron Lett 1996, 37, 5535–5538. [Google Scholar]
  121. Smith, AB, III; Safonov, IG; Corbett, RM. Total syntheses of (+)-zampanolide and (+)-dactylolide exploiting a unified strategy. J Am Chem Soc 2002, 124, 11102–11113. [Google Scholar]
  122. Field, JJ; Singh, AJ; Kanakkanthara, A; Halafihi, T; Northcote, PT; Miller, JH. Microtubule-stabilizing activity of Zampanolide, a potent macrolide isolated from the Tongan marine sponge Cacospongia mycofijiensis. J Med Chem 2009, 52, 7328–7332. [Google Scholar]
  123. Smith, AB, III; Safonov, IG; Corbett, RM. Total synthesis of (+)-zampanolide. J Am Chem Soc 2001, 123, 12426–12427. [Google Scholar]
  124. Ding, F; Jennings, MP. Total synthesis of (−)-dactylolide and formal synthesis of (−)-zampanolide via target oriented β-C-glycoside formation. J Org Chem 2008, 73, 5965–5976. [Google Scholar]
  125. Ding, F; Jennings, MP. An expedient total synthesis of (−)-dactylolide and formal synthesis of (−)-zampanolide. Org Lett 2005, 7, 2321–2324. [Google Scholar]
  126. Hoye, TR; Hu, MJ. Macrolactonization via Ti(IV)-mediated epoxy-acid coupling: a total synthesis of (−)-dactylolide [and zampanolide]. J Am Chem Soc 2003, 125, 9576–9577. [Google Scholar]
  127. Jennings, MP. Total Synthesis of (−)-dactylolide and formal synthesis of (−)zampanolide. Lett Org Chem 2006, 3, 78–81. [Google Scholar]
Figure 1. Structures of the compounds.
Figure 1. Structures of the compounds.
Marinedrugs 08 01059f1
Figure 2. The marine sponge Mycale hentscheli collected from Pelorus Sound, New Zealand.
Figure 2. The marine sponge Mycale hentscheli collected from Pelorus Sound, New Zealand.
Marinedrugs 08 01059f2
Figure 3. Peloruside A-induced tubulin polymerization in 1A9 ovarian carcinoma cells. Cells were treated with peloruside A and a supernatant and pellet fraction electrophoresed. The gel was immunoblotted for α-tubulin. Image supplied by Arun Kanakkanthara.
Figure 3. Peloruside A-induced tubulin polymerization in 1A9 ovarian carcinoma cells. Cells were treated with peloruside A and a supernatant and pellet fraction electrophoresed. The gel was immunoblotted for α-tubulin. Image supplied by Arun Kanakkanthara.
Marinedrugs 08 01059f3
Figure 4. Cacospongia mycofijiensis, collected from Vava’u, Tonga. Photograph courtesy of Karen Stone, Dive Vava’u.
Figure 4. Cacospongia mycofijiensis, collected from Vava’u, Tonga. Photograph courtesy of Karen Stone, Dive Vava’u.
Marinedrugs 08 01059f4
Figure 5. Effect of zampanolide on cell cycle progression using flow cytometry. HL-60 promyelocytic leukemic cells were treated with 4 nM zampanolide for 16 hr, stained with propidium iodide, and analyzed by flow cytometry. Graphs courtesy of Jessica Field.
Figure 5. Effect of zampanolide on cell cycle progression using flow cytometry. HL-60 promyelocytic leukemic cells were treated with 4 nM zampanolide for 16 hr, stained with propidium iodide, and analyzed by flow cytometry. Graphs courtesy of Jessica Field.
Marinedrugs 08 01059f5

Share and Cite

MDPI and ACS Style

Miller, J.H.; Singh, A.J.; Northcote, P.T. Microtubule-Stabilizing Drugs from Marine Sponges: Focus on Peloruside A and Zampanolide. Mar. Drugs 2010, 8, 1059-1079. https://doi.org/10.3390/md8041059

AMA Style

Miller JH, Singh AJ, Northcote PT. Microtubule-Stabilizing Drugs from Marine Sponges: Focus on Peloruside A and Zampanolide. Marine Drugs. 2010; 8(4):1059-1079. https://doi.org/10.3390/md8041059

Chicago/Turabian Style

Miller, John H., A. Jonathan Singh, and Peter T. Northcote. 2010. "Microtubule-Stabilizing Drugs from Marine Sponges: Focus on Peloruside A and Zampanolide" Marine Drugs 8, no. 4: 1059-1079. https://doi.org/10.3390/md8041059

Article Metrics

Back to TopTop
