Marine Drugs 2017, 15(9), 270; doi:10.3390/md15090270

Article
Sequence Analysis, Kinetic Constants, and Anion Inhibition Profile of the Nacrein-Like Protein (CgiNAP2X1) from the Pacific Oyster Magallana gigas (Ex-Crassostrea gigas)
Rosa Perfetto 1, Sonia Del Prete 1,2, Daniela Vullo 2, Giovanni Sansone 3, Carmela M. A. Barone 4, Mosè Rossi 1, Claudiu T. Supuran 2,* and Clemente Capasso 2,*Orcid
1
Istituto di Bioscienze e Biorisorse, Consiglio Nazionale delle Ricerche (CNR), via Pietro Castellino 111, 80131 Napoli, Italy
2
Sezione di Scienze Farmaceutiche and Laboratorio di Chimica Bioinorganica, Polo Scientifico, Dipartimento Neurofarba, Università degli Studi di Firenze, Via U. Schiff 6, Sesto Fiorentino, 50019 Florence, Italy
3
Dipartimento di Biologia, Università degli Studi di Napoli, Federico II, via Cinthia 21, 80126 Napoli, Italy
4
Dipartimento di Agraria, Università degli Studi di Napoli, Federico II, via Università 100, 80055 Portici (Napoli), Italy
*
Correspondence: Tel.: +39-055-457-3729 (C.T.S.); +39-081-613-2559 (C.C.)
Received: 28 July 2017 / Accepted: 23 August 2017 / Published: 28 August 2017

Abstract

:
The carbonic anhydrase (CA, EC 4.2.1.1) superfamily of metalloenzymes catalyzes the hydration of carbon dioxide to bicarbonate and protons. The catalytically active form of these enzymes incorporates a metal hydroxide derivative, the formation of which is the rate-determining step of catalytic reaction, being affected by the transfer of a proton from a metal-coordinated water molecule to the environment. Here, we report the cloning, expression, and purification of a particular CA, i.e., nacrein-like protein encoded in the genome of the Pacific oyster Magallana gigas (previously known as Crassostrea gigas). Furthermore, the amino acid sequence, kinetic constants, and anion inhibition profile of the recombinant enzyme were investigated for the first time. The new protein, CgiNAP2X1, is highly effective as catalyst for the CO2 hydration reaction, based on the measured kinetic parameters, i.e., kcat = 1.0 × 106 s−1 and kcat/KM = 1.2 × 108 M−1·s−1. CgiNAP2X1 has a putative signal peptide, which probably allows an extracellular localization of the protein. The inhibition data demonstrated that the best anion inhibitors of CgiNAP2X1 were diethyldithiocarbamate, sulfamide, sulfamate, phenylboronic acid and phenylarsonic acid, which showed a micromolar affinity for this enzyme, with KIs in the range of 76–87 μM. These studies may add new information on the physiological role of the molluskan CAs in the biocalcification processes.
Keywords:
nacrein-like protein; carbonic anhydrase; molluskan; signal peptide; kinetic constants; phylogeny; anion inhibitors

1. Introduction

The genome of Eubacteria, Archaea, and Eukarya encodes for a superfamily of metalloenzymes, known as carbonic anhydrases (CAs, EC 4.2.1.1). The CA superfamily includes seven known families: α-, β-, γ-, δ-, ζ-, η- and θ-CAs [1,2,3], which represent a fashionable example of convergent/divergent protein evolution. The main peculiarities of this superfamily can be summarized as follows: all the CA families aforementioned efficiently catalyze the hydration of carbon dioxide to bicarbonate and protons [4,5,6,7,8]; the catalytically active form of the enzyme is the metal hydroxide derivative [1,2,3]; the velocity of the catalytic reaction depends on the formation of a metal hydroxide species, which is formed by the transfer of a proton from the metal-coordinated water molecule from the enzyme active site to the surrounding solvent [2,3,4,6,7,8,9,10,11,12,13,14,15,16,17]. Taking into account the three-dimensional structure of the CA families, the seven genetic families are characterized by a different arrangement of the active site, with the metal ion playing an important part, as the apoenzymes are devoid of any catalytic activity. In fact, the metal ion in the active site is coordinated by three His residues in the α-, γ-, δ- and, probably, θ-classes; by one His, and two Cys residues in β- and ζ-CAs or by two His and one Gln residues in the η-class, with the fourth ligand being a water molecule/hydroxide ion acting as the nucleophile in the catalytic cycle of the enzyme [1,5,6,7,18,19]. The α-, β-, δ-, η- and, perhaps θ-CAs are characterized by a Zn(II) ion in the active site. γ-CAs are probably Fe(II) enzymes, although this family is active also with bound Zn(II) or Co(II) ions [20,21,22,23,24,25,26,27]. ζ-CAs are cambialistic enzymes, active both with Cd(II) or Zn(II) bound within the active site [28,29,30]. α-CAs are normally active as monomers or dimers; β-CAs are active only as dimers, tetramers, or octamers, whereas γ-CAs must be trimers for accomplishing their physiological function [21,22,25,31]. The crystal structure of ζ-CA showed three slightly different active sites on the same polypeptide chain. X-ray crystal structures of δ-, ζ-, η- and θ-CAs are not at all available. Intriguing, α- and η-CAs also catalyze the hydrolysis of esters/thioesters, while no esterase activity was detected for the other five CA families [1,32]. The CA gene families’ distribution is very variegated in living organisms investigated so far. In fact, CAs present in animals belong to α-class [33,34], plants and algae have α-, β-, γ-, δ- and θ-classes; fungi encode for α- and β-CAs; protozoa for α-, β- and/or η-CAs; bacteria for α-, β- and γ-CA classes [4,5,6,7,12,35,36]. In metazoans, the α-CAs are largely represented [37,38]. Moreover, in the mantle of the pearl oyster Pinctada fucata an enzyme involved in the calcium carbonate crystallization has been identified and indicated with the name of nacrein because it participates in the formation of the nacreous layer [39]. Nacrein is a matrix protein with both a CA domain at the N-terminus and Gly-Xaa-Asn repeats at the C-terminal part [39]. These proteins are conserved in bivalves and gastropods and have a molecular weight ranging from 50 kDa to 60 kDa [39,40]. Recently, a novel nacrein-like protein with a molecular weight of about 38 kDa was purified from the mantle of P. fucata, suggesting the existence of two kinds of CAs in the oyster [40]. Here, we cloned, expressed, and purified the recombinant nacrein-like protein (Accession number: XP_011428406.1) encoded by the genome of the Pacific oyster Magallana gigas (previously known as Crassostrea gigas). The protein is indicated here with the acronym CgiNAP2X. Furthermore, we investigated the amino acid sequence, kinetic constants, and anion inhibition profile of this enzyme, in order to add new information regarding the mineralization pathways of the molluskan organisms.

2. Results and Discussion

2.1. Amino Acid Sequence Analysis

By translated inspection of the Crassostrea gigas genome, we identified a gene encoding for a nacrein-like protein, which is indicated with the acronym CgiNAP2X1 in this article. The CgiNAP2X1 nucleotide sequence consists of an open reading frame encoding for a 318 amino acid polypeptide chain (Figure 1).
To identify the typical features of the CgiNAP2X1 amino acid sequence, the protein was aligned with those of other α-CAs, such as the human isoforms HumCAI and HumCAII, and the molluskan MgaCA (Figure 2).
It may be observed that similar to the other investigated α-CA members, CgiNAP2X1 has the conserved three His ligands which coordinate the Zn(II) ion crucial for catalysis (His94, 96, and 119, HumCAI numbering system), and the gate-keeping residues (Glu106 and Thr199) which orientate the substrate for catalysis, and are also involved in the binding of inhibitors. Interestingly, the proton shuttle residue (His64) is missed in CgiNAP2X1 and MgaCA (Figure 2). His64 assists the rate-determining step of the catalytic cycle, transferring a proton from the water coordinated to the Zn(II) ion to the environment, with formation of the zinc hydroxide, nucleophilic species of the enzyme. Moreover, from the amino acid alignment shown in Figure 2, we noted the presence of amino acids stretches at the N-terminus of the CgiNAP2X1 primary structure. This observation evoked our curiosity and a strong interest in the automated determination of a possible signal peptide in CgiNAP2X1. Here, we used SignalP version 4.1 (Center for Biological Sequence Analysis, Kongens Lyngby, Denmark), which is a program designed to discriminate between signal peptides and transmembrane regions of proteins [41]. The program is available as a web tool at http://www.cbs.dtu.dk/services/SignalP/. As shown in Figure 3, CgiNAP2X1 possessed a putative signal peptide of 22 amino acids at its N-terminus and a predicted cleavage site located between Ala22 and Ser23. A common feature of the human mitochondrial CAs (HumCAVA and HumCAVB), the salivary HumCAVI, all the bacterial α-CAs, and some bacterial β-CAs is the presence of an N-terminal signal peptide, which allows the inter-membrane, extracellular, or periplasmic localization of these CA-classes [9,32,42,43].

2.2. Phylogenetic Analysis

We have constructed a phylogenetic tree in order to better investigate the evolutionary relationship of nacrein or nacrein-like sequences found in mollusks with that of other α-CAs coming from molluskan, bacteria, and mammals (Figure 4). The complete list of organisms, CA type, accession numbers and cryptonyms used in the phylogenetic analysis are indicated in Table 1.
The dendrogram shows that α-CAs and nacrein/nacrein-like proteins clustered in two distinct branches: one clade at the top of the Figure 4 containing all the nacreins, with the exception of the two α-CAs from Haliotis tuberculata (HtuCA) and Haliotis gigantea (HgiCA); the other clade (bottom of the Figure 4) included all the α-CAs considered in the present study. Interesting to note is the position of CgiNAP2X1. It is closely associated to the nacrein identified in the mitochondrial genome of C. gigas, which is characterized by a signal peptide similar to that found in CgiNAP2X1. When inspecting other molluskan nacrein or nacrein-like proteins deposited in the protein data bank and used for this phylogenetic analysis with SignalP, we found that nacreins, generally, are characterized by pre-sequences of 20 or more than 22 amino acid residues before the signal cleavage site (data not shown). These results could suggest that the identified nacrein-like protein, CgiNAP2X1, is a mitochondrial protein or a secretory protein, as happens for the human CAs isoforms Hum CAVA, HumCAVB, and HumaCAVI [9,32,42,43]. It is also possible to observe, that the clade of nacrein has arisen from an ancestral sequence, which led before to the bacterial α-CAs characterized by a signal peptide and then to the molluskan α-CA clade (Figure 4).

2.3. Production and Characterization of the Recombinant Enzyme (CgiNAP2X1)

The recombinant CgiNAP2X1 was prepared by designing a synthetic gene lacking the peptide signal as described in “Materials and Methods” and heterologously expressed as a His-Tag fusion protein using the method reported earlier for several CAs [44]. The recombinant enzyme was recovered in the soluble fraction of the Escherichia coli ArcticExpress (DE3)RIL cells extract obtained after sonication and centrifugation. Using an affinity column (His-select HF Nickel Affinity Gel), CgiNAP2X1 was purified to an apparent homogeneity and the recovered amount of metalloenzyme was 2 mg. SDS-PAGE of the purified CgiNAP2X1 showed a band with an estimated molecular weight of about 36 kDa under reducing conditions (Figure 5). A subunit molecular mass of 37 kDa was calculated on the basis of the amino acid sequence translated from the gene.
Interestingly, the native MgaCA purified from Mytilus galloprovincialis showed an estimated SDS-PAGE molecular weight of about 50 kDa, while the recombinant MgaCA (rec-MgaCA) had a molecular weight of about 30 kDa, which is closer to the molecular mass of CgiNAP2X1 (Figure 5). CgiNAP2X1 was also investigated by protonography, which is a technique based on monitoring the pH variation in the gel due to the CA-catalyzed conversion of CO2 to bicarbonate and protons [13,15,45]. The protonogram performed on CgiNAP2X1, rec-MgCA, and MgaCA showed a single hydratase activity band on the gel having a molecular weight of 36 kDa, 30 kDa, and 50 kDa, respectively (Figure 6), confirming the SDS-PAGE result. Moreover, since the dimer of the rec-MgaCA should have a M.W. of 60 kDa (10 kDa higher than the molecular mass of the native MgaCA), it is reasonable that the native MgaCA could be a multidomain protein with a CA domain at the N-terminus of the protein (M.W. = 30 KDa) and another domain of about 20 kDa at the C-terminus. This hypothesis is corroborated by the existence in the genome of the Japanese pearl oyster Pinctada fucata of a nacrein characterized by a CA domain at the N-terminus part of the protein [46].

2.4. Enzyme Kinetics

The data of Table 2 show that CgiNAP2X1 has a high catalytic activity for the physiological reaction of CO2 hydration to bicarbonate and protons, with the following kinetic parameters: kcat of 1.0 × 106 s−1 and kcat/KM of 1.2 × 108 M−1·s−1 (at 20 °C and pH of 7.5), being thus 1.4 times less active than the human isoform HumCAII, which, together with SazCA (α-CA from the thermophilic bacteria Sulfurihydrogenibium azorense with a kcat of 4.4 × 106 s−1) is of one of the best catalysts known in nature. Moreover, CgiNAP2X1 is one order of magnitude more effective as a catalyst for the physiological reaction compared to a similar molluskan recombinant enzyme and the native enzyme (MgaCA) and with respect to the slow human HumCAI and the other α-CAs identified in species of corals (SpiCA1 and SpiCA2 from Stylophora pistillata; CruCA4 from Corallium rubrum) (Table 2). Interestingly, the sulfonamide in clinical use, acetazolamide (5-acetamido-1,3,4-thiadiazole-2-sulfonamide), is an excellent inhibitor of HumCAII, SpiCA1, and SpiCA2 (KIs = 12–74 nM), while it was less effective towards CgiNAP2X1, HumCAI, CruCA4, and MgaCA (native and recombinant) with inhibition constants in the range of 250–450 nM. These activity data cannot be easily rationalized taking into consideration the amino acid sequence of CgiNAP2X1, which has been aligned with the α-CA from the bivalve M. galloprovincialis, and the two human α-CA isoforms (Figure 2). In fact, in the amino acid sequence of CgiNAP2X1, the proton shuttle residue His64 is missing, which is normally responsible for the velocity of the catalytic cycle (see paragraph 2.1 and Figure 2). Probably, the kcat of 1.0 × 106 s−1 showed by CgiNAP2X1 is attributed to other amino acid sequence features, such as the presence of an amino acid insertion positioned at the half of the primary structure (Figure 2), which could increase the flexibility of the molecules determining a higher kcat. Of course, further studies are needed to demonstrate this observation.

2.5. Anion Inhibition Profile

As inorganic anions represent a well-known class of CA inhibitors (CAIs) due to their affinity for metal ions in solution or when bound within metalloenzyme active sites, we investigated a rather large number of such species for their interaction with CgiNAP2X1 (Table 3). The interest in this class of CAIs is due to the fact that Crassostrea gigas lives in the marine environment, which may contain various concentrations of salts and, thus, a rather high amount of inorganic anions. Data of Table 3, in which the inhibition of the human enzymes HumCAI and II is reported for comparison reasons, show the following:
  • The anions with the smallest propensity to coordinate metal ions, perchlorate and tetrafluoroborate, and inhibitors such as fluorosulfonate, iminodisulfonate, perrhuthenate, perrhenate, bisulfite, divanadate, tellurate, azide, and cyanide were not inhibitors of CgiNAP2X1 up to concentrations of 100 mM. With the exception of perchlorate and tetrafluoroborate, a different profile was shown for the human isoforms hCA I and II (Table 3).
  • Several other anions; fluoride, chloride, bromide, iodide, cyanate, thiocyanate, bicarbonate, carbonate, nitrate, nitrite, hydrogen sulfite, stannate, selenate, peroxydisulfate, tetraborate, selenocyanate, trithiocarbonate, and trifluorometansolfonato were also weak inhibitors of CgiNAP2X1, with inhibition constants in the range of 3.1–20.7 mM (Table 3). Interesting to note is that most of these inhibitors were micro and/or submicromolar inhibitors for the human enzymes. It should be noted that the weak affinity of CgiNAP2X1 for bicarbonate and carbonate might be a positive feature for the physiological role of this enzyme in the deposition of the molluskan shell, since the enzyme is not appreciably inhibited in the presence of rather high concentrations of these two anions. Moreover, for the same reason, the enzyme could have also a potential biotechnological application in the CO2 capture processes.
  • The best anion inhibitors of CgiNAP2X1 were diethyldithiocarbamate, sulfamide, sulfamate, phenylboronic acid, and phenylarsonic acid, which showed a micromolar affinity for this enzyme, with KIs in the range of 76–87 μM (Table 3). Diethyldithiocarbamate was recently shown to lead to highly potent inhibitors directed against many α- or β-CAs, and some X-ray crystal structures also revealed their binding mode, which is achieved by coordination to the metal ion via a negatively charged sulfur atom [47,48,49,50,51]. It is conceivable that a similar binding mode is achieved also within the CgiNAP2X1 active site. Sulfamide and sulfamate also coordinate (via an ionized nitrogen atom) to the Zn(II) ion within the hCA II active site, and probably the same inhibition mechanism is valid against the oyster enzyme [47,48,49,50,51].
  • Most of these anions are weak, millimolar CgiNAP2X1 inhibitors probably because the enzyme is in contact with sea water, rich in many inorganic anions (chloride, sulfate, etc.) which may interfere with the enzyme’s activity. Similar behavior was observed earlier for other marine organism CAs [37].

3. Materials and Methods

3.1. Gene Identification, Synthesis, and Cloning

The identification of the gene encoding for the Crassostrea gigas nacrein-like protein (CgiNAP2X1) was performed following the strategy reported below. Briefly, the CgiNAP2X1 gene of C. gigas with the accession number XP_011428406.1 was identified running the “Protein BLAST” program and using as query sequence the amino acid sequence of the α-CA purified previously from the mantle of the Mediterranean mussel, Mytilus galloprovincialis [37]. The GeneArt Company (Thermo Fisher Scientific, Milan, Italy), specialized in gene synthesis, designed the synthetic CgiNAP2X1 gene without the peptide signal and having at the 5′ end four base-pair sequences (CACC) necessary for the directional cloning in the pMK-T vector (subcloning vector, Thermo Fisher Scientific, Milan, Italy). The CgiNAP2X1 was subsequently cloned into the expression vector pET100/D-TOPO (Invitrogen, Palo Alto, CA, USA), creating the plasmid pET100D-Topo/CgiNAP2X1. In order to confirm the gene integrity and that no errors occurred at the ligation sites, the vector containing the fragment was subjected to bidirectional automated sequencing.

3.2. Protein Expression and Purification

Escherichia coli ArcticExpress (DE3)RIL competent cells were transformed with pET100D-Topo/CgiNAP2X1, grown at 20 °C, and induced with 1 mM IPTG. ZnSO4 was added after 30 min and after additional growth for 10 h, cells were harvested and disrupted by sonication at 4 °C in 20 mM buffer phosphate, pH 8.0. Following sonication, the sample was centrifuged at 1200 g at 4 °C for 30 min. The supernatant was dialyzed at 4 °C against 0.02 M phosphate buffer (pH 8.0) containing 0.01 M imidazole and loaded onto a His-select HF Nickel affinity column (GE Healthcare, dimension: 1.0 × 10 cm). The column was equilibrated with 0.02 M phosphate buffer (pH 8.0) containing 0.01 M imidazole and 0.5 M KCl at a flow rate of 1.0 mL/min. The recombinant CgiNAP2X1 was eluted from the column with 0.02 M phosphate buffer (pH 8.0) containing 0.5 M KCl and 0.3 M imidazole at a flow rate of 1.0 mL/min. Active fractions (0.5 mL) were collected and combined for a total volume of 2.5 mL. Subsequently, they were dialyzed, concentrated, and analyzed by SDS-PAGE. At this stage of purification the enzyme was at least 95% pure and the obtained recovery was of 2.0 mg.

3.3. SDS-PAGE and Protonography

Sodium dodecyl sulfate (SDS)-polyacrylamide gel electrophoresis (SDS-PAGE) was performed as described by Laemmli using 12% gels [53]. For the protonography, the samples were mixed in a loading buffer without 2-mercaptoethanol and they were not boiled, in order to avoid protein denaturation. The gel was run at 150 V until the dye front ran off the gel. Following the electrophoresis, the gel was subject to protonography to detect the hydratase activity of the samples as described by Clemente Capasso and coworkers [45,54,55].

3.4. Amino Acid Sequence and Phylogenetic Analysis

Multialignment of amino acid sequences was performed using the program MUSCLE 3.1 (MUltiple Sequence Comparison by Log-Expectation), a new computer program for creating multiple alignments of protein sequence [56]. The dendrogram was constructed using the program PhyML 3.0 searching for the tree with the highest probability [57].

3.5. Enzyme Kinetics

An Applied Photophysics stopped-flow instrument has been used for assaying the CA catalyzed CO2 hydration activity [52]. Phenol red (at a concentration of 0.2 mM) has been used as indicator, working at the absorbance maximum of 557 nm, with 20 mM TRIS (pH 8.3) as buffer, and 20 mM NaClO4 (for maintaining constant the ionic strength), following the initial rates of the CA-catalyzed CO2 hydration reaction for a period of 10–100 s. The CO2 concentrations ranged from 1.7 mM to 17 mM for the determination of the kinetic parameters (by Lineweaver–Burk plots) and inhibition constants. For each inhibitor at least six traces of the initial 5–10% of the reaction have been used for determining the initial velocity. The uncatalyzed rates were determined in the same manner and subtracted from the total observed rates. Stock solutions of inhibitor (10–100 mM) were prepared in distilled-deionized water and dilutions up to 0.01 mM were done thereafter with the assay buffer. Inhibitor and enzyme solutions were preincubated together for 15 min at room temperature prior to assay, in order to allow for the formation of the E-I complex or for the eventual active site mediated hydrolysis of the inhibitor. The inhibition constants were obtained by non-linear least-squares methods using PRISM 3 and the Cheng-Prusoff equation, as reported earlier [58,59,60], and represent the mean from at least three different determinations. All CA isoforms were recombinant ones obtained in-house. All salts/small molecules were of the highest purity available, from Sigma-Aldrich (Milan, Italy).

4. Conclusions

In mollusks, CA activity has been detected in mantle, gill, muscle, and blood, and participates in the process of acid-base regulation, calcification, and mineralization, providing inorganic carbon at the site of calcification and/or determining the precipitation of calcium carbonate [61,62,63,64,65,66,67,68,69,70,71,72]. Recently, we characterized and determined the kinetic constants of the CA purified from the mantle tissue of the bivalve Mediterranean mussel, Mytilus galloprovincialis. The SDS-PAGE, protonography, and kinetic analyses give strength to our hypothesis that the native MgCA is probably a multidomain protein with a single CA domain at the N-terminus. The present work is the first study on the kinetic constants and the anion inhibition profile of the recombinant nacrein-like protein from M. gigas. The enzyme is highly effective at catalysis based on the measured kinetic parameters for the CO2 hydration reaction (kcat of 1.0 × 106 s−1 and a kcat/KM of 1.2 × 108 M−1 s–1). The CgiNAP2X1 amino acid sequence is characterized by a putative signal peptide at the N-terminus part of the protein, which probably allows an extracellular localization of the protein. The inhibition data demonstrated that the best anion inhibitors of CgiNAP2X1 were diethyldithiocarbamate, sulfamide, sulfamate, phenylboronic acid, and phenylarsonic acid, which showed a micromolar affinity for this enzyme, with KIs in the range of 76–87 µM. This study may add new information on metabolic pathways of the biocalcification processes, which involves CAs, nacreins, and nacrein-like proteins. Moreover, this enzyme could also be potentially used in the biomimetic capture of the CO2 due to its high kcat and the low inhibition towards bicarbonate and carbonate. It is important to note that in many other marine organisms, such as corals [69,70,71,72] and sponges [73,74], CAs are crucial in biomineralization processes [69,70,71,72,73,74], and understanding the biochemical mechanisms by which these organisms build their skeletons may have important environmental and even biotechnological applications. As the mollusk CAs are less investigated, we consider this article an interesting opportunity for a deeper understanding of these proteins in this type of marine organism.

Acknowledgments

This research was financed by the grant “SMART GENERATION–Sistemi e tecnologie sostenibili per la generazione di energia-PON03PE_00157_1, OR3-Bio-sistemi di cattura ed utilizzazione della CO2”.

Author Contributions

Daniela Vullo performed the enzyme kinetic and all the inhibition assays; Sonia Del Prete, Rosa Perfetto, performed the cloning, expression, purification and protonography of the recombinant bacterial enzyme; Giovanni Sansone, Carmela M. A. Barone, and Mosè Rossi contributed reagents and materials, and analyzed the data; Clemente Capasso and Claudiu T. Supuran wrote, edited and supervised the manuscript.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Supuran, C.T. Structure and function of carbonic anhydrases. Biochem. J. 2016, 473, 2023–2032. [Google Scholar] [CrossRef] [PubMed]
  2. Del Prete, S.; Vullo, D.; Fisher, G.M.; Andrews, K.T.; Poulsen, S.A.; Capasso, C.; Supuran, C.T. Discovery of a new family of carbonic anhydrases in the malaria pathogen plasmodium falciparum-the eta-carbonic anhydrases. Bioorg. Med. Chem. Lett. 2014, 24, 4389–4396. [Google Scholar] [CrossRef] [PubMed]
  3. Kikutani, S.; Nakajima, K.; Nagasato, C.; Tsuji, Y.; Miyatake, A.; Matsuda, Y. Thylakoid luminal theta-carbonic anhydrase critical for growth and photosynthesis in the marine diatom phaeodactylum tricornutum. Proc. Natl. Acad. Sci. USA 2016, 113, 9828–9833. [Google Scholar] [CrossRef] [PubMed]
  4. Capasso, C.; Supuran, C.T. Bacterial, fungal and protozoan carbonic anhydrases as drug targets. Expert Opin. Ther. Targets 2015, 19, 1689–1704. [Google Scholar] [CrossRef]
  5. Capasso, C.; Supuran, C.T. An overview of the selectivity and efficiency of the bacterial carbonic anhydrase inhibitors. Curr. Med. Chem. 2015, 22, 2130–2139. [Google Scholar] [CrossRef] [PubMed]
  6. Capasso, C.; Supuran, C.T. An overview of the alpha-, beta- and gamma-carbonic anhydrases from bacteria: Can bacterial carbonic anhydrases shed new light on evolution of bacteria? J. Enzyme Inhib. Med. Chem. 2015, 30, 325–332. [Google Scholar] [CrossRef] [PubMed]
  7. Capasso, C.; Supuran, C.T. An overview of the carbonic anhydrases from two pathogens of the oral cavity: Streptococcus mutans and porphyromonas gingivalis. Curr. Top. Med. Chem. 2016, 16, 2359–2368. [Google Scholar] [CrossRef] [PubMed]
  8. Ozensoy Guler, O.; Capasso, C.; Supuran, C.T. A magnificent enzyme superfamily: Carbonic anhydrases, their purification and characterization. J. Enzyme Inhib. Med. Chem. 2016, 31, 689–694. [Google Scholar] [CrossRef] [PubMed]
  9. Supuran, C.T.; Capasso, C. New light on bacterial carbonic anhydrases phylogeny based on the analysis of signal peptide sequences. J. Enzyme Inhib. Med. Chem. 2016, 31, 1254–1260. [Google Scholar] [CrossRef]
  10. Del Prete, S.; Vullo, D.; De Luca, V.; Carginale, V.; Ferraroni, M.; Osman, S.M.; AlOthman, Z.; Supuran, C.T.; Capasso, C. Sulfonamide inhibition studies of the beta-carbonic anhydrase from the pathogenic bacterium vibrio cholerae. Bioorg. Med. Chem 2016, 24, 1115–1120. [Google Scholar] [CrossRef] [PubMed]
  11. Briganti, F.; Pierattelli, R.; Scozzafava, A.; Supuran, C.T. Carbonic anhydrase inhibitors. Part 37. Novel classes of carbonic anhydrase inhibitors and their interaction with the native and cobalt-substituted enzyme: Kinetic and spectroscopic investigations. Eur. J. Med. Chem. 1996, 31, 1001–1010. [Google Scholar] [CrossRef]
  12. Supuran, C.T.; Capasso, C. The eta-class carbonic anhydrases as drug targets for antimalarial agents. Expert Opin. Ther. Targets 2015, 19, 551–563. [Google Scholar] [CrossRef] [PubMed]
  13. Del Prete, S.; De Luca, V.; Supuran, C.T.; Capasso, C. Protonography, a technique applicable for the analysis of eta-carbonic anhydrase activity. J. Enzyme Inhib. Med. Chem. 2015, 30, 920–924. [Google Scholar] [CrossRef] [PubMed]
  14. De Simone, G.; Di Fiore, A.; Capasso, C.; Supuran, C.T. The zinc coordination pattern in the eta-carbonic anhydrase from plasmodium falciparum is different from all other carbonic anhydrase genetic families. Bioorg. Med. Chem. Lett. 2015, 25, 1385–1389. [Google Scholar] [CrossRef] [PubMed]
  15. De Luca, V.; Del Prete, S.; Supuran, C.T.; Capasso, C. Protonography, a new technique for the analysis of carbonic anhydrase activity. J. Enzyme Inhib. Med. Chem. 2015, 30, 277–282. [Google Scholar] [CrossRef] [PubMed]
  16. Alafeefy, A.M.; Abdel-Aziz, H.A.; Vullo, D.; Al-Tamimi, A.M.; Awaad, A.S.; Mohamed, M.A.; Capasso, C.; Supuran, C.T. Inhibition of human carbonic anhydrase isozymes I, II, IX and XII with a new series of sulfonamides incorporating aroylhydrazone-, [1,2,4]triazolo[3,4-b][1,3,4]thiadiazinyl- or 2-(cyanophenylmethylene)-1,3,4-thiadiazol-3(2H)-yl moieties. J. Enzyme Inhib. Med. Chem. 2015, 30, 52–56. [Google Scholar] [CrossRef] [PubMed]
  17. Del Prete, S.; Vullo, D.; De Luca, V.; Carginale, V.; Osman, S.M.; AlOthman, Z.; Supuran, C.T.; Capasso, C. Cloning, expression, purification and sulfonamide inhibition profile of the complete domain of the eta-carbonic anhydrase from plasmodium falciparum. Bioorg. Med. Chem. Lett. 2016, 26, 4184–4190. [Google Scholar] [CrossRef] [PubMed]
  18. Buzas, G.M.; Supuran, C.T. The history and rationale of using carbonic anhydrase inhibitors in the treatment of peptic ulcers. In memoriam ioan puscas (1932–2015). J. Enzyme Inhib. Med. Chem. 2016, 31, 527–533. [Google Scholar] [CrossRef] [PubMed]
  19. Carta, F.; Supuran, C.T.; Scozzafava, A. Sulfonamides and their isosters as carbonic anhydrase inhibitors. Future Med. Chem. 2014, 6, 1149–1165. [Google Scholar] [CrossRef] [PubMed]
  20. Pinard, M.A.; Lotlikar, S.R.; Boone, C.D.; Vullo, D.; Supuran, C.T.; Patrauchan, M.A.; McKenna, R. Structure and inhibition studies of a type II beta-carbonic anhydrase psca3 from pseudomonas aeruginosa. Bioorg. Med. Chem. 2015, 23, 4831–4838. [Google Scholar] [CrossRef] [PubMed]
  21. Ferraroni, M.; Del Prete, S.; Vullo, D.; Capasso, C.; Supuran, C.T. Crystal structure and kinetic studies of a tetrameric type II beta-carbonic anhydrase from the pathogenic bacterium vibrio cholerae. Acta Crystallogr. D Biol. Crystallogr. 2015, 71, 2449–2456. [Google Scholar] [CrossRef] [PubMed]
  22. De Simone, G.; Monti, S.M.; Alterio, V.; Buonanno, M.; De Luca, V.; Rossi, M.; Carginale, V.; Supuran, C.T.; Capasso, C.; Di Fiore, A. Crystal structure of the most catalytically effective carbonic anhydrase enzyme known, sazca from the thermophilic bacterium sulfurihydrogenibium azorense. Bioorg. Med. Chem. Lett. 2015, 25, 2002–2006. [Google Scholar] [CrossRef] [PubMed]
  23. Zolnowska, B.; Slawinski, J.; Pogorzelska, A.; Chojnacki, J.; Vullo, D.; Supuran, C.T. Carbonic anhydrase inhibitors. Synthesis, and molecular structure of novel series n-substituted n′-(2-arylmethylthio-4-chloro-5-methylbenzenesulfonyl)guanidines and their inhibition of human cytosolic isozymes I and II and the transmembrane tumor-associated isozymes IX and XII. Eur. J. Med. Chem. 2014, 71, 135–147. [Google Scholar] [PubMed]
  24. De Luca, L.; Ferro, S.; Damiano, F.M.; Supuran, C.T.; Vullo, D.; Chimirri, A.; Gitto, R. Structure-based screening for the discovery of new carbonic anhydrase vii inhibitors. Eur. J. Med. Chem. 2014, 71, 105–111. [Google Scholar] [CrossRef] [PubMed]
  25. Di Fiore, A.; Capasso, C.; De Luca, V.; Monti, S.M.; Carginale, V.; Supuran, C.T.; Scozzafava, A.; Pedone, C.; Rossi, M.; De Simone, G. X-ray structure of the first ‘extremo-alpha-carbonic anhydrase’, a dimeric enzyme from the thermophilic bacterium sulfurihydrogenibium yellowstonense yo3aop1. Acta Crystallogr. D Biol. Crystallogr. 2013, 69, 1150–1159. [Google Scholar] [CrossRef]
  26. Supuran, C.T. Structure-based drug discovery of carbonic anhydrase inhibitors. J. Enzyme Inhib. Med. Chem. 2012, 27, 759–772. [Google Scholar] [CrossRef]
  27. Supuran, C.T. Carbonic anhydrases—An overview. Curr. Pharm. Des. 2008, 14, 603–614. [Google Scholar] [CrossRef] [PubMed]
  28. Supuran, C.T. Advances in structure-based drug discovery of carbonic anhydrase inhibitors. Expert Opin. Drug Discov. 2017, 12, 61–88. [Google Scholar] [CrossRef] [PubMed]
  29. Bhatt, A.; Mahon, B.P.; Cruzeiro, V.W.; Cornelio, B.; Laronze-Cochard, M.; Ceruso, M.; Sapi, J.; Rance, G.A.; Khlobystov, A.N.; Fontana, A.; et al. Structure-activity relationships of benzenesulfonamide-based inhibitors towards carbonic anhydrase isoform specificity. Chembiochem 2017, 18, 213–222. [Google Scholar] [CrossRef] [PubMed]
  30. Alterio, V.; Langella, E.; Viparelli, F.; Vullo, D.; Ascione, G.; Dathan, N.A.; Morel, F.M.; Supuran, C.T.; De Simone, G.; Monti, S.M. Structural and inhibition insights into carbonic anhydrase cdca1 from the marine diatom thalassiosira weissflogii. Biochimie 2012, 94, 1232–1241. [Google Scholar] [CrossRef] [PubMed]
  31. Lomelino, C.L.; Mahon, B.P.; McKenna, R.; Carta, F.; Supuran, C.T. Kinetic and X-ray crystallographic investigations on carbonic anhydrase isoforms I, II, IX and XII of a thioureido analog of SLC-0111. Bioorg. Med. Chem. 2016, 24, 976–981. [Google Scholar] [CrossRef] [PubMed]
  32. Supuran, C.T. How many carbonic anhydrase inhibition mechanisms exist? J. Enzyme Inhib. Med. Chem. 2016, 31, 345–360. [Google Scholar] [CrossRef] [PubMed]
  33. Aspatwar, A.; Tolvanen, M.E.; Ortutay, C.; Parkkila, S. Carbonic anhydrase related proteins: Molecular biology and evolution. Subcell. Biochem. 2014, 75, 135–156. [Google Scholar] [PubMed]
  34. Supuran, C.T. Carbonic anhydrases as drug targets—An overview. Curr. Top. Med. Chem. 2007, 7, 825–833. [Google Scholar] [CrossRef]
  35. Capasso, C.; Supuran, C.T. Sulfa and trimethoprim-like drugs—Antimetabolites acting as carbonic anhydrase, dihydropteroate synthase and dihydrofolate reductase inhibitors. J. Enzyme Inhib. Med. Chem. 2014, 29, 379–387. [Google Scholar] [CrossRef] [PubMed]
  36. Capasso, C.; Supuran, C.T. Anti-infective carbonic anhydrase inhibitors: A patent and literature review. Expert Opin Ther. Pat. 2013, 23, 693–704. [Google Scholar] [CrossRef]
  37. Perfetto, R.; Del Prete, S.; Vullo, D.; Sansone, G.; Barone, C.; Rossi, M.; Supuran, C.T.; Capasso, C. Biochemical characterization of the native alpha-carbonic anhydrase purified from the mantle of the mediterranean mussel, mytilus galloprovincialis. J. Enzyme Inhib. Med. Chem. 2017, 32, 632–639. [Google Scholar] [CrossRef] [PubMed]
  38. Del Prete, S.; Vullo, D.; Zoccola, D.; Tambutte, S.; Capasso, C.; Supuran, C.T. Kinetic properties and affinities for sulfonamide inhibitors of an alpha-carbonic anhydrase (cruca4) involved in coral biomineralization in the mediterranean red coral corallium rubrum. Bioorg. Med. Chem. 2017, 25, 3525–3530. [Google Scholar] [CrossRef] [PubMed]
  39. Miyamoto, H.; Miyashita, T.; Okushima, M.; Nakano, S.; Morita, T.; Matsushiro, A. A carbonic anhydrase from the nacreous layer in oyster pearls. Proc. Natl. Acad. Sci. USA 1996, 93, 9657–9660. [Google Scholar] [CrossRef]
  40. Yu, Z.; Xie, L.; Lee, S.; Zhang, R. A novel carbonic anhydrase from the mantle of the pearl oyster (pinctada fucata). Comp. Biochem. Physiol. B Biochem. Mol. Biol. 2006, 143, 190–194. [Google Scholar] [CrossRef] [PubMed]
  41. Petersen, T.N.; Brunak, S.; von Heijne, G.; Nielsen, H. Signalp 4.0: Discriminating signal peptides from transmembrane regions. Nat. Methods 2011, 8, 785–786. [Google Scholar] [CrossRef] [PubMed]
  42. Nishimori, I.; Minakuchi, T.; Onishi, S.; Vullo, D.; Scozzafava, A.; Supuran, C.T. Carbonic anhydrase inhibitors. DNA cloning, characterization, and inhibition studies of the human secretory isoform VI, a new target for sulfonamide and sulfamate inhibitors. J. Med. Chem. 2007, 50, 381–388. [Google Scholar] [CrossRef] [PubMed]
  43. Tanc, M.; Carta, F.; Scozzafava, A.; Supuran, C.T. 6-substituted 1,2-benzoxathiine-2,2-dioxides are isoform-selective inhibitors of human carbonic anhydrases IX, XII and VA. Org. Biomol. Chem. 2015, 13, 77–80. [Google Scholar] [CrossRef] [PubMed]
  44. Del Prete, S.; De Luca, V.; De Simone, G.; Supuran, C.T.; Capasso, C. Cloning, expression and purification of the complete domain of the eta-carbonic anhydrase from plasmodium falciparum. J. Enzyme Inhib. Med. Chem. 2016, 31, 54–59. [Google Scholar] [CrossRef] [PubMed]
  45. Del Prete, S.; De Luca, V.; Iandolo, E.; Supuran, C.T.; Capasso, C. Protonography, a powerful tool for analyzing the activity and the oligomeric state of the gamma-carbonic anhydrase identified in the genome of porphyromonas gingivalis. Bioorg. Med. Chem. 2015, 23, 3747–3750. [Google Scholar] [CrossRef] [PubMed]
  46. Miyamoto, H.; Miyoshi, F.; Kohno, J. The carbonic anhydrase domain protein nacrein is expressed in the epithelial cells of the mantle and acts as a negative regulator in calcification in the mollusc pinctada fucata. Zool. Sci. 2005, 22, 311–315. [Google Scholar] [CrossRef] [PubMed]
  47. Vullo, D.; Del Prete, S.; Osman, S.M.; Scozzafava, A.; Alothman, Z.; Supuran, C.T.; Capasso, C. Anion inhibition study of the beta-class carbonic anhydrase (pgicab) from the oral pathogen porphyromonas gingivalis. Bioorg. Med. Chem. Lett. 2014, 24, 4402–4406. [Google Scholar] [CrossRef] [PubMed]
  48. Nishimori, I.; Vullo, D.; Minakuchi, T.; Scozzafava, A.; Osman, S.M.; AlOthman, Z.; Capasso, C.; Supuran, C.T. Anion inhibition studies of two new beta-carbonic anhydrases from the bacterial pathogen legionella pneumophila. Bioorg. Med. Chem. Lett. 2014, 24, 1127–1132. [Google Scholar] [CrossRef] [PubMed]
  49. Maresca, A.; Vullo, D.; Scozzafava, A.; Supuran, C.T. Inhibition of the alpha- and beta-carbonic anhydrases from the gastric pathogen helycobacter pylori with anions. J. Enzyme Inhib. Med. Chem 2013, 28, 388–391. [Google Scholar] [CrossRef] [PubMed]
  50. Innocenti, A.; Scozzafava, A.; Supuran, C.T. Carbonic anhydrase inhibitors. Inhibition of transmembrane isoforms IX, XII, and XIV with less investigated anions including trithiocarbonate and dithiocarbamate. Bioorg. Med. Chem. Lett. 2010, 20, 1548–1550. [Google Scholar] [CrossRef] [PubMed]
  51. Scozzafava, A.; Mastrolorenzo, A.; Supuran, C.T. Arylsulfonyl-n,n-diethyl-dithiocarbamates: A novel class of antitumor agents. Bioorg. Med. Chem. Lett. 2000, 10, 1887–1891. [Google Scholar] [CrossRef]
  52. Khalifah, R.G. The carbon dioxide hydration activity of carbonic anhydrase I. Stop-flow kinetic studies on the native human isoenzymes B and C. J. Biol. Chem. 1971, 246, 2561–2573. [Google Scholar]
  53. Laemmli, U.K. Cleavage of structural proteins during the assembly of the head of bacteriophage T4. Nature 1970, 227, 680–685. [Google Scholar] [CrossRef] [PubMed]
  54. Supuran, C.T. Carbonic anhydrase inhibitors. Bioorg. Med. Chem. Lett. 2010, 20, 3467–3474. [Google Scholar] [CrossRef] [PubMed]
  55. Vullo, D.; De Luca, V.; Del Prete, S.; Carginale, V.; Scozzafava, A.; Capasso, C.; Supuran, C.T. Sulfonamide inhibition studies of the gamma-carbonic anhydrase from the antarctic bacterium pseudoalteromonas haloplanktis. Bioorg. Med. Chem. Lett. 2015, 25, 3550–3555. [Google Scholar] [CrossRef] [PubMed]
  56. Edgar, R.C. Muscle: Multiple sequence alignment with high accuracy and high throughput. Nucleic Acids Res. 2004, 32, 1792–1797. [Google Scholar] [CrossRef] [PubMed]
  57. Guindon, S.; Gascuel, O. A simple, fast, and accurate algorithm to estimate large phylogenies by maximum likelihood. Syst. Biol. 2003, 52, 696–704. [Google Scholar] [CrossRef] [PubMed]
  58. Del Prete, S.; Vullo, D.; De Luca, V.; Carginale, V.; di Fonzo, P.; Osman, S.M.; AlOthman, Z.; Supuran, C.T.; Capasso, C. Anion inhibition profiles of alpha-, beta- and gamma-carbonic anhydrases from the pathogenic bacterium vibrio cholerae. Bioorg. Med. Chem. 2016, 24, 3413–3417. [Google Scholar] [CrossRef] [PubMed]
  59. Del Prete, S.; Vullo, D.; De Luca, V.; Carginale, V.; di Fonzo, P.; Osman, S.M.; AlOthman, Z.; Supuran, C.T.; Capasso, C. Anion inhibition profiles of the complete domain of the eta-carbonic anhydrase from plasmodium falciparum. Bioorg. Med. Chem 2016, 24, 4410–4414. [Google Scholar] [CrossRef] [PubMed]
  60. De Luca, V.; Vullo, D.; Del Prete, S.; Carginale, V.; Osman, S.M.; AlOthman, Z.; Supuran, C.T.; Capasso, C. Cloning, characterization and anion inhibition studies of a gamma-carbonic anhydrase from the antarctic bacterium colwellia psychrerythraea. Bioorg. Med. Chem. 2016, 24, 835–840. [Google Scholar] [CrossRef]
  61. Drake, J.L.; Mass, T.; Haramaty, L.; Zelzion, E.; Bhattacharya, D.; Falkowski, P.G. Proteomic analysis of skeletal organic matrix from the stony coral stylophora pistillata. Proc. Natl. Acad. Sci. USA 2013, 110, 3788–3793. [Google Scholar] [CrossRef] [PubMed]
  62. Le Goff, C.; Ganot, P.; Zoccola, D.; Caminiti-Segonds, N.; Allemand, D.; Tambutte, S. Carbonic anhydrases in cnidarians: Novel perspectives from the octocorallian corallium rubrum. PLoS ONE 2016, 11, e0160368. [Google Scholar] [CrossRef] [PubMed]
  63. Mass, T.; Drake, J.L.; Peters, E.C.; Jiang, W.; Falkowski, P.G. Immunolocalization of skeletal matrix proteins in tissue and mineral of the coral stylophora pistillata. Proc. Natl. Acad. Sci. USA 2014, 111, 12728–12733. [Google Scholar] [CrossRef] [PubMed]
  64. Bertucci, A.; Moya, A.; Tambutte, S.; Allemand, D.; Supuran, C.T.; Zoccola, D. Carbonic anhydrases in anthozoan corals—A review. Bioorg. Med. Chem 2013, 21, 1437–1450. [Google Scholar] [CrossRef] [PubMed]
  65. Bertucci, A.; Tambutte, S.; Supuran, C.T.; Allemand, D.; Zoccola, D. A new coral carbonic anhydrase in stylophora pistillata. Mar. Biotechnol. (NY) 2011, 13, 992–1002. [Google Scholar] [CrossRef] [PubMed]
  66. Le Roy, N.; Jackson, D.J.; Marie, B.; Ramos-Silva, P.; Marin, F. The evolution of metazoan α-carbonic anhydrases and their roles in calcium carbonate biomineralization. Front. Zool. 2014, 11, 75. [Google Scholar] [CrossRef]
  67. Bertucci, A.; Innocenti, A.; Zoccola, D.; Scozzafava, A.; Allemand, D.; Tambutte, S.; Supuran, C. Carbonic anhydrase inhibitors: Inhibition studies of a coral secretory isoform with inorganic anions. Bioorg. Med. Chem. Lett. 2009, 19, 650–653. [Google Scholar] [CrossRef] [PubMed]
  68. Bertucci, A.; Innocenti, A.; Zoccola, D.; Scozzafava, A.; Tambutte, S.; Supuran, C.T. Carbonic anhydrase inhibitors. Inhibition studies of a coral secretory isoform by sulfonamides. Bioorg. Med. Chem. 2009, 17, 5054–5058. [Google Scholar] [CrossRef] [PubMed]
  69. Zoccola, D.; Innocenti, A.; Bertucci, A.; Tambutté, E.; Supuran, C.T.; Tambutté, S. Coral Carbonic Anhydrases: Regulation by Ocean Acidification. Mar Drugs. 2016, 14, 109. [Google Scholar] [CrossRef] [PubMed]
  70. Moya, A.; Tambutté, S.; Bertucci, A.; Tambutté, E.; Lotto, S.; Vullo, D.; Supuran, C.T.; Allemand, D.; Zoccola, D. Carbonic anhydrase in the scleractinian coral Stylophora pistillata: Characterization, localization, and role in biomineralization. J. Biol. Chem. 2008, 283, 25475–25484. [Google Scholar] [CrossRef] [PubMed]
  71. Bertucci, A.; Zoccola, D.; Tambutte, S.; Vullo, D.; Supuran, C. Carbonic anhydrase activators. The first activation study of a coral secretory isoform with amino acids and amines. Bioorg. Med. Chem. 2010, 18, 2300–2303. [Google Scholar] [CrossRef] [PubMed]
  72. Allemand, D.; Tambutte, E.; Zoccola, D.; Tambutte, S. Coral calcification, cells to reefs. In Coral Reefs: An Ecosystem in Transition; Wiley: New York, NY, USA, 2011; pp. 119–150. [Google Scholar]
  73. Müller, W.E.; Wang, X.; Grebenjuk, V.A.; Korzhev, M.; Wiens, M.; Schlossmacher, U.; Schröder, H.C. Common genetic denominators for Ca++-based skeleton in Metazoa: Role of osteoclast-stimulating factor and of carbonic anhydrase in a calcareous sponge. PLoS ONE 2012, 7, e34617. [Google Scholar]
  74. Müller, W.E.; Schröder, H.C.; Schlossmacher, U.; Neufurth, M.; Geurtsen, W.; Korzhev, M.; Wang, X. The enzyme carbonic anhydrase as an integral component of biogenic Ca-carbonate formation in sponge spicules. FEBS Open Bio 2013, 3, 357–362. [Google Scholar] [CrossRef] [PubMed]

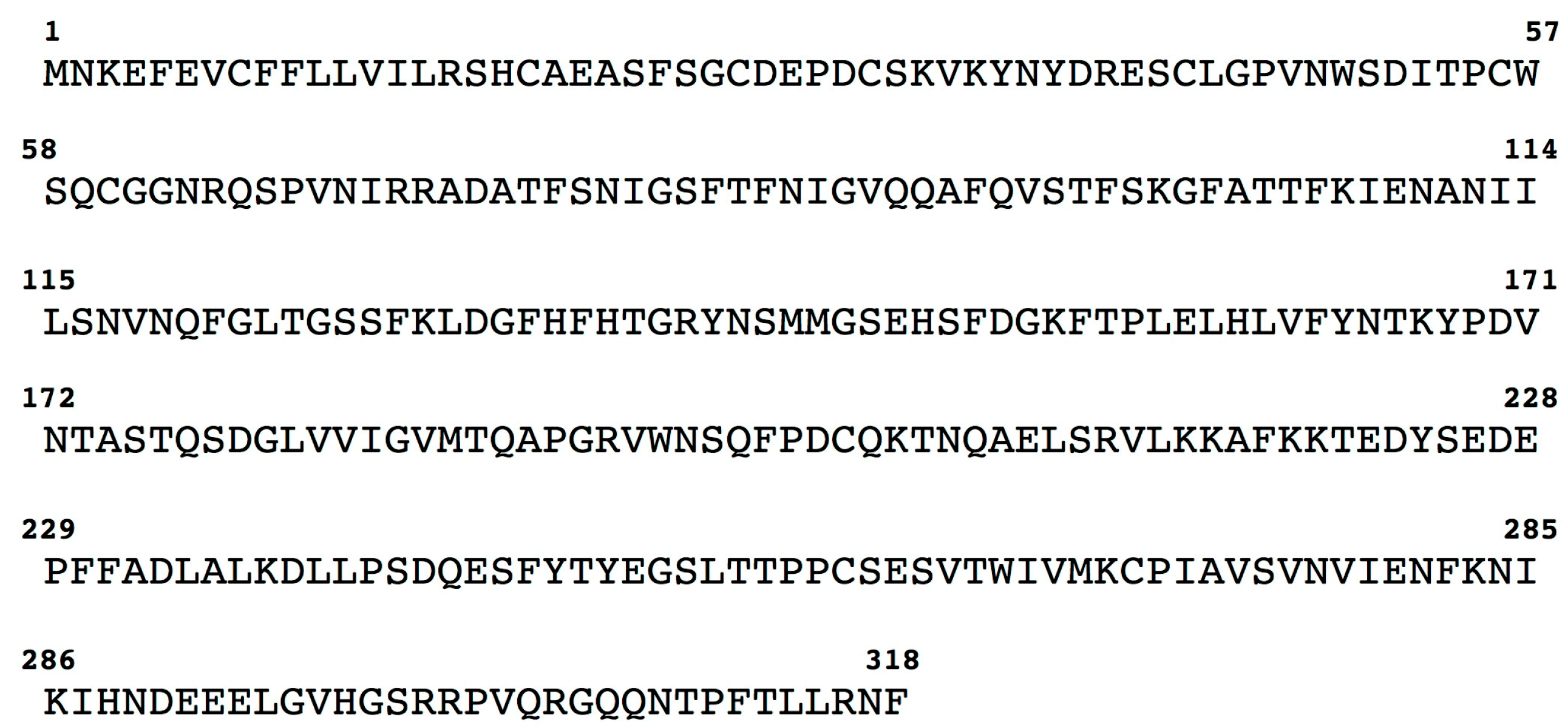

Figure 1. Amino acid sequence of the nacrein-like protein identified in the genome of C. gigas. The upper case letters are the amino acid residues.
Figure 1. Amino acid sequence of the nacrein-like protein identified in the genome of C. gigas. The upper case letters are the amino acid residues.
Marinedrugs 15 00270 g001

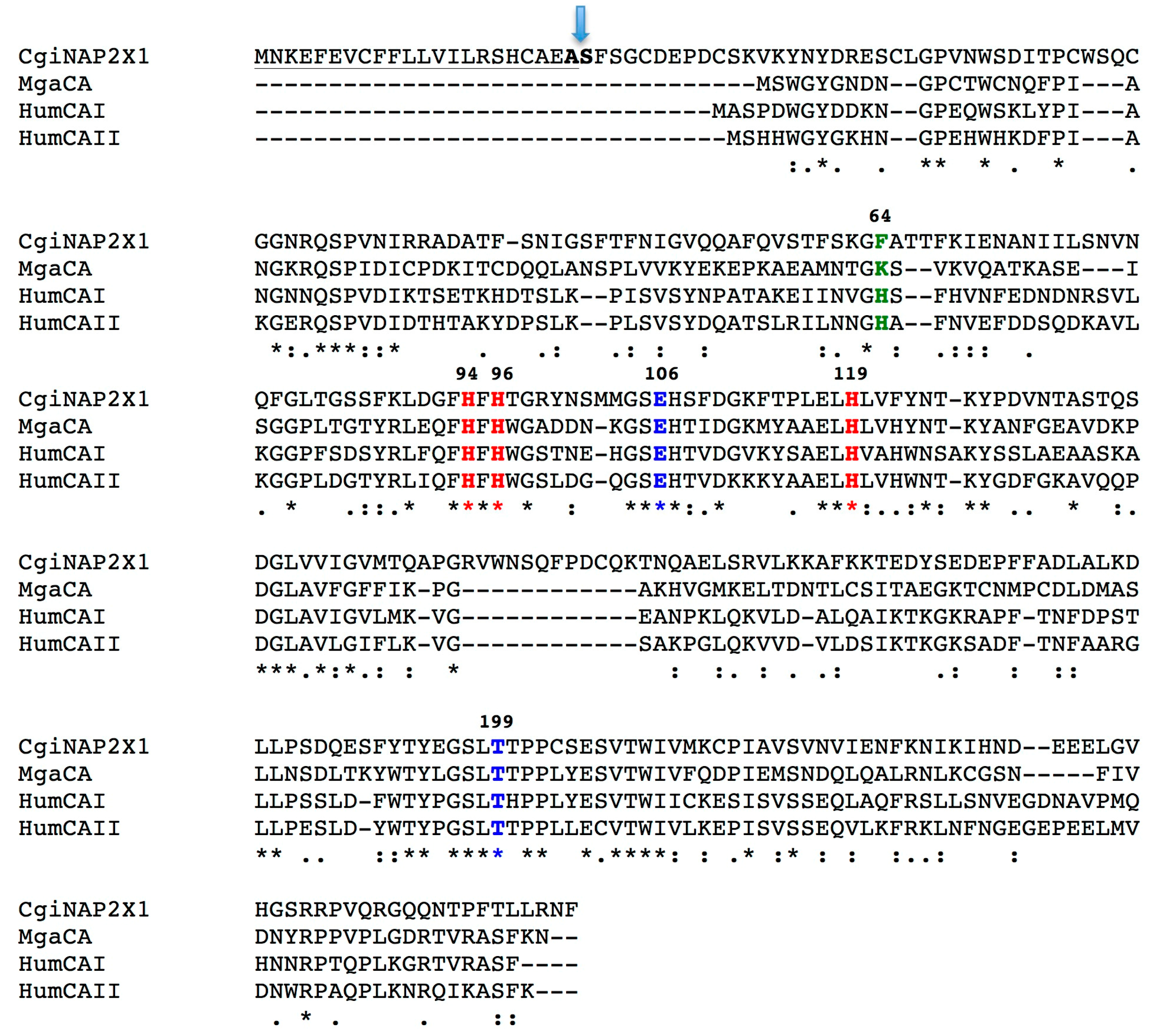

Figure 2. Alignment of the nacrein amino acid sequence identified in the genome of Crassostrea gigas (CgiNAP2X1, Accession number XP_011428406.1) with the α-CA from the bivalve Mytilus galloprovincialis (MgaCA, Accession number: ALF62133.1), and the two human α-CA isoforms (HumCAI, Accession number: NP001729 and HumCAII, Accession number: P00918). HumCAI numbering system was used. The zinc ligands (His94, 96, and 119 in red) and the gate-keeper residues (Glu106 and Thr199 in blue) are conserved in aligned sequences; while the proton shuttle residue (His64 in green) is preserved only in the human enzymes. The underlined residues represent the identified signal peptide, in bold the residues of the cleavage site, and the arrow is the position of the cleavage. The asterisk (*) indicates identity at all aligned positions; the symbol (:) relates to conserved substitutions, while (.) means that semi-conserved substitutions are observed. Multialignment was performed with the program MUSCLE, version 3.1.
Figure 2. Alignment of the nacrein amino acid sequence identified in the genome of Crassostrea gigas (CgiNAP2X1, Accession number XP_011428406.1) with the α-CA from the bivalve Mytilus galloprovincialis (MgaCA, Accession number: ALF62133.1), and the two human α-CA isoforms (HumCAI, Accession number: NP001729 and HumCAII, Accession number: P00918). HumCAI numbering system was used. The zinc ligands (His94, 96, and 119 in red) and the gate-keeper residues (Glu106 and Thr199 in blue) are conserved in aligned sequences; while the proton shuttle residue (His64 in green) is preserved only in the human enzymes. The underlined residues represent the identified signal peptide, in bold the residues of the cleavage site, and the arrow is the position of the cleavage. The asterisk (*) indicates identity at all aligned positions; the symbol (:) relates to conserved substitutions, while (.) means that semi-conserved substitutions are observed. Multialignment was performed with the program MUSCLE, version 3.1.
Marinedrugs 15 00270 g002

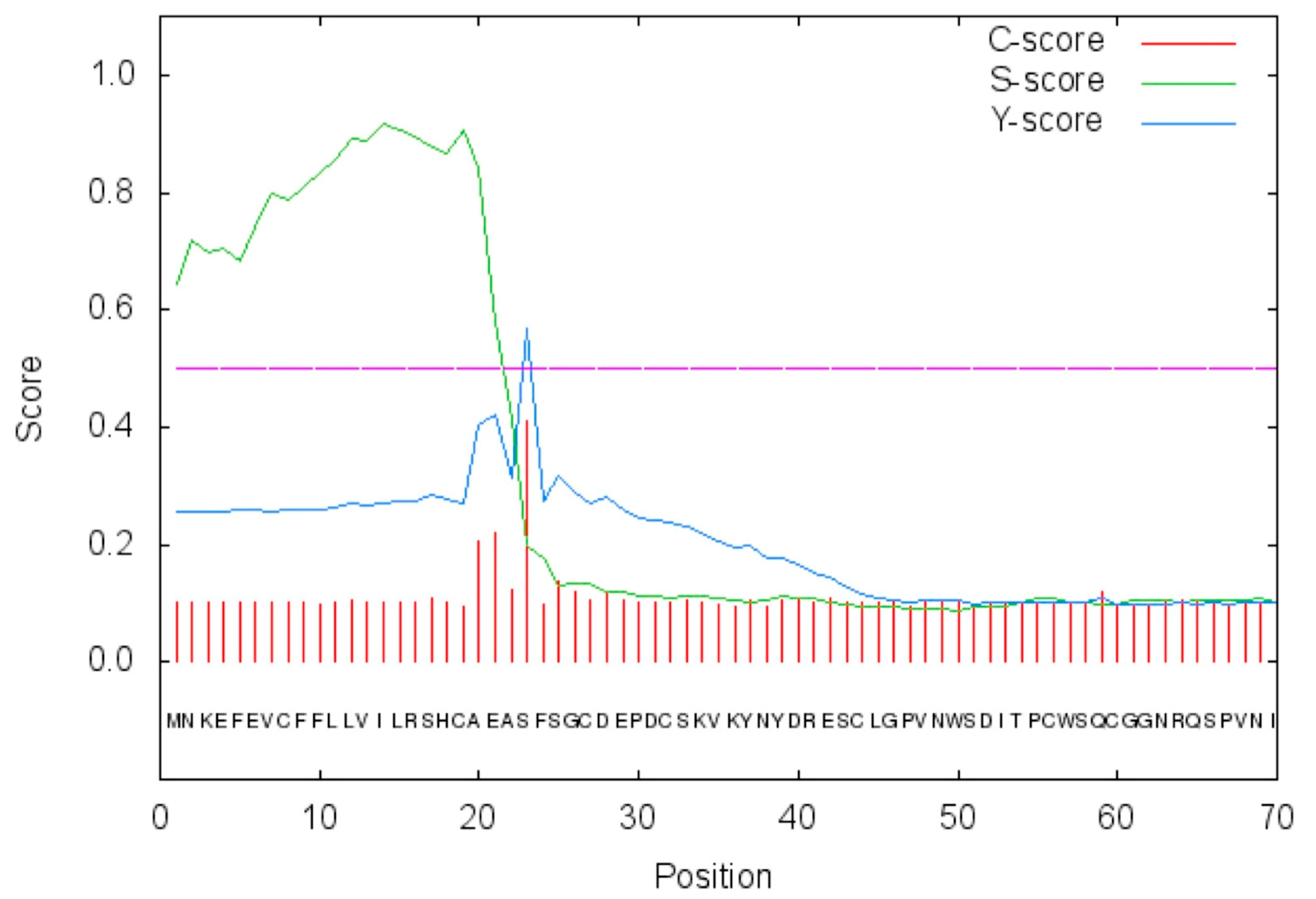

Figure 3. SignalP graphical output showing the three different scores C, S, and Y, for the first 70 positions in the CgiNAP2X1 amino acid sequence. Legend: x-axis, amino acid position; C-score, raw cleavage site score; S-score, signal peptide score; Y-score, combined cleavage site score.
Figure 3. SignalP graphical output showing the three different scores C, S, and Y, for the first 70 positions in the CgiNAP2X1 amino acid sequence. Legend: x-axis, amino acid position; C-score, raw cleavage site score; S-score, signal peptide score; Y-score, combined cleavage site score.
Marinedrugs 15 00270 g003

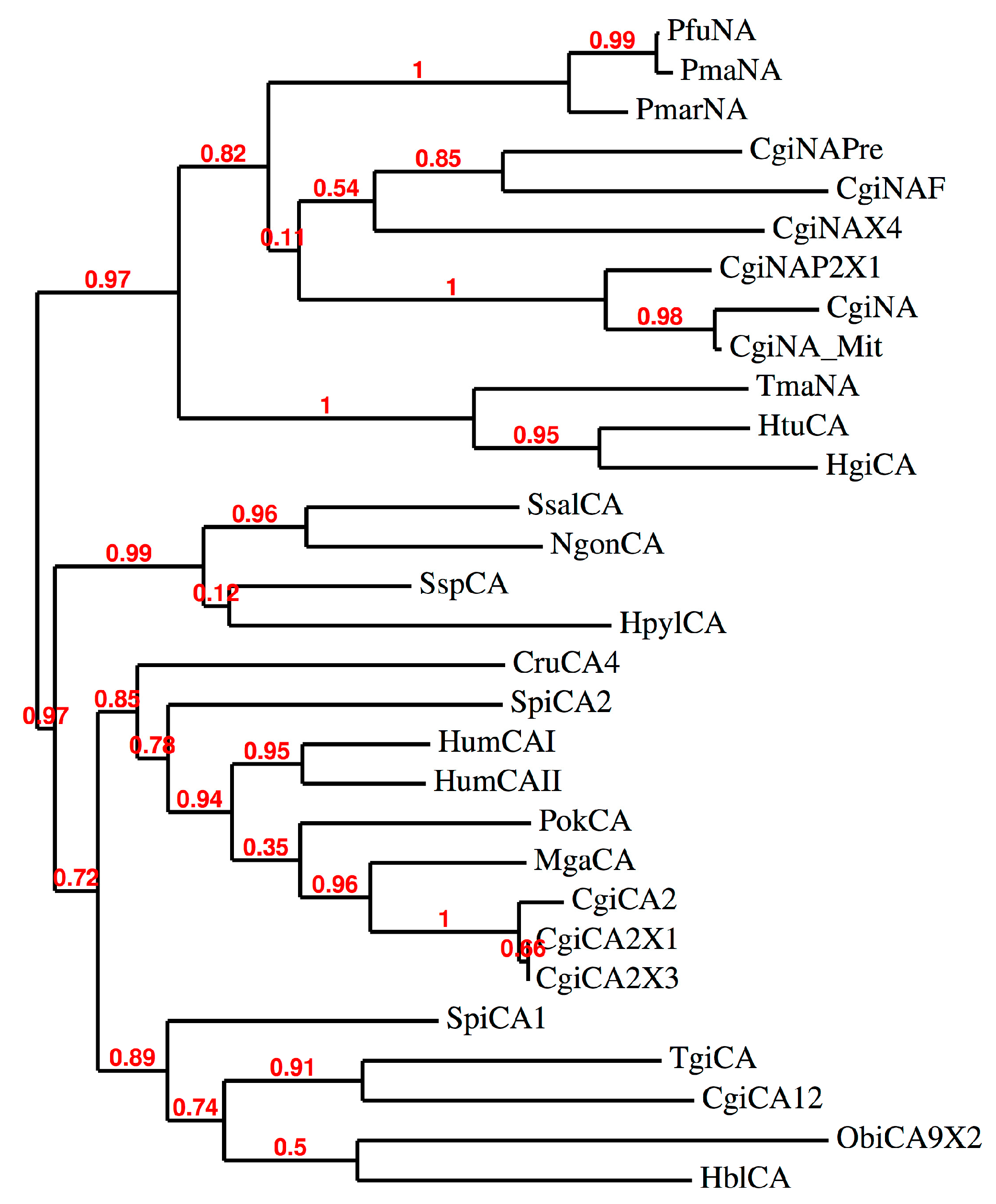

Figure 4. Phylogenetic analysis of CAs from various organisms. The analysis was obtained by using the amino acid sequences of nacrein and nacrein-like proteins identified in mollusks, and the α-CAs coming from molluskan, bacteria, and mammals. Bootstrap values of 100 replicates are reported at branch points. Legend: see Table 1 for sequence accession numbers, cryptonyms, and organisms considered.
Figure 4. Phylogenetic analysis of CAs from various organisms. The analysis was obtained by using the amino acid sequences of nacrein and nacrein-like proteins identified in mollusks, and the α-CAs coming from molluskan, bacteria, and mammals. Bootstrap values of 100 replicates are reported at branch points. Legend: see Table 1 for sequence accession numbers, cryptonyms, and organisms considered.
Marinedrugs 15 00270 g004

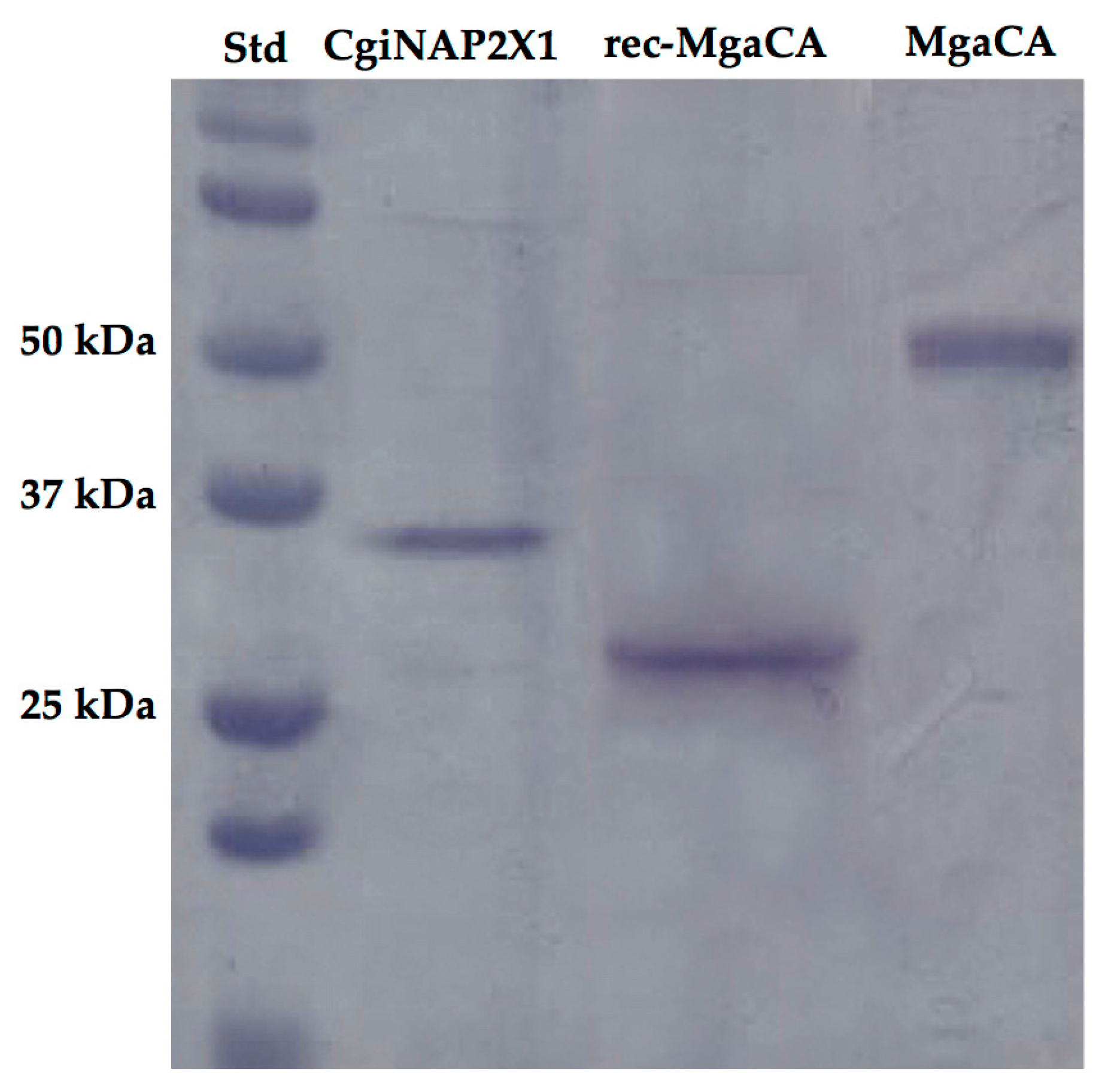

Figure 5. SDS-PAGE of the recombinant molluskan proteins (CgiNAP2X1 and rec-MgaCA) heterologously expressed in Escherichia coli and the native α-CA M. galloprovincialis (MgaCA). Lane STD, molecular markers, M.W. starting from the top: 150 kDa, 100 kDa, 75 kDa, 50 kDa, 37 kDa, 25 kDa, 20 kDa; Lane CgiNAP2X1, recombinant nacrein-like protein from C. gigas; rec-MgaCA, recombinant α-CA from M. galloprovincialis; Lane MgaCA; native α-CA purified from the mantle of M. galloprovincialis.
Figure 5. SDS-PAGE of the recombinant molluskan proteins (CgiNAP2X1 and rec-MgaCA) heterologously expressed in Escherichia coli and the native α-CA M. galloprovincialis (MgaCA). Lane STD, molecular markers, M.W. starting from the top: 150 kDa, 100 kDa, 75 kDa, 50 kDa, 37 kDa, 25 kDa, 20 kDa; Lane CgiNAP2X1, recombinant nacrein-like protein from C. gigas; rec-MgaCA, recombinant α-CA from M. galloprovincialis; Lane MgaCA; native α-CA purified from the mantle of M. galloprovincialis.
Marinedrugs 15 00270 g005

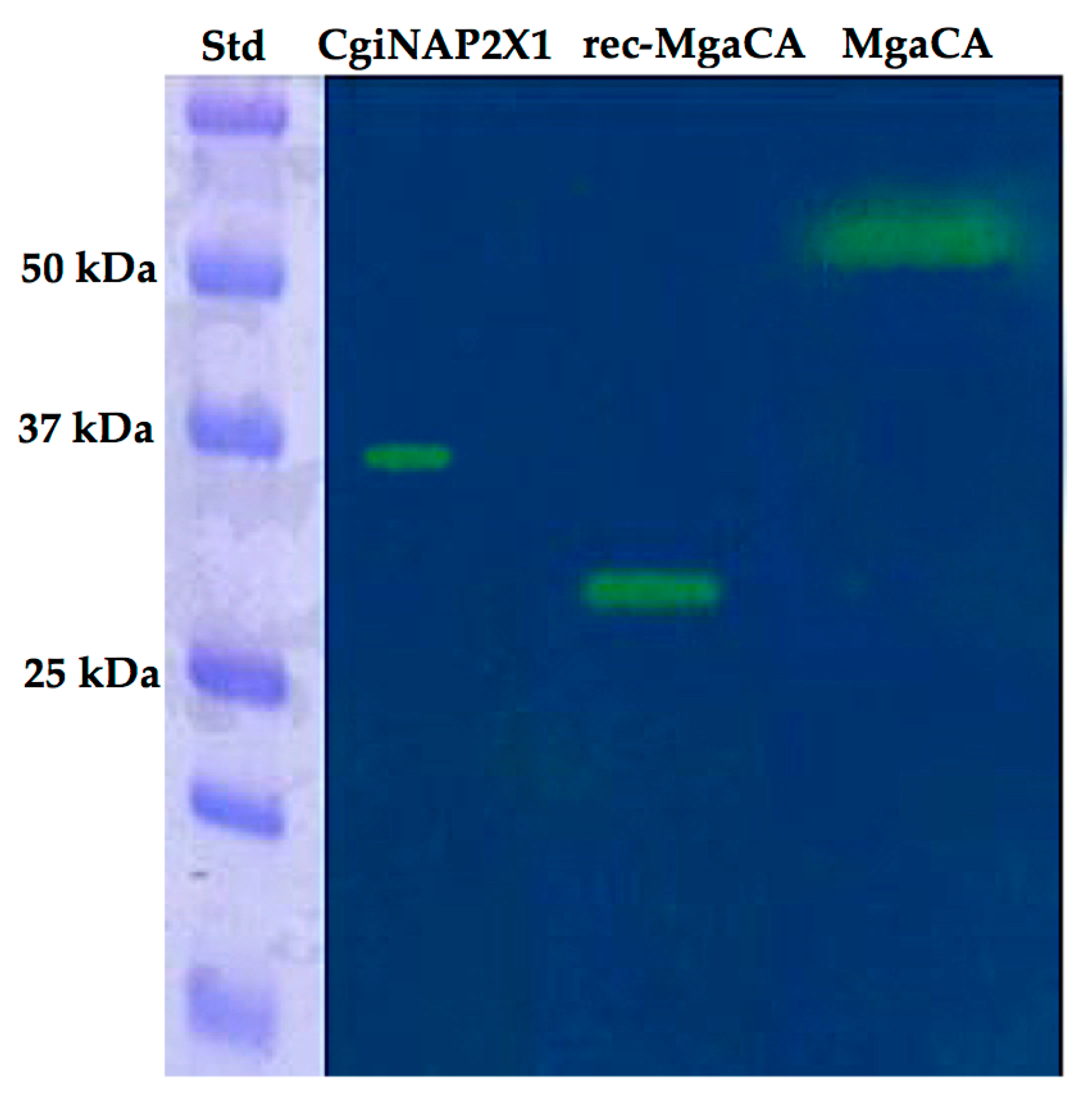

Figure 6. Protonogram showing the CgiNAP2X1, rec-MgaCA, and MgaCA activity on the gel. Protonography was run under denaturing but non-reducing conditions. The gel was loaded with 4 µg/well the aforementioned proteins and incubated for 20 for visualizing the hydratase activity bands (yellow color on the blue background). Lane STD, molecular markers, M.W. starting from the top: 75 kDa, 50 kDa, 37 kDa, 25 kDa, 20 kDa; Lane CgiNAP2X1, recombinant nacrein-like protein from C. gigas; rec-MgaCA, recombinant α-CA from M. galloprovincialis; Lane MgaCA; native α-CA purified from the mantle of M. galloprovincialis.
Figure 6. Protonogram showing the CgiNAP2X1, rec-MgaCA, and MgaCA activity on the gel. Protonography was run under denaturing but non-reducing conditions. The gel was loaded with 4 µg/well the aforementioned proteins and incubated for 20 for visualizing the hydratase activity bands (yellow color on the blue background). Lane STD, molecular markers, M.W. starting from the top: 75 kDa, 50 kDa, 37 kDa, 25 kDa, 20 kDa; Lane CgiNAP2X1, recombinant nacrein-like protein from C. gigas; rec-MgaCA, recombinant α-CA from M. galloprovincialis; Lane MgaCA; native α-CA purified from the mantle of M. galloprovincialis.
Marinedrugs 15 00270 g006
Table 1. Cryptonyms, enzyme types, organisms, and accession numbers of the amino acid sequences used in the phylogenetic analysis.
Table 1. Cryptonyms, enzyme types, organisms, and accession numbers of the amino acid sequences used in the phylogenetic analysis.
AcronymEnzyme TypeOrganismAccession Number
PfuNANacreinPinctada fucataBAA11940.1
PmaNANacrein-likePinctada maximaBAF42330.1
PmarNANacreinPinctada margaritiferaAEC03970.1
CgiNAPreNacrein precursorCrassostrea gigasNP_001292235.1
CgiNAFNacrein isoform FCrassostrea gigasEKC37961.1
CgiNAX4Nacrein isoform X4Crassostrea gigasXP_011426380.1
CgiNAP2X1Nacrein-like isoform P2X1Crassostrea gigasXP_011428406.1
CgiNANacrein-likeCrassostrea gigasXP_011428408.1
CgiNA_MitMitochondrial nacreinCrassostrea gigasEKC36446.1
TmaNANacreinTurbo marmoratusBAB91157.1
HtuCAα-CAHaliotis tuberculataAEL22200.1
HgiCAα-CAHaliotis giganteaBAH58350.1
SsalCAα-CAStreptococcus salivarius]WP_002888224.1
NgonCAα-CANeisseria gonorrhoeaeWP_003688976.1
SspCAα-CASulfurihydrogenibium yellowstonenseWP_012459296.1
HpylCAα-CAHelicobacter pyloriWP_010882609.1
CruCA4α-CA isoform 4Corallium rubrumKU557746.1
SpiCA2α-CA isoform 2Stylophora pistillataACE95141.1
HumCAIα-CA isoform 1Homo sapiensNP_001729.1
HumCAIIα-CA isoform 2Homo sapiensAAH11949.1
PokCAα-CAPhreagena okutaniiBAO01209.1
MgaCAα-CAMytilus galloprovincialisALF62133.1
CgiCA2α-CA isoform 2Crassostrea gigasEKC31880.1
CgiCA2X1α-CA isoform 2X1Crassostrea gigasXP_011447892.1
CgiCA2X3α-CA isoform 2X3Crassostrea gigasXP_011447895.1
SpCA1α-CA isoform 1Stylophora pistillataACA53457.1
TgiCAα-CATridacna gigasAAX16122.1
CgiCA12α-CA isoform 12Crassostrea gigasEKC34762.1
ObiCA9Xα-CA isoform 9XOctopus bimaculoidesXP_014786584.1
HblCAα-CAHeterololigo bleekeriBAL42244.1
Table 2. Comparison of the kinetic parameters for the CO2 hydration reaction catalyzed by CgiNAP2X1 (nacrein) and the α-CAs from Homo sapiens (the two isoforms HumCAI and HumCAII), Stylophora pistillata (isoforms SpiCA1 and SpiCA2), Corallium rubrum (isoform CruCA4), Mytilus galloprovincialis (the native enzyme, MgCA; and the recombinant form, rec-MgaCA). Acetazolamide (AAZ) inhibition data are also shown.
Table 2. Comparison of the kinetic parameters for the CO2 hydration reaction catalyzed by CgiNAP2X1 (nacrein) and the α-CAs from Homo sapiens (the two isoforms HumCAI and HumCAII), Stylophora pistillata (isoforms SpiCA1 and SpiCA2), Corallium rubrum (isoform CruCA4), Mytilus galloprovincialis (the native enzyme, MgCA; and the recombinant form, rec-MgaCA). Acetazolamide (AAZ) inhibition data are also shown.
EnzymeOrganismClasskcat 1 (s−1)kcat/KM1 (M−1 × s−1)KIs (acetazolamide) 1 (nM)
HumCAIHomo sapiensα2.0 × 1055.0 × 107250
HumCAIIHomo sapiensα1.4 × 1061.5 × 10812
CgiNAP2X1Crassotrea gigasNacrein-like1.0 × 1061.2 × 108495
SpiCA1Stylophora pistillataα3.1 × 1054.6 × 10716
SpiCA2Stylophora pistillataα5.6 × 1058.3 × 10774
CruCA4Corallium rubrumα2.4 × 1055.2 × 107450
MgaCAMytilus galloprovincialisα4.1 × 1053.6 × 107380
rec-MgaCAMytilus galloprovincialisα4.2 × 1053.5 × 107361
1 Errors in the range of ±5% of the reported data from three different assays.
Table 3. Inhibition constants of anion inhibitors against α-CAs from mammals (hCA I, and II, human isoforms), and the nacrein-like enzyme CgiNAP2X1 for the CO2 hydration reaction, at 20 °C and pH 7.5 [52].
Table 3. Inhibition constants of anion inhibitors against α-CAs from mammals (hCA I, and II, human isoforms), and the nacrein-like enzyme CgiNAP2X1 for the CO2 hydration reaction, at 20 °C and pH 7.5 [52].
Inhibitor 1KIs [mM] 2
hCA IhCA IICgiNAP2X1
F>100>10012.1
Cl6>10010.8
Br46316.6
I0.3268.86
CNO0.00070.033.11
SCN0.21.605.88
CN0.00050.02>100
N30.00121.51>100
HCO312851.98
CO32−15736.62
NO373510.3
NO28.4637.14
HS0.00060.048.19
HSO31889>100
SnO32−0.570.833.47
SeO42−>100>1008.74
TeO42−0.660.92>100
OsO52−0.920.95>100
P2O74−25.848.59.47
V2O74−0.540.57>100
B4O72−0.640.958.85
ReO40.110.75>100
RuO40.1010.69>100
S2O82−0.1070.08420.7
SeCN0.0850.0868.21
CS32−0.00870.008831.7
Et2NCS20.000790.00310.76
CF3SO3>100>1008.68
PF6>100>100>100
SO42−63>10014.5
ClO4>100>100>100
BF4>100>100>100
FSO30.790.46>100
NH(SO3)22−0.310.76>100
H2NSO2NH20.311.130.076
H2NSO3H0.0210.390.073
Ph-B(OH)258.623.10.072
Ph-AsO3H231.749.20.087
1 As sodium salt, except sulfamide, phenylboronic acid, and phenylarsonic acid; 2 Errors were in the range of 3–5% of the reported values, from three different assays, by a CO2 hydratase assay method [52].
Mar. Drugs EISSN 1660-3397 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
