Marine Drugs 2017, 15(10), 302; doi:10.3390/md15100302

Article
Metabolite Profiling of Triterpene Glycosides of the Far Eastern Sea Cucumber Eupentacta fraudatrix and Their Distribution in Various Body Components Using LC-ESI QTOF-MS
Roman S. Popov 1, Natalia V. Ivanchina 1, Alexandra S. Silchenko 1, Sergey A. Avilov 1, Vladimir I. Kalinin 1, Igor Yu. Dolmatov 2,3, Valentin A. Stonik 1,3 and Pavel S. Dmitrenok 1,*
1
G.B. Elyakov Pacific Institute of Bioorganic Chemistry, Far Eastern Branch of Russian Academy of Sciences, 159 Prospect 100-letiya Vladivostoka, Vladivostok 690022, Russia
2
A.V. Zhirmunsky Institute of Marine Biology, National Scientific Center of Marine Biology, Far Eastern Branch of the Russian Academy of Sciences, 17 Palchevskogo St., Vladivostok 690041, Russia
3
School of Natural Science, Far Eastern Federal University, 8 Sukhanova St., Vladivostok 690090, Russia
*
Correspondence: Tel.: +7-423-231-1132
Received: 18 August 2017 / Accepted: 30 September 2017 / Published: 2 October 2017

Abstract

:
The Far Eastern sea cucumber Eupentacta fraudatrix is an inhabitant of shallow waters of the south part of the Sea of Japan. This animal is an interesting and rich source of triterpene glycosides with unique chemical structures and various biological activities. The objective of this study was to investigate composition and distribution in various body components of triterpene glycosides of the sea cucumber E. fraudatrix. We applied LC-ESI MS (liquid chromatography–electrospray mass spectrometry) of whole body extract and extracts of various body components for metabolic profiling and structure elucidation of triterpene glycosides from the E. fraudatrix. Totally, 54 compounds, including 26 sulfated, 18 non-sulfated and 10 disulfated glycosides were detected and described. Triterpene glycosides from the body walls, gonads, aquapharyngeal bulbs, guts and respiratory trees were extracted separately and the distributions of the detected compounds in various body components were analyzed. Series of new glycosides with unusual structural features were described in E. fraudatrix, which allow clarifying the biosynthesis of these compounds. Comparison of the triterpene glycosides contents from the five different body components revealed that the profiles of triterpene glycosides were qualitatively similar, and only some quantitative variabilities for minor compounds were observed.
Keywords:
sea cucumber; Eupentacta fraudatrix; triterpene glycoside; liquid chromatography–tandem mass spectrometry; metabolite profiling

1. Introduction

Sea cucumbers (Class Holothuroidea, Phylum Echinodermata) are widespread slow-moving marine animals. Metabolome of these animals is characterized by the high content of triterpene glycosides of a great structural diversity. Triterpene glycosides of sea cucumbers have unique chemical structures, significantly differing from those of terrestrial plants. These compounds possess a variety of biological and pharmacological effects including cytotoxic [1,2], antifungal [3,4], bactericidal, hemolytic, antiviral and antiparasitic properties [5]. Some glycosides are capable to induce apoptosis, inhibit the growth of tumor cells [6] and have immunomodulatory properties [7]. In addition, certain species of sea cucumbers are a valuable maricultural resource [8].
Majority of triterpene glycosides from sea cucumbers possess a lanostane-type aglycone with an 18(20)-lactone called as holostane derivatives. Individual triterpene aglycones differ from each other in the number and arrangement of oxygen substituents, double bonds and in the structure of the side chains demonstrating a significant natural diversity. Some triterpene glycosides have aglycones with 18(16)-lactone or without a lactone cycle. Usually, triterpene glycosides have a polycyclic nucleus with 7(8)- or 9(11)-double bond and oxygen-containing substituents, which may be bonded to C-12, C-17 or C-16. The side chains of aglycones may have one or more double bonds, hydroxyl or acetate groups and other substituents. Some glycosides have aglycones with shortened side chains.
The oligosaccharide chain of triterpene glycosides is attached to C-3 of the aglycone and may include up to six sugar units. Oligosaccharide chains with up to four monosaccharide units usually have a linear structure, while the penta- and hexaosides contain a branching at the first or second monosaccharide unit. Xylose (Xyl), glucose (Glc), quinovose (Qui), 3-O-methylglucose (MeGlc), and, rarely, 3-O-methylxylose (MeXyl) are the most common sugar residues in triterpene glycosides. The first unit in oligosaccharide chain is always xylose, quinovose (rarely glucose or xylose) is usually the second monosaccharide unit and glucose (or xylose) is the third [1,4]. The methylated monosaccharides always occupy the terminal position. Many glycosides have up to three sulfate groups at certain positions of the oligosaccharide chain.
It is supposed that triterpene glycosides have multiple defensive roles such as defense against predators, parasites and microorganisms. Indeed, a high percentage of these compounds in the Cuvierian tubules, that can be ejected toward a predator as well as their strong ichthyotoxic and membranolytic effects indicate their effective action against predators [9,10]. In addition, it is likely that glycosides play an important role in regulating the reproduction of sea cucumbers [11].
Triterpene glycosides display taxonomic specificity for different systematic groups of sea cucumbers. The level of this specificity may be different in various sea cucumbers taxa. The glycoside structures are specific for one genus or a group of genera for the sea cucumbers of the order Aspidochirotida. However, these compounds are usually species-specific for the representatives of the order Dendrochirotida [12].
Triterpene glycosides are usually present in extracts of sea cucumbers as complex mixtures. Minor compounds of these extracts remain largely unstudied, although knowledge about their chemical structures is also important for understanding of biosynthesis and biological roles of these compounds. Recent investigations have demonstrated the power of MS approaches for profiling and for studying of the body distribution of sea cucumber triterpene glycosides [13,14]. All sea cucumbers contain triterpene glycosides in their body walls and viscera; however, recent studies have demonstrated difference in content of these metabolites in the Cuvierian tubules and in the body wall. All the glycosides, detected in the body walls of Holothuria forskali were found to be also present in the Cuvierian tubules but the latter also contain specific congeners. Furthermore, profiles of triterpene glycosides in both analyzed body parts varied under stress condition [9,10,15].
The sea cucumber Eupentacta fraudatrix (Djakonov et Baranova) (=Cucumaria fraudatrix Djakonov et Baranova = Cucumaria obunca Lampert) (Family Sclerodactylidae, Order Dendrochirotida) is a common species in the shallow waters of the south part of the Sea of Japan and is a rich source of triterpene glycosides. E. fraudatrix is a well-studied species that is often used as a model organism in biological studies of various processes such as development [16,17], regeneration [18,19,20] and immunity [21,22,23]. The previous investigations of the sea cucumber E. fraudatrix have led to isolation of 37 triterpene glycosides comprising 15 non-sulfated tetraosides (cucumariosides A1–A15 [24,25,26]), two non-sulfated triosides (cucumariosides B1 and B2 [27]), two non-sulfated pentaosides (cucumariosides C1 and C2 [28]), 4 sulfated tetraosides (cucumariosides G1–G4 [29,30,31,32]), eight sulfated pentaosides (cucumariosides H, H2–H8 [33,34,35]), two disulfated tetraosides (cucumariosides F1 and F2 [36]), and four disulfated pentaosides (cucumariosides I1–I4 [37,38]). The majority of the glycosides from E. fraudatrix are characterized by the presence of 3-O-MeXyl residue as terminal unit in carbohydrate chain, which is considered a chemotaxonomic marker of the genus Eupentacta. Herein, we describe the application of LC-ESI MS for metabolic profiling, evaluation of the structural variability, structure elucidation and further refinement of known biosynthetic patterns of triterpene glycosides from the sea cucumber E. fraudatrix. In addition, triterpene glycosides from the body walls, gonads, aquapharyngeal bulbs, guts and respiratory trees were extracted separately and distribution of the detected compounds in various body components were analyzed.

2. Results and Discussion

2.1. Profiling and Structural Identification of the Triterpene Glycosides from E. fraudatrix

Profiling of triterpene glycosides from the whole body extract of the sea cucumber E. fraudatrix using LC-MS approach allowed numerous new as well as previously isolated triterpene glycosides to be characterized. The HPLC profile revealed at least 54 compounds, including 26 sulfated, 18 non-sulfated and 10 disulfated glycosides (Figure 1 and Figure 2; Table 1; Figure S1; the numbers of the compounds correspond to the peak numbers on (−)LC-MS chromatogram).
In positive ion mode, the majority of triterpene glycosides were detected within m/z range from 1000 to 1400 a.m.u. as [M + Na]+ ions. However, stable peaks of [M + Na]+ ions for disulfated glycosides were not observed in these conditions. In negative ion mode, sulfated and disulfated glycosides were detected as [M − Na] and [M − 2Na]2− peaks, respectively, whereas non-sulfated compounds were detected as [M − H] peaks.
The assignments of these compounds in all samples analyzed were based on the data of high resolution LC-MS and LC-MS/MS performed in both negative and positive ion modes. Elemental composition, determined on the base of high resolution data (mass accuracy tolerance < 2 ppm), fragmentation patterns of MS and MS/MS spectra, as well as chromatographic behavior of the corresponding compounds, allowed their structures to be proposed. It is known that triterpene glycosides are characterized by large structural variability. Generally, mass spectrometry does not permit to determine configuration of the unknown compounds. Besides, different epimeric monosaccharides as well as types of bonds between sugars cannot be strictly distinguished only by MS. However, the combination of the obtained data and biosynthetic considerations allows tentative structural assignments for the detected compounds.
It is known that the majority of triterpene glycosides have a xylose at C-3 of the aglycone as the first monosaccharide unit, quinovose as the second monosaccharide unit, and glucose (or xylose) as the third monosaccharide unit in the main chain [1,4]. Methylated monosaccharides are always terminal units. Considering that the oligosaccharide chains of earlier isolated triterpene glycosides from this sea cucumber are closely related to each other and have general architecture 3-O-methyl-β-d-xylopyranosyl-(1→3)-β-d-glucopyranosyl-(1→4)-β-d-quinovopyranosyl-(1→2)-β-d-xylopyranosyl in the linear part of carbohydrate chains and may have β-d-xylopyranosyl-(1→2) in the branching at the second monosaccharide, some suggestions concerning structures of oligosaccharide chains of unknown glycosides may be proposed. In addition, most of the previously isolated glycosides of E. fraudatrix have a 16β-acetoxyholosta-7-ene aglycone. These common structural features give a possibility to propose structures for a series of newly identified glycosides.
The structures of detected glycosides were characterized by tandem MS. The (−)MS/MS provided many product ion series arising from the cleavages of both glycosidic bonds and bond of aglycone side chain. (+)MS/MS provided an intense B- and C-type product ion series (nomenclature according to Domon and Costello [39]) arising from the cleavages of glycosidic bonds with charge located on saccharide fragment (Table S1). These product ion series are characteristic and provided information about the sequence of monosaccharide units in carbohydrate chains. For example, the positive product ion spectrum of [M + Na]+ precursor at m/z 1251.5776 (compound 41) exhibits extensive fragmentation namely peaks at m/z 169.05 [MeXyl + Na]+, 331.10 [MeXyl + Glc + Na]+, 349.11 [MeXyl + Glc + H2O + Na]+, 389.14 [MeXyl + Glc + C3H6O + Na]+, 417.14 [MeXyl + Glc + C4H6O2 + Na]+, 477.16 [MeXyl + Glc + Qui + Na]+, 537.18 [MeXyl + Glc + Qui + C2H4O2 + Na]+, 609.20 [MeXyl + Glc + Qui + Xyl + Na]+, 627.21 [MeXyl + Glc + Qui + Xyl + H2O + Na]+, 669.22 [MeXyl + Glc + Qui + Xyl + C2H4O2 + Na]+, 741.24 [MeXyl + Glc + Qui + 2Xyl + Na]+, and 759.25 [MeXyl + Glc + Qui + 2Xyl + H2O + Na]+ (Figure 3). This fragmentation pattern corresponded to a branched non-sulfated oligosaccharide chain consisting of five monosaccharide units and compound 41 was identified as cucumarioside C2.
In some cases, several typical mass losses between the precursor and the fragment ions were detected in product ion spectra. These typical mass losses are related to the aglycone and provide information about the structure of nucleus and side chain. In MS/MS spectra of the majority of the glycosides, a mass loss of 60 Da between the precursor and the intense fragment ion was detected (for example, Figure S2). This corresponds to the loss of C2H4O2 molecule (acetic acid) and is a characteristic of the glycosides containing an acetoxy group [40]. Next intense fragment ion with a mass loss 104 Da from the precursor corresponds to the loss of a [C2H4O2 + CO2] fragment and is characteristic for the glycosides containing an acetoxy group and a 18(20)-lactone cycle. Analysis of the MS/MS spectra of a number of triterpene glycosides isolated earlier allowed to identify characteristic fragment peaks related with the cleavages of side chains. For example, (+)MS/MS spectra of the cucumarioside A1 with 24-ene side chain have a mass loss of 228.1359 Da, corresponding to the loss of a C12H20O4 fragment (Figure S2). The (+)MS/MS spectra of the glycosides with 22,24-diene system in the side chain display a characteristic mass loss of C11H17O4 fragments (213.1121 Da). Otherwise, spectra of cucumarioside A15 with saturated side chain display a characteristic mass losses of fragments C12H22O4 (230.1525 Da) and C10H10O4 (204.1370 Da). These fragmentation patterns enable to propose structural features of aglycones for newly identified glycosides.
In accordance with the structures of oligosaccharide chains, all detected glycosides of E. fraudatrix can be divided into eleven groups (I–XI). Compounds of group I (9, 12, 18, 37, 41, 45, 49, and 53) had branched non-sulfated oligosaccharide chain consisting of five monosaccharide units—methylated xylose, glucose, quinovose and xylose in the main chain and xylose as branching unit at the second monosaccharide. Such type of oligosaccharide chain corresponds to known cucumariosides of the C-group. Obtained data allowed to identify the glycosides 37 (m/z 1227.5799 [M − H], calcd 1227.5804) as cucumarioside C1 and 41 (m/z 1227.5796 [M − H], calcd 1227.5804) as cucumarioside C2 [28]. These compounds have similar holostane type aglycones having 16β-OAc and 7(8)-double bond in the nucleus and two double bonds in side chains which differ in the configuration of C-22 (22Z,24-diene system for cucumarioside C1 and 22E,24-diene system for cucumarioside C2). As a result, these compounds have similar MS/MS spectra, but their retention times differ (Rt of 37 is 23.1 min, and Rt of 41—24.2 min). It was found that the glycosides with 22Z,24-diene system in the side chain have shorter retention time then analogous compounds with 22E,24-diene system. This made it possible to identify such pairs of similar compounds. In addition, (+)MS/MS spectra of 37 and 41 have characteristic mass losses of 204 Da and 213 Da, which confirm their structure. Compounds 45 (m/z 1229.5956 [M − H], calcd 1229.5961) and 49 (m/z 1231.6110 [M − H], calcd 1231.6117) differed in 2 and 4 Da, respectively, versus compounds 37 and 41. Their MS/MS spectra were similar to the spectra of compounds 37 and 41, but in (+)MS/MS spectrum of 45 a characteristic fragment peak [M + Na − C12H20O4]+ was detected at m/z 1025.4557, and in (+)MS/MS spectrum of 49 the fragment peaks [M + Na − C12H22O4]+ and [M + Na − C10H20O4]+ were detected at m/z 1025.4550 and 1051.4709, respectively. This indicates the presence of one double bond in 45 and no double bonds in the side chain of 49. All these data revealed that 45 has a 16β-acetoxyholosta-7,24-diene aglycone and 49 has 16β-acetoxyholosta-7-ene aglycone. Structures of these two compounds are similar to known cucumariosides A1 and A15, respectively, with additional xylose as branching monosaccharide unit. Aglycone of glycoside 18 (m/z 1101.5126 [M − H], calcd 1101.5123) has no fragmentation in tandem MS; HR MS and chromatographic behavior of this compound corresponds to that having a 23,24,25,26,27-pentanorlanostane aglycone with an 18(16)-lactone. Compound 12 (m/z 1201.5634 [M − H], calcd 1201.5648) may has 16S,22R-epoxy-holosta-7,23E-diene-25-ol aglycone. Such aglycone was previously found in cucumarioside H8, a sulfated derivative of 12 [33]. MS/MS data of 53 (m/z 1217.6314 [M − H], calcd 1217.6324) showed that this compound has an aglycone with one oxygen less than some other aglycones of this group. The presence of a characteristic fragment peak [M + Na − C9H18O]+ at m/z 1099.4918 may indicate that the aglycone of 53 has no γ-lactone moiety and probably has a structure of 16-acetoxy-20-hydroxy-lanosta-7,24-diene. The structure of the aglycone of glycoside 9 was not defined.
The compounds of group II (43, 44, 47, 48, and 51) have a linear non-sulfated oligosaccharide chain with four monosaccharides—methylated xylose, glucose, quinovose and xylose. Such type of oligosaccharide chain corresponds to known cucumariosides of the A-group. Glycoside 47 (m/z 1097.5534 [M − H], calcd 1097.5538) was identified as cucumarioside A1 based on comparison of its retention time, MS spectra and elemental composition with those of standard compound [24]. Glycoside 48 (m/z 1101.5851 [M − H], calcd 1101.5851) was identified as cucumarioside A8 by analogous way as for 47 [26]. The MS data obtained for compound 51 (m/z 1101.5843 [M − H], calcd 1101.5851) were identical of those of cucumarioside A8 indicating similarity of structures of 51 and 48. Glycoside 51 may differ in configuration or position of the double bond in the side chain. We suggest that this glycoside contains a 20-hydroxy-25(26)-ene fragment in the aglycone. Glycoside 43 (m/z 1095.5380 [M − H], calcd 1095.5381) was identified as cucumarioside A5 based on MS spectra and elemental composition [24]. This metabolite has an aglycone with 22Z,24-diene system in the side chain. Compound 44 (m/z 1095.5379 [M − H], calcd 1095.5381) is similar to 43, but its retention time is higher. This may indicate that 44 has an aglycone with 22E,24-diene system in the side chain.
Fragmentation of oligosaccharide chain of glycosides of the group III (34 and 39) was similar to fragmentation of oligosaccharide chain of glycosides of the group I, but all fragment peaks in MS/MS spectra were shifted by 30 Da (Table S1). This may be due to the replacement of the terminal methylated xylose with a methylated glucose residue. Thus, group III includes compounds having non-sulfated main oligosaccharide chain with methylated glucose, glucose, quinovose and xylose monosaccharide units and xylose as branching unit. Data of glycosides 34 (m/z 1257.5905 [M − H], calcd 1257.5910) and 39 (m/z 1257.5907 [M − H], calcd 1257.5910) were similar to those of cucumariosides C1 (37) and C2 (41), respectively. This may indicate that glycosides 34 and 39 have the same 16β-acetoxyholosta-7-ene aglycone with 22Z,24-diene system for 34 and 22E,24-diene system for 39. Actually, these compounds were isolated and their preliminary structures were confirmed by 1D NMR (Figures S6–S8).
Glycosides of group IV (40 and 36) have a non-sulfated oligosaccharide chain consisted of glucose, quinovose, and two xylose units. The presence of two Y-type fragment peaks at m/z 973.4761 [M + Na − Xyl]+ and 943.4650 [M + Na − Glc]+ in MS/MS of 40 indicates the oligosaccharide chain with two terminal non-methylated monosaccharides. Thus, the structure of the oligosaccharide chain of IV group glycosides was similar to those of I or III groups, without terminal methylated monosaccharide. Fragmentation pattern and HR MS data of compounds 36 (m/z 1081.5224 [M − H], calcd 1081.5225) and 40 (m/z 1081.5221 [M − H], calcd 1081.5225) corresponded to holostane type aglycones with 16β-OAc and 7(8)-double bond in the nucleus and side chain with two double bonds. Comparison of retention times of these glycosides indicates that 36 have 22Z,24-diene system and 40 have 22E,24-diene system in the side chains.
The group V (3, 4, 10, 13, 21, 25, and 29) include glycosides with branched pentasaccharide chain having one sulfate group at the first xylose unit and 3-O-methyl-xylose as a terminal monosaccharide unit and belong to the group of cucumariosides H. Structure of carbohydrate moieties were confirmed by tandem MS. Fragmentation of oligosaccharide chain of the glycosides of group V under collision induced dissociation (CID) conditions gave the intense characteristic product ion series of A-, B- and C-type ions (Table S1). Fragment ions C4, B4 and A4 were mainly observed in desulfated form. In addition, CID spectra of sulfated glycosides provided characteristic product ion 1,5A4, arising from the cleavage of the ring of sulfated xylose unit. Glycosides 10 (m/z 1325.5472 [M − Na], calcd 1325.5478), 13 (m/z 1181.4692 [M − Na], calcd 1181.4691), 21 (m/z 1307.5369 [M − Na], calcd 1307.5372), 25 (m/z 1307.5370 [M − Na], calcd 1307.5372), and 29 (m/z 1309.5524 [M − Na], calcd 1309.5529) were identified as cucumariosides H2, H3, H5, H, and H6, respectively, based on the comparison of their retention times, MS spectra and elemental compositions with those of standard compounds [33,34,35]. Structures of glycosides 3 and 4 were not defined.
Glycosides of group VI (6, 14, 16, 26, 30, 32, 42, and 50) belong to the group of cucumariosides G, having a linear tetrasaccharide chain with one sulfate group at the first xylose unit and 3-O-methyl-xylose as a terminal monosaccharide unit. MS/MS data obtained in both negative and positive ion modes and HR mass values allowed to identify glycosides 14 (m/z 1193.5051 [M − Na], calcd 1193.5051) as cucumarioside G4 [30], 16 (m/z 1049.4268 [M − Na], calcd 1049.4269) as cucumarioside G2 [32], 26 (m/z 1175.4946 [M − Na], calcd 1175.4950) as cucumarioside G3 [31], and 32 (m/z 1177.5101 [M − Na], calcd 1177.5106) as cucumarioside G1 [29]. Aglycone of 30 (m/z 1175.4946 [M − Na], calcd 1175.4950) was identified as 16β-acetoxyholosta-7,22E,24-triene-3β-ol. Compound 42 (m/z 1179.5253 [M − Na], calcd 1179.5263) probably has holostane type aglycone similar to aglycone of 49 with 16β-OAc and 7(8)-double bond in the nucleus and without double bonds in the side chain. Aglycone of 50 (m/z 1165.5467 [M − Na], calcd 1165.5470) is similar to the aglycone of 53 and has the structure 16-acetoxy-20-hydroxy-lanosta-7,24-diene. Structure of the aglycone of glycoside 6 was not defined.
Compounds of group VII (22 and 27) have branched oligosaccharide chain consisting of five monosaccharide units—3-O-methyl-glucose as a terminal monosaccharide, glucose, quinovose and sulfated xylose in main chain and xylose as branching unit at second monosaccharide. In MS/MS spectra of glycoside 22 (m/z 1337.5472 [M − Na], calcd 1337.5478) fragment peaks characteristic for a holostane aglycone with 16β-OAc and two double bonds in the side chain were detected. Obtained data indicated that 27 (m/z 1339.5629 [M − Na], calcd 1339.5634) probably has 16β-acetoxyholosta-7,24-diene aglycone.
The group VIII (17, 31, 38, and 52) includes compounds with linear tetrasaccharide chain containing terminal 3-O-methyl-xylose, sulfated glucose, quinovose and sulfated xylose. These glycosides belong to the group of cucumariosides F. It should be noted that in the positive ion mode it was not possible to obtain stable ions [M + Na]+ for disulfated glycosides, so negative ion MS/MS spectra of [M − 2Na]2− ions were used for analysis. Fragmentation of oligosaccharide chain of [M − 2Na]2− ion in MS/MS spectra of disulfated glycosides under CID conditions gave the characteristic product ion series of A-, B- and Y-types ions, which were mainly observed in desulfated form (Table S1). All data allowed identifying glycosides 31 (m/z 627.2223 [M − 2Na]2−, calcd 627.2223) as cucumarioside F2 and 38 (m/z 628.2301 [M − 2Na]2−, calcd 628.2301) as cucumarioside F1 [36]. Glycoside 17 (m/z 564.1882 [M − 2Na]2−, calcd 564.1882) has 23,24,25,26,27-pentanorlanostane aglycone with an 18(16)-lactone. Structure of the aglycone of glycoside 52 was not defined.
Oligosaccharide chain of glycosides group IX (11, 15, 23, and 28) belonging to the group of cucumariosides I, has a main chain with terminal 3-O-methyl-xylose, sulfated glucose, quinovose and sulfated xylose and xylose as branching monosaccharide unit. Glycosides 11 (m/z 702.2493 [M − 2Na]2−, calcd 702.2487), 15 (m/z 630.2098 [M − 2Na]2−, calcd 630.2093), 23 (m/z 693.2437 [M − 2Na]2−, calcd 693.2434), and 28 (m/z 694.2510 [M − 2Na]2−, calcd 694.2512) were identified as cucumariosides I3, I4, I2, and I1, respectively, based on the comparison of their retention times, MS spectra and elemental compositions with those of standard compounds [37,38].
Besides the described groups, two glycosides with trisaccharide chains were present in analyzed sample. In (−)MS/MS spectra of 33 (group X) (m/z 1029.4364 [M − Na], calcd 1029.4371) were detected fragment peaks at m/z 519.1029 [Glc + Qui + XylSO3], 867.3829 [M − Na − Glc], and 721.3245 [M − Na − Glc − Qui]. In (−)MS/MS spectra of 35 (group XI) (m/z 999.4257 [M − Na], calcd 999.4265) were detected fragment peaks at m/z 489.0899 [Xyl + Qui + XylSO3] and 867.3832 [M − Na − Xyl]. Both glycosides probably have the same holostane type aglycone with 16β-OAc and two double bonds in side chains (probably 22E,24-diene).
Thus, all glycosides of E. fraudatrix can be divided into eleven groups in accordance with structures of oligosaccharide chains. Five types of oligosaccharide chains were not found in E. fraudatrix previously. According to literature data, the majority of triterpene glycosides of E. fraudatrix have 3-O-MeXyl as terminal monosaccharide unit. We revealed new glycosides with terminal 3-O-MeGlc residue (22, 27, 34, and 39); two of them (34, and 39) were isolated, and their tentative structures are further supported by 1D NMR (Figures S6–S8).
The fact that not all previously isolated glycosides have been found by LC-MS approach in this study of E. fraudatrix could be explained by the changes in the quantitative and qualitative composition of different components of the glycosidic fraction in the samples of one species collected in different places and seasons. A representative example of such changes has been reported for the components of the glycosidic fraction of Psolus fabricii, where two different glycosides were predominant or minor in the samples collected near Onekotan Island or Ushishir Islands (Kuril Islands) [41,42]. Another example is given by the glycosides of Massinium (=Neothynidium) magnum where the structures of glycosides from various places or various times of collection were strongly different [43]. In addition, some earlier isolated cucumariosides of A-group may be artifacts formed during the isolation process [24].
Obtained data allowed us to propose a biosynthetic pathway for oligosaccharide chains in E. fraudatrix (Figure 4), in agreement with the biosynthetic pathway of oligosaccharide chains proposed earlier [27]. The elongation of the oligosaccharide chain occurs by the addition of monosaccharide residues to various positions of the forming oligosaccharide chain. This leads to the formation of glycosides with different oligosaccharide chains. Sulfatation of triterpene glycosides may occur at different stages of the forming of carbohydrate chains resulting in the appearance of sulfated oligosaccharide moieties comprised from two to six sugar units. From this viewpoint, cucumarioside B2 [27] having the same but non-sulfated carbohydrate chain as 35 represents a biosynthetic precursor of the new glycoside 35. Analogical relationships are observed in the series of isolated glycosides of E. fraudatrix: cucumariosides of C-group (I) → cucumariosides of H-group (V) → cucumariosides of I-group (IX); cucumariosides of A-group (II) → cucumariosides of G-group (VI) → cucumariosides of F-group (VIII); and also in the groups III → VII detected by ESI MS.

2.2. Distribution of Detected Glycosides in the Different Body Components

Quantitative and qualitative analysis of detected triterpene glycosides in various body components of E. fraudatrix was also performed. We separately extracted triterpene glycoside mixtures from respiratory trees (RT), body walls (BW), gonad tubules (GN), guts (G) and aquapharyngeal bulbs (AB) and analyzed them by LC-ESI QTOF-MS. The profiling revealed that all the triterpene glycosides detected in the whole body extract were also present in all analyzed body parts.
The maximal content of overwhelming majority of the analyzed glycosides was observed in the body walls when compared with other body components of sea cucumber. This observation is a very good corroboration of a defensive role of triterpene glycosides. Since E. fraudatrix does not contain Cuvierian tubules, it accumulates the defensive molecules of triterpene glycosides in the body walls in order to indicate to predator its unpalatability. The main components of glycosidic fraction—cucumariosides C1 (37) and C2 (41), compounds 39 and 45, as well as cucumariosides F1 (38) and G1 (32)—predominate in the body walls. These compounds contain pentasaccharide non-sulfated or tetrasaccharide mono- or disulfated carbohydrate chains making them highly hydrophilic substances and accelerating their diffusion to the surrounding water. Moreover, such compounds usually demonstrate significant membranolytic activities [1]. All these data also confirm the main external function of glycosides as chemical defense system.
The profiling of extracts from different body components revealed that relative amounts (normalized by sum and scaling) of most compounds were approximately the same (Figure 5; Figure S9). However, several minor compounds were more typical for certain body components. Relative amounts of compounds 12, 15, 17 and some others (Figure 5; Figures S9 and S10) are significantly higher in gonads than in body walls or other organs. The analysis of their structures revealed that compounds 15 and 17 have non-holostane aglycones with shortened side chains thus having structural similarity with steroidal hormones of vertebrates. It is known that sex hormones of vertebrates are biosynthesized from cholesterol via the cleavage of its side chain through the oxidation of C-20 and C-22 positions [44]. Actually, compound 12 contains a oxygen-bearing substituent in C-22 position as well as a oxidized C-20 position that makes it a putative biosynthetic precursor of the aglycones with shortened side chains such as 15 and 17. All these data are in good agreement with the earlier suggested internal biological function of the glycosides—the regulation of oocytes maturation in the sea cucumbers.
Interestingly, the glycosides of group IV (36 and 40) having peculiar “undeveloped” branched tetrasaccharide chains without methylated terminal sugar unit were characteristic for guts (Figure S11). There is a correlation between the contents of some glycosides in aquapharyngeal bulbs and respiratory trees (compounds 1, 2, 4, 5, 7, 8, and 9; Figure S9) that may indicate additional biological functions of triterpene glycosides in the organism-producer, which have to be investigated.

3. Materials and Methods

3.1. Chemicals

Methanol (quality HPLC gradient grade) and water (quality UV-HPLC grade) were obtained from Panreac (Barcelona, Spain). All other chemicals and reagents were of analytical grade or equivalent. Cucumariosides A1–A4, A6–A15 [24,25], H, H2–H8 [34,35,37], F1–F2 [36], I1–I4 [37,38] isolated early from the E. fraudatrix and typicoside A2 isolated early from the sea cucumber Actinocucumis typica [45] were used as standards of triterpene glycosides. Structures of these compounds were established using different methods including high resolution NMR.

3.2. Animal Material

Specimens of the sea cucumber Eupentacta fraudatrix (Djakonov et Baranova) (family Sclerodactylidae, order Dendrochirotida) were collected at Amursky Bay (Peter the Great Gulf, the Sea of Japan) in April 2017 at a depth of 1.0–1.5 m. Species identification was carried out by Dr. I.Yu. Dolmatov (A.V. Zhirmunsky Institute of Marine Biology, National Scientific Center of Marine Biology, Far Eastern Branch of Russian Academy of Sciences, Vladivostok, Russia). Voucher specimen No. PIBOC-2017-04-EF is preserved in the collection the G.B. Elyakov Pacific Institute of Bioorganic Chemistry.

3.3. Sample Preparation and Solid-Phase Extraction (SPE)

Seven fresh animals (m = 3.9 ± 1.3 g) were chopped and extracted thrice with ethanol (totally 0.5 L, for 10 h). Other seven animals were dissected and separated into respiratory trees (RT, m = 1.7 g), body walls (BW, m = 10.2 g), gonad tubules (GN, m = 3.9 g), guts (G, m = 4.3 g) and aquapharyngeal bulbs (AB, m = 3.9 g). Metabolites from five different body components were extracted thrice with ethanol (totally 100 mL, for 10 h). Extracts were filtered, dried and reconstituted in 15 mL ethanol.
Two hundred microliters of the extract was centrifuged, and the supernatant was subjected solid-phase extraction (SPE). SPE cartridges (BondElut C18, 100 mg/1 mL, Agilent Technologies, Santa Clara, CA, USA) were fitted into stopcocks and connected to a vacuum manifold. The sorbent was conditioned with 3 mL of ethanol followed by 3 mL water. Care was taken that the sorbent did not become dry during conditioning. With the stopcocks opened and the vacuum turned on, the samples were loaded onto the cartridge. The 100 μL of extract were loaded into the SPE cartridge by drops. After sample addition, the SPE cartridge was washed with 1 mL of water. Glycosides were eluted with 1 mL of 100% ethanol. These extracts were dried and dissolved in 500 μL 80% MeOH in water (v/v) and subjected to LC-MS analyses.

3.4. LC-MS Analysis

Analysis was performed using an Agilent 1200 series chromatograph (Agilent Technologies, Santa Clara, CA, USA) connected to a Bruker Impact II Q-TOF mass spectrometer (Bruker Daltonics, Bremen, Germany). Zorbax Eclipse XDB-C18 column (1.0 × 150 mm, 3.5 μm, Agilent Technologies, Santa Clara, CA, USA) with Zorbax SB-C8 guard-column (2.1 × 12.5 mm, 5 μm, Agilent Technologies, Santa Clara, CA, USA) were used for chromatographic separation. The mobile phases were 0.1% formic acid in H2O (eluent A) and 0.1% formic acid in MeOH (eluent B). The gradient program was as follows: isocratic at 60% of eluent B from start to 3 min, from 60% to 90% eluent B from 3 to 29 min, from 90% to 100% eluent B from 29 to 30 min, isocratic at 100% of eluent B to 35 min, from 100% to 60% eluent B from 35 to 38 min. After returning to the initial conditions, the equilibration was achieved after 15 min. Chromatographic separation was performed at a 0.1 mL/min flow rate at 40 °C. Injection volume was 1 μL.
The mass spectrometry detection has been performed using ESI ionization source. Optimized ionization parameters for ESI were as follows: a capillary voltage of ±4.0 kV, nebulization with nitrogen at 0.8 bar, dry gas flow of 7 L/min at a temperature of 200 °C. Metabolite profiles in positive ion mode were registered using post-column addition of 5 × 10−4 M sodium iodide at 60 μL/h flow rate for obtaining stabilized sodium adduct ions. Post-column infusion was performed with syringe pump via T-mixing tee. Based on the results of preliminary experiments, the mass spectra were recorded within m/z mass range of 100–1500 and 70–1500 for MS/MS spectra (scan time 1 s).
Collision induced dissociation (CID) product ion mass spectra were recorded in auto-MS/MS mode with a collision energy ranging from 75 to 125 eV (an exact collision energy setting depended on the molecular masses of precursor ions). The precursor ions were isolated with an isolation width of 4 Th.
The mass spectrometer was calibrated using the ESI-L Low Concentration Tuning Mix (Agilent Technologies, Santa Clara, CA, USA). Additionally a lock-mass calibration with hexakis (1H, 1H, 3H-tetrafluoropropoxy)phosphazine (922.0098 m/z in positive mode; 966.0007 m/z in negative mode; Agilent Technologies, Santa Clara, CA, USA) was performed using Calibrant Reservoir Kit (Bruker Daltonics, Bremen, Germany). The instrument was operated using the otofControl (ver. 4.0, Bruker Daltonics, Bremen, Germany) and data were analyzed using the DataAnalysis Software (ver. 4.3, Bruker Daltonics, Bremen, Germany).
All tests were performed at least in triplicate. The results are expressed as the mean ± standard deviation (SD).

3.5. Quantitative Analysis of Detected Triterpene Glycosides in Various Body Component

For quantitative analysis, we used cucumarioside A1 from E. fraudatrix [24] as a reference standard for non-sulfated glycosides (R2 = 0.988), typicoside A2 from Actinocucumis typica [44] as a reference standard for monosulfated glycosides (R2 = 0.999) and cucumarioside I2 from E. fraudatrix [37] as a reference standard for disulfated glycosides (R2 = 0.995). Standards at concentrations of 1.0, 2.5, 5.0, 10.0 and 50 μg/mL were used for building calibration curves (Figures S3–S5). All the experiments were carried out at least three times, LC-MS conditions are identical to those described above. As a result, the amounts of detected compounds were calculated through calibration curves. Results are shown in Table 1 as mean concentration in μg/g animal organs.
For comparative analysis of the content of triterpene glycosides in different organs of E. fraudatrix data pretreatment was performed. With the aim to make feature compounds more comparable to each other, the datasets were adjusted using scaling by 100% (for 100%—the total concentration of the compound in all organs). Results are shown in Figure 5 and Figures S9–S11 as the mean ± standard deviation (SD).

4. Conclusions

Profiling of E. fraudatrix was performed by LC-ESI MS. Analysis of chromatographic behavior, MS and MS/MS data allowed the structural identification of the triterpene glycosides to be performed. Totally, 54 triterpene glycosides were found and structures of 44 constituents were proposed based on LC-ESI MS, chromatographic behavior and biogenetic hypotheses. In accordance with the structures of oligosaccharide chains, all analyzed glycosides of E. fraudatrix can be divided into eleven groups, and five of them were found in E. fraudatrix for the first time. A theoretical scheme of biogenesis of oligosaccharide chains in the studied species was given. The comparison of the qualitative and quantitative contents from the five different body components revealed that the profiles of some triterpene glycosides differed in the body walls and gonads indicating different external and internal biological functions of these compounds. The predominance of the main highly hydrophilic and membranolytic glycosides of E. fraudatrix in the body walls confirms their defensive role. The presence of glycosides in all body components of E. fraudatrix indicates their multifunctionality.

Supplementary Materials

The following are available online at www.mdpi.com/1660-3397/15/10/302/s1, Table S1: Fragmentation of the different types of oligosaccharide chains determined in triterpene glycosides from the ethanol extract of the sea cucumber E. fraudatrix, Figure S1: LC-ESI MS base-peak chromatogram (a) and total compounds chromatogram (b) of ethanol extract of sea cucumber Eupentacta fraudatrix in negative ion mode, Figure S2: Fragment of ESI MS/MS spectrum of [M + Na]+ precursor ion at m/z 1121 of cucumarioside A1, Figure S3: Calibration curve for cucumarioside A1 (ion [M − H] at m/z 1097), Figure S4: Calibration curve for typicoside A2 (ion [M − Na] at m/z 1177), Figure S5: Calibration curve for cucumarioside I2 (ion [M − 2Na]2− at m/z 693), Figure S6: 13C NMR spectrum of glycoside 39, Figure S7: 1H NMR spectrum of glycoside 39, Figure S8: 1H NMR spectrum of glycoside 34, Figure S9; Relative quantities of triterpene glycosides detected in E. fraudatrix in body walls (BW), gonads (GN), guts (G), aquapharyngeal bulbs (AB), and respiratory trees (RT) (bar plots represent the concentration in μg/g animal material of metabolites (mean ± SD) scaled by 100%), Figure S10: Relative quantities of triterpene glycosides grouped by aglycone structures detected in E. fraudatrix in respiratory trees (RT), gonads (GN), aquapharyngeal bulbs (AB), guts (G) and body walls (BW) (bar plots represent the concentration in μg/g animal material of metabolites (mean ± SD) scaled by 100%), Figure S11: Relative quantities of triterpene glycosides grouped by sugar moiety structures detected in E. fraudatrix in respiratory trees (RT), gonads (GN), aquapharyngeal bulbs (AB), guts (G) and body walls (BW) (bar plots represent the concentration in μg/g animal material of metabolites (mean ± SD) scaled by 100%).

Acknowledgments

The study was supported by Grant No. 16-13-10185 from the RSF (Russian Science Foundation).

Author Contributions

Roman S. Popov and Natalia V. Ivanchina conceived and designed the project, performed experiments, analyzed the data and wrote the manuscript; Alexandra S. Silchenko, Sergey A. Avilov and Vladimir I. Kalinin isolated standard compounds, discussed results and wrote the manuscript; Igor Yu. Dolmatov performed preparation of animal material; and Valentin A. Stonik and Pavel S. Dmitrenok supervised research and discussed results.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Kalinin, V.I.; Aminin, D.L.; Avilov, S.A.; Silchenko, A.S.; Stonik, V.A. Triterpene glycosides from sea cucumbers (Holothurioidea, Echinodermata), biological activities and functions. In Studies in Natural Product Chemistry (Bioactive Natural Products); Atta-ur-Rahman, Ed.; Elsevier Science Publisher: Amsterdam, The Netherlands, 2008; Volume 35, pp. 135–196. [Google Scholar]
  2. Careaga, V.P.; Maier, M.S. Cytotoxic triterpene glycosides from sea cucumbers. In Handbook of Anticancer Drugs from Marine Origin; Kim, S.-K., Ed.; Springer International Publishing: Cham, Switzerland, 2015; pp. 515–528. [Google Scholar]
  3. Chludil, H.D.; Murray, A.P.; Seldes, A.M.; Maier, M.S. Biologically active triterpene glycosides from sea cucumbers (Holothuroidea, Echinodermata). In Studies in Natural Products Chemistry; Atta-ur-Rahman, Ed.; Elsevier Science Publisher: Amsterdam, The Netherlands, 2003; Volume 28, pp. 587–615. [Google Scholar]
  4. Kim, S.K.; Himaya, S.W.A. Triterpene glycosides from sea cucumbers and their biological activities. Adv. Food Nutr. Res. 2012, 63, 297–319. [Google Scholar]
  5. Maier, M.S.; Roccatagliata, A.J.; Kuriss, A.; Chludil, H.; Seldes, A.M.; Pujol, C.A.; Damonte, E.B. Two new cytotoxic and virucidal trisulfated triterpene glycosides from the antarctic sea cucumber Staurocucumis liouvillei. J. Nat. Prod. 2001, 64, 732–736. [Google Scholar] [CrossRef] [PubMed]
  6. Aminin, D.L.; Menchinskaya, E.S.; Pisliagin, E.A.; Silchenko, A.S.; Avilov, S.A.; Kalinin, V.I. Anticancer activity of sea cucumber triterpene glycosides. Mar. Drugs 2015, 13, 1202–1223. [Google Scholar] [CrossRef] [PubMed]
  7. Aminin, D.L.; Pislyagin, E.A.; Menchinskaya, E.S.; Silchenko, A.S.; Avilov, S.A.; Kalinin, V.I. Immunomodulatory and anticancer activity of sea cucumber triterpene glycosides. In Studies in Natural Products Chemistry (Bioactive Natural Products); Atta-ur-Rahman, Ed.; Elsevier Science Publisher: Amsterdam, The Netherlands, 2014; Volume 41, pp. 75–94. [Google Scholar]
  8. Bordbar, S.; Anwar, F.; Saari, N. High-value components and bioactives from sea cucumbers for functional foods—A review. Mar. Drugs 2011, 9, 1761–1805. [Google Scholar] [CrossRef] [PubMed]
  9. Van Dyck, S.; Flammang, P.; Meriaux, C.; Bonnel, D.; Salzet, M.; Fournier, I.; Wisztorski, M. Localization of secondary metabolites in marine invertebrates: Contribution of MALDI MSI for the study of saponins in Cuvierian tubules of H. forskali. PLoS ONE 2010, 5, e13923. [Google Scholar] [CrossRef] [PubMed]
  10. Van Dyck, S.; Caulier, G.; Todesco, M.; Gerbaux, P.; Fournier, I.; Wisztorski, M.; Flammang, P. The triterpene glycosides of Holothuria forskali: Usefulness and efficiency as a chemical defense mechanism against predatory fish. J. Exp. Biol. 2011, 214, 1347–1356. [Google Scholar] [CrossRef] [PubMed]
  11. Aminin, D.L.; Anisimov, M.M. The influence of holotoxin A1 to the Ca2+-transport and meiotic maturation of oocytes from the sea cucumber Stichopus japonicus. J. Evol. Biochem. Physiol. 1990, 26, 9–13. [Google Scholar]
  12. Kalinin, V.I.; Avilov, S.A.; Silchenko, A.S.; Stonik, V.A. Triterpene glycosides of sea cucumbers (Holothuroidea, Echinodermata) as taxonomic markers. Nat. Prod. Commun. 2015, 10, 21–26. [Google Scholar] [PubMed]
  13. Van Dyck, S.; Gerbaux, P.; Flammang, P. Qualitative and quantitative saponin contents in five sea cucumbers from the Indian Ocean. Mar. Drugs 2010, 8, 173–189. [Google Scholar] [CrossRef] [PubMed]
  14. Bondoc, K.G.V.; Lee, H.; Cruz, L.J.; Lebrilla, C.B.; Juinio-Meсez, M.A. Chemical fingerprinting and phylogenetic mapping of saponin congeners from three tropical holothurian sea cucumbers. Comp. Biochem. Physiol. B 2013, 166, 182–193. [Google Scholar] [CrossRef] [PubMed]
  15. Van Dyck, S.; Gerbaux, P.; Flammang, P. Elucidation of molecular diversity and body distribution of saponins in the sea cucumber Holothuria forskali (Echinodermata) by mass spectrometry. Comp. Biochem. Physiol. B 2009, 152, 124–134. [Google Scholar] [CrossRef] [PubMed]
  16. Dolmatov, I.Y.; Ivantey, V.A. Histogenesis of longitudinal muscle bands in holothurians. Russ. J. Dev. Biol. 1993, 24, 67–72. [Google Scholar]
  17. Dolmatov, I.Y.; Yushin, V.V. Larval development of Eupentacta fraudatrix (Holothuroidea, Dendrochirota). Asian Mar. Biol. 1993, 10, 123–132. [Google Scholar]
  18. Dolmatov, I.Y. Regeneration of the aquapharyngeal complex in the holothurian Eupentacta fraudatrix (Holothuroidea, Dendrochirota). In Monographs in Developmental Biology; Taban, C.H., Boilly, B., Eds.; Karger: Basel, Switzerland, 1992; Volume 23, pp. 40–50. [Google Scholar]
  19. Mashanov, V.S.; Dolmatov, I.Y.; Heinzeller, T. Transdifferentiation in holothurian gut regeneration. Biol. Bull. 2005, 209, 184–193. [Google Scholar] [CrossRef] [PubMed]
  20. Lamash, N.E.; Dolmatov, I.Y. Proteases from the regenerating gut of the holothurian Eupentacta fraudatrix. PLoS ONE 2013, 8, e58433. [Google Scholar] [CrossRef] [PubMed]
  21. Zaika, O.A.; Dolmatova, L.S. Cooperative apoptosis of coelomocytes of the holothurian Eupentacta fraudatrix and its modulation by dexamethasone. Adv. Biosci. Biotechnol. 2013, 4, 908–917. [Google Scholar] [CrossRef]
  22. Dolmatova, L.S.; Ulanova, O.A.; Dolmatov, I.Y. Comparative study of the effect of dexamethasone and new holothurians’ extract on the level of the cytokine similar substances in certain immune cells types in the holothurian Eupentacta fraudatrix. Pac. Med. J. 2014, 34–38. [Google Scholar]
  23. Dolmatova, L.S.; Ulanova, O.A. Dexamethasone treatment in vitro resulted in different responses of two fractions of phagocytes of the holothurian Eupentacta fraudatrix. Russ. J. Mar. Biol. 2015, 41, 503–506. [Google Scholar] [CrossRef]
  24. Silchenko, A.S.; Kalinovsky, A.I.; Avilov, S.A.; Andryjaschenko, P.V.; Dmitrenok, P.S.; Martyyas, E.A.; Kalinin, V.I. Triterpene glycosides from the sea cucumber Eupentacta fraudatrix. Structure and biological action of cucumariosides A1, A3, A4, A5, A6, A12 and A15, seven new minor non-sulfated tetraosides and unprecedented 25-keto, 27-norholostane aglycone. Nat. Prod. Commun. 2012, 7, 517–525. [Google Scholar] [PubMed]
  25. Silchenko, A.S.; Kalinovsky, A.I.; Avilov, S.A.; Andryjaschenko, P.V.; Dmitrenok, P.S.; Martyyas, E.A.; Kalinin, V.I. Triterpene glycosides from the sea cucumber Eupentacta fraudatrix. Structure and cytotoxic action of cucumariosides A2, A7, A9, A10, A11, A13 and A14, seven new minor non-sulfated tetraosides and an aglycone with an uncommon 18-hydroxy group. Nat. Prod. Commun. 2012, 7, 845–852. [Google Scholar] [PubMed]
  26. Silchenko, A.S.; Kalinovsky, A.I.; Avilov, S.A.; Andryjashenko, P.V.; Dmitrenok, P.S.; Kalinin, V.I.; Stonik, V.A. 3β-O-Glycosylated 16β-acetoxy-9β-H-lanosta-7,24-diene-3β,18,20β-triol, an intermediate metabolite from the sea cucumber Eupentacta fraudatrix and its biosynthetic significance. Biochem. Syst. Ecol. 2012, 44, 53–60. [Google Scholar] [CrossRef]
  27. Silchenko, A.S.; Kalinovsky, A.I.; Avilov, S.A.; Andryjaschenko, P.V.; Dmitrenok, P.S.; Martyyas, E.A.; Kalinin, V.I. Triterpene glycosides from the sea cucumber Eupentacta fraudatrix. Structure and biological activity of cucumariosides B1 and B2, two new minor non-sulfated unprecedented triosides. Nat. Prod. Commun. 2012, 7, 1157–1162. [Google Scholar] [PubMed]
  28. Afiyatullov, S.S.; Kalinovskii, A.I.; Stonik, V.A. Structure of cucumariosides C1 and C2—2 New triterpene glycosides from the Eupentacta fraudatrix holothurian. Khim. Prir. Soedin. 1987, 6, 831–837. [Google Scholar] [CrossRef]
  29. Afiyatullov, S.S.; Tishchenko, L.Ya.; Stonik, V.A.; Kalinovskii, A.I.; Elyakov, G.B. The structure of cucumarioside G1—A new triterpene glycoside from the sea cucumber Cucumaria fraudatrix. Khim. Prir. Soedin. 1985, 2, 244–248. [Google Scholar]
  30. Kalinin, V.I.; Avilov, S.A.; Kalinovskii, A.I.; Stonik, V.A.; Milgrom, Yu.M.; Rashkes, Ya.V. Cucumarioside G4—A new triterpene glycoside from the holothurian Eupentacta fraudatrix. Khim. Prir. Soedin. 1992, 6, 600–603. [Google Scholar]
  31. Kalinin, V.I.; Avilov, S.A.; Kalinovskii, A.I.; Stonik, V.A. Cucumarioside G3—A minor triterpene glycoside from the holothurian Eupentacta fraudatrix. Khim. Prir. Soedin. 1992, 6, 635–636. [Google Scholar] [CrossRef]
  32. Avilov, S.A.; Kalinin, V.I.; Makarieva, T.N.; Stonik, V.A.; Kalinovsky, A.I. Structure of cucumarioside G2, a novel nonholostane glycoside from the sea cucumber Eupentacta fraudatrix. J. Nat. Prod. 1994, 57, 1166–1171. [Google Scholar] [CrossRef] [PubMed]
  33. Kalinin, V.I.; Kalinovskii, A.I.; Afiyatullov, S.S. Triterpene glycosides of the holothurin Eupentacta pseudoquinquisemita. Khim. Prir. Soedin. 1988, 2, 221–225. [Google Scholar]
  34. Silchenko, A.S.; Kalinovsky, A.I.; Avilov, S.A.; Andryjaschenko, P.V.; Dmitrenok, P.S.; Yurchenko, E.A.; Kalinin, V.I. Structure of cucumariosides H5, H6, H7 and H8, triterpene glycosides from the sea cucumber Eupentacta fraudatrix and unprecedented aglycone with 16,22-epoxy-group. Nat. Prod. Commun. 2011, 6, 1075–1082. [Google Scholar] [PubMed]
  35. Silchenko, A.S.; Kalinovsky, A.I.; Avilov, S.A.; Andryjaschenko, P.V.; Dmitrenok, P.S.; Yurchenko, E.A.; Kalinin, V.I. Structures and cytotoxic properties of cucumariosides H2, H3 and H4 from the sea cucumber Eupentacta fraudatrix. Nat. Prod. Res. 2012, 26, 1765–1774. [Google Scholar] [CrossRef] [PubMed]
  36. Popov, R.S.; Avilov, S.A.; Silchenko, A.S.; Kalinovsky, A.I.; Dmitrenok, P.S.; Grebnev, B.B.; Ivanchina, N.V.; Kalinin, V.I. Cucumariosides F1 and F2, two new triterpene glycosides from the sea cucumber Eupentacta fraudatrix and their LC-ESI MS/MS identification in the starfish Patiria pectinifera, a predator of the sea cucumber. Biochem. Syst. Ecol. 2014, 57, 191–197. [Google Scholar] [CrossRef]
  37. Silchenko, A.S.; Kalinovsky, A.I.; Avilov, S.A.; Andryjaschenko, P.V.; Dmitrenok, P.S.; Menchinskaya, E.S.; Aminin, D.L.; Kalinin, V.I. Structure of cucumarioside I2 from the sea cucumber Eupentacta fraudatrix (Djakonov et Baranova) and cytotoxic and immunostimulatory activities of this saponin and relative compounds. Nat. Prod. Res. 2013, 27, 1776–1783. [Google Scholar] [CrossRef] [PubMed]
  38. Silchenko, A.S.; Kalinovsky, A.I.; Avilov, S.A.; Andryjaschenko, P.V.; Dmitrenok, P.S.; Martyyas, E.A.; Kalinin, V.I. Triterpene glycosides from the sea cucumber Eupentacta fraudatrix. Structure and biological action of cucumariosides I1, I3, I4, three new minor disulfated pentaosides. Nat. Prod. Commun. 2013, 8, 1053–1058. [Google Scholar] [PubMed]
  39. Domon, B.; Costello, C.E. A systematic nomenclature for carbohydrate fragmentations in FAB-MS/MS spectra of glycoconjugates. Glycoconj. J. 1988, 5, 397–409. [Google Scholar] [CrossRef]
  40. Antonov, A.S.; Kalinovsky, A.I.; Afiyatullov, S.S.; Leshchenko, E.V.; Dmitrenok, P.S.; Yurchenko, E.A.; Kalinin, V.I.; Stonik, V.A. Erylosides F8, V1–V3, and W–W2—New triterpene oligoglycosides from the Carribean sponge Erylus goffrilleri. Carbohydr. Res. 2017, 449, 153–159. [Google Scholar] [CrossRef] [PubMed]
  41. Kalinin, V.I.; Kalinovskii, A.I.; Stonik, V.A. The structure of psolusoside A—The major triterpene glycoside of the sea cucumber Psolus fabricii. Khim. Prir. Soedin. 1985, 2, 212–217. [Google Scholar]
  42. Kalinin, V.I.; Kalinovskii, A.I.; Stonik, V.A.; Dmitrenok, P.S.; Elkin, Y.N. Structure of psolusoside B—A nonholostane triterpene glycoside of the holothurian genus Psolus. Khim. Prir. Soedin. 1989, 3, 361–368. [Google Scholar] [CrossRef]
  43. Silchenko, A.S.; Kalinovsky, A.I.; Avilov, S.A.; Kalinin, V.I.; Andrijaschenko, P.V.; Dmitrenok, P.S.; Chingizova, E.A.; Ermakova, S.P.; Malyarenko, O.S.; Dautova, T.N. Nine new triterpene glycosides, magnumosides A1–A4, B1, B2, C1, C2 and C4, from the Vietnamese sea cucumber Neothyonidium (=Massinium) magnum: Structures and activities against tumor cells independently and in synergy with radioactive irradiation. Mar. Drugs 2017, 15, 256. [Google Scholar] [CrossRef] [PubMed]
  44. Heftman, E.; Mosettig, E. Biochemistry of Steroids; Reinhold Publishing Corporation: New York, NY, USA, 1960; p. 231. [Google Scholar]
  45. Silchenko, A.S.; Kalinovsky, A.I.; Avilov, S.A.; Andryjaschenko, P.V.; Dmitrenok, P.S.; Martyyas, E.A.; Kalinin, V.I.; Jayasandhya, P.; Rajan, G.C.; Padmakumar, K.P. Structures and biological activities of typicosides A1, A2, B1, C1 and C2, triterpene glycosides from the sea cucumbers Actinocucumis typica. Nat. Prod. Commun. 2013, 8, 301–310. [Google Scholar] [PubMed]
Figure 1. LC-ESI MS (liquid chromatography–electrospray mass spectrometry) total compounds chromatogram of detected triterpene glycosides in negative ion mode (sulfated, disulfated and non-sulfated glycosides were detected as [M − Na], [M − 2Na]2− and [M − H] ions) in ethanol extract of sea cucumber Eupentacta fraudatrix.
Figure 1. LC-ESI MS (liquid chromatography–electrospray mass spectrometry) total compounds chromatogram of detected triterpene glycosides in negative ion mode (sulfated, disulfated and non-sulfated glycosides were detected as [M − Na], [M − 2Na]2− and [M − H] ions) in ethanol extract of sea cucumber Eupentacta fraudatrix.
Marinedrugs 15 00302 g001
Figure 2. Structures of triterpene glycosides identified (10, 11, 13, 14, 15, 16, 21, 23, 25, 26, 28, 29, 31, 32, 37, 38, 41, 43, 47, and 48) and proposed (12, 17, 18, 22, 27, 30, 33, 34, 35, 36, 39, 40, 42, 44, 45, 49, 50, 51, and 53) from the sea cucumber E. fraudatrix by LC–MS/MS method.
Figure 2. Structures of triterpene glycosides identified (10, 11, 13, 14, 15, 16, 21, 23, 25, 26, 28, 29, 31, 32, 37, 38, 41, 43, 47, and 48) and proposed (12, 17, 18, 22, 27, 30, 33, 34, 35, 36, 39, 40, 42, 44, 45, 49, 50, 51, and 53) from the sea cucumber E. fraudatrix by LC–MS/MS method.
Marinedrugs 15 00302 g002

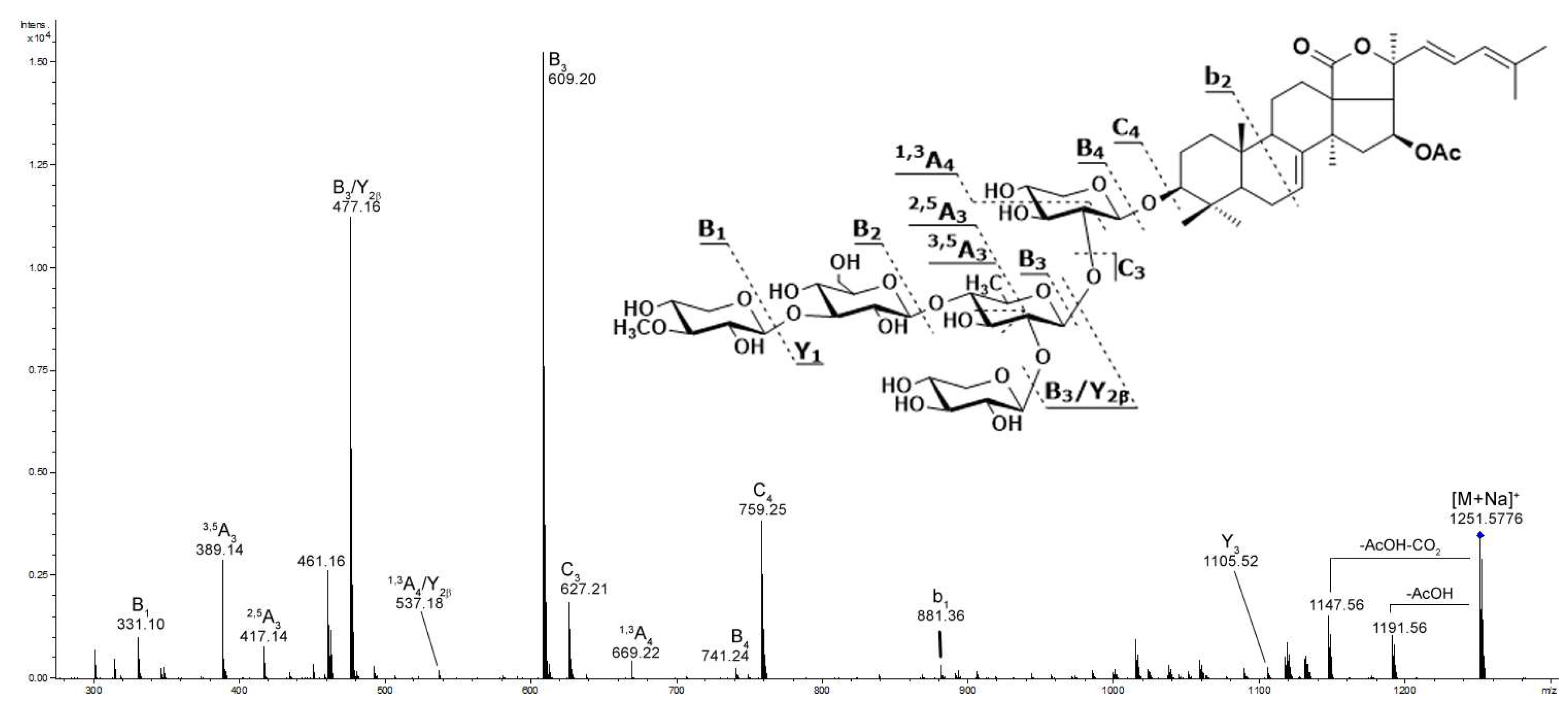

Figure 3. ESI MS/MS spectrum of [M + Na]+ precursor ion at m/z 1251 identified as cucumarioside C2 (41).
Figure 3. ESI MS/MS spectrum of [M + Na]+ precursor ion at m/z 1251 identified as cucumarioside C2 (41).
Marinedrugs 15 00302 g003

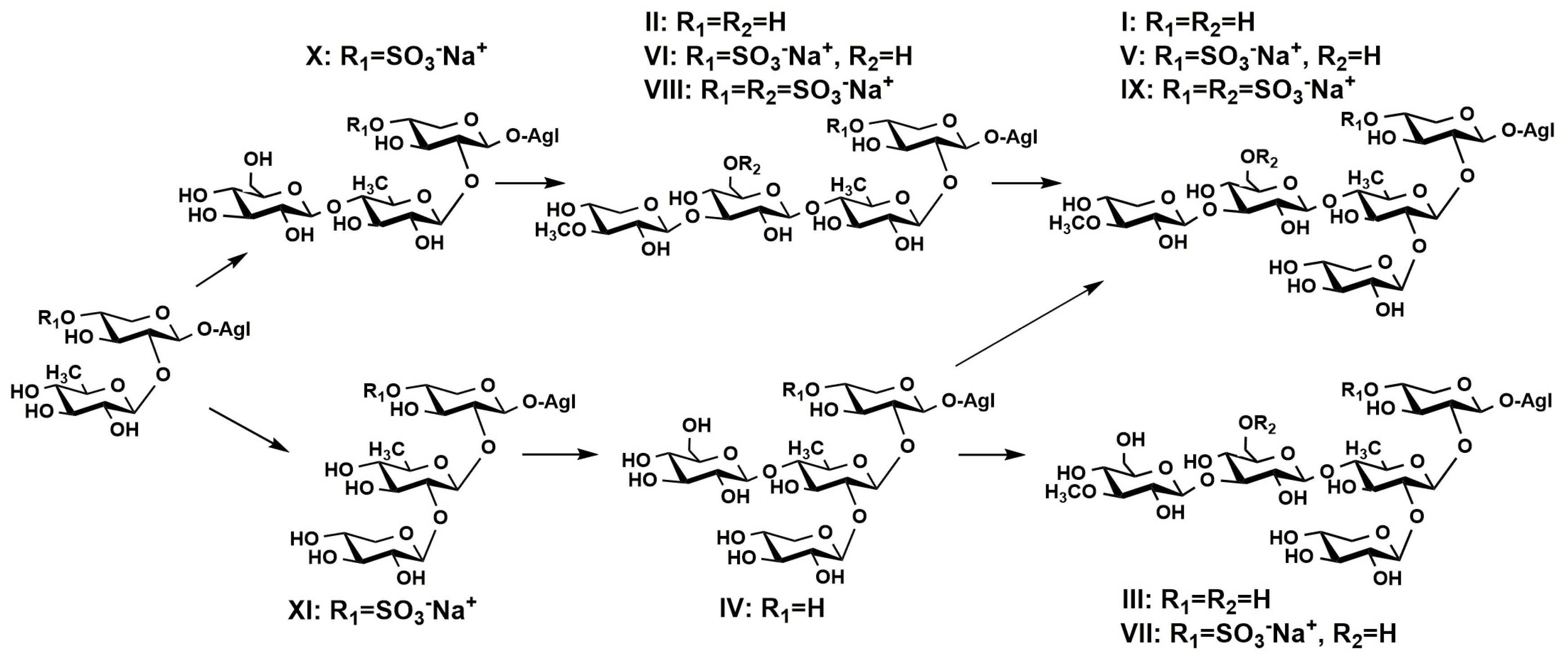

Figure 4. Hypothetic scheme of biosynthesis of oligosaccharide chains in E. fraudatrix.
Figure 4. Hypothetic scheme of biosynthesis of oligosaccharide chains in E. fraudatrix.
Marinedrugs 15 00302 g004

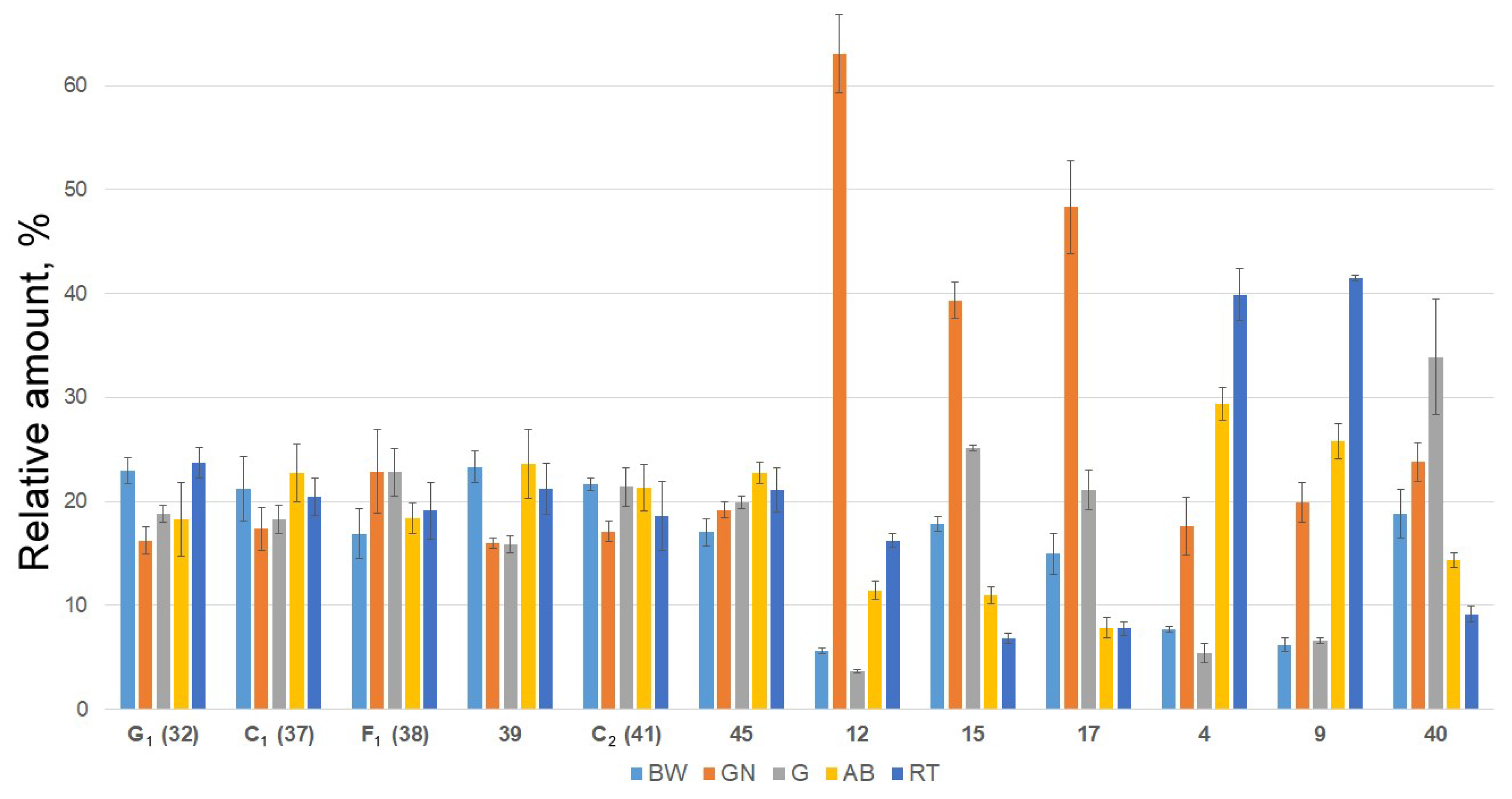

Figure 5. Relative quantities of triterpene glycosides cucumariosides G1 (32), C1 (37), F1 (38) and C2 (41), and compounds 39, 45, 12, 15, 17, 4, 9, and 40 in respiratory trees (RT), gonads (GN), aquapharyngeal bulbs (AB), guts (G) and body walls (BW) (bar plots represent the concentration in μg/g animal material of metabolites (mean ± SD) scaled by 100%).
Figure 5. Relative quantities of triterpene glycosides cucumariosides G1 (32), C1 (37), F1 (38) and C2 (41), and compounds 39, 45, 12, 15, 17, 4, 9, and 40 in respiratory trees (RT), gonads (GN), aquapharyngeal bulbs (AB), guts (G) and body walls (BW) (bar plots represent the concentration in μg/g animal material of metabolites (mean ± SD) scaled by 100%).
Marinedrugs 15 00302 g005
Table 1. Triterpene glycosides of the ethanol extract of the sea cucumber E. fraudatrix detected by LC-ESI MS and their concentrations in different organs.
Table 1. Triterpene glycosides of the ethanol extract of the sea cucumber E. fraudatrix detected by LC-ESI MS and their concentrations in different organs.
No. aRt (min)Elemental
Composition b
Measured
m/z
Molecular Ion TypeCalculated
m/z
Δ (ppm)Content of Detected Compounds in Different Organs (μg/g) cIdentification (ChemSpider ID)
BWGNGABRT
12.0C53H83O28SNa1199.4788[M − Na]1199.47970.81.282.070.744.415.06
22.3C58H91O31SNa1315.5265[M − Na]1315.52710.42.063.892.0210.7612.19
32.4C60H93O31SNa1341.5430[M − Na]1341.5427−0.20.583.020.512.151.98
42.5C57H85O30SNa1281.4854[M − Na]1281.4852−0.23.127.122.2111.8816.15
52.6C53H83O27SNa1183.4848[M − Na]1183.48480.08.5112.856.2733.0739.82
62.7C55H85O27SNa1209.4998[M − Na]1209.50040.50.894.650.612.502.50
72.8C52H77O26SNa1149.4426[M − Na]1149.44290.32.307.722.0010.6012.71
83.5C53H82O30S2Na2631.2170[M − 2Na]2−631.21720.37.2313.085.6826.1627.96
93.8C57H86O271201.5275[M − H]1201.52840.719.9063.7621.2382.84132.97
104.0C60H93O30SNa1325.5472[M − Na]1325.54780.42.053.452.133.963.21Cucumarioside H2 * (ID29215132)
114.3C60H92O33S2Na2702.2493[M − 2Na]2−702.2487−0.95.405.535.244.213.49Cucumarioside I3 * (ID30771157)
124.3C58H90O261201.5634[M − H]1201.56481.15.9866.993.8812.1417.24
135.0C53H81O27SNa1181.4692[M − Na]1181.46910.067.3165.7056.1138.4422.47Cucumarioside H3 * (ID29215133)
145.0C55H85O26SNa1193.5051[M − Na]1193.50550.445.9345.0551.9344.3142.30Cucumarioside G4 ** (ID29216498)
155.0C53H80O30S2Na2630.2098[M − 2Na]2−630.2093−0.731.1868.9544.0019.2011.98Cucumarioside I4 * (ID30771158)
166.2C48H73O23SNa1049.4268[M − Na]1049.42690.1182.20258.47199.67104.1678.53Cucumarioside G2 ** (ID16737749)
177.7C48H72O26S2Na2564.1882[M − 2Na]2−564.18820.0164.93533.31233.1486.4485.75
189.1C53H82O241101.5126[M − H]1101.5123−0.295.8179.9394.5692.0377.07
199.9C62H95O31SNa1367.5580[M − Na]1367.55840.3131.88158.75151.5088.3759.04
2012.4C57H87O27SNa1235.5156[M − Na]1235.51610.487.55123.77115.9776.2767.76
2113.0C60H91O29SNa1307.5369[M − Na]1307.53720.2102.46101.10101.2975.0656.43Cucumarioside H5 * (ID29212282)
2214.4C61H93O30SNa1337.5472[M − Na]1337.54780.439.1533.9127.4730.8126.60
2314.5C60H90O32S2Na2693.2437[M − 2Na]2−693.2434−0.5132.94144.25135.53117.5579.00Cucumarioside I2 *
2415.6C57H86O30S2Na2657.2330[M − 2Na]2−657.2328−0.3164.12260.64225.03129.11119.00
2515.7C60H91O29SNa1307.5370[M − Na]1307.53720.2355.92300.10325.16257.61205.87Cucumarioside H **
2616.8C55H83O25SNa1175.4946[M − Na]1175.49500.3157.60196.62189.16161.61191.52Cucumarioside G3 ** (ID29213085)
2717.8C61H95O30SNa1339.5629[M − Na]1339.56340.424.0825.5425.9522.5324.23
2818.1C60H92O32S2Na2694.2510[M − 2Na]2−694.25120.3188.33207.58222.25202.43149.95Cucumarioside I1 * (ID30771156)
2919.0C60H93O29SNa1309.5524[M − Na]1309.55290.4349.25387.00349.37310.11243.40Cucumarioside H6 * (ID29212283)
3019.1C55H83O25SNa1175.4946[M − Na]1175.49500.3196.05245.41225.43159.63183.33
3120.8C55H82O28S2Na2627.2223[M − 2Na]2−627.2223−0.1650.731465.871013.44492.83518.87Cucumarioside F2 * (ID34981778)
3221.5C55H85O25SNa1177.5101[M − Na]1177.51060.41399.21990.351149.581114.021446.29Cucumarioside G1 ** (ID29212825)
3321.8C49H73O21SNa1029.4364[M − Na]1029.43710.63.494.464.223.382.41
3422.4C61H94O271257.5905[M − H]1257.59100.4353.39277.23270.44373.37400.82
3522.4C48H71O20SNa999.4257[M − Na]999.42650.84.004.034.083.803.78
3622.5C54H82O221081.5224[M − H]1081.52250.120.6829.7840.2219.9712.52
3723.1C60H92O261227.5799[M − H]1227.58040.42304.761883.921982.792465.982218.90Cucumarioside С1 **
3823.2C55H84O28S2Na2628.2301[M − 2Na]2−628.23010.01397.271896.521889.401520.291581.81Cucumarioside F1 * (ID34981780)
3923.6C61H94O271257.5907[M − H]1257.59100.21232.75844.94836.781248.591121.92
4023.8C54H82O221081.5221[M − H]1081.52250.478.6199.33141.6360.0938.25
4124.2C60H92O261227.5796[M − H]1227.58040.75042.173983.864978.074965.124323.97Cucumarioside С2 **
4224.5C55H87O25SNa1179.5253[M − Na]1179.52630.8107.4963.8780.6686.34113.97
4324.6C55H84O221095.5380[M − H]1095.53810.130.8630.4035.6640.9055.20Cucumarioside A5 ** (ID29214535)
4425.6C55H84O221095.5379[M − H]1095.53810.212.2615.3819.7317.2625.04
4525.7C60H94O261229.5956[M − H]1229.59610.43169.773565.183696.874227.023920.64
4626.6C47H75O18SNa959.4674[M − Na]959.46800.64.315.665.784.766.27
4727.1C55H86O221097.5534[M − H]1097.55380.4128.12114.38137.12144.01155.36Cucumarioside A1 * (ID29214532)
4827.5C55H90O221101.5851[M − H]1101.58510.038.2239.7838.2145.5554.26Cucumarioside A8 * (ID29215118)
4927.7C60H96O261231.6110[M − H]1231.61170.6328.18276.91355.16406.50399.65
5028.5C55H89O24SNa1165.5467[M − Na]1165.54700.37.706.647.328.269.17
5128.9C55H90O221101.5843[M − H]1101.58510.719.3917.8817.4618.5621.60
5231.3C55H84O27S2Na2620.2328[M − 2Na]2−620.2326−0.352.9253.1256.3058.0262.22
5331.4C60H98O251217.6314[M − H]1217.63240.934.1332.2131.9135.5844.22
5432.6C56H92O231131.5951[M − H]1131.59570.519.7718.6421.1323.6219.24
a The compound’s numbers correspond to the number of the peaks on (−)LC-MS chromatogram; b Formula calculated from the accurate mass; c Concentration is given as μg of compound on g of animal material; BW: body walls; GN: gonads; G: guts; AB: aquapharyngeal bulbs; RT: respiratory trees; * Identification on basis of comparison of retention times, MS/MS data and elemental compositions with corresponding standards; ** Identification based on the elemental compositions and MS/MS data.
Mar. Drugs EISSN 1660-3397 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
