Mar. Drugs 2014, 12(4), 1815-1838; doi:10.3390/md12041815

Article
Seven New and Two Known Lipopeptides as well as Five Known Polyketides: The Activated Production of Silent Metabolites in a Marine-Derived Fungus by Chemical Mutagenesis Strategy Using Diethyl Sulphate
Chang-Jing Wu 1,2, Chang-Wei Li 2 and Cheng-Bin Cui 1,2,*
1
Key Laboratory of Structure-Based Drug Design & Discovery of Ministry of Education, School of Traditional Chinese Materia Medica, Shenyang Pharmaceutical University, Shenyang 110016, China; E-Mail: wucj2009@163.com
2
Beijing Institute of Pharmacology and Toxicology, Beijing 100850, China; E-Mail: sdrlcw@126.com
*
Author to whom correspondence should be addressed; E-Mail: cuicb@126.com or cuicb@sohu.com; Tel./Fax: +86-10-6821-1656.
Received: 24 December 2013; in revised form: 12 February 2014 / Accepted: 17 February 2014 /
Published: 28 March 2014

Abstract

: AD-2-1 is an antitumor fungal mutant obtained by diethyl sulfate mutagenesis of a marine-derived Penicillium purpurogenum G59. The G59 strain originally did not produce any metabolites with antitumor activities in MTT assays using K562 cells. Tracing newly produced metabolites under guidance of MTT assay and TLC analysis by direct comparison with control G59 extract, seven new (17) and two known (89) lipopeptides were isolated together with five known polyketides 1014 from the extract of mutant AD-2-1. Structures of the seven new compounds including their absolute configurations were determined by spectroscopic and chemical evidences and named as penicimutalides A–G (17). Seven known compounds were identified as fellutamide B (8), fellutamide C (9), 1′-O-methylaverantin (10), averantin (11), averufin (12), nidurufin (13), and sterigmatocystin (14). In the MTT assay, 114 inhibited several human cancer cell lines to varying extents. All the bioassays and HPLC-photodiode array detector (PDAD)-UV and HPLC-electron spray ionization (ESI)-MS analyses demonstrated that the production of 114 in the mutant AD-2-1 was caused by the activated production of silent metabolites in the original G59 fungal strain. Present results provided additional examples for effectiveness of the chemical mutagenesis strategy using diethyl sulphate mutagenesis to discover new compounds by activating silent metabolites in fungal isolates.
Keywords:
marine-derived fungus; lipopeptide; penicimutalide; Marfey analysis; polyketide; Penicillium purpurogenum; DES mutagenesis

1. Introduction

Activating silent secondary metabolites of fungal isolates have attracted considerable attention and various strategies have been developed for this purpose in the past decade [1,2,3,4]. The one strain-many compounds (OSMAC) strategy [5] and chemical epigenetics methodology [6] have been widely used by microbial chemists to access cryptic secondary metabolites [7]. The ribosome engineering strategy [8] provided another simple way to activate silent pathways by introducing drug-resistance mutations in bacteria to discover new antibiotics [9]. We previously extended this strategy to fungi to activate silent metabolites by introducing drug-resistance in a bio-inactive marine-derived Penicillium purpurogenum G59 using dimethyl sulfoxide (DMSO) as accessorial agent [10,11]. As further extension of that work, we have just recently developed a practical strategy to discover new antitumor agents by activating silent fungal metabolite production using a modified method of diethyl sulphate (DES) mutagenesis on P. purpurogenum G59 [12]. Using this strategy, several new antitumor agents including some with novel structures have also been discovered [12,13]. As a continuation, we report here our recent work on another bioactive mutant AD-2-1, including the discovery of seven new lipopeptides from activated production of silent metabolites in the original G59 fungal strain.

P. purpurogenum G59 is a marine-derived, wild-type fungal strain initially isolated by our group [14] and originally did not produce any metabolites with antitumor activity in repeated bioassay using 3-(4,5-dimethylthiazol-2-yl)-2,5-diphenyltetrazolium bromide (MTT) and K562 cells [10,11,12,13,14]. AD-2-1 was obtained as an antitumor mutant by DES mutagenesis of the strain G59 and the ethyl acetate (EtOAc) extract of its cultures inhibited K562 cells with an inhibition rate (IR%) value of 49.8% at 100 µg/mL [12]. However, the metabolites with antitumor activity in the EtOAc extract have not been investigated so far. In the present work, we thus investigated the antitumor metabolites in the EtOAc extract, which were newly produced by the mutant AD-2-1 compared to its parent G59 strain. This has resulted in the discovery of seven new lipopeptides (17) and the identification of two known lipopeptides (8 and 9) as well as five known polyketides (1014) shown in Figure 1. All 114 inhibited several human cancer cell lines to varying extents. All the bioassays and HPLC-photodiode array detector (PDAD)-UV and HPLC-electron spray ionization (ESI)-MS analyses demonstrated that the production of 114 in the mutant AD-2-1 was caused by the activated production of silent metabolites in original fungal G59 strain.

2. Results and Discussion

2.1. Fermentation, Isolation of 1–14, and Identification of Known Compounds 8–14

Large-scale fermentation and extraction of the mutant AD-2-1 produced an EtOAc extract that inhibited the K562 cells with an IR% value of 64.6% at 100 µg/mL. However, the control G59 EtOAc extract that was obtained by fermentation of the G59 strain at the same time and same conditions did not inhibit the K562 cells (an IR% of 2.5% at 100 µg/mL). In preliminary analyses of the mutant AD-2-1 and the control G59 extracts by thin layer chromatography (TLC), lipopeptide components that contained 19 were detected as white spots by spraying distilled water to the silica gel TLC plates in the mutant extract but not in the control G59 extract. The polyketide components including 1014 were also detected only in the mutant extract as spots on the silica gel TLC plates or on the polyamide film by examination under sunlight or UV lights (254 and 360 nm) or by visualization using 5% FeCl3 reagent, Vaughan’s reagent or 10% sulfuric acid reagent. Thus, the separation of the mutant extract was performed tracing these newly produced metabolites under the guidance of MTT assay and TLC analysis by direct comparison with the control G59 extract.

A column chromatography of the mutant extract on Sephadex LH-20 by monitoring the targeted components gave two fractions that contained the aimed lipopeptides and polyketides, respectively. The lipopeptide-containing fraction was separated by chromatographic means, including repeatedly performed preparative TLC, column chromatography, and semi-preparative HPLC, to obtain 19 shown in Figure 1. The HPLC separations were performed on a chiral, reversed-phase Click β-CD column. The polyketide-containing fraction was separated by repeated column chromatography on silica gel, polyamide, and Sephadex LH-20 to afford 1014 (Figure 1).

Marinedrugs 12 01815 g001 200

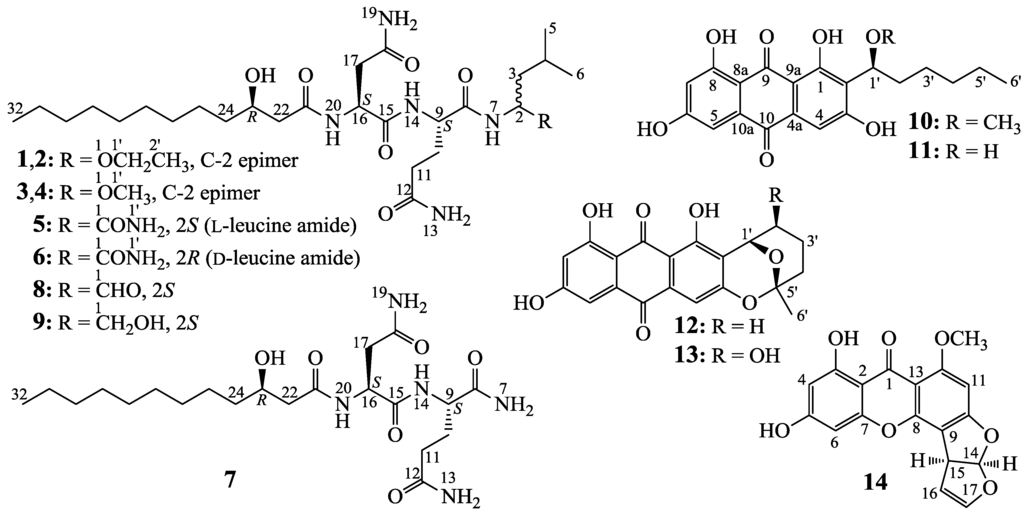

Figure 1. Structures of 114 newly produced by the mutant AD-2-1.

Click here to enlarge figure

Figure 1. Structures of 114 newly produced by the mutant AD-2-1.
Marinedrugs 12 01815 g001 1024

Among the obtained compounds 114, structures of seven new compounds including their absolute configurations were determined by spectroscopic and chemical evidences and named penicimutalides A–G (17). Structure determinations of these new compounds are described in detail in Section 2.2. Further, seven known compounds including two lipopeptides 89 and five polyketides 1014 were identified as fellutamide B (8) [15], fellutamide C (9) [16], 1′-O-methylaverantin (10) [17], averantin (11) [18], averufin (12) [18,19], nidurufin (13) [18,19,20], and sterigmatocystin (14) [21], respectively, by their physicochemical and spectroscopic data. The identification of fellutamide B (8) and fellutamide C (9) was also based on the chemical evidences to confirm their absolute configurations.

2.2. Structure Determination of New Compounds 1–7

Penicimutalide A (1), Marinedrugs 12 01815 i001 −18.0 (c 0.1, MeOH), and penicimutalide B (2), Marinedrugs 12 01815 i001 −17.0 (c 0.1, MeOH), were obtained as amorphous powders from MeOH, and their molecular compositions were assigned to be C28H53N5O7 by HRESIMS (measured 594.3834 [M + Na]+ for both 1 and 2, calcd for C28H53N5O7Na [M + Na]+ 594.3843). Penicimutalides C (3), Marinedrugs 12 01815 i001 −23.7 (c 0.3, MeOH), and D (4), Marinedrugs 12 01815 i001 −24.8 (c 0.3, MeOH), amorphous powders (MeOH), were assigned the same molecular formula C27H51N5O7 (HRESIMS: measured 580.3695 [M + Na]+ for 3 and 580.3684 [M + Na]+ for 4; calcd for C27H51N5O7Na [M + Na]+ 580.3686). Penicimutalides E (5), Marinedrugs 12 01815 i001 −15.0 (c 0.04, MeOH), and F (6), Marinedrugs 12 01815 i001 −18.8 (c 0.04, MeOH), amorphous powders (MeOH), had also the same molecular composition C27H50N6O7 (HRESIMS: measured 571.3819 [M + H]+ for 5 and 571.3805 [M + H]+ for 6, calcd for C27H51N6O7 [M + H]+ 571.3819). Penicimutalide G (7), an amorphous powder (MeOH), Marinedrugs 12 01815 i001 −7.5 (c 0.1, MeOH), was assigned the molecular formula C21H39N5O6 by HRESIMS (measured 458.2970 [M + H]+, calcd for C21H40N5O6 [M + H]+ 458.2979).

The UV spectra of 17 exhibited end absorptions (see their absorption curves in Figure S1-A2 in the Supplementary Information), and their IR spectra (see their IR spectra in the Supplementary Information) showed absorptions due to OH/NH (around 3273 and 3205 cm−1), CH3/CH2 (around 2930 and 2860 cm−1), and amide (amide I bands around 1650 cm−1 for amide carbonyl and amide II bands around 1535 cm−1 for amide H2NCO and/or HNCO) groups. These data, coupled with the molecular sizes and the molecular compositions of 17, revealed that they were peptides. In the 1H and 13C NMR spectra (see their NMR spectra in the Supplementary Information), 17 showed 1H and 13C NMR signals that closely resembled the signals from the known lipopeptides 8 and 9 except several signals from leucine-derived moieties have slightly changed (Table 1 and Table 2). These NMR data indicated that 17 are all lipopeptides that resembled 8 and 9 but differed only in the leucine-derived moieties. This was further confirmed by the detailed analyses of their DEPT, 1H-1H COSY, HMQC, and HMBC spectra (see Tables S1–S7 for 17 and see also their spectra, all in the Supplementary Information).

Interpretation of the 1H–1H COSY and HMQC data established structural parts related to the proton spin systems including OH and NH in 17. The structure moieties of 3-hydroxydodecaonic acid (HDA, C21→C32), asparagine (Asn, C15→N20), and glutamine (Gln, C8→N14) in 17 were deduced by the HMBCs detected on H2-22/C-21, H-23/C-21, HO-23/C-22, HO-23/C-23, and HO-23/C-24 in HAD, on H-16/C-15, H-16/C-18, H2-17/C-15, H2-17/C-18, H2-19/C-17, H2-19/C-18, and H-20/C-15 in Asn, and on H-9/C-8, H2-10/C-8, H2-10/C-12, H2-11/C-12, H2-13/C-11, H2-13/C-12, and H-14/C-8 in Gln moieties. In addition, the HMBCs on H2-1'/C-2 in 12 and H3-1'/C-2 in 34 demonstrated the presence of an isopentyl amino group (N7→C2→C6) with an ethoxy group at C-2 in 12 and a methoxy group at C-2 in 34. The HMBCs on H2-1′/C-1, H2-1′/C-2, H-2/C-1, and H2-3/C-1 of 5 and 6 established the leucine (Leu) amide residues in 5 and 6. The connectivity of the HAD, Asn and Gln in 17 were determined by the HMBCs of H-16 and H-20 in Asn with C-21 in HDA and of H-9 and H-14 in Gln with C-15 in Asn. The isopentyl amino groups in 14 and Leu amide residues in 5 and 6 were further connected to C-8 in Gln by the HMBCs of H-2 and H-7 with C-8 in 14 and 56. The terminal Gln in 7 was evidenced by the HMBCs on H2-7/C-8 and H2-7/C-9.

Table Table 1. 1H NMR data of 19 in DMSO-d6H, J in Hz) a.

Click here to display table

Table 1. 1H NMR data of 19 in DMSO-d6H, J in Hz) a.
Proton1 b2 b3 c4 c5 b6 b7 c8 c9 c
19.35 s3.30 ddd (10.6, 5.6, 4.8)
3.23 ddd (10.6, 6.0, 4.8)
25.07 dt (9.2, 6.9)5.06 dt (9.1, 6.9)4.97 dt (9.1, 6.9)4.96 dt (9.4, 7.2)4.07–4.02 m4.15–4.07 m4.08–4.00 m3.84–3.72 (overlapped)
31.48 dt (13.8, 6.9)1.45 dt (13.8, 6.9)1.49 dt (13.8, 6.9)1.49–1.38 (2H) m1.59–1.50 m1.59–1.49 m1.56–1.44 (2H) m1.40–1.25 (overlapped)
1.40–1.33 m1.40 dt (13.8, 6.9)1.42–1.30 m1.48–1.42 m1.49–1.40 m
41.65–1.57 m1.60–1.52 m1.65–1.54 m1.61–1.49 m1.59–1.50 m1.59–1.49 m1.68–1.58 m1.63–1.52 m
50.83 d (6.8)0.81 d (6.6)0.83 d (6.7)0.81 d (6.6)0.80 d (6.6)0.79 d (6.2)0.84 d (6.4)0.82 d (6.4)
60.86 d (6.7)0.84 d (6.8)0.85 d (6.7)0.84 d (6.6)0.87 d (6.6)0.84 d (5.6)0.89 d (6.8)0.86 d (6.4)
78.02 d (9.2)8.04 d (9.1)8.03 d (9.1)8.04 d (9.4)7.86 d (8.4)7.87 d (8.4)7.34 br s8.27 d (7.2)7.43 d (7.6)
7.08 br s
94.13 td (7.8, 4.6)4.13–4.05 m4.18–4.08 m4.13–4.05 m4.13–4.09 m4.15–4.07 m4.06 td (8.0, 4.6)4.21–4.16 m4.15–4.05 (overlapped)
101.99–1.89 m1.97–1.90 m2.02–1.88 m2.00–1.89 m1.95–1.88 m2.00–1.92 m1.95 dtd (13.2, 7.5, 4.6)2.02–1.90 m1.97–1.85 m
1.78–1.68 m1.78–1.70 m1.80–1.68 m1.81–1.69 m1.78–1.72 m1.77–1.67 m1.70 ddt (13.2, 8.0, 7.5)1.82–1.68 m1.78–1.65 m
112.12–2.04 m2.13–2.03 m2.14–2.03 m2.13–2.05 m2.21–2.16 m2.08–2.00 m2.06 t (7.5)2.14–2.04 m2.11–2.02 m
137.21 br s7.20 br s7.25 br s7.24 br s7.22 br s7.18 br s7.21 br s7.21 br s7.20 br s
6.75 br s6.74 br s6.79 br s6.78 br s6.76 br s6.71 br s6.75 br s6.76 br s6.74 br s
147.94 d (7.8)8.06 d (7.6)8.05 d (8.0)8.12 d (7.6)8.10 d (7.2)8.09 d (8.4)7.98 d (8.0)8.10 d (7.6)8.00 d (8.0)
164.49 q (7.0)4.50 q (7.0)4.49 q (6.9)4.50 q (7.0)4.48 q (7.2)4.45 q (6.9)4.48 q (7.0)4.50 q (7.2)4.48 br q (6.9)
172.54 dd (15.6, 7.0)2.55 dd (15.6, 7.0)2.54 dd (15.5, 6.9)2.55 dd (15.6, 7.0)2.58–2.42 m2.54 dd (15.6, 6.9)2.57 dd (15.5, 7.0)2.55 dd (15.5, 7.2)2.55 dd (15.6, 6.9)
2.43 dd (15.6, 7.0)2.43 dd (15.6, 7.0)2.43 dd (15.5, 6.9)2.42 dd (15.6, 7.0)2.58–2.42 m2.43 dd (15.6, 6.9)2.43 dd (15.5, 7.0)2.44 dd (15.5, 7.2)2.43 dd (15.6, 6.9)
197.37 br s7.40 br s7.41 br s7.43 br s7.46 br s7.41 br s7.42 br s7.42 br s7.42 br s
6.90 br s6.94 br s6.93 br s7.24 br s6.95 br s6.91 br s6.96 br s6.93 br s6.94 br s
208.08 d (7.0)8.05 d (7.0)8.12 d (6.9)8.08 d (7.0)8.26 d (7.2)8.15 d (7.2)8.09 d (7.0)8.09 d (7.2)8.10 d (6.9)
222.26–2.16 m2.25–2.16 m2.27-2.16 m2.25–2.16 m2.24–2.16 m2.25–2.15 m2.25–2.14 m2.24–2.16 m2.25–2.17 m
233.82–3.75 m3.80–3.75 m3.84–3.73 m3.82–3.72 m3.80–3.74 m3.81–3.74 m3.82–3.73 m3.82–3.72 m3.84–3.72 (overlapped)
241.40–1.33 m1.39–1.30 m1.42–1.30 m1.38–1.30 m1.40–1.18 m1.40–1.18 m1.40–1.20 m1.40–1.20 m1.40–1.20 m
251.40–1.33 m1.39–1.30 m1.42–1.30 m1.38–1.30 m1.40–1.18 m1.40–1.18 m1.40–1.20 m1.40–1.20 m1.40–1.20 m
1.30–1.18 m1.30–1.18 m1.30–1.18 m1.30–1.18 m1.40–1.18 m1.40–1.18 m1.40–1.20 m1.40–1.20 m1.40–1.20 m
261.30–1.18 m1.30–1.18 m1.30–1.18 m1.30–1.18 m1.40–1.18 m1.40–1.18 m1.40–1.20 m1.40–1.20 m1.40–1.20 m
271.30–1.18 m1.30–1.18 m1.30–1.18 m1.30–1.18 m1.40–1.18 m1.40–1.18 m1.40–1.20 m1.40–1.20 m1.40–1.20 m
281.30–1.18 m1.30–1.18 m1.30–1.18 m1.30–1.18 m1.40–1.18 m1.40–1.18 m1.40–1.20 m1.40–1.20 m1.40–1.20 m
291.30–1.18 m1.30–1.18 m1.30–1.18 m1.30–1.18 m1.40–1.18 m1.40–1.18 m1.40–1.20 m1.40–1.20 m1.40–1.20 m
301.30–1.18 m1.30–1.18 m1.30–1.18 m1.30–1.18 m1.40–1.18 m1.40–1.18 m1.40–1.20 m1.40–1.20 m1.40–1.20 m
311.30–1.18 m1.30–1.18 m1.30–1.18 m1.30–1.18 m1.40–1.18 m1.40–1.18 m1.40–1.20 m1.40–1.20 m1.40–1.20 m
320.85 t (7.0)0.86 t (7.2)0.85 t (7.2)0.86 t (6.8)0.85 t (6.9)0.85 t (6.9)0.86 t (6.8)0.85 t (6.8)0.86 t (6.8)
1'3.44 dq (14.1, 7.0)3.46 dq (14.1, 7.0)3.11 (3H) s3.12 (3H) s6.97 br s7.17 br s
3.27 dq (14.1, 7.0)3.28 dq (14.1, 7.0)6.95 br s6.97 br s
2'1.05 t (7.0)1.05 t (7.0)
1–O H4.54 br t (4.8)
23–O H4.64 d (4.8)4.62 d (4.8)4.68 d (4.8)4.65 d (5.1)4.61 d (5.4)4.66 br s4.65 d (5.1)4.63 d (5.2)4.64 br d (4.8)

a Chemical shifts were recorded in δ values using the solvent DMSO-d6 signal δH 2.50 as reference; Signal assignments were based on the results of DEPT, 1H–1H COSY, HMQC, and HMBC experiments; b Recorded at 600 MHz 1H NMR; c Recorded at 400 MHz 1H NMR.

Table Table 2. 13C NMR data of 19 in DMSO-d6C, multiplicity) a.

Click here to display table

Table 2. 13C NMR data of 19 in DMSO-d6C, multiplicity) a.
Carbon1 b2 b3 c4 c5 b6 b7 c8 c9 c
1174.2 s174.3 s201.6 s63.7 t
277.2 d77.3 d78.9 d78.9 d49.9 d48.7 d56.6 d48.8 d
343.3 t43.1 t43.0 t42.8 t40.0 t40.2 t36.3 t40.2 t
424.0 d23.9 d24.1 d24.0 d24.2 d24.1 d23.9 d24.1 d
522.3 q22.2 q22.4 q22.2 q21.2 q21.8 q21.3 q22.1 q
622.4 q22.5 q22.5 q22.7 q23.0 q23.4 q23.1 q23.4 q
8171.5 s171.6 s171.7 s171.8 s170.9 s170.5 s173.3 s171.9 s170.5 s
952.6 d52.8 d52.8 d53.9 d53.2 d52.6 d52.3 d52.4 d52.7 d
1027.6 t27.5 t27.6 t27.5 t27.1 t27.7 t27.5 t27.5 t27.8 t
1131.4 t31.4 t31.5 t31.5 t31.4 t31.5 t31.5 t31.4 t31.5 t
12173.7 s173.7 s173.9 s173.8 s173.8 s173.9 s173.8 s173.8 s173.9 s
15171.0 s171.1 s171.3 s171.2 s170.9 s170.9 s170.8 s171.1 s170.9 s
1649.9 d49.7 d50.0 d49.8 d49.9 d49.8 d49.8 d49.8 d49.9 d
1736.9 t37.0 t36.9 t36.9 t36.9 t36.8 t36.9 t37.0 t37.0 t
18171.6 s171.7 s171.8 s171.9 s171.8 s171.8 s171.9 s171.8 s171.8 s
21171.2 s171.1 s171.2 s171.1 s171.2 s171.2 s171.1 s171.2 s171.2 s
2243.4 t43.4 t43.5 t43.5 t43.4 t43.4 t43.5 t43.5 t43.5 t
2367.4 d67.4 d67.5 d67.5 d67.4 d67.4 d67.5 d67.5 d67.4 d
2436.8 t36.8 t37.0 t37.1 t37.0 t36.9 t36.9 t36.9 t36.9 t
2525.1 t25.1 t25.2 t25.2 t25.0 t25.1 t25.1 t25.1 t25.1 t
2629.1t29.1t29.2 t29.2 t29.1 t 29.1 t 28.7 t29.1 t29.1 t
2729.1t29.1t29.1 t29.2 t29.1 t29.0 t 29.0 t29.1 t29.1 t
2829.0 t29.0 t29.1 t29.1 t28.9 t28.9 t29.1 t29.0 t29.0 t
2928.7 t28.7 t28.8 t28.8 t28.7 t28.7 t29.1 t28.7 t28.7 t
3031.3 t31.3 t31.4 t31.4 t31.2 t31.3 t31.3 t31.3 t31.3 t
3122.0 t22.0 t22.2 t22.2 t22.0 t22.1 t22.1 t22.1 t21.8 t
3213.9 q13.9 q14.0 q14.0 q13.9 q13.9 q14.0 q14.0 q14.0 q
1′61.8 t61.8 t54.3 q54.4 q
2′15.0 q15.1 q

a Chemical shifts were recorded in δ values using the solvent DMSO-d6 signal δC 39.52 as reference. Multiplicities of the carbon signals were determined by the DEPT method and are shown as s (singlet), d (doublet), t (triplet), and q (quartet), respectively. Signals were assigned on the basis of DEPT, 1H–1H COSY, HMQC, and HMBC experiments; b Recorded at 150 MHz 13C NMR; c Recorded at 100 MHz 13C NMR.

The absolute configurations of Asn and Gln in 17 and Leu amide further in 56 were determined by Marfey’s method [22] using d- and l-Leu amides, d- and l-Asn, and d- and l-Gln as standards. We hydrolyzed 17 with 6 N HCl at 110 °C for 24 hours to produce hydrolysates containing aspartic and glutamic acids in 17 and leucine further in 56. Each standard was hydrolyzed also in the same conditions. The hydrolysates of 17 and the standards were combined with Marfey’s reagent to derivatize the amino acids. HPLC analyses of the Marfey’s derivatives from 17, using the derivatives of the l- and d-standards as references, established the l configurations of Asn (16S) and Gln (9S) in 17, the l configuration of Leu amide (2S) in 5, and the d configuration of the Leu amide (2R) in 6. The 23R absolute configurations of 17 were determined as follows. The 23R absolute configurations of the known 8 and 9 were determined by the chemical and Mosher’s methods in the literature [15,16]. Coproduction of 19 by the mutant AD-2-1 revealed the same absolute configuration 23R in 17 from a biogenetic consideration. Coincidently, hydrolysis of 19 mixtures in 6 N HCl at 110 °C for 1 h, as reported [23], produced 3R-hydroxydodecanoic acid ( Marinedrugs 12 01815 i001 −16.0 (c 0.05, CHCl3); lit. Marinedrugs 12 01815 i001 −17.8 (c 1.2, CHCl3) [24]) and established the 23R configuration in 17. Therefore, absolute configurations have been defined for all chiral carbons in 17 except for the C-2 carbons in 14. Thus, 1/2 and 3/4 were each pairs of epimers at C-2.

Although several structurally related lipopeptides have been known to occur in Nature [15,16,23], 17 are the first examples of new lipopeptides generated by mutagenic activation of silenced metabolic pathways in fungi. Among the lipopeptides reported, fellutamides A (10-hydroxylated B) and B (8 in Figure 1) were isolated in 1991 from Penicillium fellutanum and given their names by the mixed characters from the species name fellutanum and the group name of compounds “amide” [15]. Both compounds carry 3-hydroxydodecaonic acid (HDA) side chains at N-20 and leucinal residues at N-7. Later in 2010 [16], the lipopeptide 9 shown in Figure 1 was initially isolated as a new compound from Penicillium vercicolor and named fellutamide C in view of the structural similarity to fellutamides A and B (8). Fellutamide C (9) carries an l-leucinol residue, instead of the leucinal residue in 8. Later in 2011, a new lipopeptide from an undescribed fungal species of Metulocladosporiella was reported by Xu et al. giving the same name “fellutamide C” [23]. The “fellutamide C” differs from 8 in carrying a 3-hydroxytetradecanoic acid (HTDA) side chain at N-20. However, the structure of this compound was apparently different from the fellutamide C [16] (9) and this has thus confused the names of the same class of compounds. Xu et al. [23] reported also another new lipopeptide in this class of compounds, named fellutamide D, which differed from their “fellutamide C” in the valinal residue at N-7, instead of the leucinal residue in “fellutamide C”. We therefore propose here that the “fellutamide C” should be renamed, and fellutamide E was suggested for the name of this compound. Incidentally, we named the new lipopeptides 17 as penicimutalides A–G (17), which differ from the fellutamides in the leucine-derived moieties at N-7, and this would avoid similar confusion.

2.3. HPLC-PDAD-UV/HPLC-ESI-MS Analyses of G59 and AD-2-1 Extracts for Detecting 1–14

The EtOAc extracts of the mutant AD-2-1 and the strain G59 were subjected to HPLC-PDAD-UV and HPLC-ESI-MS analyses, using 114 as reference standards, to confirm the activated production of 114 in the mutant AD-2-1 by the DES mutagenesis of original G59 strain. The reference standards 16 were used as mixed pairs of 1/2, 3/4, and 5/6, respectively, because the peaks of two compounds in these pairs had been known to appear at the same retention times in the given HPLC condition using an achiral, reversed phase analytical column by pilot test of HPLC analysis.

In the HPLC-PDAD-UV analysis, 19 were eluted as peaks with retention times of 56.12 min for 1/2, 54.57 min for 3/4, 50.62 min for 5/6, 46.52 min for 7, 52.77 min for 8, and 52.57 min for 9, respectively. Because 19 showed only the end UV absorptions, they were hardly identified by the HPLC-PDAD-UV analysis both in the mutant AD-2-1 and the control G59 extracts due to the lack of the typical UV absorption curves and the baseline drift (see Figure S1-A1,A2 in the Supplementary Information). On the other hand, 1014 were eluted as peaks with retention times of 63.90 min for 10, 59.50 min for 11, 63.00 min for 12, 52.12 min for 13, and 50.25 min for 14, respectively. They were all detected in the mutant AD-2-1extract but not in the parent G59 extract. The data for the detection of 14 is shown as a typical example in Figure 2. The detection of 1014 was achieved by both the retention times and the UV absorption curves (see Figure 2 and see also Figure S1-B1,B2,C1,C2 in the Supplementary Information).

In the HPLC-ESI-MS analysis, retention times of the ion peaks of 114 were slightly shortened (see Experimental Section) than those in HPLC-PDAD-UV analysis because of the shortened flow length from the outlet of the HPLC column to the inlet of MS in the HPLC-ESI-MS. By selective ion ([M + Na]+ for 1/2 and 14; [M − H] for 5/6, 7, 8, and 1013; [M + Cl] for 3/4 and 9) monitoring with both extracted ion chromatograms and related MS spectra, 114 were all detected in the mutant AD-2-1 extract, but none of these metabolites were detected in the G59 extract (see Figure S2A–K in the Supplementary Information).

Marinedrugs 12 01815 g002 200

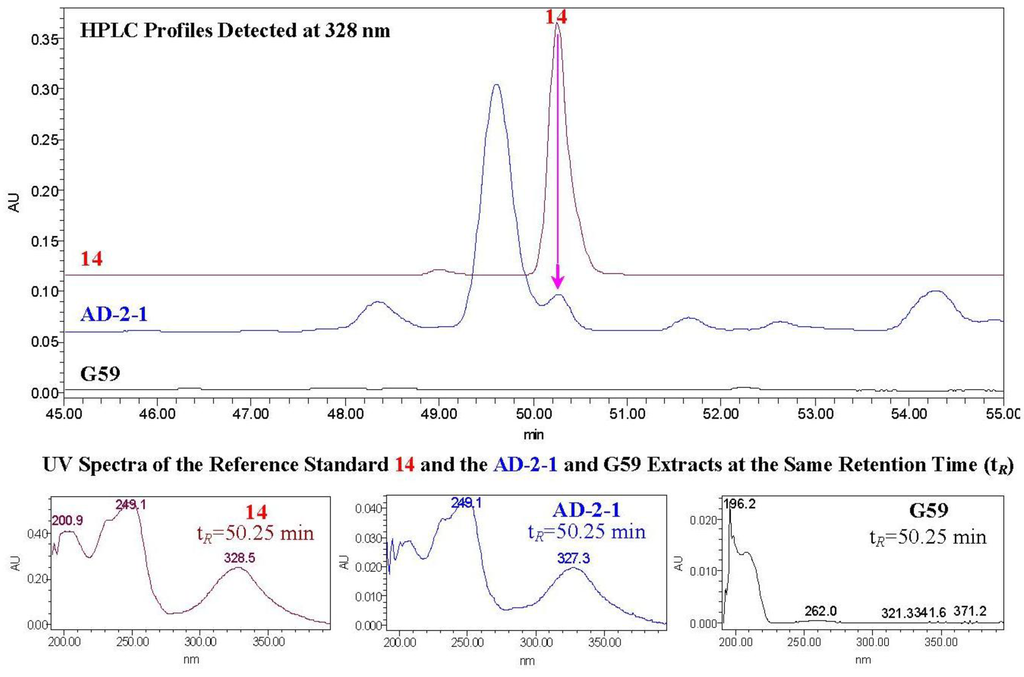

Figure 2. HPLC-PDAD-UV analysis of AD-2-1 and G59 EtOAc extracts for detecting 14.

Click here to enlarge figure

Figure 2. HPLC-PDAD-UV analysis of AD-2-1 and G59 EtOAc extracts for detecting 14.
Marinedrugs 12 01815 g002 1024

These analyses indicated that the production of 114 in mutant AD-2-1 was caused by the activation of silent metabolic pathways in the original G59 strain by the DES mutagenesis. Although the silent pathways remained undefined, the structural features of 19 and 1014 indicated they may originate from the nonribosomal peptide synthetase (NRPS) systems and the polyketide synthase (PKS) systems, respectively [25,26]. Various kinds of lipopeptides are known occurring in Nature. However, 17 are new lipopeptides and several analogues including 8 and 9 were all discovered from fungal metabolites [15,16,23]. Also, a lot of anthraquinone/xanthone-derived polyketides have been isolated from fungal metabolites [25,26]. However, none of them were obtained by mutagenic activation of their production, and 19 and 1014 provide the first examples of the related lipopeptides and polyketides produced by mutagenic activation of the silent metabolic pathways in fungi. Thus, additional investigation into the activated metabolic pathways and their regulatory mechanisms are warranted.

2.4. Inhibitory Effects of 1–14 on Several Human Cancer Cell lines

Antitumor activities of 114 were assayed by the MTT method using human cancer K562, HL-60, HeLa, BGC-823, and MCF-7 cells. Seven new lipopeptides 17 and the known one 9 weakly inhibited these cells to varying extents with inhibition rate (IR%) values shown in Table 3, and the five known polyketides 1014 showed also similarly weak inhibitory effects on the K562 cells with the IR% values of 11.6% (10), 51.9% (11), 37.9% (12), 25.5% (13) at 100 µg/mL, and 37.5% (14) at 50 µg/mL. In contrast, the known C-terminal aldehyde lipopeptide fellutamide B (8) showed stronger activities than 17 and 914 in inhibiting the tested cell lines with half-inhibitory concentration (IC50) values of 29.1 µg/mL (52.5 µM) for K562, 59.9 µg/mL (107.9 µM) for HL-60, 59.5 µg/mL (107.2 µM) for HeLa, 77.9 µg/mL (140.4 µM) for BGC-823, and 43.3 µg/mL (68.4 µM) for MCF-7 cells. The positive control 5-flurouracel (5-FU) inhibited these cell lines with the IR% values of 48.5% (K562), 38.2% (HL-60), 37.4% (HeLa), 47.8% (BGC-823), and 47.4% (MCF-7) at 100 µg/mL. The above data were taken with four new compounds that we have just recently reported [12], using 5-FU as the positive control at the same time and same conditions, so that the same data for 5-FU [12] were also given as references for 114.

Table Table 3. IR% values of 17 and 9 on human cancer cell lines by MTT assay at 100 µg/mL.

Click here to display table

Table 3. IR% values of 17 and 9 on human cancer cell lines by MTT assay at 100 µg/mL.
CompoundK562HL-60HeLaBGC-823MCF-7
137.6%14.1%12.8%19.9%33.0%
234.4%28.0%27.6%28.1%34.5%
340.7%19.8%19.1%13.5%27.0%
440.0%29.6%29.0%27.9%38.0%
517.0%42.6%42.0%43.9%12.5%
610.1%38.8%37.9%49.0%21.8%
716.1%12.0%11.5%10.3%16.5%
948.3%33.4%33.0%33.3%35.5%

Fellutamide A and B (8) were originally identified for their cytotoxic properties on murine leukemia P388 and L1210, and human epidermoid carcinoma KB cells with IC50 values 0.1–0.8 µg/mL [15]. Later they were found to stimulate nerve growth factor (NGF) synthesis and secretion [27,28]. The similar fellutamides carrying C-terminal aldehyde group, fellutamide D and “fellutamide C” that we suggest to be renamed as fellutamide E, were also cytotoxic against human prostate carcinoma PC-3 cells (IC50: 160 and 440 nM, respectively) and further showed antifungal activities on several Candida species with MIC values ranging from 2 to 32 µg/mL [23]. Now, the C-terminal aldehyde fellutamides are known to be members of peptide aldehyde proteasome inhibitors [23,29,30], and their inhibition of the human proteasome, probably by formation of hemiacetal covalent adduct at the active site of the proteasome [29,30], induced the NGF synthesis that may result in the neurotrophic effects [27,28,29,30]. Meanwhile, the inhibition of human proteasome by the C-terminal aldehyde fellutamides is also likely to be the reason for their cytotoxicity [23]. Recently, fellutamide B (8) was known also to potently inhibit the Mycobacterium tuberculosis proteasome with kinetic mechanisms that differ from its inhibition of the human proteasome [31]. Fellutamide C (9), the only fellutamide without C-terminal aldehyde group, was recorded to exhibit the cytotoxic activity on the human lung cancer A549, human ovarian cancer SK-OV-3, human skin cancer SK-MEL-2, human CNS cancer XF498, and human colon cancer HCT-15 cells with half-effective dosage (ED50) values ranging from 3.1 to 33.1 µM [16]. Our bioassay results for 8 and 9 on the five human cancer cell lines in the present study confirmed their cytotoxic properties previously recorded on the other cell lines [15,16], but their inhibitory effects on the present cell lines are much lower than recorded. Furthermore, the seven new and one known lipopeptides all without the C-terminal aldehyde group, penicimutalides A–G (17) and fellutamide C (9), showed also much lower cytotoxicity than the C-terminal aldehyde lipopeptide, fellutamide B (8), on the five tested cell lines in the present bioassays. These data have revealed that the C-terminal aldehyde is an important functional group for their cytotoxic effects on these cell lines, and suggested also that the inhibition of the human proteasome by the aldehyde group in C-terminal fellutamides [23,29] might have contributed to the cytotoxicity of these fellutamides [15,23,29].

In summary, we have reported 14 metabolites 114 in the culture extract of an antitumor mutant AD-2-1 that was obtained by the DES mutagenesis of originally inactive, parent G59 fungal strain. By tracing newly produced metabolites in the mutant AD-2-1 extract under the guidance of MTT assay and TLC analysis using the parent G59 extract as control, seven new lipopeptides 17 were isolated together with two known lipopeptides 8 and 9 and the five known polyketides 1014. Structures of the new compounds including their absolute configurations were determined by spectroscopic and chemical evidences, and named penicimutalides A–G (17). All 114 inhibited several human cancer cell lines to varying extents. All the bioassays and HPLC-PDAD-UV and HPLC-ESI-MS analyses demonstrated that the production of 114 in the mutant AD-2-1 was caused by the activation of the silent metabolic pathways in the original fungal G59 strain by the DES mutagenesis. Present results provided additional examples for the effectiveness of the chemical mutagenesis strategy using an old chemical mutagen DES to discover new compounds by activating silent metabolites in fungal isolates [12].

3. Experimental Section

3.1. General Experimental

Melting points were measured on a Beijing Tiandiyu X-4 exact micro melting point apparatus and the temperatures were not corrected. Optical rotations were measured on an Optical Activity Limited polAAr 3005 spectropolarimeter. ESIMS was recorded on an Applied Biosystems API 3000 LC-MS spectrometer. HRESIMS was measured on an Agilent 6520 Q-TOF LC-MS spectrometer. IR spectra were taken on a Bruker Hyperion ATR-objective spectrophotometer or Bruker Tensor-27 infrared spectrophotometer. All 1D and 2D NMR spectra were obtained on a JEOL JNM-GX 400 (400 MHz 1H and 100 MHz 13C NMR) or Bruker-600 (600 MHz 1H and 150 MHz 13C NMR) NMR spectrometer. The chemical shifts of 1H and 13C NMR signals were recorded in δ values using solvent signals (CDCl3: δH 7.26, δC 77.1; DMSO-d6: δH 2.50, δC 39.5; and acetone-d6: δH 2.05, δC 206.26) as references, respectively.

Precoated silica gel GF254 plates (10 cm × 20 cm, 0.25 mm thickness for analytical TLC and 20 cm × 20 cm, 0.5 mm thickness for preparative TLC; Yantai Chemical Industrial Institute, Yantai, China) and polyamide thin layers (10 cm × 20 cm, Taizhou Luqiao Sijia Biochemical plastic factory, Taizhou, China) were used in TLC and spots were detected under sunlight and UV light (254 and 365 nm) or by using Vaughan’s reagent (24 g of ammonium molybdate tetrahydrate (NH4)6Mo7O24·4H2O) and 1 g of ceric sulfate Ce(SO4)2 dissolved in 500 mL of 10% H2SO4), 5% FeCl3 reagent (5 g of FeCl3 dissolved in 100 mL of 95% aqueous EtOH) or 10% sulfuric acid reagent. For lipopeptides, TLC spots or bands were also detected by spraying distilled water onto the plates. Silica gel H (100–200 mesh, Yantai Chemical Industrial Institute, Yantai, China), YMC*GEL® ODS-A-HG (12 nm S-50 µm, YMC Co., Ltd., Kyoto, Japan), Sephadex™ LH-20 (GE Healthcare, Uppsala, Sweden), and Polyamide (100–200 mesh, Taizhou Luqiao Sijia Biochemical plastic factory, Taizhou, China) were used for column chromatography. Both analytical and semi-preparative HPLC were performed on Waters HPLC systems equipped with Waters 600 controller, Waters 600 pump, Waters 2414 refractive index detector, Waters 2996 (for analytical HPLC) or 2998 (for preparative HPLC) photodiode array detector, and Waters Empower™ software. Venusil MP C18 (5 µm, 100 Å, 4.6 mm × 250 mm; Agela Technologies, Tianjin, China) and reversed-phase chiral Click β-CD (4.6 mm × 150 mm; Dalian Institute of Chemical Physics, Dalian, China) columns were used in analytical HPLC, and reversed-phase chiral Click β-CD column (8 mm × 150 mm; Dalian Institute of Chemical Physics, Dalian, China) was used in semi-preparative HPLC.

Marfey’s reagent, the 1-fluoro-2,4-dinitrophenyl-5-l-alanineamide (FDAA), was the Sigma product, which was provided by Yongsheng Che (Beijing Institute of Pharmacology and Toxicology, Beijing, China). The standard materials used in Marfey analysis were purchased from ShangHai HanHong Chemical CO., Ltd. (Shanghai, China) Standard (abbr.), lot No: l-asparagine (l-Asn), BH-00303-100101; d-asparagine (d-Asn), BH-00301-100801; l-glutamine (l-Gln), BH-00802-100101; d-glutamine (d-Gln) BH-00801-100101; l-leucinol (l-Leo), BH-01338-100501; d-leucinol (d-Leo) BH-01337-100501; l-leucine (l-Leu), BH-01302-110501; d-leucine (d-Leu), BH-01301-110101; l-aspartic acid (l-Asp) BH-00403-110501; d-aspartic acid (d-Asp), BH-00401-110502; l-glutamic acid (l-Glu), BH-00702-110501; d-glutamic acid (d-Glu), BH-00701-110501.

ZHWY-2102 rotary shakers (Shanghai ZhiCheng Analyzing Instrument Manufactory Co., Ltd., Shanghai, China) were used for the fermentation of fungal strains. The VERSAmax-BN03152 micro plate reader (Molecular Device) was used in bioassays to read the optical density (OD) and the AE31 EF-INV inverted microscope (Motic China Group Co., Ltd., Xiamen, Fujian, China) was used for morphological examination of tumor cells.

Human chronic myelogenous leukemia K562 cell line was provided by Prof. Dr. Lili Wang (Beijing Institute of Pharmacology and Toxicology, Beijing, China). Human acute promyelocytic leukemia HL-60, human cervical cancer HeLa, Human gastric adenocarcinoma BGC-823, and human breast cancer MCF-7 cell lines were provided by Wenxia Zhou (Beijing Institute of Pharmacology and Toxicology, Beijing, China). Fetal bovine serum was purchased from Tianjin Hao Yang Biological manufacture Co., Ltd. (Tianjin, China). The RPMI-1640 medium was purchased from Gibco (lot No. 1403238) and MTT from Amresco (lot No. 0793). Streptomycin (lot No. 071104) and penicillin (lot No. X1103302) were both purchased from North China Pharmaceutical Group Corporation, China. The 5-fluorouracil (5-FU, lot No.5402) was purchased from Aladdin Chemistry Co., Ltd. (Shanghai, China).

3.2. MTT Assay

EtOAc extracts and fractions were dissolved in MeOH at 10 mg/mL and the MeOH solutions were used in MTT assays. Pure compounds and 5-FU were dissolved in MeOH and DMSO to prepare 10.0 mg/mL stock solutions, respectively, and serial dilutions were made for MTT assay. 5-FU was used as positive control, and MeOH and DMSO were used as blank control, respectively.

Exponentially growing K562, HL-60, HeLa, BGC-823 and MCF-7 cells were suspended in fresh RPMI-1640 medium containing 10% fetal bovine serum and 100 µg/mL penicillin and streptomycin at the cell density of 5 × 104 cells/mL and seeded into 96-well plates each 200 µL/well. The suspension cells, K562 and HL-60, were incubated at 37 °C for 2 h, whereas the adherent cells, HeLa, BGC-823 and MCF-7, were incubated at 37 °C for 12 h. Then, 2 µL of MeOH or DMSO for control and the test sample solutions was added to each well, and the cells were cultured at 37 °C for 24 h. After morphological examination of the cells under an inverted microscope, MTT (20 µL; 5 mg/mL in PBS) was added into each well, incubated at 37 °C for 4 h, and centrifuged at 2000 rpm, 4 °C for 20 min. After removal of the supernatant by aspirating, 150 µL DMSO was added into each well, and shaken for 5 min to dissolve formazan crystals. The OD value at 570 nm was read for each well using the VERSAmax-BN03152 plate reader. Each three wells were set for control and test groups, respectively, and the inhibition rate (IR%) was calculated using OD mean values according to the formula, IR% = (ODcontrol − ODsample)/ODcontrol × 100%. The IC50 value for a sample was obtained from the IR% values of the sample at different concentrations.

3.3. Fermentation and EtOAc Extract Preparation

3.3.1. Initial Fungal Strain and its Mutant the 114 Producing Strain

The initial fungal strain, Penicillium purpurogenum G59 that was used as control strain in the present study, was isolated from a soil sample collected at the tideland of Bohai Bay around Lüjühe in Tanggu district of Tianjin, China, in September 2004 [14]. P. purpurogenum G59 was identified by Professor Dr. Liangdong Guo, Institute of Microbiology, Chinese Academy of Sciences, China. This strain has been deposited at the China General Microbiological Culture Collection Center under the accession number CGMCC No.3560. The strain P. purpurogenum G59 did not produce any secondary metabolites with antitumor activities in repeated MTT assays using K562 cells at high concentrations of 100 and 1000 µg/mL [10,11,12,13,14].

The producing strain used for 114 production in present study is a bioactive mutant AD-2-1 that was obtained by DES mutagenesis of the strain G59 [12]. Fresh G59 spores in 50% (v/v) DMSO were treated with 1% (v/v) DES at 4 °C for 1 day, and single colony isolation on the treated spores followed by bioassays afforded the mutant. EtOAc extracts of the mutant cultures inhibited K562 cells (an IR% of 49.8% at 100 µg/mL), whereas the EtOAc extract of strain G59 by the fermentation at the same time and same conditions did not inhibit the K562 cells (an IR% of 5.6% at 100 µg/mL) [12]. The mutant AD-2-1 has been deposited at the China General Microbiological Culture Collection Center under the accession number CGMCC No.3561.

3.3.2. Preparation of Spore Suspensions

The mutant AD-2-1 was inoculated onto potato dextrose agar (PDA) plates from a PDA slant stock stored at 4 °C and incubated at 28 °C for 4 days. Fresh spores formed on the PDA plates were harvested and suspended in 80 mL of sterilized, distilled water with several glass beads in a 100 mL cone-shaped flask and scattered well by shaking enough to prepare a crude spore suspension. A 100 µL portion of this crude spore suspension was added into a well of 96-well plates, diluted with water with its OD at 600 nm measured using a VERSAmax-BN03152 plate reader, and the dilution ratio was recorded when the OD value reached 0.35. Then, the remaining whole crude spore suspension was diluted with sterilized, distilled water in the same proportion to obtain a mutant AD-2-1 spore suspension. This mutant spore suspension was used for the producing fermentation in the following experiments.

Similarly, the G59 spore suspension was also prepared in the same manner as mentioned above using fresh spores formed by cultivation of the G59 strain at 28 °C for 3 days on PDA plates. This G59 spore suspension was used as control strain in the following experiments.

3.3.3. Fermentation and Extraction

Aliquot (200 µL) of the mutant AD-2-1 spore suspension was inoculated into 100 cone-shaped 500 mL flasks containing 200 mL of the liquid medium (glucose 2%, maltose 1%, mannitol 2%, glutamic acid 1%, peptone 0.5% and yeast extract 0.3% in distilled water, adjusted to pH 6.0 prior to sterilization) and fermented at 28 °C for 12 days on rotary shakers at 200 rpm to obtain approximate 20 L of fermentation broth. The whole broth (20 L) was filtered to separate into a filtrate (17 L) and a mycelial cake. The filtrate was extracted three times with same volumes of EtOAc (3 × 17 L) to give an EtOAc extract. The mycelial cake was extracted three times with 3 L acetone-water (2:1) by ultrasonication for 2 h. The aqueous acetone solution obtained by filtration was evaporated under reduced pressure to remove acetone. Then, the remaining water layer (3 L) was extracted three times with same volumes of EtOAc (3 × 3 L) to give another EtOAc extract. The EtOAc extracts both from the filtrate and mycelia gave same TLC spot patterns and thus were combined to afford total 20 g of the EtOAc extract. This EtOAc extract showed an inhibitory effect on K562 cells with the IR% value of 64.6% at the 100 µg/mL, which was used for the isolation of 114 in the following experiments.

On the other hand, 200 µL of the G59 spore suspension was inoculated into one cone-shaped 500 mL flask with 200 mL of the same liquid medium and fermented at the same time and same conditions to obtain 200 mL of fermentation broth. The whole broth (200 mL) was extracted as described above for mutant AD-2-1 to afford an EtOAc extract (98 mg), which did not show inhibitory effect on K562 cells (an IR% value of 6.8% at 100 µg/mL). This G59 extract was used in the MTT assays and TLC analyses as negative control and also in the HPLC-PDAD-UV and HPLC-ESI-MS analyses for detecting 114 in the following experiments.

3.4. Isolation of Compounds 114

In preliminary TLC analyses of the EtOAc extracts of the control G59 strain and mutant AD-2-1, the lipopeptide components containing 19 were detected in the mutant extract as white spots on the silica gel TLC plates that were developed using CH2Cl2 (D)−MeOH (M)−ammonia (A) (90:20:2→90:30:2) as developing solvents, but not detected in the G59 extract. Spots of the lipopeptide components were visualized by spraying distilled water onto the plates. The components of polyketides including 1014 were also detected only in the mutant extract as several spots on the silica gel TLC plates developed by dichloromethane (D)−acetone (100:1→1:1) or on the polyamide film developed by MeOH−Water (60:40→90:10). Spots of the polyketide components were examined under sunlight and UV lights (254 and 360 nm) or by using the 5% FeCl3 reagent, Vaughan’s reagent or 10% sulfuric acid reagent. Thus, the separation of the mutant extract was performed tracing these newly produced metabolites under the guidance of MTT assay and TLC analysis by direct comparison with the control G59 extract.

The EtOAc extract (20 g) of the mutant AD-2-1 was separated into MeOH soluble (15 g) and insoluble (5 g) parts by dissolving in approximate 200 mL of MeOH. The MeOH insoluble part (5 g) did not show inhibitory effect on K562 cells. The MeOH soluble part (15 g) was dissolved in 100 mL EtOH and subjected to a Sephadex LH-20 column (bed 5 cm × 40 cm in EtOH). Elution of the column using EtOH as eluent afforded five fractions in the order of elution: Fr-1 (3.6 g), Fr-2 (3.1 g), Fr-3 (2.7 g), Fr-4 (3.4 g) and Fr-5 (2.2 g). These fractions inhibited the K562 cells with the IR% values of 50.4% (Fr-1), 25.5% (Fr-2), 18.9% (Fr-3), 50.1% (Fr-4), and 30.4% (Fr-5) at the 100 µg/mL. TLC analyses of the fractions indicated that the aimed metabolites newly produced by the mutant, compared to the control G59 strain, existed in two fractions: The lipopeptide components including 19 in the fraction Fr-1 and the polyketide components including 1014 in the fraction Fr-4.

Fr-1 (3.6 g) was further subjected to vacuum liquid chromatography (VLC) on an ODS column (bed 4.8 cm × 10 cm) dry-packed with 25 g of ODS. A stepwise elution with Water (W)–EtOH (E) (100:0→5:95) gave five fractions in the order of elution: Fr-1-1 (0.32 g, elution of water), Fr-1-2 (0.15 g, eluted by WE 4:1→7:3), Fr-1-3 (0.2 g, eluted by WE 7:3), Fr-1-4 (2.3 g, eluted by WE 3:2→1:1), and Fr-1-5 (0.6 g, eluted by WE 2:3→3:7). These fractions inhibited the K562 cells with the IR% values of 24.9% (Fr-1-1), 11.5% (Fr-1-2), 40.3% (Fr-1-3), 70.3% (Fr-1-4), and 28.9% (Fr-1-5) at the 100 µg/mL. TLC analysis indicated that Fr-1-3 contained 7 and Fr-1-4 contained 16, 8, and 9. Thus, Fr-1-3 (0.2 g) was subjected to preparative TLC (PTLC) on silica gel GF254 plates (20 cm × 20 cm, 0.5 mm thickness) using CH2Cl2 (D)−MeOH (M)−ammonia (A) (90:30:2) as developing solvent. Silica gels on a band with Rf value of 0.6, which was visualized by spraying distilled water, were harvested and adsorbed substances were extracted by eluting with acetone. Further purification of the substances by passing through a small Sephadex LH-20 column in MeOH afforded compound 7 (30 mg) as a white amorphous powder from MeOH solution. Fr-1-4 (0.5 g) was dissolved in 5 mL MeOH and subjected to PTLC using DMA (90:20:2) as developing solvent. Silica gels on four bands (Rf values: 0.45, 0.5, 0.6, and 0.7) were harvested, respectively, which were visualized by spraying distilled water. Then, substances adsorbed in the silica gels were extracted by eluting with acetone to obtain four fractions: Fr-1-4-1 (60 mg, Rf ≈ 0.7), Fr-1-4-2 (210 mg, Rf ≈ 0.6), Fr-1-4-3 (40 mg, Rf ≈ 0.5), and Fr-1-4-4 (30 mg, Rf ≈ 0.45). These fractions inhibited the K562 cells with the IR% values of 40.5% (Fr-1-4-1), 43.0% (Fr-1-4-2), 70.8% (Fr-1-4-3), and 37.3% (Fr-1-4-4) at the 100 µg/mL. Fr-1-4-1 (60 mg) was further separated by repeated semi-preparative HPLC (column: a reversed-phase Click β-CD column, 8 mm × 150 mm, column temperature: 40 °C; mobile phase: MeOH–H2O 42:58, flow rate: 2 mL/min; detecting wave length: 210 nm) to give compounds 1 (3 mg, tR = 48 min), 3 (5 mg, tR = 54 min), 2 (2.5 mg, tR = 67 min), and 4 (7 mg, tR = 76 min). Fr-1-4-2 (60 mg) and Fr-1-4-3 (40 mg) were subjected also to repeated semi-preparative HPLC (column: a reversed-phase Click β-CD column, 8 mm × 150 mm, column temperature: 26 °C; mobile phase: MeOH–H2O 48:52, flow rate: 2 mL/min; detecting wave length: 210 nm) to obtain compound 8 (13 mg, tR = 54 min) from Fr-1-4-2 and compound 9 (10 mg, tR = 42 min) from Fr-1-4-3, respectively. On the other hand, repeated semi-preparative HPLC separation (column: a reversed-phase Click β-CD column, 8 mm × 150 mm, column temperature: 26 °C; mobile phase: MeOH–H2O 45:55, flow rate: 2 mL/min; detecting wave length: 210 nm) of Fr-1-4-4 (30 mg) afforded compound 5 (1 mg, tR = 42 min) and 6 (2 mg, tR = 52 min).

Fr-4 (3.4 g) was subjected to VLC on a silica gel column (dry-packed with 25 g silica gel, bed2 cm × 10 cm). Stepwise elution of the column with b.p. 60–90 °C Petroleum ether (P)–Dichloromethane (D) (100:0→0:100) and then DM (90:10→0:100) as eluting solvents gave five fractions: Fr-4-1 (10 mg, eluted by PD 1:1→9:1), Fr-4-2 (0.8 g, eluted by PD 9:1→1:9), Fr-4-3 (1.3 g, eluted by D), Fr-4-4 (1.2 g, eluted by DM 98:2→92:8), and Fr-4-5 (0.12 g, eluted by DM 92:8→4:1). These fractions inhibited the K562 cells with IR% values of 16.9% (Fr-4-1), 49.0% (Fr-4-2), 35.9% (Fr-4-3), 53.9% (Fr-4-4), and 13.2% (Fr-4-5) at the 100 µg/mL. Among these, three fractions, Fr-4-2, Fr-4-3 and Fr-4-4, were known to contain targeted polyketide components by TLC examination. Fr-4-2 (0.8 g) was subjected to Polyamide column (bed 2 cm × 30 cm) chromatography and stepwise elution with WM (100:0→0:100) afforded compounds 10 (24 mg) from a fraction eluted by WM (3:7) and 12 (18 mg) from a fraction eluted by WM (1:4). Fr-4-3 (1.3 g) was separated by Sephadex LH-20 column (bed 2.5 cm × 60 cm in DM 1:1) chromatography (eluting solvent, DM 1:1) to obtain three fractions: Fr-4-3-1 (0.3 g), Fr-4-3-2 (0.61 g), and Fr-4-3-3 (0.24 g). These fractions inhibited the K562 cells with the IR% values of 19.0% (Fr-4-3-1), 41.6% (Fr-4-3-2), and 10.5% (Fr-4-3-3) at the 100 µg/mL. Recrystallization of Fr-4-3-2 (0.61 g) in DM (1:1) solution gave compound 14 (400 mg) as yellowish needles. Fr-4-4 (1.2 g) was separated by Polyamide column (bed 2 cm × 30 cm) chromatography using WM (100:0→0:100) as eluting solvent to give a fraction (0.6 g) eluted by WM (3:7→1:9), which contained targeted polyketides. This fraction (0.6 g) was further separated by VLC on a silica gel column (bed 2.5 cm × 8 cm) using PD (1:3→1:5) as eluting solvent to obtain compounds 11 (13 mg) from PD 1:3 eluent and 13 (20 mg) from PD 1:5 eluent.

3.5. Physicochemical and Spectral Data for Compounds 114

Penicimutalide A (1): White amorphous powder (MeOH), Marinedrugs 12 01815 i001 −18.0 (c 0.1, MeOH). Positive ESI-MS m/z: 594 [M + Na]+; negative ESI-MS m/z: 570 [M − H], 606 [M + Cl], 616 [M + HCOO], 660 [M + HC2O4]. Positive HR-ESI-MS m/z: measured 594.3834 [M + Na]+, calcd for C28H53N5O7Na [M + Na]+ 594.3843, measured 610.3626 [M + K]+, calcd for C28H53N5O7Na [M + K]+ 610.3582. IR νmax cm−1 (KBr): 3422, 3283, 2958, 2922, 2852, 1663, 1626, 1552, 1536, 1516, 1443, 1384, 1311, 1261, 1095, 1018, 928, 879. 1H and 13C NMR data: see Table 1 and Table 2 and see also Table S1 in the Supplementary Information.

Penicimutalide B (2): White amorphous powder (MeOH), Marinedrugs 12 01815 i001 −17.0 (c 0.1, MeOH). Positive ESI-MS m/z: 594 [M + Na]+; negative ESI-MS m/z: 570 [M − H], 606 [M + Cl], 616 [M + HCOO], 660 [M + HC2O4]. Positive HR-ESI-MS m/z: measured 594.3847 [M + Na]+, calcd for C28H53N5O7Na [M + Na]+ 594.3843, measured 610.3612 [M + K]+, calcd for C28H53N5O7K [M + K]+ 610.3582. IR νmax cm−1 (Diamond ATR crystal): 3283, 3215, 2934, 2862, 1654, 1540, 1419, 1320, 1290, 1255, 1147, 1122, 1063, 883, 865. 1H and 13C NMR data: see Table 1 and Table 2 and see also Table S2 in the Supplementary Information.

Penicimutalide C (3): White amorphous powder (MeOH), Marinedrugs 12 01815 i001 −23.7 (c 0.3, MeOH). Positive ESI-MS m/z: 558 [M + H]+, 580 [M + Na]+; negative ESI-MS m/z: 592 [M + Cl]. Positive HR-ESI-MS m/z: measured 580.3695 [M + Na]+, calcd for C27H51N5O7Na [M + Na]+ 580.3686. IR νmax cm−1 (Diamond ATR crystal): 3268, 2934, 2862, 1650, 1536, 1418, 1325, 1282, 1256, 1196, 1145, 1114, 1062, 979, 949. 1H and 13C NMR data: see Table 1 and Table 2 and see also Table S3 in the Supplementary Information.

Penicimutalide D (4): White amorphous powder (MeOH), Marinedrugs 12 01815 i001 −24.8 (c 0.3, MeOH). Positive ESI-MS m/z: 558 [M + H]+, 580 [M + Na]+, 596 [M + K]+; negative ESI-MS m/z: 556 [M − H],592 [M + Cl]. Positive HR-ESI-MS m/z: measured 580.3684 [M + Na]+, calcd for C27H51N5O7Na [M + Na]+ 580.3686, measured 596.3426 [M + K]+, calcd for C28H53N5O7K [M + K]+ 596.3426. IR νmax cm−1 (Diamond ATR crystal): 3274, 2930, 2859, 1650, 1632, 1537, 1417, 1325, 1281, 1255, 1197, 1139, 1112, 1056, 946, 865. 1H and 13C NMR data: see Table 1 and Table 2 and see also Table S4 in the Supplementary Information.

Penicimutalide E (5): White amorphous powder (MeOH), Marinedrugs 12 01815 i001 −15.0 (c 0.04, MeOH). Positive ESI-MS m/z: 571 [M + H]+; negative ESI-MS m/z: 569 [M − H]. Positive HR-ESI-MS m/z: measured 571.3819 [M + H]+, calcd for C27H51N6O7 [M + H]+ 571.3819; measured 593.3634 [M + Na]+, calcd for C27H50N6O7Na [M + Na]+ 593.3639. IR νmax cm−1 (Diamond ATR crystal): 3273, 2931, 2859, 1642, 1546, 1537, 1418, 1324, 1283, 1156, 1134, 1074, 864, 783. 1H and 13C NMR data: see Table 1 and Table 2 and see also Table S5 in the Supplementary Information.

Penicimutalide F (6): White amorphous powder (MeOH), Marinedrugs 12 01815 i001 −18.8 (c 0.04, MeOH). Positive ESI-MS m/z: 571 [M + H]+; negative ESI-MS m/z: 569 [M − H]. Positive HR-ESI-MS m/z: measured 571.3805 [M + H]+, calcd for C27H51N6O7 [M + H]+ 571.3819. IR νmax cm−1 (Diamond ATR crystal): 3273, 2933, 2860, 1653, 1628, 1540, 1418, 1177, 1132, 1024. 1H and 13C NMR data: see Table 1 and Table 2 and see also Table S6 in the Supplementary Information.

Penicimutalide G (7): White amorphous powder (MeOH), Marinedrugs 12 01815 i001 −7.5 (c 0.1, MeOH). Positive ESI-MS m/z: 458 [M + H]+, 480 [M + Na]+; negative ESI-MS m/z: 456 [M − H], 492 [M + Cl]. Positive HR-ESI-MS m/z: measured 458.2970 [M + H]+, calcd for C21H40N5O6 [M + H]+ 458.2979; measured 480.2798 [M + Na]+, calcd for C21H39N5O6Na [M + Na]+ 480.2798; measured 496.2526 [M + K]+, calcd for C27H5N5O7K [M + K]+ 496.2537. IR νmax cm−1 (Diamond ATR crystal): 3274, 3205, 2929, 2857, 1651, 1632, 1540, 1414, 1320, 1281, 1254, 1200, 1133, 1095, 1070, 1042, 958, 866. 1H and 13C NMR data: see Table 1 and Table 2 and see also Table S7 in the Supplementary Information.

Fellutamide B (8): White amorphous powder (MeOH), Marinedrugs 12 01815 i001 −28.0 (c 0.5, MeOH). Positive ESI-MS m/z: 556 [M + H]+; negative ESI-MSm/z: 554 [M − H]. 1H and 13C NMR data: see Table 1 and Table 2.

Fellutamide C (9): White amorphous powder (MeOH), Marinedrugs 12 01815 i001 −33.0 (c 0.2, MeOH). Positive ESI-MS m/z: 558 [M + H]+, 580 [M + Na]+; negative ESI-MS m/z: 592 [M + Cl]. Positive HR-ESI-MS m/z: measured 558.3862 [M + H]+, calcd for C27H52N5O7 [M + H]+ 558.3867; measured 580.3692 [M + Na]+, calcd for C27H51N5O7Na [M + Na]+ 580.3686; measured 596.3413 [M + K]+, calcd for C27H51N5O7K [M + K]+ 596.3426. 1H and 13C NMR data: see Table 1 and Table 2.

1′-O-Methylaverantin (10): Crystalline orange-red powder (CH2Cl2), mp 214−216 °C, Marinedrugs 12 01815 i001 +1.8 (c 0.4, MeOH), ESI-MS m/z: 387 [M + H]+. 1H NMR (acetone-d6, 400MHz) δ: 12.78 (1H, s, 1-OH), 12.18 (1H, s, 8-OH), 10.10 (1H, br s, 6-OH), 9.69 (1H, br s, 3-OH) 7.23 (1H, d, J = 2.4 Hz, H-5), 7.13 (1H, s, H-4), 6.64 (1H, d, J = 2.4 Hz, H-7), 4.97 (1H, dd, J = 7.9, 5.1 Hz, H-1′), 3.49 (3H, s, 1′-OCH3), 1.95–1.75 (2H, m, H2-3′), 1.58–1.38 (2H, m, H2-2′), 1.38–1.24 (4H, m, H2-4′, H2-5′), 0.89 (3H, t, J = 6.8 Hz, H3-6′).

Averantin (11): Crystalline orange-red powder (CH2Cl2), mp 279−280 °C, Marinedrugs 12 01815 i001 −130.0 (c 0.52, MeOH). ESI-MS m/z: 373 [M + H]+. 1H NMR (acetone-d6, 400MHz) δ: 12.63 (1H, s, 1-OH), 12.08 (1H, s, 8-OH), 9.00 (2H, br s, 1-OH, 3-OH), 7.09 (1H, d, J = 2.4 Hz, H-5), 7.00 (1H, s, H-4), 6.50 (1H, d, J = 2.4 Hz, H-7), 5.29 (1H, dd, J = 7.8, 4.5 Hz, H-1′), 1.80–1.63 (2H, m, H2-3′), 1.50–1.30 (2H, m, H2-2′), 1.30–1.10 (4H, m, H2-4′, H2-5′), 0.76 (3H, t, J = 6.8 Hz, H3-6′). 13C NMR (acetone-d6, 100 MHz) δ: 190.7 (C-9), 181.8 (C-10), 166.0 (C-8), 165.9 (C-1), 165.0 (C-6),161.7 (C-3), 136.4 (C-4a), 134.5 (C-10a), 122.0 (C-2), 110.3 (C-5), 110.2 (C-9a), 109.4 (C-8a), 108.9 (C-7), 108.8 (C-4), 69.9 (C-1′), 36.9 (C-2′), 32.3 (C-3′), 25.6 (C-4′), 23.2 (C-5′), 14.3 (C-6′).

Averufin (12): Crystalline orange-red powder (CH2Cl2), mp 280−282 °C, Marinedrugs 12 01815 i001 −1.7 (c 0.3, CHCl3). 1H NMR (acetone-d6, 400MHz) δ: 12.51 (1H, s, 1-OH), 12.19 (1H, s, 8-OH), 10.09 (1H, s, 6-OH), 7.22 (1H, d, J = 2.5 Hz, H-5), 7.09 (1H, s, H-4), 6.63 (1H, d, J = 2.5 Hz, H-7), 5.29 (1H, d, J = 2.8 Hz, H-1′), 2.15–1.25 (6H, m, H2-2′,3′,4′), 1.55 (3H, s, H3-6′). 13C NMR (acetone-d6, 100MHz) δ: 190.7 (C-9), 181.6 (C-10), 166.0 (C-8), 165.8 (C-1), 161.5 (C-6), 159.8 (C-3), 136.3 (C-4a), 134.4 (C-10a), 117.1 (C-2), 110.2 (C-5), 109.5 (C-9a), 109.4 (C-8a), 108.9 (C-7), 108.4 (C-4), 102.2 (C-5′), 67.4 (C-1′), 36.3 (C-2′), 28.0 (C-4′), 27.9 (C-6′), 16.5 (C-3′).

Nidurufin (13): Crystalline orange-red powder (CH2Cl2), mp 188−190 °C, Marinedrugs 12 01815 i001 +0.3 (c 0.2, CHCl3). ESI-MS m/z: 385 [M + H]+. 1H NMR (acetone-d6, 400MHz) δ: 12.58 (1H, s, 1-OH), 12.22 (1H, s, 8-OH), 10.17 (1H, s, 6-OH), 7.26 (1H, d, J = 2.5 Hz, H-5), 7.14 (1H, s, H-4), 6.67 (1H, d, J = 2.5 Hz, H-7), 5.17 (1H, br s, H-1′), 3.95 (1H, br s, H-2′), 2.30–1.30 (4H, m, H2-3′, H2-4′), 1.58 (3H, s, H3-6′).

Sterigmatocystin (14): Pale yellow needles (CH2Cl2), mp 246 °C (dec.), Marinedrugs 12 01815 i001 −384 (c 0.5, CHCl3), ESI-MS m/z: 325 [M + H]+, 347 [M + Na]+. 1H NMR (400 MHz, CDCl3) δ: 13.23(1H, s, 3-OH), 7.47 (1H, dd, J = 8.4, 8.0 Hz, H-5), 6.80 (1H, d, J = 7.0 Hz, H-14), 6.79 (1H, dd, J = 8.0, 1.0 Hz, H-6), 6.72 (1H, dd, J = 8.4, 1.0 Hz, H-4), 6.50 (1H, t, J = 2.5 Hz, H-17), 6.40 (1H, s, H-11), 5.43 (1H, t, J = 2.5 Hz, H-16), 4.76 (1H, dt, J = 7.0, 2.5 Hz, H-15), 3.98 (3H, s, H3-18). 13C NMR (100 MHz, CDCl3) δ: 181.2 (C-1), 164.4 (C-10), 163.1 (C-12), 162.1 (C-3), 154.8 (C-7), 153.8 (C-8), 145.2 (C-17), 135.6 (C-5), 113.2 (C-14), 111.1 (C-4), 108.7 (C-2), 106.4 (C-6), 105.8 (C-9), 105.7 (C-13), 102.4 (C-16), 90.4 (C-11), 56.7 (C-18), 47.9 (C-15).

3.6. Marfey Analysis for 1–9

3.6.1. Hydrolysis and Derivatization with FDAA

To nine glass tubes that one terminal has been sealed was added each 50 µL of 19 solutions in MeOH at 1 mg/mL, respectively. After blown inside the tubes with nitrogen gas to dryness, 100 µL of aqueous 6 N HCl solution was added into each tube. After the open terminal of the tubes was sealed by blast burner, the tubes were kept at 110 °C for 24 h to hydrolyze 19. Then, one sealed terminal of the tubes was cut out, reaction solutions were blown with nitrogen gas to dryness, and the tubes were maintained in vacuo overnight to clean up remained HCl. At the same time, each 500 µg of standards in 500 µL of aqueous 6 N HCl solution, l-Asn, d-Asn, l-Gln, d-Gln, l-Leu, d-Leu, l-Leu amide and d-Leu amide, was also hydrolyzed in the same manner and same conditions. At this condition, the l-Leu amide and d-Leu amide were hydrolyzed to l-Leu and d-Leu, respectively. Both hydrolyzates of the standards and 19 were dissolved in each 10 μL of distilled water, mixed with 10 μL of 10 mM l-FDAA in acetone and 10 μL of 1 N NaHCO3 aqueous solution, respectively, and reacted at 45 °C for 1.5 h. The reaction mixtures were neutralized with 5 μL of 2 N HCl, respectively. Then, the reaction mixtures were filtered, and the filtrates were subjected to HPLC analysis.

3.6.2. Oxidization of Leucinal in 8 to Leucine, then Hydrolysis and Derivatization with FDAA

Because we had the l-/d-leucine standards in hand but lacked the l-/d-leucinal standards, in order to determine the absolute configuration of leucinal in 8, the leucianl in 8 was oxidized into leucine at first. The 100 µg of 8 was suspended in 100 µL distilled water, then 2 µg KMnO4 was added, and reacted by stirring at room temperature for 30 min to oxidize the leucianl in 8 into the leucine. The reaction mixture was extracted with n-BuOH (250 μL × 2) to obtain an oxidized product of 8 from the n-BuOH solution. Then, the total of this oxidized product was hydrolyzed using 100 μL of aqueous 6 N HCl at 110 °C for 24 h, derivatized as mentioned above with FDAA at the same time and same conditions, and then subjected to the HPLC analysis, in the same manner as mentioned.

3.6.3. HPLC Analysis of FDAA Derivatives of 19 to Determine Absolute Configurations

HPLC analysis of the FDAA derivatives was performed on a Venusil MP C18 column (5 µm, 100 Å, 4.6 mm × 250 mm) at room temperature, using mixed A (H2O containing 1% HCOOH) and B (acetonitrile) solutions in a linear gradient (15% B at initial time 0 min→50% B at 60 min→100% B at 70 min; flow rate, 1 mL/min) as mobile phase. The acquired photodiode array (PDA) data were processed by Empower PDA software and targeted derivatives were detected at 340 nm.

In the HPLC conditions, the FDAA derivatives of d- and l-standards were separated well as given their retention times (tR) in Table 4. The FDAA derivatives of 19 were analyzed by injection of the derivatives alone and co-injection with those of related l- and d-standards, respectively.

Table Table 4. Retention times (tR) for the FDAA derivatives of l- and d-standards.

Click here to display table

Table 4. Retention times (tR) for the FDAA derivatives of l- and d-standards.
FDAA derivativetR (min)FDAA derivativetR (min)
l-Aspartic acid28.60d-Aspartic acid30.55
l-Glutamic acid30.85d-Glutamic acid33.38
l-leucinol51.14d-leucinol59.53
l-leucine53.11d-leucine59.85

3.7. Hydrolysis of 19 for Determination of the 23R Absolute Configuration in 19

Each 0.3 mg of 19 was mixed, and the mixture was suspended in 1 mL of aqueous 6 N HCl in a sealed tube and hydrolyzed at 110 °C for 1 h. The solution was then extracted three times with 1 mL of CHCl3 to obtain a CHCl3 extract. This extract was purified by silica gel PTLC (0.5 mm thickness, 20 mm × 20 mm; developing solvent: DM 95:5) to obtain 3R-hydroxydodecanoic acid (0.8 mg, Rf = 0.5): Marinedrugs 12 01815 i001 −16 (c 0.05, CHCl3). Positive ESI-MS m/z: 239 [M + Na]+; negative ESI-MS m/z: 215 [M − H]. 1H NMR (400 MHz, CDCl3) δ: 4.02 (1H, m), 2.57 (2H, dd, J = 16.6, 3.0 Hz), 2.47 (1H, dd, J = 16.6, 9 Hz), 1.40–1.58 (2H, m), 1.20–1.36 (14H, m), 0.87 (3H, t, J = 6.6 Hz). 13C NMR (CDCl3) δ: 176.8, 68.0, 40.8, 36.5, 31.9, 29.7, 29.5, 29.4, 29.3, 25.4, 22.7, 14.1. The Marinedrugs 12 01815 i001 and 1H and 13C NMR data are identical with those reported for 3R-hydroxydodecanoic acid in the literature [24].

3.8. HPLC-PDAD-UV Analysis for Detecting 114 in the G59 and AD-2-1 Extracts

EtOAc extracts of the control G59 strain and the mutant AD-2-1 were dissolved in MeOH to prepare sample solutions at 10 mg/mL for HPLC analysis. Crude samples of the compounds 114 in MeOH at 10 mg/mL were used as reference standards in the HPLC-PDAD-UV analysis. The MeOH solutions of 16 at 10 mg/mL were mixed between 1/2, 3/4, and 5/6 in a ratio of 1:1, respectively, and the mixed sample solutions were used, because the two compounds in these pairs were known to be eluted as a peak with the same retention time in the given HPLC condition by pilot tests of HPLC analyses.

The HPLC-PDAD-UV analysis was carried out on a Venusil MP C18 column (5 µm, 100 Å, 4.6 mm × 250 mm; Agela Technologies) using the Waters HPLC equipment mentioned above. The sample and standard solutions were filtered using 0.22 µm pore membrane filters, respectively, and each 5 µL of the solutions was injected into the column. Then, elution was performed using MeOH–H2O in linear gradient (20% MeOH at initial time 0 min→100% MeOH at 60 min→100% MeOH at 90 min; flow rate, 1 mL/min). The acquired photodiode array (PDA) data were processed using the Empower PDA software to obtain targeted HPLC-PDAD-UV data.

In the HPLC-PDAD-UV analysis, examination of 114 was performed on the basis of both HPLC retention times and UV absorption curves.

Retention times of 19: 56.12 min (1/2), 54.57 min (3/4), 50.62 min (5/6), 46.52 min (7), 52.77 min (8), and 52.57 min (9). Because 19 showed only end UV absorptions, they were hardly identified by the HPLC-PDAD-UV analysis both in the mutant AD-2-1 and the control G59 extracts due to the lack of typical UV absorptions and the baseline drift (Figure S1-A1 and A2 in the Supplementary Information).

Retention times of 1014: 63.90 min (10), 59.50 min (11), 63.00 min (12), 52.12 min (13), and 50.25 min (14). All of 1014 were detected in the mutant AD-2-1 extract but not in the parent G59 extract (see Figure 2 and see also Figure S1-B1,B2,C1,C2 in the Supplementary Information).

3.9. HPLC-ESI-MS Analysis for Detecting 1014 in the G59 and AD-2-1 Extracts

The MeOH solutions of crude 114 and the EtOAc extracts of G59 strain and mutant AD-2-1, which were used in the HPLC-PDAD-UV analysis, were used also in HPLC-ESI-MS analysis for detecting 114 from the EtOAc extracts.

The HPLC-ESI-MS analysis was performed on an LC-MS equipment equipped with Agilent 1100 HPLC system, AB Sciex API 3000 LC-MS/MS system and AB Sciex Analyst 1.4 software. HPLC was carried out on the Venusil MP C18 column (5 µm, 100 Å, 4.6 mm × 250 mm; Agela Technologies) at the conditions the same as mentioned for the HPLC-PDAD-UV analysis. The mass detector was set to scan a range from m/z 150–1500 both in the positive and negative modes. The acquired data were processed by Analyst 1.4 software to obtain targeted HPLC-ESI-MS data.

In the HPLC-ESI-MS analysis, both positive and negative ion peaks of 114 appeared with shortened retention times than those in their HPLC-PDAD-UV analysis because of the shortened flow length from the outlet of the HPLC column to the inlet of MS. Retention times of 114: 52.80 min (1/2), 51.25 min (3/4), 47.48 min (5/6), 43.40 min (7), 49.59 min (8), and 49.28 min (9), 62.38 min (10), 58.87 min (11), 61.83 min (12), 52.05 min (13), and 47.74 min (14). Detection of 114 in the control G59 and the mutant AD-2-1 extracts was achieved by selective ion ([M + Na]+ for 1/2 and 14; [M − H] for 5/6, 7, 8, and 1013; and [M + Cl] for 3/4 and 9) monitoring with both extracted ion chromatograms and related MS spectra (see Figure S2A–K in the Supplementary Information).

4. Conclusions

AD-2-1 is an antitumor fungal mutant obtained by the DES mutagenesis of originally inactive, parent Penicillium purpurogenum G59 strain. Fourteen metabolites in the mutant AD-2-1 extract, including seven new (17) and two known lipopeptides (8 and 9) as well as five known polyketides 1014, were isolated by tracing newly produced metabolites in the mutant AD-2-1 extract under the guidance of MTT assay and TLC analysis using the parent G59 extract as control. Structures of the seven new compounds including their absolute configurations were determined by spectroscopic data and chemical evidences, and named penicimutalides A–G (17), respectively. All of 114 inhibited several human cancer cell lines to varying extents. Both present bioassays and HPLC-PDAD-UV and HPLC-ESI-MS analyses demonstrated that the production of 114 in the mutant AD-2-1 was caused by the activated production of silent metabolites in original fungal G59 strain by the DES mutagenesis.

Acknowledgments

This work was financially supported by the grants from the NSFC (30973631, 81172976), NHTRDP (2013AA092901, 2007AA09Z411), NSTMP (2012ZX09301-003, 2009ZX09103-019, 2009ZX09301-002), CAS (KSCX2-EW-G-6), COMRA (DYXM-115-02-2-09) and AMMS (2008), China. Penicillium purpurogenum G59 was identified by Liangdong Guo, Institute of Microbiology, Chinese Academy of Sciences, China. Dedicated to Professor Xin-Sheng Yao on the occasion of his 80th birthday.

Author Contributions

Chang-Jing Wu achieved the whole experimental work, including fermentation of fungal isolates, isolation of newly produced metabolites, structure investigation, bioassay and chemical analysis, and shared the task of manuscript preparation. Chang-Wei Li contributed to this work by coaching, advising and assisting Wu’s experiments, who also shared tasks of the manuscript preparation and the structure elucidation of new compounds. Cheng-Bin Cui was the project leader who proposed ideas for the present work, managed and supervised the whole research work, and accomplished writing of the paper.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Brakhage, A.A.; Schroeckh, V. Fungal secondary metabolites—Strategies to activate silent gene clusters. Fungal Genet. Biol. 2011, 48, 15–22, doi:10.1016/j.fgb.2010.04.004.
  2. Cichewicz, R.H.; Henrikson, J.C.; Wang, X.; Branscum, K.M. Strategies for accessing microbial secondary metabolites from silent biosynthetic pathways. In Manual of Industrial Microbiology and Biotechnology, 3rd ed.; Baltz, R.H., Davies, J.E., Demain, A.L., Bull, A.T., Junker, B., Katz, L., Lynd, L.R., Masurekar, P.C., Reeves, D., Zhao, H., Eds.; ASM Press: Washington, DC, USA, 2010; pp. 78–95.
  3. Ochi, K.; Hosaka, T. New strategies for drug discovery: Activation of silent or weakly expressed microbial gene clusters. Appl. Microbiol. Biotechnol. 2013, 97, 87–98, doi:10.1007/s00253-012-4551-9.
  4. Hertweck, C. Hidden biosynthetic treasures brought to light. Nat. Chem. Biol. 2009, 5, 450–452, doi:10.1038/nchembio0709-450.
  5. Bode, H.B.; Beth, B.; Höfs, R.; Zeek, A. Big effects from small changes: Possible ways to explore nature’s chemical diversity. ChemBioChem 2002, 3, 619–627, doi:10.1002/1439-7633(20020703)3:7<619::AID-CBIC619>3.0.CO;2-9.
  6. Cichewicz, R.H. Epigenome manipulation as a pathway to new natural product scaffolds and their congeners. Nat. Prod. Rep. 2010, 27, 11–22, doi:10.1039/b920860g.
  7. Takahashi, J.A.; Teles, A.P.C.; Bracarense, A.A.P.; Gomes, D.C. Classical and epigenetic approaches to metabolite diversification in filamentous fungi. Phytochem. Rev. 2013, doi:10.1007/s11101-013-9305-5.
  8. Ochi, K. From microbial differentiation to ribosome engineering. Biosci. Biothenol. Biochem. 2007, 71, 1373–1386, doi:10.1271/bbb.70007.
  9. Hosaka, T.; Ohnishi-Kameyama, M.; Muramatsu, H.; Murakami, K.; Tsurumi, Y.; Kodani, S.; Yoshida, M.; Fujie, A.; Ochi, K. Antibacterial discovery in actinomycetes strains with mutations in RNA polymerase or ribosomal protein S12. Nat. Biotechnol. 2009, 27, 462–464, doi:10.1038/nbt.1538.
  10. Chai, Y.J.; Cui, C.B.; Li, C.W.; Wu, C.J.; Tian, C.K.; Hua, W. Activation of the dormant secondary metabolite production by introducing gentamicin-resistance in a marine-derived Penicillium purpurogenum G59. Mar. Drugs 2012, 10, 559–582, doi:10.3390/md10030559.
  11. Wu, C.J.; Cui, C.B.; Tian, C.K.; Li, C.W. Antitumor metabolites produced by two Penicillium purpurogenum G59 mutants. J. Int. Pharm. Res. 2010, 37, 122–126.
  12. Fang, S.M.; Wu, C.J.; Li, C.W.; Cui, C.B. A practical strategy to discover new antitumor compounds by activating silent metabolite production in fungi by diethyl sulphate mutagenesis. Mar. Drugs 2014, 12, 1788–1814, doi:10.3390/md12041788.
  13. Fang, S.M.; Cui, C.B.; Li, C.W.; Wu, C.J.; Zhang, Z.J.; Li, L.; Huang, X.J.; Ye, W.C. Purpurogemutantin and purpurogemutantidin, new drimenyl cyclohexenone derivatives produced by a mutant obtained by diethyl sulfate mutagenesis of a marine-derived Penicillium purpurogenum G59. Mar. Drugs 2012, 10, 1266–1287, doi:10.3390/md10061266.
  14. Tian, C.K.; Cui, C.B.; Han, X.X. Isolation of fungal strains in unusual environment and screening for their antitumor activity. J. Int. Pharm. Res. 2008, 35, 401–405.
  15. Shigemori, H.; Wakuri, S.; Yazawa, K.; Nakamura, T.; Sasaki, T.; Kobayashi, J. Fellutamides A and B, cytotoxic peptides from a marine fish-possessing fungus Penicillium fellutanum. Tetrahedron 1991, 47, 8529–8534, doi:10.1016/S0040-4020(01)82396-6.
  16. Lee, Y.M.; Dang, H.T.; Hon, J.; Lee, C.O.; Bae, K.S.; Kim, D.K.; Jung, J.H. A cytotoxic lipopeptide from the sponge-derived fungus Aspergillus versicolor. Bull. Korean Chem. Soc. 2010, 31, 205–208, doi:10.5012/bkcs.2010.31.01.205.
  17. Shao, C.; Wang, C.; Wei, M.; Li, S.; She, Z.; Gu, Y.; Lin, Y. Structural and spectral assignments of six anthraquinone derivatives from the mangrove fungus (ZSUH-36). Magn. Reson. Chem. 2008, 46, 886–889, doi:10.1002/mrc.2266.
  18. Ren, H.; Gu, Q.-Q.; Cui, C.-B. Anthraquinone derivatives produced by marine-derived Penicillium flavidorsum SHK1227 and their antitumor activities. Chin. J. Med. Chem. 2007, 77, 148–154.
  19. O’Malley, G.J.; Murphy, R.A., Jr.; Cava, M.P. Aflatoxin precursors: Total synthesis of (±)-averufin and (±)-nidurufin. J. Org. Chem. 1985, 50, 5533–5537, doi:10.1021/jo00350a020.
  20. Muphy, R.A., Jr.; Cava, M.P. Stereochemistry of nidurufin: Synthesis of 6,8-dideoxynidurufin and 6,8-dideoxyepinidurufin. J. Am. Chem. Soc. 1984, 106, 7630–7632, doi:10.1021/ja00336a058.
  21. Pachler, K.G.R.; Steyn, P.S.; Vleggaar, R.; Wessels, P.L.; Scott, D.B. Carbon-13 nuclear magnetic resonance assignments and biosynthesis of aflatoxin B1 and sterigmatocystin. J. Chem. Soc. Perkin Trans. 1 1976, 11, 1182–1189.
  22. Marfey, P. Determination of d-amino acids. II. Use of a bifunctional reagent, 1,5-difluoro-2,4-dinitrobenzene. Carlsberg Res. Commun. 1984, 49, 591–596, doi:10.1007/BF02908688.
  23. Xu, D.; Ondeyka, J.; Harris, G.H.; Zink, D.; Kahn, J.N.; Wang, H.; Bills, G.; Platas, G.; Wang, W.; Szewczak, A.A.; et al. Isolation, structure, and biological activities of fellutamides C and D from an undescribed Metulocladosporiella (Chaetothyriales) using the genome-wide Candida albicans fitness test. J. Nat. Prod. 2011, 74, 1721–1730, doi:10.1021/np2001573.
  24. Guaragna, A.; Nisco, D.M.; Pedatella, S.; Palumbo, G. Studies towards lipid A: A synthetic strategy for the enantioselective preparation of 3-hydroxy fatty acids. Tetrahedron: Asymmetry 2006, 17, 2839–2841, doi:10.1016/j.tetasy.2006.10.023.
  25. Rateb, M.E.; Ebel, R. Secondary metabolites of fungi from marine habitats. Nat. Prod. Rep. 2011, 28, 290–344, doi:10.1039/c0np00061b.
  26. Saleem, M.; Ali, M.S.; Hussain, S.; Jabbar, A.; Ashraf, M.; Lee, Y.S. Marine natural products of fungal origin. Nat. Prod. Rep. 2007, 24, 1142–1152, doi:10.1039/b607254m.
  27. Yamakuchi, K; Tsuji, T.; Wakuri, S.; Yazawa, K.; Kondo, K.; Shigemori, H.; Kobayashi, J. Stimulation of nerve growth factor synthesis and secretion by fellutamide A in vitro. Biosci. Biotechnol. Biochem. 1993, 57, 195–199, doi:10.1271/bbb.57.195.
  28. Schneekloth, J.S., Jr.; Sanders, J.L.; Hines, J.; Crews, C.M. Neurotrophic peptide aldehydes: Solid phase synthesis of fellutamide B and a simplified analog. Bioorg. Med. Chem. Lett. 2006, 16, 3855–3858, doi:10.1016/j.bmcl.2006.04.029.
  29. Hines, J.; Groll, M.; Fahnestock, M.; Crews, C.M. Proteasome inhibition by fellutamide B induces nerve growth factor synthesis. Chem. Biol. 2008, 15, 501–512, doi:10.1016/j.chembiol.2008.03.020.
  30. Moore, B.S.; Eustáquio, A.S.; McGlinchey, R.P. Advances in and applications of proteasome inhibitors. Curr. Opin. Chem. Biol. 2008, 12, 434–440, doi:10.1016/j.cbpa.2008.06.033.
  31. Lin, G.; Li, D.; Chidawanyika, T.; Nathan, C.; Li, H. Fellutamide B is a potent inhibitor of the Mycobacterium tuberculosis proteasome. Arch. Biochem. Biophys. 2010, 501, 214–220, doi:10.1016/j.abb.2010.06.009.
Mar. Drugs EISSN 1660-3397 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
