Mar. Drugs 2014, 12(4), 1699-1714; doi:10.3390/md12041699

Article
Nature’s Lab for Derivatization: New and Revised Structures of a Variety of Streptophenazines Produced by a Sponge-Derived Streptomyces Strain
Anna Lena Kunz 1, Antje Labes 1, Jutta Wiese 1, Torsten Bruhn 2, Gerhard Bringmann 2 and Johannes F. Imhoff 1,*
1
Kiel Center for Marine Natural Products at the Helmholtz Center for Ocean Research (GEOMAR), Am Kiel-Kanal 44, Kiel 24106, Germany; E-Mails: akunz@geomar.de (A.L.K.); alabes@geomar.de (A.L.); jwiese@geomar.de (J.W.)
2
Institute of Organic Chemistry, University of Wuerzburg, Am Hubland, Wuerzburg 97074, Germany; E-Mails: torsten.bruhn@uni-wuerzburg.de (T.B.); bringman@chemie.uni-wuerzburg.de (G.B.)
*
Author to whom correspondence should be addressed; E-Mail: jimhoff@geomar.de; Tel.: +49-431-600-4450; Fax: +49-431-600-4452.
Received: 19 December 2013; in revised form: 7 February 2014 / Accepted: 17 February 2014 /
Published: 25 March 2014

Abstract

: Eight streptophenazines (A–H) have been identified so far as products of Streptomyces strain HB202, which was isolated from the sponge Halichondria panicea from the Baltic Sea. The variation of bioactivities based on small structural changes initiated further studies on new derivatives. Three new streptophenazines (I–K) were identified after fermentation in the present study. In addition, revised molecular structures of streptophenazines C, D, F and H are proposed. Streptophenazines G and K exhibited moderate antibacterial activity against the facultative pathogenic bacterium Staphylococcus epidermidis and against Bacillus subtilis. All tested compounds (streptophenazines G, I–K) also showed moderate activities against PDE 4B.
Keywords:
marine natural product; phenazine; Baltic Sea; Streptomyces; Halichondria panicea; HPLC-DAD/MS; fermentation; PDE 4; antibiotic

1. Introduction

Phenazines consist of two benzene rings linked through two nitrogen atoms and have been isolated as secondary metabolites of bacteria (Figure 1). Pyocyanin is the first natural phenazine discovered. It was found in the 1860s [1], when French clinicians observed blue colorations of pus-filled wounds of infected patients [2]. In 1882, Carle Gessard recognized bacteria as the producing organisms, which were named Bacillus pyocyaneus and are now known as Pseudomonas aeruginosa [1,2]. More than 6000 phenazines have been identified so far [3], with less than 170 of biological origin [4]. The larger part of phenazines from biological origin was isolated from terrestrial microorganisms, only a small number originates from marine habitats.

Marinedrugs 12 01699 g001 200
Figure 1. Core structure of phenazines.

Click here to enlarge figure

Figure 1. Core structure of phenazines.
Marinedrugs 12 01699 g001 1024

Due to the numerous possibilities of derivatization at the heteroaromatic chromophore, phenazines feature a large pool of structural diversity which covers a wide range of pharmaceutically relevant bioactivities with antibacterial, antifungal, antiviral and cytotoxic activities [3]. Minor differences in structure can have major effects on biological activity. The riminophenazine Clofazimine is a prominent example. It is used for the treatment of leprosy and was found to be potential for the treatment of drug-susceptible and drug-resistant M. tuberculosis strains [5]. Current studies of Liu et al. showed that the tricyclic phenazine skeleton is necessary for the activity against M. tuberculosis. Through replacement of the two phenyl groups at position C-2 and N-5, physicochemical properties as well as anti-tuberculosis potency could be enhanced [6].

This highlights the attractiveness to search for new phenazines and their derivatives and to analyze these in respect to their biological activities. Derivatives may be obtained by organic synthesis or by screening of biological phenazine producers. Among bacteria, a large number of phenazine derivatives can be found in a single strain indicating great efficiency of biological production. In former studies, this was shown for the marine Streptomyces strain HB202 aside from cultivation-based approaches also by genetic analysis [7,8]. Via detection of gene fragments phzE [7] and phzF [9], it was demonstrated that streptophenazines in this strain are produced by the regular phenazine biosynthesis pathway [1]. Eight derivatives of a new phenazine subgroup, the streptophenazines A–H, were isolated from cultures of this Streptomyces HB202 [10]. In part, the structures were revised later [11,12]. These streptophenazines have minor structural differences at positions C-1 and CH-2′, but exhibit important differences in their bioactivities. They are active against the Gram-positive bacteria Bacillus subtilis and Staphylococcus lentus.

Preliminary analysis of cultures from fermentation of Streptomyces sp. HB202 indicated the presence of a much larger number of derivatives as described before, exhibiting different physicochemical properties. Here, we characterize three new derivatives of the streptophenazines with respect to chemical structure and bioactivity. We also discuss the structural diversity gained by biotechnological approaches.

2. Results and Discussion

2.1. Metabolite Spectrum of HB202

Structures of eight streptophenazines, produced by Streptomyces strain HB202, were described previously [10,11,12]. Figure 2 demonstrates the presence of almost 20 phenazines in extracts of this strain after fermentation in GYM4 medium. They have at least small differences in polarity resulting in different retention times after separation on a non-polar C18 phase. Though some of these compounds are produced in decent quantities, others are present only in minor amounts in the extracts.

Marinedrugs 12 01699 g002 200

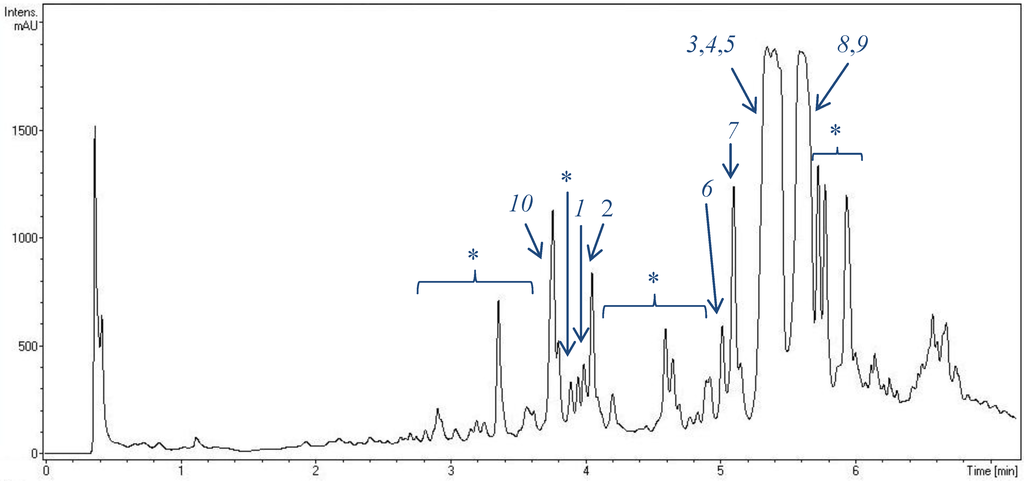

Figure 2. UV chromatogram of an extract of Streptomyces strain HB202 (at 250 nm) after fermentation in GYM4 medium for three days and extraction with EtOAc. For analysis, a RP-C18 column was used applying an H2O/CH3CN gradient on a VWR Hitachi Elite LaChrom system. Peak detection was done by DAD/MS. Numbers indicate identified streptophenazines. 1, 2, 3: new streptophenazines (I–K), 4: streptophenazine A, 5: streptophenazine B, 6: streptophenazine C, 7: streptophenazine D, 8: streptophenazine F, 9: streptophenazine G, 10: streptophenazine H, *: unknown streptophenazines (>10 different molecules).

Click here to enlarge figure

Figure 2. UV chromatogram of an extract of Streptomyces strain HB202 (at 250 nm) after fermentation in GYM4 medium for three days and extraction with EtOAc. For analysis, a RP-C18 column was used applying an H2O/CH3CN gradient on a VWR Hitachi Elite LaChrom system. Peak detection was done by DAD/MS. Numbers indicate identified streptophenazines. 1, 2, 3: new streptophenazines (I–K), 4: streptophenazine A, 5: streptophenazine B, 6: streptophenazine C, 7: streptophenazine D, 8: streptophenazine F, 9: streptophenazine G, 10: streptophenazine H, *: unknown streptophenazines (>10 different molecules).
Marinedrugs 12 01699 g002 1024

2.2. Structural Constitution of Streptophenazines

2.2.1. Isolation and Structure of New Streptophenazines

The oily brown extract obtained from combined cultures was analyzed via HPLC-DAD/MS. Due to the characteristic UV maxima and the differences in polarity of the derivatives, phenazines are easily identified in the chromatogram and can be separated into pure compounds using a preparative HPLC-UV system. The structure elucidation of the three compounds was based on the interpretation of different NMR spectra (1H, 13C, DEPT, 1H–13C HSQC, 1H–13C HMBC, 1H–1H COSY) and HRESI-MS analysis.

Regarding the 1H-NMR spectra of the new compounds, it was obvious that all signals of protons belonging to the phenazine skeleton were identical. Significant differences could only be observed between the carbomethoxyl group and the carboxyl function at position C-1, as well as in the alkyl chain located at position CH-2′. Structures are shown in Figure 3.

Marinedrugs 12 01699 g003 200

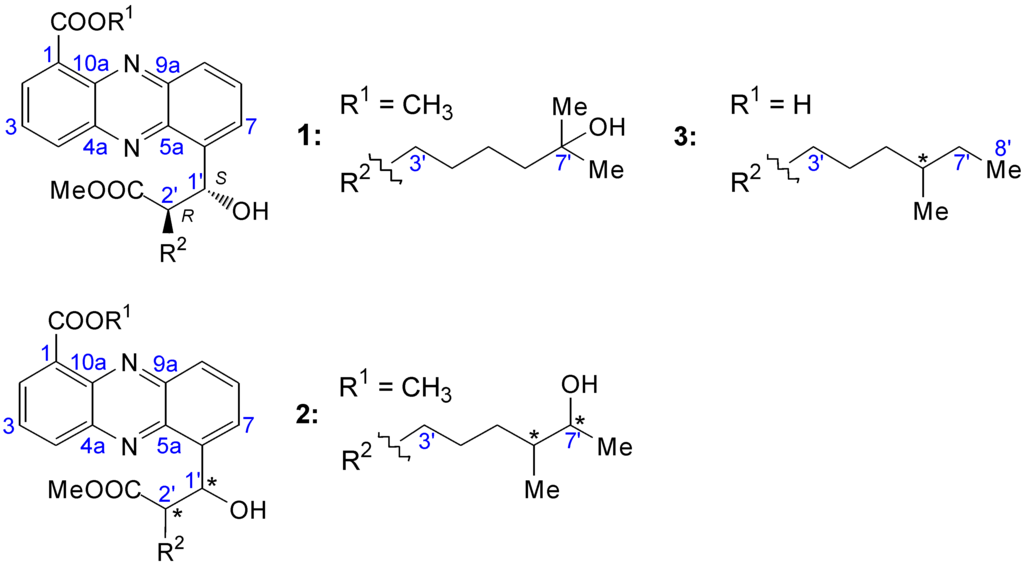

Figure 3. Structures of streptophenazines I–K (13).

Click here to enlarge figure

Figure 3. Structures of streptophenazines I–K (13).
Marinedrugs 12 01699 g003 1024

Streptophenazine I (1) was isolated as a yellow solid. The characteristic UV spectrum (λmax 215, 251, 347 (sh), 360 (sh), 366) in addition to the chemical shifts of the four quaternary carbons (δ 144.7, 142.9, 142.8, 141.9) adjacent to the two nitrogen atoms and the existence of aromatic hydrogen signals (δ 8.46–7.95) reasoned that 1 could be a phenazine. Through the alignment of NMR data (Table 1) with HRESI-MS analysis (m/z 455.21605 [M + H]+, calcd for C25H31N2O6: 455.21766), a molecular formula of C25H31N2O6 was established. The spectroscopic data indicated either a 1,6- or a 1,9-disubstituted phenazine skeleton. Due to this fact, data were compared to those of Yang et al. [11,12], who clearly defined the core structure of streptophenazines A, B, E and G to be 1,6-disubstituted via total synthesis as well as X-ray crystallographic data (streptophenazine A). Based on the high similarity of the NMR data in addition to the assumption of a common biosynthesic pathway of the derivatives in the same Streptomyces strain HB202, 1,6-disubstitution of new streptophenazines could be determined. The 1,6-disbubstitution was supplementary demonstrated by the use of NOESY spectra in the studies of Mitova et al. [10]. A singlet and the chemical hydrogen shift of 1-COOCH3 (δ 4.08), the corresponding carbon signal of the methyl group (δ 53.3) as well as the adjacent carbonyl signal (δ 168.9) indicated the presence of a methyl ester. The position was based on the 1H–13C HMBC coupling of the aromatic proton H-2 (δ 8.29). Furthermore the 1H–13C HMBC experiments revealed the occurrence of a second residue to be linked to the phenazine skeleton, an oxymethine substituent which led to a lowfield shift of CH-1′ (δ 71.4). The 1H–1H COSY correlation pointed out the presence of an adjacent methine proton (H-2′) whose carbon was bearing a carbomethoxy group. The comparison of 1H–13C HMBC with the DEPT spectrum led to the following methylene protons H-3′-H-6′ as well as the oxymethine substituent (CH-7′) which terminated the alkyl chain in addition to the two methyl residues CH3-8′ and 7′-CH3.

Table Table 1. NMR spectroscopic data of 1.

Click here to display table

Table 1. NMR spectroscopic data of 1.
PositionδC, DEPTδH, J [Hz]COSYHMBC
1132.8, C
2133.6, CH8.29 dd (6.9, 1.4)31-COOCH3, 10a, 4
3130.9, CH7.96 m2, 44a, 1
4134.8, CH8.46 dd (8.8, 1.4)310a, 2
4a144.7, C
5a142.9, C
6143.2, C
7130.2, CH8.03 m81′, 5a, 9
8132.5, CH7.99 m7, 96
9130.4, CH8.26 dd (8.6, 1.5)87, 5a
9a142.8, C
10a141.9, C
1′71.4, CH6.16 d (7.7)2′2′-COOCH3, 5a, 7
2′55.0, CH3.27 ddd (10.1, 7.7, 4.3)1′
3′30.5, CH21.26 m, 1.74 m
4′25.2, CH21.17 m
5′29.2, CH21.17 m
6′44.6, CH21.24 m 4′
7′71.3, C
8′29.2, CH31.03 s 5′, 6′
7′-CH329.2, CH31.03 s 5′, 6′
1-COOCH3168.9, C
1-COOCH353.3, CH34.08 s 1-COOCH3
2′-COOCH3176.8, C
2′-COOCH352.1, CH33.63 s 2′-COOCH3

The structure of 1 was quite similar to that of streptophenazine H (10) with the only difference of one missing methylene at 10, resulting in a molecular weight with 14 mass units less. The structure of 1 is shown in Figure 3, as well as in Figure 4 illustrated through arrows of 1H–13C HMBC correlations. Spectroscopic data are shown in Table 1.

Streptophenazine J (2) is an isomer of 1 comparing the molecular formula C25H31N2O6, established via HRESI-MS (m/z 455.21637 [M + H]+, calcd for C25H31N2O6: 455.21766), the UV spectrum and the NMR signals of the skeleton. Analysis of 1H–1H COSY data showed that one of the methyl groups (7′-CH3 of 1) is missing. Instead, a 1H–1H COSY correlation of H-6′ pointed out the presence of another methyl group at CH-6′ in this molecule. Unfortunately, 2 is stereochemically unstable for which reason it is difficult to do an accurate structure elucidation. This information led to the structure of 2 as shown in Figure 3 with undefined absolute configuration.

Marinedrugs 12 01699 g004 200
Figure 4. Selected 1H–13C HMBC (arrows) and 1H–1H COSY (bold) correlations, relevant for structure elucidation of 1.

Click here to enlarge figure

Figure 4. Selected 1H–13C HMBC (arrows) and 1H–1H COSY (bold) correlations, relevant for structure elucidation of 1.
Marinedrugs 12 01699 g004 1024

Streptophenazine K (3) showed structural similarities to streptophenazine G (9) except an unesterified carboxyl group at position C-1. This was based on the highfield shift of C-1 (δ 126.6) as well as on the observations of the 1H-NMR spectrum similar to that of 9 with the appearance of only one methoxyl group (2′-COOMe) and a difference of 14 mass units. HRESI-MS pointed out the molecular formula C24H29N2O5 (m/z 425.20875 [M + H]+, calcd for C24H29N2O5: 425.20710). The structure of 3 is shown in Figure 3.

The relative configurations of streptophenazines I-K 13 at C-1′ and C-2′ were determined using the 3J coupling constants between the protons at these carbon atoms. Yang et al. [11,12] found that the like-configuration (R,R or S,S) in the very similar streptophenazines A or G had a coupling constant of 6.5 Hz, while the unlike-configuration (R,S or the S,R) had one of 7.5 Hz. The compounds 1, 2 and 3 showed coupling constants of 7.7, 7.8 and 7.5 Hz, respectively, and thus should all have the unlike-configuration at C-1′ and C-2′.

For assignment of the absolute configuration, CD measurements were performed of streptophenazines I and K, and of (–)-streptophenazine G 9 whose absolute configuration was known from total synthesis [12]. Despite the presence of a large chromophore, all compounds surprisingly gave CD curves of very low intensity (Figure 5). This was explained by the fact that structures of this type have pseudo-enantiomeric conformers, in which the stereocenters in the side chain are on different sides of the chromophore. These conformations lead to nearly mirror-image like single CD spectra, and thus in the overall CD curve the net rotational strengths nearly cancel out. However, it was possible to get reproducible spectra and we were able to elucidate the absolute configurations of the compounds by comparing the experimental CD spectra of 1 and 3 with that of (–)-streptophenazine G 9. They have the same chromophore and the free carboxylic acid group of streptophenazine K will influence the CD curve in comparison to the ester group of streptophenazines I and G only marginable. Of course, the comparison of the CD spectra can only give the absolute configuration of C-1′ (that of C-2′ is then deduced from the coupling constants as described above). All other stereocenters (C-6′ in (–)-streptophenazine G and in streptophenazine K) are too far away from the chromophore to have an impact on the electronic CD. Finally, the nearly identical CD spectra of streptophenazines I and K with that of (–)-streptophenazine G proved that they were all 1′S,2′R-configured as shown in Figure 3. Unfortunately, it was not possible to measure a reproducible CD spectrum of streptophenazine J 2, most probably due to the generally low intensity of CD curves of the spreptophenazines in combination with the fact that it was stereochemically not stable.

Marinedrugs 12 01699 g005 200

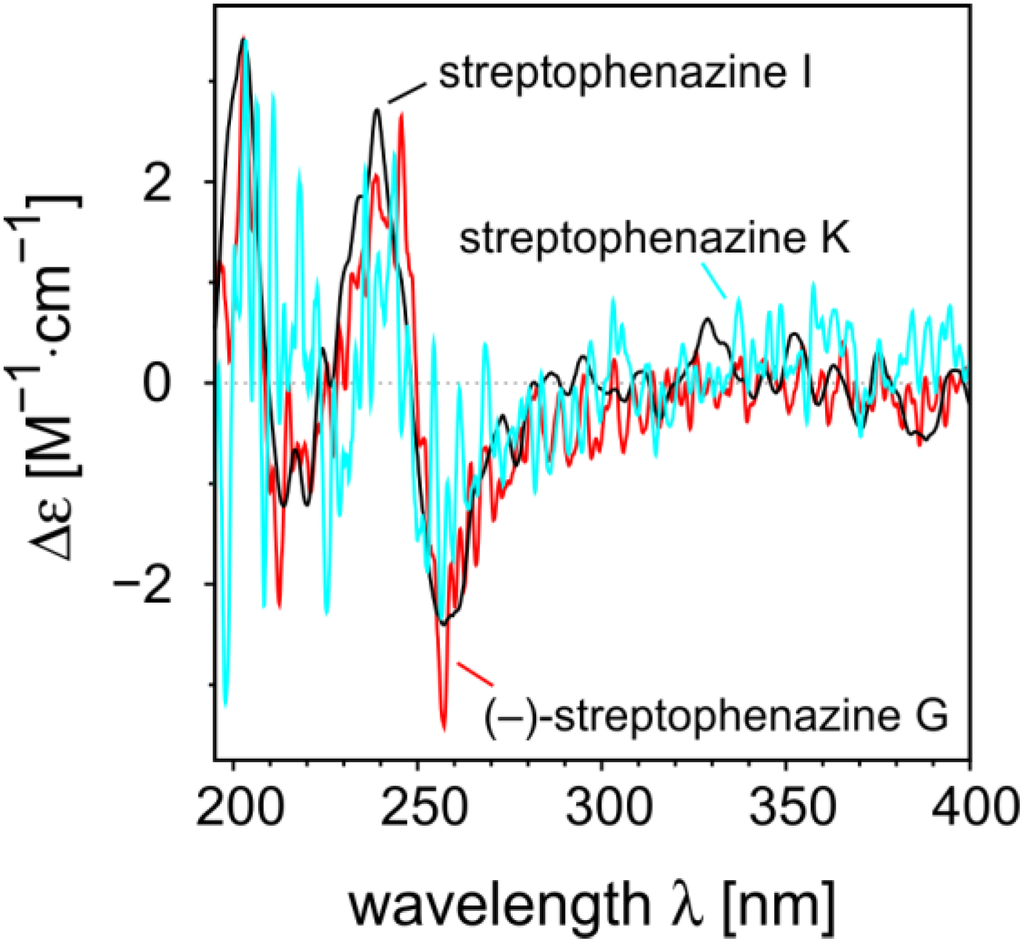

Figure 5. Comparison of the CD spectra of (–)-streptophenazine G, streptophenazine I, and streptophenazine K.

Click here to enlarge figure

Figure 5. Comparison of the CD spectra of (–)-streptophenazine G, streptophenazine I, and streptophenazine K.
Marinedrugs 12 01699 g005 1024

2.2.2. Structure Revision of Streptophenazines B–F and H and Structural Comparison

The structures of streptophenazines A (4), B (5), E (11) and G 9 have recently been revised [11,12]. The revision of 5 and 11 is shown in the supplement of Yang et al. [11]. Due to new interpretations of NMR spectra, which indicate that current structures of these derivatives are not correct [10], a revision is also needed for the streptophenazines C (6), D (7), F (8) and H 10.

The result of the new investigation was, that the published structures of Mitova et al. [10] are incorrect, and consequential the residues at CH-1′ and CH-2′ have to be switched. This was shown by the 1H–13C HMBC correlation of H-7 to CH-1′ and in addition to that the lowfield shift of CH-1′ in the 13C and 1H spectra, which was caused by the adjacent hydroxyl group. The revised structures are shown in Figure 6.

Marinedrugs 12 01699 g006 200

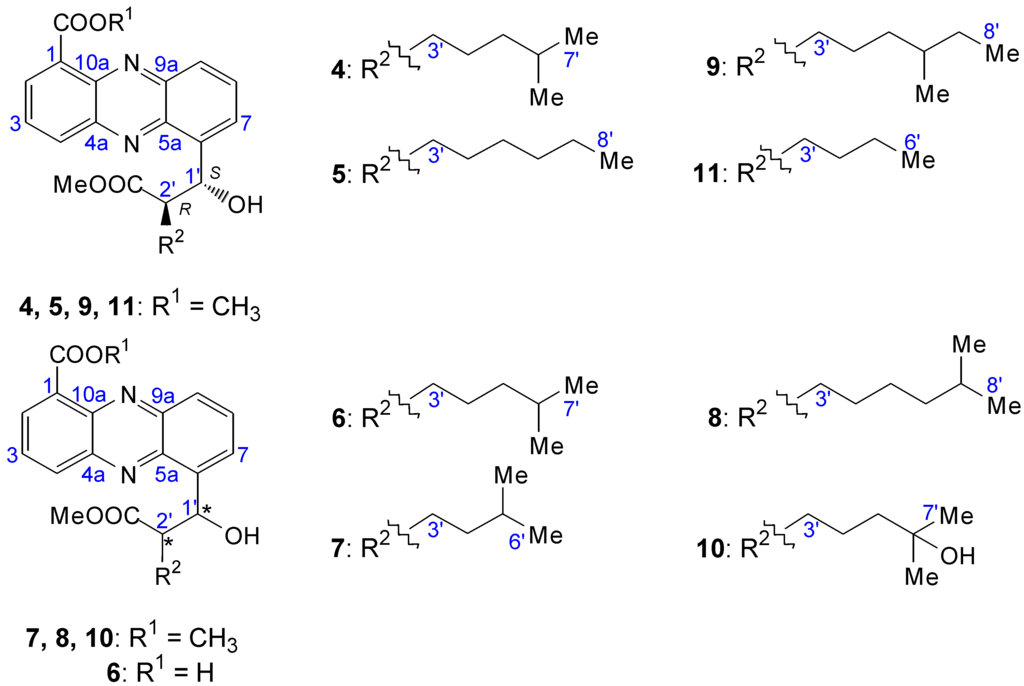

Figure 6. Revised structures of streptophenazines A–H [10,11,12].

Click here to enlarge figure

Figure 6. Revised structures of streptophenazines A–H [10,11,12].
Marinedrugs 12 01699 g006 1024

2.3. Bioactivity Assays

Bioactivities of 13 were measured because of their novelty and compared with those of 9 as a known representative of streptophenazines. The results are shown in Table 2.

Table Table 2. Bioactivities of compounds 13 and 9.

Click here to display table

Table 2. Bioactivities of compounds 13 and 9.
Bacillus subtilis (IC50 [µM])Staphylococcus epidermidis (IC50 [µM])PDE 4B (IC50 [µM])
Streptophenazine G 98.2 µM (± 0.9)8.4 µM (± 0.5)5.2 (± 1.0)
Streptophenazine I 1not activenot active11. 6 (± 1.1)
Streptophenazine J 2not activenot active12.0 (± 0.9)
Streptophenazine K 321.6 (± 6.8)14.5 µM (± 2.0)12.2 (± 2.0)
Rolipramnot determinednot determined0.75 (± 0.05)

Streptophenazines A–H have been shown to be antibiotically active against the Gram-positive bacteria Bacillus subtilis and Staphylococcus lentus [10]. Because of its clinical relevance, Staphylococcus epidermidis was used as a test strain in this study in addition to Bacillus subtilis [13]. 3 and 9 inhibited the growth of Staphylococcus epidermidis with IC50 values of 14.5 µM and 8.4 µM, respectively. Both 3 and 9 were also active against Bacillus subtilis with IC50 values of 21.6 µM and 8.2 µM, respectively. No antibacterial activity was observed for the compounds 1 and 2. All four compounds 13 and 9 showed inhibitory activity against the enzyme phosphodiesterase (PDE 4B).

There is a great interest in the discovery of new drugs for the treatment of inflammatory diseases such as COPD. Since it was observed, that the function of inflammatory cells could be inhibited by an increase of 3′5′-cyclic adenosine monophosphate (cAMP), inhibitors of the phosphodiesterases (PDEs) were considered as promising drug candidates [14]. The increase in the cAMP results by the inhibition of hydrolyses of cAMP to the inactive 5′ monophosphate (5′-AMP). As a result, there is a reduction in the inflammatory cell activity, an inhibition of fibrosis and a relaxation of smooth muscles [14]. The non-selective PDE inhibitor theophylline (since the 1930s) and the selective PDE4 inhibitor benzamide roflumilast-N-oxide, which has been approved by the FDA in 2011, are drugs for the treatment of COPD [15]. Roflumilast-N-oxide showed IC50 values in the range of 0.4 to 7.8 nM dependent on the used PDE4 isoenzyme [16]. Further PDE4 inhibitors, such as rolipram, cilomilast, oglemilast, tetomilast, ONO-6126, and ELB353 are in several stages of clinical trials. As far as known, phenazines were not yet identified as PDE4 inhibitors. In this study, moderate activity against PDE4 was observed for all four streptophenazines tested.

2.4. Biotechnological Upscaling

Lead structure development and entering of (pre-)clinical phases for newly identified natural products depend on sufficient supply of material. For this purpose, chemical synthesis and biotechnological production have to be considered and compared in terms of feasibility, effort and costs. When aiming for a variety of derivatives, biological production may have advantages, as it seems to be a common feature of many microbes to produce more than one derivate of a given compound. However, upscaling of the biotechnological production from in most cases Erlenmeyer flask cultures to controllable stirred tank reactors (STR) is a challenge, as the scaling itself is a change of cultivation conditions that may lead to a change of the secondary metabolite profile [17,18]. Especially in the case of HB202 being very sensitive to changes in the cultures, the scaling did bear many risks.

Figure 7 illustrates the scaling process, which included optimization of cultivation conditions with the aim of enhancing production of the streptophenazines at each step. The original cultures that lead to the identification of the streptophenazines were done in Erlenmeyer (EM) flasks. EM flasks were used for cultivation in 1 L scale at different pH values, pH 9 turned out to be best for production of secondary metabolites by Streptomyces sp. HB202. For all subsequent experiments in STR, the pH value was set to constant pH 9 being a relatively harsh condition. Controlled STR cultures where done in 10 L and 200 L cultures. Figure 7 shows the process of production in the two fermenter systems.

Marinedrugs 12 01699 g007 200

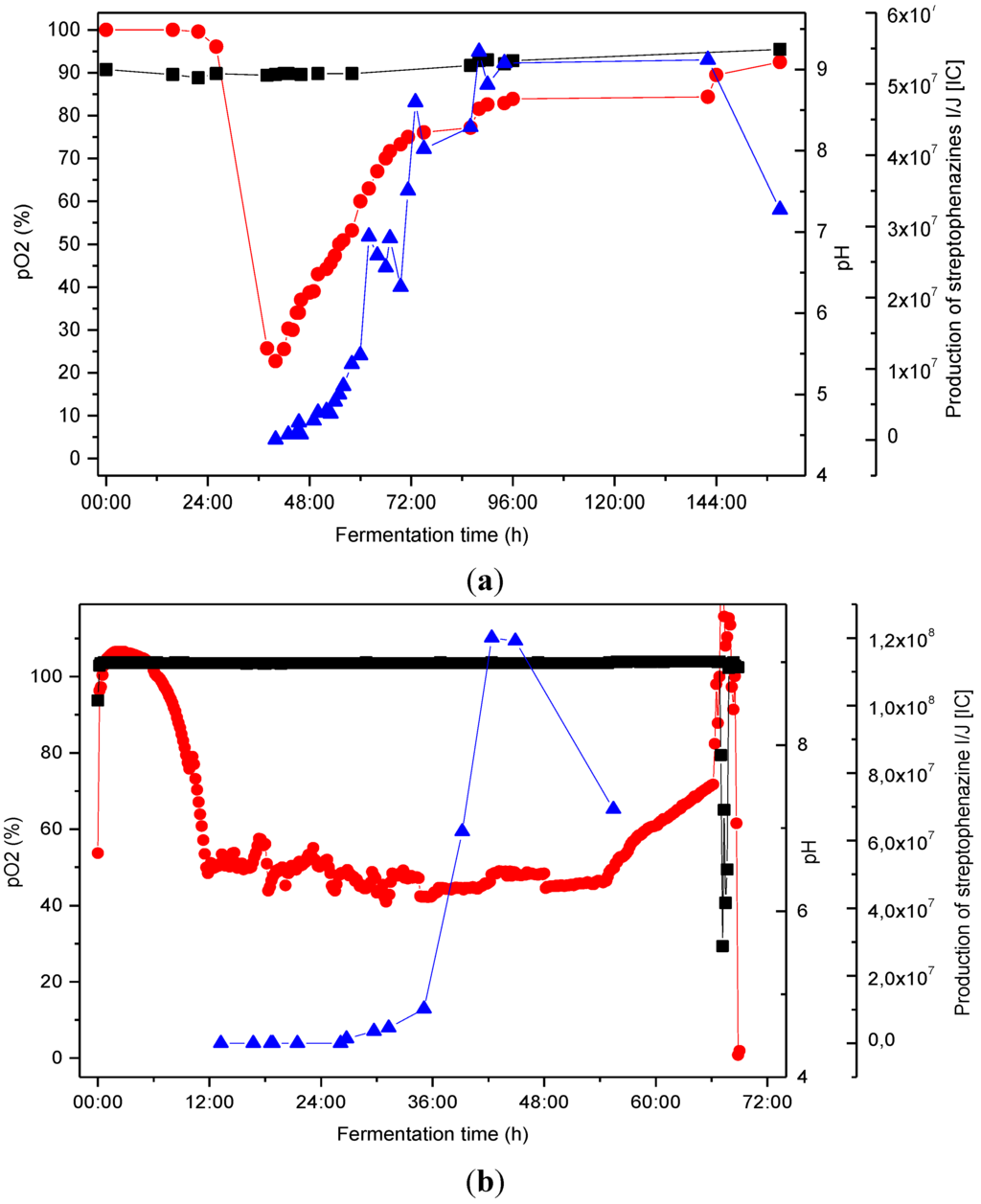

Figure 7. Fermentation of Streptomyces HB202 at 28 °C in GYM medium. Comparison of streptophenazine production in consideration of pO2 and pH within two different tank reactors using stable pH conditions at pH 9; (a) 10 L culture in a stirred tank reactor (STR) (b) 200 L culture in a STR; Marinedrugs 12 01699 i001 pO2 [%], ■ pH, Marinedrugs 12 01699 i002 production of streptophenazines I/J [IC].

Click here to enlarge figure

Figure 7. Fermentation of Streptomyces HB202 at 28 °C in GYM medium. Comparison of streptophenazine production in consideration of pO2 and pH within two different tank reactors using stable pH conditions at pH 9; (a) 10 L culture in a stirred tank reactor (STR) (b) 200 L culture in a STR; Marinedrugs 12 01699 i001 pO2 [%], ■ pH, Marinedrugs 12 01699 i002 production of streptophenazines I/J [IC].
Marinedrugs 12 01699 g007 1024

Streptophenazine production occurred in the late exponential phase (as shown by the rising pO2). In the 10 L scale, the maximum yield was obtained after 90 h. The process time was decreased to 40 h by scaling to 200 L (maximum yield). Additionally, the maximum yield could further be increased within this step. A proceeding cultivation led to a decrease of streptophenazines. However, not only the streptophenazines I/J were found but a variety of further streptophenazine derivatives (minimum 20 different derivatives).

Exemplary, the yield was determined for the derivative pair streptophenazine I and J. The Erlenmeyer culture yielded 104 µg/L, the same order was obtained in the 10L STR (109 µg/L). The scaling to the 200 L culture doubled the yield to 196 µg/L.

The scaling of the fermentation led to an increase in product yield and a significant reduction of process time, which was further reduced by an optimization of the capture step. The metabolites of HB202 were secreted into the culture medium as well as are stored in the cells. Hence, both had to be collected and processed subsequent to the fermentation. The standard method in small scale comprised solvent extraction with two volumes of EtOAc per liter of culture broth. To avoid the large amount of solvent necessary for the processing of 200 L of culture, a capture step was introduced. The scavenger XAD was used to adsorb small molecules from the broth (Figure 8). Downstream processing in marine biotechnology seems to be the neglected child of bioprocess engineering. The application of a scavenger is only the first step of optimization of the downstream process. To be able to valorize compounds from marine microorganisms, big efforts must be made in the downstream process [19].

Because of a production decline in the tank reactors at the end of fermentation and due to losses during the subsequent purification of the streptophenazines from the crude extract only 56%–57% of the compounds could be gained. 505.5 µg were purified in total from the 10 L STR (57% of the produced amount), 22.4 mg from the 200 L system (56%). The yields and losses may be compared to the yield of stereoselective synthesis, as shown by Yang et al. streptophenazine A (1′S,2′R) was synthesized with a yield of 60% in the last step (60 mg from 135 mg of the precursor methyl 6-((1S,2R)-2-((S)-4-benzyl-2-oxooxazolidine-3-carbonyl)-1-hydroxy-6-methylheptyl)phenazine-1-carboxylate). Organic synthesis was shown to be relatively effective for some streptophenazine derivatives. In terms of production costs and time, this synthesis is quite promising. However, biotechnological production, as shown in our experiments, can be feasible as well: A stirred tank reactor production followed by a XAD capture step and subsequent HPLC based purification yields appr. 20 mg of product. The biotechnological approach gains a natural “derivatization”, up to 20 different streptophenazines may be produced by one process. A good understanding of the production process will provide ample opportunities for successful scale up to the industrial level. Discovery scientists can have an impression on the various options available for scale-up of their lead product. A recent study demonstrated that in many cases of marine biotechnology, a suboptimal production yield was gained as technological barriers were limiting the process [20]. A special challenge to bioengineers is e.g., provided by barophilic strains originating from depths of, say, nearly 11,000 m, or from hydrothermal vents [19]. However, in the case of HB202, a standard optimization process could be applied.

Marinedrugs 12 01699 g008 200

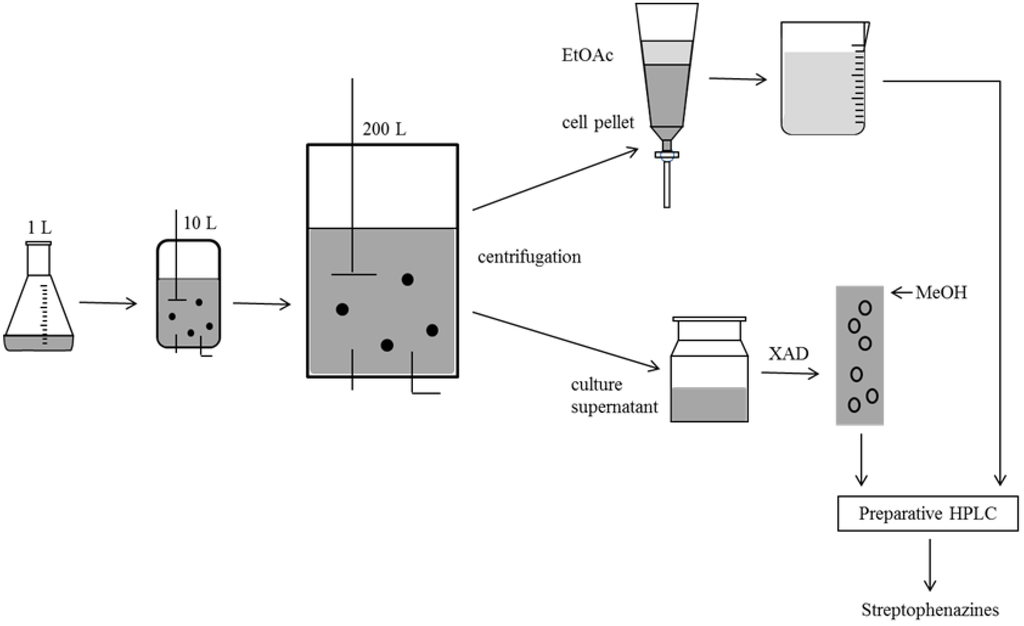

Figure 8. Process of sample treatment after cultivation procedure; Separation into culture, supernatant and cell pellet and subsequent extraction with EtOAC and partition of cell components; Assembling of both extracts and purification using preparative HPLC.

Click here to enlarge figure

Figure 8. Process of sample treatment after cultivation procedure; Separation into culture, supernatant and cell pellet and subsequent extraction with EtOAC and partition of cell components; Assembling of both extracts and purification using preparative HPLC.
Marinedrugs 12 01699 g008 1024

3. Experimental Section

3.1. General Experimental Procedures

The optical rotation was measured on a Perkin-Elmer model 241 polarimeter.

NMR spectra were recorded on a Bruker DRX500 spectrometer (500 and 125 MHz for 1H and 13C NMR, respectively), using the signals of the residual solvent protons and the solvent carbons as internal references (δH 3.31 and δC 49.15 ppm for CH3OH-d4). High-resolution mass spectra were acquired on a benchtop time-of-flight spectrometer (MicrOTOF-II, Bruker Daltonics, Bremen, Germany) with positive electrospray ionization.

Analytical reversed phase HPLC-DAD/MS experiments were performed using a C18 column (Phenomenex Onyx Monolithic C18, 100 × 3.00 mm) applying an H2O (A)/CH3CN (B) gradient with 0.1% formic acid added to both solvents (gradient: 0 min 5% B, 4 min 60% B, 6 min 100% B; flow 2 mL/min) on a VWR Hitachi Elite LaChrom system (DAD-detector: Hitachi L-2450 diode array detector) coupled to an ESI-ion trap detector with positive ionization (Esquire 4000, Bruker Daltonics).

Semi-preparative HPLC-DAD was carried out using a Phenomenex normal phase column (Luna 5U Silica (2), 100A, 250 × 10.00 mm, 5 micron).

For preparative fractioning a HPLC-UV system (VWR International LaPrep, Pump P311, Detector P110, autosampler smartline 3900) with a RP-C18 column (Phenomenex Gemini C18, 110A, AXIA, 100 × 50.00 mm) applying an H2O (A)/CH3CN (B) gradient with 0.1% formic acid (gradient: 0 min 10% B, flow 40 mL/min; 0.5 min 10% B, 17.5 min 60% B, 22 min 100% B; flow 100 mL/min) was used.

3.2. Isolation and Identification of Strain Streptomyces sp. HB202

Strain HB202 was isolated from the marine breadcrumb sponge Halichondria panicea (class Demospongia) collected from the Baltic Sea (Germany) [8]. The taxonomic identification was based on morphological criteria such as the cream color, a compact-solid surface, a sheet with neat round pores (osculae) and anastomosing hollow branches with osculae at the tip [21]. Isolation and identification of strain HB202 was described by Mitova et al. [10]. The most closely related type strains according to the 16S rRNA gene sequence (GQ863918, 1473 bp) were Streptomyces tanashiensis IFO 12919T (GenBank/EMBL/DDBJ acc. No. AY999856) and Streptomyces griseoplanus AS 4.1868T (GenBank/EMBL/DDBJ acc. No. AY999894) with a sequence similarity of 99.93% for both strains. Several type strains of Streptomyces species exhibited sequence similarities ≥99.80%, such as Streptomyces badius NRRL B-2567 (GenBank/EMBL/DDBJ acc. no. AY999783), Streptomyces mediolani LMG 20093T (GenBank/EMBL/DDBJ acc. No. AJ781354) and Streptomyces griseus ATCC 51928T (GenBank/EMBL/DDBJ acc. No. AF112160).

3.3. Cultivation, Extraction and Substance Characterization

Streptomyces sp. HB202 was cultivated in 1 L Erlenmeyer flasks using different pH values. The cultivation was subsequently scaled up in stirred tank reactors in 10 L (Braun Biostat, glass tank, containing 8 L culture) and in 300 L scale (Infors Techfors 300, steel tank, containing 200 L culture) using pH 9 (controlled via addition of 3 M NaOH).

Precultures were established from cryocultures in a standardized manner as the strain was very susceptible for changes and reacted with a dramatic change of the metabolite spectrum. Precultures were carried out on agar plates, which were incubated after inoculation using the Microbank system (MAST DIAGNOSTIKA, Reinfeld, Germany) and in liquid medium at 28 °C in the dark.

In each case, the seed medium for the marine strain Streptomyces HB202 consisted of 4 g glucose, 4 g yeast extract, 4 g malt extract per 1 L demineralized water. Cultivation in Erlenmeyer flasks was done for up to seven days in different starting pH values. While the 10 L fermenter was run for 159 h at 28 °C, the pilot scale fermenter was run for 69 h. In the STR systems, pH, oxygen, CO2-outlet and stirring speed were controlled. The oxygen content in the medium was set to a minimum of 30% air saturation. Foam formation was stopped by addition of antifoam (Sigma, Taufkirchen, Germany).

After cultivation, cells were separated from the culture broth by means of centrifugation. For the 1 L and 10 L scale, culture supernatant and cells were extracted by addition of 2 Volumes EtOAc. The organic solvent was separated and concentrated to dryness under reduced pressure. For the 200 L scale, cells (appr. 6 L cell pellet) were treated in the same manner as cells from smaller cultivations. The culture supernatant was supplemented with XAD16 (Amberlite, 5 g/L). The XAD was recovered and transferred to a glass column. Substances were washed out using MeOH. Both crude extracts were assembled and subjected to preparative HPLC-UV. The concentrated fractions were subsequently purified using semi-preparative HPLC-DAD. The structures of the substances were elucidated using NMR and UV/VIS spectra.

Streptophenazine I 1: Yellow solid; 3.0 mg, Marinedrugs 12 01699 i003 −21° (c 0.0475, MeOH); UV (MeOH) λmax 215, 251, 347 (sh), 360 (sh), 366; for 1D and 2D NMR data (MeOH-d4, 500 MHz and 125 MHz, respectively) see Table 1; HRESIMS m/z 455.21605 [M + H]+ (calcd for C25H31N2O6: 455.21766).

Streptophenazine J 2: Yellow solid; 6.6 mg, Marinedrugs 12 01699 i003 −18° (c 0.1125, MeOH); UV (MeOH) λmax 215, 251, 348 (sh), 360 (sh), 366; 1H NMR (CH3OH-d4, 500 MHz) δH 8.45 (1H, m, H-4), 8.28 (1H, dd, J = 7.0, 1.4, H-2), 8.26 (1H, dd, J = 8.6, 1.5, H-9), 8.03 (1H, d, J = 6.9, H-7), 7.99 (1H, m, H-8), 7.95 (1H, m, H-3), 6.17 (1H, d, J = 7.8, H-1′), 4.08 (3H, s, 1-COOCH3), 3.63 (3H, s, 2′-COOCH3), 3.44 (1H, m, H-7′), 3.27 (1H, ddd, J = 10.3, 7.8, 4.4, H-2′), 1.73 (1H, m, H-3′a), 1.29 (m, 1H, H-5′a), 1.25 (1H, m, H-3′b), 1.24 (2H, m, H-4′), 1.23 (1H, m, H-6′), 0.97 (3H, m, H-8′), 0.93 (1H, m, H-5′b), 0.73 (3H, m, 6′-CH3); 13C NMR (CH3OH-d4, 500 MHz): δC 176.8 (C, 2′-COOCH3), 168.9 (C, 1-COOCH3), 144.7 (C, C-6), 143.1 (C, C-5a), 142.9 (C, C-4a), 142.8 (C, C-9a), 141.8 (C, C-10a), 134.8 (CH, C-4), 133.6 (CH, C-2), 132.7 (C, C-1), 132.5 (CH, C-8), 130.8 (CH, C-3), 130.5 (CH, C-9), 130.2 (CH, C-7), 72.0 (CH, C-7′), 71.3 (CH, C-1′), 55.0 (CH, C-2′), 53.3 (CH3, 1-COOCH3), 52.1 (CH3, 2′-COOCH3), 40.8 (CH, C-6′), 33.3 (CH2, C-5′), 30.8 (CH2, C-3′), 26.3 (CH2, C-4′), 20.2 (CH3, C-8′), 14.7 (CH3, 6′-CH3); HRESIMS m/z 455.21637 [M + H]+ (calcd for C25H31N2O6: 455.21766).

Streptophenazine K 3: Yellow solid; 10.0 mg, Marinedrugs 12 01699 i003 −64° (c 0.0900, MeOH); UV (MeOH) λmax 216, 252, 271 (sh), 361 (sh), 370; 1H NMR (CH3OH-d4, 500 MHz) δH 8.81 (1H, dd, J = 7.0, 1.4, H-2), 8.56 (1H, dd, J = 8.7, 1.4, H-4), 8.26 (1H, dd, J = 7.9, 2.2, H-9), 8.11 (1H, m, H-7), 8.09 (1H, m, H-8), 8.08 (1H, m, H-3), 6.18 (1H, d, J = 7.5, H-1′), 3.62 (3H, s, 2′-COOCH3), 3.25 (1H, ddd, J = 10.4, 7.5, 4.6, H-2′), 1.72 (1H, m, H-3′a), 1.30 (1H, m, H-7′a), 1.24 (2H, m, H-4′), 1.11-1.19 (3H, m, H-3′b, H-5′a, H-6′), 0.93-1.05 (2H, m, H-5′b, H-7′b), 0.75 (3H, m, 6′-CH3), 0.74 (3H, m, H-8′); 13C NMR (CH3OH-d4, 500 MHz): δC 176.6 (C, 2′-COOCH3), 168.5 (C, 1-COOH), 143.7 (C, C-6), 143.6 (C, C-4a), 143.4 (C, C-5a), 141.6 (C, C-9a), 141.3 (C, C-10a), 138.1 (CH, C-2), 136.5 (CH, C-4), 134.4 (CH, C-8), 131.7 (CH, C-3), 130.6 (CH, C-7), 128.7 (CH, C-9), 126.6 (C, C-1), 70.9 (CH, C-1′), 54.9 (CH, C-2′), 52.1 (CH3, 2′-COOCH3), 37.4 (CH2, C-5′), 35.5 (CH, C-6′), 30.7 (CH2, C-3′), 30.4 (CH2, C-7′), 26.0 (CH2, C-4′), 19.5 (CH3, 6′-CH3), 11.8 (CH3, C-8′); HRESIMS m/z 425.20875 [M + H]+ (calcd for C24H29N2O5: 425.20710).

1H NMR spectra, COSY spectra, 13C NMR spectra, DEPT spectra, HSQC spectra and HMBC spectra of compounds 13 are available as Supplementary Information.

3.4. Determination of Biological Activity

The antimicrobial assay was performed using Staphylococcus epidermidis DSM 20044 and Bacillus subtilis DSM 347. Overnight cultures of the strains cultivated in tryptic soy broth were diluted to an OD (600 nm) of 0.01–0.05. The assays were prepared by transferring 2 µL of a 10 mM solution of the tested compound dissolved in DMSO into one well of a 96-well microtiter plate containing 200 µL of cell suspension culture. After the incubation of the microtiter plates for 5 h at 37 °C, 10 µL of a resazurin solution (0.2 mg/mL phosphate-buffered saline) was added to each well and the plates were incubated again for 5–30 min. Cell viability was assessed by the reduction of resazurin to resorufin by measuring the absorbance 600 nm (reference 690 nm). The resulting values were compared with a positive control (10 mM chloramphenicol) and a negative control (no compound) on the same microtiter plate.

The inhibitory activity of the enzyme phosphodiesterase type 4B was determined according to Schulz et al. [22].

4. Conclusions

The chromatogram of the marine Streptomyces strain HB202 showed a number of peaks which indicate the appearance of a huge number of phenazines in one fermentation approach. Eight of these streptophenazines were described by Mitova et al. [10] and revised by Yang et al. (A, B, E [11], G [12]) and in this publication (C, D, F, H). The structure of three new streptophenazines was elucidated and their activity in selected bioassays tested in this work, revealing that all derivates showed moderate activities against PDE4B. Due to the fact that so far phenazines are not known as PDE inhibitors, these bioactivities indicate additional medical indications for the pharmaceutical use of phenazines. E.g. streptophenazines may be considered for the treatment of COPD.

Streptophenazines occur with an amazing variety of derivatives in nature, in this case with more than 20 derivatives produced by a single marine Streptomyces strain. This “biological derivatization” allows structure-function relationship studies without extensive chemical synthesis approaches. In terms of enhancing production levels for biotechnological production of streptophenazines, we demonstrated production at the 200 L scale in stirred tank reactors, yielding 39.3 mg/L streptophenazine I and J with a subsequent capture step and purification of the compounds via preparative HPLC.
