Mar. Drugs 2013, 11(7), 2328-2346; doi:10.3390/md11072328
Published: 4 July 2013
Abstract: Myticin C (Myt C) is a highly variable host-defense peptide (HDP) associated to the immune response in the mediterranean mussel (Mytilus galloprovincialis), which has shown to be active across species due to its strong antiviral activity against a fish rhabdovirus found in fish cells overexpressing this HDP. However, the potential antimicrobial properties of any synthetic analogue of Myt C has not yet been analysed. Thus, in this work we have synthesised the sequence of the mature peptide of Myt C variant c and analysed the structure activity relationships of its reduced (non-oxidized) form (red-MytCc). In contrast to results previously reported for oxidized isoforms of mussel myticins, red-MytCc was not active against bacteria at physiological pH and showed a moderate antiviral activity against the viral haemorrhagic septicaemia (VHS) rhabdovirus. However, its chemotactic properties remained active. Structure/function studies in neutral and acid environments by means of infrared spectroscopy indicated that the structure of red-MytCc is pH dependent, with acid media increasing its alpha-helical content. Furthermore, red-MytCc was able to efficiently aggregate artificial phospholipid membranes at low pH, as well as to inhibit the Escherichia coli growth, suggesting that this activity is attributable to its more structured form in an acidic environment. All together, these results highlight the dynamic and environmentally sensitive behavior of red-Myt C in solution, and provide important insights into Myt C structure/activity relationships and the requirements to exert its antimicrobial/immunomodulatory activities. On the other hand, the pH-dependent direct antimicrobial activity of Myt C suggests that this HDP may be a suitable template for the development of antimicrobial agents that would function selectively in specific pH environments, which are sorely needed in this “antibiotic-resistance era”.
The development of antibiotics has significantly improved the health quality of humans and animals. However, the overuse of antibiotics has prompted the appearance of multi-drug resistant microorganisms. To date, the antibiotic development pipeline is devoid of imminent solutions to this urgent problem. Furthermore, the considerable drop in the development of new classes of antibiotics by pharmaceutical companies is aggravating this issue . On the other hand, conventional antibiotics are not useful against viruses and some of the few antivirals available are also compromised by the generation of resistant virus strains .
Due to the scarcity of anti-infective agents to combat both human and veterinary infectious diseases and the growing specter of untreatable infections, it is imperative to find novel anti-infective agents to solve this steadily-evolving health problem. Currently, the therapeutic potential of natural anti-infective agents such as host defense peptides (HDPs) and their possible use as alternative chemical food preservatives or substitutes for antibiotics and fungicides is being seriously considered.
Overall, HDPs are short cationic peptides that can be constitutively expressed and/or rapidly induced to interact directly with infectious agents and/or modulate immunoreactions involved in the defense against pathogenic microorganisms [3,5,6]. Because (i) their mechanism of direct action, mainly based on their interaction with the lipid cell membranes of pathogens, and (ii) their multiple and simultaneous modes of action, HDP resistance is difficult to develop for the pathogens .
In this regard, marine organisms, and specially these belonging to the invertebrate group, represent a valuable and insufficiently explored source of new HDPs. Some marine organisms lack adaptive immune systems (e.g., invertebrates) or have very primitive ones (e.g., fish) and yet they still are continuously challenged by microbes and the aggressive marine environment; this makes evident the fact that they must rely on their innate immune system effector molecules to fight pathogens, more so than other organisms with developed adaptive immune systems such as mammals . In fact, HDPs represent the major invertebrate humoral defense system against infection, and show a diverse spectrum of mechanisms of action, some of them related to plasma membrane disturbance and lethal alteration of microbial integrity .
In this context, we have focused our attention in one HDP found in the Mediterranean mussel (Mytilus galloprovincialis), the Myt C. Among other mussel HDPs the Myt C is the only one known to be expressed at larval stages, and among the three different isoforms (A, B and C) of mussel myticins described so far, the isoform C is the most expressed transcript in adults [8,9]. Furthermore, it has been shown that Myt C plays a significant role in the molluscan immune response against pathogens and external aggressions and what is more important, recombinant Myt C peptides have strong antiviral activity against fish viruses in fish cell lines , suggesting that Myt C is active across species. The high expression of Myt C and the impressive sequence variability of the transcripts have been related with the high resistance of mussels to infections even though it is a filter feeder organism that can inhabit polluted locations and even feed on bacteria [8,11,12,13].
After analysing the direct antimicrobial activity and the properties as innate inmune effector of synthetic reduced MytCc (red-MytCc) as well as its structure/activity relationships we show the dynamic and environmentally sensitive behavior of this type of HDP in solution. Our results depict Myt C as a potential new and versatile marine-peptide template for the develpoment of bioactive products with application in different fields, for example, the protection of aquacultured species—the most important source of human fish/molluscan protein.
Moreover, marine proteins have been reported to be sufficiently immunogenic in mammalian species to promote inflammation and recruit immune enhancers without necessarily generating antibodies ; these features open a new door for the use of these HDPs as effective drugs in human and veterinary medicine.
2.2. Chemotactic Properties of Synthetic Red-MytCc at Neutral pH
We tested this activity on eight individual mussels and in all of them, synthetic red-MytCc induced an increment of hemocytic chemotaxis compared with controls (Figure 2A), Synthetic red-MytCc at 0.025 and 0.25 μM increased the hemocytes migration by 5- and 3-fold related to controls, respectively. There was no migration in the absence of gradient concentration of the synthetic red-MytCc. During migration, the morphology of hemocytes was altered (Figure 2B). Hemocytes in contact with synthetic red-MytCc were bigger in size, with abundant eosinophilic granules and presence of vacuoles. This change was not apparent in control haemocytes migrating towards FSW. Therefore, synthetic red-MytCc possesses chemotactic properties at neutral pH and low concentration (500-fold lower that the one needed to inhibit VHSV infectivity up to 40%).
2.3. pH-Dependence Membrane Destabilization Induced by the Red-MytCc Peptide

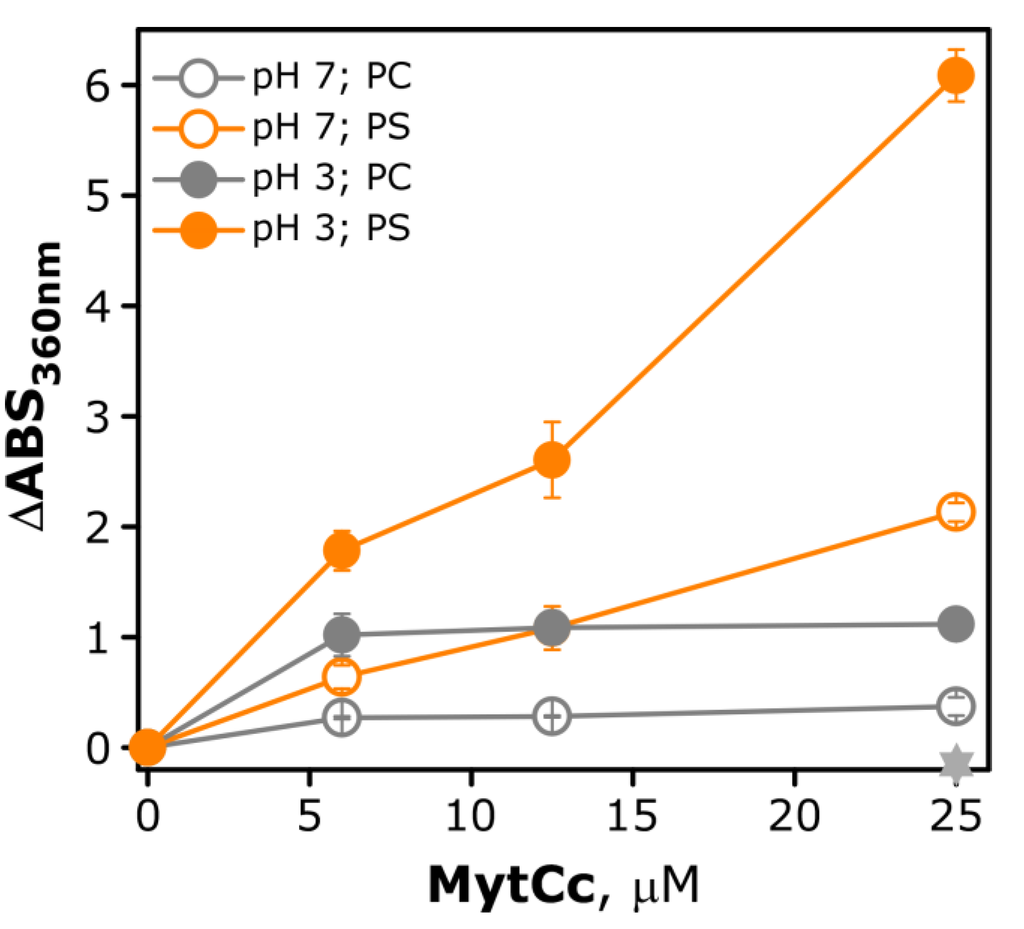

Figure 3 shows the changes in the absorbance at 360 nm after mixing PS or PC vesicles with the synthetic red-MytCc at various phospholipid/peptide ratios, and at pH = 3 or pH = 7. Bearing in mind that the lipid or synthetic red-MytCc isolated have no absorbance at 360 nm, the absorbance values that appear when peptide is added to the lipid vesicles should be due to the scattered light produced by the peptide-induced aggregation or increase in size of lipid vesicles. At acidic pH the synthetic red-MytCc interacts with either PS or PC, although to a higher extent than at neutral pH. In the presence of PC the increase in absorbance was almost negligible at neutral pH, and clearly lower than in the presence of PS at acidic and neutral pHs, indicating the specificity of the observed peptide–phospholipid interaction in solution. Major changes in absorbance, caused by the presence of the synthetic red-MytCc (5-fold) were observed at acidic pH and a peptide concentration of 25 μM (approximately 100 μg/mL).

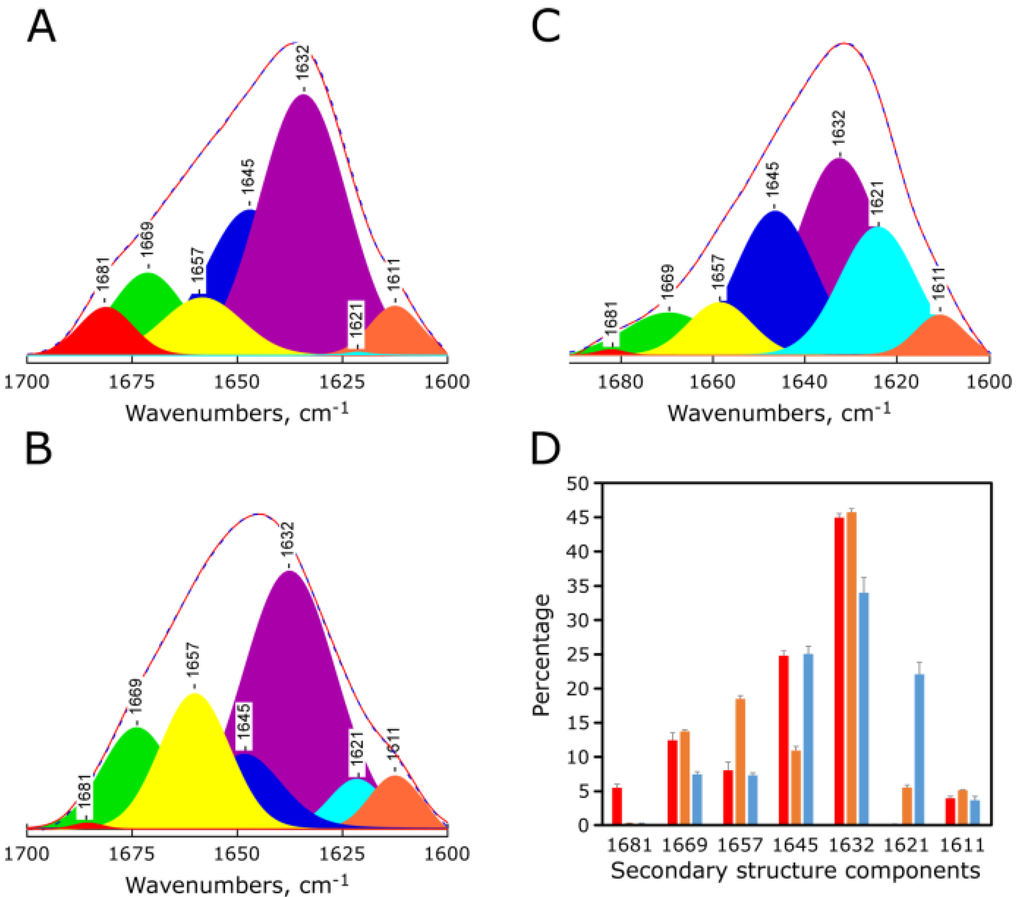

2.4. pH-Dependent Secondary Structure of Synthetic Red-MytCc
The amide I band (called amide I′ when taken in a D2O medium) comprises the 1600–1700 cm−1 infrared spectral region and results primarily from stretching vibrations of C=O groups in peptide bonds . The exact frequencies of such vibrations depend on the nature of the hydrogen bonding involving the C=O groups, which in turn, is determined by the particular secondary structure adopted by the protein . Thus, the amide I′ band contour represents the composition of overlapping spectral components of characteristic frequencies, which are assigned in H2O and in D2O to different secondary structural motifs in both soluble and membrane-bound proteins . Figure 4 shows infrared amide I′ band of synthetic red-MytCc at pH = 7 (Figure 4A), pH = 3 (Figure 4B), and in the presence of PC lipids (Figure 2C). Quantitative estimates on the protein’s secondary structure were obtained by decomposition of the amide I’ band into its spectral components  and confirm that indeed, the changes in synthetic red-MytCc spectral shape between neutral and acidic (alone or in the presence of PC lipid vesicles) pHs samples are primarily due to an increase in the latter of the alpha-helix spectral component at 1657 cm−1 (Figure 4D), and a decrease of the random-coil component at 1645 cm–1. No changes were observed in the total percentage of β-sheet, although the percentage of intermolecular beta-sheet clearly increases in the presence of PC lipids, indicating a greater aggregation of the synthetic red-MytCc.
2.5. pH-Dependent Thermal Stability of Synthetic Red-MytCc
Infrared spectroscopy is a powerful method for investigation of secondary and tertiary structures, by following spectroscopic changes of amide I′ and, Tyr (appearing at 1515 cm–1) bands, respectively. The thermal dependence of the amide I′ band (Figure 5A,C) has been used to assess the stability of the protein secondary structure. Different plots can be used to characterize the thermal profile, e.g., bandwidth vs. temperature or the ratio (absorbance of the most intense component/absorbance of the emerging band) vs. temperature, etc. . Figure 5C shows the amide I′ band width at half height vs. temperature in different conditions. The most striking feature is that the red-MytCc peptide at pH = 3 does not undergo any thermal transition in the temperature range studied. This is consistent with the higher percentage of α-helix described above. In all three conditions, synthetic red-MytCc experience a thermal transition at high temperatures: 92 °C at pH = 7, 101 °C in the presence of PC lipids at pH = 7, and 105 °C in the presence of PS lipids at pH = 7. We note that the higher transition temperatures correspond with higher levels of aggregation lipid induced peptide mentioned above. Thermal unfolding of protein involves not only loss of secondary structure, but also changes in the microenvironment of side-chain groups. Aromatic ring stretching vibrations of tyrosine at 1515 cm–1 provide a specific local monitor for tertiary structural changes . Figure 5D shows changes in the maximum frequency of the infrared tyrosine band vs. the increase of temperature. In a similar fashion, that for amide I′ band of red-MytCc peptide at pH = 3 does not display any thermal transition as follows the infrared Tyr band (Figure 5D). For the other experimental conditions, the thermal midpoint denaturation estimated from the sigmoid behavior of this tyrosine band is very close to the estimated by amide I′ band (Figure 5B).
Today, marine environments are considered to be the largest remaining reservoir of natural molecules waiting for the evaluation of their diverse drug activities .
MytC is a marine HDP expressed by Mediterranean mussel (M. galloprovincialis) hemocytes and belongs to the previously identified Myt peptide family  with interesting properties to be used as an enhancer of fish defenses in stressful environments and as a model molecule for improving the design of fish antimicrobial drugs. Moreover, it is known that recombinant MytC can act as an antiviral agent against pathogenic fish viruses as well as a chemokine/cytokine-like molecule . However, the activity of a synthetic peptide encoding the sequence of the mature reduced peptide of any MytC variant has not been evaluated so far. Thus, in this work we have synthesised the sequence of the mature peptide of MytC variant c and analysed the structure activity relationships of its reduced (non-oxidized) form, (red-MytCc). To carry out this study we chose a reduced form of MytCc since it has recently been shown that the reduced forms of some HDPs, such as the the human β-defensin 1 [23,24], possess higher activity than the oxidized ones.
In contrast to that reported for oxidised isoforms of the Myt family peptide [25,26], our first analysis of the synthetic red-MytCc in solution and at neutral pH showed that the petide was not active against bacteria. Nonetheless, it was able to moderately inhibit the infectivity of an fish enveloped rhabdovius, VHSV (~40%) in vitro. Likewise, antiviral activity against a virus infecting cultured shrimps (white spot syndrome virus, WSSV) has been described for Mytilin , another HDP found in Mediterranean mussels. However, concentrations of Mytilin B needed to abolish the infectivity of WSSV are 2-fold lower than those of synthetic red-MytCc to partially inhibit VHSV infectivity. Intriguingly, synthetic red-MytCc immunomodulatory properties, such as chemotaxis, remain active in those experimental conditions.
Since the results related to antimicrobial activity and immunomodulatory properties of syntetic red-MytCc were partially contradictory, we addressed the question of whether or not the activity of this reduced HDP analogue could be environmentally sensitive. Having established that synthetic red-MytCc is an innate immunity effector at neutral pH and low concentration (from 0.1 to 1 μg/mL) such as it is expected from a chemokine-like molecule that is secreted outside of the cells, we focused our attention on determining the experimental conditions in which this HDP could act as a direct antimicrobial effector molecule.
Previous reports have shown that myticins as well as other mussel HDPs predominantly reside in cytoplasmic granules [26,28] of hemocytes, a phagocytic cell type in molluca . Therefore, it seemed possible that the antimicrobial activity of MytCc could be directly exerted inside the granules after pathogen phagocytosis. This assumption is supported by the fact that viral replication could not be detected in the cells expressing recombinant Myt C but was evident in the surrounding non-expressing cells . Moreover, it has been described that both phagocytic and non-phagocytic cells can internalize bacteria which then co-locate with granular antimicrobial peptides . If this is the case, MytCc should act in environmental conditions at high concentrations and maybe low pH, since hemocytes contain eosinophilic granules .
As a first approach to evaluate this possibility and considering that antimicrobial peptides interact with cell membranes through electrostatic forces leading to their disorganization , we determined the ability of synthetic red-MytCc to promote aggregation of vesicles of different phospholipid composition at neutral and acid pH. As seen in most antimicrobial cationic peptide studies [3,31,32], red-MytCc interacted to a greater extent with anionic (PS) than with a zwitterionic phospholipids (PC) both at neutral and acidic pH. However, its ability to aggregate artificial vesicles of anionic phospholipids, and therefore, to perturb the membranes was three-fold higher at acidic pH. Similarly, at pH 5.5, clavanin A, an HDP expressed by the hemocytes of the ascidian Styela clava, induced membrane destabilisation and permeation more effectively than at physiological pH . In parallel, infrared spectroscopic data indicated that the structure of synthetic red-MytCc is pH dependent, when decreasing the pH the content of alpha helix secondary structure increase and random structures were reduced. A similar structural change also accompanied by an increased antibacterial activity, in this case induced by the redox-regulation, has been reported for the human β-defensin 1 [34,35]. On the other hand, the fact that we could not observe thermal transitions of the red-MytCc at acidic pH, whereas this phenomenon was clearly seen at neutral pH (92–105 °C), indicates that the more structured form of the red-MytCc in acidic conditions corresponds with an extreme high thermal stability. Altogether, these results suggest that the increased capability of synthetic red-MytCc to interact and aggregate anionic phospolipids is attributable to its more structured state in an acidic environment. Furthermore, this combination of high percentage of α-helix and thermal stability probably made this molecule very resistant to the attack by proteases.
In accordance with biophysical data and taking into account that bacterial cell membranes are composed of a high proportion of acidic phospholipids which confer a negative charge to the surface [6,36], a dose-dependent antibacterial activity of red-MytCc at acidic pH was observed. A similar result of activity at low pH has been described for HDPs from other marine organisms [33,37].
Therefore, and although its definite in vivo relevance remains to be demonstrated, these findings provide further evidence that environmental factors strongly influence the direct antimicrobial activity of HDP and open new opportunities to design anti-infective that would function selectively in specific environments such as the skin, or the oral cavity, and that are sorely needed in this “antibiotic-resistance era”. In addition, the high thermal stability of red-MytCc prompted the use of this HDP as an alternative to chemical food preservatives.
4. Experimental Section
Synthesis of Myticin C variant C peptide, (full length prepropeptide sequence, EMB CAM56832.1) red-MytCc  (QSVACRSYYCSKFCGSAGCSLYGCYLLHPGKICYCLHCSR, m.w. = 4433.26 Da, theoretical net charge +3 and +5 at pH 7 and 3, respectively accordingly to JaMBW software , was performed by Shine Gene (Shanghai, China) to a purity of >95%, as determined by high-performance liquid chromatography and mass spectrophotometry. Residual trifluoroacetic acid used both in the peptide synthesis and in the HPLC mobile phase (trifluoroacetate has a strong infrared absorbance at 1673 cm−1, which interferes with the characterization of the peptide amide I′ band) was removed by several lyophilization-solubilisation cycles in 10 mM HCl. Finally, red-MytCc was reconstituted to a final concentration of 1 mg/mL in Milli Q water and stored until used in suitable aliquots at −80°. Deuterium oxide (D2O, 99.9% by atom) was purchased from Sigma-Aldrich. The phospholipids phosphatidylcholine (PC) and phosphatidylserine (PS) (Avanti Polar Lipids) were derivatives of egg yolk and brain, respectively. All phospholipids were dissolved in chloroform and divided into aliquots, and the solvent was driven off under a stream of nitrogen and under vacuum. The resulting dry lipid films were suspended in the required D2O buffer at concentrations up to 3 mM in terms of lipid phosphorus , frequently vortexed and sonicated in a bath-type sonicator until the samples became completely transparent.
4.2. Cell Cultures and Virus
The fish cell line EPC  purchased from the American Type Culture Collection (ATCC number CRL-2872) was used in this work. Recently, the ATCC has revealed that the EPC cell line, originally deposited as a carp (Cyprinus carpio) cell line, is in fact a fathead minnow (Pimephales promelas) cell line. EPC cells were maintained at 28 °C in a 5% CO2 atmosphere with RPMI-1640 Dutch modified (Gibco, Invitrogen corporation, UK) cell culture medium containing 10% fetal calf serum (FCS) (Sigma, Che. Co., St. Louis, MO, USA), 1 mM Pyruvate (Gibco, Invitrogen corporation, UK), 2 mM Glutamine (Gibco), 50 μg/mL gentamicin (Gibco) and 2 μg/mL fungizone.
Viral haemorrhagic septicaemia virus strain 07.71 (VHSV07.71) isolated in France from rainbow trout (Oncorhynchus mykiss)  was propagated in EPC cells at 14 °C as previously reported . Supernatants from VHSV07.71 infected EPC cell monolayers were clarified by centrifugation at 4000× g during 30 min and kept in aliquots at −70 °C. Clarified supernatants were used for the experiments. The virus stock was titrated in 96-well plates using a previously developed immunostaining focus assay (focus forming units, f.f.u.) [41,42].

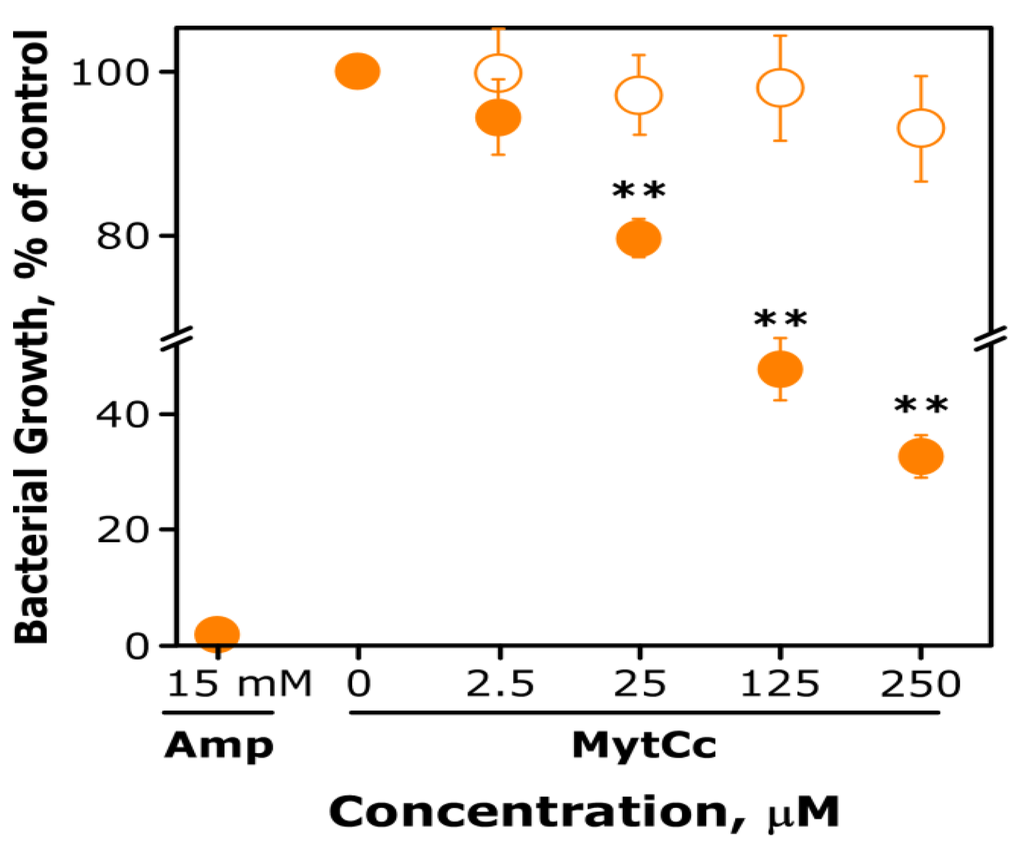

4.3. Bactericidal Assay of Synthetic Myt C
To assay for synthetic red-MytCc antibacterial activity a previously developed protocol was used . Briefly, 100 μL of an exponential-phase culture of Escherichia coli (E.coli Top F10 strain) were diluted in fresh LB medium, aliquots of 10 μL plated and the number of colony-forming units (CFU) per mL assayed in semisolid agar. Antibacterial activity of synthetic red-MytCc was determined by incubating ~103 CFU of E. coli in 90 μL of LB media in the presence of different concentrations of synthetic red-MytCc (from 2.5 to 250 μM) diluted in water at pH 7 or 3 (final volume of 10 μL) in wells of 96-well plates. Controls consisted in bacterial culture incubated with 10 μl of sterile water or 14 mM Ampicillin (Sigma, Che. Co., St. Louis, MO, USA). Plates were incubated overnight at 37 °C and the next day the E.coli growth was determined colorimetrically using iodonitrotetrazolium violet dye (INT) (Sigma, Che. Co., St. Louis, MO, USA). For that, 50 μL of INT were added to each well to reach a final concentration of 0.25 mg/mL and incubated 30 min at 37 °C. Finally, the red coloured signal was measured at 570 nm using a spectrophotometer (SPECTROstar Omega, BMG Labtech GmbH, and Offenburg, Germany). Results were expressed as bacterial growth percentage and were calculated by the formula, (absorbance at 570 nm of E. coli in the presence of synthetic red-MytCc or ampicillin/absorbance at 570 nm of E. coli in the absence of synthetic red-MytCc or ampicillin) × 100.
4.4. In Vitro Cell Viability Assays
The cytotoxic effects of synthetic red-MytCc on EPC cell monolayers were determined by quantifying the EPC cell viability using an MTT (3-(4,5-Dimethyl-2-thiazolyl)-2,5-diphenyl-2H-tetrazolium bromide) Cell Titer 96, Non-Radioactive Cell Proliferation Assay (Promega, Mannheim, Germany). Cytotoxicity was examined following 3 days of EPC cell monolayers exposure to 6.25 to 125 μM of synthetic red-MytCc. The results were expressed as percentage of the control and calculated by the formula (absorbance at 570 nm of synthetic red-MytCc treated EPC cells/absorbance at 570 nm of untreated EPC cells) × 100.
4.5. Viral Infectivity Assays
To assay the influence of a synthetic antimicrobial peptide on VHSV infectivity, a previously developed immunostaining assay was used . Briefly, to test the influence of pre-incubation of VHSV with red-MytCc, different concentrations of synthetic red-MytCc (up to 125 μM) was incubated with 103 ffu from replication-competent stocks of concentrated VHSV (1010 ffu/mL) for 12 h at 14 °C in 25 μL serum-free cell culture medium supplemented with 2 mM l-glutamine and 50 μg/mL gentamicin. After incubation, VHSV-red-MytCc mixtures were added to the EPC cell monolayers, grown in 96 well plates, in a final volume of 100 μL per well. Alternatively, EPC cell monolayers were infected with VHSV (m.o.i. of 10−3) in the presence or absence of different concentrations of synthetic red-MytCc. In both cases, 2 h after infection at 14 °C, the cell monolayers were washed, 100 μL of fresh medium added to each well and plates further incubated for 24 h at 14 °C. The cell monolayers were then fixed for 10 min in cold methanol and air-dried. Monoclonal antibody (MAb) 2C9 directed towards the N protein of VHSV diluted 1000-fold in dilution buffer (0.24 mM merthiolate, 5 g/L Tween 20, 50 mg/L of phenol red in PBS pH 6.8) were added to the wells (100 μL/well) and incubated for 1 h at room temperature. After washing with distilled water, 100 μL of peroxidase-labelled rabbit anti-IgG mouse antibody (Ab) (Nordic, Tilburg, The Netherlands) were added per well, and incubation was continued for 30 min. After three washings by immersion in distilled water, 50 μL of 1 mg/mL per well of diaminobenzidine (DAB) (Sigma) in PBS containing H2O2 were added  and the reaction allowed to proceed until brown foci were detected with an inverted microscope (Nikon Eclipse TE2000-U, Nikon instruments Inc., Melville, NY, USA). Once washed with water and air dried, brown foci of DAB stained cells (VHSV-infected cell foci) were counted with an inverted microscope with a 10× ocular eye grid . The results were expressed as the percentage of infectivity and calculated by the formula: (number of VHSV-infected cell foci in the presence of MytCc/total number of VHSV-infected cell foci in the absence of red-MytCc) × 100. Two independent experiments, each by triplicate, were performed.
4.6. Chemotaxis Assays
Chemotactic properties of the synthetic red-MytCc were determined using PET cell culture inserts of 8.0 mm pore size (Becton & Dickinson, Franklin Lakes, NJ, USA) in 24-well plates. Briefly, 250 μL of hemolymph from individual mussels (n = 8) was added to the upper compartment, and 400 μL of FSW (filtered sea water) or FSW containing red-MytCc at 0.25 or 0.025 μM were located in the lower compartment. As control, chambers containing 0.25 μM of red-MytCc in FSW in both upper and lower compartments were used. After 4 h of incubation in the dark at 15 °C, cells in the lower compartment were recovered, centrifuged for 750 rpm, 5 min in a cytocentrifuge (Cytospin 4 Cytocentrifuge, Thermo Scientific, Waltham, MA, USA) and stained using the Hemacolor kit (Merck, Darmstadt, Germany) according to the manufacturer’s instructions. Cells in the lower chamber were counted using a Nikon Eclipse 80i light microscope. The results were expressed as fold change of each treatment related to control ± SD. Pictures were taken using a Nikon Eclipse TS100 light microscope with a Nikon DS-Fi1 camera (Nikon Instruments Inc., Melville, NY, USA).
4.7. Lipid Vesicle Preparation
A phospholipid film was obtained upon overnight drying of a chloroform solution under vacuum. The phospholipids were suspended at a concentration of 1 mg/mL in medium buffer (10 mM sodium acetate, 10 mM 3-(N-morpholino)propionesulphonic acid, 10 mM 3-[cyclohexylamino]-1-propanesulphonic acid, 100 mM NaCl, 0.1 mM EDTA, and 0.01% NaN3; adjusted to a pH 3 and 7, respectively) for 1 h at 37 °C and vortexed vigorously. This suspension was subjected to 20 cycles of extrusion in a LoposoFast Basic extrusion apparatus with 100-nm polycarbonate filters (Avestin Inc., Mannheim, Germany). A 0.14 mM phospholipid final concentration was used in all the experiments.
4.8. Vesicle Aggregation Assay
Vesicle aggregation assays were carried out at previously described . The optical density (OD) variation at 360 nm produced by the addition of the synthetic red-MytCc from the DMSO stock solution to a phospholipid vesicle suspension in medium buffer at the appropriate pH was measured on a Cary-Varian spectrophotometer after 1 h incubation at 37 °C. To account for the absorbance of phospholipid vesicles and peptide alone, control samples containing equal amounts of DMSO, but in the absence of peptide or phospholipid, were included.
4.9. FTIR Measurements
For amide I′ band recordings, lyophilized aliquots (300 μg) of the synthetic peptides and desired lipids (500 μg) were separately hydrated in 20 μL of D2O buffers (10 mM sodium acetate, 10 mM 3-(N-morpholino)propionesulphonic acid, 10 mM 3-[cyclohexylamino]-1-propanesulphonic acid, 100 mM NaCl, 0.1 mM EDTA, and 0.01% NaN3; adjusted to a pH 3 and 7, respectively; ) to avoid the interference of H2O infrared absorbance (1645 cm−1, ). The peptide or peptide-lipid solutions were mixed by placing them together in a liquid demountable cell (Harrick, Ossining, NY, USA) equipped with CaF2 windows and 25-μm-thick mylar spacers, and maintained at room temperature for ~30 min to ensure that the isotopic H-D amide proton exchange reached equilibrium, as judged by a constant minimum absorbance at the residual amide II band (1547 cm−1). The peptide concentration in the final buffers solution was 3.4 mM and the same for the lipid-peptide mixtures; and the phospholipids were 32.5 mM. The signal:noise ratio of the spectra was better than 10,000:1. Buffer contributions were subtracted, and the resulting spectra were used for analysis. Band decomposition of the original amide I′ has been described previously . For temperature-dependent studies, the samples were submitted to heating cycles at each at the indicated temperatures. Each step in such heating cycles include (i) a step-like increase in temperature, (ii) an stabilization period of the sample (or plain buffer) in the infrared cell at each temperature and (iii) a period of spectral acquisition. The duration of a complete heating cycle was of approximately 3 h. Protein thermal melting was monitored by FTIR by following the changes induced in the width at half height of the amide I′ band by temperature. The thermal midpoint, Tm, was determined by using a two-state folding mechanism .
4.10. Sigmoidal Data Fitting Analysis
Certain infrared and dichroism data presenting a sigmoid behavior cannot be satisfactorily explained with the typical Boltzmann equation, especially if they have big negative or positive sloping bottom and top plateau. From the Boltzmann equation we have developed a new equation that takes into account the positive or negative plateau.
4.11. Statistical Analysis
Statistical comparisons were made using a one-tailed Student t-test considering groups of equal variance. Differences were considered statistically significant with p ≤ 0.01 or p ≤ 0.05.
The data shown in this work highlight the dynamic and environmentally sensitive behavior of the mussel reduced HDP analogue MytCc (re-MytCc) and suggest that its direct antimicrobial activity is exerted at acid pH and high concentration, may be the form in which this peptide is acumulated in mussel phagocytic cells. In contrast, its immunomodulatory properties, as the chemotactic activity, are shown at neutral pH and low concentration. Overall, our results depict Myt C as a potential new and versatile marine-peptide template for the development of bioactive products with application in different fields and environmental conditions.
This work was supported by the Spanish grants AGL2011-28921-C03, BFU2008-00602 and CONSOLIDER INGENIO 2010 CSD2007-00002 and 2008-00005 from MINECO as well as by the grants SIC-2012-003 and ACOMP/2013/230 from Generalitat Valenciana (Spain).
Conflict of Interest
The authors declare no conflict of interest.
- Afacan, N.J.; Yeung, A.T.; Pena, O.M.; Hancock, R.E. Therapeutic potential of host defense peptides in antibiotic-resistant infections. Curr. Pharm. Des. 2012, 18, 807–819. [Google Scholar] [CrossRef]
- Falco, A.; Ortega-Villaizan, M.; Chico, V.; Brocal, I.; Perez, L.; Coll, J.M.; Estepa, A. Antimicrobial peptides as model molecules for the development of novel antiviral agents in aquaculture. Mini Rev. Med. Chem. 2009, 9, 1159–1164. [Google Scholar] [CrossRef]
- Hancock, R.E.; Sahl, H.G. Antimicrobial and host-defense peptides as new anti-infective therapeutic strategies. Nat. Biotechnol. 2006, 24, 1551–1557. [Google Scholar] [CrossRef]
- Zasloff, M. Antimicrobial peptides of multicellular organisms. Nature 2002, 415, 389–395. [Google Scholar] [CrossRef]
- Otero-Gonzalez, A.J.; Magalhaes, B.S.; Garcia-Villarino, M.; Lopez-Abarrategui, C.; Sousa, D.A.; Dias, S.C.; Franco, O.L. Antimicrobial peptides from marine invertebrates as a new frontier for microbial infection control. FASEB J. 2010, 24, 1320–1334. [Google Scholar] [CrossRef]
- Cotton, S.; Donnelly, S.; Robinson, M.W.; Dalton, J.P.; Thivierge, K. Defense peptides secreted by helminth pathogens: Antimicrobial and/or immunomodulator molecules? Front. Immunol. 2012, 3, 269. [Google Scholar]
- Brocal, I.; Falco, A.; Mas, V.; Rocha, A.; Perez, L.; Coll, J.M.; Estepa, A. Stable expression of bioactive recombinant pleurocidin in a fish cell line. Appl. Microbiol. Biotechnol. 2006, 72, 1217–1228. [Google Scholar] [CrossRef]
- Costa, M.M.; Dios, S.; Alonso-Gutierrez, J.; Romero, A.; Novoa, B.; Figueras, A. Evidence of high individual diversity on myticin C in mussel (Mytilus galloprovincialis). Dev. Comp. Immunol. 2009, 33, 162–170. [Google Scholar] [CrossRef]
- Pallavicini, A.; Costa Mdel, M.; Gestal, C.; Dreos, R.; Figueras, A.; Venier, P.; Novoa, B. High sequence variability of myticin transcripts in hemocytes of immune-stimulated mussels suggests ancient host-pathogen interactions. Dev. Comp. Immunol. 2008, 32, 213–226. [Google Scholar] [CrossRef]
- Balseiro, P.; Falco, A.; Romero, A.; Dios, S.; Martinez-Lopez, A.; Figueras, A.; Estepa, A.; Novoa, B. Mytilus galloprovincialis myticin C: A chemotactic molecule with antiviral activity and immunoregulatory properties. PLoS One 2011, 6, e23140. [Google Scholar]
- Vera, M.; Martinez, P.; Poisa-Beiro, L.; Figueras, A.; Novoa, B. Genomic organization, molecular diversification, and evolution of antimicrobial peptide myticin-C genes in the mussel (Mytilus galloprovincialis). PLoS One 2011, 6, e24041. [Google Scholar]
- Govorin, I. Role of bivalves in the depuration of seawaters contaminated by bacteria. Russ. J. Mar. Biol. 2000, 26, 81–88. [Google Scholar] [CrossRef]
- Birkbeck, T.H.; McHenery, J.G. Degradation of bacteria by Mytilus edulis. Mar. Biol. 1982, 72, 7–15. [Google Scholar] [CrossRef]
- Gomez-Casado, E.; Estepa, A.; Coll, J.M. A comparative review on European-farmed finfish RNA viruses and their vaccines. Vaccine 2011, 29, 2657–2671. [Google Scholar] [CrossRef]
- Susi, H. Infrared spectroscopy—Conformation. Methods Enzymol. 1972, 26, 455–472. [Google Scholar]
- Susi, H.; Timasheff, S.N.; Stevens, L. Infrared spectra and protein conformations in aqueous solutions. I. The amide I band in H2O and D2O solutions. J. Biol. Chem. 1967, 242, 5460–5466. [Google Scholar]
- Surewicz, W.K.; Mantsch, H.H. New insight into protein secondary structure from resolution-enhanced infrared spectra. Biochim. Biophy. Acta 1988, 952, 115–130. [Google Scholar] [CrossRef]
- Encinar, J.A.; Mallo, G.V.; Mizyrycki, C.; Giono, L.; Gonzalez-Ros, J.M.; Rico, M.; Canepa, E.; Moreno, S.; Neira, J.L.; Iovanna, J.L. Human p8 is a HMG-I/Y-like protein with DNA binding activity enhanced by phosphorylation. J. Biol. Chem. 2001, 276, 2742–2751. [Google Scholar]
- Arrondo, J.L.; Castresana, J.; Valpuesta, J.M.; Goni, F.M. Structure and thermal denaturation of crystalline and noncrystalline cytochrome oxidase as studied by infrared spectroscopy. Biochemistry 1994, 33, 11650–11655. [Google Scholar] [CrossRef]
- Fabian, H.; Mantsch, H.H. Ribonuclease A revisited: Infrared spectroscopic evidence for lack of native-like secondary structures in the thermally denatured state. Biochemistry 1995, 34, 13651–13655. [Google Scholar]
- Aneiros, A.; Garateix, A. Bioactive peptides from marine sources: Pharmacological properties and isolation procedures. J. Chromatogr. B 2004, 803, 41–53. [Google Scholar] [CrossRef]
- Mitta, G.; Hubert, F.; Noel, T.; Roch, P. Myticin, a novel cysteine-rich antimicrobial peptide isolated from haemocytes and plasma of the mussel Mytilus galloprovincialis. Eur. J. Biochem. 1999, 265, 71–78. [Google Scholar] [CrossRef]
- Schroeder, B.O.; Stange, E.F.; Wehkamp, J. Waking the wimp: Redox-modulation activates human beta-defensin 1. Gut Microbes 2011, 2, 262–266. [Google Scholar] [CrossRef]
- Schroeder, B.O.; Wu, Z.; Nuding, S.; Groscurth, S.; Marcinowski, M.; Beisner, J.; Buchner, J.; Schaller, M.; Stange, E.F.; Wehkamp, J. Reduction of disulphide bonds unmasks potent antimicrobial activity of human beta-defensin 1. Nature 2011, 469, 419–423. [Google Scholar] [CrossRef]
- Mitta, G.; Hubert, F.; Dyrynda, E.A.; Boudry, P.; Roch, P. Mytilin B and MGD2, two antimicrobial peptides of marine mussels: Gene structure and expression analysis. Dev. Comp. Immunol. 2000, 24, 381–393. [Google Scholar] [CrossRef]
- Mitta, G.; Vandenbulcke, F.; Hubert, F.; Salzet, M.; Roch, P. Involvement of mytilins in mussel antimicrobial defense. J. Biol. Chem. 2000, 275, 12954–12962. [Google Scholar]
- Dupuy, J.W.; Bonami, J.R.; Roch, P. A synthetic antibacterial peptide from Mytilus galloprovincialis reduces mortality due to white spot syndrome virus in palaemonid shrimp. J. Fish. Dis. 2004, 27, 57–64. [Google Scholar] [CrossRef]
- Mitta, G.; Vandenbulcke, F.; Hubert, F.; Roch, P. Mussel defensins are synthesised and processed in granulocytes then released into the plasma after bacterial challenge. J. Cell. Sci. 1999, 112, 4233–4242. [Google Scholar]
- Braff, M.H.; di Nardo, A.; Gallo, R.L. Keratinocytes store the antimicrobial peptide cathelicidin in lamellar bodies. J. Investig. Dermatol. 2005, 124, 394–400. [Google Scholar] [CrossRef]
- Huang, H.W. Action of antimicrobial peptides: Two-state model. Biochemistry 2000, 39, 8347–8352. [Google Scholar] [CrossRef]
- Wu, M.; Maier, E.; Benz, R.; Hancock, R.E. Mechanism of interaction of different classes of cationic antimicrobial peptides with planar bilayers and with the cytoplasmic membrane of Escherichia coli. Biochemistry 1999, 38, 7235–7242. [Google Scholar] [CrossRef]
- Zhang, L.; Rozek, A.; Hancock, R.E. Interaction of cationic antimicrobial peptides with model membranes. J. Biol. Chem. 2001, 276, 35714–35722. [Google Scholar] [CrossRef]
- Lee, I.H.; Cho, Y.; Lehrer, R.I. Styelins, broad-spectrum antimicrobial peptides from the solitary tunicate, Styela clava. Comp. Biochem. Physiol. Part B 1997, 118, 515–521. [Google Scholar] [CrossRef]
- Matsuzaki, K. Why and how are peptide-lipid interactions utilized for self-defense? Magainins and tachyplesins as archetypes. Biochim. Biophys. Acta 1999, 1462, 1–10. [Google Scholar]
- Yoo, S.; Kim, J.Y.; Park, S.C.; Choi do, Y.; Seo, C.H.; Hahm, K.S.; Park, Y. Effect of acidic pH on antibacterial action of peptide isolated from Korean pen shell (Atrina pectinata). J. Peptide Sci. 2011, 17, 353–357. [Google Scholar]
- Kyaw, A.; Maung, U.K.; Toe, T. Determination of inorganic phosphate with molybdate and Triton X-100 without reduction. Anal. Biochem. 1985, 145, 230–234. [Google Scholar] [CrossRef]
- Fijan, N.; Sulimanovic, D.; Bearzotti, M.; Mizinic, D.; Zwillenberg, L.O.; Chilmonczyk, S.; Vautherot, J.F.; de Kinkelin, P. Some properties of the Epithelioma papulosum cyprini (EPC) cell line from carp Cyprinus carpio. Ann. Inst. Pasteur. Virol. 1983, 134, 207–220. [Google Scholar]
- JAMBW Chapter 3.1.6. Available online: http://www.bioinformatics.org/JaMBW/3/1/6/index.html (accessed on 3 January 2013).
- DeKinkelin, P.; LeBerre, M. Isolament d’un rhabdovirus pathogéne de la truite fario (Salmo trutta, L.1766). C. R. Acad. Sci. Paris 1977, 284, 101–104. [Google Scholar]
- Basurco, B.; Coll, J.M. Spanish isolates and reference strains of viral haemorrhagic septicaemia virus shown similar protein size patterns. Bull. Eur. Ass. Fish. Pathol. 1989, 9, 92–95. [Google Scholar]
- Lorenzo, G.; Estepa, A.; Coll, J.M. Fast neutralization/immunoperoxidase assay for viral haemorrhagic septicaemia with anti-nucleoprotein monoclonal antibody. J. Virol. Methods 1996, 58, 1–6. [Google Scholar]
- Mas, V.; Perez, L.; Encinar, J.A.; Pastor, M.T.; Rocha, A.; Perez-Paya, E.; Ferrer-Montiel, A.; Gonzalez Ros, J.M.; Estepa, A.; Coll, J.M. Salmonid viral haemorrhagic septicaemia virus: Fusion-related enhancement of virus infectivity by peptides derived from viral glycoprotein G or a combinatorial library. J. Gen. Virol. 2002, 83, 2671–2681. [Google Scholar]
- Falco, A.; Mas, V.; Tafalla, C.; Perez, L.; Coll, J.M.; Estepa, A. Dual antiviral activity of human alpha-defensin-1 against viral haemorrhagic septicaemia rhabdovirus (VHSV): Inactivation of virus particles and induction of a type I interferon-related response. Antivir. Res. 2007, 76, 111–123. [Google Scholar]
- Sanz, F.; Coll, J.M. Detection of viral haemorrhagic septicemia virus by direct immunoperoxidase with selected anti-nucleoprotein monoclonal antibody. Bull. Eur. Ass. Fish. Pathol. 1992, 12, 116–119. [Google Scholar]
- Nuñez, E.; Fernandez, A.M.; Estepa, A.; Gonzalez-Ros, J.M.; Gavilanes, F.; Coll, J.M. Phospholipid interactions of a peptide from the fusion-related domain of the glycoprotein of VHSV, a fish rhabdovirus. Virology 1998, 243, 322–330. [Google Scholar]
- Bhushan, A.; McNamee, M.G. Correlation of phospholipid structure with functional effects on the nicotinic acetylcholine receptor. A modulatory role for phosphatidic acid. Biophys. J. 1993, 64, 716–723. [Google Scholar]
- Mendelsohn, R.; Mantsch, H.H. Fourier Transform Infrared Studies of Lipid-Protein Interactions. In Progress in Protein-Lipid Interactions; Watts, A., DePoint, A., Eds.; Elsevier Science Publisher, B.V.: Amsterdam, The Netherlands, 1996; pp. 103–146. [Google Scholar]
