Mar. Drugs 2013, 11(7), 2282-2292; doi:10.3390/md11072282

Article
Nepheliosyne B, a New Polyacetylenic Acid from the New Caledonian Marine Sponge Niphates sp
Nathalie Legrave 1, Souhir Hamrouni-Buonomo 1,2, Maeva Dufies 3, Vincent Guérineau 4, Jean Vacelet 5, Patrick Auberger 3, Philippe Amade 1 and Mohamed Mehiri 1,*
1
Chemistry Institute of Nice (ICN), UMR 7272 CNRS, Bioactive Molecules, University of Nice-Sophia Antipolis, ParcValrose, F-06108 Nice Cedex 02, France; E-Mails: nathalie.legrave@unice.fr (N.L.); souhirhamrouni@yahoo.fr (S.H.-B.); philippe.amade@unice.fr (P.A.)
2
UR Ecosystems and Aquatic Ressources (UR03AGRO1), Agronomic National Institute of Tunisia (INAT), Carthage University, 43 Avenue Charles Nicolle, Tunis 1082, Tunisia
3
Mediterranean Centre of Molecular Medicine (C3M), INSERM UMR 1065, Team 2: Cell Death Differentiation and Cancer, Batiment ARCHIMED, 151 Route de Saint-Antoine de Ginestière, BP2 3194, 06204 Nice Cedex 3, France; E-Mails: maeva.dufies@gmail.com (M.D.); patrick.auberger@unice.fr (P.A.)
4
Gif Research Centre, Chemistry Institute of Natural Substances, CNRS Avenue de la Terrasse, 91198 Gif-Sur-Yvette Cedex, France; E-Mail: vincent.guerineau@cnrs.fr
5
Aix-Marseille University, CNRS UMR 7263, Mediterranean Institute of Biodiversity and Marine and Continental Ecology (IMBE), Station Marine d’Endoume, Rue de la Batterie des Lions, Marseille 13007, France; E-Mail: jean.vacelet@imbe.fr
*
Author to whom correspondence should be addressed; E-Mail: mehiri@unice.fr; Tel.: +33-492-076-154; Fax: +33-492-076-151.
Received: 3 May 2013; in revised form: 4 June 2013 / Accepted: 9 June 2013 /
Published: 27 June 2013

Abstract

: A new C47 polyoxygenated acetylenic acid, nepheliosyne B (2), along with the previously described nepheliosyne A (1), have been isolated from the New Caledonian marine sponge Niphates sp. Their structures have been elucidated on the basis of extensive spectroscopic analyses. These metabolites exhibited a moderate cytotoxicity against K562, U266, SKM1, and Kasumi cancer cell lines.
Keywords:
marine natural products; highly oxygenated polyacetylenes; marine sponges; Porifera; Haplosclerida

1. Introduction

Several natural acetylenic metabolites, often featuring a polyketide or fatty acid origin, have been isolated from plants, fungi, marine algae, sponges, and tunicates [1]. The main source of oxygenated polyacetylenes is the phylum Porifera [2], especially the genera Xestospongia [3,4], Petrosia [5,6,7,8,9], and Haliclona [10,11,12]. The structure of these metabolites differs significantly from each other in terms of chain-length, functional groups as well as their locations in the carbon framework. Nepheliosyne A [3], petrosolic acid [6], osirisynes AF [10], haliclonyne [11], and fulvynes AI [12] are a few examples of linear acetylenes with a diacetylenic carbinol and an α-yne carboxylic acid functionality as common structural features. Several of these sponge-derived polyacetylenes exhibit potent bioactivities including antiviral [6], antimicrobial [7,12], cytotoxic [8,9], and enzyme inhibitory [13] activities. Nepheliosyne A and petrosolic acid, isolated from Xestospongia sp. and Petrosia sp., respectively, are the only examples of oxygenated polyacetylene with diacetylenic carbinol, α-hydroxyketone, and α-yne carboxylic groups. Some of the reported data of nepheliosyne A remain hypothetical, specifically the size of the methylene link between the two groups α-yne carboxylic and α-hydroxyketone.

In the course of our search for bioactive marine natural products, we have investigated the New Caledonian marine sponge Niphates sp. (Haplosclerida, Niphatidae). In this paper, we report the isolation and structural elucidation of new polyhydroxylated acetylene, nepheliosyne B (2), along with nepheliosyne A (1), previously isolated from the marine sponge Xestospongia sp., whose structural elucidation is herein completed. We also report their cytotoxic properties against K562, U266, SKM1, and Kasumi cancer cell lines.

2. Results and Discussion

The CH2Cl2/MeOH (1:1, v/v) crude extract of Niphates sp. was fractionated by Flash Vacuum Liquid Chromatography, eluting with a gradient of decreasing polarity from H2O to MeOH. The subsequent MeOH fraction was purified by semi-preparative reverse-phase HPLC (Phenomenex Luna C18, 250 × 10 mm id, 5 μm, gradient H2O/MeCN/Formic Acid 50:50:0.1 to 0:100:0.1) to afford pure nepheliosyne A (1) (8.7 mg) and nepheliosyne B (2) (6.7 mg) (Figure 1).

Marinedrugs 11 02282 g001

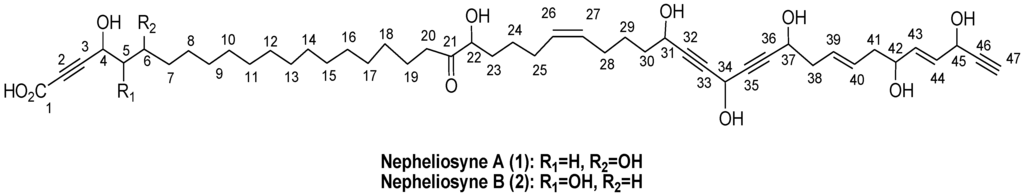

Figure 1. Structure of nepheliosynes A (1) and B (2).

Click here to enlarge figure

Figure 1. Structure of nepheliosynes A (1) and B (2).
Marinedrugs 11 02282 g001

Both compounds, obtained as amorphous solid, have the same molecular formula C47H70O11 deduced from the HR-MALDI-TOF data which showed for each a pseudomolecular ion adduct at m/z 833.4803 [M + Na]+. The IR spectrum showed bands at 3450, 3300, 2250, 2100, and 1705 cm−1 suggesting the presence of double bonds, triple bonds, and hydroxyl groups. A preliminary NMR spectral analysis showed similarities and strongly supported the presence of a polyhydroxylated acetylenic skeleton. The 1H and 13C NMR spectra of compound 1 (see Supporting Information and Table 1) revealed the following functional groups: (a) Seven non-protonated sp carbons (δC 87.3–78.0) and one terminal methine (δC 74.4; δH 2.90); (b) Six sp2 carbons (δC 135.7–127.5 and δH 5.91–5.38) suggesting three disubstituted carbon-carbon double bonds; (c) Eight oxymethine groups (δC 78.0 to 52.3, δH 5.17–3.79); and (d) A propargyl carboxylic group and a ketone identified from the carbon signals at δC 157.6 and 215.4, respectively. The relatively high field chemical shift of several of the eight oxymethine carbon resonances suggested their allylic and propargylic positions. The 1H and 13C NMR spectra of compound 2 (see Supporting Information and Table 2) allowed the identification of the same functional groups. These elements suggested partial structures a (for compound 1), a′ (for compound 2), as well as the common parts be (Figure 2) to be identified as shown.

Marinedrugs 11 02282 g002

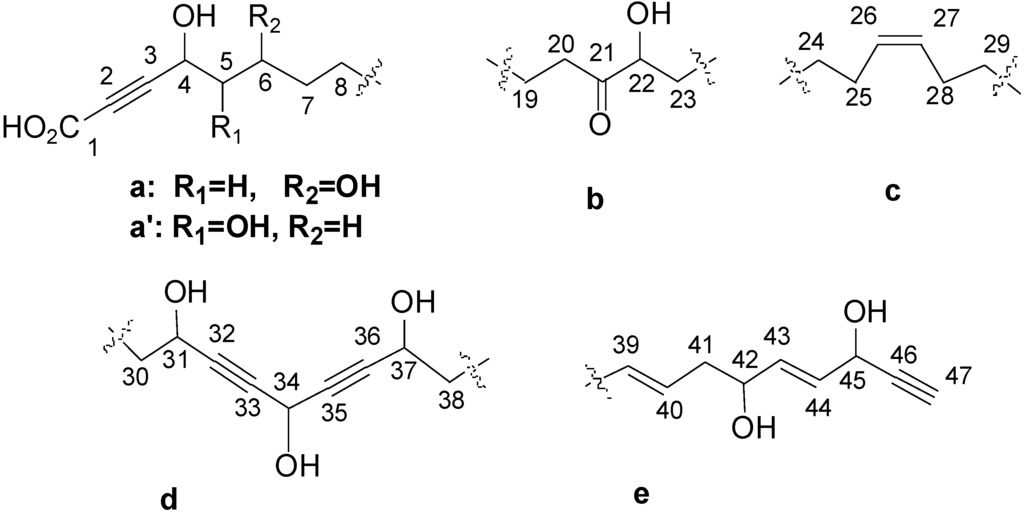

Figure 2. Partial structures (a, a′, be) of nepheliosynes A (1) and B (2).

Click here to enlarge figure

Figure 2. Partial structures (a, a′, be) of nepheliosynes A (1) and B (2).
Marinedrugs 11 02282 g002

Fragment a in compound 1, included two oxymethines at δH 4.64 (H-4, δC 59.3) and δH 3.84–3.79 (H-6, δC 68.4) linked together by a methylene at δH 1.86–1.71 (H2-5, δC 45.6). Proton at δH 3.84–3.79 (H-6, δC 68.4) was coupled to a methylene at δH 1.45 (H2-7, δC 38.7) in turn linked to another methylene at δH 1.30 (H2-8, δC 30.8–30.4). Heteronuclear Multiple Bond Correlation (HMBC) correlations were observed between, both H-4 (δH 4.64) and H-5 (δH 1.86–1.71) and C-3 (δC 87.3), and between H-4 and C-2 (δC 78.0) thus assigning the carbon resonances of the triple bond in fragment a (Table 1).

Fragment a′ in compound 2, was formed by two vicinal oxymethines at δH 4.26 (H-4, δC 67.1) and δH 3.58 (H-5, δC 74.9), itself coupled to methylenes at δH 1.69–1.44 (H2-6, δC 33.5) and at δH 1.29 (H2-7 and H2-8, δC 30.8–30.4). In a similar way than fragment a in compound 1, HMBC correlations were observed between, both H-4 (δH 4.26) and H-5 (δH 3.58) and C-3 (δC 85.3), and between H-4 and C-2 (δC 80.1) thus assigning the carbon resonances of the triple bond in fragment a′ (Table 2). The down-shifted proton value of H-4 in fragments a and a′ suggested its connection to the α-yne carboxylic acid moiety that had to be the first terminal part of the chain.

Table Table 1. 1H NMR (500 MHz, CD3OD) and 13C NMR (125 MHz, CD3OD) data of nepheliosyne A (1).

Click here to display table

Table 1. 1H NMR (500 MHz, CD3OD) and 13C NMR (125 MHz, CD3OD) data of nepheliosyne A (1).
PositionδC (ppm)/MultiplicityδH (ppm)/ J (Hz)/Multiplicity1H-1H COSY/TOCSY1H-13C HMBC
1157.7, qC
278.0, qC
387.3, qC
459.3, CH4.64, dd, 9.3, 3.55a, 6, 7 2, 3, 5, 6
5a45.6, CH21.74–1.71, m4, 5b, 6, 73, 4, 7
5b45.6, CH21.86–1.81, m4, 5a, 6, 7, 83, 4, 6, 7
668.4, CH3.84–3.79, m4, 5a, 5b, 7, 84, 5b
738.7, CH21.45, m4, 6, 5a, 5b, 7, 88
8–1830.8–30.4, CH21.30, m5a, 5b, 7, 17, 19
1924.1, CH21.59–1.55, m18, 20, 24, 25 20, 24, 25
2038.6, CH22.61–2.49, m18, 19, 25, 2618, 19, 21
21215.4, qC
2278.0, CH4.05, dd, 8.1, 4.219, 23, 24 21, 23, 24
23a34.6, CH21.74–1.69, m22, 24, 25, 2620
23b34.6, CH21.61–1.49, m22, 24, 25, 2620
2426.2, CH21.40–1.35, m20, 22, 23, 25, 2619, 23, 25, 26, 27
2528.0, CH22.14–2.05, m20, 23, 24, 26, 2718, 19, 24, 26, 27
26130.7, CH5.38, m20, 23, 24, 25, 2825
27130.9, CH5.38, m28, 29, 30, 31 28
2827.8, CH22.14–2.05, m26, 27, 29, 30, 3126, 27, 29, 30
2926.7, CH21.56–1.49, m26, 27, 28, 30, 3128, 30, 31
3038.3, CH21.70–1.64, m26, 27, 28, 29, 3128, 29, 31
3162.6, CH4.33, dd, 6.7, 1.426, 27, 28, 29, 30, 3430, 32, 33
3283.1, qC
3382.9, qC
3452.3, CH5.17, t, 1.629, 30, 31, 37, 3832, 33, 35, 36
3585.6, qC
3685.9, qC
3762.6, CH4.36, dd, 6.6, 1.634, 38, 39, 4035, 38
3836.8, CH22.45, t, 6.131, 37, 39, 40 36, 37, 39, 40
39129.2, CH5.64–5.54, m37, 38, 40, 41, 4238, 42, 44
40127.5, CH5.64–5.54, m37, 38, 39, 41, 4241, 42, 44
4136.3, CH22.38–2.25, m39, 40, 4239, 40, 42, 43
4272.2, CH4.15, dd, 6.339, 40, 41, 44 39, 40, 41, 43, 44
43135.7, CH5.91, ddd, 15.4, 5.9, 1.341, 42, 44, 4542, 44, 45
44130.7, CH5.78, ddd, 15.4, 5.7, 1.241, 42, 43, 4542, 43, 45, 46
4562.5, CH4.83, d, 5.537, 42, 43, 44, 4743, 44, 46, 47
4684.4, qC
4774.4, CH2.90, d, 2.04544, 45
Table Table 2. 1H NMR (500 MHz, CD3OD) and 13C NMR (125 MHz, CD3OD) data of nepheliosyne B (2).

Click here to display table

Table 2. 1H NMR (500 MHz, CD3OD) and 13C NMR (125 MHz, CD3OD) data of nepheliosyne B (2).
PositionδC (ppm)/MultiplicityδH (ppm)/ J (Hz)/Multiplicity1H-1H COSY/TOCSY1H-13C HMBC
1157.7, qC
280.1, qC
385.3, qC
467.1, CH4.26, d, 5.025, 6, 71, 5
574.9, CH3.58, m4, 6, 74
6a33.5, CH21.69–1.64, m4, 5, 7, 84, 5
6b33.5, CH21.52–1.44, m4, 5, 7, 84, 5
730.8–30.4, CH21.29, m4, 5, 6, 88
8–1830.8–30.4, CH21.29, m5a, 5b, 7, 17, 19
1924.1, CH21.59–1.55, m18, 20, 24, 2520, 24, 25
2038.6, CH22.61–2.49, m18, 19, 25, 2618, 19, 21
21215.0, qC
2278.0, CH4.05, dd, 8.1, 4.219, 23, 2421, 23, 24
23a34.6, CH21.57–1.50, m22, 24, 25, 2620
23b34.6, CH21.73–1.67, m22, 24, 25, 2620
2425.9, CH21.42–1.34, m20, 22, 23, 25, 2619, 23, 25, 26, 27
2528.0, CH22.14–2.05, m20, 23, 24, 26, 2718, 19, 24, 26, 27
26130.7, CH5.38, m20, 23, 24, 25, 2825
27130.9, CH5.38, m28, 29, 30, 3128
2827.8, CH22.14–2.05, m26, 27, 29, 30, 3126, 27, 29, 30
2926.2, CH21.58–1.49, m26, 27, 28, 30, 3128, 30, 31
3038.6, CH21.70–1.62, m26, 27, 28, 29, 3128, 29, 31
3162.6, CH4.33, dd, 6.7, 1.426, 27, 28, 29, 30, 3430, 32, 33
3283.1, qC
3382.9, qC
3452.4, CH5.17, t, 1.629, 30, 31, 37, 3832, 33, 35, 36
3585.6, qC
3685.9, qC
3762.6, CH4.36, dd, 6.6, 1.634, 38, 39, 4035, 38
3836.9, CH22.45, t, 6.131, 37, 39, 4036, 37, 39, 40
39127.6, CH5.64–5.54, m37, 38, 40, 41, 4238, 42, 44
40129.2, CH5.64–5.54, m37, 38, 39, 41, 4241, 42, 44
4136.4, CH22.38–2.25, m39, 40, 4239, 40, 42, 43
4272.2, CH4.15, dd, 6.339, 40, 41, 4439, 40, 41, 43, 44
43135.7, CH5.91, ddd, 15.4, 5.9, 1.341, 42, 44, 4542, 44, 45
44130.7, CH5.78, ddd, 15.4, 5.7, 1.241, 42, 43, 4542, 43, 45, 46
4562.6, CH4.83, d, 5.537, 42, 43, 44, 4743, 44, 46, 47
4684.4, qC
4775.1, CH2.90, d, 2.04544, 45

Structural elucidations of the partial structures be hereafter are based on those of compound 1 as 1H and 13C NMR chemical shifts of these fragments are almost identical in both compounds.

Fragment b contained a ketone group flanked by one adjacent methylene at δH 2.61–2.49 (H2-20, δC 38.6) and an oxymethine at δH 4.05 (H2-22, δC 78.0), which are correlated to methylenes at δH 1.59–1.55 (H2-19, δC 24.1) and at δH 1.74–1.49 (H2-23, δC 34.6), respectively.

Fragment c was constituted by the olefinic protons at δH 5.38 (H-26, δC 130.7 and H-27, δC 130.9), which are correlated to methylenes at δH 2.14–2.05 (H2-25, δC 28.0 and H2-28, δC 27.8). HMBC correlations were observed between these latter and H2-24 (δH 1.40–1.35 δC 26.2) and H2-29 (δH 1.56–1.49 δC 26.4), respectively.

Fragment d consisted of the oxymethines at δH 4.36 (H-37, δC 62.6) and δH 4.33 (H-31, δC 62.6), which correlated to the methylenes at δH 2.45 (H-38, δC 36.8) and at δH 1.70–1.64 (H2-30, δC 38.3), respectively. These protons showed a long-range coupling to the oxymethine located between two triple bonds (H-34, δH 5.17, δC 52.3). HMBC correlations were observed between C-32 (δC 83.1) and both H-31 (δH 4.33) and H-34 (δH 5.17), and between C-36 (δC 85.9) and methines at δH 4.36 (H-37) and H-34 (δH 5.17), whereas the signal at δC 82.9 (2C, C-33 and C-35) showed cross-peaks only with H-34 (δH 5.17) thus allowing the carbon assignment of the two triple bonds in the bis propargylic alcohol.

Fragment e was established to be formed sequentially by the acetylenic proton at δH 2.90 (H-47, δC 74.4), which constitutes the second terminus of the chain, the oxymethine at δH 4.83 (H-45, δC 62.5), the olefinic signals at δH 5.78 (H-44, δC 130.7) and δH 5.91 (H-43, δC 135.7), the oxymethine at δH 4.15 (H-42, δC 72.2), and the methylene at 2.38–2.25 (H2-41, δC 36.3). H2-41 is correlated to the olefinic protons at δH 5.64–5.54 (H-39, δC 129.2 and H-40, δC 127.5). In a similar way, HMBC correlations were observed between H-42 (δH 4.15) and C-41 (δC 36.3), C-43 (δC 135.7), and C-44 (δC 130.7).

The connectivities between these partial structures ae for 1 and a′–e for 2, as well as the number of the linking methylene groups, were established on the basis of the 1H-13C HMBC, 1H-1H COSY/TOCSY correlations, and MS data. The correlation observed between H2-23 and H2-25 offered the connection between fragments b and c. In a similar way, the correlation between H2-28 and H2-30 provided the connection between the partial structures c and d. Finally, the correlation between H-37 and H-39 offered the connection between the partial structures d and e. The combinations a + b + c + d + e and a′ + b + c + d + e represented 670 m.u. whereas the molecular structure weight was 810 m.u. The difference corresponding to 10 methylene groups determined the length of the complementary alkyl chain between a (or a′) and b. All the spectral data of 1 (1D and 2D NMR, MS, and optical properties) led to its identification as nepheliosyne A, in accordance with previous published data [3]. Thus, nepheliosyne B (2) is a new metabolite defined as the 5-hydroxy-6-dehydroxy derivative of nepheliosyne A (1).

The geometry of the double bond Δ43,44 was easily assigned as E by analysis of the coupling constant of the olefinic protons (J43,44 = 15.5 Hz). The geometries of the double bond Δ26,27 and Δ39,40 were assigned as Z and E, respectively, based on the 13C chemical shifts of the allylic methylenes δC 28.0 (C-25) and 27.8 (C-28) for Δ26,27 and δC 36.8 (C-38) and 36.3 (C-41) for Δ39,40.

The relative and absolute configurations of the stereogenic centers of nepheliosyne A (1) and B (2) remained unassigned. They were observed also to degrade rapidly under different reaction conditions [14,15,16]. Like fulvynes [12], any attempts to obtain suitable derivatives for a stereochemical analysis were unsuccessful.

To date, several polyhydroxylated acetylenic metabolites of marine sponges with a diacetylenic carbinol and a α-yne carboxylic group have been reported: Nepheliosyne A from Xestospongia sp. [3], petrosolic acid from Petrosia sp. [6], osirisynes [10] and haliclonyne [11] from Haliclona sp., and fulvynes AI from Haliclona fulva [12]. Nepheliosyne B (2) is, with nepheliosyne A and petrosolic acid, the third example of linear acetylene with diacetylenic carbinol, α-hydroxyketone, and α-yne carboxylic groups. To the best of our knowledge this is the first report on the isolation and structure identification of oxygenated polyacetylenic metabolites from Niphates sp. All these data suggest that from a chemotaxonomic point of view polyhydroxylated acetylenic metabolites could constitute potential markers of Haplosclerida species.

The cytotoxicity of the nepheliosynes A (1) and B (2) was evaluated against K562, U266, SKM1, and Kasumi cancer cell lines which are widely used for cytotoxicity assays, and the IC50 values in μM (XTT assay) are indicated in Table 3. Compounds 1 and 2 were equally efficient with IC50 values around 150–200 μM. Interestingly, their significant specificity against tumor cells were highlighted thanks to additional assays showing that, compared to the K562 cells, the peripheral blood mononuclear cells (PBMC) viability is not affected by compounds 1 and 2 (see Supporting Information).

Table Table 3. IC50 values for compounds 1 and 2 for loss of cell metabolism (XTT assay) and cell number. Cells (10 × 104/mL) were incubated for 48 h at 37 °C with either increasing concentrations of compounds 1 and 2 in the 2.5–250 μM range. Cell metabolism was measured using the XTT kit assay as indicated in the Experimental section. IC50 values are representative of three experiments made in quadruplicates.

Click here to display table

Table 3. IC50 values for compounds 1 and 2 for loss of cell metabolism (XTT assay) and cell number. Cells (10 × 104/mL) were incubated for 48 h at 37 °C with either increasing concentrations of compounds 1 and 2 in the 2.5–250 μM range. Cell metabolism was measured using the XTT kit assay as indicated in the Experimental section. IC50 values are representative of three experiments made in quadruplicates.
CompoundsSKM1 (IC50)U266 (IC50)Kasumi (IC50)K562 (IC50)
1250170200200
2>250200150150

3. Experimental Section

3.1. General

All organic solvents used for material extraction were of analytical grade and purchased from Merck (Darmstadt, Germany). Acetonitrile used for HPLC was of HPLC-grade and purchased from Fisher Scientific, USA. Formic acid of HPLC grade was purchased from Acros, USA. 2,5-Dihydroxybenzoic acid (DHB), used as the matrix for MALDI-TOF experiments, was of the highest grade available and used without further purification was purchased from Sigma Aldrich Co, France. The Chromabond C18 preparative column used for flash chromatography was obtained from Merck, USA. UV measurements were performed on a Varian Cary 300 Scan UV-visible spectrometer. IR spectra were obtained with a Perkin-Elmer Spectrum 100 series FT-IR spectrometer equipped with an universal attenuated total reflectance sampling accessory (ATR). Optical rotations were measured on a Jasco P-1010 polarimeter. Flash chromatography was performed on an Armen Instrument Spot Liquid Chromatography system, the detection wavelength was set at 254 nm. HPLC purifications were carried out on a Waters 600 system equipped with a Waters 717 plus autosampler, a Waters 996 photodiode array detector, and a Sedex 55 evaporative light-scattering detector (SEDERE, Alfortville, France). Detection wavelengths were set at 214, 254 and 280 nm. 1H and 13C NMR spectra were recorded with 500 MHz Bruker Avance NMR spectrometers. Chemical shifts (δ) are recorded in ppm with CD3OD (δH 3.31 ppm and δC 49.0 ppm) as internal standard with multiplicity (s singlet, d doublet, t triplet, m multiplet). High resolution mass spectra (HRMS) were conducted on a Voyager DE-STR MALDI-TOF mass spectrometer (ABSciex, Les Ulis, France), equipped with a 337 nm pulsed nitrogen laser (20 Hz) and a Acquiris® 2 GHz digitizer board, was used for all experiments. Mass spectra were obtained in reflectron positive ion mode with the following settings: Accelerating voltage 20 kV, grid voltage 62% of accelerating voltage, extraction delay time of 100 ns. The laser intensity was set just above the ion generation threshold to obtain peaks with the highest possible signal-to-noise (S/N) ratio without significant peak broadening. All data were processed using the Data Explorer software package (ABSciex).

3.2. Sponge Material

We collected the sponge Niphates sp. (Schmidt, 1862) (Demospongiae, Haplosclerida, Niphatidae) in November 2008 using scuba at a depth of 22 m in the south-west lagoon of New Caledonia (Philippe Amade, Figure 3). The sponge was identified by J. Vacelet and a voucher specimen (MHNM 1646) was deposited at the Natural History Museum of Marseille (France) [17].

Marinedrugs 11 02282 g003
Figure 3. Niphates sp. (photo: Philippe Amade).

Click here to enlarge figure

Figure 3. Niphates sp. (photo: Philippe Amade).
Marinedrugs 11 02282 g003

3.3. Extraction and Isolation

A portion of Niphates sp. was freeze-dried and ground to obtain a dry powder (28 g), which was exhaustively extracted with a mixture of MeOH/CH2Cl2 (1:1, v/v) to yield 463 mg of the crude extract after concentration under reduced pressure. The crude extract was fractionated by RP-C18 flash chromatography (elution with a decreasing polarity gradient of H2O/MeOH from 1:0 to 0:1, then MeOH/CH2Cl2 from 1:0 to 0:1) (flow: 10 mL・min−1). The MeOH fraction (100 mg) was then subjected to semi-preparative HPLC-DAD (Phenomenex Luna C18, 250 × 10 mm id, 5 μm) with a gradient of H2O/MeCN/Formic acid 50:50:0.1 to 0:100:0.1 (flow: 3.0 mL・min−1, injection volume: 100 μL) to afford the pure compounds 1 and 2. Both were identified by a combination of spectroscopic methods (1D and 2D NMR, MS) and comparison with the literature data [3,4,5,6,7,8,9,10,11,12].

3.4. Characterization Data

Nepheliosyne A: amorphous solid; [α]D = +7.0 (c 0.01, MeOH); IR (solid) 3450, 3300, 2250, 2100, 1705 cm−1; UV λmax (MeOH) 205 nm (ε 2500); HR-MALDITOF-MS m/z 833.4803 [M + Na]+ (Calcd. for C47H70O11Na 833.4726, Δ = −1.05 ppm); For 1H NMR (500 MHz) and 13C NMR (125 MHz) data see Table 1.

Nepheliosyne B: amorphous solid; [α]D = +9.9 (c 0.01, MeOH); IR (solid) 3450, 3300, 2250, 2100, 1705 cm−1; UV λmax (MeOH) 205 nm (ε 2500); HR-MALDITOF-MS m/z 833.4803 [M + Na]+ (Calcd. for C47H70O11Na 833.4726, Δ = −1.05 ppm); For 1H NMR (500 MHz) and 13C NMR (125 MHz) data see Table 2.

3.5. Biological Activity

Cell Lines. The human cancer cell lines K562 (chronic myelogenous leukemia), U266 (myeloma), SKM1 (myelodysplastic symdrom), and Kasumi (acute myeloid leukemia) were provided by American Type Culture Collection (ATCC) and were grown at 37 °C under 10% CO2 in RPMI 1640 medium (Gibco BRL, Paisley, UK) supplemented with 10% Fetal Calf Serum (FCS) (Gibco BRL, Paisley, UK) completed with 50 units/mL penicillin, 50 mg/mL streptomycin and 1 mM sodium pyruvate.

Measurement of Cell Metabolism (XTT). Cells (10 × 104/mL) were incubated with 1 or 2 for the times indicated. 50 μL of XTT kit (sodium 39-[1-(phenylaminocarbonyl)-3,4-tetrazolium]-bis(4-methoxy-6-nitro)benzene sulfonic acid hydrate) was added to each well, which contain 100 μL of medium. Absorbance of the formazan dye produced by metabolically active cells was measured at 490 nm as described earlier [18]. Each assay was performed in quadruplicate.

4. Conclusions

Nepheliosyne B (2), a new C47 highly oxygenated polyacetylene, along with nepheliosyne A (1), have been isolated from the New Caledonian marine sponge Niphates sp. Their structures have been determined on the basis of extensive spectroscopic analyses which led us to complete the structure determination of the previously reported nepheliosyne A (1). With a significant specificity, these metabolites exhibited a moderate cytotoxicity against K562, U266, SKM1, and Kasumi cancer cell lines.

Acknowledgments

We are grateful to French “Ministère de l’Enseignement Supérieur et de la Recherche” and Campus France “AVERROES” for financial support to Nathalie Legrave and Souhir Hamrouni, respectively, and to Pharmamar for financial help for the sponge collection. Thanks are also to the “Direction de l’Environnement de la Province Sud” in New Caledonia, for assistance in collecting the marine samples. Finally, we are grateful to Clemence Ginet for the additional assays on PBMC cells.

Conflict of Interest

The authors declare no conflict of interest.

References and Notes

  1. Minto, R.E.; Blacklock, B. Biosynthesis and function of polyacetylenes and allied natural products. J. Prog. Lipid Res. 2008, 47, 233–306, doi:10.1016/j.plipres.2008.02.002.
  2. Blunt, J.W.; Copp, B.R.; Munro, M.H.G.; Northcote, P.T.; Prinsep, M.R. Marine natural products. Nat. Prod. Rep. 2011, 28, 196–268, doi:10.1039/c005001f.
  3. Kobayashi, J.; Naitoh, K.; Ishida, K.; Shigemori, H.; Ishibashi, M. Nepheliosyne A, new C47 acetylenic acid from the Okinawan marine sponge Xestospongia sp. J. Nat. Prod. 1994, 57, 1300–1303, doi:10.1021/np50111a021.
  4. Brantley, S.E.; Molinski, T.F.; Preston, C.M.; DeLong, E.F. Brominated acetylenic fatty acids from Xestospongia sp., a marine sponge-bacteria association. Tetrahedron 1995, 51, 7667–7672, doi:10.1016/0040-4020(95)00405-W.
  5. Jung, S.-K.; Young, J.-L.; Kwang, S.-I.; Jee, H.-J.; Chung, J.-S.; Chong, O.-L.; Jongki, H.; Hongkum, L. Cytotoxic polyacetylenes from the marine sponge Petrosia sp. J. Nat. Prod. 1999, 62, 554–559, doi:10.1021/np9803427.
  6. Isaacs, S.; Kashman, Y.; Loya, S.; Hizi, A.; Loya, Y. Petrosynol and petrosolic acid, two novel natural inhibitors of the reverse transcriptase of human immunodeficiency virus from Petrosia sp. Tetrahedron 1993, 49, 10435–10438, doi:10.1016/S0040-4020(01)80571-8.
  7. Li, H.-Y.; Matsunaga, S.; Fusetani, N. Corticatic acids A–C, antifungal acetylenic acids from the marine sponge, Petrosia corticata. J. Nat. Prod. 1994, 57, 1464–1467, doi:10.1021/np50112a022.
  8. Ueoka, R.; Ise, Y.; Matsunaga, S. Cytotoxic polyacetylenes related to petroformyne-1 from the marine sponge Petrosia sp. Tetrahedron 2009, 65, 5204–5208, doi:10.1016/j.tet.2009.04.091.
  9. Okamoto, C.; Nakao, Y.; Fujita, T.; Iwashita, T.; van Soest, R.W.M.; Fusetani, N.; Matsunaga, S. Cytotoxic C47-polyacetylene carboxylic acids from a marine sponge Petrosia sp. J. Nat. Prod. 2007, 70, 1816–1819, doi:10.1021/np0702943.
  10. Shin, J.; Seo, Y.; Cho, K.W.; Rho, J.-R.; Paul, V.J. Osirisynes A–F, highly oxygenated polyacetylenes from the sponge Haliclona osiris. Tetrahedron 1998, 54, 8711–8720, doi:10.1016/S0040-4020(98)00480-3.
  11. Chill, L.; Miroz, A.; Kashmann, Y. Haliclonyne, a new highly oxygenated polyacetylene from the marine sponge Haliclona species. J. Nat. Prod. 2000, 63, 523–526, doi:10.1021/np990342m.
  12. Nuzzo, G.; Ciavatta, M.L.; Villani, G.; Manzo, E.; Zanfardino, A.; Varcamonti, M.; Gavagnin, M. Fulvynes, antimicrobial polyoxygenated acetylenes from the Mediterranean sponge Haliclona fulva. Tetrahedron 2012, 68, 754–760, doi:10.1016/j.tet.2011.10.068.
  13. Nakao, Y.; Uehara, T.; Matsunaga, S.; Fusetani, N.; van Soest, R.W.M. Callyspongynic acid, a polyacetylenic acid which inhibits α-glucosidase, from the marine sponge Callyspongia truncata. J. Nat. Prod. 2002, 65, 922–924, doi:10.1021/np0106642.
  14. Sullivan, G.R.; Dale, J.A.; Mosher, H.S. Correlation of configuration and fluorine-19 chemical shifts of alpha-methoxy-alpha-trifluoromethylphenyl acetate derivatives. J. Org. Chem. 1973, 38, 2143–2147, doi:10.1021/jo00952a006.
  15. Ohtani, I.; Kusumi, T.; Kashman, Y.; Kakisawa, H. High-field FT NMR application of Mosher’s method. The absolute configurations of marine terpenoids. J. Am. Chem. Soc. 1991, 113, 4092–4096, doi:10.1021/ja00011a006.
  16. Any attempt to obtain the absolute configuration of C-22 by circular dichroism was also unsuccessful.
  17. Natural History Museum of Marseille (France). Available online: http://www.museum-marseille.org/ (accessed on 17 June 2013).
  18. Puissant, A.; Grosso, S.; Jacquel, A.; Belhacene, N.; Colosetti, P.; Cassuto, J.P.; Auberger, P. Imatinib mesylate-resistant human chronic myelogenous leukemia cell lines exhibit high sensitivity to the phytoalexin resveratrol. FASEB J. 2008, 22, 1894–1904, doi:10.1096/fj.07-101394.
