Mar. Drugs 2013, 11(5), 1693-1717; doi:10.3390/md11051693
Published: 21 May 2013
Abstract: Since the late 1980s, a large number of depsipeptides that contain a new topography, referred to as “head-to-side-chain” cyclodepsipeptides, have been isolated and characterized. These peptides present a unique structural arrangement that comprises a macrocyclic region closed through an ester bond between the C-terminus and a β-hydroxyl group, and terminated with a polyketide moiety or a more simple branched aliphatic acid. This structural pattern, the presence of unique and complex residues, and relevant bioactivity are the main features shared by all the members of this new class of depsipeptides, which are reviewed herein.
Since ancient times, humans have used natural products to treat nearly every ailment known . Furthermore, for the last few decades, natural products have also served as biochemical tools to better understand the targets and pathways involved in disease. Their structural complexity, chemical diversity, and biological specificity are matchless. Thus, the chemical space that these products represent differs to that of synthetic compounds and cannot be easily replaced .
However, the use of natural products as the main source for drug discovery also has a number of severe intrinsic drawbacks. Firstly, labor-intensive and time-consuming procedures are needed to obtain the amounts required for pre-clinical studies. Secondly, these products have an extremely high structural complexity, thus representing a synthetic challenge and a considerable obstacle for the development of analogs. Thirdly, the use of natural sources may lead to the re-discovery of already known compounds. Finally, the time-line for the development of drugs from natural products exceeds the standards set by pharmaceutical companies .
In the early 1990s, the development of High-throughput screening (HTS), together with the introduction of combinatorial chemistry, pushed natural product research programs into the background . The higher capacity to produce large libraries of new synthetic compounds in a short time by means of combinatorial chemistry and the dramatic increase in the speed of the biological evaluation thanks to HTS refinement were unbeatable improvements with respect to the disadvantaged screening of natural products. As a result, pharmaceutical companies significantly reduced their drug discovery programs based on natural products .
However, to date, only one de novo combinatorial NCE (New Chemical Entity) has been approved by the FDA, namely the kinase inhibitor sorafenib for renal carcinoma [6,7]. Thus, the failure of large synthetic libraries in the race to find first-in-class drugs combined with several improvements in the screening of natural products have enabled a small revival of natural products in drug discovery programs in recent years.
Simultaneously, the so-called chemistry of natural products has been transformed by new methodologies and technological advances, which have facilitated the re-establishment of natural products as the main pipeline for drug development. Thus, the combination of HPLC and SPE (solid phase extraction) techniques with NMR and MS technologies and the implementation of bioassay-guided fractionation have substantially decreased the time required for dereplication, isolation and structure elucidation. As a result, the screening process for natural products has become more efficient and straightforward.
Furthermore, several breakthroughs have been made in synthetic organic methodologies in the last few years: the development of the semi-synthetic approach, consisting of the generation of analogs by synthetically modifying natural products [8,9]; the introduction of the chemoenzymatic approach, which uses not only chemical tools, but also enzymes to transform natural products [10,11]; the application of diverted total synthesis ; the use of combinatorial chemistry tools to build libraries based on natural product scaffolds [2,13,14]; and combinatorial biosynthesis, which uses genetic engineering to create libraries based on natural products [15,16]. All these achievements have enabled the chemist to access increasingly more complex structures .
Moreover, advances in microbial genomics may bring about a revolution in the discovery of natural products . This new technology has enabled the rapid identification of genes encoding novel secondary metabolites (most of which would have probably gone unnoticed by traditional screening methods) and the computational prediction of chemical structures on the basis of genomic sequences. Furthermore and more importantly, it is now possible to establish specific fermentation conditions to express genes encoding a particular natural product [18,19].
In this new drug discovery panorama, the use of marine actinomycetes, fungi and myxobacteria as sources of natural products could represent a more prolific approach for the development of drugs based on natural structures, thus limiting the chances of finding known compounds [20,21,22].
In this regard, the marine ecosystem occupies 70% of the earth’s surface and holds a huge biodiversity, which is subjected to higher evolutionary pressure and a smaller impact of humans than the terrestrial ecosystem. Thus, hosting unprecedented, highly diverse and extremely complex structures with a range of biological activities, the marine ecosystem is a potent reservoir of natural compounds . And until only 30 years ago, it was still unexplored. Technological improvements in scuba diving and harvesting procedures, together with the development of more accurate and precise chromatographic techniques, that enable the identification and biological evaluation of new natural compounds using smaller amounts of products, have facilitated a more exhaustive exploration of the marine environment for drug candidates. Thus, since the 1970s, more than 15,000 natural products with distinct bioactivities have been isolated from marine microbes, algae and invertebrates .
Marine life has adapted to and survived the most extreme conditions, such as fierce interspecies competition over limited resources, sub-zero temperatures, and almost a complete lack of oxygen and light. Moreover, most marine organisms are not provided with physical defense systems to protect themselves against predators, to feed and to safeguard their own space. Hence, they have developed highly efficient and sophisticated chemical tools that serve as an “immune” system. By excreting these chemicals into the environment, they protect themselves from external aggression. The “dilution effect”, which occurs when these secondary metabolites are released into the sea water, guarantees the survival of only the most effective chemicals, turning them into the most attractive natural compounds for consideration in biomedical programs.
Natural marine compounds have interesting and diverse biological profiles, including bioactive properties, such as anti-tumor, anti-cancer, anti-microtubule, anti-proliferative, anti-hypertensive, anti-inflammatory, anti-virus, anti-fungal, cytotoxic, and antibiotic activity .

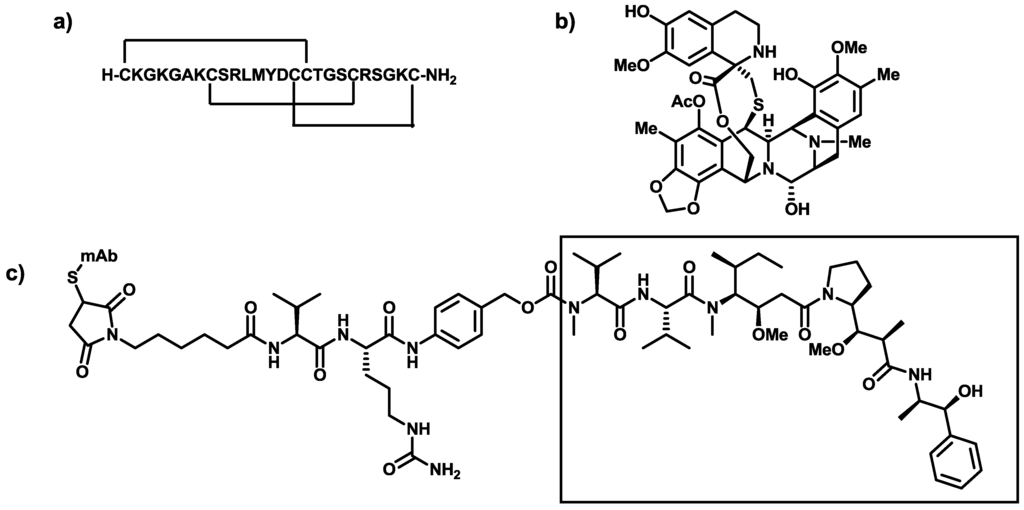

The efforts channeled into drug development from marine sources have started to bear fruits. Thus, in December 2004, Ziconotide (known under the trade name of Prialt and developed by Elan Pharmaceuticals)  was the first drug derived from a natural marine product approved in the US for the treatment of pain. It is the synthetic form of ω-conotoxin MVIIA, a linear 25-amino acid peptide isolated from the venom of a tropical marine cone snail. This peptide shows a well-defined three-dimensional structure stabilized by the presence of three disulphide bridges. Moreover, in October 2007, Trabectedin (known under the trade name Yondelis and developed by PharmaMar)  became the first marine anti-cancer drug to receive approval in the EU. This drug is an alkaloid isolated in extremely poor yields from extracts of the Caribbean tunicate Ecteinascidia turbinata and accessed by means of a semi-synthetic approach from the multi-kilogram scale antibiotic cyanosafracin B. Finally, Brentuximab vedotin (known under the trade name Adcetris and developed by Seattle Genetics)  was approved by the FDA in August 2011 for the treatment of Hodgkin’s lymphoma and systemic anaplastic large cell lymphoma (ALCL). From a structural perspective, it consists of three components: a specific antibody for human CD30 (chimeric immunoglobulin G1 mAb cAC10) covalently linked to a synthetic analog of the natural marine product dolastatin 10 (the microtubule-disrupting agent MMAE) through a protease-cleavable linker (Figure 1).
The role and potential of natural products in drug discovery programs are reaffirmed by the following recently published figures. Data from 1981 to 2010 show that, of all the drugs approved, 60% were either natural products or based on natural structures. Moreover, when specifically referred to anti-cancer drugs, this percentage increased to 70% . These data, together with the significant number of drugs derived from natural products and currently undergoing evaluation in clinical trials , illustrate the importance of natural sources for the development of new drugs, even when many research programs in natural product discovery run by pharmaceutical companies have been terminated.
Natural marine products are of highly diverse chemical nature: phenols, alkaloids, terpenoids, polyesters, peptides, and other secondary metabolites produced by marine organisms, such as sponges, bacteria, dinoflagellate and seaweed. Several reviews about marine peptides and depsipeptides have been published so far [31,32,33,34]. However, the present review focuses on a particular class of marine peptides, the “head-to-side-chain” cyclodepsipeptides, most of which display interesting therapeutic activity.
2. “Head-to-Side-Chain” Cyclodepsipeptides
A peptide is an oligomer formed by up to 60 amino acids. When at least one of the amide bonds of a peptide is replaced by an ester bond, we refer to depsipeptides. These structures have proven to be highly promising candidates for pharmaceutical agents because they show huge structural diversity and display a broad spectrum of biological properties: anti-plasmodial, anti-viral, anti-microbial, insecticidal, cytotoxic, anti-proliferative and anti-cancer activities. Furthermore, they can also show ionophoric and anthelmintic properties. Most bioactive peptides have been extracted mainly from tunicates, bacteria, sponges and mollusks .
The presence of several unique residues and the complex structural features shown by marine depsipeptides makes the structural elucidation of these compounds a challenge. However, their interesting therapeutic profiles have boosted research in this field, resulting in several depsipeptides now undergoing evaluation in clinical trials.
Since the late 1980s, a number of depsipeptides have been reported that belong to a new family of peptides, namely “head-to-side-chain” cyclodepsipeptides. These peptides present a unique structural arrangement: a macrocyclic region closed through an ester bond between the C-terminus and a β-hydroxyl group, terminated with a polyketide moiety or a more simple branched aliphatic acid. This structural pattern, the presence of unique and complex residues and interesting bioactivity are the main features shared by all the members of this new class of depsipeptides.
3. Families of “Head-to-Side-Chain” Cyclodepsipetides
With a wide range of structures and biological profiles, marine cyanobacteria are an extremely prolific source of natural compounds. Among all the secondary metabolites produced by these organisms, we wish to highlight the 3-amino-6-hydroxypiperidone (Ahp)-containing cyclodepsipeptides micropeptins [35,36], oscillapeptins [37,38], nostopeptins [39,40], aeruginopeptins [41,42], largamides , and lyngbyastatins [44,45]. These are all cyclodepsipeptides with serine protease inhibitory activity, and they share the same structural scaffold: a “head-to-side-chain” macrocyclic region, mostly comprising six residues, closed through an ester bond with the hydroxyl group of a l-Thr, and terminated with a more mutable linear fragment, often blocked by hydrophobic acids. Micropeptin EI964  exemplifies this family of cyclodepsipeptides (Figure 2).
Commonly, aa1 is l-Ile, l-Val or l-Leu (all hydrophobic residues); aa2 is NMe-l-Tyr, which can present a number of substitution patterns (halogenated, NMe-l-Tyr(OMe)…) or NMe-l-Phe; aa3 accepts a higher variability and can be a hydrophobic residue such as l-Ile, l-Phe, l-Val and l-Leu or a polar uncharged amino acid such as l-Thr; aa4 is always Ahp or its methylated version Amp; and aa5 is the residue showing the highest diversity, and it can be l-Leu, Abu, l-Arg, l-Tyr, l-HomoTyr, l-Lys, l-Gln, l-HcAla, or l-Trp. The macrolactone framework represents a potent inhibitor prototype in which aa5 binds the S1 specificity pocket of the enzymes, thus blocking the interaction of proteases with their substrates [47,48]. Thus, the nature of this residue is crucial in terms of selectivity and explains its variability. Trypsin shows preference for basic residues (Arg and Lys) while chymotrypsin has preference for large hydrophobic residues (Tyr, Phe, Trp) [47,49,50,51,52]. Abu enhances selectivity for elastase . The O from the hydroxyl group of Ahp/Amp participates in an intramolecular hydrogen bond with the NH of aa1 and the NMe-Tyr or NMe-Phe facilitates the formation of a cis peptide bond. These structural features make the cycle rigid [47,50,51], thus protecting this class of cyclodepsipeptides from protease activity and providing a clearly-defined 3D structure. The presence of unnatural amino acids in their structures also confers resistance to enzymatic hydrolysis.
The l-Thr residue at the branching position plays a crucial structural role and has been described to occupy the subsite S2 of the protease. Only a few nostopeptins present a different amino acid at this position, a 3-hydroxy-4-methylproline residue, whose stereochemistry has not been assigned to date .
The linear arm is postulated to interact with more distal regions of the proteases (S3 and S4 subsites) through hydrogen bonds . Hence, selectivities and potencies can also be influenced by the highly diverse length and nature of the exocyclic fragment. Experimental data showed the requirement of at least a two unit-long exocyclic arm for strong activity .
From a synthetic point of view, only a few members of this huge Ahp-containing depsipeptides family have been synthesized. Thus, somamide A  was fully synthesized in solution while a full solid phase strategy was developed for symplocamide A [56,57]. The key step of symplocamide A synthesis is the spontaneous formation of the Ahp moiety from a glutamic aldehyde generated once the linear precursor is totally assembled. The ester bond is formed after incorporation of the two exocyclic moieties using DIPCDI-DMAP (10:1). The peptidic chain is elongated through the ester bond using Boc chemistry to prevent DKP formation at the ester level and the macrolactamization step is performed on solid phase.
A closely related “head-to-side-chain” arrangement was also found in another family of cyclodepsipeptides. Kahalalides [58,59,60,61,62] were isolated from the herbivorous marine mollusks Elysia rufescens, E. ornate or E. grandifolia and their algal diet Bryopsis pennata or B. plumosa. These compounds make up a large family of marine peptides with highly variable traits. Its members range from tripeptides to tridecapeptides and include homodetic linear peptides, “head-to-tail” cyclodepsipeptides, and “head-to-side-chain” cyclodepsipeptides, all of these acylated at their N-terminus.
Among the 24 natural members of this family described to date, only 7 show therapeutic profiles of interest [58,59,63,64,65,66,67]. These exhibit highly diverse biological properties, including cytotoxic and anti-tumor, anti-microbial, anti-leishmanial and immunosuppressive activities. Of note, all the active members of this small group are cyclodepsipeptides and 6 out of the 7 exhibit the uncommon “head-to-side-chain” structural arrangement closed through an ester bond (Figure 3).

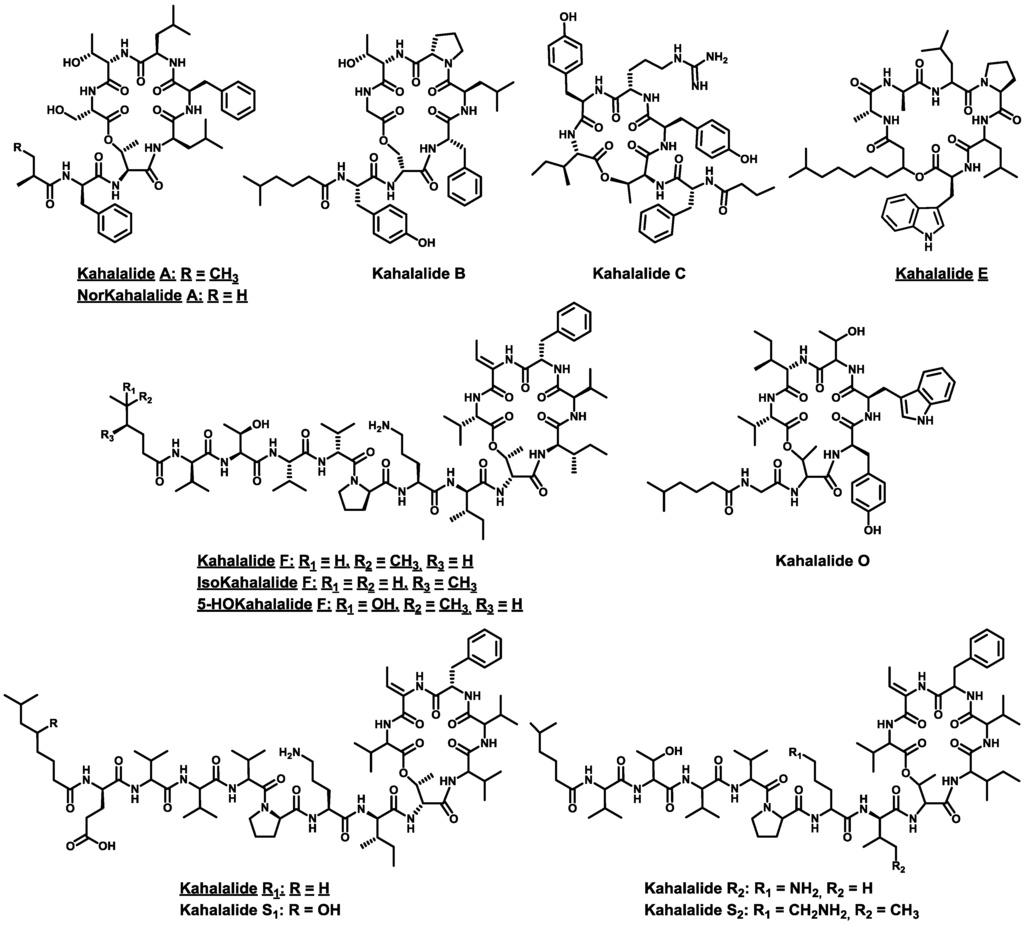

From a structural perspective, our interest focuses on “head-to-side-chain” kahalalides, meaning kahalalide A, B, C, F, O, R1, R2, S1, S2, norkahalalide A, isokahalalide F and 5-OHkahalalide F. The macrocyclic region of these compounds comprises 6 amino acids, with one exception, kahalalide C, which bears a 5-residue ring. Most of the amino acids found on kahalalides have hydrophobic or polar uncharged side chains with an abundance of l- and d-configurations. This feature differs greatly from the Ahp-containing depsipeptide family. Other differences between the two large families are as follows: the presence of other residues such as d-Ser or d-allo-Thr, and not only l-Thr, at the branching position of the kahalalides; the commercial availability of all their residues, with the exception of Abu; the absence of NMe amino acids; the occurrence of a much longer exocyclic arm (up to seven residues); and the presence of a much simpler N-terminal acid, which is generally completely aliphatic and only in some cases a hydroxy acid.
However, as reported for the Ahp-containing depsipeptides, the “head-to-side-chain” structural arrangement also seems to be essential to preserve the biological activity of the kahalalides with therapeutic interest.
Kahalalide F shows the most complete biological activity profile of all the natural kahalalides described so far [58,59,65,66,67]. It shows selectivity against solid tumor cell lines with IC50 in the low μM range (in A-549, HT-29, LOVO, P-388, KB and CV-1 cells); antiviral activity against HSV II using mink lung cells; anti-fungal activity with IC50 values below 3.3 μM against Candida albicans, C. neoformans and Aspergillus fumigatus; immunosuppressive activity; and anti-leishmanial activity with good to moderate IC50 values against Leishmania donovani and L. pifanoi (promastigotes and amastigotes). Thus, exhaustive structural, synthetic, biological, clinical and mechanistic studies have been conducted over the last 20 years.
A complete analogs program has provided valuable data on structure-activity relationships (SARs) [66,67]. Kahalalide F holds three domains: domain A contains the macrocyclic region; domain B comprises the linear exocyclic arm; and domain C is formed by the N-terminal acid. Several changes were made in all the domains to construct 143 analogs. It was concluded that the ring is crucial to preserve the biological properties, as the linear precursor of KF, kahalalide G, did not display any activity; the presence of the Z-Dhb residue and several d-aa increase resistance to enzymatic hydrolysis and provides rigidity, which is essential to conserve the activity; the position occupied by l-Phe must host a highly hydrophobic residue; the stereochemical information of all the amino acids is critical, meaning that the peptide is highly three-dimensionally structured; and, finally, an increase in the sterical hindrance and/or the hydrophobic nature of the side chains increases activity.
To further support the experimental data collected for kahalalide F, a more reduced analogs program conducted for kahalalide A  provided similar conclusions regarding the “head-to-side-chain” arrangement. The synthesis and biological evaluation of 5 analogs, including its linear version, was performed to determine the importance of the macrolactone framework and the presence of free Ser and Thr residues to conserve its activity against Mycobacterium tuberculosis.
From a synthetic point of view, only total synthesis of kahalalide A , B , and F [70,71,72] have been published. Kahalalide A was accessed by means of total synthesis on solid phase. The Kenner sulfonamide safety-catch linker was used to cyclize the linear precursor. The ester bond over the l-Thr residue was built once the two moieties of the exocyclic arm had been assembled. The Fmoc-l-Ser(tBu)-OH was incorporated following a double treatment with DIPCDI and DMAP (4:4:0.4) in THF (2 h + o/n).
Kahalalide B was synthesized following two synthetic strategies: complete elongation of the linear precursor on solid phase and cyclization through: (i) the peptidic bond Thr-Gly; or (ii) the ester bond d-Ser-Gly. The first approach has some advantages: a faster cyclization reaction; a cleaner and better yielding cleavage step; and the avoidance of a last deprotection step in solution. Cyclization through the ester bond has not been attempted for any other related cyclodepsipeptide. Only the presence of the least bulky β-hydroxy-α-amino acid at the branching position (d-Ser) allows such a synthetic approach.
Much effort has been channeled into the synthesis of the more complex kahalalide F. Thus, not only a linear solid phase synthesis but also convergent strategies have been successfully developed. The synthesis of linear kahalalide F was started by anchoring Fmoc-d-Val-OH onto 2-CTC resin. The ester bond was formed before complete assembly of the exocyclic arm by means of DIPCDI-DMAP. The Z-Dhb residue was generated on solid phase or in solution and incorporated as a dipeptide. The final cyclization step was carried out between the residues d-Val-Phe. The convergent strategies comprise the solid phase syntheses of branched peptides using tri- and tetra-orthogonal protection schemes; their cyclization and deprotection of the N-terminal in solution; the synthesis on solid phase of the linear components; and the final condensation of the two fragments in solution using PyAOP-DIEA. The best approach condenses the fragments through the peptidic bond d-Pro-Orn to prevent epimerization. No DKP formation at the ester level was detected.

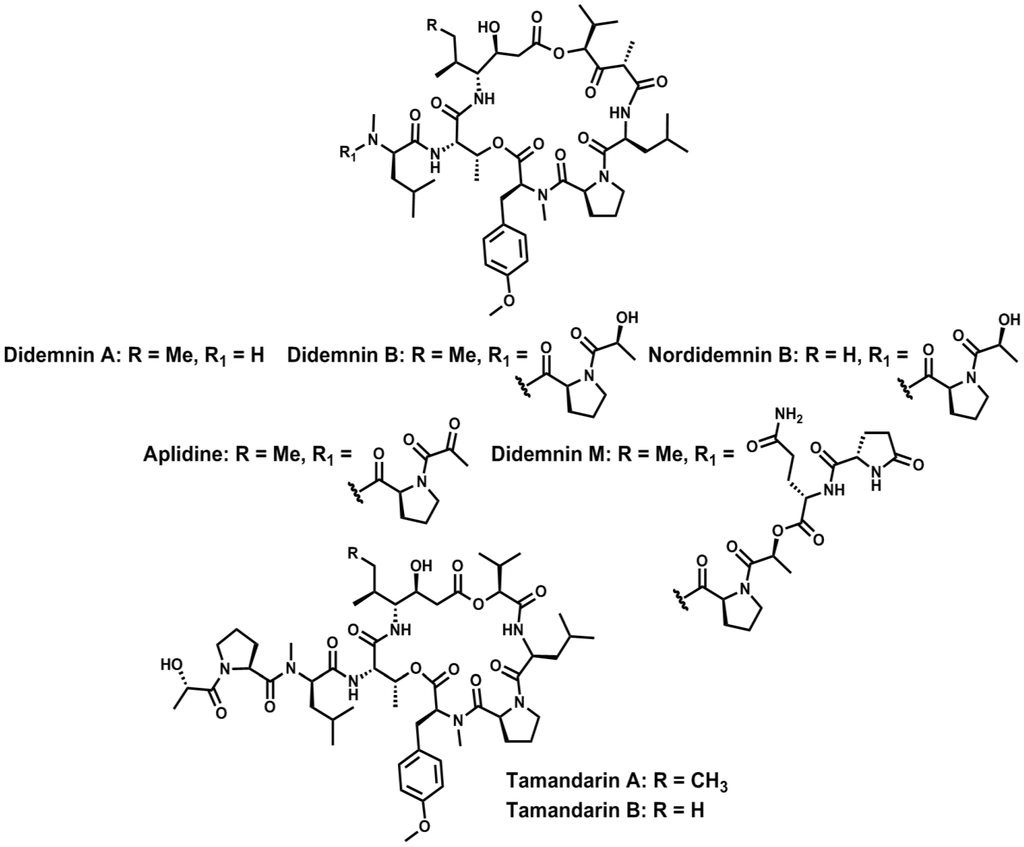

Didemnins [73,74,75] and tamandarins [75,76] are complex cyclodepsipeptides isolated from Caribbean and Brazilian tunicates respectively. These compounds show relevant anti-tumor, anti-viral and immunosuppressive activities at low nano- and femto-molar range. Several clinical trials of some of the most valuable didemnins are still underway [77,78,79]. They have a “head-to-side-chain”-like structural arrangement closely related to those described previously, but comprising two ester bonds.
From a structural perspective, tamandarins are simplified versions of didemnins (Figure 4). They contain a γ-amino acid and a α-hydroxy acid (S-hydroxyisovaleric acid, Hiv). The Hiv moiety forms the second ester bond in the macrocyclic region and, in didemnins, it is replaced with the more complex α-(α-hydroxyisovaleryl)propionyl (HIP) unit. Both types of cyclodepsipeptides contain l- and d- and NMe amino acids and, importantly, as occurs in the Ahp-containing cyclodepsipeptide family, l-Thr always occupies the branching position.
Several total syntheses for didemnins A [80,81,82], B [80,81,82] and C [80,82] and dehydrodidemnin B  and nordidemnin B  have been developed. These were all synthetic approaches in solution, differing mainly in the site of cyclization and the coupling reagents used . Furthermore, a number of total syntheses in solution of tamandarin A [86,87], tamandarin B [87,88] and analogs [89,90,91] have also been described. Significantly, once again, structure-activity relationships of didemnins indicate that the macrolactone framework is a crucial structural arrangement regarding the bioactivity of the natural peptides, especially cytotoxicity and anti-viral properties .

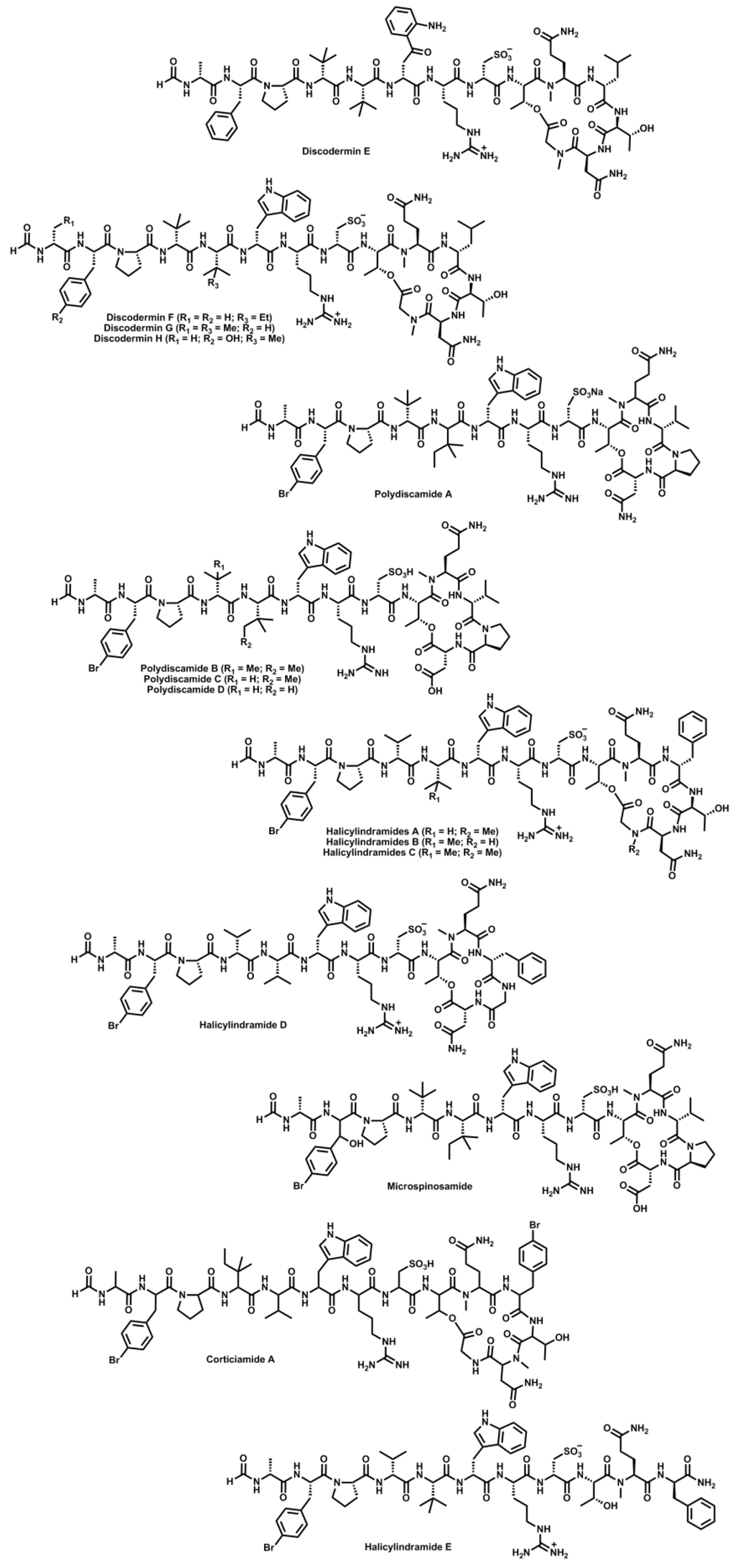

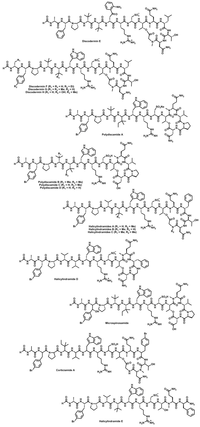

Discodermin A , a tetradecapeptide displaying antimicrobial activity and inhibiting the development of starfish embryos, was firstly isolated from the marine sponge Discodermia kiiensis in 1984. A large number of “head-to-side-chain” cyclodepsipeptides with extremely high structural similarity have been isolated since then from different marine sponges. Thus, discodermins A–H [94,95,96,97] from Discodermia kiiensis marine sponge; polydiscamides A  also from a Discodermia sponge found in the Caribbean and polydiscamides B–D  from a sponge Ircinia sp.; halicylindramides A–E [100,101] from Halichondria cylindrata; microspinosamide  from Sidonops microspinosa; and corticiamide A  from the sponge Corticium sp. were isolated and then elucidated and described in the literature. They are either tetradecapeptides comprising a 19-membered macrolactone, or tridecapeptides containing a 16-membered macrolactone, with the N-terminus formylated in all cases (Figure 5). The branching position of all these peptides is occupied by an l-Thr moiety, which is always acylated by the uncommon d-cysteic acid. Furthermore, they comprise l- and d-residues and one NMe amino acid, and share a number of rare moieties such as l-p-Br-Phe, l-t-Leu, l-β-MeIle and Sar. Their arrangement combining a small cyclic region with a long exocyclic arm, evokes kahalalide F. From a biological perspective, they display mostly cytotoxic and antimicrobial activities. However, polydiscamides B–D have been described to act as SNSR (sensory neuron-specific G protein couple receptor) agonists and microspinosamide has been reported to inhibit the cytopathogenic effect exerted by the HIV-1 virus. Corticiamide A has not been biologically tested and the stereochemical information of its constitutive moieties has not been determined yet. Finally, halicylindramide E, which is a truncated and linear version of halicylindramide B amidated at its C-terminus, loses the cytotoxicity and shows only a moderate antifungal activity, significantly lower than the one exhibited by the cyclic halicylindramides. This experimental data reinforces the hypothesis of the “head-to-side-chain” arrangement being crucial for the bioactivity displayed by these peptides. The synthesis of halicylindramide A has been published by Seo and Lim . They describe a fully solid-phase approach starting by the side-chain incorporation of a l-Asp moiety onto the Rink amide resin. The linear precursor is assembled until the cysteine amino acid before performing the macrolactamization step through the l-Asn-Sar linkage. Then, the exocyclic arm is elongated, the cysteine oxidized to cysteic acid and the N-terminus blocked with a formyl moiety.
Finally, there is a huge and varied family of cyclodepsipeptides, all produced by marine sponges, that also have the distinctive “head-to-side-chain” structural arrangement via an ester bond. All of them contain a 22- or a 25-membered macrolactone that bears a β-hydroxy-α-amino acid with the d-allo configuration at the branching position. Furthermore, they share a number of uncommon residues described for the first time after the isolation of these natural peptides. Of note, the same rare residue (diMe-Gln) acylates the branching position of all the isolated members. The exocyclic arm is either composed of three amino acids, one being a γ-amino acid, or four α-amino acids. Its N-terminus is always acylated with a β-hydroxy acid. Both l- and d- residues, as well as NMe amino acids, are found in the structures of these peptides. Finally, all the cyclodepsipeptides show therapeutic profiles of interest, displaying mostly cytoprotective activity against HIV-1 infection.

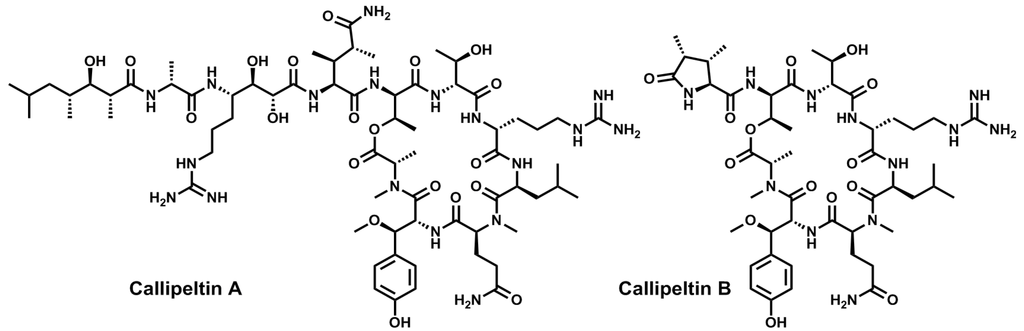

In 1996, Zampella and co-workers described the first member of the callipeltins family. Callipeltin A  is a “head-to-side-chain” cyclic depsidecapeptide isolated in the waters off New Caledonian from a collection of marine sponges of the genus Callipelta, in the order Lithistida. Its isolation allowed the description of three new and complex amino acids, namely β-methoxytyrosine, (3S,4R)-3,4-dimethyl-l-glutamine, and (2R,3R,4S)-4-amino-7-guanidino-2,3-dihydroxyheptanoic acid. From the same marine sponge, a truncated version of callipeltin A named callipeltin B, and the linear peptides callipeltins C–M were also isolated [106,107,108,109]. Callipeltins A and B (Figure 6) contain a d-allo-Thr at the branching position of a 22-membered macrolactone (6 residues) and display relevant cytotoxicity against several cancer cell lines. Additionally, callipeltin A was found to be active against HIV virus.
The total synthesis of callipeltin B on solid phase was published by Lipton and co-workers . They chose to start the linear peptide elongation by incorporating the cyclic anhydride of Fmoc-N-methylglutamic acid onto the Sieber resin, and to carry out the macrolactamization step at the β-MeO-Tyr-NMe-Ala linkage. The ester bond was formed once the DiMePyroGlu was already coupled and using Alloc-NMe-Ala-OH and MSNT in conjunction with N-methylimidazole. Desmethoxycallipeltin B and other analogs have also been synthesized and biologically evaluated [111,112]. Syntheses for the linear callipeltins D  and E [114,115] have been published too. No bioactivity reported for the described linear callipeltins and the loss of anti-HIV activity for the truncated callipeltin B, strongly point out that the whole “head-to-side-chain” arrangement is crucial to obtain relevant biological activity.
The same new and bizarre three residues were found in other cyclodepsipeptides isolated from the marine sponge Neamphius huxleyi in Papua New Guinea. Neamphamide A [116,117], B [118,119], C  and D  (Figure 7) are depsipeptides with a 25- or a 22-membered macrolactone, a d-allo-Thr residue at the branching point and the same terminating polyketide moiety of callipeltin A. Neamphamide A displays a strong cytoprotective effect against HIV-1 infection, while neamphamide B exhibits potent anti-mycobacterial activity against Mycobacterium smegmatis and bovis BCG, and neamphamides B–D are cytostatic against several human cancer cell lines. An outstanding structural feature and an important difference between neamphamides and callipeltin A is that the former hold the rare l-homoproline in their macrocyclic region. No syntheses have been described so far.
l-Homoproline, β-methoxytyrosine and (3S,4R)-3,4-dimethyl-l-glutamine are also contained in the papuamides. In 1999, papuamides A–D were isolated in Papua New Guinea from two sponges, Theonella mirabilis and T. swinhoei . The re-isolation of papuamides C and D along with two new peptides, papuamides E and F, from a marine sponge Melophlus sp. was described in 2011 . In addition, papuamides contain other strange amino acids such as d-3-methoxyalanine and (2R,3R)-3-hydroxyleucine at the branching position, as well as two previously undescribed terminating moieties: 2,3-dihydroxy-2,6,8-trimethyldeca-(4Z,6E)-dienoic acid and 3-hydroxy-2,6,8-trimethyldeca-(4Z,6E)-dienoic acid (Figure 8). Papuamides A and B inhibit the HIV-1RF infection of human T-lymphoblastoid cells in vitro. Papuamide A also displays cytotoxic activity against a number of human cancer cell lines. The synthesis in solution of papuamide B was published by Ma and co-workers in 2008 . After complete assembly of the macrolactone, it was first coupled to a dipeptide, and the resulting intermediate was then condensate with the last fragment of papuamide B, which comprises the residues d-allo-Thr, Gly and the unsaturated α,β-dihydroxy acid blocking the N-terminus.
From the same T. swinhoei sponge in Papua New Guinea, another member of the “head-to-side-chain” cyclodepsipeptides family, namely theopapuamide A , was isolated. This is a cyclic depsiundecapeptide bearing a d-allo-Thr at the branching position of a 25-membered macrolactone, and two unprecedented amino acid residues in its structure: β-methoxyasparagine and 4-amino-5-methyl-2,3,5-trihydroxyhexanoic acid. The 3-hydroxy-2,4,6-trimethyloctanoic acid acylates the N-terminus. Theopapuamides B–D  were isolated from the Siliquariaspongia mirabilis sponge. They also contain a rare d-3-acetamido-2-aminopropanoic acid and the (3S,4S)-4-amino-2,3-dihydroxy-5-methylhexanoic acid (Figure 9). Theopapuamides A–C are cytotoxic against human colon carcinoma (HCT-116) cells and show potent anti-fungal activity against wild-type C. albicans and also against amphotecirin B-resistant strains. Furthermore, theopapuamide A also exhibits cytotoxicity against the CEM-TART cell line. No syntheses have been described so far.
Sharing a similar scaffold with papuamides, mirabamides [125,126] were isolated from two different marine sponges S. mirabilis and Stelletta clavosa. Two unknown building blocks were described after their isolation: the glycosylated amino acid β-methoxytyrosine 4′-O-α-l-rhamnopyranoside and the 4-cloro-l-homoproline (Figure 10). Mirabamides A, C and D inhibit HIV-1 in neutralization and fusion assays, thereby showing that their action occurs during early stages of HIV-1 entry. Mirabamides A–C also show anti-microbial activity toward C. albicans and B. subtilis. No syntheses have been described so far for these structures.
In 2008 and 2009, Zampella and co-workers described ten new cyclodepsipeptides, named homophymines A–E and A1–E1 [127,128,129], isolated from the marine sponge Homophymia, in the order Lithistida, collected in New Caledonian. They are all “head-to-side-chain” cyclic depsiundecapeptides that contain: a 25-membered macrolactone; the unusual residues (3S,4R)-3,4-dimethyl-l-glutamine, l-ThrOMe and l-homoproline; up to five distinct polyketide terminating moieties; and three unprecedented amino acids, (2R,3R,4S)-4-amino-2,3-dihydroxy-1,7-heptandioic acid (ADHA) or (2R,3R,4S)-4,7-diamino-2,3-dihydroxy-7-oxoheptanoic acid (DADHOHA) and the (2R,3R,4R)-2-amino-3-hydroxy-4,5-dimethylhexanoic acid (d-allo-AHDMHA) at the branching position (Figure 11). All the members described so far exhibit potent cytotoxic activity. Furthermore, the first isolated member, homophymine A, also displays considerable cytoprotective activity against HIV-1 infection at very low concentrations. No syntheses of these compounds have been described so far.
In 2010, Pharma Mar isolated two new “head-to-side-chain” depsiundecapeptides, stellatolide A and B (Figure 12), from a marine sponge of the family Ancorinidae, genus Ecionemia, species Ecionemia acervus Bowebank 1864, collected in Tulear, Madagascar . The only difference between the two peptides is the N-terminus acylating moiety. They accommodate in their structures the unusual residues (2R,3R)-β-methoxytyrosine, (3S,4R)-3,4-dimethyl-l-glutamine, (2S,3S)-2,3-diaminobutyric acid, (2R,3S)-β-hydroxyasparagine and the terminating moieties 3-hydroxy-6,8-dimethylnon-(4Z)-enoic acid or 3-hydroxy-6-methylnon-(4Z)-enoic acid. Both compounds have proven to display strong antiproliferative activity against three human cancer cell lines (Lung-NSCLC A549, Colon HT-29 and Breast MDA-MB-231).
Finally, from a Homophymia marine sponge collected on the coasts of Madagascar, PharmaMar isolated pipecolidepsins A, B and C . These compounds are “head-to-side-chain” cyclic depsiundecapeptides that also bear a 25-membered macrolactone and contain the rare amino acids l-homoproline, l-homoisoleucine, β-EtO-Asn, β-MeO-Asn, (3S,4R)-3,4-dimethyl-l-glutamine, DADHOHA and the terminating HTMHA acid (Figure 13). Pipecolidepsins A and B have the unique (2R,3R,4R)-2-amino-3-hydroxy-4,5-dimethylhexanoic acid (d-allo-AHDMHA) at the branching position, while pipecolidepsin C has a much more simple d-allo-Thr residue. The three depsipeptides show relevant cytotoxicity against three human cancer cell lines (Lung-NSCLC A549, Colon HT-29 and Breast MDA-MB-231) with GI50 around 10−7 M.
“Head-to-side-chain” cyclodepsipeptides show fascinating chemical structures and remarkable biological profiles, mostly as cytotoxicity. All of them are from marine origin and contain highly complex unprecedented amino acids, as well as, d- and/or NMe-amino acids. The distinctive “head-to-side-chain” scaffold via an ester bond has being strongly pointed out as a critical feature responsible for the biological properties displayed by these natural products. Being a synthetic challenge and owing relevant bioactivities have boosted the interest of medicinal chemistry researchers to develop robust and efficient synthetic methodologies to bring these compounds or their analogs to clinical phases.
The work carried out in the laboratory of the authors was partially financed by PharmaMar (Madrid), CICYT (CTQ2012-30930), the Generalitat de Catalunya (2009SGR 1024), and the Institute for Research in Biomedicine (IRB Barcelona).
Conflict of Interest
The authors declare no conflict of interest.
- Dias, D.A.; Urban, S.; Roessner, U. A historical overview of natural products in drug discovery. Metabolites 2012, 2, 303–336. [Google Scholar] [CrossRef]
- Takagi, M.; Shin-Ya, K. Construction of a natural product library containing secondary metabolites produced by actinomycetes. J. Antibiot. 2012, 65, 443–447. [Google Scholar] [CrossRef]
- Lam, K.S. New aspects of natural products in drug discovery. Trends Microbiol. 2007, 15, 279–289. [Google Scholar] [CrossRef]
- Baltz, R.H. Marcel Faber Roundtable: Is our antibiotic pipeline unproductive because of starvation, constipation or lack of inspiration? J. Ind. Microbiol. Biot. 2006, 33, 507–513. [Google Scholar] [CrossRef]
- Von Nussbaum, F.; Anlauf, S.; Benet-Buchholz, J.; Häbich, D.; Köbberling, J.; Musza, L.; Telser, J.; Rübsamen-Waigmann, H.; Brunner, N.A. Structure and total synthesis of lysobactin (katanosin B). Angew. Chem. Int. Ed. 2007, 46, 2039–2042. [Google Scholar] [CrossRef]
- Llovet, J.M.; Ricci, S.; Mazzaferro, V.; Hilgard, P.; Gane, E.; Blanc, J.; Oliveira, A.C.D.; Santoro, A.; Raoul, J.; Forner, A.; et al. Sorafenib in advanced hepatocellular carcinoma. N. Engl. J. Med. 2008, 359, 378–390. [Google Scholar] [CrossRef]
- Coriat, R.; Nicco, C.; Chéreau, C.; Mir, O.; Alexandre, J.; Ropert, S.; Weill, B.; Chaussade, S.; Goldwasser, F.; Batteux, F. Sorafenib-induced hepatocellular carcinoma cell death depends on reactive oxygen species production in vitro and in vivo. Mol. Cancer Ther. 2012, 11, 2284–2293. [Google Scholar] [CrossRef]
- Leeds, J.A.; Schmitt, E.K.; Krastel, P. Recent developments in antibacterial drug discovery: Microbe-derived natural products-from collection to the clinic. Expert Opin. Investig. Drugs 2006, 15, 211–226. [Google Scholar] [CrossRef]
- Butler, M.S.; Buss, A.D. Natural products-the future scaffolds for novel antibiotics? Biochem. Pharmacol. 2006, 71, 919–929. [Google Scholar] [CrossRef]
- Müller, M. Chemical diversity through biotransformations. Curr. Opin. Biotechnol. 2004, 15, 591–598. [Google Scholar] [CrossRef]
- Lamb, S.S.; Wright, G.D. Accessorizing natural products: Adding to nature’s toolbox. Proc. Natl. Acad. Sci. USA 2005, 102, 519–520. [Google Scholar] [CrossRef]
- Paterson, I.; Anderson, E.A. The renaissance of natural products as drug candidates. Science 2005, 310, 451–453. [Google Scholar] [CrossRef]
- Ortholand, J.-Y.; Ganesan, A. Natural products and combinatorial chemistry: Back to the future. Curr. Opin. Chem. Biol. 2004, 8, 271–280. [Google Scholar] [CrossRef]
- Ganesan, A. Natural products as a hunting ground for combinatorial chemistry. Curr. Opin. Biotech. 2004, 15, 584–590. [Google Scholar] [CrossRef]
- Sánchez, C.; Zhu, L.; Braña, A.F.; Salas, A.P.; Rohr, J.; Méndez, C.; Salas, J.A. Combinatorial biosynthesis of antitumor indolocarbazole compounds. Proc. Natl. Acad. Sci. USA 2005, 102, 461–466. [Google Scholar]
- Floss, H.G. Combinatorial biosynthesis-potential and problems. J. Biotechnol. 2006, 124, 242–257. [Google Scholar] [CrossRef]
- Baltz, R.H. Molecular engineering approaches to peptide, polyketide and other antibiotics. Nat. Biotechnol. 2006, 24, 1533–1540. [Google Scholar] [CrossRef]
- Bode, H.B.; Bethe, B.; Höfs, R.; Zeeck, A. Big effects from small changes: Possible ways to explore nature’s chemical diversity. ChemBioChem. 2002, 3, 619–627. [Google Scholar] [CrossRef]
- Kegler, C.; Gerth, K.; Müller, R. Establishment of a real-time PCR protocol for expression studies of secondary metabolite biosynthetic gene clusters in the G/C-rich myxobacterium Sorangium cellulosum So ce56. J. Biotechnol. 2006, 121, 201–212. [Google Scholar] [CrossRef]
- Marris, E. Drugs from the deep. Nature 2006, 443, 904–905. [Google Scholar]
- Newman, D.J.; Cragg, G.M. A selective and sensitive fluorescence probe for imaging endogenous zinc in living cells. Curr. Drug Targets 2006, 7, 279–304. [Google Scholar] [CrossRef]
- Zotchev, S.B. Marine actinomycetes as an emerging resource for the drug development pipelines. J. Biotechnol. 2012, 158, 168–175. [Google Scholar] [CrossRef]
- Hill, R.A. Marine natural products. Annu. Rep. Prog. Chem. B 2012, 108, 131–146. [Google Scholar] [CrossRef]
- Salomon, C.E.; Magarvey, N.A.; Sherman, D.H. Merging the potential of microbial genetics with biological and chemical diversity: An even brighter future for marine natural product drug discovery. Nat. Prod. Rep. 2004, 21, 105–121, and references therein. [Google Scholar] [CrossRef]
- Molinski, T.F.; Dalisay, D.S.; Lievens, S.L.; Saludes, J.P. Drug development from marine natural products. Nat. Rev. Drug Discov. 2009, 8, 69–85. [Google Scholar] [CrossRef]
- Williams, A.J.; Day, M.; Heavner, J.E. Ziconotide: An update and review. Expert Opin. Pharmacother. 2008, 9, 1575–1583. [Google Scholar] [CrossRef]
- Cuevas, C.; Pérez, M.; Martín, M.J.; Chicharro, J.L.; Fernández-Rivas, C.; Flores, M.; Francesch, A.; Gallego, P.; Zarzuelo, M.; de La Calle, F.; et al. Synthesis of ecteinascidin ET-743 and phthalascidin Pt-650 from cyanosafracin B. Org. Lett. 2000, 2, 2545–2548. [Google Scholar] [CrossRef]
- Younes, A.; Yasothan, U.; Kirkpatrick, P. Brentuximab vedotin. Nat. Rev. Drug Discov. 2012, 11, 19–20. [Google Scholar] [CrossRef]
- Newman, D.J.; Cragg, G.M. Natural products as sources of new drugs over the 30 years from 1981 to 2010. J. Nat. Prod. 2012, 75, 311–335. [Google Scholar] [CrossRef]
- Butler, M.S. Natural products to drugs: Natural product derived compounds in clinical trials. Nat. Prod. Rep. 2005, 22, 162–195. [Google Scholar] [CrossRef]
- Lemmens-Gruber, R.; Kamyar, M.R.; Dornetshuber, R. Cyclodepsipeptides—Potential drugs and lead compounds in the drug development process. Curr. Med. Chem. 2009, 16, 1122–1137. [Google Scholar] [CrossRef]
- Andavan, G.S.B.; Lemmens-Gruber, R. Cyclodepsipeptides from marine sponges: Natural agents for drug research. Mar. Drugs 2010, 8, 810–834. [Google Scholar] [CrossRef]
- Suarez-Jimenez, G.-M.; Burgos-Hernandez, A.; Ezquerra-Brauer, J.-M. Bioactive peptides and depsipeptides with anticancer potential: Sources from marine animals. Mar. Drugs 2012, 10, 963–986. [Google Scholar] [CrossRef]
- Sarabia, F.; Chammaa, S.; Sanchez Ruiz, A.; Martin Ortiz, L.; Lopez Herrera, F.J. Chemistry and biology of cyclic depsipeptides of medicinal and biological interest. Curr. Med. Chem. 2004, 11, 1309–1332. [Google Scholar] [CrossRef]
- Banker, R.; Carmeli, S. Inhibitors of serine proteases from a waterbloom of the cyanobacterium Microcystis sp. Tetrahedron 1999, 55, 10835–10844. [Google Scholar] [CrossRef]
- Reshef, V.; Carmeli, S. Protease inhibitors from a water bloom of the cyanobacterium Microcystis aeruginosa. Tetrahedron 2001, 57, 2885–2894. [Google Scholar] [CrossRef]
- Itou, Y.; Ishida, K.; Shin, H.J.; Murakami, M. Oscillapeptins A to F, serine protease inhibitors from the three strains of Oscillatoria agardhii. Tetrahedron 1999, 55, 6871–6882. [Google Scholar] [CrossRef]
- Fujii, K.; Sivonen, K.; Naganawa, E.; Harada, K. Non-toxic peptides from toxic cyanobacteria, Oscillatoria agardhii. Tetrahedron 2000, 56, 725–733. [Google Scholar] [CrossRef]
- Ploutno, A.; Carmeli, S. Modified peptides from a water bloom of the cyanobacterium Nostoc sp. Tetrahedron 2002, 58, 9949–9957. [Google Scholar] [CrossRef]
- Von Elert, E.; Oberer, L.; Merkel, P.; Huhn, T.; Blom, J.F. Cyanopeptolin 954, a chlorine-containing chymotrypsin inhibitor of Microcystis aeruginosa NIVA Cya 43. J. Nat. Prod. 2005, 68, 1324–1327. [Google Scholar] [CrossRef]
- Harada, K.; Mayumi, T.; Shimada, T.; Fujii, K.; Kondo, F.; Watanabe, M.F. Synthesis and thermophysical properties of ionic liquids: Cyclopropyl moieties versus olefins as Tm-reducing elements in lipid-inspired ionic liquids. Tetrahedron Lett. 1993, 34, 6091–6094. [Google Scholar] [CrossRef]
- Harada, K.; Mayumi, T.; Shimada, T.; Fujii, K.; Kondo, F.; Park, H.D.; Watanabe, M.F. Co-production of microcystins and aeruginopeptins by natural cyanobacterial bloom. Environ. Toxicol. 2001, 16, 298–305. [Google Scholar] [CrossRef]
- Plaza, A.; Bewley, C.A. Largamides A–H, unusual cyclic peptides from the marine cyanobacterium Oscillatoria sp. J. Org. Chem. 2006, 71, 6898–6907. [Google Scholar] [CrossRef]
- Matthew, S.; Ross, C.; Rocca, J.R.; Paul, V.J.; Luesch, H. Lyngbyastatin 4, a dolastatin 13 analogue with elastase and chymotrypsin inhibitory activity from the marine cyanobacterium Lyngbya confervoides. J. Nat. Prod. 2007, 70, 124–127. [Google Scholar] [CrossRef]
- Taori, K.; Matthew, S.; Rocca, J.R.; Paul, V.J.; Luesch, H. Lyngbyastatins 5–7, potent elastase inhibitors from Floridian marine cyanobacteria, Lyngbya spp. J. Nat. Prod. 2007, 70, 1593–1600. [Google Scholar] [CrossRef]
- Ploutno, A.; Shoshan, M.; Carmeli, S. Three novel protease inhibitors from a natural bloom of the cyanobacterium Microcystis aeruginosa. J. Nat. Prod. 2002, 65, 973–978. [Google Scholar] [CrossRef]
- Lee, A.Y.; Smitka, T.A.; Bonjouklian, R.; Clardy, J. Atomic structure of the trypsin-A90720A complex: A unified approach to structure and function. Chem. Biol. 1994, 1, 113–117. [Google Scholar] [CrossRef]
- Matern, U.; Oberer, L.; Falchetto, R.A.; Erhard, M.; König, W.A.; Herdman, M.; Weckesser, J. Scyptolin A and B, cyclic depsipeptides from axenic cultures of Scytonema hofmanni PCC 7110. Phytochemistry 2001, 58, 1087–1095. [Google Scholar] [CrossRef]
- Yamaki, H.; Sitachitta, N.; Sano, T.; Kaya, K. Two new chymotrypsin inhibitors isolated from the cyanobacterium Microcystis aeruginosa NIES-88. J. Nat. Prod. 2005, 68, 14–18. [Google Scholar] [CrossRef]
- Nakanishi, I.; Kinoshita, T.; Sato, A.; Tada, T. Structure of porcine pancreatic elastase complexed with FR901277, a novel macrocyclic inhibitor. Biopolymers 2000, 53, 434–445. [Google Scholar] [CrossRef]
- Matern, U.; Schleberger, C.; Jelakovic, S.; Weckesser, J.; Schulz, G.E. Binding structure of elastase inhibitor scyptolin A. Chem. Biol. 2003, 10, 997–1001. [Google Scholar] [CrossRef]
- Linington, R.G.; Edwards, D.J.; Shuman, C.F.; McPhail, K.L.; Matainaho, T.; Gerwick, W.H. Symplocamide A, a potent cytotoxin and chymotrypsin inhibitor from the marine cyanobacterium Symploca sp. J. Nat. Prod. 2008, 71, 22–27. [Google Scholar] [CrossRef]
- Okino, T.; Qi, S.; Matsuda, H.; Murakami, M.; Yamaguchi, K. Nostopeptins A and B, elastase inhibitors from the cyanobacterium Nostoc minutum. J. Nat. Prod. 1997, 60, 158–161. [Google Scholar] [CrossRef]
- Grach-Pogrebinsky, O.; Sedmak, B.; Carmeli, S. Protease inhibitors from a Slovenian Lake Bled toxic waterbloom of the cyanobacterium Planktothrix rubescens. Tetrahedron 2003, 59, 8329–8336. [Google Scholar] [CrossRef]
- Yokokawa, F.; Shioiri, T. Total synthesis of somamide A, an Ahp (3-amino-6-hydroxy-2-piperidone)-containing cyclic depsipeptide. Tetrahedron Lett. 2002, 43, 8673–8677. [Google Scholar] [CrossRef]
- Stolze, S.C.; Meltzer, M.; Ehrmann, M.; Kaiser, M. Solid phase total synthesis of the 3-amino-6-hydroxy-2-piperidone (Ahp) cyclodepsipeptide and protease inhibitor Symplocamide A. Chem. Commun. 2010, 46, 8857–8859. [Google Scholar] [CrossRef]
- Stolze, S.C.; Meltzer, M.; Ehrmann, M.; Kaiser, M. Development of a solid-phase approach to the natural product class of Ahp-containing cyclodepsipeptides. Eur. J. Org. Chem. 2012, 2012, 1616–1625. [Google Scholar] [CrossRef]
- Hamann, M.T.; Scheuer, P.J. Kahalalide F: A bioactive depsipeptide from the Sacoglossan mollusk Elysia rufescens and the green alga Bryopsis sp. J. Am. Chem. Soc. 1993, 115, 5825–5826. [Google Scholar] [CrossRef]
- Hamann, M.T.; Otto, C.S.; Scheuer, P.J.; Dunbar, D.C. Kahalalides: Bioactive peptides from a marine mollusk Elysia rufescens and its algal diet Bryopsis sp. J. Org. Chem. 1996, 61, 6594–6600. [Google Scholar] [CrossRef]
- Goetz, G.; Nakao, Y.; Scheuer, P.J. Two acyclic kahalalides from the Sacoglossan mollusk Elysia rufescens. J. Nat. Prod. 1997, 60, 562–567. [Google Scholar] [CrossRef]
- Horgen, F.D.; delos Santos, D.B.; Goetz, G.; Sakamoto, B.; Kan, Y.; Nagai, H.; Scheuer, P.J. A new depsipeptide from the sacoglossan mollusk Elysia ornata and the green alga Bryopsis species. J. Nat. Prod. 2000, 63, 152–154. [Google Scholar] [CrossRef]
- Gao, J.; Hamann, M.T. Chemistry and biology of kahalalides. Chem. Rev. 2011, 111, 3208–3235. [Google Scholar] [CrossRef]
- Ashour, M.; Edrada, R.; Ebel, R.; Wray, V.; Wätjen, W.; Padmakumar, K.; Müller, W.E.G.; Lin, W.H.; Proksch, P. Kahalalide derivatives from the Indian sacoglossan mollusk Elysia grandifolia. J. Nat. Prod. 2006, 69, 1547–1553. [Google Scholar] [CrossRef]
- Gao, J.; Caballero-George, C.; Wang, B.; Rao, K.V.; Shilabin, A.G.; Hamann, M.T. 5-OHKF and NorKA, depsipeptides from a Hawaiian collection of Bryopsis pennata: Binding properties for NorKA to the human neuropeptide Y Y1 receptor. J. Nat. Prod. 2009, 72, 2172–2176. [Google Scholar] [CrossRef]
- Cruz, L.J.; Luque-ortega, J.R.; Rivas, L.; Albericio, F. Kahalalide F, an antitumor depsipeptide in clinical trials, and its analogues as effective antileishmanial agents. Mol. Pharm. 2009, 6, 813–824. [Google Scholar] [CrossRef]
- Shilabin, A.G.; Kasanah, N.; Wedge, D.E.; Hamann, M.T. Lysosome and HER3 (ErbB3) selective anticancer agent kahalalide F: Semisynthetic modifications and antifungal lead-exploration studies. J. Med. Chem. 2007, 50, 4340–4350. [Google Scholar] [CrossRef]
- Jiménez, J.C.; López-Macià, A.; Gracia, C.; Varón, S.; Carrascal, M.; Caba, J.M.; Royo, M.; Francesch, A.M.; Cuevas, C.; Giralt, E.; et al. Structure-activity relationship of kahalalide F synthetic analogues. J. Med. Chem. 2008, 51, 4920–4931. [Google Scholar]
- Bourel-Bonnet, L.; Rao, K.V.; Hamann, M.T.; Ganesan, A. Solid-phase total synthesis of kahalalide A and related analogues. J. Med. Chem. 2005, 48, 1330–1335. [Google Scholar] [CrossRef]
- López-Macià, À.; Jiménez, J.C.; Royo, M.; Giralt, E.; Albericio, F. Kahalalide B. Synthesis of a natural cyclodepsipeptide. Tetrahedron Lett. 2000, 41, 9765–9769. [Google Scholar] [CrossRef]
- López-Macià, A.; Jiménez, J.C.; Royo, M.; Giralt, E.; Albericio, F. Synthesis and structure determination of kahalalide F. J. Am. Chem. Soc. 2001, 123, 11398–11401. [Google Scholar] [CrossRef]
- López, P.E.; Isidro-Llobet, A.; Gracia, C.; Cruz, L.J.; García-Granados, A.; Parra, A.; Álvarez, M.; Albericio, F. Use of p-nitrobenzyloxycarbonyl (pNZ) as a permanent protecting group in the synthesis of Kahalalide F analogs. Tetrahedron Lett. 2005, 46, 7737–7741. [Google Scholar] [CrossRef]
- Gracia, C.; Isidro-Llobet, A.; Cruz, L.J.; Acosta, G.A.; Alvarez, M.; Cuevas, C.; Giralt, E.; Albericio, F. Convergent approaches for the synthesis of the antitumoral peptide, kahalalide F. Study of orthogonal protecting groups. J. Org. Chem. 2006, 71, 7196–7204. [Google Scholar] [CrossRef]
- Rinehart, K.L.; Gloer, J.B.; Carter Cook, J. Structures of the didemnins, antiviral and cytotoxic depsipeptides from a Caribbean tunicate. J. Am. Chem. Soc. 1981, 103, 1857–1859. [Google Scholar] [CrossRef]
- Rinehart, K.L.J.; Gloer, J.B.; Hughes, R.G.J.; Renis, H.E.; McGroven, J.P.; Swynenberg, E.B.; Stringfellow, D.A.; Kuentzel, S.L.; Li, L.H. Didemnins: Antiviral and antitumor depsipeptides from a Caribbean tunicate. Science 1981, 212, 933–935. [Google Scholar]
- Lee, J.; Currano, J.N.; Carroll, P.J.; Joullié, M.M. Didemnins, tamandarins and related natural products. Nat. Prod. Rep. 2012, 29, 404–424. [Google Scholar] [CrossRef]
- Vervoort, H.; Fenical, W.; Epifanio, R.A. Tamandarins A and B: New cytotoxic depsipeptides from a Brazilian ascidian of the family Didemnidae. J. Org. Chem. 2000, 65, 782–792. [Google Scholar] [CrossRef]
- Rawat, D.S.; Joshi, M.C.; Joshi, P.; Atheaya, H. Marine peptides and related compounds in clinical trials. Anti-Cancer Agents Med. Chem. 2006, 6, 33–40. [Google Scholar] [CrossRef]
- Schwartsmann, G.; Brondani, A.; Mattei, J.; Martins, R. Marine-derived anticancer agents in clinical trials. Expert. Opin. Investig. Drugs 2003, 12, 1367–1383. [Google Scholar]
- Rinehart, K.L. Antitumor compounds from tunicates. Med. Res. Rev. 2000, 20, 1–27. [Google Scholar] [CrossRef]
- Rinehart, K.L.; Kishore, V.; Nagarajan, S.; Lake, R.J.; Gloer, J.B.; Bozich, F.A.; Li, K.; Maleczka, R.E.; Todsen, W.L.; Munro, M.H.G.; et al. Total synthesis of didemnins A, B, and C. J. Am. Chem. Soc. 1987, 109, 6846–6848. [Google Scholar] [CrossRef]
- Hamada, Y.; Kondo, Y.; Shibata, M.; Shioiri, T. Efficient total synthesis of didemnins A and B. J. Am. Chem. Soc. 1989, 111, 669–673. [Google Scholar] [CrossRef]
- Li, W.-R.; Ewing, W.R.; Harris, B.D.; Joullié, M.M. Total synthesis and structural investigations of didemnins A, B, and C. J. Am. Chem. Soc. 1990, 112, 7659–7672. [Google Scholar] [CrossRef]
- Jou, G.; González, I.; Albericio, F.; Lloyd-Williams, P.; Giralt, E. Total synthesis of dehydrodidemnin B. Use of uronium and phosphonium salt coupling reagents in peptide synthesis in solution. J. Org. Chem. 1997, 62, 354–366. [Google Scholar] [CrossRef]
- Jouin, P.; Poncet, J.; Dufour, M.-N.; Pantaloni, A.; Castro, B. Synthesis of the cyclodepsipeptide nordidemnin B, a cytotoxic minor product isolated from the sea tunicate Trididemnum cyanophorum. J. Org. Chem. 1989, 54, 617–627. [Google Scholar] [CrossRef]
- Vera, M.D.; Joullié, M.M. Natural products as probes of cell biology: 20 years of didemnin research. Med. Res. Rev. 2002, 22, 102–145. [Google Scholar] [CrossRef]
- Liang, B.; Portonovo, P.; Vera, M.D.; Xiao, D.; Joullié, M.M. The first total synthesis of (−)-tamandarin A. Org. Lett. 1999, 1, 1319–1322. [Google Scholar] [CrossRef]
- Liang, B.; Richard, D.J.; Portonovo, P.S.; Joullié, M.M. Total syntheses and biological investigations of tamandarins A and B and tamandarin A analogs. J. Am. Chem. Soc. 2001, 123, 4469–4474. [Google Scholar] [CrossRef]
- Joullié, M.M.; Portonovo, P.; Liang, B.; Richard, D.J. Total synthesis of (−)-tamandarin B. Tetrahedron Lett. 2000, 41, 9373–9376. [Google Scholar] [CrossRef]
- Lassen, K.M.; Lee, J.; Joullié, M.M. Synthetic studies of tamandarin B side chain analogues. J. Org. Chem. 2010, 75, 3027–3036. [Google Scholar] [CrossRef]
- Adrio, J.; Cuevas, C.; Manzanares, I.; Joullié, M.M. Synthesis and biological evaluation of tamandarin B analogues. Org. Lett. 2006, 8, 511–514. [Google Scholar] [CrossRef]
- Adrio, J.; Cuevas, C.; Manzanares, I.; Joullié, M.M. Total synthesis and biological evaluation of tamandarin B analogues. J. Org. Chem. 2007, 72, 5129–5138. [Google Scholar] [CrossRef]
- Sakai, R.; Rinehart, K.L.; Kishore, V.; Kundu, B.; Faircloth, G.; Gloer, J.B.; Carney, J.R.; Namikoshi, M.; Sun, F.; Hughes, R.G.; et al. Structure-activity relationships of the didemnins. J. Med. Chem. 1996, 39, 2819–2834. [Google Scholar] [CrossRef]
- Matsunaga, S.; Fusetani, N.; Konosu, S. Bioactive marine metabolites VI. Structure elucidation of discodermin A, an antimicrobial peptide from the marine sponge Discodermia kiiensis. Tetrahedron Lett. 1984, 25, 5165–5168. [Google Scholar] [CrossRef]
- Matsunaga, S.; Fusetani, N.; Konosu, S. Bioactive marine metabolites IV. Isolation and the amino acid composition of discodermin A, an antimicrobial peptide, from the marine sponge Discodermia kiiensis. J. Nat. Prod. 1985, 48, 236–241. [Google Scholar] [CrossRef]
- Matsunaga, S.; Fusetani, N.; Konosu, S. Bioactive marine metabolites VII. Structures of discodermins B, C and D, antimicrobial peptides from the marine sponge Discodermia kiiensis. Tetrahedron Lett. 1985, 26, 855–856. [Google Scholar]
- Ryu, G.; Matsunaga, S.; Fusetani, N. Discodermin E, a cytotoxic and antimicrobial tetradecapeptide, from the marine sponge Discodermia kiiensis. Tetrahedron Lett. 1994, 35, 8251–8254. [Google Scholar]
- Ryu, G.; Matsunaga, S.; Fusetani, N. Discodermins F–H, cytotoxic and antimicrobial tetradecapeptides from the marine sponge Discodermia kiiensis: Structure revision of discodermins A–D. Tetrahedron 1994, 50, 13409–13416. [Google Scholar]
- Gulavita, N.K.; Gunasekera, S.P.; Pomponi, S.A.; Robinson, E.V. Polydiscamide A: A new bioactive depsipeptide from the marine sponge Discodermia sp. J. Org. Chem. 1992, 57, 1767–1772. [Google Scholar]
- Feng, Y.; Carroll, A.R.; Pass, D.M.; Archbold, J.K.; Avery, V.M.; Quinn, R.J. Polydiscamides B–D from a marine sponge Ircinia sp. as potent human sensory neuron-specific G protein coupled receptor agonists. J. Nat. Prod. 2008, 71, 8–11. [Google Scholar]
- Li, H.; Matsunaga, S.; Fusetani, N. Halicylindramides A–C, antifungal and cytotoxic depsipeptides from the marine sponge Halichondria cylindrata. J. Med. Chem. 1995, 38, 338–343. [Google Scholar]
- Li, H.; Matsunaga, S.; Fusetani, N. Halicylindramides D and E, antifungal peptides from the marine sponge Halichondria cylindrata. J. Nat. Prod. 1996, 59, 163–166. [Google Scholar] [CrossRef]
- Rashid, M.A.; Gustafson, K.R.; Cartner, L.K.; Shigematsu, N.; Pannell, L.K.; Boyd, M.R. Microspinosamide, a new HIV-inhibitory cyclic depsipeptide from the marine sponge Sidonops microspinosa. J. Nat. Prod. 2001, 64, 117–121. [Google Scholar] [CrossRef]
- Laird, D.W.; LaBarbera, D.V.; Feng, X.; Bugni, T.S.; Harper, M.K.; Ireland, C.M. Halogenated cyclic peptides isolated from the sponge Corticium sp. J. Nat. Prod. 2007, 70, 741–746. [Google Scholar] [CrossRef]
- Seo, H.; Lim, D. Total synthesis of Halicylindramide A. J. Org. Chem. 2009, 74, 906–909. [Google Scholar] [CrossRef]
- Zampella, A.; D’Auria, M.V.; Gomez Paloma, L.; Casapullo, A.; Minale, L.; Debitus, C.; Henin, Y. Callipeltin A, an anti-HIV cyclic depsipeptide from the New Caledonian Lithistida sponge Callipelta sp. J. Am. Chem. Soc. 1996, 118, 6202–6209. [Google Scholar] [CrossRef]
- D’Auria, M.V.; Zampella, A.; Paloma, L.G.; Minale, L.; Debitus, C.; Roussakis, C.; Le Bert, V. Callipeltins B and C; bioactive peptides from a marine Lithistida sponge Callipelta sp. Tetrahedron 1996, 52, 9589–9596. [Google Scholar] [CrossRef]
- Zampella, A.; Randazzo, A.; Borbone, N.; Luciani, S.; Trevisi, L.; Debitus, C.; D’Auria, M.V. Isolation of callipeltins A–C and of two new open-chain derivatives of callipeltin A from the marine sponge Latrunculia sp. A revision of the stereostructure of callipeltins. Tetrahedron Lett. 2002, 43, 6163–6166. [Google Scholar]
- Sepe, V.; D’Orsi, R.; Borbone, N.; Valeria D’Auria, M.; Bifulco, G.; Monti, M.C.; Catania, A.; Zampella, A. Callipeltins F–I: New antifungal peptides from the marine sponge Latrunculia sp. Tetrahedron 2006, 62, 833–840. [Google Scholar] [CrossRef]
- D’Auria, M.V.; Sepe, V.; D’Orsi, R.; Bellotta, F.; Debitus, C.; Zampella, A. Isolation and structural elucidation of callipeltins J–M: Antifungal peptides from the marine sponge Latrunculia sp. Tetrahedron 2007, 63, 131–140. [Google Scholar] [CrossRef]
- Krishnamoorthy, R.; Vazquez-Serrano, L.D.; Turk, J.A.; Kowalski, J.A.; Benson, A.G.; Breaux, N.T.; Lipton, M.A. Solid-phase total synthesis and structure proof of callipeltin B. J. Am. Chem. Soc. 2006, 128, 15392–15393. [Google Scholar] [CrossRef]
- Krishnamoorthy, R.; Richardson, B.L.; Lipton, M.A. Synthesis and cytotoxicity of desmethoxycallipeltin B: Lack of a quinone methide for the cytotoxicity of callipeltin B. Bioorg. Med. Chem. Lett. 2007, 17, 5136–5138. [Google Scholar] [CrossRef]
- Kikuchi, M.; Watanabe, Y.; Tanaka, M.; Akaji, K.; Konno, H. Synthesis and cytotoxicity of the depsipeptides analogues of callipeltin B. Bioorg. Med. Chem. Lett. 2011, 21, 4865–4868. [Google Scholar] [CrossRef]
- Cranfill, D.C.; Morales-Ramos, A.I.; Lipton, M.A. Solid-phase synthesis of callipeltin D. Stereochemical confirmation of the unnatural amino acid AGDHE. Org. Lett. 2005, 7, 5881–5883. [Google Scholar] [CrossRef]
- Çalimsiz, S.; Morales Ramos, A.I.; Lipton, M.A. Solid-phase synthesis and configurational reassignment of callipeltin E. Implications for the structures of callipeltins A and B. J. Org. Chem. 2006, 71, 6351–6356. [Google Scholar] [CrossRef]
- Kikuchi, M.; Nosaka, K.; Akaji, K.; Konno, H. Solid phase total synthesis of callipeltin E isolated from marine sponge Latrunculia sp. Tetrahedron Lett. 2011, 52, 3872–3875. [Google Scholar] [CrossRef]
- Oku, N.; Krishnamoorthy, R.; Benson, A.G.; Ferguson, R.L.; Lipton, M.A.; Phillips, L.R.; Gustafson, K.R.; McMahon, J.B. Complete stereochemistry of neamphamide A and absolute configuration of the β-methoxytyrosine residue in papuamide B. J. Org. Chem. 2005, 70, 6842–6847. [Google Scholar] [CrossRef]
- Oku, N.; Gustafson, K.R.; Cartner, L.K.; Wilson, J.A.; Shigematsu, N.; Hess, S.; Pannell, L.K.; Boyd, M.R.; McMahon, J.B. Neamphamide A, a new HIV-inhibitory depsipeptide from the Papua New Guinea marine sponge Neamphius huxleyi. J. Nat. Prod. 2004, 67, 1407–1141. [Google Scholar] [CrossRef]
- Yamano, Y.; Arai, M.; Kobayashi, M. Neamphamide B, new cyclic depsipeptide, as an anti-dormant mycobacterial substance from a Japanese marine sponge of Neamphius sp. Bioorg. Med. Chem. Lett. 2012, 22, 4877–4881. [Google Scholar] [CrossRef]
- Tran, T.D.; Pham, N.B.; Fechner, G.; Zencak, D.; Vu, H.T.; Hooper, J.N.A.; Quinn, R.J. Cytotoxic cyclic depsipeptides from the Australian marine sponge Neamphius huxleyi. J. Nat. Prod. 2012, 75, 2200–2208. [Google Scholar] [CrossRef]
- Ford, P.W.; Gustafson, K.R.; Mckee, T.C.; Shigematsu, N.; Maurizi, L.K.; Pannell, L.K.; Williams, D.E.; Silva, E.D.D.; Lassota, P.; Allen, T.M.; et al. Papuamides A–D , HIV-inhibitory and cytotoxic depsipeptides from the sponges Theonella mirabilis and Theonella swinhoei collected in Papua New Guinea. J. Am. Chem. Soc. 1999, 121, 5899–5909. [Google Scholar] [CrossRef]
- Prasad, P.; Aalbersberg, W.; Feussner, K.-D.; van Wagoner, R.M. Papuamides E and F, cytotoxic depsipeptides from the marine sponge Melophlus sp. Tetrahedron 2011, 67, 8529–8531. [Google Scholar] [CrossRef]
- Xie, W.; Ding, D.; Zi, W.; Li, G.; Ma, D. Total synthesis and structure assignment of papuamide B, a potent marine cyclodepsipeptide with anti-HIV properties. Angew. Chem. Int. Ed. 2008, 47, 2844–2848. [Google Scholar] [CrossRef]
- Ratnayake, A.S.; Bugni, T.S.; Feng, X.; Harper, M.K.; Skalicky, J.J.; Mohammed, K.A.; Andjelic, C.D.; Barrows, L.R.; Ireland, C.M. Theopapuamide, a cyclic depsipeptide from a Papua New Guinea lithistid sponge Theonella swinhoei. J. Nat. Prod. 2006, 69, 1582–1586. [Google Scholar] [CrossRef]
- Plaza, A.; Bifulco, G.; Keffer, J.L.; Lloyd, J.R.; Baker, H.L.; Bewley, C.A. Celebesides A–C and theopapuamides B–D, depsipeptides from an Indonesian sponge that inhibit HIV-1 entry. J. Org. Chem. 2009, 74, 504–512. [Google Scholar] [CrossRef]
- Plaza, A.; Gustchina, E.; Baker, H.L.; Kelly, M.; Bewley, C.A. Mirabamides A–D, depsipeptides from the sponge Siliquariaspongia mirabilis that inhibit HIV-1 fusion. J. Nat. Prod. 2007, 70, 1753–1760. [Google Scholar] [CrossRef]
- Lu, Z.; Wagoner, R.M.V.; Harper, M.K.; Baker, H.L.; Hooper, J.N.A.; Bewley, C.A.; Ireland, C.M. Mirabamides E–H, HIV-inhibitory depsipeptides from the sponge Stelletta clavosa. J. Nat. Prod. 2011, 74, 185–193. [Google Scholar] [CrossRef]
- Zampella, A.; Sepe, V.; Luciano, P.; Bellotta, F.; Monti, M.C.; D’Auria, M.V.; Jepsen, T.; Petek, S.; Adeline, M.-T.; Laprévôte, O.; et al. Homophymine A, an anti-HIV cyclodepsipeptide from the sponge Homophymia sp. J. Org. Chem. 2008, 73, 5319–5327. [Google Scholar] [CrossRef]
- Zampella, A.; Sepe, V.; Bellotta, F.; Luciano, P.; D’Auria, M.V.; Cresteil, T.; Debitus, C.; Petek, S.; Poupat, C.; Ahond, A. Homophymines B–E and A1–E1, a family of bioactive cyclodepsipeptides from the sponge Homophymia sp. Org. Biomol. Chem. 2009, 7, 4037–4044. [Google Scholar]
- Bellotta, F.; D’Auria, M.V.; Sepe, V.; Zampella, A. Synthetic studies on homophymine A: Stereoselective synthesis of (2R,3R,4R,6R)-3-hydroxy-2,4,6-trimethyloctanoic acid. Tetrahedron 2009, 65, 3659–3663. [Google Scholar] [CrossRef]

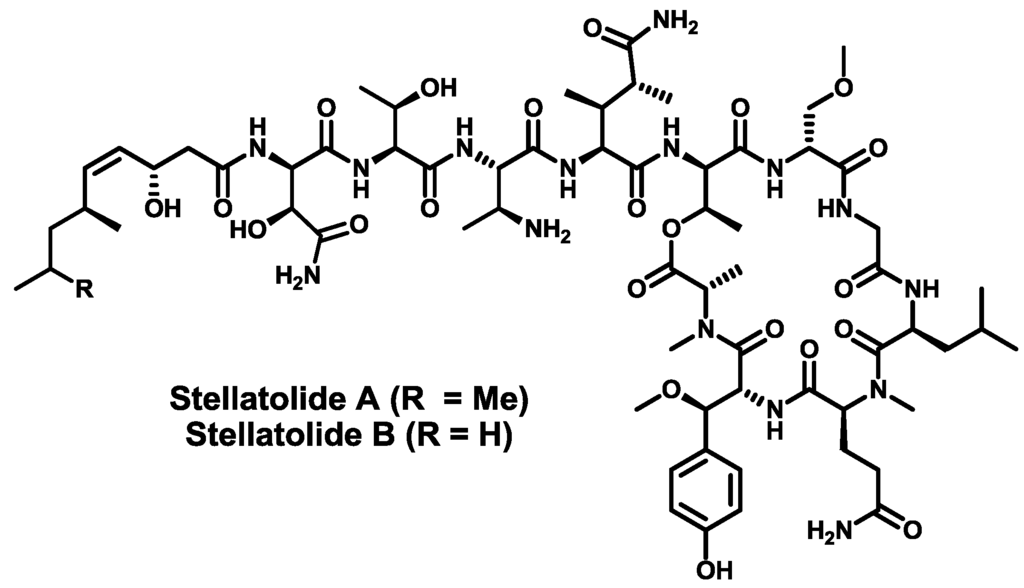

- Rodríguez, R.; Fernández, R.; Reyes, J.F.; Martín, M.J.; Marco, I.; Digón, I.; Francesch, A.; Cuevas, M.C. Stellatolide analogs as anticancer compounds. Int. Appl. Pat. WO 2010/007147 A1, 20 January 2010. [Google Scholar]
- Coello, L.; Fernández, R.; Reyes, J.F.; Francesch, A.; Cuevas, M.D.C. Anticancer pipecolidepsins from marine organisms. Int. Appl. Pat. WO 2010/070078 A1, 24 June 2010. [Google Scholar]
© 2013 by the authors; licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution license (http://creativecommons.org/licenses/by/3.0/).
