Mar. Drugs 2013, 11(11), 4585-4593; doi:10.3390/md11114585
Published: 14 November 2013

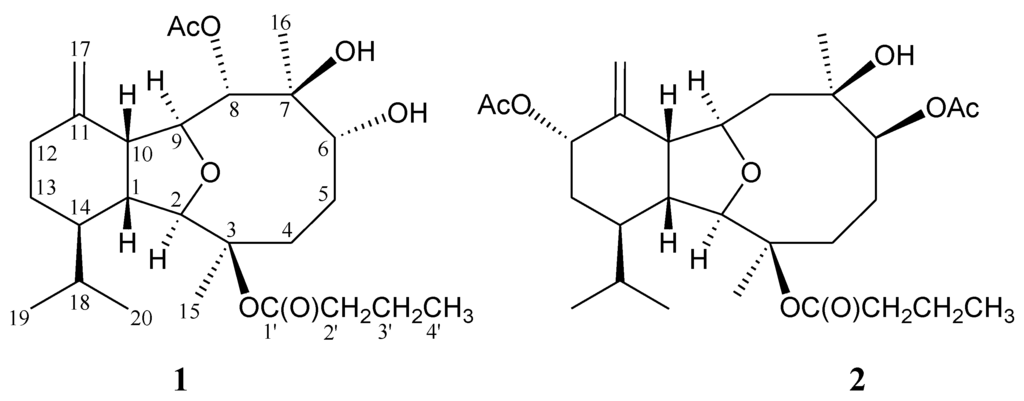

Abstract: A new eunicellin diterpenoid, cladieunicellin I (1), and a new natural eunicellin, litophynin I diacetate (2), were isolated from a Formosan soft coral identified as Cladiella sp. The structures of eunicellins 1 and 2 were elucidated by spectroscopic methods and by comparison of the spectral data with those of related analogues. Eunicellin 1 exhibited significant cytotoxicity toward the DLD-1 human colorectal adenocarcinoma cells.
In our continuing research on the chemical constituents of octocorals belonging to the genus Cladiella (family Alcyoniidae) collected off the waters of Taiwan and Indonesia, a series of interesting eunicellin-related diterpenoids (2,11-cyclized cembranoid) were isolated [1,2,3,4,5,6] and the compounds of this type were proven to possess various bioactivities [7,8,9,10,11,12,13,14,15,16,17]. Recently, our chemical examination on an octocoral identified as Cladiella sp. has resulted in the isolation of two eunicellin-type diterpenoids, incuding a new metabolite, cladieunicellin I (1) (Figure 1 and Supplementary Figures S1–S9)and a new natural eunicellin, litophynin I diacetate (2)  (Figure 1 and Supplementary Figures S10–S13). In this paper, we describe the isolation, structure determination and cytotoxicity of eunicellins 1 and 2.
2. Results and Discussion
Cladieunicellin I (1) was isolated as a colorless oil and its molecular formula was established as C26H42O7 (six degrees of unsaturation) from a sodiated molecule at m/z 489 in the ESIMS and further supported by the HRESIMS at m/z 489.2825 (calcd for C26H42O7Na, 489.2828). The presence of hydroxy and ester groups in 1 were suggested by the IR absorptions at 3457 and 1736 cm−1. In the 13C spectrum of 1 (Table 1), two ester carbonyl resonances were identified at δC 171.5 and 173.1. One of these signals was identified as an acetate carbonyl by the presence of a methyl resonance in the 1H NMR spectrum at δH 2.05 (3H, s) and the other one was identified as an n-butyrate carbonyl by the presence of seven contiguous protons at δH 1.01 (3H, t, J = 7.5 Hz), 1.68 (2H, m), 2.51 (1H, dt, J = 16.0, 7.5 Hz) and 2.67 (1H, dt, J = 16.0, 7.5 Hz). From the 13C NMR data, an exocyclic carbon-carbon double bond was deduced from the signals at δC 110.1 (CH2-17) and 147.7 (C-11), and confirmed by two olefin proton signals at δH 4.58 (1H, s, H-17) and 4.73 (1H, s, H-17) in the 1H NMR spectrum. In addition, a suite of resonances of proton signals at δH 2.25 (1H, dd, J = 11.5, 7.0 Hz, H-1), 3.41 (1H, dd, J = 7.0, 7.0 Hz, H-10), 3.61 (1H, s, H-2) and 3.77 (1H, dd, J = 10.0, 7.0 Hz, H-9) and carbon signals at δC 46.1 (CH-1), 52.0 (CH-10), 93.0 (CH-2) and 78.8 (CH-9), indicated the presence of a tetrahydrofuran moiety. Comparison of the 13C NMR and DEPT spectra with the molecular formula indicated that there must be two exchangeable protons, requiring the presence of two hydroxy groups. From the above data, three degrees of unsaturation were accounted for and, therefore, 1 must be tricyclic.
|Table 1. 1H (500 MHz, CDCl3) and 13C (125 MHz, CDCl3) NMR data, 1H–1H COSY and HMBC correlations for eunicellin 1.|
|Position||δH (J in Hz)||δC, Multiple||1H–1H COSY||HMBC|
|1||2.25 dd (11.5, 7.0)||46.1, CH||H-10, H-14||C-9, -10, -14, -18|
|2||3.61 s||93.0, CH||n.o.||C-1, -3, -9, -10, -14, -15|
|4||2.50 m; 1.97 m||29.2, CH2||H2-5||C-2, -3, -6, -15|
|5||2.08 m; 1.70 m||23.6, CH2||H2-4, H-6||C-3|
|6||3.69 dd (12.5, 11.0)||76.3, CH||H2-5, OH-6||C-4, -7, -16|
|8||5.40 d (10.0)||79.2, CH||H-9||C-7, -9, -10, -16, acetate carbonyl|
|9||3.77 dd (10.0, 7.0)||78.8, CH||H-8, H-10||C-2, -7, -8, -11|
|10||3.41 dd (7.0, 7.0)||52.0, CH||H-1, H-9||C-1, -8, -9, -11, -12, -14, -17|
|12||2.30 br d (12.5); 2.01 m||31.6, CH2||H2-13||n.o.|
|13||1.78 m; 1.06 m||25.2, CH2||H2-12, H-14||n.o.|
|14||1.23 m||44.3, CH||H-1, H2-13, H-18||C-18|
|15||1.42 s||23.3, CH3||C-2, -3, -4|
|16||1.31 s||19.6, CH3||C-6, -7, -8|
|17||4.73 s; 4.58 s||110.1, CH2||C-10, -11, -12|
|18||1.70 m||29.0, CH||H-14, H3-19, H3-20||C-1, -13, -14, -19, -20|
|19||0.99 d (7.0)||21.9, CH3||H-18||C-14, -18, -20|
|20||0.79 d (6.5)||15.3, CH3||H-18||C-14, -18, -19|
|2′||2.67 dt (16.0, 7.5); 2.51 dt (16.0, 7.5)||36.7, CH2||H2-3||C-1′, -3′, -4′|
|3′||1.68 m||18.5, CH2||H2-2′, H3-4′||C-1′, -2′, -4′|
|4′||1.01 t (7.5)||13.5, CH3||H2-3′||C-2′, -3′|
|2.05 s||21.4, CH3||Acetate carbonyl|
|6-OH||4.41 br d (11.0)||H-6||n.o.|
n.o. = not observed.
From the 1H–1H COSY spectrum of 1 (Table 1), the separate spin systems of H2-4/H2-5/H-6, H-8/H-9/H-10/H-1 and OH-6/H-6 were differentiated. These data, together with the HMBC correlations between H-1/C-9, -10; H-2/C-1, -3, -9, -10; H2-4/C-2, -3, -6; H2-5/C-3; H-6/C-4, -7; H-8/C-7, -9, -10; H-9/C-2, -7, -8; and H-10/C-1, -8, -9, established the connectivity from C-1 to C-10 in the ten-membered ring. The 1-isopropyl-4-methylenecyclohexane ring, which is fused to the ten-membered ring at C-1 and C-10, was elucidated by the 1H–1H COSY correlations between H-1/H-14/H2-13/H2-12 and H-14/H-18/H3-19 (H3-20) and by the HMBC correlations between H-1/C-14, -18; H-2/C-14; H-9/C-11; H-10/C-11, -12, -14, -17; H-18/C-1; and H2-17/C-10. The isopropyl group was positioned at C-14 from the HMBC correlations between H-1/C-14, -18; H-14/C-18; H3-19/C-14, -18, -20; and H3-20/C-14, -18, -19. An exocyclic carbon-carbon double bond at C-11 was confirmed by the HMBC correlations between H2-17/C-10, -11, -12. The ether bridge between C-2 and C-9 was supported by the HMBC correlations between H-2/C-9 and H-9/C-2. The hydroxy proton signal at δH 4.41 was revealed by its 1H–1H COSY correlation to δH 3.69 (H-6), indicating its attachment to C-6. The location of an acetate group in 1 was confirmed by an HMBC correlation between H-8 (δH 5.40) and the acetate carbonyl (δC 171.5). Thus, the remaining n-butyrate and hydroxy groups were at C-3 and C-7, oxygenated quaternary carbons which bonded to the C-15 and C-16 tertiary methyls and were confirmed by the HMBC correlations between H3-15/C-2, -3, -4 and H3-16/C-6, -7, -8 and by the key characteristic 13C NMR signals for C-3 (δC 85.2) and C-7 (δC 78.6), respectively.

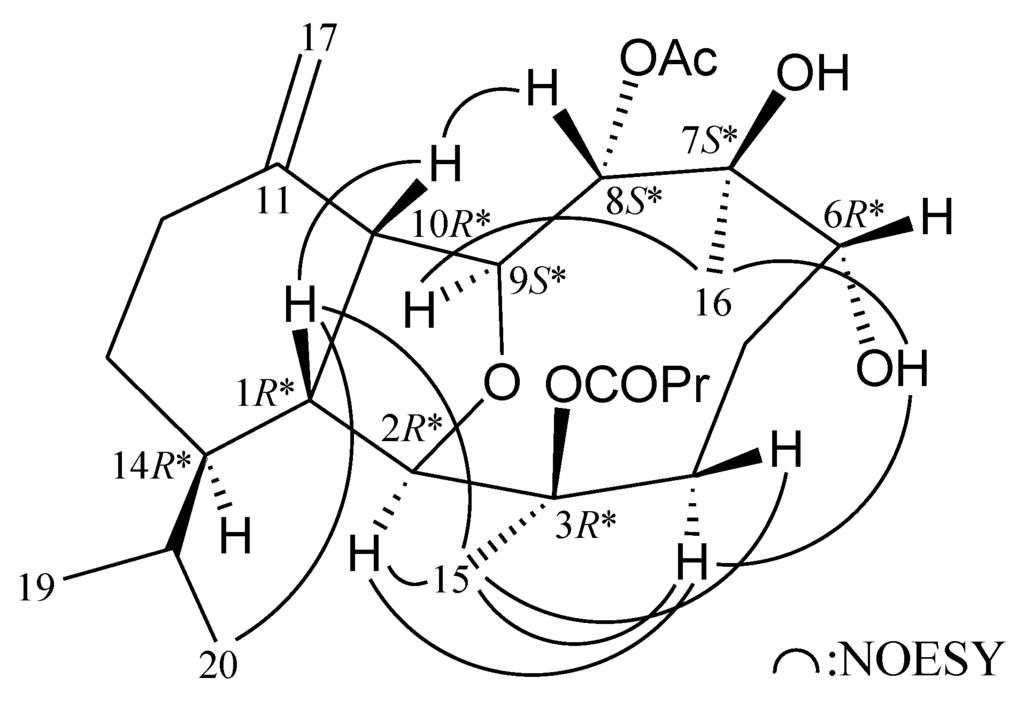

Most naturally occurring eunicellin analogues from soft corals belonging to the genus Cladiella have H-1 and H-10 in the β-orientation . The relative configuration of 1 was elucidated mainly from a NOESY spectrum (Figure 2) and analysis of vicinal proton coupling constants analysis. In the NOESY experiment for 1, H-1 correlated with H-10 and H3-20, suggesting that H-1, H-10 and the isopropyl group are situated on the same face as β protons. No coupling constant was detected between H-1 and H-2, and there was no correlation between these two protons in the NOESY experiment, indicating that the dihedral angle between H-1 and H-2 is approximately 90° and H-2 should be α-oriented. By the same token, coupling constant detected between H-8/H-9 (J = 10.0 Hz) and H-9/H-10 (J = 7.0 Hz), and there is a correlation was found between H-8 and H-10, suggesting that H-8 and H-9 were β- and α-oriented, respectively, in 1. It was found that one of the methylene protons at C-4 (δH 1.97) exhibited a correlation with H-2, and therefore it was assigned as H-4α, and the other C-4 proton (δH 2.50) as H-4β. The correlation between H-4α and OH-6 (δH 4.41), indicating that the hydroxy group at C-6 was α-oriented. The C-15 methyl showed correlations with H-1, H-2 and H-4α/β, but not with H-10, demonstrating the n-butyrate group at C-3 was β-oriented. H3-16 showed correlations with OH-6 and H-9, suggesting the β-orientation of hydroxy group at C-7. Based on the above findings, the structure of 1 was elucidated and the chiral carbons for 1 were assigned as 1R*, 2R*, 3R*, 6R*, 7S*, 8S*, 9S*, 10R* and 14R*.
The present study also led to the isolation of a new natural eunicellin 2 . Eunicellin 2 has the molecular formula C28H44O8 as determined by the HRESIMS at m/z 531.2931 (calcd for C28H44O8Na, 531.2934). The IR spectrum of 2 showed bands at 3413 and 1732 cm−1, consistent with the presence of hydroxy and ester groups. It was found that the 1H and 13C NMR data of 2 are identical to those of a known semi-synthetic compound, litophynin I diacetate . However, eunicellin 2 has not been isolated previously from any natural sources.
Cytotoxicity of compounds 1 and 2 toward HL-60 (human promyelocytic leukemia), K562 (human erythromyeloblastoid leukemia), DLD-1 (human colorectal adenocarcinoma), HTC-116 (human colorectal carcinoma) and T-47D (human breast ductal carcinoma) showed that cladieunicellin I (1) exhibited selective cytotoxicity towards DLD-1 tumor cells (Table 2).
|Table 2. Cytotoxic data of compounds 1 and 2.|
|Cell lines IC50 (µM)|
a Doxorubicin was used as a positive control; NA = not active at 40 µM for 72 h.
3. Experimental Section
3.1. General Experimental Procedures
Optical rotations were measured on a Jasco P-1010 digital polarimeter (Japan Spectroscopic Corporation, Tokyo, Japan). Infrared spectra were recorded on a Varian Diglab FTS 1000 FT-IR spectrometer (Varian Inc., Palo Alto, CA, USA); peaks are reported in cm−1. NMR spectra were recorded on a Varian Inova 500 spectrometer or a Varian Mercury Plus 400 NMR spectrometer (Varian Inc.) using the residual CHCl3 signal (δH 7.26 ppm) as the internal standard for 1H NMR and CDCl3 (δC 77.1 ppm) for 13C NMR. Coupling constants (J) are given in Hz. ESIMS and HRESIMS were recorded using a Bruker APEX II FT mass spectrometer (Bruker, Bremen, Germany). Column chromatography was performed on silica gel (230–400 mesh, Merck, Darmstadt, Germany). TLC was carried out on precoated Kieselgel 60 F254 (0.25 mm, Merck); spots were visualized by spraying with 10% H2SO4 solution followed by heating. The normal phase HPLC (NP-HPLC) was performed using a system comprised of a Hitachi L-7110 pump (Hitachi Ltd., Tokyo, Japan) and a Rheodyne 7725 injection port (Rheodyne LLC, Rohnert Park, CA, USA). Two normal phase columns (Supelco Ascentis® Si Cat #: 581515-U, 25 cm × 21.2 mm, 5 µm; 581514-U, 25 cm × 10 mm, 5 µm, Sigma-Aldrich. Com., St. Louis, MO, USA) were used for NP-HPLC. The reverse phase HPLC (RP-HPLC) was performed using a system comprised of a Hitachi L-7100 pump (Hitachi Ltd.), a Hitachi L-2455 photodiode array detector (Hitachi Ltd.), a Rheodyne 7725 injection port (Rheodyne LLC) and a Varian Polaris C-18-A column (250 mm × 10 mm, 5 µm; Varian Inc.).
3.2. Animal Material
Specimens of the octocoral Cladiella sp.  were collected by hand using SCUBA equipment off the coast of Penghu Archipelago, Taiwan in September, 2011, and stored at −20 °C until extraction. A voucher specimen (NMMBA-TWSC-11011) was deposited in the National Museum of Marine Biology and Aquarium, Taiwan.
3.3. Extraction and Isolation
Specimens of the soft coral Cladiella sp. (wet weight 1.25 kg, dry weight 457 g) were minced and extracted with ethyl acetate (EtOAc). The EtOAc extract left after removal of the solvent (12.4 g) was separated by silica gel and eluted using n-hexane/EtOAc in a stepwise fashion from 100:1–pure EtOAc to yield 16 fractions A–P. Fraction N (786 mg) was chromatographed on silica gel, using a mixture of n-hexane and acetone in a stepwise fashion from 6:1–pure acetone to obtain 15 subfractions N1–N15. Fraction N3 (96.4 mg) was repurified by NP-HPLC, using a mixture of n-hexane and acetone (4:1, flow rate: 2.0 mL/min) to yield five subfractions N3A–N3E. Fraction N3C (25.3 mg) was further separated by NPLC, using a mixture of n-hexane and acetone (4:1) to yield cladieunicellin I (1) (0.7 mg, tR = 35 m). The residue of fraction N4 (153 mg) was separated by NP-HPLC, using a mixture of n-hexane and acetone (4:1) to obtain 7 subfractions N4A–N4G. Fraction N4E (19.6 mg) was repurified by RP-HPLC, using a mixture of methanol and water (8:2) to yield 14 fractions N4E1–N4E14. Fraction N4E11 (2.2 mg) was chromatopraphed by NP-HPLC, using a mixture of n-hexane and acetone (7:2, flow rate 1.0 mL/min) to yield litophynin I diacetate (2) (0.8 mg, tR = 30 m).
Cladieunicellin I (1): colorless oil; −8 (c 0.04, CHCl3); IR (neat) νmax 3457, 1736 cm−1; 1H (500 MHz, CDCl3) and 13C (125 MHz, CDCl3) NMR data, see Table 1; ESIMS: m/z 489 (M + Na)+; HRESIMS: m/z 489.2825 (calcd for C26H42O7Na, 489.2828).
Litophynin I diacetate (2): colorless oil; +2 (c 0.08, CHCl3); IR (neat) νmax 3413, 1732 cm−1; 1H (400 MHz, CDCl3) δH 5.63 (1H, d, J = 5.6 Hz, H-6), 5.49 (1H, dd, J = 3.2, 3.2 Hz, H-12), 5.15 (1H, d, J = 1.2 Hz, H-17), 4.94 (1H, d, J = 1.2 Hz, H-17), 4.37 (1H, ddd, J = 8.4, 7.2, 7.2 Hz, H-9), 3.72 (1H, s, H-2), 3.03 (1H, dd, J = 7.2, 7.2 Hz, H-10), 2.61 (1H, dd, J = 14.4, 8.4 Hz, H-4), 2.39–2.27 (2H, m, H2-2′), 2.22 (1H, dd, J = 13.6, 7.2 Hz, H-1), 2.08 (3H, s, acetate methyl), 2.05 (3H, s, acetate methyl), 2.01 (1H, m, H-4), 1.94 (1H, ddd, J = 14.0, 3.6, 3.2 Hz, H-13), 1.85 (2H, m, H2-8), 1.81 (1H, m, H-18), 1.69 (1H, m, H-14), 1.67 (2H, m, H2-3′), 1.53–1.45 (2H, m, H2-5), 1.41 (3H, s, H3-15), 1.30 (1H, ddd, J = 14.0, 13.6, 3.2 Hz, H-13), 1.19 (3H, s, H3-16), 0.99 (3H, t, J = 7.2 Hz, H3-4′), 0.95 (3H, d, J = 6.8 Hz, H3-19), 0.79 (3H, d, J = 6.8 Hz, H3-20); 13C (100 MHz, CDCl3) δC 172.2 (C-1′, n-butyrate carbonyl), 171.8 (acetate carbonyl), 170.4 (acetate carbonyl), 142.8 (C-11), 116.8 (CH2-17), 91.3 (CH-2), 86.5 (C-3), 79.2 (CH-9), 84.4 (CH-6), 75.5 (C-7), 72.8 (CH-12), 51.9 (CH-10), 46.1 (CH2-8), 44.7 (CH-1), 37.4 (CH2-2′), 36.3 (CH-14), 35.6 (CH2-4), 29.1 (CH2-5), 28.5 (CH2-13), 28.5 (CH-18), 23.7 (CH3-16), 23.1 (CH3-15), 21.7 (CH3-19), 21.6 (acetate methyl), 21.4 (acetate methyl), 18.4 (CH2-3′), 15.3 (CH3-20), 13.7 (CH3-4′); ESIMS: m/z 531 (M + Na)+; HRESIMS: m/z 531.2931 (calcd for C28H44O8Na, 531.2934).
3.4. Cytotoxicity Testing
Cytotoxicity of compounds 1 and 2 was assayed with a modification of the MTT [3-(4,5-dimethylthiazol-2-yl)-2,5-diphenyltetrazolium bromide] colorimetric method according to previously described procedures [20,21].
A new eunicellin-based diterpenoid, cladieunicellin I (1) along with a new natural eunicellin, litophynin I diacetate (2), were isolated from the soft coral Cladiella sp. It is interesting to note that eunicellin 1 is much more effective against human colorectal adenocarcinoma DLD-1 tumor cells than that of positive control (doxorubicin), but this compound is not active toward another human colorectal carcinoma, HCT-116. In a previous study, a cladieunicellin analogue, cladieunicellin B, was also found to exhibit cytotoxicity toward DLD-1 tumor cells (IC50 = 5.95 µM) . Thus, eunicellin 1 could be a promising bioactive agent and may warrant further biomedical investigation. Because octocorals are claimed to be endangered species and based on the potential medicinal use, the soft coral Cladiella sp. will be transplanted to culturing tanks located in the National Museum of Marine Biology and Aquarium, Taiwan, for exhibition and the extraction of additional natural products to establish a stable supply of bioactive material.
This research was supported by grants from the National Dong Hwa University; the National Museum of Marine Biology and Aquarium; the Division of Marine Biotechnology, Asia-Pacific Ocean Research Center, National Sun Yat-sen University; and the National Science Council (Grant No. NSC 102-2325-B-291-001 and 101-2320-B-291-001-MY3), Taiwan, awarded to P.-J.S.
Conflicts of Interest
The authors declare no conflict of interest.
- Chen, Y.-H.; Tai, C.-Y.; Hwang, T.-L.; Weng, C.-F.; Li, J.-J.; Fang, L.-S.; Wang, W.-H.; Wu, Y.-C.; Sung, P.-J. Cladielloides A and B: New eunicellin-type diterpenoids from an Indonesian octocoral Cladiella sp. Mar. Drugs 2010, 8, 2936–2945, doi:10.3390/md8122936.
- Chen, Y.-H.; Tai, C.-Y.; Kuo, Y.-H.; Kao, C.-Y.; Li, J.-J.; Hwang, T.-L.; Fang, L.-S.; Wang, W.-H.; Sheu, J.-H.; Sung, P.-J. Cladieunicellins A–E, new eunicellins from an Indonesian soft coral Cladiella sp. Chem. Pharm. Bull. 2011, 59, 353–358, doi:10.1248/cpb.59.353.
- Tai, C.-Y.; Chen, Y.-H.; Hwang, T.-L.; Fang, L.-S.; Wang, W.-H.; Liu, M.-C.; Su, J.-H.; Wu, Y.-C.; Sung, P.-J. Cladielloides C and D: Novel eunicellin-based diterpenoids from an Indonesian octocoral Cladiella sp. Bull. Chem. Soc. Jpn. 2011, 84, 531–536, doi:10.1246/bcsj.20100348.
- Chen, Y.-H.; Tai, C.-Y.; Su, Y.-D.; Chang, Y.-C.; Lu, M.-C.; Weng, C.-F.; Su, J.-H.; Hwang, T.-L.; Wu, Y.-C.; Sung, P.-J. Discovery of new eunicellins from an Indonesian octocoral Cladiella sp. Mar. Drugs 2011, 9, 934–943, doi:10.3390/md9060934.
- Chen, Y.-H.; Hwang, T.-L.; Su, Y.-D.; Chang, Y.-C.; Chen, Y.-H.; Hong, P.-H.; Hu, L.-C.; Yen, W.-H.; Hsu, H.-Y.; Huang, S.-J.; et al. New 6-hydroxyeunicellins from a soft coral Cladiella sp. Chem. Pharm. Bull. 2012, 60, 160–163, doi:10.1248/cpb.60.160.
- Chen, Y.-H.; Tai, C.-Y.; Hwang, T.-L.; Sung, P.-J. Cladieunicellin H, a new hemiketal eunicellin-based diterpenoid from the octocoral Cladiella sp. Nat. Prod. Commun. 2012, 7, 481–484.
- Wahlberg, I.; Eklund, A.-M. Cyclized cembranoids of natural occurrence. Fortschr. Chem. Org. Naturst. 1992, 60, 1–141, doi:10.1007/978-3-7091-9225-2_1.
- Bernardelli, P.; Paquette, L.A. Survey of oxygenated 2,11-cyclized cembranoids of marine origin. Heterocycles 1998, 49, 531–556, doi:10.3987/REV-98-SR2.
- Welford, A.J.; Collins, I. The 2,11-cyclized cembranoids: Cladiellins, asbestinins, and briarellins (period 1998–2010). J. Nat. Prod. 2011, 74, 2318–2328, doi:10.1021/np200125v.
- Radhika, P. Chemical constituents and biological activities of the soft corals of genus Cladiella: A review. Biochem. Syst. Ecol. 2006, 34, 781–789, doi:10.1016/j.bse.2006.05.011.
- Ahmed, A.F.; Wu, M.-H.; Wang, G.-H.; Wu, Y.-C.; Sheu, J.-H. Eunicellin-based diterpenoids, australins A–D, isolated from the soft coral Cladiella australis. J. Nat. Prod. 2005, 68, 1051–1055, doi:10.1021/np0500732.
- Liang, C.-H.; Wang, G.-H.; Liaw, C.-C.; Lee, M.-F.; Wang, S.-H.; Cheng, D.-L.; Chou, T.-H. Extracts from Cladiella australis, Clavularia viridis and Klyxum simplex (soft corals) are capable of inhibiting the growth of human oral squamous cell carcinoma cells. Mar. Drugs 2008, 6, 595–606, doi:10.3390/md6040595.
- Chen, B.-W.; Chang, S.-M.; Huang, C.-Y.; Chao, C.-H.; Su, J.-H.; Wen, Z.-H.; Hsu, C.-H.; Dai, C.-F.; Wu, Y.-C.; Sheu, J.-H. Hirsutalins A–H, eunicellin-based diterpenoids from the soft coral Cladiella hirsuta. J. Nat. Prod. 2010, 73, 1785–1791, doi:10.1021/np100401f.
- Tai, C.-J.; Su, J.-H.; Huang, M.-S.; Wen, Z.-H.; Dai, C.-F.; Sheu, J.-H. Bioactive eunicellin-based diterpenoids from the soft coral Cladiella krempfi. Mar. Drugs 2011, 9, 2036–2045, doi:10.3390/md9102036.
- Tai, C.-J.; Su, J.-H.; Huang, C.-Y.; Huang, M.-S.; Wen, Z.-H.; Dai, C.-F.; Sheu, J.-H. Cytotoxic and anti-inflammatory eunicellin-based diterpenoids from the soft coral Cladiella krempfi. Mar. Drugs 2013, 11, 788–799, doi:10.3390/md11030788.
- Chen, B.-W.; Wang, S.-Y.; Huang, C.-Y.; Chen, S.-L.; Wu, Y.-C.; Sheu, J.-H. Hirsutalins I–M, eunicellin-based diterpenoids from the soft coral Cladiella hirsuta. Tetrahedron 2013, 69, 2296–2301, doi:10.1016/j.tet.2013.01.015.
- Lee, Y.-N.; Tai, C.-J.; Hwang, T.-L.; Sheu, J.-H. Krempfielins J–M, new eunicellin-based diterpenoids from the soft coral Cladiella krempfi. Mar. Drugs 2013, 11, 2741–2750, doi:10.3390/md11082741.
- Ochi, M.; Yamada, K.; Kataoka, K.; Kotsuki, H.; Shibata, K. Litophynins I and J, two new biologically active diterpenoids from the soft coral Litophyton sp. Chem. Lett. 1992, 21, 155–158.
- Fabricius, K.; Alderslade, P. Soft Corals and Sea Fans—A Comprehensive Guide to the Tropical Shallow-Water Genera of the Central-West Pacific, the Indian Ocean and the Red Sea, 1st ed. ed.; Australian Institute of Marine Science: Queensland, Australia, 2001; pp. 84–85.
- Alley, M.C.; Scudiero, D.A.; Monks, A.; Hursey, M.L.; Czerwinski, M.J.; Fine, D.L.; Abbott, B.J.; Mayo, J.G.; Shoemaker, R.H.; Boyd, M.R. Feasibility of drug screening with panels of human tumor cell lines using a microculture tetrazolium assay. Cancer Res. 1988, 48, 589–601.
- Scudiero, D.A.; Shoemaker, R.H.; Paull, K.D.; Monks, A.; Tierney, S.; Nofziger, T.H.; Currens, M.J.; Seniff, D.; Boyd, M.R. Evaluation of a soluble tetrazolium/formazan assay for cell growth and drug sensitivity in culture using human and other tumor cell lines. Cancer Res. 1988, 48, 4827–4833.
