Mar. Drugs 2013, 11(10), 3735-3741; doi:10.3390/md11103735

Article
Oxygenated Ylangene-Derived Sesquiterpenoids from the Soft Coral Lemnalia philippinensis
Yun-Jie Xio 1,, Jui-Hsin Su 2,3,, Bo-Wei Chen 1, Yen-Ju Tseng 1, Yang-Chang Wu 4 and Jyh-Horng Sheu 1,5,6,*
1
Department of Marine Biotechnology and Resources, National Sun Yat-sen University, Kaohsiung 804, Taiwan; E-Mails:yunjie0711@gmail.com (Y.-J.X.); a6152761@yahoo.com.tw (B.-W.C.); pit0424@yahoo.com.tw (Y.-J.T.)
2
Graduate Institute of Marine Biotechnology and Department of Life Science and Institute of Biotechnology, National Dong Hwa University, Pingtung 944, Taiwan; E-Mail: x2219@nmmba.gov.tw
3
National Museum of Marine Biology and Aquarium, Pingtung 944, Taiwan
4
College of pharmacy, China Medical University, Taichung 404, Taiwan; E-Mail: yachwu@mail.cmu.edu.tw
5
Department of Medical Research, China Medical University Hospital, China Medical University, Taichung 404, Taiwan
6
Graduate Institute of Natural Products, Kaohsiung Medical University, Kaohsiung 807, Taiwan
These authors contributed equally to this work.
*
Author to whom correspondence should be addressed; E-Mail: sheu@mail.nsysu.edu.tw; Tel.: +886-7-525-2000 (ext. 5030); Fax: +886-7-525-5020.
Received: 27 August 2013; in revised form: 11 September 2013 / Accepted: 24 September 2013 /
Published: 30 September 2013

Abstract

: Chemical examination of a Taiwanese soft coral Lemnalia philippinensis led to the isolation of three oxygenated ylangene-derived sesquiterpenoids 13, including two new metabolites, philippinlins A and B (1 and 2). The structures of these compounds were elucidated on the basis of detailed spectroscopic data. Compound 1 was shown to exhibit cytotoxicity against HepG2, MDA-MB231 and A549 cancer cell lines.
Keywords:
Lemnalia philippinensis; ylangene; philippinlins A and B; cytotoxicity

1. Introduction

In recent years, soft corals have become one of the most prolific sources for the discovery of novel secondary metabolites [1]. Previous chemical investigations on soft corals of the genus Lemnalia have led to the isolation and identification of variety of ylangene-derived sesquiterpenoids [2,3,4,5]. Some of these have been found to possess various biological activities, such as cytotoxic [4] and anti-inflammatory properties [6]. Using our experience searching for new bioactive metabolites from soft corals of Lemnalia [7] and Paralemnalia [8,9,10,11], we carried out the first chemical investigation of the soft coral Lemnalia philippinensis with the aim of discovering interesting new metabolites. Our chemical examination of this soft coral led to the isolation of two new oxygenated ylangene-type sesquiterpenoids, philippinlins A and B (1 and 2), and one known compound lemnalol (3) [2]. The structures of 13 were established by detailed spectroscopic analysis, including extensive examination of 2D NMR (COSY, HSQC, HMBC and NOESY) correlations. The cytotoxicity of metabolites 13 towards human liver carcinoma (HepG2), human breast carcinoma (MDA-MB231) and human lung adenocarcinoma epithelial cells (A549) was evaluated, and 1 was found to be cytotoxic against the above cancer cells.

2. Results and Discussion

The EtOAc extract of the frozen specimen was fractionated by silica gel column chromatography and the eluted fractions were further separated utilizing normal phase HPLC to yield metabolites 13 (Figure 1). The new compounds were given the trivial names philippinlins A and B (1 and 2). By comparison of NMR and MS data, compound 3 was found to be identical with known lemnalol [2]. The specific optical rotation of 3 ([α]25D −8.0) was close to that reported for lemnalol ([α]25D −9.3) [2],which ensures that we are dealing with the same enantiomer. Compounds 1 and 2 were isolated with 3 from the same organism and should be formed by a shared biosynthetic pathway. Thus, both new compounds are suggested to possess the absolute configurations as shown in formulae 1 and 2.

Marinedrugs 11 03735 g001 1024

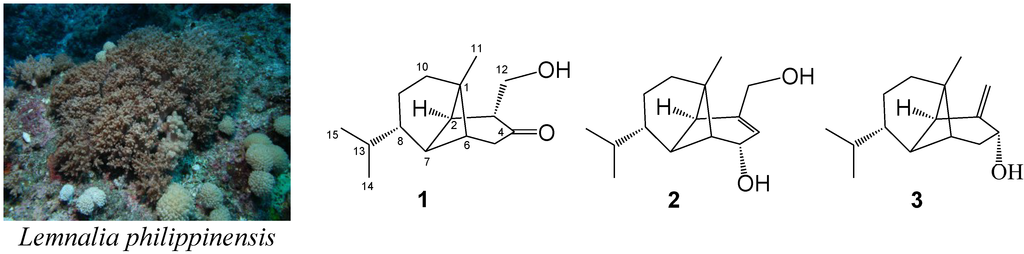

Figure 1. The soft coral Lemnalia philippinensis and the structures of philippinlins A (1), B (2), and lemnalol (3).

Click here to enlarge figure

Figure 1. The soft coral Lemnalia philippinensis and the structures of philippinlins A (1), B (2), and lemnalol (3).
Marinedrugs 11 03735 g001 1024

Philippinlin A (1) was obtained as a colorless oil. The HRESIMS of 1 exhibited a pseudomolecular ion peak at m/z 259.1672 [M + Na]+, and established a molecular formula of C15H24O2, implying four degrees of unsaturation. IR absorptions were observed at 3437 and 1714 cm−1, suggesting the presence of hydroxy and carbonyl groups in 1. In the 13C NMR and DEPT spectroscopic data (Table 1), signals of three methyls, four sp3 methylenes (including one oxymethylene), six sp3 methines, one sp3 quaternary carbon and one ketone were observed. From the 1H NMR spectrum of 1, the signals of one oxygenated methylene (δ 3.91, dd, J = 10.5 and 8.5 Hz; 3.55, dd, J = 10.5 and 5.5 Hz) and three methyls (δ 0.90, s; 0.87, d, J = 7.0 Hz; 0.85, d, J = 7.0 Hz) were observed. The planar structure and all of the 1H and 13C chemical shifts of 1 were elucidated by 2D NMR spectroscopic analysis, in particular COSY and HMBC experiments (Figure 2). To establish the proton sequences in 1, the 1H-1H COSY spectrum analysis established two proton sequences (Figure 2). The molecular framework of 1 was further established by an HMBC experiment, which showed the following key correlations (Figure 2): H2-5 to C-4, C-6 and C-7, H-6 to C-7, H-7 to C-1, H3-11 to C-1, C-2, C-6 and C-10, H2-12 to C-2, C-3 and C-4, both methyls H3-14 and H3-15 to C-8 and C-13. From above results and the chemical shifts of CH2-12 and C-4 (Table 1), 1 was found to possess a hydroxy group at C-12, and a ketone group at C-4. Furthermore, analysis of the 1H and 13C NMR data showed that the partial structures from C-1, C-2 and C-6 to C-15 in 1 should be identical to those of 3. The relative configurations of all stereocenters, except C-3 and C-4 of 1, were confirmed to be the same as those of 3 by comparison of the proton shifts and NOE correlations (Figure 3). One hydroxymethyl group at C-3 was assigned the α-configuration primarily due to the NOE correlation between H-3 and H3-11. Thus, the structure of sesquiterpenoid 1 was established.

Table Table 1. 13C and 1H NMR spectral data for compounds 1 and 2.

Click here to display table

Table 1. 13C and 1H NMR spectral data for compounds 1 and 2.

C/H
12
δc (Mult.) aδH (J in Hz) bδc (Mult.) cδH (J in Hz) d
141.6 (C) 48.9 (C)
237.3 (CH)2.07 dd (7.0, 2.0)40.9 (CH)2.24 d (6.0)
351.5 (CH)2.74 ddd150.3 (C)
(8.5, 5.5, 2.0)
4216.7 (C) 119.7 (CH)5.66 brs
543.5 (CH2)α: 2.69 dd (19.0, 1.5)70.2 (CH)4.36 brs
β: 2.52 dd (19.0, 3.5)
646.2 (CH)1.70 m54.8 (CH)1.82 m
742.8 (CH)1.74 m42.3 (CH)1.89 m
844.2 (CH)1.65 m44.9 (CH)1.60 m
921.6 (CH2)1.70 m; 1.59 m21.9 (CH2)1.67 m; 1.59 m
1036.3 (CH2)1.79 m; 1.71 m36.8 (CH2)1.73 m
1118.2 (CH3)0.90 s19.1 (CH3)0.82 s
1263.4 (CH2)3.91 dd (10.5, 8.5)65.4 (CH2)4.06 s
3.55 dd (10.5, 5.5)
1332.4 (CH)1.50 m32.5 (CH)1.58 m
1419.8 (CH3)0.85 d (7.0)19.4 (CH3)0.87 d (6.4)
1519.5 (CH3)0.87 d (7.0)20.0 (CH3)0.86 d (6.4)

Spectra recorded at a 125 MHz in CDCl3; b 500 MHz in CDCl3; c 100 MHz in CDCl3; d 400 MHz in CDCl3.

Marinedrugs 11 03735 g002 1024
Figure 2. Selected COSY (▬) and HMBC (→) correlations of 1 and 2.

Click here to enlarge figure

Figure 2. Selected COSY (▬) and HMBC (→) correlations of 1 and 2.
Marinedrugs 11 03735 g002 1024
Marinedrugs 11 03735 g003 1024
Figure 3. Key NOESY correlations for 1 and 2.

Click here to enlarge figure

Figure 3. Key NOESY correlations for 1 and 2.
Marinedrugs 11 03735 g003 1024

Philippinlin B (2) was obtained as a white powder and showed a [M + Na]+ ion peak in the HRESIMS spectrum corresponding to the molecular formula C15H24O2, the same as that of 1. IR absorption was observed at 3358 cm−1, again suggesting the presence of the hydroxy group in 2. Also, unlike 1, the absence of carbonyl absorption was shown in the IR spectrum. The planar structure and all of the 1H and 13C chemical shifts of 2 were elucidated by 2D NMR spectroscopic analysis, in particular COSY and HMBC experiments (Figure 2). Thus, 2 was found to possess one double bond at C-3/C-4, two hydroxy groups at C-5 and C-12. The relative configurations of the six chiral centers at C-1, C-2, C-5, C-6, C-7 and C-8 in 2 were elucidated by detailed NOE analysis, as shown in Figure 2. In these experiments, it was found that H-5 showed NOE interactions with H-6 and H3-11. Thus, assuming the β-orientation of H-5, both H-6 and H3-11 should be positioned on the β face. On the basis of the above findings and detailed examination of other NOE correlations (Figure 3), the relative structure of compound 2 was determined.

The cytotoxicity of metabolites 13 against the growth of HepG2, MDA-MB231 and A549 carcinoma cells was studied. Compound 1 showed cytotoxicity towards HepG2, MDA-MB231, and A549 cancer cell lines with IC50 values of 16.0, 16.3, and 15.8 μg/mL, respectively. While lemnalol has been shown to possess remarkable anti-inflammatory activities [6,12,13], compounds 2 and 3 did not exhibit cytotoxicity towards the above cancer cell lines.

3. Experimental Section

3.1. General Experimental Procedures

Optical rotation values were measured with a Jasco-P1010 digital polarimeter. Infrared spectra were obtained on a Varian Diglab FTS 1000 FT-IR spectrophotometer. NMR spectra were recorded on a Varian Mercury Plus 400 FT-NMR at 400 MHz for 1H and 100 MHz for 13C in CDCl3or C5D5N at 25 °C. ESIMS and HRESIMS data were recorded on a Bruker APEX II mass spectrometer. Column chromatography was performed on silica gel (230–400 mesh, Merck, Darmstadt, Germany). TLC was carried out on precoated Kieselgel 60 F254 (0.25 mm, Merck, Darmstadt, Germany) and spots were visualized by spraying with 10% H2SO4 solution followed by heating. Normal phase HPLC (NP-HPLC) was performed using a system comprised of a Hitachi L-7110 pump, a Hitachi L-7455 photodiode array detector and a Rheodyne 7725 injection port. A normal phase column (Supelco Ascentis® Si Cat #:581515-U, 25 cm × 21.2 mm, 5 μm) was used for NP-HPLC. Reverse phase HPLC (RP-HPLC) was performed using a system comprised of a Hitachi L-7100 pump, a Hitachi L-2455 photodiode array detector and a Rheodyne 7725 injection port. A reverse phase column (Varian Polaris C18-A, 250 mm × 10 mm, 5 μm) was used for RP-HPLC.

3.2. Animal Material

L. philippinensis, taxonomically identified by Prof. Chang-Feng Dai of National Taiwan University, was collected by hand using scuba off the coast of Lanyu, Taiwan, in August 2008, at a depth of 10–15 m, and stored in a freezer until extraction. A voucher sample was deposited at the Department of Marine Biotechnology and Resources, National Sun Yat-sen University.

3.3. Extraction and Isolation

Sliced tissues of the soft coral L. philippinensis (0.8 kg, wet wt) were exhaustively extracted with EtOAc. The combined EtOAc extract was concentrated under reduced pressure. The EtOAc extract was evaporated to yield a residue (10.7 g), which was subjected to open column chromatography on silica gel stepwisely eluting with n-hexane-EtOAc mixture and EtOAc-MeOH mixture, to give 25 fractions. Fraction 7, eluted with n-hexane–EtOAc (20:1), was further separated by Sephadex LH-20 column chromatography with acetone as eluent to yield 5 subfractions (7A–E). Subfraction 7D was separated by silica gel open column chromatography with gradient elution (n-hexane–CH2Cl2, 4:1) to afford 3 (156 mg) and subfraction 7E was also separated by normal phase HPLC using n-hexane–CH2Cl2 (4:1) to afford 1 (3.9 mg). The combined fractions 18 and 19, eluted with n-hexane–EtOAc (1:1–1:2), were separated by silica gel open column chromatography with gradient elution (n-hexane–EtOAc, 7:2) to yield 8 subfractions (18A–H). Subfraction 18G was separated by normal phase HPLC using n-hexane–EtOAc (2:1) to afford 2 (1.1 mg).

Philippinlin A (1): colorless oil; [α]25D = −97 (c 0.3, CHCl3); IR (neat) νmax 3437, 2941, 1714, 1459 and 1376 cm−1; 1H and 13C NMR data, see Table 1; ESIMS m/z 259 [M + Na]+; HRESIMS m/z 259.1672 (calcd. for C15H24O2Na, 259.1674).

Philippinlin B (2): white powder; mp 92–93 °C; [α]25D = +39 (c 0.1, CHCl3); IR (neat) νmax 3358, 2932, 2862 and 1464 cm−1; 1H and 13C NMR data, see Table 1; ESIMS m/z 259 [M + Na]+; HRESIMS m/z 259.1672 (calcd. for C15H24O2Na, 259.1674).

3.4. Cytotoxicity Testing

Cell lines were purchased from the American Type Culture Collection (ATCC). Cytotoxicity assays of compounds 13 were performed using the MTT [3-(4,5-dimethylthiazol-2-yl)-2,5-diphenyltetrazolium bromide] colorimetric method [14,15]. Doxorubicin, employed as positive control, exhibited cytotoxic activity toward HepG2, MDA-MB231 and A549 cancer cell lines with IC50’s 0.4, 1.4, and 1.6 μg/mL, respectively.

4. Conclusions

Two new oxygenated ylangene-derived compounds, philippinlins A (1) and B (2) and a known compound lemnalol (3), were discovered from the soft coral L. philippinensis. Compound 1 was found to exhibit cytotoxicity towards HepG2, MDA-MB231 and A549 cancer cell lines.

Acknowledgments

This research was supported by grants from the National Science Council (100-2320-B-110-001-MY2) and Aim for the Top University Program (02C030205) from Ministry of Education of Taiwan, awarded to J.-H. Sheu.

Conflict of Interest

The authors declare no conflict of interest.

References

  1. Rocha, J.; Peixe, L.; Gomes, N.C.; Calado, R. Cnidarians as a source of new marine bioactive compounds—an overview of the last decade and future steps for bioprospecting. Mar. Drugs 2011, 9, 1860–1886. [Google Scholar] [CrossRef]
  2. Kikuchi, H.; Tsukitani, Y.; Yamada, Y.; Iguchi, K.; Drexler, S.A.; Clardy, J. Lemnalol, a new sesquiterpenoid from the soft coral Lemnalia tenuis Verseveldt. Tetrahedron Lett. 1982, 23, 1063–1066. [Google Scholar] [CrossRef]
  3. Kikuchi, H.; Manda, T.; Kobayashi, K.; Yamada, Y.; Iguchi, K. Anti-tumor activity of lemnalol isolated from the soft coral Lemnalia tenuis Verseveldt. Chem. Pharm. Bull. 1983, 31, 1086–1088. [Google Scholar] [CrossRef]
  4. Duh, C.-Y.; El-Gamal, A.A.H.; Song, P.-Y.; Wang, S.-K.; Dai, C.-F. Steroids and sesquiterpenoids from the soft corals Dendronephthya gigantea and Lemnalia cervicorni. J. Nat. Prod. 2004, 67, 1650–1653. [Google Scholar] [CrossRef]
  5. Cheng, S.-Y.; Lin, E.-H.; Huang, J.-S.; Wen, Z.-H.; Duh, C.-Y. Ylangene-type and nardosinane-type sesquiterpenoids from the soft corals Lemnalia flava and Paralemnalia thyrsoides. Chem. Pharm. Bull. 2010, 58, 381–385. [Google Scholar] [CrossRef]
  6. Jean, Y.-H.; Chen, W.-F.; Duh, C.-Y.; Huang, S.-Y.; Hsu, C.-H.; Lin, C.-S.; Sung, C.-S.; Chen, I.-M.; Wen, Z.-H. Inducible nitric oxide synthase and cyclooxygenase-2 participate in anti-inflammatory and analgesic effects of the natural marine compound lemnalol from Formosan soft coral Lemnalia cervicorni. Eur. J. Pharmacol. 2008, 578, 323–331. [Google Scholar] [CrossRef]
  7. Lu, Y.; Li, P.-J.; Hung, W.-Y.; Su, J.-H.; Wen, Z.-H.; Hsu, C.-H.; Dai, C.-F.; Chiang, M.Y.; Sheu, J.-H. Nardosinane sesquiterpenoids from the Formosan soft coral Lemnalia flava. J. Nat. Prod. 2011, 74, 169–174. [Google Scholar] [CrossRef]
  8. Huang, H.-C.; Wen, Z.-H.; Chao, C.-H.; Ahmed, A.F.; Chiang, M.Y.; Kuo, Y.-H.; Hsu, C.-H.; Sheu, J.-H. Novel sesquiterpenoids from the Formosan soft coral Paralemnalia thyrsoides. Tetrahedron Lett. 2006, 47, 8751–8755. [Google Scholar] [CrossRef]
  9. Huang, C.-Y.; Su, J.-H.; Chen, B.-W.; Wen, Z.-H.; Hsu, C.-H.; Dai, C.-F.; Sheu, J.-H.; Sung, P.-J. Nardosinane-type sesquiterpenoids from the Formosan soft coral Paralemnalia thyrsoides. Mar. Drugs 2011, 9, 1543–1553. [Google Scholar] [CrossRef]
  10. Wang, G.-H.; Huang, H.-C.; Su, J.-H.; Wu, Y.-C.; Sheu, J.-H. Paralemnolins J–P, new sesquiterpenoids from the soft coral Paralemnalia thyrsoide. Chem. Pharm. Bull. 2010, 58, 30–33. [Google Scholar] [CrossRef]
  11. Huang, H.-C.; Chao, C.-H.; Su, J.-H.; Hsu, C.-H.; Chen, S.-P.; Kao, Y.-H.; Sheu, J.-H. Neolemnane-type sesquiterpenoids from a Formosan soft coral Paralemnalia thyrsoides. Chem. Pharm. Bull. 2007, 55, 876–880. [Google Scholar] [CrossRef]
  12. Lin, Y.-C.; Huang, S.-Y.; Jean, Y.-H.; Chen, W.-F.; Sung, C.-S.; Kao, E.-S.; Wang, H.-M.; Chakraborty, C.; Duh, C.-Y.; Wen, Z.-H. Intrathecal lemnalol, a natural marine compound obtained from Formosan soft coral, attenuates nociceptive responses and the activity of spinal glial cells in neuropathic rats. Behav. Pharmacol. 2011, 22, 739–750. [Google Scholar] [CrossRef]
  13. Lee, H.-P.; Huang, S.-Y.; Lin, Y.-Y.; Wang, H.-M.; Jean, Y.-H.; Wu, S.-F.; Duh, C.-Y.; Wen, Z.-H. Soft coral-derived lemnalol alleviates monosodium urate-induced gouty arthritis in rats by inhibiting leukocyte infiltration and iNOS, COX-2 and c-Fos protein expression. Mar. Drugs 2013, 11, 99–113. [Google Scholar] [CrossRef]
  14. Alley, M.C.; Scudiero, D.A.; Monks, A.; Hursey, M.L.; Czerwinski, M.J.; Fine, D.L.; Abbott, B.J.; Mayo, J.G.; Shoemaker, R.H.; Boyd, M.R. Feasibility of drug screening with panels of human tumor cell lines using a microculture tetrazolium assay. Cancer Res. 1988, 48, 589–601. [Google Scholar]
  15. Scudiero, D.A.; Shoemaker, R.H.; Paull, K.D.; Monks, A.; Tierney, S.; Nofziger, T.H.; Currens, M.J.; Seniff, D.; Boyd, M.R. Evaluation of a soluble tetrazolium/formazan assay for cell growth and drug sensitivity in culture using human and other tumor cell lines. Cancer Res. 1988, 48, 4827–4833. [Google Scholar]
