Mar. Drugs 2012, 10(8), 1671-1710; doi:10.3390/md10081671

Review
Glycosides from Marine Sponges (Porifera, Demospongiae): Structures, Taxonomical Distribution, Biological Activities and Biological Roles
Vladimir I. Kalinin , Natalia V. Ivanchina , Vladimir B. Krasokhin , Tatyana N. Makarieva and Valentin A. Stonik *
G.B. Elyakov Pacific Institute of Bioorganic Chemistry, Far-Eastern Branch of the Russian Academy of Science, Vladivostok, Prospect 100 letya Vladivostoka, 159, Russia; Email: kalininv@piboc.dvo.ru (V.I.K.); ivanchina@piboc.dvo.ru (N.V.I.); kras@piboc.dvo.ru (V.B.K.); makarieva@piboc.dvo.ru (T.N.M.)
*
Author to whom correspondence should be addressed; Email: stonik@piboc.dvo.ru; Tel.: +7-(423)-2-31-11-68; Fax: +7-(423)-2-31-40-50.
Received: 5 July 2012; in revised form: 25 July 2012 / Accepted: 25 July 2012 /
Published: 10 August 2012

Abstract

: Literature data about glycosides from sponges (Porifera, Demospongiae) are reviewed. Structural diversity, biological activities, taxonomic distribution and biological functions of these natural products are discussed.
Keywords:
glycosides; sponges; structures; activities; taxonomic distribution; biological functions

1. Introduction

Triterpene and steroid glycosides are known as widespread secondary metabolites in terrestrial higher plants. Although they are comparatively rare chemical constituents in the animal kingdom, numerous marine “animal” triterpene glycosides were also isolated from sea cucumbers (Holothurioidea, Echinodermata), in which they have been found in all the orders of this class of the phylum Echinodermata and possess a strict taxonomical specificity [1,2,3,4,5,6]. Steroid glycosides from starfish (Asteroidea, Echinodermata) compose another well-known group of bioactive marine glycosides, attracting much attention from chemists and pharmacologists for a long time [7,8,9]. Marine sponge glycosides were discovered later in comparison with those from echinoderms, but compounds of this chemical class were also shown to be a large and diverse class of bioactive amphiphilic natural products. Recently, some of them were partly reviewed along with different bioactive sesterterpenes and triterpenes isolated from sponges [10]. In the present review, we attempt to cover literature data, concerning main directions in the studies on sponge glycosides, including structural diversity, physiological activities, taxonomic distribution and biological roles. Herein, we have processed and discussed the data about four subclasses of these substances: (i) tetracyclic triterpene glycosides; (ii) other triterpene glycosides; (iii) steroid glycosides, and (iv) glycosides of non-isoprenoid aglycones, but not of such specific groups as cerebrosides, nucleosides and tetramic acid glycosides from sponges.

2. Tetracyclic Triterpene Glycosides

2.1. The Order Astrophorida

Melophlus sarasinorum (family Ancorinidae) is a sponge widely distributed in the Indo-West Pacific region including Great Barrier Reef, Indonesia, Palau Islands, etc. It is also known in literature as Asteropus sarasinorum, Melophlus isis and Stellettinopsis isis as junior synonymic names of the same species [11]. Moreover, erroneous names of this species were used in chemical literature such as Asteropus sarasinosum [12,13] and Melophlus sarassinorum [14]. Herein we use the valid taxonomical name.

The glycoside fraction of Melophlus sarasinorum contains complicated mixture of 14-nor-methyl-lanostane (or 30-norlanostane) triterpene glycosides. First, nine glycosides, sarasinosides A1 (1), A2 (2), A3 (3), B1 (5), B2 (7), B3 (9), C1 (4), C2 (6), and C3 (8), were isolated and structurally elucidated by Kitagawa et al. [12,15] from the Palauan sponge. Sarasinoside A1 (1) was independently and simultaneously isolated by Schmitz et al. [13] from the sponge collected near Guam Island and from another, Truk Lagoon collection. Other representatives of the same structural group, namely sarasinosides D (10), E (11), F (12), G (13) and H (14) along with known sarasinoside B1 (5), were isolated by Espada et al. from the Guam Island population of the same species [16].

Lee et al. have isolated four new 14-nor-methyl-lanostane glycosides, sarasinosides H1 (14), H2 (15), I1 (16) and I2 (17) along with known sarasinosides A1 (1) and A3 (3) from the sponge, collected off Guam [17]. Dai et al. have isolated new 14-nor-methyl-lanostane glycosides, sarasinosides J (18), K (19), L (20) and M (21) along with known sarasinosides A1 (1), A3 (3), I1 (16), I2 (17) and H2 (15) from M. sarasinorum collected from Sulawesi, Indonesia [14]. Finally, Santalova et al. [18] have isolated two new 14-nor-methyl-lanostane triterpene glycosides, sarasinosides A4 (22) and A5 (23), along with known sarasinosides A1 (1), A2 (2), A3 (3), M (21) and L (20) from the Australian collection of the same species.

Most aglycones of sarasinosides have the norlanostane skeleton system with 8(9)-, 9(11)- or 8(14)-double bonds in tetracyclic moieties and identical 23-keto-Δ24(25) side chains, although glycosides 2, 6 and 7 have 7(8),9(11)-diene system, while the glycosides 3, 8 and 9 possess 8(9),14-diene system. The most unusual aglycone moiety of sarasinoside D (10) contains a methyl group at C-8 instead of the usual C-14 position. The rearrangements led to relative compounds in certain triterpenoids isolated from higher plants is carried out via intermediates with Δ14(15)-unsaturation [16]. More oxidized aglycones in sarasinosides E, F, H1, H2, I1, I2, J–L and A5 (11, 12, 1420, 23, respectively) contain additional oxy-, methoxy- or ketone groups, while aglycones of sarasinosides M and A4 (21, 22) are 8,9-seco-derivatives having unique 8α,9α-epoxy-8(14),9(11),24-triene and 8α,9α-epoxy-7(8),9(11)-diene structural fragments (Chart 1) [14,15,16,17,18].

Marinedrugs 10 01671 g001 200

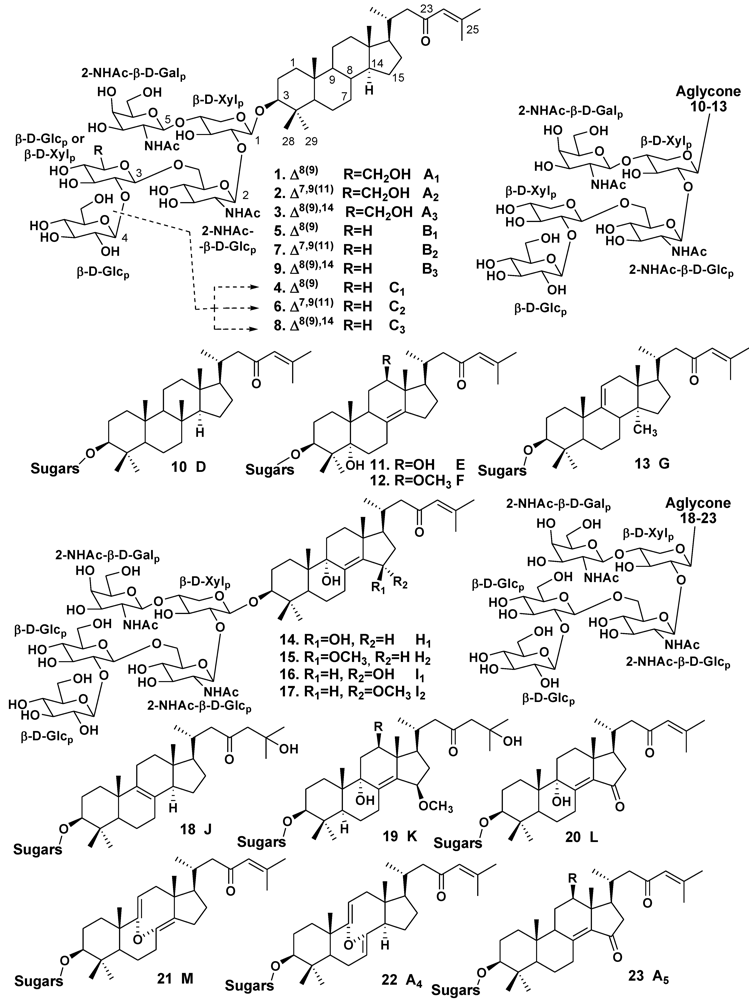

Chart 1. Structures of sarasinosides.

Click here to enlarge figure

Chart 1. Structures of sarasinosides.
Marinedrugs 10 01671 g001 1024

Carbohydrate chains of all the glycosides are very similar to each other and have the same architecture. All sugar units (xylose, two glucoses, 2-(N-acetylamino)-2-deoxy-galactose and 2-(N-acetylamino)-2-deoxy-glucose) belong to D-series and are in pyranose forms, the configuration of all the glycosidic centers is β. Glycosides 1, 2 and 3 and many other glycosides of this structural series are pentaosides and have D-glucose as the third monosaccharide residue, while glycosides 4, 6 and 8 are tetraosides containing identical carbohydrate chains with xylose residue as the third and the terminal sugar unit.

Thus, totally 23 sarasinosides were isolated from Melophlus sarasinorum. Most of these glycosides are pentaosides and their carbohydrate chains may differ in the third monosaccharide unit (glucose or xylose) only. Structural diversity of sarasinosides is mainly provided both by oxidative processes in rings B, C and D and different positions of double bonds in the tetracyclic part of aglycones.

Data, concerning biological activities of sarasinosides are limited. Kitagawa et al. have compared ichthyotoxic action of sarasinosides A1 (1) and B1 (5) against killifish Poecilia reticulata [12].Glycoside 1 with glucose as the third monosaccharide unit showed LD50 of 0.39 μg/mL, while glycoside 5 with xylose in this position demonstrated LD50 of 0.71 μg/mL. Glycosides 1 and 5 have the same moderate inhibitory activities (ED50 of 10 μg/mL) against fertilized eggs of starfish Asterina (=Patiria) pectinifera. Schmitz et al. reported the cytotoxicity of sarasinoside A1 (1) against human lymphocytic leukemia cell line (ED50 of 2.8 μg/mL) [13]. Lee et al. indicated cytotoxic activities of sarasinosides A2 (2) and A3 (3) against human leukemia cell line K562 (ED50 of 6.5 and 17.1 μg/mL, respectively), while sarasinosides H1 (14), H2 (15), I1 (16) and I2 (17) were not active in the test [17]. Dai et al. showed that sarasinoside A1 (1) possesses strong activity against the yeast Saccharomyces cerevisiae, but it is inactive against the bacteria Bacillus subtilis and Escherichia coli. Sarasinoside J (18) was also strongly active against S. cerevisiae, but possessed the moderate activity against B. subtilis [14]. Hence, we may conclude that sarasinosides with common 8(9)-double bond or 7(8),9(11)-diene system possess strong or moderate cytotoxic activities against tumor cell lines, yeast, fertilized eggs of starfish and ichthyotoxicity. Modifications in C and D rings, including the migration of double bond into 8(14)-position and introduction of oxygen-bearing substituents as well as other oxidative transformations in cyclic systems of aglycones decrease the activities.

Erylus formosus (the family Geodiidae) is widely distributed in shallow waters of the Caribbean Sea and the Eastern Brazil and the most studied sponge in relation of its tetracyclic triterpene glycosides. Jaspars and Crews have isolated lanostane tetraoside formoside (24) from extracts of the sponge arose during an expedition to the Bahamas [19]. The aglycone of formoside belongs to the lanostane derivatives, containing 8(9)- and 24(25)-double bonds and a carboxy group at C-14. It was earlier found from Penares sp. as a free triterpene and named penasterol [20], while its 3-O-acetyl- and 3-oxo-derivatives were also isolated from the sponge Penares incrustans [21]. All sugars (two galactoses and two arabinoses) are in pyranose forms.

As a result of studies on E. formosus, collected off the Bahamas by scuba at the depth of 55 feet, Stead et al. have isolated the related lanostane bioside eryloside F (25) with the same aglycone, also containing arabinose as the first sugar attached at C-3 of the aglycone and the second sugar unit (galactose) linked at C-2 of the arabinose residue [22].

Another glycoside of this series, formoside B (26) was found by Kubanek et al. in the sponge collected also off the Bahamas along with the known formoside (24). Glycoside 26 differs from 24 in the presence of 2-(N-acetylamino)-2-deoxy-D-galactose instead of a terminal galactose. The same group of scientists isolated also a series of fractions, containing related hexaosides and triosides and characterized these fractions by mass-spectrometry. However, individual glycoside components were not obtained [23].

A difficult task of separation of similar fractions was successfully solved by Antonov et al., who isolated a series of individual lanostane biosides, triosides and hexaosides [24,25] from the Mexican collection of the sponge. In these glycosides, all sugars are in pyranose forms, belong to D-series and have β-configuration of glycosidic bonds, except arabinose residues, which belong to L-series and have α-configuration of glycosidic bonds. Erylosides F1–F4 (2730) were proved to be close related analogs of eryloside F (25) differing from each other in the aglycone side chains [23]. Previously known eryloside F (25) has also been isolated. Glycoside 27 contains the aglycone similar to penasterol with the side chain, having a methylene at C-24. Penasterol and these aglycones are predominant non-carbohydrate moieties in the glycosides from Erylus spp. Glycoside 28 has a 25(26)-double bond and a 24R-hydroxy group, while glycoside 29 contains 25(26)-double bond and 24S-hydroxy group. Eryloside F4 (30) is a 24-keto-derivative of glycosides 28 and 29. Two new triosides, erylosides M (31) and N (32), were also isolated by this group from the same species along with eryloside H (33), earlier known from Erylus nobilis [26]. Glycoside 32 has penasterol as aglycone, while 31 contains aglycone with a methylene group at C-24 in the side chain. The previously known glycoside 33 differs from eryloside M only in the presence of 2-(N-acetylamino)-2-deoxy-D-galactose instead of a galactose residue. A new tetraoside eryloside O (34) has a similar structure to that of formoside (24), but the third terminal monosaccharide residue was identified as α-L-arabinose instead of D-galactose in formoside. New hexaosides, erylosides P (35) and Q (36), have the same carbohydrate chains and differed in the side chains of aglycones. The carbohydrate moieties of both glycosides are similar to that of formoside (24), but have an additional glucose residue attached at C-4 of the fourth sugar (galactose) and a terminal xylose residue, attached at C-2 of this glucose residue [24].

In continuation, Antonov et al. have isolated one more trioside eryloside R1 (37) along with the known formoside (24), and six new hexaosides erylosides T1–T6 (3843) [25]. All their sugars are also in pyranose forms, belong to D-series, and have β-configurations for the glycosidic bonds, except L-arabinose residues. Glycoside 37 has penasterol as aglycone, its terminal galactose is linked to C-3 of the first monosaccharide residue (arabinose), while another galactose unit is attached to C-2 of the arabinose. Hexaosides 38-40 also contain penasterol as the aglycone, while hexaosides 4143 contain another distributed in this series aglycone with a methylene group at C-24 in side chains. All the hexaosides possess carbohydrate chains having the same general structural plan and their carbohydrate chains are similar to those of erylosides P (35) and Q (36).

It should be noted that not only hexaosides, but all the triterpene glycosides, isolated from Erylus formosus (totally 20 compounds) possess similar structural features. All of them contain the same α-L-arabinopyranose as the first monosaccharide residue, attached to C-3 in the aglycone moieties. The number of sugars may be two, three, four or six in these compounds.

One of terminal sugars is linked to C-2 of the first L-arabinose residue. The hexaosides contain also another terminal monosaccharide unit, attached to C-2 of the fourth sugar. All other linkages between monosaccharides are 1,3, except a linkage between the third fourth and the fourth monosaccharide units, which is 1,4. Not only arabinose, glucose and galactose, but also 2-(N-acetylamino)-2-deoxy-D-galactose were found as terminal monosaccharide units in the glycosides of Erylus formosus (Chart 2).

Marinedrugs 10 01671 g002 200

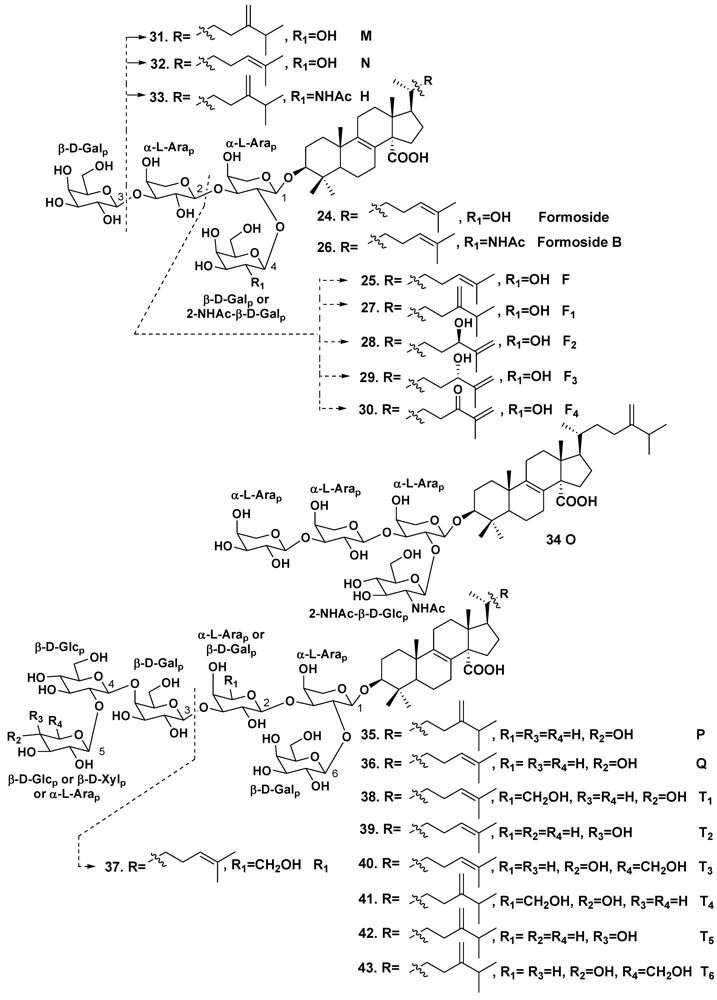

Chart 2. Erylosides from Erylus formosus.

Click here to enlarge figure

Chart 2. Erylosides from Erylus formosus.
Marinedrugs 10 01671 g002 1024

Probably, the biosynthesis of carbohydrate chains is initiated in this species by a glycosyltransferase bearing L-arabinosyl residue. Elongation of carbohydrate chains by other glycosyltransferases results in possibility of monosaccharides to be replaced by others in different triterpene glycosides of E. formosus retaining the general structural plan of carbohydrate chains [25].

Eryloside F (25) was proved to be a potent thrombin receptor antagonist, inhibiting human platelet aggregation in vitro. This glycoside facilitates the calcium mobilization in cells registered by FLIPR assay [22]. Formoside (24) shows antiviral activity (IC50 of 3.5 μg/mL vs. HSV-1) and modest antibacterial action (IC50 of 31.3 μg/mL vs.Corynebacterium xerosis) [19]. The fractions of hexaosides were active against amphotericin B-resistant Candida albicans (IC50 of 3.9 μg/mL) [23]. Eryloside F3 (29), but not its epimer eryloside F2 (28) induces the early apoptosis of Ehrlich carcinoma cells at the concentration of 100 μg/mL, while eryloside F1 (27) and eryloside F (25) activate the Ca2+ influx into mouse spleenocytes (130% of the control) at the same dose [24].

Erylus lendenfeldi is a species distributed in the IndoPacific geographical area. A new bis-nor-triterpene bioside eryloside A (44), containing 4β,14-di-nor-methyl-lanostane aglycone and β-D-galactopyranose residue as the first sugar residue together with another (terminal) β-D-galactopyranose residue attached to C-2 of the first monosaccharide residue in carbohydrate moiety, was isolated from the Red Sea specimen of the sponge by Carmely et al. in 1989 [27]. The aglycone of 44 contains 8(9)- and 14(15)-double bonds and a hydroxy group at C-23.

Later Sandler et al. [28] from Faulkner’s laboratory found the same glycoside in another the Red Sea collection of the sponge. In addition to 44, two new related compounds were obtained and named as erylosides K and L (45,46). The absolute configuration of the C-23 asymmetric center in 44 and45 was established through the corresponding MTPA-esters with previous hydrogenation of 45 using rhodium as a catalyst. The containing 24(25)-double bond in its aglycone eryloside K (45) was independently and almost simultaneously isolated by Fouad et al. [29] at the studies on the same sponge, collected off the Jordan coast in the Gulf of Aqaba, the Red Sea. Eryloside L (46) was structurally identified by Sandler et al. as the corresponding 23-ketone [28]. Fouad et al. isolated also similar glycoside 47, having a rare 8α,9α-epoxy-8,9-seco-7,9(11),14-triene fragment in the aglycone part (Chart 3) [29].

Marinedrugs 10 01671 g003 200

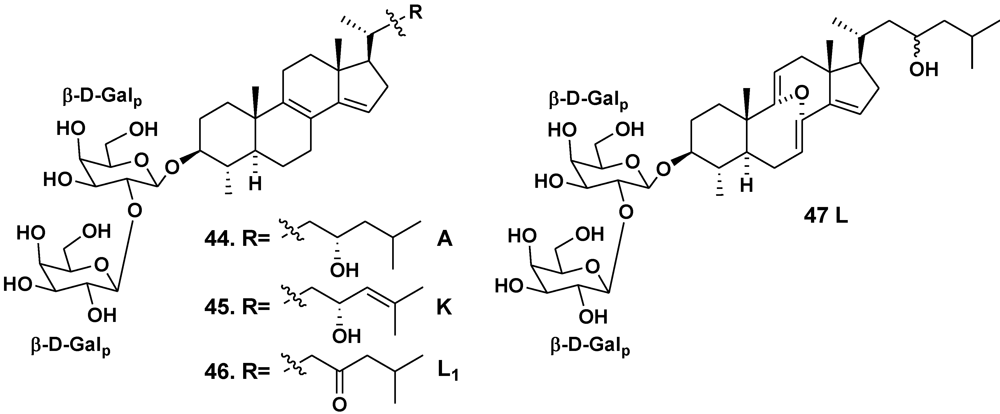

Chart 3. Erylosides from Erylus lendenfeldi.

Click here to enlarge figure

Chart 3. Erylosides from Erylus lendenfeldi.
Marinedrugs 10 01671 g003 1024

Bioside 47 was also named as eryloside L. Therefore, two different glycosides (46 and 47) are known now under the name “eryloside L”. We propose rename the compound 46 to eryloside L1, because 46 was later reported.

Glycoside 44 shows cytotoxic activity against P388 tumor cell line (IC50 of 4.2 μg/mL) and antifungal activity against Candida albicans (MIC of 15.6 μg/mL) [27]. This glycoside was also active against Escherichia coli, Bacillus subtilis and C. albicans (zones of inhibition at 10 μg per disc were of 6, 7 and 7 mm, respectively). Glycosides 44 and 45 lead to mortality rate of 50% at a concentration of 0.1 μg/mL in the brine shrimp assay, while compound 46 was inactive in the test. Glycosides 44, 45, and 47 did not show cytotoxicity against JURKAT, THP-1 and MM-1 tumor cell lines [29]. Glycosides 4446 were selectively active against Δrad50 budding yeast strain (0.8, 2.0 and 3.4 μg/mL) in comparison with activity against wild parent yeast strain (IC50 of 3.5, 6.1 and 11.4 μg/mL, correspondingly). It is known that selective cytotoxicity against similar mutant yeast may be an indicator of topoisomerase poisons. However, the activities against TOP1oe (IC50 of 5.7, 7.5 and 10.9 μg/mL) and TOP2oe (10.8, 12.2 and 9.5 μg/mL) were milder than those of the known topoisomerase inhibitors such as camtothecin and idarubacin. The aglycone, obtained from glycoside 44, was inactive against the yeast strain that indicated a significant role of carbohydrate chain in the activity [28].

Erylus goffrilleri is an Atlantic tropical sponge species. Gulavita et al. isolated unusual lanostane glycoside, eryloside E (48), having not only a bioside carbohydrate chain consisted of galactose as the first sugar and 2-(N-acetylamino)-2-deoxy-D-glucose attached to C-2 of the galactose, but also another carbohydrate fragment composed of xylose, linked to a carboxy group at C-14 of the aglycone [30]. The aglycone has 8(9)-double bond, hydroxy-group at C-24 and additional methyl groups at C-24 and C-25 (Chart 4).

Afiyatullov et al. have isolated four related lanostane monosides, erylosides R (49), S (50), T (51) and U (52) with β-D-galactopyranose as a carbohydrate moiety [31]. Glycoside 49 contains the lanostane aglycone with 8(9)-double bond and carboxy group at C-14, hydroxy group at C-24 and two additional methyl groups at C-24 and C-25 in the side chain. Glycoside 50 contains a very similar aglycone with acetate and an additional methyl groups at C-24 in the side chain. The aglycone of glycoside 51 featured the same side chain as in 49, but has 7(8)-double bond and an uncommon lactone function between С-14 and С-9. Glycoside 52 is very similar to 51, but contains an additional 7α,8α-epoxy group.

In addition, Afiyatullov et al. have also isolated three lanostane biosides, erylosides F5 (53), F6 (54) and F7 (55) and one trioside, eryloside V (56). Glycosides 53 and 54 contain closely related carbohydrate chains consisting of D-galactose and 2-(N-acetylamino)-2-deoxy-D-glucose, attached to C-2 of the galactose residue [31]. The sugars are in pyranose forms and have a β-configuration of the glycoside bonds. As it is characteristic of many erylosides, their aglycones have 8(9)-double bond and a carboxy group at C-14. The side chain of the aglycone in glycoside 53 contains a hydroxy group at C-24 and two additional methyl groups at C-24 and C-25. The side chain of 54 includes an OAc-group at C-24 and only one additional methyl group at C-24. Glycoside 55 has not only the same aglycone as in 53, but also the second sugar residue, β-D-glucopyranose, attached at C-3 of the first monosaccharide residue. Eryloside V (56) is a trioside with the same aglycon as 53 and α-L-arabinose as the first sugar. Additional alkylation in side chain is a particular structural feature of erylosides from this sponge species.

Eryloside E (48) weakly inhibited the binding of 125[I]-Bottom Hunter labeled C5a to its receptor (IC50 > 10 μM). Eryloside E shows also an immunosuppressive activity (EC50 of 1.3 μg/mL), its immunosuppressive effect was specific and not caused by general cytotoxicity [30]. Erylosides R (49), S (50), T (51), V (56), F6 (54) and F7 (55) exhibit cytotoxic activities against Ehrlich carcinoma tumor cells (IC50 of 20–40 μM) [30], while glycosides 52, 53 and 56 are inactive.

Marinedrugs 10 01671 g004 200

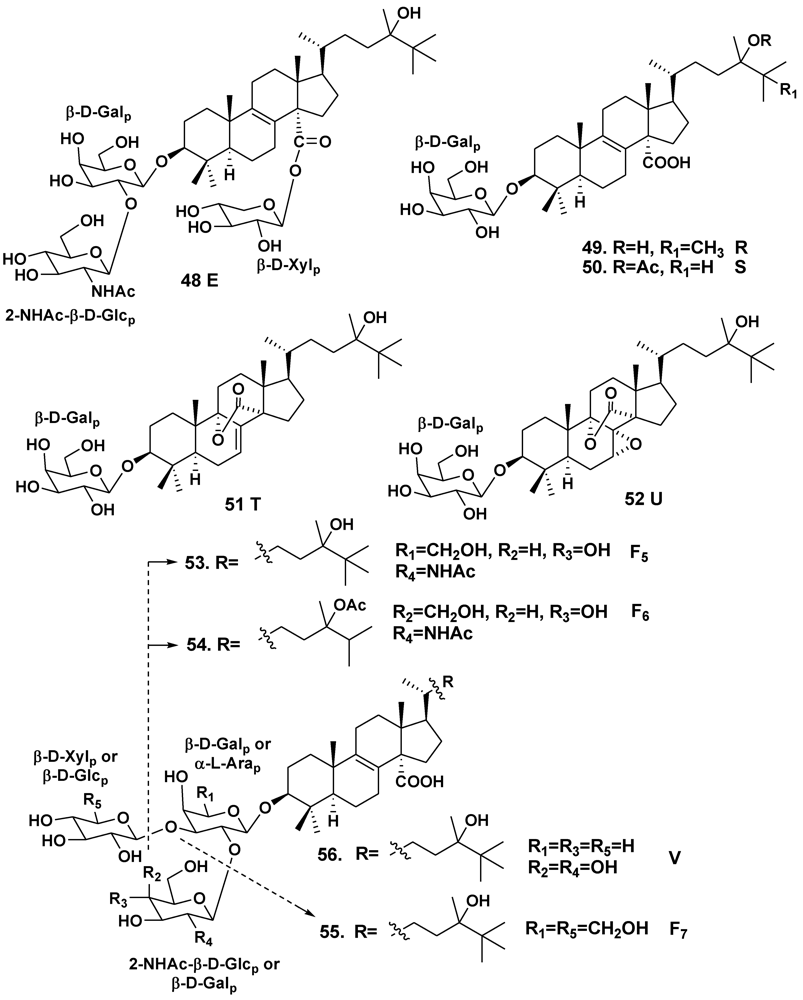

Chart 4. Erylosides from Erylus goffrilleri.

Click here to enlarge figure

Chart 4. Erylosides from Erylus goffrilleri.
Marinedrugs 10 01671 g004 1024

The studies on the sponge Erylus sp., isolated from a New Caledonian specimen, collected at a depth of 500 m yielded two lanostane saponins, trioside and tetraoside, named erylosides C (57) and D (58), correspondingly [32]. The aglycones of both glycosides possess 8(9)-double bond, a carboxy group at C-14, methylene group at C-24 and an additional methyl group at C-25. All the monosaccharide residues are β-D-galactopyranoses. One terminal sugar is attached to C-2 of the first monosaccharide residue, while another terminal sugar is linked to C-3 of the first sugar in the glycoside 57 as it is characteristic of many triterpene glycosides from sponges, belonging to the genus Erylus. However, one of the terminal sugars in tetraoside 58 is attached to C-4 of the second sugar, but not to C-3 (Chart 5).

Marinedrugs 10 01671 g005 200

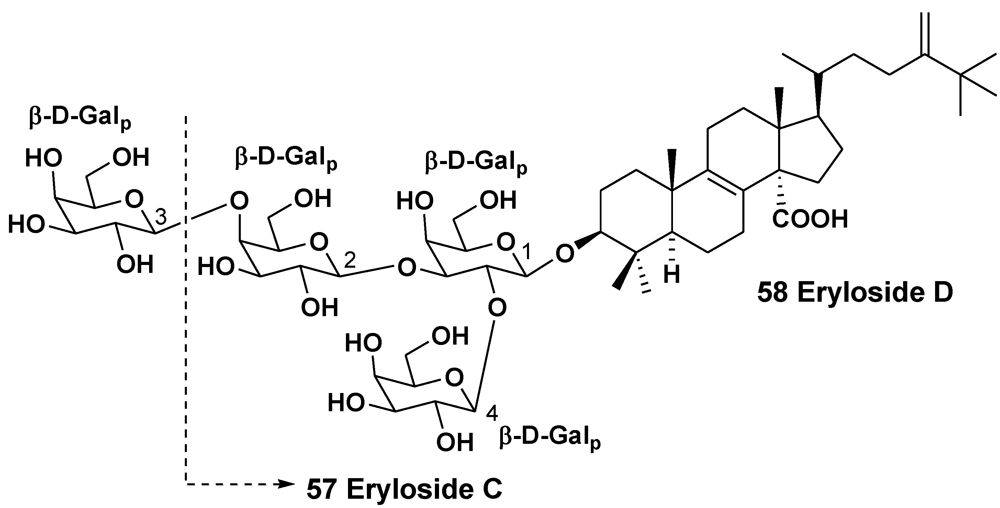

Chart 5. Erylosides from Erylus sp.

Click here to enlarge figure

Chart 5. Erylosides from Erylus sp.
Marinedrugs 10 01671 g005 1024

The related sponge Erylus placenta was collected in the Pacific Ocean near the shore of the South Japan (Hachijo Island). Okada et al. isolated two unprecedented 14-nor-methyl-23,24,25,26,27-pentanorlanostane glycosides from the sponge. A unique aglycone of sokodoside A (59) has 8(14)-double bond, while the closely related sokodoside B (60) possesses a unprecedented conjugated 8(9),14(15),16(17)-triene system [33] (Chart 6). Glycoside 59 is a branched tetraoside. The first sugar of 59 is β-D-galactouronic acid, the second monosaccharide residue attached to C-2 of the first sugar is another residue of β-D-galactouronic acid, the third (terminal) sugar attached to C-2 of the second sugar is α-L-fucose and another terminal sugar is α-L-arabinose. Sokodoside B (60) is a branched trioside with carbohydrate chain, consisting of α-L-arabinose, β-D-galactose and β-D-galactouronic acid. In the original paper the configuration of arabinose residues was erroneously described as β, while the coupling constant in the 1H NMR spectra of 59 and 60 definitely showed on a α-configuration for these L-arabinose residues.

Recently, a convergent synthesis of the trisaccharide moiety of sokodoside B was carried out through thioglycoside activation using sulfuric acid immobilized on silica in conjunction with N-iodosuccinimide [34]. Sokodosides A and B show moderate growth-inhibitory activities against the fungus Mortierella ramanniana and different strains of the yeast Saccharomyces cerevisiae with or without mutations (cdC28, act1-1 and erg6). The size of inhibition zones ranged between 8 and 16 mm at 50 μg of the tested substance on 6 mm spot on thin paper disk. Compound 59 was more active than 60. Glycosides 59 and 60 show moderate cytotoxic activities against P388 cells with IC50 of 100 and 50 μg/mL, correspondingly. Hence, there is a correlation between their antifungal and cytotoxic activities.

Marinedrugs 10 01671 g006 200

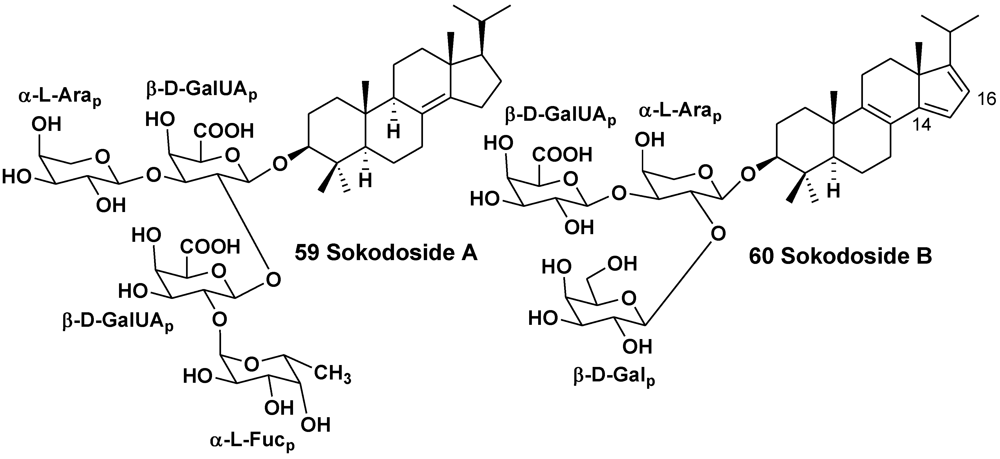

Chart 6. Sokodosides from Erylus placenta.

Click here to enlarge figure

Chart 6. Sokodosides from Erylus placenta.
Marinedrugs 10 01671 g006 1024

Shin et al. have isolated four lanostane triosides erylosides G (61), H (33), I (62) and J (63) from the sponge Erylus nobilis, collected near the South shore of Jaeju Island (South Korea, Korean Strait) [26]. The aglycones of all these glycosides have 8(9)-double bond, carboxyl group at C-14 and 24-methylene group in side chains (Chart 7). Compounds 62 and 63 have also an additional methyl at C-25, like glycosides from E. goffrilleri. Both glycosides are triosides. The glycosides 61, 33, 62 and 63 demonstrate moderate cytotoxic activities against the human leukemia cell line K562 with IC50 of 22.1, 24.8, 17.9 and 21.8 μg/mL, respectively.

Marinedrugs 10 01671 g007 200

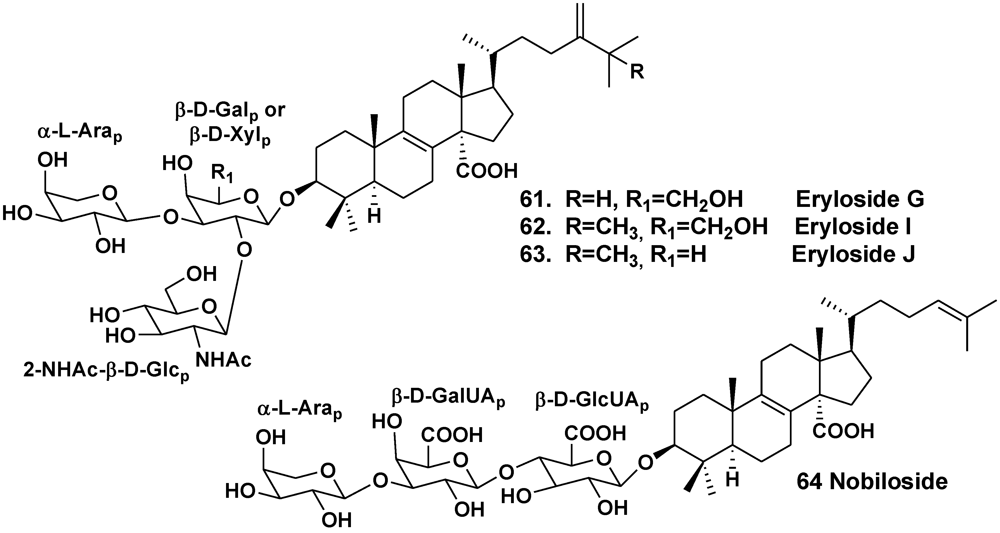

Chart 7. Erylosides from Erylus nobilis.

Click here to enlarge figure

Chart 7. Erylosides from Erylus nobilis.
Marinedrugs 10 01671 g007 1024

Takada et al. have isolated nobiloside (64), a linear lanostane trioside from E. nobilis collected in the Pacific Ocean near Shikine-jima Island, 200 km southward Tokyo, Japan [35]. The aglycone of nobiloside contains 8(9)- and 24(25)-double bonds and carboxy group at C-14. The first sugar in the carbohydrate chain is β-D-glucuronic acid, the second sugar is β-D-galactouronic acid, a terminal sugar is α-L-arabinose. Synthesis of two trisaccharides, related to the saponins from E. nobilis was reported from commercially available D-galactose, L-arabinose and D-glucosamine hydrochloride via rational protecting group manipulations [36]. The glycoside shows inhibitory activity against neuraminidase from the bacterium Clostridium perfringens with IC50 of 0.46 μg/mL.

Thus, all the studied Erylus species contain bioactive triterpene glycosides, in majority having 14-carboxy lanostane aglycones and carbohydrate moieties with predominance of arabinose and galactose.

2.2. The Order Poecilosclerida

The Indian Ocean sponge Ulosa sp. belongs to the family Mycalidae. Antonov et al. have isolated five glycosides with oxidized 14-nor-methyl-lanostane type aglycones, namely ulososides A–E (6569) from the sponge collected off the waters of the North-Western Madagascar [37,38,39]. Ulososides A (65) [37], C (67), D (68) and E (69) [39] possess 22S,23R-diol fragment and 24S-methyl in side chains of their aglycones, like brassinolides. Ulososide B (66) contains a 23ξ-hydroxy group in its aglycone side chain, but has no 24-methyl group [38]. Compounds 65 is a bioside with a rare 1,6-bond between D-glucose and terminal D-glucuronic acid, while 6668 are monosides, containing 2-(N-acetylamino)-2-deoxy-β-D-glucose or D-glucose as carbohydrate moieties. Like 65, ulososide E (69) is a bioside, but its carbohydrate chain has another monosaccharide composition with glucuronic and uncommon α-D-arabinopyranose as a terminal sugar (Chart 8).

Marinedrugs 10 01671 g008 200

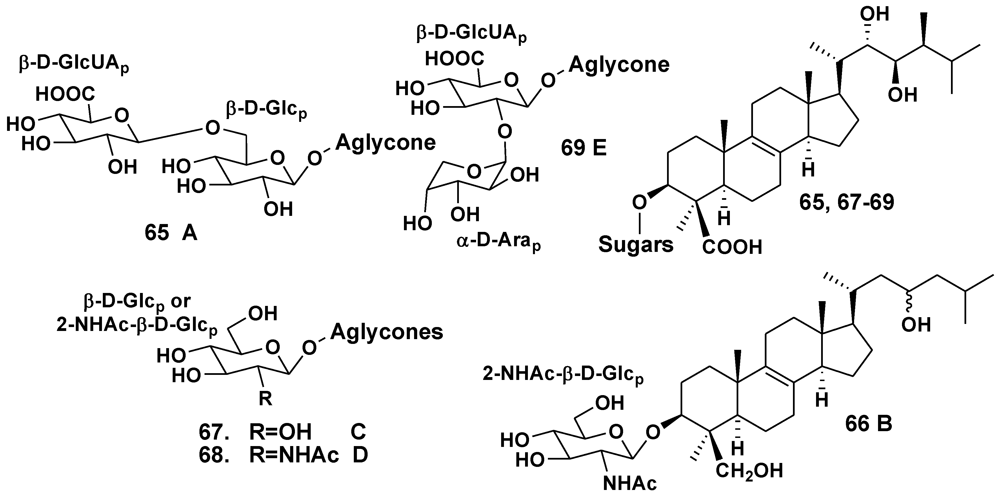

Chart 8. Ulososides from Ulosa sp.

Click here to enlarge figure

Chart 8. Ulososides from Ulosa sp.
Marinedrugs 10 01671 g008 1024

Ectyoplasia ferox is a Carribean sponge belonging to the family Raspailliidae. Four 4β-nor-lanostane triterpenoid glycosides (7073), containing oxidized side chains and in the ring A penasterol derivatives as aglycones have been indicated in the glycoside fraction from the sponge collected off the Bahamas [40,41]. Glycosides 70 and 71 are linear triosides, containing two β-D-galactopyranose and α-L-arabinopyranose units. Feroxosides 72 and 73 are tetraosides branched at the first monosaccharide residue with two β-D-glucopyranoses and two α-L-rhamnopyranose residues. α-L-Rhamnose units were never found in sponge triterpene tetracyclic glycosides before the study (Chart 9). Glycosides 70 and 71 showed moderate cytotoxic activities in vitro against J774 (murine monocyte-macrophage), WEHI164 (murine fibrosarcoma), and P388 (murine leukemia) cell lines at IC50 ranging from 8.5 to 11.4 μg/mL [40]. Glycosides 72 and 73 were also moderately cytotoxic (IC50 of 19 μg/mL) against the murine monocyte-macrophage cell line [41].

Marinedrugs 10 01671 g009 200

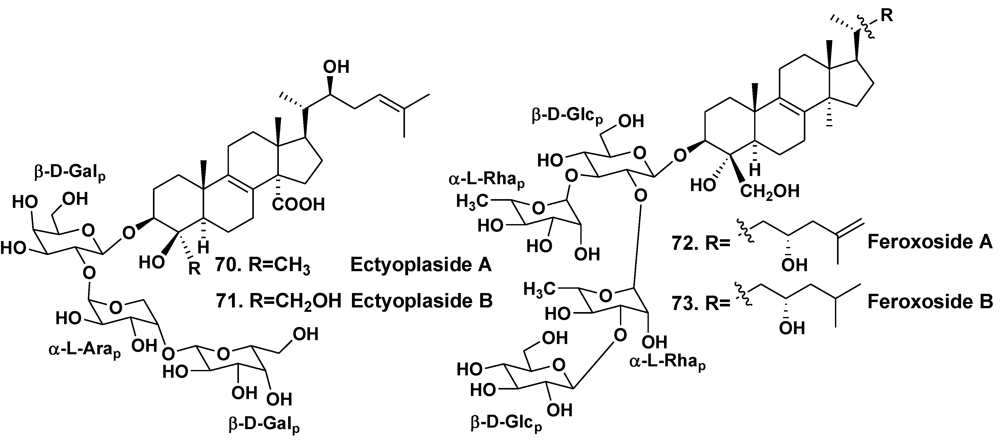

Chart 9. Feroxosides from Ectyoplasia ferox.

Click here to enlarge figure

Chart 9. Feroxosides from Ectyoplasia ferox.
Marinedrugs 10 01671 g009 1024

3. Other Triterpene Glycosides from Sponges

3.1. Orders Astrophorida and Halichondrida

Isomalabaricane triterpene pigments, containing 4,4,8,10-tetramethyl-perhydrobenz[e]indane core with a trans-syn-trans ring junction were first reported from the Fijian collection of the sponge Jaspis stellifera (the family Ancorinidae) [42] and the Somalian sponge Stelletta sp. (the family Ancorinidae) [43]. Later they were found in several other sponges, belonging to the order Astrophorida. Some free triterpenoids of this structural group demonstrate potent antiproliferative properties and promotion of DNA polymerase β binding to DNA, but their glycosylated forms were rarely isolated. The first glycosylated isomalabarican triterpenoid, stelliferin riboside (74) with cytotoxic properties was found in unidentified species of the genus Geodia collected off Fiji Islands [44]. Recently, a new monocyclic triterpene xylopyranoside, rhabdastoside A (75), containing a skeleton related to isomalabaricanes system, was isolated along with several new isomalabaricane derivatives from the methanol extract of the sponge Rhabdastrella globostellata (the family Ancorinidae) (Chart 10) [45]. Compound 74 stabilizes DNA polymerase β binding to DNA inducing 29% binding at the concentration 28 μg/mL [46]. Two additional ribopyranosides, 13E-isomer of stelliferin riboside (76) and 3-O-deacetyl-13Z-stelliferin riboside (77), belonging to this series were isolated from another collection of R. globostellata. For their extremely high and selective activities against the mouse lymphoma L5178Y cancer cell line, the compound 76 was found to be more active than 77 with ED50 values of 0.22 and 2.4 nM, respectively [47].

The sponge Asteropus sp. (the family Ancorinidae) was used by Schmitz’s group to isolate a series of triterpene galactosides, pouosides A–E (7882) from the animals collected in Pou Bay of Truk Lagoon in 1979 [48]. It is of special interest that simultaneously they isolated sarasinosides from the same sponge [13]. Pouosides contain a new carbon skeleton of aglycones, arised from cyclization of squalene. This skeleton system is reminiscent of carotenoids of terminal cyclohexane rings linked by a symmetric acyclic chain. A cytotoxicity of pouoside A (78) was established [48].

Marinedrugs 10 01671 g010 200

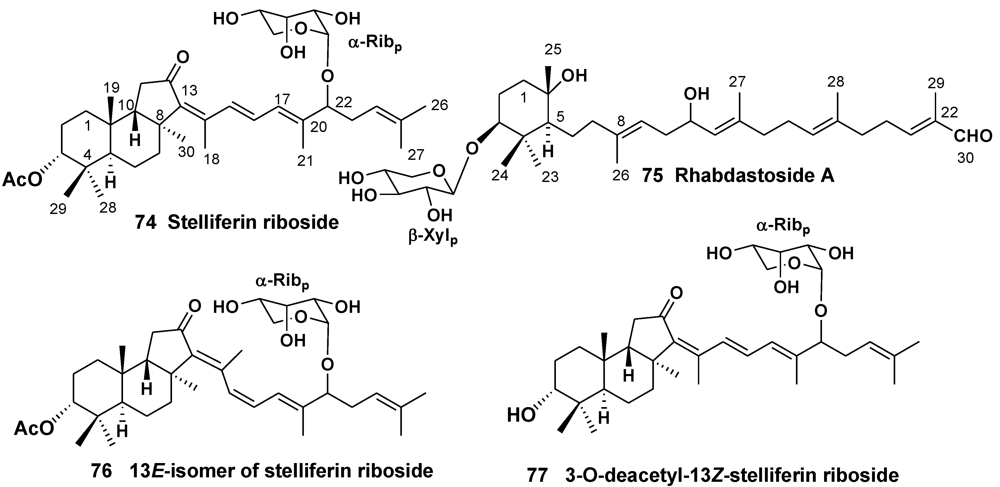

Chart 10. Isomalabarican triterpene glycosides from Geodia sp. and Rhabdastrella globostellata.

Click here to enlarge figure

Chart 10. Isomalabarican triterpene glycosides from Geodia sp. and Rhabdastrella globostellata.
Marinedrugs 10 01671 g010 1024

Recently, a Korean group has found the same class of compounds in the sponge Lipastrotethya sp. (the order Halichondrida, the family Dictyonellidae) collected in Micronesia along with previously known sarasinosides. In total, they isolated nine triterpenoids, pouosides F–I (8386) belonging to the same structural series (Chart 11) [49]. It was the unique report about the isolation of triterpene glycosides from a sponge, belonging to the order Halichondrida.

Absolute configurations of 8386 were established by Mosher’s method. Formulae of all the pousides were corrected in accordance with these data. Some pouosides, namely pouoside A and pouosides F–I, demonstrated strong or moderate cytotoxicities against the P-388 and K562 cell lines [48,49].

3.2. The Order Haplosclerida

The sponge Siphonochalina (=Callispongia)siphonella (the family Callispongiidae) inhabits different areas in the Red Sea. Squalene-derived triterpenes, having a new sipholane skeleton system (87) were first isolated from S. siphonella by Kashman et al. in 1981 and their structures were established using X-ray analysis [50]. About 20 compounds, having not only sipholane, but also close related siphonellane and neviotane skeleton systems were later reported [51,52]. These natural products and their semisynthetic analogs were evaluated for cytotoxicity and effect on reversing P-glycoprotein-mediated multidrug resistance to colchicin. Some of them increased the sensitivity of resistant KB-C2 cells to the cytotoxin [53]. In majority, triterpenoids of this series present in different collections of the sponge as non-glycosylated derivatives. However, several triterpene glycosides were also found. For example, sipholenosides A and B (88,89) were isolated from S. siphonochalina, collected from the Gulf of Eilat vs. Dahlak archipelago, Red Sea. The both glycosides are α-rhamnopyranosides [54]. The originally proposed absolute configuration of sipholenol A, a main triterpene of this series was corrected by the high-field NMR application of Mosher’s method [55], herein we give the corrected structures of 88, 89.

Marinedrugs 10 01671 g011 200

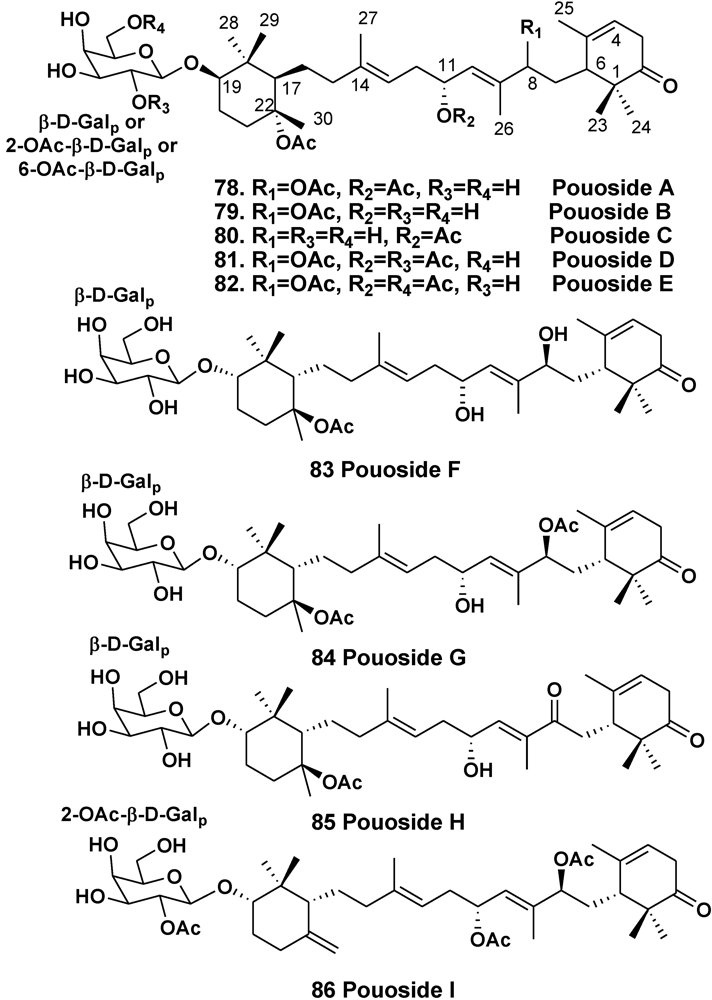

Chart 11. Pouosides from Lipastrotethya sp.

Click here to enlarge figure

Chart 11. Pouosides from Lipastrotethya sp.
Marinedrugs 10 01671 g011 1024

Sipholane derivatives belong to an interesting group of triterpenoids, which attract attention not only by their structural diversity (Chart 12), but also by strong biological activities [52].

Marinedrugs 10 01671 g012 200

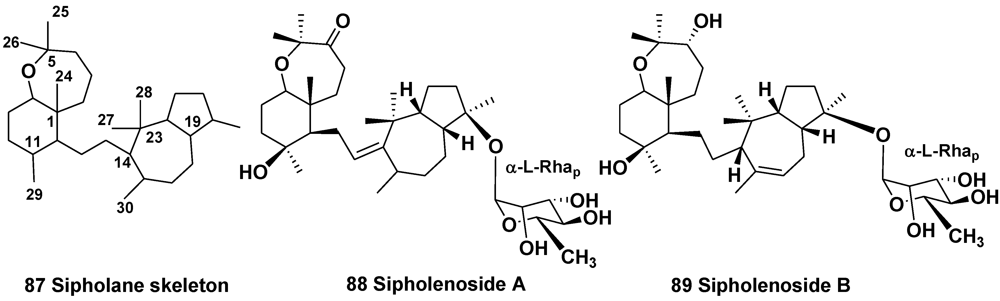

Chart 12. Sipholenosides from Siphonochalina (=Callispongia) siphonella.

Click here to enlarge figure

Chart 12. Sipholenosides from Siphonochalina (=Callispongia) siphonella.
Marinedrugs 10 01671 g012 1024

Sipholanes comprise two separate cyclic systems, obtained by two proton-initiated cyclizations from triepoxysqualenes. The precursor, suggested for their biosynthesis is (2,3S,6S,7S,18S,19S)-triepoxysqualene (91) (Scheme 1).

Marinedrugs 10 01671 g029 200

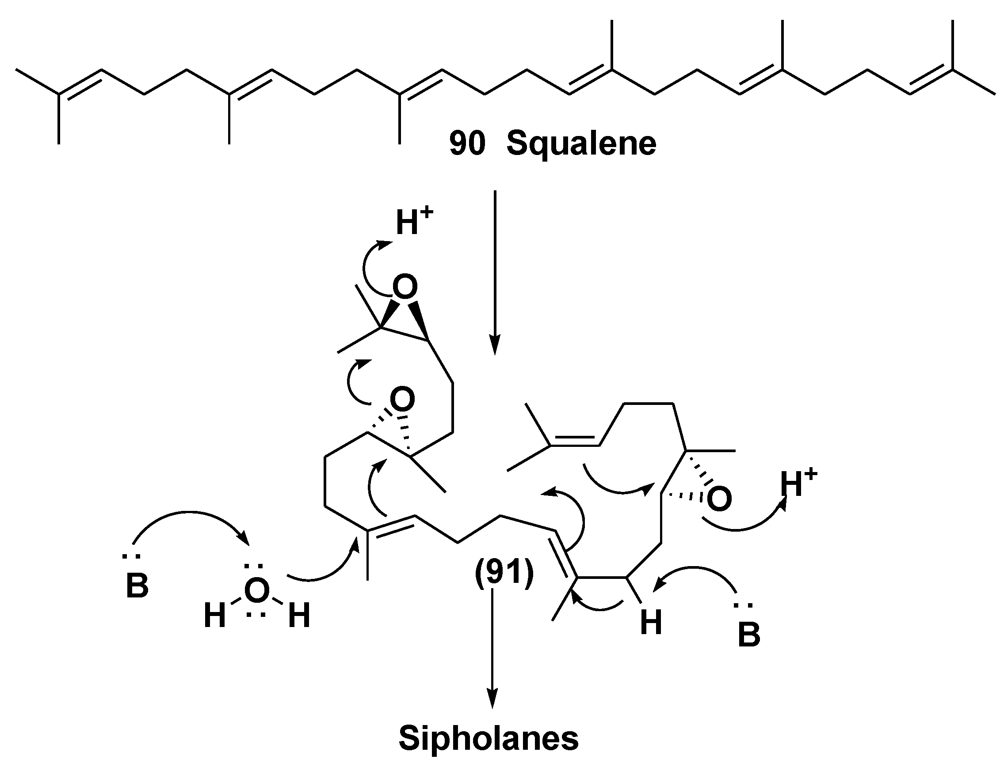

Scheme 1. Biogenesis of sipholane triterpenoids.

Click here to enlarge figure

Scheme 1. Biogenesis of sipholane triterpenoids.
Marinedrugs 10 01671 g029 1024

The sponge Xestospongia (=Neopetrosia) vanilla (the suborder Petrosina, the family Petrosiidae) inhabits underwater areas near the Californian coast-line (Canada and USA). Two first triterpene glycosides, xestovanin A and secoxestovanin A (92, 93) with new skeleton systems were found in X. vanilla by Northcote and Andersen in 1989 [56]. Aglycone moiety in 92 is formed by unusual 11,15- and 9,17-squalene cyclizations. Both xestovanin A and secoxestovanin A belong to triterpene biosides and contain carbohydrate chains with 1,2-bonded D-fucose and L-rhamnose (Chart 13). Xestovanin A (92) shows antifungal activity against Phytium ultimum. Later, the same group of scientists reported the isolation and structure elucidation of 7 new related glycosides (94100) (Chart 14 and Chart 15). The aglycone of isoxestovanin A (94) has a new triterpene carbon skeleton, named isoxestovanine. Xestovanins B, C and dehydroxestovanin C (95, 96, 99) are triosides, containing two L-rhamnose and D-fucose residues in their carbohydrate moieties [57].

Marinedrugs 10 01671 g013 200

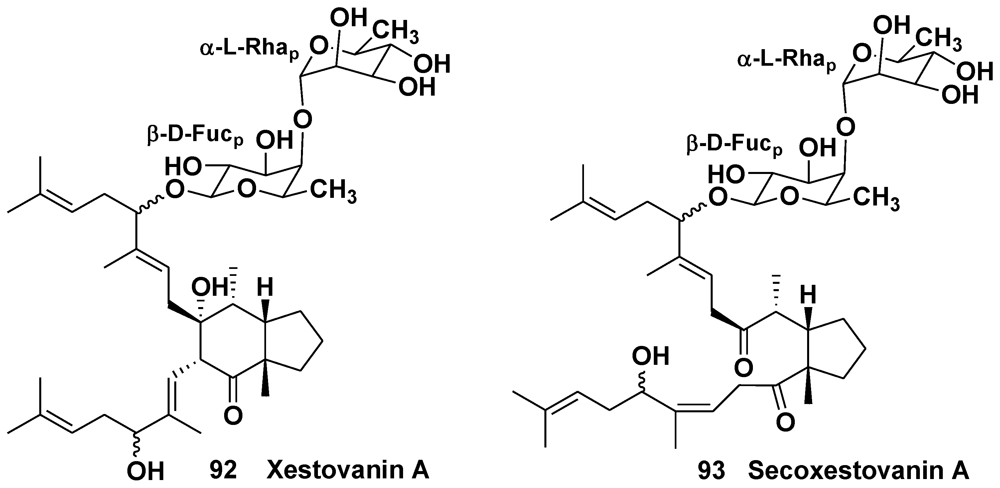

Chart 13. Xestovanin A and secoxestovanin A from Xestospongia (=Neopetrosia) vanilla.

Click here to enlarge figure

Chart 13. Xestovanin A and secoxestovanin A from Xestospongia (=Neopetrosia) vanilla.
Marinedrugs 10 01671 g013 1024
Marinedrugs 10 01671 g014 200

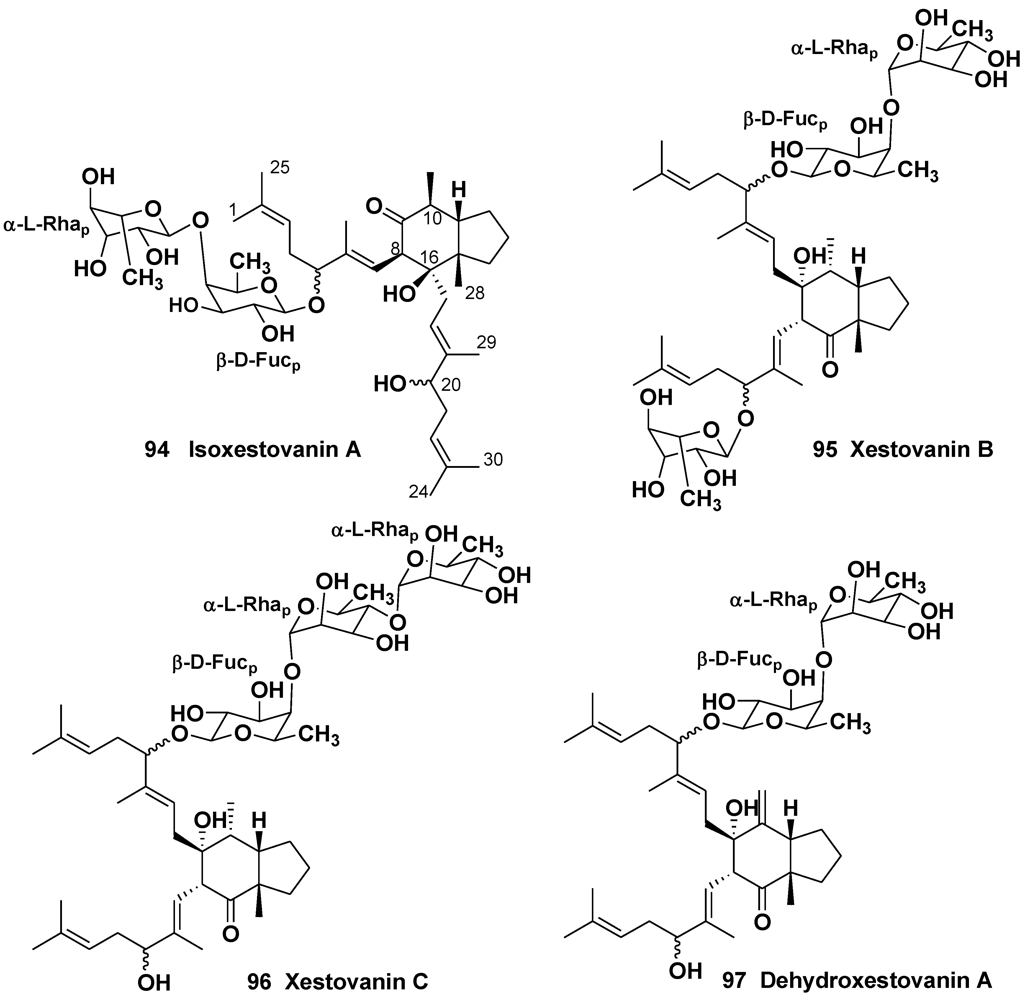

Chart 14. Isoxestovanin A, xestovanins B and C and dehydroxestovanin A from Xestospongia (=Neopetrosia) vanilla.

Click here to enlarge figure

Chart 14. Isoxestovanin A, xestovanins B and C and dehydroxestovanin A from Xestospongia (=Neopetrosia) vanilla.
Marinedrugs 10 01671 g014 1024
Marinedrugs 10 01671 g015 200

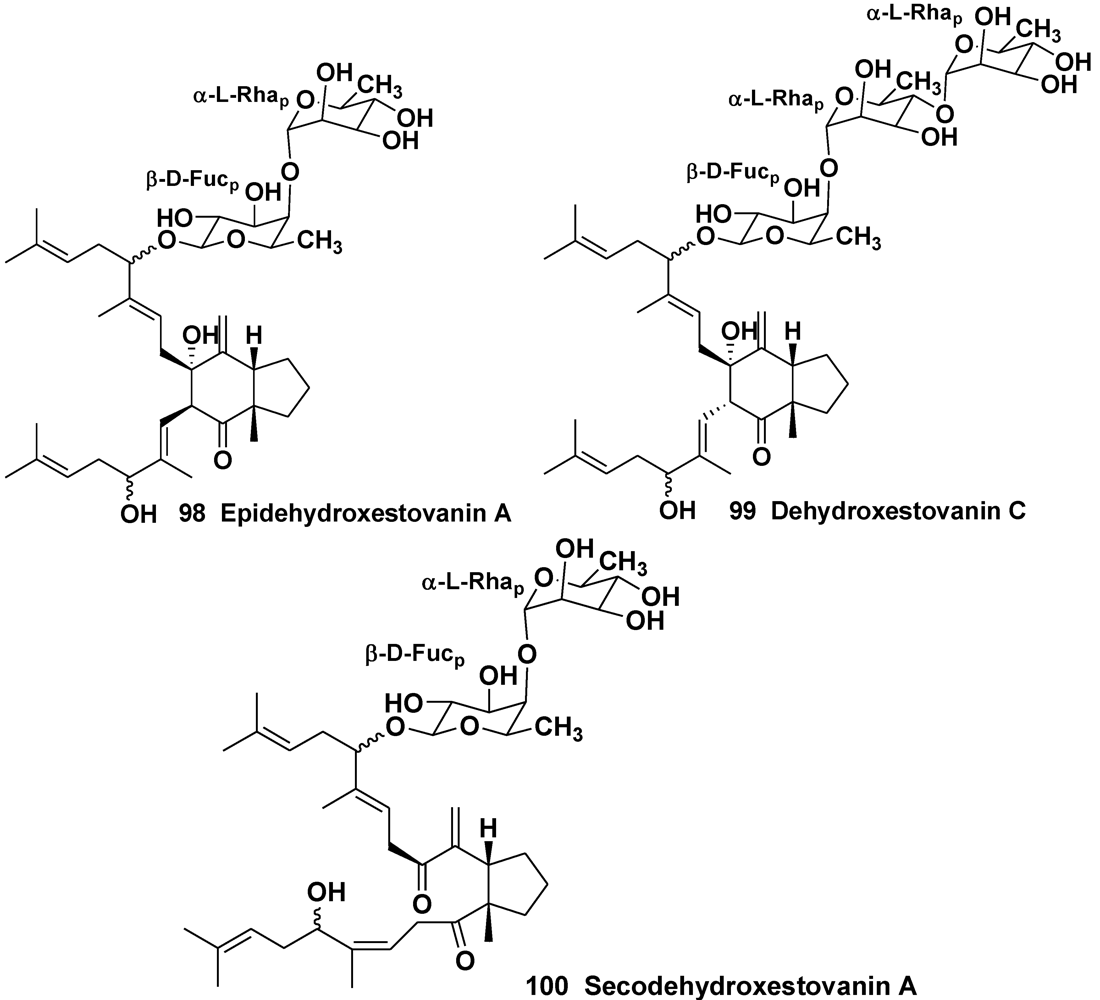

Chart 15. Epidehydroxestovanin A, dehydroxestovanin C and secodehydroxestovanin A from Xestospongia (=Neopetrosia) vanilla.

Click here to enlarge figure

Chart 15. Epidehydroxestovanin A, dehydroxestovanin C and secodehydroxestovanin A from Xestospongia (=Neopetrosia) vanilla.
Marinedrugs 10 01671 g015 1024

4. Steroid Glycosides from Sponges

Sponge steroid glycosides are becoming a growing group of natural products at the last years. Many of them are interesting in both their structural diversity and biological properties.

4.1. The order Astrophorida

A steroidal bioside pachastrelloside A (101) from the sponge Pachastrella sp. (the family Pachastrellidae) induces the formation of multinucleated, unicellular embryos at the action on fertilized eggs of sea urchins. Pachastrelloside A has the sterol aglycone, oxidized in the rings A and B, with two monosaccharide residues (D-galactopyranosyl and 4-O-acetyl-β-D-xylopyranosyl) linked to C-4 and C-8 of its aglycone [58].

A Korean two-sponge symbiotic association was also studied. This association was composed of Poecillastra wondoensis (the family Vulcanellidae) and Jaspis wondoensis (the family Jaspidae): the upper part is P. wondoensis and the underpart is J. wondoensis. The sponge was collected at a depth of 15 m off Cheju Island, South Korea. Three steroidal glycosides, wondosterols A–C (102104) were isolated and their stereostructures were elucidated on the basis of NMR spectroscopic analysis with application of Mosher’s method. Structures of 102104 proved to be closely related to that of 101, although 102104 contain only one carbohydrate chain linked to C-4 in contrast with 101 (Chart 16).Their carbohydrate moieties consist of D-galactose and D-xylose [59].

The Caribbean sponge Pandaros acanthifolium from the family Microcionidae was collected at the Canyon rock off the Martinique. The studies on the chemical composition of the sponge led to the isolation of a series of new steroid glycosides, named pandarosides. Pandarosides A–D (105108) were structurally identified as glycosides, containing unusual sterol aglycones with a rare cis-C/D ring junction, oxidized in ring D and side chains.

Marinedrugs 10 01671 g016 200

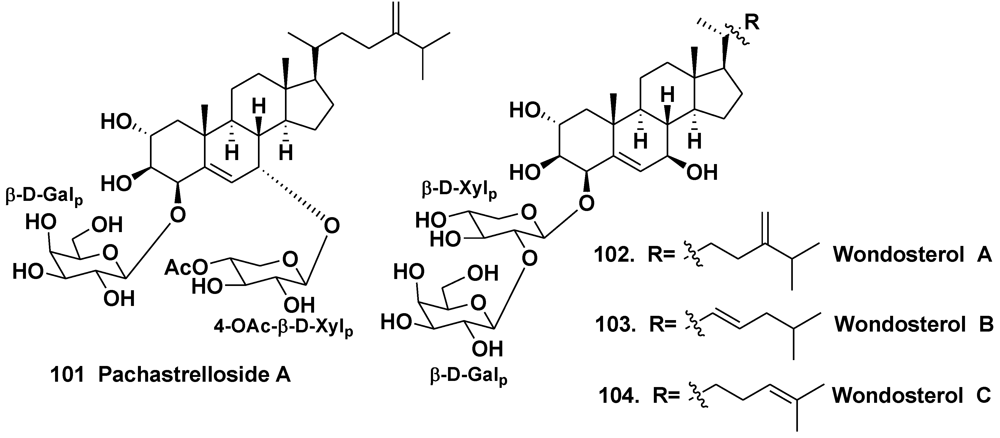

Chart 16. Pachastrelloside A and wondosterols A–C from a two sponge association.

Click here to enlarge figure

Chart 16. Pachastrelloside A and wondosterols A–C from a two sponge association.
Marinedrugs 10 01671 g016 1024

Their carbohydrate moieties consist of D-glucose and D-glucuronic acids or D-glucuronic acid only at C-3 of the aglycone (Chart 17).

Methyl esters (105a, 107a and 108a) of pandarosides were also isolated. Absolute configuration of an aglycone part of 105 was established by comparison between calculated and experimental circular dichroism spectra [60]. After the isolation of additional steroidal glycosides, pandarosides E–J (109114) and their methyl esters (109a, 111a114a), it was shown that the majority of pandarosides exhibit in vitro activity against three of four tested parasitic protozoa. Pandaroside G (111) and its methyl ester (111a) are potent inhibitors of the growth of Trypanosoma brucei rhodesiense (IC50 of 0.78 and 0.038 μM, respectively) and Leishmania donovani (IC50 of 1.3 and 0.051 μM, respectively) [61]. Finally, pandarosides K–M (115117) and methyl esters (115a116a) were also isolated as minor components after careful chemical reinvestigation of the same species [62]. However, pandarosides K–M did not show strong antiprotozoal activities in contrast with pandaroside G.

Other steroid glycosides from the same sponge were named as acanthifoliosides A–F (118123). Acanthifoliosides are structurally related to pandarosides steroid saponins, but they contain common steroid nuclei with trans-junction of rings C and D. Like aglycones of pandarosides, aglycones of 118123 were oxidized in the ring D. Carbohydrate chains of the glycosides is linked to C-15 (in compounds 118120) or to C-16 of aglycone moieties (in compounds 121123). Acanthifoliosides A–C (118120) were proved to be mono-β-D-xylopyranosides, acanthifoliosides D and E (121122) are mono-α-L-rhamnopyranosides, while acanthifolioside F (123) contains a branched trioside carbohydrate chain (Chart 18). Acanthiofoliosides exhibit moderate antiprotozoal activities [63].

There is an evident structural similarity between glycosides from P. acanthifolium and steroid glycosides from starfish, because oxidation in positions 15, 16 and 23 is frequently encountered in both these groups of natural products [7,8,9].

For the first time, steroid oligoglycosides similar to asterosaponins by containing several sugar units were found in a sponge, belonging to the genera Mycale (the family Mycalidae) by our group in 1981 [64]. However, successful separation of very complicated glycoside fractions from the sponge was not achieved in that time. Twenty years later, steroid oligoglycoside mycaloside A (124) was obtained from the Caribbean sponge Mycale laxissima as individual compound [65].

Marinedrugs 10 01671 g017 200

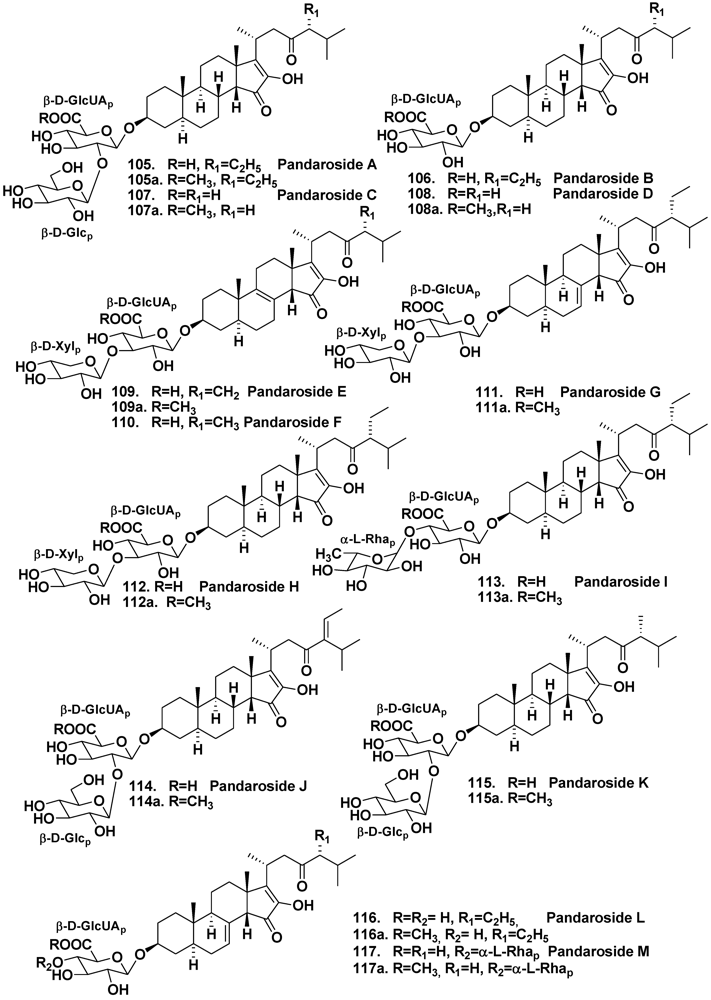

Chart 17. Pandarosides from Pandaros acanthifolium.

Click here to enlarge figure

Chart 17. Pandarosides from Pandaros acanthifolium.
Marinedrugs 10 01671 g017 1024
Marinedrugs 10 01671 g018 200

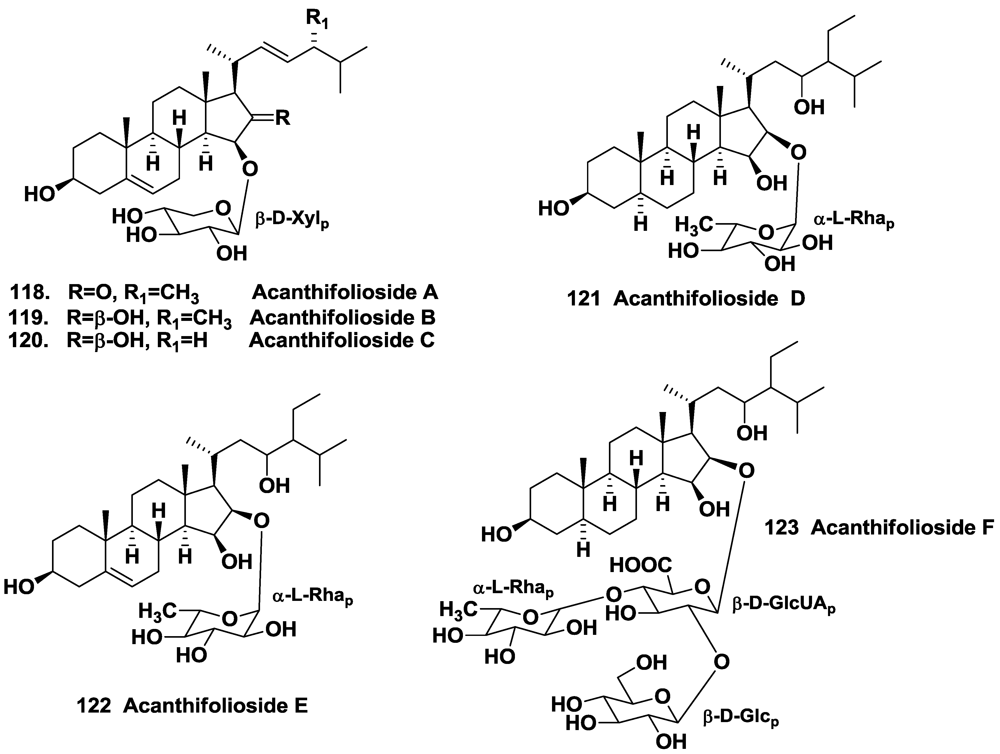

Chart 18. Acanthifoliosides from Pandaros acanthifolium.

Click here to enlarge figure

Chart 18. Acanthifoliosides from Pandaros acanthifolium.
Marinedrugs 10 01671 g018 1024

In subsequent papers, structures and isolation of related mycalosides B–K (125134) were reported [66,67]. All the glycosides are tetraosides containing the same architecture of carbohydrate chains, consisting of two D-galactopyranose, one D-glucopyranose, and one D-arabinopyranose residues. Their steroid aglycones are sterol derivatives, oxidized in rings A, D, and in side chains. Mycalosides B (125) and C (126) were shown to be 27- and 28-nor derivatives of (124), respectively. Mycaloside D (127) differs from 124 only in the presence of an additional acetyl group in the carbohydrate moiety. Mycaloside E (128) was structurally identified as a 28-nor-4-deoxy derivative of 124. Mycalosides F–H (129131), differing from each other in structures of their side chains and nonacetylated (130, 131) or acetylated (129) tetrasaccharide carbohydrate moieties, have new 5(6)-unsaturated 3β,4β,21-trihydroxy-15-keto-steroidal aglycons. Mycaloside I (132) is a tetraoside of a new 7,24(28)-diunsaturated 3β,15β,29-trihydroxystigmastane aglycon. Mycaloside J (133) contains a new aglycone, differing from that of 126 in the absence of hydroxy group at C-4. Mycaloside K (134) is an epimer of 127 at C-24 (Chart 19). The total fraction of the mycalosides as well as purified mycalosides A (124) and G (130) inhibit the fertilization of eggs by sperm of the sea urchin Strongylocentrotus nudus preincubated with these compounds [66].

The sponge Cribrochalina olemda belongs to the family Niphatidae and inhabits tropical waters of Indo-Pacific area. Hapaioside (135) from the sponge, collected from a depth of 40 m, Micronesia, contains an unusual aglycone that resembles some steroid hormones by its polycyclic nucleus and has 4-hydroxy-6-oxo-19-norpregnane skeleton. Its sugar was identified as 6-deoxy-β-L-altropyranose-4-acetate [68]. The sugar was earlier reported as constituent of a lipopolysaccharide isolated from mammalian intestinal microorganisms.

Marinedrugs 10 01671 g019 200

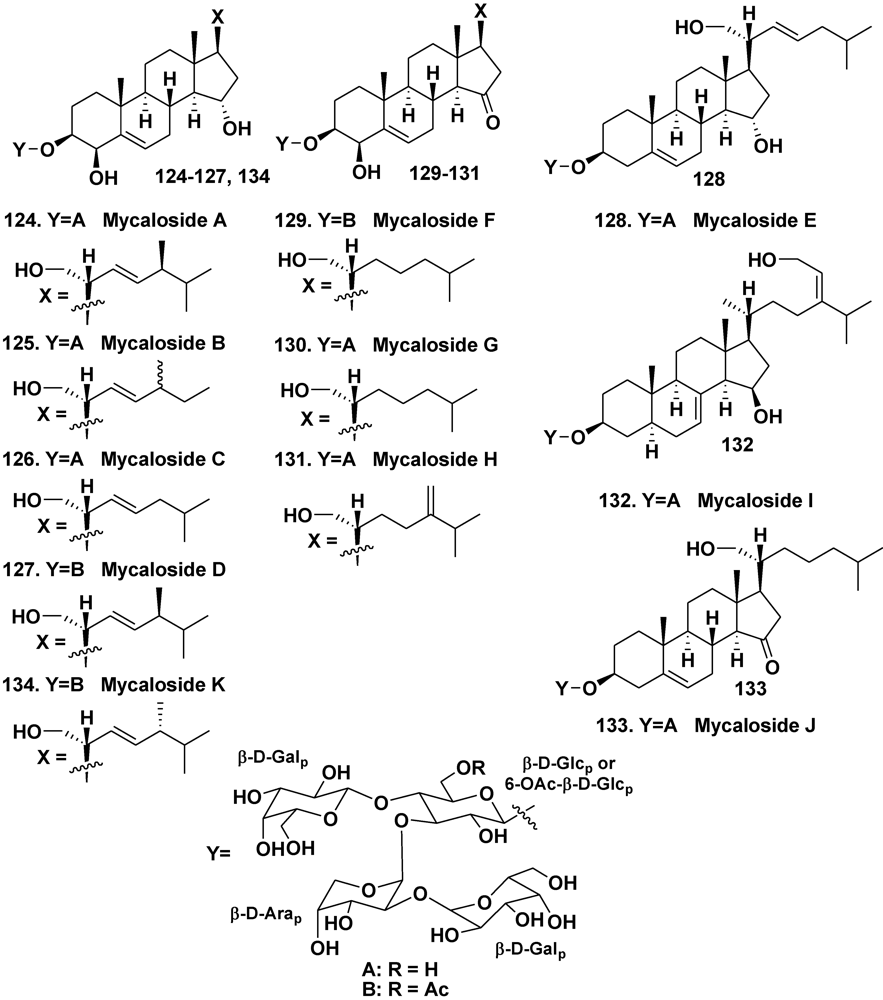

Chart 19. Mycalosides from Mycale laxissima.

Click here to enlarge figure

Chart 19. Mycalosides from Mycale laxissima.
Marinedrugs 10 01671 g019 1024

4.2. The Order Halichondrida

The sponge Ptilocaulis spiculifer belongs to the family Axinellidae and inhabits the same area as C. olemda. Ptilocaulis spiculifer contains sulfated polyhydroxysteroids as characteristic secondary metabolites. Pregnane glycosides, ptilosaponosides A (136) and B (137), along with above-mentioned sulfated natural products were isolated from the sponge collected near the Solomon Islands (Chart 20). They contain β-glucose-3-sulfate as a carbohydrate moiety and have highly oxidized the ring A. These substances also have additional sulfate in the aglycones. Glycosides 136 and 137 do not show a cytotoxicity against human tumor KB cells [69]. Ptilosaponosides are exclusive steroid glycosides found in the order Halichondriidae, but not Astrophorida or Poecilosclerida.

Marinedrugs 10 01671 g020 200

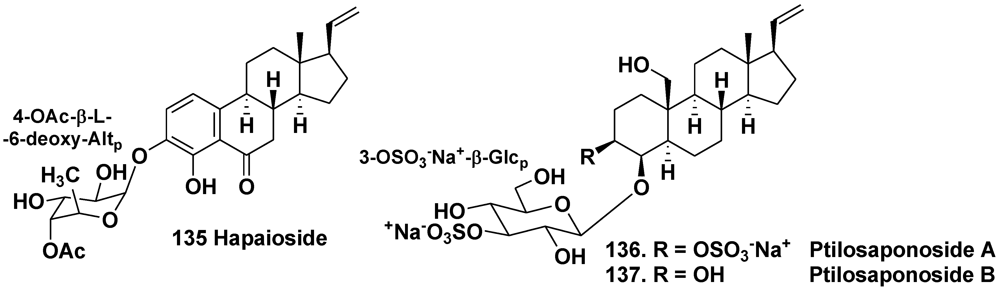

Chart 20. Hapaioside andptilosaponosides from Ptilocaulis spiculifer.

Click here to enlarge figure

Chart 20. Hapaioside andptilosaponosides from Ptilocaulis spiculifer.
Marinedrugs 10 01671 g020 1024

Thus, steroid glycosides from sponges are an interesting group of natural products. Some of them demonstrate a promising antiprotozoal action and other biological activities.

5. Glycosides of Non-Isoprenoid Aglycones

Unusual glycosides with non-isoprenoid aglycones, which do not belong to classical glyceroglycolipids and sphingolipids were isolated from extracts of some sponges.

5.1. “Atypical” Glycolipids

5.1.1. The Order Astrophorida

The Caribbean sponge Caminus sphaeroconia, from the family Geodiidae, was collected from the depth of 10 m, Toucari Caves, Dominica. As result of a screening program aimed at the search for inhibitors of the bacterial type III secretion, new unusual glycolipids, caminosides A–D (138141) were found in extracts of C. spaeroconia [70,71]. Caminosides form inseparable mixtures of bioactive glycolipids that have the same tetrasaccharide chain, but differ from each other in acylation level. After acetylation of obtained subfractions of the glycolipids, pure peracetates of caminosides A, C, and D (138a, 140a, 141a) were isolated using HPLC (Chart 21). For caminoside B (139), separation of a crude subfraction by reverse phase HPLC was sufficient to obtain a pure compound without derivatization. Their carbohydrate chains consist of two D-glucopyranose, one L-quinovopyranose and one 6-deoxy-D-talopyranose carbohydrate units. Middle glucose residue is fully substituted. 6-Deoxytalose and L-quinovose are rare in nature. Monosaccharide units are partly acylated. Aglycone is nonadecane derivative oxidized at C-2 and C-10. Stereogenic center at C-10 has recently been shown to have the R configuration by a new approach to stereochemical assignment in acyclic lipids named as liposomal exciton-coupling circular dichroism [72]. It is known, that enteropathogenic strains of Escherichia coli, responsible for thousands of infant deaths a year, have a specific type III secretion system providing excretion of proteins involved in the construction of a translocation tube between the cytoplasm of the bacterium and the membrane of the host cells. Caminosides A (138) and D (141) inhibit the excretion and show antimicrobial activities in vitro. For example, the compound 138 inhibited the methicillin resistant Staphylococcus aureus and vancomycin resistant Enterococcus with MIC of 12 μg/mL in the both cases [70]. Later, total syntheses of 138 and 139 were reported [73,74].

Marinedrugs 10 01671 g021 200

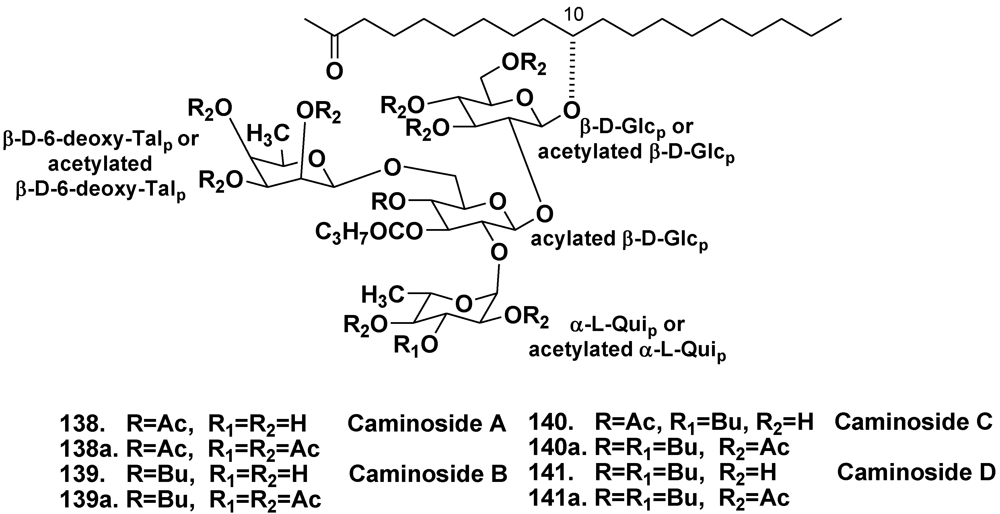

Chart 21. Caminosides from Caminus sphaeroconia.

Click here to enlarge figure

Chart 21. Caminosides from Caminus sphaeroconia.
Marinedrugs 10 01671 g021 1024

The sponge Pachymatisma johnstonia belongs to the same family Geodiidae as Caminus spaeroconia. Crude extracts of the North Sea collection of P. johnstonia also showed a promising activity in an assay for inhibitors of bacterial type III secretion. Glycolipids, responsible for the activity were named as pachymosides. Pachymoside A (142), a main glycolipid constituent, contains a hydroxylated C28 fatty acid derivative as aglycone and hexasaccharide carbohydrate chain, consisting of D-glucopyranose and D-galactopyranose residues with eight acetate groups. All of the metabolites with these variations in acetylation pattern were converted into the same peracetyl-pachymoside methyl ester (142a) for purification and spectroscopic analysis (Chart 22) [75].

Marinedrugs 10 01671 g022 200

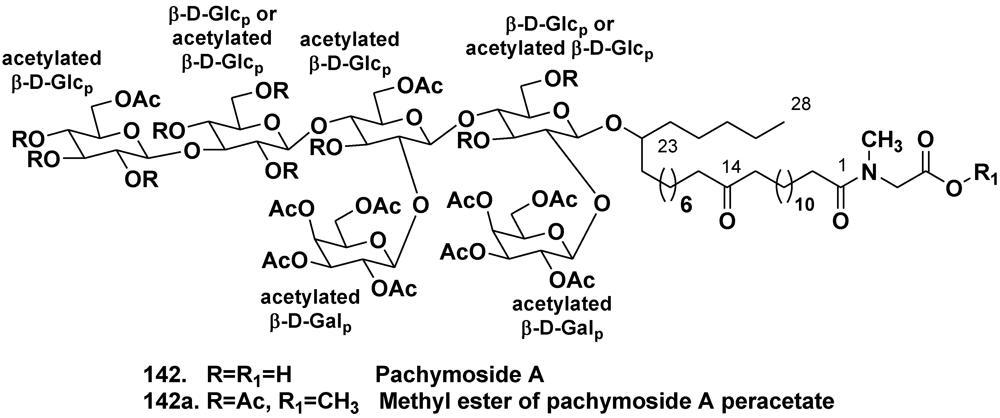

Chart 22. Pachymoside A from Pachymatisma johnstonia and its methyl ether.

Click here to enlarge figure

Chart 22. Pachymoside A from Pachymatisma johnstonia and its methyl ether.
Marinedrugs 10 01671 g022 1024

5.1.2. The Order Poecilosclerida

New “atypical” glycolipids, simplexides of general formula (143) were isolated from the marine sponge Plakortis simplex (the family Plakiniidae) and their structures were determined by spectroscopic data with application of microgram-scale chemical degradation. Simplexides are composed of long-chain secondary alcohols and a disaccharide chain consisting of glucose and galactose, and represent a new structural kind of glycolipids. Simplexides strongly inhibit proliferation of activated T-cells by a non-cytotoxic mechanism. When tested on murine immune-system T-cells stimulated with concanavalin-A, they caused a 43% proliferation inhibition at a concentration as low as 10 ng/mL and 79% inhibition at 100 ng/mL. It was suggested that these compounds can be regarded as simple model molecules for designing immunosuppressive drugs (Chart 23) [76].

Marinedrugs 10 01671 g023 200

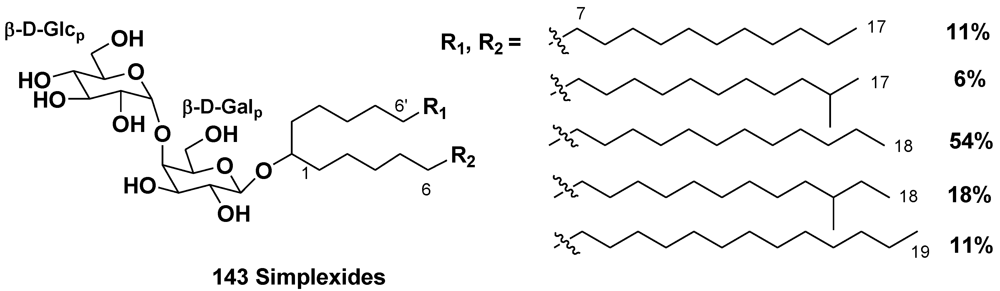

Chart 23. Simplexides from Plakortis simplex.

Click here to enlarge figure

Chart 23. Simplexides from Plakortis simplex.
Marinedrugs 10 01671 g023 1024

5.1.3. The Order Agelasida

Two families of unique glycolipids, clathrosides A–C (144146) and isoclathrosides A–C (147149) were isolated from the Caribbean Sponge Agelas clathroides (the family Agelasidae, Grand Bahamas Island). Clathroides and isoclathrosides were proved to be glycosides of a very-long-chain alcohol derived from fatty acids (Chart 24). The six compounds differ from each other in configuration and in the branching of alkyl chains. Location of the methyl branch on the proper alkyl chain was difficult and required an exceptional 1D TOCSY experiment, in which coherence was transferred through as many as 13 vicinal couplings. Actions of clathroside A (144) and isoclathroside A (147) on immune system were assayed, but the compounds did not show any significant activity [77].

Marinedrugs 10 01671 g024 200

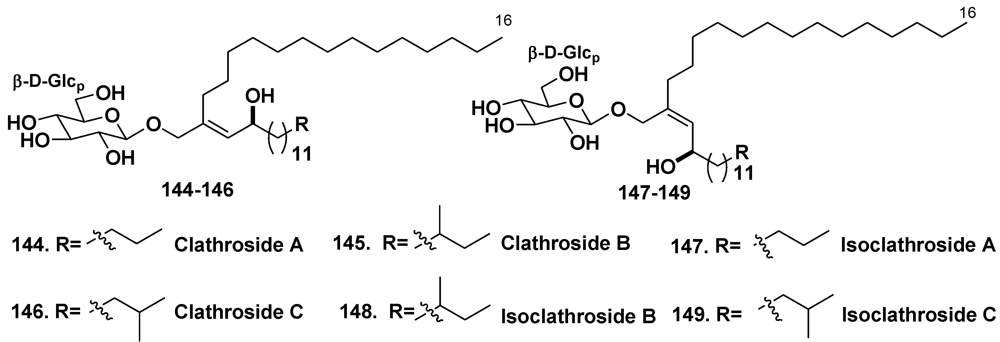

Chart 24. Clathrosides and isoclathrosides from Agelas clathroides.

Click here to enlarge figure

Chart 24. Clathrosides and isoclathrosides from Agelas clathroides.
Marinedrugs 10 01671 g024 1024

5.2. Glycosides of Macrolides

5.2.1. The Order Astrophorida

The sponge Myriastra clavosa from the Philippines belongs to the family Ancornidae and contains symmetric and asymmetric dimeric macrolides, clavosolides A and B (150, 151). The both glycosides are bis-methoxylated-β-D-xylopyranosides, not related to any known sponge metabolites. Taking into consideration the presence of a high concentration of cyanobacterial cells in the sponge, it was suggested that clavosolides might be of cyanobacterial origin [78]. Simultaneous study led to isolation of closely related clavosolides C and D (152, 153), dimeric macrolides incorporating cyclopropyl, tetrahydropyranyl, and glycosidic ring systems, but having a difference in one of monosaccharide moieties (Chart 25) [79].

Marinedrugs 10 01671 g025 200

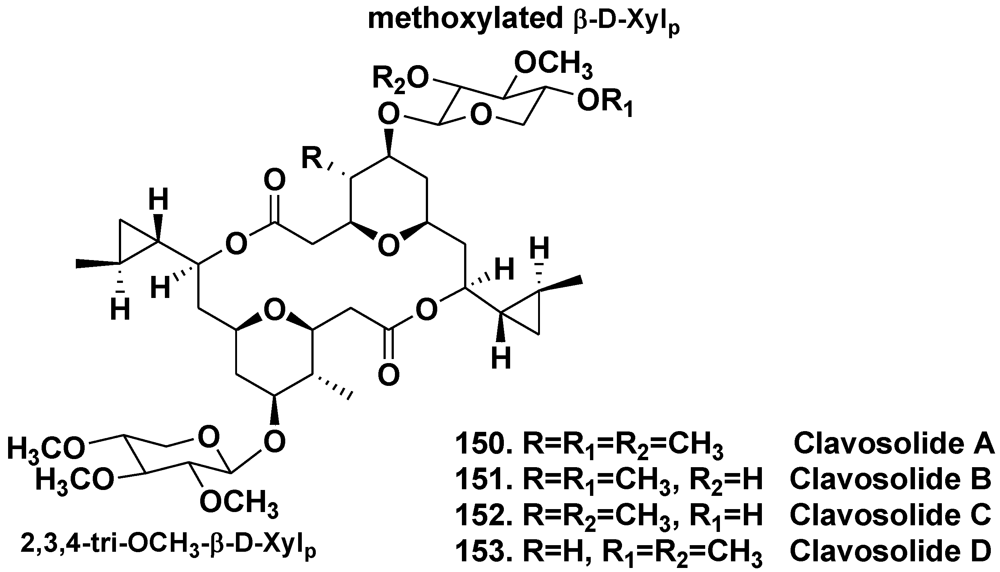

Chart 25. Clavosolides from Myriastra clavosa.

Click here to enlarge figure

Chart 25. Clavosolides from Myriastra clavosa.
Marinedrugs 10 01671 g025 1024

5.2.2. The Order Poecilosclerida

Two novel chlorinated glycosides, latrunculinosides A and B (154, 155) from the sponge Latrunculia corticata (the family Latrunculidae) collected off the Gulf of Aqaba, Israel, contain the substituted 2-oxecanones as aglycones and unusual monosaccharides β-D-olivose, β-L-digitoxose, α-L-amicetose, and β-D-oliose (Chart 26). Latrunculinosides were active as antifeedants at concentrations of 10–100 μg/mL in aquarium assays with goldfish (Carassius auratus) [80]. This was the first case of finding the glycosides with sugars characteristic of cardiac glycosides in sponges.

5.3. Bipolar Glycolipids

5.3.1. The Order Haplosclerida

Containing a β-glycoside moiety two-headed (or bipolar) glycolipids from sponges represent a group of unprecedented bis-α,ω-amino alcohol derivatives. Polar heads in these compounds resemble that of sphingoid bases, but one or the both terminal oxymethyl groups in them are replaced by methyl group.

Marinedrugs 10 01671 g026 200

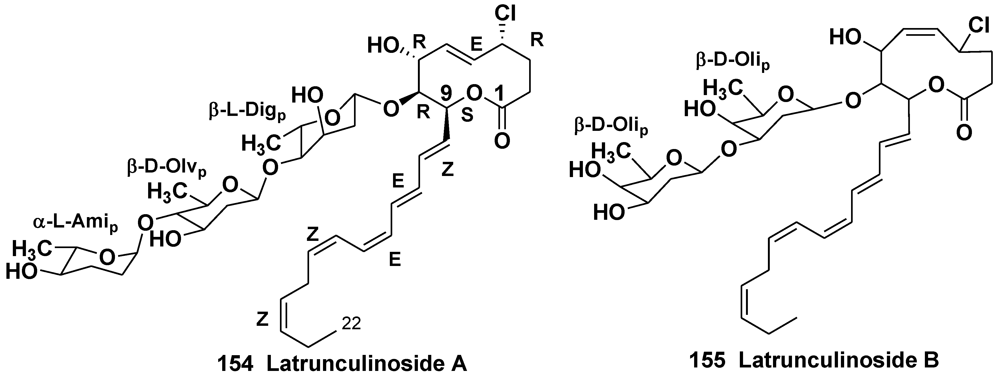

Chart 26. Latranculinosides from Latrunculia corticata.

Click here to enlarge figure

Chart 26. Latranculinosides from Latrunculia corticata.
Marinedrugs 10 01671 g026 1024

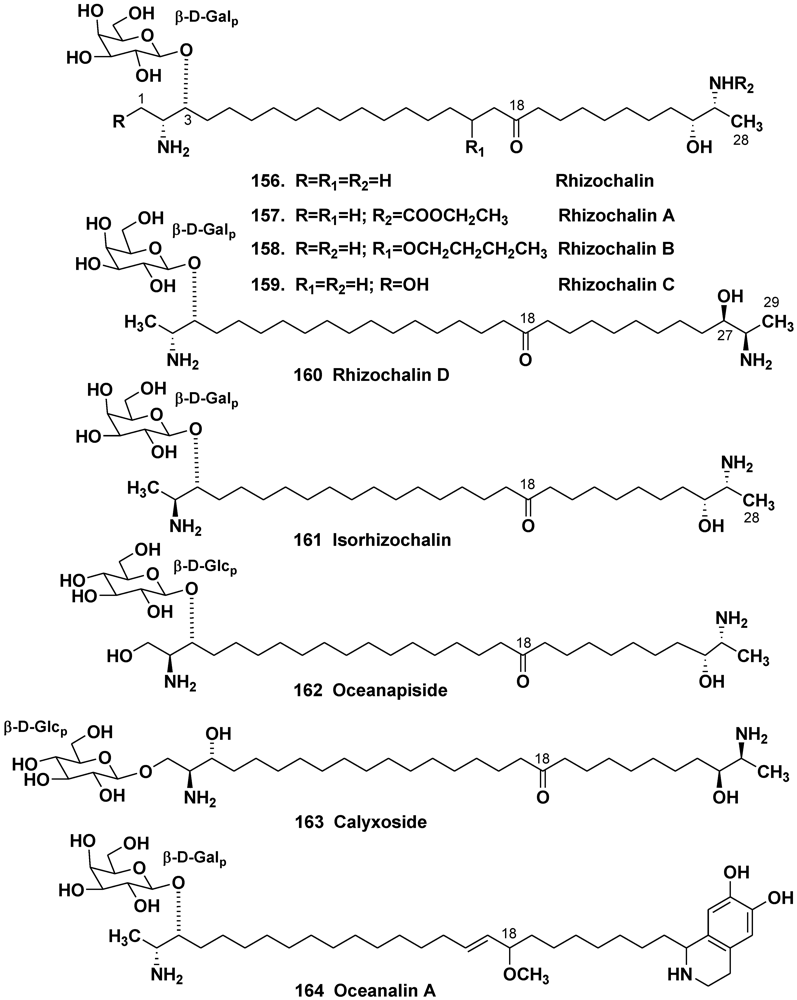

The first representative of this unprecedented group, rhizochalin (156) was isolated by our group from the marine sponges Rhizochalina (=Oceanapia) incrustata collected off Madagascar in 1989 [81]. Oceanapia spp. (=Rhizochalina spp.) belongs to the family Phloeodictyidae. Later, a close related rhizochalin A (157) with rare N-alkyl carbamoyl group was found in the same sponge [82]. Rhizochalin B (158) with an additional butyloxy group was isolated from the close related sponge Oceanapia sp., collected off the North-Western Australian coast [83]. Further studies on R. incrustata led to the isolation of rhizochalin C (159) with a polar head, containing oxymethyl group instead of methyls, along with rhizochalin D (160), containing an odd-numbered C29 hydrocarbon chain instead of C28 that was found in other members of this series [84].

Absolute stereochemistry of asymmetric centers in 156 [85] and related compounds [84] as 2R,3R,26R,27R (for 160 as 2R,3R,27R,28R) was established by application of a CD method based on superposition of additive exciton couplings in perbenzoyl derivatives of bis-amino alcohols. Absolute stereochemistry at C-2 and C-27 in rhizochalin and related compounds are antipathic in comparison with those in polar heads of sphingolipids, in which erythro-configuration takes a place. It was proposed that biosynthesis of terminal polar groups in rhizochalin might be realized via condensation of acyloyl CoA and alanine with loss of CO2 and reduction of carbonyl groups on both ends of the molecule. In this case, D-alanine should be employed as a precursor of 156 with retention of configuration at the C-2 and C-27 centers. Isolation of minor isorhizochalin (161) [86], an unprecedented epimer of 156 with erythro configuration at the glycosylated 2-amino-3-alkanol α-terminus and threo configuration on ω-terminus, suggest that α-terminus in this compound may be biosynthesized from L-alanine, while ω-terminus from D-alanine. D-Alanine may be originated from a host-derived epimerase or a symbiotic bacterium in the sponge (Chart 27) [86].

Another related bipolar glycosylated lipid, oceanapiside (162), was isolated from the sponge Oceanapia phillipensis [87]. Its absolute stereochemistry was established as a result of elaboration of a general CD method [88] that allowed the simultaneous determination of the local absolute configuration at each of the termini of the long chain bis-aminolipids. Like isorhizochalin, the compound 162 was also suggested to be a product of enantiodivergent biosynthesis [88]. The same method [88] was applied also at structural study on another member of the same series, calyxoside (163) from the sponge Calyx sp. [89]. Two-headed β-glycoside oceanalin A (164), a unique natural compound of hybrid alkaloidal sphingolipid, was also isolated from the marine sponge Oceanapia sp. [90]. The remarkable finding associated to oceanalin A structure was the discovery of unprecedented confluence of sphingolipid and isoquinoline pathways in marine natural product biosyntheses.

Marinedrugs 10 01671 g027 200
Chart 27. Bipolar glycosidlated lipids from Oceanapia (=Rhizochalina) spp.

Click here to enlarge figure

Chart 27. Bipolar glycosidlated lipids from Oceanapia (=Rhizochalina) spp.
Marinedrugs 10 01671 g027 1024

As result of the studies on biological properties of these bipolar glycosides, antibacterial activity against Staphylococcus aureus, cytotoxic activity against mouse Ehrlich carcinoma cells [81], antifungal activity against the pathogenic fluconazole-resistant yeast Candida glabrata [87,90], selective DNA-damaging action [89], anticarcinogenic [91], and proapoptotic properties [91,92,93] at their micromolar concentration were indicated.

5.3.2. The Order Astrophorida

Unprecedented bipolar lipids from the Japanese specimen of the sponge Erylus placenta (the family Geodiidae) were named as erylusamines A–E (165169). Unusual structural features of these compounds include two polar termini of molecules: one end linked with tetrasaccharide moiety and another one, bearing substituted cadaverine moiety. It was shown that erylusamines are potent IL-6 receptor antagonists (Chart 28) [94,95].

Marinedrugs 10 01671 g028 200

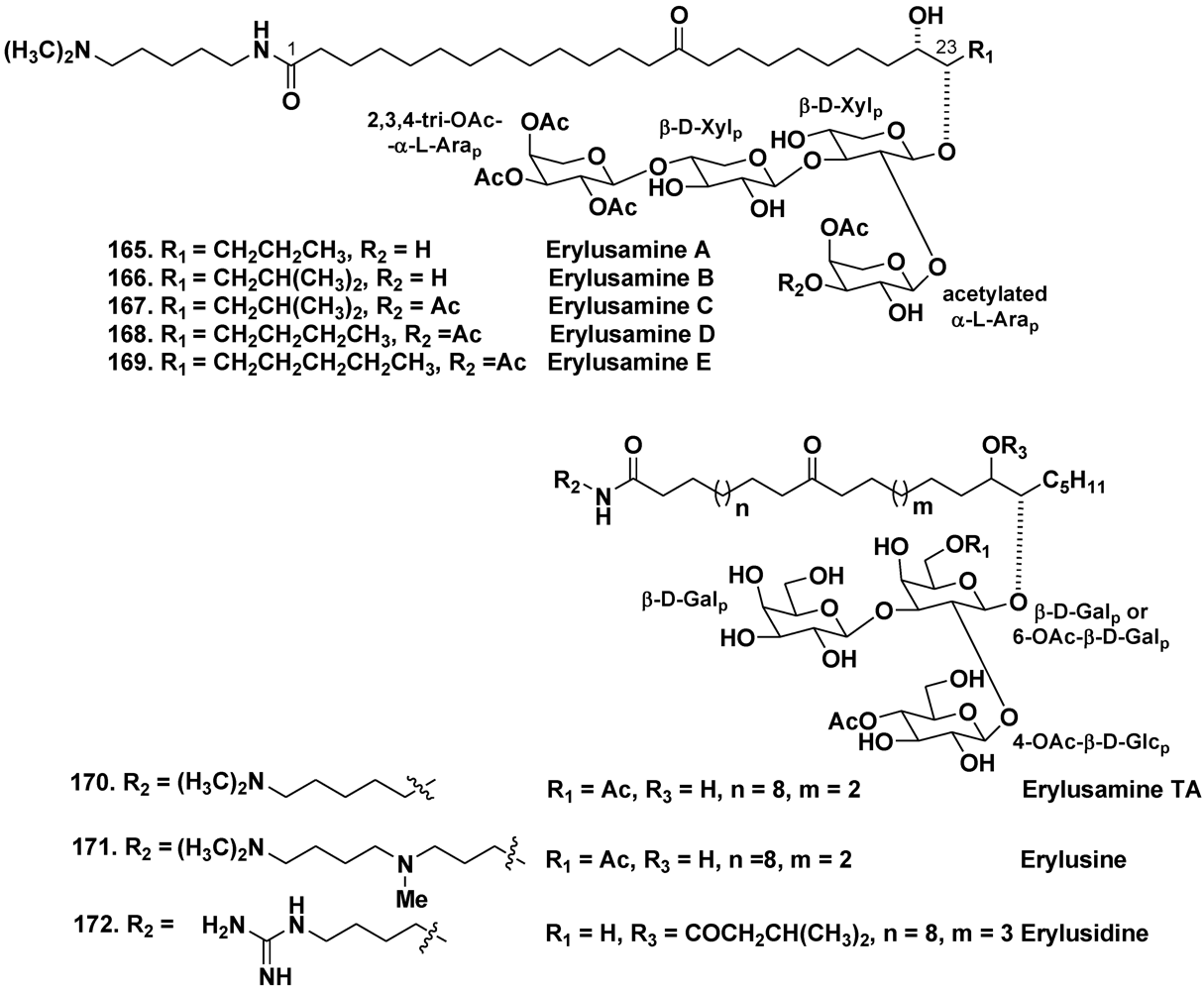

Chart 28. Erylusamins from Erylus placenta, erulisine and erulisidine from Erylus cf. lendenfeldi.

Click here to enlarge figure

Chart 28. Erylusamins from Erylus placenta, erulisine and erulisidine from Erylus cf. lendenfeldi.
Marinedrugs 10 01671 g028 1024

Similar unusual secondary metabolites erylusamine TA (170), erylusine (171), and erylusidine (172) were isolated from the Red Sea sponge Erylus cf. lendenfeldi. Like erylusamines, these unique bipolar lipids contain asymmetrically located carbonyl in a long hydrocarbon chain, two polar termini and partly acetylated trisaccharide, but not tetrasaccharide as in erylusamines carbohydrate chains [96]. Sugars in all this group of unusual glycosylated bipolar lipids were identified as β-D-galactopyranose, β-D-glucopyranose, α-L-arabinopyranose, their acetylated derivatives, and β-D-xylopyranose.

6. Taxonomic Distribution of Glycosides in Sponges

As a rule, triterpene and steroid glycosides present in sponges as very complicated mixtures and their separation is difficult. This may cause some problems in the use of these substances as chemotaxonomic markers, because investigators may sometimes isolate only a part of components from complicated glycoside fraction while another group of investigators may isolate another part of the components. As result, the comparison of these data may be not correct. On the other hand, distinct structural series of glycosides are evidently distributed in different and concrete taxa of the animals. Distribution of tetracyclic triterpene and steroid glycosides is mainly limited to two orders (Astrophorida and Poecilosclerida) with a few exceptions, by several families and species within them without a strict dependence on ecological and geographical factors. For example, taxonomic distribution of tetracyclic triterpene glycosides, given in Table 1, testify the presence of sarasinosides with sarasinoside A1 (1) as prominent constituent in Melophlus sarasinorum, collected in different geographical areas from the North-Western Australia to Guam. Sarasinoside A3 (3) was isolated from M. sarasinorum collected off Palau Islands, Guam Island, Sulawesi Island and the North-Western Coast of Australia, sarasinoside A2 (2)—near Palau Island and from North-Western Coast of Australia, etc. The similar distribution was indicated in relation of erylosides of Erylus formosus, from which formoside (24) and eryloside F (25) were isolated using collections carried out off the Bahamas and Puerto Morelos in the Gulf of Mexico.

As we already have noted, recently, a Korean group reported on the isolation of a series of sarasinosides from the sponge Lipastrotethya sp. (the order Halichondrida, the family Dictyonellidae) collected in Micronesia [49]. However they did not report the structures of these substances. This finding is so uncommon that it rather seems that such identification may be a result of an error in collecting and identification of sponges.

Although findings the same glycosides in different sponge species, belonging to the same genus is very rare (now there is only one such finding: the isolation of eryloside H (33) from Erylus formosus collected near Puerto Morelos and from E. nobilis collected off Jeju Island, the South Korea), some genera are characterized by the presence of close related glycosides, as it may be exemplified by erylosides found in different species of Erylus, collected off three Oceans (Atlantic, Indian and Pacific). All the glycosides contain 14-carboxy- or 14-nor-methyl-lanostane aglycones, sometimes additionally dealkylated at C-4 and alkylated in side chains. General architectures of carbohydrate chains from a series of glycosides isolated from Erylus spp. are frequently similar to each other, but, as a rule, exact structures are specific.

Therefore, triterpene, steroid and other glycosides may be considered as taxonomic markers specific on species and sometimes on genus or subgenus levels. However, practical usage of this character for improvement of sponge taxonomy seems to be rather difficult not only due to the presence of very complicated mixtures of close related glycosides, but also seasonal and ecological variability in content of some glycoside components in glycoside fractions. For instance, Kubanek et al. [97] indicated the presence of formoside in Erylus formosus collected off the Bahamas and its absence in the Floridian collection. It is of special interest that sometimes triterpene glycosides, containing non-tetracyclic aglycones are distributed in the same taxa as those with tetracyclic aglycones. Moreover, some of them accompany each other. For example, pouosides (7882) were found in Asteropus sp. (=Melophlus sp.) together with sarasinosides [13,48].

Table Table 1. Taxonomical distribution of tetracyclic triterpene glycosides in sponges of the class Demospongiae.

Click here to display table

Table 1. Taxonomical distribution of tetracyclic triterpene glycosides in sponges of the class Demospongiae.
TaxonPlace of collectionGlycosidesReference
Order Astrophorida
Family Ancorinidae
Melophlus sp.Guam Island, Truk Lagoon1[13]
Melophlus Palau Islands1, 4, 5[12]
sarasinorum
1–9[15]
Solomon Islands5, 10–13[16]
Guam Island1, 3, 14–17[17]
Sulawesi Island1, 3, 15–21[14]
Reef Scott, North-Western Coast of Australia1–3, 20–23[18]
Family Geodiidae
Erylus formosusBahamas Islands24[19]
25[22]
24, 26[23]
Puerto Morelos, the Caribbean Sea25, 27–36[24]
24, 37–43[25]
Erylus lendenfeldiGulf of Eilat, Red Sea44[27]
Red Sea, north of Hurghada44–46[28]
Gulf of Aqaba, Red Sea45, 47[29]
Erylus goffrilleriBahama Islands48[30]
Arresife-Seko Reef, Cuba49–56[31]
Erylus sp.South of New Caledonia57, 58[32]
Erylus placentaHachijo Island, South Japan59, 60[33]
Erylus nobilisJaeju Island, South Korea33, 61–63[26]
Shikine-jima Island, 200 km south of Tokyo, Japan64[35]
Order Poecilosclerida
Family Mycalidae
Ulosa sp.Madagascar65–69[37,38,39]
Family Raspaillidae
Ectyoplasia feroxSan Salvador Island, Bahamas70, 71[40]
Grand Bahama Island72, 73[41]

Such findings of different squalene cyclizations indicate that de novo biosynthesis of triterpene systems may take place in sponges.

Glycosides of non-isoprenoid aglycones, including glycosylated macrolides, and nontetracyclic triterpene glycosides were also found in the same orders of Demospongiae as triterpene and steroid glycosides, in majority cases in Astrophorida and Poecilosclerida.

It confirms the presence of specific glycosyltranferases, participating in construction of oligoglycoside chains in a group of close related representatives of these taxa. Moreover, the same species contain sometimes triterpene glycosides and oligoglycosylated bipolar lipids as may be exemplified by Erylus placenta, from which sokodosides [33] and erylusamines [94,95] were isolated. However, a few glycosides of these subclasses of glycosylated secondary metabolites were isolated from representatives of Halichondrida. Moreover, glycosides of alicyclic aglycones seem to have wider distributions in comparison with others subclasses, because they were isolated also from some sponges belonging to the Agelasida and Haplosclerida orders. We think that many new glycosides will be isolated from these and other sponge taxa in the near future.

7. Biological Roles of Sponge Glycosides

Sponges have always been an important component of coral reef communities [98]. Kubanek et al. [97] have found that glycosides from E. formosus collected off the Bahamas and the Southern Florida deters predation by the fish Thalassoma bifasciatum. Formoside (24) and formoside B (26), having four sugars in carbohydrate chain, were less potent than the non-separated fraction of hexaosides, containing the same penasterol as an aglycone. The total glycoside fraction was more active than any subfraction obtained at its separation. Thus, glycosides may play a defensive role against predatory fish.

The studies on glycosides from two the Caribbean sponges Erylus formosus and Ectyoplasia ferox, showed influence of these substances not only on fish feeding, but also on attachment by biofilm-forming bacteria, fouling by invertebrates and algae as well as on overgrowth by neighboring sponges (allelopathy) in field and laboratory assays. The multiple ecological functions of these substances were established [98,99,100,101]. An antifouling role of the glycosides is connected with their antimicrobial properties, reported for sarasinoside J (18) [14], some erylosides [27,28,29], sokodosides [33], caminosides [70,71] and other compounds. Strong antiprotozoal activities, for example reported for pandaroside G [61], make also a contribution into protective action against pathogenic microorganisms and fouling. Allelopathic effects of glycosides may be caused by strong cytotoxic activities of many glycoside substances [13,17,27,47], including their influence on embryos of competitive species, as it was reported for sarasinoside A1 (1) [13], pachastrelloside A (101) [58], and rhizochalin [93].

Ecological activities of the glycosides may be affected by small differences in their molecular structures. There was not found a significant excretion of some triterpene glycosides in sea water, but concentration of the glycosides on surface of sponge species was high. Hence, enemies and competitors of these sponges may be deterred by surface contact with triterpene glycosides rather than by contacts through the sea water [97]. However, an important role of sponge triterpene glycosides in chemical signaling, that suggest their distribution in surrounding environment was also recently discovered. The molecular mechanisms, explaining how predators detect deterrent glycosides were established. Zebrafish (Danio rerio) rejected artificial diet with the sponge chemical defensive compounds. Transcripts, made from a zebra fish cDNA library were expressed in Xenopus laevis oocytes and tested for chemoreceptor activation via electrophysiology. Electrophysiological response to formoside and ectyoplasides A and B was indicated [102]. In continuation of the study, a new RAMP-like triterpene glycoside receptor (RL-TGR), involved in chemical signaling was found in predatory fish. This receptor responds to glycosides as chemical defensive compounds in the marine environment [103].

An influence of sponge glycosides on membrane properties of host cells is an obvious peculiarity of biological functions of some glycosides, in particular, atypical glycolipids, including unusual bipolar compounds. Structures of the latter compounds suggest their inclusion into lipid bilayer with location of polar heads on the both its inner and outer surfaces. Many of this type of compounds demonstrate antimicrobial properties [70,71,81,87,90]. It was shown that alterations in kinase cascades and apoptosis of treated by these compounds cells are induced at action of bipolar lipids from sponges on different cellular models [91,92]. All these effects may be connected with defensive, antifouling and allelopathic functions of sponge glycosides.

8. Conclusions

About 170 unusual sponge glycosides were isolated, in majority cases from sponges belonging to species of orders Astrophorida and Poecilosclerida. The presence of some or other glycoside series, especially triterpene and steroid, is a characteristic feature of a few taxonomic groups (up to date they were indicated in about two dozens of species) within the class Demospongiae, but not of the class as a whole. It seems to be probable that modern improvement in isolation and spectral techniques will facilitate the isolation of many new glycoside compounds from above-mentioned and other sponge taxa. The distribution and biological activities of these compounds suggest their parallel origin and evolution as defensive agents in several taxa of the class.

Chemically, these compounds are very diverse and quite different in the structures of the both aglycone and carbohydrate moieties, when compared with other glycosides of marine or terrestrial origin. Different sponge glycosides have aglycones of a great diversity with alicyclic bi, tri- or tetracyclic aglycones. In many cases, they have previously unknown skeleton systems of aglycones. There are not only mono- and biosides, but also oligoglycosides among compounds, isolated and studied. A large set of monosaccharides (more than two dozens) was found, all are in pyranose forms and the majority is of D-series, although L-sugars were also identified. Such rare sugars as L-quinovose, 6-deoxy-β-L-altropyranose and 6-deoxy-D-talose along with many common monosaccharides were found in carbohydrate moieties of sponge glycosides. Frequently, sponge glycosides contain acylated monosaccharide units. Sponge glycosides demonstrate not only deterrent and ichthyotoxic properties, but also antiprotozoal, antifungal, antitumor and other activities, sometimes very potent and probably connected with their defensive, antifouling, and allelopathic biological functions. Such sponge glycosides as glycosylated acyclic derivatives and unusual bipolar lipids are presumably membrane constituents of sponge cells, modulating their membrane properties.

Acknowledgments

The authors acknowledge the financial support by the Grant of Presidium of the Russian Academy of Science Program “Molecular and cell biology”, the Grant SSh.-546.2012.4 of the President of the Russian Federation Program for Support of the Leading Scientific Schools and the RFBR Grant No. 11-04-00480-a.

References

  1. Stonik, V.A. Some terpenoid and steroid derivatives from echinoderms and sponges. Pure Appl. Chem. 1986, 58, 423–436, doi:10.1351/paC198658030423.
  2. Stonik, V.A.; Kalinin, V.I.; Avilov, S.A. Toxins from sea cucumbers (Holothuroids): Chemical structures, properties, taxonomic distribution, biosynthesis and evolution. J. Nat. Toxins 1999, 8, 235–248.
  3. Moraes, G.; Northcote, P.T.; Kalinin, V.I.; Avilov, S.A.; Silchenko, A.S.; Dmitrenok, P.S.; Stonik, V.A.; Levin, V.S. Structure of the major triterpene glycoside from the sea cucumber Stichopus mollis and evidence to reclassify this species into the new genus Australostichopus. Biochem. Syst. Ecol. 2004, 32, 637–650, doi:10.1016/j.bse.2004.02.005.
  4. Avilov, S.A.; Kalinin, V.I.; Smirnov, A.V. Use of triterpene glycosides for resolving taxonomic problems in the sea cucumber genus Cucumaria (Holothurioidea, Echinodermata). Biochem. Syst. Ecol. 2004, 32, 715–733, doi:10.1016/j.bse.2003.12.008.
  5. Kalinin, V.I.; Silchenko, A.S.; Avilov, S.A.; Stonik, V.A.; Smirnov, A.V. Sea cucumbers triterpene glycosides, the recent progress in structural elucidation and chemotaxonomy. Phytochem. Rev. 2005, 4, 221–236, doi:10.1007/s11101-005-1354-y.
  6. Antonov, A.S.; Avilov, S.A.; Kalinovsky, A.I.; Anastyuk, S.D.; Dmitrenok, P.S.; Kalinin, V.I.; Taboada, S.; Bosh, A.; Avila, C.; Stonik, V.A. Triterpene glycosides from Antarctic sea cucumbers. 2. Structure of achlioniceosides A1, A2 and A3 from the sea cucumber Achlionice violaescupidata (=Rhipidothuria racowitzai). J. Nat. Prod. 2009, 72, 33–38.
  7. Minale, L.; Riccio, R.; Zollo, F. Steroid oligoglycosides and polyhydroxysteroids from the echinoderms. Fortschr. Chem. Org. Naturst. 1993, 62, 75–308.
  8. Stonik, V.A. Marine polar steroids. Russ. Chem. Rev. 2001, 70, 673–715, doi:10.1070/RC2001v070n08ABEH000679.
  9. Ivanchina, N.V.; Kicha, A.A.; Stonik, V.A. Steroid glycosides from marine organisms. Steroids 2011, 76, 425–454, doi:10.1016/j.steroids.2010.12.011.
  10. Ebada, S.S.; Lin, W.H.; Proksch, P. Bioactive sesteterpenes and triterpenes from marine sponges: Occurence and pharmacological significance. Mar. Drugs 2010, 8, 313–346, doi:10.3390/md8020313.
  11. Hooper, J.N.A.; Van Soest, R.W.M. Systema Porifera: A Guide to the Classification of Sponges; Kluwer Academic/Plenum Publishers: Dordrecht, Netherlands, 2002.
  12. Kitagawa, I.; Kobayashi, M.; Okamoto, Y.; Yoshikawa, M.; Hamamoto, Y. Structures of sapasinosides A1, B1, and C1, new norlanostane-triterpenoid olygoglycosides from the Palauan marine sponge Asteropus sarasinos. Chem. Pharm. Bull. 1987, 35, 5036–5039, doi:10.1248/cpb.35.5036.
  13. Schmitz, F.J.; Ksebati, M.B.; Gunasekera, S.P.; Agarwal, S. Sarasinoside A1: A saponin containing amino sugars isolated from a sponge. J. Org. Chem. 1988, 53, 5941–5947.
  14. Dai, H.-F.; Edrada, R.A.; Ebel, R.; Nimtz, M.; Wray, V.; Proksch, P. Norlanostane triterpenoidal saponins from the marine sponge Melophlus sarassinorum. J. Nat. Prod. 2005, 68, 1231–1237, doi:10.1021/np050152d.
  15. Kobayashi, M.; Okamoto, Y.; Kitagawa, I. Marine natural products. XXVIII. The structures of sarasinosides A1, A2, A3, B1, B2, B3, C1, C2, and C3, nine new norlanostane-triterpenoidal olygoglycosides from the Palauan marine sponge Asteropus sarasinosum. Chem. Pharm. Bull. 1991, 39, 2867–2877.
  16. Espada, A.; Jimenez, C.; Rodriguez, J.; Crews, P.; Riguera, R. Sarasinosides D-G: Four new triterpenoid saponins from the sponge Asteropus sarasinosum. Tetrahedron 1992, 48, 8685–8696.
  17. Lee, H.-S.; Seo, Y.; Cho, K.W.; Rho, J.-R.; Shin, J.; Paul, V.J. New triterpenoid saponins from the sponge Melophlus isis. J. Nat. Prod. 2000, 63, 915–919, doi:10.1021/np990589j.
  18. Santalova, E.A.; Denisenko, V.A.; Dmitrenok, P.S.; Berdyshev, D.V.; Stonik, V.A. Two new sarasinosides from the sponge Melophlus sarasinorum. Nat. Prod. Commun. 2006, 1, 265–271.
  19. Jaspars, M.; Crews, P. A triterpene tetrasaccharide, formoside, from the Caribbean choristida sponge Erylus formosu. Tetrahedron Lett. 1994, 35, 7501–7504, doi:10.1016/S0040-4039(00)78328-6.
  20. Cheng, J.-F.; Kobayashi, J.; Nakamura, H.; Ohizumi, Y.; Hirata, Y.; Sasaki, T. Penasterol, a novel antileukemic sterol from the Okinawan marine sponge Penares sp. J. Chem. Soc. Perkin Trans. I 1988, 2403–2406.
  21. Shoji, N.; Umeyama, A.; Motoki, S.; Arihara, S.; Ishida, T.; Nomoto, K.; Kobayashi, J.; Takei, M. Potent inhibitors of histamine release, two novel triterpenoids from the Okinawan marine sponge Penares incrustans. J. Nat. Prod. 1992, 55, 1682–1685, doi:10.1021/np50089a021.
  22. Stead, P.; Hiscox, S.; Robinson, P.S.; Pike, N.B.; Sidebottom, P.J.; Roberts, A.D.; Taylor, N.L.; Wright, A.E.; Pomponi, S.A.; Langley, D. Eryloside F, a novel penasterol disaccharide possessing potent thrombin receptor antagonist activity. Bioorg. Med. Chem. Lett. 2000, 10, 661–664.
  23. Kubanek, J.; Fenical, W.; Pawlik, J.R. New antifeedant triterpene glycosides from the Caribbean sponge Erylus formosus. Nat. Prod. Lett. 2001, 15, 275–285, doi:10.1080/10575630108041292.
  24. Antonov, A.S.; Kalinovsky, A.I.; Stonik, V.A.; Afiyatullov, S.S.; Aminin, D.L.; Dmitrenok, P.S.; Mollo, E.; Cimino, G. Isolation and structures of erylosides from the Caribbean sponge Erylus formosus. J. Nat. Prod. 2007, 70, 169–178, doi:10.1021/np060364q.
  25. Antonov, A.S.; Kalinovsky, A.I.; Dmitrenok, P.S.; Kalinin, V.I.; Stonik, V.A.; Mollo, E.; Cimino, G. New triterpene oligoglycosides from the Caribbean sponge Erylus formosus. Carbohydrate Res. 2011, 346, 2182–2192, doi:10.1016/j.carres.2011.07.008.
  26. Shin, J.; Lee, H.-S.; Woo, L.; Rho, J.-R.; Seo, Y.; Cho, K.W.; Sim, C.J. New triterpenoid saponins from the sponge Erylus nobilis. J. Nat. Prod. 2001, 64, 767–771, doi:10.1021/np010047d.
  27. Carmely, S.; Roll, M.; Loya, Y.; Kashman, Y. The structure of eryloside A, a new antitumor and antifungal 4-methylated steroidal glycoside from the sponge Erylus lendenfeldi. J. Nat. Prod. 1989, 52, 167–170, doi:10.1021/np50061a022.
  28. Sandler, J.S.; Forsburg, S.L.; Faulkner, D.J. Bioactive steroidal glycosides from the marine sponge Erylus lendenfeldi. Tetrahedron 2005, 61, 1199–1206.
  29. Fouad, M.; Al-Trabeen, K.; Badran, M.; Wray, V.; Edrada, R.A.; Proksch, P.; Ebel, R. New steroidal saponins from the sponge Erylus lendenfeldi. ARKIVOC 2004, 2004, 17–27.
  30. Gulavita, N.K.; Wright, A.E.; Kelly-Borges, M.; Longley, R.E. Eryloside E from an Atlantic sponge Erylus goffrilleri. Tetrahedron Lett. 1994, 35, 4299–4302.
  31. Afiyatullov, S.S.; Kalinovsky, A.I.; Antonov, A.S.; Ponomarenko, L.P.; Dmitrenok, P.S.; Aminin, D.L.; Krasokhin, V.B.; Nosova, V.M.; Kisin, A.V. Isolation and structures of erylosides from the Caribbean sponge Erylus goffrilleri. J. Nat. Prod. 2007, 70, 1871–1877.
  32. D’Auria, M.V.; Paloma, L.G.; Minale, L.; Riccio, R. Structure characterization by two-dimentional NMR spectroscopy, of two marine triterpene olygoglycosides from a Pacific sponge of the genus Erylus. Tetrahedron 1992, 48, 491–498.
  33. Okada, Y.; Matsunaga, S.; van Soest, R.W.M.; Fusetani, N. Sokodosides, steroid glycosides with an isopropyl chain, from the marine sponge Erylus placenta. J. Org. Chem. 2006, 71, 4884–4888.
  34. Dasgupta, S.; Pramanik, K.; Mikhopadhyay, B. Oiligosaccharides through reactivity tuning: Convergent synthesis of the trisaccharides of the steroid glycoside sokodoside B isolated from marine sponge Erylus placenta. Tetrahedron 2007, 63, 12310–12316.
  35. Takada, K.; Nakao, Y.; Matsunaga, S.; van Soest, R.W.M.; Fusetani, N. Nobiloside, a new neuraminidase inhibitory triterpenoidal saponin from the marine sponge Erylus nobilis. J. Nat. Prod. 2002, 65, 411–413.
  36. Mandal, S.; Das, R.; Mukhopadhyay, B. Synthesis of two trisaccharides related to the triterpenoid saponin eryloside isolated from the sponge Erylus nobilis. Tetrahedron Asymm. 2011, 22, 1108–1113.
  37. Antonov, A.S.; Kalinovsky, A.I.; Stonik, V.A.; Evtushenko, E.V.; Elyakov, G.B. Structure of Ulososide A—New triterpene glycoside from the sponge Ulosa sp. Izvestia AN SSSR. Ser. Khim. 1994, 1326–1329.
  38. Antonov, A.S.; Kalinovsky, A.I.; Stonik, V.A. Ulososide B, a new unusual norlanostane-triterpene glycoside and its genuine aglycone from the Madagascar sponge Ulosa sp. Tetrahedron Lett. 1998, 39, 3807–3808.
  39. Antonov, A.S.; Dmitrenok, P.S.; Stonik, V.A. New triterpene glycosides from the sponge Ulosa sp. Bioorgan. Khimiya. 2002, 28, 209–214.
  40. Cafieri, F.; Fattorusso, E.; Taglialatela-Scafati, O. Ectyoplasides A–B—Unique triterpene olygoglycosides from the Caribbean sponge Ectyoplasia ferox. Eur. J. Org. Chem. 1999, 231–238.
  41. Campagnuolo, C.; Fattorusso, E.; Taglialatela-Scafari, O. Feroxosides A–B, two norlanostane tetraglycosides from the Caribbean sponge Ectyoplasia ferox. Tetrahedron 2001, 57, 4049–4055.
  42. Ravi, B.N.; Wells, R.J.; Croft, K.D. Malabaricane triterpenes from a Fijian collection of the sponge Jaspis stellifera. J. Org. Chem. 1981, 46, 1998–2001.
  43. McCabe, T.; Clardy, J.; Minale, L.; Pizza, C.; Zollo, F.; Riccio, R. A triterpenoid pigment with isomalabaricane skeleton from the marine sponge Stelletta sp. Tetrahedron Lett. 1982, 23, 3307–3310.
  44. Tabudravu, J.N.; Jaspars, M. Stelliferin riboside, a triterpene monosaccharide isolated from the Fijian sponge Geodia globostellifera. J. Nat. Prod. 2001, 64, 813–815, doi:10.1021/np010019v.
  45. Hirashima, M.; Tsuda, K.; Hamada, T.; Okumara, H.; Furukawa, T.; Akiyama, S.; Tajitsu, Y.; Ikeda, R.; Komatsu, M.; Doe, M.; et al. Cytotoxic isomalabaricane derivatives and a monocyclic triterpene glycoside from a sponge Rhabdastrella globostellata. J. Nat. Prod. 2010, 73, 1512–1518.
  46. Clement, J.A.; Li, M.; Hecht, S.M.; Kingston, D.G.I. Bioactive isomalabaricane triterpenoids from Rhabdastrella globostellata that stabilize the binding of DNA polymerase β to DNA. J. Nat. Prod. 2006, 69, 373–376.
  47. Fouad, M.; Edrada, R.A.; Ebel, R.; Wray, V.; Muller, W.E.G.; Lin, W.H.; Proksch, P. Cytotoxic isomalabaricane triterpenoids from the marine sponge Rhabdastrella globostellata. J. Nat. Prod. 2006, 69, 211–218, doi:10.1021/np050346t.
  48. Ksebati, M.B.; Schmitz, F.J.; Gunasekera, S.P. Pouosides A–E, novel triterpene galactosides from a marine sponge Asteropus sp. J. Org. Chem. 1988, 53, 3917–3921.
  49. Lee, J.-H.; Jang, K.H.; Lee, Y.-J.; Lee, H.-S.; Sim, C.J.; Oh, K.-B.; Shin, J. Triterpene galactoside of the pouoside class and corresponding aglycones from the sponge Lipastrotethya sp. J. Nat. Prod. 2011, 74, 2563–2570, doi:10.1021/np200748g.
  50. Shmueli, U.; Carmely, A.; Groweiss, A.; Kashman, Y. Sipholenol and sipholenone, two new triterpenes from the marine sponge Siphonochalina siphonella (Levi). Tetrahedron Lett. 1981, 22, 709–712.
  51. Kashman, Y.; Groweiss, A.; Carmely, S.; Kinamoni, Z.; Czarkie, D.; Rotem, M. Recent research in marine natural products from the Red Sea. Pure Appl. Chem. 1982, 54, 1995–2010.
  52. Fernandez, J.J.; Souto, M.L.; Norte, M. Marine polyether triterpenes. Nat. Prod. Rep. 2000, 17, 235–246.
  53. Jain, S.; Laphookheio, S.; Shi, Z.; Fu, L.; Akiyama, S.; Chen, Z.S.; Youssef, D.T.A.; Rob, W.M.; van Soest, R.W.M.; El Sayed, K.A. Reversal of P-glycoprotein-mediated multidrug resistance by sipholane triterpenoids. J. Nat. Prod. 2007, 70, 928–931.
  54. Kashman, Y.; Yosief, T.; Carmeli, S. New triterpenoids from the Red Sea sponge Siphonochalina siphonella. J. Nat. Prod. 2001, 64, 175–180.
  55. Ohtani, I.; Kusumi, T.; Kashman, Y.; Kakisawa, H. A new aspect of the high-field NMR application of Mosher’s method. The absolute configuration of marine terpenoid sipholenol A. J. Org. Chem. 1991, 56, 1296–1298.
  56. Northcote, P.T.; Andersen, R.J. Xestovanin A and secoxestovanin A, triterpenoid glycosides with new carbon skeletons from the sponge Xestospongia vanilla. J. Am. Chem. Soc. 1989, 111, 6276–6280, doi:10.1021/ja00198a044.
  57. Morris, S.A.; Northcote, P.T.; Andersen, R.J. Triterpenoid glycosides from the Northeastern Pacific marine sponge Xestospongia vanilla. Can. J. Chem. 1991, 69, 1352–1364.
  58. Hirota, H.; Takayama, S.; Miyashiro, S.; Ozaki, Y.; Ikegami, S. Structure of a novel steroidal saponin, pachastrelloside A, obtained from a marine sponge of the genus Pachastrella. Tetrahedron Lett. 1990, 31, 3321–3324.
  59. Ryu, G.; Choi, B.W.; Lee, B.H.; Hwang, K.-H.; Lee, U.C.; Jeong, D.S.; Lee, N.H. Wondosterols A–C, three steroidal glycosides from a Korean marine two-sponge association. Tetrahedron 1999, 55, 13171–13178.
  60. Cachet, N.; Regalado, E.L.; Genta-Jouve, G.; Mehiri, M.; Amade, P.; Thomas, O.P. Steroidal glycosides from the marine sponge Pandaros acanthifolium. Steroids 2009, 74, 746–750.
  61. Regalado, E.L.; Tasdemir, D.; Kaiser, M.; Cachet, N.; Amade, P.; Thomas, O.P. Antiprotozoal steroidal saponins from the marine sponge Pandaros acanthifolium. J. Nat. Prod. 2010, 73, 1404–1410.
  62. Regalado, E.; Turk, T.; Tasdemir, D.; Gorjanc, M.; Kaiser, M.; Thomas, O.P.; Fernandez, R.; Amade, P. Cytotoxic and haemolytic steroidal glycosides from the Caribbean sponge Pandaros acanthifolium. Steroids 2011, 76, 1389–1396, doi:10.1016/j.steroids.2011.07.010.
  63. Regalado, E.; Jimenez-Romero, C.; Genta-Jouve, G.; Tasdemir, D.; Amade, P.; Nogueiras, C.; Thomas, O.P. Acanthifoliosides, minor steroidal saponins from the sponge Pandaros acanthifolium. Tetrahedron 2011, 67, 1011–1018.
  64. Stonik, V.A.; Makarieva, T.N.; Antonov, A.S.; Elyakov, G.B. Steroidal saponins from the sponge Mycale purpurea. Khimiya Prirod. Soedin. 1981, 1, 104–105.
  65. Kalinovsky, A.I.; Antonov, A.S.; Dmitrenok, P.S.; Evtuschenko, E.V.; Stonik, V.A. Mycaloside A, a new steroid oligoglycoside with an unprecedented structure from the Caribbean sponge Mycale laxissima. Tetrahedron Lett. 2002, 43, 523–525.
  66. Antonov, A.S.; Afiyatullov, S.S.; Kalinovsky, A.I.; Ponomarenko, L.P.; Dmitrenok, P.S.; Aminin, D.L.; Stonik, V.A. ycalosides B–J, eight new spermostatic steroid oligoglycosides from the sponge Mycale laxissima. J. Nat. Prod. 2003, 66, 1082–1088.
  67. Afiyatullov, S.S.; Antonov, A.S.; Kalinovsky, A.I.; Dmitrenok, P.S. Two new steroid oligoglycosides from the Caribbean sponge Mycale laxissima. Nat. Prod. Commun. 2008, 3, 1581–1586.
  68. Yeung, B.K.S.; Hamann, M.T.; Scheuer, P.J.; Kelly-Borges, M. Hapaioside: 19-norpregnane glycoside from the sponge Cribrochalina olemda. Tetrahedron 1994, 50, 12593–12598.
  69. Gabant, M.; Schmitz-Afonso, I.; Gallard, J.-F.; Menou, J.-L.; Laurent, D.; Debitus, C.; Al-Mourabit, A. Sulfated steroids: Ptilosteroids A–C and ptilosaponosodes A and B from the Solomon Islands marine sponge Ptilocaulis spiculifer. J. Nat. Prod. 2009, 72, 760–763.
  70. Linington, R.G.; Robertson, M.; Gauthier, A.; Finlay, B.B.; van Soest, R.; Andersen, R.J. Caminoside A, an antimicrobial glycolipid isolated from the marine sponge Caminus sphaeroconia. Org. Lett. 2002, 4, 4089–4092.
  71. Linington, R.G.; Robertson, M.; Gauthier, A.; Finlay, B.B.; MacMillan, J.B.; Molinski, T.F.; van Soest, R.; Andersen, R.J. Caminosides B–D, antimicrobial glycolipids isolated from the marine sponge Caminus sphaeroconia. J. Nat. Prod. 2006, 69, 173–177.
  72. MacMillan, J.B.; Linington, R.G.; Andersen, R.J.; Molinski, T.F. Stereochemical assignment in acyclic lipids across long distance by circular dichroism: absolute stereochemistry of the aglycone of caminoside A. Angew. Chem. Int. Ed. 2004, 43, 5946–5951.
  73. Sun, J.; Han, X.; Yu, B. First total synthesis of caminoside A, an antimicrobial glycolipid from sponge. Synlett 2005, 3, 437–440.
  74. Zhang, Z.; Zong, C.; Song, G.; Lv, G.; Chun, Y.; Wang, P.; Ding, N.; Li, Y. Total synthesis of caminoside B, a novel antimicrobial glycolipid isolated from the marine sponge Caminus sphaeroconia. Carbohydrate Res. 2010, 345, 750–760.
  75. Warabi, K.; Zimmerman, W.T.; Shen, J.; Gauthier, A.; Robertson, M.; Finlay, B.B.; van Soest, R.; Andersen, R.J. Pachymoside A—a novel glycolipid isolated from the marine sponge Pachymatisma johnstonia. Can. J. Chem. 2004, 82, 102–112, doi:10.1139/v03-183.
  76. Costantino, V.; Fattorusso, E.; Mangoni, A.; Di Rosa, M.; Ianaro, A. Glycolipids from Sponges. VII. Simplexides, novel immunosuppressive glycolipids from the Caribbean sponge Plakortis simplex. Bioorg. Med. Chem. Lett. 1999, 9, 271–276.
  77. Costantino, V.; Fattorusso, E.; Imperatore, C.; Mangoni, A. Glycolipids from sponges. Part 17. Clathrosides and isoclathrosides, unique glycolipids from the Caribbean sponge Agelas clathrodes. J. Nat. Prod. 2006, 69, 73–78, doi:10.1021/np050331v.
  78. Rao, M.R.; Faulkner, D.J. Clavosolides A and B, dimeric macrolides from the Philippines sponge Myriastra clavosa. J. Nat. Prod. 2002, 65, 386–388, doi:10.1021/np010495l.
  79. Erickson, K.L.; Gustafson, K.R.; Pannell, L.K.; Beutler, J.A.; Boyd, M.R. New dimeric macrolide glycosides from the marine sponge Myriastra clavosa. J. Nat. Prod. 2002, 65, 1303–1306.
  80. Rezanka, T.; Dembitsky, V.M. Ten-membered substituted cyclic 2-oxecanone (decalactone) derivatives from Latrunculia corticata, a Red Sea sponge. Eur. J. Org. Chem. 2003, 2144–2152.
  81. Makarieva, T.N.; Denisenko, V.A.; Stonik, V.A.; Milgrom, Y.M.; Rashkes, Y.V. hizochalin, a novel secondary metabolite of mixed biosynthesis from the sponge Rhizochalina incrustata. Tetrahedron Lett. 1989, 30, 6581–6584.
  82. Makarieva, T.N.; Guzii, A.G.; Denisenko, V.A.; Dmitrenok, P.S.; Santalova, E.A.; Pokanevich, E.V.; Molinski, T.F.; Stonik, V.A. Rhizochalin A, a novel two-headed sphingolipid from the sponge Rhizochalina incrustata. J. Nat. Prod. 2005, 68, 255–257.
  83. Makarieva, T.N.; Guzii, A.G.; Denisenko, V.A.; Dmitrenok, P.S.; Stonik, V.A. New two-headed sphingolipid-like compounds from the marine sponge Oceanapia sp. Russ. Chem. Bull. 2008, 57, 669–673.
  84. Makarieva, T.N.; Dmitrenok, P.S.; Zakharenko, A.M.; Denisenko, V.A.; Guzii, A.G.; Li, R.; Skepper, C.K.; Molinski, T.F.; Stonik, V.A. Rhizochalins C and D from the sponge Rhizochalina incrustata. A rare threo-sphingolipid and a facile method for determination of the carbonyl position in α,ω-bifunctionalized ketosphingolipids. J. Nat. Prod. 2007, 70, 1991–1998.
  85. Molinski, T.F.; Makarieva, T.N.; Stonik, V.A. (–)-Rhizochalin is a dimeric enantiomorphic (2R)-sphingolipid: Absolute configuration of pseudo-C2V-symmetric bis-2-amino-3-alkanols by CD. Angew. Chem. Int. Ed. 2000, 39, 4076–4079, doi:10.1002/1521-3773(20001117)39:22<4076::AID-ANIE4076>3.0.CO;2-D.
  86. Makarieva, T.N.; Zakharenko, A.M.; Dmitrenok, P.S.; Guzii, A.G.; Denisenko, V.A.; Savina, A.S.; Dalisay, D.S.; Molinski, T.F.; Stonik, V.A. Isorhizochalin, a minor unprecedented bipolar sphingolipid of stereodivergent biogenesis from the Rhizochalina incrustata. Lipids 2009, 44, 1155–1162, doi:10.1007/s11745-009-3360-0.
  87. Nicholas, G.M.; Hong, T.W.; Molinski, T.F.; Lerch, M.L.; Cancilla, M.T.; Lebrilla, C.B. Oceanapiside, an antifungal bis-α,ω-amino alcohol glycoside from the marine sponge Oceanapia phillipensis. J. Nat. Prod. 1999, 62, 1678–1681.
  88. Nicholas, G.M.; Molinski, T.F. Enantiodivergent biosynthesis of the dimeric sphingolipid oceanapiside from the marine sponge Oceanapia phillipensis. Determination of remote stereochemistry. J. Am. Chem. Soc. 2000, 122, 4011–4019.
  89. Zhou, B.-N.; Mattern, M.P.; Johnson, R.K.; Kingston, D.G.I. Structure and stereochemistry of a novel bioactive sphingolipid from a Calyx sp. Tetrahedron 2001, 57, 9549–9554.
  90. Makarieva, T.N.; Denisenko, V.A.; Dmitrenok, P.S.; Guzii, A.G.; Santalova, E.A.; Stonik, V.A.; MacMillan, J.B.; Molinski, T.F. Oceanalin A, a hybrid α,ω-bifunctionalized sphingoid tetrahydroisoquinoline β-glycoside from the marine sponge Oceanapia sp. Org. Lett. 2005, 7, 2897–2900.
  91. Fedorov, S.N.; Makarieva, T.N.; Guzii, A.G.; Shubina, L.K.; Kwak, J.Y.; Stonik, V.A. Marine two-headed sphingolipid-like compound rhizochalin inhibits EGF-induced transformation of JB6 P+ Cl41 cells. Lipids 2009, 44, 777–785.
  92. Jin, J.-O.; Shastina, V.; Park, J.-I.; Han, J.-Y.; Makarieva, T.; Fedorov, S.; Rasskazov, V.; Stonik, V.; Kwak, J.-Y. Differential induction of apoptosis of leukemic cells by rhizochalin, two headed sphingolipids from sponge and its derivatives. Biol. Pharm. Bull. 2009, 32, 955–962, doi:10.1248/bpb.32.955.
  93. Sibirtsev, J.T.; Shastina, V.V.; Menzorova, N.I.; Makarieva, T.N.; Rasskazov, V.A. Ca2+, Mg2+-dependent DNase involvement in apoptotic effects in spermatozoa of sea urchin Strongylocentrotus intermedius induced by two-headed sphingolipid rhizochalin. Mar. Biotechnol. 2011, 13, 536–543.
  94. Fusetani, N.; Sata, N.; Asai, N.; Matsunaga, S. Isolation and structure elucidation of erylusamine B, a new class of marine natural products, which blocked an IL-6 receptor, from the marine sponge Erylus placenta Thiele. Tetrahedron Lett. 1993, 34, 4067–4070.
  95. Sata, N.; Asai, N.; Matsunaga, S.; Fusetani, N. Erylusamines, IL-6 receptor antagonists, from the marine sponge, Erylus placenta. Tetrahedron 1994, 50, 1105–1110.
  96. Goobes, R.; Rudi, A.; Kashman, Y. Three new glycolipids from a Red Sea sponge of the genus Erylus. Tetrahedron 1996, 52, 7921–7928.
  97. Kubanek, J.; Pawlik, J.R.; Eve, T.M.; Fenical, W. Triterpene glycosides defend the Caribbean reef sponge Erylus formosus from predatory fishes. Mar. Ecol. Prog. Ser. 2000, 207, 69–77.
  98. Pawlik, J.R. The chemical ecology of sponges on Caribbean reefs: Natural products shape natural systems. BioScience 2011, 61, 888–898.
  99. Kubanek, J.; Whalen, K.E.; Engel, S.; Kelly, S.R.; Henkel, T.R.; Fenical, W.; Pawlik, J.R. Multiple defensive roles for triterpene glycosides from two Caribbean sponges. Oecologia 2002, 131, 125–136.
  100. Engel, S.; Pawlik, J.R. Allelopathic activities of sponge extracts. Mar. Ecol. 2000, 207, 273–281.
  101. Kelly, S.R.; Jensen, P.R.; Henkel, T.P.; Fenical, W.; Pawlik, J.R. Effects of Caribbean sponge extracts on bacterial attachment. Aquat. Microb. Ecol. 2003, 31, 175–182.
  102. Cohen, S.A.P.; Hatt, H.; Kubanek, J.; McCarty, N.A. Reconstitution of a chemical defense signaling pathway in a heterologous system. J. Exp. Biol. 2008, 211, 599–605.
  103. Cohen, S.P.; Haack, K.K.V.; Halstead-Nissloch, G.W.; Bernard, K.F.; Hatt, H.; Kubanek, J.; McCarty, N.A. Identification of RL-TGR, a coreceptor involved in aversive chemical signaling. Proc. Natl. Acad. Sci. USA 2010, 107, 12339–12344.
  • Samples Availability: Available from the authors.
Mar. Drugs EISSN 1660-3397 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
