Mar. Drugs 2012, 10(12), 2729-2740; doi:10.3390/md10122729
Published: 30 November 2012
Abstract: Pine wilt disease (PWD), a destructive disease for pine trees, is caused by the pine wood nematode (PWN), Bursaphelenchus xylophilus and additional bacteria. In this study, extracts of Zostera marina showed a high nematicidal activity against PWN and some of the bacteria that it carries. Light yellow crystals were obtained from extracts of Z. marina through solvent extraction, followed by chromatography on AB-8 resin and crystallization. The NMR and HPLC analysis showed that the isolated compound was rosmarinic acid (RosA). RosA showed effective nematicidal activity, of which the LC50 (50% lethal concentration) to PWN at 24 h, 48 h and 72 h was 1.18 mg/g, 1.05 mg/g and 0.95 mg/g, respectively. To get a high yield rate of RosA from Z. marina, single factor experiments and an L9 (34) orthogonal experiment were performed. This extraction process involved 70% ethanol for 3 h at 40 °C. The extraction dosage was 1:50 (w/v). The highest yield of RosA from Zostera was 3.13 mg/g DW (dried weight). The crude extracts of Zostera marina (10 mg/mL) and RosA (1 mg/mL) also showed inhibitory effects to some bacterial strains carried by PWN: Klebsiella sp., Stenotrophomonas maltophilia, Streptomyces sp. and Pantoea agglomerans. The results of these studies provide clues for preparing pesticide to control PWD from Z. marina.
Pine wilt disease (PWD) is a global threat to forest resources that is caused by the pine wood nematode (PWN), Bursaphelenchus xylophilus, and the bacteria it carries [1,2]. Traditionally, chemicals were used to control this disease. However, since these chemicals have harmful environmental effects, there have been ongoing efforts to use bio-controls derived from natural products. To date, no such products are effective against PWD . Therefore, finding an environmentally friendly pesticide that is effective is critical to control this forest disease. Some natural products from microorganisms and plants have been found to contain nematicidal activity. Effective nematicidal activity against B. xylophilus was isolated from essential oils of coriander (Coriandrum sativum), oriental sweetgum (Liquidambar orientalis) and valerian (Valeriana wallichii) . Several compounds with nematicidal activity have been isolated and identified from ajowan (Trachyspermum ammi), allspice (Pimenta dioica) and litsea (Litsea cubeba) . Ingenane diterpenes from Euphorbia kansui and their derivatives also showed good nematicidal activity against the pine wood nematode . Zhang et al.  found that the ethanol extract of Liriope muscari fibrous roots possessed significant nematicidal activity against the pine wood nematode. The compound (1,4-epoxy-cis-eudesm-6-O-β-D-glucopyranoside) and two known glycosides with nematicidal activity had been isolated from ethanol extracts. Guo et al.  found that the ethanol extract of fennel could kill PWN and its associated bacteria.
Eelgrass (Zostera marina) is a flowering angiosperm belonging to Potamogetonaceae, which is widely distributed in coastal marine habitats in the northern hemisphere. Since intact eelgrass leaves decay very slowly , they are widely selected and used as roof materials in some seaside villages in Northern China. In Russia, eelgrass is widely used as food and drugs . Previous studies indicated that water-soluble extracts of eelgrass leaves could inhibit growth of micro-algae, marine bacteria and grazing by amphipods on dead leaves [11,12]. These observations indicate that eelgrass is a good resource for screening natural antibiotics. In this study, an effective compound with nematicidal and antibacterial activity was isolated from eelgrass extracts, and its effectiveness was investigated.
2. Results and Discussion
2.1. Nematicidal Activity of Eelgrass Extracts
Different fractions of eelgrass extracts were evaporated, weighed and resuspended in water at various concentrations. These crude extracts showed different nematicidal activities against PWN when used at various concentrations (Table 1). Crude extracts from the ethyl acetate fraction exhibited high nematicidal activity, particularly when used at 25 mg/mL, with a death rate of 100%. The chloroform fraction also showed some toxicity to nematodes, with a 65.4% death rate when used at 30 mg/mL.
2.2. Elucidation the Structure of Rosmarinic Acid
To isolate the compounds that possessed nematicidal activity, the ethyl acetate fraction of the eelgrass extract was further separated by chromatography on an AB-8 column. Light yellow crystals were obtained after crystallization. The 1H-NMR data for this compound and rosmarinic acid standard were shown in Figure 1.
|Table 1. Nematicidal activities of crude Z. marina extracts. a–d Values stand for the corrected death rate (%) of nematode, which are expressed in mean ± standard deviation(SD) of 4 parallels. Means with the same letters are not significantly different at P < 0.05.|
|Concentration (mg/mL)||Yield rate (%)||5||10||15||20||25||30|
|Petroleum ether fraction||4.6||2.3 ± 0.12 d||2.8 ± 0.14 c||3.3 ± 0.55 c||9.9 ± 0.43 d||20.3 ± 0.43 d||26.7 ± 1.10 d|
|n-Butanol fraction||15.2||6.7 ± 0.44 c||7.1 ± 0.02 b||15.3 ± 1.98 b||19.6 ± 0.27 c||33.2 ± 0.98 c||46.7 ± 1.46 c|
|Chloroform fraction||7.4||7.3 ± 0.21 b||7.7 ± 1.00 b||13.5 ± 1.54 b||29.2 ± 0.49 b||47.6 ± 1.19 b||65.4 ± 2.57 b|
|Ethyl acetate fraction||21.3||12.0 ± 0.43 a||23.7 ± 0.97 a||57.4 ± 1.12 a||87.6 ± 0.55 a||100 ± 0.00 a||100 ± 0.00 a|

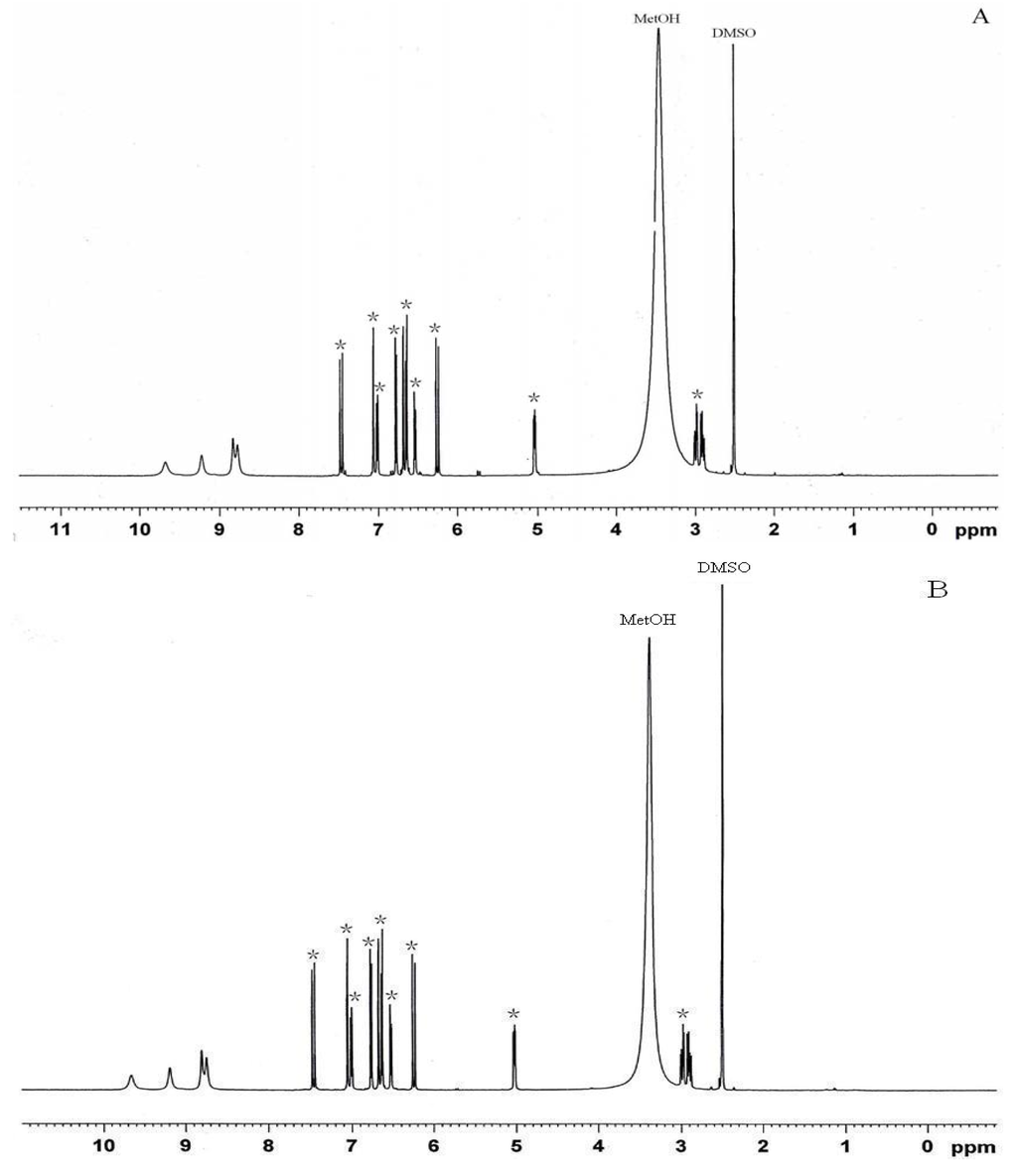

Based on the data collected and comparing to other published spectral values, the purified compound was identified as rosmarinic acid (RosA). The chemical formula for this compound is shown in Figure 2.

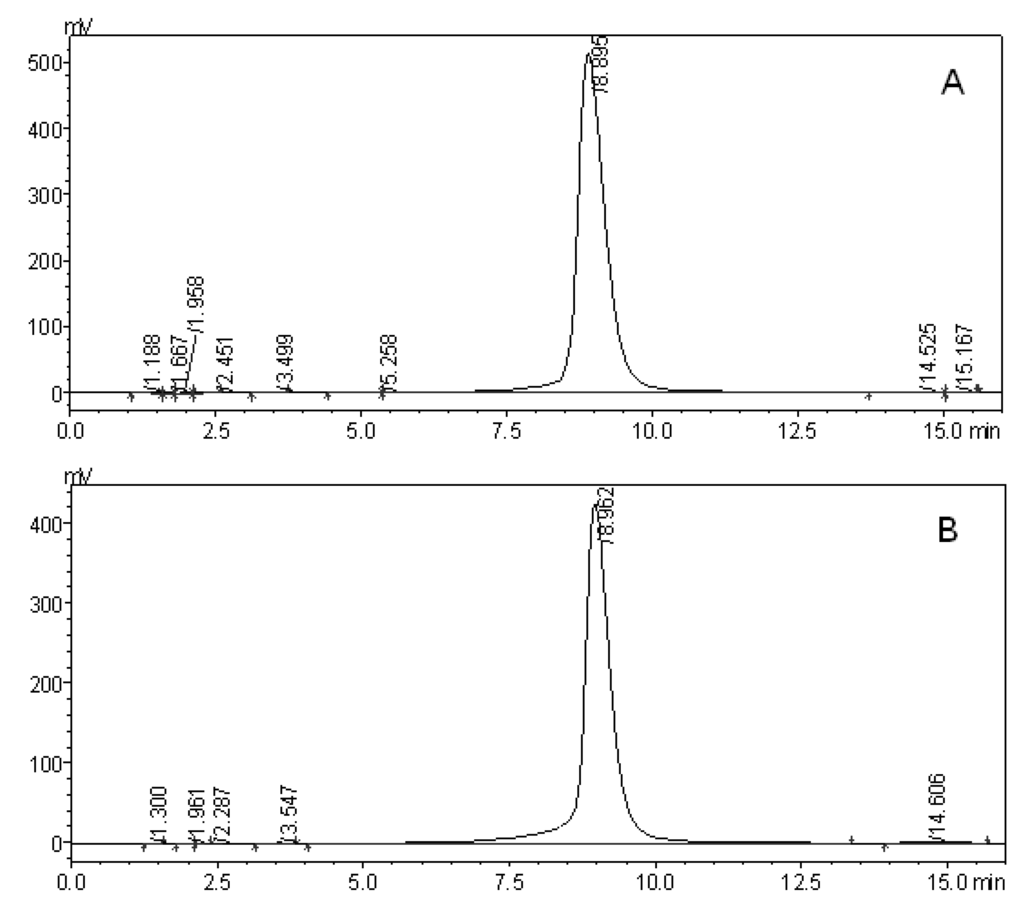

HPLC analysis showed that the isolated crystal component had similar retention times to the RosA standard (Figure 3). This observation provided further validation that the extracted compound from eelgrass is RosA, with a purity of 97.9% as determined by HPLC.
2.3. Nematicidal Activity of RosA
RosA isolated from Z. marina showed effective nematicidal activity in vitro. The LC50 (50% lethal concentration) of RosA is 1.18, 1.05 and 0.95 mg/mL at 24, 48 and 72 h, respectively (Table 2). There was not much difference of RosA at LC50 at 24 h, 48 h and 72 h, indicating RosA has rapid nematicidal activity. Compared with RosA, copper sulfate had stronger nematicidal activity (Table 2).
|Concentration (mg/mL)||24 h||48 h||72 h|
|Rosmarinic acid||0.5||29.83 ± 1.38 f||33.41 ± 4.55 f||37.81 ± 1.21 e|
|1||43.23 ± 2.20 e||50.26 ± 3.02 e||54.65 ± 2.90 d|
|1.5||65.80 ± 0.85 d||69.63 ± 2.02 d||74.31 ± 2.02 c|
|2||73.25 ± 4.82 c||84.66 ± 0.98 c||89.35 ± 3.24 b|
|2.5||79.91 ± 3.89 b||94.30 ± 0.65 b||98.29 ± 0.87 a|
|3||86.84 ± 2.69 a||99.40 ± 1.26 a||100.00 ± 0.00 a|
|Copper sulfate||0.05||27.45 ± 0.31 f||39.45 ± 0.39 f||44.05 ± 0.86 e|
|0.1||37.49 ± 0.02 e||51.08 ± 2.20 e||54.87 ± 2.20 d|
|0.15||44.70 ± 1.26 e||58.78 ± 1.03 e||78.04 ± 0.98 c|
|0.2||54.74 ± 0.92 d||84.05 ± 0.87 c||90.41 ± 1.02 b|
|0.25||78.88 ± 1.12 b||99.91 ± 0.02 a||100.00 ± 0.00 a|
|0.3||91.12 ± 1.00 a||100.00 ± 0.00 a||100.00 ± 0.00 a|
|t (h)||y = bx + a||r||LC50 (mg/mL)||CL of LC50|
|Rosmarinic acid||24||y = 0.230x + 0.229||0.971||1.18||(1.09, 1.27)|
|48||y = 0.251x + 0.236||0.954||1.05||(0.97, 1.13)|
|72||y = 0.254x + 0.258||0.946||0.95||(0.90, 1.00)|
|Copper sulfate||24||y = 2.524x + 0.112||0.982||0.154||(0.144, 0.164)|
|48||y = 3.081x + 0.205||0.981||0.096||(0.090, 0.102)|
|72||y = 3.245x + 0.263||0.989||0.073||(0.069, 0.077)|
2.4. Optimization of RosA Extraction Conditions from Eelgrass

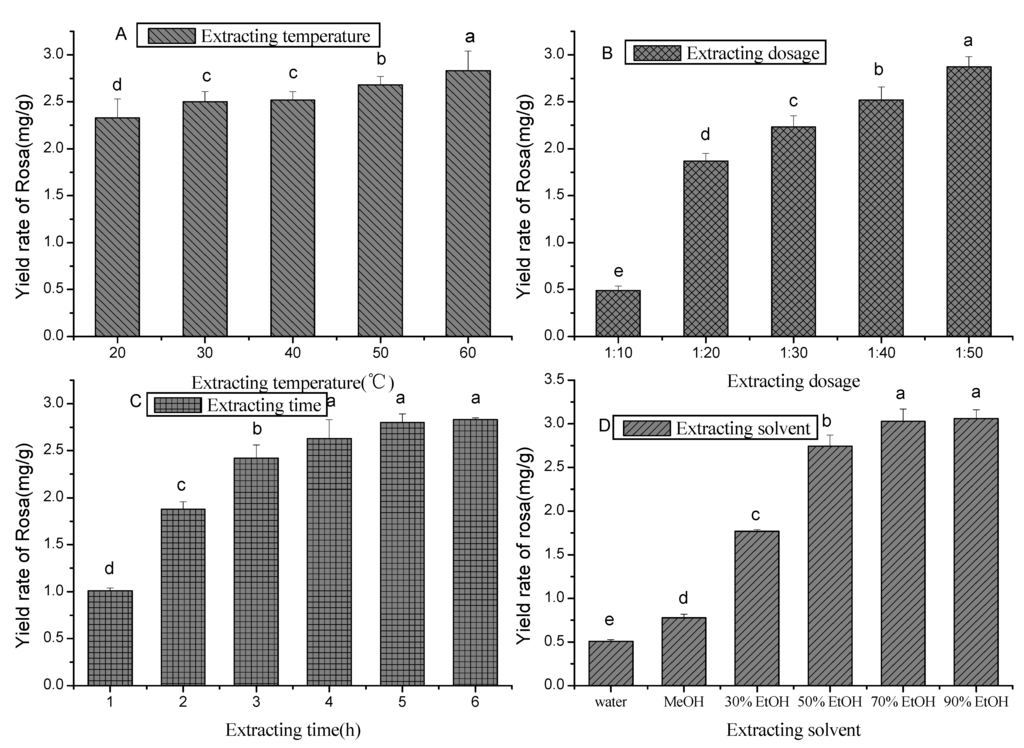

To extract RosA efficiently from Z. marina, we optimized the extraction solvent, temperature, time and solid-liquid ratio (Figure 4). Compared to water and methanol, ethanol yielded a higher rate of RosA at different concentrations. A 70% ethanol concentration yielded at least 3.03 mg/g of RosA, while further increases in ethanol concentration did not raise the yield rate. Temperature increase also yielded a higher rate of RosA from 2.33 mg/g at 20 °C to 2.83 mg/g at 60 °C. Prolonged extraction time also increased RosA concentration, with the yield rate being stable when the extraction time reached 5 h. The yield rate of RosA also increased when decreasing the solid-liquid ratio from 0.49 mg/g (1:10, w/v) to 2.87 mg/g (1:50, w/v).
The L9 (34) orthogonal experiment was performed based on each parameter described above that affects extraction efficacy. The optimal conditions to increase RosA extraction is by using an extraction dosage at 1:50 and using 70% ethanol with an extraction time of 3 h at 40 °C (Table 3). A validation experiment was performed using these optimized conditions, and RosA was extracted at a concentration of 3.13 mg/g.
2.5. The Antibacterial Activity of Crude Eelgrass Extracts and RosA
The antibacterial activity of eelgrass extracts and RosA was also tested on bacteria associated with PWN. The petroleum ether, ethyl acetate and chloroform fractions were able to differentially inhibit the growth of the four bacteria commonly found in PWN. Comparatively, the n-butanol fraction showed no obvious inhibition to Pantoea agglomerans and Stenotrophomonas maltophilia and could only slightly inhibit Klebsiella sp. and Streptomyces sp. RosA was found most effective against all four bacteria when used at a low concentration (1 mg/mL), but less effective than oxolinic acid (Table 4).
|Experiment No.||Dosage||Time||Temperature||Solvent||Yield rate|
|M1||M11 = 2.540||M12 = 2.633||M13 = 2.570||M14 = 2.367|
|M2||M21 = 2.627||M22 = 2.553||M23 = 2.627||M24 = 2.630|
|M3||M31 = 2.653||M32 = 2.633||M33 = 2.623||M34 = 2.823|
|Dosage||S1 = 0.021||2||0.434|
|Time||S2 = 0.013||2||0.047|
|Temperature||S3 = 0.006||2||0.124|
|Solvent||S4 = 0.315||2||3.395|
|Table 4. Antibacterial activity of four eelgrass extracts and RosA. The value stands for the whole diameter of the inhibitory rings, including the 6 mm filter paper. The value 0 means no inhibitory rings exist on the medium.|
|Bacteria||Diameter of inhibitory rings (mm)|
|Petroleum ether fraction (10 mg/mL)||n-Butanol fraction (10 mg/mL)||Chloroform fraction (10 mg/mL)||Ethyl acetate fraction (10 mg/mL)||RosA (1 mg/mL)||Oxolinic acid (0.1 mg/mL)|
Z. marina is an aquatic plant found in wide grasslands that contributes to the coastal ecosystems. It does this by generating substantial amounts of organic matter, while providing a habitat for many organisms . However, the residues reaching the coastlines pose an environmental problem with high costs for their disposal. Eelgrass residue was investigated for bioethanol, and 8.72% bioethanol could be produced using an integrated process . Zosterin, bioactive pectin from the eelgrass Z. asiatica decreases the toxicity of antitumor drugs and purges heavy metals from human organisms [15,16]. Kawasaki et al.  analyzed compounds in the essential oil from eelgrass shoots by GC and GC mass spectrometry and found that the major constituents were phytol, hexadecanamide, octadecanamide, pentadecane, heptadecane, nonadecane, (8Z,11Z)-heptadecadienal, (8Z)-heptadecenal, (9Z,12Z,15Z)-octadecatrienal and (9Z,12Z)-octadecadienal. Achamlale et al.  isolated and quantified RosA in Z. noltii and Z. marina by high performance liquid chromatography, and found concentrations of RosA ranging from 2.2 to 18.0 mg/g (dw) for Z. noltii and 1.3 to 11.2 mg/g (dw) for Z. marina. These results show great value in using Zostera for extracting compounds with anti-bacterial and nemacitidal activities.
RosA is a multifunctional polyphenol that was first isolated from the leaves of Rosmarinus officinalis and later found in other species of Lamiaceae and Boraginaceae. RosA has been demonstrated to have higher antioxidant activity that is more effective than Vitamin E [19,20]. Other biological activities, such as antiviral , antibacterial [22,23], anti-allergenic  and anticarcinogenic effects within the body  have also been reported. The use of RosA has ramifications to benefit different field services, including the food, pharmacy and cosmetics industries. In this study, we found that the ethanol extract from eelgrass and RosA showed effective nematicidal activity against PWN and antibacterial activity to four bacteria associated to PWN. This is the first report of nematicidal activity extracted from eelgrass and RosA. Overall, eelgrass may serve as a new resource for screening compounds that are structurally similar to RosA, as well as additional compounds with nematicidal activity.
3. Experimental Section
3.1. Preparation of Eelgrass, Nematode and Bacteria
Live eelgrass (Z. marina) was collected in June to August in 2011 at low tide from the sub-tidal beds at Qingdao, China (36.10°N, 120.40°W) .The eelgrass leaves were washed and dried naturally at room temperature and then crushed in smaller pieces by a disintegrator.
Pine wood nematodes were isolated from a piece of wood cut from a pine wilt diseased Pinus thunbergii. The nematodes were cultured on the fungus, Botrytis cinerea, as described by Zhao et al. . The PWN suspension used in the experiment was prepared by washing the plates with sterile water.
Four bacteria carried by PWN, namely Klebsiella sp., S. maltophilia, Streptomyces sp. and P. agglomerans, were isolated and identified as described by Guo et al. .
3.2. Preparation of Extraction of Z. marina
To prepare an eelgrass extract, 100 g eelgrass homogenate was mixed with 3000 mL anhydrous ethanol, extracted for 24 h at room temperature and filtrated with filter paper. After the ethanol in the filtrate was evaporated, the remaining residue was fully suspended in 300 mL distilled water and extracted three times by petroleum ether, n-butanol, ethyl acetate and chloroform, respectively. Each fraction was also evaporated to dryness with a rotary evaporator and saved for further research. The yield rate of each fraction was calculated.
3.3. Nematicidal Activity of Crude Eelgrass Extracts
Each fraction was weighed and resuspended in distilled water to a concentration of 5, 10, 15, 20, 25 and 30 mg/mL, respectively. To check the nematicidal activity of each fraction, 20 µL nematode suspension was added to 1 mL solution in a 1.5 mL eppendorf tube. The tube was then cultured at 28 °C in the dark for a period of time. Each experiment was performed in quadruplicate. The numbers of live and killed nematodes were counted by a stereomicroscope, and the corrected death rate of nematode at 24 h, 48 h and 72 h was calculated according to the following formula:
The results were analyzed by SPSS 17.0.
3.4. Isolation and Identification of Nematicidal Component
The most active component in the ethyl acetate fraction was further purified by AB-8 macroporous adsorptive resin and crystallization. The ethyl acetate fraction suspended in water was passed through a AB-8 resin column (2.5 × 20 cm) (Nankai University Chemical Co. Ltd.) and then eluted by ethanol with a concentration of 10%, 30%, 50% and 70%, respectively. Each eluted fraction was concentrated by evaporating the ethanol and stored at 4 °C for crystallization. Light yellow crystals were obtained from 30% ethanol fraction, and its structure was elucidated by NMR on a Bruker AV-400. 1H-NMR identified that the compound as rosmarinic acid .
3.5. HPLC Analysis
The light yellow crystal was dissolved in ethanol and analyzed by high-performance liquid chromatography on a VP-ODS C18 column (150 × 4 nm, Shimadzu) at 1 mL/min. The detecting wave length was 330 nm, and the moving phase was methanol/water/glacial acetic acid (55:44.9:0.1, v:v:v). RosA (Sigma) was used as the standard.
3.6. Nematicidal Activity of RosA
RosA was dissolved in water to a concentration of 0.5, 1, 1.5, 2, 2.5 and 3 mg/mL. Twenty micro liters of pine wood nematode suspension was added to 1 mL RosA solution at final concentrations of 0.5, 1, 1.5, 2, 2.5 and 3 mg/mL, respectively. The final number of nematode was about 10,000 w/mL. Each experiment was performed at least four times. After culturing at 28 °C, the number of live and killed nematodes was counted, and the corrected death rate of nematodes at 24 h, 48 h and 72 h was calculated according to the formula described above. Copper sulfate was used as positive control. The results were analyzed by SPSS 17.0.
3.7. Factors Influencing the Extraction of RosA
To obtain high yield rates of RosA from eelgrass, factors influencing extraction of RosA were studied. Extraction temperature, extraction solvent, extraction time and extraction dosage were investigated. RosA content in each extract was measured using FeSO4 colorimetric method as described previously . Every experiment was replicated trice. Based on the results of single factor experiment, an L9 (34) orthogonal experiment was also performed.
3.8. Inhibition Effects of Eelgrass Extracts and RosA on Four Bacterial Strains Carried by PWN
Four dried fractions were suspended in water to a final concentration of 10 mg/mL, and RosA was dissolved in water to prepare a solution of 1 mg/mL. Filter paper with a diameter of 6mm was immersed in each solution and then put on the surface of nutrient agar medium, which had been inoculated with one of the bacterial strains (Klebsiella sp., S. maltophilia, Streptomyces sp. and P. agglomerans). After culturing at 37 °C for 24 h, the diameters of the inhibitory rings were measured, and oxolinic acid was used as positive control.
In summary, extracts of Z. marina showed good nematicidal activity and anti-bacterial activity against pine wood nematode and its associated four bacterial strains. An active compound was isolated from the eelgrass extracts and identified as rosmarinic acid. To prepare this compound efficiently, the extraction process of rosmarinic acid from Z. marina was optimized, and the highest yield was 3.13 mg/g DW under the ideal extract conditions.
This work was supported in part by the Natural Science Foundation of Shandong Province (No. ZR2010CM009), China, the Basic Research Project of Qingdao (No. 12-1-4-2-(1)-jch), China and the National Natural Science Foundation of China (No. 31070575).
- Zhao, B.G.; Li, R.G. The roles of bacteria associated with the pine wood nematode in pathogenecity and toxin-production related to pine wilt. In Pine Wilt Disease; Zhao, B.G., Futai, K., Sutherland, J.R., Takeuchi, Y., Eds.; Springer: Tokyo, Japan, 2008; pp. 250–259.
- Zhao, B.G.; Wang, H.L.; Han, S.F.; Han, Z.M. Distribution and pathogenicity of bacteria species carried by Bursaphelenchus xylophilus in China. Nematology 2003, 5, 899–906, doi:10.1163/156854103773040817.
- Oh, W.S.; Jeong, P.Y.; Joo, H.J.; Lee, J.E.; Moon, Y.S.; Cheon, H.M.; Kim, J.H.; Lee, Y.U.; Shim, Y.H.; Paik, Y.K. Identification and characterization of a dual-acting antinematodal agent against the pinewood nematode, Bursaphelenchus xylophilus. PLoS One 2009, 4, e7593.
- Kim, J.; Seo, S.M.; Lee, S.G.; Shin, S.C.; Park, I.K. Nematicidal activity of plant essential oils and components from coriander (Coriandrum sativum), oriental sweetgum (Liquidambar orientalis), and valerian (Valeriana wallichii) essential oils against pine wood nematode (Bursaphelenchus xylophilus). J. Agric. Food Chem. 2008, 56, 7316–7320, doi:10.1021/jf800780f.
- Park, I.K.; Kim, J.; Lee, S.G.; Shin, S.C. Nematicidal activity of plant essential oils and components from ajowan (Trachyspermum ammi), allspice (Pimenta dioica) and litsea (Litsea cubeba) essential oils against pine wood nematode (Bursaphelenchus xylophilus). J. Nematol. 2007, 39, 275–279.
- Shi, J.; Li, Z.; Nitoda, T.; Izumi, M.; Kanzakia, H.; Baba, N.; Kawazu, K.; Nakajima, S. Antinematodal activities of ingenane diterpenes from Euphorbia kansui and their derivatives against the pine wood nematode (Bursaphelenchus xylophilus). Z. Naturforsch. C 2008, 63, 59–65.
- Zhang, H.M.; Wang, G.L.; Bai, C.Q.; Liu, P.; Liu, Z.M.; Liu, Q.Z.; Wang, Y.Y.; Liu, Z.L.; Du, S.S.; Deng, Z.W. A new eudesmane sesquiterpene glucoside from Liriope muscari fibrous roots. Molecules 2008, 16, 9017–9024.
- Guo, Y.; Qin, L.; Qiao, C.; Guo, D.; Zhao, B.; Yue, T.; Li, R. Inhibition effects of extract of fennel (Foeniculum vulgare Mill) on pine wood nematode and bacteria it carries. Afr. J. Microbiol. Res. 2012, 6, 1837–1843.
- Seki, H.; Yokohama, Y. Experimental decay of eelgrass (Zostera marina) into detrital particles. Arch. Hydrobiol. 1978, 84, 109–119.
- Gavriljuk, V.B.; Gavriljuk, B.K. Preparation for preventing and treating capillary cutaneous lesions (teleangioectasias). Russia Patent RU2242217, 20 December 2004.
- Harrison, P.G. Control of microbial growth and of amphipod grazing by water-soluble compounds from leaves of Zostera marina. Mar. Biol. 1982, 67, 225–230, doi:10.1007/BF00401288.
- Lu, Y.R.; Foo, L.Y. Rosmarinic acid derivatives from Salvia officinalis. Phytochemistry 1999, 51, 91–94.
- Park, S.R.; Li, W.T.; Kim, S.H.; Kim, J.W.; Lee, K.S. A comparison of methods for estimating the productivity of Zostera marina. J. Ecol. Field Biol. 2010, 33, 59–65, doi:10.5141/JEFB.2010.33.1.059.
- Pilavtepe, M.; Sargin, S.; Celiktas, M.S.; Yesil-Celiktas, O. An integrated process for conversion of Zostera marina residues to bioethanol. J. Supercrit. Fluids 2012, 68, 117–122, doi:10.1016/j.supflu.2012.04.019.
- Dolgii, O.D.; Petrov, M.V.; Malenok, P.I.; Luzanov, M.E.H.; Mekhonoshin, A.A.; Pakhomov, A.I. Method of preparing pectin from sea algae. Russia Patent RU2132696C1, 10 July 1999.
- Loenko, Y.N.; Artyukov, A.A.; Kozlovskaya, E.P.; Miroshnichenko, V.A.; Elyakov, G.B. Zosterin; Dal’nauka: Vladivostok, Russia, 1977; pp. 41–145.
- Kawasaki, W.; Matsui, K.; Akakabe, Y.; Itai, N.; Kajiwar, T. Volatiles from Zostera marina. Phytochemistry 1998, 47, 27–29.
- Achamlale, S.; Rezzonico, B.; Grignon-Dubois, M. Rosmarinic acid from beach waste: Isolation and HPLC quantification in Zostera detritus from Arcachon lagoon. Food Chem. 2009, 113, 878–883, doi:10.1016/j.foodchem.2008.07.040.
- Lin, Y.L.; Chang, Y.; Kuo, Y.H.; Shiao, M.S. Anti-lipid-peroxidative principles from Tournefortia sarmentosa. J. Nat. Prod. 2002, 65, 745–747, doi:10.1021/np010538y.
- Fujimoto, A.; Masuda, T. Antioxidation mechanism of rosmarinic acid, identification of an unstable quinone derivative by the addition of odourless thiol. Food Chem. 2012, 132, 901–906, doi:10.1016/j.foodchem.2011.11.062.
- Swarup, V.; Ghosh, J.; Ghosh, S.; Saxena, A.; Basu, A. Antiviral and anti-inflammatory effects of rosmarinic acid in an experimental murine model of Japanese encephalitis. Antimicrob. Agents Chemother. 2007, 51, 3367–3370.
- Stephanie, D.; Nola, C.; Bhesh, B.; Gary, A.D. In vitro antibacterial activity of Australian native herb extracts against food-related bacteria. Food Control 2006, 17, 929–932, doi:10.1016/j.foodcont.2005.06.005.
- Shan, B.; Cai, Y.Z.; Brooks, D. Antibacterial properties of Polygonum cuspidatum roots and their major bioactive constituents. Food Chem. 2008, 109, 530–537, doi:10.1016/j.foodchem.2007.12.064.
- Parnham, M.J.; Kesselring, K. Rosmarinic acid. Drugs Future 1985, 10, 756–757.
- Lee, J.; Kim, Y.S.; Park, D. Rosmarinic acid induces melanogenesis through protein kinase A activation signaling. Biochem. Pharmacol. 2007, 74, 960–968.
- Ozturk, M.; Duru, M.E.; Ince, B.; Harmandar, M.; Topcu, G. A new rapid spectrophotometric method to determine the rosmarinic acid level in plant extracts. Food Chem. 2010, 123, 1352–1356, doi:10.1016/j.foodchem.2010.06.021.
© 2012 by the authors; licensee MDPI, Basel, Switzerland. This article is an open-access article distributed under the terms and conditions of the Creative Commons Attribution license (http://creativecommons.org/licenses/by/3.0/).
