Pharmaceuticals 2012, 5(3), 317-324; doi:10.3390/ph5030317

Review
Pyrazole Carbohydrazide Derivatives of Pharmaceutical Interest
Luiza Rosaria Sousa Dias * and Raquel Rocha Silva Salvador
Laboratório de Química Medicinal (LQMed), Faculdade de Farmácia, Universidade Federal Fluminense (UFF), Rua Mário Viana, 523, Santa Rosa, Niterói 24241-000, RJ, Brazil
*
Author to whom correspondence should be addressed; Email: ldias@vm.uff.br; Tel.: +55-21-2629-9588; Fax: +55-21-2629-9578.
Received: 6 February 2012; in revised form: 9 March 2012 / Accepted: 12 March 2012 /
Published: 16 March 2012

Abstract

: The main purpose of this paper is to provide an insight into the biological activities of pyrazole derivatives which contain the carbohydrazide moiety.
Keywords:
pyrazole; carbohydrazide; biological activity

1. Introduction

Clinically biological activity is the result of a chemical compound’s interaction with a human organism. The biological activity is dependent upon the compound’s structure and its physical-chemical characteristics, as well as the biological entity and its mode of therapeutic treatment. Nonetheless, many times chemical compounds reveal a spectrum of different types of biological activity. Some of them are useful in the treatment of definite diseases, where others may cause various side and toxic effects. This complex of activities caused by the chemical compound in biological entities is called the “biological activity spectrum of the substance”.

Hydrazides, carbohydrazides and similar compounds are well known as useful building blocks for the synthesis of a variety of heterocyclic rings. A large number of heterocyclic carbohydrazides and their derivatives are reported to exhibit significant biological activities [1,2] and the carbohydrazide function represents an important pharmacophoric group in several classes of therapeutically useful substances [1,3,4,5,6,7,8]. In this paper, the authors will discuss the biological activity spectrum of various pyrazole derivatives containing carbohydrazide moieties.

2. Pyrazole Compounds with Carbohydrazide Moiety Internalized

The core pyrazole structure in general has attracted widespread attention because of the diversity of biological activity shown by derivatives of this nucleus. In fact, one of the first synthetic organic compounds to find use as an important drug was a pyrazolone. Antipyrine (1), first prepared in 1887, was used as antipyretic, analgesic and anti-inflammatory. Modifications in the pyrazolone nucleus led to the discovery of dipyrone (2), an analgesic and antipyretic drug, still used in several countries in Central and South America as well as in Europe, Asia, and Africa.

Pyrazolone derivatives are still under investigation [9,10]. In this way, there are some derivatives with a broad spectrum of activities, including antidepressant and anti-inflammatory effects. 2-{2-[4-(4-Fluorobenzylidene)-2-(4-fluorophenyl)-5-oxo-4,5-dihydroimidazol-1-yl)acetyl}-3-methyl-2,4-dihydro-1H-pyrazole-5-one (3) is an effective anti-inflammatory agent in the carrageenan induced rat paw edema test [10] and ethyl 1-(thiophene-2-carbonyl)-4-cyano-5-oxo-2,5-dihydro-1H-pyrazole-3-carboxylate (4) showed good antidepressant activity [9]. Interesting, the carbohydrazide moiety can be observed internalized into the heterocyclic nucleus at the core structure of pyrazolones (Figure 1).

Pharmaceuticals 05 00317 g001 200

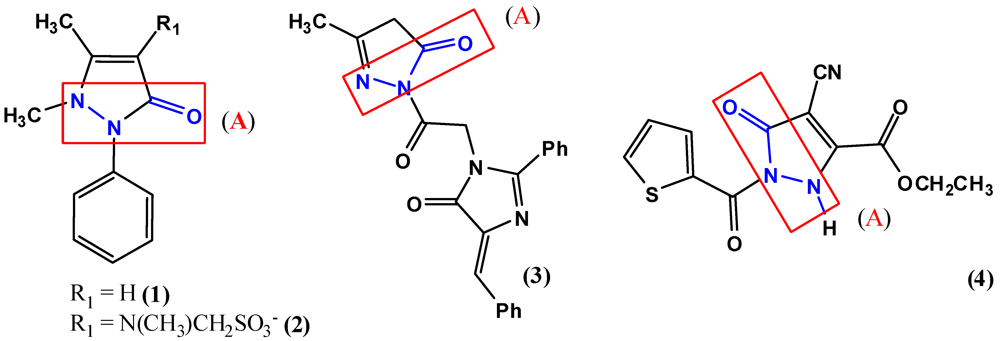

Figure 1. Some pyrazolone derivatives that present biological activities. Antipyretic and analgesic activities could be observed for the derivatives 1 and 2, anti-inflammatory activity could be observed for the derivatives 1 and 3 and the derivative 4 presents antidepressant activity. In the core pyrazolones we can observe the internalized carbohydrazide functions (A).

Click here to enlarge figure

Figure 1. Some pyrazolone derivatives that present biological activities. Antipyretic and analgesic activities could be observed for the derivatives 1 and 2, anti-inflammatory activity could be observed for the derivatives 1 and 3 and the derivative 4 presents antidepressant activity. In the core pyrazolones we can observe the internalized carbohydrazide functions (A).
Pharmaceuticals 05 00317 g001 1024

In this way some 1-H-pyrazole and 2,3-dihydro-1-H-pyrazole derivatives that have the internalized carbohydrazide moiety also exhibit interesting biological activities (Figure 2). Antimicrobial activity could be observed for the 1H-indole-2yl group (compounds 68) with moieties such as 4-methylthiophene-3-yl (compound 5) and 1-(naphtho[2,1-b]furan-2-yl) (compound 10) connected to the carbonyl group of the carbohydrazide function [6,11,12]. The derivative 5 also exhibited analgesic activity [11]. Only the derivative 9 presented anti-inflammatory activity in the carrageenan induced rat paw edema assay [10].

Pharmaceuticals 05 00317 g002 200

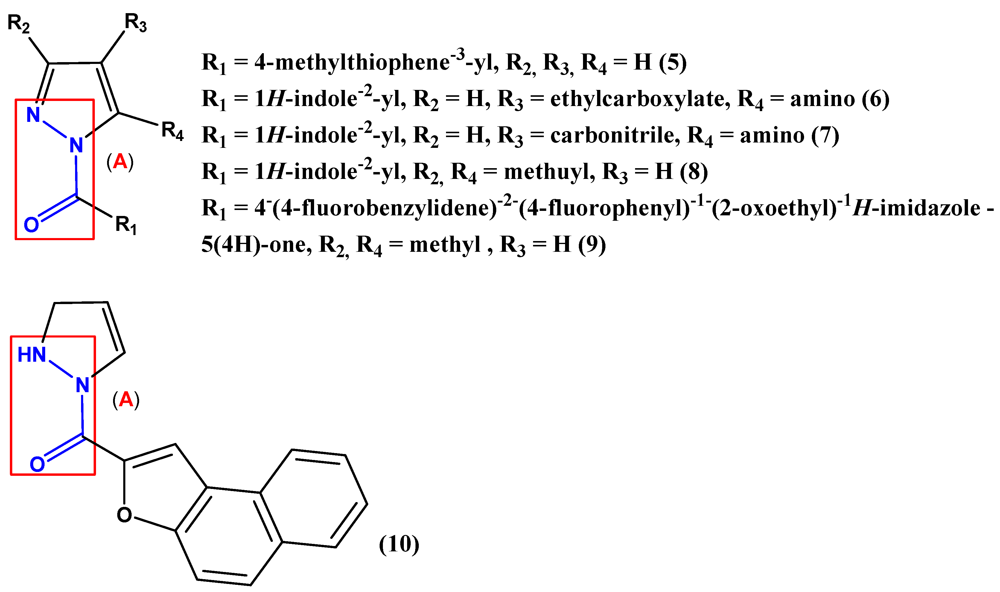

Figure 2. 1-H-pyrazole derivatives 59 and 2,3-dihydro-1-H-pyrazole derivative 10 that exhibit biological activities. An internalized carbohydrazide function (A) can be observed.

Click here to enlarge figure

Figure 2. 1-H-pyrazole derivatives 59 and 2,3-dihydro-1-H-pyrazole derivative 10 that exhibit biological activities. An internalized carbohydrazide function (A) can be observed.
Pharmaceuticals 05 00317 g002 1024

3. Biological Activities of Carbohydrazides Derived from Pyrazole

An investigation of the relationship between the pyrazole nucleus and the position of carbohydrazide moiety substituent with biological activity was one of the goals of this study. Substitution with carbohydrazide moiety at position C-3 of the pyrazole ring (Figure 3) seems to provide derivatives that exhibit biological activities such as antitumor (compounds 1113) and cannabinoid antagonist (compound 14) [13,14,15,16].

Pharmaceuticals 05 00317 g003 200

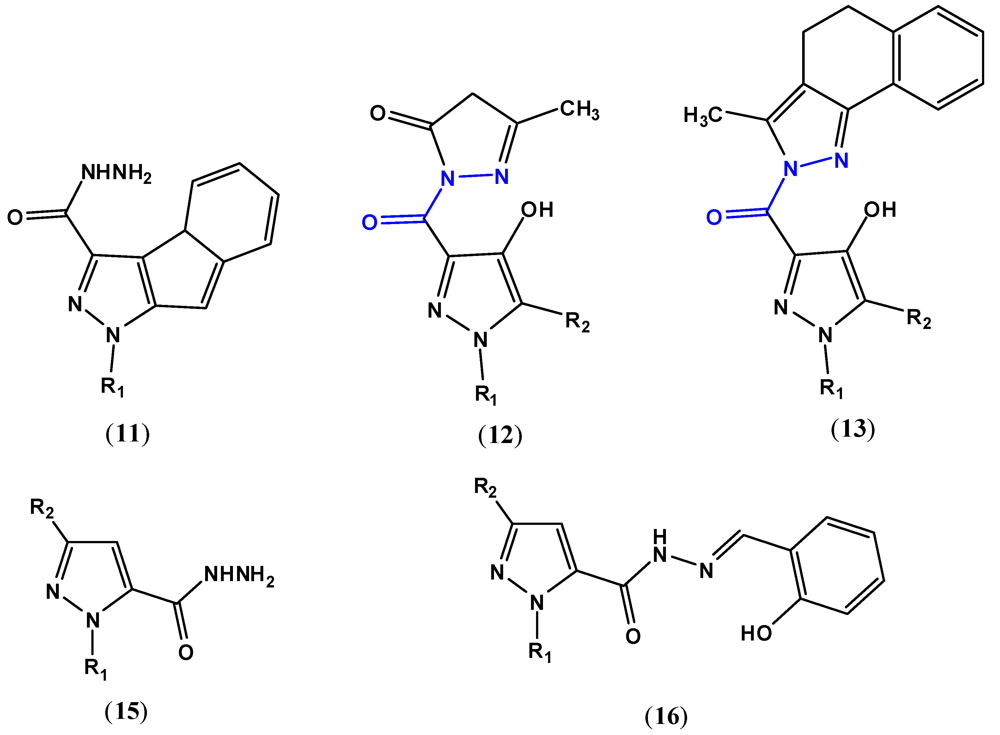

Figure 3. Derivatives that exhibit antitumor activity: 1-H-pyrazole-3-carbohydrazide derivatives (11, R1 = phenyl), 4-hydroxypyrazole derivatives (12 and 13, R1 = 4-chlorophenyl, R2 = H), 1-H-pyrazole-5-carbohydrazide derivatives (15, R1 = 4-substituted-benzyl or -C(O)CH2-O-phenyl, R2 = 4-substituted-benzyl or 4-substituted-phenyl) and (16, R1, R2 = benzyl or 4-substituted-benzyl). The compounds 12 and 13 have the carbohydrazide function (A) internalized into a heterocyclic nucleus.

Click here to enlarge figure

Figure 3. Derivatives that exhibit antitumor activity: 1-H-pyrazole-3-carbohydrazide derivatives (11, R1 = phenyl), 4-hydroxypyrazole derivatives (12 and 13, R1 = 4-chlorophenyl, R2 = H), 1-H-pyrazole-5-carbohydrazide derivatives (15, R1 = 4-substituted-benzyl or -C(O)CH2-O-phenyl, R2 = 4-substituted-benzyl or 4-substituted-phenyl) and (16, R1, R2 = benzyl or 4-substituted-benzyl). The compounds 12 and 13 have the carbohydrazide function (A) internalized into a heterocyclic nucleus.
Pharmaceuticals 05 00317 g003 1024

N-(Piperidinyl)-5-(4-chlorophenyl)-1-(2,4-dichlorophenyl)-4-methyl-1H-pyrazole-3-carbohydrazide (14, rimonabant, SR141716, Figure 4) is a potent CB1 cannabinoid receptor antagonist. This activity can be investigated to provide a chemical tool for further characterization of the cannabinoid pharmacophore and its relationship to the binding domain of cannabinoid antagonists [15,16]. Its main effect is reduction in appetite [17,18].

Pharmaceuticals 05 00317 g004 200

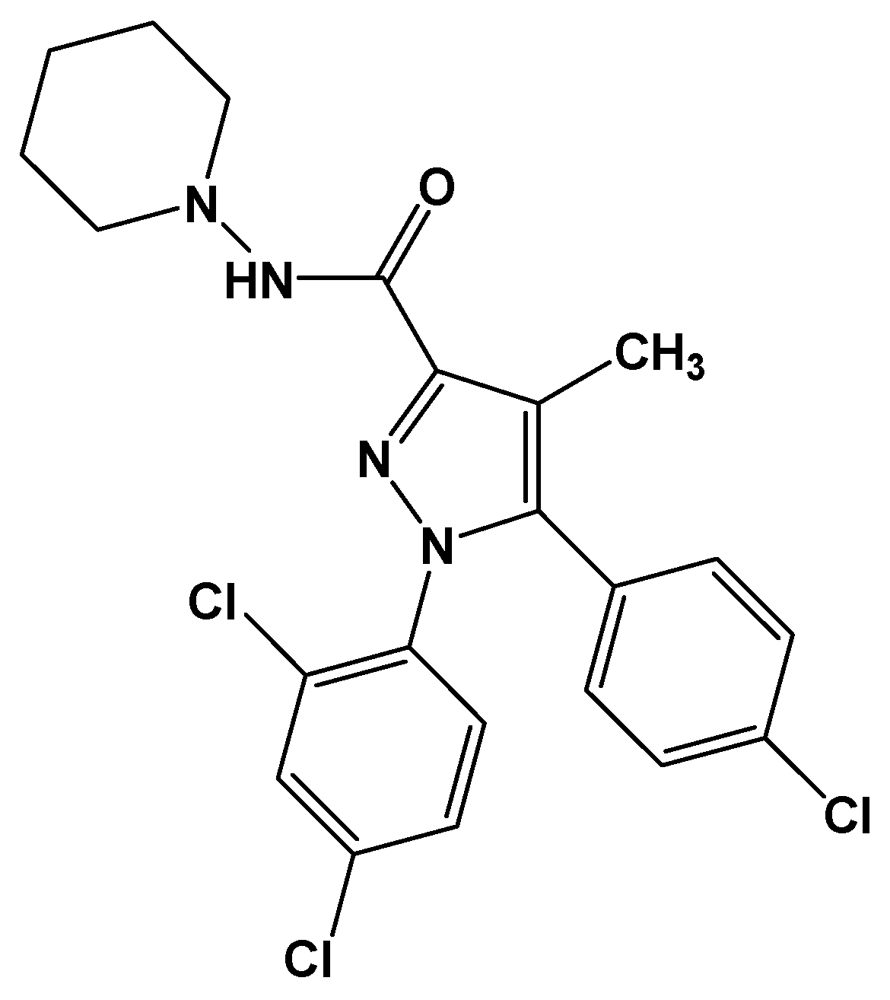

Figure 4. Rimonabant (SR141716, 14).

Click here to enlarge figure

Figure 4. Rimonabant (SR141716, 14).
Pharmaceuticals 05 00317 g004 1024

The anticancer activity of the 4-hydroxypyrazole compounds 12 and 13 was revealed by the broad spectrum of antitumor potential against tumor cell lines at the GI50 and TGI levels, together with a mild cytotoxic activity [14]. The 1-phenylindeno[1,2-c]pyrazole 11 also showed potent cytotoxic activity [13].

Substitution with a carbohydrazide moiety at position C-5 of the pyrazole ring seems to provide derivatives that exhibit antitumor activity too (compounds 15 and 16, Figure 3), beyond fungicidal and herbicidal activities [8,19,20,21,22,23,24].

The research for novel targeted therapies that can induce death in cancer cells or sensitize them to cytotoxic agents involves some 1H-pyrazole-5-carbohydrazide derivatives that can inhibit the growth of A549 cells in dosage-dependent and time-dependent manners [19,20]. Salicylaldehyde-pyrazole-carbohydrazide derivatives (compound 16, Figure 3) have been investigated in inhibition of the proliferation of A549 lung cancer cells [8,21,22,25,26]. In light of the increased anticancer activities of some copper complexes, salicylaldehyde-pyrazole-carbohydrazide derivatives shown to be potent growth inhibitors to A549 cells via inducing apoptosis [22].

On the other hand, substitution with a carbohydrazide moiety at position C-4 of the pyrazole ring seems to provide derivatives that exhibit different biological activities such as antinociceptive, antibacterial and antiparasital activities.

The 4-dimethylaminephenyl derivative of 1H-pyrazole-4-carbohydrazide, (17, ED50 1.41 mg/Kg) showed an antinociceptive activity eleven times more potent than dipyrone (ED50 15.8 mg/Kg) [27,28]. However, the 4-hydroxyphenyl derivative 18 showed potential antimalarial activity targeting the inhibition of Plasmodium falciparum cysteine protease [29].

Some 1H-pyrazole-4-carbohydrazide derivatives have provided new perspectives on the development of drugs with activities against microbial diseases. Apparently, the carbohydrazide moiety and the nature of the substituents introduced in the N-phenyl ring (R1 and R2) are crucial to determine the potentiality of the antimicrobial activity profile. A series of 1-(4-substituted-phenyl)-1H-pyrazole-4-carboxylic acid (4-substituted-benzilidene)-hydrazide derivatives (19) marked leishmanicidal activity on L. amazonensis [30,31]. Another series of 1H-pyrazole-4-carbohydrazides 20 presented moderate bactericidal and bacteriostatic properties [32].

The insertion of a spacer unit (ethylenic moiety) between the aromatic subunit (R) and carbohydrazide function (Figure 5) increases the distance from the aromatic units (R and R') that were previously separated only by the carbohydrazide moiety. A phenyl aromatic ring with different substituents inserted into the ethylenic portion increased the lipophilicity and changed the stereoelectronic factors of these derivatives. These compounds presented trypanocidal activity, especially the compound 21 that was shown to be the most potent and to have the lowest toxicity from this series [33]. The reversal of position of the aromatic units (R and R') as in derivative 22 exhibited anticonvulsant effects when evaluated by the standard pentylenetetrazole test and maximum electroshock seizure models [34].

Pharmaceuticals 05 00317 g005 200

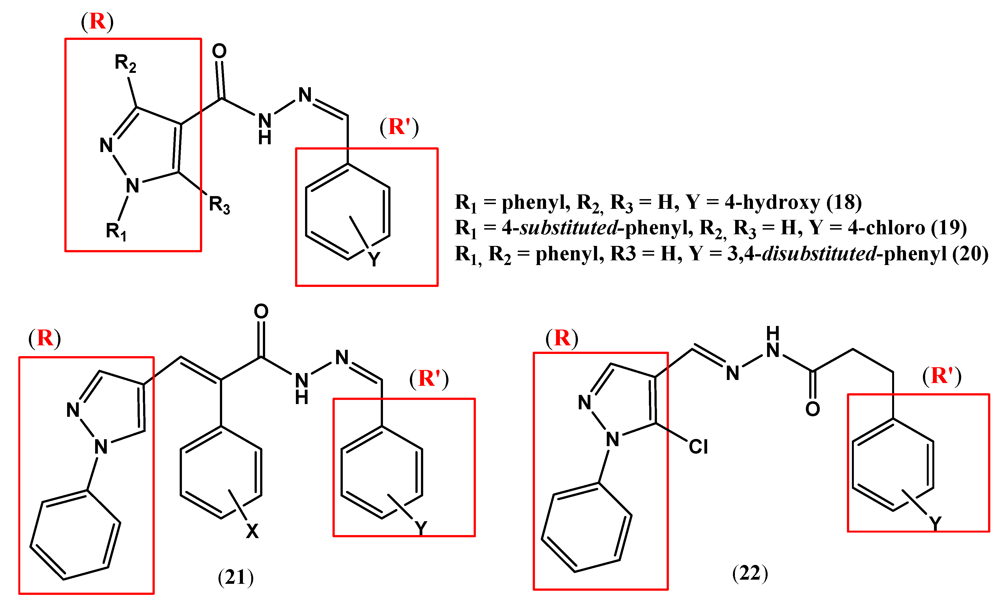

Figure 5. 1-H-pyrazole-4-carbohydrazide derivatives which show antimicrobial activity (compounds 1821) and anticonvulsant activity (compound 22).

Click here to enlarge figure

Figure 5. 1-H-pyrazole-4-carbohydrazide derivatives which show antimicrobial activity (compounds 1821) and anticonvulsant activity (compound 22).
Pharmaceuticals 05 00317 g005 1024

4. Conclusions

The biological activity of the various pyrazole derivatives containing carbohydrazide moieties discussed in this paper includes antidepressant, anticonvulsant, analgesic, anti-inflammatory, anticancer, antimicrobial, antinociceptive, and antiparasitic activity, such as, antimalarial, trypanocidal, and leishmanicidal. Even though they have a high significance in the pharmaceutical and biotechnological field with a wide spectrum of biological activities for their various derivatives, one must highlight that the carbohydrazide pyrazole chemical class could possess other biological profiles as they are found in many pharmaceutical lead molecules.

Acknowledgements

We thank Fundação de Amparo à Pesquisa do Estado do Rio de Janeiro (FAPERJ-Brazil), Conselho Nacional de Desenvolvimento Científico e Tecnológico (CNPq-Brazil) and Pró-Reitoria de Pesquisa, Pós-graduação e Inovação (PROPPi-UFF) for supporting this research.

References

  1. Mansour, A.K.; Eid, M.M.; Khalil, N.S.A.M. Synthesis and reactions of some new heterocyclic carbohydrazides and related compounds as potential anticancer agents. Molecules 2003, 8, 744–755, doi:10.3390/81000744.
  2. Metwally, K.A.; Abdel-Aziz, L.M.; Lashine, E.-S.M.; Husseiny, M.I.; Badawy, R.H. Hydrazones of 2-aryl-quinoline-4-carboxylic acid hydrazides: Synthesis and preliminary evaluation as antimicrobial agents. Bioorg. Med. Chem. 2006, 14, 8675–8682, doi:10.1016/j.bmc.2006.08.022.
  3. Ghiglieri-Bertez, C.; Coquelet, C.; Alazet, A.; Bonne, C. Dual inhibitors of the cyclooxygenase and lipoxygenase pathways: Synthesis and activity of hydrazone derivatives. [Inhibiteurs mixtes des voies de la cyclooxygénase et des lipoxygénases: Synthèse et activité de dérivés hydrazoniques]. Eur. J. Med. Chem. 1987, 22, 147–152, doi:10.1016/0223-5234(87)90010-9.
  4. Combs, D.W.; Rampulla, M.S.; Demers, J.P.; Falotico, R.; Moore, J.B. Heteroatom analogues of bemoradan: Chemistry and cardiotonic activity of l,4-benzot hiazinylpyridazinones. J. Med. Chem. 1992, 35, 172–176, doi:10.1021/jm00079a023.
  5. Montanari, M.L.C.; Montanari, C.A. Comparative QSAR of antimicrobial hydrazides. [Validação lateral em relações quantitativas entre estrutura e atividade farmacológica, QSAR.]. Quím. Nova 2002, 25, 231–240, doi:10.1590/S0100-40422002000200011.
  6. Farghaly, A.R.A.H. Synthesis, reactions and antimicrobial activity of some new indolyl-1,3,4-oxadiazole, triazole and pyrazole derivatives. J. Chin. Chem. Soc. 2004, 51, 147–156.
  7. Sapijanskaite, B.; Mickevièius, V. Synthesis of 1-(9-butylcarbazol-3-yl)-5-oxopyrrolidine-3-carboxylic acid derivatives. Chem. Heterocycl. Compd. 2008, 44, 807–814, doi:10.1007/s10593-008-0113-6.
  8. Xia, Y.; Fan, X.D.; Zhao, B.X.; Zhao, J.; Shin, D.S.; Miao, J.Y. Synthesis and structure activity relationships of novel 1-arylmethyl-3-aryl-1H-pyrazole-5-carbohydrazide hydrazone derivatives as potential agents against A549 lung cancer cells. Eur. J. Med. Chem. 2008, 43, 2347–2353, doi:10.1016/j.ejmech.2008.01.021.
  9. Abdel-Aziz, M.; Abuo-Rahma, E.D.A.; Hassan, A.A. Synthesis of novel pyrazole derivatives and evaluation of their antidepressant and anticonvulsant activities. Eur. J. Med. Chem. 2009, 44, 3480–3487, doi:10.1016/j.ejmech.2009.01.032.
  10. Khalifa, M.M.; Abdelbaky, N.A. Synthesis of new imidazolyl acetic acid derivatives with antiinflammatory and analgesic activities. Arch. Pharm. Res. 2008, 31, 419–423, doi:10.1007/s12272-001-1173-x.
  11. Hafez, H.N.; El-Gazzara, A.B.A. Design and synthesis of 3-pyrazolyl-thiophene, thieno[2,3-d]pyrimidines as new bioactive and pharmacological activities. Bioorg. Med. Chem. Lett. 2008, 18, 5222–5227, doi:10.1016/j.bmcl.2008.08.071.
  12. Kumaraswamy, M.N.; Chandrashekhar, C.; Shivakumar, H.; Mathias, D.A.P.; Mahadevan, K.M.; Vaidya, V.P. Synthesis and activity evaluation of 2-(1-naphtho[2,1-b]furan-2-yl-carbonyl)-3,5-disubstituted-2,3-dihydro-1H-pyrazoles. Indian J. Pharm. Sci. 2008, 70, 715–720, doi:10.4103/0250-474X.49090.
  13. Hegazi, B.; Mohamed, H.A.; Dawood, K.M.; Badria, F.A.R. Cytotoxicity and utility of 1-indanone in the synthesis of some new heterocycles. Chem. Pharm. Bull. 2010, 58, 479–483, doi:10.1248/cpb.58.479.
  14. Rostom, S.A.F. Polysubstituted pyrazoles, part 6. Synthesis of some 1-(4-chlorophenyl)-4-hydroxy-1H-pyrazol-3-carbonyl derivatives linked to nitrogenous heterocyclic ring systems as potential antitumor agents. Bioorg. Med. Chem. 2010, 18, 2767–2776, doi:10.1016/j.bmc.2010.02.006.
  15. Francisco, M.E.Y.; Seltzman, H.H.; Gilliam, A.F.; Mitchell, R.A.; Rider, S.L.; Pertwee, R.G.; Stevenson, L.A.; Thomas, B.F. Synthesis and structure-activity relationships of amide and hydrazide analogues of the cannabinoid CB1 receptor antagonist N-(Piperidinyl)-5-(4-chlorophenyl)-1-(2,4-dichlorophenyl)-4-methyl-1H-pyrazole-3-carboxamide (SR141716). J. Med. Chem. 2002, 45, 2708–2719, doi:10.1021/jm010498v.
  16. Padgett, L.W. Recent developments in cannabinoid ligands. Life Sci. 2005, 77, 1767–1798, doi:10.1016/j.lfs.2005.05.020.
  17. Fong, T.M.; Heymsfield, S.B. Cannabinoid-1 receptor inverse agonists: Current understanding of mechanism of action and unanswered questions CB1R mechanism of action. Int. J. Obes. 2009, 33, 947–955, doi:10.1038/ijo.2009.132.
  18. Soyka, M.; Koller, G.; Schmidt, P.; Lesch, O.M.; Leweke, M.; Fehr, C.; Gann, H.; Mann, K.F. ACTOL Study Investigators. Cannabinoid receptor 1 blocker rimonabant (SR 141716) for treatment of alcohol dependence: Results from a placebo-controlled, double-blind trial. J. Clin. Psychopharmacol. 2008, 28, 317–324, doi:10.1097/JCP.0b013e318172b8bc.
  19. Xia, Y.; Dong, Z.W.; Zhao, B.X.; Ge, X.; Meng, N.; Shinc, D.S.; Miaob, J.Y. Synthesis and structure-activity relationships of novel 1-arylmethyl-3-aryl-1H-pyrazole-5-carbohydrazide derivatives as potential agents against A549 lung cancer cells. Bioorg. Med. Chem. 2007, 15, 6893–6899, doi:10.1016/j.bmc.2007.08.021.
  20. Fan, C.D.; Zhao, B.X.; Wei, F.; Zhang, G.H.; Dong, W.L.; Miao, J.Y. Synthesis and discovery of autophagy inducers for A549 and H460 lung cancer cells, novel 1-(20-hydroxy-30-aroxypropyl)-3-aryl-1H-pyrazole-5-carbohydrazide derivatives. Bioorg. Med. Chem. Lett. 2008, 18, 3860–3864, doi:10.1016/j.bmcl.2008.06.058.
  21. Fan, C.; Zhao, J.; Zhao, B.; Zhang, S.; Miao, J. Novel complex of copper and a salicylaldehyde pyrazole hydrazone derivative induces apoptosis through up-regulating integrin in vascular endothelial cells. Chem Res. Toxicol. 2009, 22, 1517–1525, doi:10.1021/tx900111y.
  22. Fan, C.D.; Su, H.; Zhao, J.; Zhao, B.X.; Zhang, S.L.; Miao, J.Y. A novel copper complex of salicylaldehyde pyrazole hydrazone induces apoptosis through up-regulating integrin b4 in H322 lung carcinoma cells. Eur. J. Med. Chem. 2010, 45, 1438–1446, doi:10.1016/j.ejmech.2009.12.048.
  23. Li, Z.M.; Chen, H.S.; Zhao, W.G.; Zhang, K.; Huang, X.S. Synthesis and biological activity of pyrazole derivatives. Chem. J. Chin. Univ. 1997, 18, 1794–1799.
  24. Chen, H.S.; Li, Z.M. Synthesis of some heteroaryl pyrazole derivatives and their biological activities. Chin. J. Chem. 2000, 18, 596–602.
  25. Lian, S.; Su, H.; Zhao, B.X.; Liu, W.Y.; Zheng, L.W.; Miao, J.Y. Synthesis and discovery of pyrazole-5-carbohydrazide N-glycosides as inducer of autophagy in A549 lung cancer cells. Bioorg. Med. Chem. 2009, 17, 7085–7092, doi:10.1016/j.bmc.2009.09.004.
  26. Zheng, L.W.; Wub, L.L.; Zhao, B.X.; Dong, W.L.; Miao, J.Y. Synthesis of novel substituted pyrazole-5-carbohydrazide hydrazone derivatives and discovery of a potent apoptosis inducer in A549 lung cancer cells. Bioorg. Med. Chem. 2009, 17, 1957–1962, doi:10.1016/j.bmc.2009.01.037.
  27. Matheus, M.E.; Oliveira, L.F.; Freitas, A.C.; Carvalho, A.M.; Barreiro, E.J. Antinociceptive property of new 4-acyl-arylhydrazone pyrazole compounds. Braz. J. Med. Biol. Res. 1991, 24, 1219–1222.
  28. Matheus, M.E.; Oliveira, L.F.; Freitas, A.C.C. Antinociceptive activity of new pyrazole derivatives. Rev. Port. Farm. 1998, XLVIII, 153–158.
  29. Sant'anna, C.M.R.; Alencastro, R.B.; Rodrigues, C.R.; Barreiro, G.; Barreiro, E.J.; Motta Neto, J.D.; Freitas, A.C.C. A semiempirical study of pyrazole acylhydrazones as potential antimalarial agents. Int. J. Quantum Chem. 1996, 60, 1835–1843, doi:10.1002/(SICI)1097-461X(1996)60:8<1835::AID-QUA11>3.0.CO;2-Z.
  30. Bernardino, A.M.R.; Gomes, A.O.; Machado, G.M.C.; Canto-cavalheiro, M.M.; Leon, L.; Amaral, V.; Charret, K.S.; Freitas, A.C.C. Synthesis and leishmanicidal activities of 1-(4-X-phenyl)-N'-[(4-Y-phenyl)methylene]-1H-pyrazole-4-carbohydrazides. Eur. J. Med. Chem. 2006, 41, 80–87, doi:10.1016/j.ejmech.2005.10.007.
  31. Charret, K.S.; Rodrigues, R.F.; Gomes, A.O.; Bernardino, A.M.R.; Canto-Cavaleiro, M.; Leon, L.L.; Amaral, V.F. Effect of the oral treatment with pyrazole carbohydrazides derivatives in the murine infection by leishmania amazonensis. Am. J. Trop. Med. Hyg. 2009, 80, 568–573.
  32. Chornous, V.A.; Bratenko, M.K.; Vovk, M.V.; Sidorchuk, I.I. Synthesis and antimicrobial activity of pyrazole-4-carboxylic acid hydrazides and n-(4-pyrazoyl) hydrazones of aromatic and heteroaromatic aldehydes. Pharm. Chem. J. 2001, 35, 203–205, doi:10.1023/A:1010432029236.
  33. Vera-DiVaio, M.A.F.; Freitas, A.C.C.; Castro, H.C.; Albuquerque, S.; Cabral, L.M.; Rodrigues, C.R.; Albuquerque, M.G.; Martins, R.C.A.; Henriques, M.G.M.O; Dias, L.R.S. Synthesis, antichagasic in vitro evaluation, cytotoxicity assays, molecular modeling and SAR/QSAR studies of a 2-phenyl-3-(1-phenyl-1H-pyrazol-4-yl)-acrylic acid benzylidene-carbohydrazide series. Bioorg. Med. Chem. 2009, 17, 295–302, doi:10.1016/j.bmc.2008.10.085.
  34. Kaushik, D.; Khan, S.A.; Chawla, G.; Kumar, S. N'-[(5-chloro-3-methyl-1-phenyl-1H-pyrazol-4-yl)methylene] 2/4-substituted hydrazides: Synthesis and anticonvulsant activity. Eur. J. Med. Chem. 2010, 45, 3943–3949, doi:10.1016/j.ejmech.2010.05.049.
