Pharmaceuticals 2012, 5(11), 1210-1235; doi:10.3390/ph5111210

Review
The Role of Transport Mechanisms in Mycobacterium Tuberculosis Drug Resistance and Tolerance
Jansy Passiflora Sarathy 1, Véronique Dartois 1,2,,* and Edmund Jon Deoon Lee 3
1
Novartis Institute for Tropical Diseases Pte Ltd, 10 Biopolis Road #05-01, Chromos, 138670, Singapore
2
Department of Biological Sciences, National University of Singapore, 14 Science Drive 4, 117543, Singapore
3
Department of Pharmacology, Yong Loo Lin School of Medicine, National University of Singapore, Clinical Research Centre, 10 Medical Drive, 117597, Singapore
Current address: Public Health Research Institute, 225 Warren St, Newark, NJ 07103, USA.
*
Author to whom correspondence should be addressed; Email: dartoiva@umdnj.edu; Tel.: +1-973-854-3160.
Received: 27 August 2012; in revised form: 25 October 2012 / Accepted: 2 November 2012 /
Published: 9 November 2012

Abstract

: In the fight against tuberculosis, cell wall permeation of chemotherapeutic agents remains a critical but largely unsolved question. Here we review the major mechanisms of small molecule penetration into and efflux from Mycobacterium tuberculosis and other mycobacteria, and outline how these mechanisms may contribute to the development of phenotypic drug tolerance and induction of drug resistance. M. tuberculosis is intrinsically recalcitrant to small molecule permeation thanks to its thick lipid-rich cell wall. Passive diffusion appears to account for only a fraction of total drug permeation. As in other bacterial species, influx of hydrophilic compounds is facilitated by water-filled open channels, or porins, spanning the cell wall. However, the diversity and density of M. tuberculosis porins appears lower than in enterobacteria. Besides, physiological adaptations brought about by unfavorable conditions are thought to reduce the efficacy of porins. While intracellular accumulation of selected drug classes supports the existence of hypothesized active drug influx transporters, efflux pumps contribute to the drug resistant phenotype through their natural abundance and diversity, as well as their highly inducible expression. Modulation of efflux transporter expression has been observed in phagocytosed, non-replicating persistent and multi-drug resistant bacilli. Altogether, M. tuberculosis has evolved both intrinsic properties and acquired mechanisms to increase its level of tolerance towards xenobiotic substances, by preventing or minimizing their entry. Understanding these adaptation mechanisms is critical to counteract the natural mechanisms of defense against toxic compounds and develop new classes of chemotherapeutic agents that positively exploit the influx and efflux pathways of mycobacteria.
Keywords:
Mycobacterium tuberculosis; drug transport; efflux; porins; resistance; persistence

Abbreviations

ABCATP-Binding Cassette transporters
MFSMajor Facilitator Superfamily transporters
RNDResistance-Nodulation-Cell Division transporters
ATPAdenosine triphosphate
CCCPCarbonyl cyanide m-chlorophenyl hydrazone
PMFProton Motive Force

1. Introduction

In 2010, it was estimated that there were 8.8 million incident cases of tuberculosis (TB), 1.1 million deaths from TB among HIV-negative people and an additional 0.35 million deaths from HIV-associated TB [1]. Despite the availability of effective treatment options since the 1950s, and the implementation of well-structured treatment programs, the current TB epidemic is not being controlled. Frontline anti-tuberculous drugs have gradually become ineffective because of the increasing incidence of resistance. Multidrug-resistant TB (MDR-TB) is a difficult-to-treat form of M. tuberculosis that fails to respond to the two most effective first-line anti-tuberculous drugs, rifampicin and isoniazid. The World Health Organization (WHO) estimated that in 2009, around 5% of all new tuberculosis cases involved MDR-TB [2]. Strains that combine MDR with additional resistance to fluoroquinolones and at least one injectable drug have been appropriately named extensively drug-resistant tuberculosis (XDR-TB). The burden of tuberculosis on global health has pushed the research community into focusing efforts on the development of new vaccines, diagnostics and chemotherapy against Mycobacterium tuberculosis, the causative agent.

The TB pathology is diverse, generating different types of lesions, containing several micro-environments each harboring metabolically distinct bacterial sub-populations, some of which are not effectively killed by most existing drugs [3]. This drug tolerance phenomenon typical of tuberculosis has been coined “phenotypic drug resistance” [4], and is partly attributed to the pathogen’s ability to remain sequestered in macrophages and other stress-inducing micro-environments in a non-replicating state of persistence (see Figure 1) [5]. These dormant bacilli are primarily responsible for the persistent and latent forms of the disease, but retain the potential to resume growth and produce an active infection, making them a critical target population of antimycobacterial agents [5,6,7].

The development of new antimycobacterials active against dormant cells and resistant strains is in need of novel drug targets. The failure of existing chemotherapeutic options to control the TB epidemic can be attributed in part to sub-therapeutic concentrations at the site of action [8]. The longer a pool of bacteria is exposed to sub-inhibitory levels of an antimicrobial agent, the more likely the emergence and selection of resistant clones becomes [9]. This has prompted researchers and drug discovery experts to turn to strategies which would potentiate existing therapeutics by increasing their intracellular levels through the use of small molecule inhibitors against efflux pumps [10].

Pharmaceuticals 05 01210 g001 1024

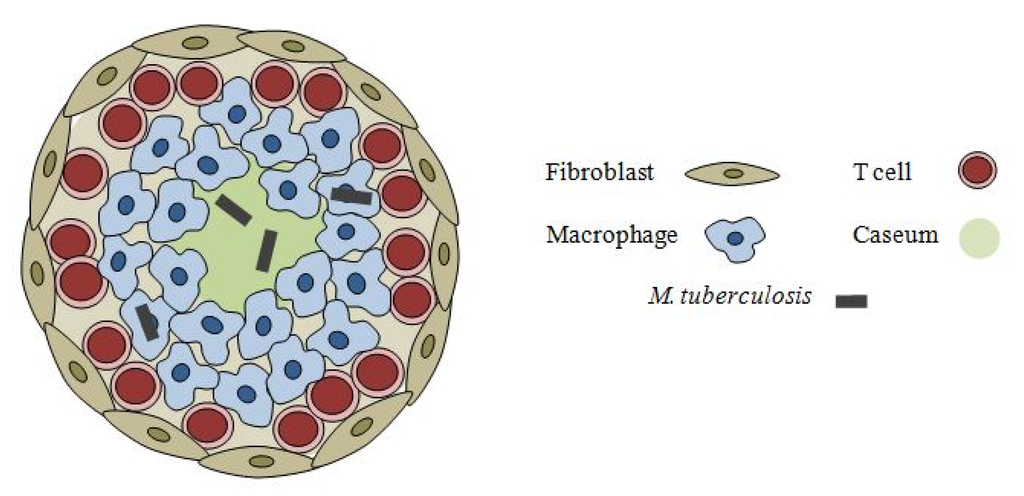

Figure 1. illustrates a classic tuberculous granuloma with a caseous centre that can be found in both actively- and latently-infected patients. M. tuberculosis in such granuloma can be found intracellularly within macrophages or extracellularly.

Click here to enlarge figure

Figure 1. illustrates a classic tuberculous granuloma with a caseous centre that can be found in both actively- and latently-infected patients. M. tuberculosis in such granuloma can be found intracellularly within macrophages or extracellularly.
Pharmaceuticals 05 01210 g001 1024

The cell envelope of mycobacteria is notorious for being several-fold less permeable to chemotherapeutic agents when compared to functionally similar cell walls of other bacteria [11]. The knowledge of drug transport pathways could assist in the successful design of novel chemotherapeutic combinations against M. tuberculosis. Here, we review the current understanding of the various influx and efflux pathways in mycobacteria while focusing our attention on details specific to M. tuberculosis. The function and expression of transport proteins such as porins, drug importers and efflux pumps are summarized and their respective influence on the drug-resistant and non-replicating persistent states is highlighted. Collectively, the literature data compiled here show that M. tuberculosis and other mycobacteria have evolved several intrinsic and adaptive mechanisms to increase their level of tolerance towards xenobiotic substances, by preventing or minimizing their entry: (i) natural or intrinsic resistance mediated by the thickened highly hydrophobic and waxy envelope; (ii) reduced permeability resulting from physiological adaptations under unfavorable environmental conditions; (iii) drug-induced resistance acquired via increased expression of various classes of efflux pumps; and (iv) genetically encoded resistance conferred by mutations in efflux complexes.

2. Mycobacterial Cell Wall: The Permeability Barrier

The cell envelope of mycobacteria is structurally distinct from that of both Gram-positive and Gram-negative bacteria. The entire mycobacterial cell envelope can be broken down into two main structural components: cell membrane and cell wall. The outer leaflet of the cell wall is composed of mycolic acids which are covalently linked to the arabinogalactan-peptidoglycan complex of the inner leaflet. Mycobacteria are capable of producing a multitude of mycolic acids with varying lengths and modifications depending on species, strain and growth conditions [12,13,14]. It is widely believed that the unusually high mycolic acid content, combined with a variety of other intercalated lipids, contributes to the wall’s limited permeability [15]. The mycobacterial cell wall is also composed of phosphotidyl-myo-inositol derived glycolipids such as lipomannan and lipoarabinomannan which have potent immunomodulatory activities [16].

The mycolyl-arabinogalactan-peptidogalactan complex is acknowledged as being a more efficient permeability barrier than cell walls of any other class of bacteria [11]. Jarlier and Nikaido attempted to clearly define the mycobacterial permeability barrier to hydrophilic molecules by studying the uptake kinetics of small nutrient molecules (glucose, glycine, leucine and glycerol) in M. chelonae [17]. The permeability coefficients (P) for these nutrients were found ranging from 1.4 to 62 nm/s; specifically 2.8 nm/s for glucose. Km values of the overall transport of glucose and glycerol were 1,000 µM and 200 µM, respectively, as measured in the same study. In comparison, a different study had measured a permeability coefficient of glucose for E. coli (1.4 × 105 nm/s) that was about five orders of magnitude higher [18]. It should be noted that the precise values of permeability differ among different species of mycobacteria. M. chelonae, being one of the most drug-resistant species, has a cell wall that is about one to two orders of magnitude less permeable than M. tuberculosis, M. smegmatis and M. phlei [11,18]. This intra-species difference in cell wall permeability may be attributed to variability in its content and organization. Detailed structural and quantitative analysis has revealed a higher mycolate-to-peptidoglycan ratio in M. leprae than M. tuberculosis; peptidoglycan coverage by mycolate was estimated at 80% and 63% for M. leprae and M. tuberculosis, respectively [19].

This unique cell wall composition and organization is believed to render mycobacteria less susceptible than other bacterial pathogens to various antibiotic classes [11,20]. Several pathways exist for compounds to cross this permeability barrier. It is assumed that hydrophobic compounds should be able to penetrate cell walls by simply dissolving into and through the lipophilic cell wall unassisted, whereas the influx of hydrophilic compounds is largely facilitated by porins, which are water-filled open channels that span the cell wall [21]. It appears that the mycobacterial plasma membrane plays a limited role in pathogenicity and maintenance of the influx-efflux equilibrium [13,22].

3. Passive Diffusion: The Hydrophobic Pathway

In principle, antimicrobial agents of the more lipophilic classes such as the rifamycins, macrolides and fluoroquinolones are more likely to diffuse into and through the lipid-rich environment of the mycobacterial cell wall in order to transverse its depth [20]. This passive transport has been coined “hydrophobic (or lipid) pathway”, characterized by the nature of the interactions between structural lipids and small molecules [23]. However, lipophilic agents are presumably slowed down by the low fluidity and unusual thickness of the cell wall [24]. It has been demonstrated that lipophilic derivatives within single drug classes are more active against mycobacteria when compared to their hydrophilic counterparts [20]. This was more recently supported by evidence from a comparison of Minimum Inhibitory Concentrations (MIC) between hydrophilic and hydrophobic fluoroquinolone analogs. Moxifloxacin (cLogP 0.6) was 32-fold more effective than norfloxacin (cLogP −0.1) at inhibiting the growth of M. smegmatis [25], though the relative affinity of fluoroquinolones for the gyrase and differential susceptibility to efflux pumps also contribute to the net difference in MIC. Brennan et al. postulated that an increase in the rate of drug penetration resulting from an increase in incubation temperature is also evidence of the predominant role of the hydrophobic pathway or passive diffusion in drug penetration [20].

4. Facilitated Diffusion: The Porins

Porins are large water-filled channels allowing the penetration of small hydrophilic molecules without requiring energy consumption. This uptake pathway caters to a limited range of compounds since channel diameters at the narrowest point define the exclusion limit, and parameters such as channel length and the number of open pores determine the velocity of transport [26]. As demonstrated by studies in E. coli, diffusion rates through porins are further affected by the charge, hydrophobicity, and size of the solute [21,27,28]. Several types of porins have been identified and studied in Gram-negative and some Gram-positive bacteria. To date, two putative classes of porins have been identified and characterized in mycobacteria; they are MspA-like and OmpA-like porins in M. smegmatis and M. tuberculosis respectively [25].

MspA was the first porin of its class identified in a mycobacterial species, with proven oligomerization and channel-forming activity in vitro and when cloned in E. coli [29]. Subsequent sequencing of the M. smegmatis genome revealed three more porin genes with homology to mspA, namely mspB, mspC and mspD [30]. Numerous studies have documented MspA-enabled transport of hydrophilic solutes and drug molecules across the cell wall of M. smegmatis. Table 1 summarizes drug transport specificities of various M. smegmatis porins and their impact on drug uptake and MIC. The studies show that porin deletion is clearly linked to increases in MICs of various antibiotics. In several instances, this increase in MIC has been associated with reduction in drug uptake. Furthermore, heterologous expression of M smegmatis mspA accelerated the growth and increased the susceptibility of M. tuberculosis and M. bovis BCG to various classes of antibiotics [23]. This establishes the relationship between porin function, small molecule and nutrient uptake, and drug susceptibility in M. smegmatis.

Table Table 1. Specific drug transport activities of mycobacterial porins of the Msp class in M. smegmatis. In all instances, porin-deletion mutants were used to determine drug transport specificity; dependence of individual drugs on porin transport is exemplified by the extent of reduction in drug uptake and increase in MIC.

Click here to display table

Table 1. Specific drug transport activities of mycobacterial porins of the Msp class in M. smegmatis. In all instances, porin-deletion mutants were used to determine drug transport specificity; dependence of individual drugs on porin transport is exemplified by the extent of reduction in drug uptake and increase in MIC.
SpeciesDeleted PorinDrugFold-reduction in Drug UptakeFold-increase in MICReference
M. smegmatisMspA & C double deletionAmpicillin-16[25]
Cephaloridine-8
Chloramphenicol1–24
Norfloxacin42
MspAAmpicillin-16[31]
Cephaloridine98
Vancomycin-10
MspACephaloridine9-[30]

Porins are only minor proteins in the mycobacterial cell wall unlike enterobacterial porins which are the most abundant proteins in the cell [23,26]. Direct counting of stained pores by electron microscopic analysis revealed a 45-fold lower number of MspA pores on the outer membranes of M. smegmatis when compared to pore counts of the outer membranes of Gram-negative bacteria [32]. The octameric MspA porin consists of two consecutive hydrophobic β-barrels, a more hydrophilic globular rim domain, and a single central channel of 9.6nm in length. This porin is largely embedded into the cell membrane of M. smegmatis with the embedded region including a portion of the hydrophilic rim domain [33]. Crystal structures revealed that the constriction zone of MspA is rich in aspartate residues. Together with the high number of negative charges in the vestibule and channel interior, this could explain the cation preference of MspA [34].

OmpATb was the first suggested porin-like molecule identified in M. tuberculosis. Encoded by the rv0899 gene, the name OmpATb was coined because of its homology to the E.coli porin OmpA [35].A study by Teriete et al. showed that Rv0899 does not form a transmembrane β-barrel, but a mixed α/β globular structure encompassing two independently folded modules which correspond to the B and C domains of the protein. The core of this B domain appears hydrophobic while its exterior is both polar and acidic [36]. Altogether, this proposed structure for OmpATb makes it unlikely for it to function as a porin. More recent structural elucidation by Yang et al. suggests that OmpATb forms a heptameric ring complex, driven by interactions between the α/β structured monomers, and is hypothetically capable of inserting itself into a biological membrane and form channels [37], allowing ion diffusion as observed in vitro. This model is based on NMR data of minor oligomeric populations of OmpATb in solution, and lies in contrast with available data suggesting the lack of functional porin assembly in vitro [38].

OmpATb plays a key role in conferring M. tuberculosis the ability to survive under acidic conditions. Deletion mutants in ompATb exhibit a significant reduction in permeability to several hydrophilic molecules and impaired ability to grow at reduced pH. The role of OmpA in acid resistance was reinforced by the observation of increased ompATb transcription levels in M. tuberculosis growing within macrophages, given that vacuole acidification is known to occur in infected phagocytes [39]. More recent functional studies revealed no obvious porin activity of OmpATb. Rather, chemical analysis of low-pH M. tuberculosis culture filtrates showed that OmpATb is involved in rapid ammonia secretion capable of neutralizing medium pH and restoring exponential bacterial growth. This is further substantiated by the discovery that Rv0899-like proteins are present predominantly in bacteria with functions in nitrogen fixation and metabolism [40]. OmpATb-mediated ammonia extrusion may be one of the multiple adaptations of M. tuberculosis to acidic environments and, on its own, is not critical for virulence in mice [38]. The porin function of OmpATb in M. tuberculosis clearly remains a controversial issue.

A recent attempt to predict outer membrane proteins in M. tuberculosis via a bioinformatics approach has led to the identification of two novel Omp-like proteins (Rv1698 and Rv1973) in M. tuberculosis. Both proteins have been proven to localize to the outer membrane [41]. Since then, the channel-forming activity of Rv1698 has been successfully characterized; Rv1698 expression has proven to restore sensitivity of MspA-deletion mutants of M. smegmatis to ampicillin and chloramphenicol, and complement the permeability defect of the mutant for glucose. Single homologues of Rv1698 are found only in mycolic-acid containing bacteria belonging to the suborder Corynebacterineae of the Actinomycetales, which includes mycobacteria. It therefore represents the first protein identified as specific for this suborder [42]. Orthologous porins PorM1 and PorM2 have since been characterized in M. fortuitum [43].

Interestingly, M. tuberculosis does not express the Msp-like porins that are found in faster-growing M. smegmatis [32]. This and other significant differences between the pathogenic and saprophytic mycobacterial species call into question the appropriateness of M. smegmatis as a model organism for anti-tuberculosis drug discovery and virulence studies of M. tuberculosis [15].

Table 2 summarizes several biophysical characteristics of mycobacterial and other bacterial porins. Single-channel conductance often provides an estimation of channel diameters of porins, and gives an indication of the relative mobilities of solutes through them. It can be observed from Table 2 that some proportionality exists between channel width, channel conductance and size exclusion limits. If OmpATb of M. tuberculosis does indeed form functional porin units, this trend would place its limit in the approximate range of 600–800 Da. This implies that the rifamycin and macrolide classes are too large to utilize OmpATb to transverse the cell wall. Danilchanka et al attempted to illustrate the fit of a drug when oriented along their longest axes within the MspA porin constriction zone by using 3D structure visualization and surface representations of structural models of antibiotics. They predicted that ampicillin, chloramphenicol and norfloxacin are able to utilize this porin molecule, as opposed to antibiotics such as erythromycin, kanamycin and vancomycin [25].

Table Table 2. Biophysical characteristics of OmpATb from M. tuberculosis and porins from other selected bacterial species. Exclusion limits were determined based on the uptake of saccharides of varied weight.

Click here to display table

Table 2. Biophysical characteristics of OmpATb from M. tuberculosis and porins from other selected bacterial species. Exclusion limits were determined based on the uptake of saccharides of varied weight.
SpeciesPorinChannel Width (nm)Single-Channel Conductance (nS)Exclusion Limit (Da)Reference
M. tuberculosisOmpATb1.4–1.80.7Undetermined[35]
M. smegmatisMspA2.2–2.44.6Undetermined[44,45]
E. coliOmpA0.6–0.70.14 (at 37 °C)550*[46,47,48]
OmpF1.20.82
P. aeruginosaOprF2.256000[49,50]
S. typhimuriumNot specified1.42.3700[46,51]

* This study on size exclusion limit for E.coli porins did not distinguish between specific Omp types.

The specific role played by porins in intracellular drug accumulation within other bacterial species has been well studied. The outer membrane porin protein OprD of Pseudomonas aeruginosa has been directly implicated in the influx of imipenem; a staggering 98% of imipenem- and meropenem-resistant P. aeruginosa clinical isolates have been identified as being negative for OprD porin production [52]. Similarly, studies on expression levels of the porin protein OmpF in clinical isolates of E. coli have linked the decreased expression levels of this porin with resistance to quinolones [53,54]. In these enterobacterial pathogens, the reduction in the number of functional porins per cell is mostly due to a decrease or complete shutdown of synthesis, or the expression of an altered porin. These changes bring about decreased susceptibility to antimicrobials and favor the acquisition of additional mechanisms of bacterial resistance [55]. Changes in the expression levels of functional porins should therefore be viewed as potential contributing factors in the development of resistance in mycobacteria.

In conclusion, porins appear to be less varied and less abundant in mycobacteria than in other bacterial families such as the enterobacteriaceae, though the possibility remains that we have only detected a small fraction of the total mycobacterial porin panel. The wide range of metabolic and physiologic adaptations seen in M. tuberculosis, combined with the generally complex regulation of porin expression in other species, suggest that M. tuberculosis has likewise exploited porin modulation as a strategy to fence itself off from harmful small molecules. Some of these putative schemes are discussed in a later section.

5. Active Transport Processes: Influx and Efflux

5.1. Influx Transporters

Based on M tuberculosis genome sequence analysis, Braibant et al. have concluded that there is an under-representation of importers in M. tuberculosis, with the exception of phosphate importers, when compared to other bacterial species such as E. coli and B. subtilis [56]. In addition, the ratio of exporter-to-importer proteins, based on sequence homology, is markedly higher in M. tuberculosis than in E. coli. This observation may again contribute to the reduced uptake of small molecules by M. tuberculosis bacilli. Though bacterial ABC transporters can mediate both influx and efflux activity, only their efflux activity has been observed and characterized in mycobacterial species [57]. Identified substrates for ABC influx activity thus far include sugars, amino acids, metals and anions [58].

5.2. Efflux Pumps

5.2.1. Resistance Phenotype I—Natural Abundance

The presence of active multi-drug efflux pumps is also thought to play a significant role in the development of natural and induced drug resistance in mycobacteria. In 1998, the complete genome sequencing of M. tuberculosis revealed at least 14 members of the Major Facilitator Family (MFS) and the ATP-binding Cassette (ABC) transporter family [59]. In 2000, analysis of transcriptional clusters and homology searches of transporters from other organisms allowed for the reconstitution of 26 complete and 11 incomplete ABC transporters from the various subunits encoded for by the complete M. tuberculosis genome [56]. In the same study, it was concluded that ABC transporters account for 2.5% of the genome of M. tuberculosis. This compares with 5% of the entire E. coli genome that encodes for 69 ABC transporters [60]. ATP-binding cassettes (ABC), the major facilitator superfamily (MFS), the multidrug and toxic compound extrusion (MATE) family, the small multidrug resistance (SMR) family and the resistance-nodulation-division (RND) superfamily are the five families of bacterial drug efflux pumps that have been categorized thus far [61,62,63]. The mechanisms of efflux-mediated drug resistance in bacteria have been well-studied and reviewed over the past decade, and are therefore only briefly summarized here.

ABC transporter proteins are known for coupling ATP-hydrolysis with the alternation between outward- and inward-facing conformations to bring about substrate transport [64]. MFS and RND transporters, on the other hand, are classified as secondary active transporters because they are driven by the proton-motive force (PMF) [65]. SMR transporters are the smallest multidrug resistant proteins, with lengths of about a 110 amino acids only. Despite the general correlation between genome size and the number of ABC transport systems, the M. tuberculosis genome encodes fewer ABC systems per megabase than any other organism surveyed in a comprehensive analysis of the solute transport systems within the genomes of 18 prokaryotes. It was suggested that the relative abundances of ABC and MFS transporters reflects the overall use of energy coupling mechanism in each organism. M. tuberculosis, being a strict aerobe, is more dependent on PMF-type secondary transporters as compared to fermentative organisms that depend on substrate level phosphorylation to generate ATP. Also worth noting is the largest RND-family representation in M. tuberculosis compared to the other prokaryotes surveyed. These are believed to play a significant role in the extrusion of lipids and other cell envelope components [66].

Several ABC, MFS, RND and SMR efflux pumps of M. tuberculosis and other mycobacteria have been characterized as antibiotic transporters (See Table 3). TetV and LfrA, which have been identified in M. smegmatis as drug transporters but not in M. tuberculosis have also been included in the table. Some of these putative pumps have been associated with reduced mycobacterial susceptibility to agents such as isoniazid, tetracycline, fluoroquinolones and aminoglycosides [67]. Differences in efflux pump expression between mycobacterial species are important because they offer insights into the acquisition of drug resistance. One study which investigated influx and efflux rates of pyrazinamide and pyrazinoic acid, respectively, revealed that the efflux rate in M. smegmatis is 900 fold higher than in M. tuberculosis when no significant variability was noticed in uptake rates. It is not known whether this difference is due to variability in the type or expression level of pumps present in both species but it potentially explains the innate resistance of M. smegmatis to pyrazinamide as compared to the relative susceptibility of M. tuberculosis [68].

Table Table 3. Summary of known antibiotic substrates of several mycobacterial efflux pumps of M. tuberculosis.

Click here to display table

Table 3. Summary of known antibiotic substrates of several mycobacterial efflux pumps of M. tuberculosis.
PumpGeneTransporter FamilyKnown SubstratesKnown InhibitorsEnergy SourceMycobacteriaReference
-rv2686c-ABCFluoroquinolonesVerapamilATPM. tuberculosis[69]
rv2687c-Reserpine
rv2688cCCCP
-rv1218cABCNovobiocinsVerapamilATPM. tuberculosis[70]
PyrazolonesReserpine
PyrrolesCCCP
-rv0194ABCAmpicillinReserpineATPM. tuberculosis[25]
Chloramphenicol
Streptomycin
Novobiocin
DrrABdrrA-drrBABCDoxorubicinVerapamilATPM. tuberculosis[71]
Reserpine
MmpL7mmpL7RNDIsoniazidReserpineCCCPPMFM. tuberculosis[72]
Taprv1258cMFSTetracyclinePiperinePMFM. tuberculosis[73,74,75]
RifampicinM. fortuitum
P55brv1410cMFSRifampicinCCCP PMFM. tuberculosis[76,77]
Clofazimine
AminoglycosidesValinomycinM. bovis
Tetracycline
JefArv2459MFSIsoniazidVerapamil Not speculatedM. tuberculosis[78]
Ethambutol
CCCP
Streptomycin
EfpArv2846cMFSNot determined-PMFM. tuberculosis[67,79]
M. smegmatis
M. leprae
M. avium
IniAainiA-IsoniazidReserpineNot speculatedM. tuberculosis[80]
Ethambutol
Mmrrv3065SMR CCCPPMFM. tuberculosis[81,82]
Erythromycin
Thioridazine
Tet(V)tet(V)MFSTetracyclineCCCPPMFM. smegmatis[81]
M. fortuitum
LfrAlfrAMFSFluoroquinolonesCCCPPMFM. smegmatis[83]
Doxorubicin

a IniA is itself a pump component that hypothetically participates in the formation of a multimeric structure with a central pore. b The function of P55 is connected to P27, a proposed glycolipid transporter [84]. Both proteins are encoded in the IprG-Rv1410c operon of M. tuberculosis [85].

5.2.2. Resistance Phenotype II—Induction of Expression

Studies have shown that the exposure to various anti-tuberculous drugs can trigger increased expression of selected efflux pumps leading to drug-mediated phenotypic resistance. Two possible mechanisms are thought to contribute to higher expression of pump-encoding genes: transitory induction by the substrate of these pumps and mutations in the promoter and regulatory region leading to increased or constitutive expression [67,86]. The latter is discussed in the next section. The study of time-kill kinetics of isoniazid against wild-type M. tuberculosis revealed that while rapid concentration-dependent killing was seen upon initial drug exposure, subsequent re-growth was observed over a wide range of isoniazid concentrations which was caused by the development of isoniazid-resistant sub-populations. Susceptibility of this subpopulation to isoniazid was restored in the presence of an efflux pump inhibitor for 98% of the resistant clones [87], suggesting that the majority of the isoniazid-resistant population represents efflux pump-mediated phenotypic drug tolerance, though genetic mutations in efflux pump-encoding genes were not formally excluded in this study. More recently, it has been established that susceptible and rifampicin mono-resistant M. tuberculosis strains develop resistance to isoniazid within three weeks, and that this is effectively prevented by efflux pump inhibitors [88]. Such induction of resistance to isoniazid has been associated with the overexpression of efflux pump genes such as mmpl7, p55, efpA, mmr, Rv1258 and Rv2459 [88,89,90]. In the presence of isoniazid, wild-type M. bovis BCG and M. tuberculosis increased the expression of iniA by up to 10-fold [80]. Though it does not appear to directly transport isoniazid out of the cell, this predicted transmembrane protein has been postulated to serve as a pump component that participates in the formation of a multimeric structure containing a central pore.

Gupta et al. demonstrated the overexpression of 10 efflux pump genes in MDR strains following exposure to a range of anti-tuberculous drugs. The simultaneous expression of Rv2459, Rv3728 and Rv3065, for example, has been associated with resistance to the specific combination of isoniazid and ethambutol, while Rv2477 and Rv2209 overexpression has been associated with ofloxacin stress [78]. One MDR clinical isolate bearing defined mutations in katG and rpoB displayed rv1258c and Rv1410c overexpression upon rifampicin or isoniazid exposure, and Rv1819c overexpression upon isoniazid exposure alone [91,92].

Interestingly, evidence exists for the reduction in susceptibility of M. tuberculosis to one drug upon exposure to another. The exposure of rifampicin-resistant strains to rifampicin resulted in a reduction in susceptibility to ofloxacin which could be restored by the introduction of efflux pump inhibitors [93]. One could hypothesize that the up-regulated efflux pumps are promiscuous in their activity and that the cyclic nature of both drugs facilitates recognition by similar pumps.

Finally, induction of selected efflux pumps contributes to drug resistance in biofilms formed by both Gram-positive and Gram-negative bacteria [61], though such phenomenon has not been demonstrated for M. tuberculosis to date. Signaling molecules that play a role in cell-to-cell communication are susceptible to efflux pumps, leading to the modulation of inter-species communication in the control of drug resistance and virulence in Salmonella [94]. Development of drug resistance through similar mechanisms remains to be explored in mycobacteria. All these findings indicate that there may be a role for efflux pump inhibitors in the treatment of TB, including latent TB, MDR-TB and XDR-TB.

5.2.3. Resistance Phenotype III—Efflux Pump Mutations

Drug efflux is typically described as an intrinsic or natural resistance mechanism in bacteria. However, mutations in efflux pump genes and their regulator sequences can lead to increased efflux activity and, hence, enhanced drug resistance. Such mutational events either cause an inducible increase in pump expression upon antibiotic exposure, or the constitutive expression of otherwise tightly controlled pump genes above basal levels [95]. Several such mutations have been documented in various bacterial systems, particularly in Gram-negative species [96,97,98]. Often, the mutations are stable point mutations that reduce the DNA binding affinity of particular repressors for their target regulatory region within promoters and lead to constitutive expression of efflux components [95].

In M. tuberculosis, mutations in the bioactivating enzymes or in the target of rifampicin, isoniazid, pyrazinamide and the fluoroquinolones cannot explain all clinically observed resistance. For example, approximately 20 to 30% of INH-resistant M. tuberculosis isolates do not have mutations in any of the known genes associated with INH resistance [99]. Similarly, approximately 5% of clinical RIF-resistant M. tuberculosis isolates do not harbor mutations in the RIF resistance-determining region of the rpoB gene [100]. A number of studies based on gene expression profiling and efflux pump inhibition point towards the role of active extrusion in genotypic drug resistance [57]. However, due to incomplete understanding of efflux substrate specificities and regulatory mechanisms, the distinction between expression induction by the substrate resulting in transient tolerance versus DNA mutations leading to inherited up-regulation at the transcriptional level has not been clearly made in most cases. The growing pool of whole genome sequences from clinically resistant isolates provides a unique opportunity to elucidate some of the mechanisms underlying efflux-mediated drug resistance in M. tuberculosis.

6. Phenotypic Drug Tolerance

6.1. The NRP State

Non-replicating persistence (NRP) is defined as the physiological state of bacteriostasis in addition to metabolic, chromosomal and structural changes in the bacilli that enable the conservation of energy [7]. Sufficient evidence has emerged for long-term NRP of M. tuberculosis in the human host within tuberculous granulomas and necrotic lesions in pulmonary tissue. Nutrient limitation and hypoxic conditions within granulomas trigger the shutdown in central metabolism that shifts subpopulations of bacilli to dormancy [101]. Several in vitro models have been developed thus far to mimic these conditions of hypoxia and nutrient starvation [6,102,103]. Studies have shown that the NRP state brings about phenotypic resistance to anti-tuberculous agents, contributing to the challenge of effective disease control [104]. Ofloxacin and the sulbactam-ampicillin combination, for example, have shown reduced activity on stationary-phase cultures of M. tuberculosis [105]. While rifampicin, streptomycin, moxifloxacin and isoniazid are highly bactericidal for actively-replicating M. tuberculosis, they have little or no effect on the viability of nutrient-starved cultures [87,102]. The MBC90 of rifampicin increased 50 and 2,500 times under conditions of oxygen- and nutrient-starvation respectively, and isoniazid’s cidal activity was completely lost on M. tuberculosis cultured under both conditions for concentrations up to 100 µM [103]. In another study where 17 agents were tested against nutrient-starved M. tuberculosis at concentrations up to 160 µM, only four were able to achieve 99% killing (MBC99], and only when considerably higher test concentrations were used than against growing bacteria [106].

It has been suggested that, because anti-tuberculous agents typically target functions essential for growth and replication, they are less effective at eradicating NRP tuberculosis [101]. However, it is also believed that NRP bacilli develop alterations in their cell wall that affect permeability to antibiotics. Ziehl-Neelsen staining of M. tuberculosis in lung sections gradually fades with persistence of an infection [107]. The progression to the Ziehl-Neelsen-negative state is the result of cell wall composition alterations upon the onset of dormancy. Though loss of acid fastness has been associated with dormancy and phenotypic drug tolerance, the mechanisms by which such alterations mediate loss of acid fastness have not been elucidated [107].

NRP conditions lead to induction of the ‘dormancy regulon’, a collection of at least 48 genes that are controlled by the dormancy survival regulator DosR [108,109,110]. Under conditions of oxygen starvation, M. tuberculosis displays activation of several transport mechanisms including the up-regulated expression of predicted transporters for metal cations (ctpA and ctpV), sulphate (Rv1739c, cysW), molybdate (modA) and peptides (dppA) [111]. In a separate study, nutrient starvation caused phosphate uptake proteins (PstA1, PstB, PhoS1 and PstA2) to be down-regulated, and sulphate transport system proteins (CysA, CysW, CysT and SubI) to be up-regulated [102]. The regulation of expression of efflux pumps with antibiotic substrates under NRP conditions is still unclear. However, it is understood that the inactivation of Tap (Rv1258c), a known tetracycline efflux pump [74], in M. bovis BCG during stationary phase triggers a stress response that leads to a downshift in cell wall biosynthesis because of the accumulation of an unknown toxic substrate. This emphasizes that Tap is essential for the maintenance of balanced physiological function in the late stationary phase and indicates the potential role for the efflux pump during latency [112].

In bacterial species where it has been extensively studied, the regulation of porin expression has proven to be a fine-tuned and complex phenomenon modulated by multiple factors [113]. It is tempting to hypothesize that reduced porin density may contribute to the development of phenotypic drug tolerance in M. tuberculosis. Ongoing studies by our group aim to understand how starvation conditions affect the intracellular concentrations of standard anti-tuberculosis drugs in quiescent M. tuberculosis bacilli.

6.2. Cell Wall Thickening

Recent ground breaking studies using cryo-electron tomography (CET) have revealed that the mycobacterial outer membrane is a symmetrical bilayer and might be less thick than generally believed in actively growing M. smegmatis and M. bovis BCG [114,115]. Cell wall thickening of the bacilli upon the onset of dormancy has been suggested based on transmission electron microscopy (TEM) studies and would have important implications on the persistence of M. tuberculosis. Caution should be exercised when interpreting TEM images, since electron microscopy analyses of ultrathin sections are performed with specimens from which water had been removed, a prerequisite for electron microscopy observation at room temperature. Consequently, water-soluble molecules may aggregate and lipid molecules may be prone to extraction or rearrangement by organic solvents during dehydration. This said, comparative analysis by TEM of M. bovis BCG and M. tuberculosis cultured under aerobic, micro-aerobic and anaerobic conditions revealed significant homogenous thickening of the cell wall in non-replicating quiescent bacilli [116]. More recently, thickening of the cell wall was observed in anaerobically grown quiescent M. tuberculosis, this time using atomic force microscopy [117]. Though these observations await confirmation in vitro and in vivo, as well as in-depth biochemical and structural analysis, a reinforced cell wall may constitute an additional permeability barrier, at least for some drug classes. Because porin dimensions and channel lengths presumably remain static despite these external changes, porin channels may not be able to span the depth of the thickened cell wall, thereby causing reduced access to the channel entrance by small molecules.

6.3. Intracellular M. tuberculosis

As is the case for many bacterial pathogens, M. tuberculosis is phagocytosed by macrophages via the process of endocytosis. Some strategies for surviving the hostile intracellular environment of macrophages include the inhibition of phagosome-lysosome fusion and the inhibition of phagosome acidification [118,119]. Efflux pump P55 plays a significant role in M. bovis replication and persistence in the macrophages. It is functionally connected to P27 of the same operon (IprG-Rv1410c). The p27-p55 knock-out mutation in M. bovis severely compromises virulence and intracellular replication [85]. In a recent elegant study, induction of drug tolerance in intracellular mycobacteria was attributed to macrophage-induced bacterial efflux mechanisms [92]. By using M. tuberculosis-infected cultured macrophages and M. marinum-infected zebrafish, the authors have shown that drug-tolerant bacteria arose within individual macrophages soon after infection and prior to granuloma formation. In contrast with the prevalent dogma, this drug tolerance was associated with a replicating intracellular bacterial population rather than macrophage-induced stasis. The study further showed that bacterial efflux pumps such as rifampicin-specific Rv1258c were induced upon macrophage infection, mediating drug tolerance. Interestingly, this drug tolerance was found to be retained for a period of time after bacteria resumed extracellular growth.

7. Accumulation of Selected Drugs in M. tuberculosis

In the hunt for novel anti-tuberculosis drugs, the physico-chemical properties driving cell wall permeation by chemotherapeutic agents remain a critical but largely unsolved question. Table 4 lists biological and molecular properties of selected anti-TB agents, compiled in an attempt to detect correlation trends between intracellular accumulation and physico-chemical properties. The level of drug accumulation within M. tuberculosis cells varies significantly between drug classes but drawing comparisons between them is difficult due to differences in experimental methods used to measure accumulation. Intracellular concentrations of the fluoroquinolones listed were determined by measuring their fluorescence in cell lysates [120]. Pyrazinamide, isoniazid and rifampicin intracellular concentrations were calculated from scintillation counts of radio-labeled compounds in whole-cell preparations [121,122,123], which includes cell wall-associated drug content. This results in a possible overestimation of intracellular drug concentration. In the study of efficacy of drugs targeting cytosol-localized proteins, only the drug content of the cytosol compartment is of concern.

Molecular weight is often speculated to be an important determinant of the rate of diffusion and cell wall permeation; the smaller the compound the higher the rate of passive diffusion [124], while ClogP, a measure of the lipophilicity of a compound, reflects partitioning into the hydrophobic phase of the cell wall [125]. Attempts to plot these parameters as a function of intra-bacillary accumulation failed to reveal any correlations (not shown), consistent with the growing realization that many anti-TB agents lie outside the drug-like chemical space in which the Lipinski rule-of-five prevails [124,126]. The observation that the hydrophilic fluoroquinolones efficiently accumulate within M. tuberculosis supports the hypothesis that diffusion through porins serves as a route of transport across the mycobacterial cell wall for this class of compounds. Altogether, weak correlations are very likely due to the fact that many of these anti-tuberculous agents are transported via a combination of pathways. This analysis is also limited by the small number of drugs included and the fact that we attempted to compare physico-chemical properties across different compound classes. The intracellular concentrations of pro-drugs that require enzymatic activation are not always reflective of their potency; the intracellular concentration of active metabolites may be more relevant in the cases of isoniazid and pyrazinamide.

Pyrazinamide appears to accumulate 6-fold within the bacilli, partly owing to its bioconversion to pyrazinoic acid and subsequent trapping of the charged molecule. Its transport has been determined as being ATP-dependent and reliant on the nicotinamide transport pathway [121]. However, the other drugs listed that accumulate intracellularly above the extracellular concentration have been speculated as being passively taken up by mycobacteria. In the case of isoniazid which accumulates 4–5 times within M. tuberculosis, the calculated accumulation factor accounts for both isoniazid and metabolites since the read-out measures all isoniazid-derived radioactive material. Constant conversion by KatG ensures a consistent pro-drug concentration gradient between the intracellular and extracellular compartments [122]. Fluoroquinolones appear to concentrate within the intracellular compartment despite being un-metabolized. The ability to concentrate a drug within the intracellular environment of M. tuberculosis should reflect the presence of active drug importers which have yet to be identified.

In conclusion, there is no simple formula linking physico-chemical parameters to intracellular accumulation of small molecules in M. tuberculosis. As mentioned above, the contribution of a variety of passive and active mechanisms of uptake and efflux precludes the use of a simple equation to solve this question. Further studies focusing on relatively large numbers of molecules within the same chemical scaffold should help identify the major determinants of uptake for a given class of small molecules or therapeutic agents.

Table Table 4. Physico-chemical properties and intracellular accumulation factors of several antibiotics in M. tuberculosis as previously reported in published literature. Intracellular accumulation factors were defined as the ratio between intracellular and extracellular drug concentrations. Mechanisms of drug uptake were quoted or inferred from referenced publications.

Click here to display table

Table 4. Physico-chemical properties and intracellular accumulation factors of several antibiotics in M. tuberculosis as previously reported in published literature. Intracellular accumulation factors were defined as the ratio between intracellular and extracellular drug concentrations. Mechanisms of drug uptake were quoted or inferred from referenced publications.
AntibioticMolecular WeightCLogP *PSA (Å2) *TargetIC50 (mg/L)MIC90 (mg/L)Accumulation Factor aHypothesized Transport MechanismReference
Pyrazinamide123.12−0.67668.87Fatty acid sysnthase IbN.A.16–50 (pH5.5)5.4–6.2ATP-dependent[121,127]
Isoniazid137.14−0.66868.01Enoyl-acyl carrier protein reductaseN.A.0.02–0.24–5Passive Diffusion[121,127]
Ciprofloxacin331.35−0.72577.04DNA Gyrase3.2(M. smeg)1.03.3–4.1Passive Diffusion[120,128]
Levofloxacin361.38−0.50877.48DNA Gyrase3.0(M. smeg)0.51.1–1.3Passive Diffusion[120,128]
Ofloxacin361.38−0.50877.48DNA Gyrase7.9(M. smeg)0.52.2–2.7Passive Diffusion[120,128]
Norfloxacin319.34−0.78077.04DNA GyraseInformation unavailable21.8–2.2Passive Diffusion[120]
Moxifloxacin401.44−0.08286.27DNA GyraseInformation unavailable0.51–1.3Passive Diffusion[120]
Ethambutol204.320.11964.52Arabinosyl-transferaseInformation unavailable1– 5<1Passive Diffusion[127,129]
Rifampicin822.963.710220.15RNA polymerase0.07(M. avium)0.05–122.3–27.1Passive Diffusion[120]

a Assuming cellular volume of 2.4–3.0µL per mg dry weight [121,122]; b See also work by Zhang et al. where an alternative mode of action for pyrazinamide is proposed [130]; * CLogP and PSA were calculated by the cheminformatics program InSilico Profile [131].

8. Future Perspectives

Thus far, tools have not been developed to accurately predict the extent to which a drug utilizes either the un-facilitated or porin-facilitated diffusion pathway to achieve cell wall penetration in mycobacteria. Several studies have looked at the complex inhibition of E. coli porins OmpF and OmpC by polyamines. Cadaverine, putrescine, spermidine and spermine have all been shown to inhibit both chemotaxis and the flux of β-lactam antibiotics in E. coli [132]. These polyamines have been shown to increase the number and duration of channel closures, while promoting the blocked or inactivated state [133,134]. The impact of polyamine inhibition on porins has not yet been demonstrated in mycobacteria but similar studies could open up the field of porin-mediated drug uptake in these species.

A recent elegant study by Allison et al. has shed light on the ability of specific metabolites to potentiate the eradication of both E. coli and S. aureus by aminoglycosides [135]. Aminoglycoside uptake in exponentially growing bacteria requires a PMF. Metabolites entering upper glycolysis such as glucose, mannitol and fructose enhance aminoglycoside uptake and the rapid killing of persisters by inducing PMF. It remains to be shown whether PMF-stimulating metabolites are similarly able to serve as adjuvants to aminoglycoside therapy for M. tuberculosis infections.

A handful of studies have established the link between antimicrobial drug uptake and active influx mechanisms in non-mycobacterial species. Streptomycin accumulation, for example, in E. coli and P. aeruginosa is energy-dependent and saturable [136]. Similar results were attained with gentamicin accumulation in the same two bacterial species; it was shown to concentrate between 4 to 250 times over the extracellular concentration [137]. It is conceivable that similar active drug influx mechanisms exist in M. tuberculosis and other mycobacterial species.

With regards to efflux pumps, the question remains: What chance is there of devising pump inhibitors as effective clinical solutions? Thioridazine appears to be a promising therapeutic option in the fight against MDR- and XDR-TB infections [138,139]. When used in combination with second-line anti-tuberculous agents it boosts the management of such infections [140]. Other than having been approved for use on the basis of compassionate therapy for XDR-TB patients in Mumbai, India, thioridazine remains untapped as an effective anti-tuberculous agent. Fellow anti-psychotic agent chlorpromazine has also displayed efflux pump inhibition activity in M. avium and M. smegmatis [138]. It is not known which specific class of bacterial efflux pumps is inhibited by these agents.

This review attempts to provide a holistic view of drug transport mechanisms in mycobacteria, and their potential contribution to intrinsic and acquired drug resistance, phenotypic drug tolerance, and genetic resistance. Improving our understanding in this field will help to decipher the virulence and resistance mechanisms of M. tuberculosis, and other pathogenic mycobacterial species.

References

  1. World Health Organization. Global Tuberculosis Control; WHO Press: Geneva, Switzerland, 2011.
  2. World Health Organization. Tuberculosis MDR-TB & XDR-TB Progress report; WHO Press: Geneva, Switzerland, 2011.
  3. Mitchison, D.A. The action of antituberculosis drugs in short-course chemotherapy. Tubercle. 1985, 66, 219–225. [Google Scholar] [CrossRef]
  4. Sacchettini, J.C.; Rubin, E.J.; Freundlich, J.S. Drugs versus bugs: in pursuit of the persistent predator Mycobacterium tuberculosis. Nat. Rev. Microbiol. 2008, 6, 41–52. [Google Scholar] [CrossRef]
  5. Chao, M.C.; Rubin, E.J. Letting sleeping dos lie: does dormancy play a role in tuberculosis? Annu. Rev. Microbiol. 2010, 64, 293–311. [Google Scholar] [CrossRef]
  6. Wayne, L.G.; Hayes, L.G. An in vitro model for sequential study of shiftdown of Mycobacterium tuberculosis through two stages of nonreplicating persistence. Infect. Immun. 1996, 64, 2062–2069. [Google Scholar]
  7. Wayne, L.G.; Sohaskey, C.D. Nonreplicating persistence of mycobacterium tuberculosis. Annu. Rev. Microbiol. 2001, 55, 139–163. [Google Scholar]
  8. Kjellsson, M.C.; Via, L.E.; Goh, A.; Weiner, D.; Low, K.M.; Kern, S.; Pillai, G.; Barry, C.E., III.; Dartois, V. Penetration of anti-tuberculosis agents in rabbit pulmonary lesions: a pharmacokinetic evaluation. Antimicrob. Agents Chemother. 2011, 56, 446–457. [Google Scholar]
  9. Coates, A.; Hu, Y.; Bax, R.; Page, C. The future challenges facing the development of new antimicrobial drugs. Nat. Rev. Drug Discov. 2002, 1, 895–910. [Google Scholar] [CrossRef]
  10. Lomovskaya, O.; Bostian, K.A. Practical applications and feasibility of efflux pump inhibitors in the clinic--a vision for applied use. Biochem. Pharmacol. 2006, 71, 910–918. [Google Scholar]
  11. Jarlier, V.; Nikaido, H. Mycobacterial cell wall: structure and role in natural resistance to antibiotics. FEMS Microbiol. Lett. 1994, 123, 11–18. [Google Scholar]
  12. Brennan, P.J. Structure, function, and biogenesis of the cell wall of Mycobacterium tuberculosis. Tuberculosis (Edinb). 2003, 83, 91–97. [Google Scholar] [CrossRef]
  13. Daffe, M.; Draper, P. The envelope layers of mycobacteria with reference to their pathogenicity. Adv. Microb. Physiol. 1998, 39, 131–203. [Google Scholar]
  14. Barry, C.E.; Crick, D.C.; McNeil, M.R. Targeting the formation of the cell wall core of M.tuberculosis. Infect. Disord. Drug Targets. 2007, 7, 182–202. [Google Scholar] [CrossRef]
  15. Barry, C.E., 3rd. Interpreting cell wall 'virulence factors' of Mycobacterium tuberculosis. Trends Microbiol. 2001, 9, 237–241. [Google Scholar] [CrossRef]
  16. Mishra, A.K.; Driessen, N.N.; Appelmelk, B.J.; Besra, G.S. Lipoarabinomannan and related glycoconjugates: structure, biogenesis and role in Mycobacterium tuberculosis physiology and host-pathogen interaction. FEMS Microbiol. Rev. 2011, 35, 1126–1157. [Google Scholar] [CrossRef]
  17. Jarlier, V.; Nikaido, H. Permeability barrier to hydrophilic solutes in Mycobacterium chelonei. J. Bacteriol. 1990, 172, 1418–1423. [Google Scholar]
  18. Connell, N.D.; Nikaido, H. In Tuberculosis: Pathogenesis, Protection, and Control; Bloom, B.R., Ed.; ASM Press: Washington, DC, USA, 1994; pp. 333–352.Chapter 22. [Google Scholar]
  19. Bhamidi, S.; Scherman, M.S.; Jones, V.; Crick, D.C.; Belisle, J.T.; Brennan, P.J.; McNeil, M.R. Detailed structural and quantitative analysis reveals the spatial organization of the cell walls of in vivo grown Mycobacterium leprae and in vitro grown Mycobacterium tuberculosis. J. Biol. Chem. 2011, 286, 23168–23177. [Google Scholar]
  20. Brennan, P.J.; Nikaido, H. The envelope of mycobacteria. Annu. Rev. Biochem. 1995, 64, 29–63. [Google Scholar] [CrossRef]
  21. Nikaido, H. Molecular basis of bacterial outer membrane permeability revisited. Microbiol. Mol. Biol. Rev. 2003, 67, 593–656. [Google Scholar] [CrossRef]
  22. Daffe, M.; Etienne, G. The capsule of Mycobacterium tuberculosis and its implications for pathogenicity. Tuber. Lung Dis. 1999, 79, 153–169. [Google Scholar] [CrossRef]
  23. Mailaender, C.; Reiling, N.; Engelhardt, H.; Bossmann, S.; Ehlers, S.; Niederweis, M. The MspA porin promotes growth and increases antibiotic susceptibility of both Mycobacterium bovis BCG and Mycobacterium tuberculosis. Microbiology. 2004, 150, 853–864. [Google Scholar] [CrossRef]
  24. Liu, J.; Barry, C.E., 3rd; Besra, G.S.; Nikaido, H. Mycolic acid structure determines the fluidity of the mycobacterial cell wall. J. Biol. Chem. 1996, 271, 29545–29551. [Google Scholar]
  25. Danilchanka, O.; Pavlenok, M.; Niederweis, M. Role of porins for uptake of antibiotics by Mycobacterium smegmatis. Antimicrob. Agents Chemother. 2008, 52, 3127–3134. [Google Scholar]
  26. Trias, J.; Jarlier, V.; Benz, R. Porins in the cell wall of mycobacteria. Science. 1992, 258, 1479–1481. [Google Scholar]
  27. Nikaido, H.; Rosenberg, E.Y. Effect on solute size on diffusion rates through the transmembrane pores of the outer membrane of Escherichia coli. J. Gen. Physiol. 1981, 77, 121–135. [Google Scholar] [CrossRef]
  28. Nikaido, H.; Vaara, M. Molecular basis of bacterial outer membrane permeability. Microbiol. Rev. 1985, 49, 1–32. [Google Scholar]
  29. Niederweis, M.; Ehrt, S.; Heinz, C.; Klocker, U.; Karosi, S.; Swiderek, K.M.; Riley, L.W.; Benz, R. Cloning of the mspA gene encoding a porin from Mycobacterium smegmatis. Mol. Microbiol. 1999, 33, 933–945. [Google Scholar] [CrossRef]
  30. Stahl, C.; Kubetzko, S.; Kaps, I.; Seeber, S.; Engelhardt, H.; Niederweis, M. MspA provides the main hydrophilic pathway through the cell wall of Mycobacterium smegmatis. Mol. Microbiol. 2001, 40, 451–464. [Google Scholar] [CrossRef]
  31. Stephan, J.; Mailaender, C.; Etienne, G.; Daffe, M.; Niederweis, M. Multidrug resistance of a porin deletion mutant of Mycobacterium smegmatis. Antimicrob. Agents Chemother. 2004, 48, 4163–4170. [Google Scholar] [CrossRef]
  32. Niederweis, M. Mycobacterial porins--new channel proteins in unique outer membranes. Mol. Microbiol. 2003, 49, 1167–1177. [Google Scholar] [CrossRef]
  33. Mahfoud, M.; Sukumaran, S.; Hulsmann, P.; Grieger, K.; Niederweis, M. Topology of the porin MspA in the outer membrane of Mycobacterium smegmatis. J. Biol. Chem. 2006, 281, 5908–5915. [Google Scholar]
  34. Niederweis, M. The Mycobacterial Cell Envelope; Daffe, M., Reyrat, J.M., Eds.; ASM Press: Washington, DC, U.S.A, 2008; pp. 153–166.Chapter 9. [Google Scholar]
  35. Senaratne, R.H.; Mobasheri, H.; Papavinasasundaram, K.G.; Jenner, P.; Lea, E.J.; Draper, P. Expression of a gene for a porin-like protein of the OmpA family from Mycobacterium tuberculosis H37Rv. J. Bacteriol. 1998, 180, 3541–3547. [Google Scholar]
  36. Teriete, P.; Yao, Y.; Kolodzik, A.; Yu, J.; Song, H.; Niederweis, M.; Marassi, F.M. Mycobacterium tuberculosis Rv0899 adopts a mixed alpha/beta-structure and does not form a transmembrane beta-barrel. Biochemistry. 2010, 49, 2768–2777. [Google Scholar]
  37. Yang, Y.; Auguin, D.; Delbecq, S.; Dumas, E.; Molle, G.; Molle, V.; Roumestand, C.; Saint, N. Structure of the Mycobacterium tuberculosis OmpATb protein: a model of an oligomeric channel in the mycobacterial cell wall. Proteins 2011, 79, 645–661. [Google Scholar] [CrossRef]
  38. Song, H.; Huff, J.; Janik, K.; Walter, K.; Keller, C.; Ehlers, S.; Bossmann, S.H.; Niederweis, M. Expression of the ompATb operon accelerates ammonia secretion and adaptation of Mycobacterium tuberculosis to acidic environments. Mol. Microbiol. 2011, 80, 900–918. [Google Scholar] [CrossRef]
  39. Rohde, K.; Yates, R.M.; Purdy, G.E.; Russell, D.G. Mycobacterium tuberculosis and the environment within the phagosome. Immunol. Rev. 2007, 219, 37–54. [Google Scholar] [CrossRef]
  40. Marassi, F.M. Mycobacterium tuberculosis Rv0899 defines a family of membrane proteins widespread in nitrogen-fixing bacteria. Proteins 2011, 79, 2946–2955. [Google Scholar] [CrossRef]
  41. Song, H.; Sandie, R.; Wang, Y.; Andrade-Navarro, M.A.; Niederweis, M. Identification of outer membrane proteins of Mycobacterium tuberculosis. Tuberculosis (Edinb) 2008, 88, 526–544. [Google Scholar] [CrossRef]
  42. Siroy, A.; Mailaender, C.; Harder, D.; Koerber, S.; Wolschendorf, F.; Danilchanka, O.; Wang, Y.; Heinz, C.; Niederweis, M. Rv1698 of Mycobacterium tuberculosis represents a new class of channel-forming outer membrane proteins. J. Biol. Chem. 2008, 283, 17827–17837. [Google Scholar]
  43. Sharbati, S.; Schramm, K.; Rempel, S.; Wang, H.; Andrich, R.; Tykiel, V.; Kunisch, R.; Lewin, A. Characterisation of porin genes from Mycobacterium fortuitum and their impact on growth. BMC Microbiol. 2009, 9, 31. [Google Scholar]
  44. Heinz, C.; Niederweis, M. Selective extraction and purification of a mycobacterial outer membrane protein. Anal. Biochem. 2000, 285, 113–120. [Google Scholar]
  45. Engelhardt, H.; Heinz, C.; Niederweis, M. A tetrameric porin limits the cell wall permeability of Mycobacterium smegmatis. J. Biol. Chem. 2002, 277, 37567–37572. [Google Scholar]
  46. Nakae, T. Identification of the outer membrane protein of E. coli that produces transmembrane channels in reconstituted vesicle membranes. Biochem. Biophys. Res. Commun. 1976, 71, 877–884. [Google Scholar] [CrossRef]
  47. Benz, R.; Orlik, F. Bacterial and Eukaryotic Porins: Structure, Function, Mechanism; Benz, R., Ed.; Wiley-VCH Verlag GmbH & Co. KGaA: Weinheim, Germany, 2005; pp. 183–212.Chapter 8. [Google Scholar]
  48. Saint, N.; Lou, K.L.; Widmer, C.; Luckey, M.; Schirmer, T.; Rosenbusch, J.P. Structural and functional characterization of OmpF porin mutants selected for larger pore size. II. Functional characterization. J. Biol. Chem. 1996, 271, 20676–20680. [Google Scholar]
  49. Hancock, R.E.; Decad, G.M.; Nikaido, H. Identification of the protein producing transmembrane diffusion pores in the outer membrane of Pseudomonas aeruginosa PA01. Biochim. Biophys. Acta. 1979, 554, 323–331. [Google Scholar] [CrossRef]
  50. Benz, R.; Hancock, R.E. Properties of the large ion-permeable pores formed from protein F of Pseudomonas aeruginosa in lipid bilayer membranes. Biochim. Biophys. Acta. 1981, 646, 298–308. [Google Scholar]
  51. Benz, R.; Ishii, J.; Nakae, T. Determination of ion permeability through the channels made of porins from the outer membrane of Salmonella typhimurium in lipid bilayer membranes. The J. Membr. Biol. 1980, 56, 19–29. [Google Scholar]
  52. Naenna, P.; Noisumdaeng, P.; Pongpech, P.; Tribuddharat, C. Detection of outer membrane porin protein, an imipenem influx channel, in Pseudomonas aeruginosa clinical isolates. Southeast Asian J. Trop. Med. Public Health. 2010, 41, 614–624. [Google Scholar]
  53. Kishii, R.; Takei, M. Relationship between the expression of ompF and quinolone resistance in Escherichia coli. J. Infect. Chemother. 2009, 15, 361–366. [Google Scholar] [CrossRef]
  54. Tavio, M.M.; Vila, J.; Ruiz, J.; Martin-Sanchez, A.M.; Jimenez de Anta, M.T. Mechanisms involved in the development of resistance to fluoroquinolones in Escherichia coli isolates. J. Antimicrob. Chemother. 1999, 44, 735–742. [Google Scholar] [CrossRef]
  55. Davin-Regli, A.; Bolla, J.M.; James, C.E.; Lavigne, J.P.; Chevalier, J.; Garnotel, E.; Molitor, A.; Pages, J.M. Membrane permeability and regulation of drug "influx and efflux" in enterobacterial pathogens. Curr. Drug Targets. 2008, 9, 750–759. [Google Scholar] [CrossRef]
  56. Braibant, M.; Gilot, P.; Content, J. The ATP binding cassette (ABC) transport systems of Mycobacterium tuberculosis. FEMS Microbiol. Rev. 2000, 24, 449–467. [Google Scholar]
  57. Louw, G.E.; Warren, R.M.; Gey van Pittius, N.C.; McEvoy, C.R.; Van Helden, P.D.; Victor, T.C. A balancing act: efflux/influx in mycobacterial drug resistance. Antimicrobial. Agents Chemother. 2009, 53, 3181–3189. [Google Scholar]
  58. Davidson, A.L.; Chen, J. ATP-binding cassette transporters in bacteria. Annu. Rev. Biochem. 2004, 73, 241–268. [Google Scholar] [CrossRef]
  59. Cole, S.T.; Brosch, R.; Parkhill, J.; Garnier, T.; Churcher, C.; Harris, D.; Gordon, S. V.; Eiglmeier, K.; Gas, S.; Barry, C.E., 3rd; et al. Deciphering the biology of Mycobacterium tuberculosis from the complete genome sequence. Nature. 1998, 393, 537–544. [Google Scholar]
  60. Linton, K.J.; Higgins, C.F. The Escherichia coli ATP-binding cassette (ABC) proteins. Mol. Microbiol. 1998, 28, 5–13. [Google Scholar]
  61. Li, X.Z.; Nikaido, H. Efflux-mediated drug resistance in bacteria: an update. Drugs. 2009, 69, 1555–1623. [Google Scholar] [CrossRef]
  62. Li, X.Z.; Nikaido, H. Efflux-mediated drug resistance in bacteria. Drugs. 2004, 64, 159–204. [Google Scholar]
  63. Higgins, C.F. Multiple molecular mechanisms for multidrug resistance transporters. Nature. 2007, 446, 749–757. [Google Scholar] [CrossRef]
  64. Hollenstein, K.; Dawson, R.J.; Locher, K.P. Structure and mechanism of ABC transporter proteins. Curr. Opin. Struct. Biol. 2007, 17, 412–418. [Google Scholar]
  65. Mazurkiewicz, P.; Driessen, A.J.; Konings, W.N. What do proton motive force driven multidrug resistance transporters have in common? Curr. Issues Mol. Biol. 2005, 7, 7–21. [Google Scholar]
  66. Paulsen, I.T.; Nguyen, L.; Sliwinski, M.K.; Rabus, R.; Saier, M.H., Jr. Microbial genome analyses: comparative transport capabilities in eighteen prokaryotes. J. Mol. Biol. 2000, 301, 75–100. [Google Scholar]
  67. De Rossi, E.; Ainsa, J.A.; Riccardi, G. Role of mycobacterial efflux transporters in drug resistance: an unresolved question. FEMS Microbiol. Rev. 2006, 30, 36–52. [Google Scholar] [CrossRef]
  68. Zimic, M.; Fuentes, P.; Gilman, R.H.; Gutierrez, A.H.; Kirwan, D.; Sheen, P. Pyrazinoic acid efflux rate in Mycobacterium tuberculosis is a better proxy of pyrazinamide resistance. Tuberculosis (Edinb). 2012, 92, 84–91. [Google Scholar] [CrossRef]
  69. Pasca, M.R.; Guglierame, P.; Arcesi, F.; Bellinzoni, M.; De Rossi, E.; Riccardi, G. Rv2686c-Rv2687c-Rv2688c, an ABC fluoroquinolone efflux pump in Mycobacterium tuberculosis. Antimicro. b Agents Chemother. 2004, 48, 3175–3178. [Google Scholar]
  70. Balganesh, M.; Kuruppath, S.; Marcel, N.; Sharma, S.; Nair, A.; Sharma, U. Rv1218c, an ABC transporter of Mycobacterium tuberculosis with implications in drug discovery. Antimicrob. Agents Chemother. 2010, 54, 5167–5172. [Google Scholar] [CrossRef]
  71. Choudhuri, B.S.; Bhakta, S.; Barik, R.; Basu, J.; Kundu, M.; Chakrabarti, P. Overexpression and functional characterization of an ABC (ATP-binding cassette) transporter encoded by the genes drrA and drrB of Mycobacterium tuberculosis. Biochem. J. 2002, 367, 279–285. [Google Scholar] [CrossRef]
  72. Pasca, M.R.; Guglierame, P.; De Rossi, E.; Zara, F.; Riccardi, G. mmpL7 gene of Mycobacterium tuberculosis is responsible for isoniazid efflux in Mycobacterium smegmatis. Antimicrob. Agents Chemother. 2005, 49, 4775–4777. [Google Scholar]
  73. Ainsa, J.A.; Blokpoel, M.C.; Otal, I.; Young, D.B.; De Smet, K.A.; Martin, C. Molecular cloning and characterization of Tap, a putative multidrug efflux pump present in Mycobacterium fortuitum and Mycobacterium tuberculosis. J. Bacteriol. 1998, 180, 5836–5843. [Google Scholar]
  74. Ramon-Garcia, S.; Martin, C.; Ainsa, J.A.; De Rossi, E. Characterization of tetracycline resistance mediated by the efflux pump Tap from Mycobacterium fortuitum. J. Antimicrob. Chemother. 2006, 57, 252–259. [Google Scholar] [CrossRef]
  75. Sharma, S.; Kumar, M.; Nargotra, A.; Koul, S.; Khan, I.A. Piperine as an inhibitor of Rv1258c, a putative multidrug efflux pump of Mycobacterium tuberculosis. J. Antimicrob. Chemother. 2010, 65, 1694–1701. [Google Scholar]
  76. Ramon-Garcia, S.; Martin, C.; Thompson, C.J.; Ainsa, J.A. Role of the Mycobacterium tuberculosis P55 efflux pump in intrinsic drug resistance, oxidative stress responses, and growth. Antimicrob. Agents Chemother. 2009, 53, 3675–3682. [Google Scholar] [CrossRef]
  77. Silva, P.E.; Bigi, F.; Santangelo, M.P.; Romano, M.I.; Martin, C.; Cataldi, A.; Ainsa, J.A. Characterization of P55, a multidrug efflux pump in Mycobacterium bovis and Mycobacterium tuberculosis. Antimicrob. Agents Chemother. 2001, 45, 800–804. [Google Scholar]
  78. Gupta, A.K.; Katoch, V.M.; Chauhan, D.S.; Sharma, R.; Singh, M.; Venkatesan, K.; Sharma, V.D. Microarray analysis of efflux pump genes in multidrug-resistant Mycobacterium tuberculosis during stress induced by common anti-tuberculous drugs. Microb. Drug Resist. 2010, 16, 21–28. [Google Scholar] [CrossRef]
  79. Doran, J.L.; Pang, Y.; Mdluli, K.E.; Moran, A.J.; Victor, T.C.; Stokes, R.W.; Mahenthiralingam, E.; Kreiswirth, B.N.; Butt, J.L.; Baron, G.S.; Treit, J.D.; Kerr, V.J.; Van Helden, P.D.; Roberts, M.C.; Nano, F.E. Mycobacterium tuberculosis efpA encodes an efflux protein of the QacA transporter family. Clin. Diagn. Lab. Immunol. 1997, 4, 23–32. [Google Scholar]
  80. Colangeli, R.; Helb, D.; Sridharan, S.; Sun, J.; Varma-Basil, M.; Hazbon, M.H.; Harbacheuski, R.; Megjugorac, N.J.; Jacobs, W.R. , Jr.; Holzenburg, A.; Sacchettini, J.C.; Alland, D. The Mycobacterium tuberculosis iniA gene is essential for activity of an efflux pump that confers drug tolerance to both isoniazid and ethambutol. Mol. Microbiol. 2005, 55, 1829–1840. [Google Scholar] [CrossRef]
  81. De Rossi, E.; Branzoni, M.; Cantoni, R.; Milano, A.; Riccardi, G.; Ciferri, O. mmr, a Mycobacterium tuberculosis gene conferring resistance to small cationic dyes and inhibitors. J. Bacteriol. 1998, 180, 6068–6071. [Google Scholar]
  82. Dutta, N.K.; Mehra, S. ; Kaushal, D.A. Mycobacterium tuberculosis sigma factor network responds to cell-envelope damage by the promising anti-mycobacterial thioridazine. PLoS ONE. 2010, 5, e10069. [Google Scholar]
  83. Liu, J.; Takiff, H.E.; Nikaido, H. Active efflux of fluoroquinolones in Mycobacterium smegmatis mediated by LfrA, a multidrug efflux pump. J. Bbacteriol. 1996, 178, 3791–3795. [Google Scholar]
  84. Drage, M.G.; Tsai, H.C.; Pecora, N.D.; Cheng, T.Y.; Arida, A.R.; Shukla, S.; Rojas, R.E.; Seshadri, C.; Moody, D.B.; Boom, W. H.; Sacchettini, J.C.; Harding, C.V. Mycobacterium tuberculosis lipoprotein LprG (Rv1411c) binds triacylated glycolipid agonists of Toll-like receptor 2. Nat. Struct. Mol. Biol. 2010, 17, 1088–1095. [Google Scholar]
  85. Bianco, M.V.; Blanco, F.C.; Imperiale, B.; Forrellad, M.A.; Rocha, R.V.; Klepp, L.I.; Cataldi, A.A.; Morcillo, N.; Bigi, F. Role of P27 -P55 operon from Mycobacterium tuberculosis in the resistance to toxic compounds. BMC Infect. Dis. 2011, 11, 195. [Google Scholar] [CrossRef]
  86. Nguyen, L.; Thompson, C.J. Foundations of antibiotic resistance in bacterial physiology: the mycobacterial paradigm. Trends Microbiol. 2006, 14, 304–312. [Google Scholar]
  87. de Steenwinkel, J.E.; de Knegt, G.J.; ten Kate, M.T.; van Belkum, A.; Verbrugh, H.A.; Kremer, K.; van Soolingen, D.; Bakker-Woudenberg, I.A. Time-kill kinetics of anti-tuberculosis drugs, and emergence of resistance, in relation to metabolic activity of Mycobacterium tuberculosis. J. Antimicrob. Chemother. 2010, 65, 2582–2589. [Google Scholar] [CrossRef]
  88. Machado, D.; Couto, I.; Perdigao, J.; Rodrigues, L.; Portugal, I.; Baptista, P.; Veigas, B.; Amaral, L.; Viveiros, M. Contribution of efflux to the emergence of isoniazid and multidrug resistance in Mycobacterium tuberculosis. PLoS ONE. 2012, 7, e34538. [Google Scholar]
  89. Rodrigues, L.; Machado, D.; Couto, I.; Amaral, L.; Viveiros, M. Contribution of efflux activity to isoniazid resistance in the Mycobacterium tuberculosis complex. Infect. Genet. Evol. 2012, 12, 695–700. [Google Scholar]
  90. Wilson, M.; DeRisi, J.; Kristensen, H.H.; Imboden, P.; Rane, S.; Brown, P.O.; Schoolnik, G.K. Exploring drug-induced alterations in gene expression in Mycobacterium tuberculosis by microarray hybridization. Proc. Natl. Acad. Sci. U. S. A. 1999, 96, 12833–12838. [Google Scholar]
  91. Jiang, X.; Zhang, W.; Zhang, Y.; Gao, F.; Lu, C.; Zhang, X.; Wang, H. Assessment of efflux pump gene expression in a clinical isolate Mycobacterium tuberculosis by real-time reverse transcription PCR. Microb. Drug Resist. 2008, 14, 7–11. [Google Scholar] [CrossRef]
  92. Adams, K.N.; Takaki, K.; Connolly, L.E.; Wiedenhoft, H.; Winglee, K.; Humbert, O.; Edelstein, P.H.; Cosma, C.L.; Ramakrishnan, L. Drug tolerance in replicating mycobacteria mediated by a macrophage-induced efflux mechanism. Cell. 2011, 145, 39–53. [Google Scholar]
  93. Louw, G.E.; Warren, R.M.; Gey van Pittius, N.C.; Leon, R.; Jimenez, A.; Hernandez-Pando, R.; McEvoy, C. R.; Grobbelaar, M.; Murray, M.; van Helden, P.D.; Victor, T.C. Rifampicin reduces susceptibility to ofloxacin in rifampicin-resistant Mycobacterium tuberculosis through efflux. Am. J. Respir. Crit. Care Med. 2011, 184, 269–276. [Google Scholar] [CrossRef]
  94. Nikaido, E.; Giraud, E.; Baucheron, S.; Yamasaki, S.; Wiedemann, A.; Okamoto, K.; Takagi, T.; Yamaguchi, A.; Cloeckaert, A.; Nishino, K. Effects of indole on drug resistance and virulence of Salmonella enterica serovar Typhimurium revealed by genome-wide analyses. Gut. pathogens. 2012, 4, 5. [Google Scholar]
  95. McPhee, J.B.; Tamber, S.; Brazas, M.D.; Lewenza, S.; Hancock, R.E.W. In Antimicrobial Drug Resistance; Mayers , D.L., Ed.; Humana Press: New York, NY, U.S.A, 2009; pp. 97–110.Chapter 9. [Google Scholar]
  96. Warner, D.M.; Shafer, W.M.; Jerse, A.E. Clinically relevant mutations that cause derepression of the Neisseria gonorrhoeae MtrC-MtrD-MtrE Efflux pump system confer different levels of antimicrobial resistance and in vivo fitness. Mol. Microbiol. 2008, 70, 462–478. [Google Scholar] [CrossRef]
  97. Maseda, H.; Hashida, Y.; Shirai, A.; Omasa, T.; Nakae, T. Mutation in the sdeS gene promotes expression of the sdeAB efflux pump genes and multidrug resistance in Serratia marcescens. Antimicrob. Agents Chemother. 2011, 55, 2922–2926. [Google Scholar] [CrossRef]
  98. Kehrenberg, C.; Cloeckaert, A.; Klein, G.; Schwarz, S. Decreased fluoroquinolone susceptibility in mutants of Salmonella serovars other than Typhimurium: detection of novel mutations involved in modulated expression of ramA and soxS. J. Antimicrob. Chemother. 2009, 64, 1175–1180. [Google Scholar]
  99. Ramaswamy, S.V.; Reich, R.; Dou, S.J.; Jasperse, L.; Pan, X.; Wanger, A.; Quitugua, T.; Graviss, E.A. Single nucleotide polymorphisms in genes associated with isoniazid resistance in Mycobacterium tuberculosis. Antimicrob. Agents Chemother. 2003, 47, 1241–1250. [Google Scholar] [CrossRef]
  100. Telenti, A.; Imboden, P.; Marchesi, F.; Lowrie, D.; Cole, S.; Colston, M.J.; Matter, L.; Schopfer, K.; Bodmer, T. Detection of rifampicin-resistance mutations in Mycobacterium tuberculosis. Lancet. 1993, 341, 647–650. [Google Scholar]
  101. Gengenbacher, M.; Kaufmann, S.H. Mycobacterium tuberculosis: success through dormancy. FEMS Microbiol. Rev. 2012, 36, 514–532. [Google Scholar] [CrossRef]
  102. Betts, J.C.; Lukey, P.T.; Robb, L.C.; McAdam, R.A.; Duncan, K. Evaluation of a nutrient starvation model of Mycobacterium tuberculosis persistence by gene and protein expression profiling. Mol. Microbiol. 2002, 43, 717–731. [Google Scholar] [CrossRef]
  103. Gengenbacher, M.; Rao, S.P.; Pethe, K.; Dick, T. Nutrient-starved, non-replicating Mycobacterium tuberculosis requires respiration, ATP synthase and isocitrate lyase for maintenance of ATP homeostasis and viability. Microbiology. 2010, 156, 81–87. [Google Scholar] [CrossRef]
  104. Zhang, Y. Persistent and dormant tubercle bacilli and latent tuberculosis. Front. Biosci. 2004, 9, 1136–1156. [Google Scholar]
  105. Herbert, D.; Paramasivan, C.N.; Venkatesan, P.; Kubendiran, G.; Prabhakar, R.; Mitchison, D.A. Bactericidal action of ofloxacin, sulbactam-ampicillin, rifampin, and isoniazid on logarithmic- and stationary-phase cultures of Mycobacterium tuberculosis. Antimicrob. Agents Chemother. 1996, 40, 2296–2299. [Google Scholar]
  106. Xie, Z.; Siddiqi, N.; Rubin, E.J. Differential antibiotic susceptibilities of starved Mycobacterium tuberculosis isolates. Antimicrob. Agents Chemother. 2005, 49, 4778–4780. [Google Scholar]
  107. Seiler, P.; Ulrichs, T.; Bandermann, S.; Pradl, L.; Jorg, S.; Krenn, V.; Morawietz, L.; Kaufmann, S.H.; Aichele, P. Cell-wall alterations as an attribute of Mycobacterium tuberculosis in latent infection. J. Infect. Dis. 2003, 188, 1326–1331. [Google Scholar] [CrossRef]
  108. Boon, C.; Dick, T. Mycobacterium bovis BCG response regulator essential for hypoxic dormancy. J. Bacteriol. 2002, 184, 6760–6767. [Google Scholar]
  109. Park, H.D.; Guinn, K.M.; Harrell, M.I.; Liao, R.; Voskuil, M.I.; Tompa, M.; Schoolnik, G.K.; Sherman, D.R. Rv3133c/dosR is a transcription factor that mediates the hypoxic response of Mycobacterium tuberculosis. Mol. Microbiol. 2003, 48, 833–843. [Google Scholar] [CrossRef]
  110. Boon, C.; Dick, T. How Mycobacterium tuberculosis goes to sleep: the dormancy survival regulator DosR a decade later. Future Microbiol. 2012, 7, 513–518. [Google Scholar]
  111. Muttucumaru, D.G.; Roberts, G.; Hinds, J.; Stabler, R.A.; Parish, T. Gene expression profile of Mycobacterium tuberculosis in a non-replicating state. Tuberculosis (Edinb). 2004, 84, 239–246. [Google Scholar] [CrossRef]
  112. Ramon-Garcia, S.; Mick, V.; Dainese, E.; Martin, C.; Thompson, C.J.; De Rossi, E.; Manganelli, R.; Ainsa, J.A. Functional and genetic characterization of the tap efflux pump in Mycobacterium bovis BCG. Antimicrob. Agents Chemother. 2012, 56, 2074–2083. [Google Scholar]
  113. De la Cruz, M.A.; Calva, E. The complexities of porin genetic regulation. J. Mol. Microbiol. Biotechnol. 2010, 18, 24–36. [Google Scholar] [CrossRef]
  114. Hoffmann, C.; Leis, A.; Niederweis, M.; Plitzko, J.M.; Engelhardt, H. Disclosure of the mycobacterial outer membrane: cryo-electron tomography and vitreous sections reveal the lipid bilayer structure. Proc. Natl. Acad. Sci. U. S. A. 2008, 105, 3963–3967. [Google Scholar]
  115. Zuber, B.; Chami, M.; Houssin, C.; Dubochet, J.; Griffiths, G.; Daffe, M. Direct visualization of the outer membrane of mycobacteria and corynebacteria in their native state. J. Bacteriol. 2008, 190, 5672–5680. [Google Scholar]
  116. Cunningham, A.F.; Spreadbury, C.L. Mycobacterial stationary phase induced by low oxygen tension: cell wall thickening and localization of the 16-kilodalton alpha-crystallin homolog. J. Bacteriol. 1998, 180, 801–808. [Google Scholar]
  117. Velayati, A.A.; Farnia, P.; Masjedi, M.R.; Zhavnerko, G.K.; Merza, M.A.; Ghanavi, J.; Tabarsi, P.; Poleschuyk, N.N.; Ignatyev, G. Sequential adaptation in latent tuberculosis bacilli: observation by atomic force microscopy (AFM). Int. J. Clin. Exp. Med. 2011, 4, 193–199. [Google Scholar]
  118. Walburger, A.; Koul, A.; Ferrari, G.; Nguyen, L.; Prescianotto-Baschong, C.; Huygen, K.; Klebl, B.; Thompson, C.; Bacher, G.; Pieters, J. Protein kinase G from pathogenic mycobacteria promotes survival within macrophages. Science. 2004, 304, 1800–1804. [Google Scholar] [CrossRef]
  119. Meena, L.S.; Rajni. Survival mechanisms of pathogenic Mycobacterium tuberculosis H37Rv. FEBS J. 2010, 277, 2416–2427. [Google Scholar] [CrossRef]
  120. Piddock, L.J.; Ricci, V. Accumulation of five fluoroquinolones by Mycobacterium tuberculosis H37Rv. J. Antimicrob. Chemother. 2001, 48, 787–791. [Google Scholar]
  121. Raynaud, C.; Laneelle, M.A.; Senaratne, R.H.; Draper, P.; Laneelle, G.; Daffe, M. Mechanisms of pyrazinamide resistance in mycobacteria: importance of lack of uptake in addition to lack of pyrazinamidase activity. Microbiology. 1999, 145 ( Pt 6), 1359–1367. [Google Scholar]
  122. Bardou, F.; Raynaud, C.; Ramos, C.; Laneelle, M.A.; Laneelle, G. Mechanism of isoniazid uptake in Mycobacterium tuberculosis. Microbiology. 1998, 144, 2539–2544. [Google Scholar]
  123. Piddock, L.J.; Williams, K. J.; Ricci, V. Accumulation of rifampicin by Mycobacterium aurum, Mycobacterium smegmatis and Mycobacterium tuberculosis. J. Antimicrob. Chemother. 2000, 45, 159–165. [Google Scholar]
  124. Lipinski, C.A. Drug-like properties and the causes of poor solubility and poor permeability. J. Pharmacol. Toxicol. Methods. 2000, 44, 235–249. [Google Scholar]
  125. Franklin, T.J.; Snow, G.A. In Biochemistry and Molecular Biology of Antimicrobial Drug Action; Franklin, T.J., Snow, G.A., Eds.; Springer: New York, NY, USA, 2005; pp. 121–134.Chapter 7. [Google Scholar]
  126. Koul, A.; Arnoult, E.; Lounis, N.; Guillemont, J.; Andries, K. The challenge of new drug discovery for tuberculosis. Nature. 2011, 469, 483–490. [Google Scholar]
  127. Zhang, Y.; Yew, W.W. Mechanisms of drug resistance in Mycobacterium tuberculosis. Int. J. Tuberc. Lung Dis. 2009, 13, 1320–1330. [Google Scholar]
  128. Guillemin, I.; Sougakoff, W.; Cambau, E.; Revel-Viravau, V.; Moreau, N.; Jarlier, V. Purification and inhibition by quinolones of DNA gyrases from Mycobacterium avium, Mycobacterium smegmatis and Mycobacterium fortuitum bv. peregrinum. Microbiology. 1999, 145, 2527–2532. [Google Scholar]
  129. Beggs, W.H.; Auran, N.E. Uptake and binding of 14C-ethambutol by tubercle bacilli and the relation of binding to growth inhibition. Antimicrob. Agents Chemother. 1972, 2, 390–394. [Google Scholar]
  130. Zhang, Y.; Wade, M.M.; Scorpio, A.; Zhang, H.; Sun, Z. Mode of action of pyrazinamide: disruption of Mycobacterium tuberculosis membrane transport and energetics by pyrazinoic acid. J. Antimicrob. Chemother. 2003, 52, 790–795. [Google Scholar] [CrossRef]
  131. Muehlbacher, J. InSilicoProfile, Version 3.2; Novartis: Basel, Switzerland, 2005. [Google Scholar]
  132. Vega, A.L.D.; Delcour, A.H. Polyamines decrease Escherichia coli outer membrane permeability. J. Bacteriol. 1996, 178, 3715–3721. [Google Scholar]
  133. Iyer, R.; Delcour, A.H. Complex inhibition of OmpF and OmpC bacterial porins by polyamines. J. Biol. Chem. 1997, 272, 18595–18601. [Google Scholar]
  134. Dela Vega, A.L.; Delcour, A.H. Cadaverine induces closing of E. coli porins. EMBO J. 1995, 14, 6058–6065. [Google Scholar]
  135. Allison, K.R.; Brynildsen, M.P.; Collins, J.J. Metabolite-enabled eradication of bacterial persisters by aminoglycosides. Nature. 2011, 473, 216–220. [Google Scholar]
  136. Bryan, L.E.; Van den Elzen, H.M. Streptomycin accumulation in susceptible and resistant strains of Escherichia coli and Pseudomonas aeruginosa. Antimicrob. Agents Chemother. 1976, 9, 928–938. [Google Scholar] [CrossRef]
  137. Bryan, L.E.; Van Den Elzen, H.M. Gentamicin accumulation by sensitive strains of Escherichia coli and Pseudomonas aeruginosa. J. Antibiot. 1975, 28, 696–703. [Google Scholar]
  138. Amaral, L.; Boeree, M.J.; Gillespie, S.H.; Udwadia, Z.F.; van Soolingen, D. Thioridazine cures extensively drug-resistant tuberculosis (XDR-TB) and the need for global trials is now! Int. J. Antimicrob. Agents. 2010, 35, 524–526. [Google Scholar] [CrossRef]
  139. Amaral, L.; Martins, M.; Viveiros, M.; Molnar, J.; Kristiansen, J.E. Promising therapy of XDR-TB/MDR-TB with thioridazine an inhibitor of bacterial efflux pumps. Curr. Drug Targets. 2008, 9, 816–819. [Google Scholar]
  140. Amaral, L.; Martins, M.; Viveiros, M. Enhanced killing of intracellular multidrug-resistant Mycobacterium tuberculosis by compounds that affect the activity of efflux pumps. J. Antimicrob. Chemother. 2007, 59, 1237–1246. [Google Scholar] [CrossRef]
Pharmaceuticals EISSN 1424-8247 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
