Pharmaceuticals 2012, 5(1), 49-60; doi:10.3390/ph5010049

Article
Anti-HCV RNA Aptamers Targeting the Genomic cis-Acting Replication Element
Soledad Marton , Beatriz Berzal-Herranz , Eva Garmendia , Francisco J. Cueto and Alfredo Berzal-Herranz *
Instituto de Parasitología y Biomedicina “López-Neyra”, IPBLN-CSIC, P.T. Ciencias de la Salud, Av. del Conocimiento s/n, Armilla, 18100 Granada, Spain; Email: smarton@ipb.csic.es (S.M.); bbh@ipb.csic.es (B.B.-H.); evagaresp@gmail.com (E.G.); fcracfc@gmail.com (F.J.C.)
*
Author to whom correspondence should be addressed; Email: aberzalh@ipb.csic.es; Tel.: +34-95-818-1621; Fax: +34-95-818-1632.
Received: 28 November 2011; in revised form: 15 December 2011 / Accepted: 22 December 2011 /
Published: 28 December 2011

Abstract

: Hepatitis C virus (HCV) replication is dependent on the existence of several highly conserved functional genomic RNA domains. The cis-acting replication element (CRE), located within the 3' end of the NS5B coding region of the HCV genome, has been shown essential for efficient viral replication. Its sequence and structural features determine its involvement in functional interactions with viral RNA-dependent RNA polymerase and distant RNA domains of the viral genome. This work reports the use of an in vitro selection strategy to select aptamer RNA molecules against the complete HCV-CRE. After six selection cycles, five potential target sites were identified within this domain. Inhibition assays using a sample of representative aptamers showed that the selected RNAs significantly inhibit the replication (>80%) of a subgenomic HCV replicon in Huh-7 cell cultures. These results highlight the potential of aptamer RNA molecules as therapeutic antiviral agents.
Keywords:
aptamer selection; SELEX; RNA aptamers; anti-HCV aptamers; aptamer therapeutics

1. Introduction

Some 3% of the World’s population is infected with hepatitis C virus (HCV), the major etiological agent of non-A non-B hepatitis [1,2]. No protective vaccine is available and current therapeutic strategies based on the combination of pegylated α-interferon and ribavirin are effective in only 40% of patients [3]. The quasispecies structure of the infecting viral population, a consequence of the high mutation rate of the HCV genome, is the main factor responsible for therapeutic failure [4]. The identification of conserved viral genomic functional elements that could act as potential therapeutic targets has therefore attracted much research attention.

The HCV genome is a 9,600 nt-long positive strand RNA molecule [1]. It encodes a single open reading frame (ORF) flanked at both ends by untranslatable regions (UTR) (Figure 1A) that are characterized by high sequence and secondary structure conservation rates across viral genotypes [5]. These UTRs contain domains essential for viral replication, translation and infectivity [6,7,8,9,10,11,12]. Conserved functional RNA domains have also been identified within the coding region. Of particular interest is the cis-acting replication element (CRE) in the 3' end of the NS5B coding region. Recognised as an important partner in viral RNA synthesis [13,14], it folds into a cruciform structure composed of three stem-loop motifs known as 5BSL3.1, 5BSL3.2 and 5BSL3.3 [14] (Figure 1B). Deletion and mutational analyses of these motifs have shown 5BSL3.1 and 5BSL3.2 to be essential in the replication of HCV subgenomic replicons [13,14,15,16]. The blockage of the 5BSL3.3 stem-loop by antisense peptide nucleic acids (PNAs) has shown this stem loop to have an important role in the initiation of minus-strand RNA synthesis [13]. The specific structural features of the CRE promote the recruitment of functional proteins, such as NS5B RNA polymerase [17], to the replication process. The CRE domain is also involved in RNA-RNA interactions with distant sequences within the HCV genome [15,18,19,20] (Figure 1A). An apical loop-apical loop interaction has been defined between 5BSL3.2 and the 3'SL2 domain in the 3'UTR that is important in viral RNA synthesis [15]. Further, 5BSL3.2 establishes, through its internal loop, two ALIL (apical loop-internal loop) interactions with structural elements located upstream in the NS5B coding sequence [18], and with the conserved apical loop of domain IIId in the internal ribosomal entry site (IRES) [20]. This last interaction is involved in the regulation of IRES-dependent translation mediated via the 3' end of the viral genome [19]. These data highlight the importance of these conserved genomic RNA domains in the modulation of essential steps of the viral cycle.

RNA molecules, and particularly aptamer RNAs, are good candidates for targeting functional viral RNA domains [21,22,23,24]. Most of the aptamer selection procedures described to date are based on the so-called SELEX (systematic evolution of ligands by exponential enrichment) strategy [25]. These procedures allow the identification of short oligonucleotides—Aptamers—that efficiently bind to a target molecule. The specificity of aptamer molecules resides in their sequence and structure, which allow them to recognize and bind to specific chemical groups in a proper conformation within their ligand molecules. In particular, binding efficiency of aptamers targeting RNA molecules resides in the recognition of the nucleotide sequences and structure of the target RNA domain. Extensive work has been performed with the aim of isolating RNA aptamers that efficiently bind to essential functional domains in viral genomes [26,27,28,29,30,31,32]. However, the use of such molecules as therapeutic agents is yet to be explored.

The present work describes the use of an in vitro selection strategy to isolate RNA aptamers against the HCV-CRE. This method allowed the identification of several potential target sequences within this viral domain and provided a collection of aptamer RNA molecules specific to each. To our knowledge this is the first report describing the selection of aptamers designed to target this region. The testing of the ex vivo functionality of a few selected aptamers confirmed their feasibility as efficient HCV inhibitors as well as the potential of the CRE as a target for new anti-HCV therapeutic strategies.

Pharmaceuticals 05 00049 g001 200
Figure 1. (A) Diagram of the secondary structural elements of the 5' and 3' ends of the HCV genome. ORF indicates the only open reading frame, which is flanked by the 5' and 3' untranslatable regions (UTR). The translation start and stop codons are indicated by an arrow. The main structural domains at the 5' end are numbered I to VI; subdomains are identified by adding a lower case letter (IIIa–IIIf). The representation of the 3' part of the genome includes (from the 3' end): The 3' X-tail region that includes the SLI, SLII and SLIII domains; the polyU stretch [(U)n]; the hypervariable region (HV); the CRE domain, which includes domains 5BSL3.1, 5BSL3.2 and 5BSL3.3 at the 3' end of the coding region; and the stem-loop SL9110. Long range RNA-RNA interactions are depicted by lines. The genomic fragment used as a target for the in vitro selection procedure is shaded in the diagram; (B) The sequence and secondary structure for the HCV-CRE194 genomic RNA fragment used as target. Numbering refers to the nucleotides positions of the HCV Con1 isolate [33]. Motifs complementary to the consensus sequences of the groups of selected aptamer are shown in bold.

Click here to enlarge figure

Figure 1. (A) Diagram of the secondary structural elements of the 5' and 3' ends of the HCV genome. ORF indicates the only open reading frame, which is flanked by the 5' and 3' untranslatable regions (UTR). The translation start and stop codons are indicated by an arrow. The main structural domains at the 5' end are numbered I to VI; subdomains are identified by adding a lower case letter (IIIa–IIIf). The representation of the 3' part of the genome includes (from the 3' end): The 3' X-tail region that includes the SLI, SLII and SLIII domains; the polyU stretch [(U)n]; the hypervariable region (HV); the CRE domain, which includes domains 5BSL3.1, 5BSL3.2 and 5BSL3.3 at the 3' end of the coding region; and the stem-loop SL9110. Long range RNA-RNA interactions are depicted by lines. The genomic fragment used as a target for the in vitro selection procedure is shaded in the diagram; (B) The sequence and secondary structure for the HCV-CRE194 genomic RNA fragment used as target. Numbering refers to the nucleotides positions of the HCV Con1 isolate [33]. Motifs complementary to the consensus sequences of the groups of selected aptamer are shown in bold.
Pharmaceuticals 05 00049 g001 1024

2. Experimental Section

2.1. Construction of the Initial RNA Population

The template for the synthesis of the RNA population was assembled by the annealing and extension of the 5'aptamerCRE—GCTATGAATTCTAATACGACTCACTATAGGGATATTATAGTACATAAAN30aggtagcgaattaaagagtagtc, and the 3'aptamerCRE—CGACTGTCgactactctttaattcgctacct, using an Oligo 3400 DNA Synthesizer (Applied Biosystems, Foster City, CA, USA). The T7 promoter region is underlined, the restriction site for EcoR1 is shown in italics, the lower case letters indicate complementary residues, and N30 denotes 30 consecutive A, G, C or T nucleotides, thus providing for different RNAs. A mixture of 3 nmol of each oligonucleotide was heated at 95 °C for 2 min, followed by slow cooling to room temperature. Full, double-stranded DNA was obtained by extension for 1 h at 37 °C with 2.5 U of the Klenow fragment of DNA polymerase (Fermentas, Burlington, ON, Canada) in the presence of 2.5 mM of each dNTP. It was then PCR-amplified (7 cycles) using Taq DNA polymerase (Biotools B&M Labs, Madrid, Spain) in the presence of the primers 3' PCR-CRE (TCGACTACTCTTTAATTCGCTACCT) and 5' PCR-CRE (GCTATGAATTCTAATACGACTCACTATAGGGATATTATAGTACATAAA). The resulting dsDNA was used as a template for in vitro transcription using the T7 RiboMAXTM transcription kit (Promega, Madison, WI, USA) to yield the initial RNA population.

2.2. Selection of Aptamers

The isolation of active RNA molecules for binding to the viral RNA was performed in a sepharose-streptavidin column (HiTrap Streptavidin HP Columns, Amersham Biosciences GmbH, Uppsala, Sweden) loaded with biotinylated viral HCV-CRE194 RNA fragments. These fragments were obtained by in vitro transcription of the SalI linearised plasmid construct pUC18-T7HCV9181-9371 [20]. The latter plasmid is constructed by cloning the 9181-9371 fragment of HCV con1 isolate of genotype 1b [33] between the EcoRI and SalI restriction sites of the pUC18 vector (Fermentas). HCV-CRE194 was internally biotinylated during its synthesis by adding 188 µM of biotin-16-uridine-5'-triphosphate (biotin-16-UTP, Roche Diagnostics, Molecular Biochemicals, Mannheim, Germany) to the reaction mix. The amount of biotin-modified nucleotide added was calculated to yield approximately one biotin residue per molecule [34]. 38 µmol of the biotinylated viral RNA target were immobilised in the sepharose-streptavidin column following the manufacturer’s instructions. The column was then equilibrated with binding buffer (50 mM Sodium cacodylate, 300 mM KCl with 10 mM MgCl2) and stored at 4 °C until use. Prior to the initial selection step, 6.4 nmol of the RNA population (P0) were passed with binding buffer through a pre-equilibrated column lacking the biotinylated target RNA, and incubated for 30 min at 25 °C, to prevent false-positives due to non-specific binding to the column matrix. Aliquots of 4.5 nmol of the resulting RNA molecules were loaded, in 1 mL of binding buffer, onto the target RNA-prepared column and incubated for 30 min at 25 °C. Unbound molecules were discarded by washing three times with 5 mL and once with 10 mL of cacodylate buffer at 25 °C. All RNA molecules bound to the column were eluted by washing with 10 mL of binding buffer heated at 95 °C. They were then concentrated to 10 µL with Centricon YM-10 (Millipore, Bedford, MA, USA).

2.3. Amplification of Selected Molecules

The eluted, concentrated active RNA molecules were retrotranscribed using SuperScriptTM III reverse transcriptase (Invitrogen, San Diego, CA, USA) in the presence of 10 pmols of 3' PCR primer and 10 mM of each NTP for 1 h at 55 °C. The reaction was stopped by heating for 15 min at 70 °C. cDNA was then amplified with Certamp mix DNA polymerase (Biotools B&M Labs) in the presence of 25 pmol of the 3' PCR-CRE and 5' PCR-CRE primers. The resulting dsDNA product was used as a template for in vitro transcription using the T7 RiboMAXTM transcription kit (Promega), and the resulting RNA population (P1) either subjected to a new selection round or cloned in the pGEMT-Easy vector (Promega) for sequence analysis. Selection conditions were changed between selection cycles by reducing the target:RNA pool ratio from 5:1 to 1:2 as well as increasing the incubation temperature to 37 °C in round 5, and by reducing the ionic strength from 10 mM MgCl2 to 2 mM MgCl2 in round 7. The new conditions were maintained in the following cycles.

2.4. Inhibition Assays of the HCV Replication

HCV replication assays were performed using a human hepatocarcinoma cell line harbouring an HCV subgenomic replicon system (Huh-7 NS3-3'; [33,35]) as previously reported [19,31]. Cell monolayers were maintained in Dulbecco’s modified Eagle’s medium (DMEM) supplemented with 20% heat-inactivated foetal bovine serum (FBS, Invitrogen) and 0.5 mg mL−1 G-418 at 37 °C in a 5% CO2 atmosphere. Twenty hours before transfections, ~80,000 cells were seeded onto a 24 well plate in DMEM supplemented with 20% FBS. Cells were transfected using TransFectinTM lipid reagent (Bio-Rad) plus 3 µg of the aptamer RNA molecule, and harvested 20 h post-transfection. Viral HCV RNA was quantified by real time RT-PCR as previously described [31]. Briefly, 20 ng of total intracellular RNA extracted with Trizol (performed following the manufacturer’s instructions) were reverse-transcribed with the High Capacity cDNA Reverse Transcription Kit (Applied Biosystems). cDNA was diluted with Taqman Gene Expression Master Mix (Applied Biosystems) and amplified by PCR over 40 cycles (15 s a 94 °C and 1 min at 60 °C) with specific oligonucleotides C-149 and C-342 [36]. The fluorogenic Taqman probe (FT-275) was added to the PCR mixture to a final concentration of 150 nM [36]. Quantification of the mRNA GAPDH was performed with the Human GAPD (GAPDH) Endogenous Control kit (Applied Biosystems). Reactions were run in an ABI PRISM 7000 Sequence Detector System (Applied Biosystems). Data were analysed using ABI PRISM 7000 SDS software v.1.1 (Applied Biosystems).

3. Results and Discussion

3.1. In Vitro Selection for Aptamers Targeting the HCV-CRE

The starting RNA population (P0) consisted of 75 nt-long RNA molecules containing a 30 nt-long variable region flanked by fixed sequences that act as primer binding sequences necessary for the amplification of active molecules (see Experimental Section). Although the design of the initial population could have yielded a theoretical sequence heterogeneity of more than 1 × 1018 sequence variants, the experimental constraints limited the number to 1 × 1015. P0 RNA molecules were binding-challenged against the internally biotinylated HCV-CRE194, a 194 nt-long RNA fragment of the HCV 1b genome (Figure 1B), fixed to the sepharose-streptavidin column. Only molecules able to bind to the target viral RNA were introduced into a new selection cycle following their consecutive retrotranscription, amplification and transcription (Figure 2). This selection process was repeated for nine rounds, with the stringency of selection increased from the fifth generation by modifying the different experimental variables as described in Experimental Section. A fraction of the amplified cDNA population resulting from generations 6–9 was used for cloning and sequence analysis.

Pharmaceuticals 05 00049 g002 200
Figure 2. Diagram of the in vitro selection procedure. Details of the protocol are given in the Experimental Section. T7P, sequence promoter of the bacteriophage T7 RNA polymerase; PBS, Primer binding site.

Click here to enlarge figure

Figure 2. Diagram of the in vitro selection procedure. Details of the protocol are given in the Experimental Section. T7P, sequence promoter of the bacteriophage T7 RNA polymerase; PBS, Primer binding site.
Pharmaceuticals 05 00049 g002 1024

3.2. Sequence Analysis of Selected RNA Molecules

The molecules that bound to the HCV-CRE194 viral RNA after six rounds of selection (P6) were cloned. Sequence analysis of 43 clones allowed the identification of selected sequence motifs common to several molecules; these were used to classify the selected molecules into five different groups or families (Figure 3). Some selected aptamers shared more than one consensus sequence; they were therefore classifiable as members of different aptamer groups. No strong bias was observed for the localization of the consensus sequence in the variable region. Similarly, no sequence bias was observed for any other nucleotide of the variable region outside of a consensus motif. As expected, sequence analysis of the HCV-CRE194 sequence revealed that each of the selected consensus sequences was complementary to a defined domain within the viral target (Figure 1B). These results suggest that each of the selected consensus motifs are involved in binding the HCV-CRE194, with the complementary sequence within the viral RNA the most plausible target. The selected putative target sequences, ordered from 5' to 3' within the HCV-CRE sequence, were mapped to nucleotide positions 9205 to 9209 at the 5' of the 5BSL3.1 domain for aptamer group 1; to nucleotides 9284 to 9288 at the apical loop of 5BSL3.2 and 9297 to 9301 at the internal loop of 5BSL3.2 for aptamer groups 2 and 3 respectively; to nucleotides 9314 to 9318 at the linker between 5BSL3.2 and 5BSL3.3 for aptamer group 4; and to nucleotides 9364 to 9369 at the 3' of the 5BSL3.3 domain for aptamer group 5 (Figure 1B). It is interesting to note that both the apical and the internal loop of the 5BSL3.2 domain have been previously shown involved in long distant RNA-RNA interactions with other regions of the HCV genome [15,18,19,20]. The identification of both sequences as potential targets confirms this selection procedure to be a powerful tool for the identification of RNA targets prone to interact with other RNA sequences. RNA probing assays are currently being planned at our laboratory to confirm the involvement of the complementary RNA sequence motifs in viral genome-aptamer binding.

Sequence analysis of the cDNA libraries of active molecules resulting from the P7, P8 and P9 selection rounds identified no significant qualitative changes that might alter the aptamer consensus sequences arrived at in P6 (data not shown). None of the identified consensus sequences were counter selected neither new consensus motifs were selected from P7 to P9. Nevertheless, this analysis was able to identify consensus sequences extended by 1 or 2 nucleotides, and clarified nucleotides whose identity remained ambiguous in the P6 round (Figure 3). Thus, the 5 nt-long consensus sequence 5' RGUGR 3' associated with the group 1 aptamers was redefined as the 6 nt-long consensus sequence 5' RGUGRR 3' seen in the P8 population. Similarly, the 5' GGYUG 3' consensus of the group 2 aptamers became 5' GGYUGUG 3' in generation P8, and the 5' YGGGNR 3' of group 3 became 5' YGGGYR 3'. Finally, the 5' GUGUG 3' consensus sequence for the group 4 aptamers became the 6 nt-long 5' YGUGUG 3'. No changes were observed in the group 5 aptamer consensus sequence. In all cases the redefined consensus sequence matched an extension of the corresponding putative target within the viral RNA. These results indicate that the selection of aptamers and their targets had been achieved in round six, and the higher selection stringency in later rounds have allowed the definition of greater sequence requirements on the aptamer sequences.

3.3. Inhibition of HCV Replication by Selected Aptamers in Cell Culture

To test the inhibitory activity of the selected molecules on HCV replication, and therefore to evaluate their therapeutic potential, Huh-7 cells that allow the autonomous replication of a subgenomic HCV 1b Con1 replicon were independently transfected with representative aptamers of each selected group, and the number of positive HCV strands quantified by real time RT-PCR at 20 h (see Experimental Section). Transfection with a non-related RNA of similar length was used as an internal experimental control. A total of 16 aptamers were tested (Table 1), all isolated during selection cycles P6 to P9. These aptamers represented specific groups, although some shared more than one consensus sequence. Figure 4 shows that most of these aptamers reduced the number of subgenomic replicon RNA copies (maximum 83% for aptamer P6-45) compared to those seen in control cells. The degree of inhibition exerted seems to be independent of the putative target site within the HCV-CRE. Interestingly, the most efficient inhibitors (P6-45 and P9-8) theoretically target different sequence motifs, P6-45 has two potential target sites located at the 5' of both 5BSL3.1 and 3.3 domains and P9-8 a unique site at the 3' of the CRE region. Additional experimental work is required to clearly determine the secondary structure of the aptamers and identify their target sequences, and the nucleotides involved in binding. Knowing the binding capacity of the different aptamers may help explain their inhibitory capacity. In any event, the present results demonstrate the potential of in vitro selection strategies for identifying RNA molecules as tools for the development of anti-HCV aptamers and to identify potential viral therapeutic targets

Pharmaceuticals 05 00049 g003 200

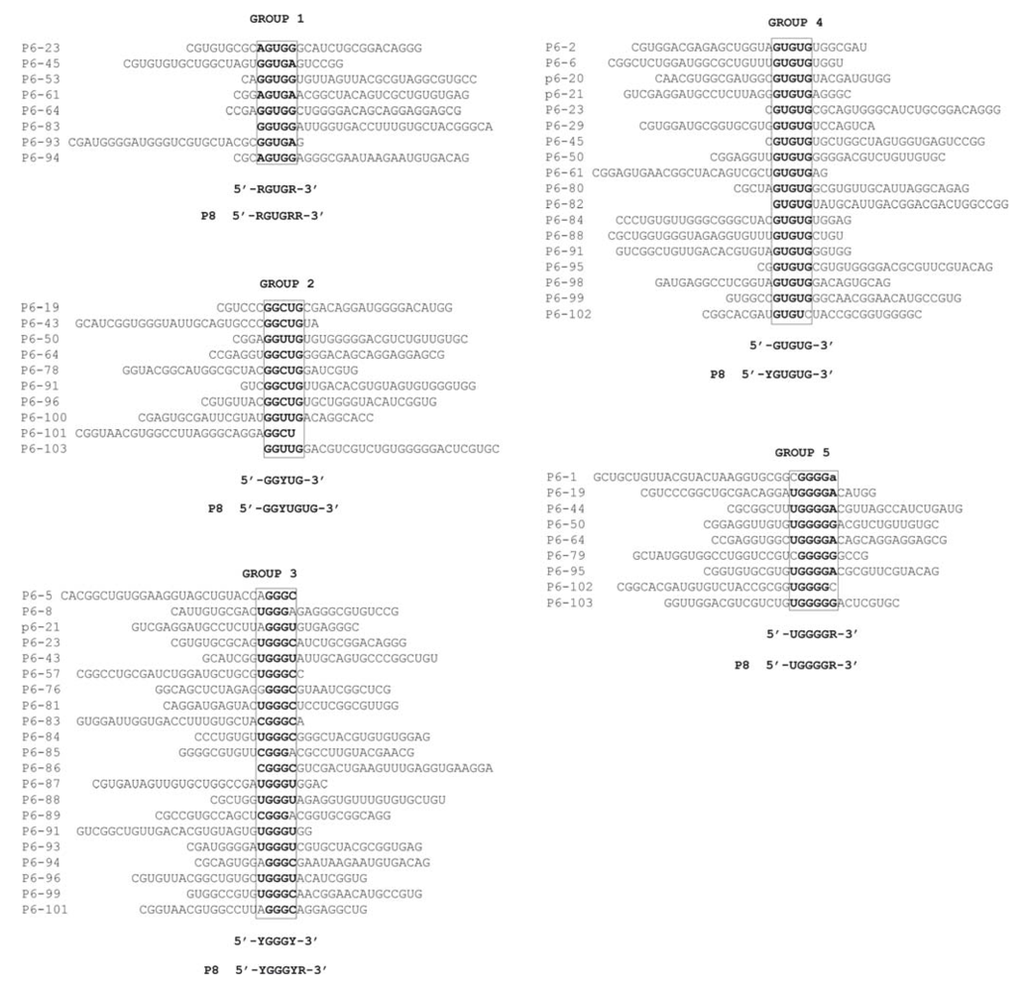

Figure 3. Sequence of the P6 RNA aptamers against HCV-CRE. Only sequences of the 30 nt-long random RNA motif are shown, grouped according to a common sequence shown in bold. Sequences are all aligned according to the position of the common sequence motif shown boxed. The defined consensus sequences from P6 and P8 are shown below each group. R: G or A; Y: C or U.

Click here to enlarge figure

Figure 3. Sequence of the P6 RNA aptamers against HCV-CRE. Only sequences of the 30 nt-long random RNA motif are shown, grouped according to a common sequence shown in bold. Sequences are all aligned according to the position of the common sequence motif shown boxed. The defined consensus sequences from P6 and P8 are shown below each group. R: G or A; Y: C or U.
Pharmaceuticals 05 00049 g003 1024
Table Table 1. Representative RNA aptamers assayed for their ex vivo inhibition of HCV replication.

Click here to display table

Table 1. Representative RNA aptamers assayed for their ex vivo inhibition of HCV replication.
GroupAptamerSequence *
I
(5'-RGUGRR-3'
P8-27 Pharmaceuticals 05 00049 i001
P9-39 Pharmaceuticals 05 00049 i002
I y IVP6-45 Pharmaceuticals 05 00049 i003
II
5'-GGYUGUG-3'
P7-54 Pharmaceuticals 05 00049 i004
P9-34 Pharmaceuticals 05 00049 i005
II y IVP6-91 Pharmaceuticals 05 00049 i006
III
5'-YGGGYR-3'
P7-14 Pharmaceuticals 05 00049 i007
P8-65 Pharmaceuticals 05 00049 i008
P8-68 Pharmaceuticals 05 00049 i009
P8-71 Pharmaceuticals 05 00049 i010
III y IVP6-99 Pharmaceuticals 05 00049 i011
P9-15 Pharmaceuticals 05 00049 i012
IV
5'-YGUGUG-3'
P6-2 Pharmaceuticals 05 00049 i013
P6-20 Pharmaceuticals 05 00049 i014
P9-37 Pharmaceuticals 05 00049 i015
V
5'-UGGGGR-3'
P9-8 Pharmaceuticals 05 00049 i016

* Sequence of the variable region is shown. Common sequence is highlighted in grey for group I aptamers, in blue for group II aptamers, boxed for group III aptamers, highlighted in green for group IV aptamers and in red for group V aptamers.

Pharmaceuticals 05 00049 g004 200

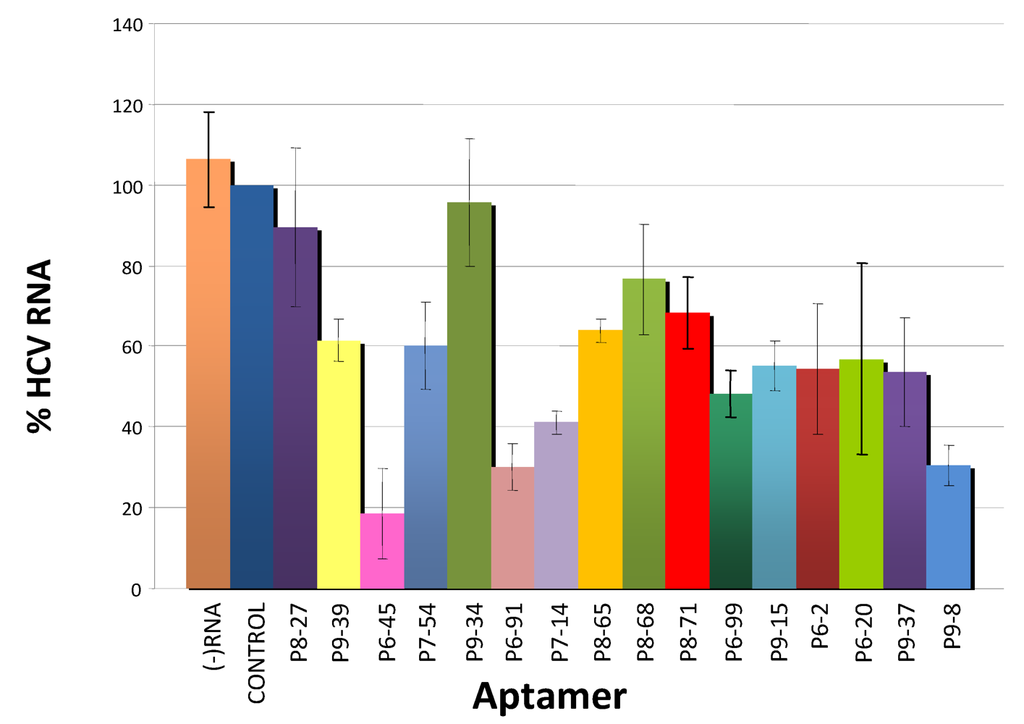

Figure 4. Inhibition of subgenomic HCV replicon replication in Huh-7 cells. Huh-7 cells that permit the autonomous replication of subgenomic HCV replicons, were transfected with 3 μg of the different aptamers (independently). Viral RNA was isolated and quantified as described in Experimental Section. The bar chart shows the (+) strand HCV RNA levels normalized to the value obtained with the control RNA, an 80 nt-long unrelated RNA used as an internal control. (−) RNA, cells treated with TransFectinTM in the absence of any RNA. Values are the mean of at least 4 independent experiments.

Click here to enlarge figure

Figure 4. Inhibition of subgenomic HCV replicon replication in Huh-7 cells. Huh-7 cells that permit the autonomous replication of subgenomic HCV replicons, were transfected with 3 μg of the different aptamers (independently). Viral RNA was isolated and quantified as described in Experimental Section. The bar chart shows the (+) strand HCV RNA levels normalized to the value obtained with the control RNA, an 80 nt-long unrelated RNA used as an internal control. (−) RNA, cells treated with TransFectinTM in the absence of any RNA. Values are the mean of at least 4 independent experiments.
Pharmaceuticals 05 00049 g004 1024

4. Conclusions

This work reports the selection of aptamers, belonging to five different groups, which appear to interact with complementary sequences in the HCV-CRE domain. Representative aptamers showed potent (>80%) inhibition of the replication of HCV replicons, thus demonstrating their potential as antiviral agents. These results confirm the feasibility of using conserved structural RNA genomic domains as targets in new therapeutic strategies.

Acknowledgements

We thank Cristina Romero-López for very helpful discussion and Vicente Augustin for excellent technical assistance. This work was supported by grant BFU2009-08137 from the Spanish Ministerio de Ciencia e Innovación, CTS-5077 from the Junta de Andalucía, and 200420E632 from the Spanish National Research Council (CSIC) to A.B.-H. Work at our laboratory is also partially supported by FEDER funds from the EU. S.M. is the recipient of a fellowship from the Spanish Ministerio de Asuntos Exteriores y de Cooperación. B.B.-H. was funded by grant CTS-5077 from the Junta de Andalucía. E.G. and F.J.C. are recipients of a Jae-Intro fellowship from the CSIC.

References and Notes

  1. Choo, Q.L.; Kuo, G.; Weiner, A.J.; Overby, L.R.; Bradley, D.W.; Houghton, M. Isolation of a cDNA clone derived from a blood-borne non-A, non-B viral hepatitis genome. Science 1989, 244, 359–362.
  2. Poynard, T.; Yuen, M.F.; Ratziu, V.; Lai, C.L. Viral hepatitis C. Lancet 2003, 362, 2095–2100.
  3. Fried, M.W.; Shiffman, M.L.; Reddy, K.R.; Smith, C.; Marinos, G.; Goncales, F.L., Jr.; Haussinger, D.; Diago, M.; Carosi, G.; Dhumeaux, D.; et al. Peginterferon alfa-2a plus ribavirin for chronic hepatitis C virus infection. N. Engl. J. Med. 2002, 347, 975–982, doi:10.1056/NEJMoa020047.
  4. Domingo, E.; Gómez, J. Quasispecies and its impact on viral hepatitis. Virus Res. 2007, 127, 131–150, doi:10.1016/j.virusres.2007.02.001.
  5. Bukh, J.; Purcell, R.H.; Miller, R.H. Sequence analysis of the 5' noncoding region of hepatitis C virus. Proc. Natl. Acad. Sci. USA 1992, 89, 4942–4946.
  6. Friebe, P.; Bartenschlager, R. Genetic analysis of sequences in the 3' nontranslated region of hepatitis C virus that are important for RNA replication. J. Virol. 2002, 76, 5326–5338, doi:10.1128/JVI.76.11.5326-5338.2002.
  7. Friebe, P.; Lohmann, V.; Krieger, N.; Bartenschlager, R. Sequences in the 5' nontranslated region of hepatitis C virus required for RNA replication. J. Virol. 2001, 75, 12047–12057.
  8. Kolykhalov, A.A.; Mihalik, K.; Feinstone, S.M.; Rice, C.M. Hepatitis C virus-encoded enzymatic activities and conserved RNA elements in the 3' nontranslated region are essential for virus replication in vivo. J. Virol. 2000, 74, 2046–2051.
  9. Tsukiyama-Kohara, K.; Iizuka, N.; Kohara, M.; Nomoto, A. Internal ribosome entry site within hepatitis C virus RNA. J. Virol. 1992, 66, 1476–1483.
  10. Wang, C.; Sarnow, P.; Siddiqui, A. Translation of human hepatitis C virus RNA in cultured cells is mediated by an internal ribosome-binding mechanism. J. Virol. 1993, 67, 3338–3344.
  11. Yi, M.; Lemon, S.M. 3' nontranslated RNA signals required for replication of hepatitis C virus RNA. J. Virol. 2003, 77, 3557–3568, doi:10.1128/JVI.77.6.3557-3568.2003.
  12. Yi, M.; Lemon, S.M. Structure-function analysis of the 3' stem-loop of hepatitis C virus genomic RNA and its role in viral RNA replication. RNA 2003, 9, 331–345, doi:10.1261/rna.2144203.
  13. Lee, H.; Shin, H.; Wimmer, E.; Paul, A.V. cis-Acting RNA signals in the NS5B C-terminal coding sequence of the hepatitis C virus genome. J. Virol. 2004, 78, 10865–10877, doi:10.1128/JVI.78.20.10865-10877.2004.
  14. You, S.; Stump, D.D.; Branch, A.D.; Rice, C.M. A cis-acting replication element in the sequence encoding the NS5B RNA-dependent RNA polymerase is required for hepatitis C virus RNA replication. J. Virol. 2004, 78, 1352–1366.
  15. Friebe, P.; Boudet, J.; Simorre, J.P.; Bartenschlager, R. Kissing-loop interaction in the 3' end of the hepatitis C virus genome essential for RNA replication. J. Virol. 2005, 79, 380–392.
  16. You, S.; Rice, C.M. 3' RNA elements in hepatitis C virus replication: Kissing partners and long poly(U). J. Virol. 2008, 82, 184–195, doi:10.1128/JVI.01796-07.
  17. Zhang, J.; Yamada, O.; Sakamoto, T.; Yoshida, H.; Araki, H.; Murata, T.; Shimotohno, K. Inhibition of hepatitis C virus replication by pol III-directed overexpression of RNA decoys corresponding to stem-loop structures in the NS5B coding region. Virology 2005, 342, 276–285, doi:10.1016/j.virol.2005.08.003.
  18. Diviney, S.; Tuplin, A.; Struthers, M.; Armstrong, V.; Elliott, R.M.; Simmonds, P.; Evans, D.J. A hepatitis C virus cis-acting replication element forms a long-range RNA-RNA interaction with upstream RNA sequences in NS5B. J. Virol. 2008, 82, 9008–9022.
  19. Romero-López, C.; Berzal-Herranz, A. The functional RNA domain 5BSL3.2 within the NS5B coding sequence influences hepatitis C virus IRES-mediated translation. Cell. Mol. Life Sci. 2011.
  20. Romero-López, C.; Berzal-Herranz, A. A long-range RNA-RNA interaction between the 5' and 3' ends of the HCV genome. RNA 2009, 15, 1740–1752, doi:10.1261/rna.1680809.
  21. Marton, S.; Reyes-Darias, J.A.; Sánchez-Luque, F.J.; Romero-López, C.; Berzal-Herranz, A. In vitro and ex vivo selection procedures for identifying potentially therapeutic DNA and RNA molecules. Molecules 2010, 15, 4610–4638.
  22. Puerta-Fernández, E.; Romero-López, C.; Barroso-delJesus, A.; Berzal-Herranz, A. Ribozymes: Recent advances in the development of RNA tools. FEMS Microbiol. Rev. 2003, 27, 75–97, doi:10.1016/S0168-6445(03)00020-2.
  23. Romero-López, C.; Sánchez-Luque, F.J.; Berzal-Herranz, A. Targets and tools: Recent advances in the development of anti-HCV nucleic acids. Infect. Disord. Drug Targets 2006, 6, 121–145, doi:10.2174/187152606784112182.
  24. Toulme, J.J.; Darfeuille, F.; Kolb, G.; Chabas, S.; Staedel, C. Modulating viral gene expression by aptamers to RNA structures. Biol. Cell 2003, 95, 229–238, doi:10.1016/S0248-4900(03)00036-4.
  25. Tuerk, C.; Gold, L. Systematic evolution of ligands by exponential enrichment: RNA ligands to bacteriophage T4 DNA polymerase. Science 1990, 249, 505–510.
  26. Ducongè, F.; Toulme, J.J. In vitro selection identifies key determinants for loop-loop interactions: RNA aptamers selective for the TAR RNA element of HIV-1. RNA 1999, 5, 1605–1614, doi:10.1017/S1355838299991318.
  27. Fukuda, K.; Toyokawa, Y.; Kikuchi, K.; Konno, K.; Ishihara, R.; Fukazawa, C.; Nishikawa, S.; Hasegawa, T. Isolation of RNA aptamers specific for the 3' X tail of HCV. Nucleic Acids Symp. Ser. (Oxf.) 2008, 2, 205–206.
  28. Kikuchi, K.; Umehara, T.; Fukuda, K.; Kuno, A.; Hasegawa, T.; Nishikawa, S. A hepatitis C virus (HCV) internal ribosome entry site (IRES) domain III-IV-targeted aptamer inhibits translation by binding to an apical loop of domain IIId. Nucleic Acids Res. 2005, 33, 683–692.
  29. Kolb, G.; Reigadas, S.; Castanotto, D.; Faure, A.; Ventura, M.; Rossi, J.J.; Toulme, J.J. Endogenous expression of an anti-TAR aptamer reduces HIV-1 replication. RNA Biol. 2006, 3, 150–156, doi:10.4161/rna.3.4.3811.
  30. Romero-López, C.; Díaz-González, R.; Berzal-Herranz, A. Inhibition of hepatitis C virus internal ribosome entry site-mediated translation by an RNA targeting the conserved IIIf domain. Cell. Mol. Life Sci. 2007, 64, 2994–3006, doi:10.1007/s00018-007-7345-y.
  31. Romero-López, C.; Díaz-González, R.; Barroso-delJesus, A.; Berzal-Herranz, A. Inhibition of hepatitis C virus replication and internal ribosome entry site-dependent translation by an RNA molecule. J. Gen. Virol. 2009, 90, 1659–1669, doi:10.1099/vir.0.008821-0.
  32. Tallet-Lopez, B.; Aldaz-Carroll, L.; Chabas, S.; Dausse, E.; Staedel, C.; Toulme, J.J. Antisense oligonucleotides targeted to the domain IIId of the hepatitis C virus IRES compete with 40S ribosomal subunit binding and prevent in vitro translation. Nucleic Acids Res. 2003, 31, 734–742, doi:10.1093/nar/gkg139.
  33. Lohmann, V.; Korner, F.; Koch, J.; Herian, U.; Theilmann, L.; Bartenschlager, R. Replication of subgenomic hepatitis C virus RNAs in a hepatoma cell line. Science 1999, 285, 110–113, doi:10.1126/science.285.5424.110.
  34. Theissen, G.; Richter, A.; Lukacs, N. Degree of biotinylation in nucleic acids estimated by a gel retardation assay. Anal. Biochem. 1989, 179, 98–105.
  35. Larrea, E.; Aldabe, R.; Molano, E.; Fernandez-Rodriguez, C.M.; Ametzazurra, A.; Civeira, M.P.; Prieto, J. Altered expression and activation of signal transducers and activators of transcription (STATs) in hepatitis C virus infection: In vivo and in vitro studies. Gut 2006, 55, 1188–1196.
  36. Martell, M.; Gómez, J.; Esteban, J.I.; Sauleda, S.; Quer, J.; Cabot, B.; Esteban, R.; Guardia, J. High-throughput real-time reverse transcription-PCR quantitation of hepatitis C virus RNA. J. Clin. Microbiol. 1999, 37, 327–332.
